ADITYA TAGAD| ARCHITECTURE PORTFOLIO | KRVIA

PORTFOLIO.

ADITYA TAGAD

SELECTED WORKS 2020-23 ARCHITECTURE UNDERGRADUATE KRVIA

ADITYA RAMESH TAGAD

Flat No.102, Dream Square, Pawan Nagar, Savedi, Ahmednagar - 414003

aditya.tagad@krvia.ac.in

(+91) 915-632-4155

aditya._.tagad, myself_art_20

EDUCATION

CBSE- Yashshree Academy, Dhangarwadi, Ahmednagar. Completed secondary education at this school.

HSC- Pemraj Sarda College, Ahmednagar

Completed higher education at this college.

Undergraduate- Bachelor of Architecture

Kamla Raheja Vidhyanidhi Institute for Architecture and Environmental Studies, J.V.P.D. Scheme,Mumbai

Currently studying to gain a bachelor’s degree in architecture. Anticipated graduation 2025.

SKILLS

3D Modelling

Sketchup

Revit

Rhinoceros

AutoCAD Learning

Blender

Unreal Engine 3DS Max

Grasshoper 3D

Rendering

Lumion

V-Ray

Revit

Post Production

Photoshop

Illustrator

InDesign

Procreate

Autodesk Sketchbook

ALLIED ELECTIVES

Selfie Atmosphere (Beholding a Place) with Mansi Bhatt ( II Year )

In Defence of Food with Shirish Joshi & George Jacob( II Year )

Semantics + Tectonics + Architecture with Ainsley Lewis( III Year )

2D Drafting

Autocad

PLACES DOCUMENTATION

Bhopal, Madhya Pradesh

Chidambaram,Tamil Nadu

Indore, Madhya Pradesh

Others

Powerpoint

Microsoft Office

Elsewhere is a Dissent with Anubhav Borgohain( III Year )

Exploring Synergy

Bhavin Nagda( IV Year )

INTERESTS

Sketching/Painting

Cinematography

Photography

Travel

Trekking Music

ACHIEVEMENTS

Marathi

Game of Shades, Impressions 2021, COEP, Pune- 1st Prize in Portrait Competition

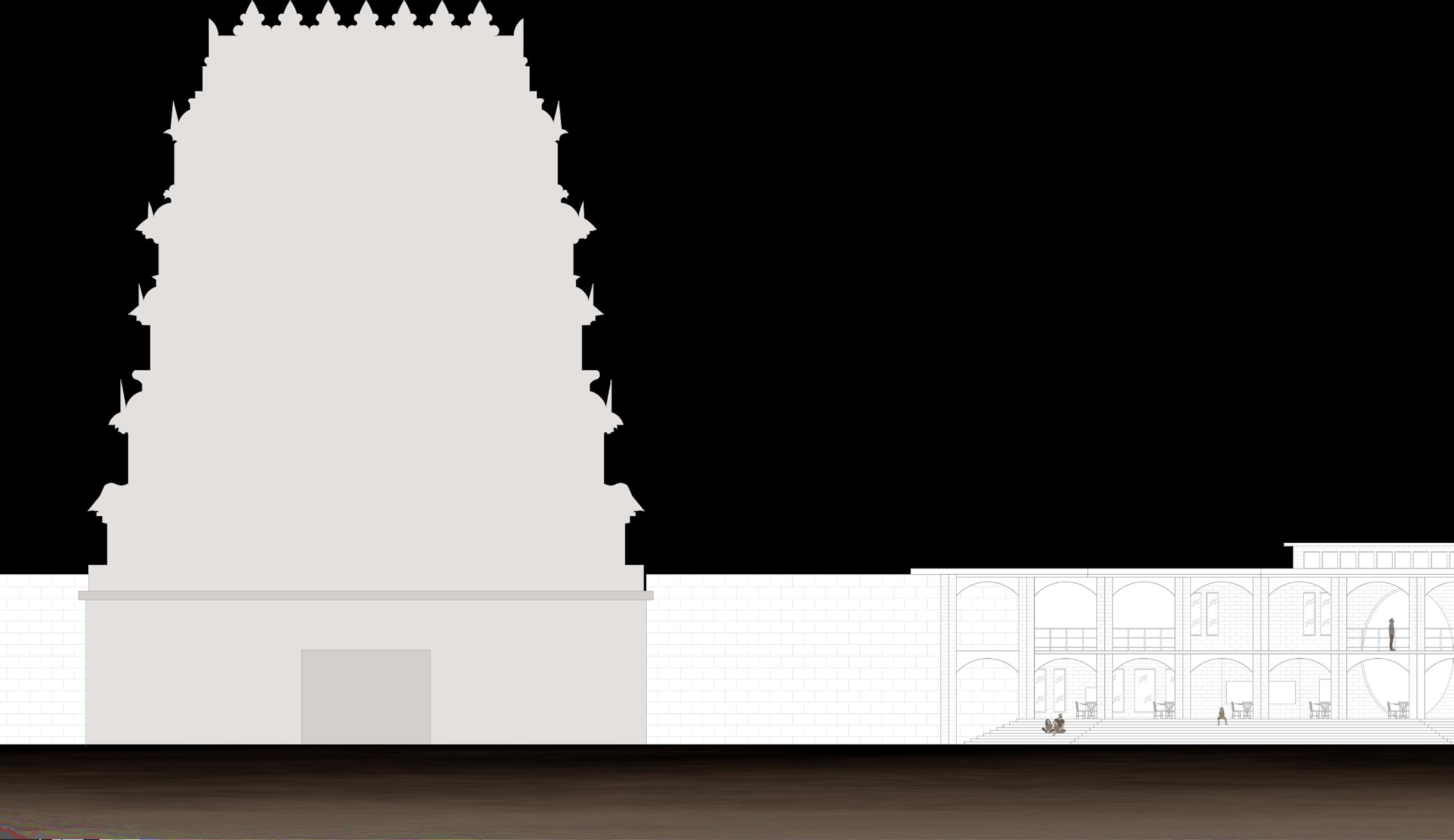

VEDA PALLI

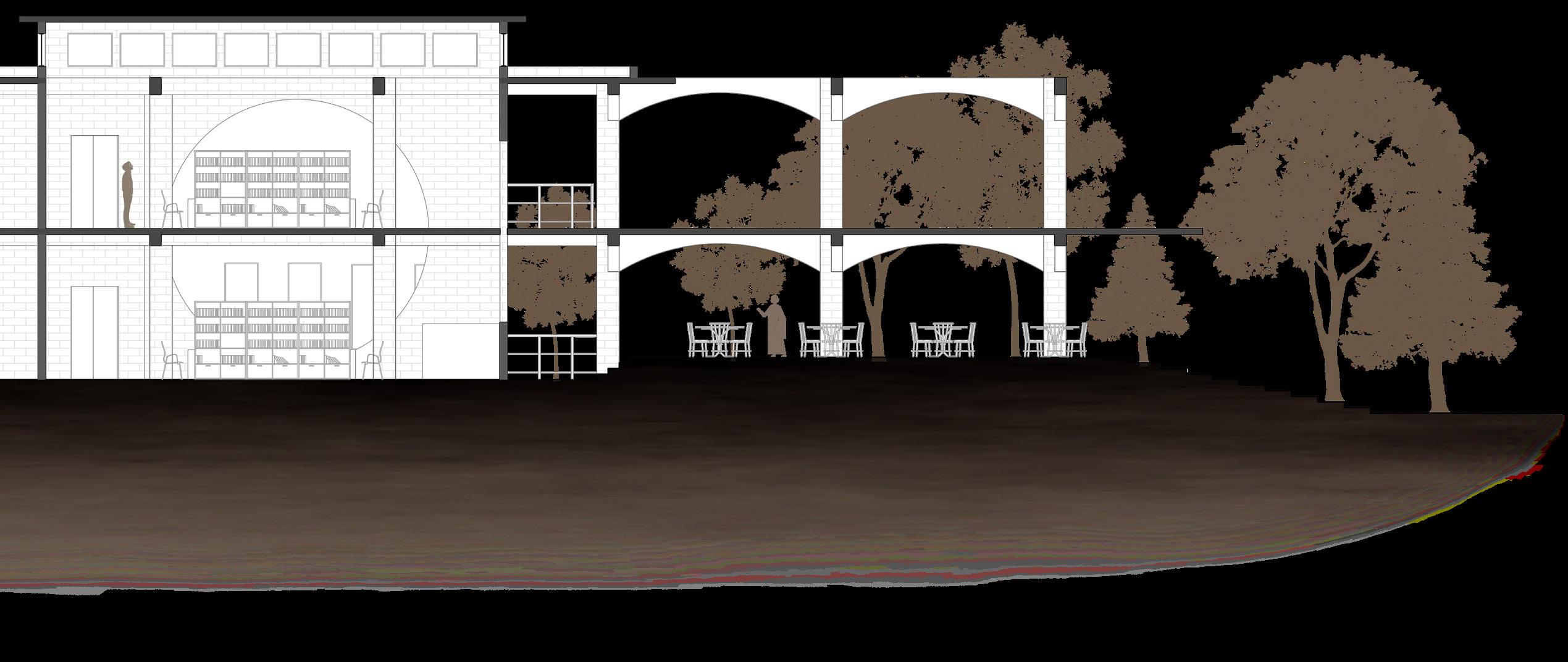

LOCATION : NATARAJA TEMPLE, CHIDAMBARAM, TAMIL NADU. TYPE : INSTITUTIONAL BUILDING FACULTY : ROHAN SHIVKUMAR, VINEET | SEM VI

The Vedas, ancient Hindu texts, are categorized into four collections: Rigveda, Yajurveda, Samaveda, and Atharvaveda, containing hymns and rituals dedicated to deities. Additional essential Vedic texts include Upanishads, Brahmanas, and Aranyakas, impacting Indian thought. Archaeological proof like inscriptions and manuscripts reinforces Vedic literature’s existence.

Program:

Palli (school) for comprehensive Vedic learning, mainly for Diksheetars’ children. Expertled discourses and workshops offer in-depth insights. Yoga and meditation, integral to Vedic tradition, aid comprehension. A vast Vedic library housesW foundational texts, commentaries, and translations. Chanting, preserving original Vedic form and energy, involves distinct melodies for spiritual enhancement. Repetition aids memorization. Mindful chanting fosters spiritual connection and mindfulness, deepening divine interaction.

The Chidambaram Temple is distinctive due to its management system. Owned by a group of Brahmins known as Diksheethars, the temple lacks traditional endowments or allowances. The Diksheethar count has reduced from 3000 to 360 over time. The formal governing body, “Podu Diksheethars,” safeguards and administers the temple, where only Diksheethars can conduct worship. Efforts by the government since the 1960s aim to assume temple administration for tourism and commercial purposes. However, Diksheethars have consistently demonstrated their capability in management. To retain ownership, they need a unique strategy that differentiates them from the government’s approach. One potent approach is establishing a platform where the essence of traditional scriptures and the history of Diksheethars are comprehended and taught, rather than rote learning. This initiative could become their distinctive strength, setting them apart from government actions and securing their ownership rights.

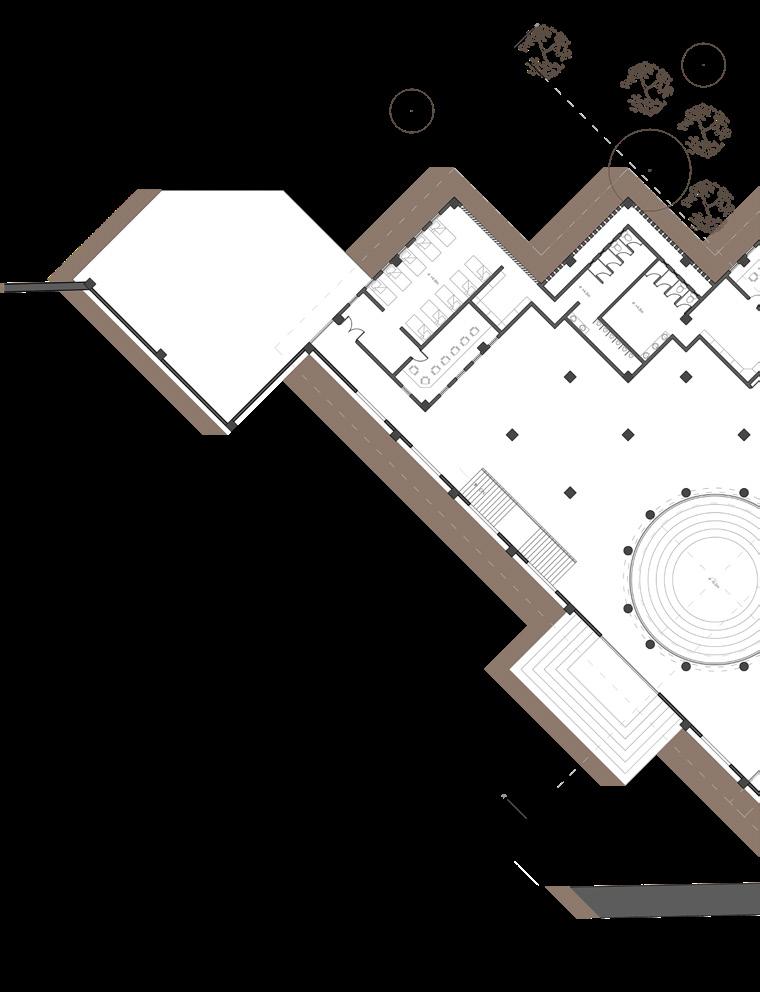

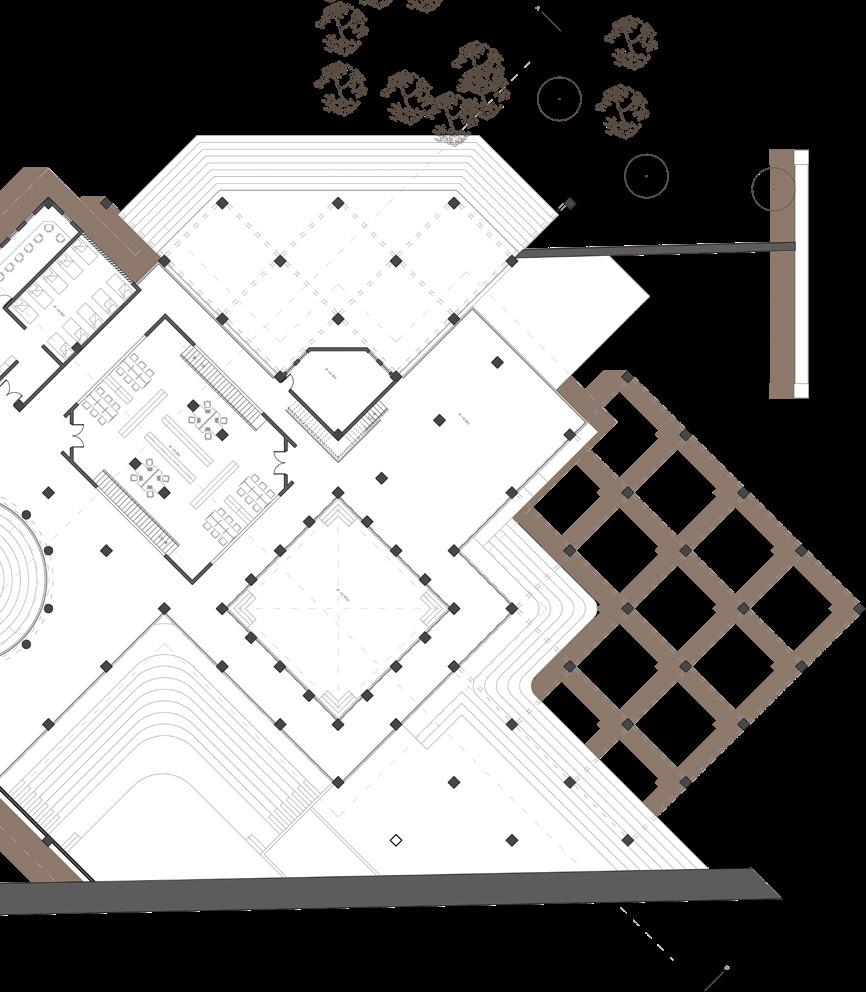

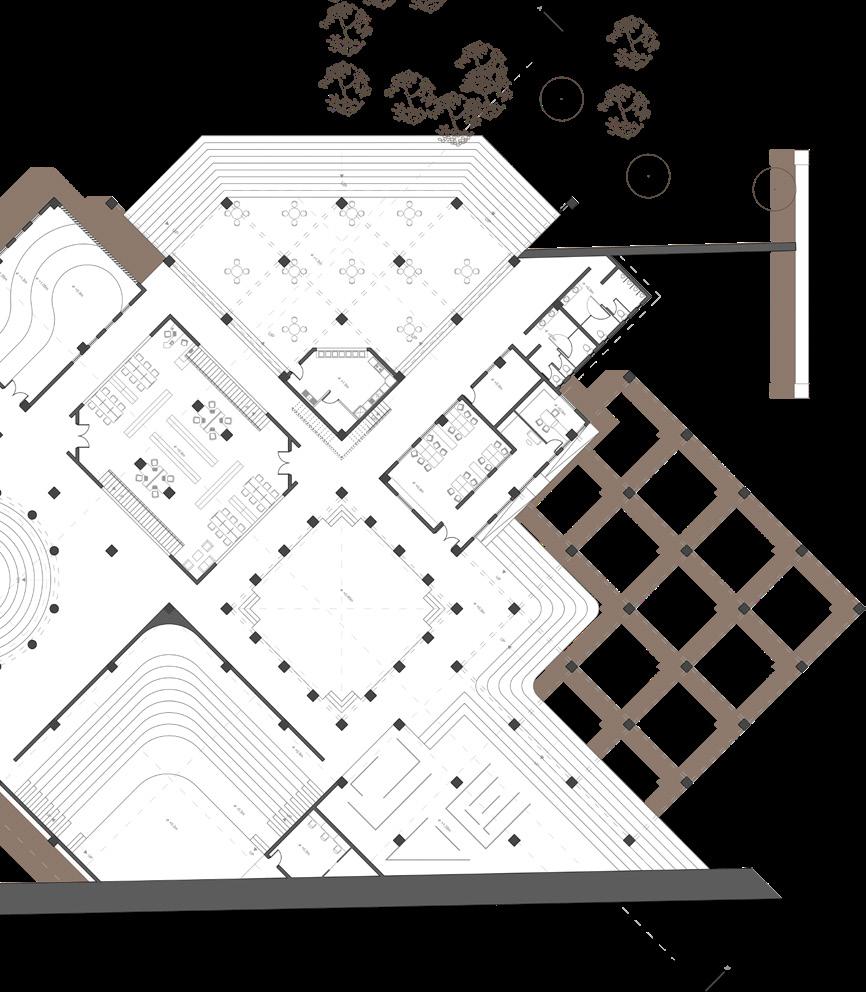

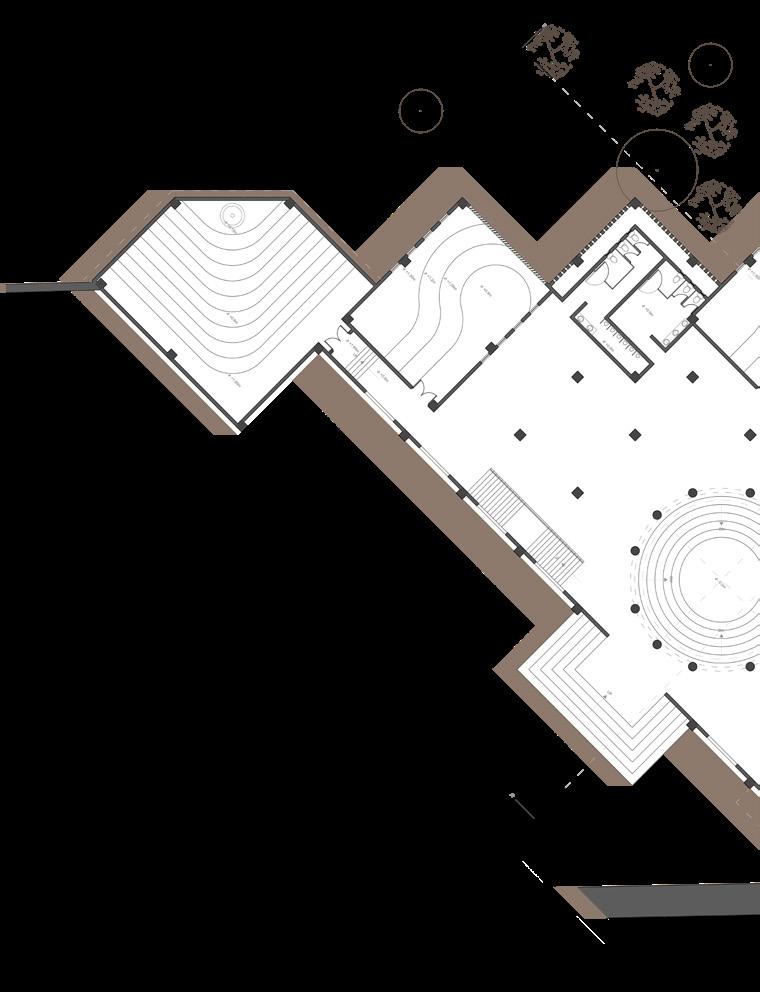

GROUND FLOOR PLAN

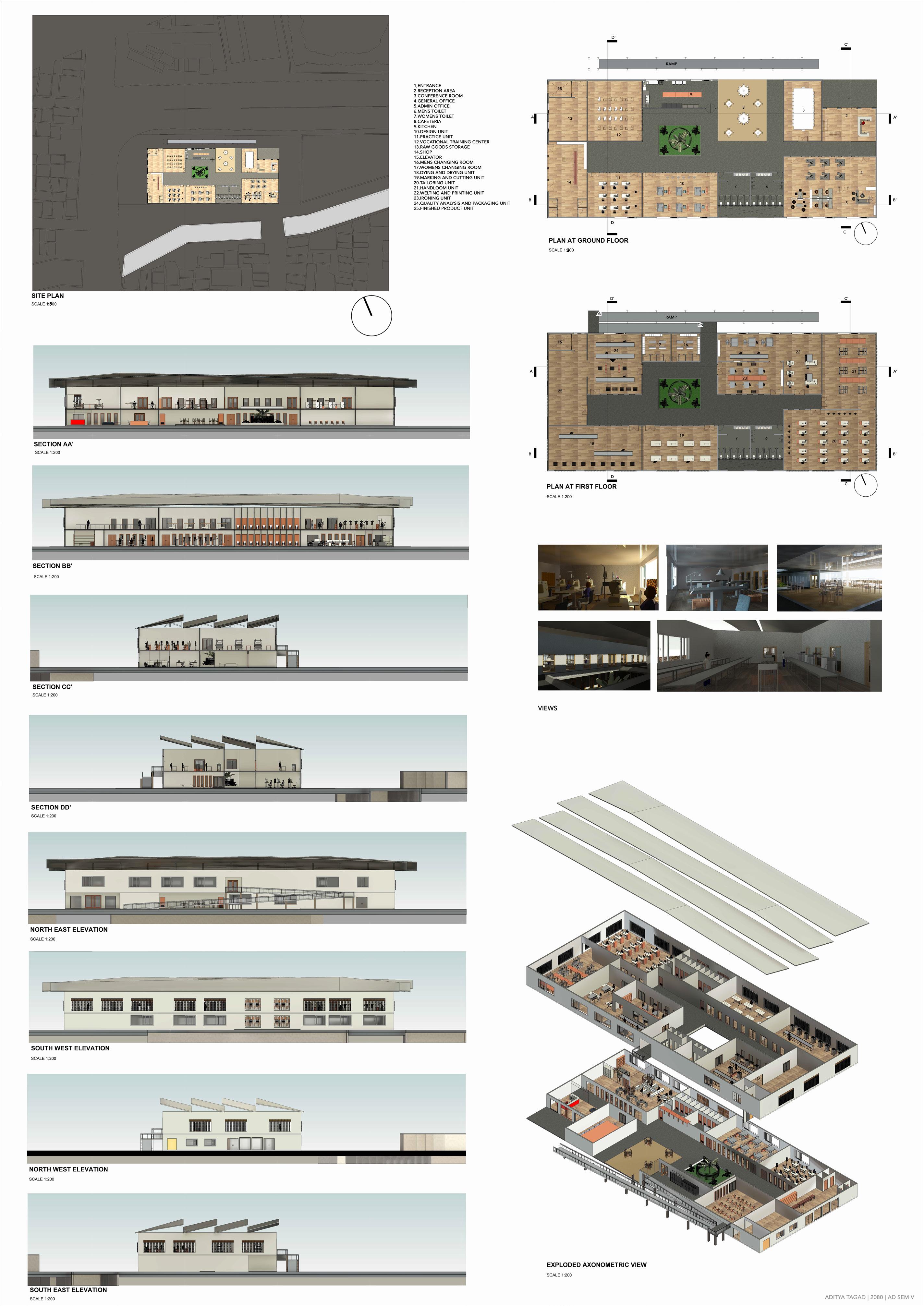

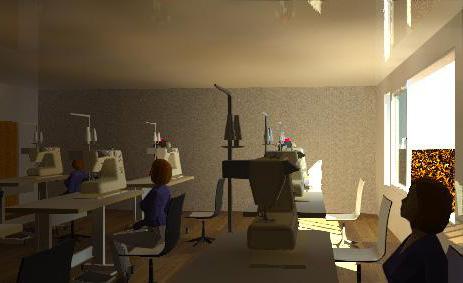

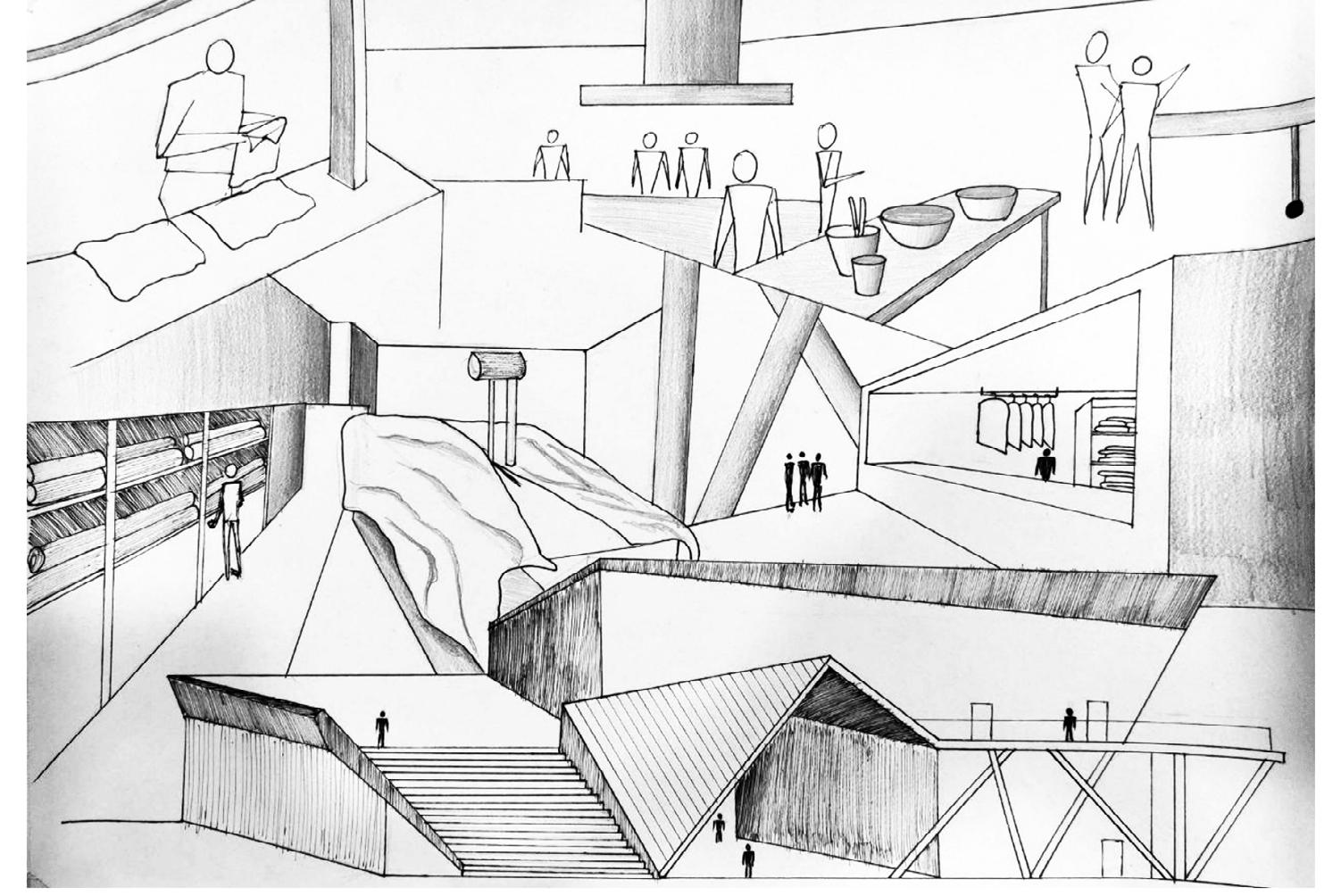

TAILORING INSTITUTE

LOCATION : GOVANDI, MUMBAI, MAHARASHTRA

TYPE : INSTITUTIONAL BUILDING

FACULTY : SHAIL BAJARIA | SEM V

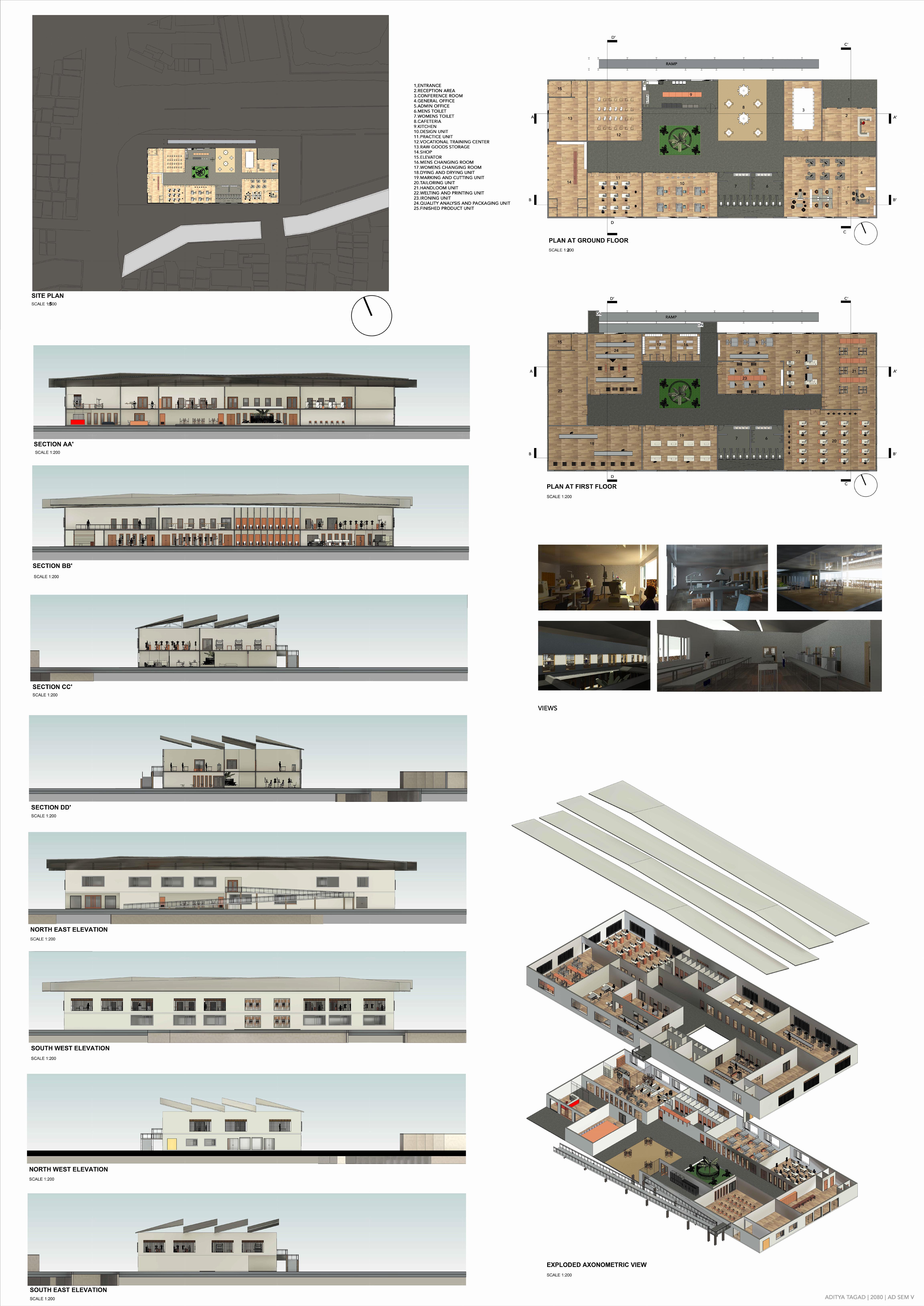

Located in Govandi, Mumbai, this project has a multifaceted mission. Its primary objective is to provide stable employment opportunities for migrants from other states who often find themselves working as rack pickers, offering them a path towards more secure livelihoods. Simultaneously, it seeks to invigorate the local economy by creating job opportunities within the community, fostering self-sufficiency, and promoting skill development, particularly in the art of tailoring. Additionally, the project aims to strengthen social bonds within the community and bridge connections with outsiders. Through these comprehensive efforts, it strives for holistic community development while promoting the “vocal for local” ethos, encouraging residents to support and engage in local businesses and initiatives.

BOTANICAL INSTITUTE

LOCATION : SGNP, MUMBAI, MAHARASHTRA TYPE : INSTITUTIONAL BUILDING FACULTY : SHREYA NAGRAJ | SEM IV

The Forest Department, in partnership with BNHS and other NGO’s plans to start a new Institute within the boundaries of the SGNP Forest. The Institute will act as a bridge between new research and the traditional knowledge of the tribal population of the forest area. It will act as a repository of this knowledge and a place of learning and disseminating this knowledge. It will also act as a research lab and a seed bank / experimentation center in new research for the Forest. The Institute is located in a Ecologically Fragile Environment of the Notified Forest of SGNP - as such, the Design and Construction methodology becomes critcal. It is as well clear that no other construction is allowed within the boundaries of the Notified Forest - and this is an important exemption. Thus, it is imperative that the project address environmental issues as well as issues of Sustainable construction and most importantly - critically respond to the Particular Geography of the Forest.

TECHNOLOGY PROJECTS

LOCATION : SGNP, MUMBAI, MAHARASHTRA TYPE : INSTITUTIONAL BUILDING FACULTY : MINAL YERRAMSHETTY | SEM V

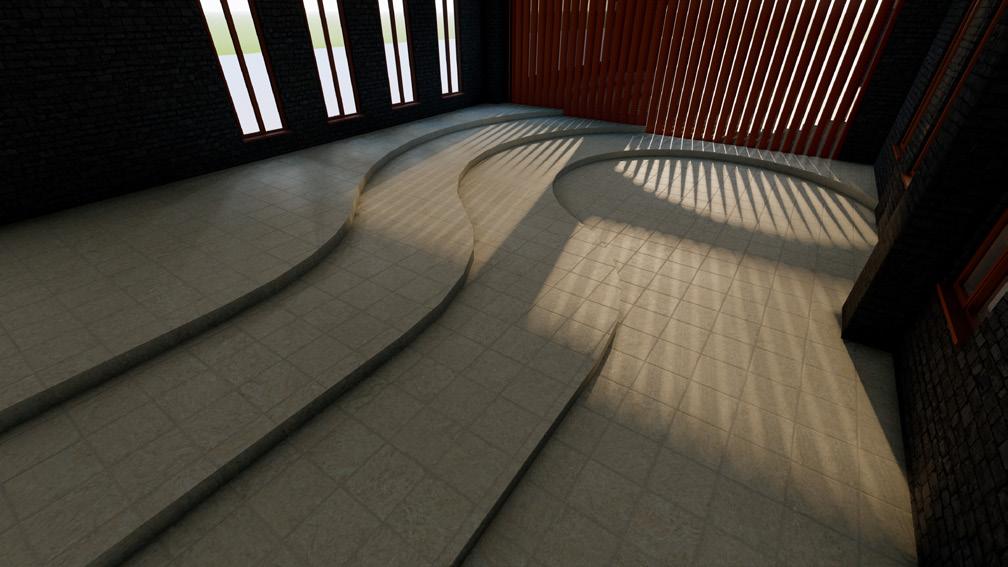

The auditorium design within Sanjay Gandhi National Park, Mumbai, encapsulates a harmonious blend of nature and modernity. The design also fosters community engagement. It accommodates cultural events, seminars, and educational programs that align with the park’s mission of conservation and awareness. The auditorium is not merely a venue but a space where nature and culture coalesce, nurturing a deeper connection between visitors and the park’s natural beauty.

A B C D E F H I J

A B C D E F H I J G ANKLE CLIT BOLTED TO C-CHANNEL STEEL FLOOR OF CATWALK C-CHANNEL OF CATWALK

G1 GIRDIR SUPPORT BARS OF CATWALK BOLTED TO THE GIRDER

600MMX300MM RCC BEAM

ACOUSTIC PANELS 25MM OUTER PLASTER

30MM CARPET FLOORING

ANKLE BAR WELDED TO C-CHANNEL FOR SUPPORT BOLTED TO RCC ROOF F1 F1 F1 F1 F2 +2880MM FINISHED GROUND FLOOR

RCC FLOOR RETAINING WALL 600MMX300MM GROUND BEAM

RAMMED EARTH RETAINING WALL FOUNDATION

600MMX300MM PLINTH BEAM

GUTTER ALUMINUM SHEETS CLEAR STOREY WINDOW SOUND ABSORPTIVE PANELS 12MM THK SECTION 2

1850 RUBBLE SOLING

725 1535 315 900 5820 630 2250

+12170MM GUTTER LEVEL +9560MM CATWALK LEVEL

1 3 5 7 +0.00MM GROUND LEVEL

+11445MM G2 LEVEL +9915MM CLEAR STOREY LEVEL

+8860MM BEAM LEVEL

+2700MM DEVELOPED GROUND LEVEL

+2250MM PLINTH BEAM LEVEL

LOCATION : GOVANDI, MUMBAI, MAHARASHTRA

TYPE : INSTITUTIONAL BUILDING

FACULTY : DNYANESH M | SEM VI

ALUMINUM FRAME

450 X 230MM THK RCC BEAM

DETAIL A AT 1:5

15MM THK INTERNAL PLASTER

150MM THK RCC SLAB ANGLE COCK

600 X 600MM AND 10MM THK VITRIFIED TILES

BOLTED INTO ALUMINUM FRAME

JAGUAR TOP INLET URINAL

120MM DIA NAHNI TRAP

SECTION

CANTILEVERED GUTTER DETAIL

BASEMENT PARKING +0M LVL +0.3M LVL -0.165M LVL +3M LVL +3.45M LVL +6.15M LVL +6.74M LVL +9.62M LVL +9.27M LVL

STAINLESS STEEL HORIZONTAL LOUVERS ALUMINUM HORIZONTAL BAR

2600 X 1750MM THK WITH 560MM MANHOLE IN ELEVATION

PVC 5000 LITERS SINTEX OHT WATER TANK

CEDAR PLANKS TO BE DESIGNED/INSTALLED AT AN ANGLE OF 45 DEGREES TO THE WALL

COLOUR COATED STAINLESS STEEL TANK SUPPORTING STRUCTURE

CEDAR VERTICAL PLANKS

230MM THK BRICK WALL

ADJUSTABLE LOUVERED WINDOW EXHAUST FAN

HAND FAUCET

TISSUE PAPER ROLL

400 X 400MM AND 10MM THK VITRIFIED TILES

BOLTED TO ALUMINUM FRAME

10MM PLASTER + 10MM DADO FLIP UP BAR

ADJACENT SLAB TOP 15MM WATERPROOFING LAYER

CANTILEVERED SLAB 150MM THK

RAILING

SECTION

STEEL

RAILING DETAIL AT 1:10

STEEL STAIRCASE SECTION AT 1:25

TYPE : ALLIED PROJECT FACULTY : HUSAIN INDOREWALA | SEM IV

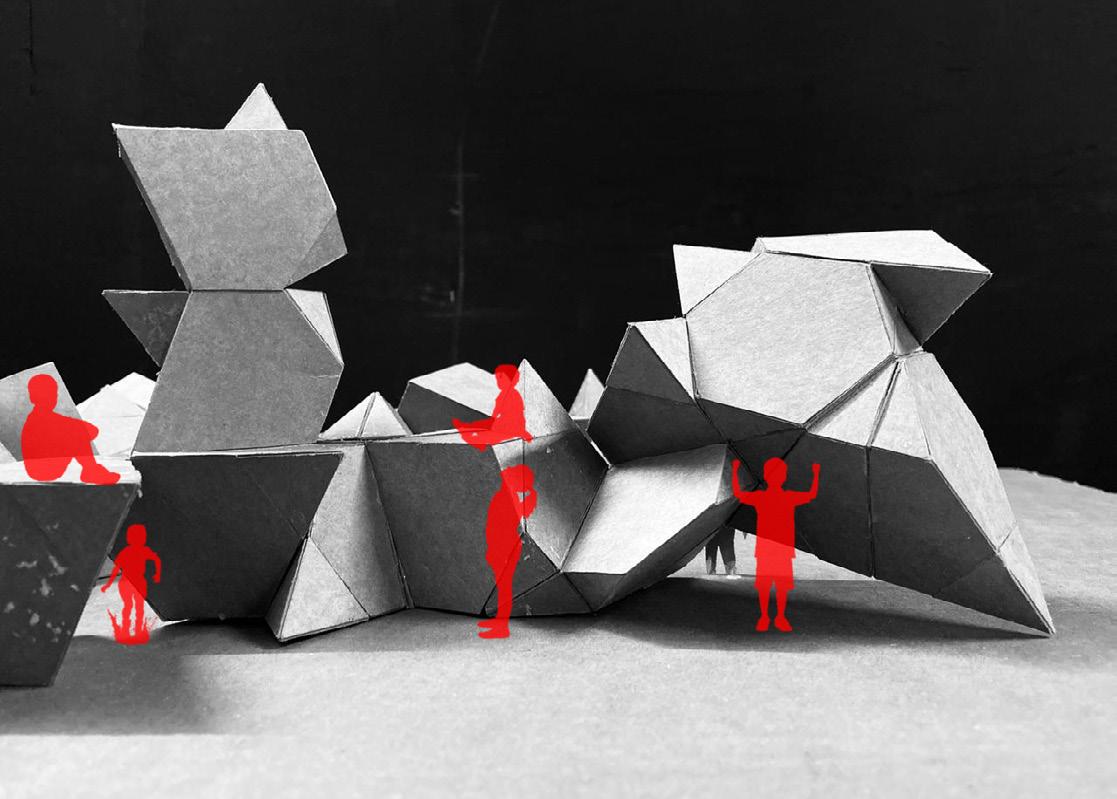

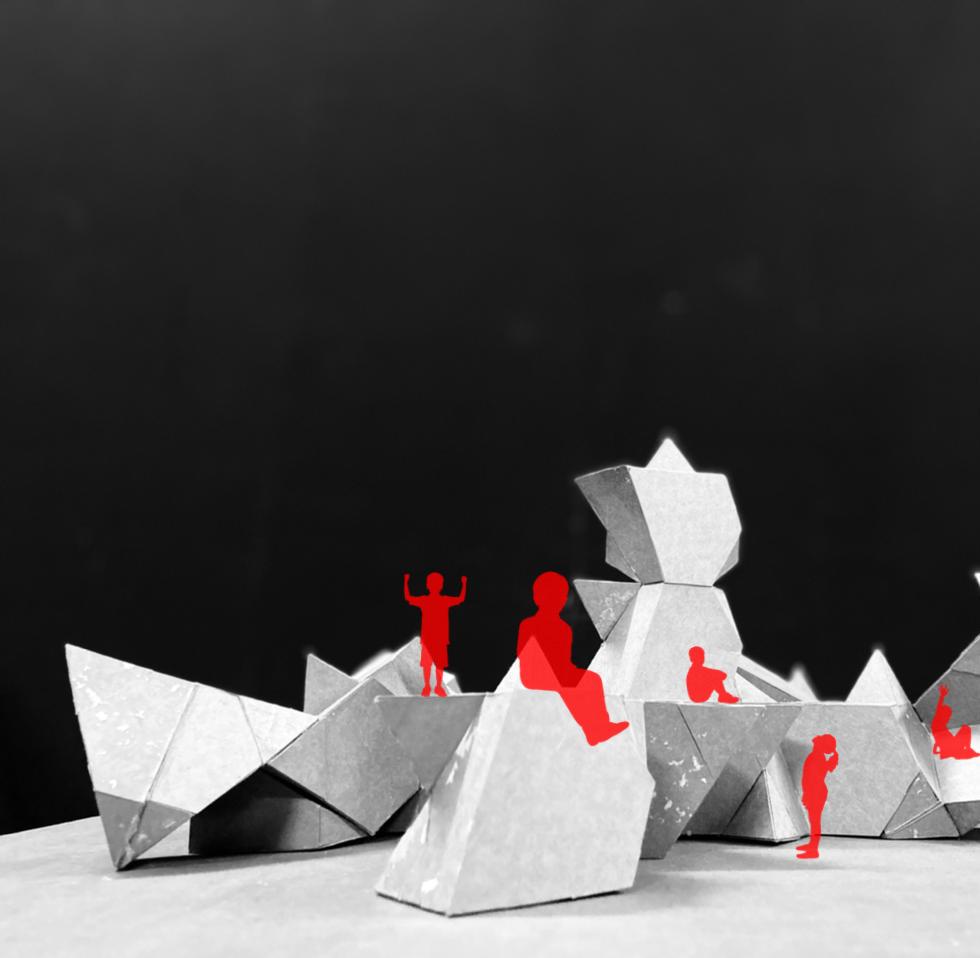

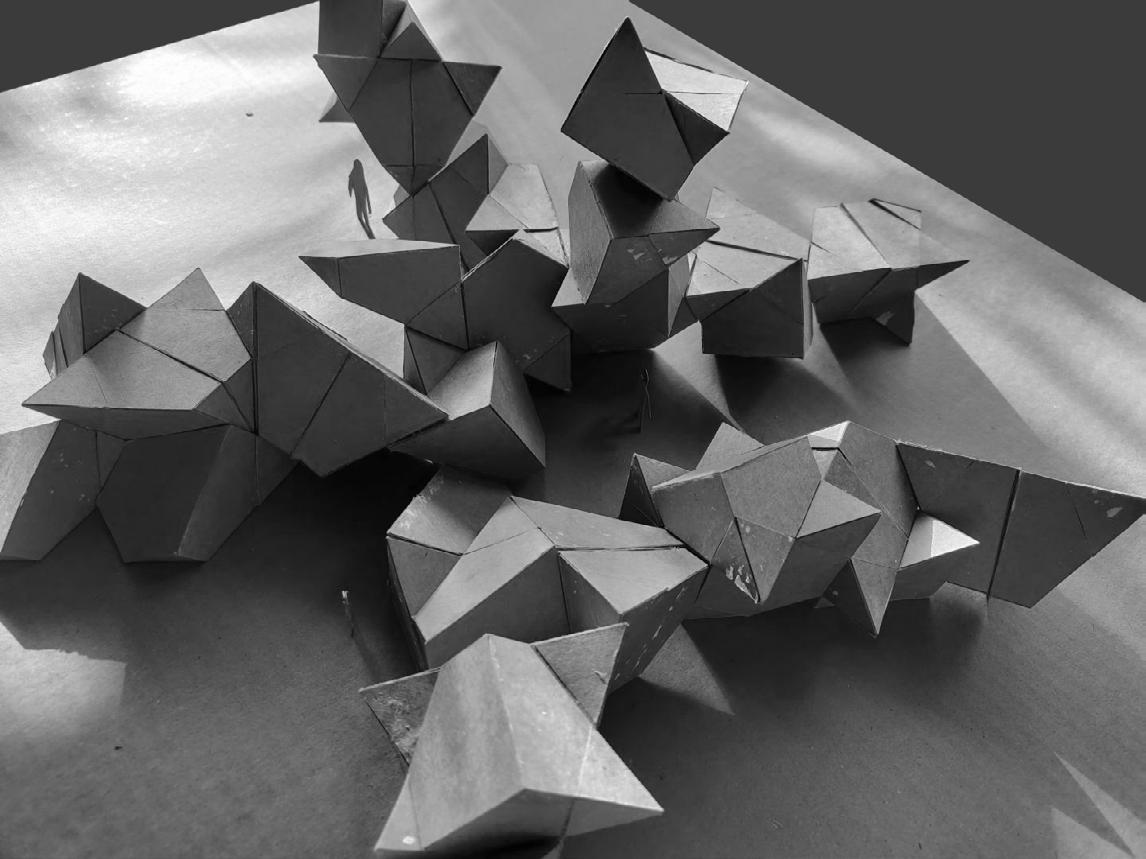

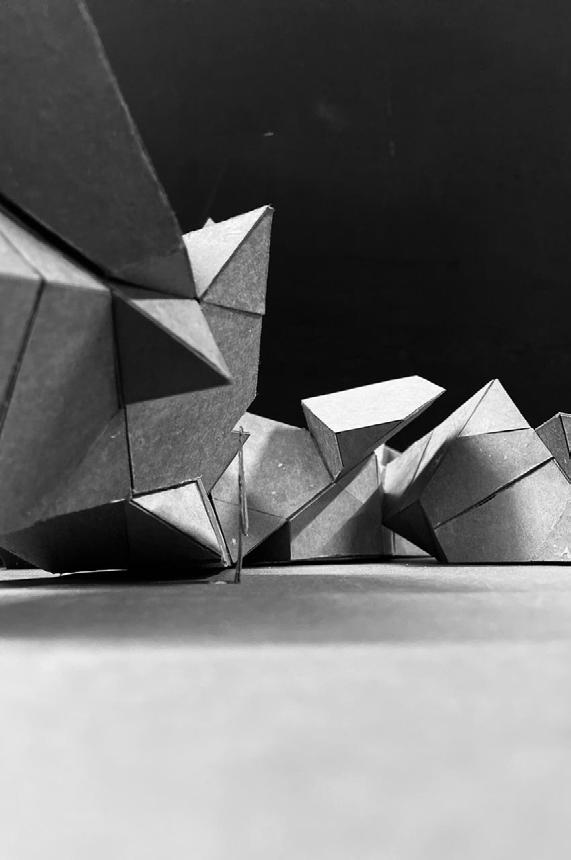

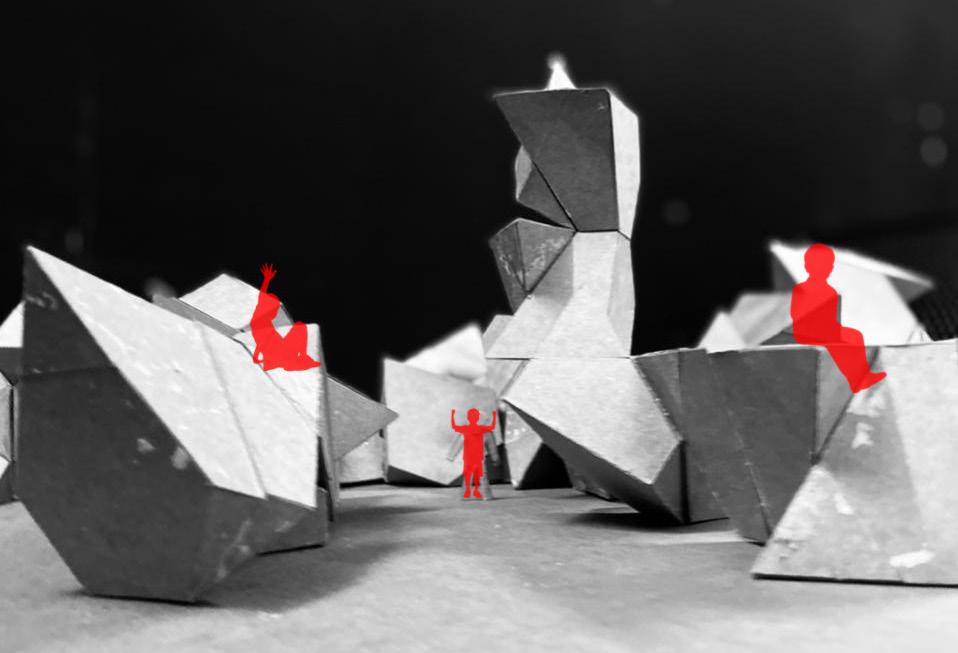

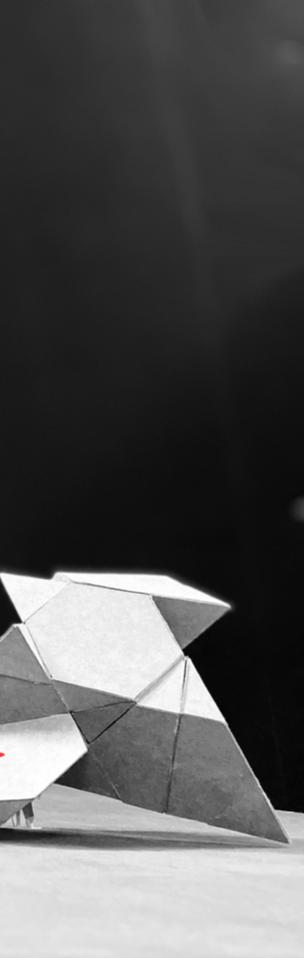

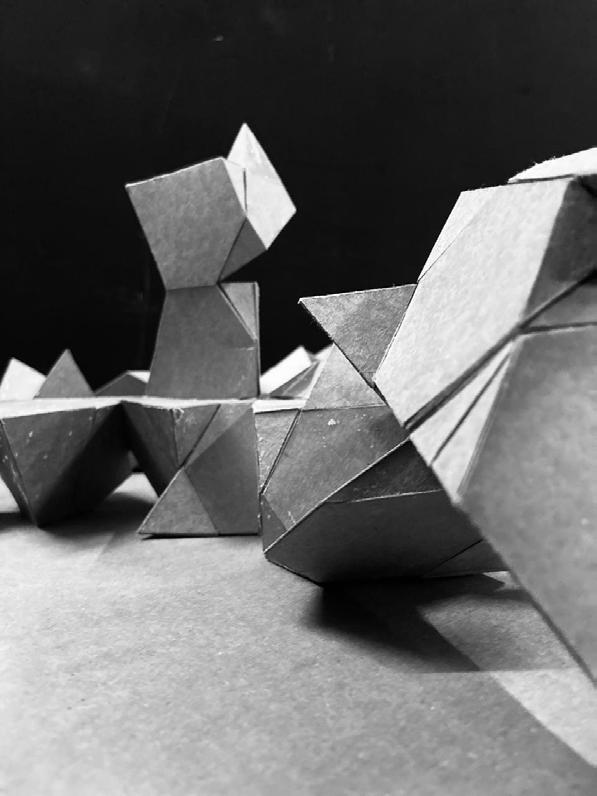

The photos illustrated here is a speculative attempt to show the hierarchy and relationship of the two regular solids and their counterparts. It trace the same sequence of relationships between the 200 Platonic solids, the faces of all these solids are made up by the use of two ( geometrical figures the triangle, and the square ). The developments of each characteristic group of faces of these duals is shown in relation to the regular figure on which, if placed, it would make up the whole. We used ideas from 200 Platonic models to design an engaging playground for children.

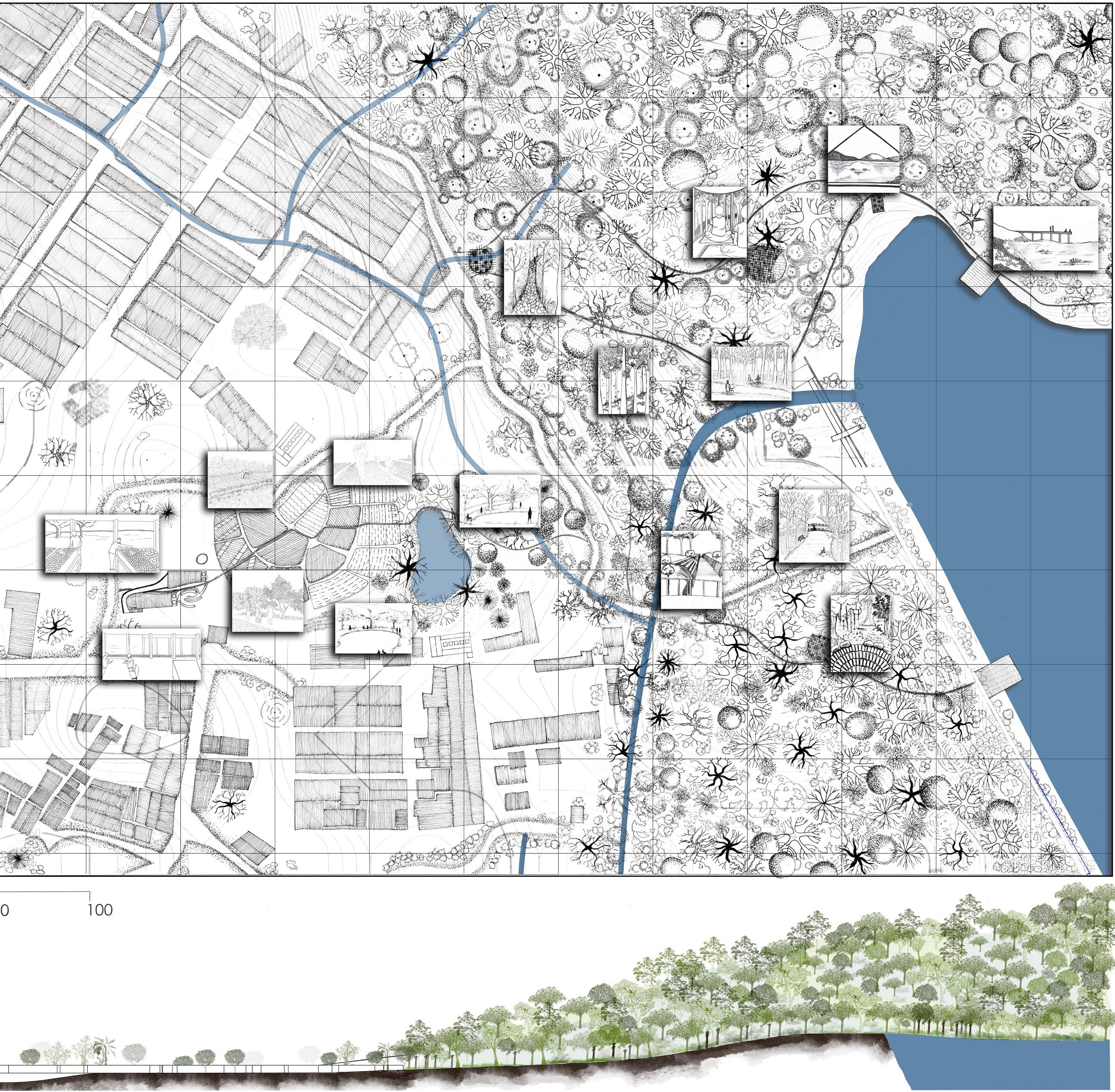

LOCATION : PELHAR, MUMBAI, MAHARASHTRA TYPE : LANDSCAPE COLLABORATIVE WORK | SEM VI

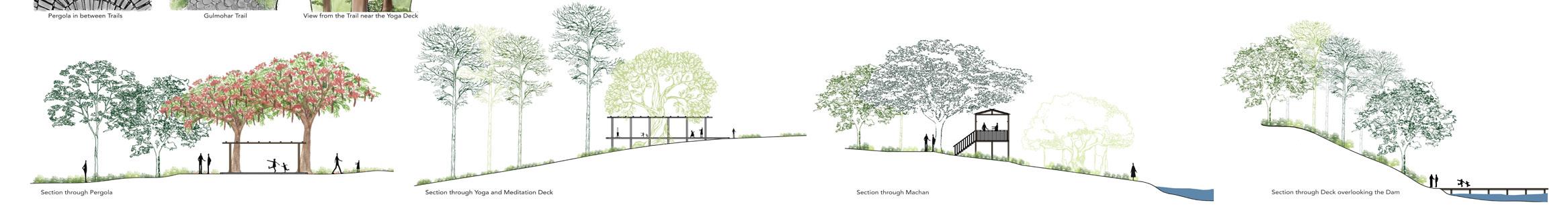

Pelhar Lake is located just off the National Highway 8 towards the east at Vasai. Surrounded by gentle hills of the Tungareshwar Wildlife Sanctuary. It is a rock earth structured dam situated which is a part of the water supply unit to the nearby cities. The dam was constructed across a tributary of the Amba river in the year 1975. The dam is 26 metres high above foundation and 701 metres long in length.

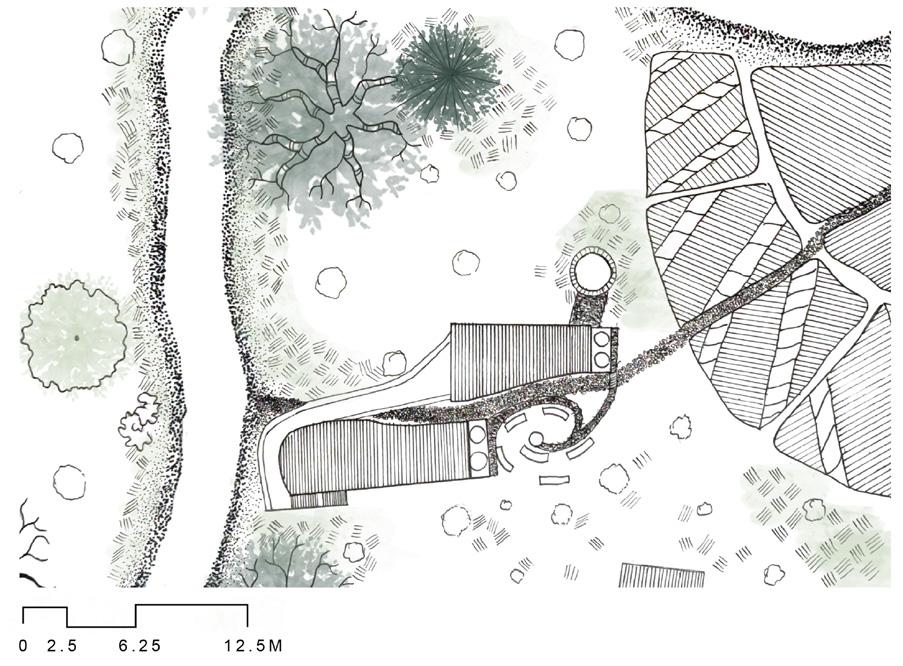

Ground Floor Plan

First Floor Plan Roof Plan

The two residential buildings are dormitories for males and females. The ground floors are used as market where all the excess farm produce will be sold; on the other side we have a community kitchen. The buildings are built using hempcrete for walls and regular concrete for columns and slabs Behind the building we have a community gathering space which will be surrounded by phytoremediation plants used to treat the grey water from the building. The grey water is treated and used again for flushing stored in the UGT. The rainwater is carried down from the roof through a reed bed for filtering and finally emptying in the well on the northern side of the building

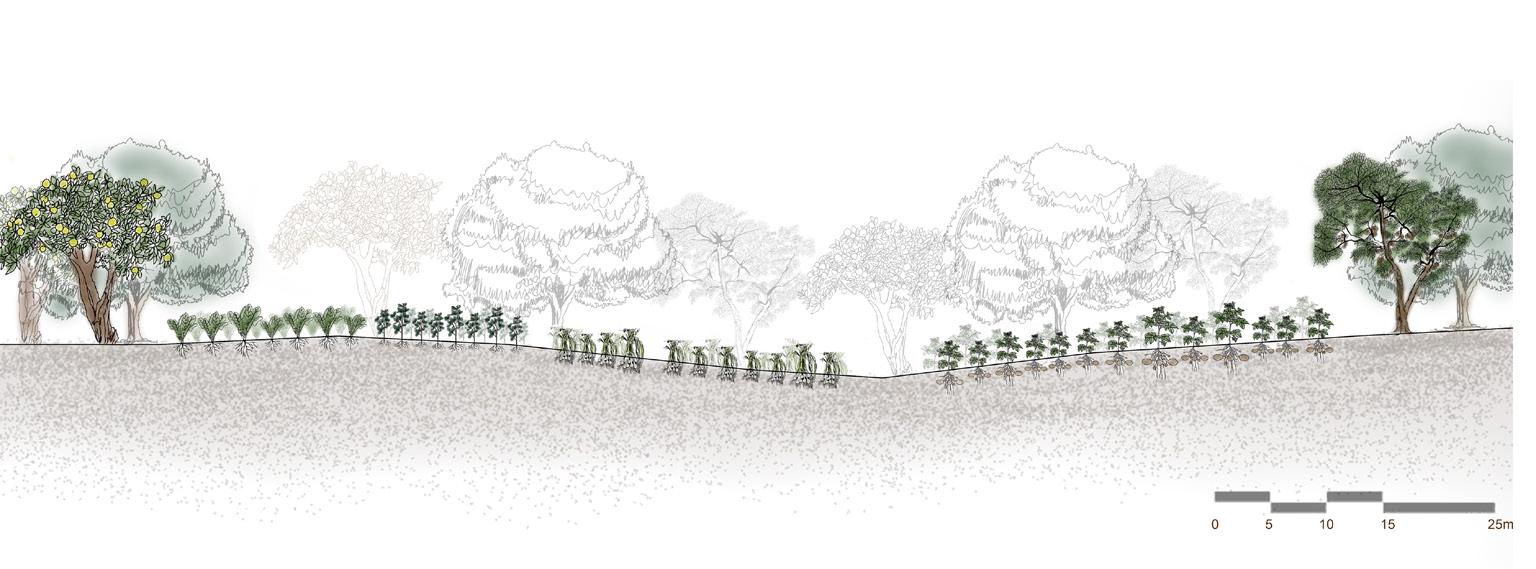

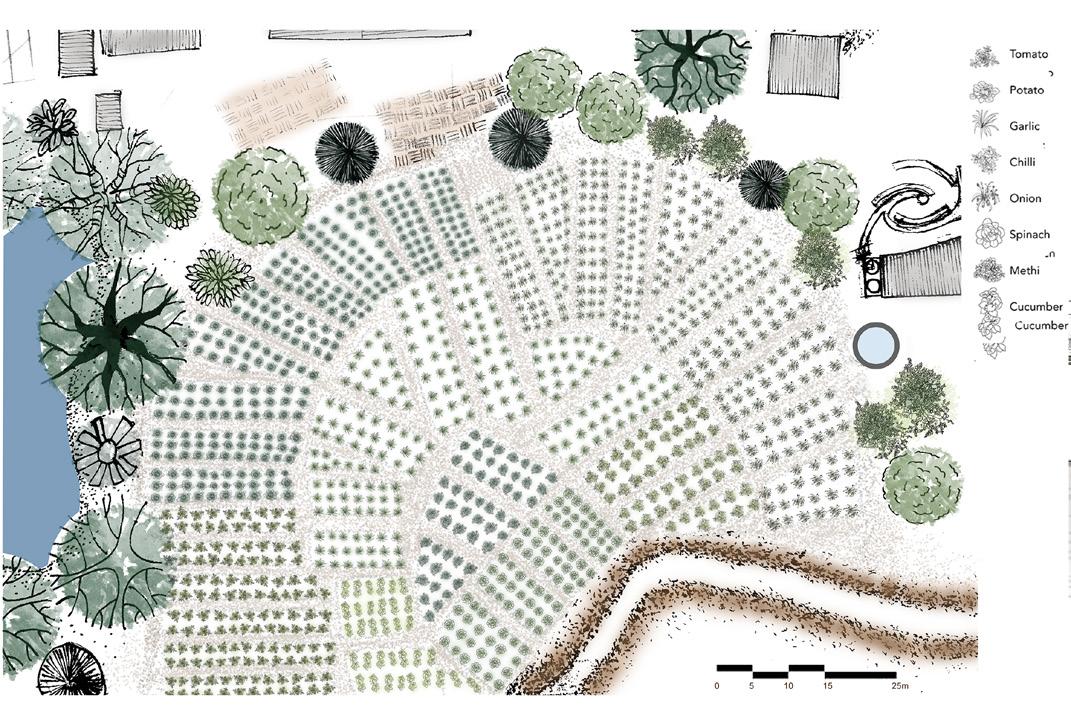

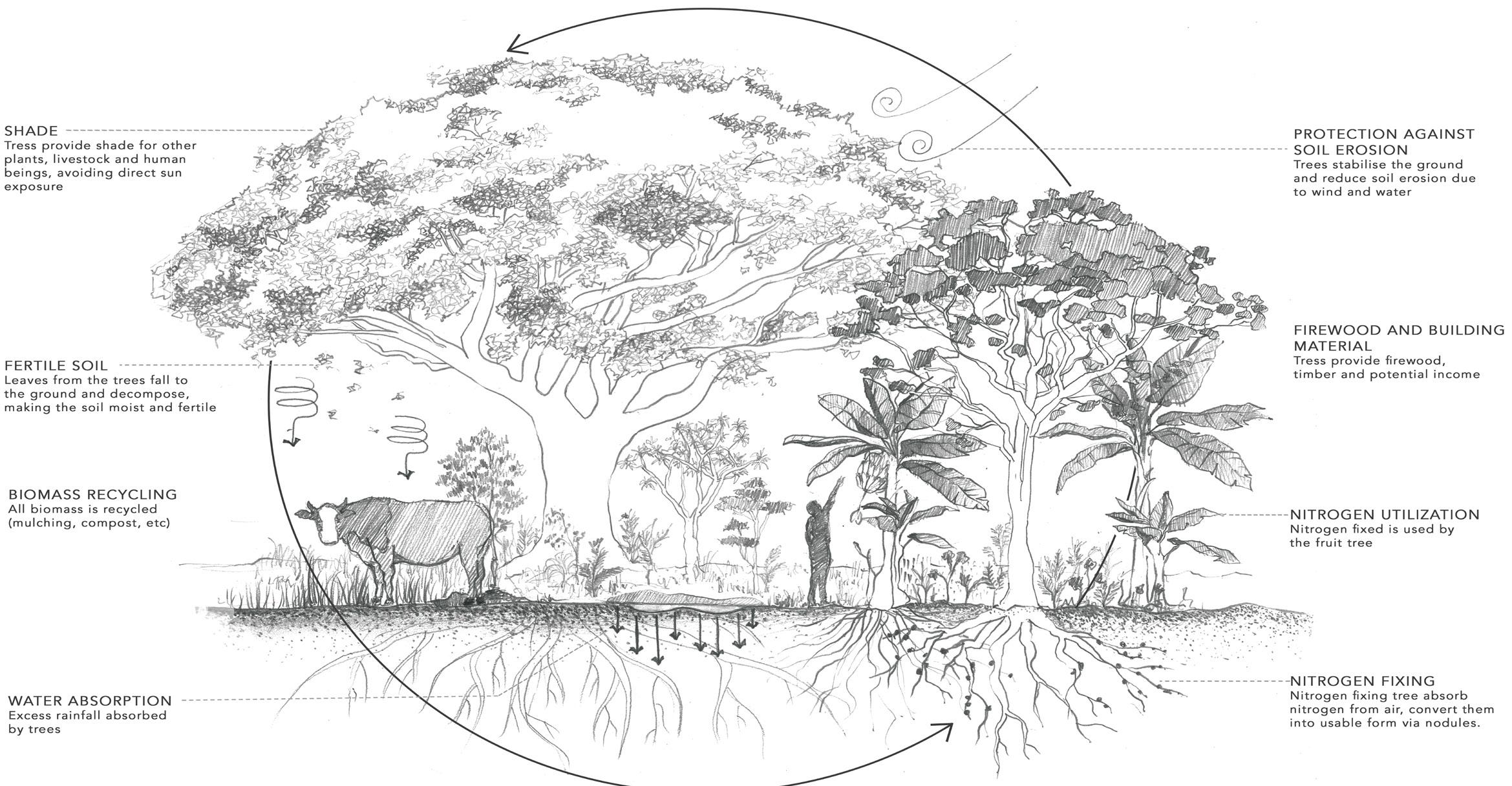

The farmlands are designed to cater to the needs of a minimum of 25 people.The plants that require comparatively less water are grown on the higher contour level as against the plants which require more water that are grown on the lower levels.The farm edges have natural fencing which add to the local produce as well as the aesthetics of the farm.

FARMS

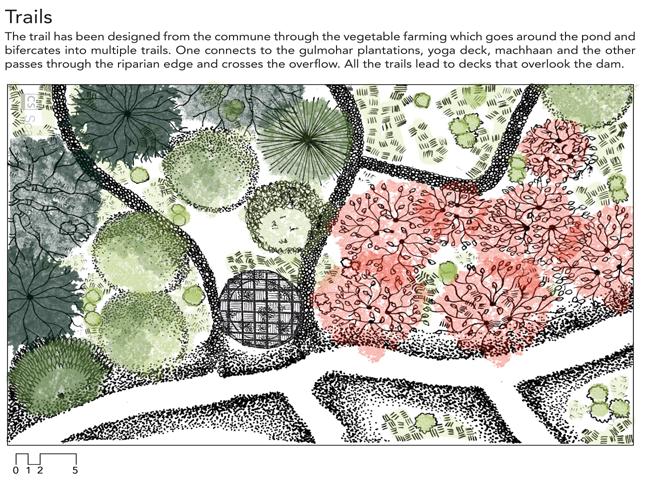

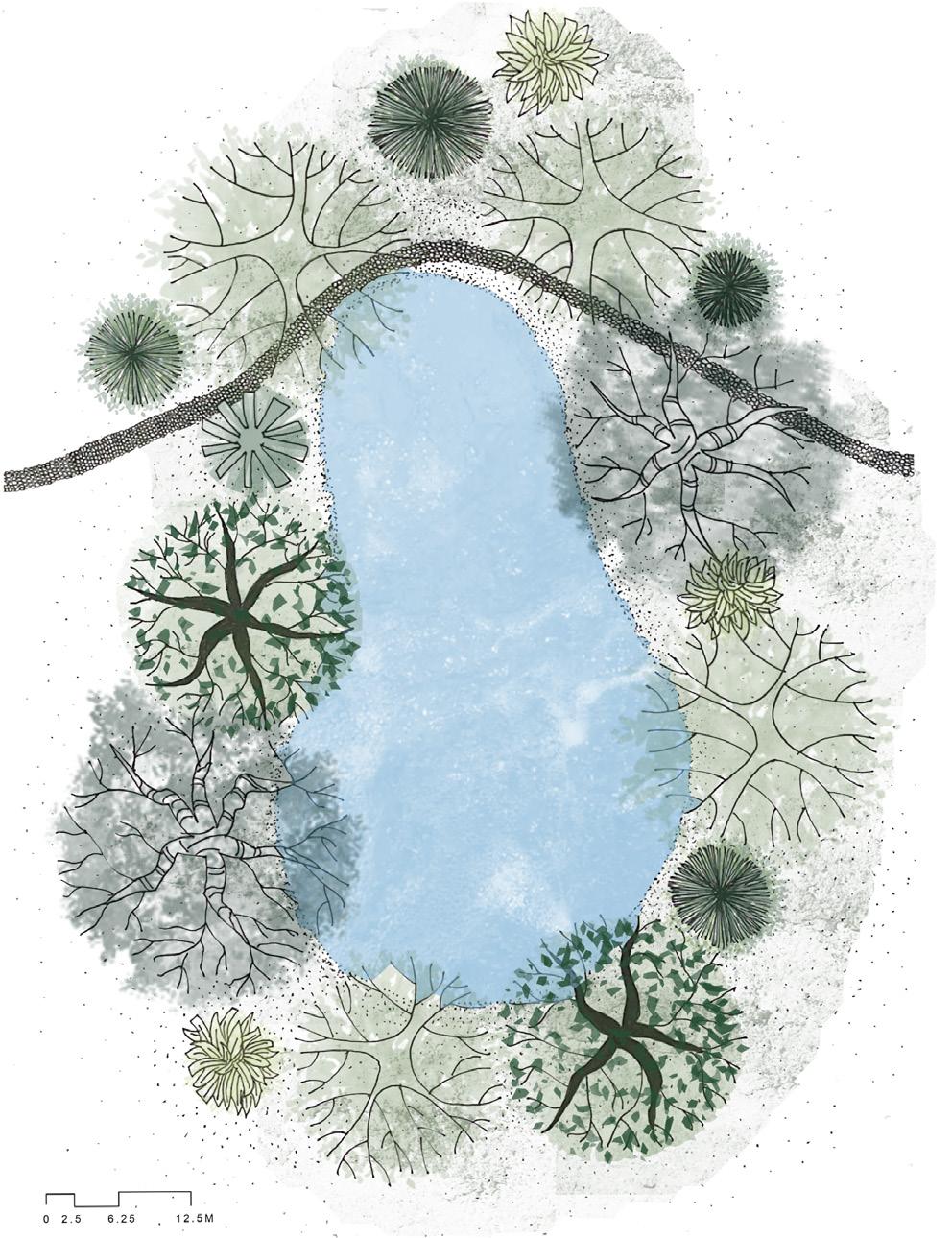

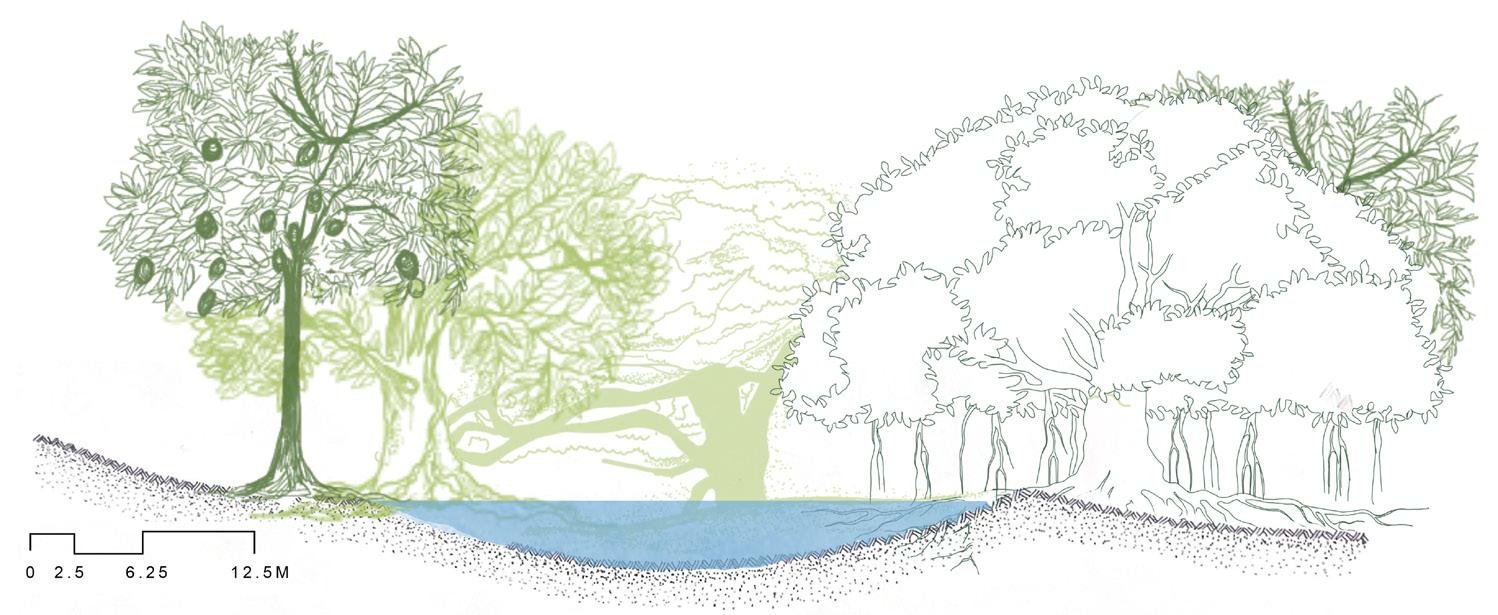

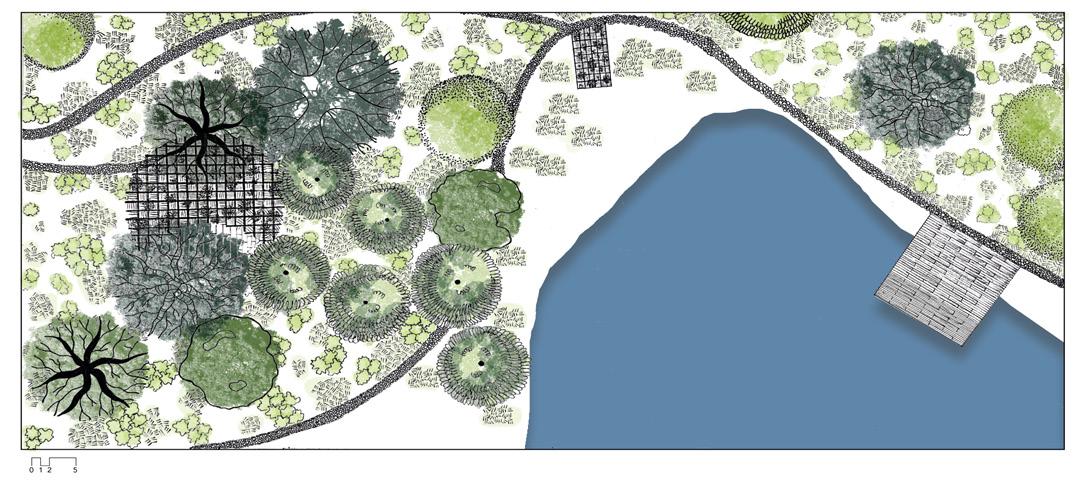

The pond has been created to collect the excess water and letting it slowly seep into the ground while creating a beautiful experience for the users around.Set beside the trail under the trees,it acts as a place where people can sit and appreciate nature. It provides a one to one experience with the nature giving them a sense of comfort and relaxation in the form of people sitting there dipping their feet in the pond or plucking freshly ripened fruit from the trees or just simply sitting on a bench and enjoying the beauty of the nature around.

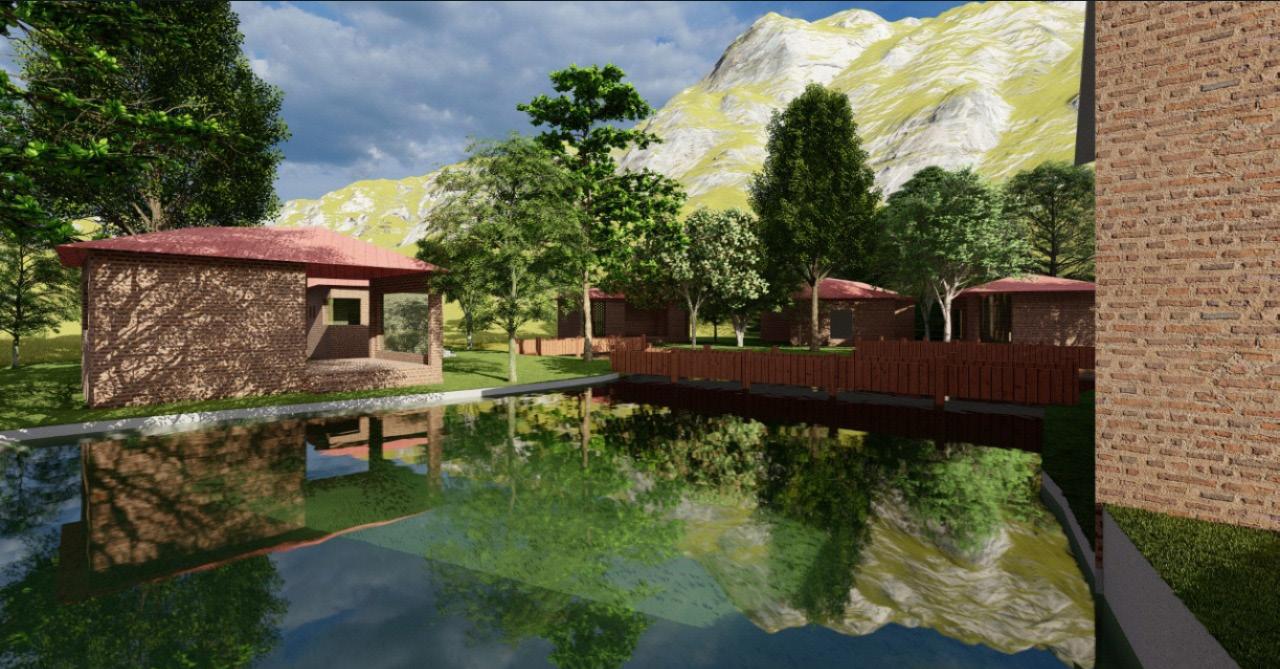

VIEWS OF RETENTION POND

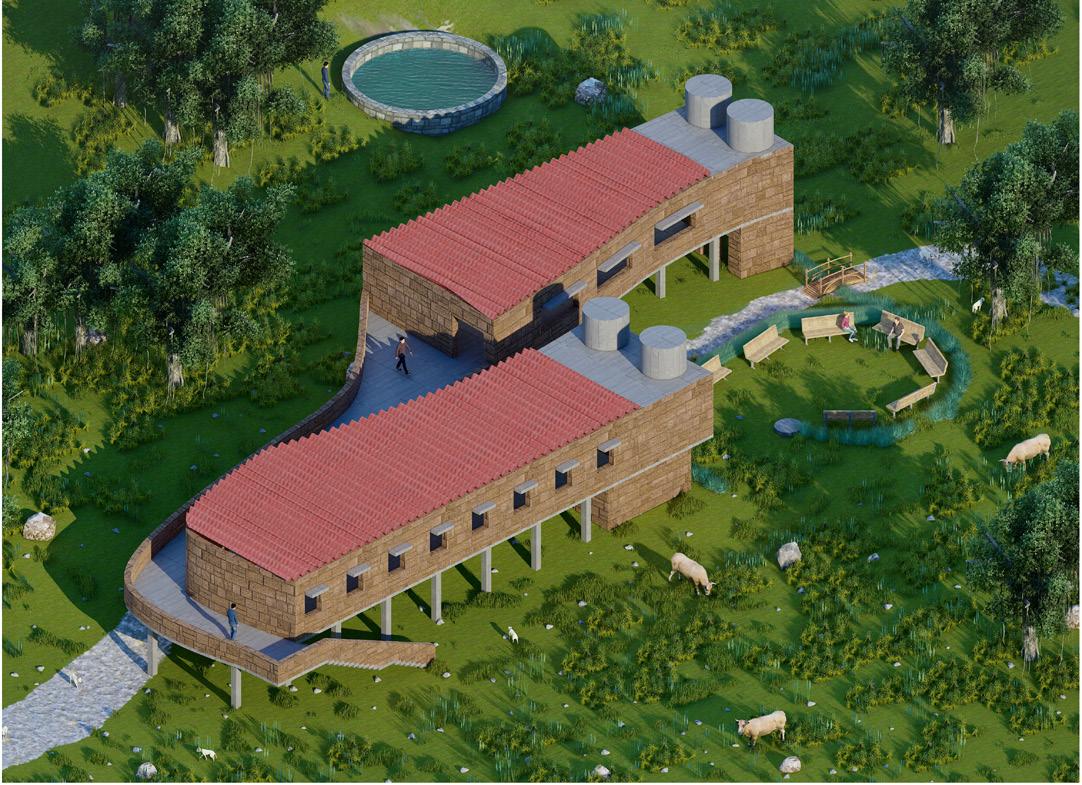

AXONOMETRIC VIEW OF RESIDENTIAL BUILDING

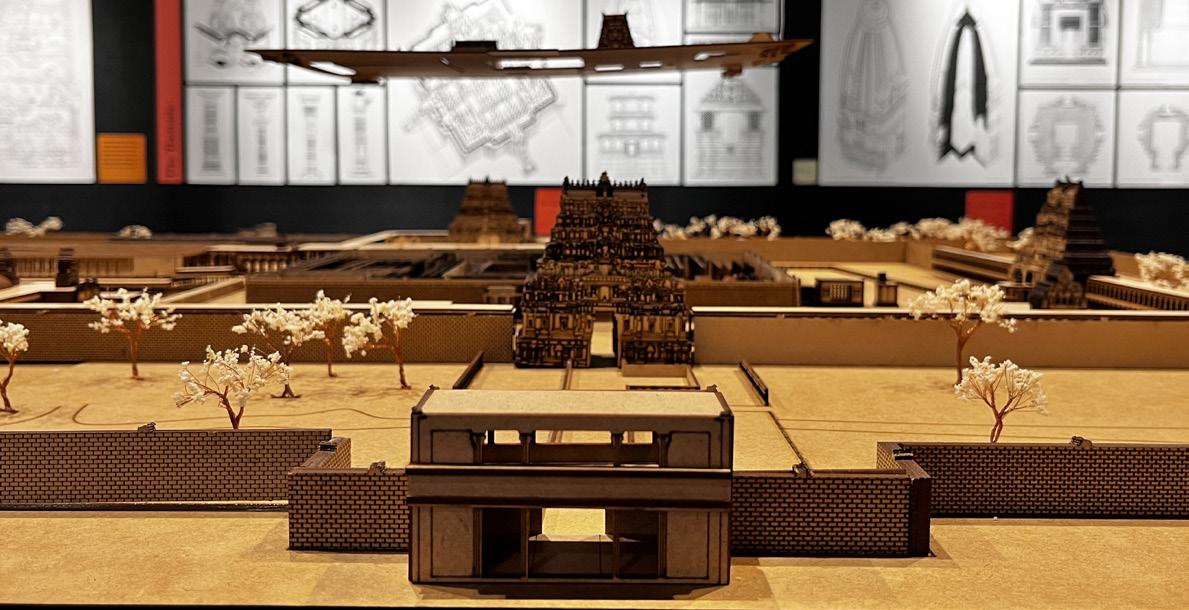

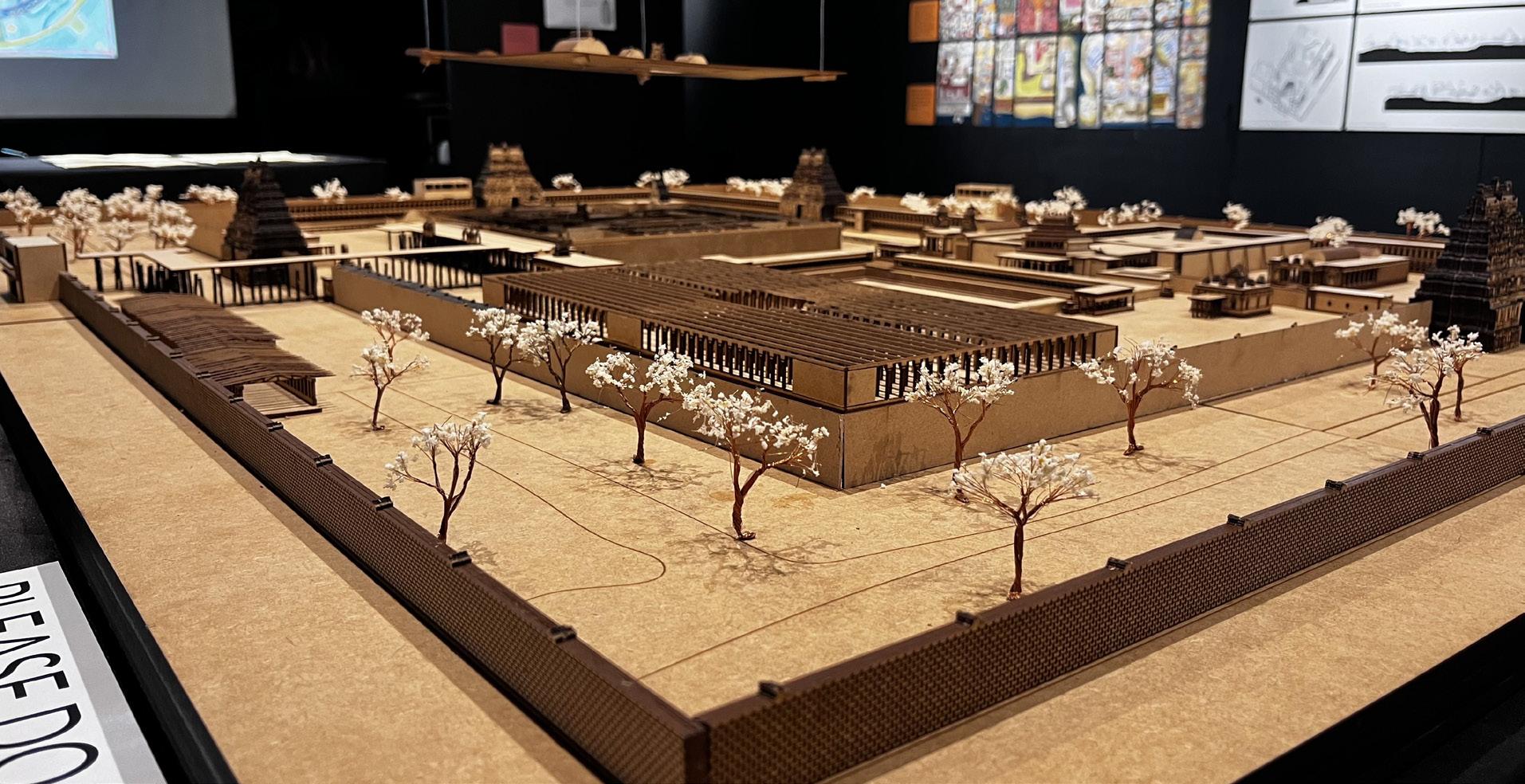

CHIDAMBARAM

LOCATION : CHIDAMBARAM, TAMIL NADU.

TYPE : EXHIBITION WORK | SEM VI.

FACULTY : ROHAN SHIVKUMAR & AISHWARYA PADMANABHAN.

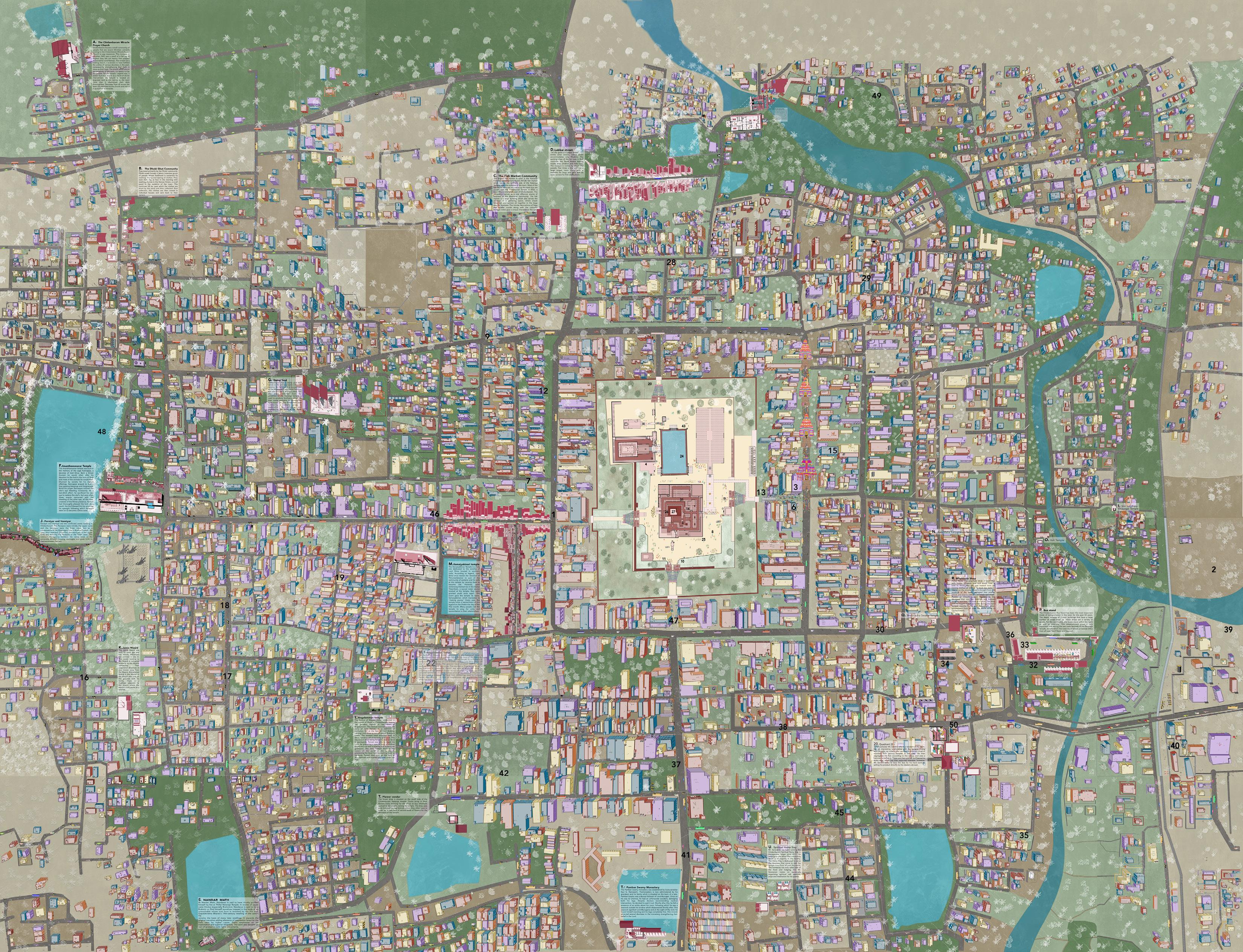

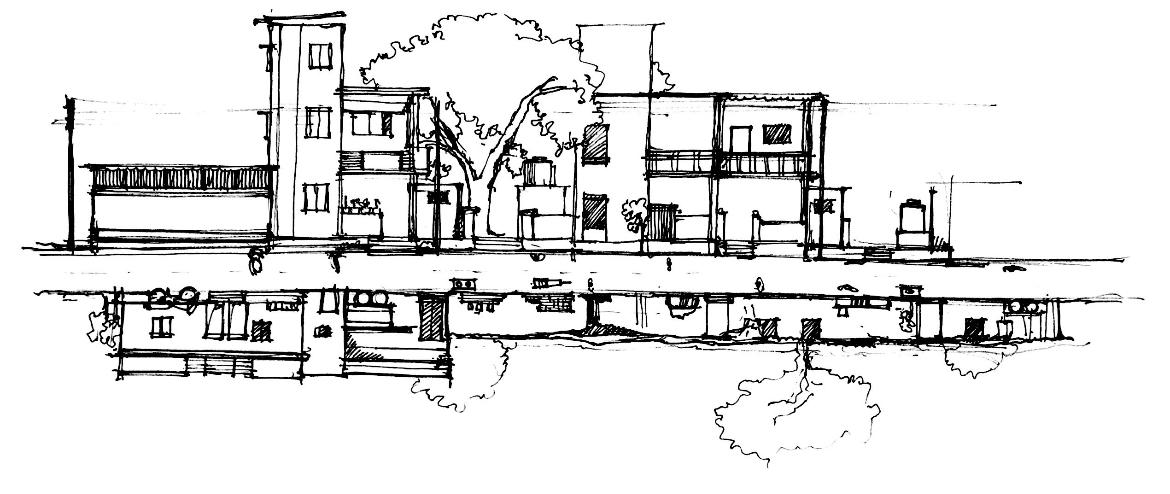

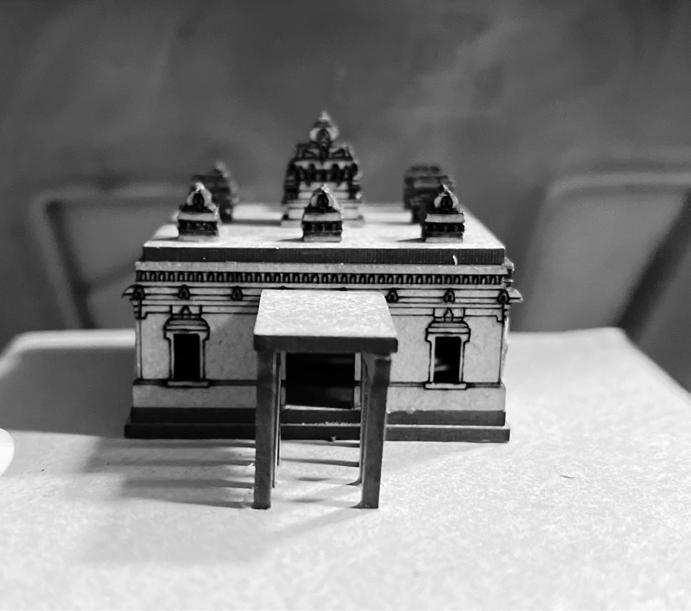

The Third Year study of institutions is interested in the ways in which the architecture of the temple town makes a community. The study was to look at a typical South Indian Temple Town, with a central temple complex and concentric rings of caste based streets around. Overall, this study appears to offer valuable insights into the complex interplay between architecture, culture, and societal structures in a South Indian Temple Town like Chidambaram. It underscores the importance of understanding how traditional communities adapt to and resist changes brought about by contemporary forces while preserving their cultural heritage.

MYSTICAL LANDSCAPES

LOCATION : BHOPAL, MADHYA PRADESH

TYPE : COLLABORATIVE WORK | SEM V

The word ‘Gond’ comes from the Dravidian expression ‘kond’ , meaning green mountain. They believe all lakes, rivers, land, hills, trees along with all life are inhabited by spirit and hence considered sacred. Inspired by their depiction of nature and it’s preservation in the gond art. The form represents, the various cycles of life, flora and fauna intertwined with each other through stories collected in Bhopal such as, their life centered around the manua tree also known as the ‘TREE OF LIFE’‘

Heaven is where there are Mahua trees and hell is where there are none to make their wine’ words of a Gond, and many such stories and myths that show close connections of man with earth, as we sight the dependence on nature not just in myths but as part of their daily practices.

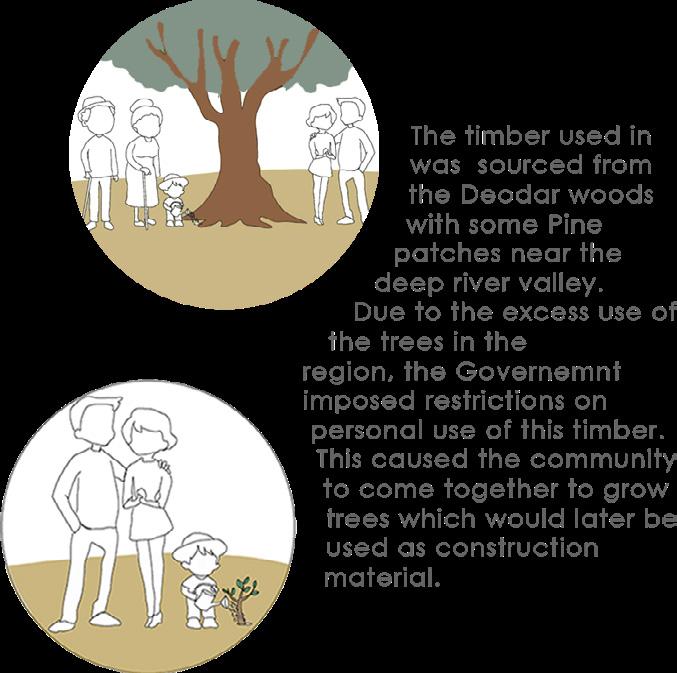

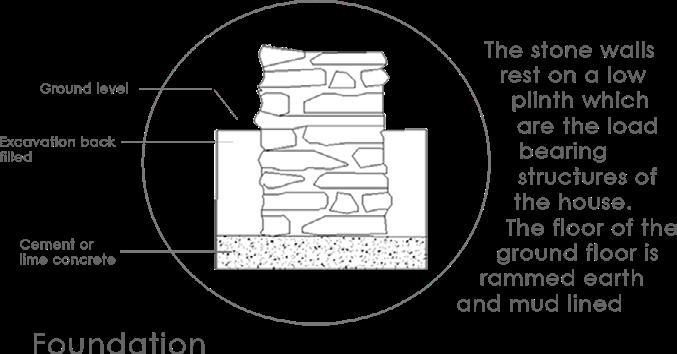

BHOPAL SINGH’S HOUSE

LOCATION : ALMORA, UTTARAKHAND

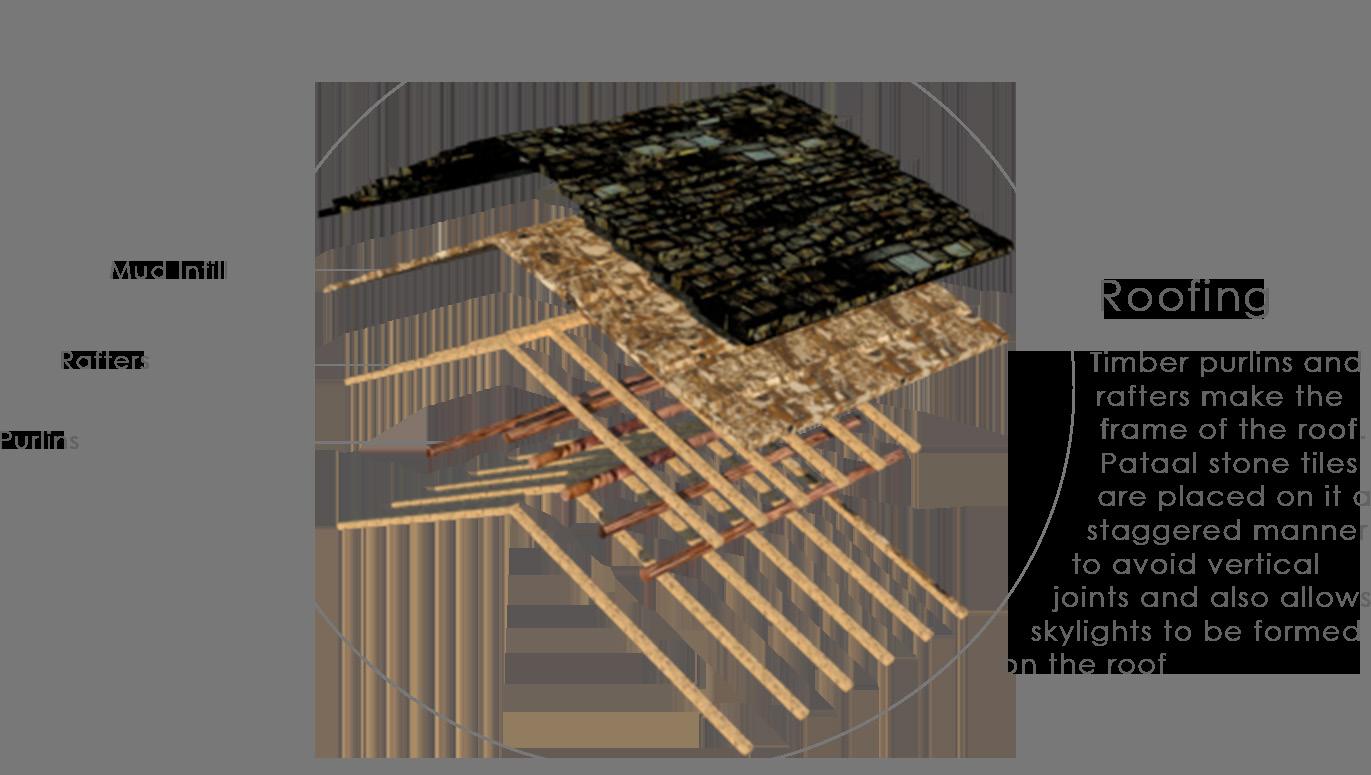

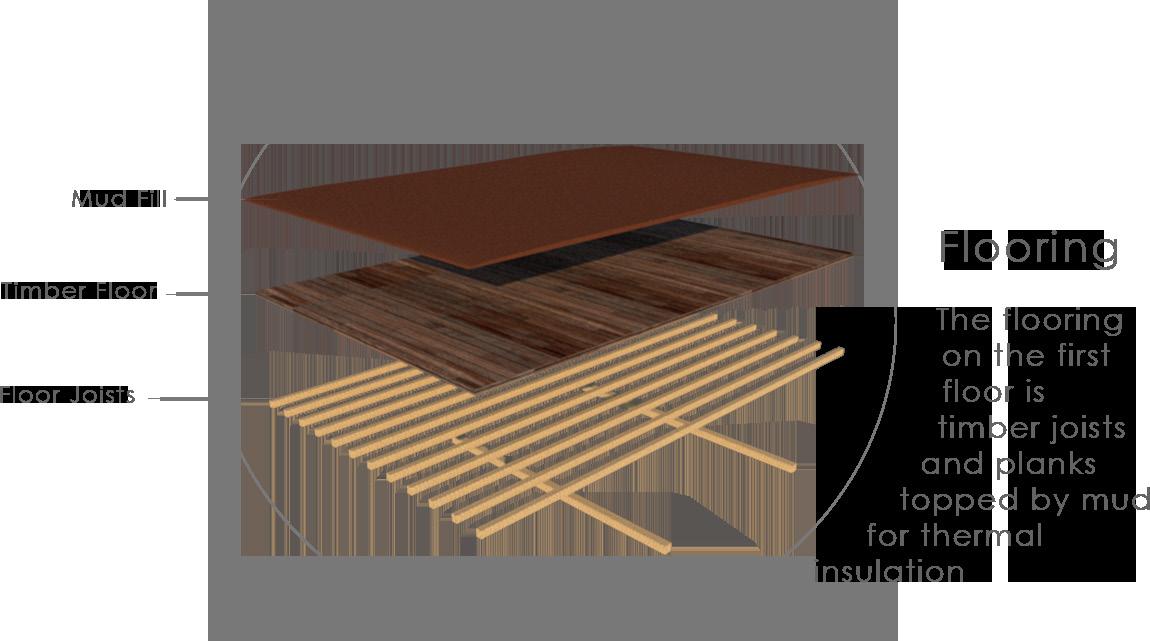

TYPE : TECHNOLOGY COLLABORATIVE CASE STUDY | SEM III

THE HILL TOWN OF ALMORA IS SITUATED AT A HEIGHT OF 1604M ABOVE SEA LEVEL IN THE KUMAON REGION IN THE STATE OF UTTARAKHAND. SITUATED ON THE FOOTHILLS OF HIMALAYAS, ALMORA LIES IN A HIGH SEISMIC REGION WHERE EARTHQUAKES ARE A REGULAR OCCURENCE. ACCORDING TO THE KÖPPEN-GEIGER, THE CLIMATE OF ALMORA IS CLASSIFIED AS CWA (HUMID SUBTROPICAL CLIMATE) WITH TEMPERATURES GOING AS LOW AS -3°C UP TILL 28°C.

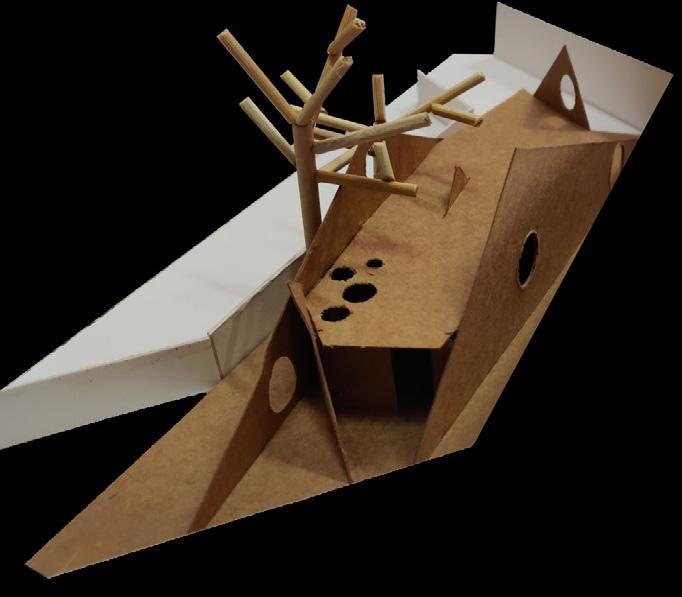

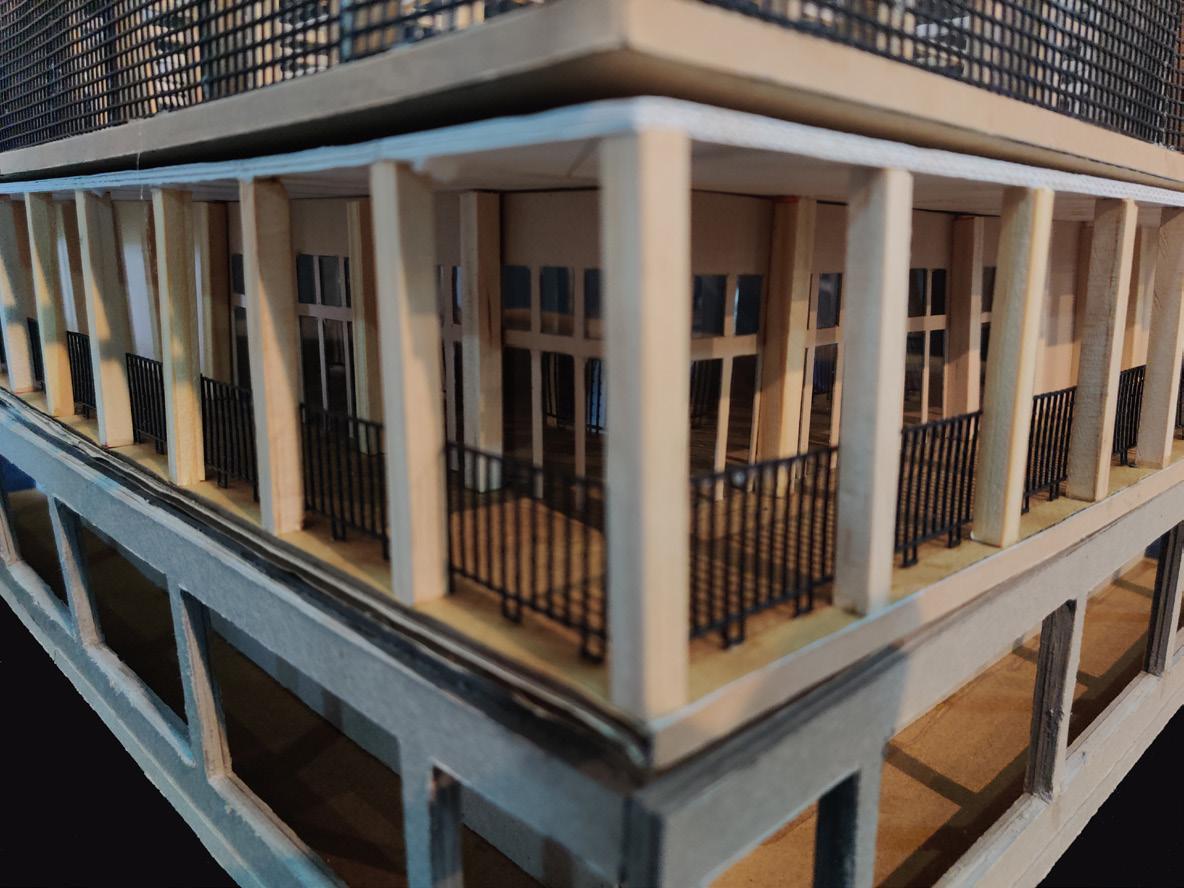

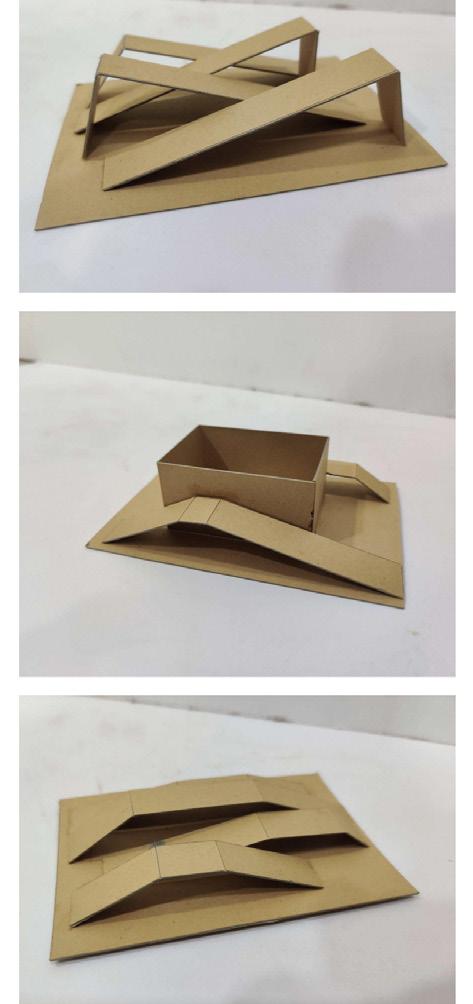

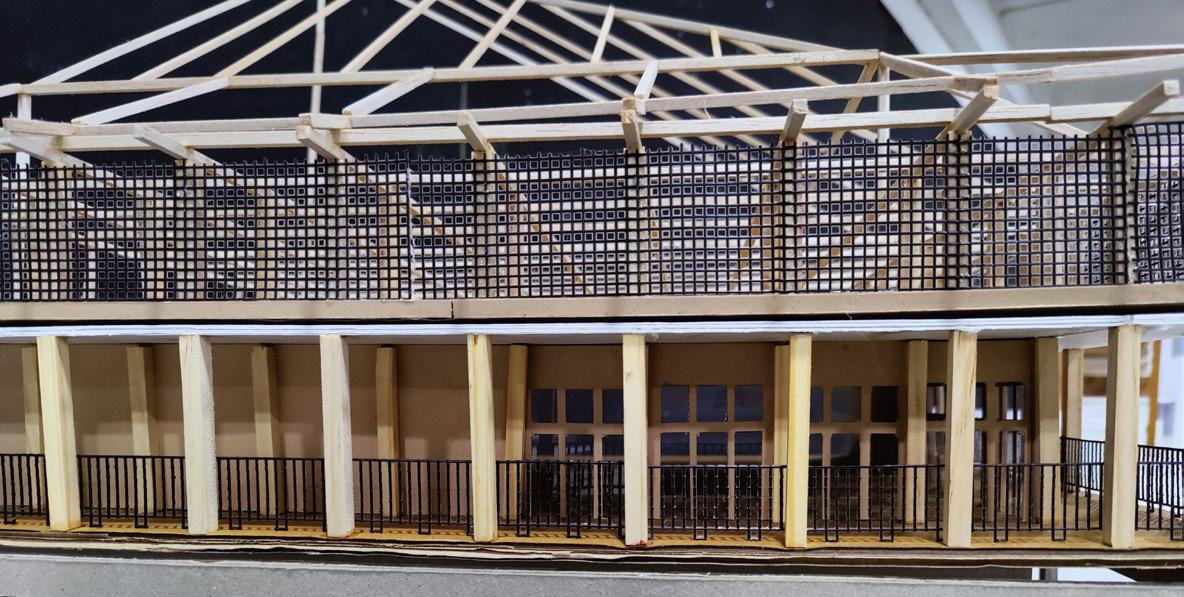

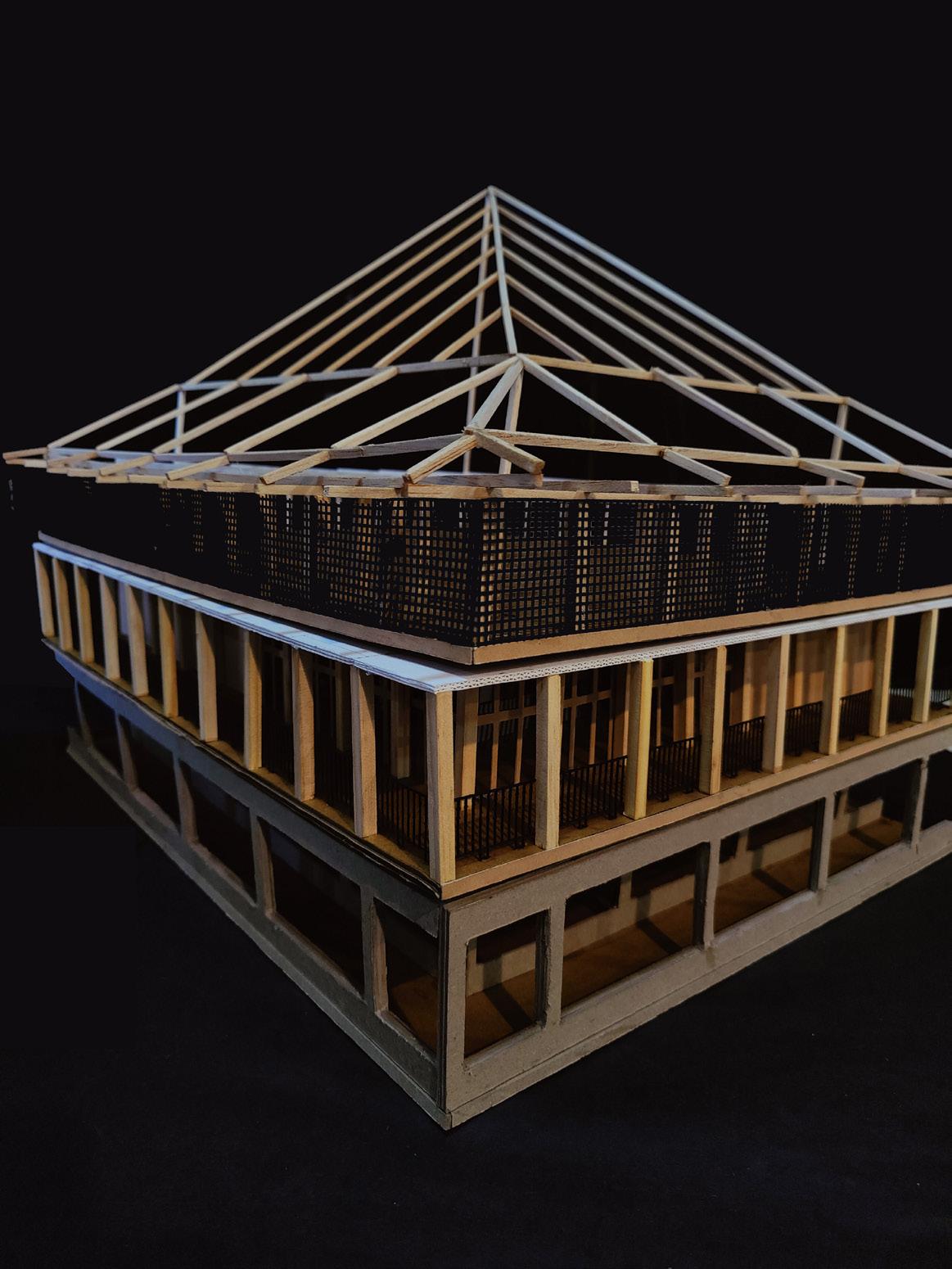

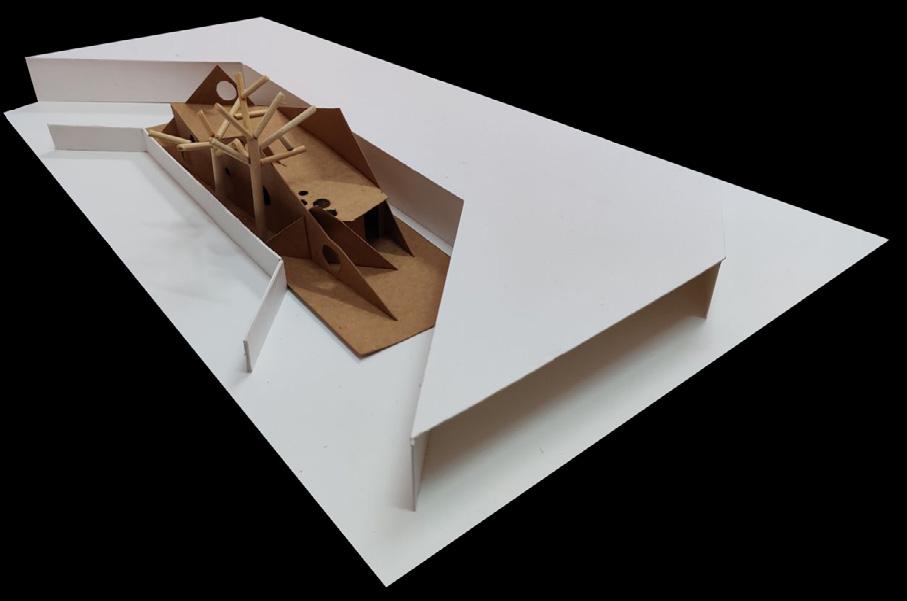

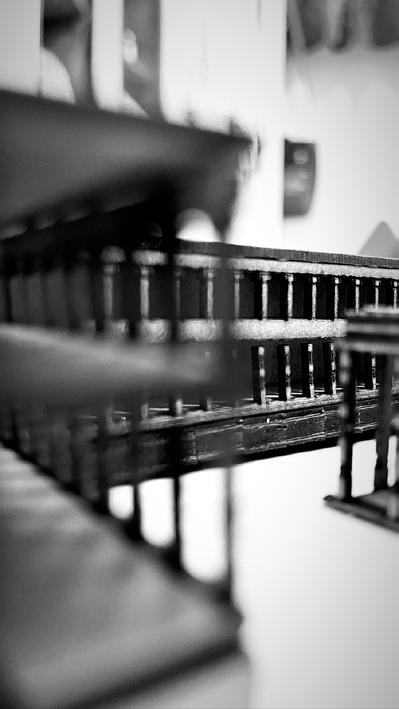

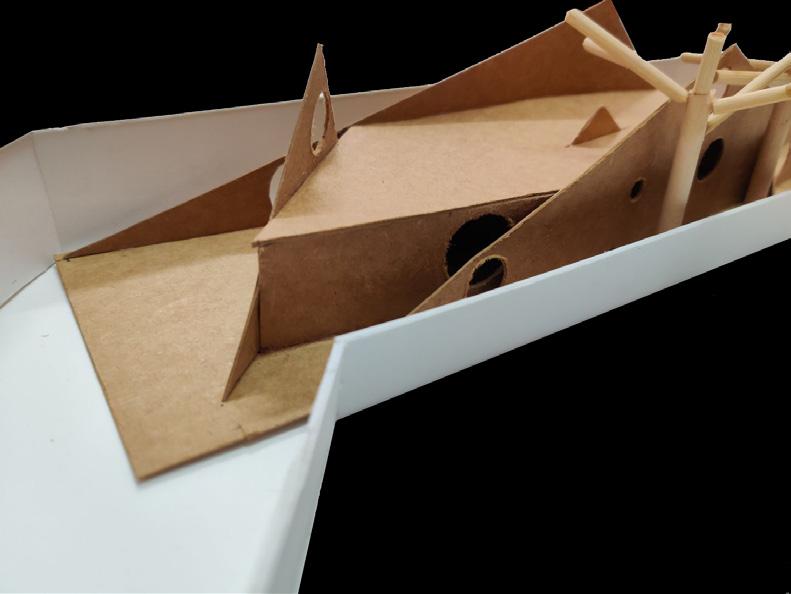

MODEL MAKING [ARCHITECTURAL DESIGN STUDIO]

PARLIAMENT BUILDING, SRI LANKA [TECTONICS STUDIO]

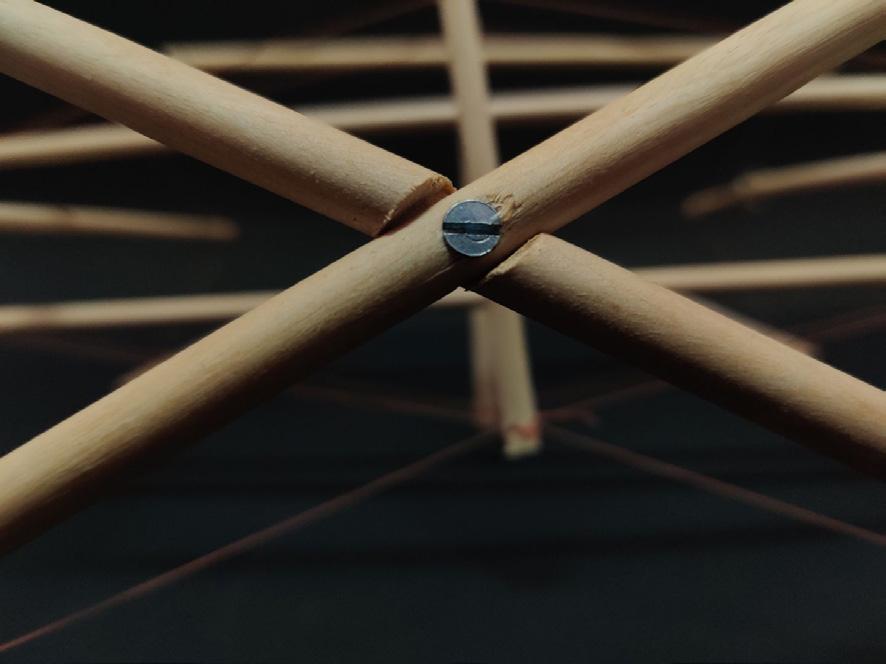

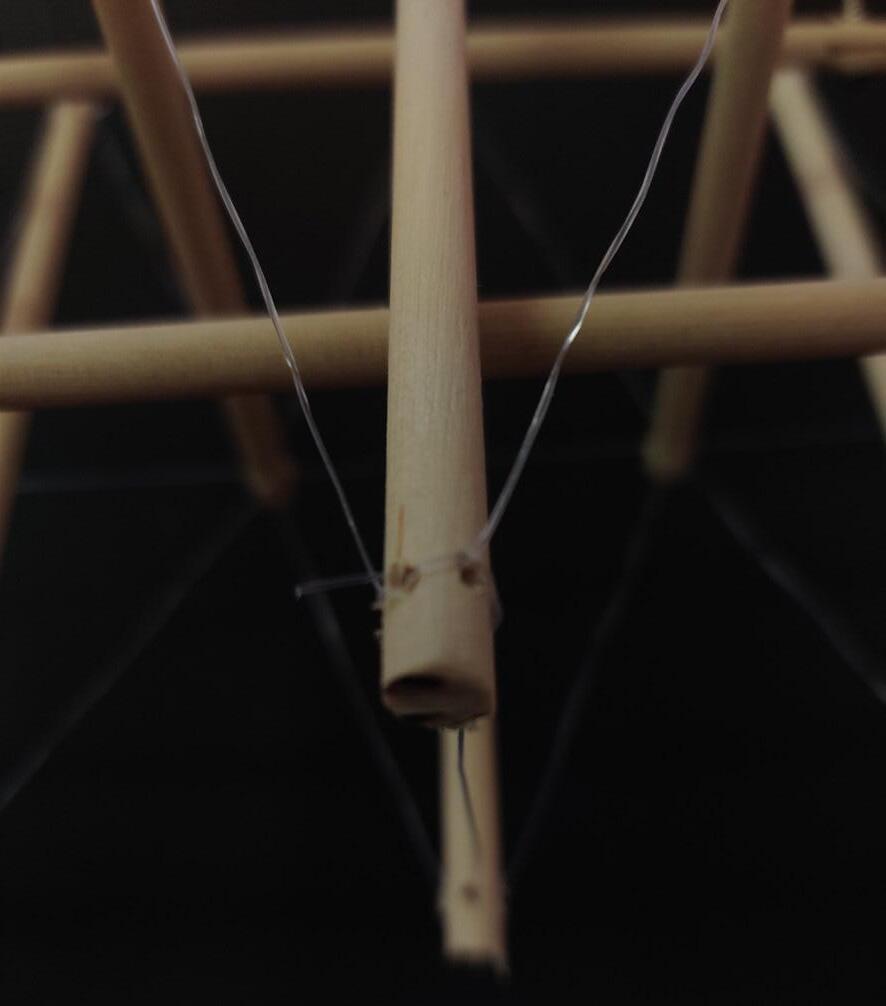

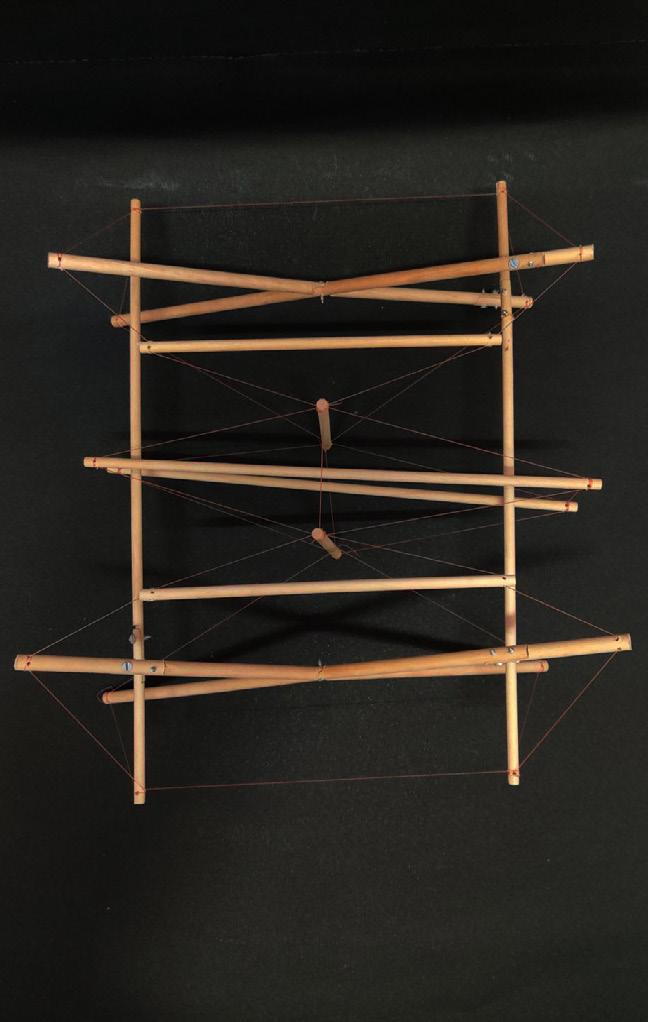

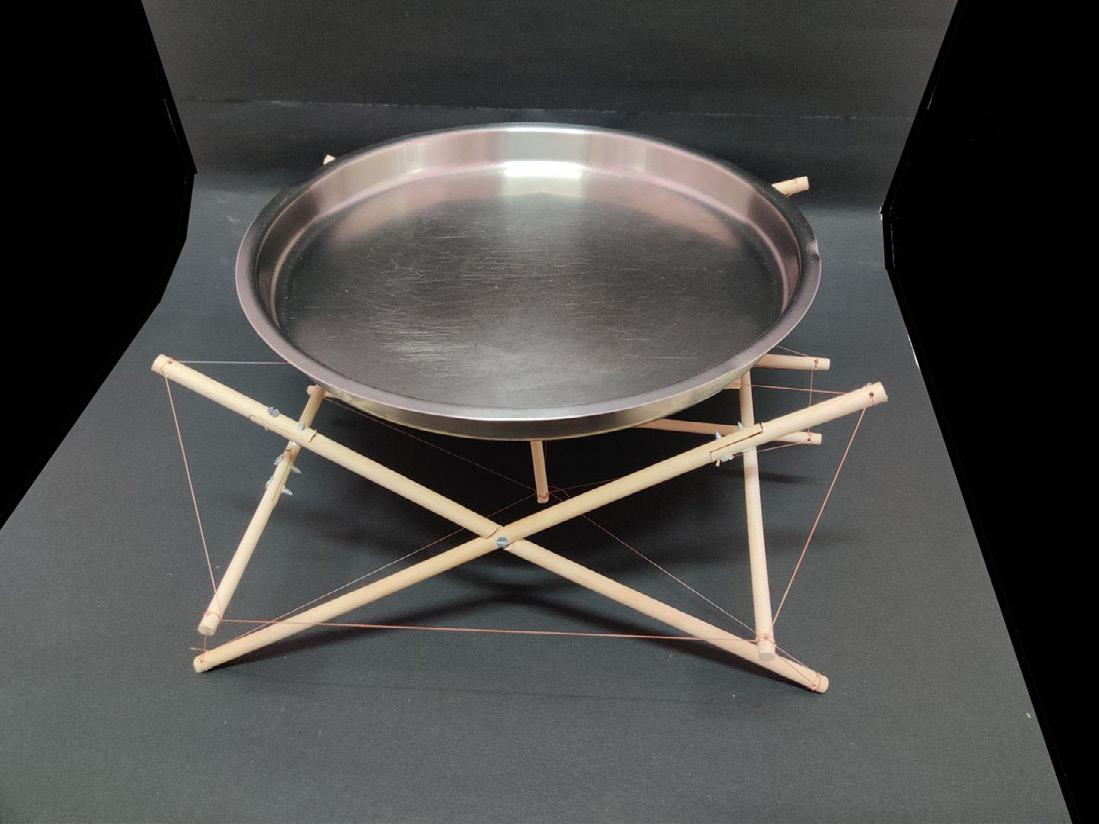

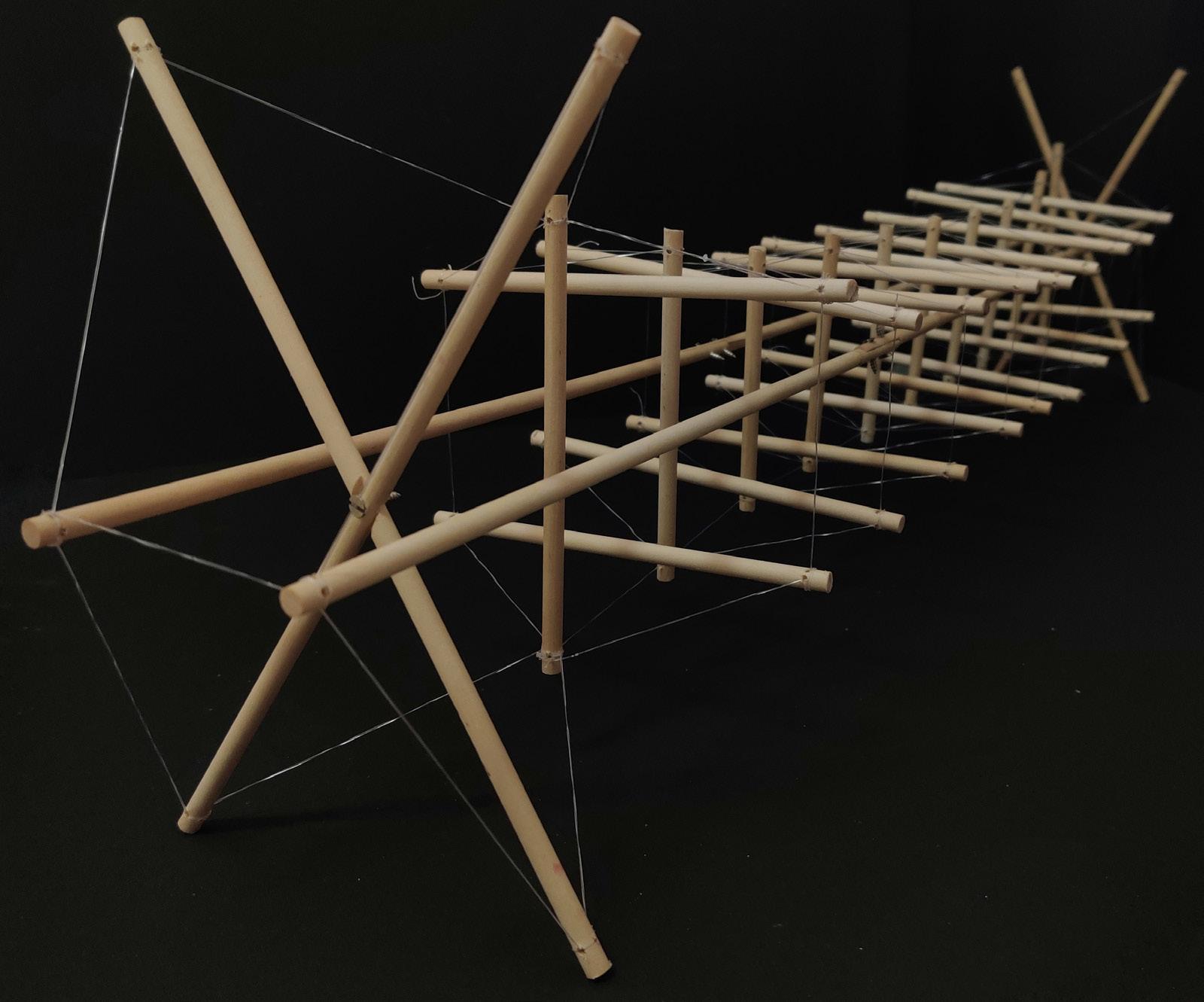

TENSIGRITY BRIDGE MODEL [ALLIED DESIGN]

PASSION FOR CHARCOAL
