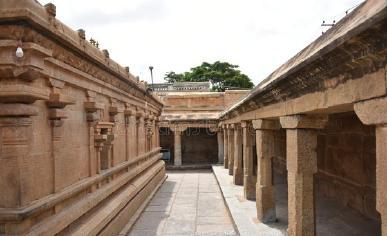

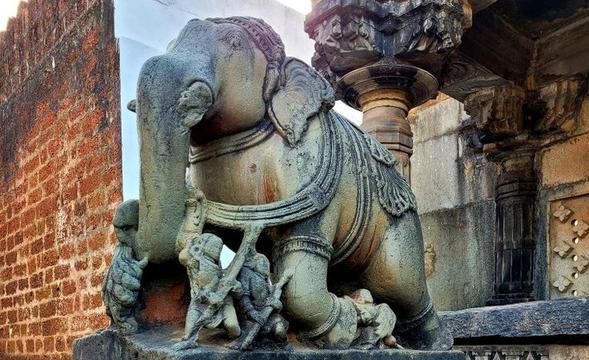

Temple documentation, Kolar & Banavasi

Enscape Photoshop

Canva Photoshop

MS Office

Drafting, 3D Modeling & Visualization, Estimation and Scheduling.

Scheduling Projects

Kannada

English

Hindi

Teamwork, Time management, Creative Thinking.

D U C A T I O N

B O U T C O N T A C T M E

S O F T W A R E S K I L L S

C O - C U R R I C U L A R L A N G U A G E I N T E R E S T S / H O B B I E S

S O F T S K I L L S

O T H E R S K I L L S

Sports Reading Movies Travelling Visualization A D I T H Y A H E G A D E

L i s t o f C o n t e n t s .

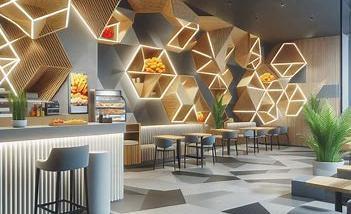

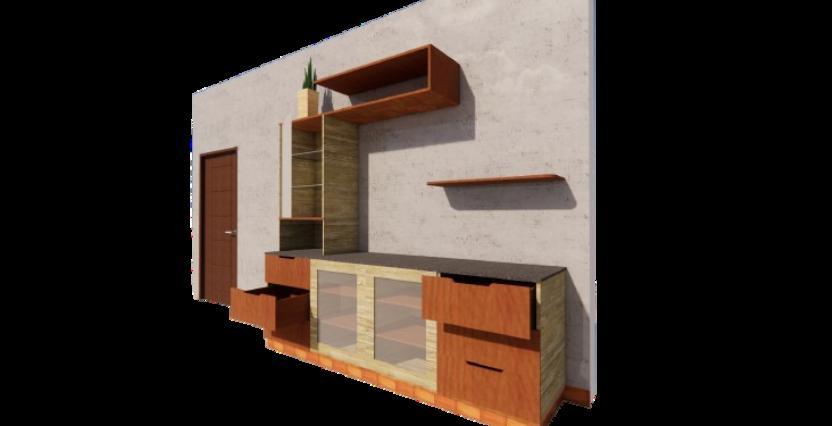

01 02 03 04 05 06 Interiors Miscellaneous Working Drawing Saukhya-Sangama (Hospital) Sthira (Residence) Yaatrashraya (Bus-Terminal)

Yaatrashraya

MULTI-MODAL TRANSPORT HUB DESIGN (BUS TERMINAL)

-01-

PROJECT TITLE/ TYPE: Multi-modal Transport hub, Nayandahalli

PROJECT SITE AREA: 8.5 acres/34,398 Sq.mts

LOCATION: Nayandahalli, Bengaluru

INTRODUCTION

This is a multi-modal transport hub, primarily meant to serve intercity and intracity commuters. Multi-modal transport hubs play a major role in transit in Bengaluru, which is a rapidly growing city with commercial and residential landuse increasing at a tremendous rate

CONCEPT

The form has been developed on the basis of function and restriction of entry of different activities Hospitality block is placed at the topmost part of the building, followed by office spaces, commercial and the terminal floor which is placed in the ground floor.

-YAATRASHRAYA (BUS TERMINAL)-

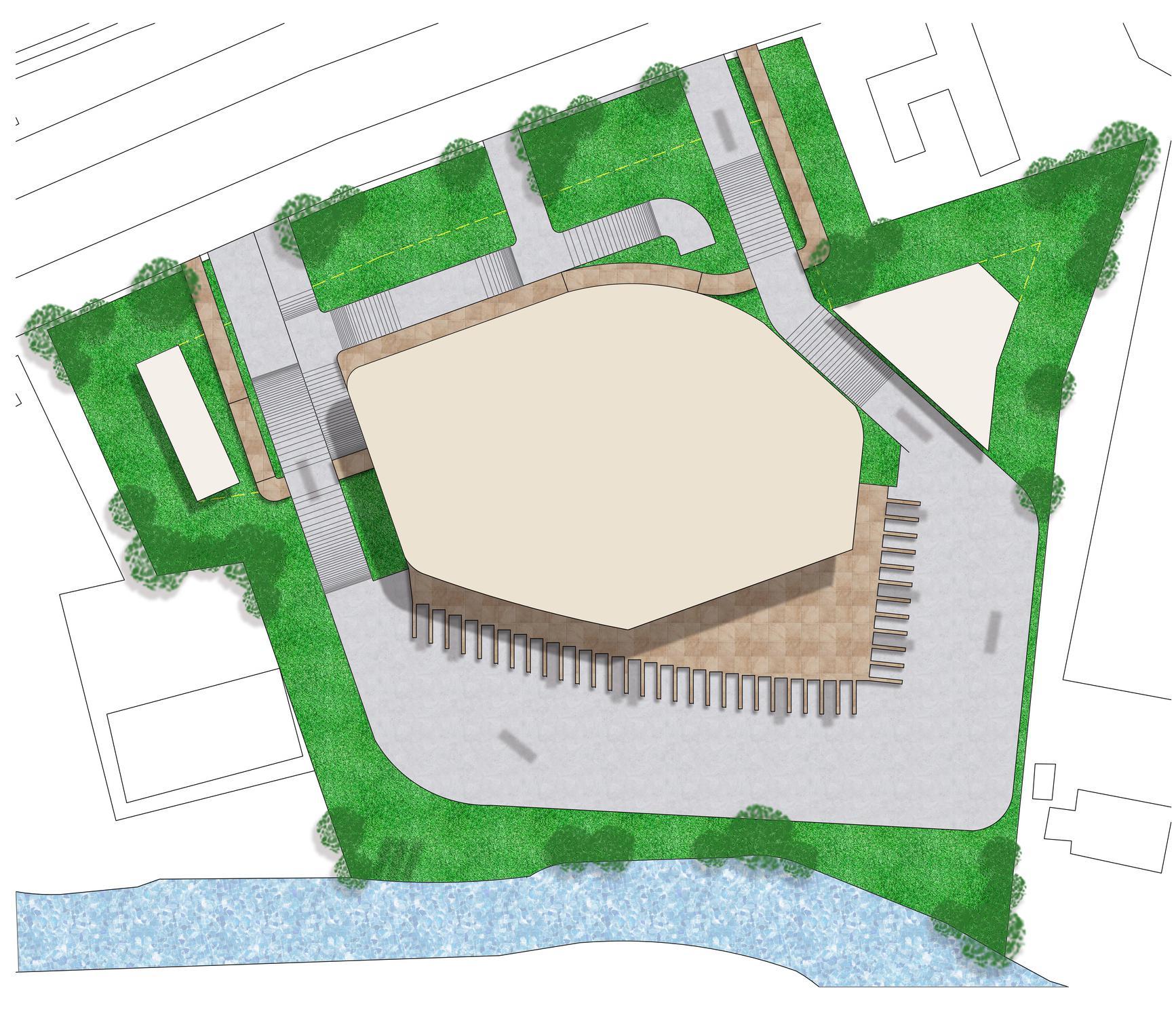

M a s t e r P l a n

Site Area: 8.5 acres, 34,398 sq.mts

Total Built-up area: 1,37,592 sq.mts

Permissible FAR: 4

Ground Coverage: 8,400 sq.mts

Total number of floors: 22

-03-

N -YAATRASHRAYA (BUS TERMINAL)-

-04N -YAATRASHRAYA (BUS TERMINAL)-

Bus Terminal

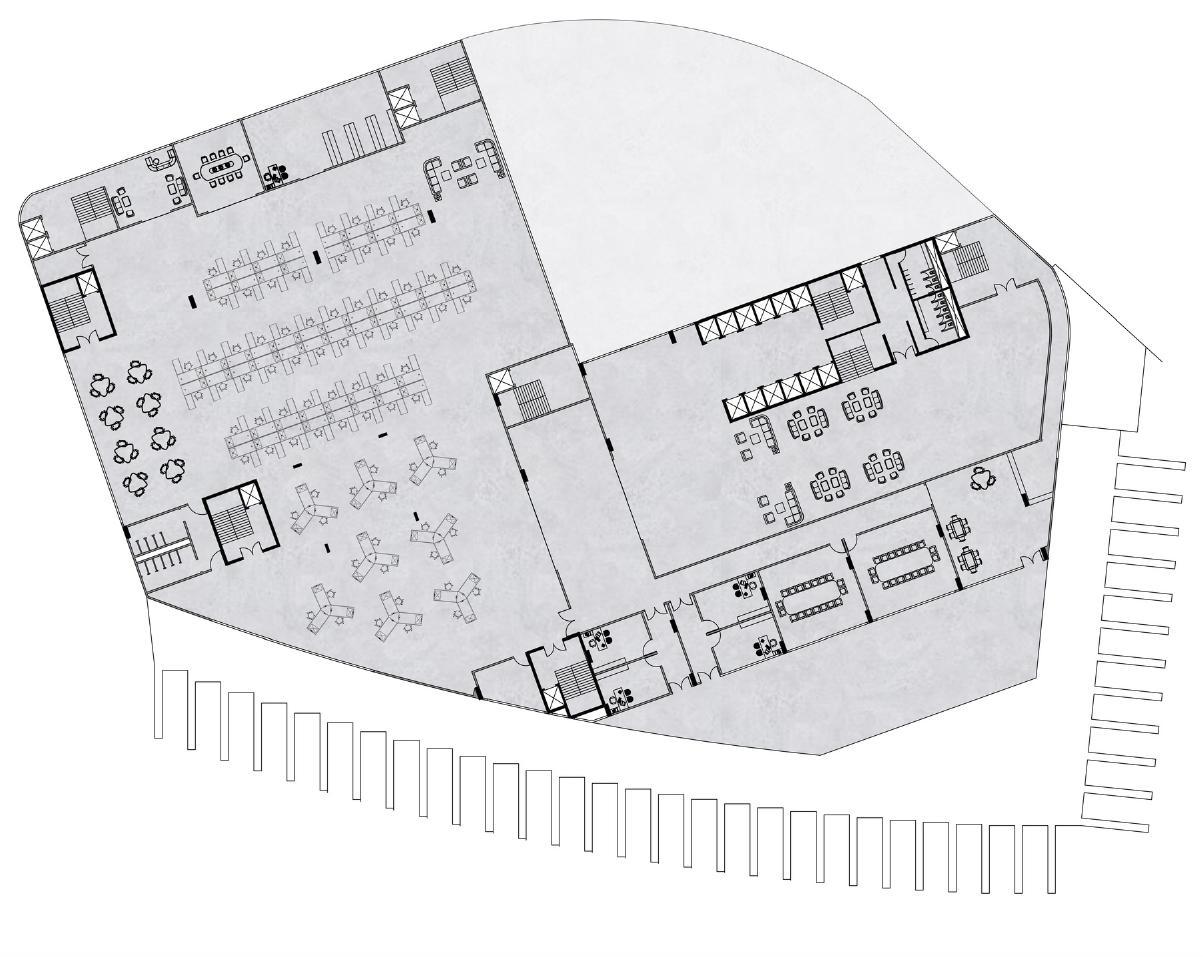

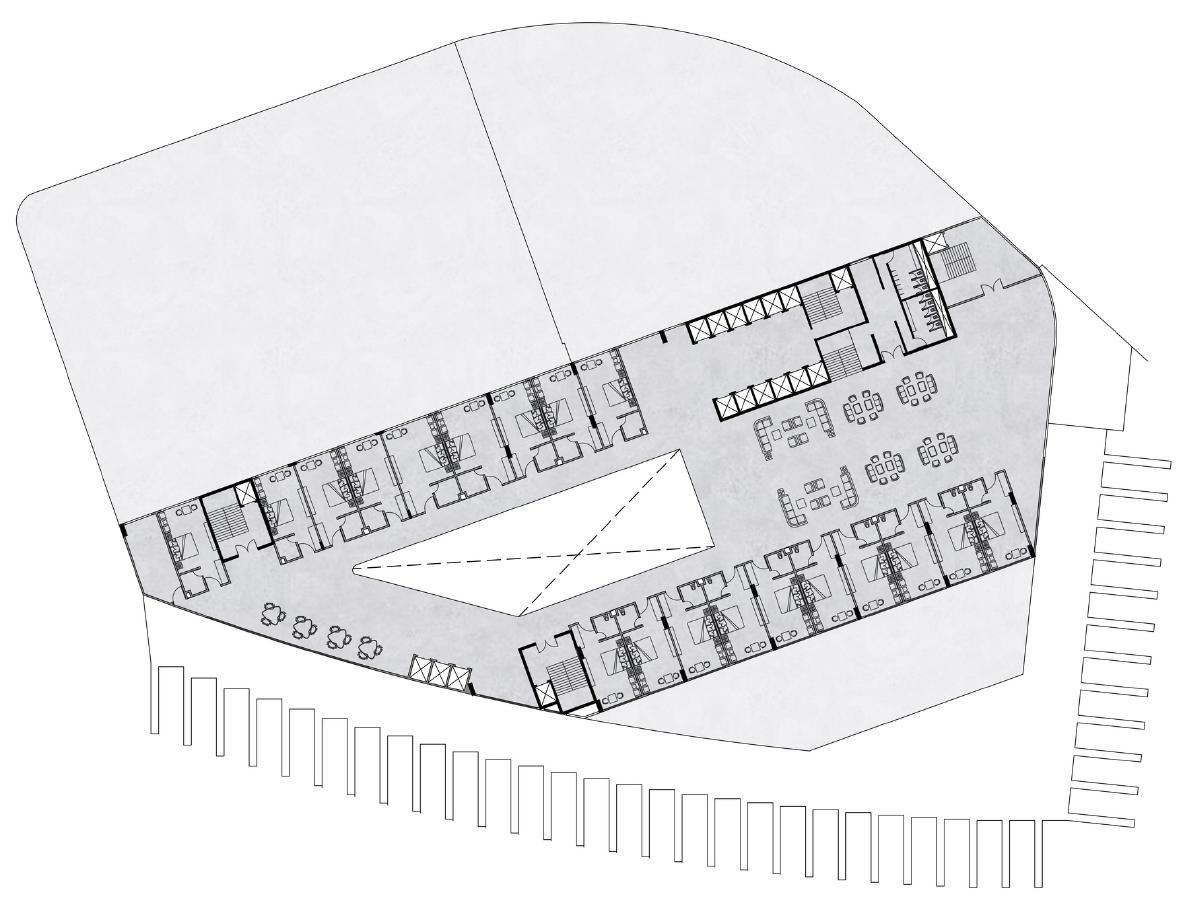

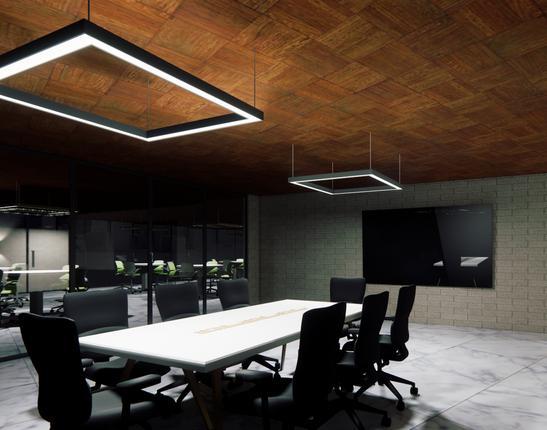

Office Floor

-05-

N -YAATRASHRAYA (BUS TERMINAL)-

-06Hospitality Floor N -YAATRASHRAYA (BUS TERMINAL)-

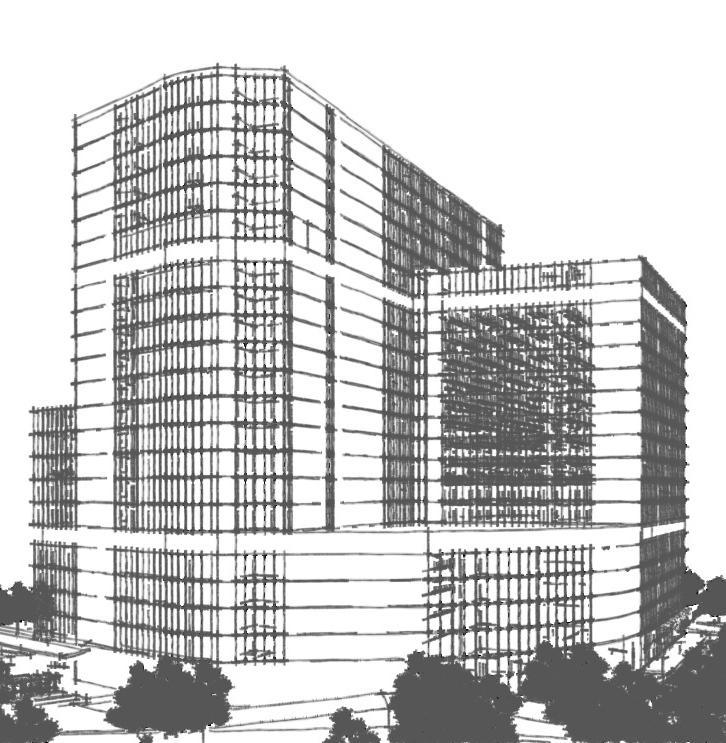

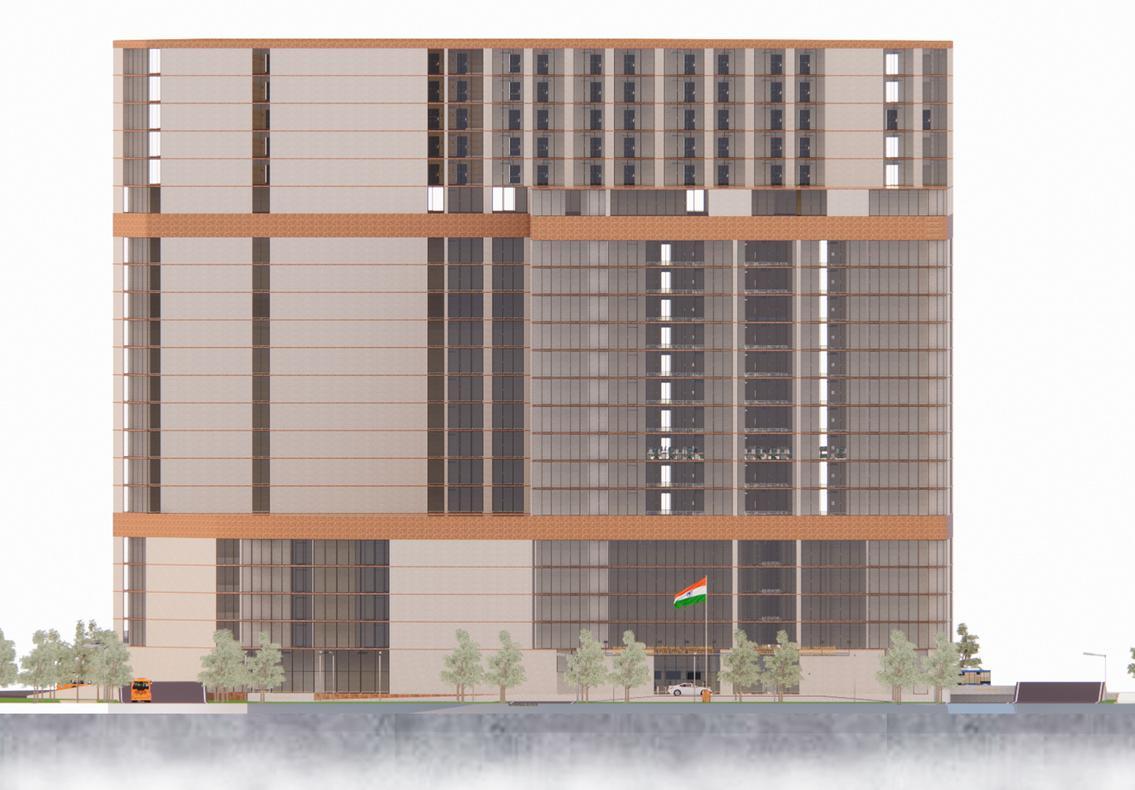

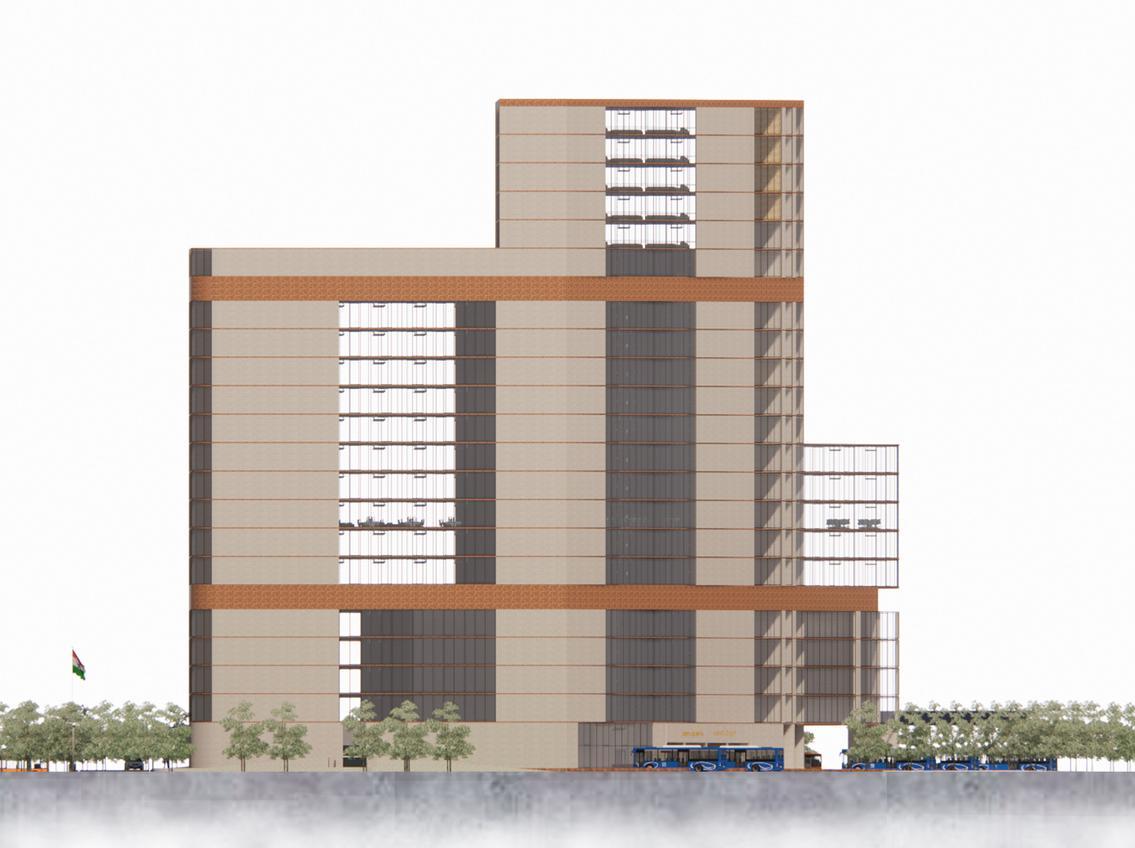

l e v a t i o n s

-07-

-YAATRASHRAYA (BUS TERMINAL)-

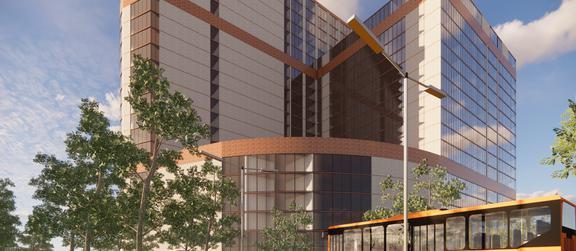

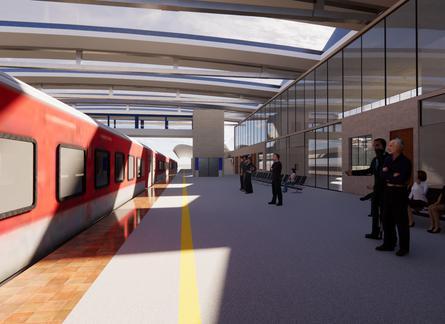

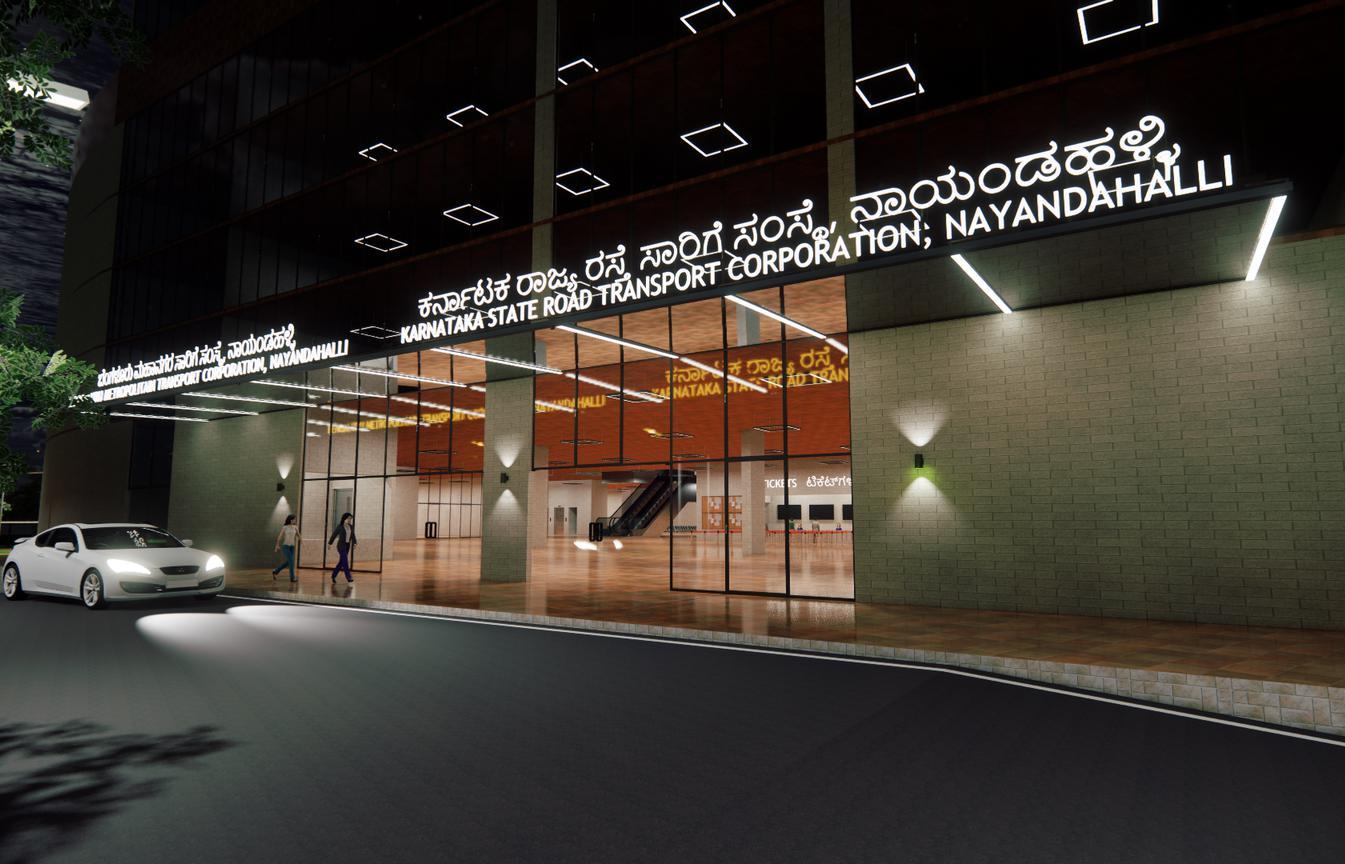

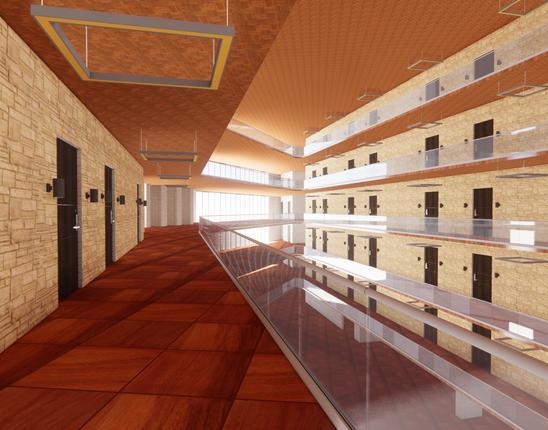

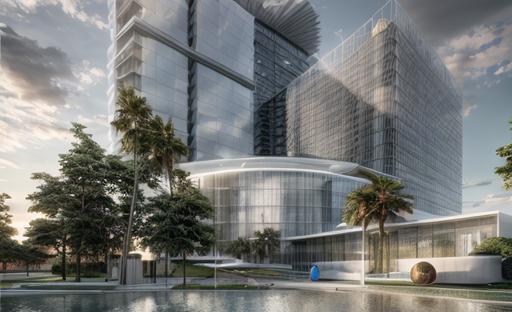

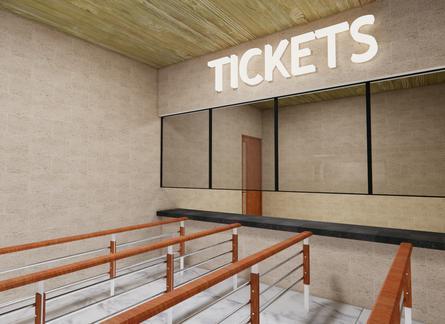

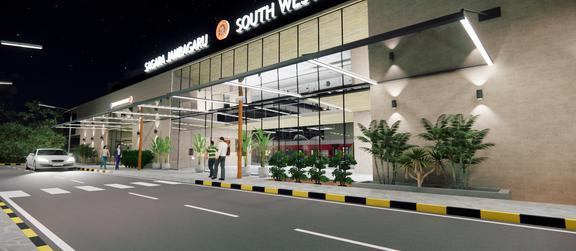

-08V i e w s -YAATRASHRAYA (BUS TERMINAL)-

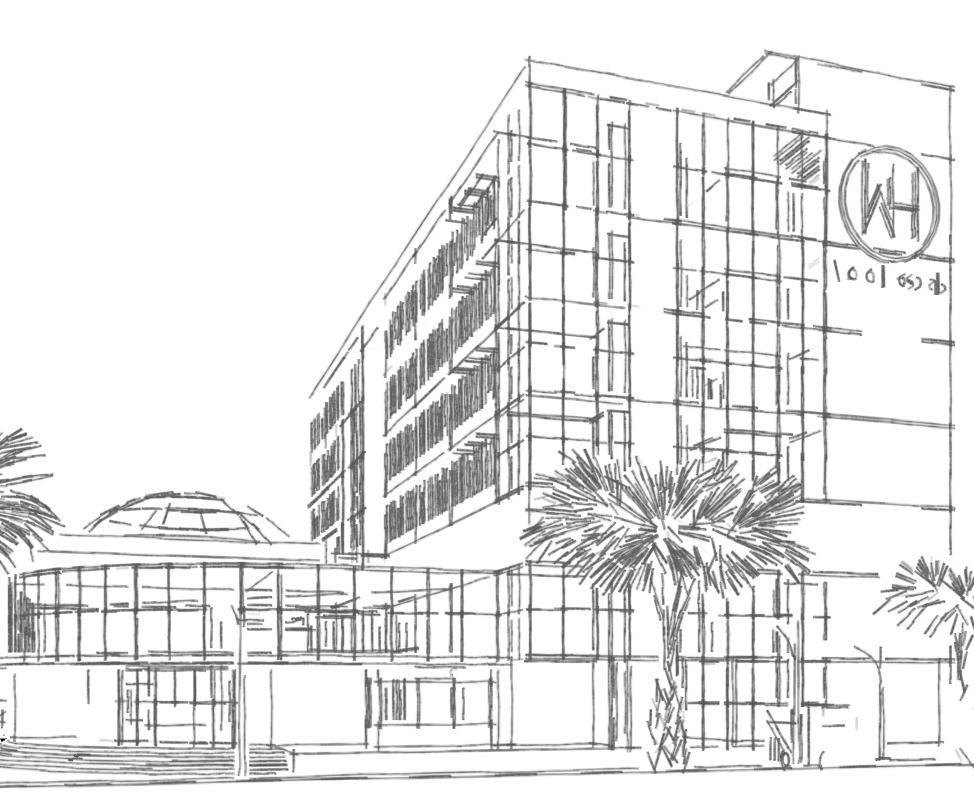

Saukhya-Sangama

HOSPITAL DESIGN

-09-

PROJECT TITLE/ TYPE: Hospital/WeCare Hospitals

PROJECT SITE AREA: 1.8 acres

LOCATION: Vijayanagar, Bengaluru

INTRODUCTION

WeCare, is a multi-speciality hospital which aims to provide a better usage of space and infrastructure for the users with all the medical facilities provided under one shelter. The major objective of the project is to make sure the users get maximum utilization in the terms of functionality, and also to provide a visually appealing spaces

CONCEPT

A hospital building has various restrictions based on the entry of the people. Based on the activity, the building is divided or tapered on certain levels henceforth effectively dividing different vertical activities in the building

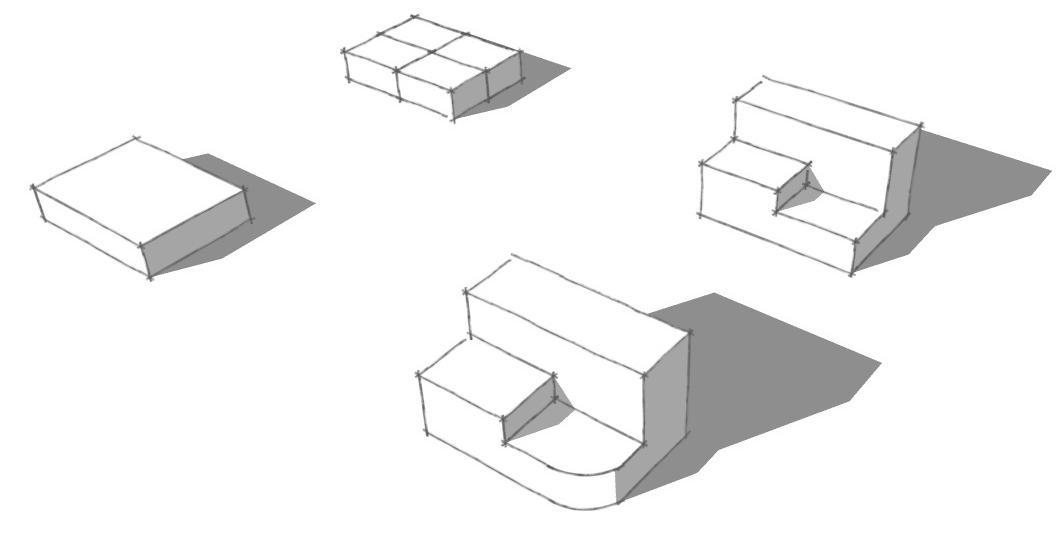

FORM DEVELOPMENT

The form has been developed on the basis of function and restriction of entry of different activities Operation theatre is placed at the topmost part of the building, followed by general wards, Out-patient department and emergency section, which is placed at the ground floor.

b o u t t h e P r o j e c t

-10-

-SAUKHYA SANGAMA (HOSPITAL)-

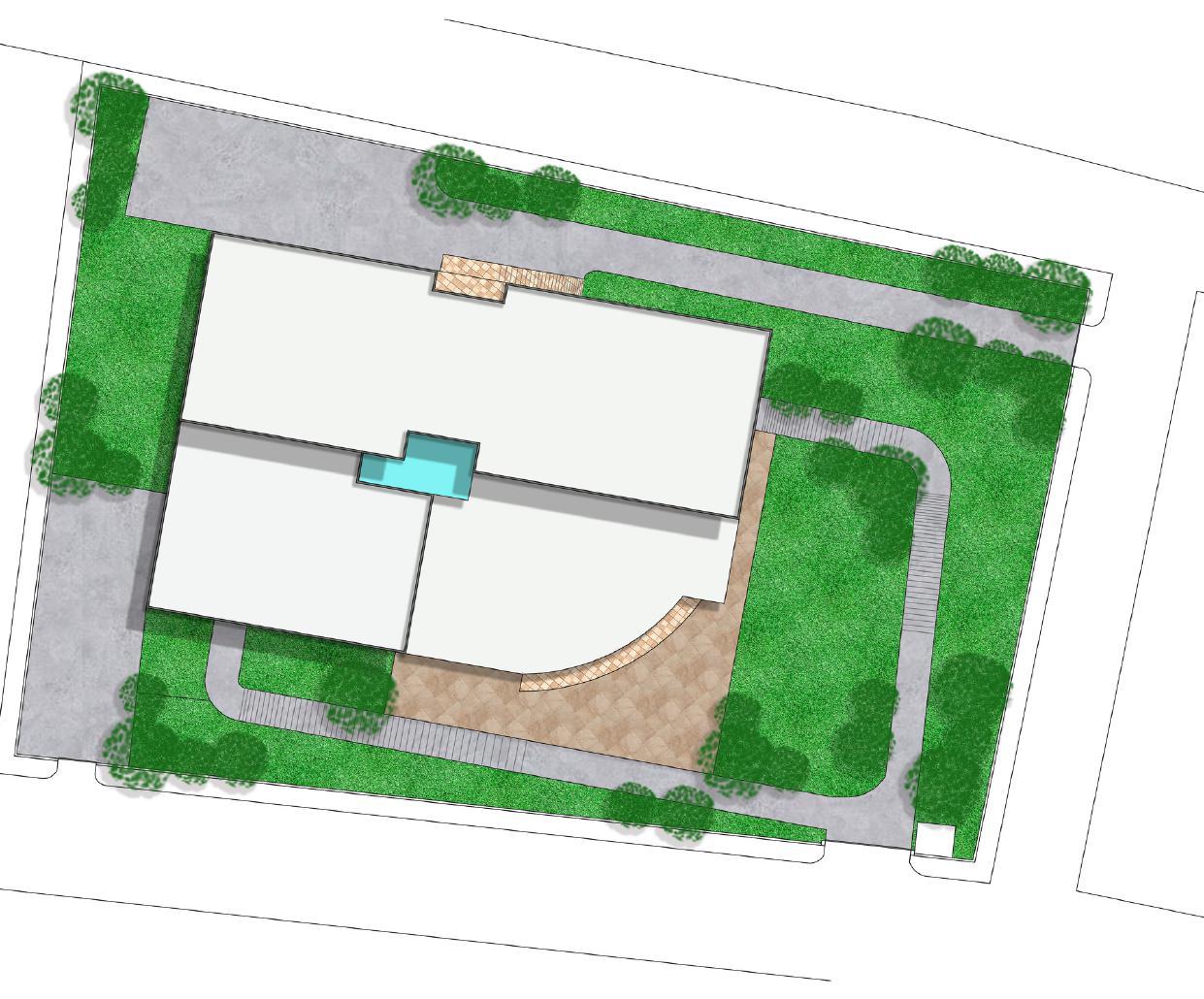

M a s t e r P l a n

Site Area: 1.8 acres/ 7,284.34 Sq.mts

Ground Coverage: 3,200 Sq.mts

FAR: 2.5

Height of the building: 29.4 metres

Setbacks: 8 metres around

-11-

N -SAUKHYA

SANGAMA (HOSPITAL)-

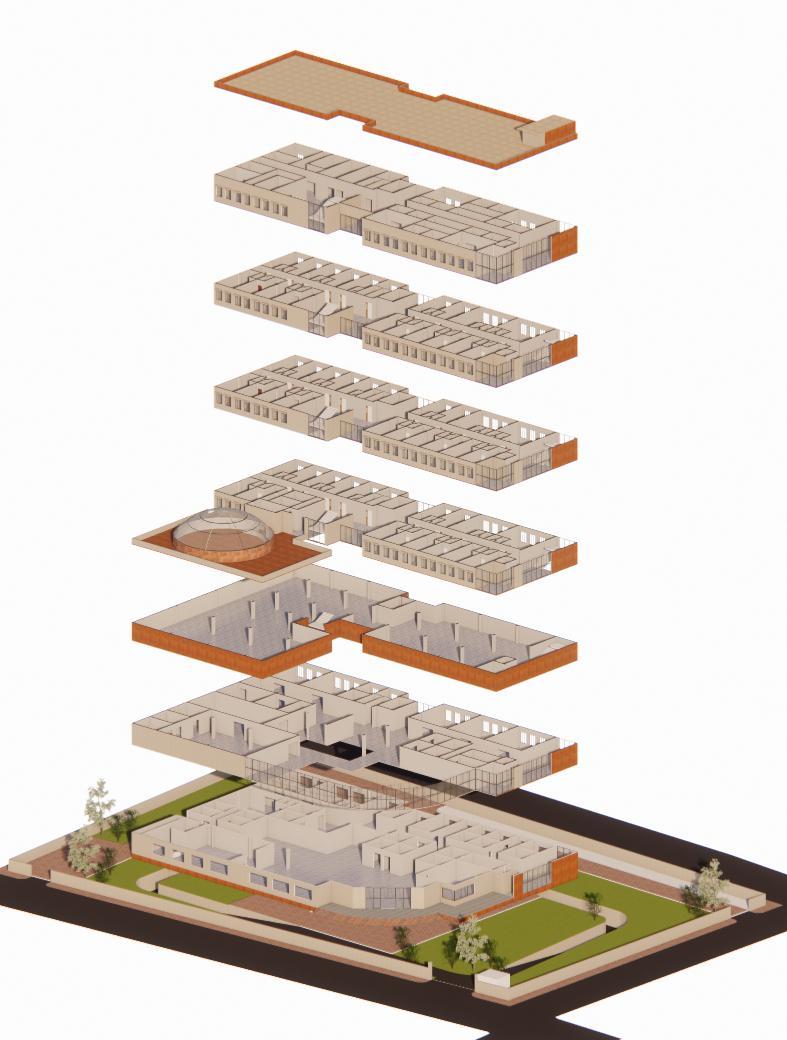

TERRACE FLOOR

IPD OPERATION THEATRE (6TH)

IPD GENERAL WARDS (5TH)

IPD GENERAL WARDS (4TH)

IPD GENERAL WARDS (3RD)

SERVICE FLOOR (2ND)

OUT-PATIENT DEPT. (1ST)

OPD & EMERGENCY (G F )

-12-

-SAUKHYA

SANGAMA (HOSPITAL)-

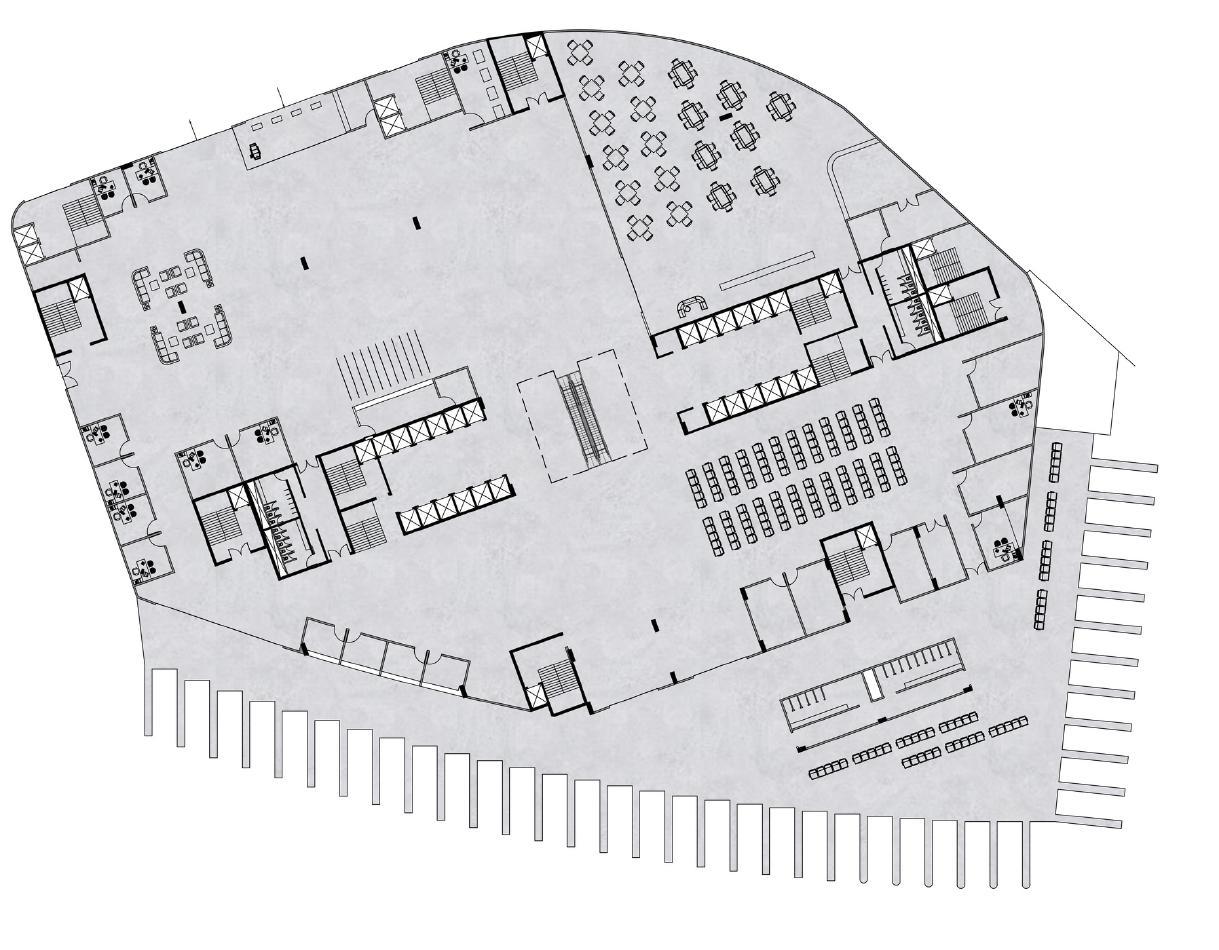

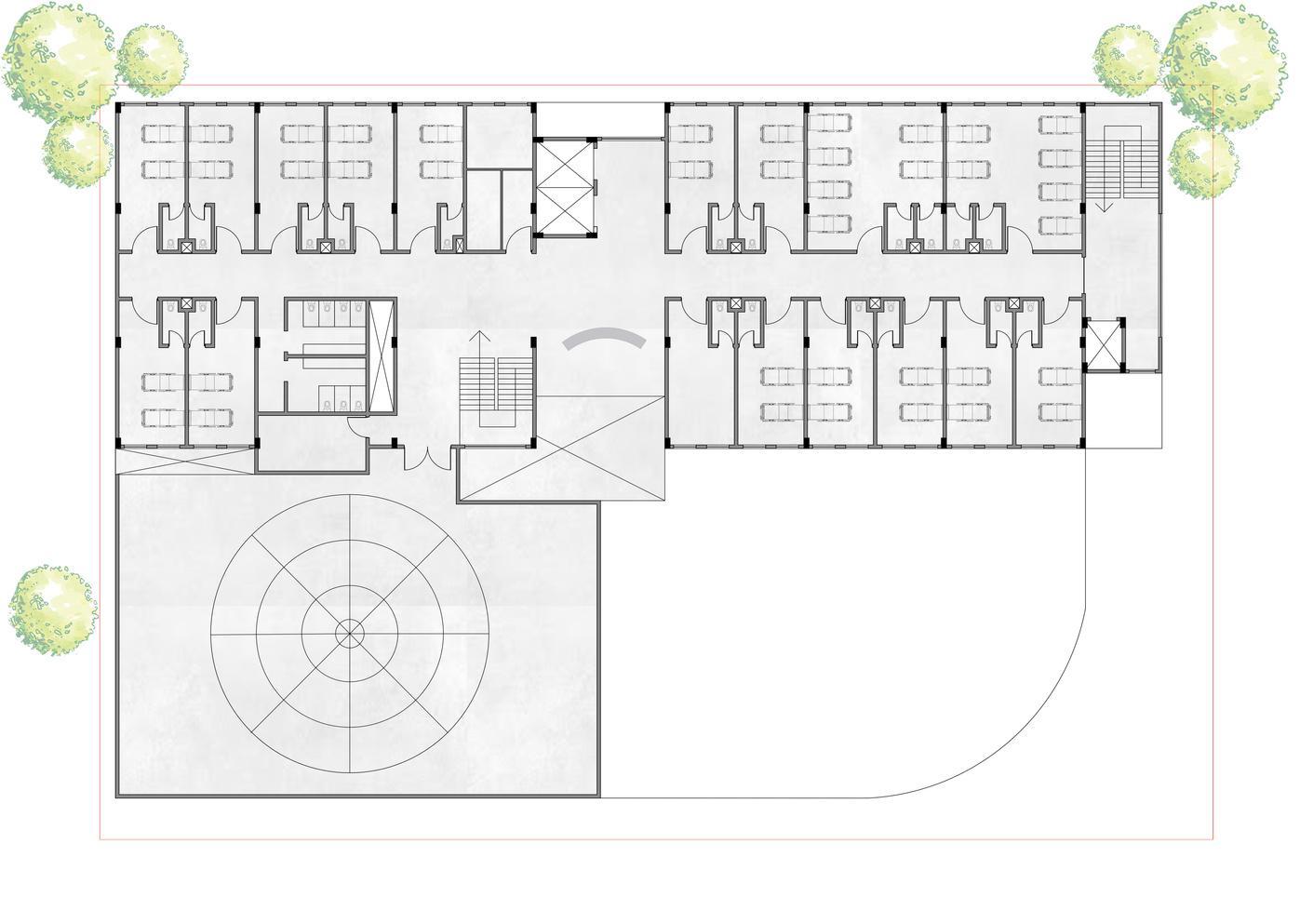

F l o o r P l a n s

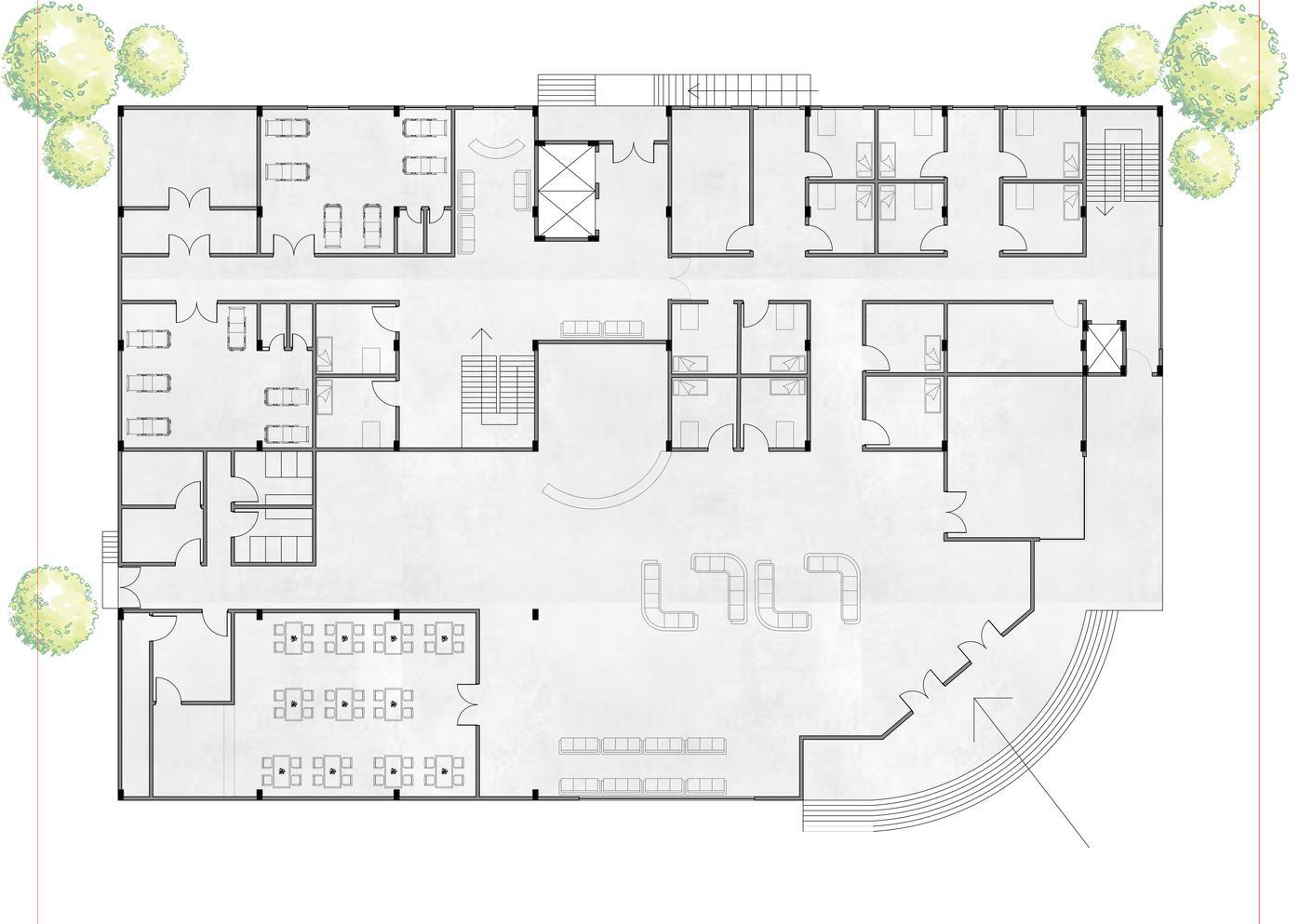

GROUND FLOOR PLAN (OPD)

-13-

IPD FLOOR PLAN -SAUKHYA SANGAMA (HOSPITAL)-

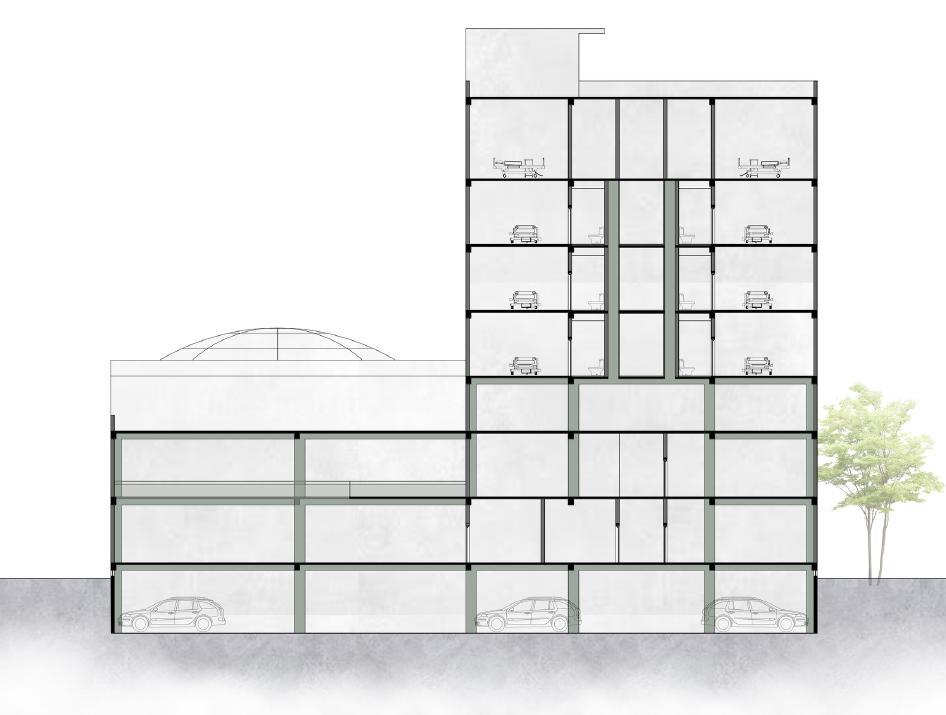

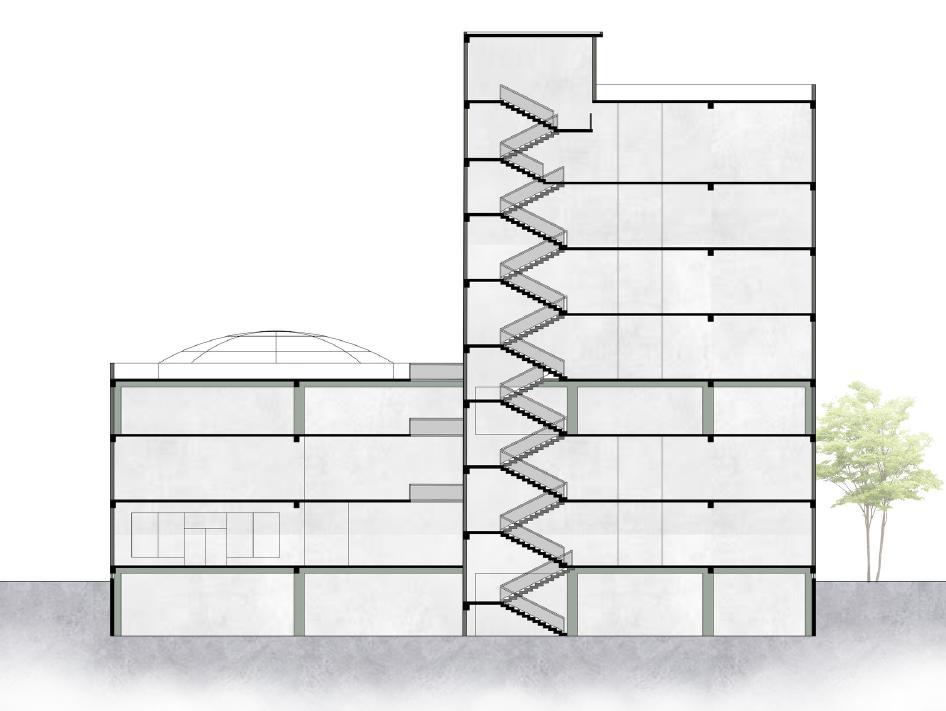

SECTION AA’

SECTION BB’

S e c t i o n s -14-

-SAUKHYA SANGAMA (HOSPITAL)-

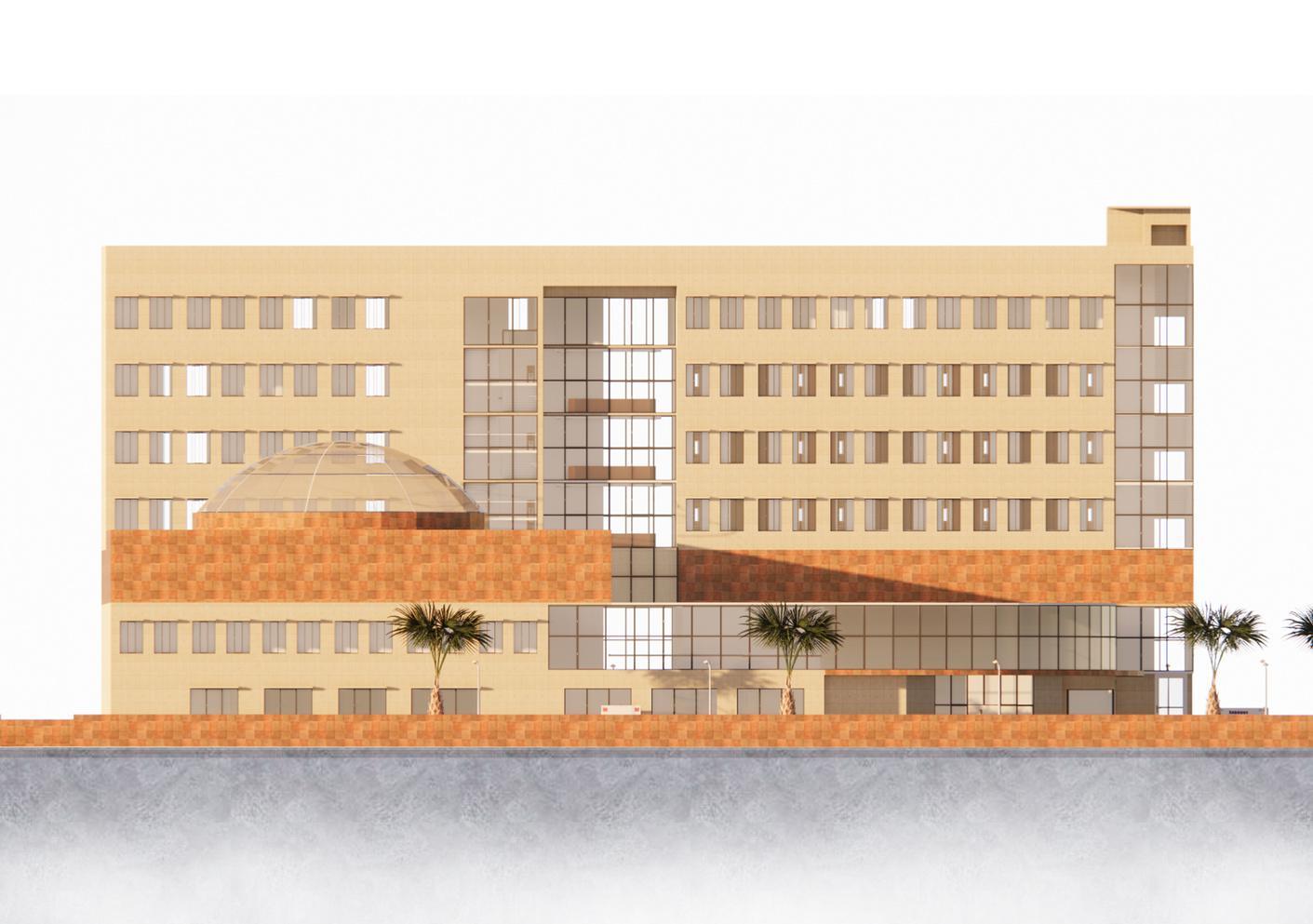

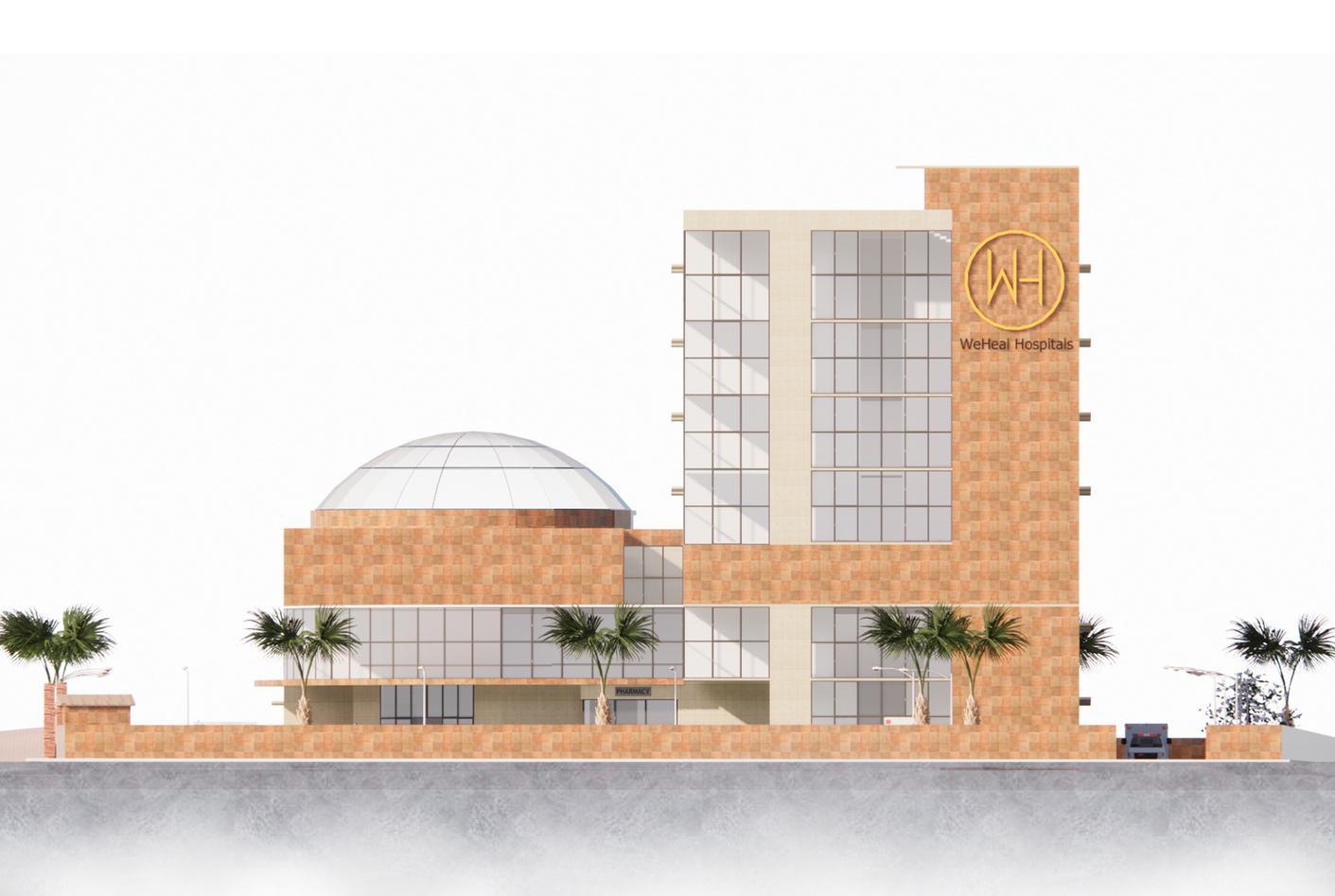

E l e v a t i o n s

EAST ELEVATION

SOUTH ELEVATION

-15-

-SAUKHYA

SANGAMA (HOSPITAL)-

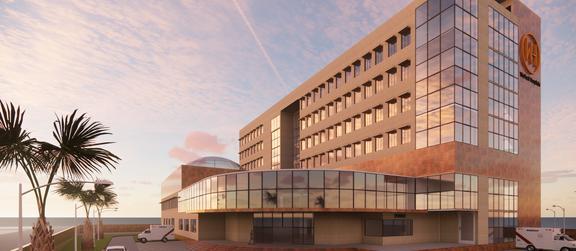

-16V i e w s

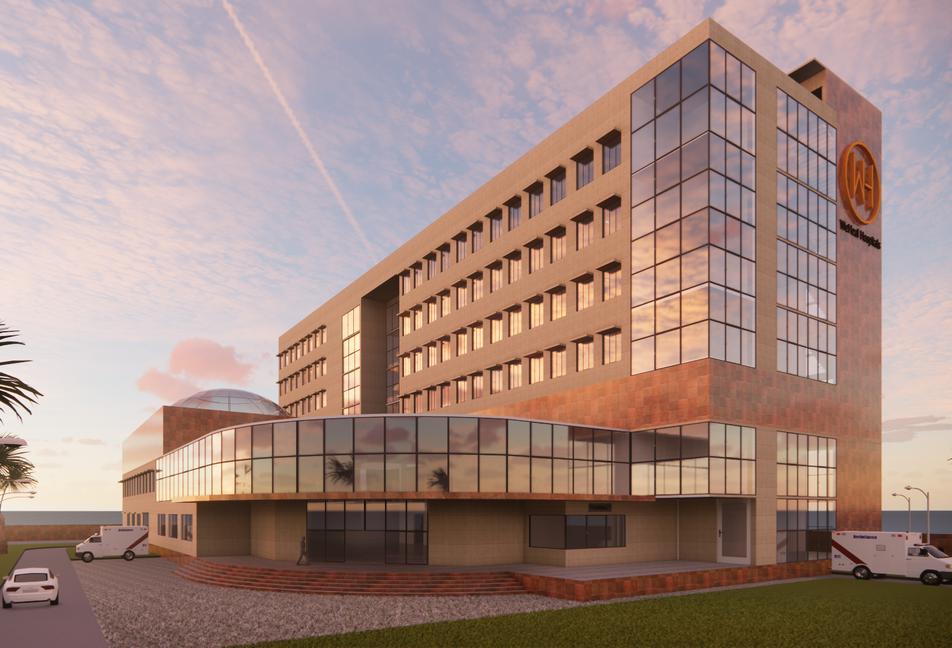

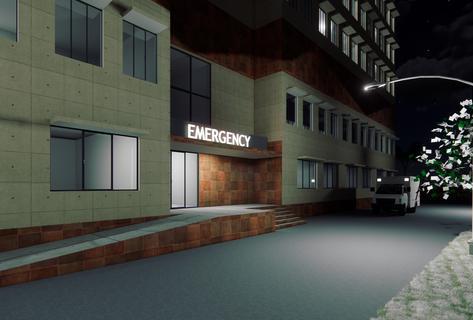

IPD Reception- IPD General ward- IPD Lobby- Entrance to Emergency Section- Exterior View- -SAUKHYA SANGAMA (HOSPITAL)-

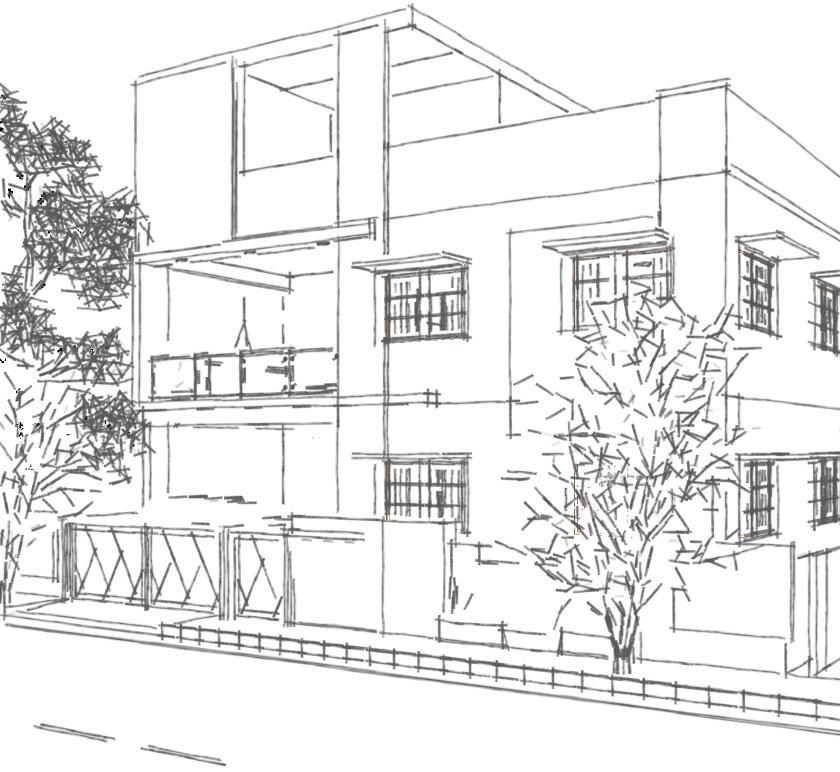

Sthira RESIDENCE DESIGN

-17-

Prithivi, a residential project which is a place where luxury meets optimum space usage. This is designed for four people, comprises of 3 BHK, which offers elegant atmosphere to the user with the usage of natural lighting and ventilation.

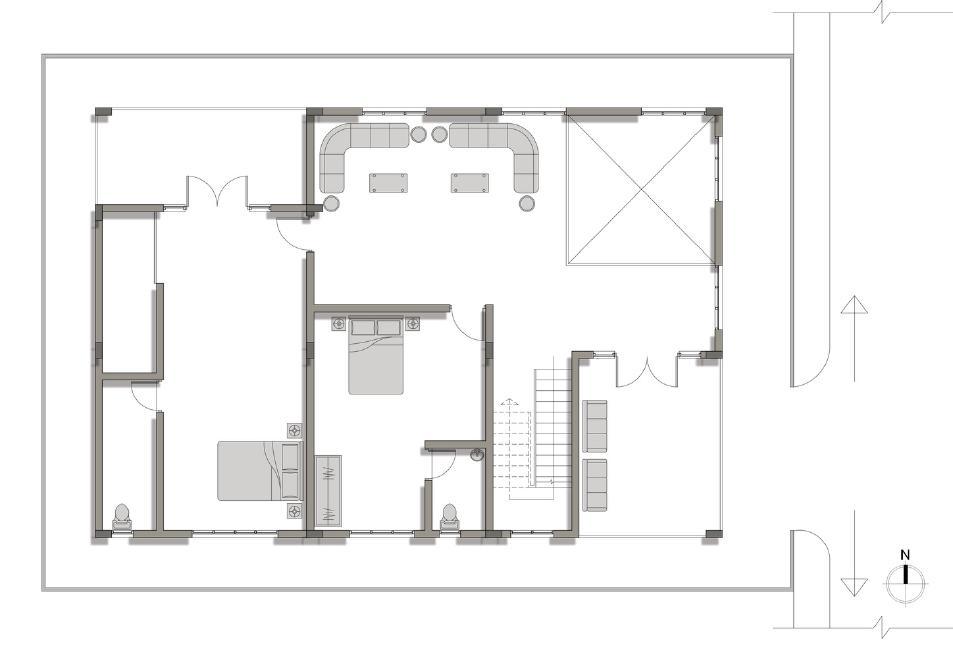

FLOOR PLANS

INTRODUCTION

b o u t t h e P r o j e c t

-18-STHIRA (RESIDENCE)-

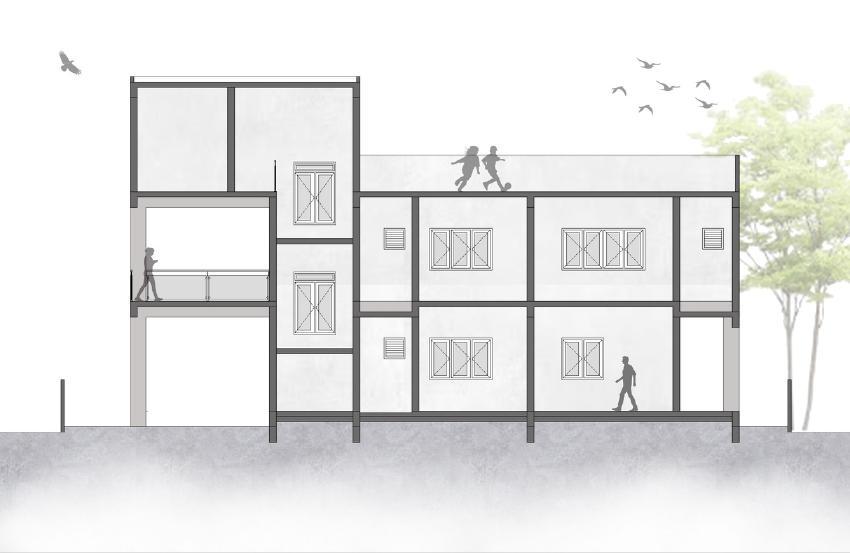

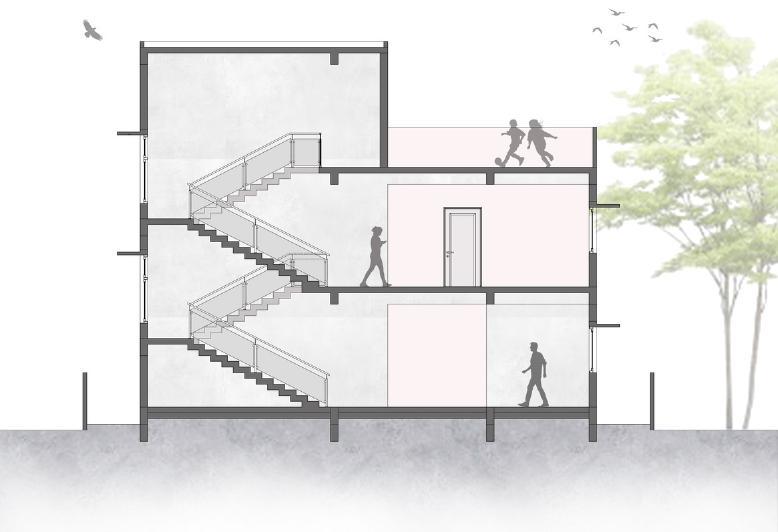

SECTIONS

SECTION AA’

SECTION BB’

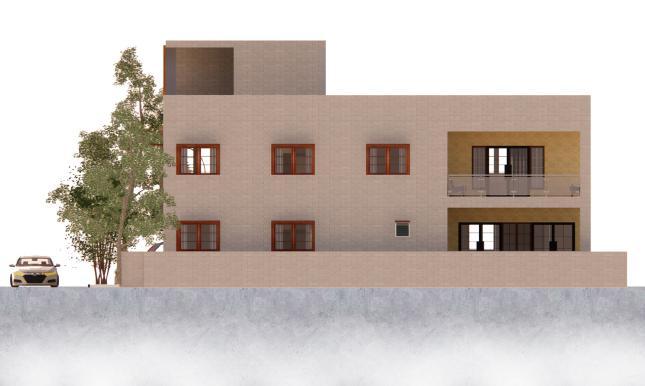

ELEVATIONS

-19-STHIRA (RESIDENCE)-

-20V i e w s

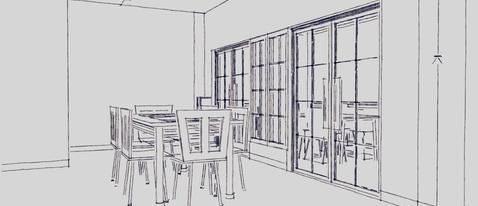

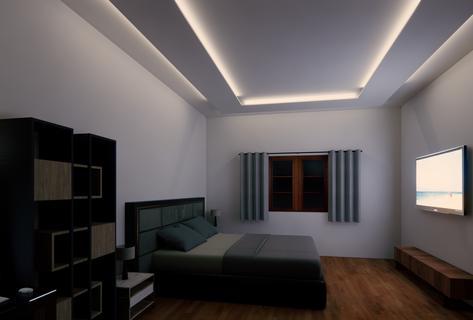

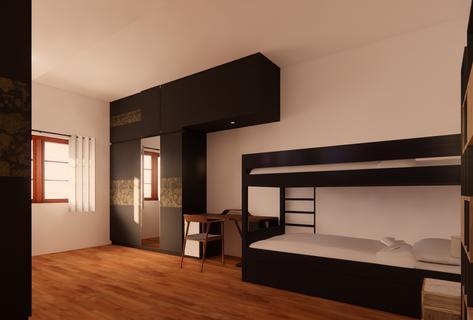

Dining Room- Children’s Bedroom- Living Room- Master Bedroom-

-STHIRA (RESIDENCE)-

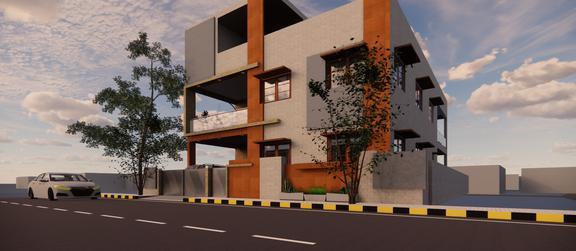

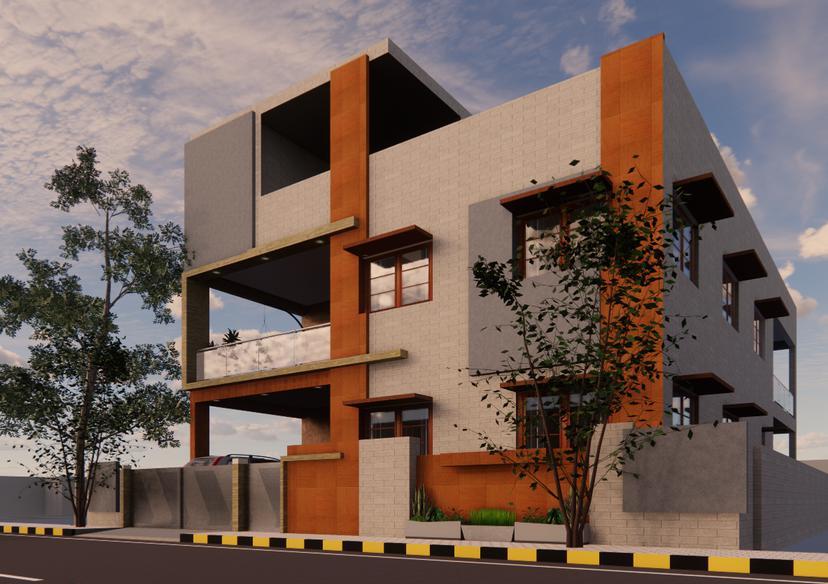

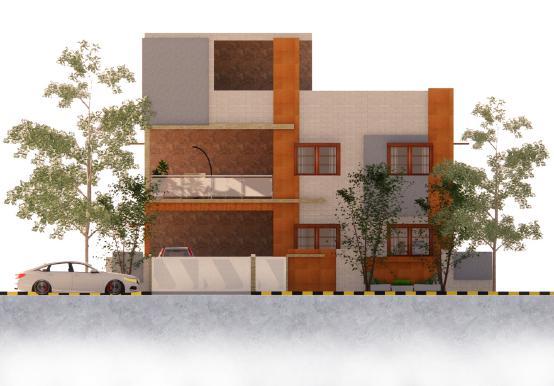

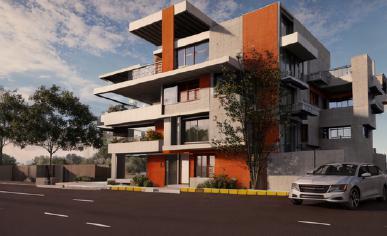

Exterior View-

Working Drawing

SECTIONS

-21-

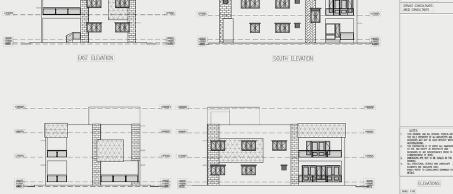

ELEVATIONS

-2220 19 18 17 16 15 14 13 1 2 3 4 5 6 7 8 9 1 0 1 1 1 2 100 100 100 1400 1001400 1001400 1001400 450 450 600 2001500 1650 200 5450 5900 5900 4000 2400 800 200 450 450 200 600 750 3100 1800 1800 5000 21000 20800 20800 21000 6150 700 2100 600 2001500 700 450 450 200 1800 2501200 2200 700 200 2150 6400 5250 4000 4000 1800 450 1900 1900 1900 1900 100 100 100 100 100 100 1 5 0 0 0 1 0 0 1 4 8 0 0 1 0 0 4 5 0 4 5 0 4 8 0 0 1 4 0 0 2 0 0 1 0 0 1 4 0 0 1 0 0 2 0 0 2 5 0 0 3 4 0 0 2 7 0 0 4 1 0 0 5 0 0 0 1 4 0 0 1 0 0 2 0 0 6 0 0 1 4 0 0 2 0 0 1 0 0 1 8 0 0 1 8 0 0 1 8 0 0 4 5 0 3 5 0 4 8 0 0 1 6 0 0 1 0 0 9 2 0 0 4 0 0 0 1 0 0 1 5 0 0 0 D1 D2 W5 37 ° 72 ° -WORKING DRAWING-

-23200 450 1050 1600 600 900 800 200 2 0 0 2 5 0 0 2 0 0 2 0 0 2 5 0 0 2 0 0 300 6 0 0 -WORKING DRAWING-

-24200 450 600 1500 650 200 200 2 0 0 4 2 0 0 9 0 0 2 0 0 3 3 0 0 2 0 0 -WORKING DRAWING-
