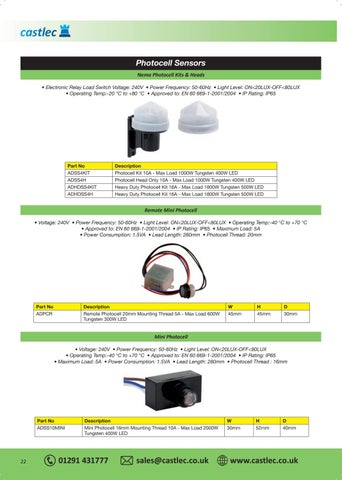

Photocell Sensors Nema Photocell Kits & Heads � Electronic Relay Load Switch Voltage: 240V � Power Frequency: 50-60Hz � Light Level: ON<20LUX-OFF<80LUX � Operating Temp:-20 °C to +80 °C � Approved to: EN 60 669-1-2001/2004 � IP Rating: IP65
Part No ADSS4KIT ADSS4H ADHDSS4KIT ADHDSS4H
Description Photocell Kit 10A - Max Load 1000W Tungsten 400W LED Photocell Head Only 10A - Max Load 1000W Tungsten 400W LED Heavy Duty Photocell Kit 16A - Max Load 1800W Tungsten 500W LED Heavy Duty Photocell Kit 16A - Max Load 1800W Tungsten 500W LED
Remote Mini Photocell � Voltage: 240V � Power Frequency: 50-60Hz � Light Level: ON<20LUX-OFF<80LUX � Operating Temp:-40 °C to +70 °C � Approved to: EN 60 669-1-2001/2004 � IP Rating: IP65 � Maximum Load: 5A � Power Consumption: 1.5VA � Lead Length: 260mm � Photocell Thread: 20mm
Part No ADPCR
Description Remote Photocell 20mm Mounting Thread 5A - Max Load 600W Tungsten 300W LED
W 45mm
H 45mm
D 30mm
Mini Photocell � Voltage: 240V � Power Frequency: 50-60Hz � Light Level: ON<20LUX-OFF<80LUX � Operating Temp:-40 °C to +70 °C � Approved to: EN 60 669-1-2001/2004 � IP Rating: IP65 � Maximum Load: 5A � Power Consumption: 1.5VA � Lead Length: 280mm � Photocell Thread : 16mm
Part No ADSS10MINI
22
Description Mini Photocell 16mm Mounting Thread 10A - Max Load 2000W Tungsten 400W LED
01291 431777
sales@castlec.co.uk
W 30mm
H 52mm
D 40mm
www.castlec.co.uk
