Introduction

Welcome to our new Castlec Circuit Protection Catalogue where we launch our eagerly anticipated new range of metal consumer units.

These new consumer units are a fully enclosed metal construction with a unique flush drop down metal lid. With raised key holes and a spacious, easily accessible wiring area, we believe these are our most user friendly range of consumer units yet.

We are constantly adding to our ranges and in this new catalogue we introduce a range of Bi-directional RCBOs, Single Module T2 SPDs, IP65 EV & Mini Garage Units, improved MCBs, ARC Devices and more to our Circuit Protection collection.

All of our products are tested to the applicable standards and come with the appropriate certification. Where possible we provide a free next day delivery on all orders £150 or over received by 1pm. Orders below £150 are subject to £8.50 carriage charge.

We are proud of the relationships within the Electrical Wholesale industry that we have built up in the past 30 years plus and look forward to helping you with any of your future enquiries.

For further information you can also view our website www.castlec.co.uk or contact our customer service on the contact number below.

Content

CIRCUIT PROTECTION

Surge Protection Consumer Units &

Dual RCD T2 Surge Protection Boards

Main Switch & RCD Boards

EV and Garage Distribution

Modular Enclosures

Plastic Modular Enclosures

Main Fused Switches

RCBO’s

Surge Protection Devices & ARC Fault Detection Device

Type A & Type B RCDs

Contactors & Auxilliary Items

Accessories & RCD Sockets

The Next Generation of Castlec Metal Consumer Units are here!

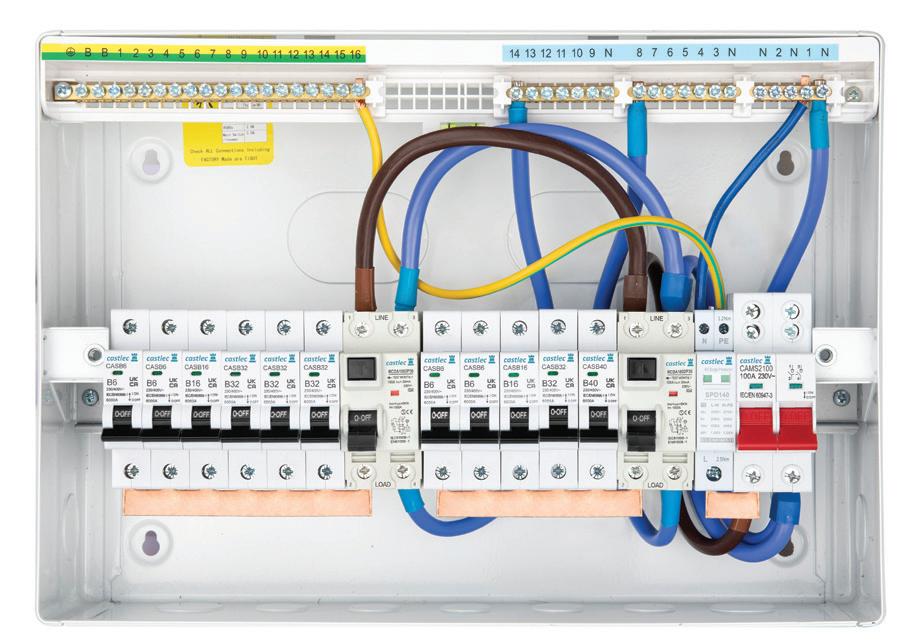

The new range of boards have a fully enclosed metal construction with a unique flush drop down metal lid. With raised key holes and a spacious, easily accessible wiring area, we believe these are our most user friendly range of consumer units yet.

Also we have a new range of Bi-directional RCBOs 1P+N, Single Module T2 SPDs (with live located at the bottom for ease of install) , IP65 EV & Mini Garage Units and several other new items to our catalogue.

• Fully enclosed metal construction body with drop down metal lid, strengthened construction

• Multiple knockouts, top & bottom plus larger rear slots

• Raised Key holes for secure easy installation

• Bi-directional RCBOs available as standard

•Dual Terminals Main Switch

•Spirit Level

• Raised Din Rail improves cable routing

•Flush Lid

• Spacious & easily accessible wiring area

Unique flush drop down lid

Lid installation buckle, to hold lid open during installation.

T2 Surge Protection Device

Our new surge protection devices are now single module and can be connected directly on the busbar without the need for additional MCB*- leaving more ways for household circuits.

*If the incoming supply is protected by, equal to or less than a 125A fuse no MCB is required*

Bi-directional RCBOs

Bi-directional Mini RCBOs with switched LINE and NEUTRAL. With the growth of renewable energy systems such as EV Chargers and solar installations where power can be fed back into the grid, there is an increasing need for bidirectional current flow. Our Bidirectional RCBOs can detect faults regardless of the current direction, providing enhanced safety for these installations.

Raised Key Hole Fully enclosed Metal construction for greater strength

• Fitted with 100A Dual Terminal Main Switch

• Single Module T2 SPD *see page 14 for information on SPD devices

DUAL RCD T2 SURGE PROTECTION BOARDS

100A Main Switch SPD Board Dual Type A RCD SPD Board

• Fitted with 100A Dual Terminal Main Switch • 2 X 100A 30mA Type A RCD’s

• Single Module T2 SPD *see page 14 for information on SPD devices • Flexible connection allows for various configurations

• New Improved Design

• Fully Enclosed Metal Construction

• Spirit Level Fitted

• Raised key holes for secure installation

• Raised din rail improves cable routing

• Spacious & easily accessible wiring area

MAIN SWITCH BOARDS

100A Main Switch Board

TYPE A RCD BOARDS

80A Type A RCD Boards

• UK - CA Certified

• BS EN61439-3

• Multiple knockouts: Top & Bottom 25mm & 32mm, Sides 32mm

• Glossy White Finish to RAL 9001

• Flush Lid

• Lockable Lids

• Fitted with Dual Terminal 100A Main Switch •

EV AND GARAGE DISTRIBUTION

•

GARAGE UNITS

IP40 Metal Garage Units

IP65 Plastic Garage Units

MODULAR ENCLOSURES

• Supplied complete with Neutral Cable, Busbar, Neutral & Earth Terminal Bar, Din Rail

PLASTIC MODULAR ENCLOSURES

•Earth & Neutral bars fitted. 25mm Top & Bottom knockouts

• Earth & Neutral bars fitted. 20/25mm dual Knockouts top, bottom and sides.

IP65 Din Rail Enclosures

IP20 Din Rail Enclosures

MAIN FUSED SWITCHES

ADMFB100N

• AC Rating : AC21

• Max 100A (63A,80A & 100A fuses included)

• Spirit Level

• BS EN61439-3

• Max cable 35mm

MAD100FMIS AC Rating : AC22 Max 100A c/w 100A fuse Fuse holder to BSEN60947-3 Max cable 35mm

ADMFB100N AC21 100A METAL FUSED MAIN SWITCH 63, 80 & 100A Fuse included

AC22 100A METAL MAIN SWITCH FUSE (c/w 100A Fuse)

Fused Main Switch

100A AC21

Supplied with 80A & 100A Fuses

• Supplied with cable shoud

• Max Cable Capacity 35mm

RCBO’S

With the growth of renewable energy systems such as EV Chargers and solar installations where power can be fed back into the grid, there is an increasing need for bidirectional current flow. Our Bidirectional RCBOs can detect faults regardless of the current direction, providing enhanced safety for these installations.

Single Module TYPE A Bi-directional RCBOs (1P+N Switched)

• BSEN61009-1 • TYPE A • BREAKING CAPACITY: 6kA

• Single Module • Bi-directional

B6RCBOMINI 10 Amp

16 Amp

20 Amp

32 Amp

40 Amp

Single Module TYPE A RCBOs

Pole RCBOs

B10RCBOMINI

B16RCBOMINI

B20RCBOMINI

B32RCBOMINI

B40RCBOMINI

• BSEN61009-1 • TYPE A

• BREAKING CAPACITY: 6kA • Single Module

RCBO6AMININ

10 Amp

16 Amp

20 Amp

32 Amp

40 Amp

RCBO10AMININ

RCBO16AMININ

RCBO20AMININ

RCBO32AMININ

RCBO40AMININ

• BSEN61009-1 • TYPE A

• BREAKING CAPACITY: 6kA • Two Module

RCBOTCA6MINI

RCBOTCA10MINI

RCBOTCA16MINI

RCBOTCA20MINI

RCBOTCA32MINI

RCBOTCA40MINI

RCBO20/2/30

Double

SURGE PROTECTION

TYPE 2 Surge Protection Devices

18th Edition BS6761 stipulates that Surge Protection Devices are required unless a risk assessment is performed and determines otherwise.

PART NO

Our new surge protection devices are now single module and can be connected directly on the busbar without the need for additional MCB*- leaving more ways for household circuits. *If the incoming supply is protected by, equal to or less than a 125A fuse no MCB is required*

SPD240N SPD T2 2 Module c/w cables

SPDMCB32 SPD T2 Single Module , plus 32A MCB & cables

ARC FAULT DETECTION DEVICE

AFDD with RCBO

The latest Edition to the Wiring Regulations BS7671:2018+A2@2022 mandates AFDDs for a select amount of installation types:

•Higher Risk Residential Buildings (HRRB) • Houses in Multiple Occupation (HMO)

• Purpose-Built Student Accommodation (PBSA) • Care homes

For all other premises, the use of AFDDs is recommended for single-phase AC final circuits supplying socket-outlets not exceeding 32A.

PART NO

AFDR6 6A Single Module AFDD with RCBO

AFDR10 10A Single Module AFDD with RCBO

AFDR16 16A Single Module AFDD with RCBO

AFDR20 20A Single Module AFDD with RCBO

AFDR32 32A Single Module AFDD with RCBO

AFDR40 40A Single Module AFDD with RCBO

• LED Fault Indication

• Type A

• Short Circuit Rating 6ka

• 1P+N Switched

• BS EN62606 & IEC 61009

B Curve & C Curve MCBs

16 Amp CASB16 CAS16CMCB 12

20 Amp CASB20 CAS20CMCB 12

32 Amp CASB32 CAS32CMCB 12

40 Amp CASB40 CAS40CMCB 12 50 Amp CASB50 CAS50CMCB 12 63 Amp CASB63 CAS63CMCB 12

TYPE A & TYPE B RCDS

TYPE A RCDs

• Breaking Capacity 6kA

• Type A used to detect AC & DC Pulsating Components

TYPE B RCDs

Type B residual current circuit breakers (RCCBs) provide total protection for all known residual current faults.They are particularly suited to applications such as:

• Electric vehicle charging, where smooth DC fault current >6mA exists

• Small scale electricity generating systems such as solar PV and wind generators

•Inverters for variable speed control

• Uninterruptible power supplies (UPS), and battery chargers

•Three phase rectified supplies
