Zip‑Clip Superior Hanging Technology

Zip‑Clip is the strong, stylish, sensible, high spec suspension solution. With the unique ingenious design, high‑tensile galvanized wire rope is used in conjunction with a zinc alloy locking device, housing an oil impregnated sintered metal wedge that engages first time. As a result, Zip‑Clip offers the surest, easiest locking solution available.

Benefits

• Time and cost saving

• Reduction materials

• Versatility

• Tailored Solutions

• Practicality

• Safety

• Strength

Projects that have entrusted us with Zip‑Clip seismic compliance.

• nRAH in SA: Seismic engineered solution using Zip-Clip technology.

• Flinders at Tonsley in SA: Zip-Clip superior hanging technology.

• Public Transport Operations Control Centre in WA: Seismic engineered solution using Zip-Clip and more.

• Muckenburra Hatchery in WA: Zip-Clip hanging superior technology.

Read more on page 10.

We facilitate Zip‑Clip hanging technology, so you can focus on what you do best, putting solutions in place.

Featured Projects

Read more about how ACURA Group has helped iconic projects overcome their seismic challenges with unique Zip-Clip seismic engineered solutions.

About Us

Find our more about ACURA Group, how we can help you, and how fast we can delivery solutions on site.

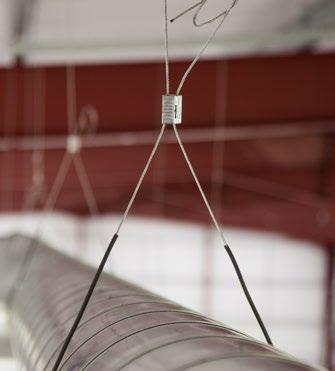

Superior Hanging Technology

The Zip-Clip System includes fixings and sizes to support all mechanical services including square and round duct work, fan coil units, chiller beams, plenums, pipe work and other related items into or onto any surface, whether it be concrete, Bondek, purlins or beams.

The stainless steel spring ensures the wedge engages first time. The galvanised high tensile wire rope supplied offers you a better SWL (safe working load) than those found on the market. All our engineered suspension products are designed with quality and safety in mind.

Wire Seismic Supports

Specialist systems for seismic bracing and vibration isolation, with a tested and proven wire bracing system.

Benefits

• Time & cost saving - save up to 81% on install time

• Reduction of materials – Can remove the need for strut, angle, trapeze supports and allthread

• Versatility – Can support services from any angle, working around other suspended services

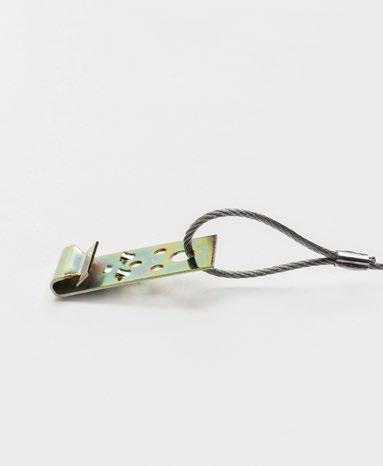

• Tailored solutions – End fixings and lengths to suit every application

• Practicality – Can be installed ahead of time, before receiving duct or tray deliveries

• Safety – Wires can be left hanging before fitting off without incurring safety issues

• Strength – 5:1 Safety factor for loads up to 500Kg We guarantee to provide you with the best ways to support your services.

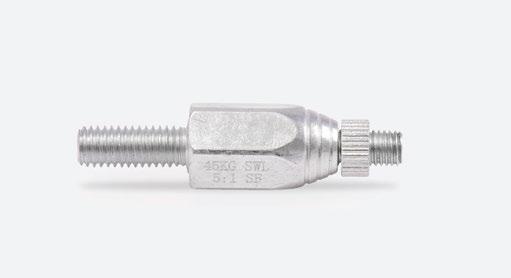

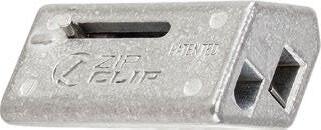

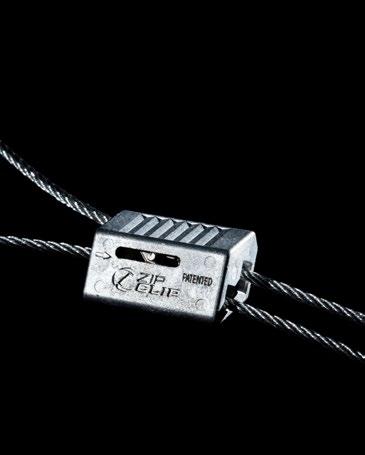

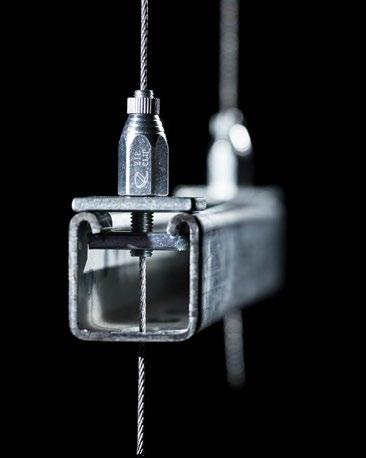

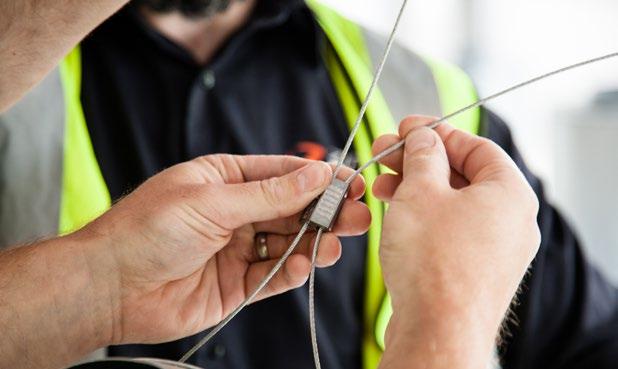

Zip-Clip Locks

Zip-Clip provides a range of innovative products designed for speed and ease of use.

The clip is manufactured from a high quality zinc alloy. The oil impregnated sintered metal wedge is designed to offer the best locking solution.

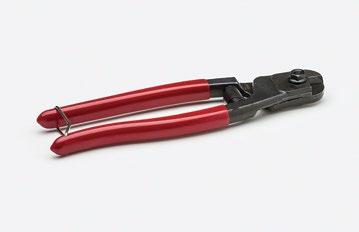

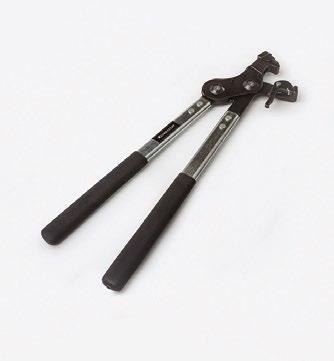

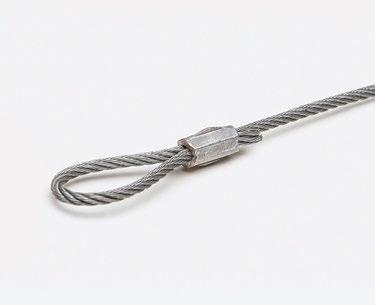

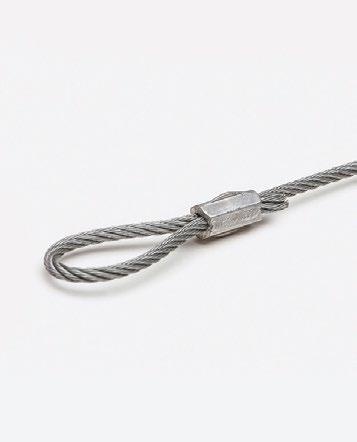

Zip-Clip Tools & Wire Rope

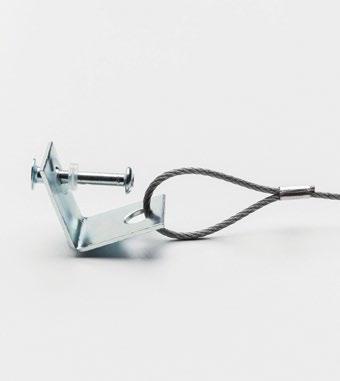

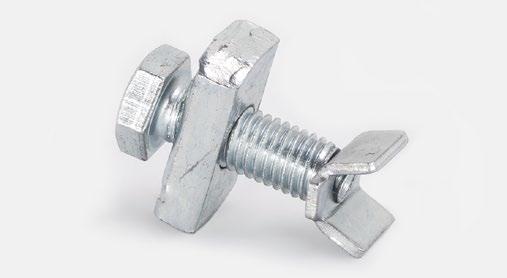

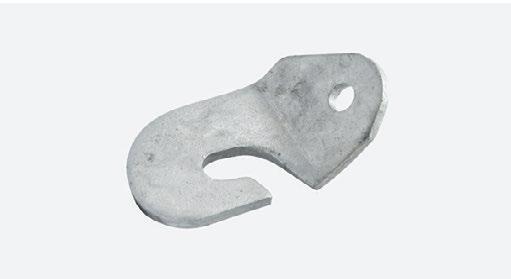

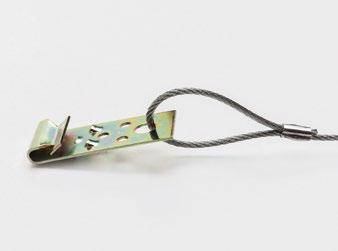

Accessories

Bracing Brackets

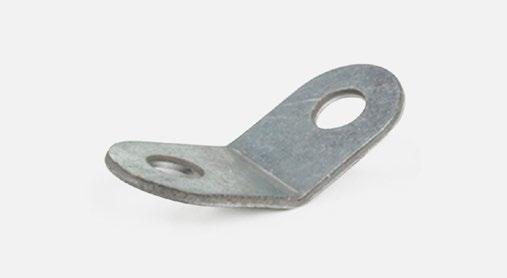

45° BRACING BRACKET

45° BRACING BRACKET - RETROFIT

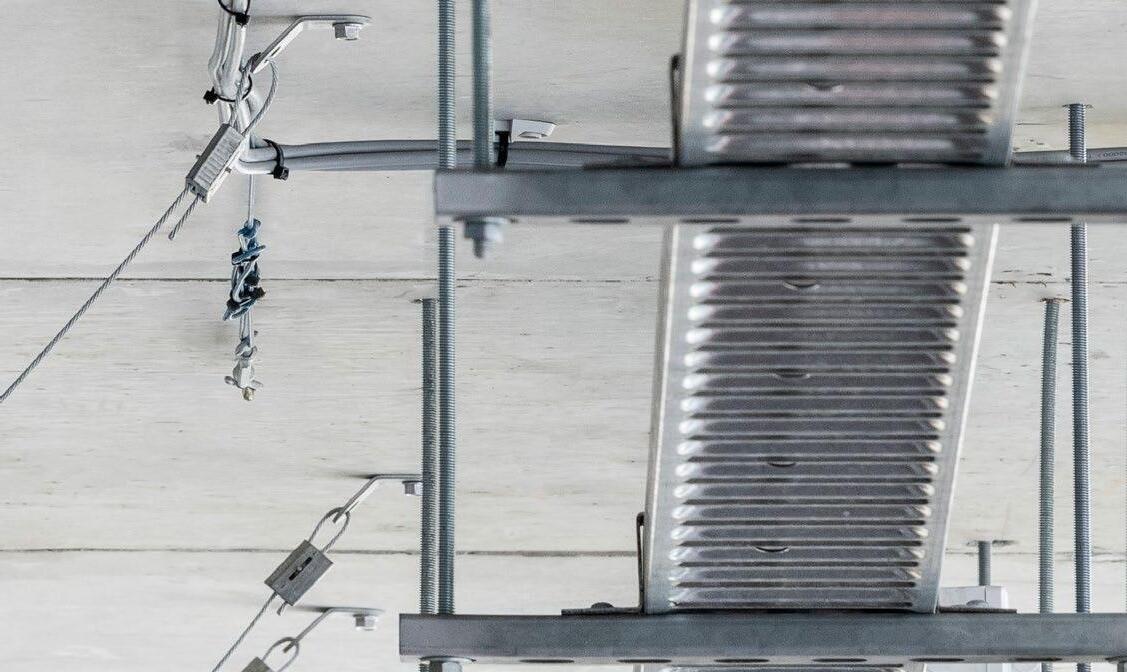

When is rod stiffener required?

Threaded rods are designed and manufactured purely for gravity loads. The uplifting forces that come with seismic events easily exceed the dead load on threaded rod, resulting in compressive forces.

Rod stiffeners provide additional support for bracing to prevent buckling of the rods.

The specific needs, sizes, and number of clamps used to attach the rod stiffener angle to the hanger rod required to achieve compliance, is completely dependent on several variables including:

• The hanger rod size & spacing

• Horizontal seismic force being restrained

• Weight of the duct or pipe to be supported

• Seismic restraint installation angle

• Single hanger rod or trapeze supported pipe or duct

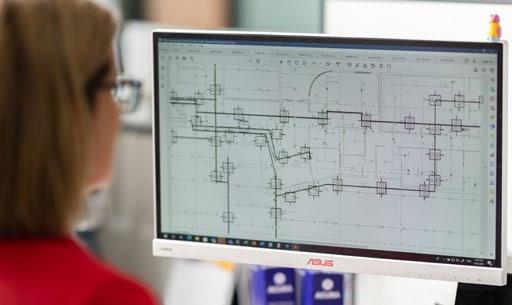

ACURA Group can provide comprehensive designs and drawings for any project, including weight and seismic calculations, that will ensure any products we supply are compliant.

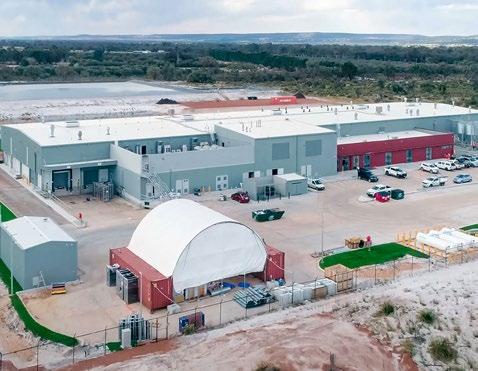

Muckenburra Hatchery

ACURA Group successfully addressed the seismic requirements of the Muckenburra Hatchery project by leveraging our expertise in designing seismically approved solutions. Our team collaborated closely with both the project builders and suppliers to deliver a solution that met the AS1170.4 compliance standards.

To achieve the required seismic performance, we utilized a range of high-quality products such as siFramo modular support frames and Zip-Clip wire bracing. These products provided the necessary structural support while also enabling efficient and cost-effective installation.

In summary, ACURA Group's expertise in meeting seismic standards, combined with

our collaborative approach and the use of high-quality products, enabled us to successfully deliver and easy to install compliant solution for the Muckenburra Hatchery project. Our commitment to quality and safety helped us achieve our client's objectives while exceeding their expectations.

Featured Projects

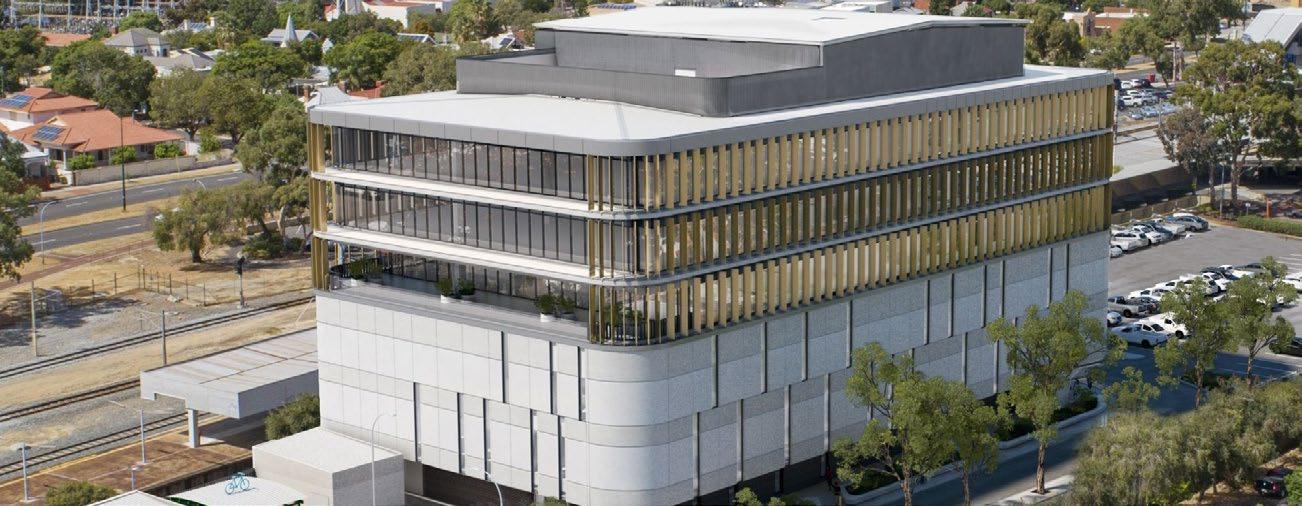

Public Transport Operations Control Centre

“For large and complicated builds, only the best in support solutions will do. We helped to implement the world standard in seismic support at PTOCC,” says Daniel Joyce, ACURA Group Director.

The state-of-the-art control centre located in East Perth represents a significant milestone in the management of public transport networks. This cutting-edge facility represents a carefully crafted and executed technologically advanced solution that ranks among the finest in the nation.

The $50 million PTOCC project, faced a critical challenge in finding a seismically rated solution to the support electrical and dry fire services.

The project requirements include a full seismic design certificate, integrated remote monitoring sign-off process with photographic evidence, 3D modeling, and take-off to ensure an end-to-end compliant outcome.

ACURA Group worked with engineers, providing a comprehensive seismic engineered solution, and a full six-level support program that included the use of the versatile Zip-Clip wire bracing, rod stiffener for the multi-layered tray, and specialised seismic rated fixings. These products played a vital role in ensuring the solution met all of the client's compliance needs.

With ACURA Group's 5 runs a day in metro Perth,

products will be delivered to site level by level, on time, every time.

The innovative solutions and careful execution not only meet the requirements but exceeded them, demonstrating ACURA Group's exceptional capabilities and commitment to customer satisfaction.

Project in construction.

Who we are ACURA Group

ACURA partners with the trades in commercial construction, delivering high quality, innovative solutions to the MEP-F (HVAC (mechanical), electrical, plumbing, fire) service providers of multi-storey construction projects.

The success of our family owned and operated business is built on sound technical knowledge, world-class service and speed of delivery. High stock holdings and 5 delivery runs every weekday help keep your projects on time and on budget.

You will find our expertise and products in iconic builds across Perth, including builds like the New Perth Stadium, the Next DC Data Centre, and the Public Transport Operations Control Centre as well as urban developments like the Civic Heart.

How we can help

We’re with you on site

When you’re on site, ‘perhaps’ and ‘maybe’ just won’t cut it. You need certainty and reliability. In fact, you demand it. That’s why ACURA Group is the name more contractors trust. When it comes to meeting project deadlines, we deliver.

• We know our stuff – technical knowledge plus expert support to keep you compliant on site.

• You need it, we deliver it – we deliver directly to you on site when you need it.

• Stacks of stock – we have what you need, and we have plenty of it.

• Customer approved - satisfied customers are what we live for.

Specialist supplier

• Your specialist solutions supplier for the construction industry in WA, covering Plumbing, HVAC, Electrical and Fire Services

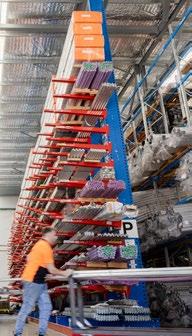

Huge range in stock

• We stock what we sell. Our fill rate is more than 97% on average, which means we can dispatch to site in lightning speed

• Over 7,000 items in stock

• We’re the experts at sourcing hard to find products

Fast, friendly delivery

• Same day delivery to you on site

• Multiple delivery runs per day with on-demand VIP delivery service available

• Over 99% of delivery runs leave on time, with guaranteed delivery within 2 hours from dispatch

• A complimentary box of biscuits with every delivery

Customer testimonials

• Our customers are our best endorsement

• Our regular Net Promoter Score surveys have a world-class customer satisfaction score of 80+

Delivered Fast & on time

You want to work, not wait. That’s why we deliver to you on site, and we deliver fast.

We have a large range in stock at our Perth warehouse, always ready to dispatch straight to you when needed, on one of our five delivery runs a day in the Perth metropolitan area.

We can respond to your short notice orders too, with our VIP delivery service ready to run when you need it, meaning you are not bound to any delivery times. Additional charges may apply.

Perth - WA

• Order by 4pm the day before - get it by 9am the next day

• Order by 9am - get it by 11:30am the same day

• Order by 12pm - get it by 2:30pm the same day

• Order by 1:30pm - get it by 4pm the same day

• Order by 3pm - get it by 5:30pm the same day

VIP Uber delivery - available for urgent deliveries. Delivery times are subject to Uber availability, and additional delivery fees will apply.

*Large orders and outside metro area, may require extra time.

We aim to deliver within two hours of a delivery run leaving our warehouse. Our speed of delivery is measured daily, with 99.9% delivered on time.
