Zip‑Clip Superior Hanging Technology

Zip‑Clip is the strong, stylish, sensible, high spec suspension solution. With the unique ingenious design, high‑tensile galvanized wire rope is used in conjunction with a zinc alloy locking device, housing an oil impregnated sintered metal wedge that engages first time. As a result, Zip‑Clip offers the surest, easiest locking solution available.

Benefits

• Time and cost saving

• Reduction materials

• Versatility

• Tailored Solutions

• Practicality

• Safety

• Strength

Projects that have entrusted us with Zip‑Clip seismic compliance.

• nRAH in SA: Seismic engineered solution using Zip-Clip technology.

• Flinders at Tonsley in SA: Zip-Clip superior hanging technology.

• Public Transport Operations Control Centre in WA: Seismic engineered solution using Zip-Clip and more.

• Muckenburra Hatchery in WA: Zip-Clip hanging superior technology.

Read more on page 10.

We facilitate Zip‑Clip hanging technology, so you can focus on what you do best, putting solutions in place.

Featured Projects

Read more about how ACURA Group has helped iconic projects overcome their seismic challenges with unique Zip-Clip seismic engineered solutions.

About Us

Find our more about ACURA Group, how we can help you, and how fast we can delivery solutions on site.

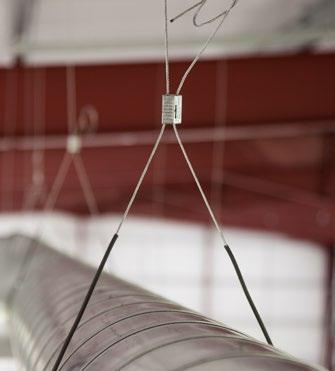

Superior Hanging Technology

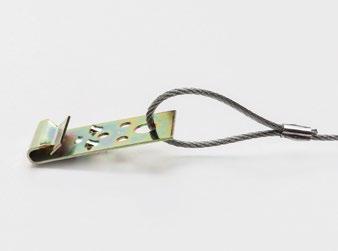

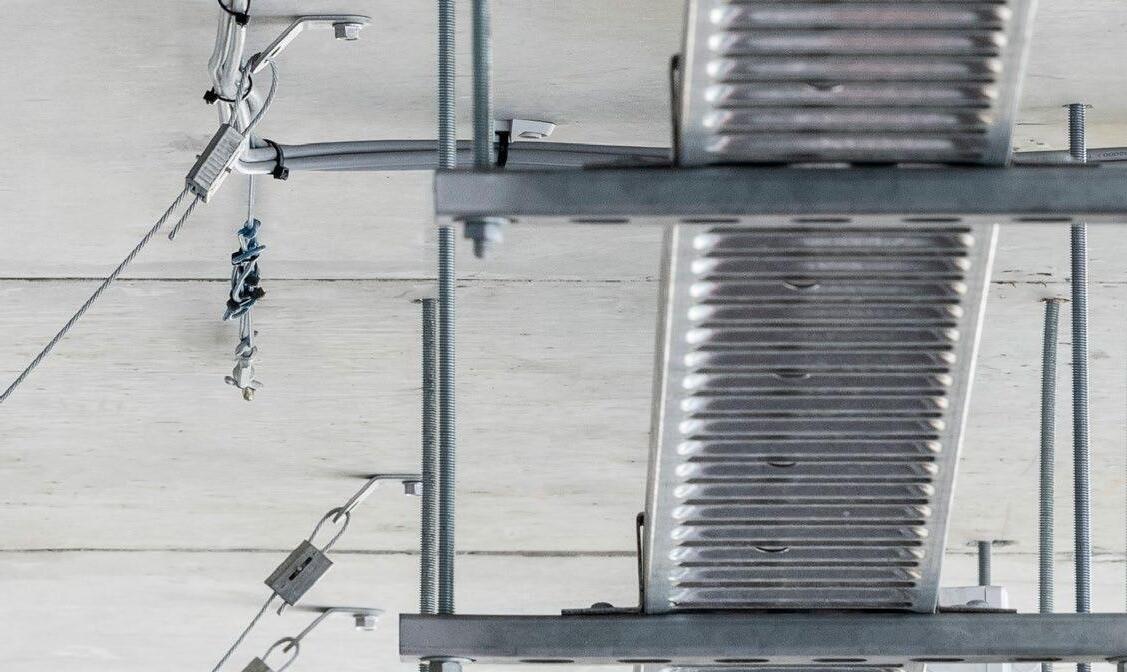

The Zip-Clip System includes fixings and sizes to support all mechanical services including square and round duct work, fan coil units, chiller beams, plenums, pipe work and other related items into or onto any surface, whether it be concrete, Bondek, purlins or beams.

The stainless steel spring ensures the wedge engages first time. The galvanised high tensile wire rope supplied offers you a better SWL (safe working load) than those found on the market. All our engineered suspension products are designed with quality and safety in mind.

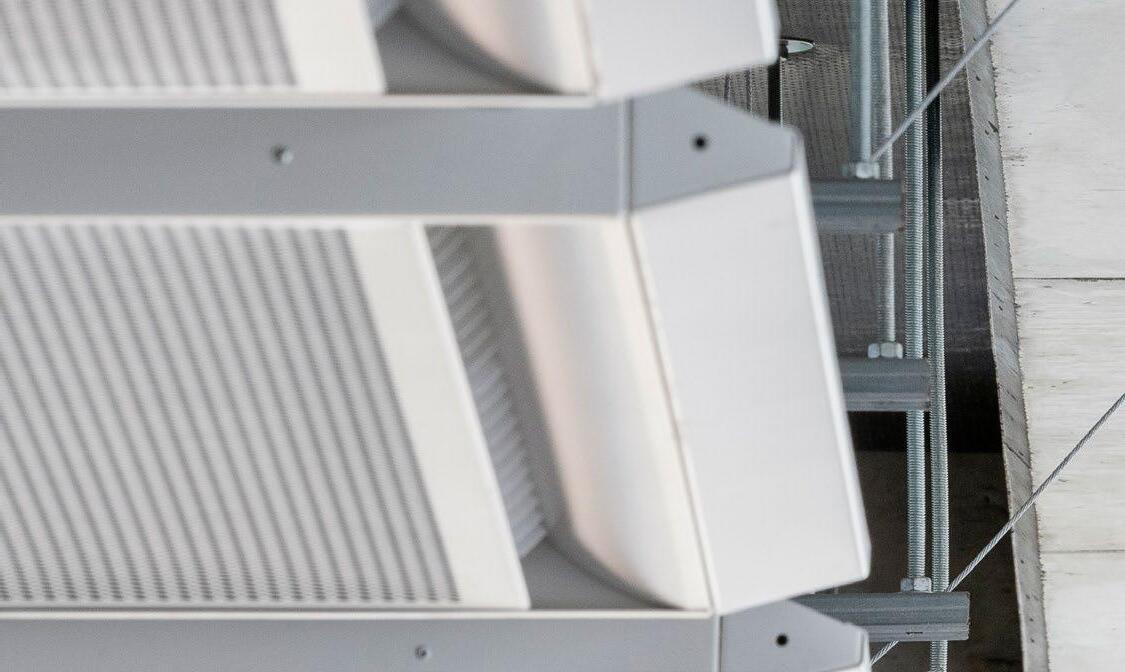

Wire Seismic Supports

Specialist systems for seismic bracing and vibration isolation, with a tested and proven wire bracing system.

Benefits

• Time & cost saving - save up to 81% on install time

• Reduction of materials – Can remove the need for strut, angle, trapeze supports and allthread

• Versatility – Can support services from any angle, working around other suspended services

• Tailored solutions – End fixings and lengths to suit every application

• Practicality – Can be installed ahead of time, before receiving duct or tray deliveries

• Safety – Wires can be left hanging before fitting off without incurring safety issues

• Strength – 5:1 Safety factor for loads up to 500Kg We guarantee to provide you with the best ways to support your services.

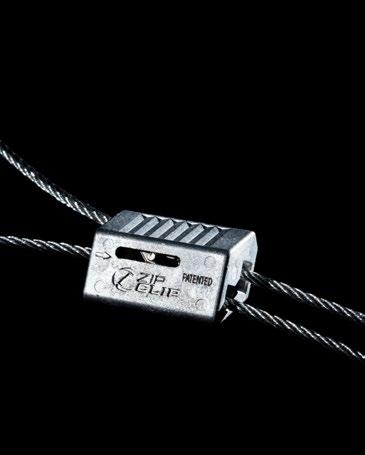

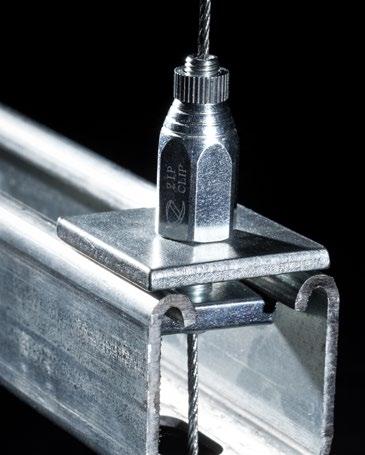

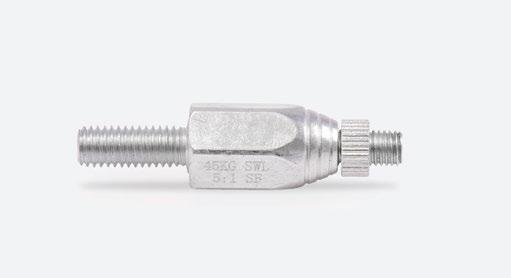

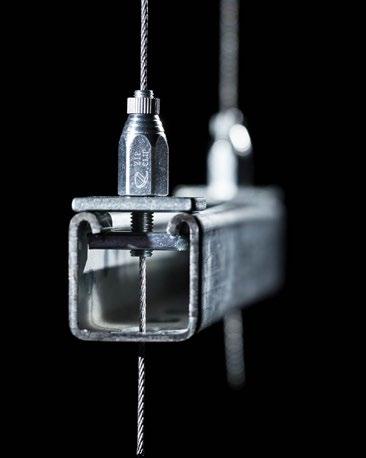

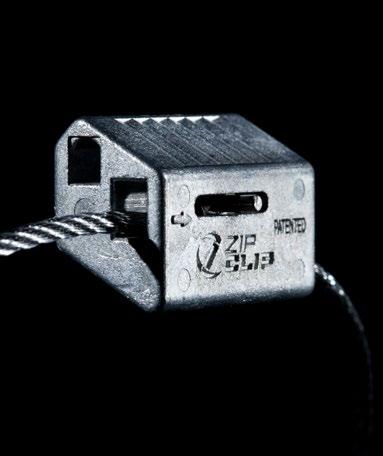

Zip-Clip Locks

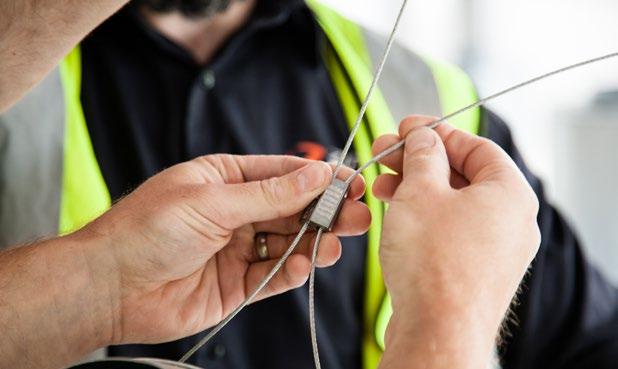

Zip-Clip provides a range of innovative products designed for speed and ease of use.

The clip is manufactured from a high quality zinc alloy. The oil impregnated sintered metal wedge is designed to offer the best locking solution.

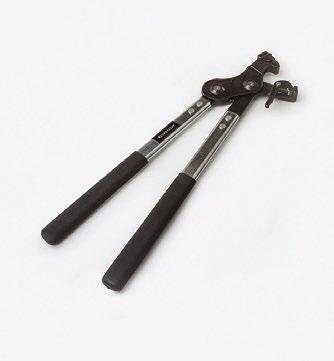

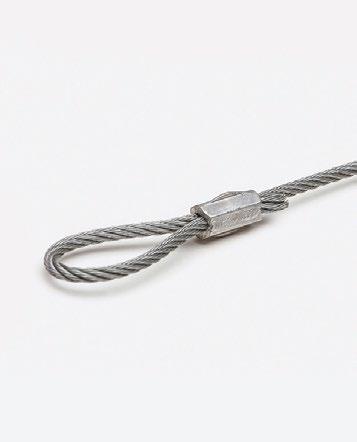

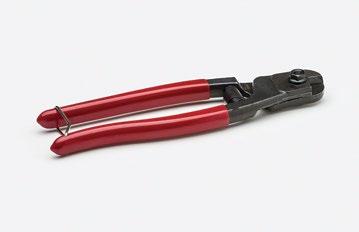

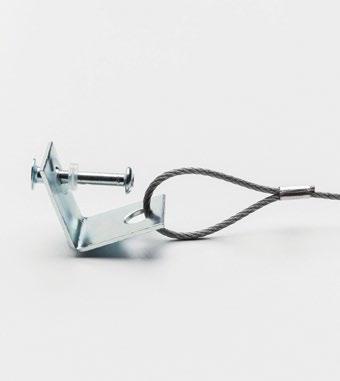

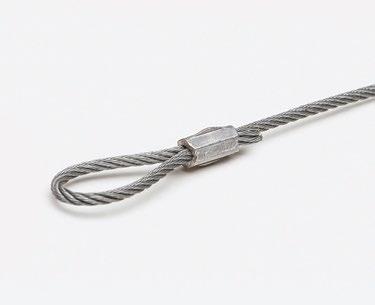

Zip-Clip Tools & Wire Rope

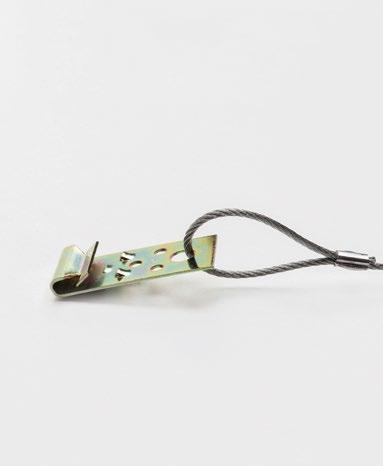

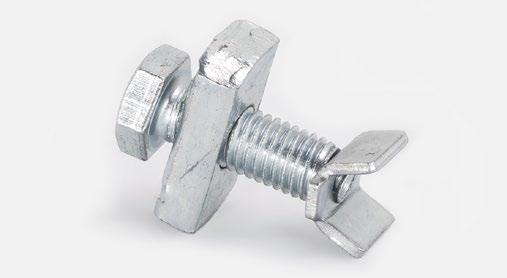

Accessories

Bracing Brackets

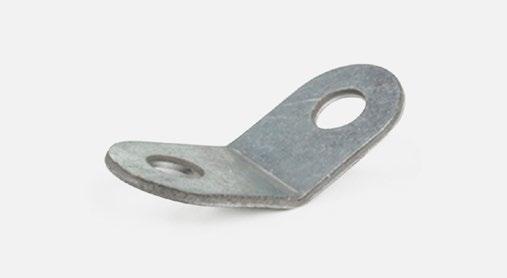

45° BRACING BRACKET

45° BRACING BRACKET - RETROFIT

When is rod stiffener required?

Threaded rods are designed and manufactured purely for gravity loads. The uplifting forces that come with seismic events easily exceed the dead load on threaded rod, resulting in compressive forces.

Rod stiffeners provide additional support for bracing to prevent buckling of the rods.

The specific needs, sizes, and number of clamps used to attach the rod stiffener angle to the hanger rod required to achieve compliance, is completely dependent on several variables including:

• The hanger rod size & spacing

• Horizontal seismic force being restrained

• Weight of the duct or pipe to be supported

• Seismic restraint installation angle

• Single hanger rod or trapeze supported pipe or duct

ACURA Group can provide comprehensive designs and drawings for any project, including weight and seismic calculations, that will ensure any products we supply are compliant.

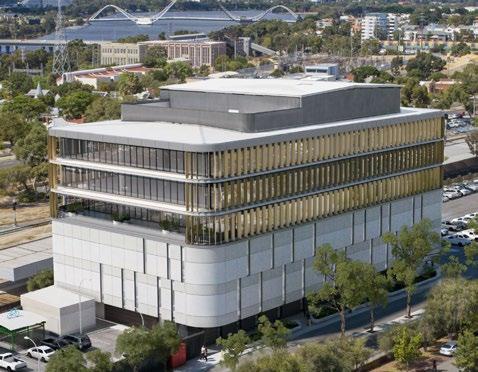

PTOCC in Perth

The $50 million Public Transport Operations Control Centre project, faced a critical challenge in finding a seismically rated solution to the support electrical and dry fire services.

The project requirements include a full seismic design certificate, integrated remote monitoring sign-off process with photographic evidence, 3D modeling, and take-off to ensure an end-to-end compliant outcome.

ACURA Group worked with engineers, providing a comprehensive seismic engineered solution, and a full six-level support program that included the use of the versatile Zip-Clip wire bracing, rod stiffener for the multi-layered tray, and specialised seismic rated fixings. These products played a vital role in ensuring the solution met all of the client's compliance needs.

With ACURA Group's 5 runs a day in metro Perth, products will be delivered to site level by level, on time, every time.

The solutions ACURA Group has and is providing this project with, clearly demonstrates the exceptional capabilities and commitment to customer satisfaction.

Featured Projects

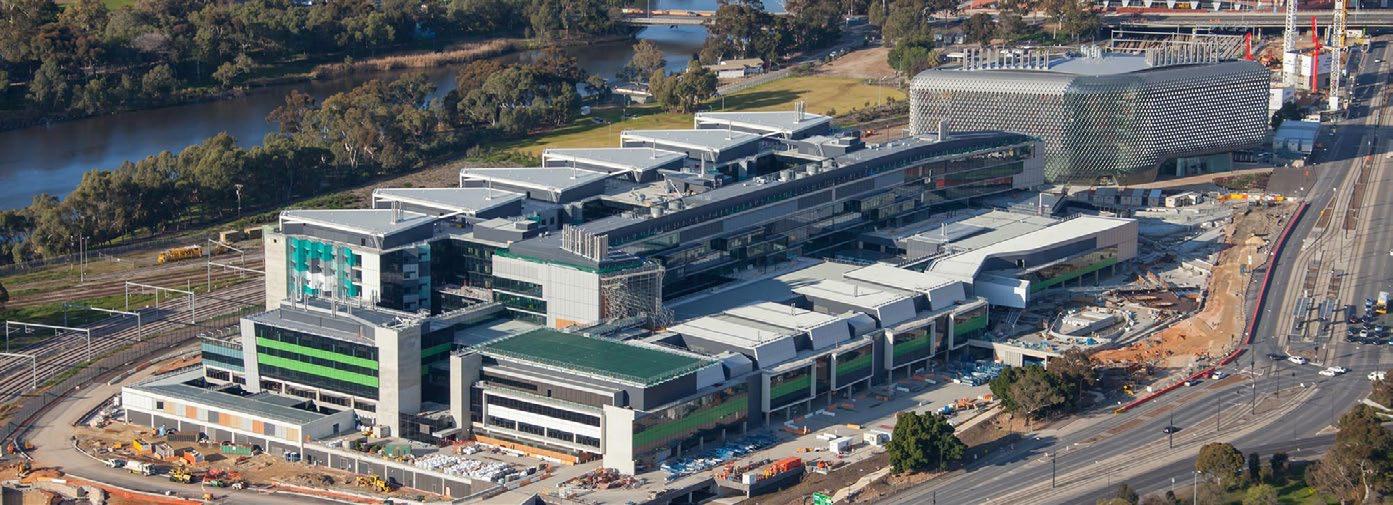

Royal Adelaide Hospital

“For large and complicated builds, only the best in support solutions will do. We helped to implement the world standard in seismic support at nRAH,” says Simon Joyce, ACURA Group Sales Director.

The Royal Adelaide Hospital spans the equivalent of three city blocks and contains almost 4 hectares of landscaped parks and gardens. What lies beneath the surface is a carefully designed and executed technologically advanced facility - one of the nations best in complex clinical care.

It was therefore a natural fit to be part of the construction process, with ACURA Group supplying the best in innovative seismic approve solutions to this flagship facility.

With services traveling up and down and across 9 levels at nRAH, the support needs of the electrical, HVAC, seismic and fire protection sectors was vast for this $2.4 Billion dollar project.

Seismic compliance became a very large issue on this project and it was necessary to work closely with the electrical, medical gases, plumbing, HVAC, and mechanical contractors to provide a seismically approved and engineered solution.

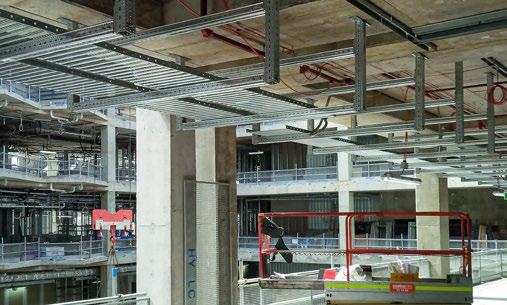

ACURA Group designed a versatile prefabricated and seismically approved common support frame (CSF), which the contractor built off site. The support frame was then transported in large

sections on-site, lifted by crane (see page 11), and successfully installed across all corridors.

An estimated total of 12km of siFramo was used in this innovative solution, along with other seismic approved products like Zip-Clip and seismic approved fixings.

This innovative solution contributed to fast install times without comprising on compliance.

Who we are ACURA Group

ACURA partners with the trades in commercial construction, delivering high quality, innovative solutions to the MEP-F (HVAC (mechanical), electrical, plumbing, fire) service providers of multi-storey construction projects.

The success of our family owned and operated business is built on sound technical knowledge, world-class service and speed of delivery. High stock holdings and 5 delivery runs every weekday help keep your projects on time and on budget.

You will find our expertise and products in iconic builds across Adelaide and Perth, including builds like the Osborne Naval Shipyard, Adelaide Oval, nRAH and SAHMRI in SA, and the Perth Stadium and PTOCC in Perth, as well as urban developments like the Bowden Precinct in SA and the Civic Heart in WA, and chain developments like Aldi.

How we can help We’re with you on site

When you’re on site, ‘perhaps’ and ‘maybe’ just won’t cut it. You need certainty and reliability. In fact, you demand it. That’s why ACURA Group is the name more contractors trust. When it comes to meeting project deadlines, we deliver.

• We know our stuff – technical knowledge plus expert support to keep you compliant on site.

• You need it, we deliver it – we deliver directly to you on site when you need it.

• Stacks of stock – we have what you need, and we have plenty of it.

• Customer approved - satisfied customers are what we live for.

Specialist supplier

• Your specialist solutions supplier for the construction industry in SA and WA, covering Plumbing, HVAC, Electrical and Fire Services

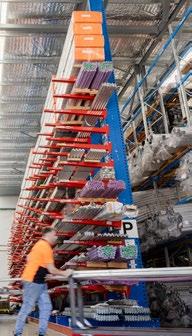

Huge range in stock

• We stock what we sell. Our fill rate is more than 97% on average, which means we can dispatch to site in lightning speed

• Over 7,000 items in stock

• We’re the experts at sourcing hard to find products

Fast, friendly delivery

• Same day delivery to you on site

• Multiple delivery runs per day with on-demand VIP delivery service available

• Over 99% of delivery runs leave on time, with guaranteed delivery within 2 hours from dispatch

• A complimentary box of biscuits with every delivery

Customer testimonials

• Our customers are our best endorsement

• Our regular Net Promoter Score surveys have a world-class customer satisfaction score of 80+

Delivered Fast & on time

You want to work, not wait. That’s why we deliver to you on site, and we deliver fast.

We have a large range in stock at our Adelaide and Perth warehouses, always ready to dispatch straight to you when needed, on one of our five delivery runs a day in the Adelaide and Perth metropolitan areas.

We can respond to your short notice orders too, with our VIP delivery service ready to run when you need it, meaning you are not bound to any delivery times. Additional charges may apply.

Adelaide - SA

• Order by 4pm the day before - get it by 8:30am the next day

• Order by 8:30am - get it by 11am the same day

• Order by 11am - get it by 1:30pm the same day

• Order by 12:30pm - get it by 3pm the same day

• Order by 2pm - get it by 4:30pm the same day

Perth - WA

• Order by 4pm the day before - get it by 9am the next day

• Order by 9am - get it by 11:30am the same day

• Order by 12pm - get it by 2:30pm the same day

• Order by 1:30pm - get it by 4pm the same day

• Order by 3pm - get it by 5:30pm the same day

VIP Uber delivery - available for urgent deliveries. Delivery times are subject to Uber availability, and additional delivery fees will apply.

*Large orders and outside metro area, may require extra time.

We aim to deliver within two hours of a delivery run leaving our warehouse. Our speed of delivery is measured daily, with 99.9% delivered on time.
