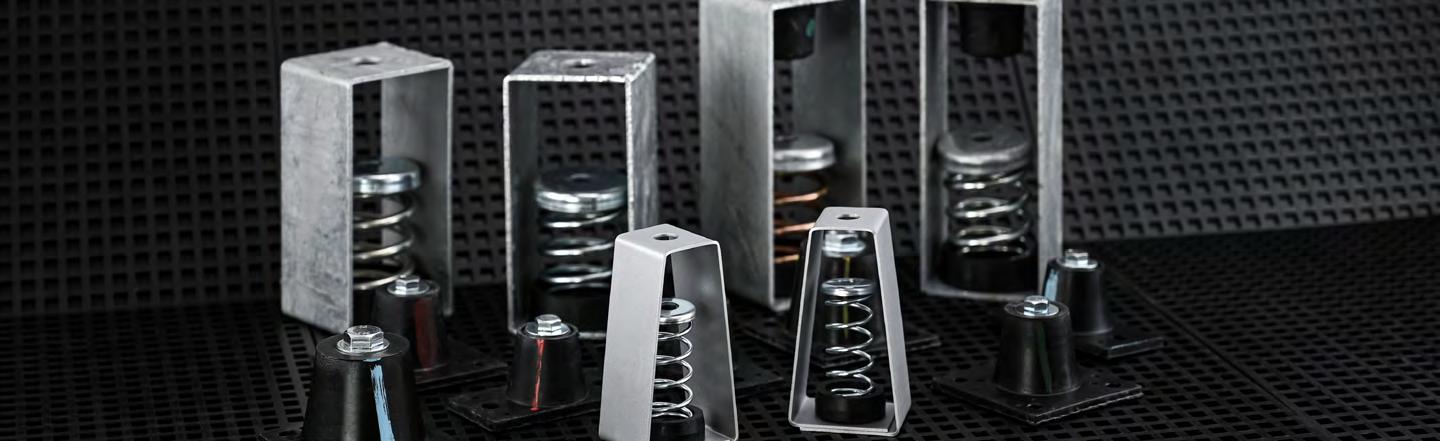

The ACURA Group Vibratrol product range.
The ACURA Group Vibratrol product range.
Vibration Control with
ACURA is the exclusive Vibratrol® distributor in Australia, with on-hand stock ready to supply any major project.
Vibratrol® Spring Hanger Boxes are used for support of equipment and pipework to effectively isolate vibration. Spring hangers provide good vibration isolation where there is very little high frequency noise. All the ACURA Vibratrol® products carry a reputation of reliability within the industry, and are a proven solution chosen by many trade professionals.
We know that it is the small things that matter, and it is the attention to detail of the Vibratrol range holds it apart. At ACURA, we’re not just your supplier; we’re your partner.
How we can help
• Specialist supplier
• Huge range in stock
• Fast, friendly delivery
Read more on page 12
We facilitate Vibratrol, so you can focus on what you do best, putting solutions in place.
Vibratrol® D-Series 4 Our most popular heavy duty option. Vibratrol® DN-Series 6 The D-Series with additional isolation for specific requirements. Vibratrol® Compact Series 8 Fantastic light weight all-rounder for fan coils, in-line exhaust fans, and much more. Neoprene Mounts 10 Non seismic economical double deflection isolators. Vibratrol® Spring Isolator Kits 11 Simple spring isolators with neoprene cups for domestic use.
Vibratrol® D-Series
The heavy duty hanger box kit solution that will help minimise and control vibration for the heavy industrial services.
The Vibratrol®® D-Series hanger box kit consists of a heavy box construction, and has a large diameter spring for stability. The acoustical D-Cup centres the threaded rod support in the box, which stops the rod contacting the side of the metal box and causing the spring and rubber to be bypassed. The wide hole opening allows for some angular requirements especially where hanger boxes are supporting equipment from steel purlins with a slight angle.
Features
• Heavy duty box design
• Large diameter spring for additional stability
• Wide hole opening for angular requirements
• Colour coded springs for load identification
• Loads of up to 175kg
The Vibratrol® D-Series hanger box kit should be utilised to minimize damaging vibration from suspended low frequency equipment (above 1200 RPM), and should also be used inline with threaded rod for single and trapeze type systems.
Used in many applications including fan coil units, attenuators, ducting, exhaust fans, package units, piping, and much more.
4
www.acuragroup.com.au
Wide hole opening for angular requirements
Made from heavy duty 3mm material
Galvanized Steel D-cup to centre threaded rod
5 SELECTION TABLE FOR VIBRATROL D-SERIES PART N° DESCRIPTION RATED WEIGHT MAX WEIGHT STATIC DEFLECTION SPRING CONSTANT 35D30SH-KIT D-30 Spring Hanger Kit (Silver) 15 - 30 kg 451 N 24.75 mm 11.2 N/mm 35D45SH-KIT D-45 Spring Hanger Kit (Gold) 20 - 45 kg 774 N 27.5 mm 18.2 N/mm 35D70SH-KIT D-70 Spring Hanger Kit (Black) 35 - 70 kg 1228 N 30.8 mm 29.8 N/mm 35D100SH-KIT D-100 Spring Hanger Kit (Green) 70 - 120 kg 1707 N 34.65 mm 48.3 N/mm 35D175SH-KIT D-175 Spring Hanger Kit 120-175 kg 2448 N 29 mm 65.95 N/mm W WIDTH H HEIGHT THD TOP HOLE DIAMETER BHD BOTTOM HOLE DIAMETER CHD CUP HOLE DIAMETER SH SPRING HEIGHT 70 mm 140 mm 19 mm 25 mm 12 mm 78 mm CHD H SH BHD W THD
Vibratrol® DN-Series
The heavy duty hanger box kit solution with 25mm static deflection spring and neoprene isolator for added vibration control.
The Vibratrol® DN-Series hanger box kit shares many of the same qualities and attributes as the Vibratrol® D-Series hanger box kit, such as its heavy box construction using 3mm material, and wide hole opening for angular requirements especially where hanger boxes are supporting equipment from steel purlins with a slight angle.
The Vibratrol® DN-Series hanger box kit has been specifically designed to accommodate added vibration control. It achieves this with the additional 25mm static deflection spring and the neoprene isolator to suit the spring.
Features
• Heavy duty box design
• 25mm static deflection spring with neoprene isolator
• Large diameter spring for additional stability
• Wide hole opening for angular requirements
• Loads of up to 175kg
The Vibratrol® DN-Series hanger box kit should be utilised to minimize damaging vibration from suspended low frequency equipment (above 1200 RPM), and should also be used inline with threaded rod for single and trapeze type systems.
Used in many applications including fan coil units, attenuators, ducting, exhaust fans, package units, piping, and much more.
6 www.acuragroup.com.au
Neoprene isolator to suit spring
Wide hole opening for angular requirements
25mm Static Deflection Spring
Made from heavy duty 3mm material
7 SELECTION TABLE FOR VIBRATROL DN-SERIES PART N° DESCRIPTION MAX WEIGHT STATIC DEFLECTION SPRING CONSTANT 35D30SHN-KIT Spring Hanger w/Neoprene Isolator Element (Silver) 30 kg 25 mm 11.2 N/mm 35D45SHN-KIT Spring Hanger w/Neoprene Isolator Element (Gold) 50 kg 27 mm 18.2 N/mm 35D70SHN-KIT Spring Hanger w/Neoprene Isolator Element (Black) 75 kg 30 mm 29.8 N/mm 35D100SHN-KIT Spring Hanger w/Neoprene Isolator Element (Green) 120 kg 34 mm 48.3 N/mm 35D175SHN-KIT Spring Hanger w/Neoprene Isolator Element (Green/Silver) 175 kg 29 mm 65.95 N/mm W WIDTH H HEIGHT THD TOP HOLE DIAMETER BHD BOTTOM HOLE DIAMETER CHD CUP HOLE DIAMETER SP SPRING HEIGHT 70 mm 170 mm 25 mm 30 mm 12 mm 78 mm CHD H SH BHD W THD
The hanger box kit solution designed for tight clearances and smaller ceiling spaces.
Vibratrol® Compact Series
The Compact Series Spring Hanger box kit has been designed with a reduced box height, which allows for it to be used in tighter clearances and increasingly smaller ceiling spaces used in the industry.
Features
• Compact box design
• Economical solution
• Reduced height for tighter clearances and smaller ceiling spaces
• Colour coded springs for load identification
• Loads of up to 60kg
The Compact Series Spring Hanger box kit should be utilised to minimize damaging vibration from suspended low frequency equipment (above 1200 RPM), and should also be used in-line with threaded rod for single and trapeze type systems. Used in many applications including fan coil units, attenuators, ducting, exhaust fans, package units, piping, and much more.
8 www.acuragroup.com.au
100mm high
Zinc plated
9 SELECTION TABLE FOR VIBRATROL COMPACT SERIES PART N° DESCRIPTION RATED WEIGHT MAX WEIGHT STATIC DEFLECTION SPRING CONSTANT 35C10SH C-10 Silver 10 kg 186 N 14.84 mm 4.7 N/mm 35C15SH C-15 Gold 15 kg 298 N 16.56 mm 7.97 N/mm 35C30SH C-30 Black Spring 30 kg 554 N 18.2 mm 15.05 N/mm 35C50SH C-50 Silver 50 kg 892 N 18.9 mm 26.16 N/mm 35C60SH C-60 Blue 60 kg 738 N 27.5 mm 28.94 N/mm W WIDTH H HEIGHT THD TOP HOLE DIAMETER BHD BOTTOM HOLE DIAMETER CHD CUP HOLE DIAMETER SP SPRING HEIGHT 52 mm 100 mm 12.5 mm 10.5 mm 10.5 mm 62 mm W BHD THD CHD H SH
Neoprene Mounts
Where a low cost mounting is required for the effective isolation of noise and vibration from machinery, particularly with speeds from about 1,000 RPM (16 R/s) upwards, and also from wall mounted machinery such as air conditioning/refrigeration condensers, neoprene mounts are the preferred choice because neoprene is more durable than natural rubber and cheaper synthetic compounds. The mounts are recommended for use in compression only, and are nonseismic rated. If you do require seismic rated mounts, please call our office for options.
Features
• Molded in oil-resistant Neoprene
• Zinc plated screws and washers are fitted
• Corrosion-free - metal parts embedded in Neoprene
• Non-skid base
Double Deflection Neoprene Mounts
The bases for NM-A and NM-B are 76mm square, providing excellent stability, and have 7.5mm holes at each of the four corners, offering a choice of fixing options. The NM-A stand 41mm high and are available in compression loads from 7-100Kgs, and the NM-B are 50mm high and are available in compression loads from 30-300Kgs . The NM-A are supplied with M8 screws and washers fitted and the NM-B have M10 screws and washers fitted.
10 www.acuragroup.com.au SELECTION TABLE FOR M8 DOUBLE DEFLECTION NEOPRENE MOUNTS PART N° RATED WEIGHT BOLT + WASHER SIZE BOX QTY CTN QTY 35NM-A-WHITE 7-20 kgs Supplied M8 75 150 35NM-A-RED 15-40 kgs Supplied M8 75 150 35NM-A-GREEN 30-60 kgs Supplied M8 75 150 35NM-A-BLUE 50-100 kgs Supplied M8 75 150
SELECTION TABLE FOR M10 DOUBLE DEFLECTION NEOPRENE MOUNTS PART N° RATED WEIGHT BOLT + WASHER SIZE BOX QTY CTN QTY 35NM-B-RED 30-70 kgs Supplied M10 50 100 35NM-B-GREEN 50-100 kgs Supplied M10 50 100 35NM-B-BLUE 80-160 kgs Supplied M10 50 100 35NM-B-YELLOW 150-300 kgs Supplied M10 50 100
Neoprene Wall Backed Mounts
These double deflection Neoprene mounts have been made specifically to fit on to strut cantilever brackets. The bases are about 45mm wide and 88mm long with two bolt holes (9.8mm) in the base at 64mm centres. They have an unladen height of 37mm and settle down to between 32 mm and 28 mm depending upon the load, and are designed for compression loads from 15-30 Kgs and 90-180 Kgs.

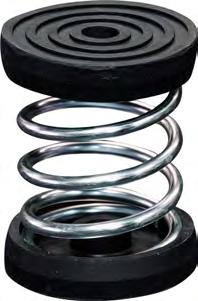

Vibratrol® Spring Isolator Kits
Vibratrol® spring isolator mounts offer superior quality and competitive pricing making them the ideal choice for use in the installation of evaporators and fan coil units when using timber base support or with drip trays.
Vibratrol® springs are made in Australia by a QS-9000 and IS09002 certified companies, complying with the relevant Australian Standards, zinc plated for protection against corrosion, and heat treated to ensure consistent performance characteristics.
11 1300 750 750 SELECTION TABLE FOR M8 NEOPRENE WALL BACKED MOUNTS PART N° RATED WEIGHT BOLT + WASHER SIZE BOX QTY CTN QTY 35WBM-A-RED 15-30 kgs Supplied M8 100 200 35WBM-A-GREEN 25-50 kgs Supplied M8 100 200 35WBM-A-BLUE 40-48 kgs Supplied M8 100 200 35WBM-A-YELLOW 90-180 kgs Supplied M8 100 200 SELECTION TABLE FOR VIBRATROL SPRING ISOLATOR KITS 35D30SM 35D45SM 35D70SM 35D100SM 15-30 kgs 22-45 kgs 35-70 kgs 50-100 kgs
Who we are ACURA Group
ACURA partners with the trades in commercial construction, delivering high quality, innovative solutions to the MEP-F (HVAC (mechanical), electrical, plumbing, fire) service providers of multi-storey construction projects.
The success of our family owned and operated business is built on sound technical knowledge, world-class service and speed of delivery. High stock holdings and 5 delivery runs every weekday help keep your projects on time and on budget.
You will find our expertise and products in iconic builds across Adelaide and Perth, including builds like the Osborne Naval Shipyard, Adelaide Oval, nRAH and SAHMRI in SA, and the Perth Stadium and PTOCC in Perth, as well as urban developments like the Bowden Precinct in SA and the Civic Heart in WA, and chain developments like Aldi.
12 www.acuragroup.com.au
How we can help We’re with you on site
When you’re on site, ‘perhaps’ and ‘maybe’ just won’t cut it. You need certainty and reliability. In fact, you demand it. That’s why ACURA Group is the name more contractors trust. When it comes to meeting project deadlines, we deliver.
• We know our stuff – technical knowledge plus expert support to keep you compliant on site.
• You need it, we deliver it – we deliver directly to you on site when you need it.
• Stacks of stock – we have what you need, and we have plenty of it.
• Customer approved - satisfied customers are what we live for.
Specialist supplier
• Your specialist solutions supplier for the construction industry in SA and WA, covering Plumbing, HVAC, Electrical and Fire Services
Huge range in stock
• We stock what we sell. Our fill rate is more than 97% on average, which means we can dispatch to site in lightning speed
• Over 7,000 items in stock
• We’re the experts at sourcing hard to find products
Fast, friendly delivery
• Same day delivery to you on site
• Multiple delivery runs per day with on-demand VIP delivery service available
• Over 99% of delivery runs leave on time, with guaranteed delivery within 2 hours from dispatch
• A complimentary box of biscuits with every delivery
Customer testimonials
• Our customers are our best endorsement
• Our regular Net Promoter Score surveys have a world-class customer satisfaction score of 80+
13 1300 750 750
Delivered Fast & on time
You want to work, not wait. That’s why we deliver to you on site, and we deliver fast.
We have a large range in stock at our Adelaide and Perth warehouses, always ready to dispatch straight to you when needed, on one of our five delivery runs a day in the Adelaide and Perth metropolitan areas.
We can respond to your short notice orders too, with our VIP delivery service ready to run when you need it, meaning you are not bound to any delivery times. Additional charges may apply.
Adelaide - SA
• Order by 4pm the day before - get it by 8:30am the next day
• Order by 8:30am - get it by 11am the same day
• Order by 11am - get it by 1:30pm the same day
• Order by 12:30pm - get it by 3pm the same day
• Order by 2pm - get it by 4:30pm the same day
Perth - WA
• Order by 4pm the day before - get it by 9am the next day
• Order by 9am - get it by 11:30am the same day
• Order by 12pm - get it by 2:30pm the same day
• Order by 1:30pm - get it by 4pm the same day
• Order by 3pm - get it by 5:30pm the same day
VIP Uber delivery - available for urgent deliveries. Delivery times are subject to Uber availability, and additional delivery fees will apply.
*Large orders and outside metro area, may require extra time.
We aim to deliver within two hours of a delivery run leaving our warehouse. Our speed of delivery is measured daily, with 99.9% delivered on time.
