ACURA PB2 HANGERMATETM

M10 - C1 Powers Seismic approved vertigo for hollow core slabs.

Seismic anchoring with

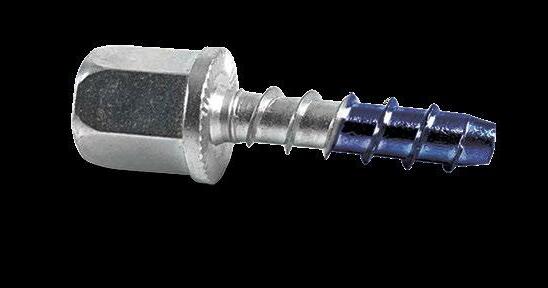

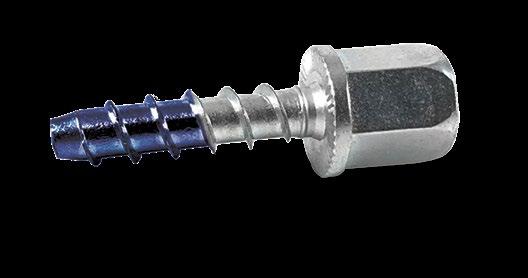

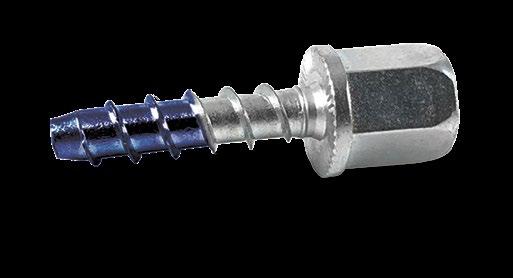

The Acura PB2 HangermateTM is a state-of-the-art onepiece, heavy duty steel anchor designed for rod hanging applications such as fire protection systems, ventilation systems, cable tray, pipe hanging and many other overhead threaded rod applications.

The one piece design makes it is easy to install and the preferred choice for fast and reliable anchoring which is also fully removable. This anchor is seismically rated and designed to resist structural and nonstructural loading in cracked and uncracked concrete. The patented thread design has been designed for use with standard drill bits, reduces installation torque and enhances productivity.

Benefits

• Heavy-duty

• Versatility

• Easy to install

• Code Compliant

• Seismic Rated

• Fire rated

Peace of mind & reassurance.

With the Acura PB2 Hangermate, you can have peace-of-mind and reassurance, no matter what job you’re working on. Don’t get caught out with non-approved solutions. Talk to us today, and get the technical and certification data you need to ensure you are using a compliant solution.

Read more on page 6.

Call ACURA on 1300 750 750, or email seismic@acuragroup.com.au. We facilitate seismic compliance, so you can focus on what you do best, putting solutions in place.

About Us

Installing into hollow core concrete

Note: Concrete breaks / spalls on the far end of drilling and the amount of spalling varies. db is the minimum thickness required after the hole has been drilled.

Installing into solid concrete

1

2

PB2 Hangermate

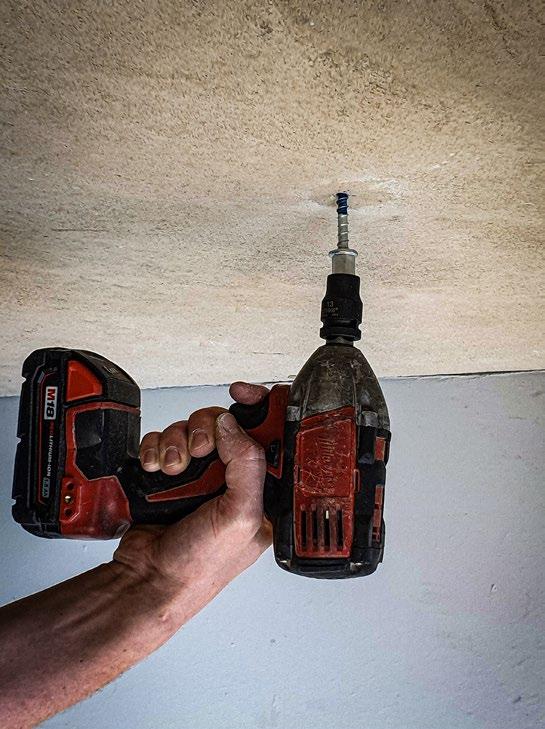

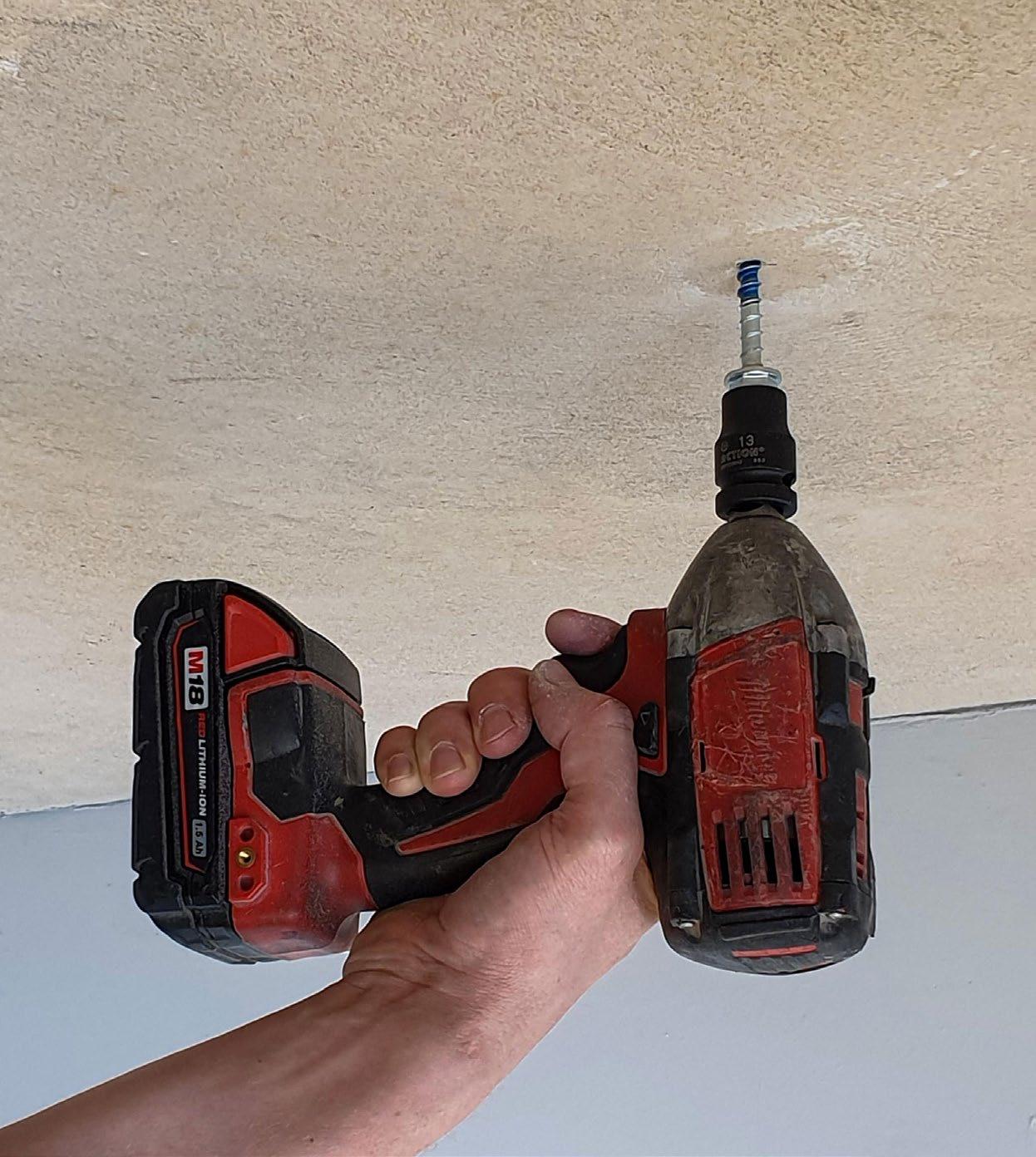

3 - Select impact wrench and mount the screw anchor head into the hex socket.

4 - Drive the anchor into the hole at least to the minimum required embedment depth and until the head of the anchor comes into contact with the base material.

5 - Screw the threaded rod into the anchor head.

Independently Tested & Approved

High Performance Anchoring Systems - The Powers Code Compliant range includes the highest performing mechanical and chemical anchoring systems that carry ETA assessment and can be used with confidence to meet National Construction Code (NCC) requirements for safety critical applications.

These ETA assessment reports can be used to design anchors in accordance with AS5216:2018 which is referenced in the National Construction Code (NCC) 2019.

Key features

• Only requires 40mm embedment (seismic approved), compared to other standard vertigo

• Tested and approved for use on solid uncracked / cracked concrete, and hollow core concrete

• ETA approved for cracked and uncracked concrete

• ETA approved for seismic loading

• ETA approved for redundant non-structural applications (6mm)

ETA-16/0867

Cracked & uncracked concrete

ETA-15/0810

Redundant non-structural applications

Seismic C1

C1 on sizes with ETA approval

Fire Rated

F120 (refer to ETA-16/0867 and ETA-15/0810 for load capacities under fire)

ACURA Group has partnered with Powers to deliver the 1st C1 and ETA seismic approved vertigo hangermate fixing, in South Australia.

• F120 fire rated

• Ratchet teeth on the underside of the hex washer head lock against the fixture

• Removable and vibration resistant

• Low installation torque

• Fast installation with Immediate high strength loading

• No expansion forces

• Can be installed closer to the edge than traditional mechanical anchors

Application Tables

Allowable loads and ultimate limit design static / quasi-static load capacities for redundant non-structural applications.

(in accordance to EAD 330747-00-0601, previously ETAG 001- Part 6)

Allowable loads static / quasi-static load capacities.

(in accordance to EAD 330232-00-0601, previously ETAG 001- Option 1)

Notes:

• Ultimate limit state design capacities incorporate capacity reduction factors as per AS5216:2018 and ETA-15/0810.

• Allowable loads incorporate capacity reduction factors as per AS5216:2018 and ETA-15/0810 and are inclusive of partial safety factor γ=1.4 for load actions. Refer to relevant national codes regarding load types and associated factors for further guidance.

• The given capacities are for single anchor not influenced by spacing from other anchors and distance from edge/s of concrete.

Who we are ACURA Group

ACURA partners with the trades in commercial construction, delivering high quality, innovative solutions to the MEP-F (HVAC (mechanical), electrical, plumbing, fire) service providers of multi-storey construction projects.

The success of our family owned and operated business is built on sound technical knowledge, world-class service and speed of delivery. High stock holdings and 5 delivery runs every weekday help keep your projects on time and on budget.

You will find our expertise and products in iconic builds across Perth, including builds like the New Perth Stadium, the Next DC Data Centre, and the Public Transport Operations Control Centre as well as urban developments like the Civic Heart.

How we can help

We’re with you on site

When you’re on site, ‘perhaps’ and ‘maybe’ just won’t cut it. You need certainty and reliability. In fact, you demand it. That’s why ACURA Group is the name more contractors trust. When it comes to meeting project deadlines, we deliver.

• We know our stuff – technical knowledge plus expert support to keep you compliant on site.

• You need it, we deliver it – we deliver directly to you on site when you need it.

• Stacks of stock – we have what you need, and we have plenty of it.

• Customer approved - satisfied customers are what we live for.

Specialist supplier

• Your specialist solutions supplier for the construction industry in WA, covering Plumbing, HVAC, Electrical and Fire Services

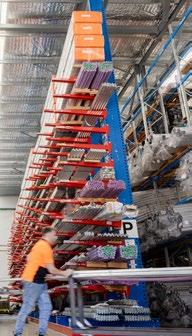

Huge range in stock
