MECHANICAL SERVICES SEISMIC SOLUTIONS

We help you navigate through the seismic maze, so you can rest assured your designs and our products will be compliant. How to comply and safely seismically restrain mechanical services.

Seismic Restraint & Bracing with

Seismic compliance requirements can cause frustration and anxiety. Every project is different with many factors influencing what might be compliant and what might be out of bounds. At ACURA Group, we have dedicated years to understanding compliance requirements, visiting both the USA and Europe to ensure we are on top of industry standards.

Benefits

• Experienced staff ready to help you

• End-to-end service to help ensure your work is compliant

• Access to a network of qualified engineers

• Engineered drawings

• Seismic compliant products & solutions

• Fast delivery with 5 runs a day

Projects that have entrusted us with seismic compliance.

• nRAH in SA: Seismic engineered support frame using siFramo modular framing, and Zip-Clip.

• Flinders at Tonsley in SA: siFramo modular framing, Zip-Clip.

• Public Transport Operations Control Centre in WA: Seismic engineered solution using Zip-Clip and more.

• Muckenburra Hatchery in WA: siFramo modular framing, Zip-Clip.

Read more on page 22.

We facilitate seismic compliance, so you can focus on what you do best, putting solutions in place.

6

We

End-to-End Seismic Services

We help you navigate through the seismic maze, so you can rest assured your designs and our products will be compliant.

Modular

The quick and easy to install siFramo Sikla system is the ACURA Group preferred alternative to welding structural framework.

7

Heavy

Seismic Rated

Understanding the Basics

While there are rules and standards for varying importance levels and performance categories, compliant solutions have to be designed on a case-by-case basis, considering the many factors in each project which influence compliance.

Due to each building design and each trade needing to comply with varying minimum seismic requirements, it can be challenging for all on site trades, builders, installers and designers to fully understand how to achieve the base level

Importance levels

IL1

• Structures presenting a low degree of hazard to life and other property in the case of failure.

• Farm Buildings, minor storage facilities.

Seismic compliance is never a 'one size fits all'.

requirements to ensure compliance. AS1170.4 is in some areas difficult to interpret.

There are strict performance criteria for each seismically approved product to ensure that certain structures, based on their level of performance, are able to continue to perform during a seismic event. Buildings that fall within importance level three and four are those that ACURA Group have in-depth knowledge of, paired with extensive history of working.

IL2

• Buildings or structures of ordinary occupancy.

• Residential, commercial and industrial buildings. (Except those stated in other categories).

Buildings and structures that:

• Have large numbers of occupants (high-rise offices, sports arenas).

• Shelter persons with limited mobility (Jails, schools, healthcare facilities).

• Support lifelines and utilities important to a community’s welfare.

• Contain materials that pose some risk to the public if released.

Buildings and structures that:

• Are essential to post-earthquake response (hospitals, police/fire stations and emergency communication centers).

• Housing large quantities of hazardous materials.

IL3

IL4

Performance Categories

ACURA Group partners with highly qualified engineers who will design, and implement seismic solutions into plans and keep projects compliant.

To ensure seismic compliance, all products undergo tension and shear load testing, and if successful, are placed within one of two performance categories: C1 and C2, with C2 holding a more demanding testing regime, thus a higher level of seismic compliance.

Performance Category C1

Maximum crack width of 0.5mm

• Performance stated in terms of strength at ultimate limit state.

• Scope of testing:

- Pulsating tension load

- Alternating shear load

With all this in mind, it is imperative that the supporting documentation is supplied for each compliant product. When partnered with ACURA Group, everyone on site can rest assured that we produce the required documentary evidence to demonstrate the seismic solution we have provided is in fact compliant with the

Performance Category C2

Maximum crack width of 0.8 mm

• Performance stated in terms of strength at ultimate limit state, as well as displacement at damage limit state and ultimate limit state.

• Scope of testing:

- Reference tests to failure

- Pulsating tension load

- Alternating shear load

- Crack cycling and tension load

requirements of the Earthquake Standard. ACURA Group supplies trade professionals with a great range of seismic and load rated products, designed to help ensure your project is compliant.

We help you navigate through the seismic maze, so you can rest assured your designs and our products will be compliant.

Plan design

Your plans will be worked on in close collaboration with you.

Compliant plan & product list

Compliant plans including a list of compliant products will be submitted to you

With you on site

Your seismic restraint and bracing order is dispatched on one of our 5 daily delivery runs, and delivered to you on site, and on time.

Brief

Send us your project design brief including all compliance requirements.

Pairing you with an engineer

We will identify and propose a qualified engineer to work on your designs and provide you with costings and timelines.

Order seismic products

We've got the stock, and with our fully integrated warehouse system, we can process your order fast.

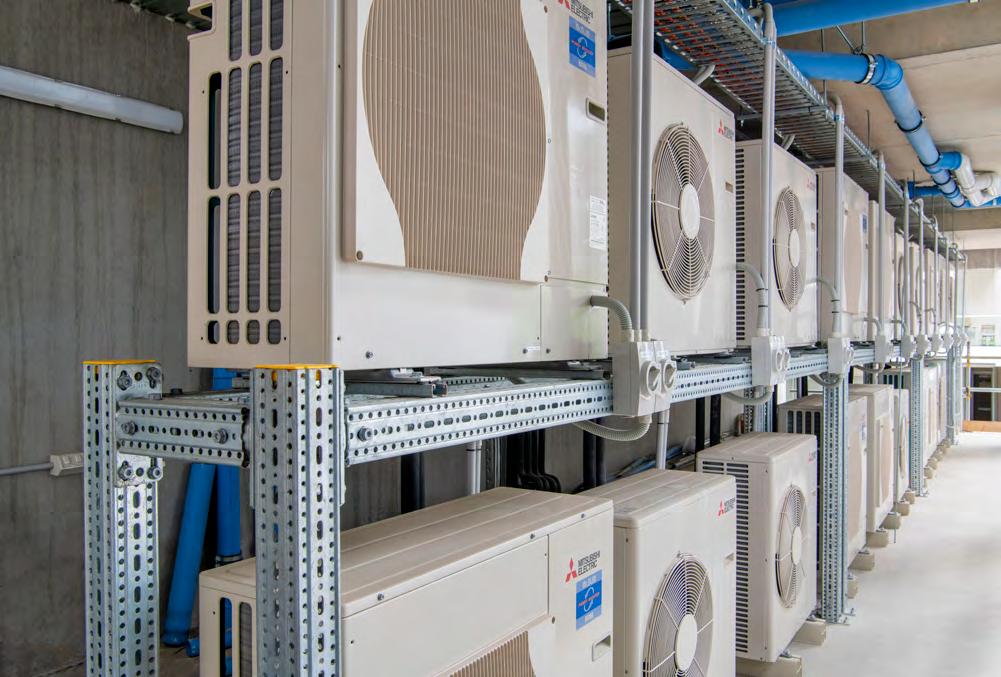

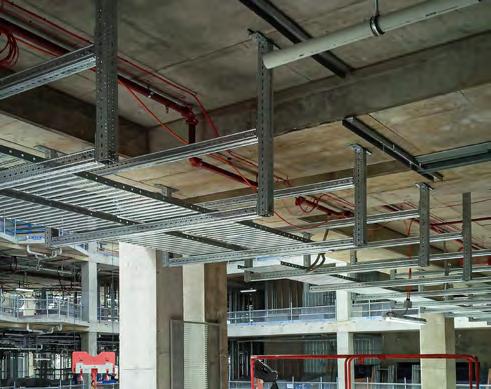

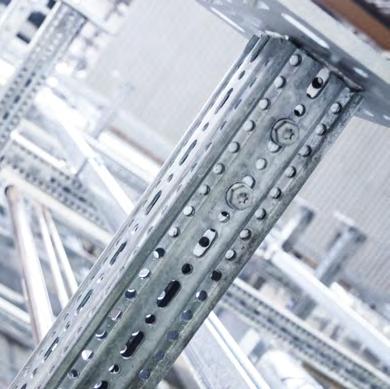

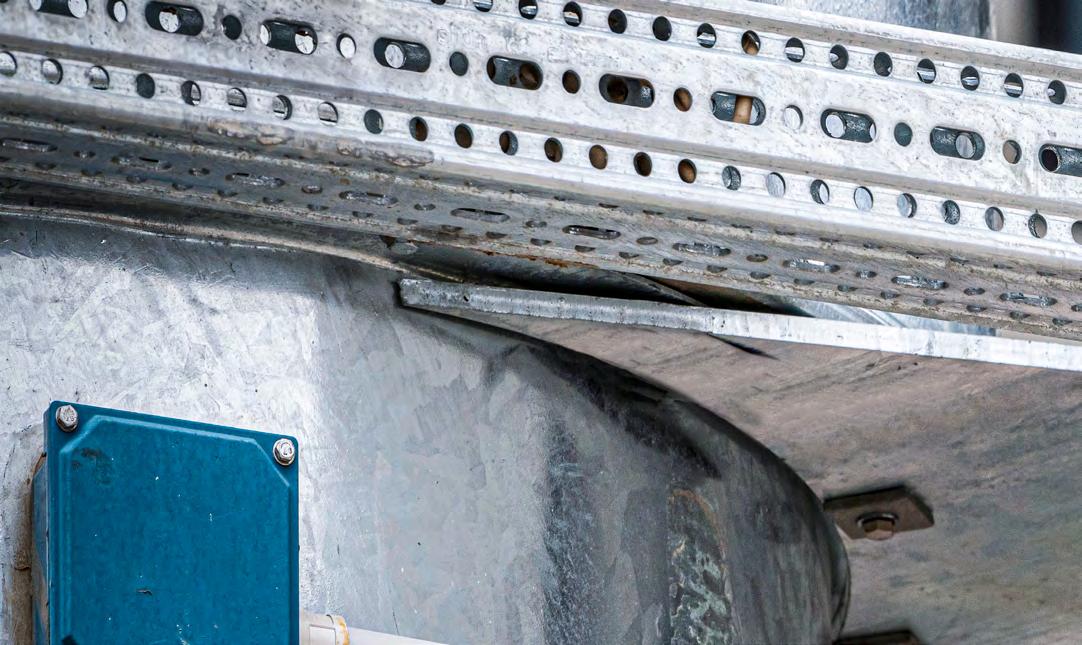

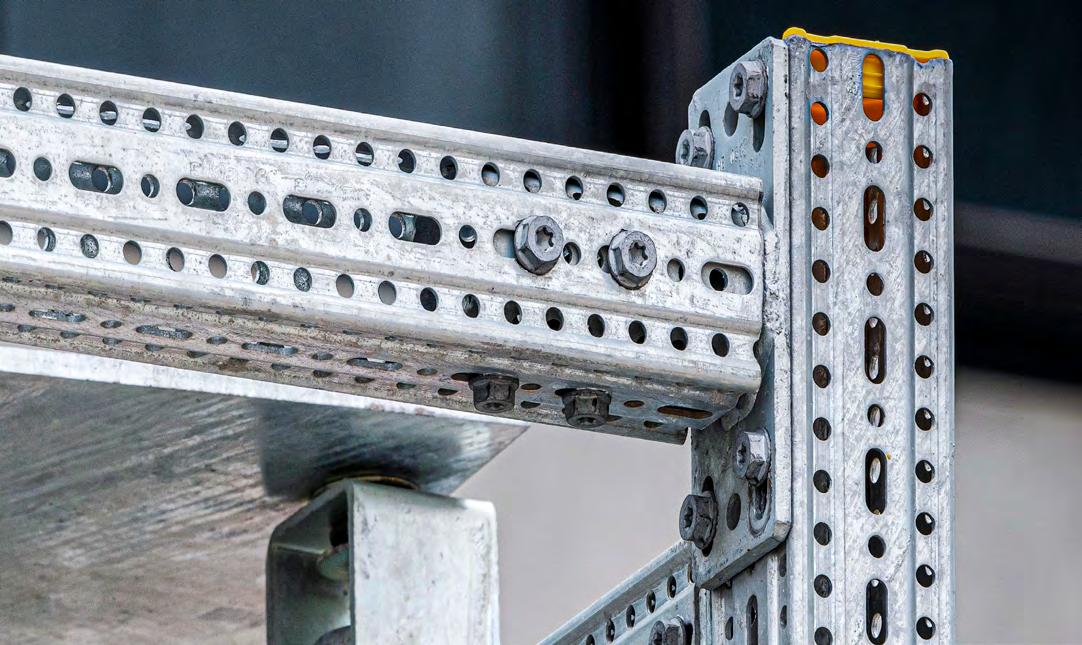

siFramo Modular Steelwork Solutions

This amazing product simply screws together, eliminating the need of drilling, bolting and welding, effectively preventing on-site delays through its pregalvanised finish.

siFramo has revolutionised support structures for services by providing the first real alternative to welding structural framework for supporting weights beyond capacity of strut.

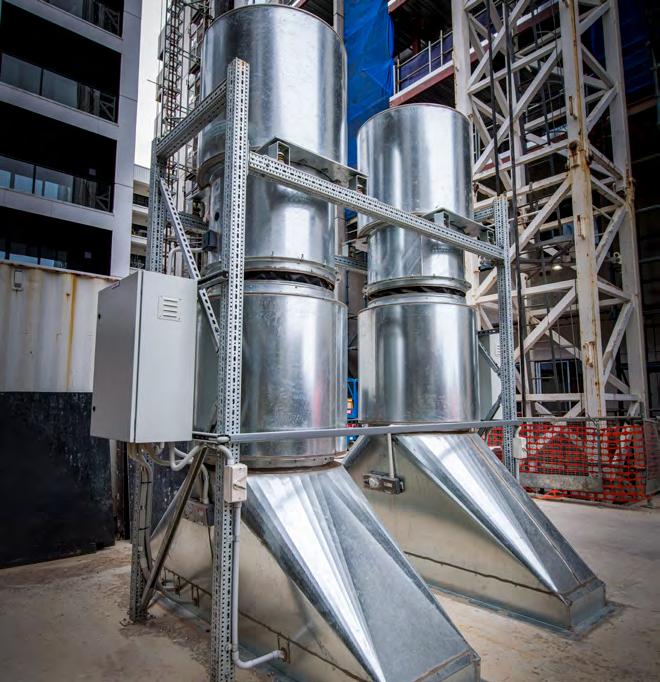

Solid Seismic Supports

siFramo is seismic rated and can become a fully engineered solution.

Free design service. Seismic rating available to make sure your project is compliant.

Benefits

• Quick and easy to install

• Non-welded modular steelwork

• Higher performance / lower weight of steel

• Maximum flexibility, minimum installation time

• Easy to assemble and disassemble

• Compatible with other installation systems

• High corrosion resistance as standard

• One thread forming screw for all component connections

• Frame and module assembly modifications can be made quickly on site with no loss of time, cut-outs or re-works

• Parts are reusable

siFramo Product Specifications

HCP Coating - High Corrosion Protection

All siFramo products come with the high-quality HCP coating as standard.

To meet the most stringent corrosion protection standards, siFramo support system is developed with a new individual multilayer coating, a design which is confirmed as complying with the corrosion category C5-I. This is the highest corrosive category; hence the coating is suitable for industrial fields, involving exposure to high humidity and aggressive environmental conditions.

The perfect system for time-saving screw connection

The siFramo system is assembled via thread-forming tapping screws. The chip-less, custom-fitted cold-work hardening of the female thread means the screw develops form closure and no longer becomes loose. They can also be removed and reused again - excellent for adjustments.

Comparison with torsional moment of inertia lz (cm4). The torsional stiffness of siFramo 80 is approximately 2 to 3 orders of magnitude greater than with open profiles.

siFramo Beam Section Torsional stiffness comparison

Running tight on time and resources?

Extend your team on site and access ACURA’s pre-fabrication service.

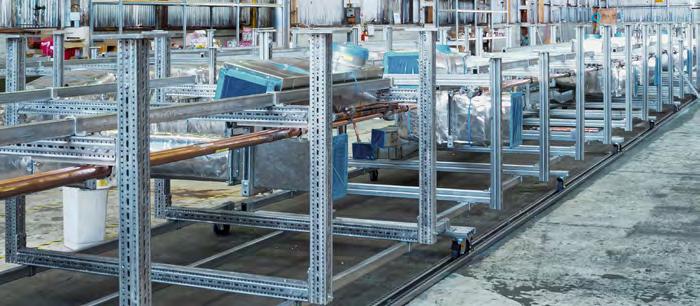

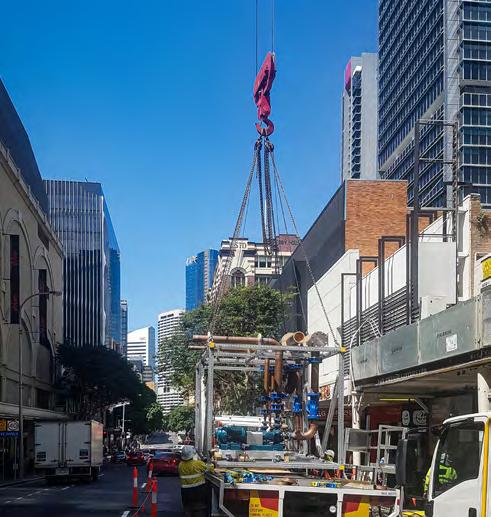

siFramo Pre-Fab Solutions

ACURA can facilitate pre-fabrication of your designs off-site. Your required solutions will be assembled for you off-site and delivered to site for you to install them.

On-site installation

Pre-assembled units encompass the potential for great savings and are a key part of modern installations. We also produce customer tailored mounting solutions made of siFramo and deliver siFramo sections cut to length based on customer specification. This minimizes the installation work required, accelerates construction and allows certainty for calculation.

On site delivery

Your pre-fabricated solutions will be delivered to site, on time and to budget.

We can arrange crane lifts, tested liftings, all with our own managed delivery system.

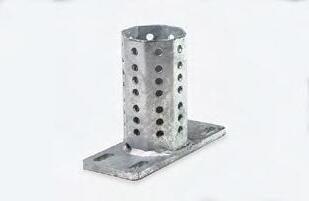

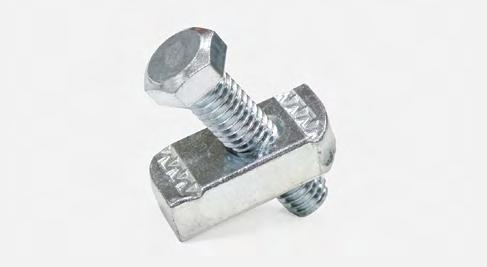

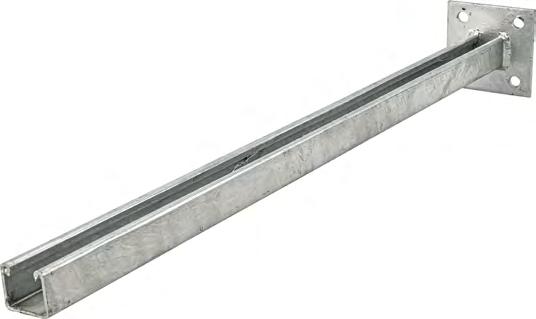

siFramo Product Range

siFramo Framing

siFramo Accessories

Other Accessories

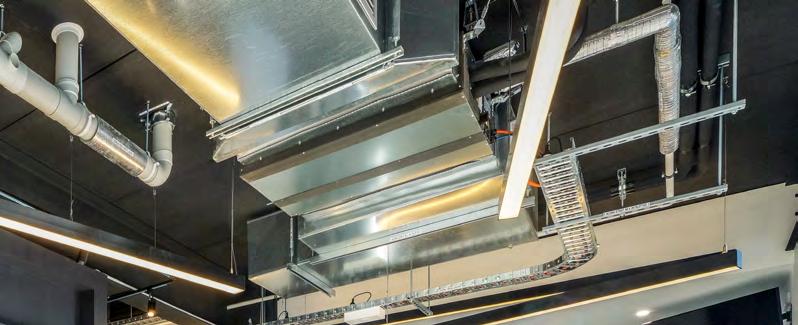

Superior Hanging Technology

The Zip-Clip System includes fixings and sizes to support all mechanical services including square and round duct work, fan coil units, chiller beams, plenums, pipe work and other related items into or onto any surface, whether it be concrete, Bondek, purlins or beams.

The stainless steel spring ensures the wedge engages first time. The galvanised high tensile wire rope supplied offers you a better SWL (safe working load) than those found on the market. All our engineered suspension products are designed with quality and safety in mind.

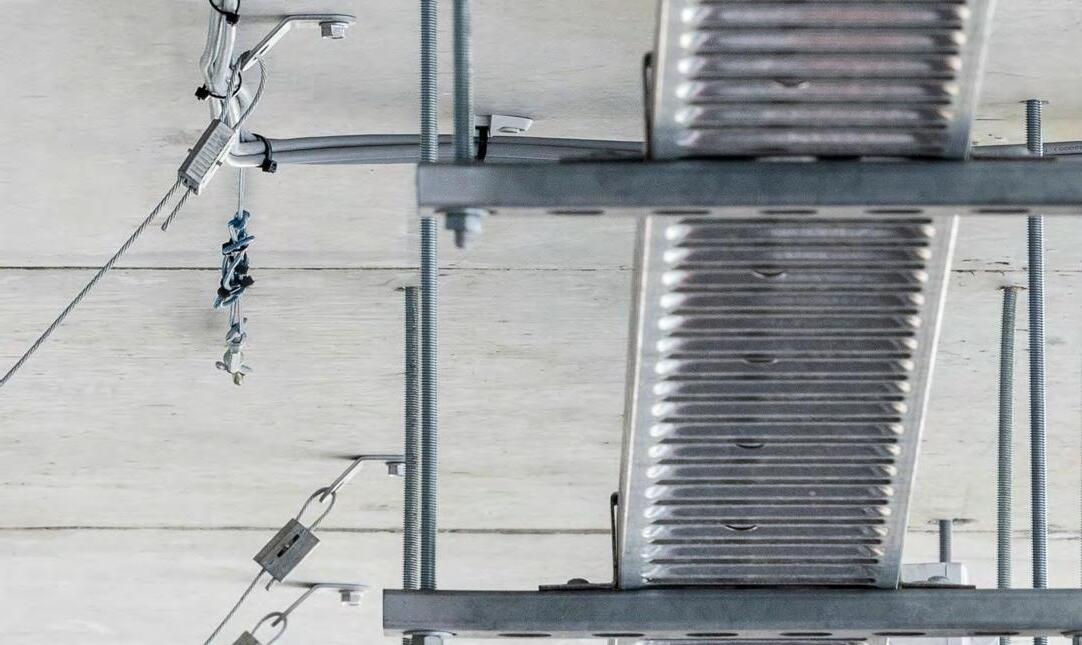

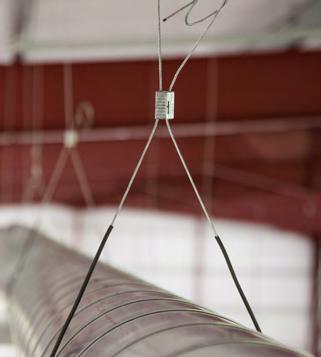

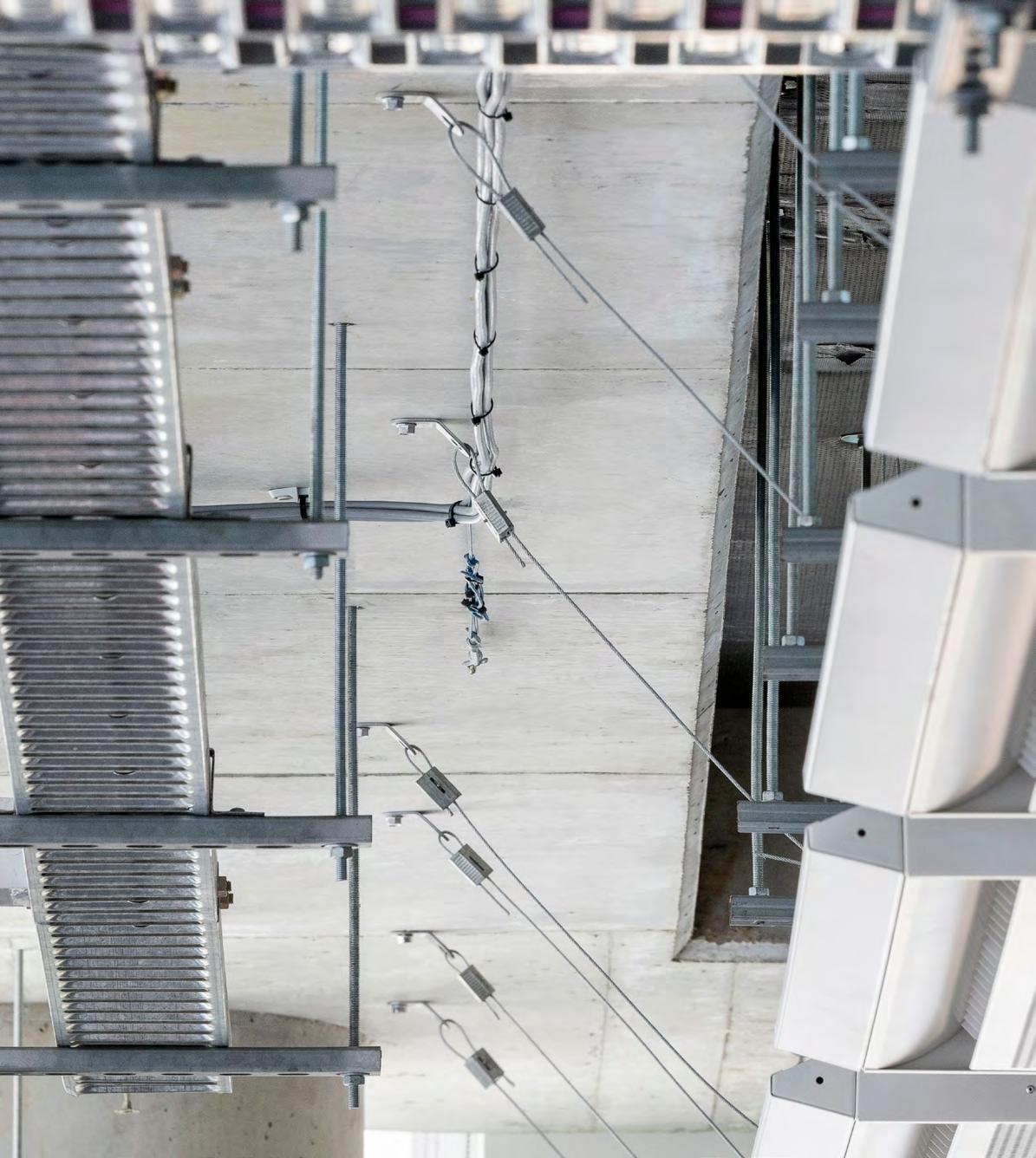

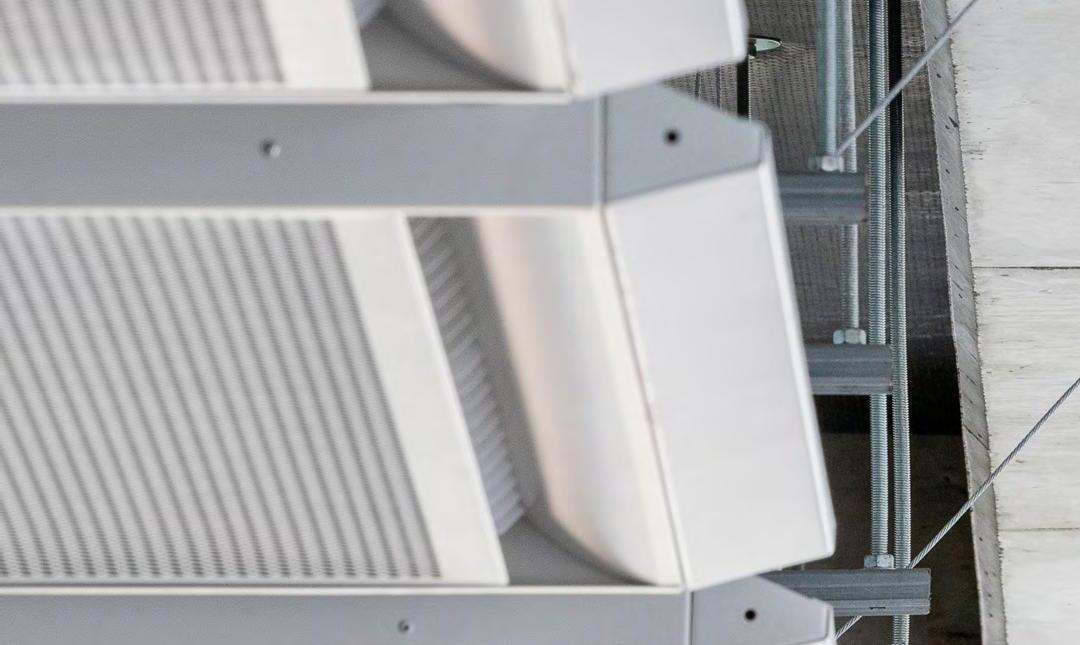

Wire Seismic Supports

Specialist systems for seismic bracing and vibration isolation, with a tested and proven wire bracing system.

Benefits

• Time & cost saving - save up to 81% on install time

• Reduction of materials – Can remove the need for strut, angle, trapeze supports and allthread

• Versatility – Can support services from any angle, working around other suspended services

• Tailored solutions – End fixings and lengths to suit every application

• Practicality – Can be installed ahead of time, before receiving duct or tray deliveries

• Safety – Wires can be left hanging before fitting off without incurring safety issues

• Strength – 5:1 Safety factor for loads up to 500Kg We guarantee to provide you with the best ways to support your services.

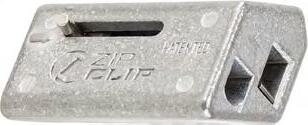

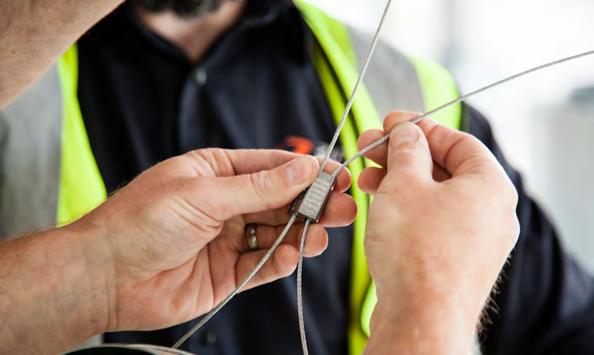

Zip-Clip Locks

Zip-Clip provides a range of innovative products designed for speed and ease of use.

The clip is manufactured from a high quality zinc alloy. The oil impregnated sintered metal wedge is designed to offer the best locking solution.

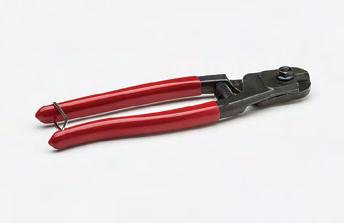

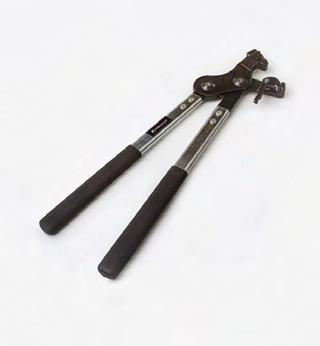

Zip-Clip Tools & Wire Rope

Bracing Brackets

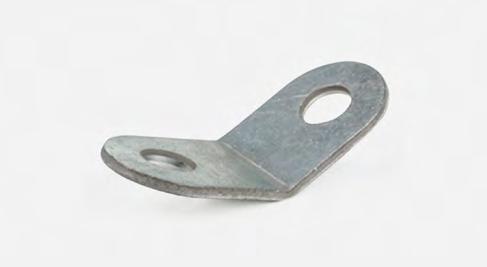

45° BRACING BRACKET

45° BRACING BRACKET - RETROFIT

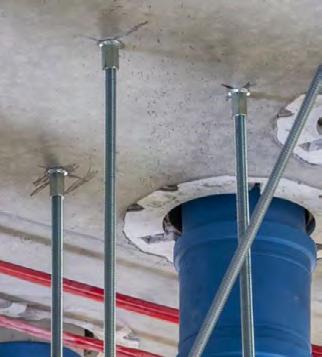

Rod Stiffener

When is rod stiffener required?

Threaded rods are designed and manufactured purely for gravity loads. The uplifting forces that come with seismic events easily exceed the dead load on threaded rod, resulting in compressive forces.

Rod stiffeners provide additional support for bracing to prevent buckling of the rods.

The specific needs, sizes, and number of clamps used to attach the rod stiffener angle to the hanger rod required to achieve compliance, is completely dependent on several variables including:

• The hanger rod size & spacing

• Horizontal seismic force being restrained

• Weight of the duct or pipe to be supported

• Seismic restraint installation angle

• Single hanger rod or trapeze supported pipe or duct

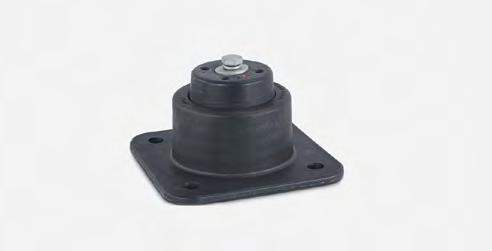

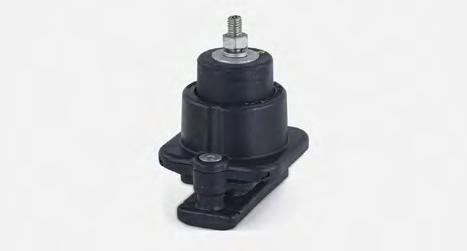

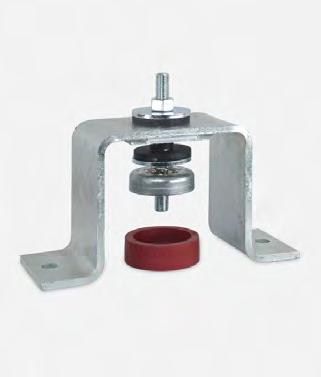

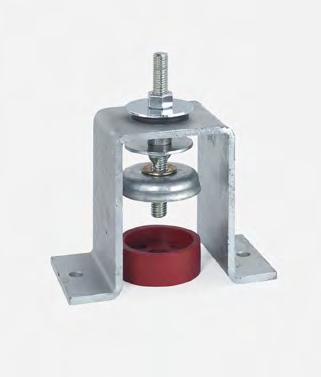

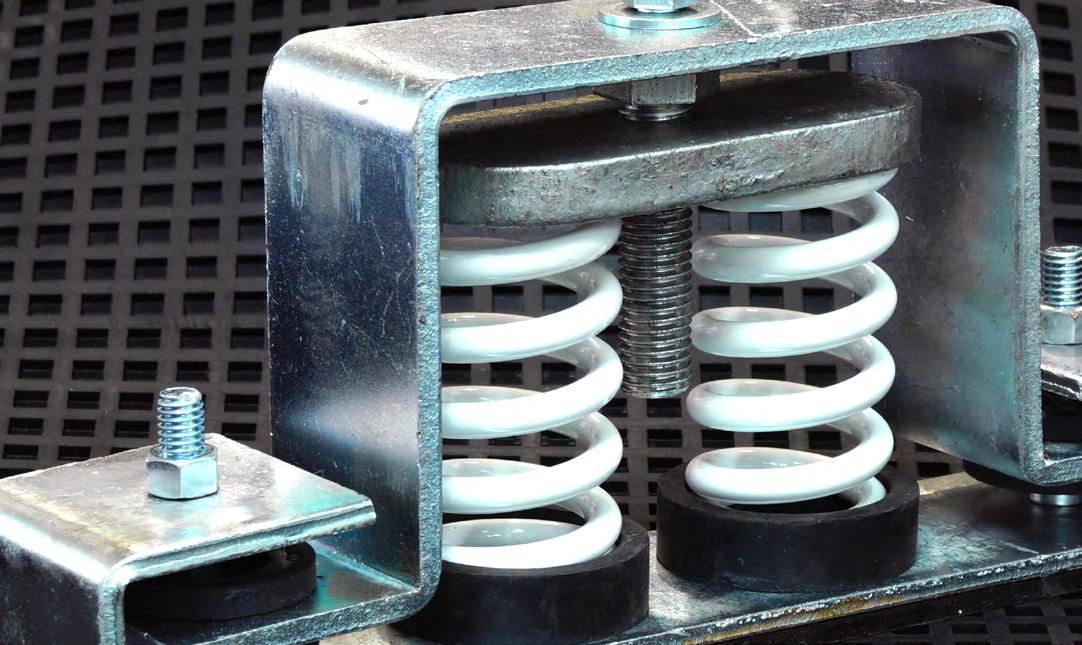

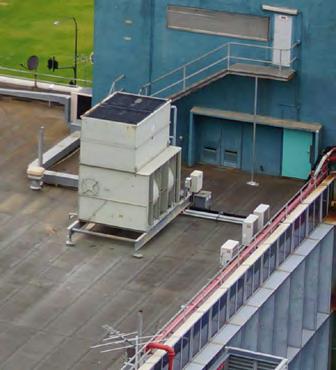

Heavy Duty Vibration Restraint

Effective restraint and vibration isolation for heavy mechanical equipment.

Seismic vibration restraint is critical to help prevent damage during an event.

Heavy mechanical equipment vibration restraint is critical, and requires specialist seismic mounts to prevent damage during seismic events. ACURA Group provides a range of heavy duty seismic mounts that are certified to suit these specific requirements, also help with isolating the low frequency vibration during operation.

Benefits

• Suitable for heavy mechanical equipment

• Effectively isolates vibration

• Protects equipment from damage during seismic event

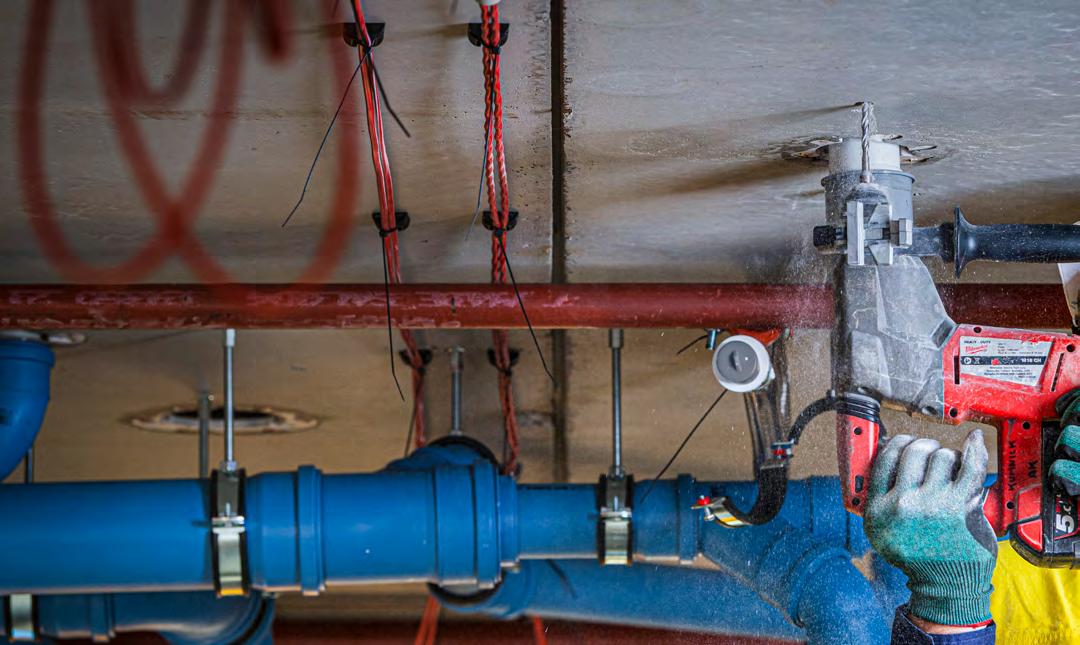

Seismic Rated Fixings

Seismic rated fixings designed to ensure compliance in every project.

We have the right seismic rated anchor or bolt for your project.

Seismic rated fixings play an essential part during earthquakes or other seismic events. These fixings provide an extra layer of safety by securing equipment and services to the building. Properly installed seismic rated fixings help prevent damage, reduce the risk of injury, and ensure that critical infrastructure remains operational in the event of an earthquake.

Benefits

• Helps reduce the risk of injury and damage during an event

• Solutions for cracked and uncracked concrete

• Fire rated options

Seismic Rated Fixings

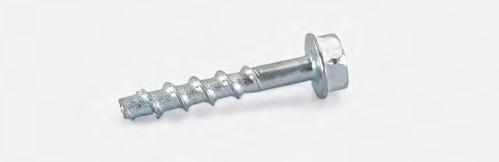

Seismic Rated Concrete Screw Bolts

SEISMIC HEX SCREW BOLT - ZINC

SEISMIC HEX SCREW BOLT - GALVANISED

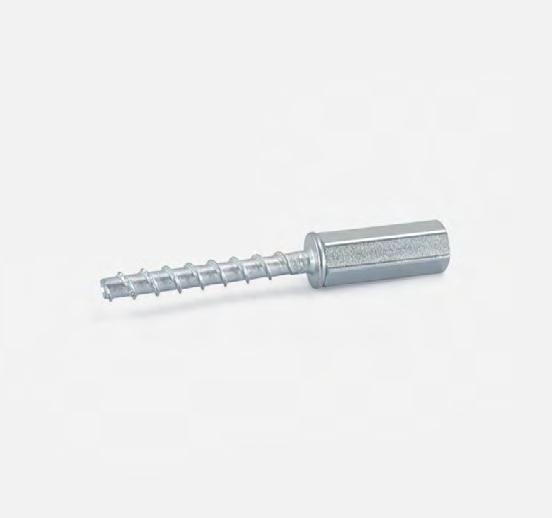

Seismic Rated Concrete Screw Anchors

Fischer UltraCut FBS II TM

The Fischer concrete screw UltraCut FBS II is made of zinc-plated steel with an internal thread. It is approved for multiple use of non-load bearing systems, thereby ideal for applications like fixings of pipe routes, channel systems, ventilation ducts and facilities in the building service engineering. The design of the concrete screw with step thread offers maximum flexibility when mounting threaded rods or connecting elements, and only requires 40mm embedment (seismic approved).

• ETA approved for cracked and uncracked concrete, seismic loading, and redundant nonstructural applications (6mm)

• R120 fire rated

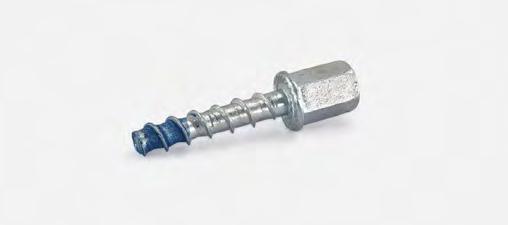

FBS II SEISMIC ANCHOR ROD HANGER

ACURA Group can provide comprehensive designs and drawings for any project, including weight and seismic calculations, that will ensure any products we supply are compliant.

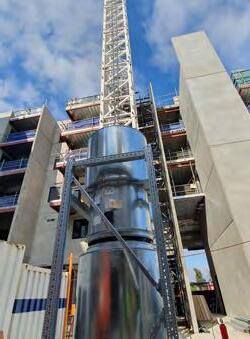

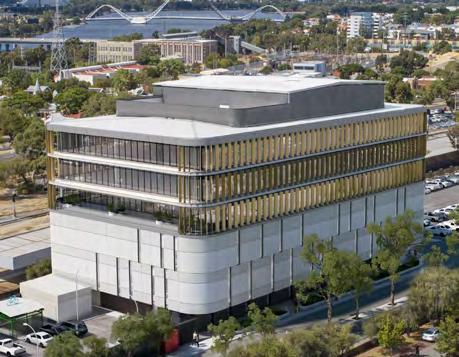

PTOCC in Perth

The $50 million Public Transport Operations Control Centre project, faced a critical challenge in finding a seismically rated solution to the support electrical and dry fire services.

The project requirements include a full seismic design certificate, integrated remote monitoring sign-off process with photographic evidence, 3D modeling, and take-off to ensure an end-to-end compliant outcome.

ACURA Group worked with engineers, providing a comprehensive seismic engineered solution, and a full six-level support program that included the use of the versatile Zip-Clip wire bracing, rod stiffener for the multi-layered tray, and specialised seismic rated fixings. These products played a vital role in ensuring the solution met all of the client's compliance needs.

With ACURA Group's 5 runs a day in metro Perth, products will be delivered to site level by level, on time, every time.

The solutions ACURA Group has and is providing this project with, clearly demonstrates the exceptional capabilities and commitment to customer satisfaction.

Featured Projects

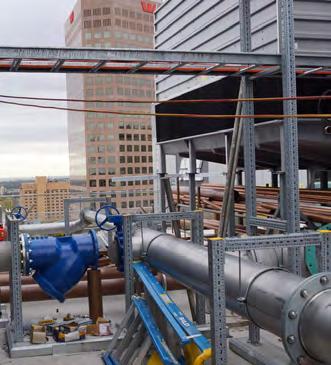

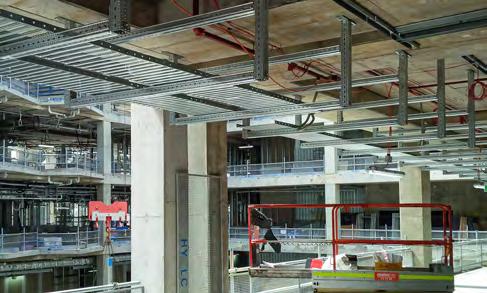

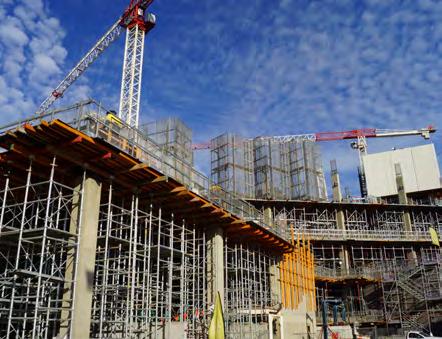

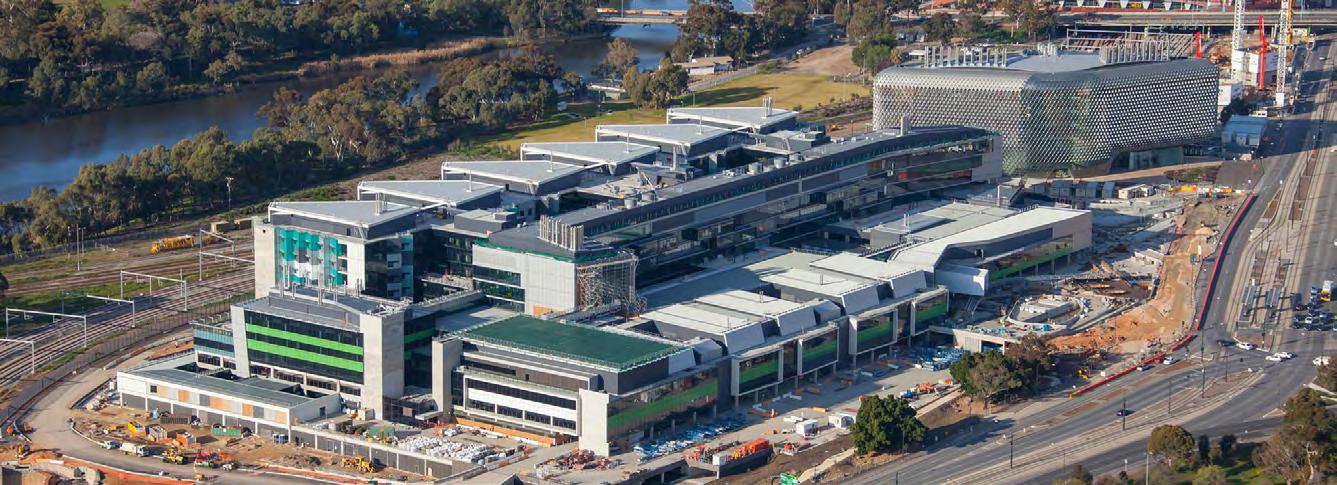

Royal Adelaide Hospital

“For large and complicated builds, only the best in support solutions will do. We helped to implement the world standard in seismic support at nRAH,” says Simon Joyce, ACURA Group Sales Director.

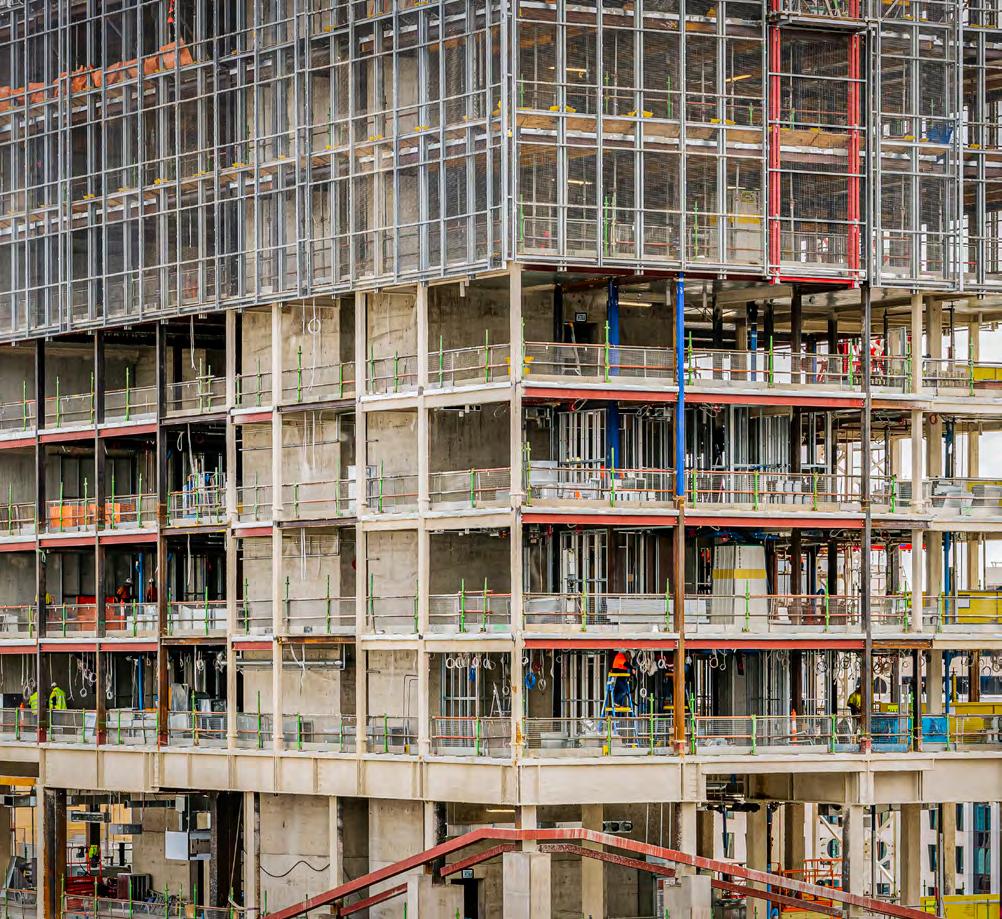

The Royal Adelaide Hospital spans the equivalent of three city blocks and contains almost 4 hectares of landscaped parks and gardens. What lies beneath the surface is a carefully designed and executed technologically advanced facility - one of the nations best in complex clinical care.

It was therefore a natural fit to be part of the construction process, with ACURA Group supplying the best in innovative seismic approve solutions to this flagship facility.

With services traveling up and down and across 9 levels at nRAH, the support needs of the electrical, HVAC, seismic and fire protection sectors was vast for this $2.4 Billion dollar project.

Seismic compliance became a very large issue on this project and it was necessary to work closely with the electrical, medical gases, plumbing, HVAC, and mechanical contractors to provide a seismically approved and engineered solution.

ACURA Group designed a versatile prefabricated and seismically approved common support frame (CSF), which the contractor built off site. The support frame was then transported in large

sections on-site, lifted by crane (see page 11), and successfully installed across all corridors.

An estimated total of 12km of siFramo was used in this innovative solution, along with other seismic approved products like Zip-Clip and seismic approved fixings.

This innovative solution contributed to fast install times without comprising on compliance.

Who we are ACURA Group

ACURA partners with the trades in commercial construction, delivering high quality, innovative solutions to the MEP-F (HVAC (mechanical), electrical, plumbing, fire) service providers of multi-storey construction projects.

The success of our family owned and operated business is built on sound technical knowledge, world-class service and speed of delivery. High stock holdings and 5 delivery runs every weekday help keep your projects on time and on budget.

You will find our expertise and products in iconic builds across Adelaide and Perth, including builds like the Osborne Naval Shipyard, Adelaide Oval, nRAH and SAHMRI in SA, and the Perth Stadium and PTOCC in Perth, as well as urban developments like the Bowden Precinct in SA and the Civic Heart in WA, and chain developments like Aldi.

How we can help We’re with you on site

When you’re on site, ‘perhaps’ and ‘maybe’ just won’t cut it. You need certainty and reliability. In fact, you demand it. That’s why ACURA Group is the name more contractors trust. When it comes to meeting project deadlines, we deliver.

• We know our stuff – technical knowledge plus expert support to keep you compliant on site.

• You need it, we deliver it – we deliver directly to you on site when you need it.

• Stacks of stock – we have what you need, and we have plenty of it.

• Customer approved - satisfied customers are what we live for.

Specialist supplier

• Your specialist solutions supplier for the construction industry in SA and WA, covering Plumbing, HVAC, Electrical and Fire Services

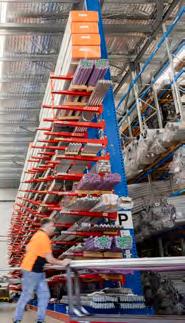

Huge range in stock

• We stock what we sell. Our fill rate is more than 97% on average, which means we can dispatch to site in lightning speed

• Over 7,000 items in stock

• We’re the experts at sourcing hard to find products

Fast, friendly delivery

• Same day delivery to you on site

• Multiple delivery runs per day with on-demand VIP delivery service available

• Over 99% of delivery runs leave on time, with guaranteed delivery within 2 hours from dispatch

• A complimentary box of biscuits with every delivery

Customer testimonials

• Our customers are our best endorsement

• Our regular Net Promoter Score surveys have a world-class customer satisfaction score of 80+

Delivered Fast & on time

You want to work, not wait. That’s why we deliver to you on site, and we deliver fast.

We have a large range in stock at our Adelaide and Perth warehouses, always ready to dispatch straight to you when needed, on one of our five delivery runs a day in the Adelaide and Perth metropolitan areas.

We can respond to your short notice orders too, with our VIP delivery service ready to run when you need it, meaning you are not bound to any delivery times. Additional charges may apply.

Adelaide - SA

• Order by 4pm the day before - get it by 8:30am the next day

• Order by 8:30am - get it by 11am the same day

• Order by 11am - get it by 1:30pm the same day

• Order by 12:30pm - get it by 3pm the same day

• Order by 2pm - get it by 4:30pm the same day

Perth - WA

• Order by 4pm the day before - get it by 9am the next day

• Order by 9am - get it by 11:30am the same day

• Order by 12pm - get it by 2:30pm the same day

• Order by 1:30pm - get it by 4pm the same day

• Order by 3pm - get it by 5:30pm the same day

VIP Uber delivery - available for urgent deliveries. Delivery times are subject to Uber availability, and additional delivery fees will apply.

*Large orders and outside metro area, may require extra time.

We aim to deliver within two hours of a delivery run leaving our warehouse. Our speed of delivery is measured daily, with 99.9% delivered on time.
