Private Residential Work (2020-2024) by AbigailsPortfolio

BAIRD abirbdesign@gmail.com

BRECKENRIDGE, ASCOT

This site is located in the Royal Borough of Windsor and Maidenhead, within a TPO zone. Neighboring properties adhere to a traditional architectural style, which is why it was submitted for pre-planning.

I held sole responsibility for the design and presented numerous ideas to address the challenges posed by the clients’ varied aims and desires. The initial brief was a £700,000 refurbishment and development project with future sale prospects, but it evolved into a larger, new-build family home.

Once the scheme receives positive feedback from the planners, the design may undergo adjustments to accommodate the flexibility of a new build, as many of the design decisions where based on the existing footprint. All I produced all graphics and CGIs within this document.

ChobhamRoad

Chobham Common

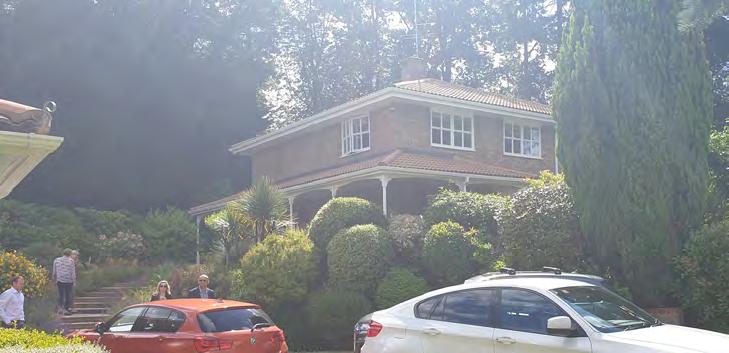

Existing Site Photo - Side/Front View

Existing Site Photo - Front Elevation

Beech tree, RPR 9.6m

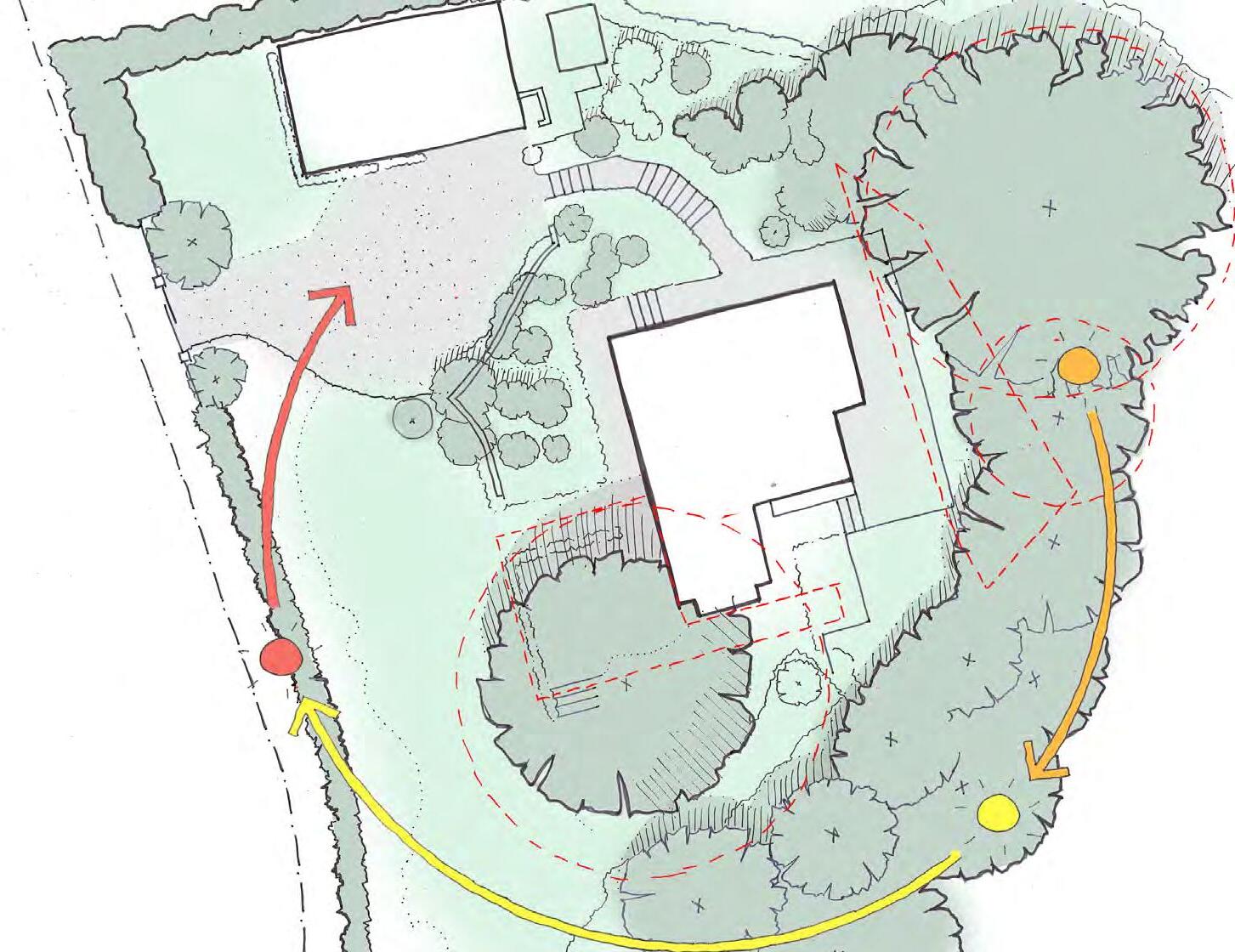

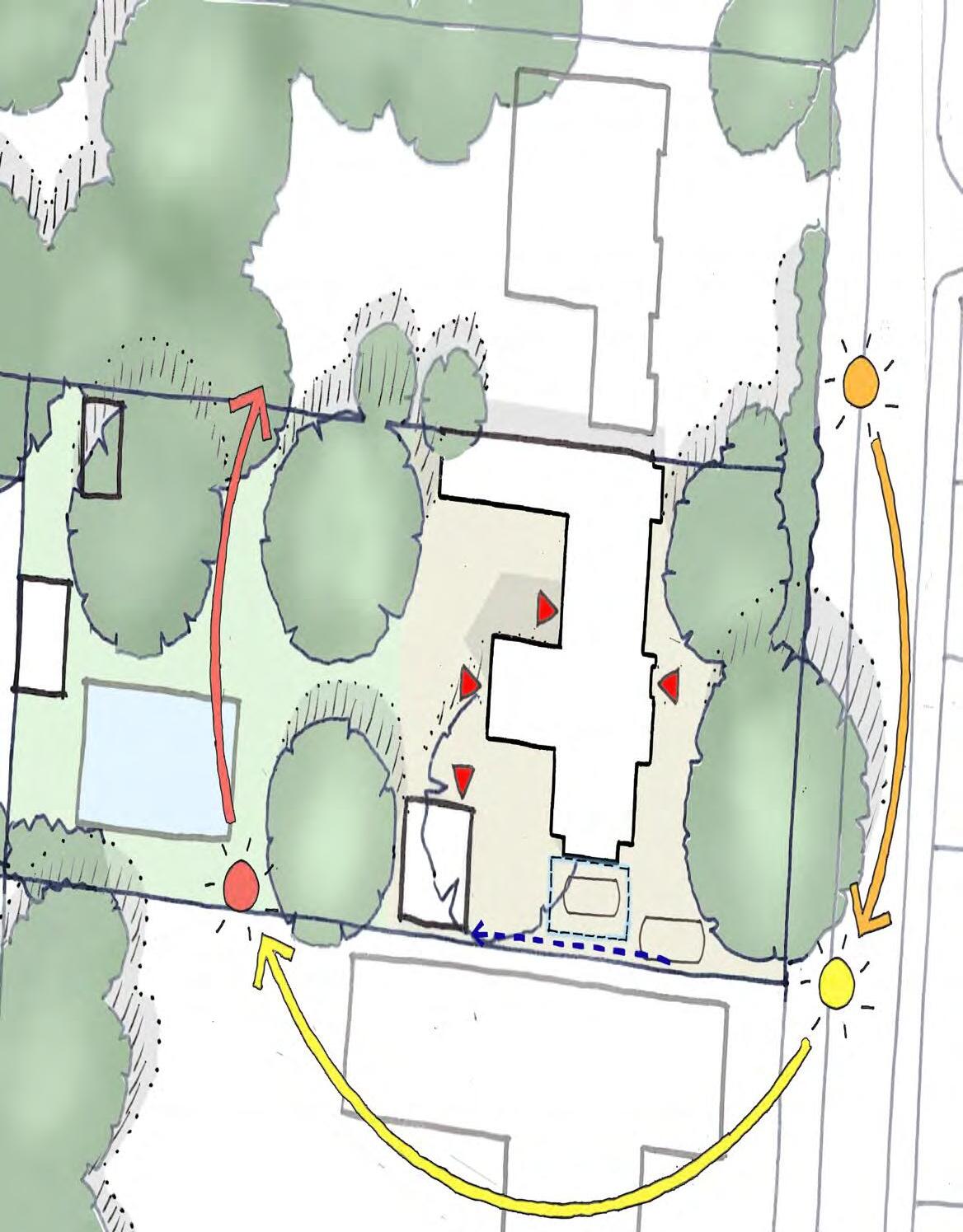

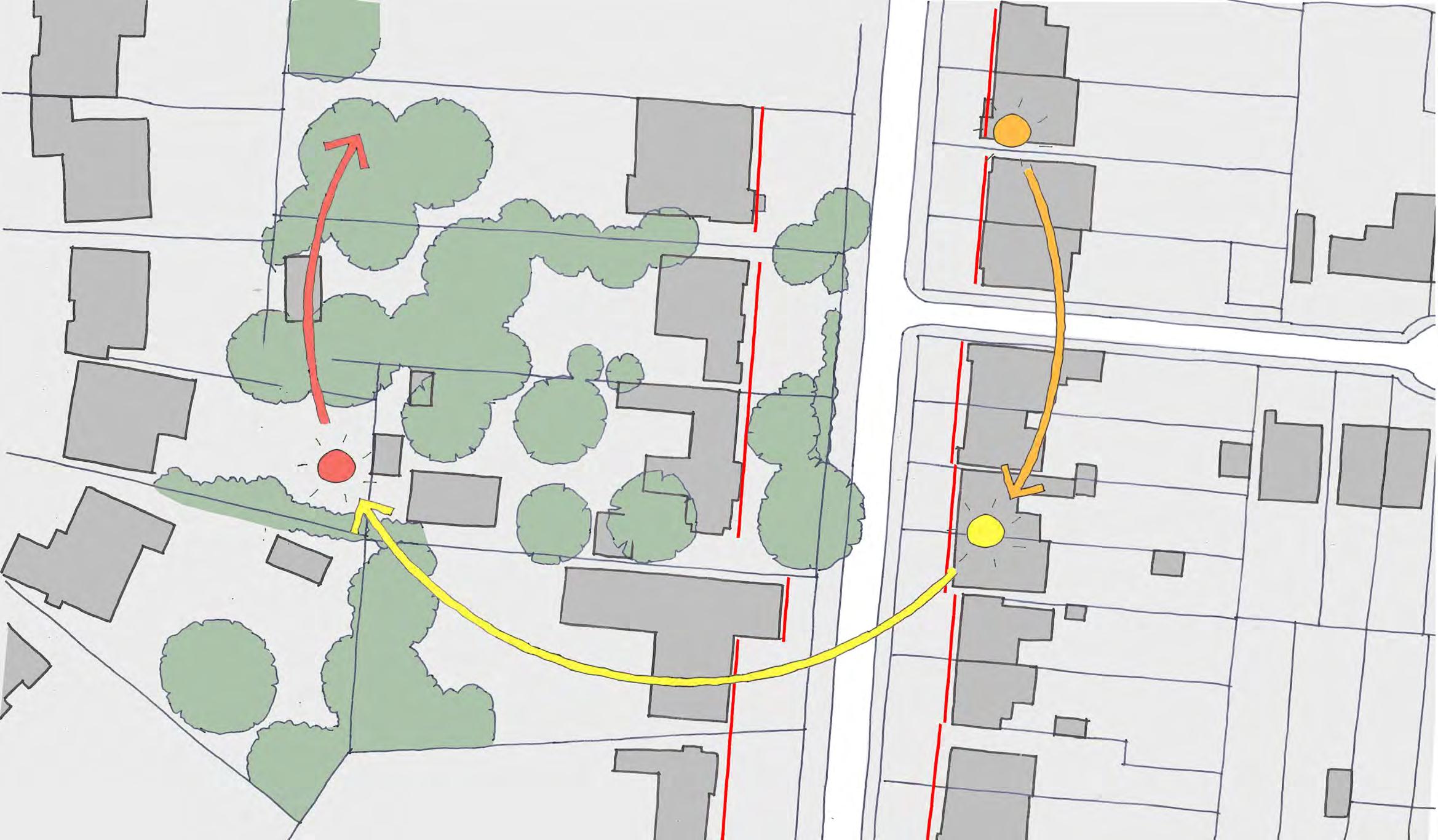

Concept diagram, Diagrammatic space planning

Development in this area will have to be above ground using a piled scheme

Sycamore tree RPR 4.8m

Existing seated area with good sunlight/views

Ideally external area to be retained, with development maximised elsewhere on site

Any development in this area will have to be above ground using a piled scheme

New strip foundations could be used along the existing footprint

Dense trees treescape Visual connection from entrance to entrance gates

STUDY PANTRY

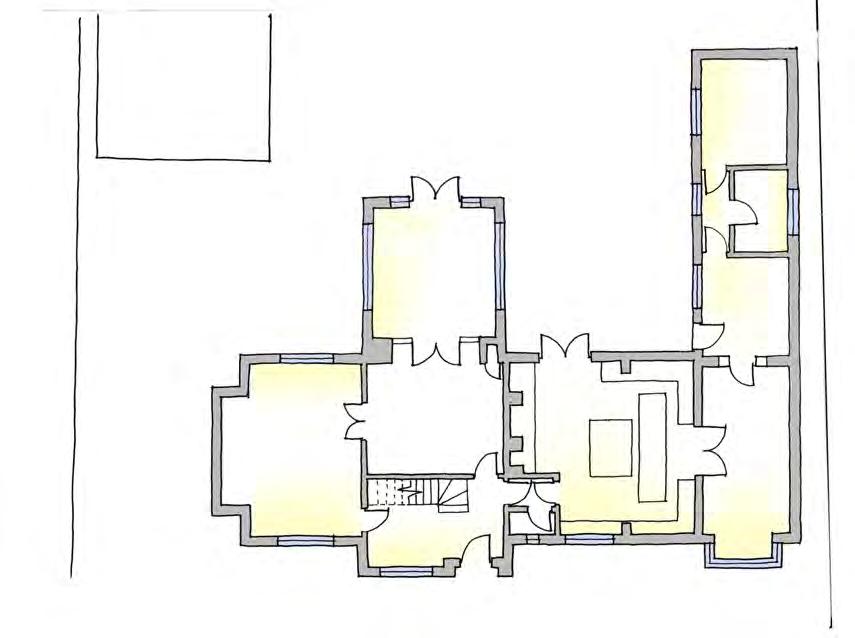

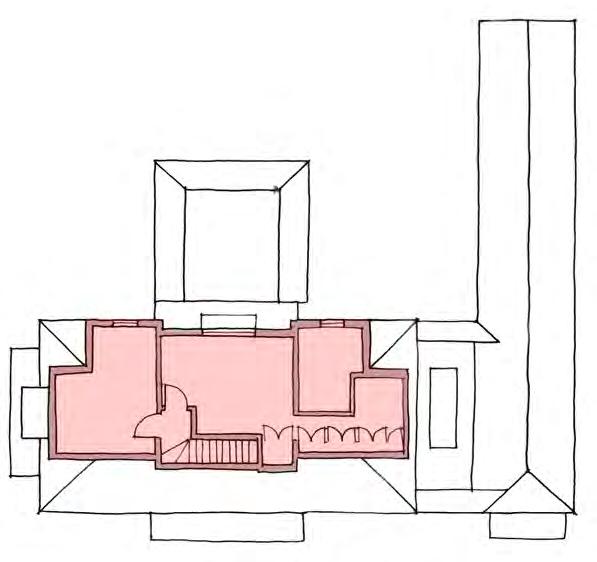

Proposed First Floor Plan (Option 1 Sketch)

Proposed

Proposed Ground Floor Plan (Option 3)

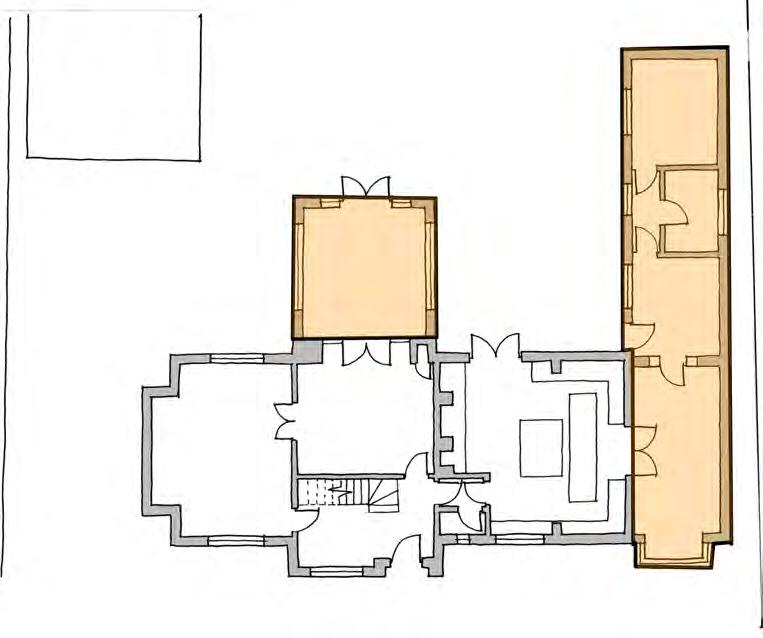

Proposed Ground Floor Plan (Option 1)

Breckenridge, 7 Richmond Wood, Sunningdale

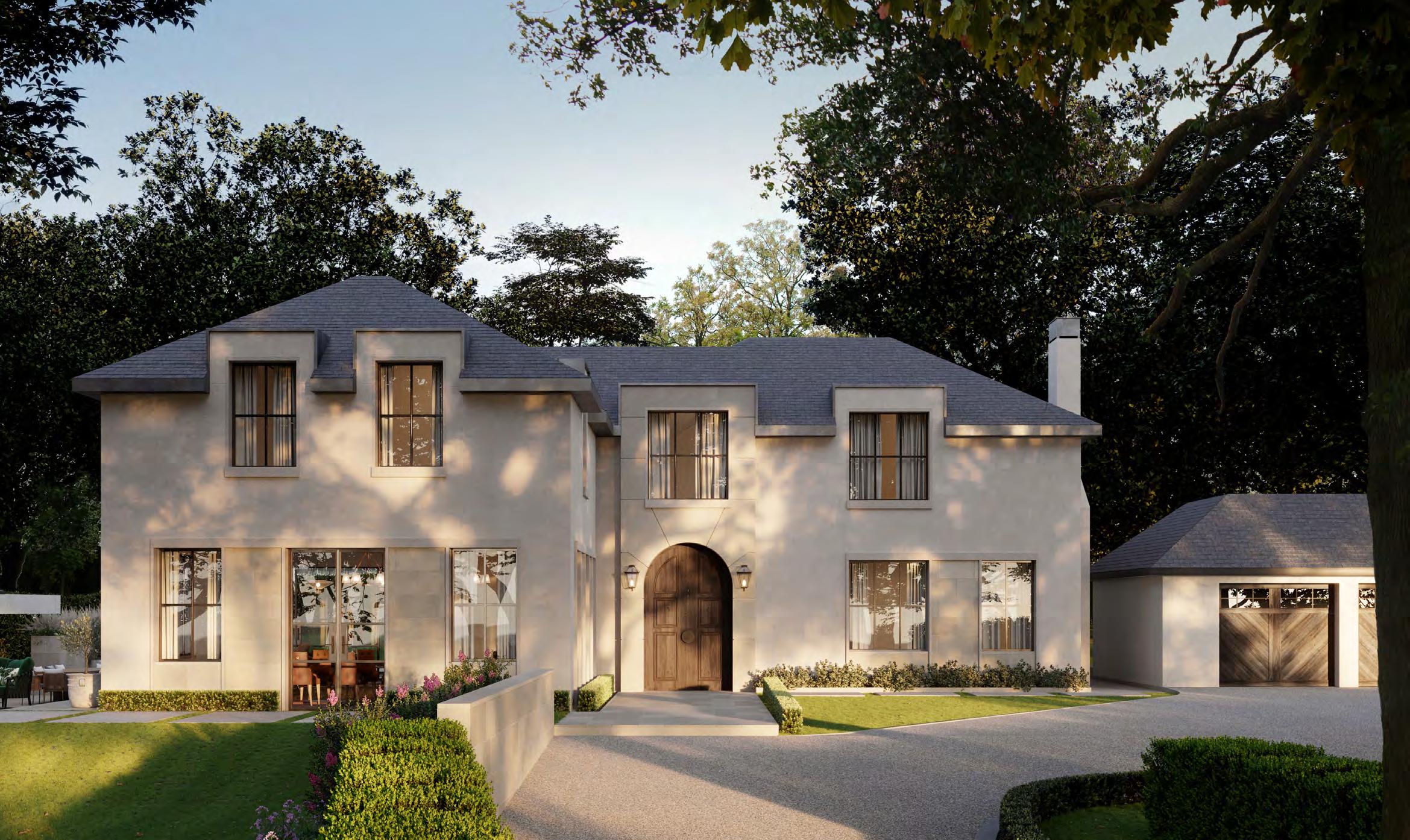

Proposed 3D Visual - Option 3. Drafted in Sketch-up & Enscape

Proposed

3D Visual - Option 3. Drafted in Sketch-up & Enscape

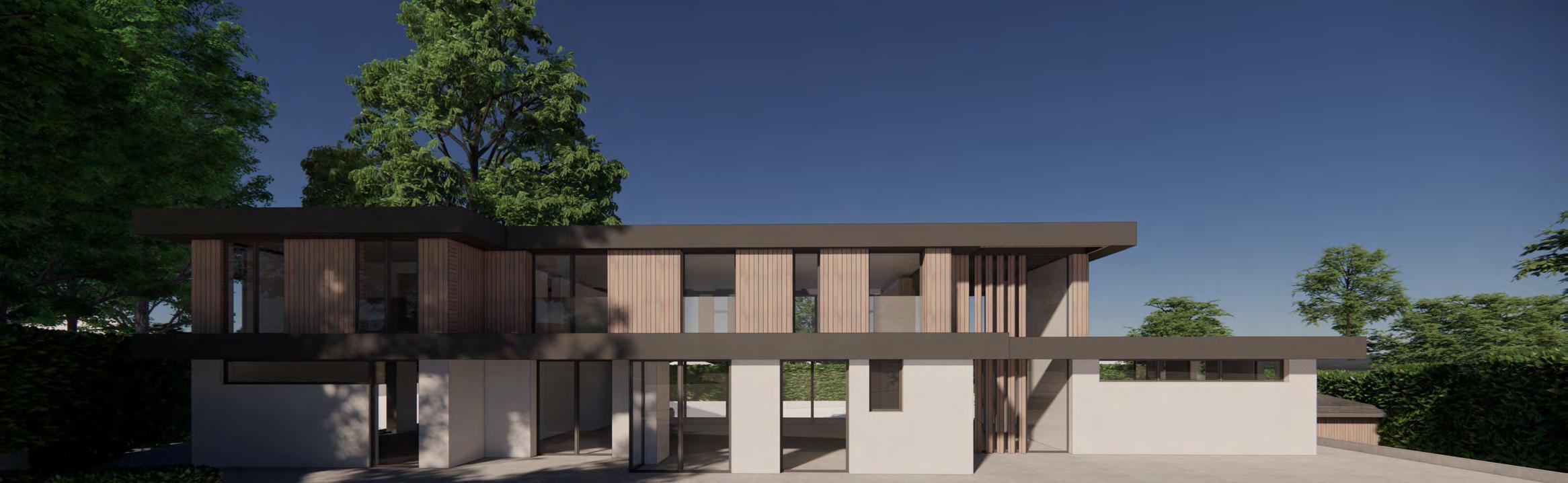

Proposed Front View - Rectangular option 2

Proposed Rear View - Rectangular option

Drafted in Sketch-up & Enscape

- Main house is prominent with new areas subservient, whilst remaining unified

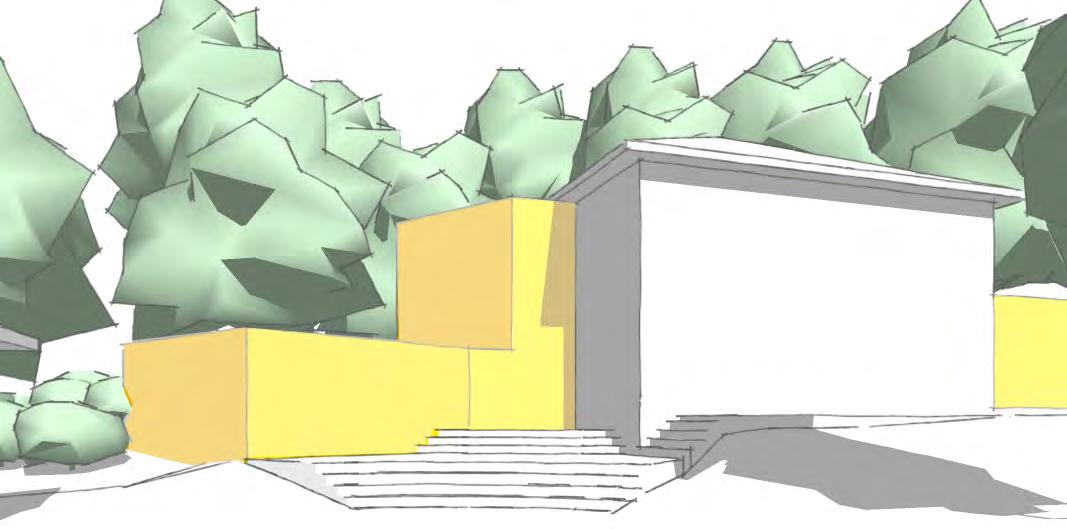

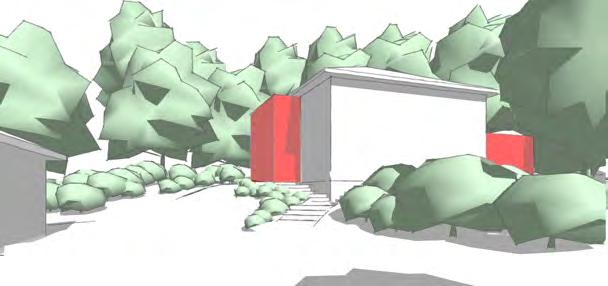

3. RAISE THE WINDOW OPENINGS AND LOWER 4. OPEN UP THE FACADE

1. Existing

2. Remove the roof

3. Raise the window openings , lower cills and add parapet

4. Open up the facade

LANTERN HOUSE, WELWYN

I began working on this project at RIBA Stage 5 during the contract signing, alongside the director who designed the new build property. It is a home for a young family of 5 situated in Hertfordshire within the greenbelt. My role primarily involved handling on-site queries, developing drawings from tender to construction, variations and Architects Instructions. I undertook valuations monthly and assessed the contractors’ claims for work.

Refer to Drawing No.2019.ORH.262 for Main House Setting out

Easting: 526445.316 Northing: 215905.753

Easting: 526442.161 Northing: 215897.143 Easting: 526455.923 Northing: 215901.393

Easting: 526442.006 Northing: 215895.840

Easting: 526458.821 Northing: 215904.145

· Coordinates are to the OUTER corners of the external blockwork.

· Coordinates are derived from the local OS and Site Survey data.

· Any discrepancies between the coordinates and measurements to be immediately notified to the designer.

· Pool coordinates are to the inner face of the concrete shell

Easting: 526450.000 Northing: 215900 000

Easting: 526457.975 Northing: 215897.038 Easting: 526457.235 Northing: 215890.842 Easting: 526445.680 Northing: 215894.374 Easting: 526446.165 Northing: 215898.444

Easting: 526448.787 Northing: 215893.258

Easting: 526453.893 Northing: 215891.240

Membrane as per spec ref H62-105

75mm insulation ref P10-15

Ply sheathing to S.E spec

100mm insulation ref P10-15

Slate tiles H62-110

Counter battens

12.5 mm wallboard, skimmed and painted

VCL spec reference K10-402 Beams, specification by interior designer

Refer to 2019_461 Detail

For finishes refer to Untold Interior designers specification

01_Window head/Roof edge detail @ 1:5

Green dashed line denotes curtain track/curtain by others

10mm packer zone

Timber sill, painted softwood

Marmox PIR Thermoblock (53mm height )or equivalent and approved,

12.5mm

02_Sill detail @ 1:5

Aluminum rain water pipe and gutter. Product: Marley alutec 120x 80 gutter with 63mm outlet or equivalent and approved

Silicone thin coat render. M21-230.

External wall insulation spec ref M21-210 Thickness to be reviewed based on installed blockwork spec.

Steel lintel to S.E spec

12.5mm aquaboard or equivalent layered to create required relief. Render finish to match wall spec ref M21-230

18mm packer zone

Render drip angle to match render colour

12.5mm aquaboard or equivalent layered to create required relief. Render finish to match wall spec ref M21-230

Windows client supply & install. Refer to window schedule for further information. Detail TBC.

Stamford Stone, Product ref: Clipsham Medwell

Insulation

Angle fixing to stone to be advised and provided by stoneworks contractor

Insulation spec ref M21-210

Render, spec ref M21-230. Render product in abeyance

Block to archictectural specifcation F10/360

Site Progress Photo - Kids En-suite

Site Progress Photo - South Elevation

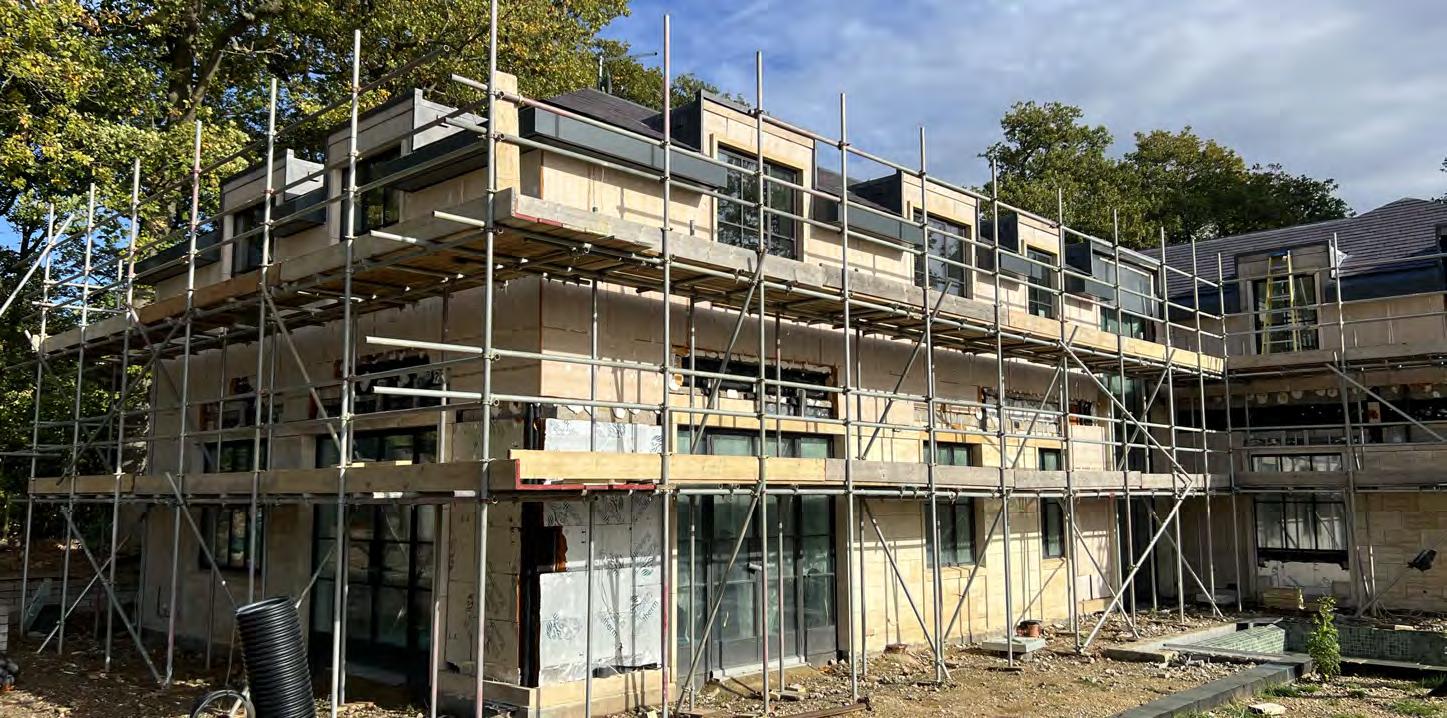

Site Progress Photo - West/Rear Elevation

Site Progress Photo - First Floor

MANOR WAY, OXSHOTT

I began working on this project at RIBA Stage 5 once the project had commenced on site, the original designer no longer works at Concept Eight Architects, and therefore I had sole responsibility of this project once it commenced on site.

Site photograph - up and over window

Site photograph - front elevation

Site photograph - view from loft room

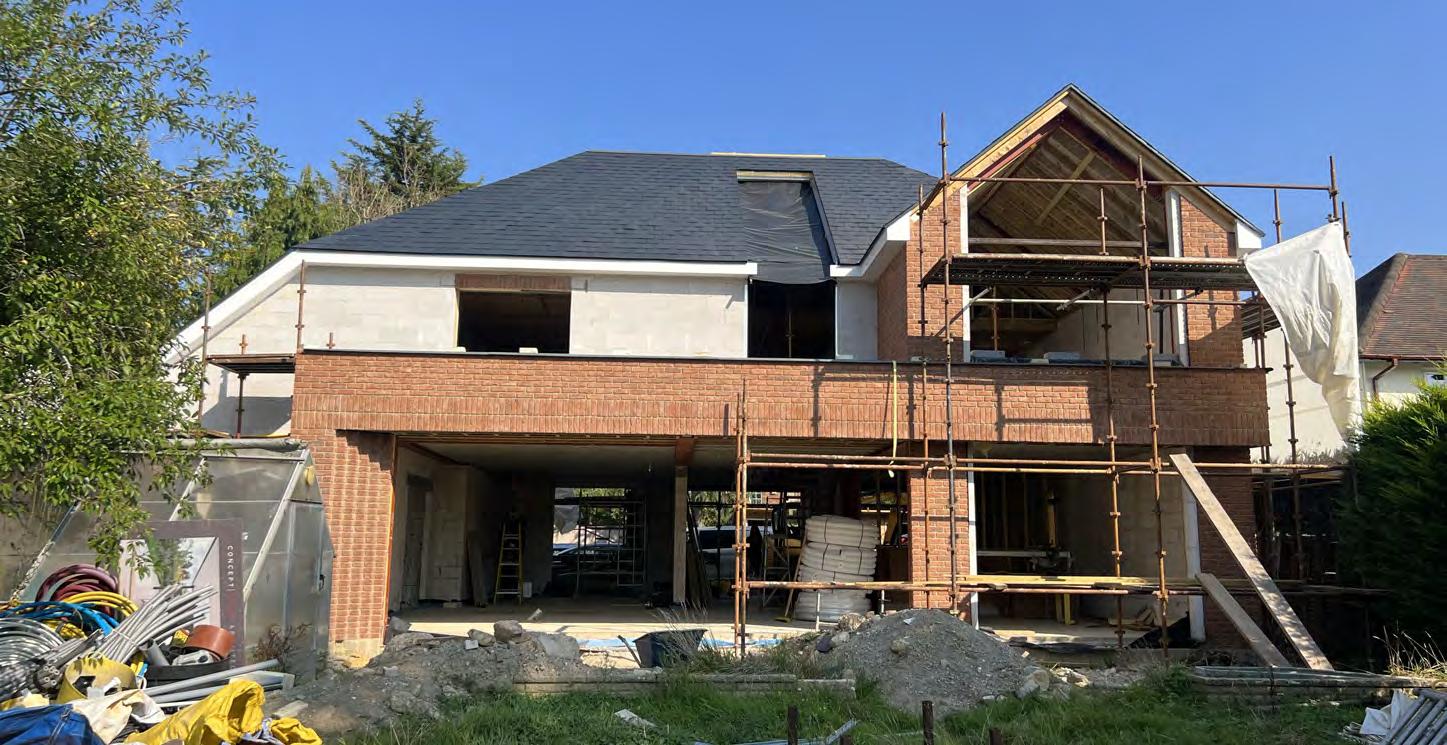

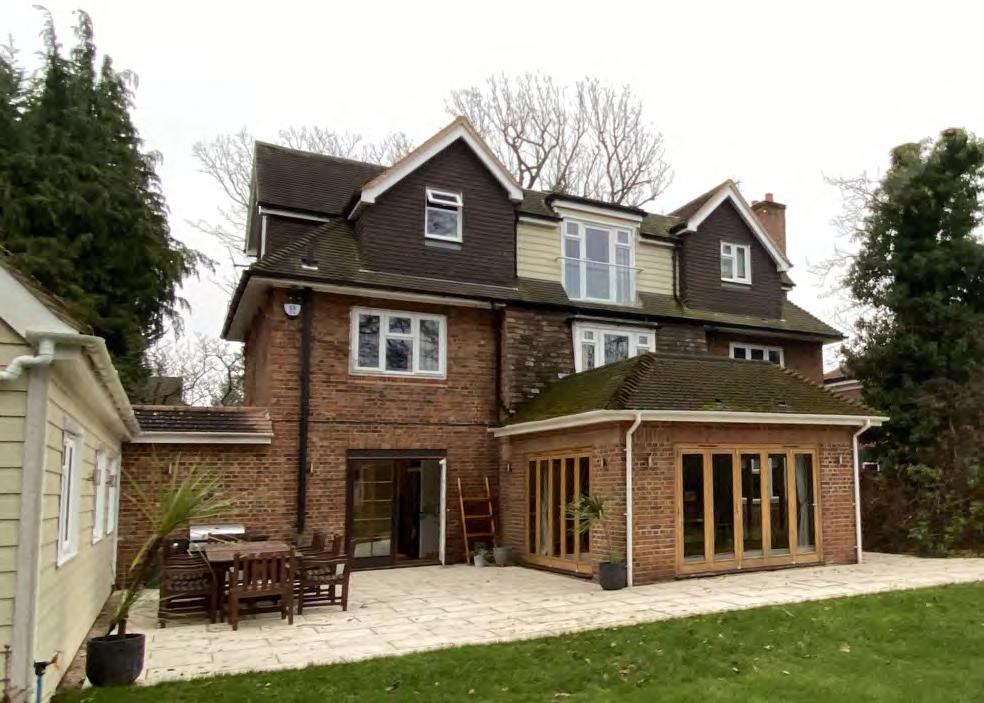

Site photograph - rear view

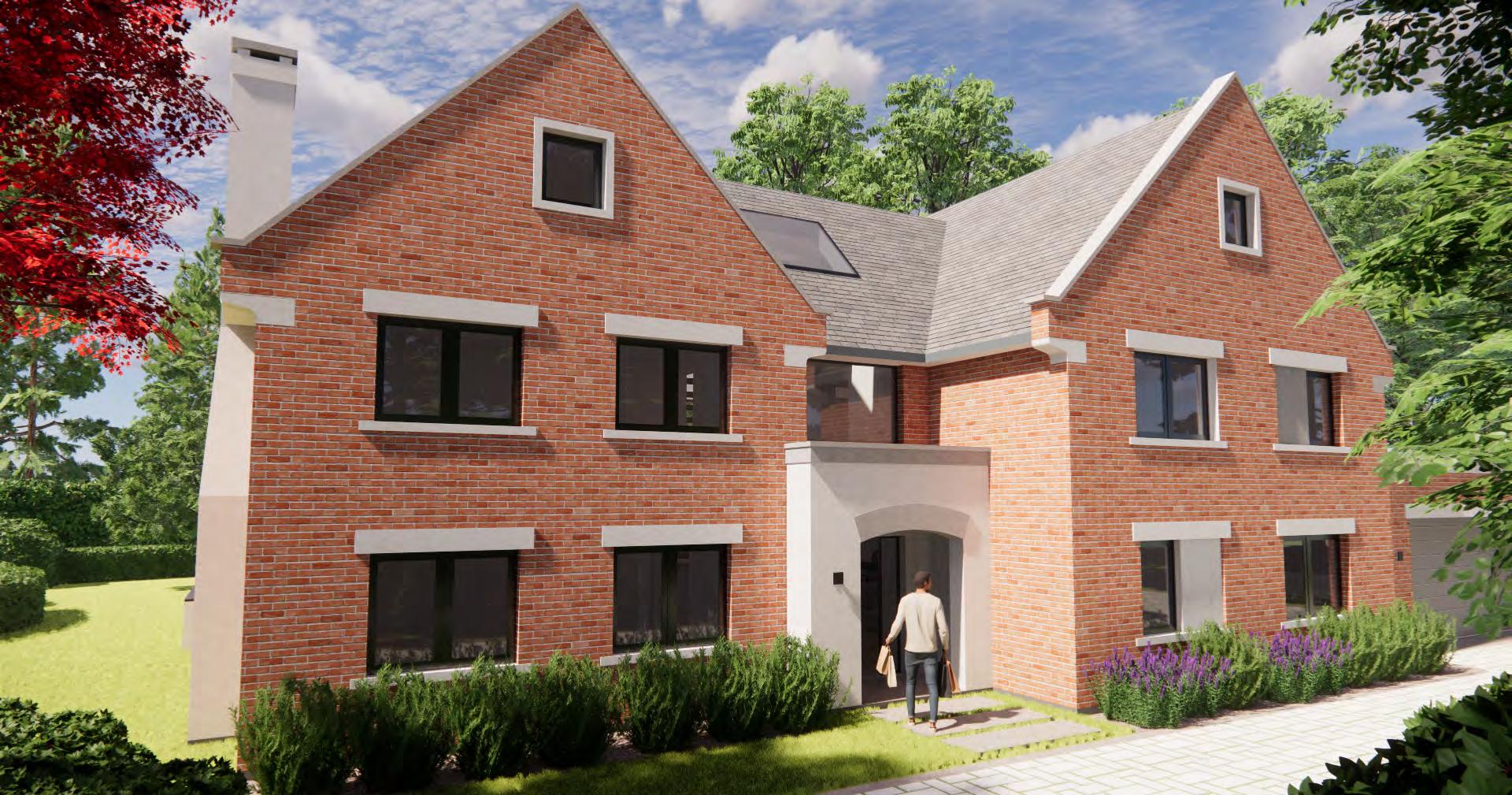

SILVERTREES

The clients, a young family of four, commissioned the project, which involves the private residential refurbishment and extension of a property located in the Wentworth (WERC) estate within the greenbelt. The proposal comprises four levels of accommodation, with an estimated budget of £1.32 million.

I worked with the project architect during RIBA Stage 3 in the planning phase and later managed the tender process, acting as the technical designer during RIBA Stage 4. Due to the strict planning policies imposed by its greenbelt location, the client couldn’t obtain the same volume of new construction as they would with a new build. This challenge resulted in a complex technical pack, requiring extensive discussions with the structural engineer to develop a workable proposal.

Securing planning permission proved to be a challenge, prompting the appointment of a planning consultant to guide us through the process. Although we successfully obtained planning approvals, the design did not meet the estate’s requirements, which demanded a 3.5-meter setback from the boundary and is currently undergoing negotiations.

The design team is composed of an architect, structural engineer, arborist, planning consultant, and geotechnical consultant.

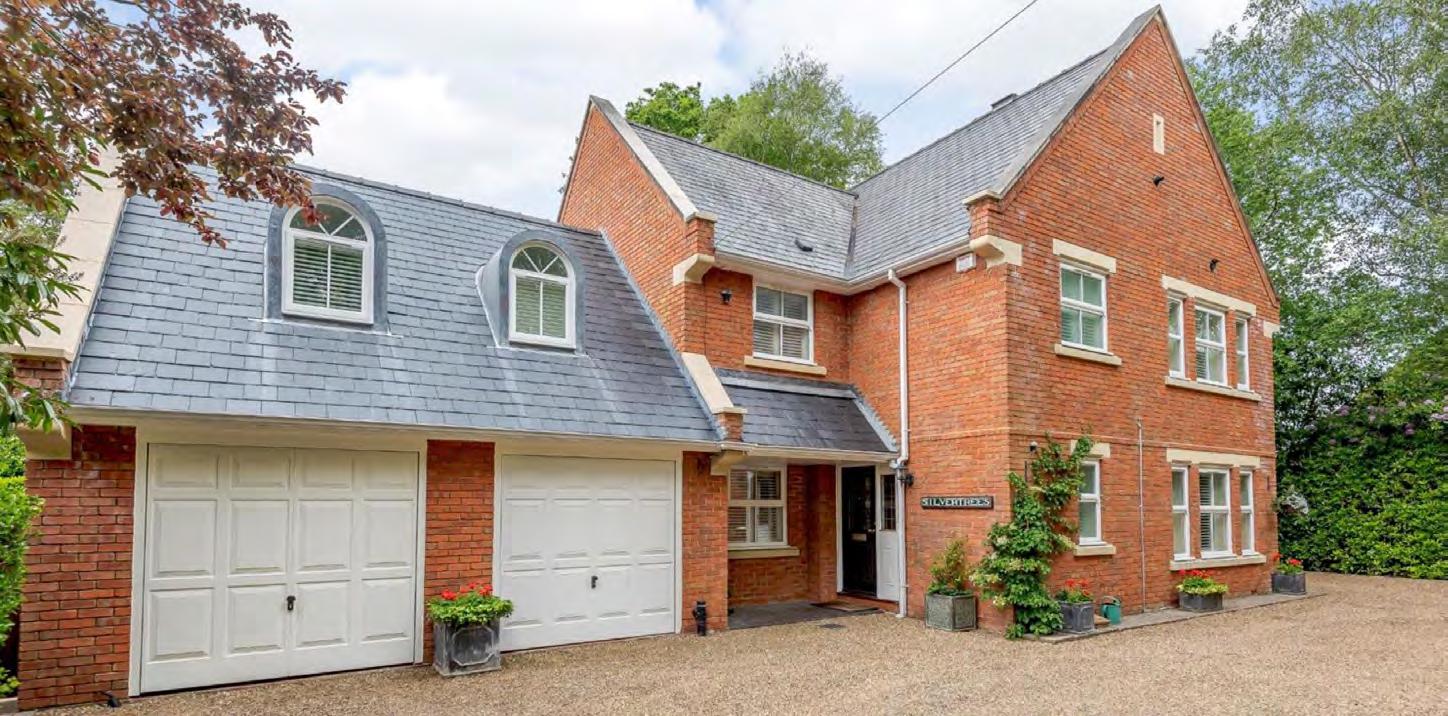

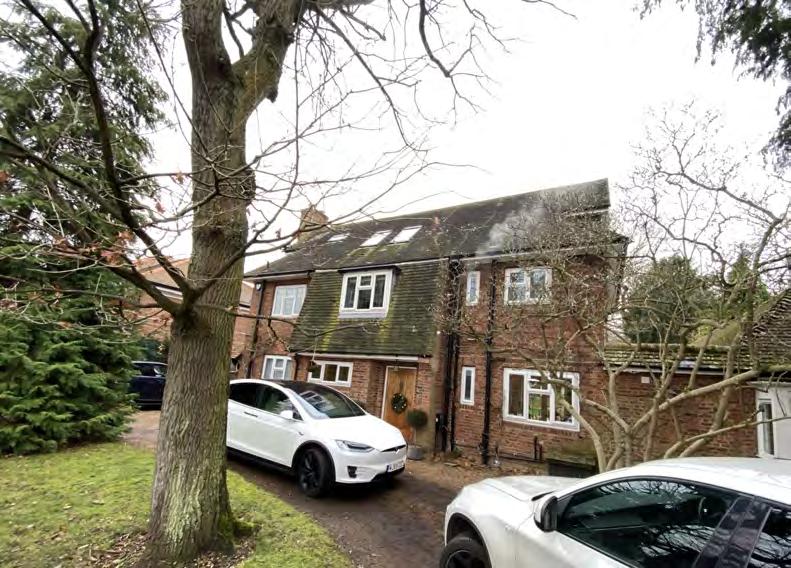

Existing Site Photograph

Kingspan

HIGHLANDS, CHIDDINGFORD

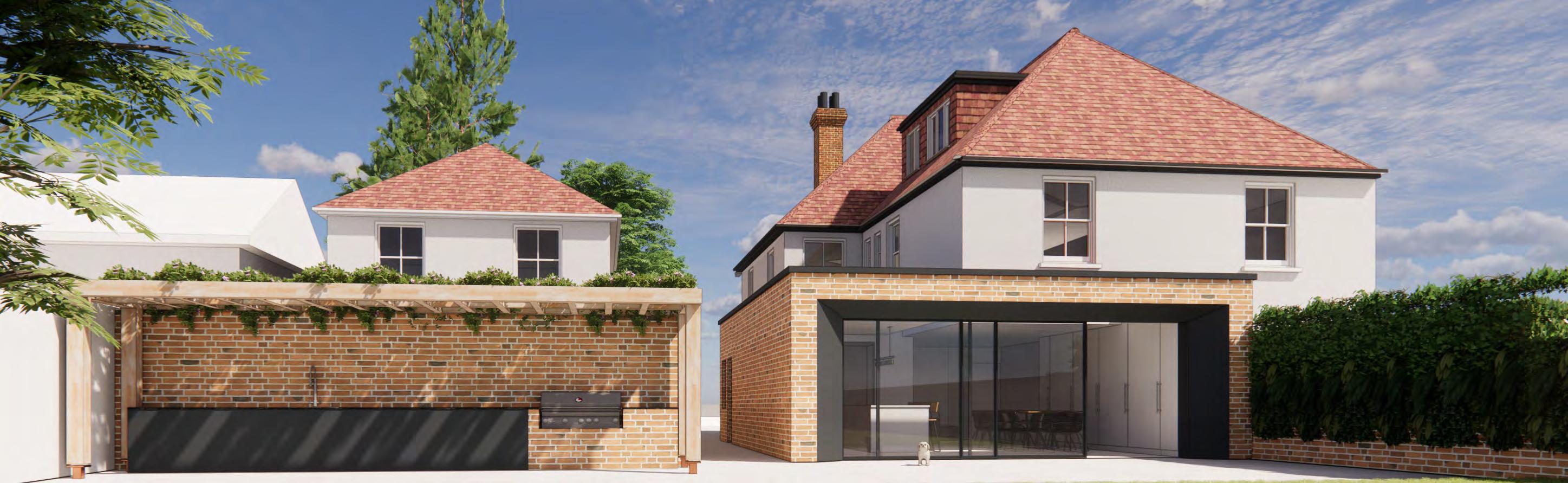

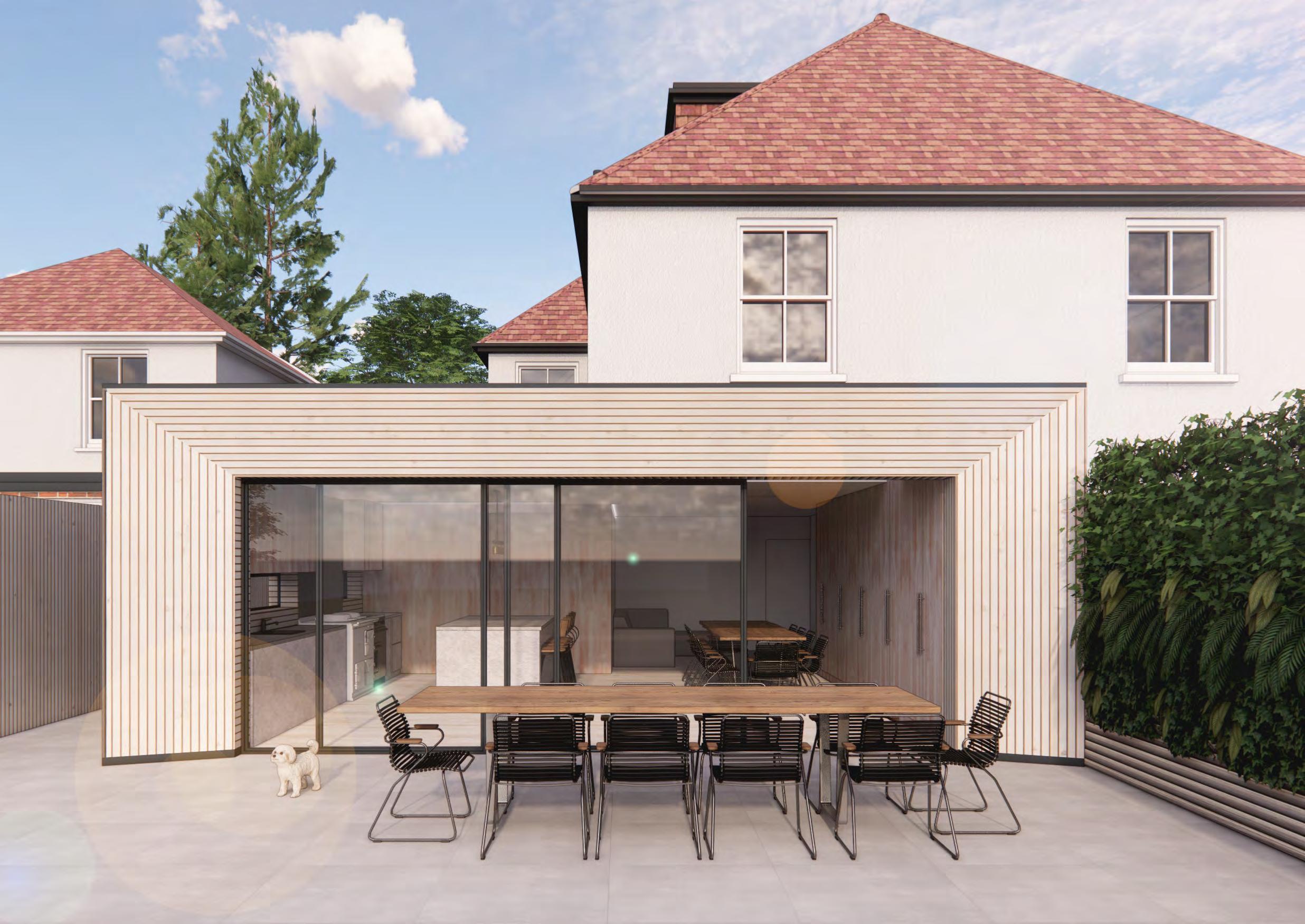

Project design lead for a small rear kitchen and living extension. Different contemporary design options for client.

Submitted the chosen scheme and received planning approval.

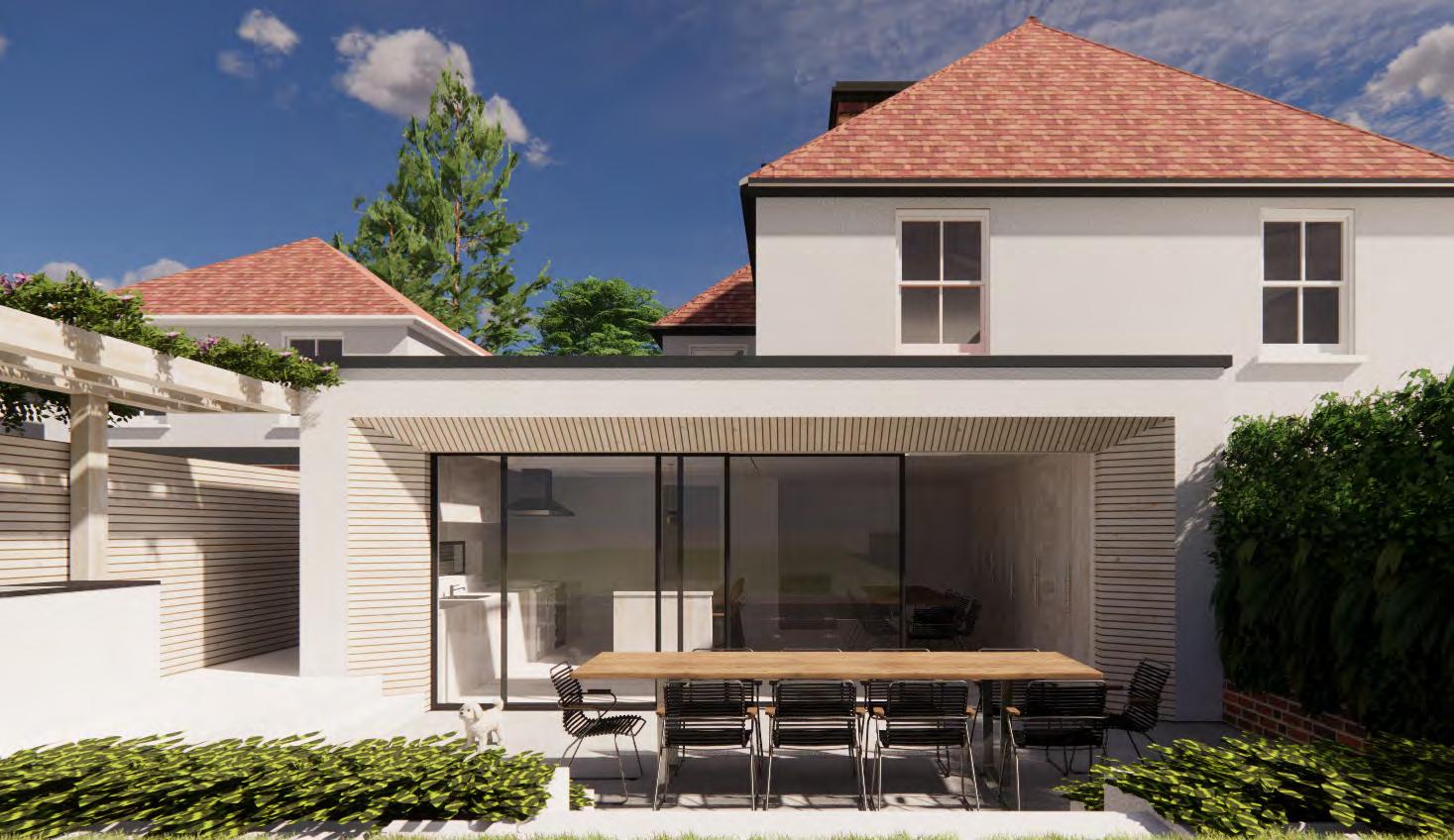

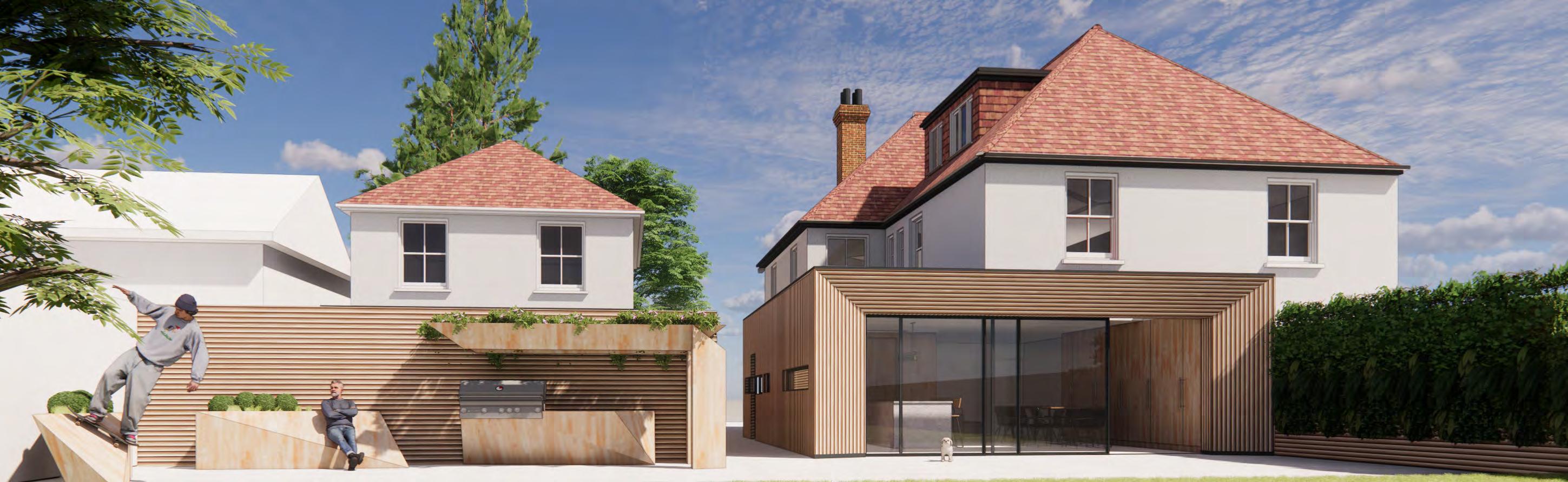

Submitted Visual for Planning

Interior View

GROUND FLOOR FLAT DULWICH

Undertaken as a private project in 2020.I undertook the survey, drafted design and options and submitted a pre-planning application prior to the full planning submission, required for this ground floor flat situated in Dulwich, London. Numerous planning applications along Belvoir Road in Dulwich had been previously refused so I submitted the application for pre-planning to benefit from the local authorities feedback on the scheme.

This enabled me to make the design changes required to secure successful planning approval. I managed to exceed the streets case precedent of 3 metre extensions and secured approval for a depth of 3.8 metres.

Proposed Section - Pre-planning

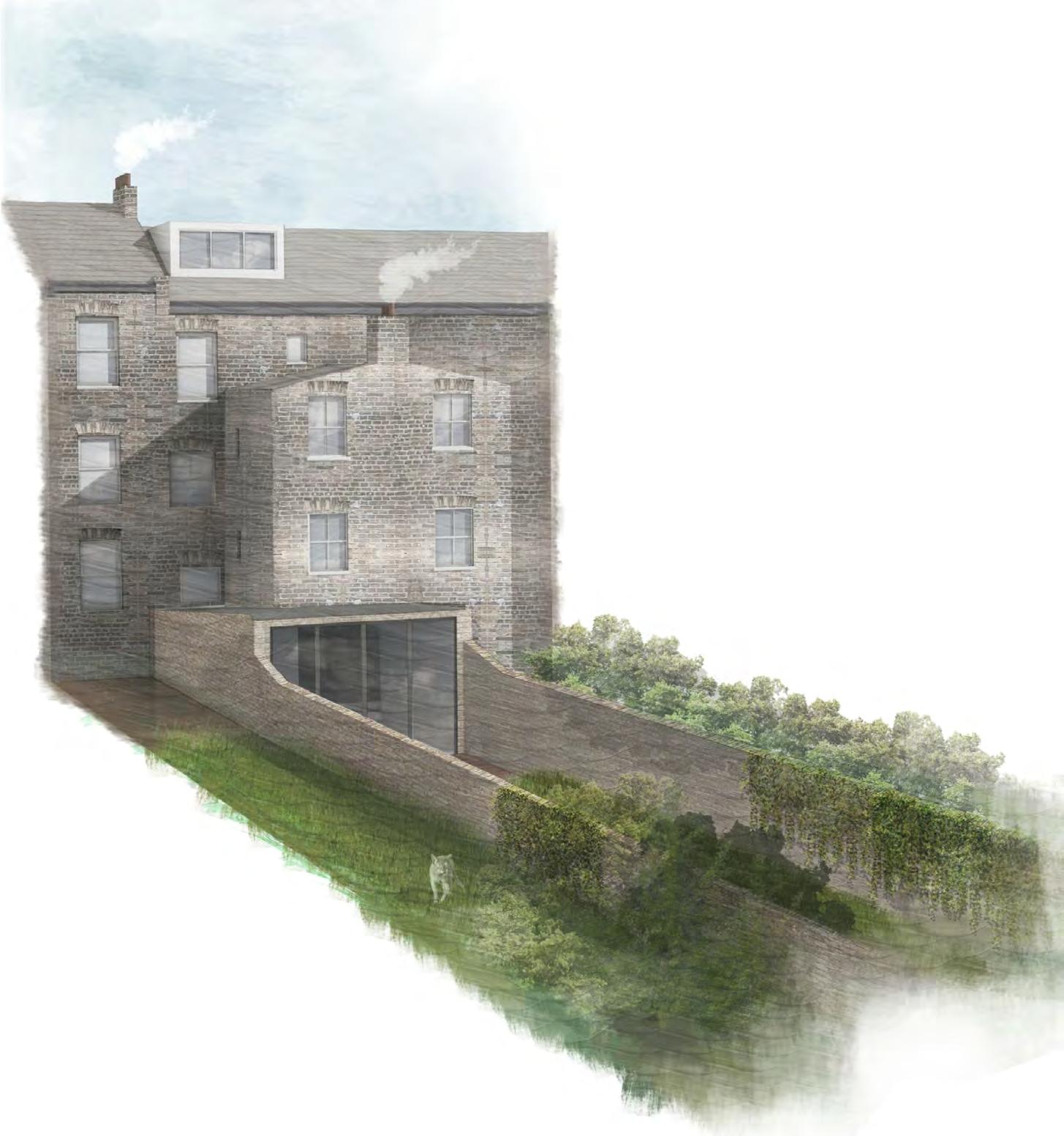

Proposed 3D visual - Pre-planning. Modelled in Sketch-up and photoshopped

WESTCAR LANE WALTON-ON-THAMES

The project is an extensive refurbishment project for a young family of four. The property is situated in Surrey and poses some challenges with protected trees on site,.

I have been engaged on this project since its inception at the end of 2020. I worked alongside the Project Architect to produce the site analysis and design options. The client chose my proposals for the extensive renovation and extension.

Following the grant of planning permission I lead the project solely during the technical design stage, with occasional oversight from the studios Director. I reviewed the tender returns and the project is currently on site. We were not retained as Contract Administrator, in order to help alleviate professional fees for the clients.

SHADING

Existing Front Photograph

Existing Rear Photograph

SITE ENTRANCE

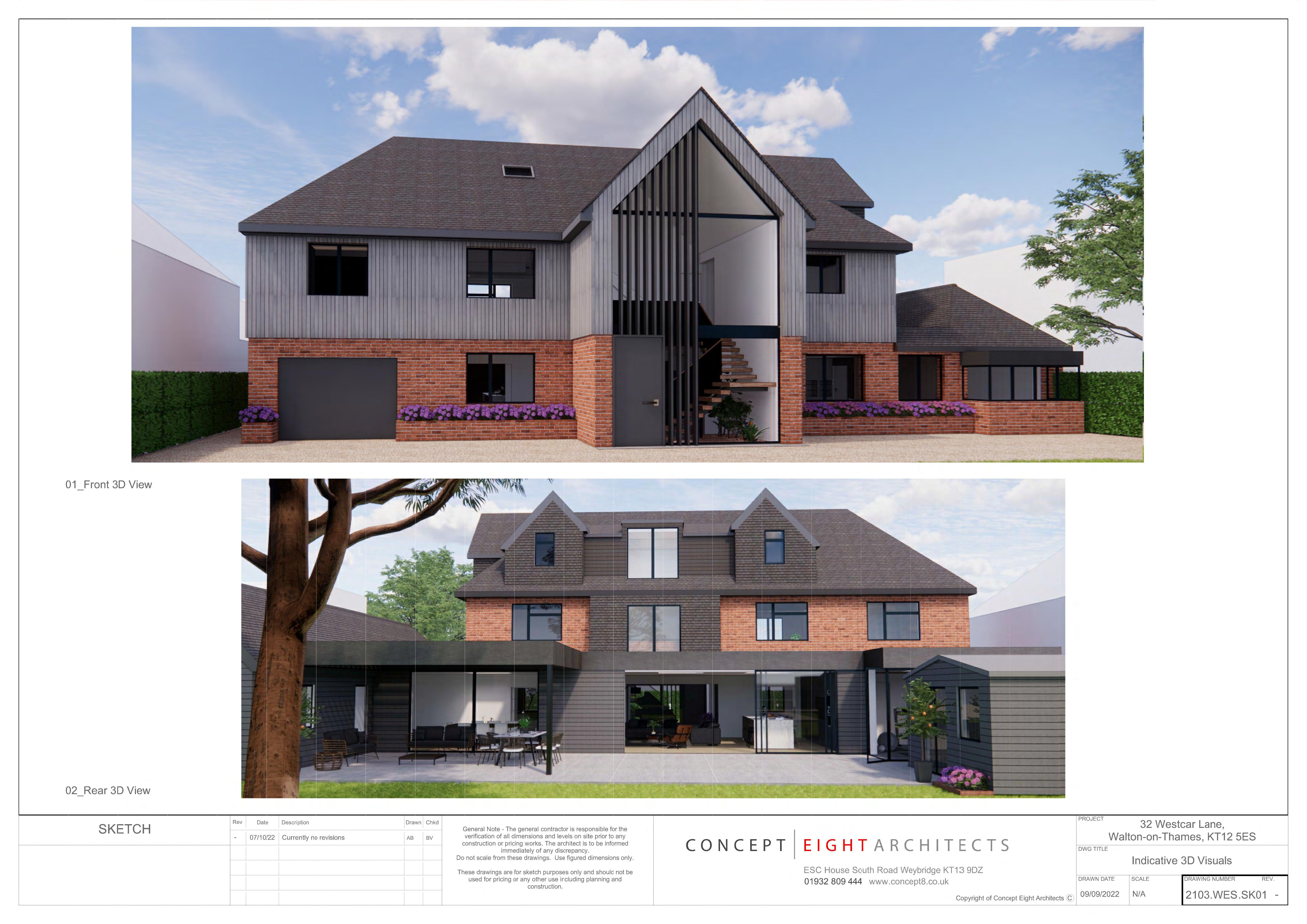

Proposed Front 3D Visual (Chosen scheme)

THE STAIR INTENT DRAWINGS HIGHLIGHT THE DESIGN INTENT ONLY . THE DETAILED DESIGN OF THE STAIR AND COMPLIANCE RESPONSIBILITY LIES WITH THE CONTRACTOR/SUPPLIER OF THE STAIR.

THE CONTRACTOR/SUPPLIER OF STAIR TO TAKE NOTE OF CRITICAL DIMENSIONS AND DESIGN PRINCIPLES ADOPTED TO DEMONSTRATE 'WORKABILITY' OF STAIR.

FINAL STAIRCASE DESIGN IS TO BE UNDERTAKEN WITH THE CLIENT. TO ALLOW FOR 3D VISUALS OF PROPOSED STAIR FOR SIGN OFF BY CLIENT PRIOR TO ORDER.

Note:

Stairs

Dimensions to be checked and measured on site prior to fabrication of stairs. Timber stairs to comply with BS585 and with Part K of the Building Regulations. Max rise 220mm, min going 220mm. Two risers plus one going should be between 550 and 700mm. Tapered treads to have going in centre of tread at least the same as the going on the straight. Min 50mm going of tapered treads measured at narrow end. Pitch not to exceed 42 degrees. The width and length of every landing should be at least as great as the smallest width of the flight. Doors which swing across a landing at the bottom of a flight should leave a clear space of at least 400mm across the full width of the flight. Min 2.0m headroom measured vertically above pitch line of stairs and landings. Handrail on staircase to be 900mm above the pitchline, handrail to be at least one side if stairs are less than 1m wide and on both sides if they are wider. Ensure a clear width between handrails of

Stringer

Align edges of stairs

Clear toughened glass

Proposed Stair Section - Tender

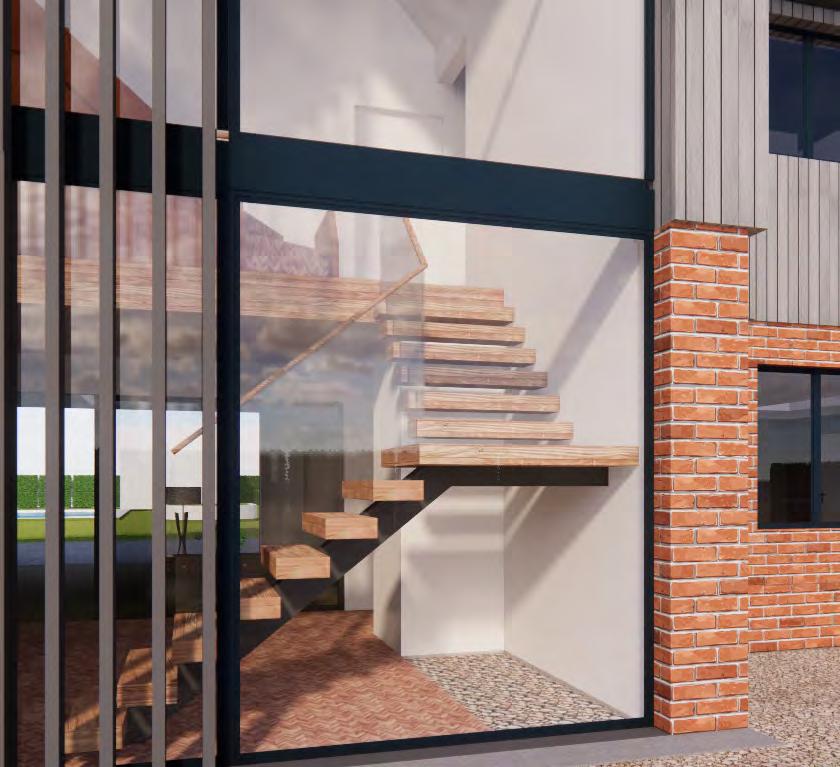

Proposed External Stair View

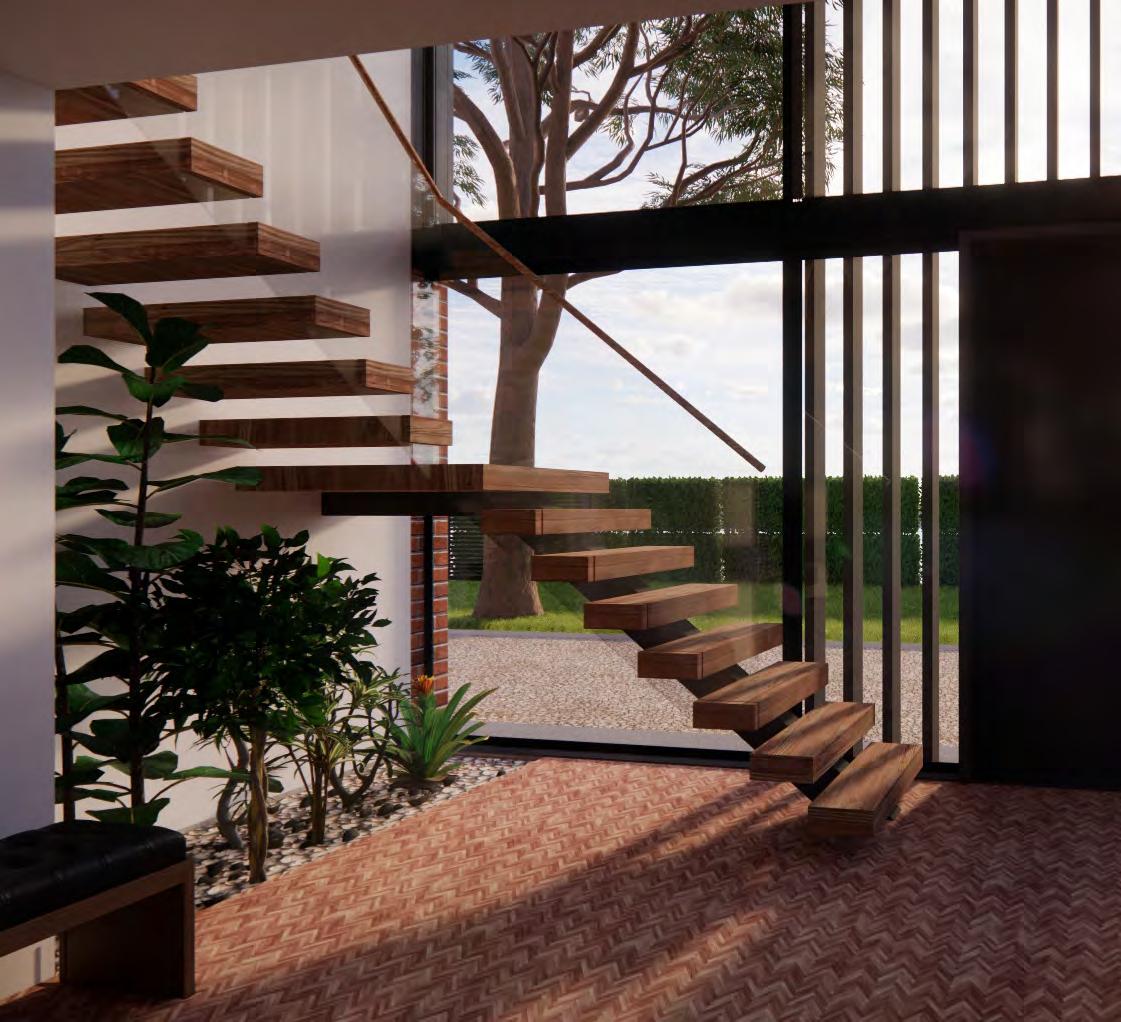

Proposed Internal Stair View

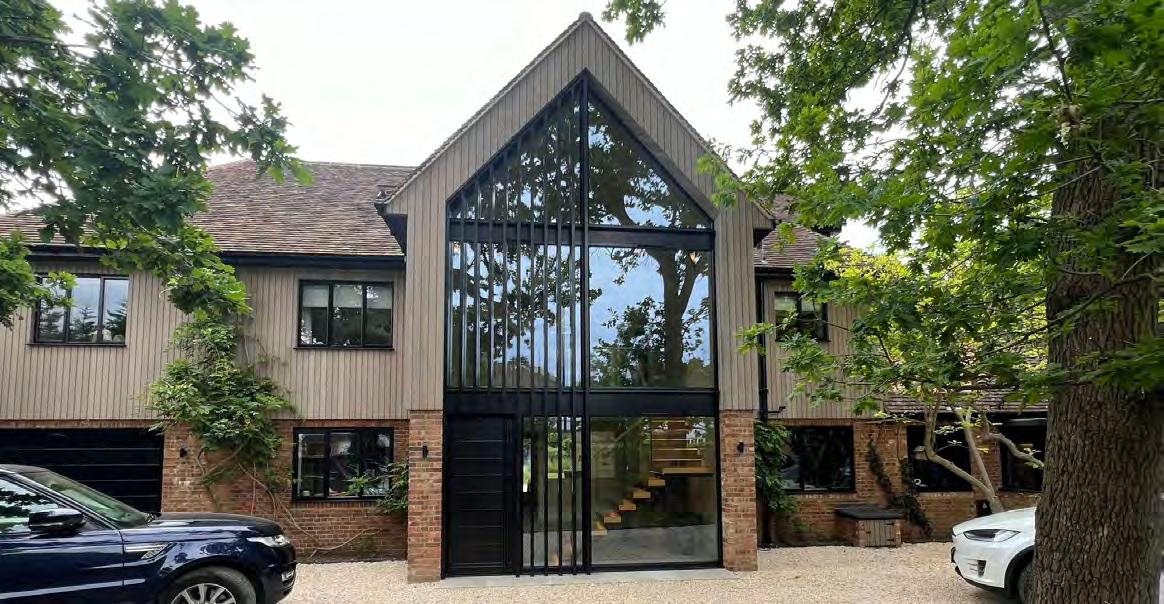

Completed Project Photograph: Front view/site photos nearing completion

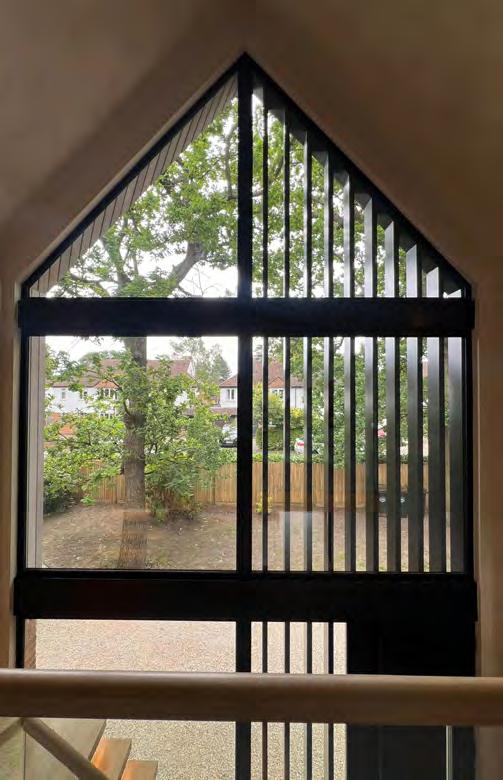

Completed Project Photograph: Internal view of hallway

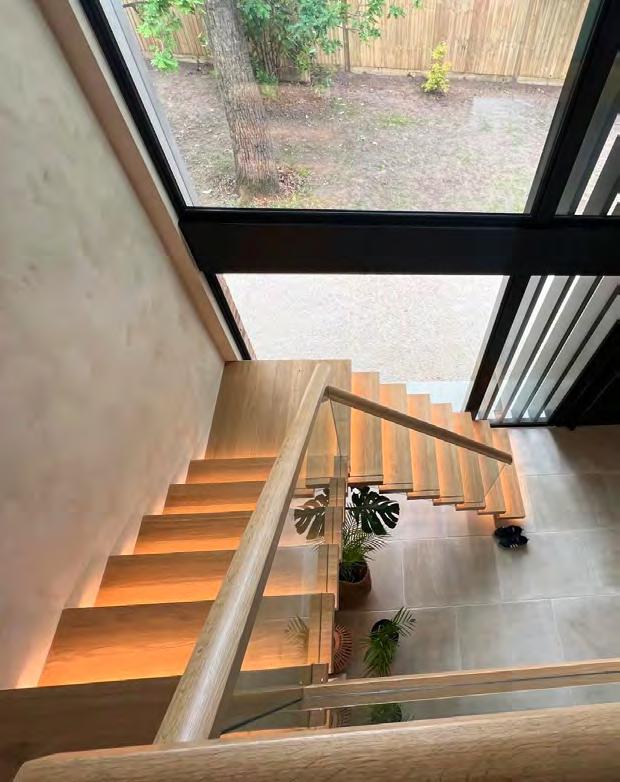

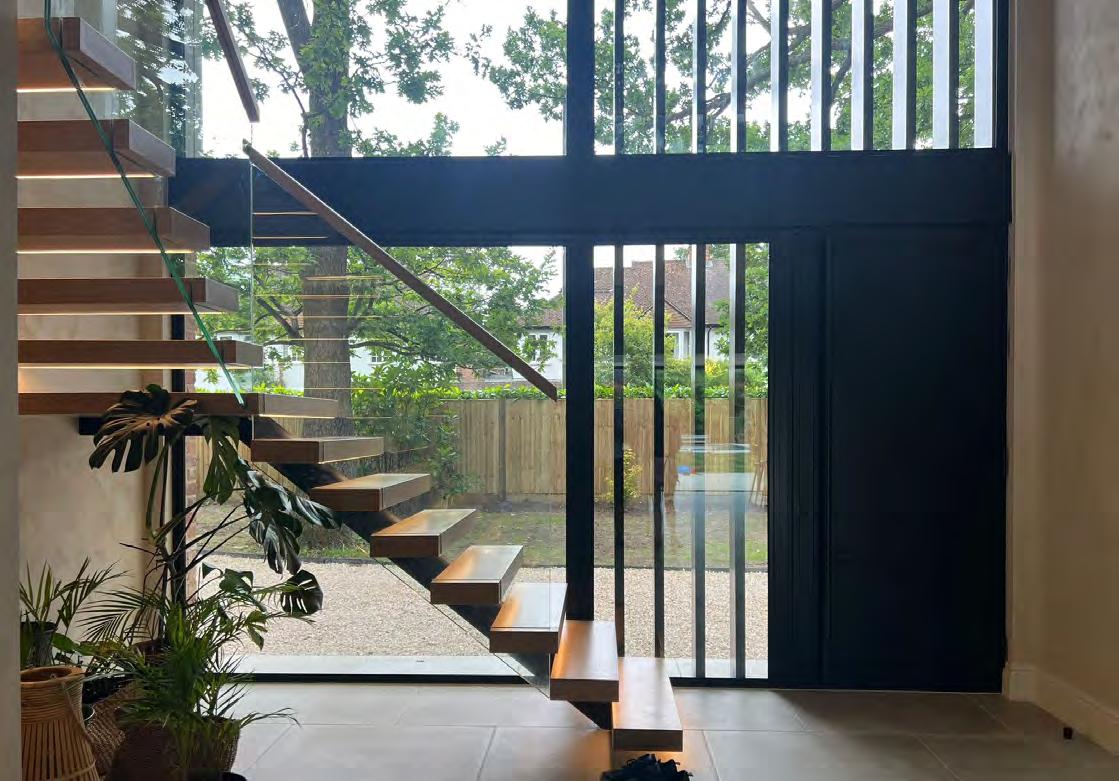

Completed Project Photograph: New hallway and stairs

Completed Project Photograph: Internal reconfiguration site photo

CAENSBROOK, SURREY INTERIORS

I worked with the in-house interiors department in 2021 to turn concept ideas into virtual reality for a new-build private residential project situated in Surrey. I 3D modelled, exporting for use with the VR headset. All visuals modelled in Sketch-up and rendered in Enscape.

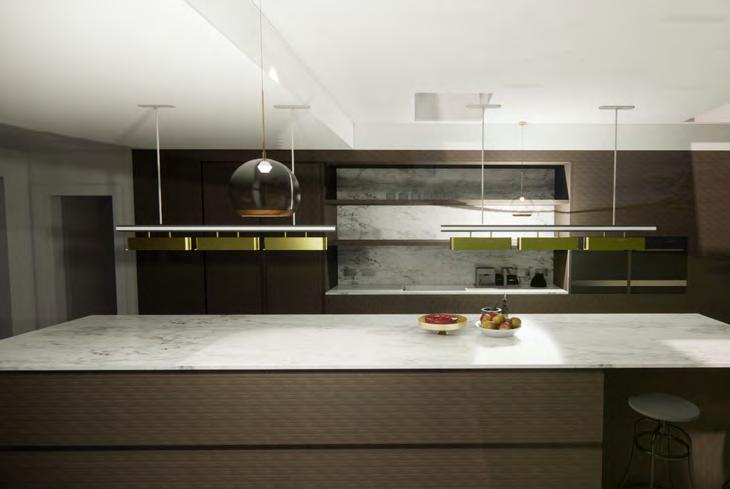

Internal 3D View of Kitchen

3D View of Bespoke Joinery

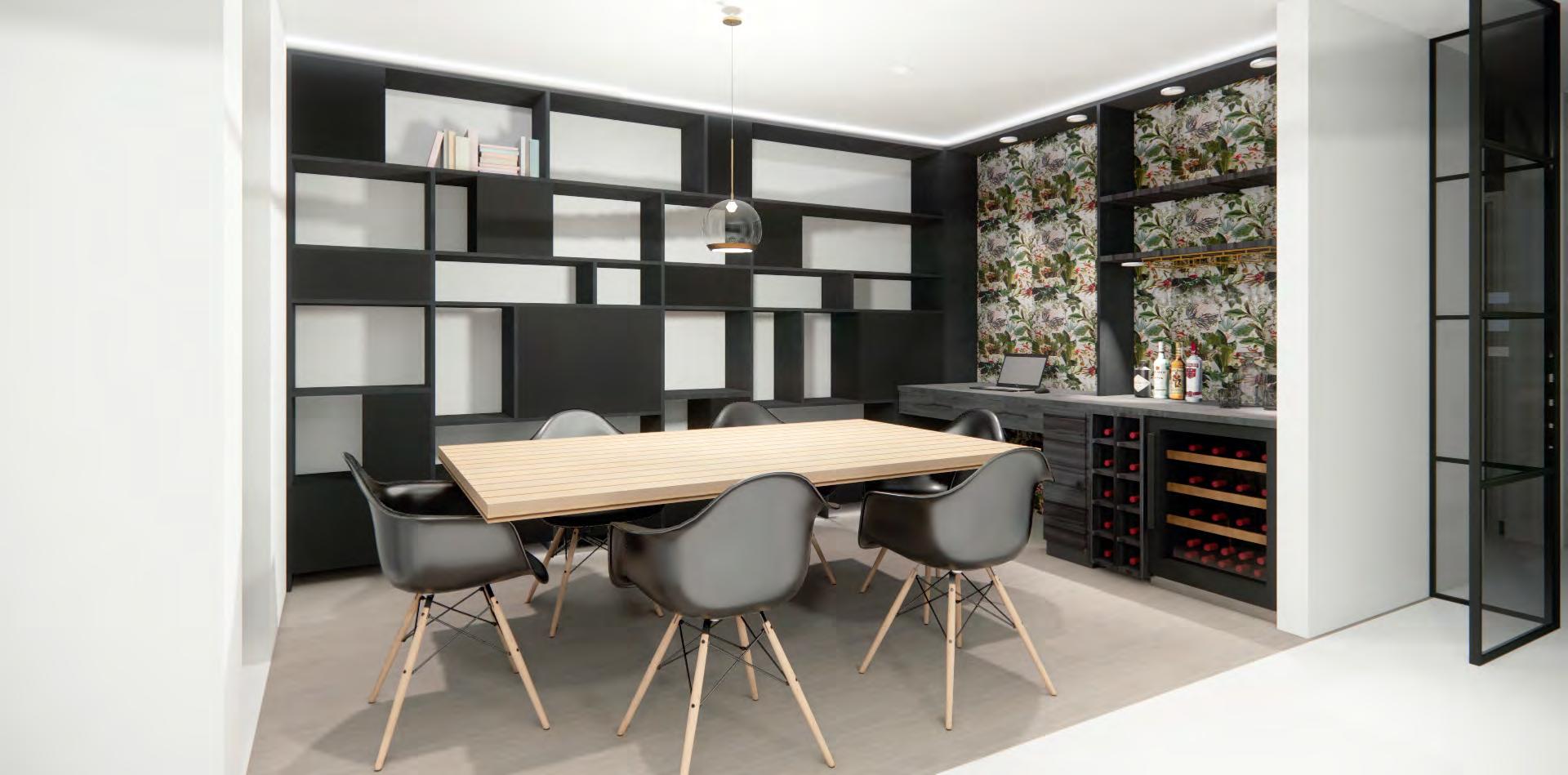

Internal 3D View of Bar & Multi-purpose area

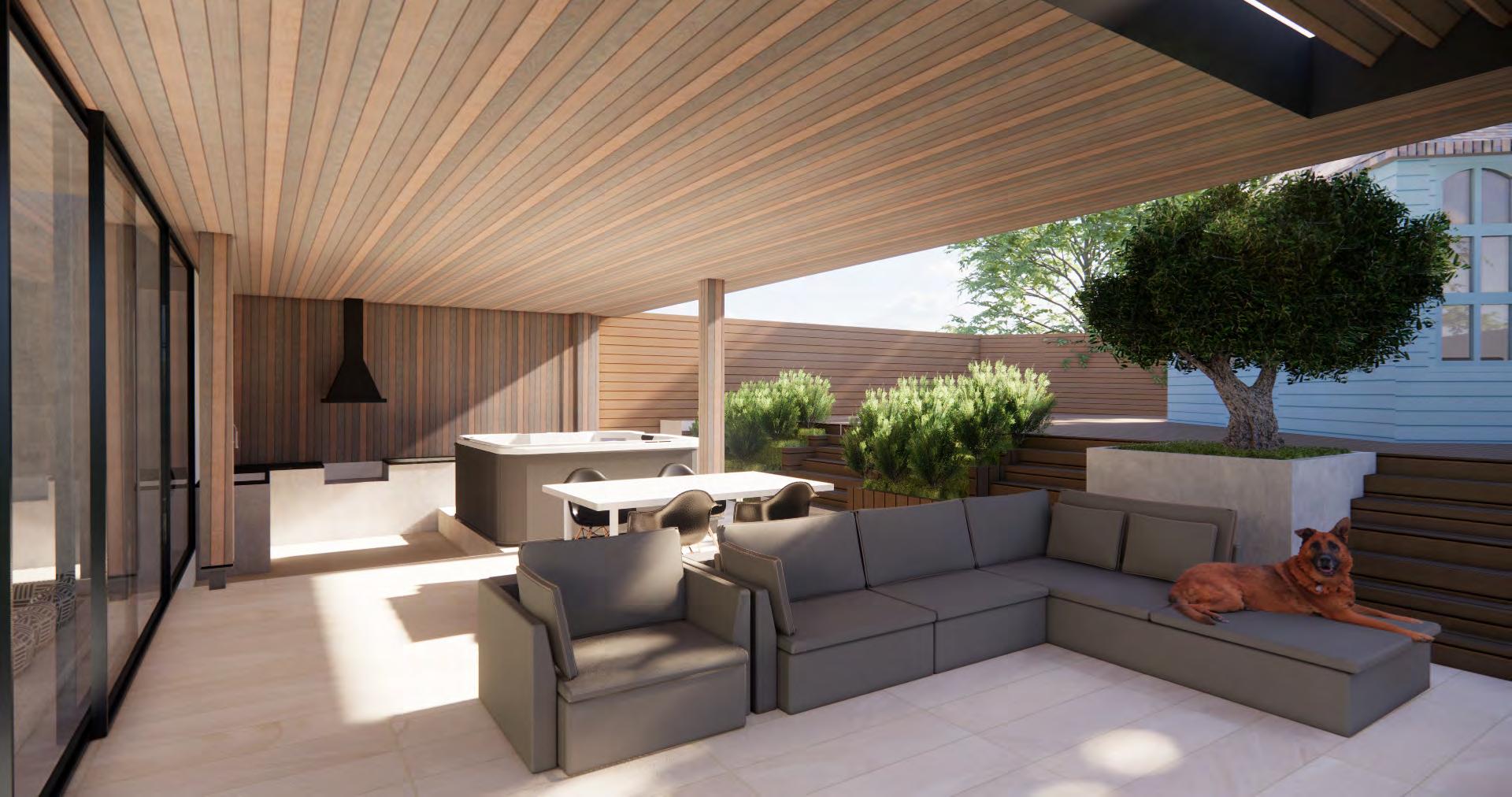

External 3d view of outdoor seating area
