PORTFOLIO

Interior Design Portfolio Spring 2024 College of DuPage

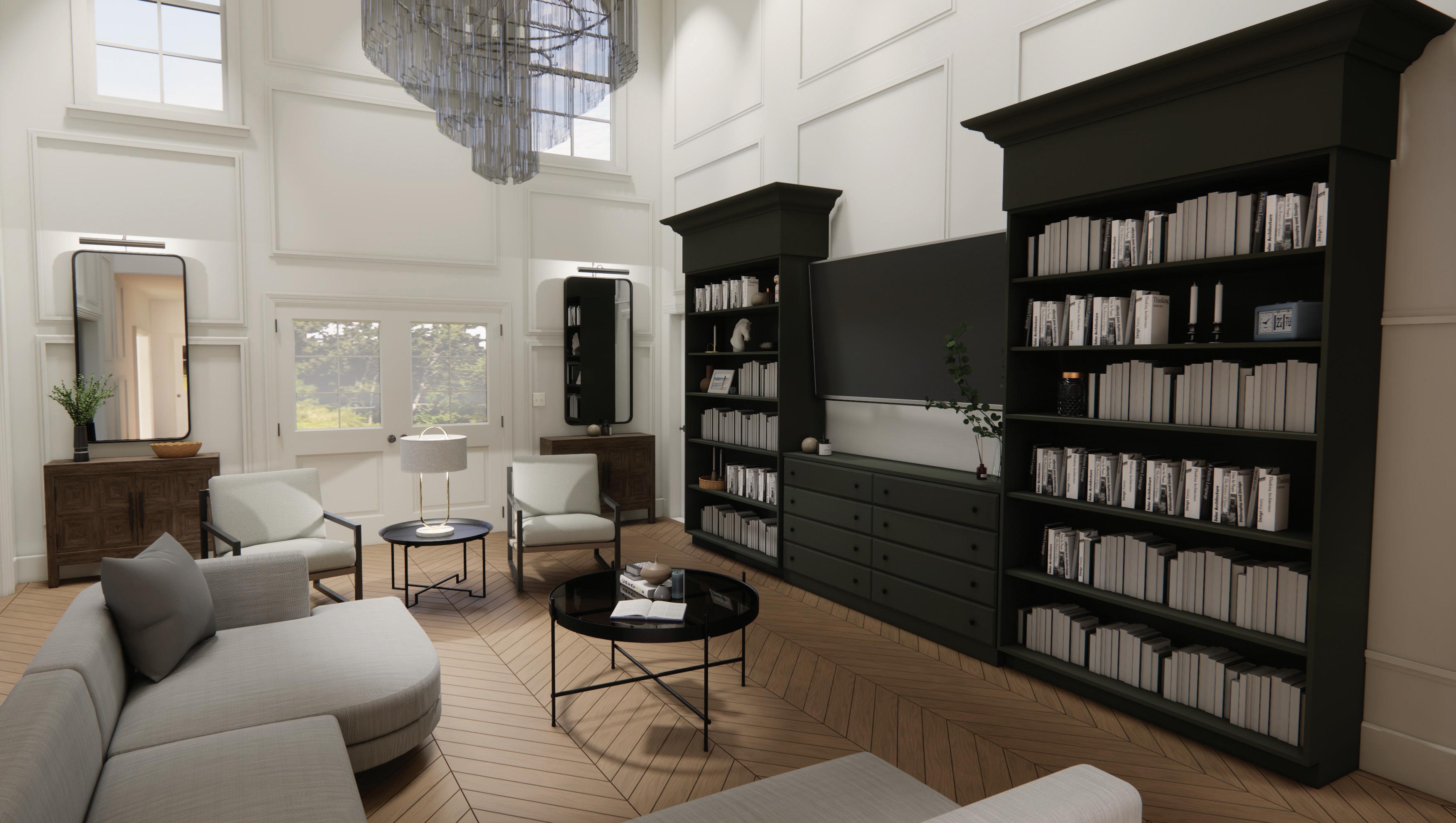

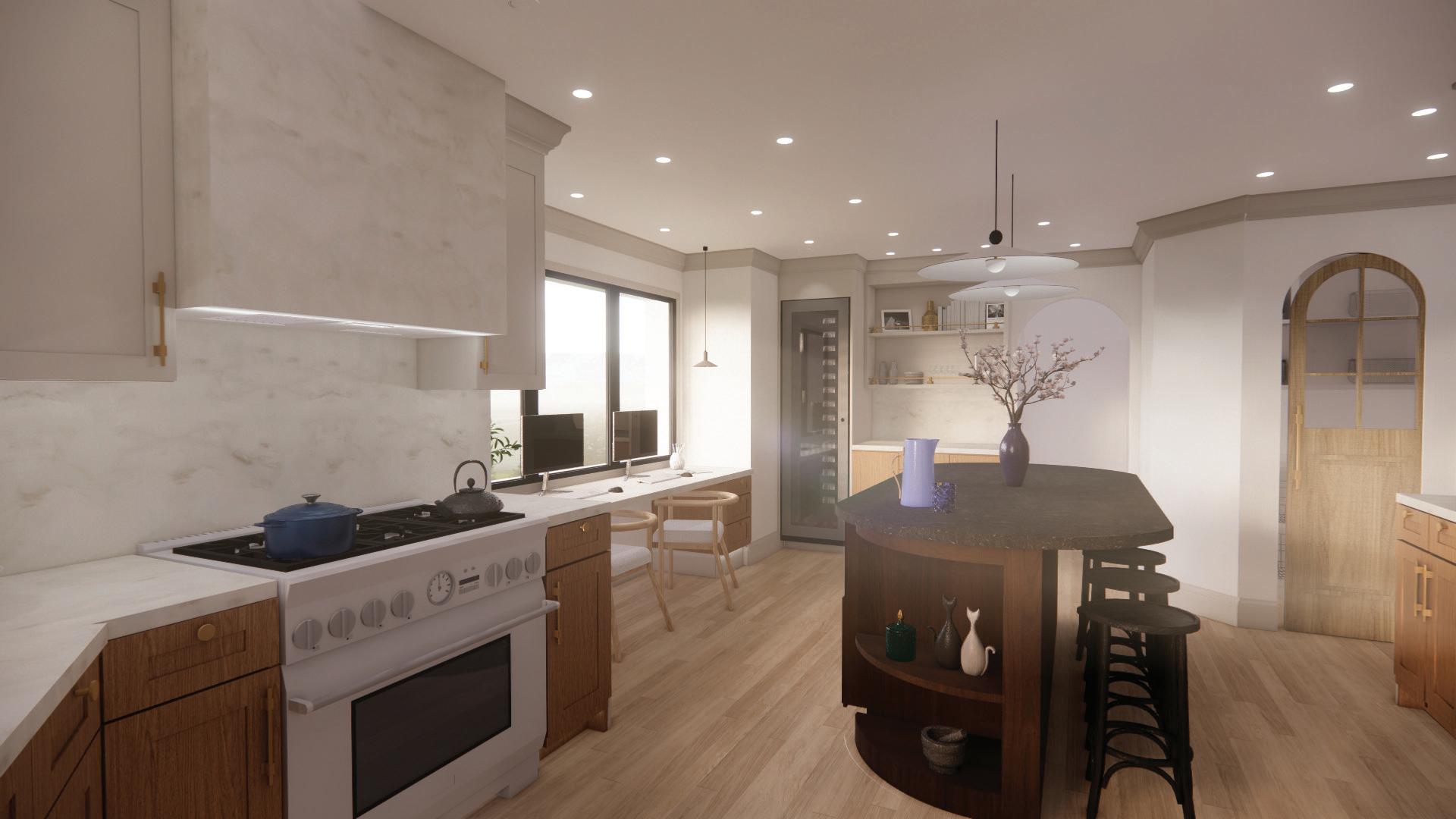

THE ADKIN’S RESIDENCE

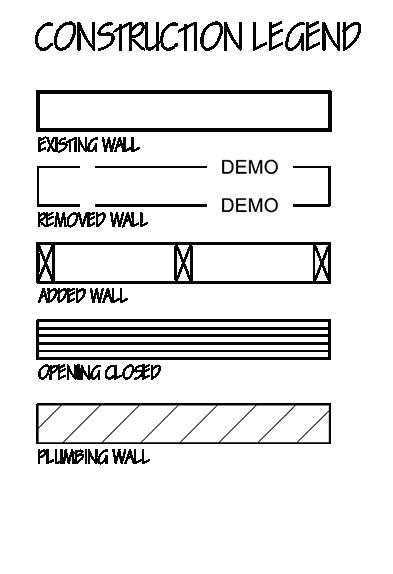

RESIDENTIAL DESIGN DEMOLITION, CONSTRUCTION PLANS & ELEVATIONS

KRAVET INC.

DESIGN OF DISTINCTION AWARD WINNER

Design Goals Design Accomplishments

• Preserve Traditional Brownstone Elements

• Update Layout for Modern Living and Entertaining Guests

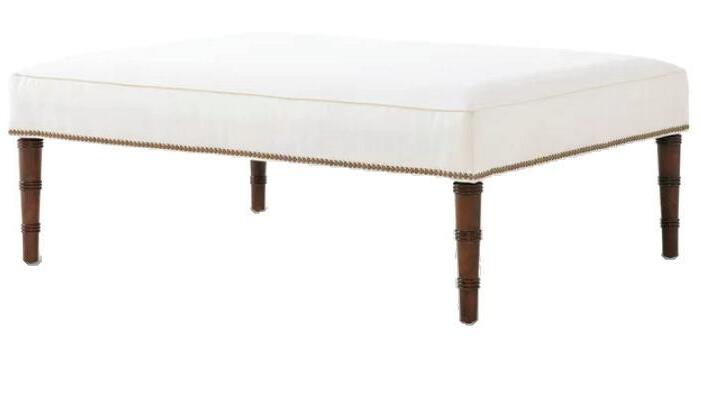

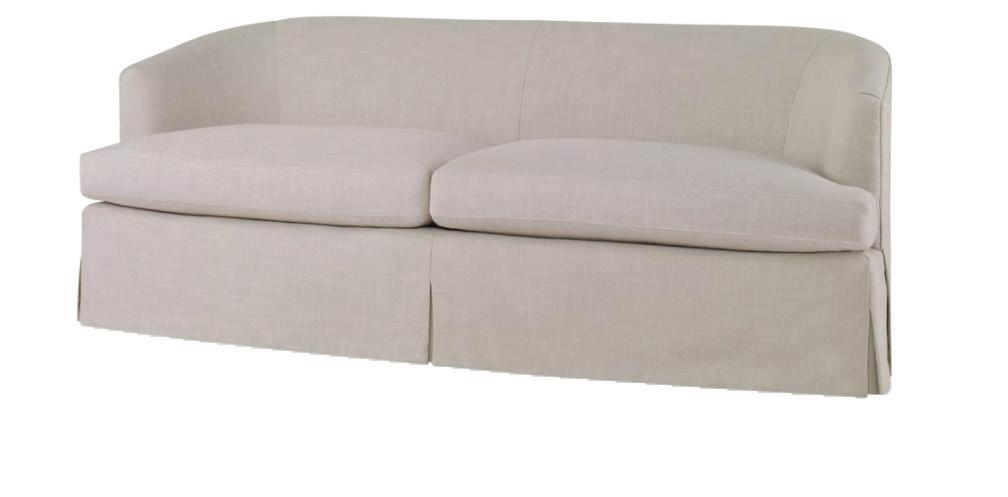

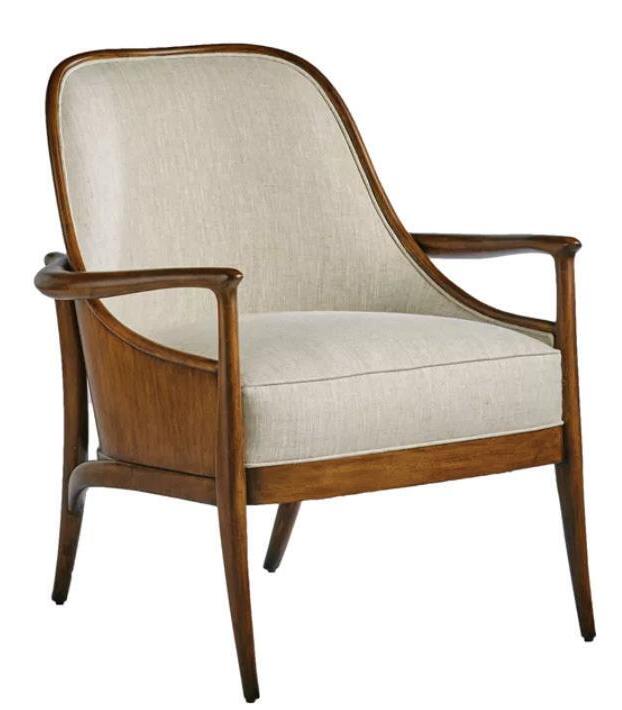

• Source Furniture from Kravet, INC.

• Balance Classic Features with Contemporary Pieces

• Interior Re-Design with Functional and Spacious Layout

• Salvaged Ornate Crown Molding and Classic Architectural Millwork

• Updated Kitchen and Laundry Room with Maximized Usage and Storage

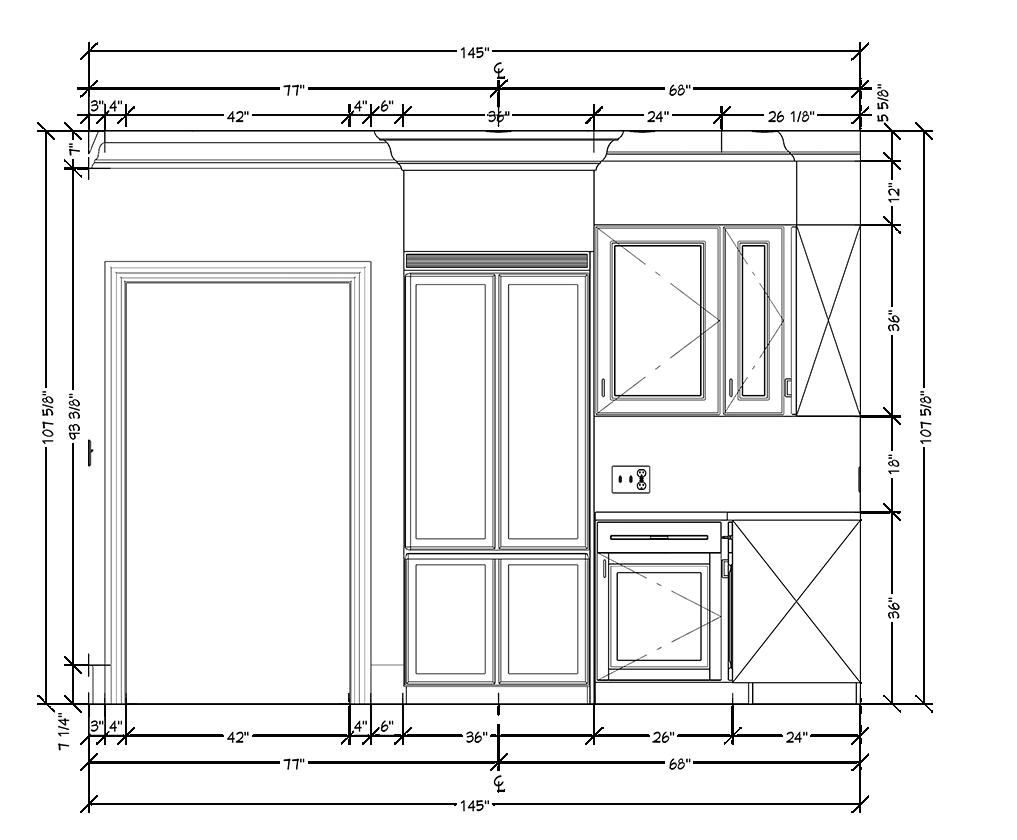

7 WEST WALL-KITCHEN ELEVATION

SCALE: 1/2"=1'-0"

8

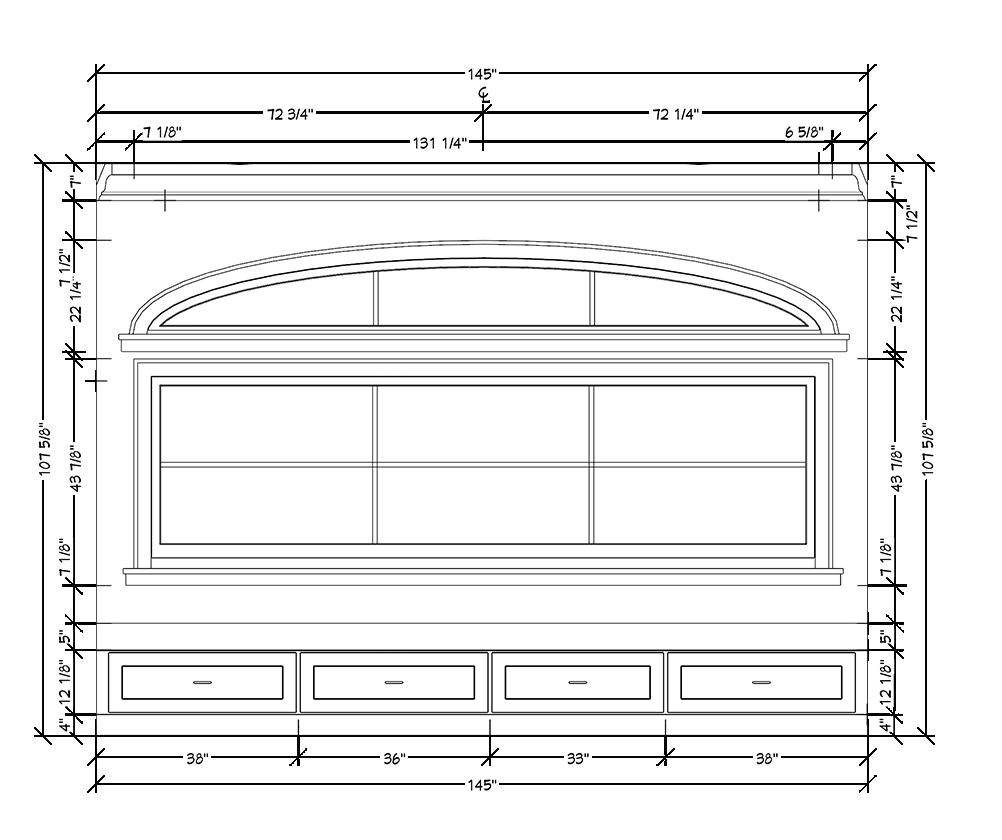

NORTH WALL- KITCHEN ELEVATION

SCALE: 1/2"=1'-0"

ADKIN'S REMODEL

PROJECT #2 DATE: SCALE: REVISIONS: 1 4

ABIGAIL PABLO 3-28-22 1/2"=1'-0"

•

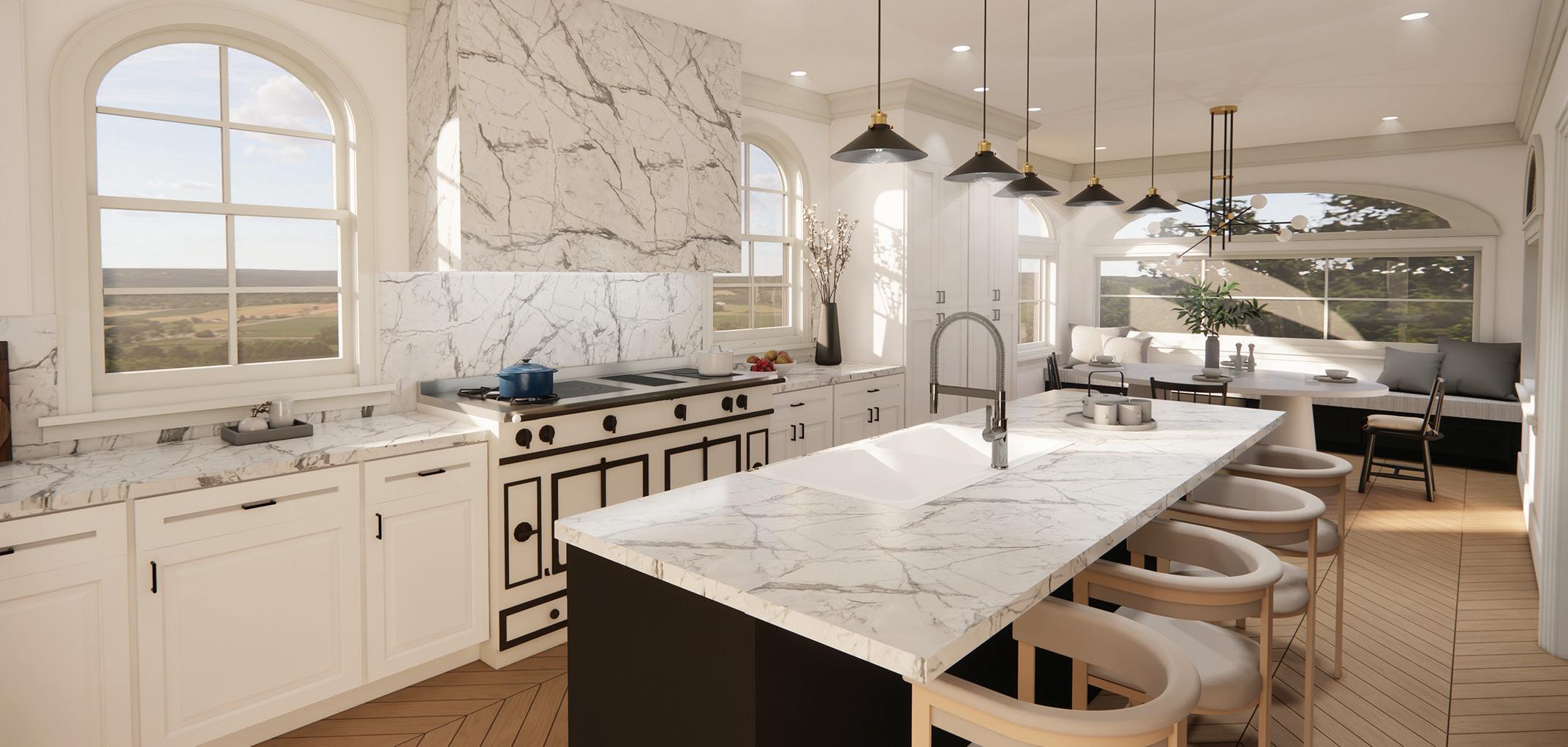

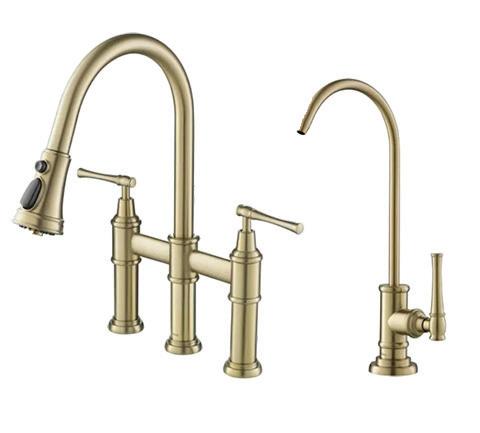

JOHNSON’S KITCHEN

Design Goals

• Ample Storage Solutions

• Efficient Workflow

• Effective Work Triangle

• Cohesive Material Selections

• High-Quality

• Functional

• Achieves Aesthetic

Design Accomplishments

• Large Cabinetry & Storage Compartments for Cookware

• Cabinet Layout Facilitates Smooth Workflow

• Appliance Placement Achieves Effective Work Triangle

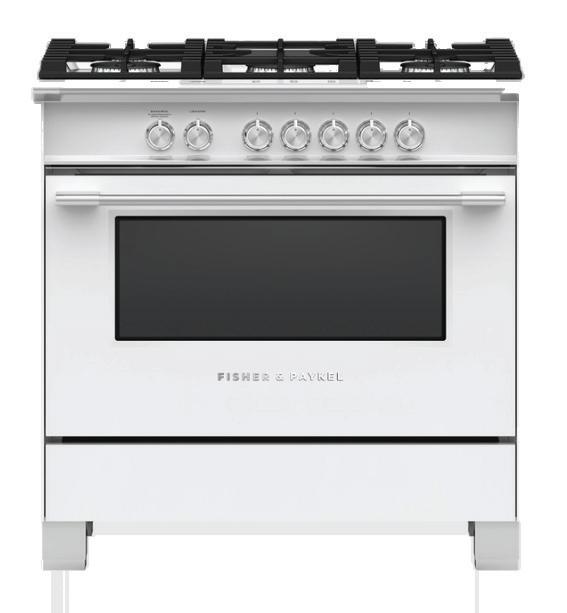

• Kitchen Appliances & Selections Look Cohesive

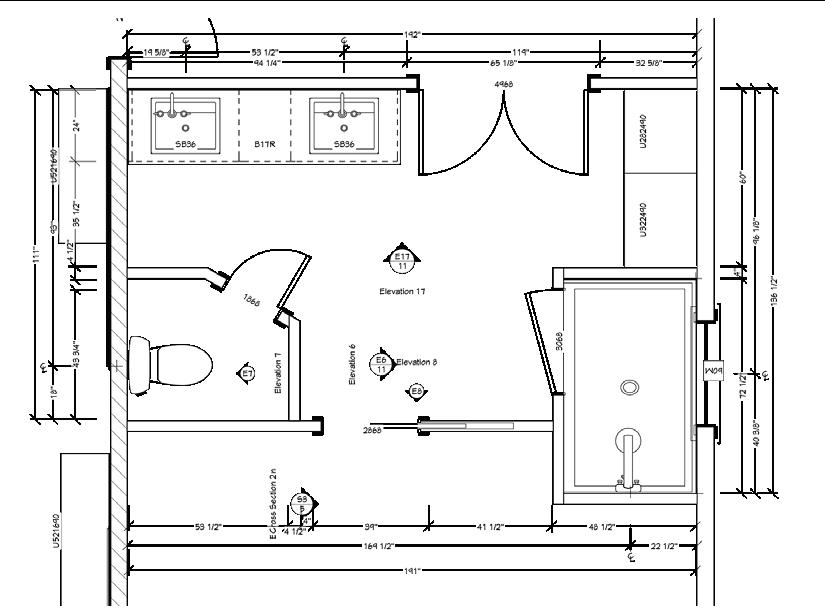

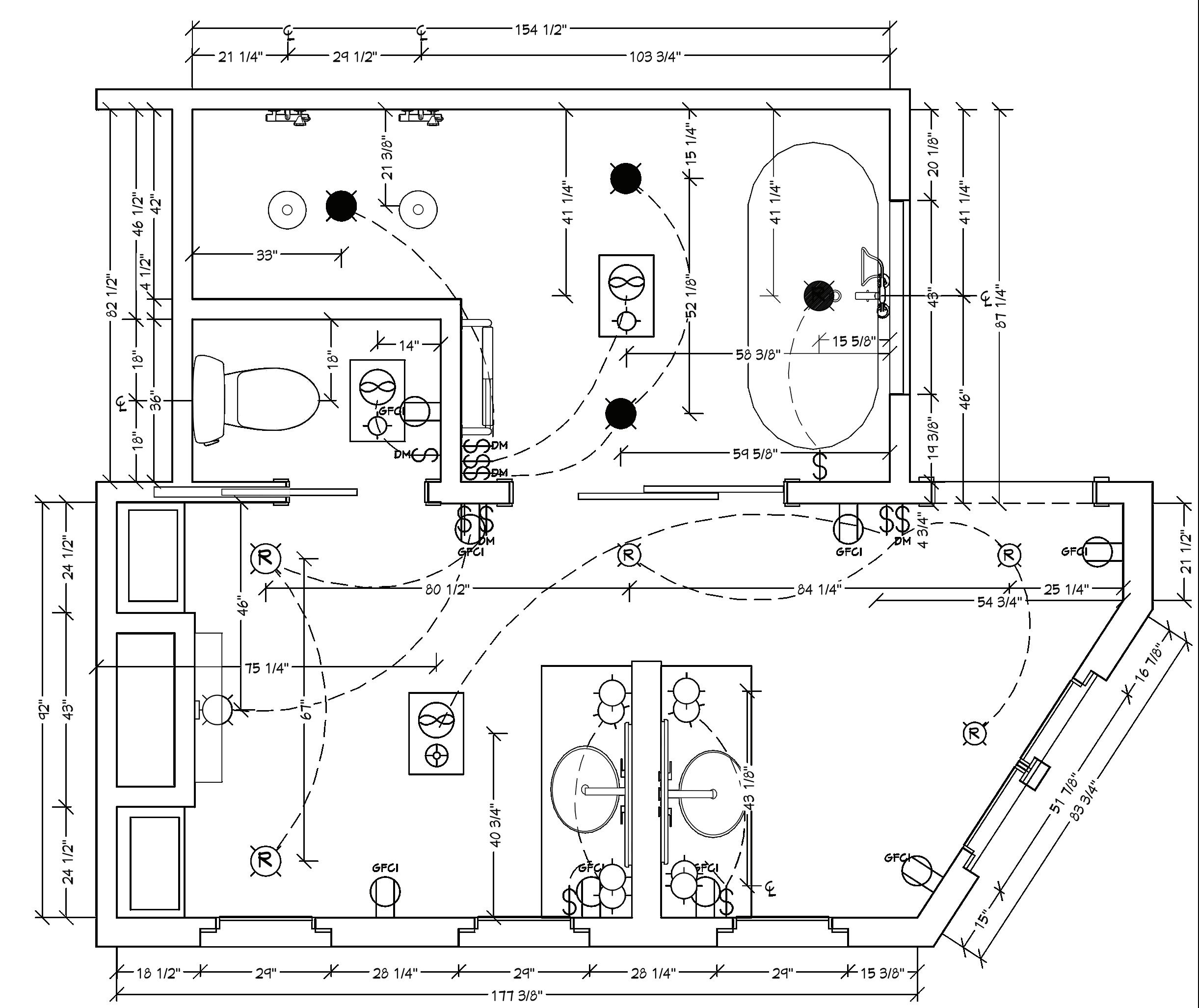

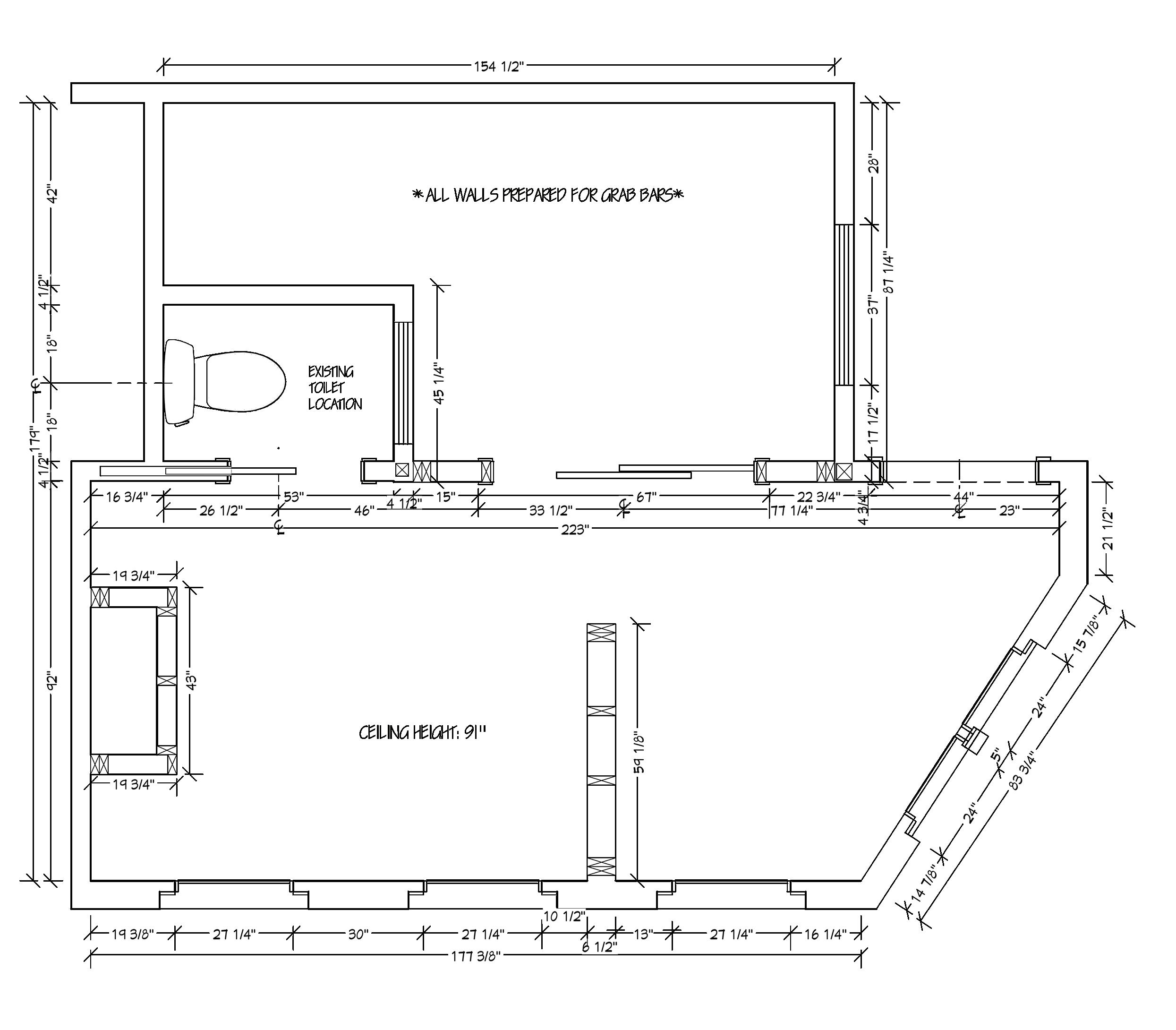

JOHNSON’S BATHROOM REMODEL

CHIEF ARCHITECT COLLABORATIVE BATHROOM DESIGN

Lauren And Calvin Johnson Renovate Their Primary Bathroom to Fulfill Their Needs and Wants for This Space. The Design Needed to Be Efficient, Designed Around Their Aging Needs, Follow A Transitional Style While Still Having a Unique Charm. The Project Was Co-Designed with Fellow Student Peer Huda Irfan. The Floor Plan Was Provided by The NKBA Student Design Competition, And Restrictions Were Placed on Moving Walls and Windows.

Group Contributions

Abigail Pablo

-Contributed To Creating Floorplans, Elevations and Renderings -Contributed To Selecting Fixtures and Finishes

The Layout Follows NKBA Guidelines and Embraces

Universal Design Principles. A No-Threshold Shower Provides an Ease-Free Entrance to The Shower Room. Wide Pathways and Clearances for Easy Wheelchair Accessibility. Adjustable Water Fixtures That Provide Multiple Positions and Settings.

Huda Irfan

-Contributed To Space Planning & Design Aesthetics

-Contributed To Creating The Design Board

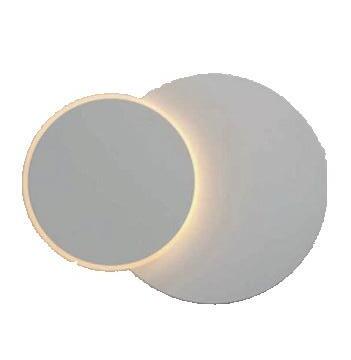

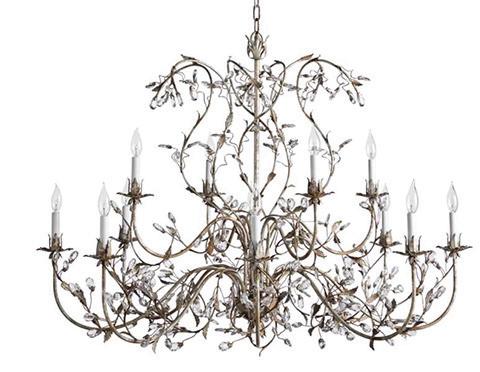

Lighting Selections Fulfill Three Types of Lighting:

Ambient Lighting, Task Lighting, and Accent Lighting. Efficient Details Like Dimmable Switches, Lighting Accent Pieces with Integrated Lights, And Decorative Lighting Add to The Style. This Brings Ease of Vision for Aging Eyes and Better Helps Groom Oneself in This Space.

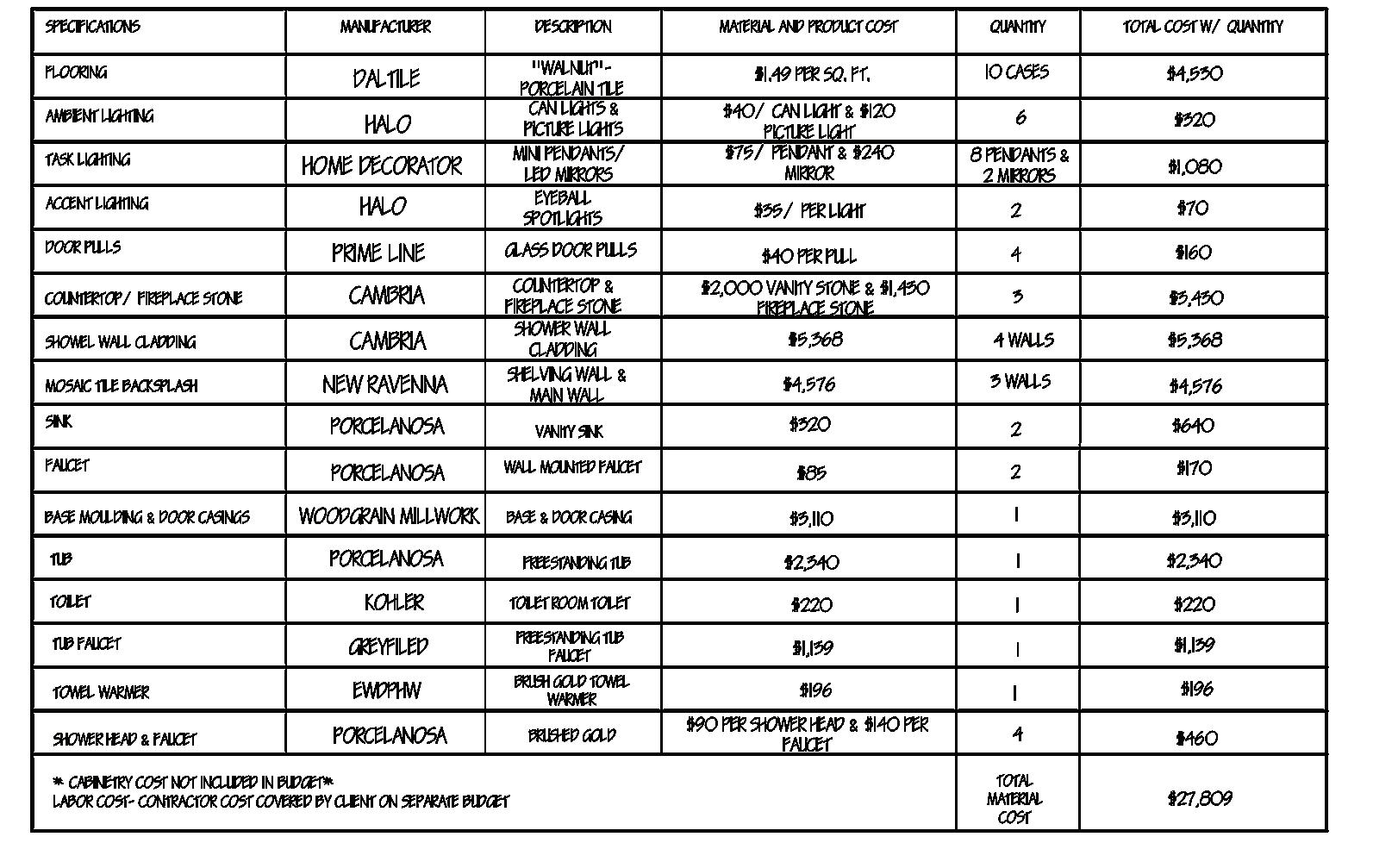

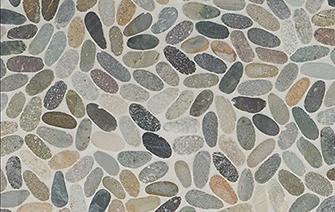

Bathroom Material Budget

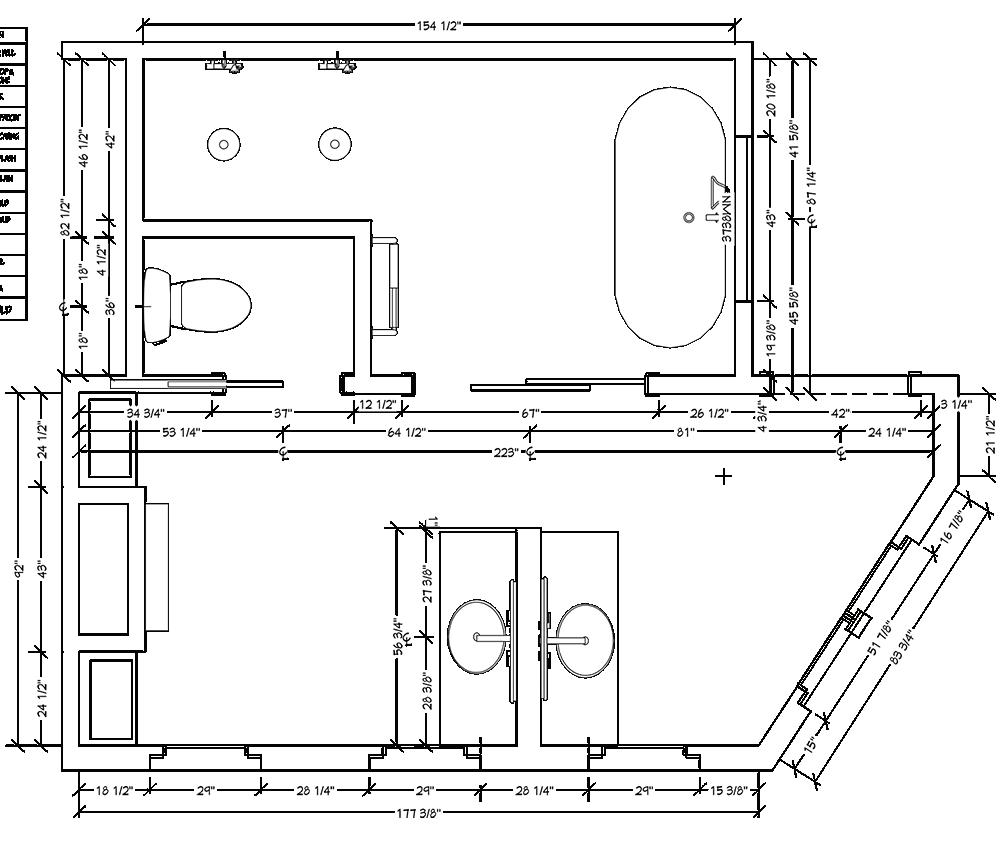

Scale: 1/2”=1’-0”

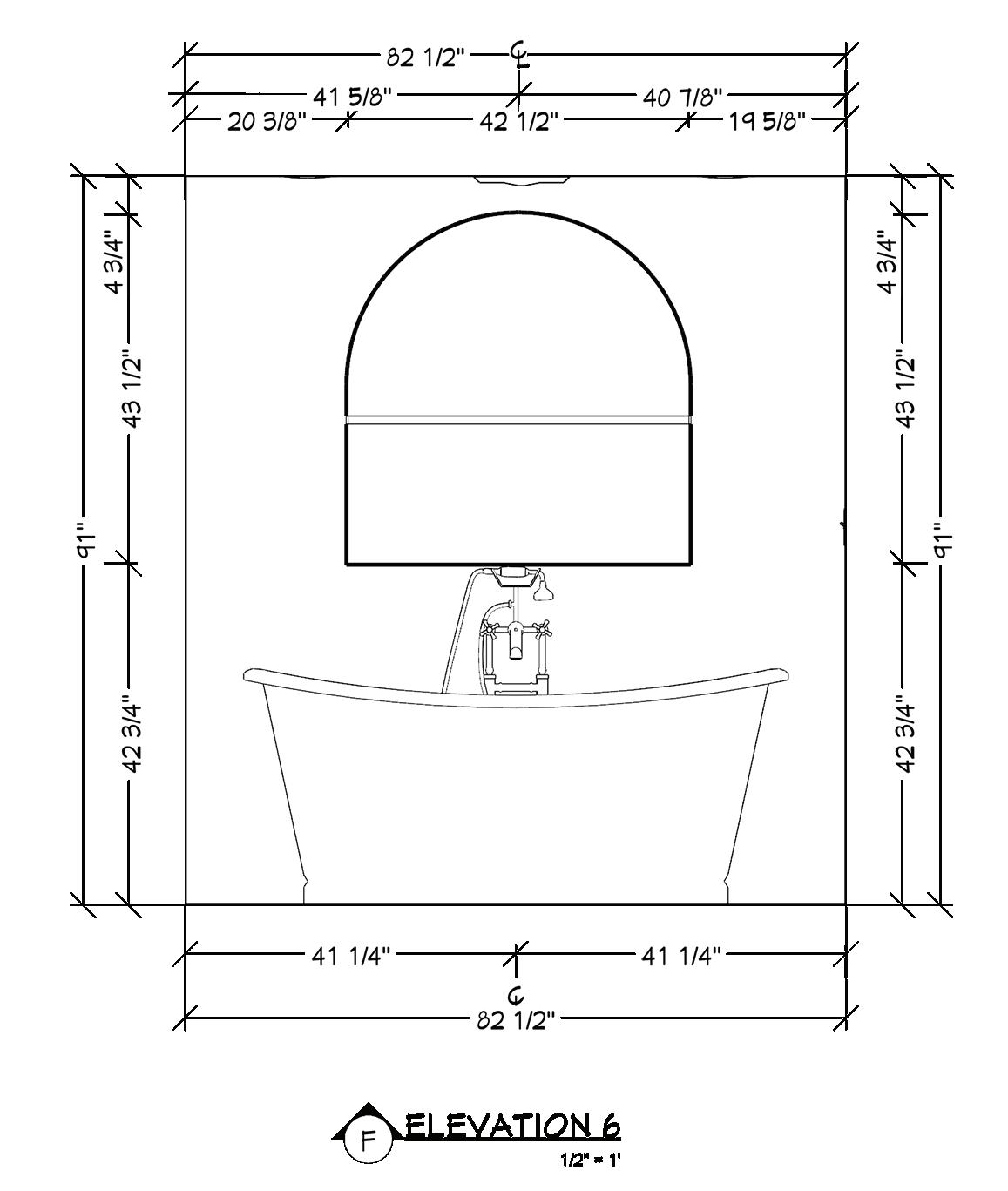

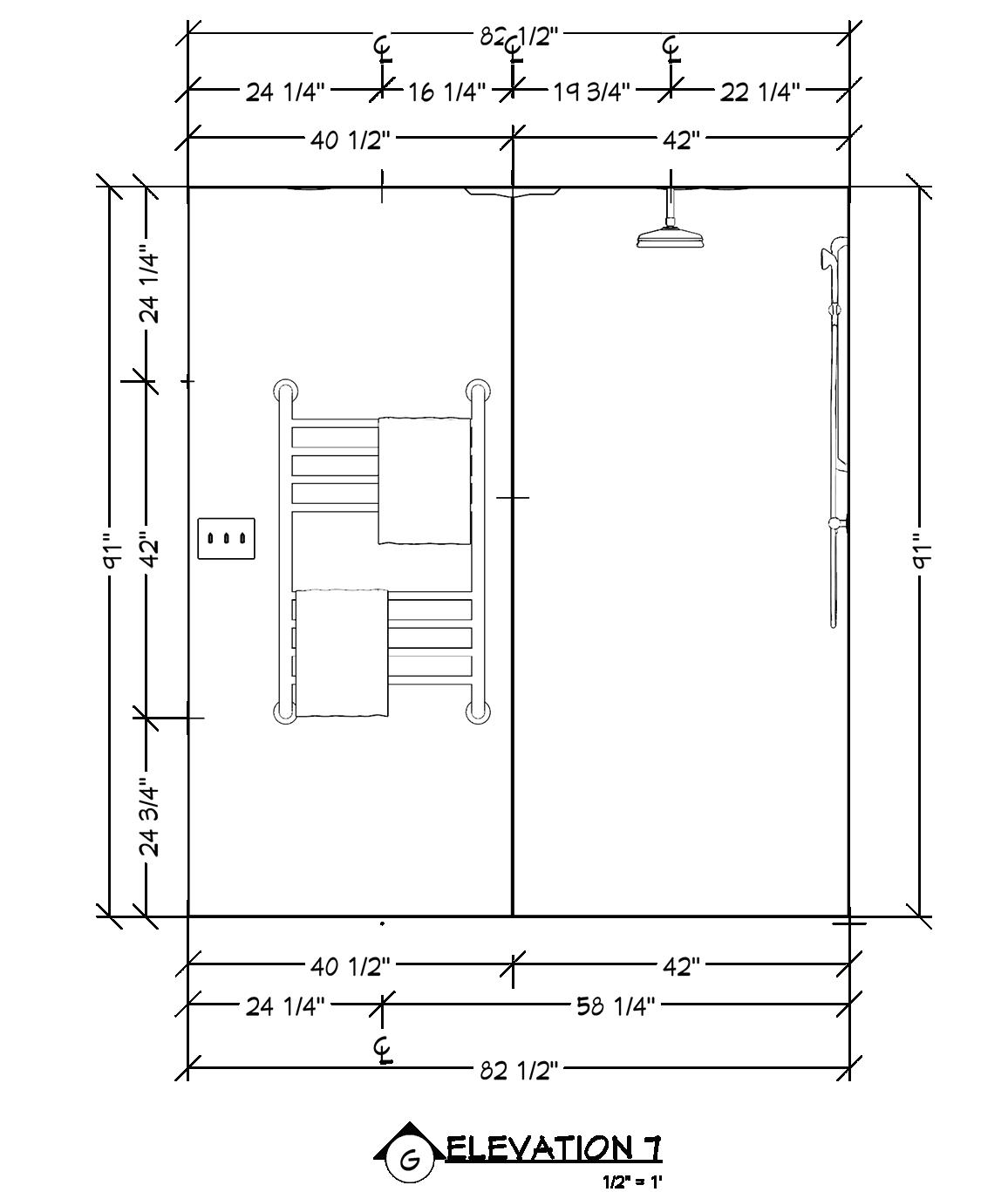

South Wall Elevation Scale: 1/2”=1’-0”

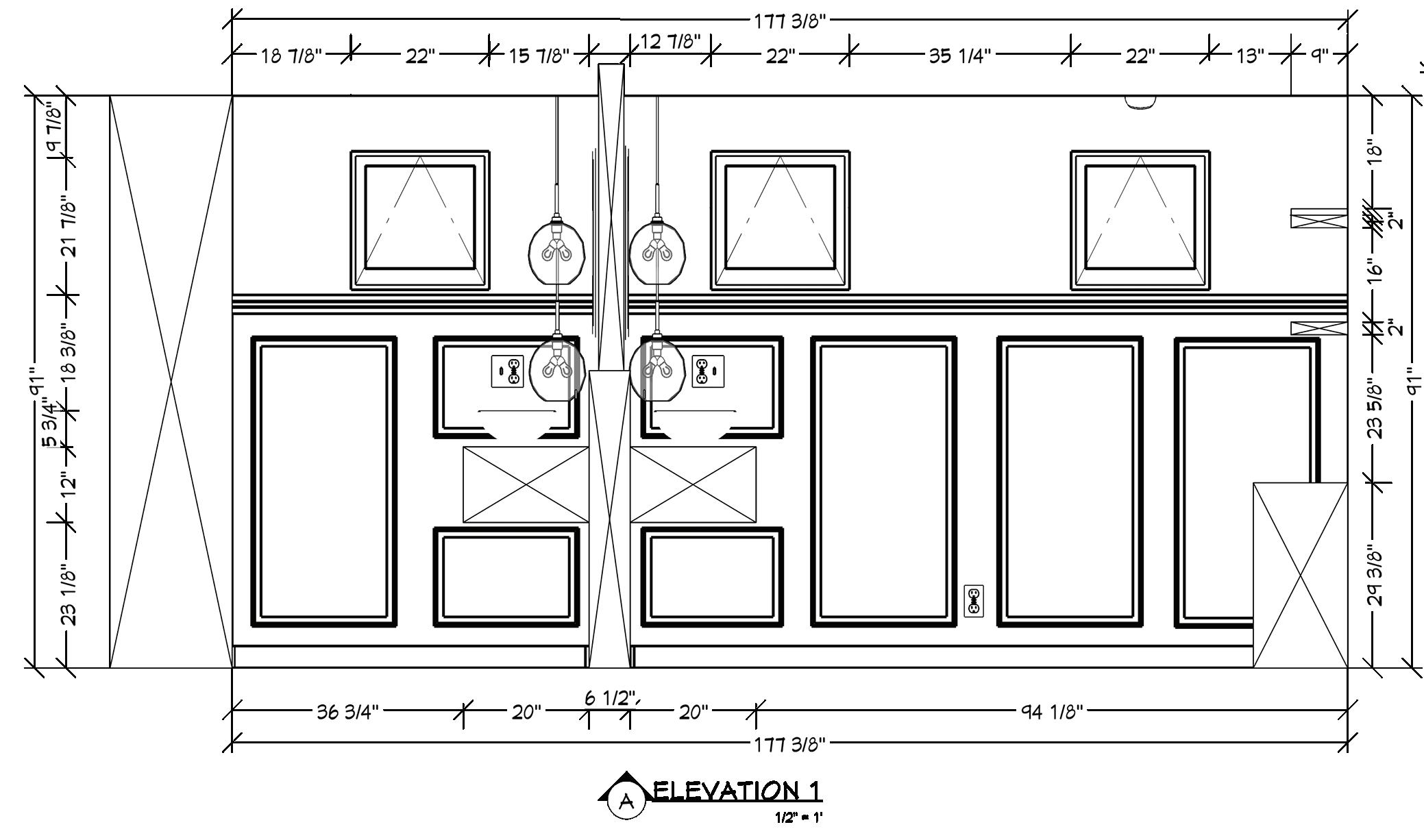

West Vanity Elevation Scale: 1/2”=1’-0”

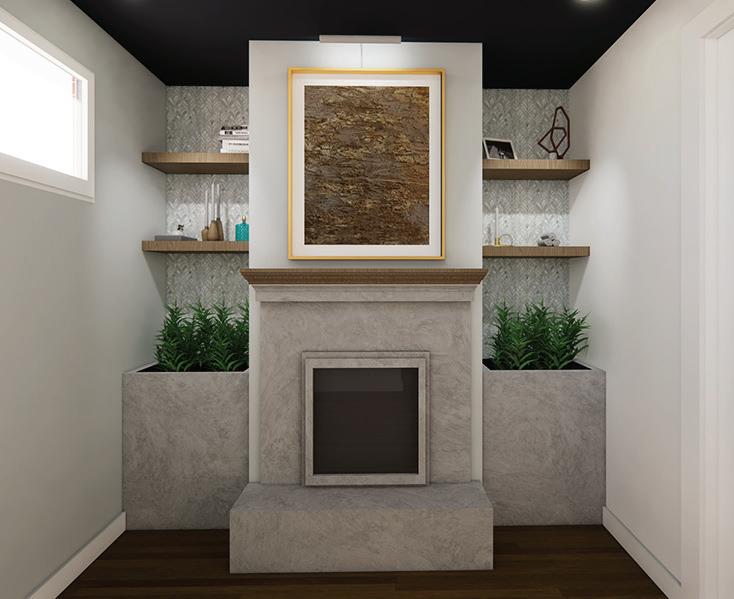

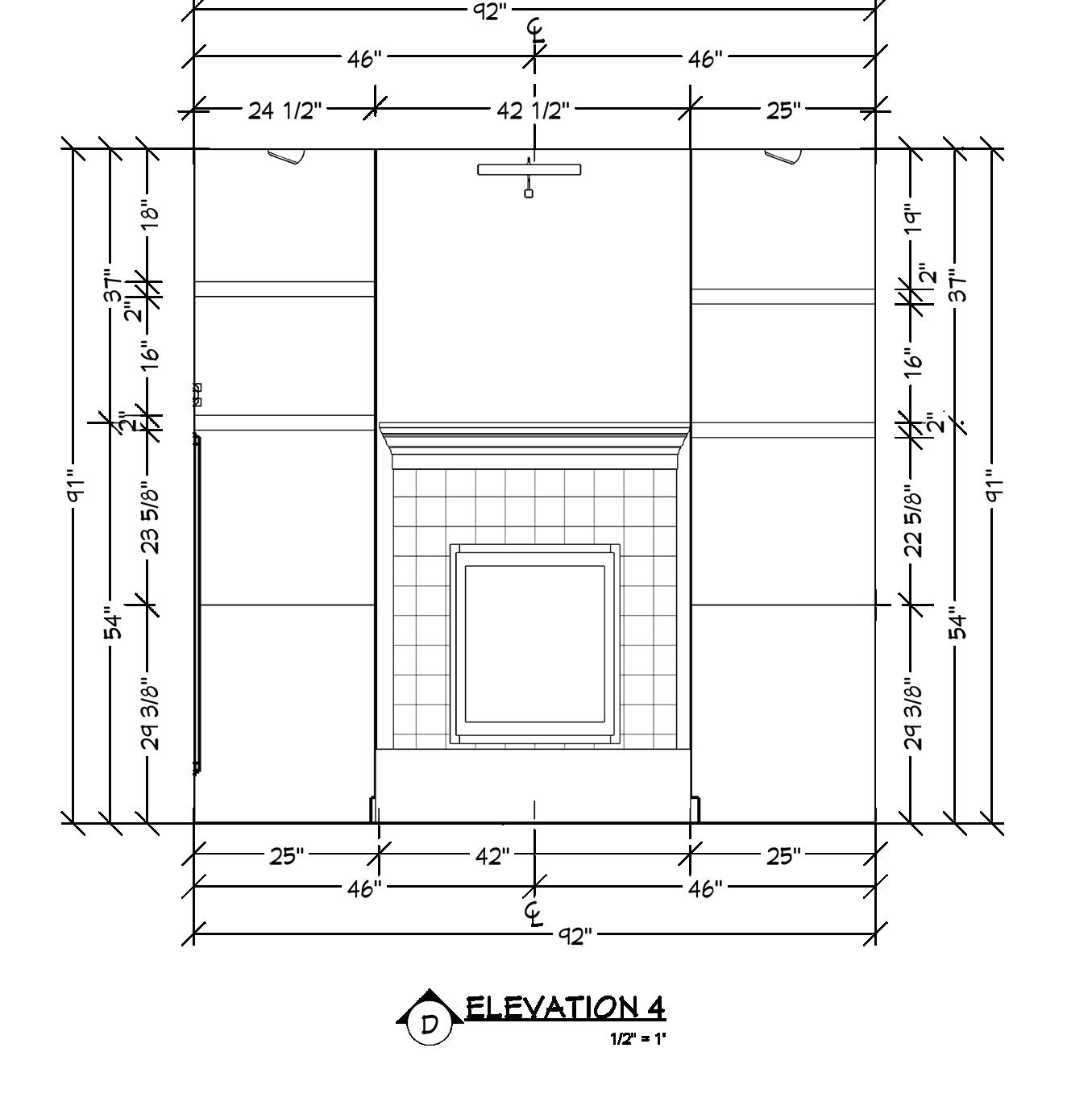

West Fireplace Wall Elevation Scale: 1/2”=1’-0”

East Steam Room Wall Elevation Scale: 1/2”=1’-0”

West Steam Room Wall Elevation Scale: 1/2”=1’-0”

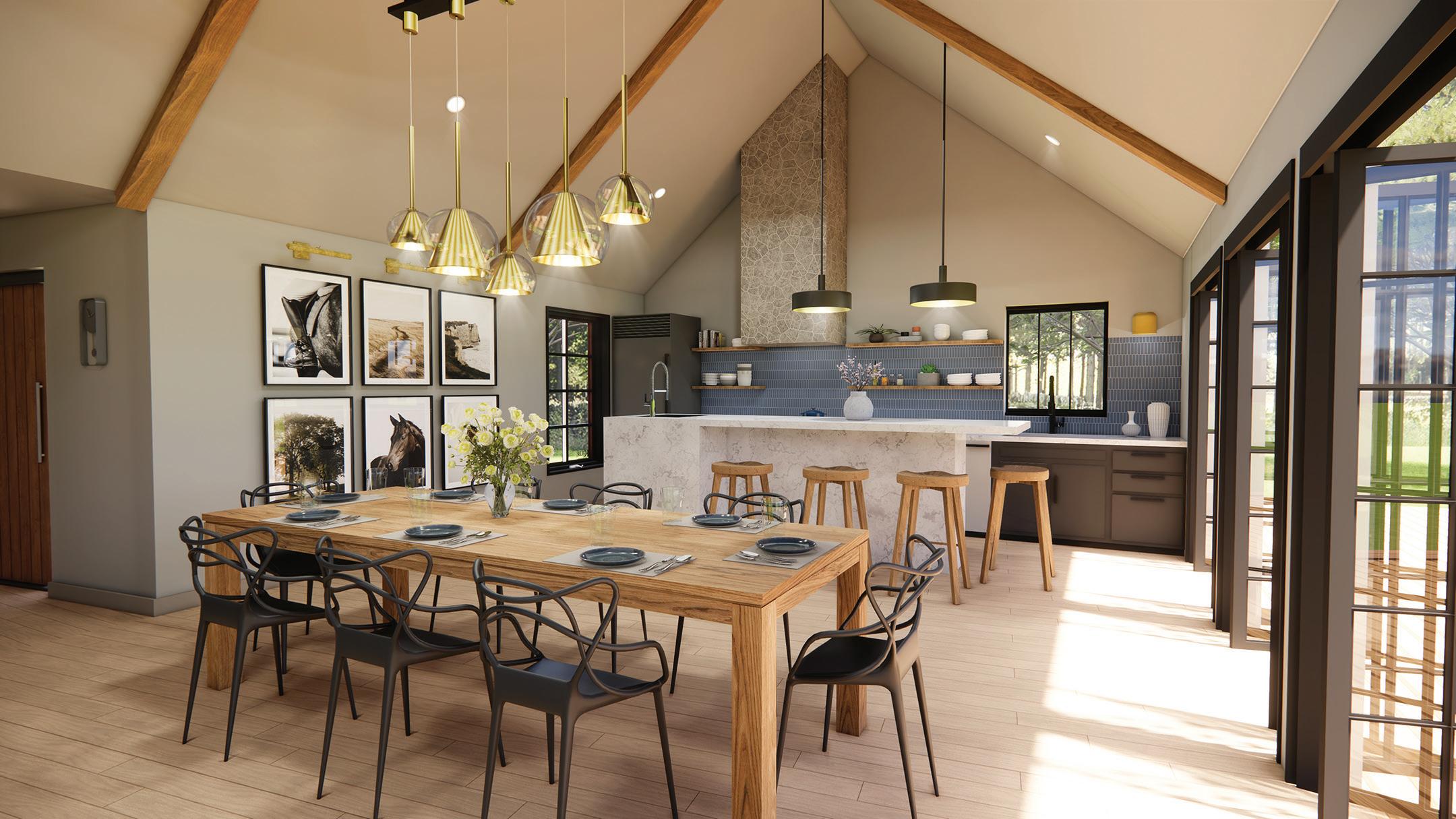

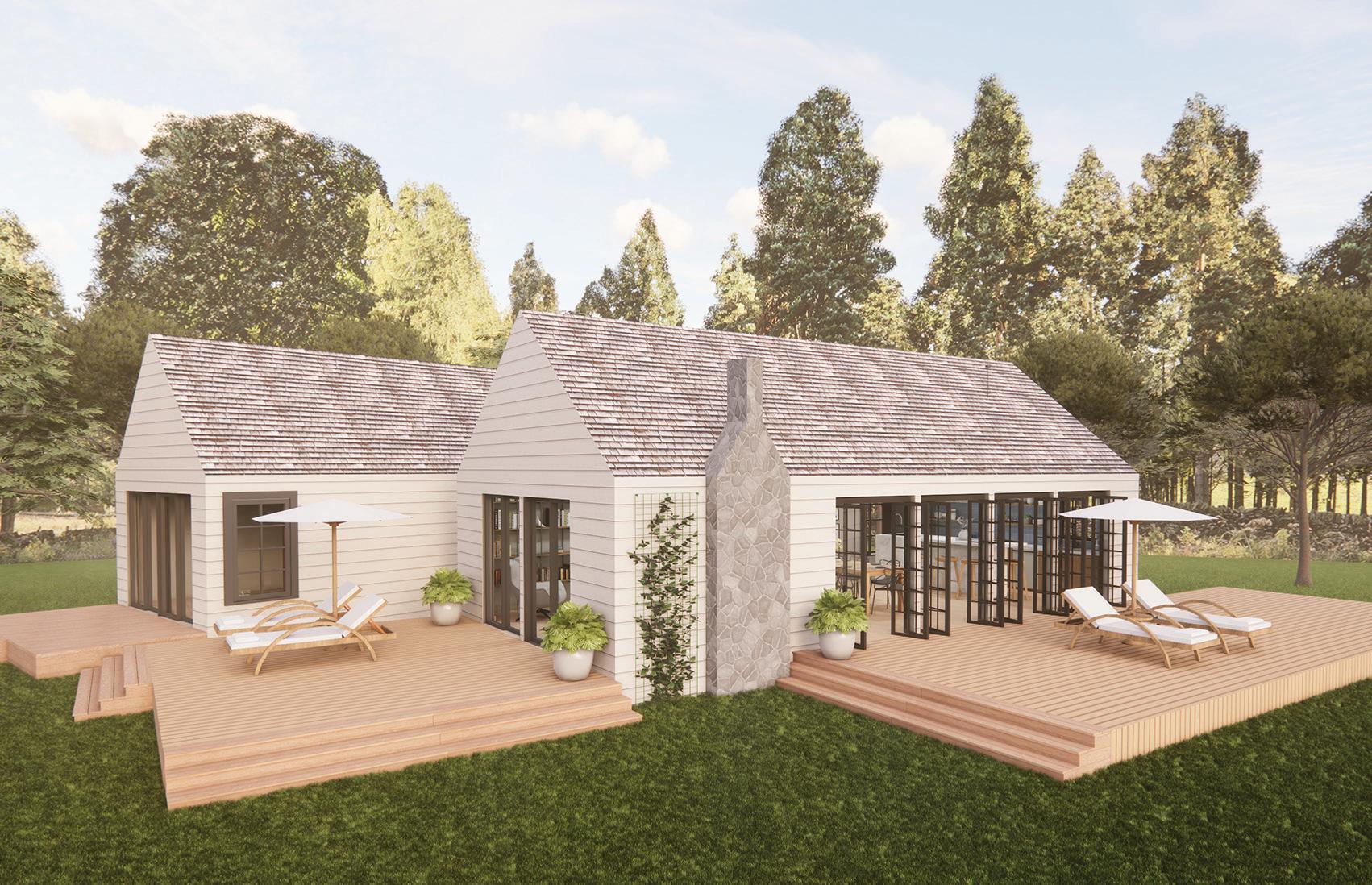

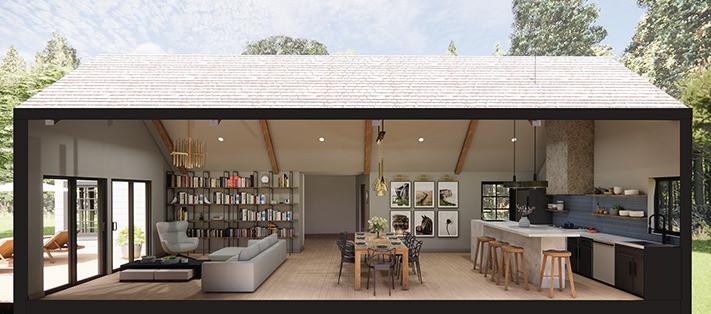

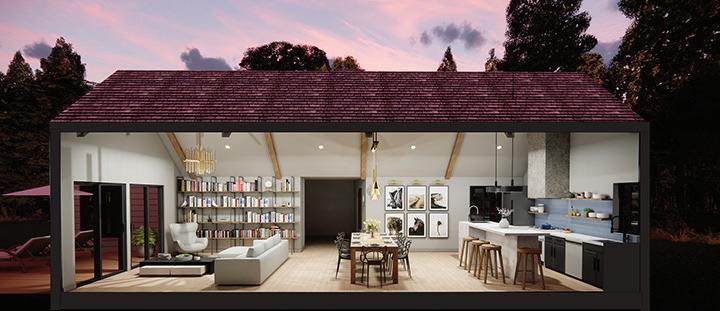

WASHINGTON RETREAT

3D VISUALIZATION TECHNIQUE

HOSPITALITY

Location Olympia, Washington

Client: Young Couple Turning Winter Home into AirBnB Summer Retreat

Design Considerations

Open Concept: Open Dining and Living Space Flow Together to Entertain Guests

Comfortable and Warm Interior Space by Using Soft Neutral Colors

Target Market: Millennials, Young Adults and Families

Step 1

Step 2

3

Software Used

Autodesk AutoCAD

Preparing Plan to be Imported into SketchUp by Purging It and Adding It to One Layer.

SketchUp

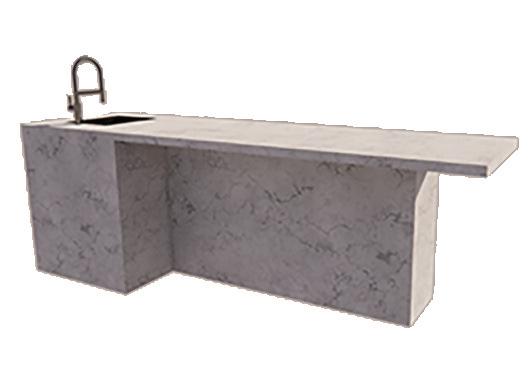

Building 3D Models by Tracing Walls, Building Roof and Opening Doors and Windows. Customizing Kitchen Island and Fireplace. Importing Furniture and Accessories from 3D Warehouse.

Enscape for SketchUp

Applying and Editing Materials, Adding Lighting, and Set Render Settings. Importing Furniture from Enscape Warehouse.

Adobe Photoshop Space Planning- Drafting Walls and Furniture to Scale.

Enhancing Renderings by Adding Dramatic Lighting Brushes. Adjusting Image Brightness and Exposure for Better Image Quality. Bringing In People Cutouts and Objects.

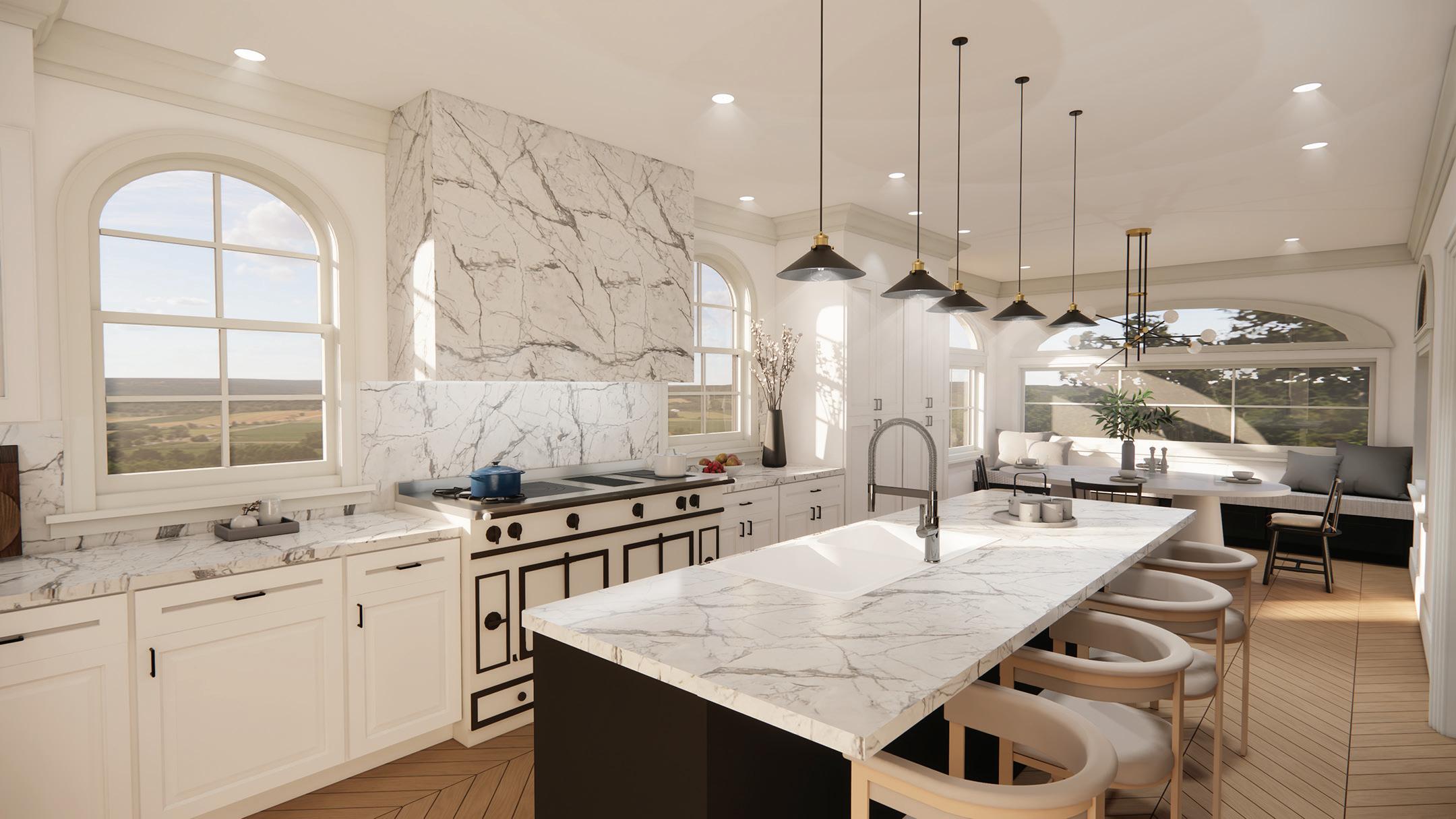

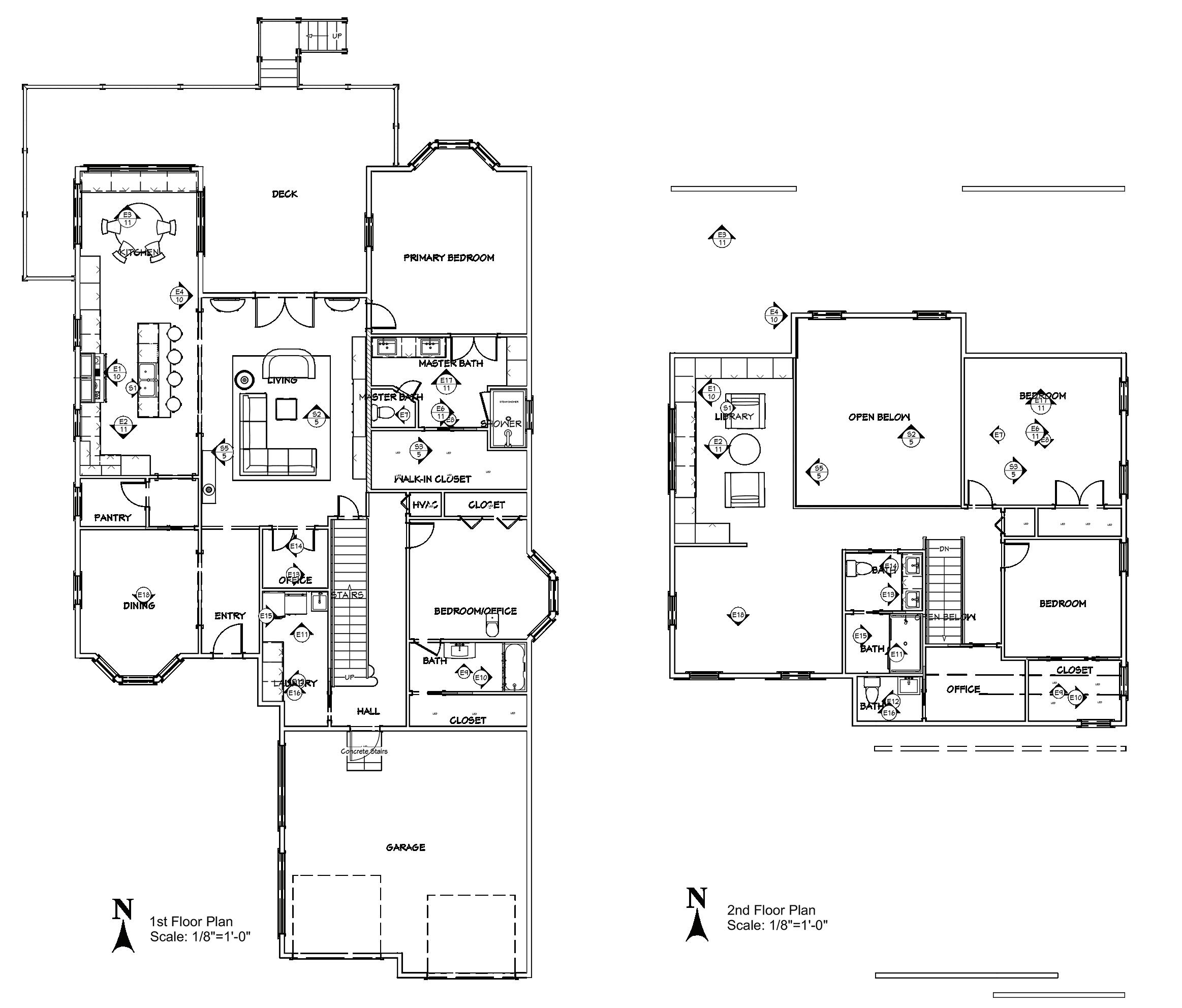

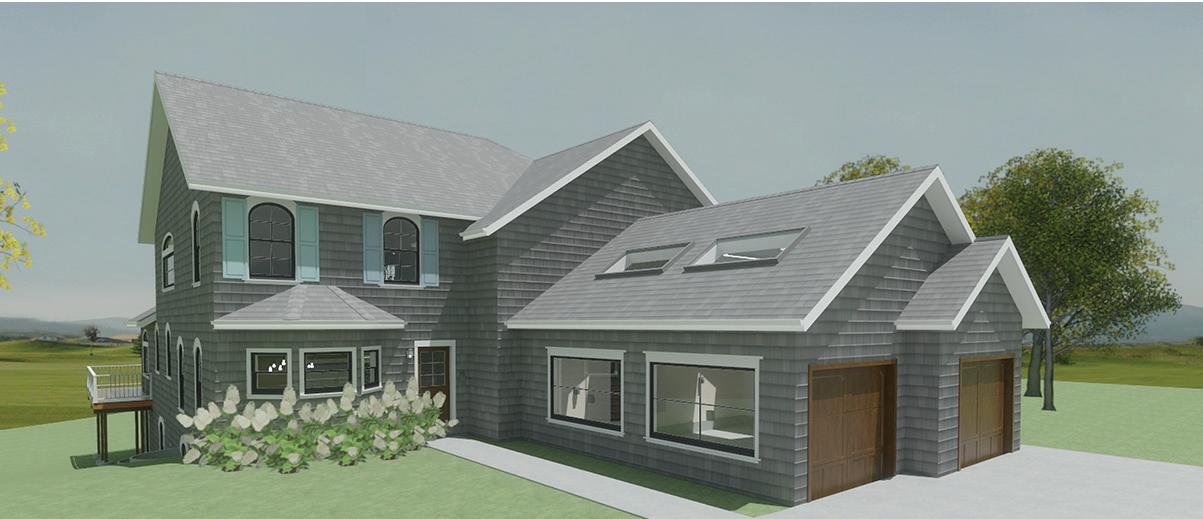

CHIEF PLATEAU ESTATES

CHIEF ARCHITECT CONSTRUCTION DOCUMENTS

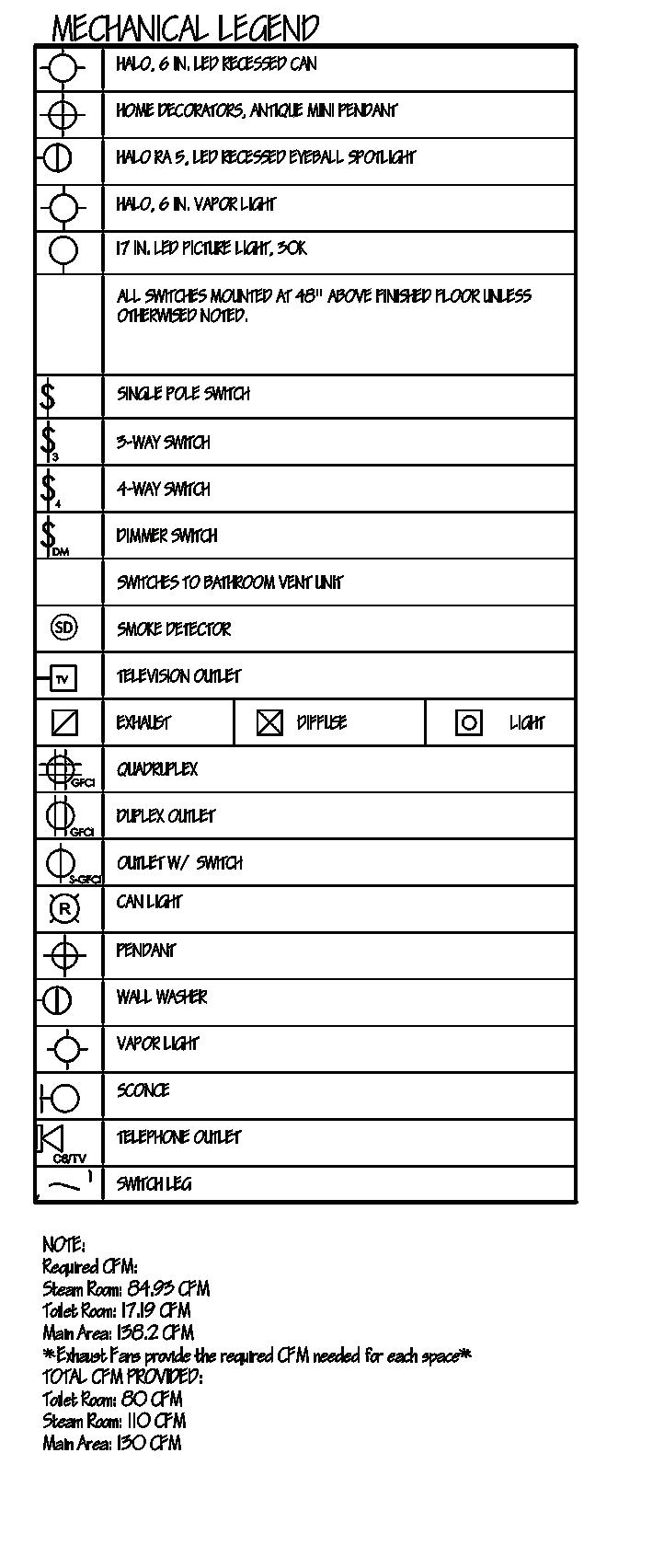

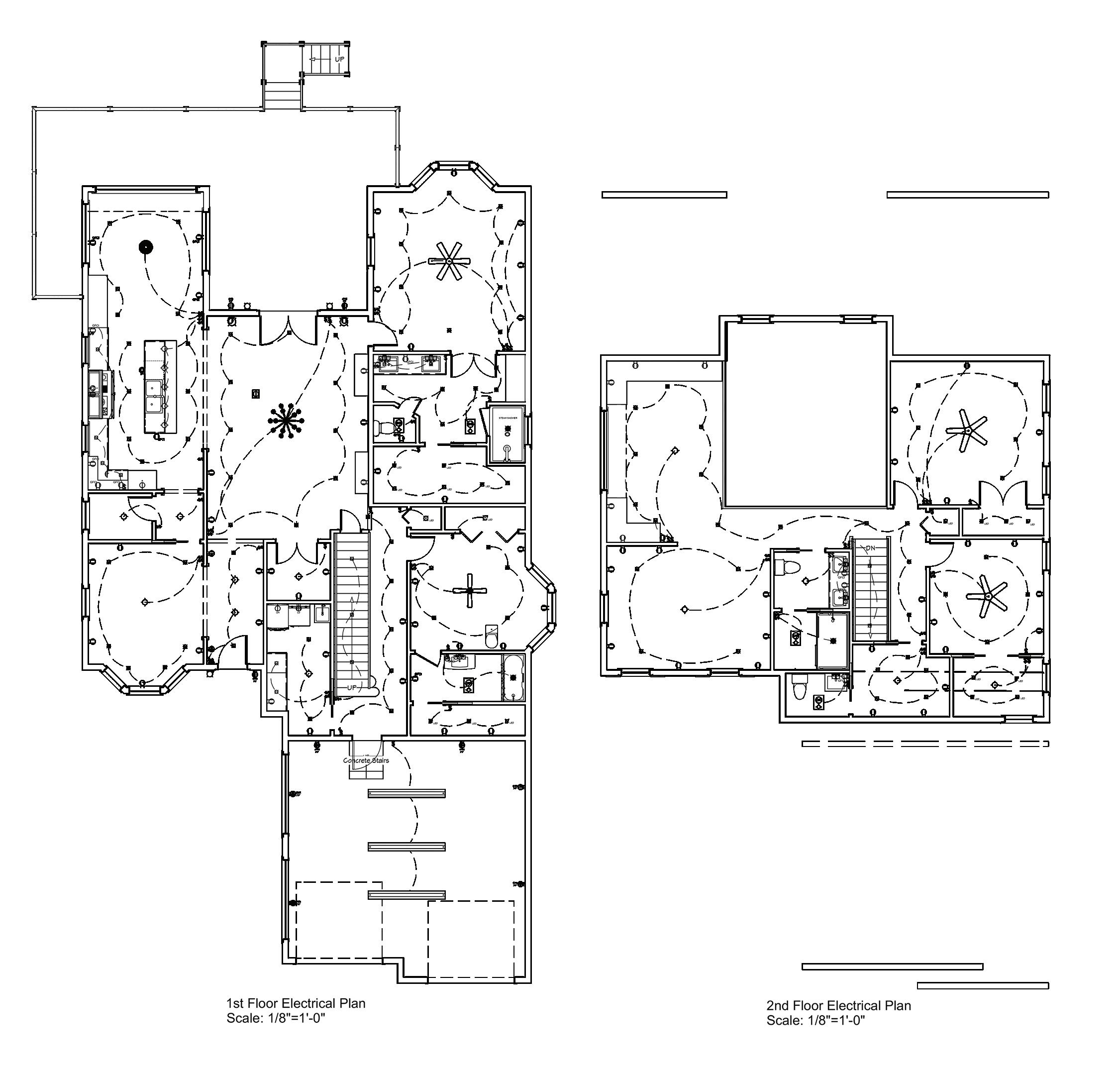

Chief Plateau Estates Was Designed Entirely in Chief Architect. The Floor Plan Was Provided and the Drawing Process Started from Scratch to Learn This BIM Tool Of Chief Architect. The Drawing Started with Drawing the Walls Except For Moving Load-Bearing Walls. The Program Divides the Process into Two, A 2D Model and A 3D Model Where Both Screens Can Be Seen Simultaneously Working With The Scalable Items On One Side While Being Able To See The Space In 3D To Make Visible Changes To The Space. Furniture, Lighting, Fixtures, And Accessories Were Also Added to Enhance the Look. The Project Included A 2D Site Plan and Landscape, A Floor Plan, A Furniture Plan, A Mechanical Plan, And A Kitchen and Bath Plan. The 3D Model Helped Create the Elevations, Cross Sections, And 3D Renderings.

Chief Architect Allows for A Seamless Transition Between 2D And 3D Models. When Working in Either 2D Or 3D Models, The Program Makes It Easy to Make Automatic Alterations to The Floor Plan, Walls, Cabinets, Light Fixtures, Etc. This In Turn Allows the Design to Be Updated Immediately in The Floor Plan as Well as In the Elevation. BIM Tools Like Chief Architect Make Detailed Drawings Easier and More Efficient Which in Turn Saves the Designer Time and The Client More Expenses.

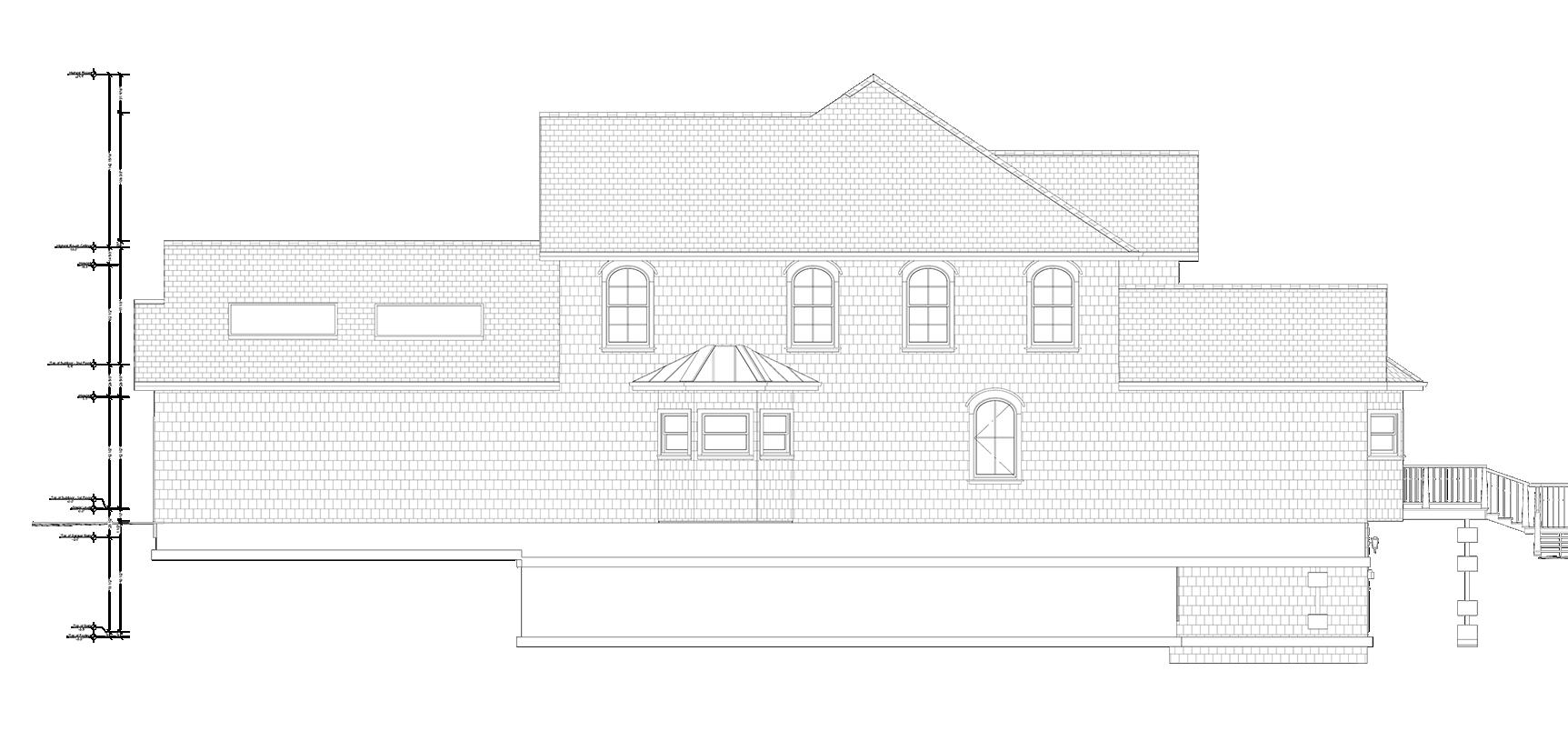

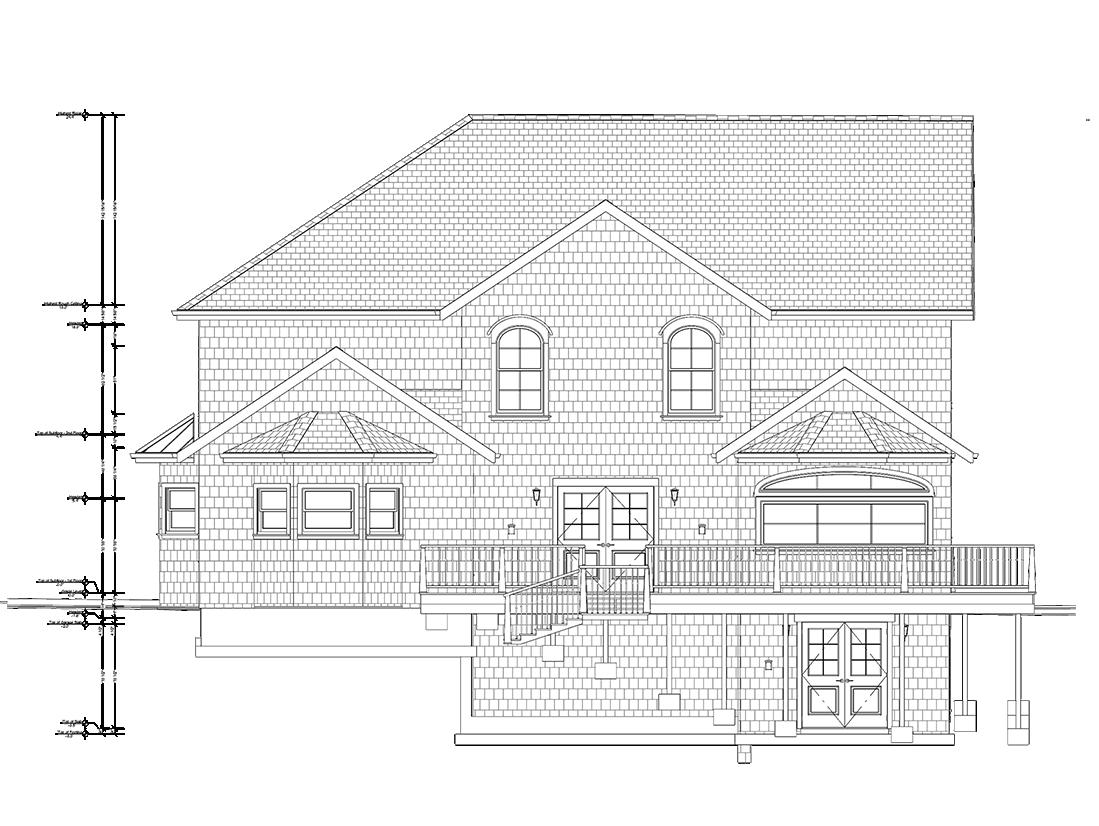

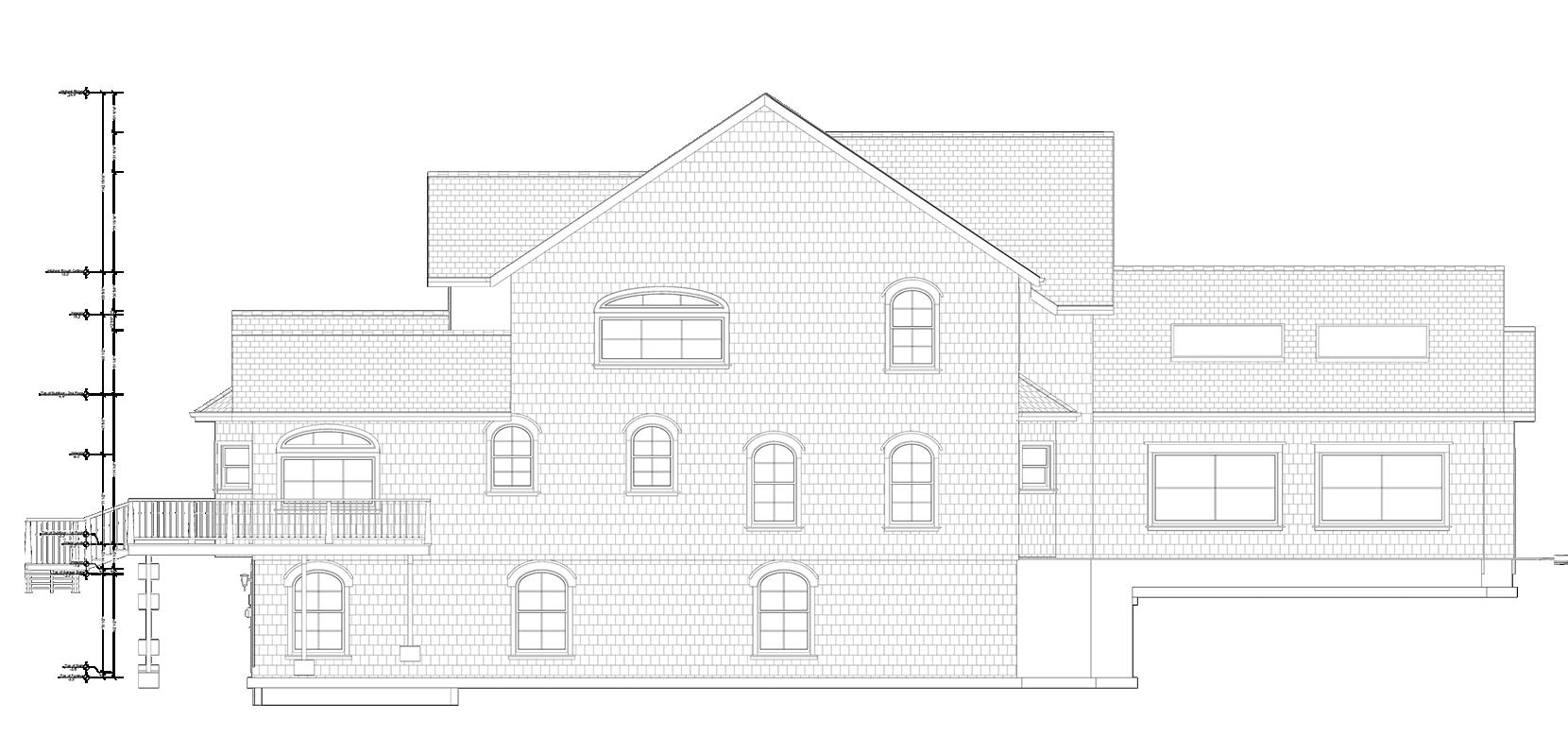

Exterior Elevation: West Scale: 1/8”=1’-0”

Exterior Elevation: East Scale: 1/8”=1’-0”

Exterior Elevation: South Scale: 1/8”=1’-0”

Exterior Elevation: North Scale: 1/8”=1’-0”

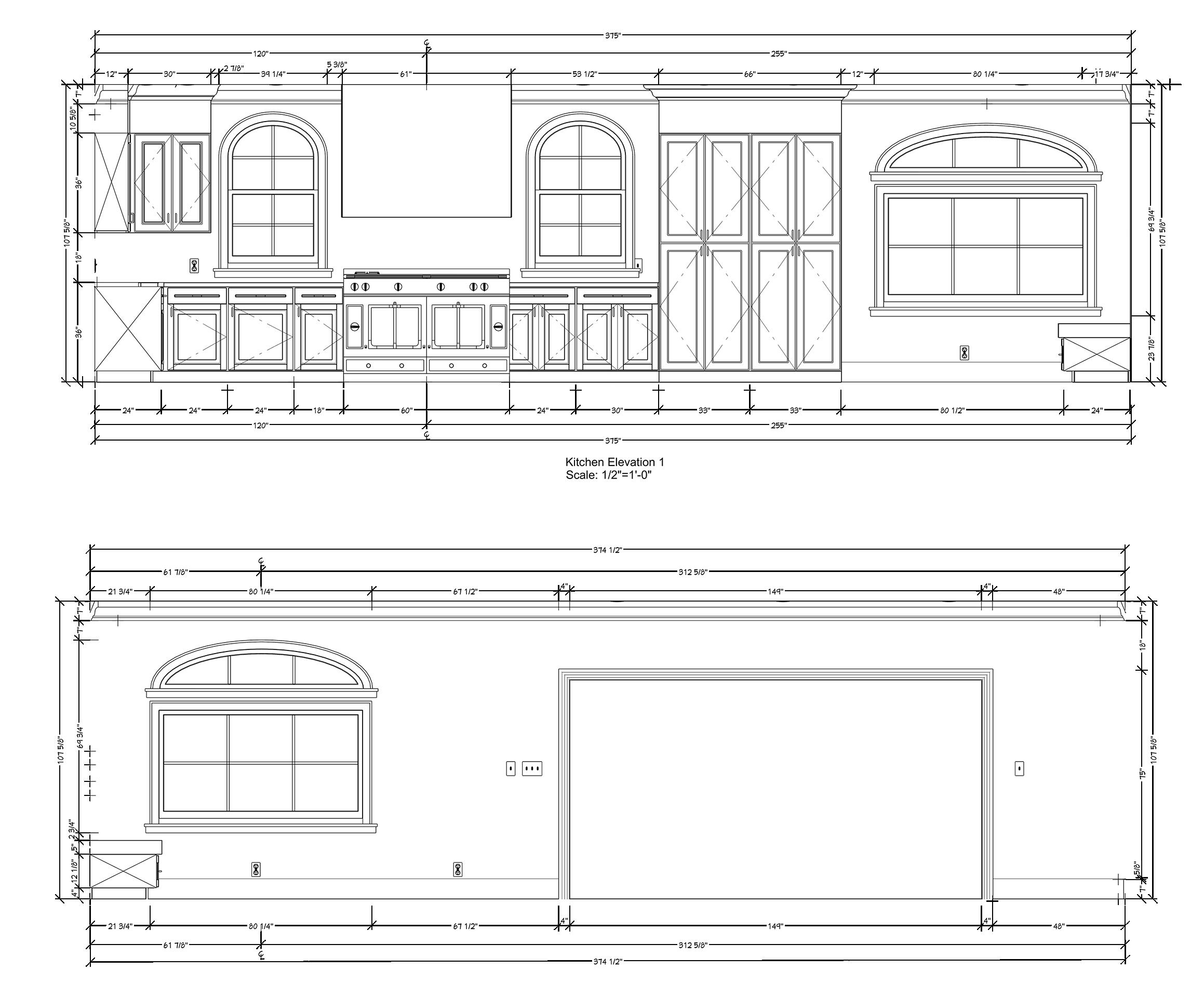

Kitchen Elevation: East Wall Scale: 1/2”=1’-0”

Kitchen Elevation: West Wall Scale: 1/2”=1’-0”

Kitchen Elevation: South Wall Scale: 1/2”=1’-0”

Kitchen Elevation: North Wall Scale: 1/2”=1’-0”

Primary Bathroom Cabinet Plan Scale: 1/2”=1’-0”

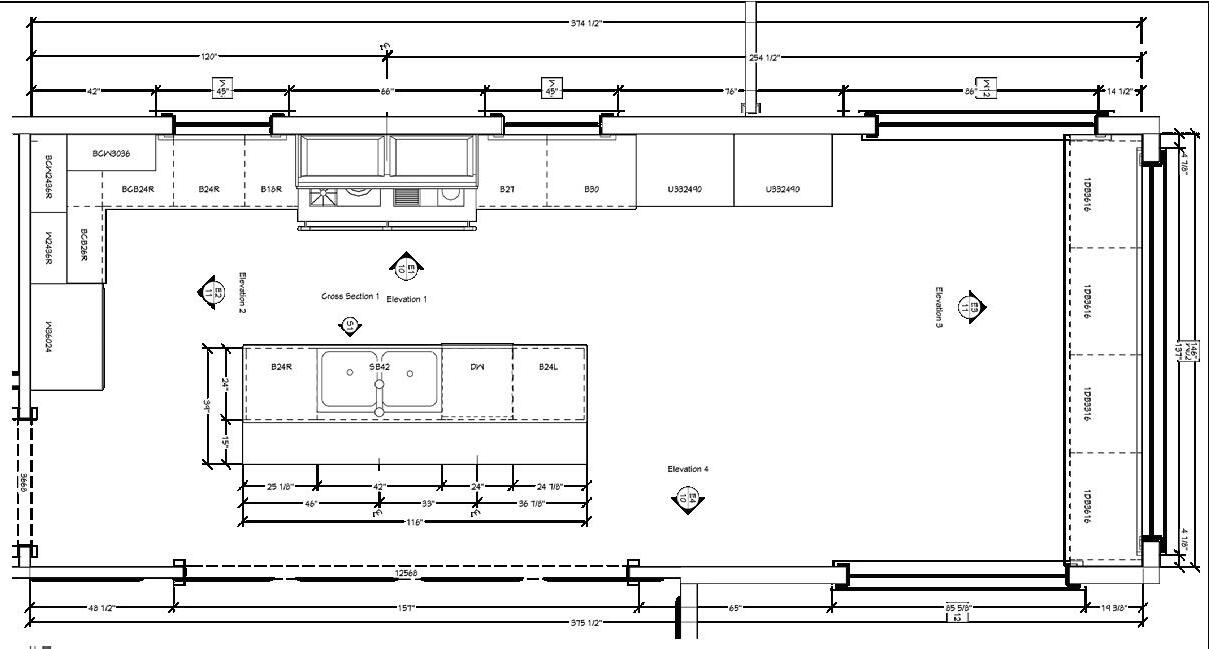

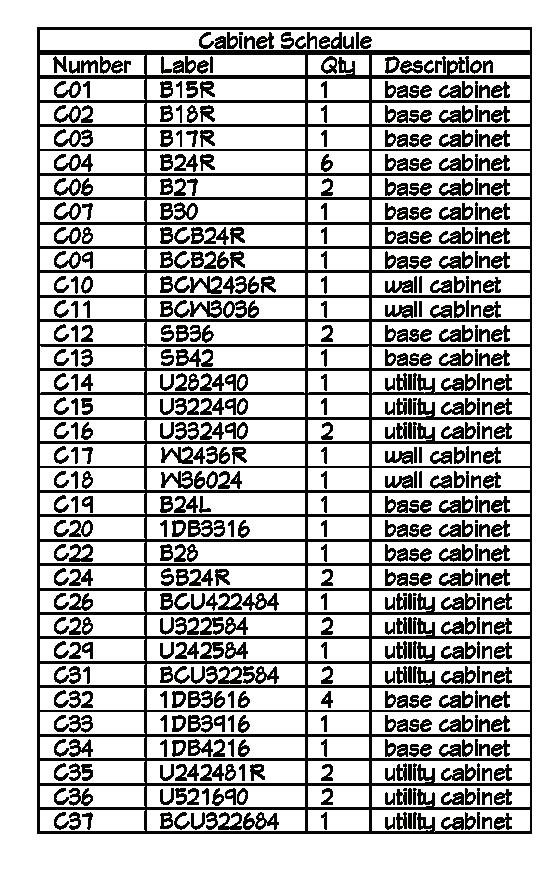

Kitchen Cabinet Plan Scale: 1/2”=1’-0”

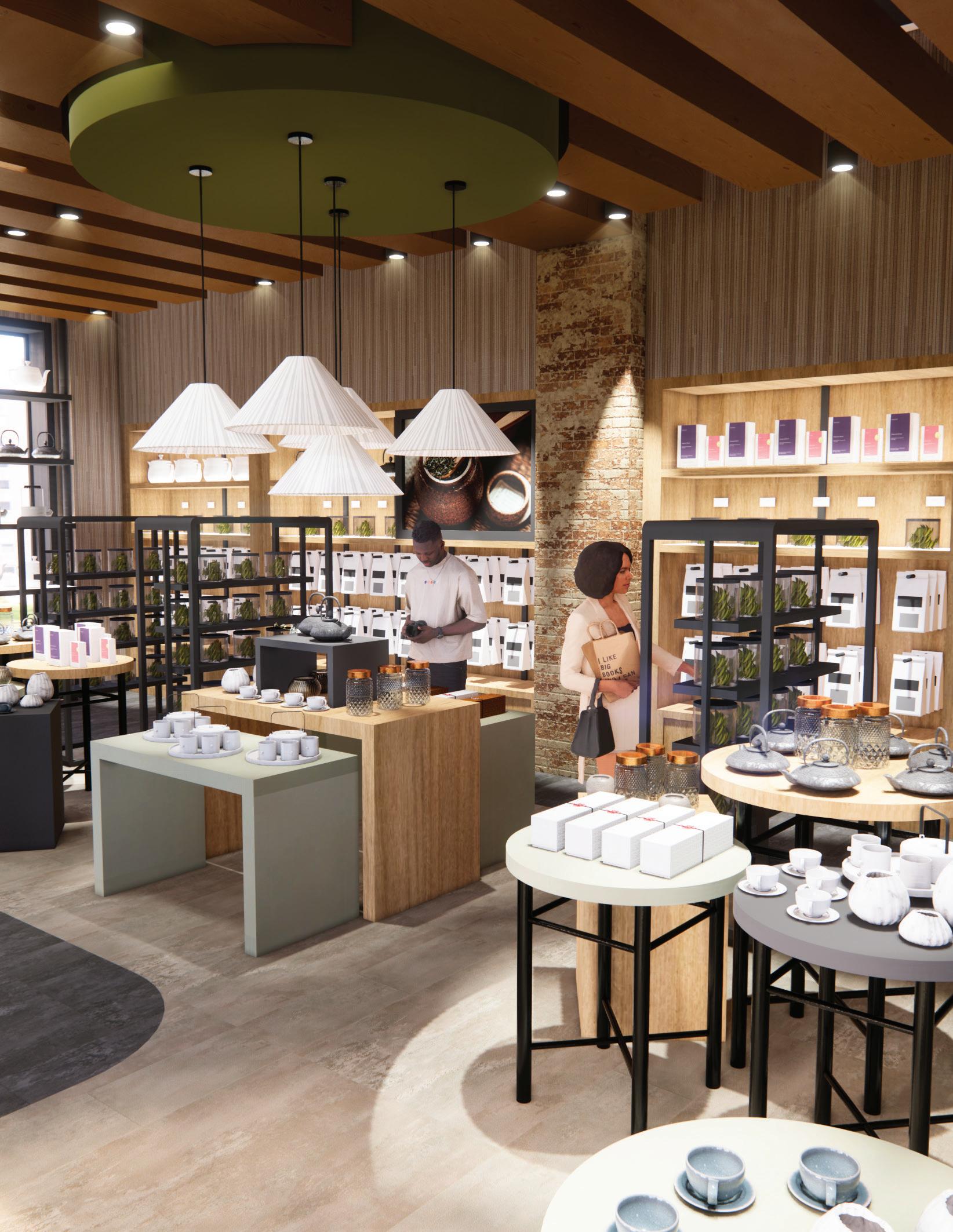

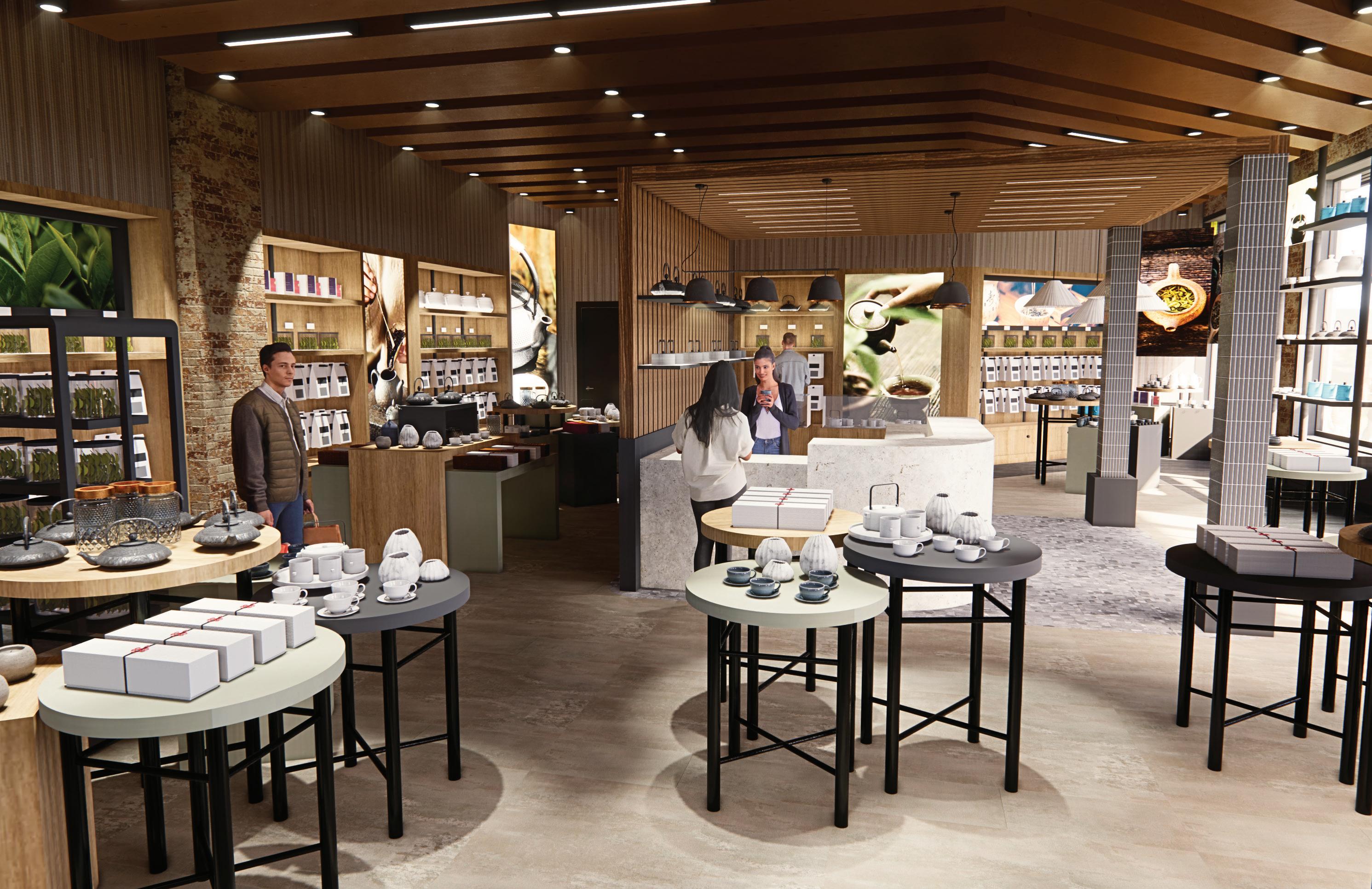

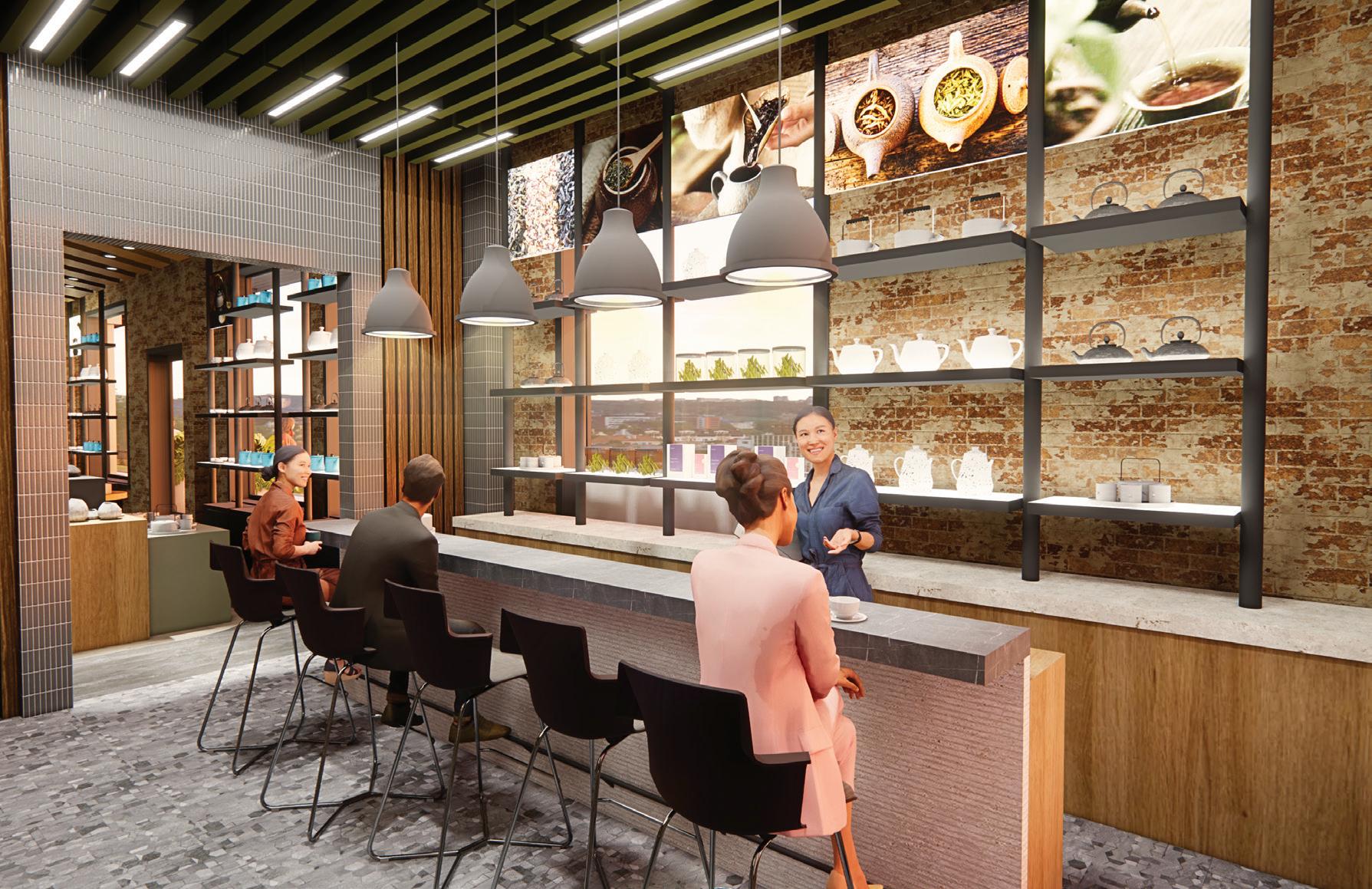

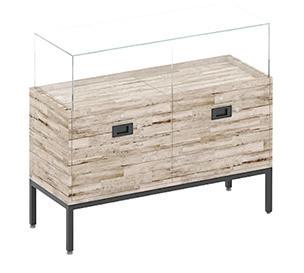

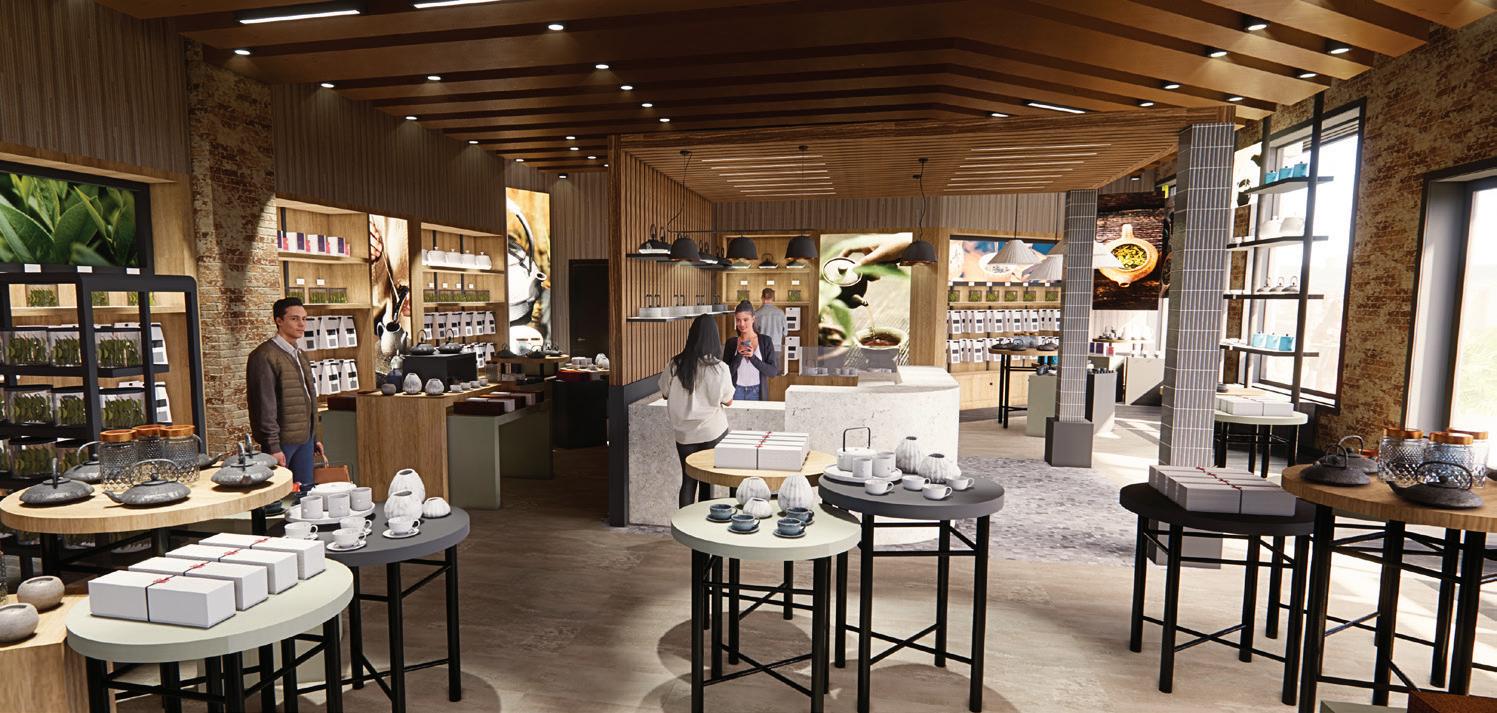

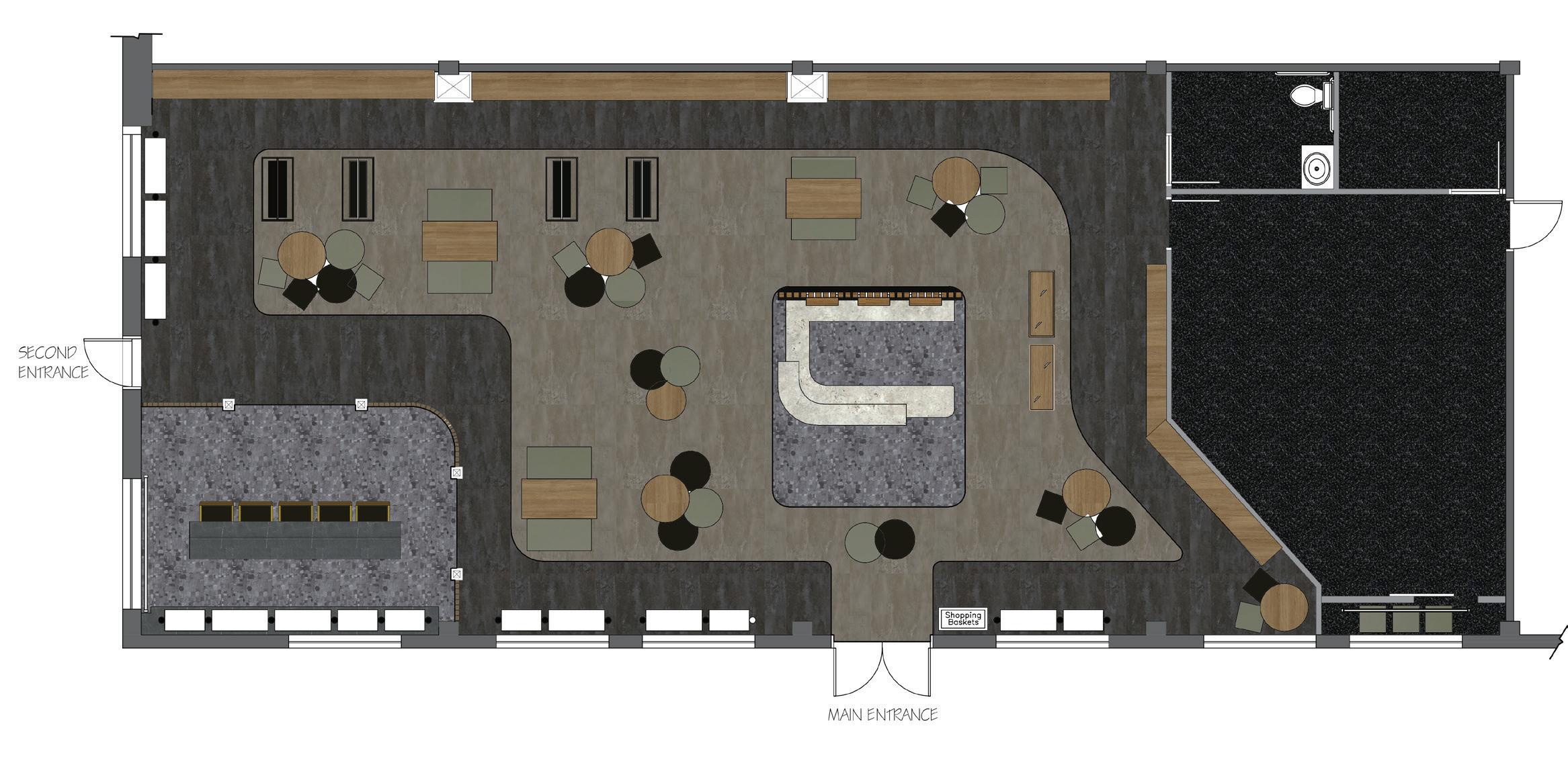

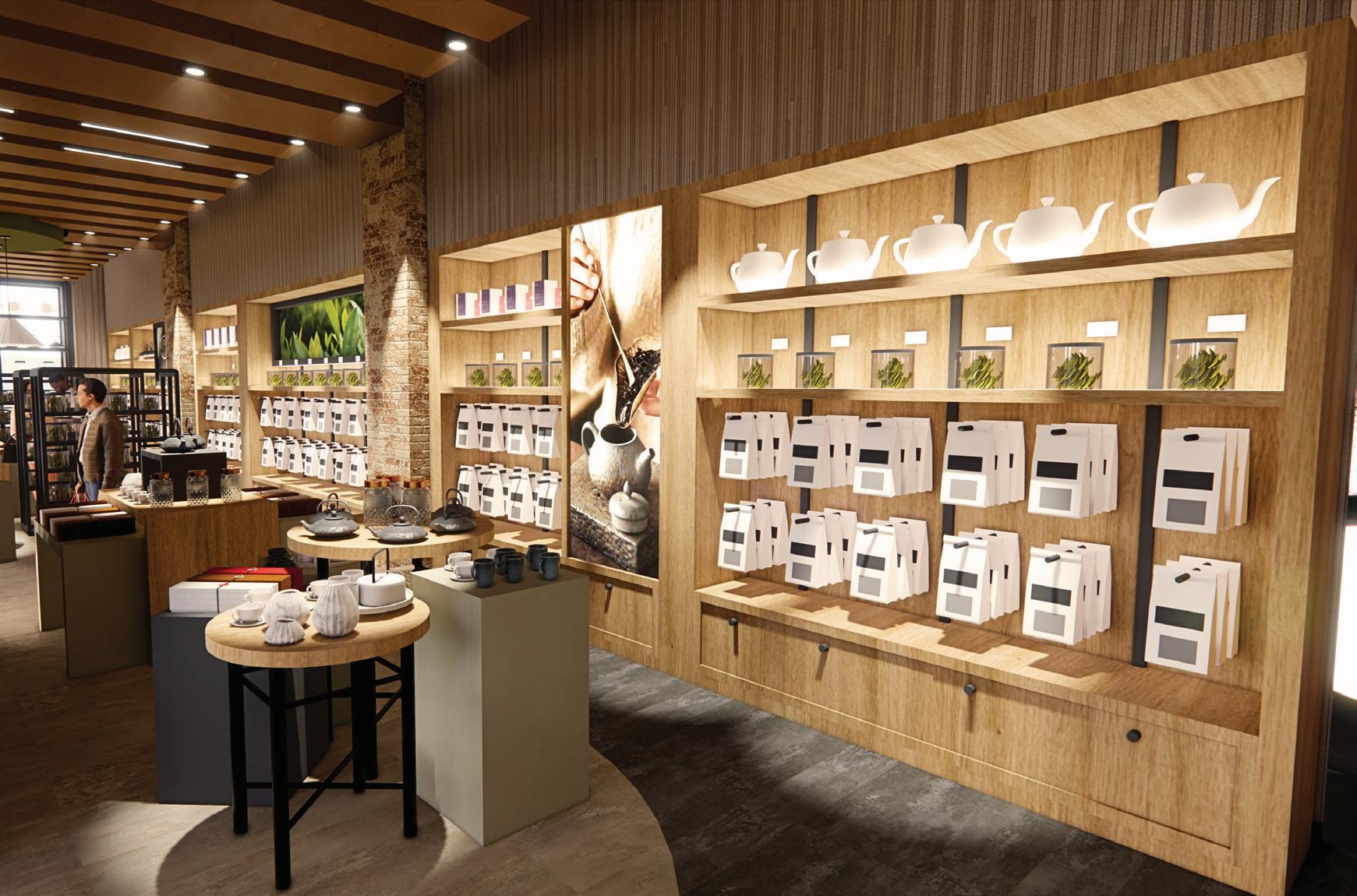

CURIOSITEA TEA STORE

RETAIL DESIGN DESIGN DEVELOPMENT

Curiositea Is Focused on Creating A Space That Showcases The Wellness And Holistic Benefits Of Tea, Providing Knowledge And Information About The Product And Curating A Memorable Shopping Experience. Location and Demographics

West Loop. Chicago, IL

• Serving the Chicago Public in the Center of a Dining and Drink Hotspot

• 73% of West Loop’s population are Millennials

• High Affluence Area of $154K Annual Income

Why Curiositea?

• Wide Range of Tea Selections

• Quality Handcrafted Products

• Reliable Tea Sourcing

• Informative and Educational Guidance Towards Tea Benefits

Specialty Service

• Tea Tasting Bar

• Informative Events and Seminars

Target Market

• Health-Conscious Individuals

• Tea Enthusiasts

Mission

• Provide The General Public Sustainably Sourced Tea Leaves and Handcrafted Products

• Promote An Inclusive Shopping Experience for All Shoppers

• Guide Customers to A Holistic Understanding of Tea Benefits

• Create Memorable Shopping Experiences Through Informational and Tasting Events

Packaging

Design Considerations

Produced in Sketchup and Rendered in Enscape. Enhanced in Adobe Photoshop.

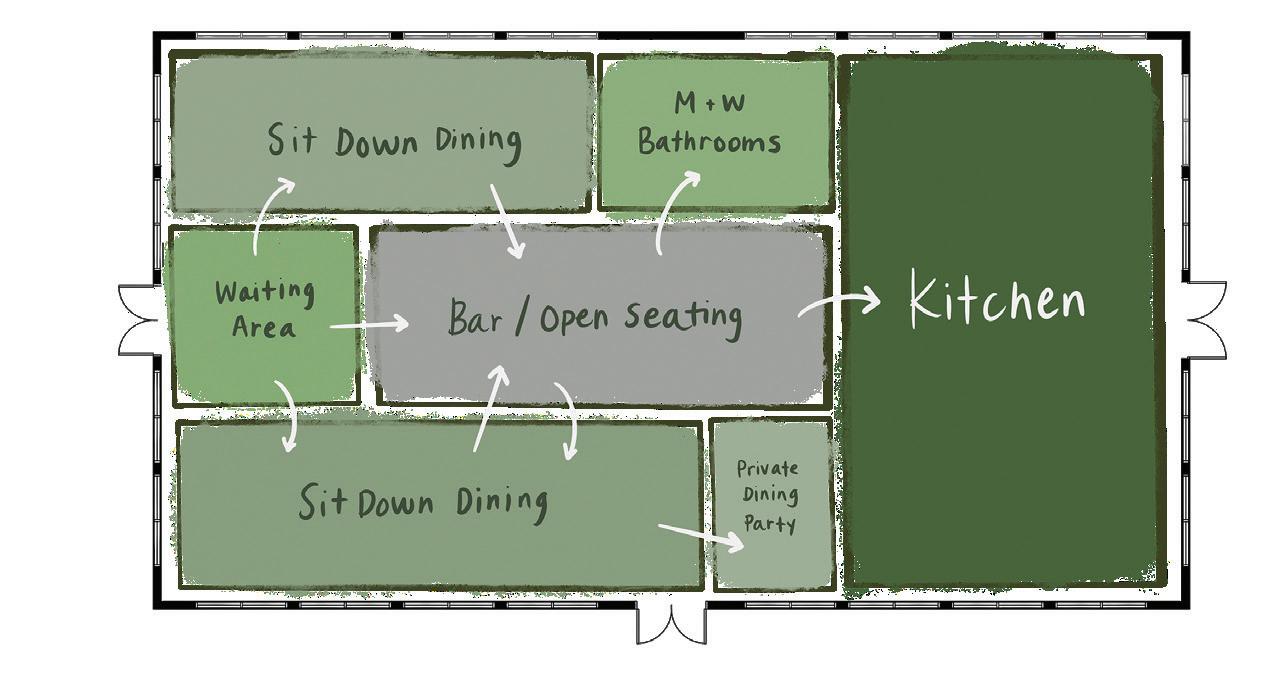

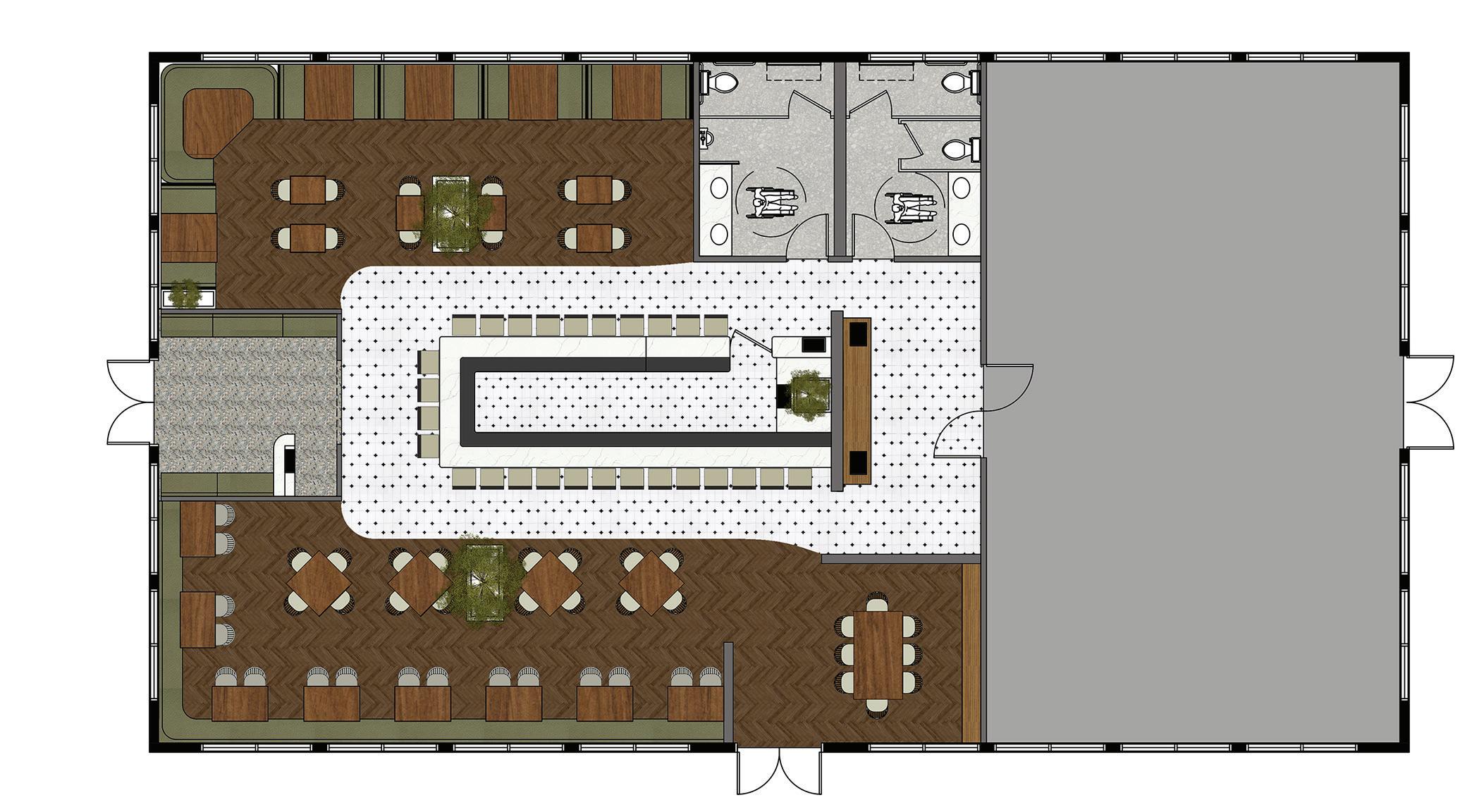

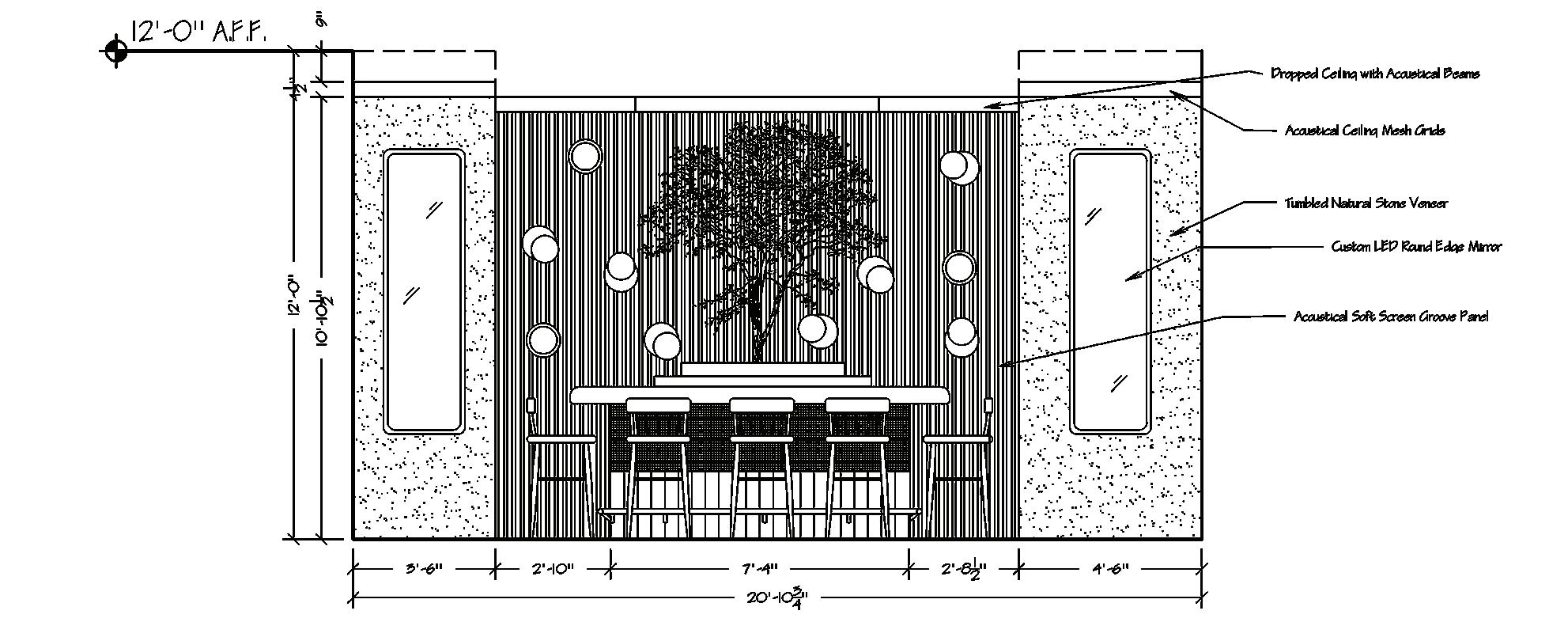

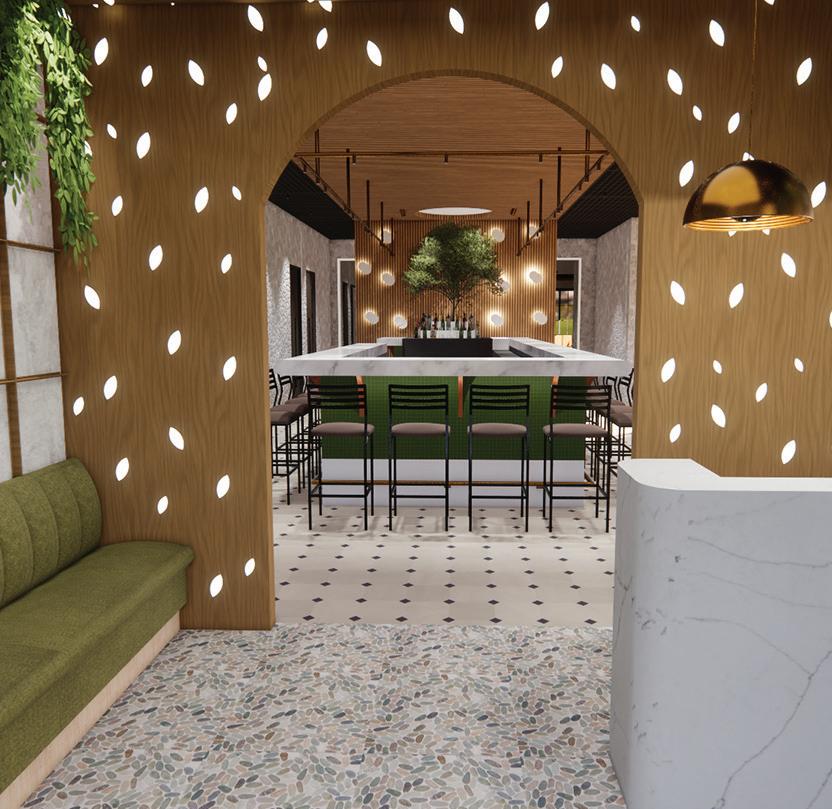

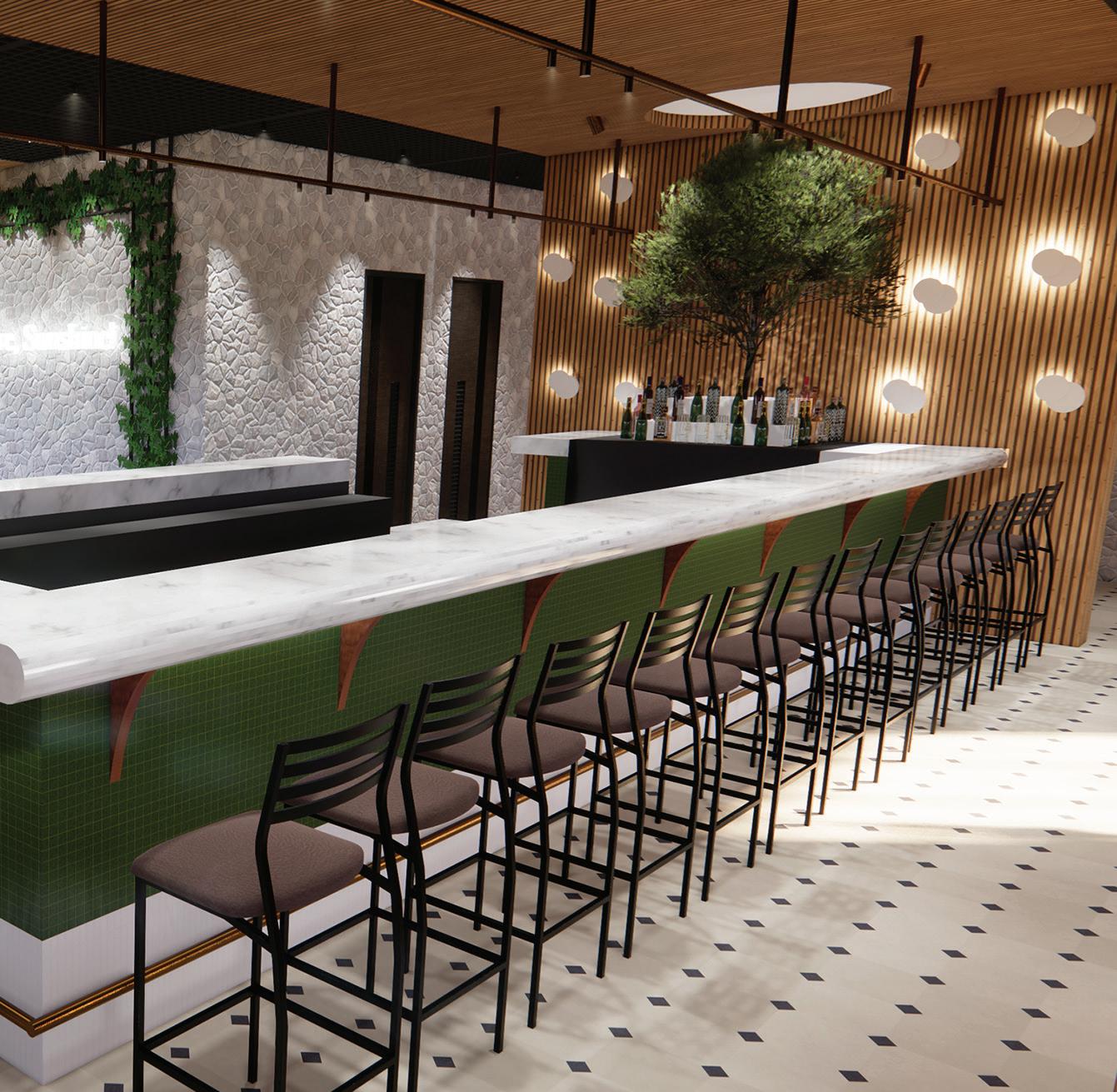

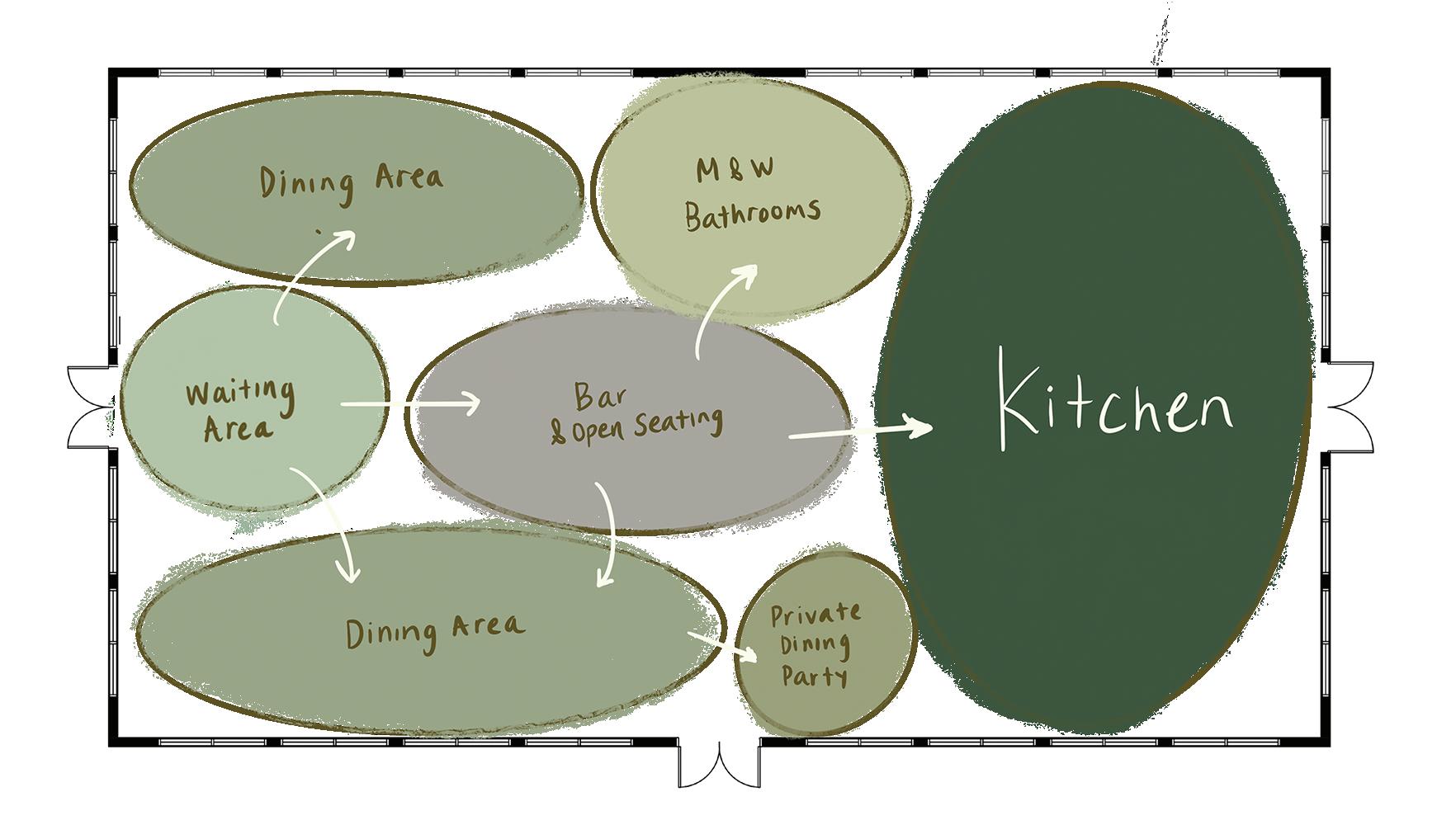

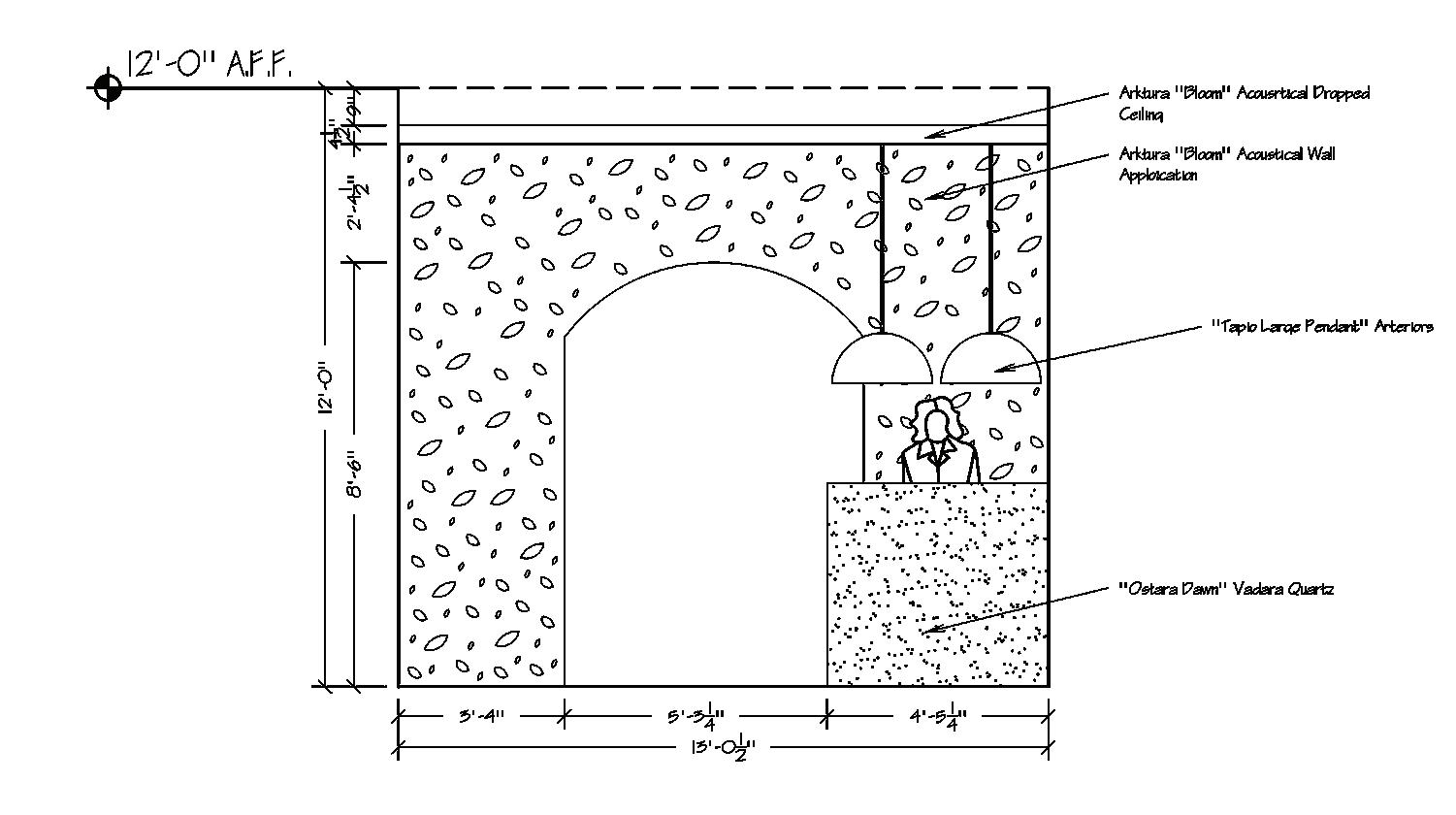

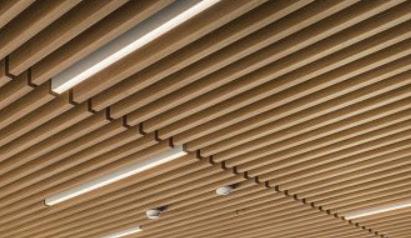

SOLSTICE RESTAURANT

RESTAURANT

DESIGN DESIGN DEVELOPMENT

Location West Loop. Chicago, IL

Target Market Millennials/Generation Z

The interior Design is Centered Around Displaying Live Biophilia as a Focal Point, Incorporating Organic Motifs, and a Warm Color Scheme.

The Interior Experience is Enhanced by Maximizing Daylighting, Incoportaing Rustic and Organic Materials and Having Variety of Textures.

Total Square Footage 4500 sq. ft.

Solstice Restaurant is Inspired by the Growing and Flourishing World Around Us that is Changing Every Second of the Day. Emulating Our Changing Llives Every Day. Seating Capacity

Waiting Area Seats 10 People

Bar/Open Seating Seats 27 People

Booth Seating Seats 24 People

Banquette Seating Seats 32 People

2 Top Seating Seats 12 People

4 Top Seating Seats 14 People

Private Dining Party Seats 8 People

TOTAL= Seat 119 Dining Seats

(Does Not Include Wait Seating)

Design Considerations

44” Wide Main Access Aisle

min. Pathways 5’ Turning Radius 5% of Dining Tables are Accessible

Functionality is Achieved By Having Variety of Seating with Multiple Seating Arrangments to Accomidate Large Seating Groups

Sustainability Using Low VOC

Materials, Maximize Daylighting, Acoustic Mateials and Efficient Lighting

Brand Identity Clear Display of Restaurant Logo and Constant Use of Brand Colors Through Materials and Organic Shapes

1.

2.

3.

4.

5.

6.

7.

8.

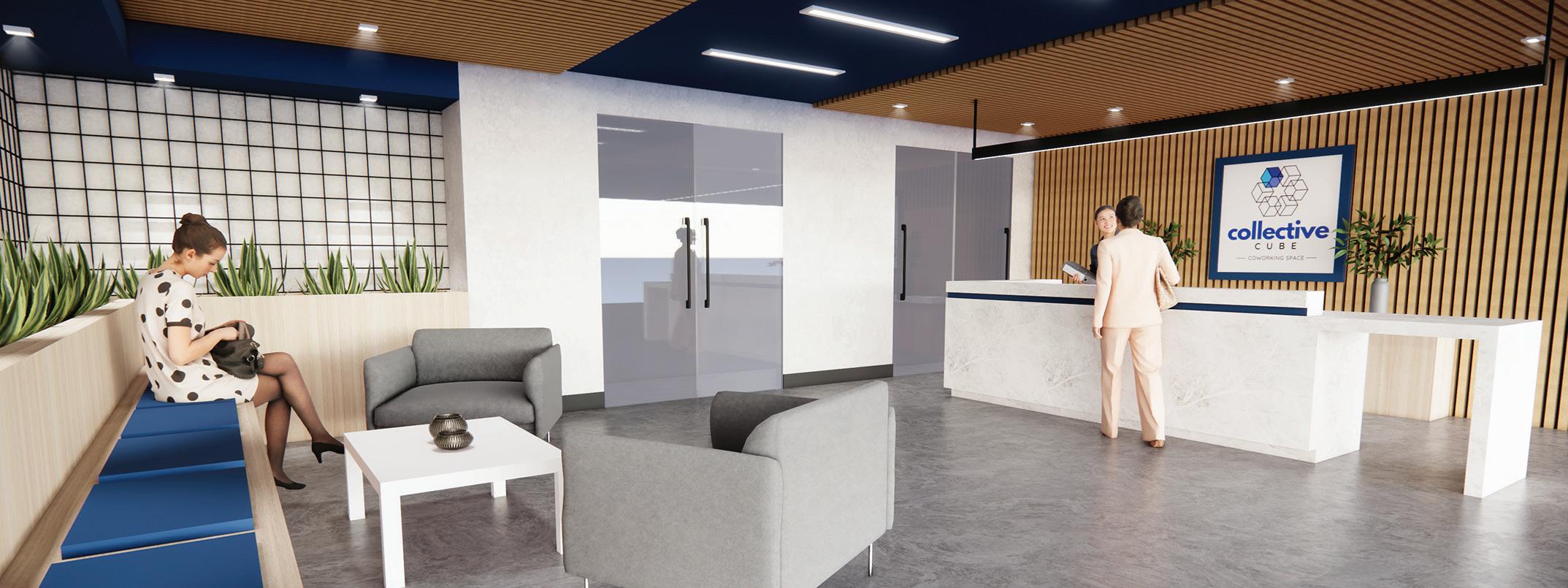

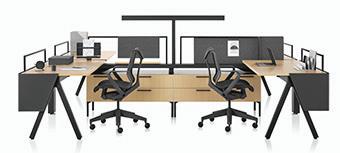

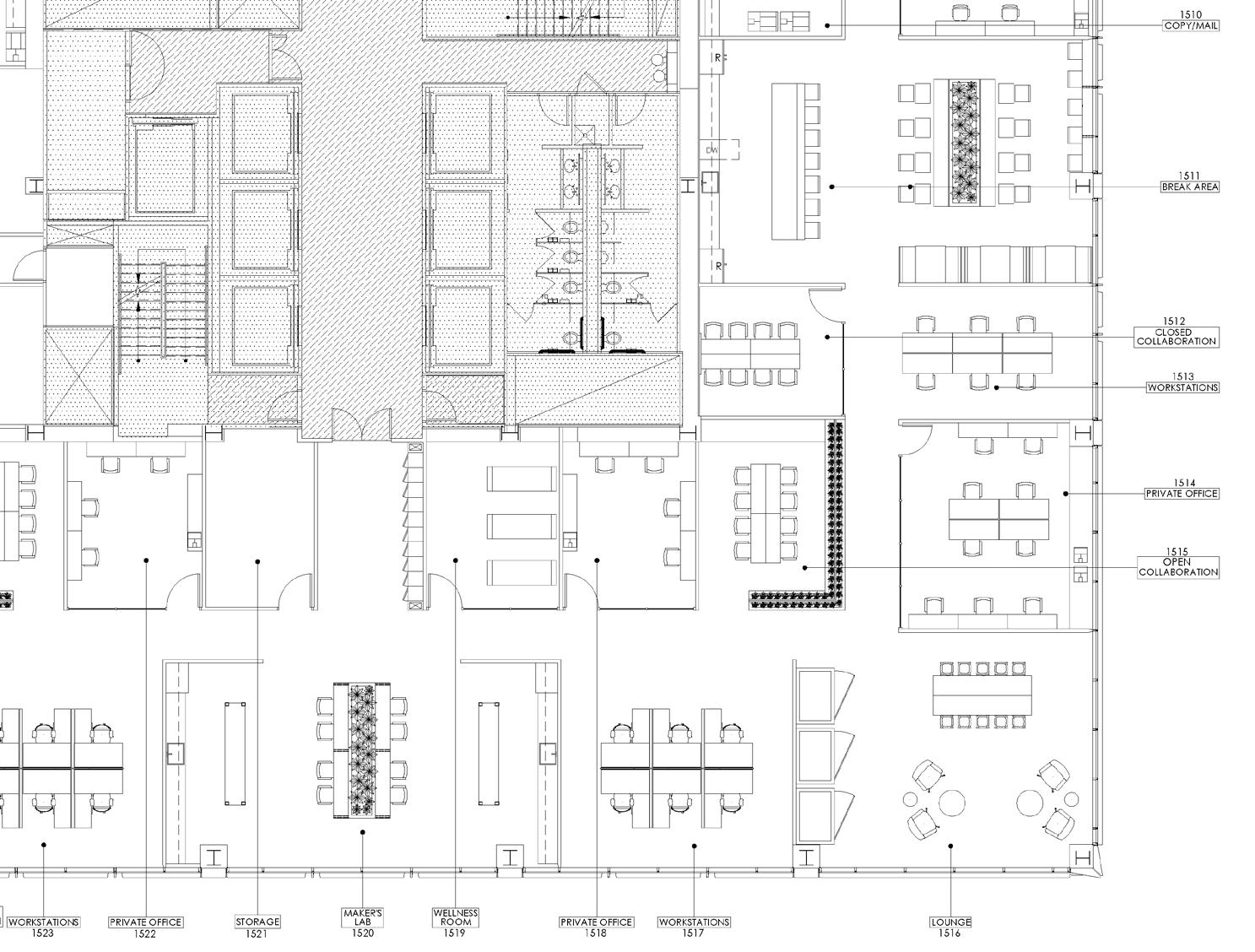

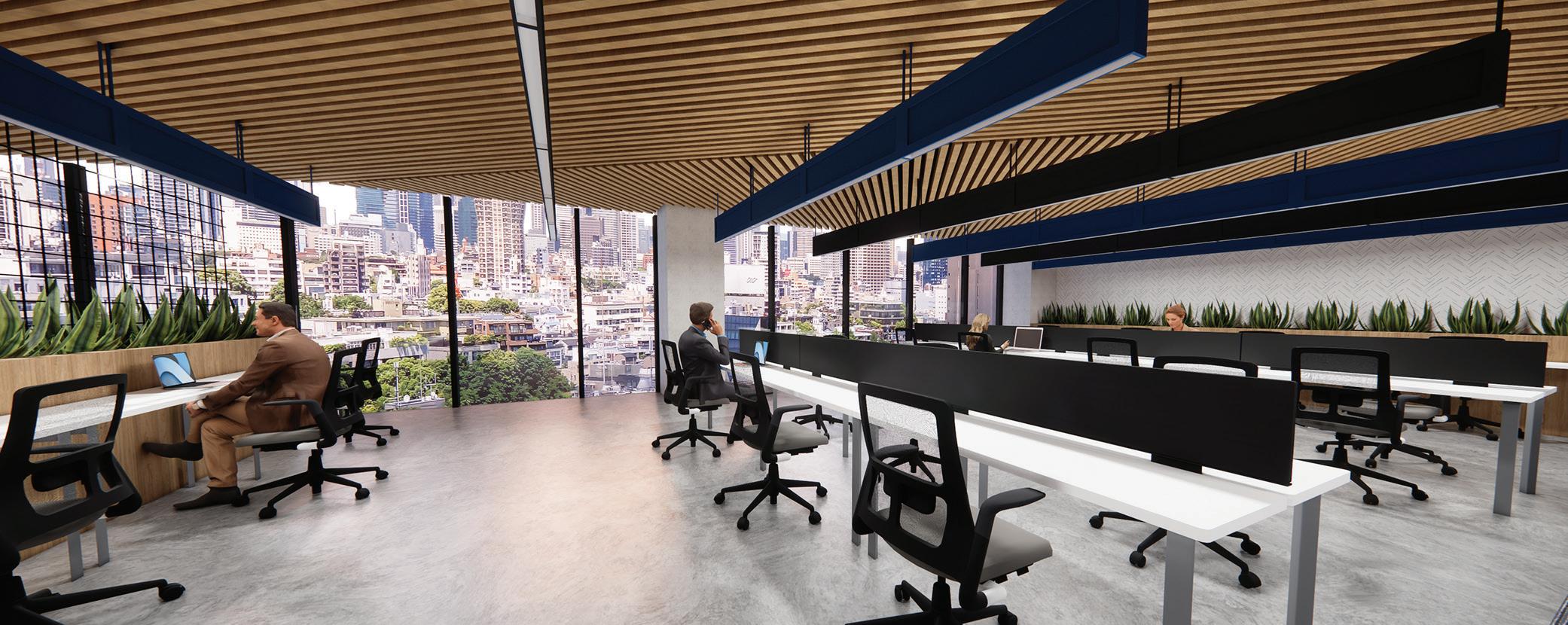

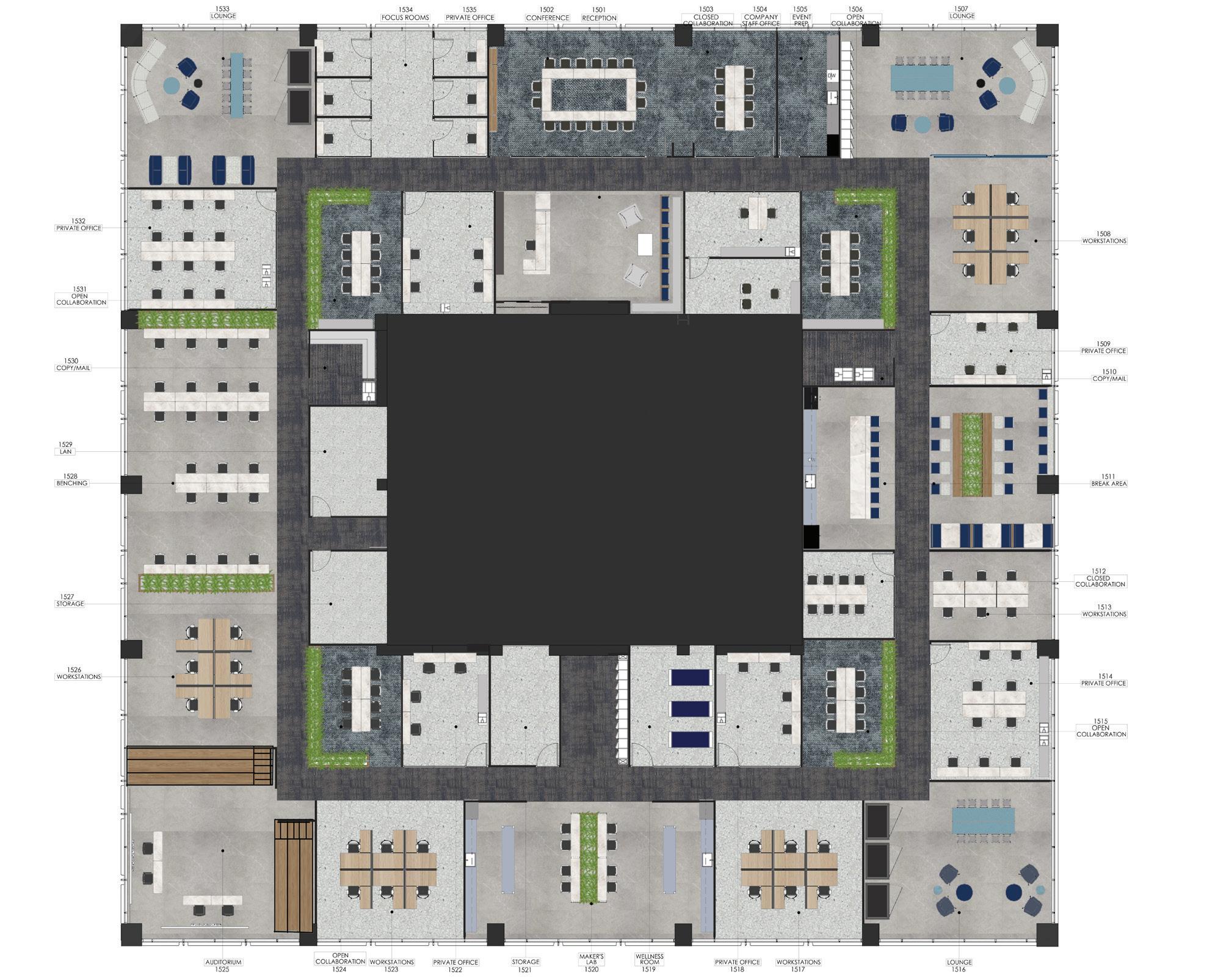

COLLECTIVE CUBE CO-WORKING OFFICE SPACE

OFFICE DESIGN DESIGN DEVELOPMENT

Location Union Tower - Chicago, IL

Target Market Entrepreneurs & Small Businesses

Collective Cube Is a Large Scale Co-Working Office Space Where Small Businesses and Entrepreneurs Can Have the Office Space to Work Together and Collaborate in A Lively and Ease Free Environment.

Members Can Use the Facilities Private Offices, Open Meeting Spaces and Enjoy Of The Many Benefits Of Working Here All While Collectively Working To Achieve Their Goals.

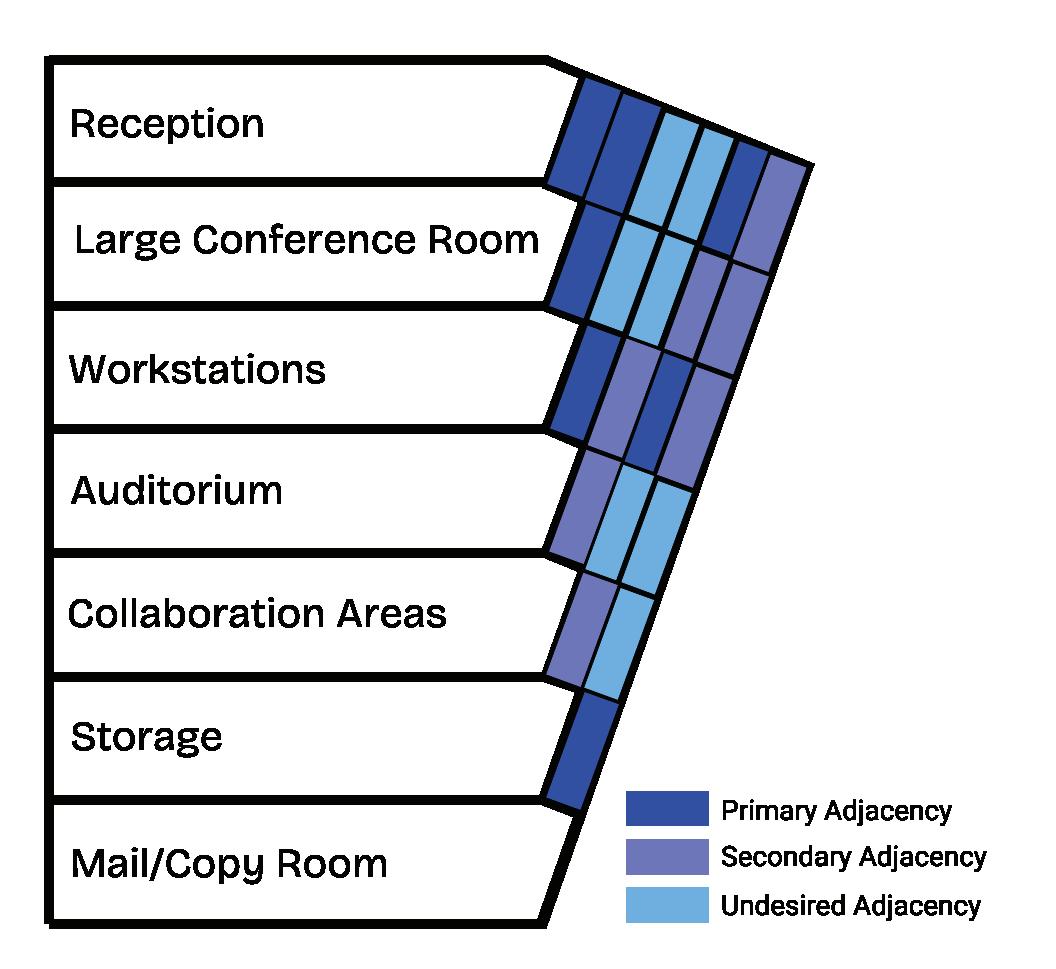

Adjacency Matrix

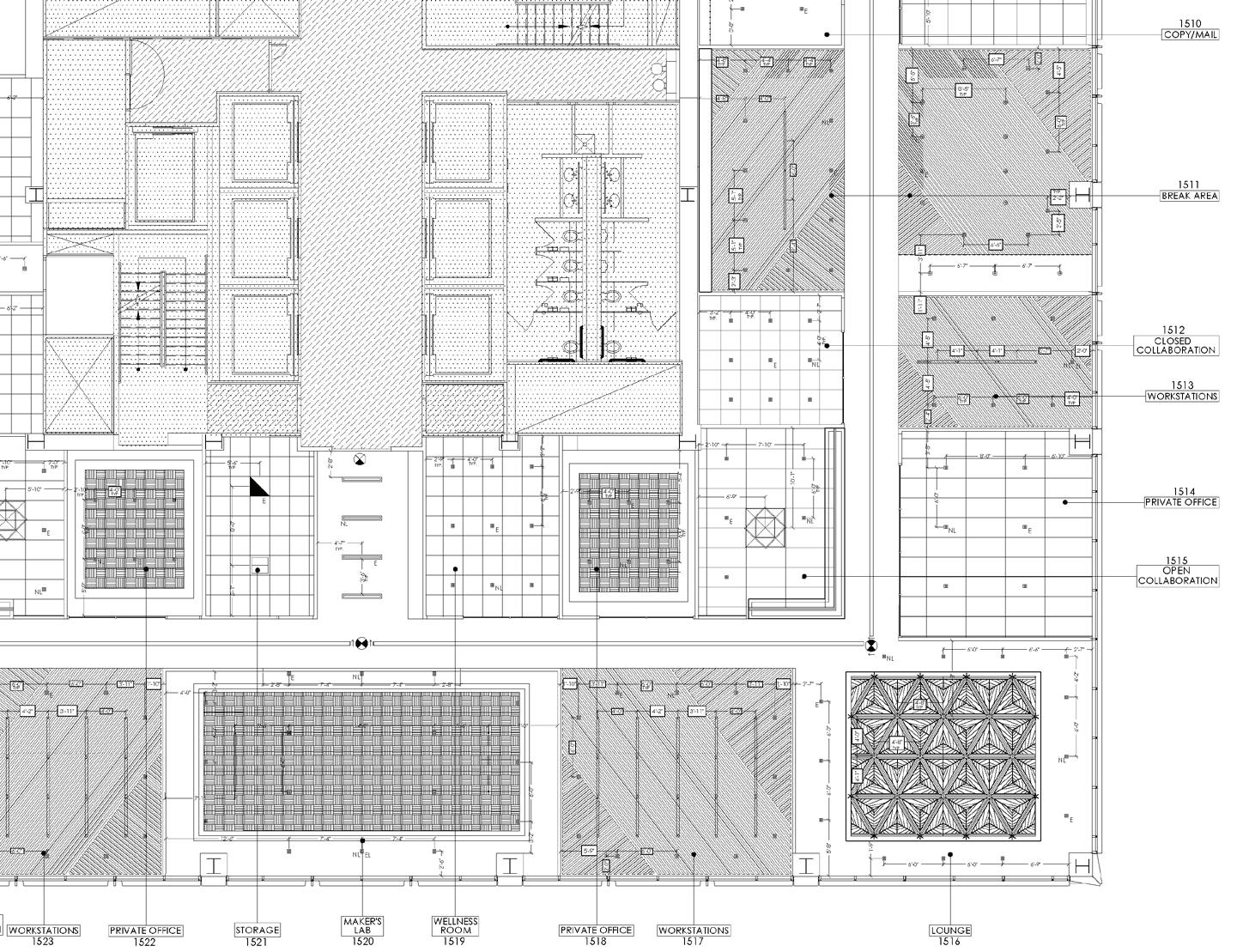

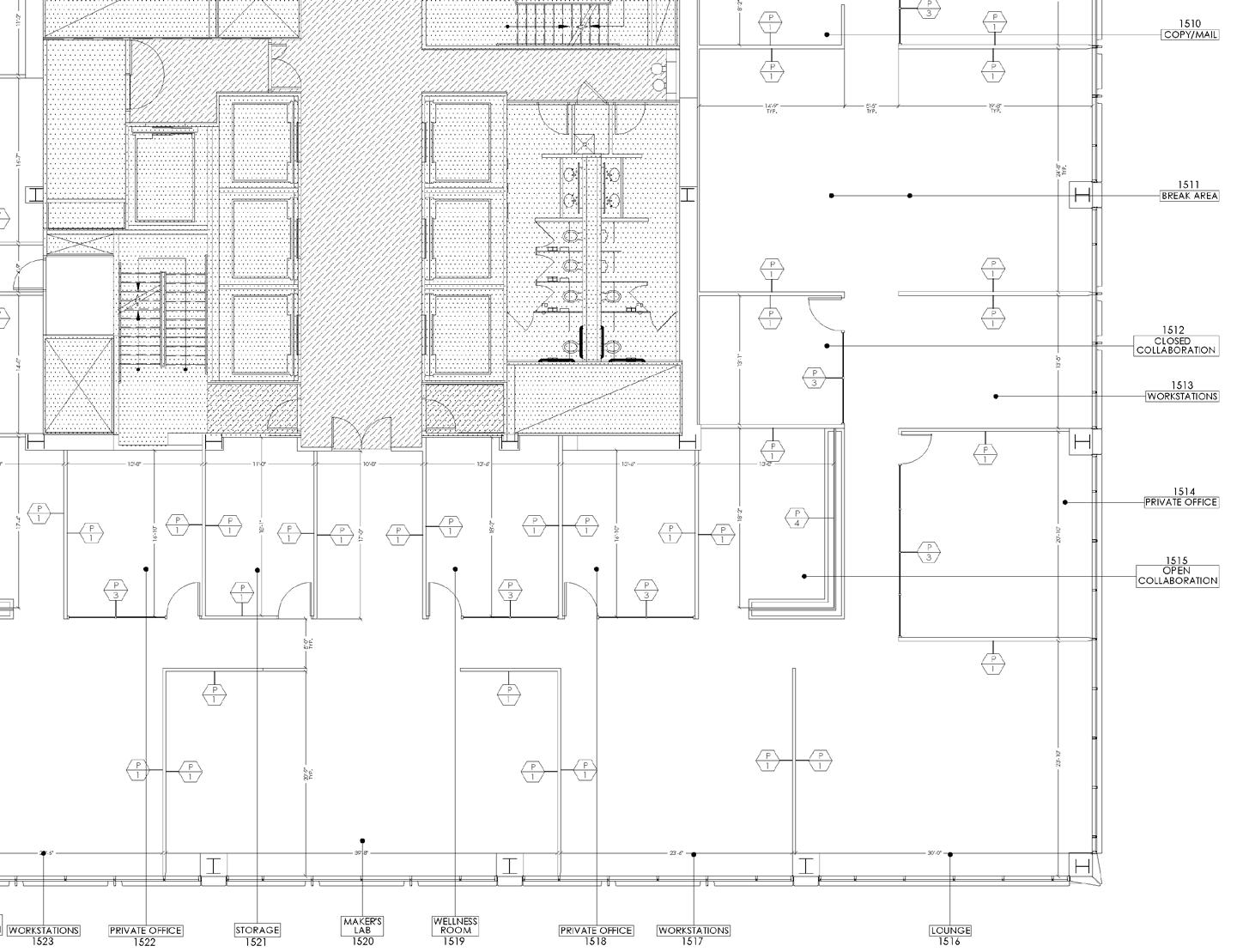

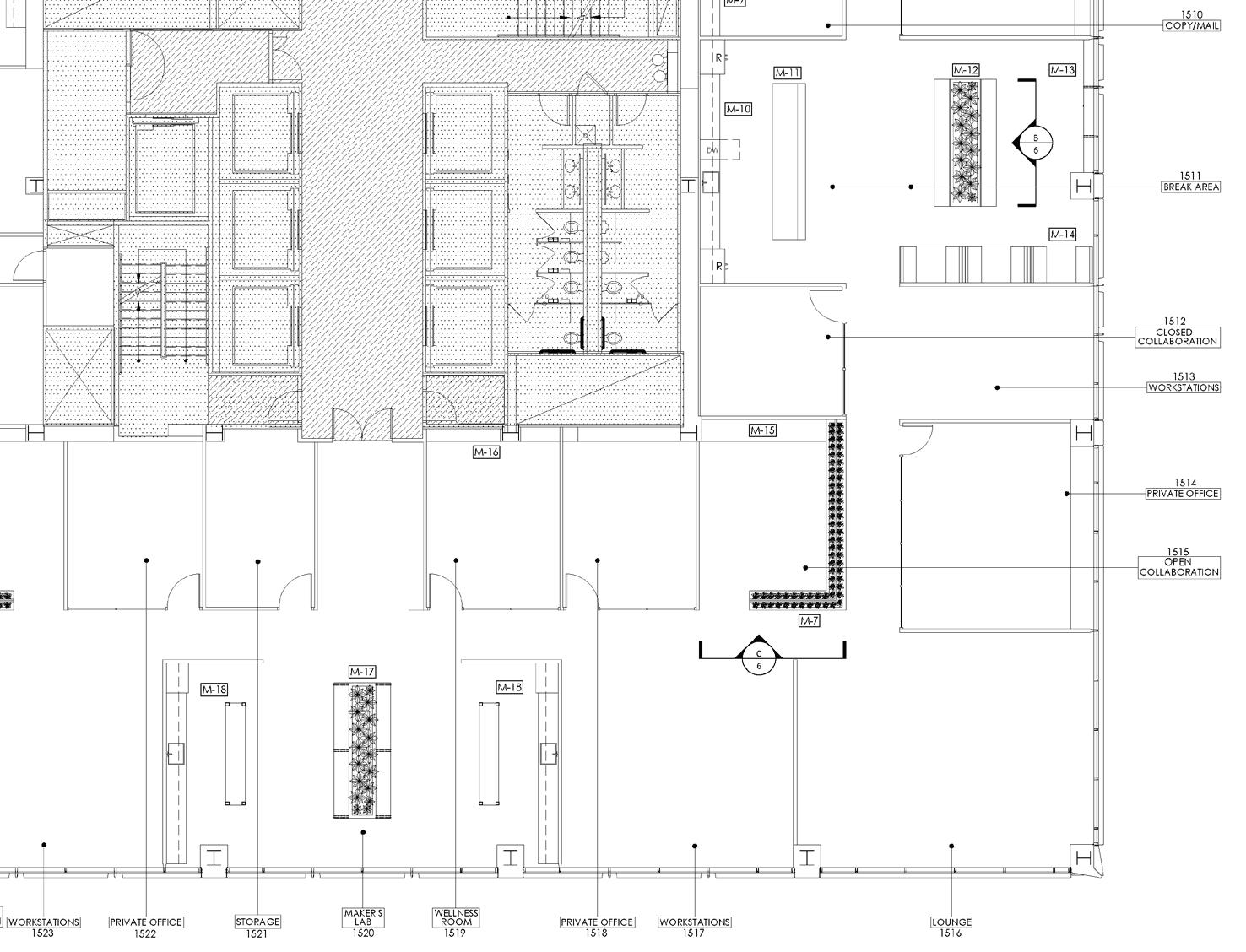

Drawings Produced in Autodesk AutoCAD. NOT TO SCALE. Original Scale is Representative of Industry Standards

Abigail Pablo graduated from the College of DuPage, with an Associate of Applied Science in Interior Design, a Kitchen & Bath Certificate, and a Computer Applications Certificate. She is a diligent and detail-oriented individual who prides herself on working collectively with others and continuously learning. Designing spaces and working alongside others ignites her passion for creating beautiful and functional spaces with originality. During her time at the College of DuPage, she actively pursued perfecting her craft, her active involvement in professional organizations like the American Society of Interior Designers (ASID), and the International Interior Design Association (IIDA) and a student member of the College of DuPage Interior Design Student Society. In her time as a student, she took any chance to give back, tutoring classmates in several rendering and drafting software and participating as a student judge for the FCCLA (Family, Career, Community Leaders of America) Interior Design Competition for high schoolers. She is well-versed in various drafting and rendering software such as Autodesk AutoCAD & Revit, Sketchup with Enscape & V-Ray, Adobe Photoshop, Adobe InDesign, & Chief Architect. As she worked on her design projects, she gained an ample understanding of space planning, codes and standards, material selections, and specifications. So much so, that Abigail was awarded the Kravet Design of Distinction Award for her Adkin’s Residence Design Solution in May of 2022.
