Recreational Hub

Mixed-use marina communities are on the rise. With the potential economic upside of bolstering a location’s waterside setting, there has been an increase in mixed-use and pedestrian-friendly marina communities. These new developments feature boat slips and a mix of shops, restaurants, open-air markets, parks and open spaces, business offices, overnight lodging and other amenities and services

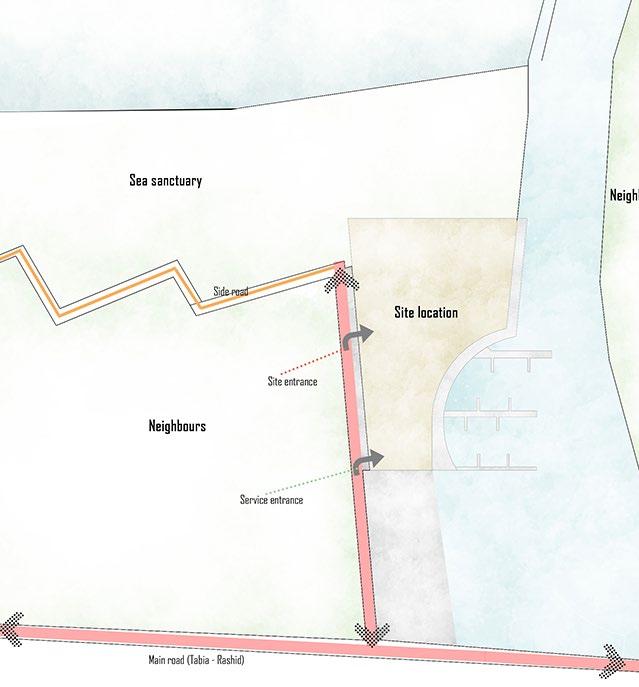

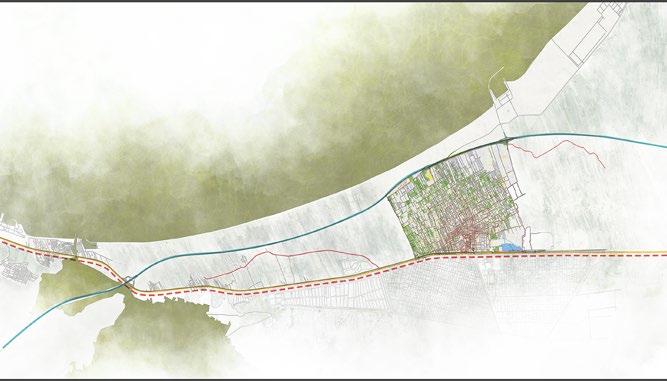

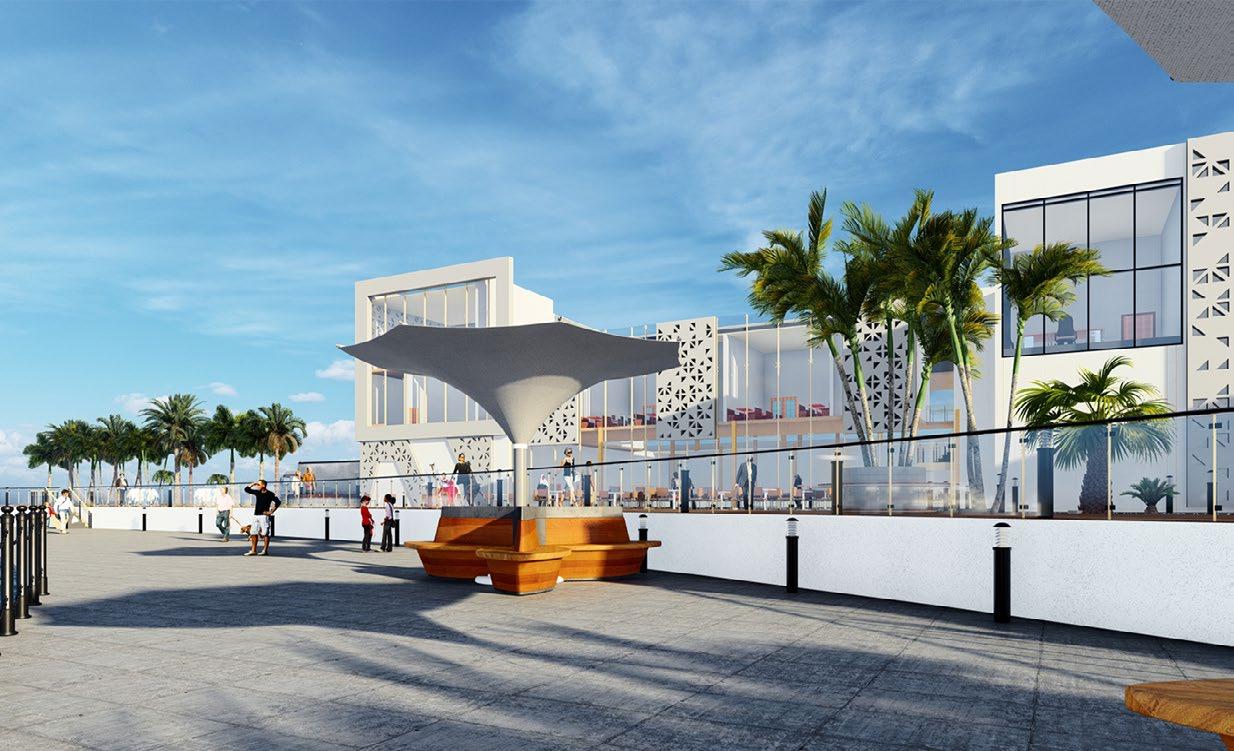

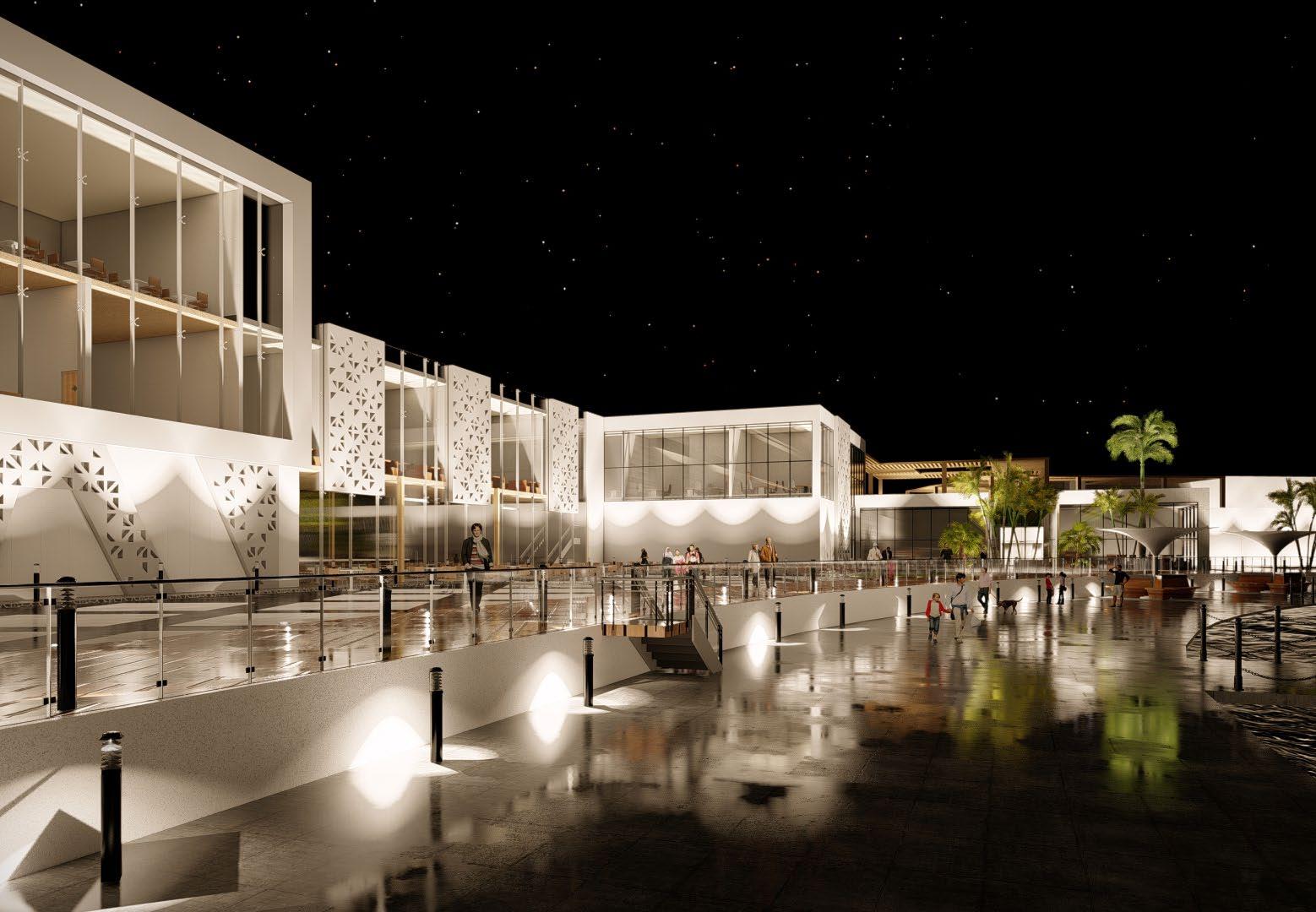

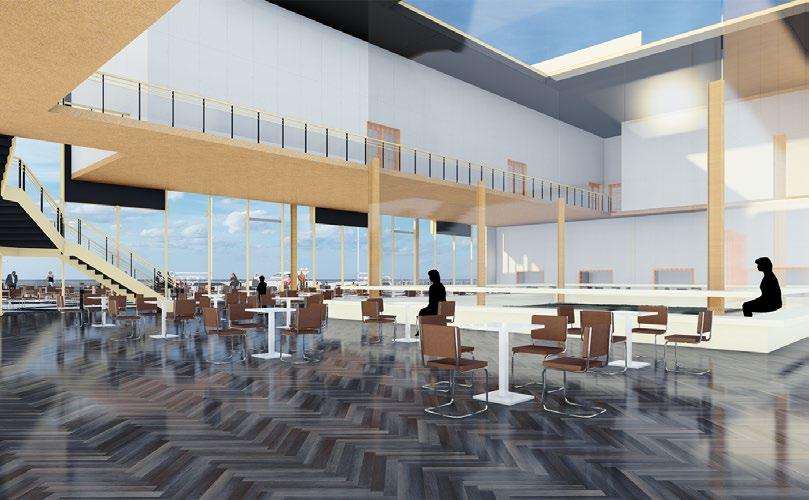

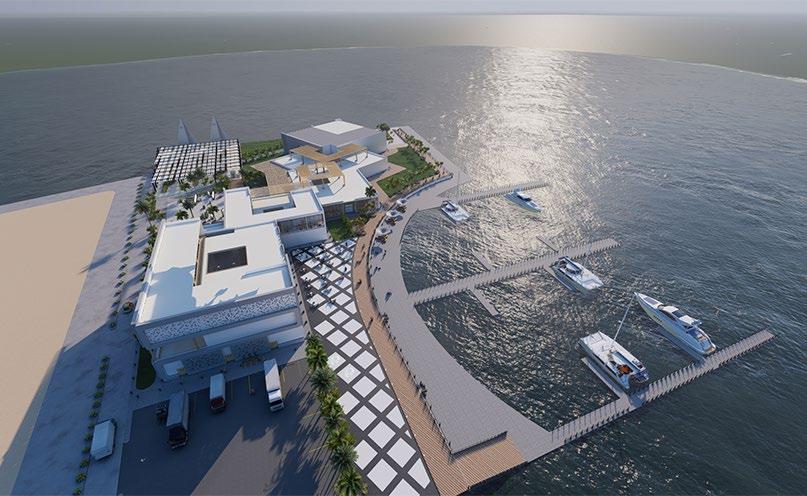

* Visualization

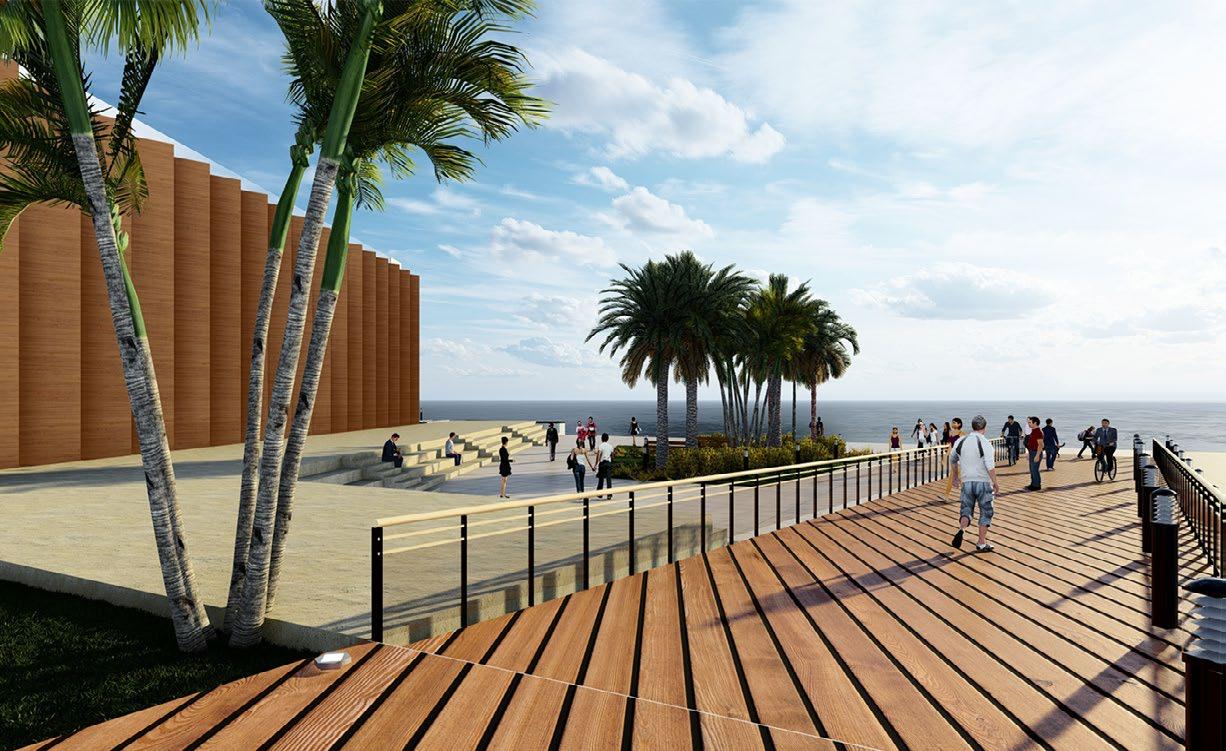

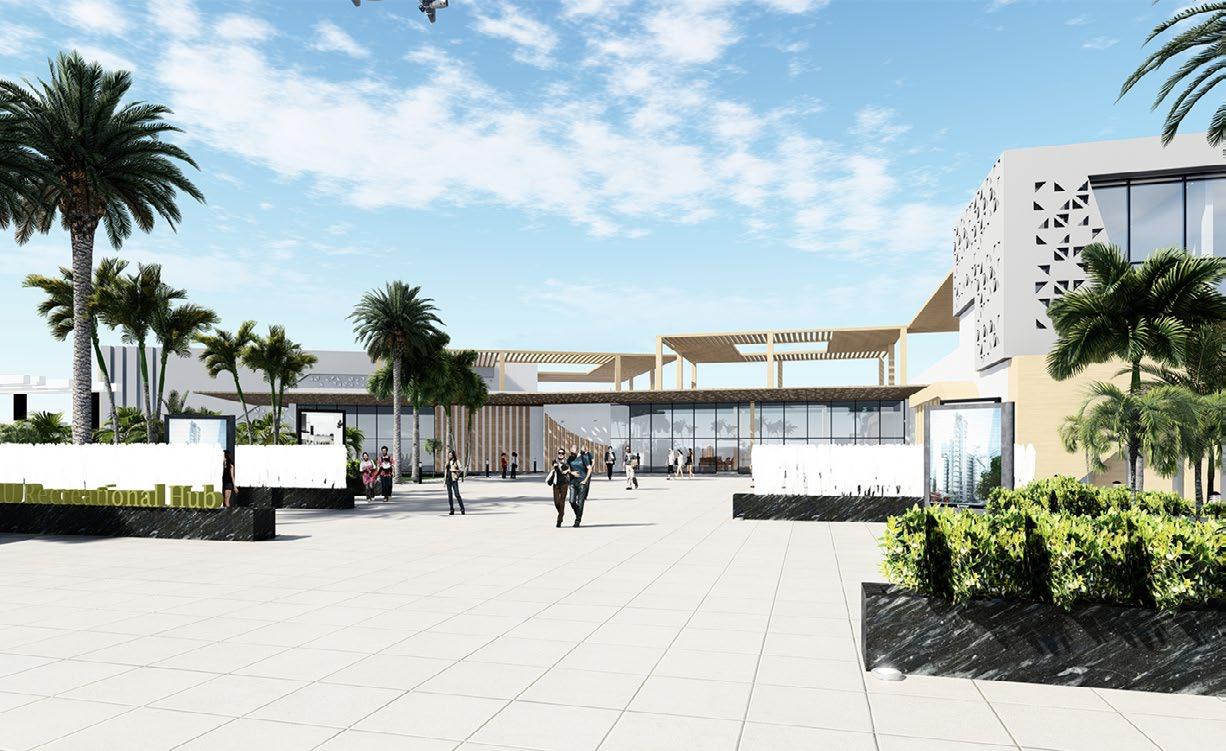

The view from the brigde or the other side which is a good view for the site and to attract people to the project

The building will be as a landmark to the city for its facilities which is less in the city and a new idea for it

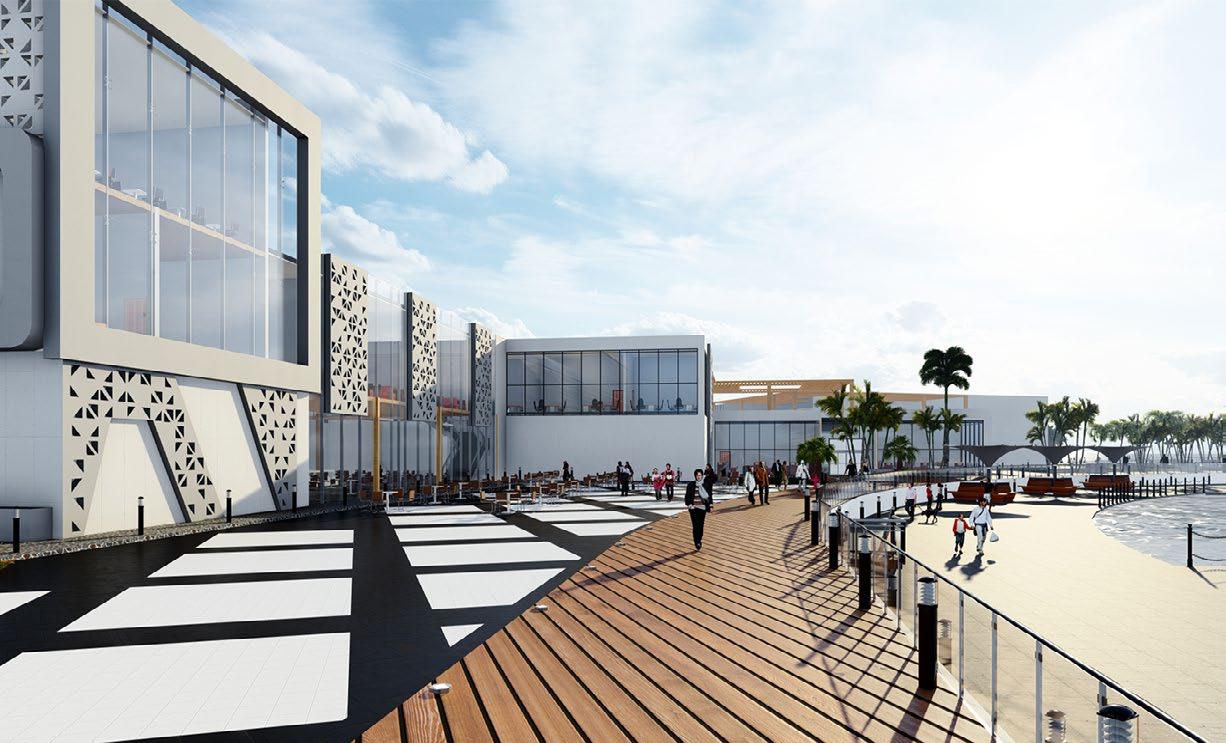

The useage of the shore and the view from the shore or the lands beside it is to be fancy to see and will make a good view to the coast

The view to the sea is open and not entrupted

The view to the east is to the link between the sea and the lake and is a good view to the marine

The view is not the best due to the non organized urban

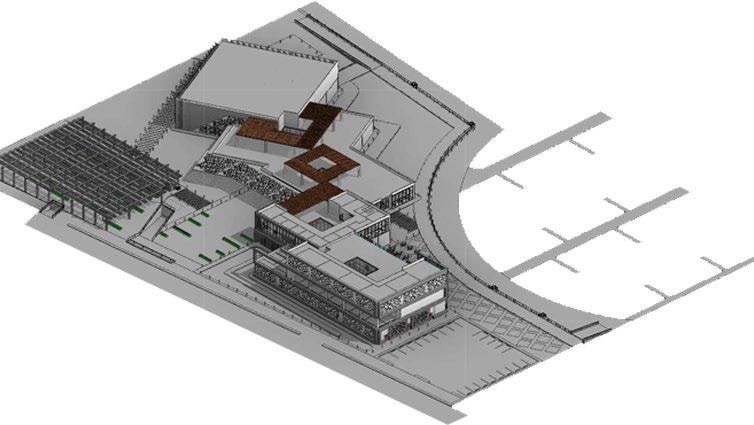

* Concept

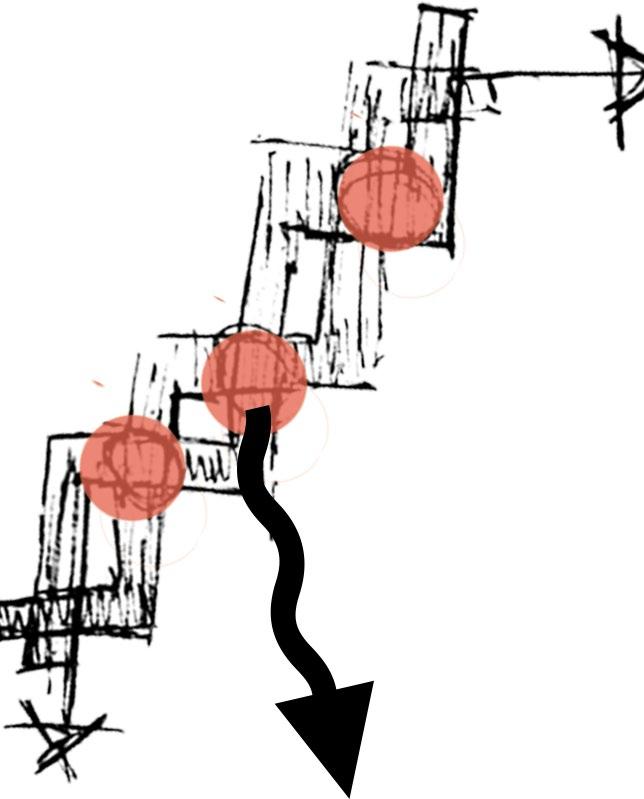

I tried to connect all the zones together through a spine which determine the walk of the visitors inside the building and outside and make each one go to his zone in a comfort way without being intrupted by the other one

* Structure system

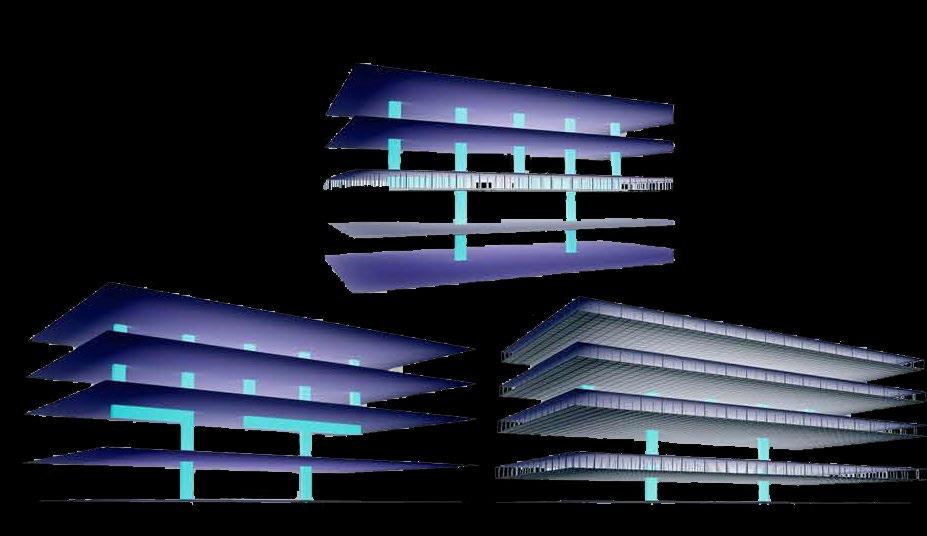

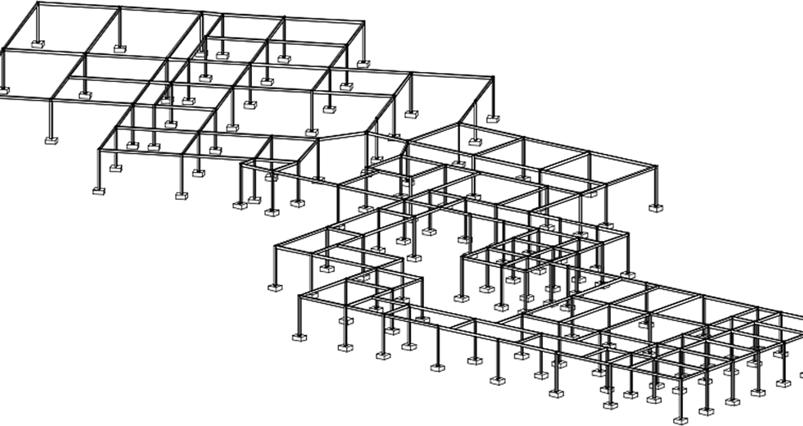

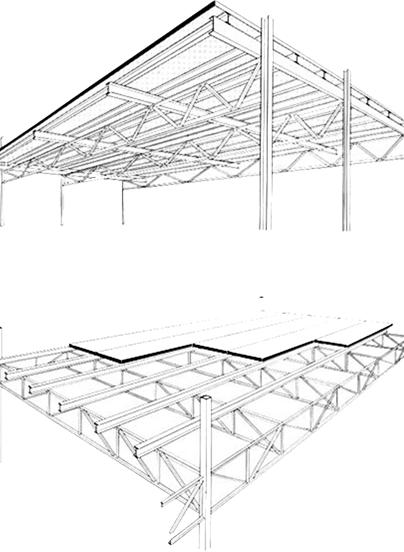

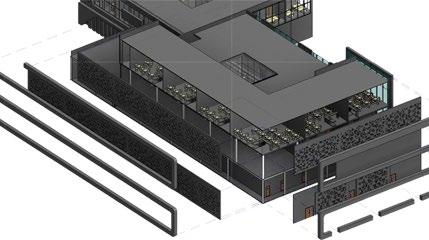

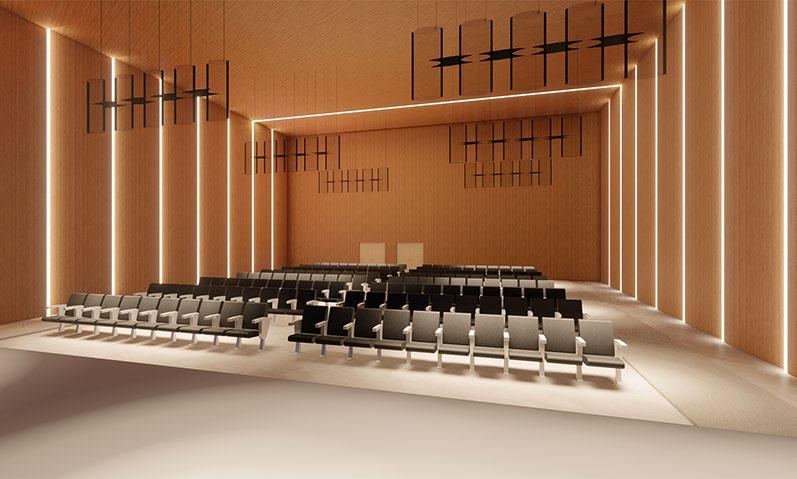

Structure system used is the ‘space frame structure system’ which i used for its big span allowance and the high hieghts i need like in the multipurpose hall and for the overlaying forms in the entertainment zone in L shape with free space under it and the cladding is according to the use of the space

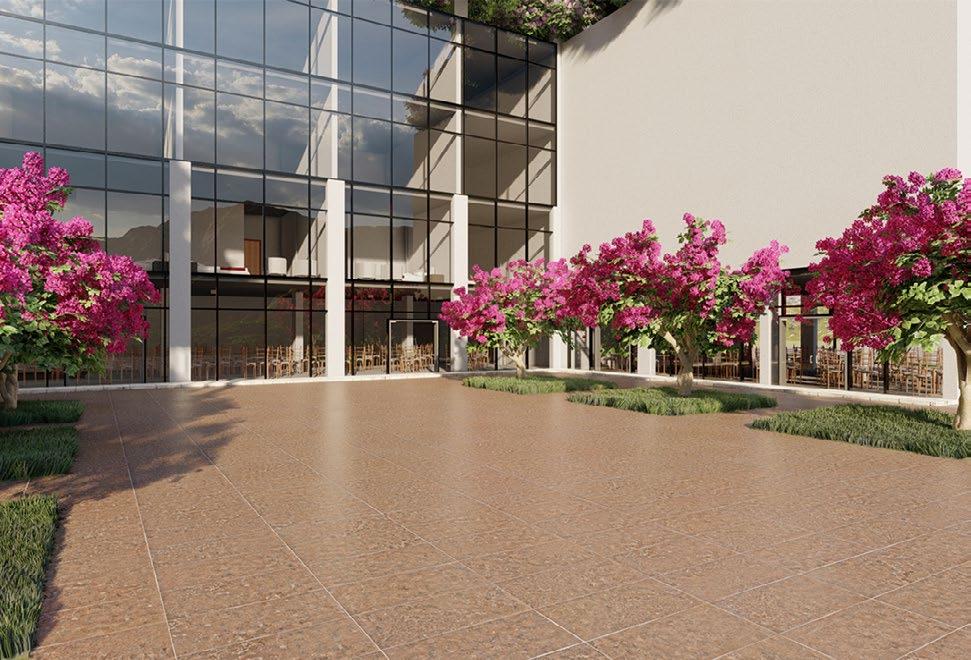

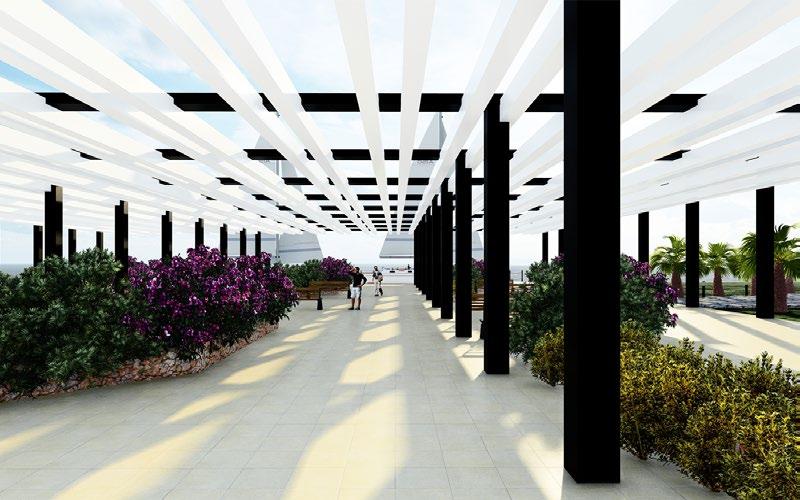

Courts that connect the building

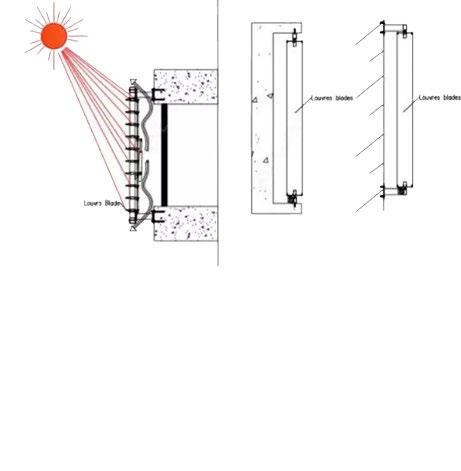

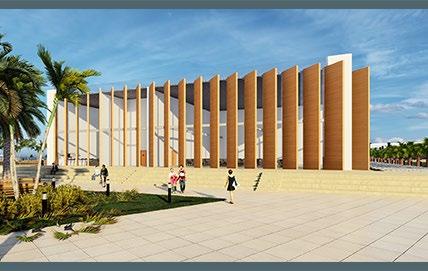

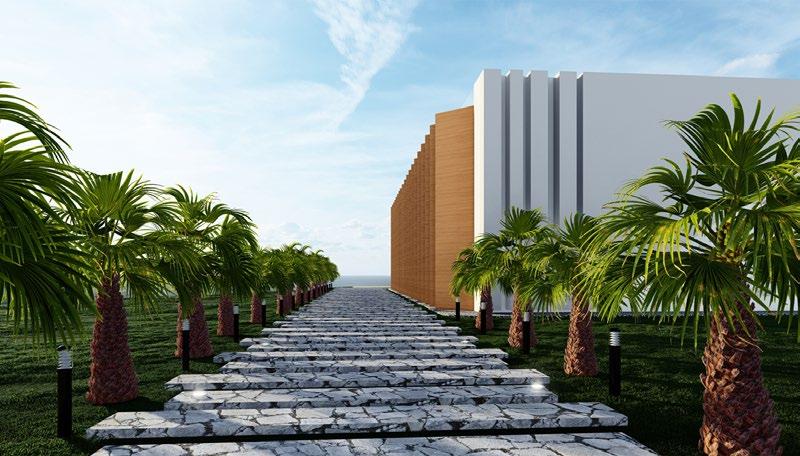

Vertical louvers :

Used in order to allow air or light in while keeping sunshine or moisture out. They are a good solution if you have large full-length glazing, like sliding or bifold doors. They are useful for controlling the light as well as providing privacy. If you need to manage strong sunlight, the louvres can be re-positioned throughout the day to manipulate the light.

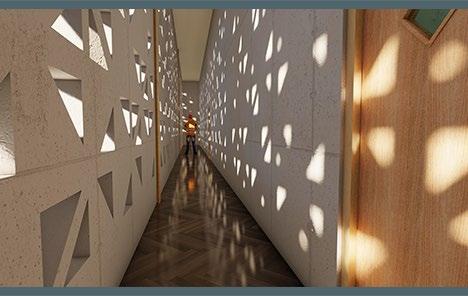

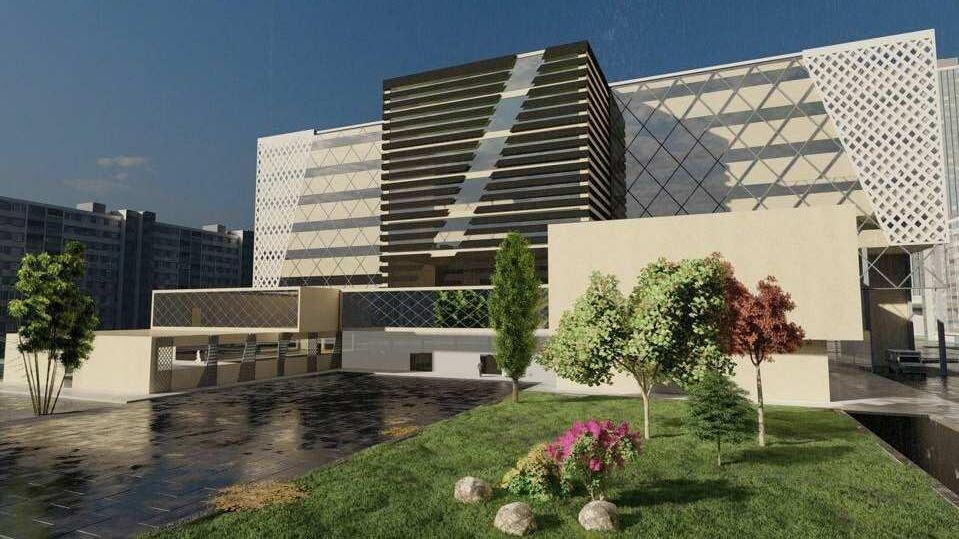

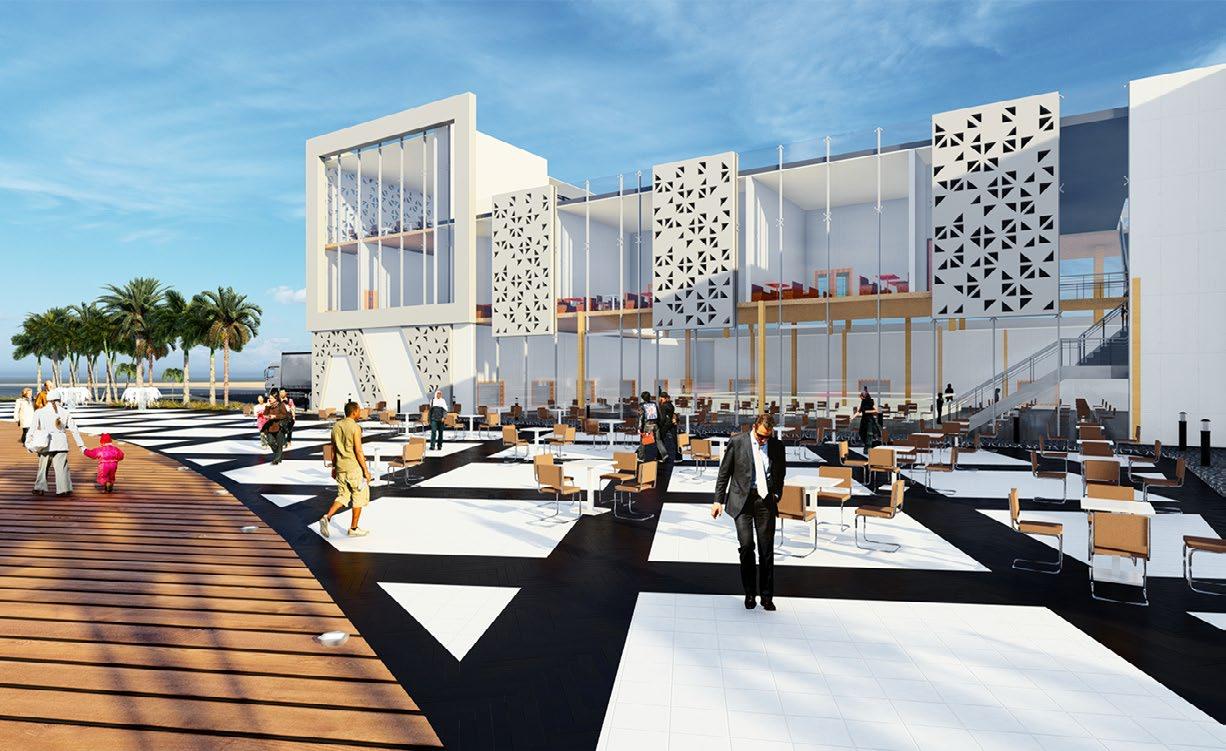

Elevation shade :

The pattern used in the elevations is used for the enter of the day light without enter the sun in the south and west elevations so the place is cool and not hot for the people inside to reduce the usage of the hvac or outsource cooling system and in the spaces like restaurants and cafes is for the formation in the facade and good interior design.

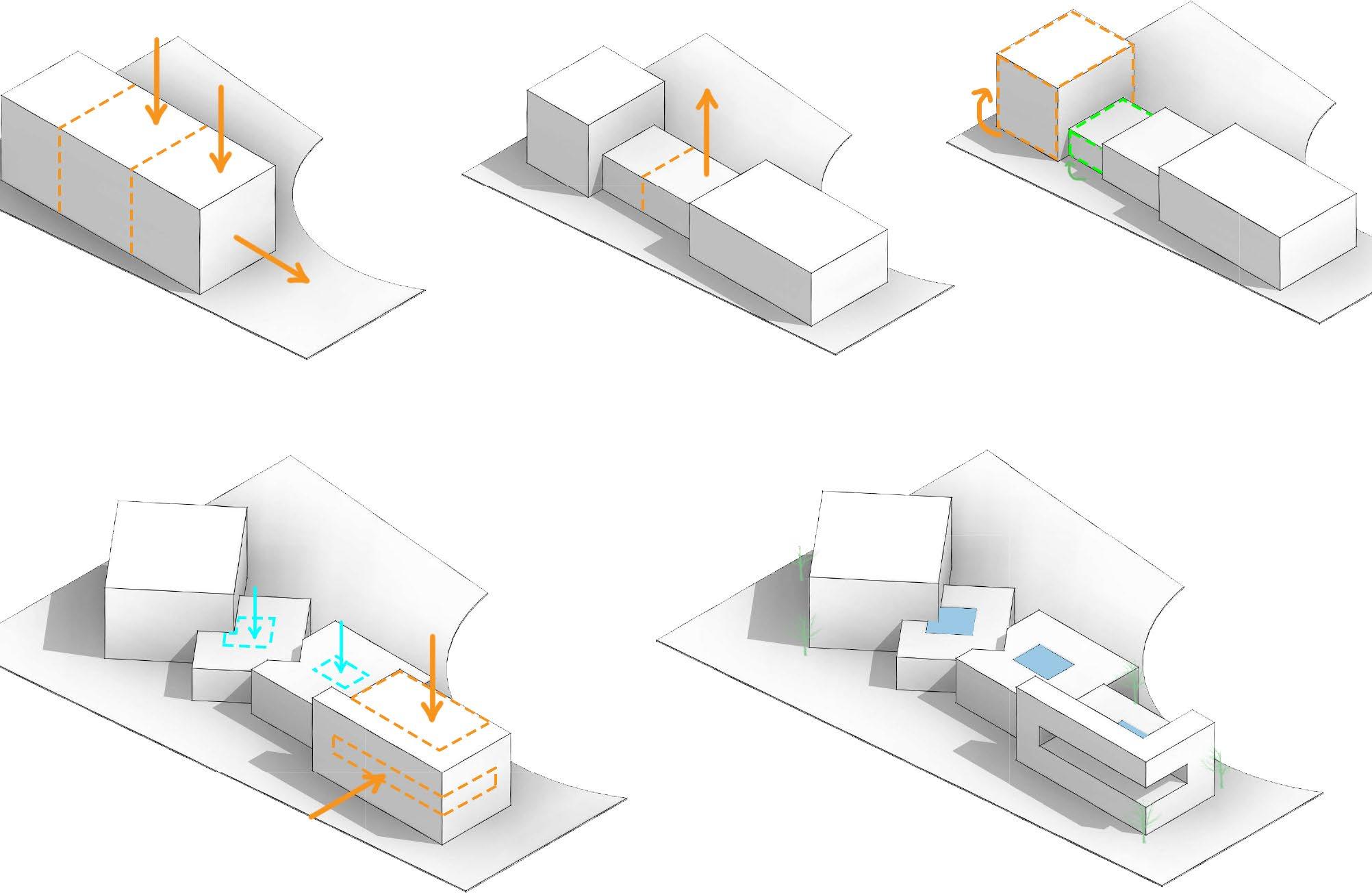

At the first I put simple rectangle and insert the three uses that I have

Then I tried to differ between them in the hieghts

Entrance form devided into two forms and the cultural form rotated as the second form

Then I begin to add and subtract in the forms to make a good form and add a skylight to connect the spine

In the end i tried to keep the use of the square and rectangle and try to make a good form with it

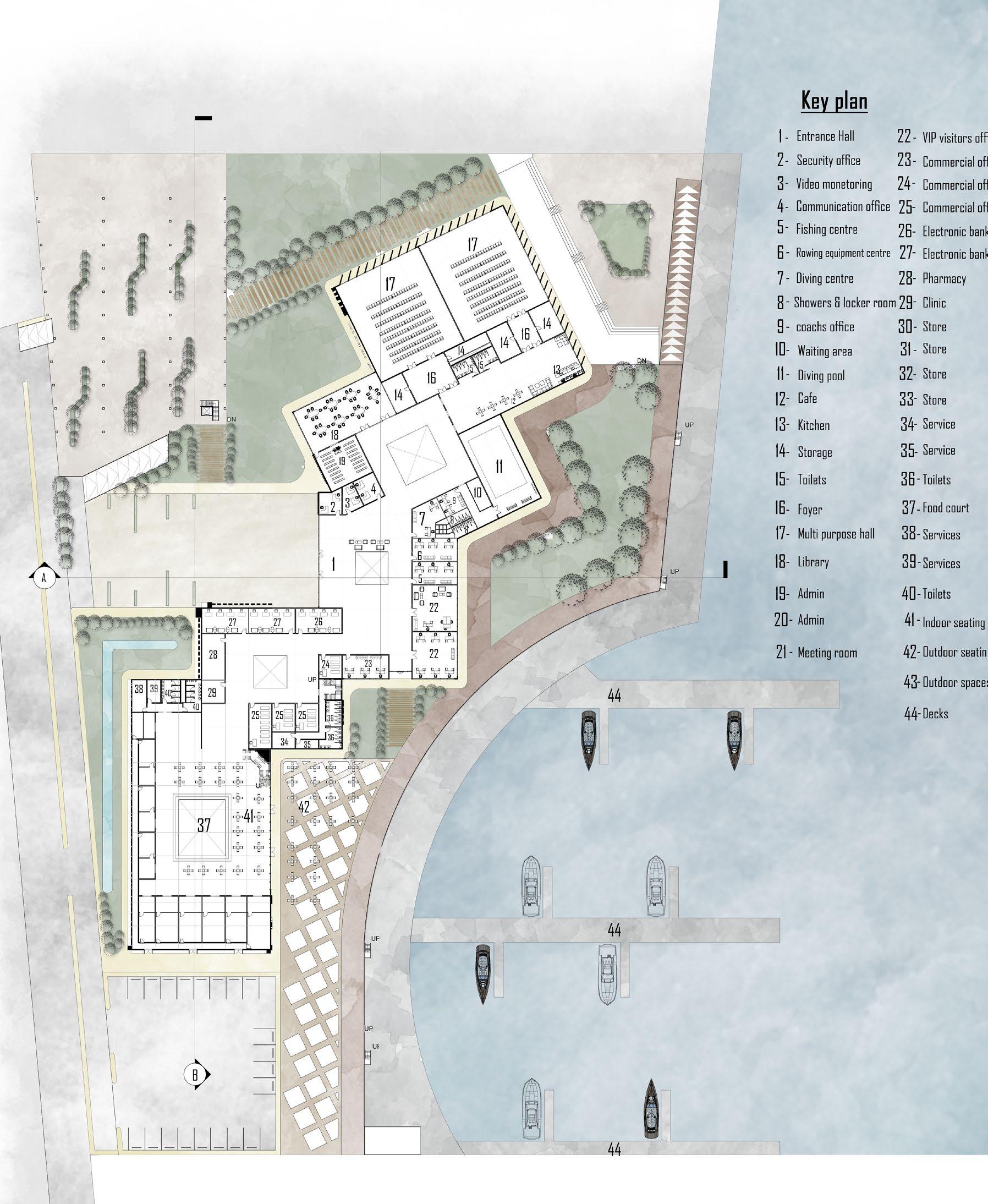

First floor plan

Basment floor plan

Second floor plan

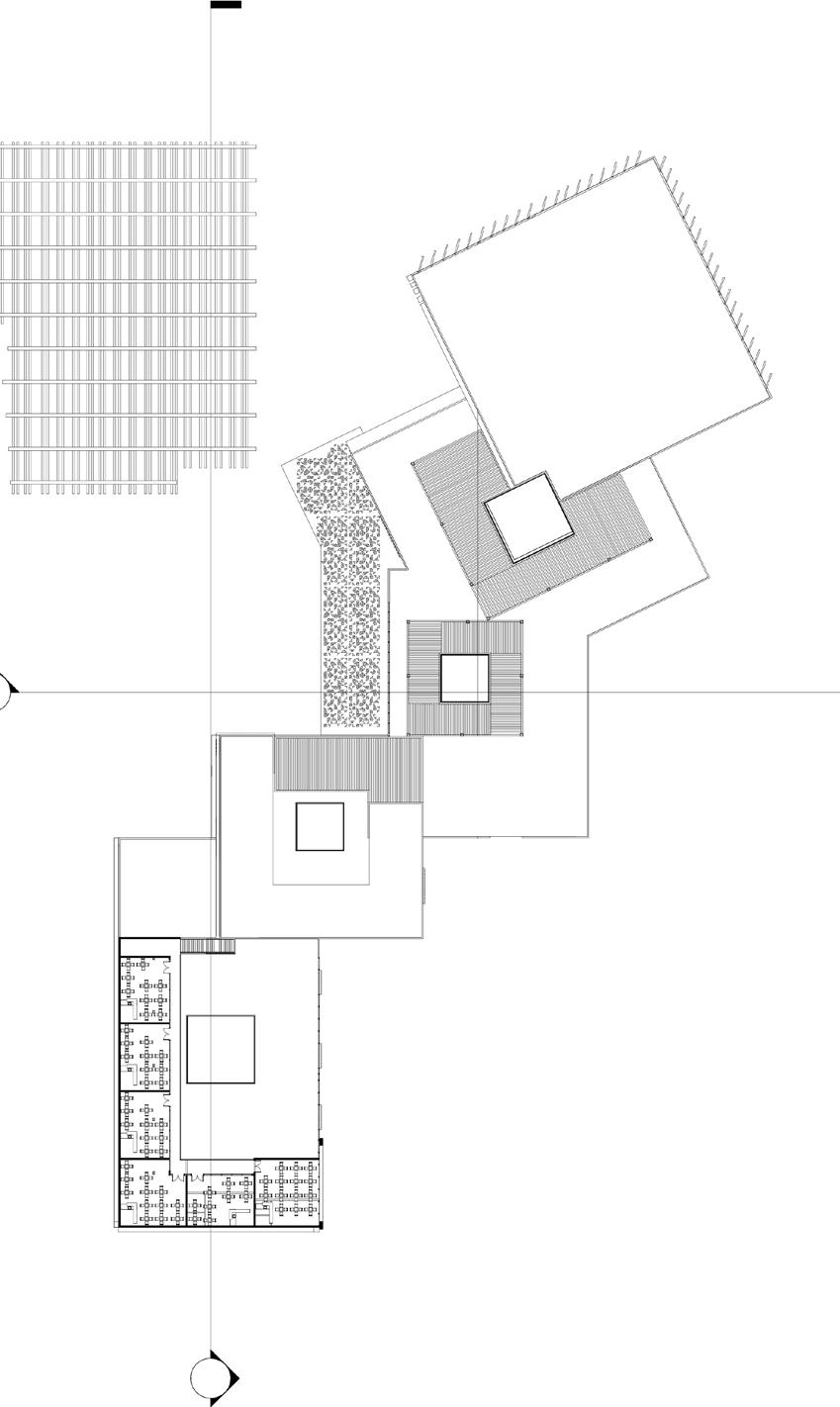

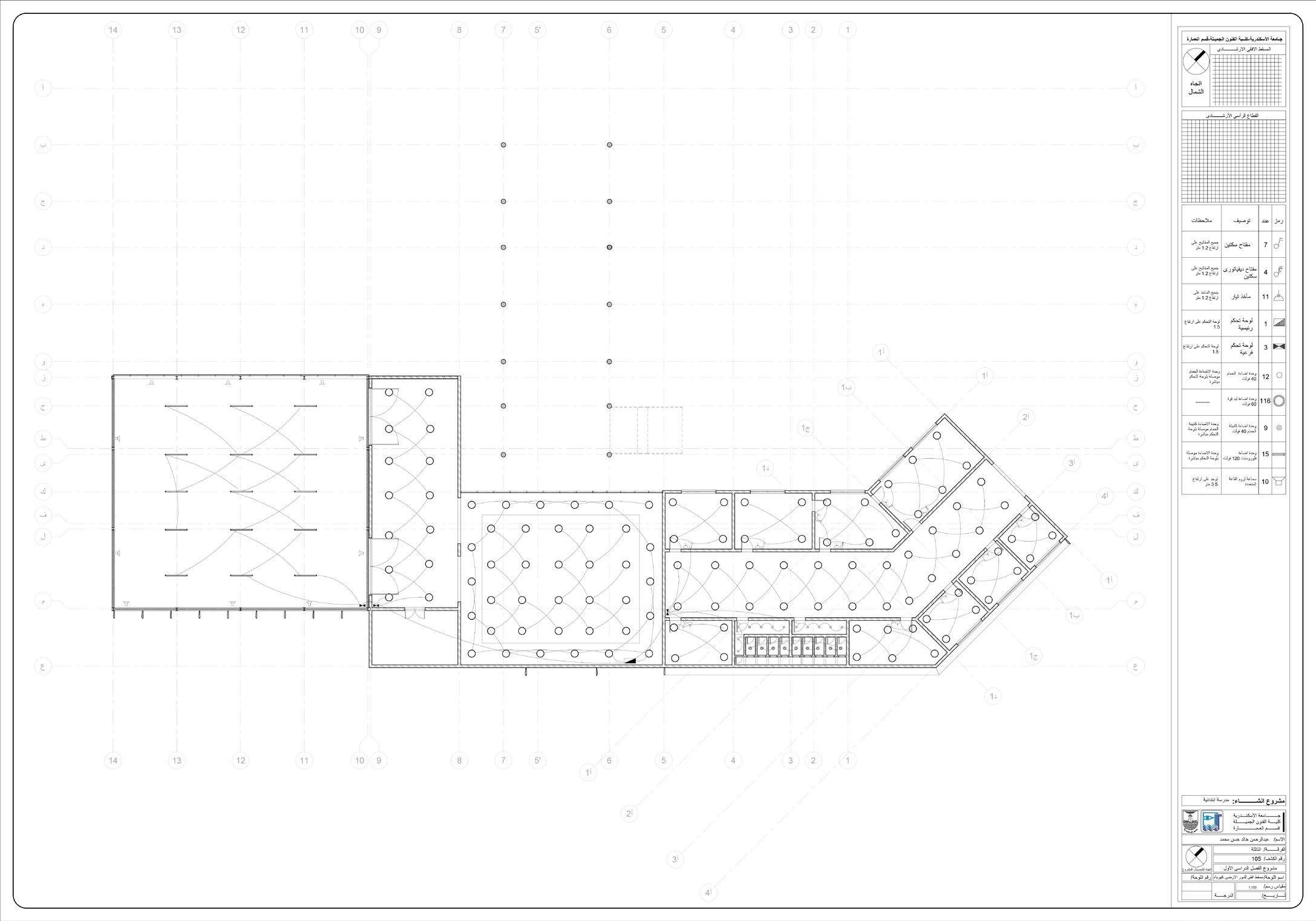

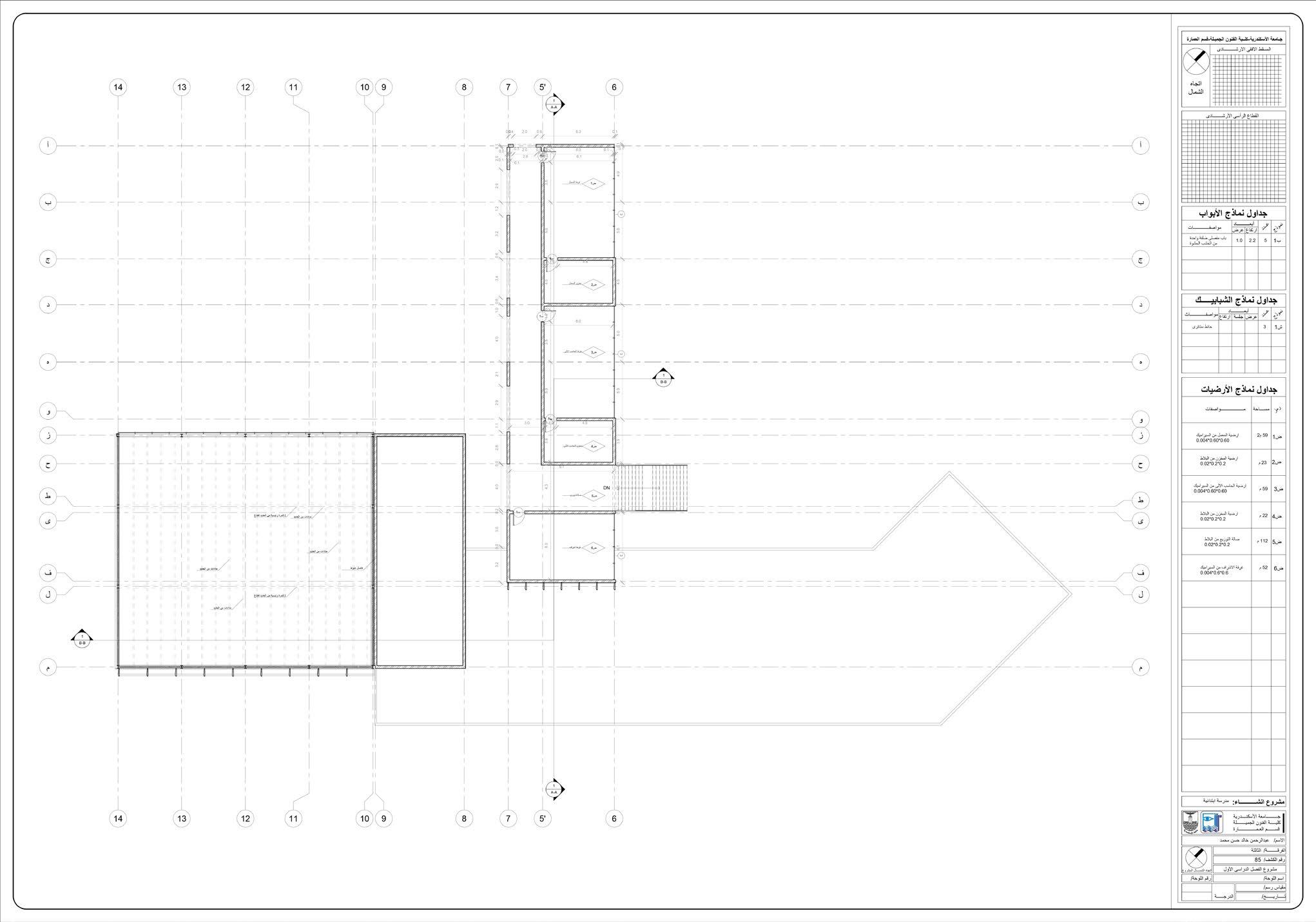

Structural floor plan

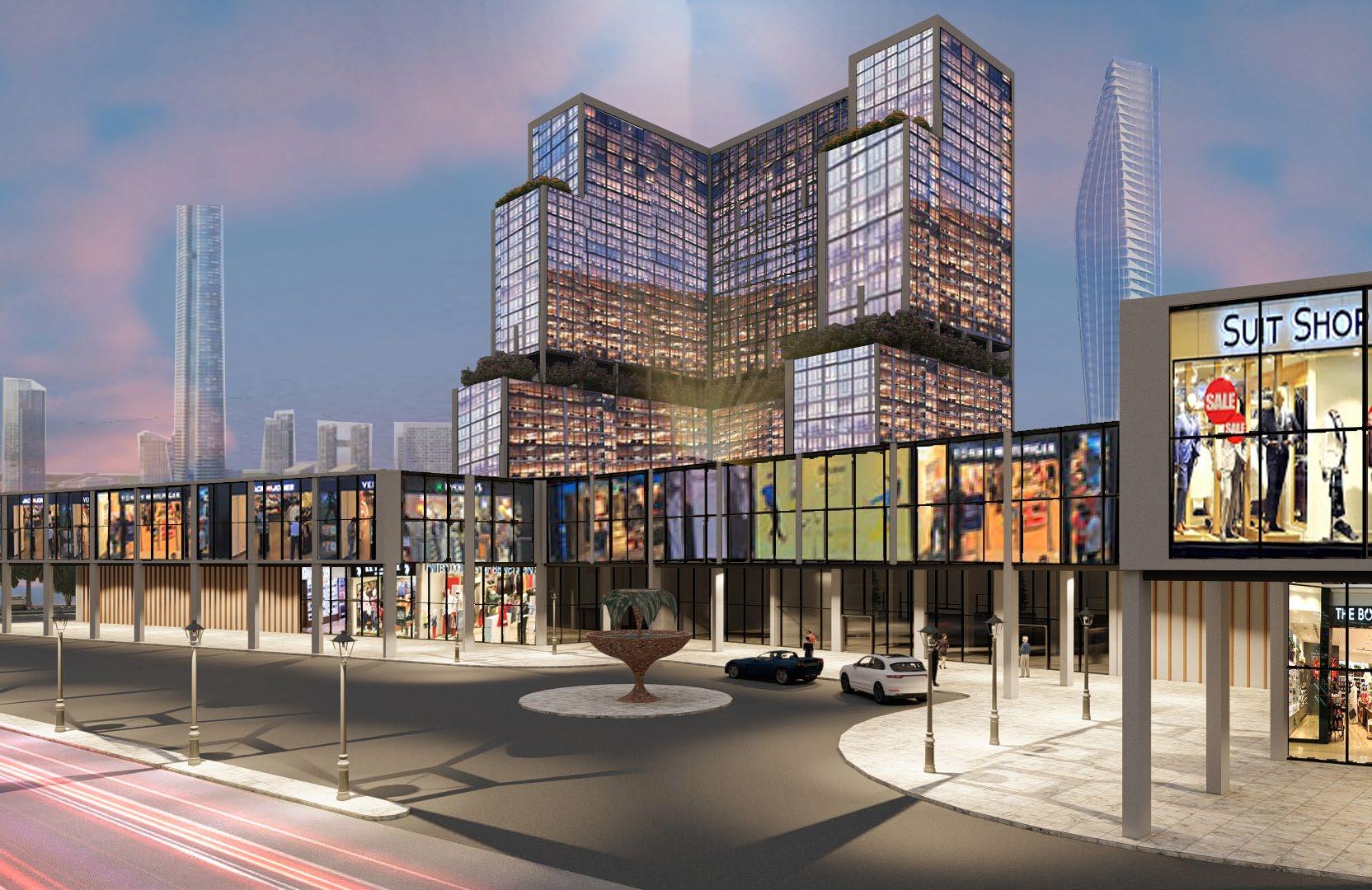

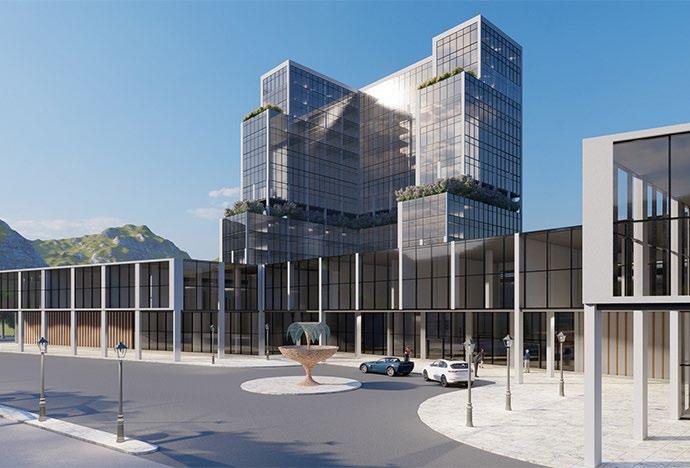

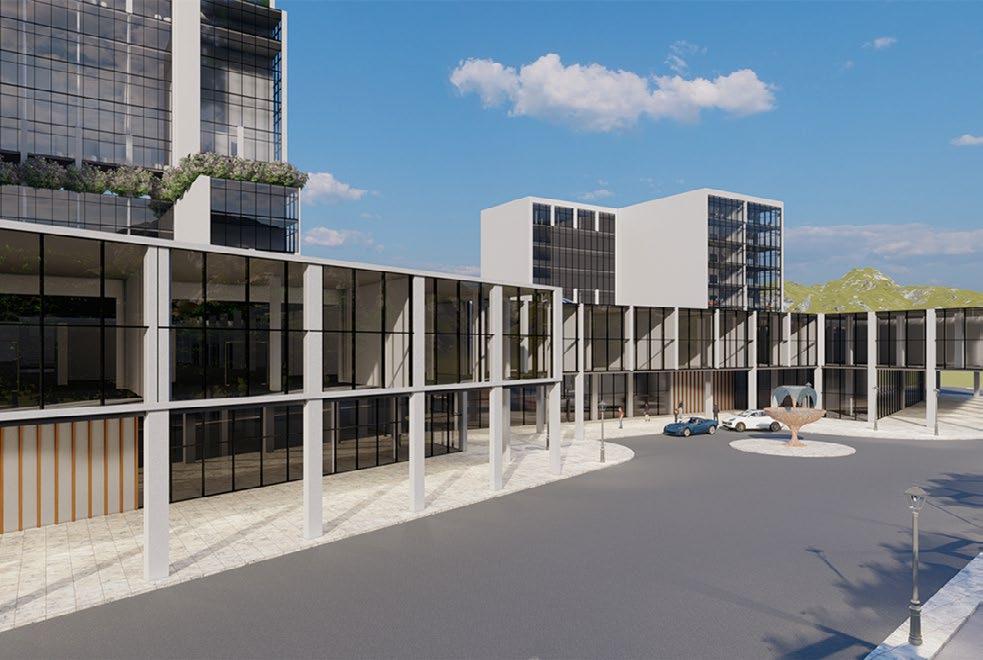

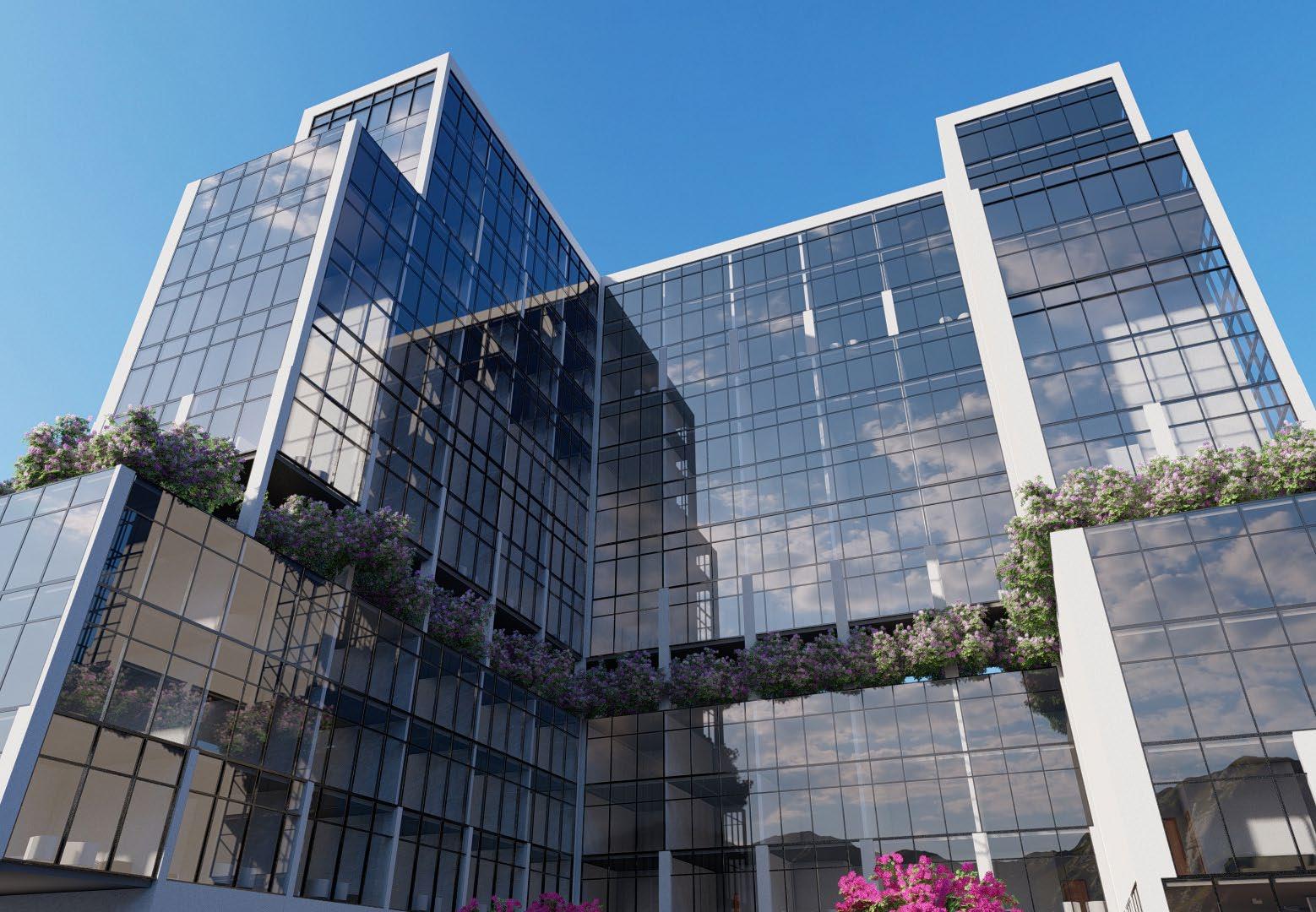

Mixed Use Building

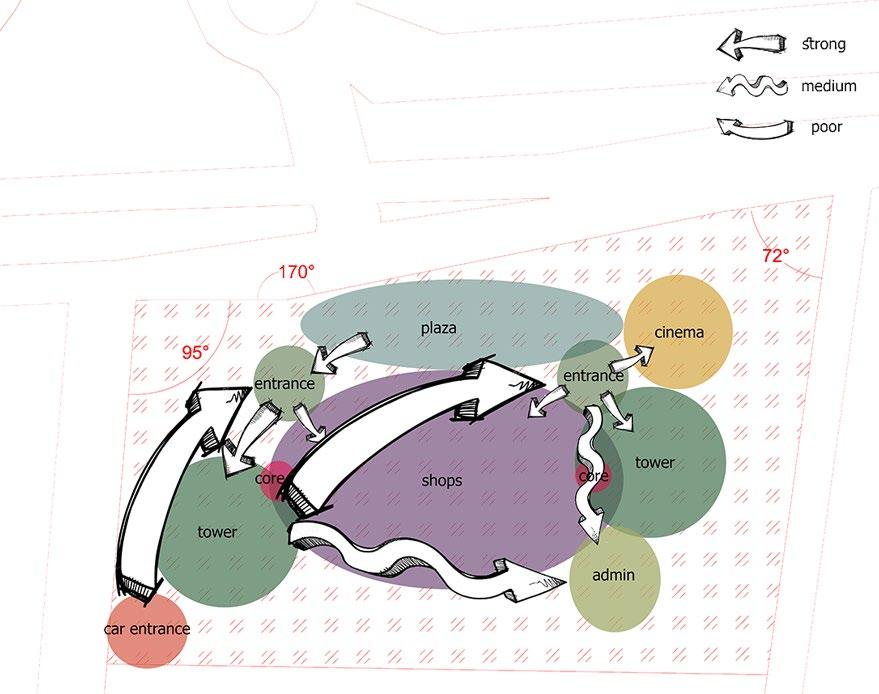

The main idea of the project was to make the trip inside the mall is easy and enjoyable .

The guests move in clear passages to make them interested to see the rest of the mall and the important things such as market or cinema where put beside the ladders and esclators to make it clear to the guests

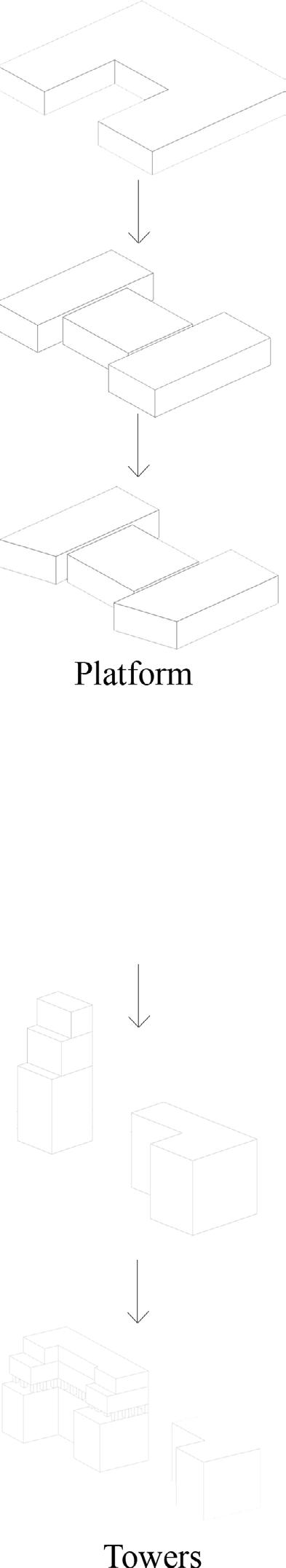

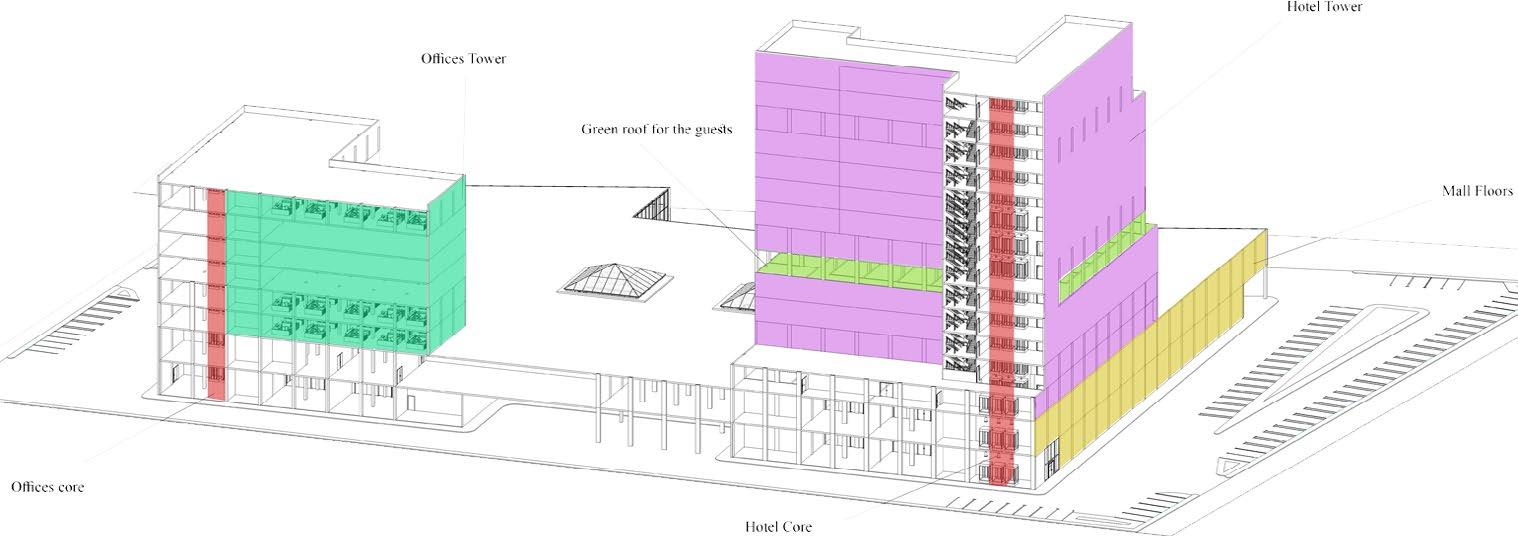

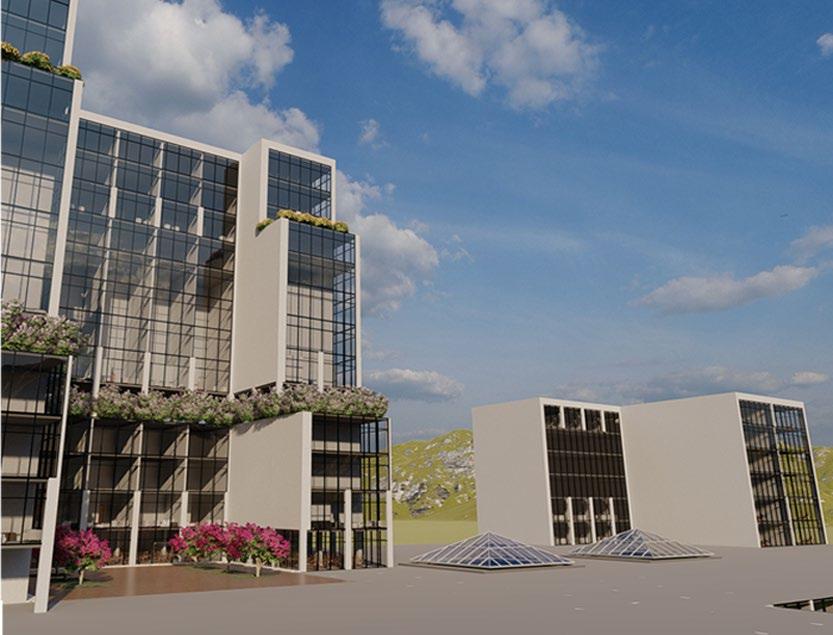

The hotel tower hierarchy was to make the view from the top to the see almost infinite like you look at the windows you just see the palace and the see nothing else . The green roof is a relaxation floor you see

skyline looks like El Montaza Skyline

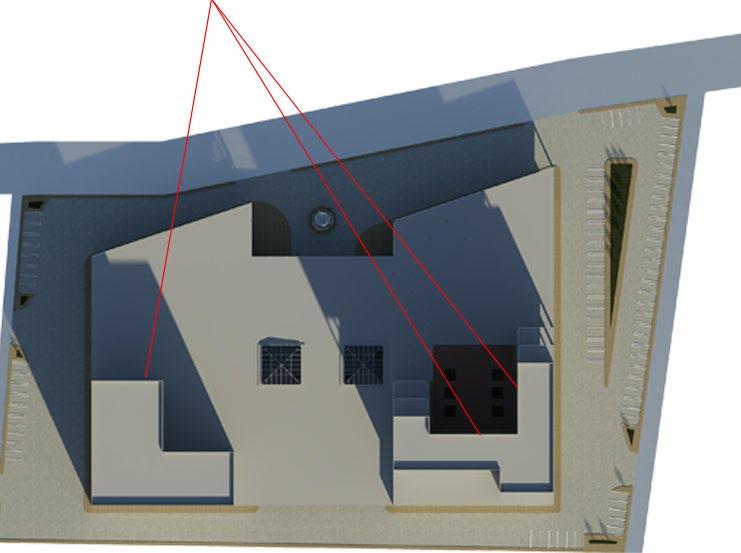

Sight view to the see and Montaza palace from the towers

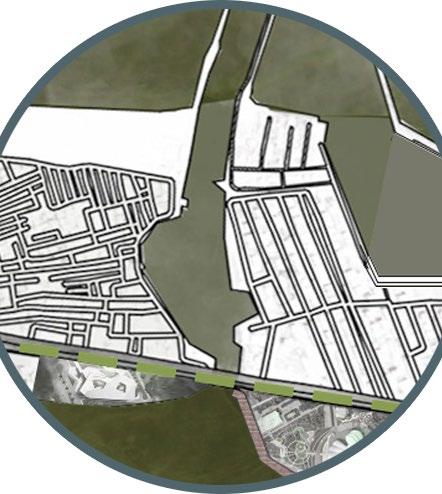

* Master plan

Calculations :

Land area = 20,000 m2

Ground floor = 8324 m2

First floor = 10,225 m2

Second floor = 2300 m2

Third floor (3-6) = 8020 m2

Seventh floor = 1905 m2

Eightth floor (8-11) = 3620 m2

Twelvth floor (12-14) = 2415 m2

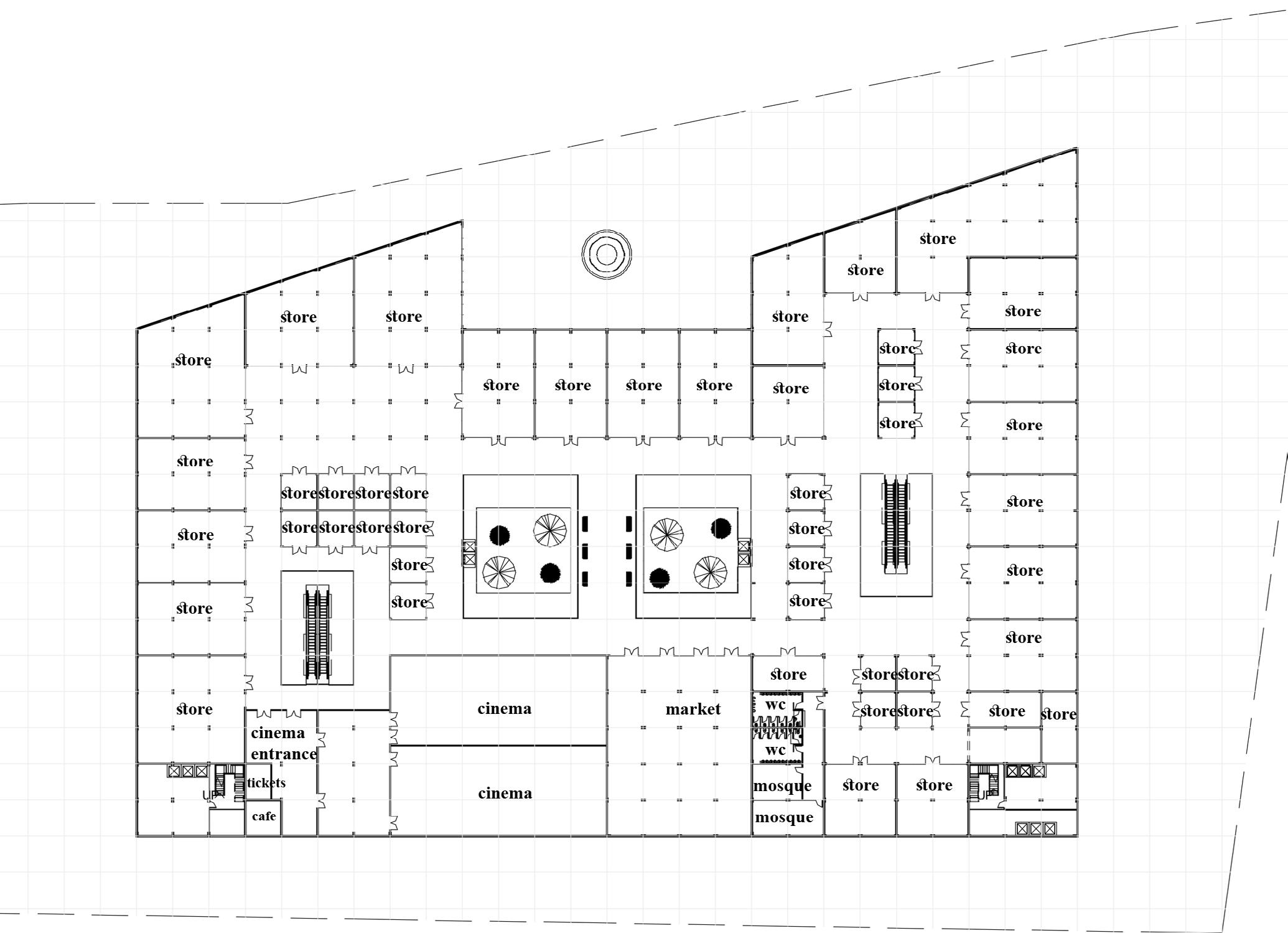

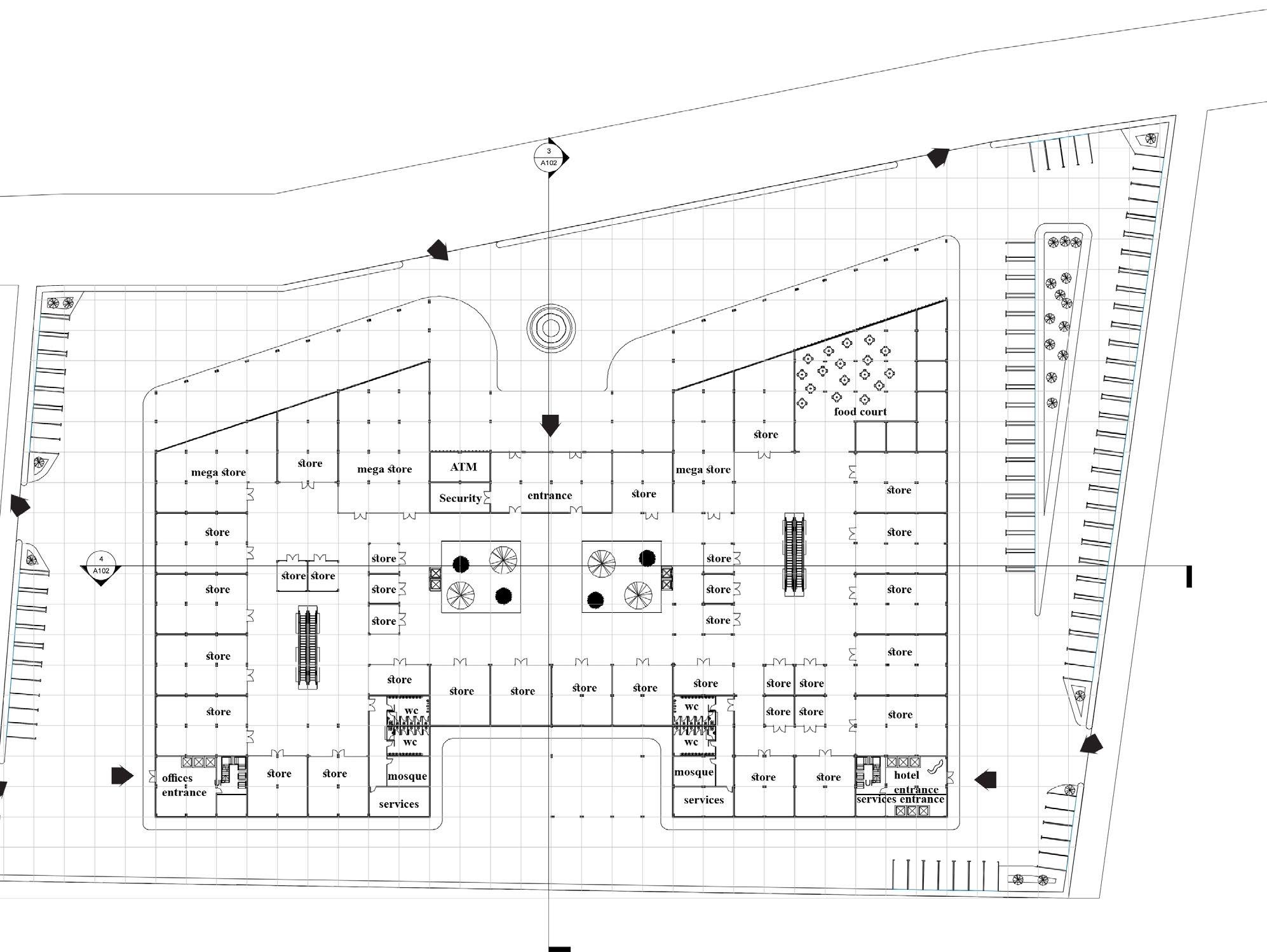

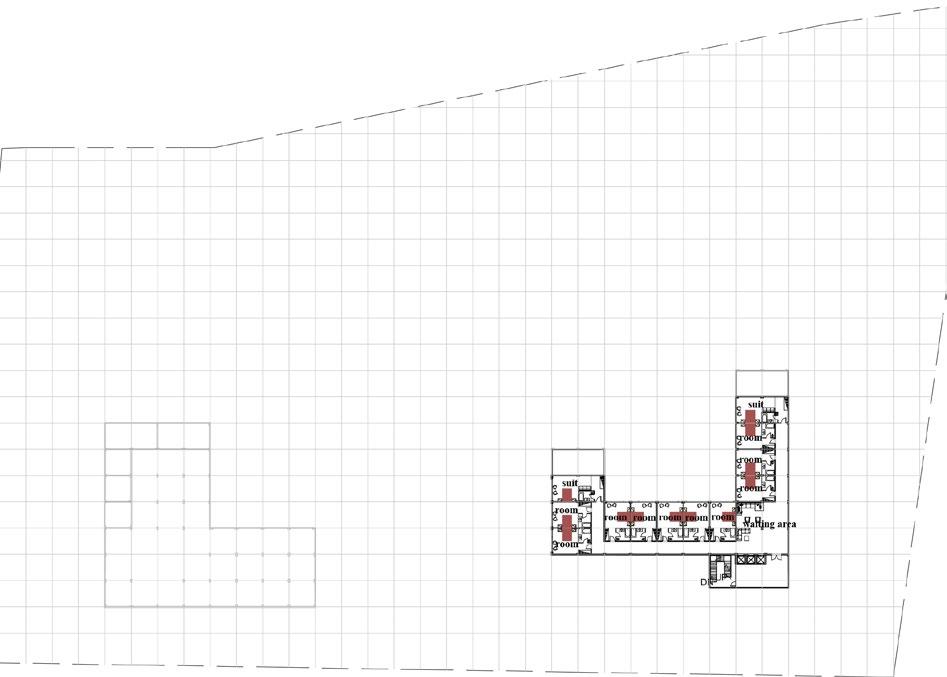

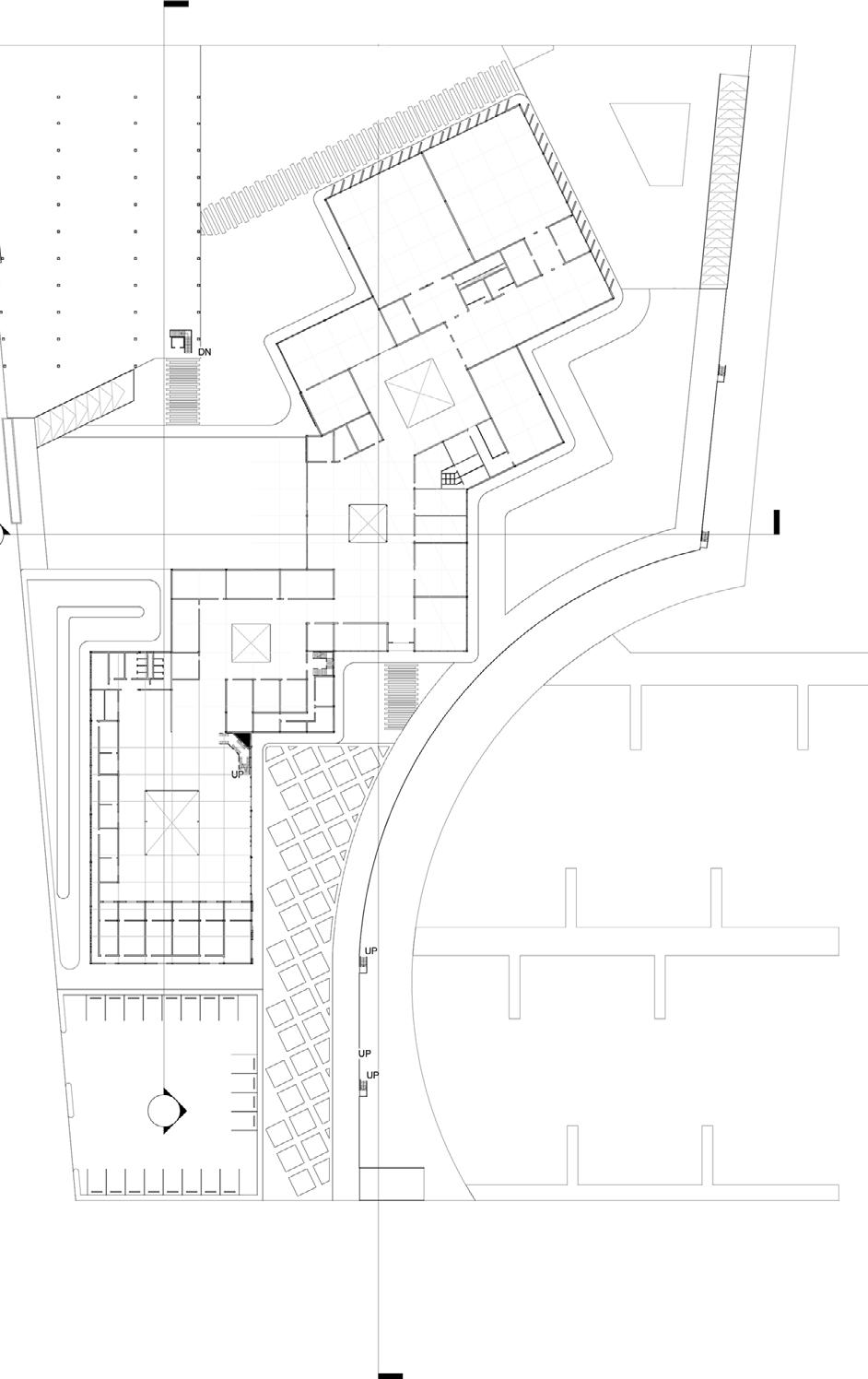

Ground floor plan

(7-12)

(3-6)

Typical (12-14)

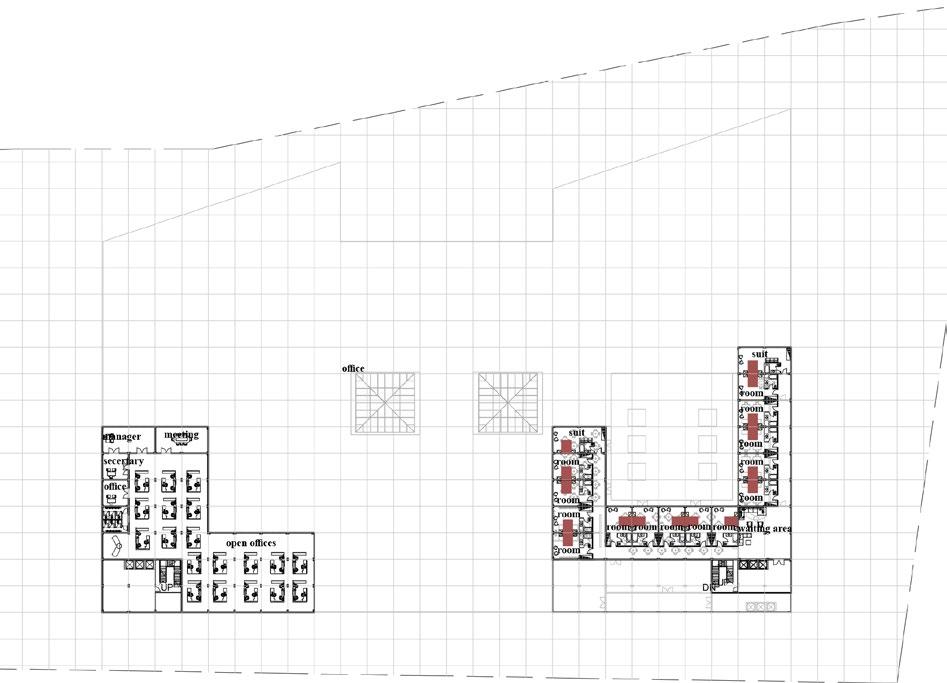

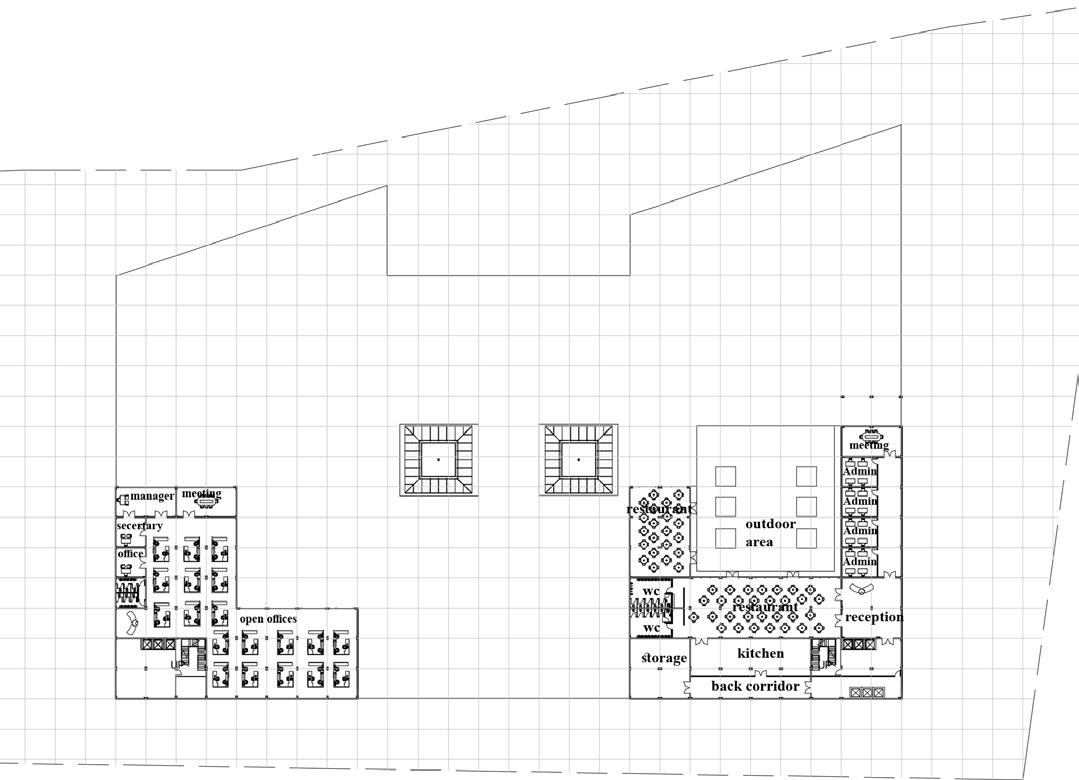

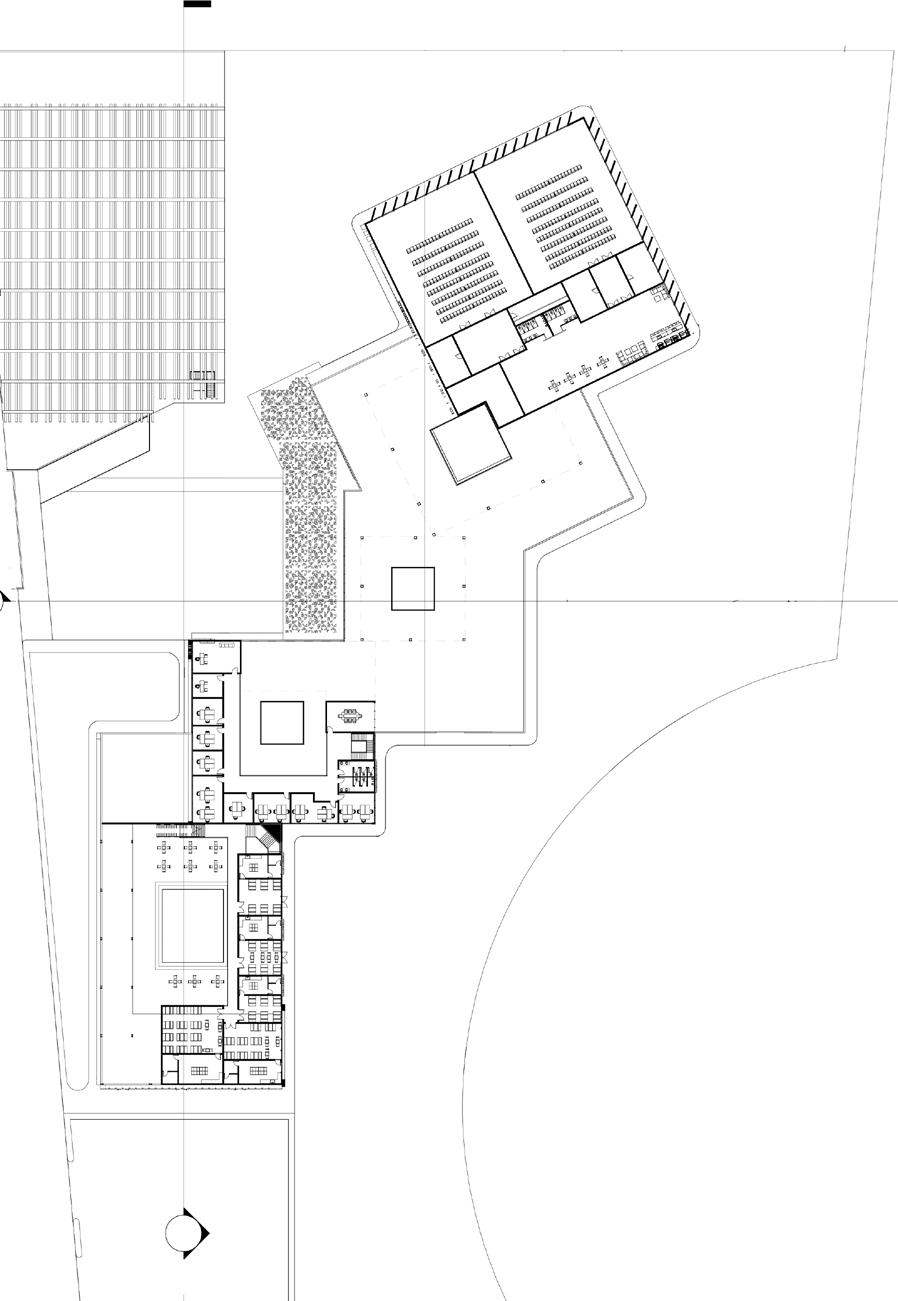

First floor plan

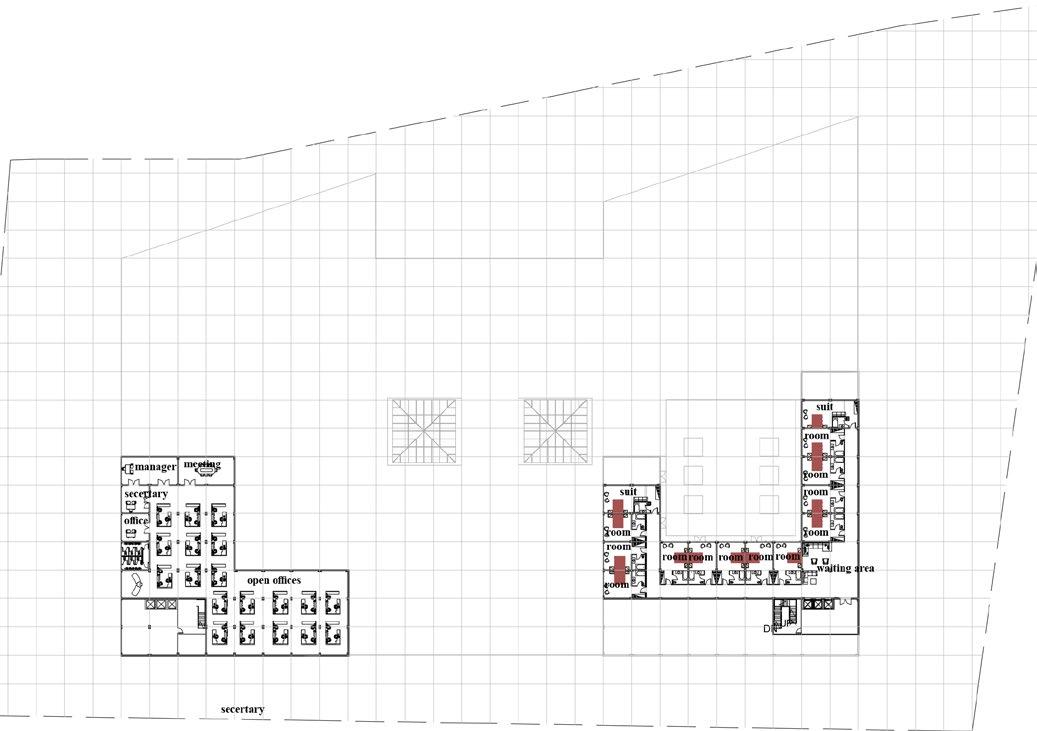

Second floor plan

Typical

floor plan

Typical

floor plan

floor plan

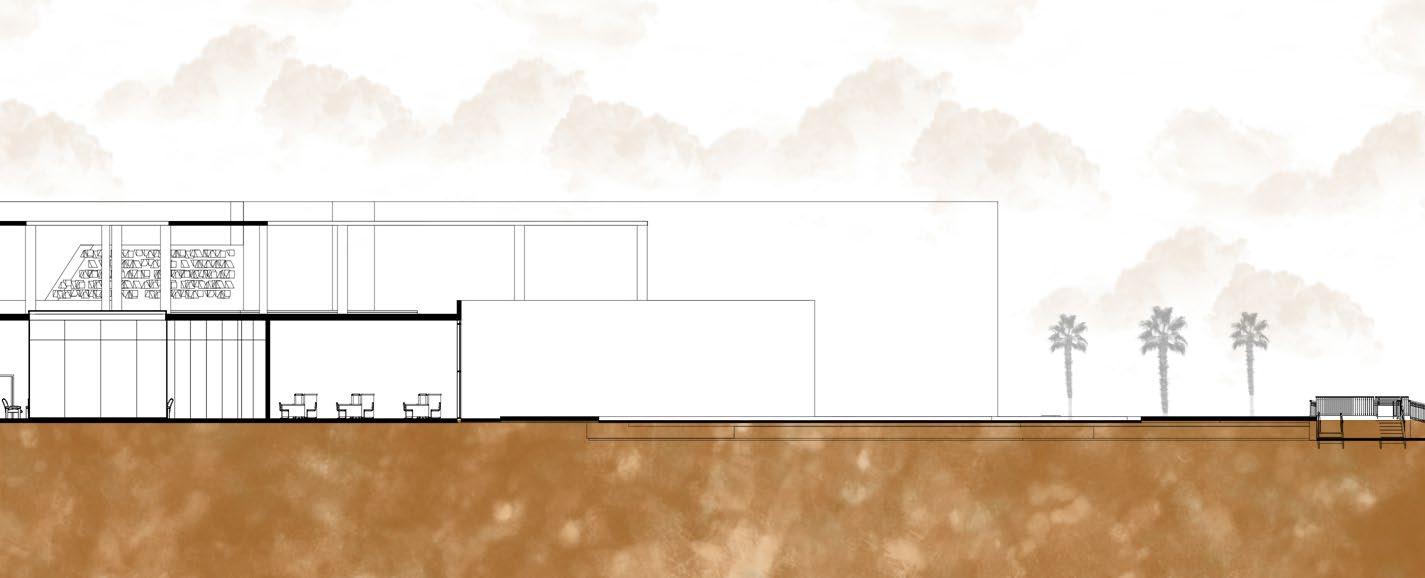

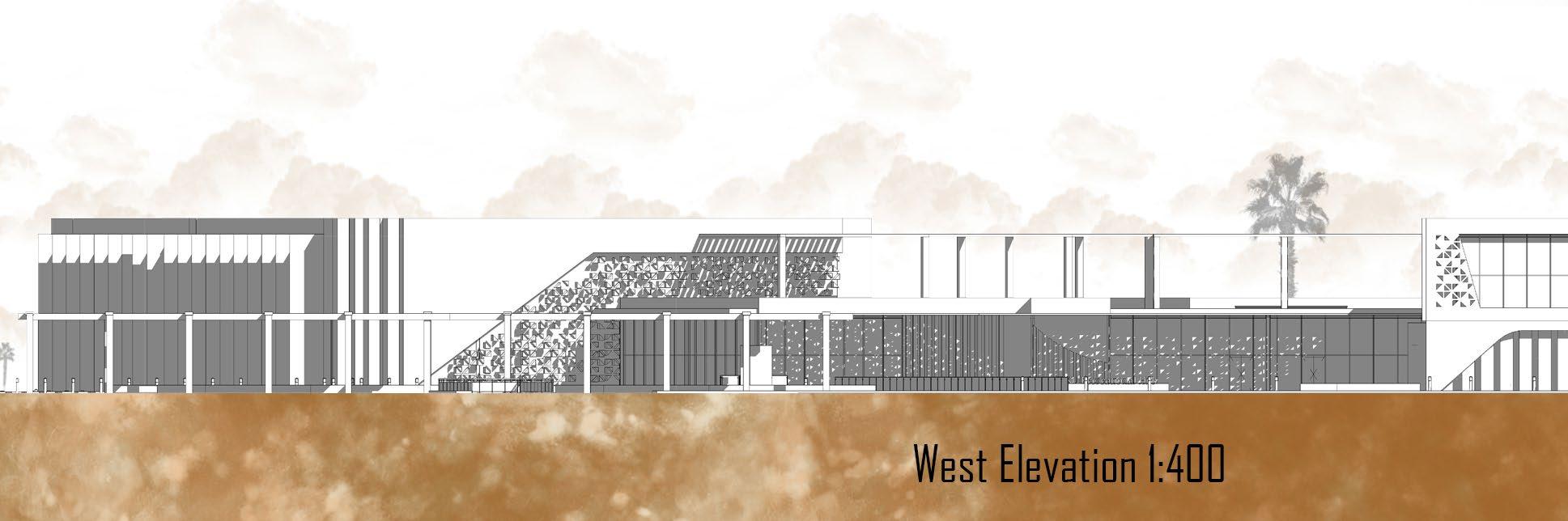

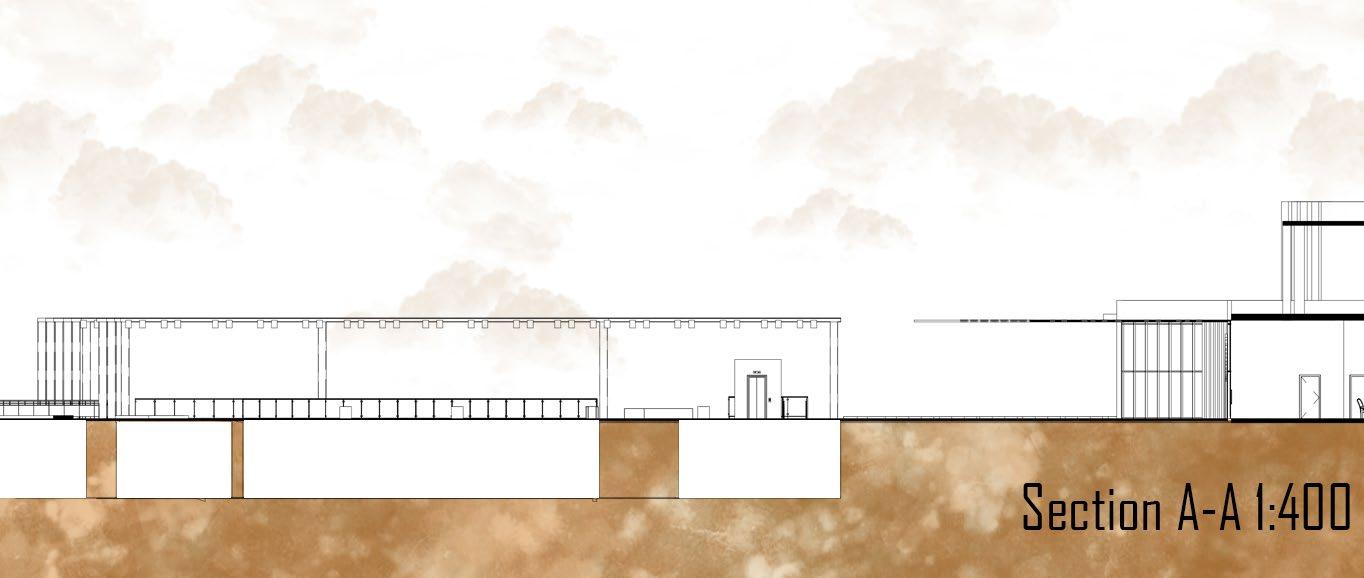

* Elevations & Sections

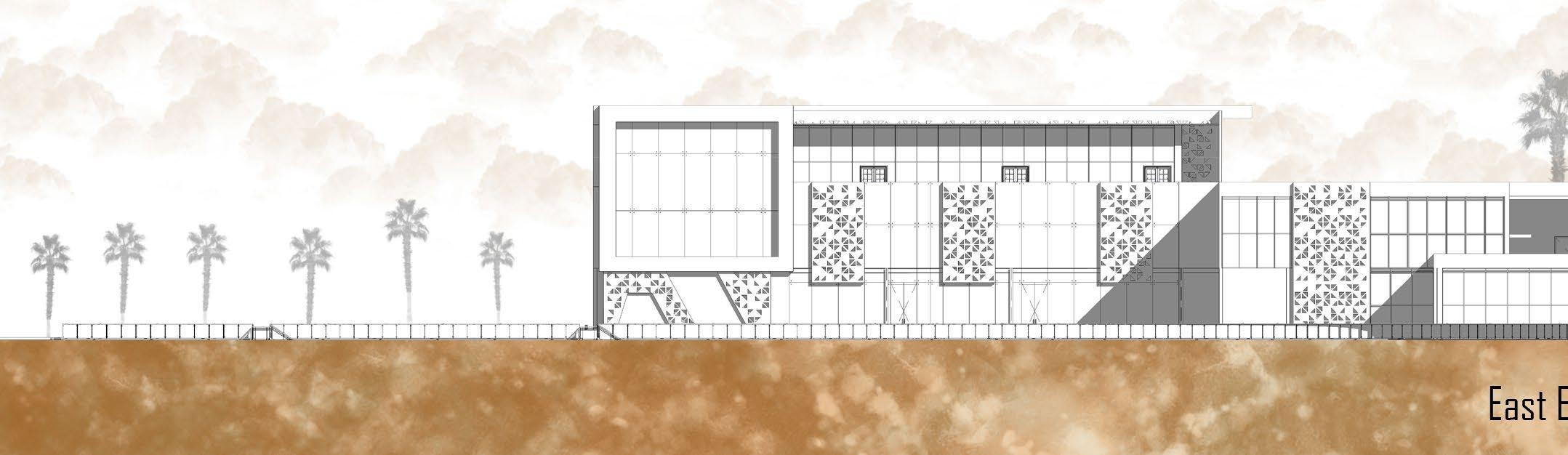

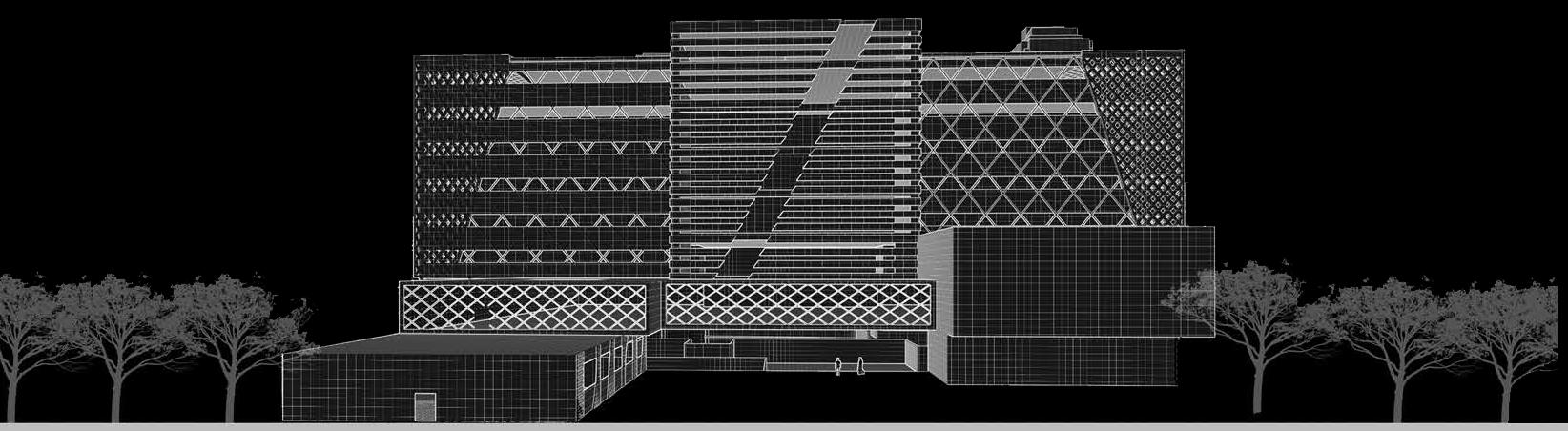

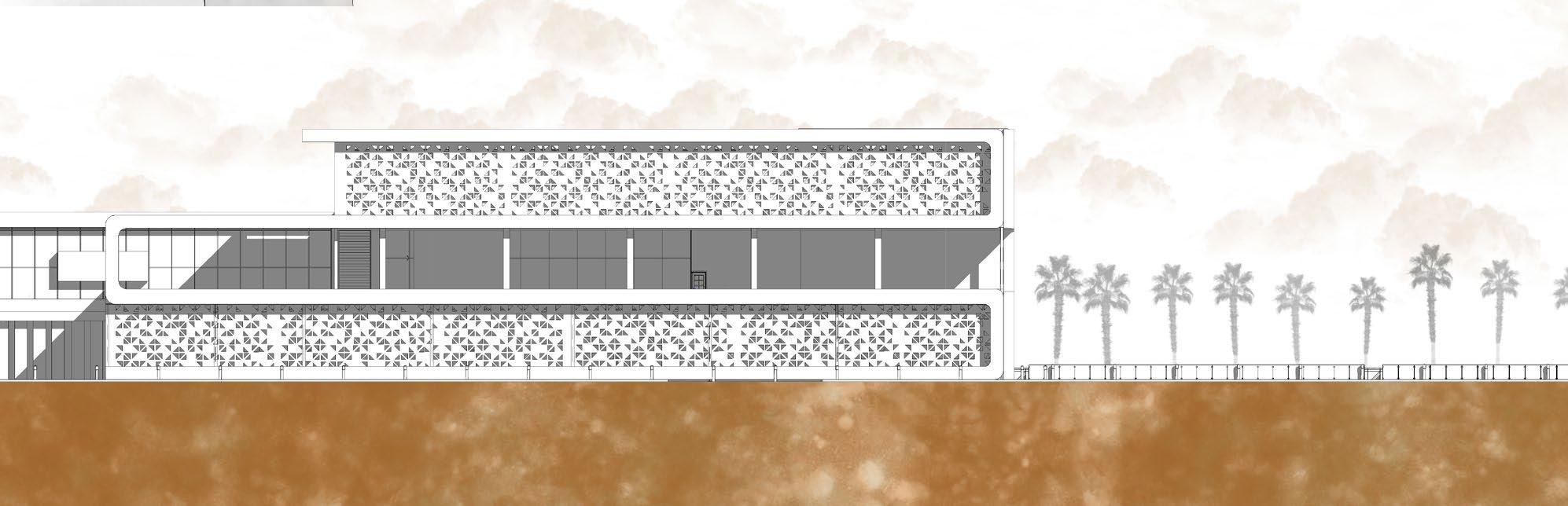

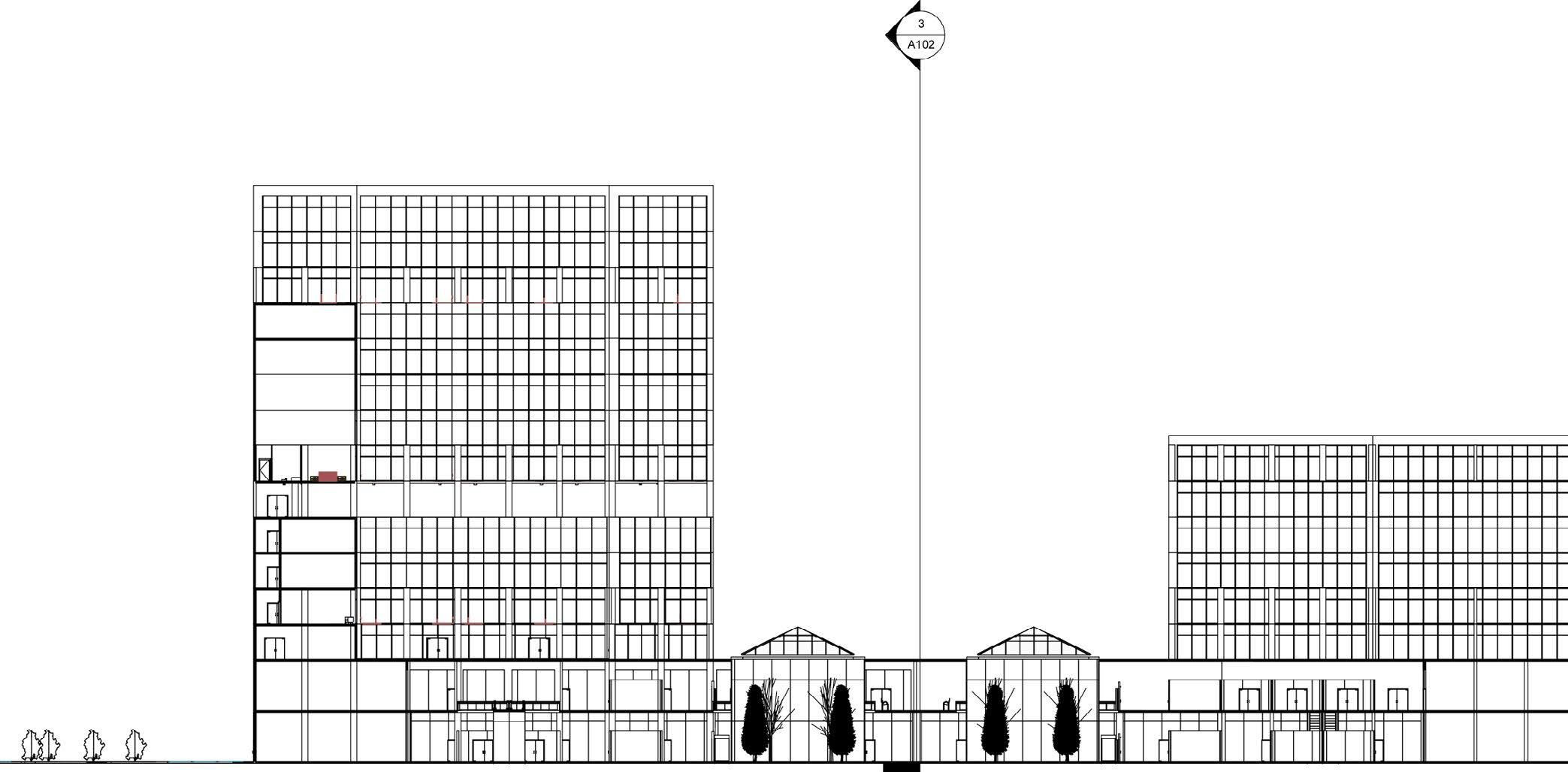

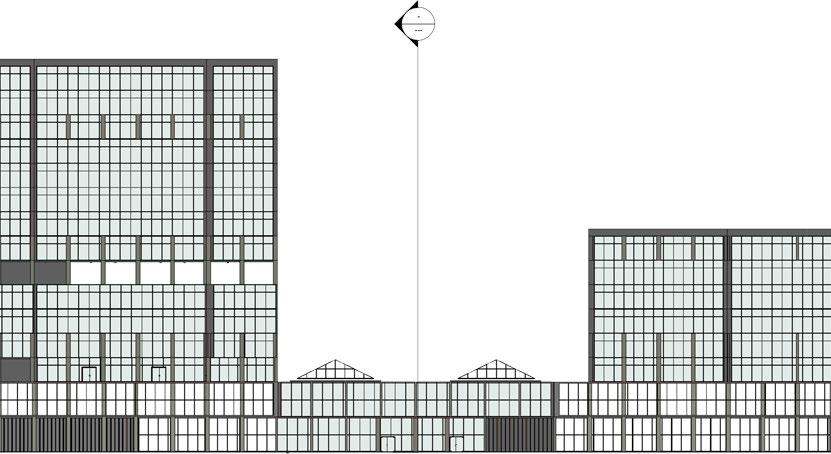

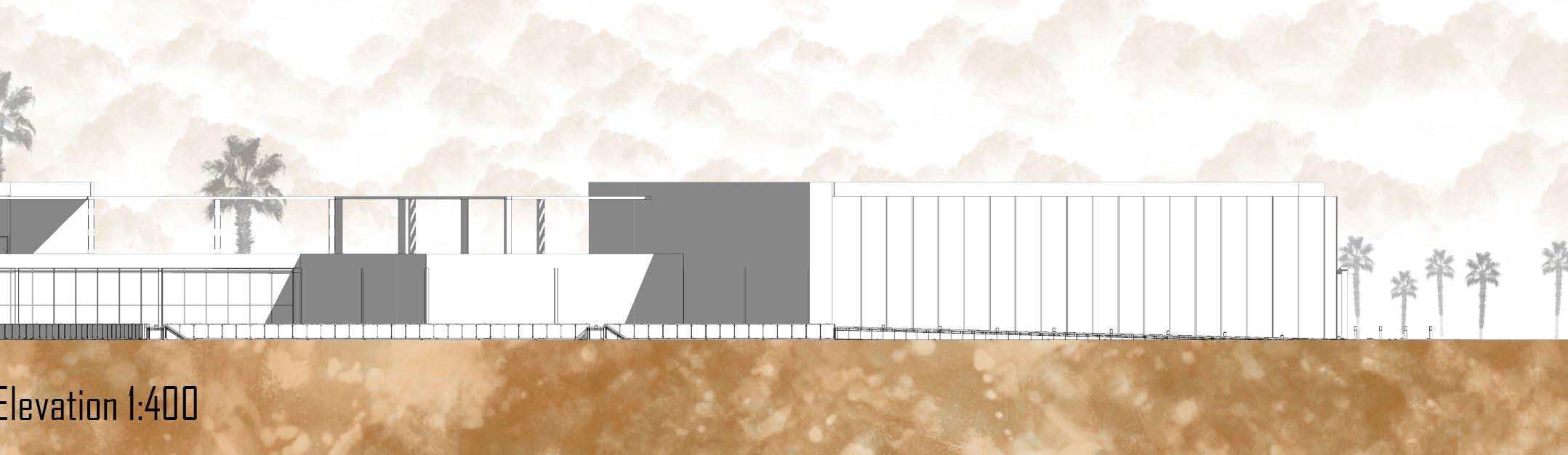

Main Elevation

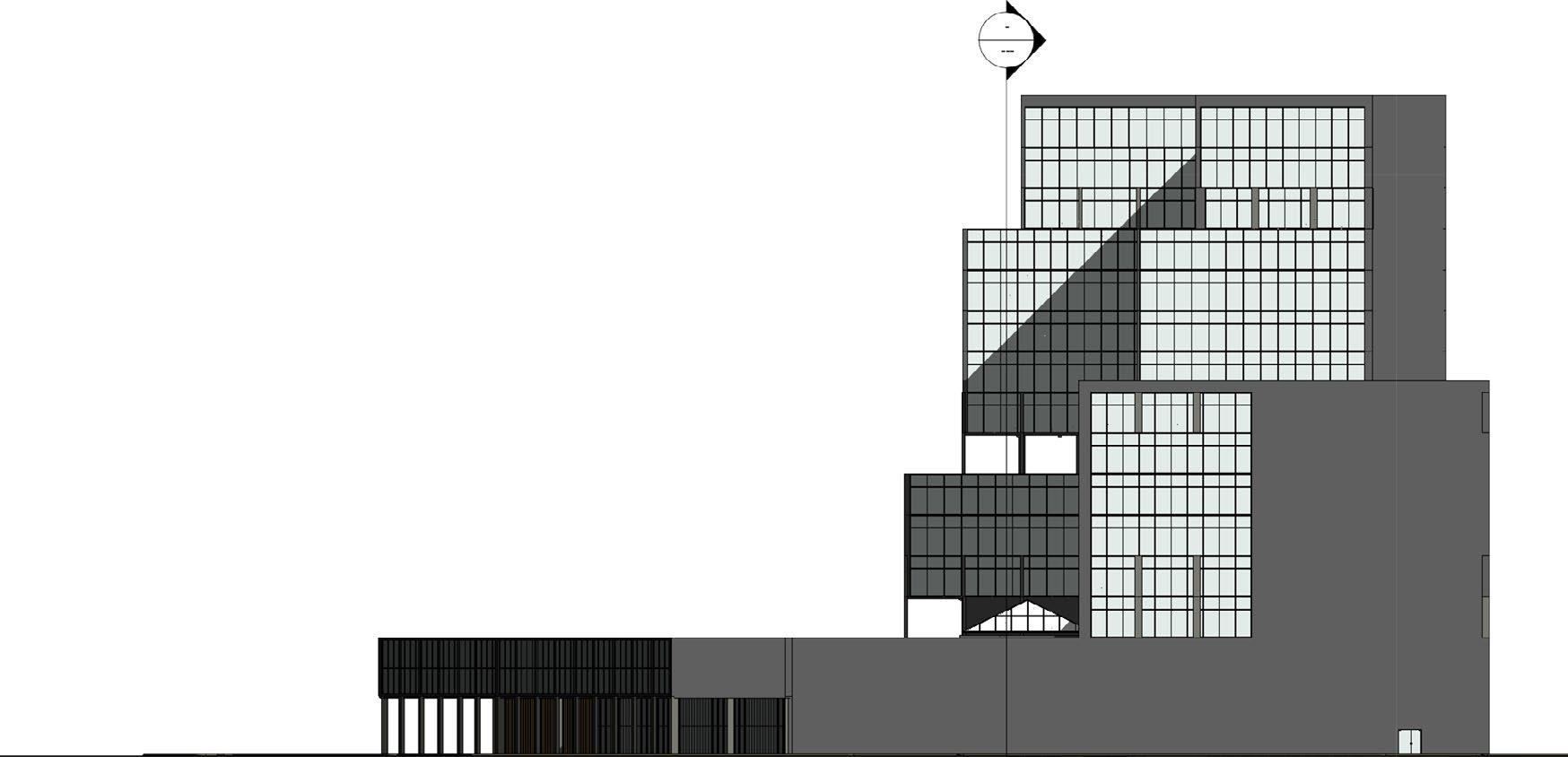

Side Elevation

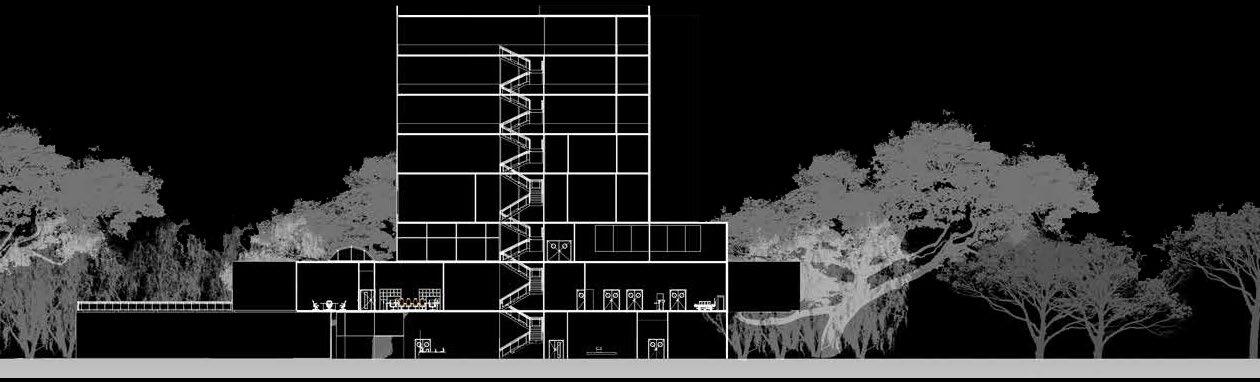

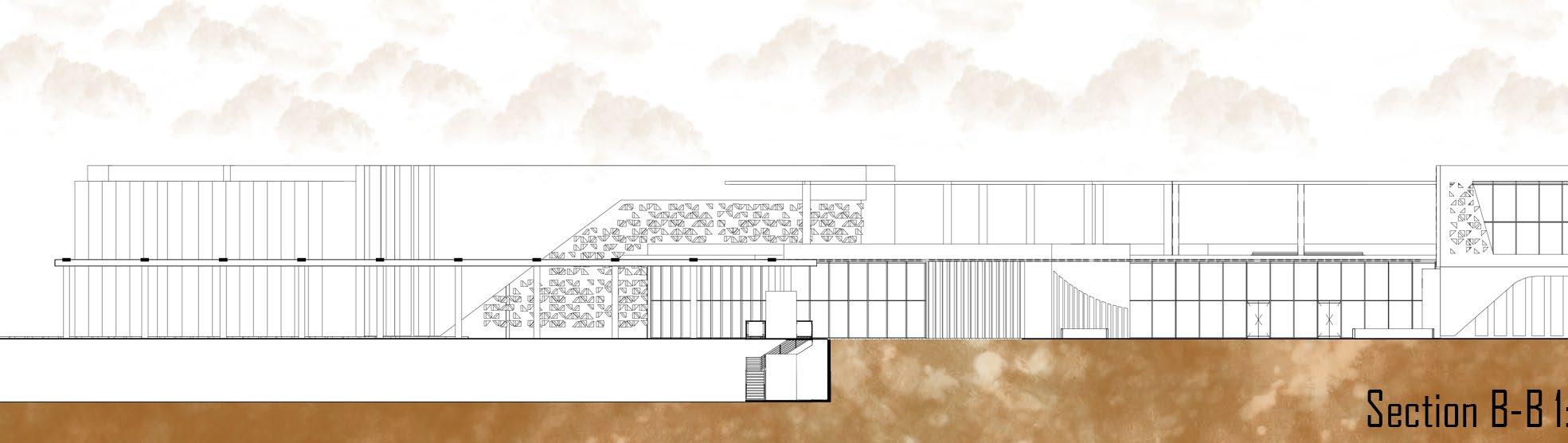

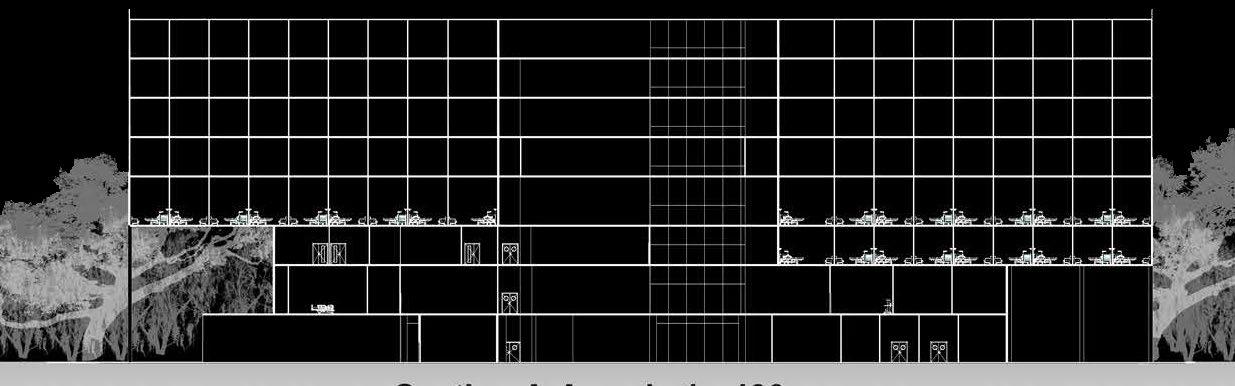

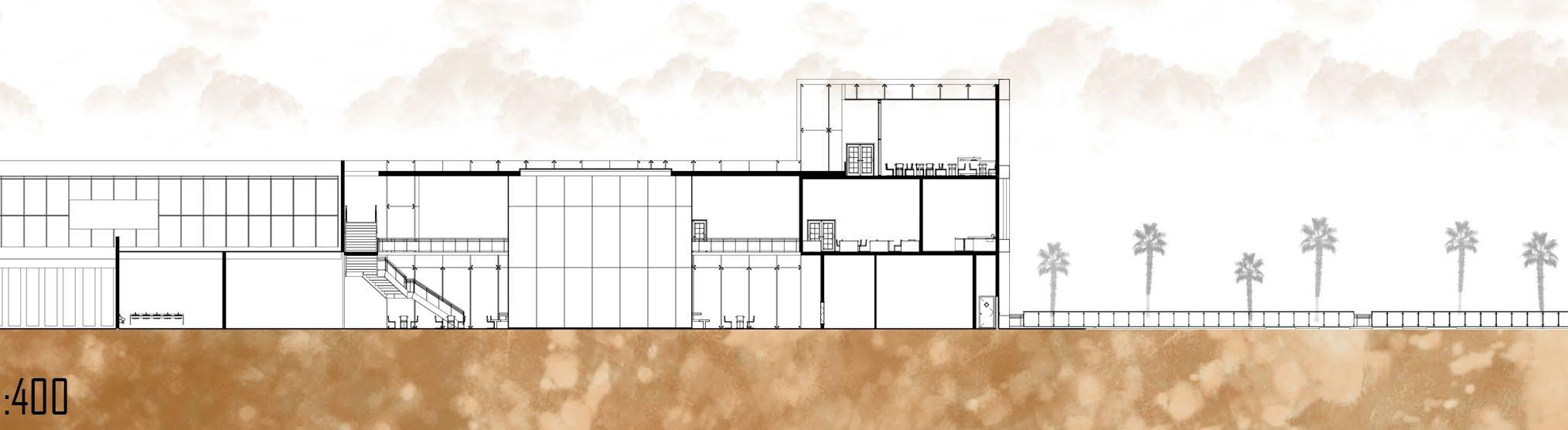

Section B-B

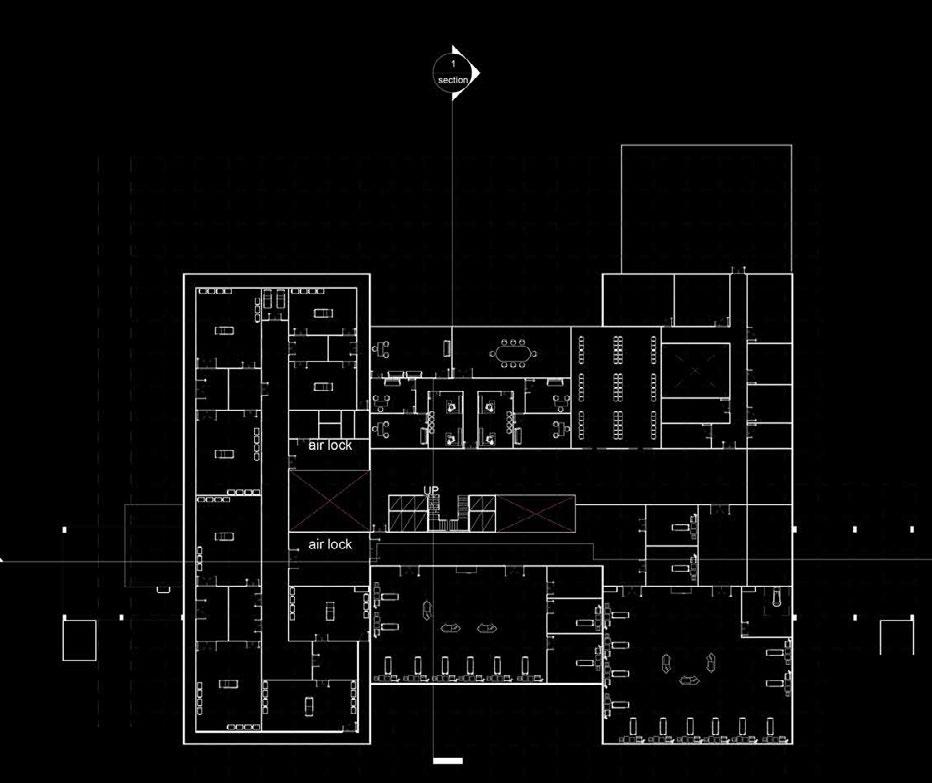

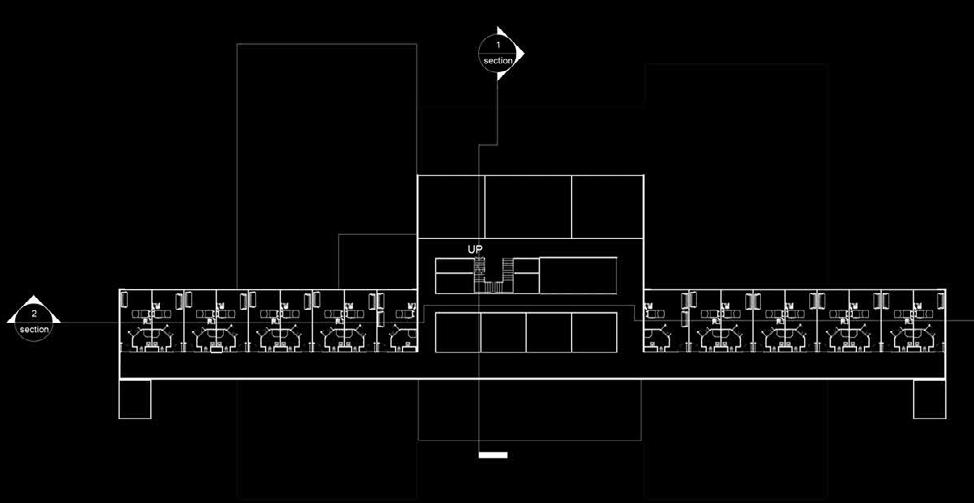

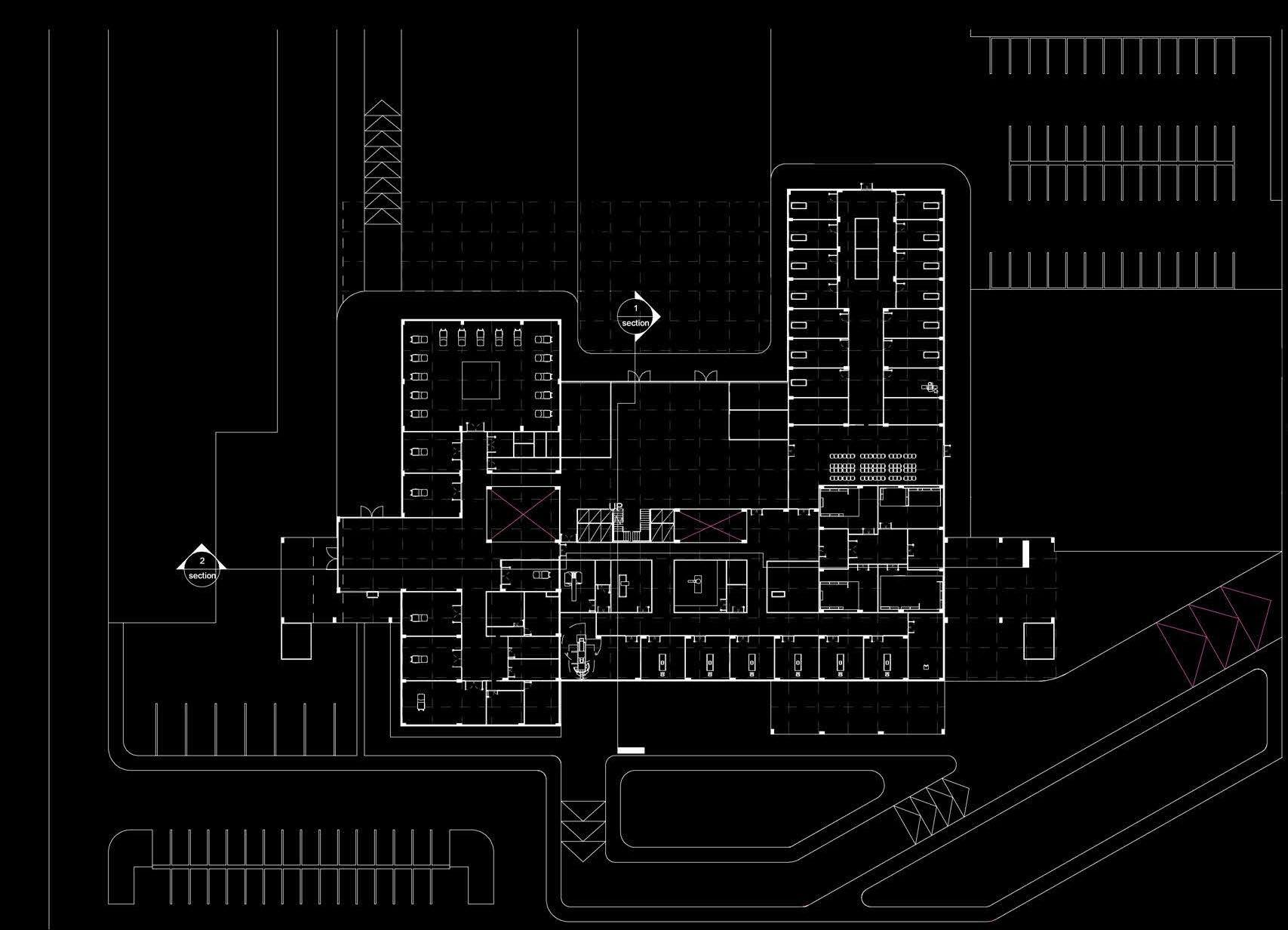

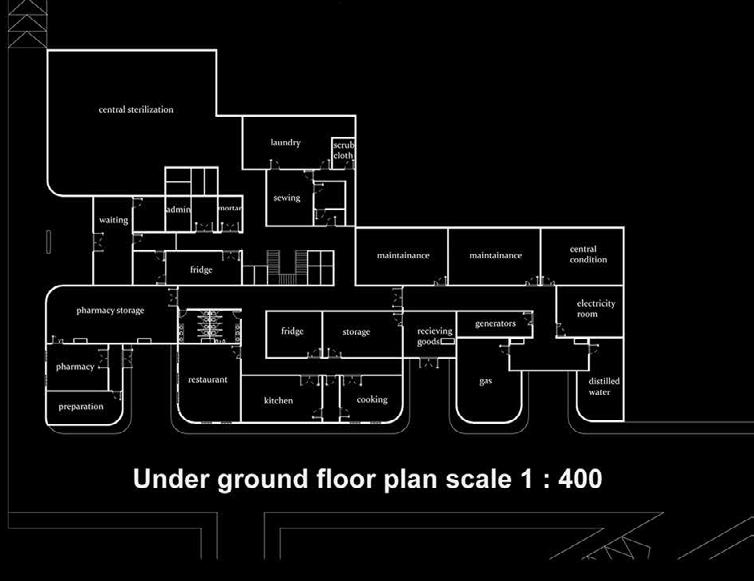

Al-Alamaen Hospital

* Studies

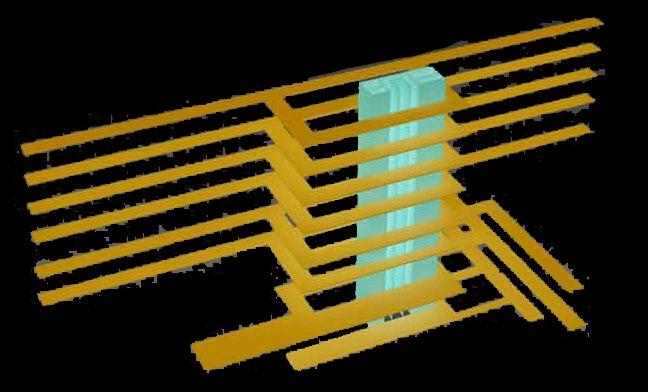

Function

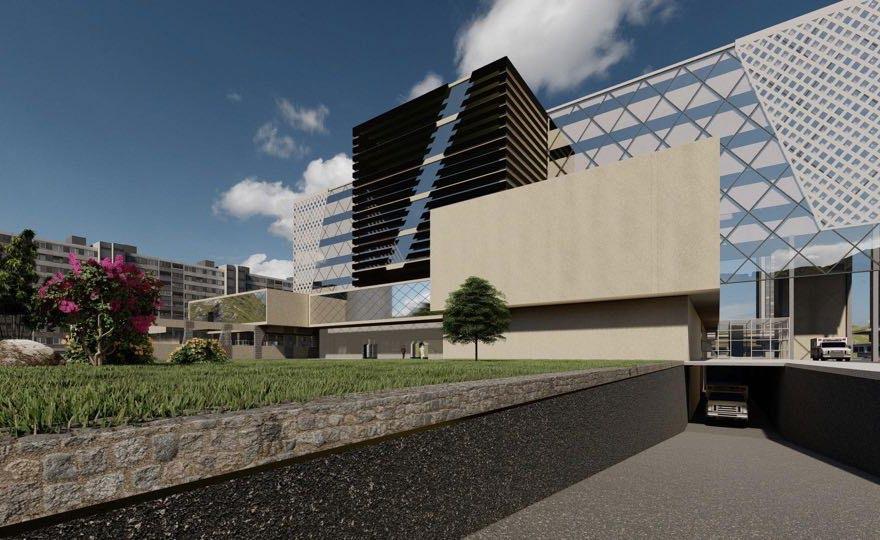

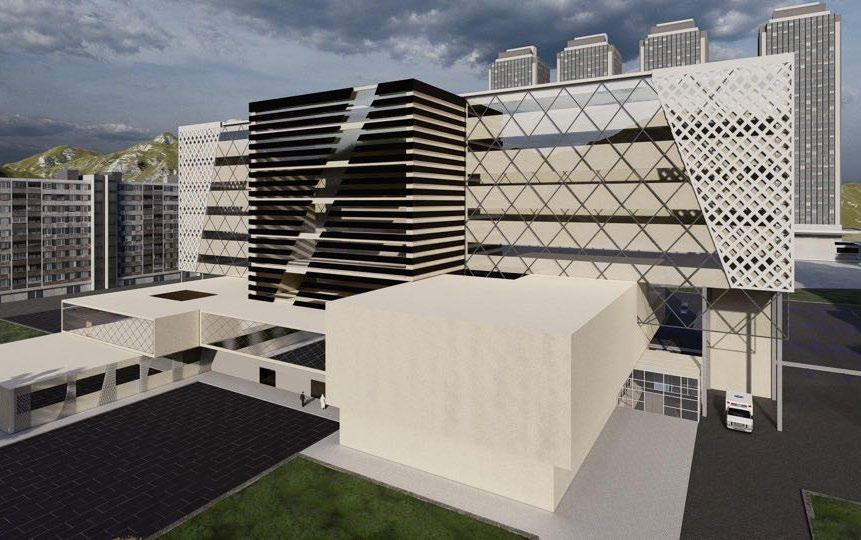

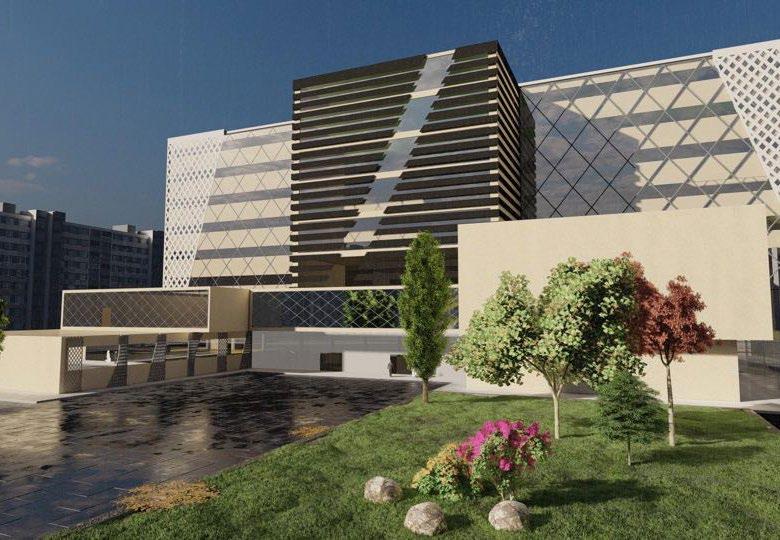

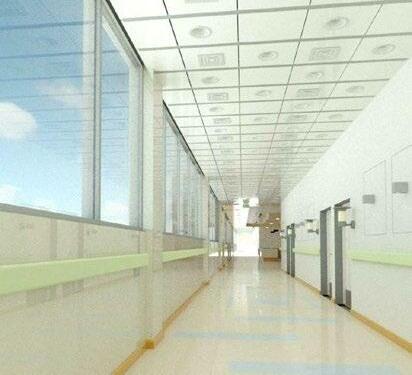

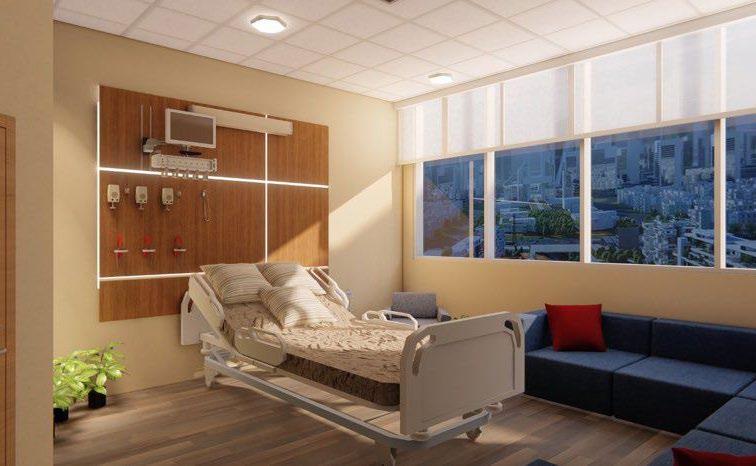

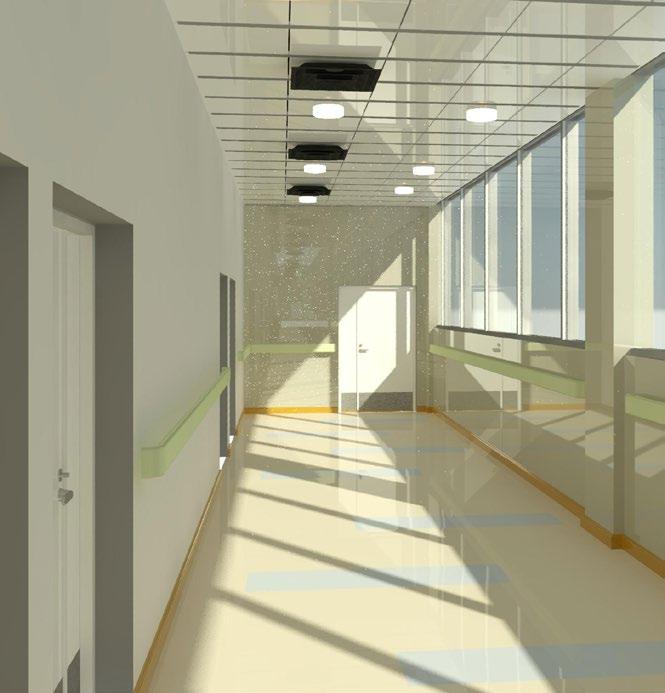

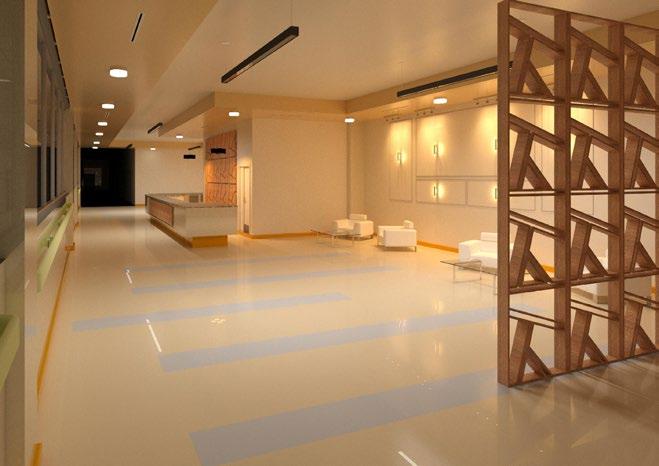

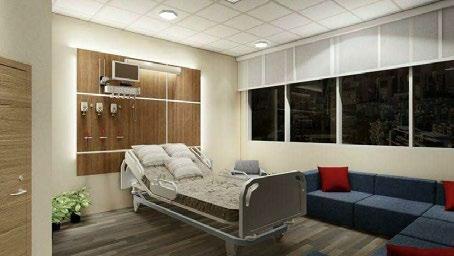

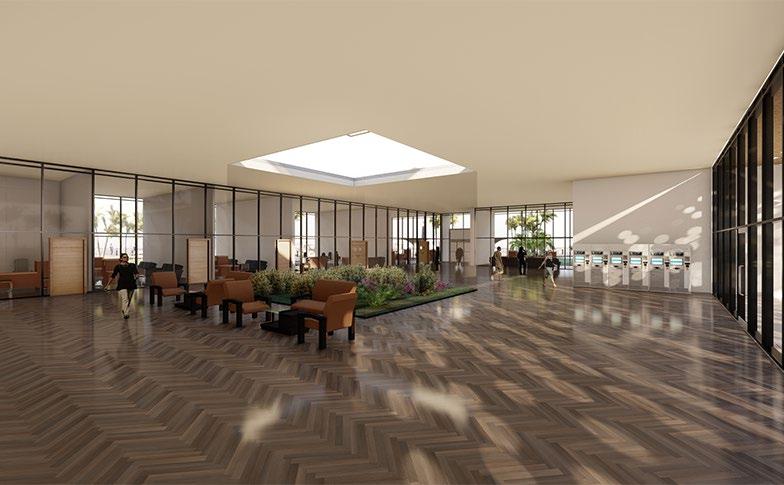

* Render Shots

* Render Shots

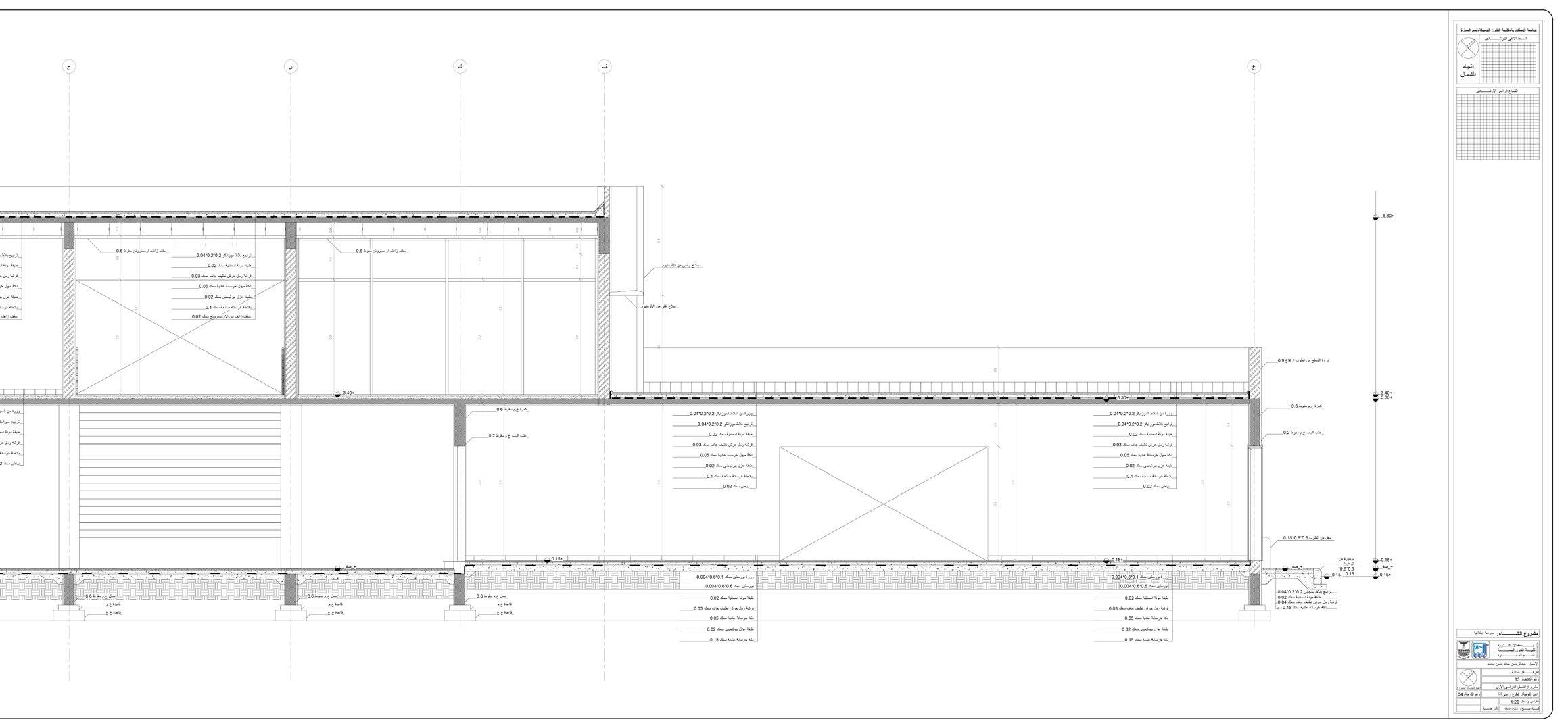

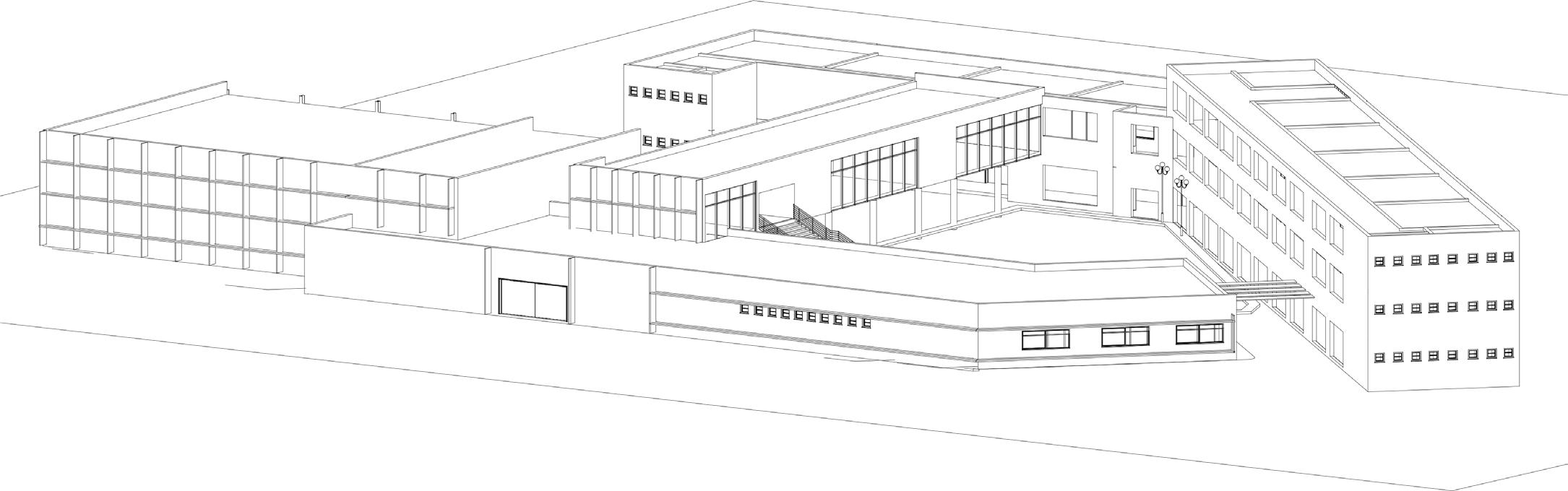

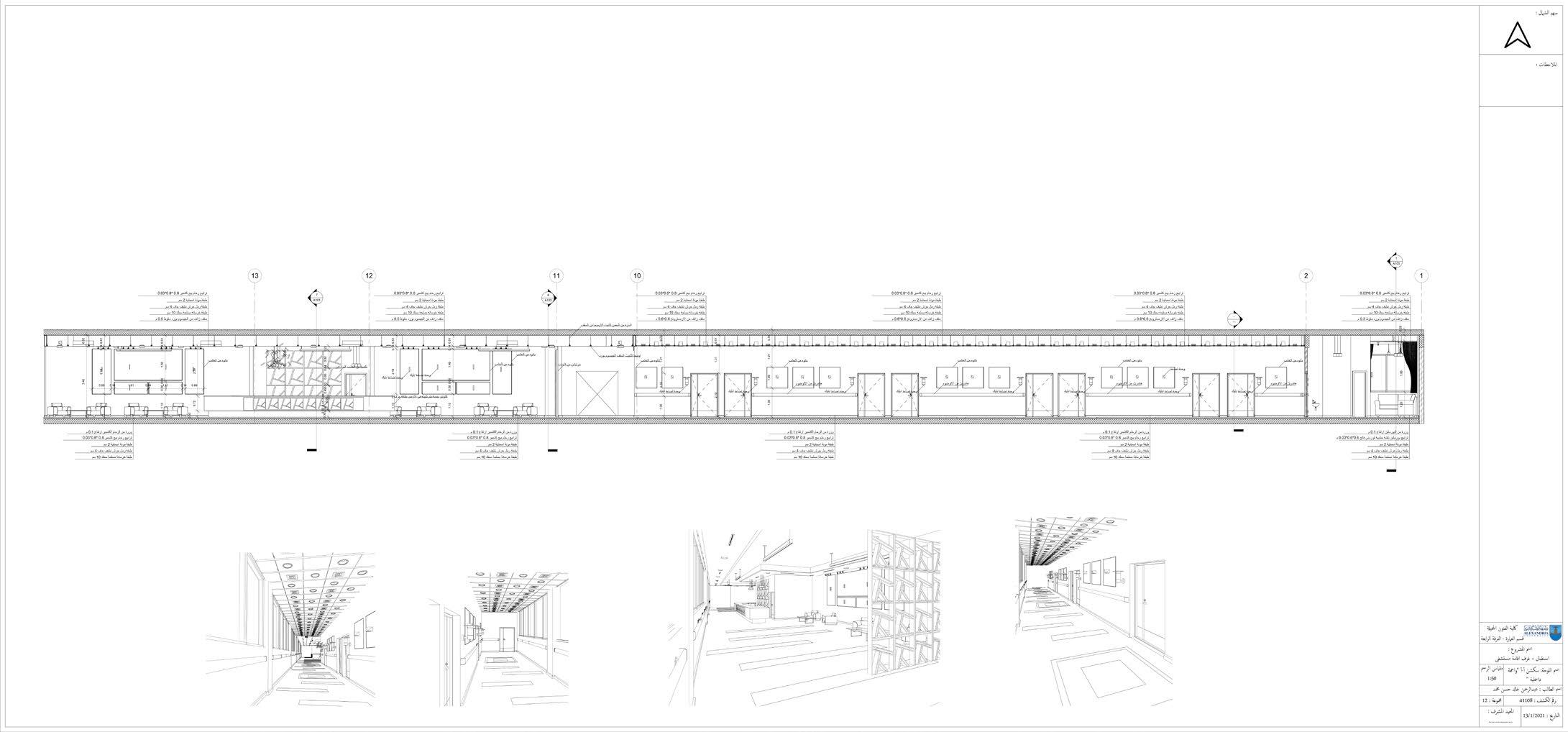

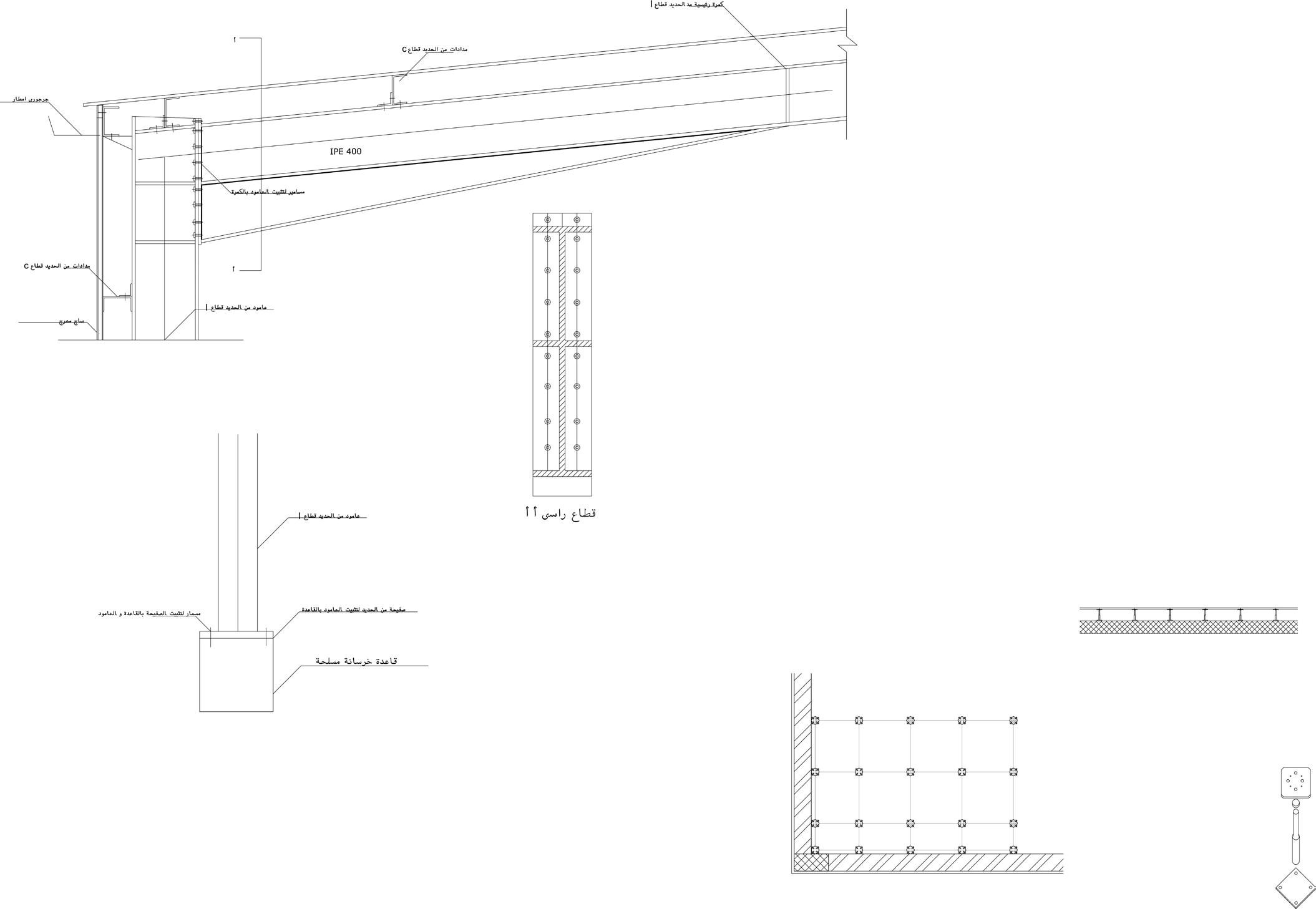

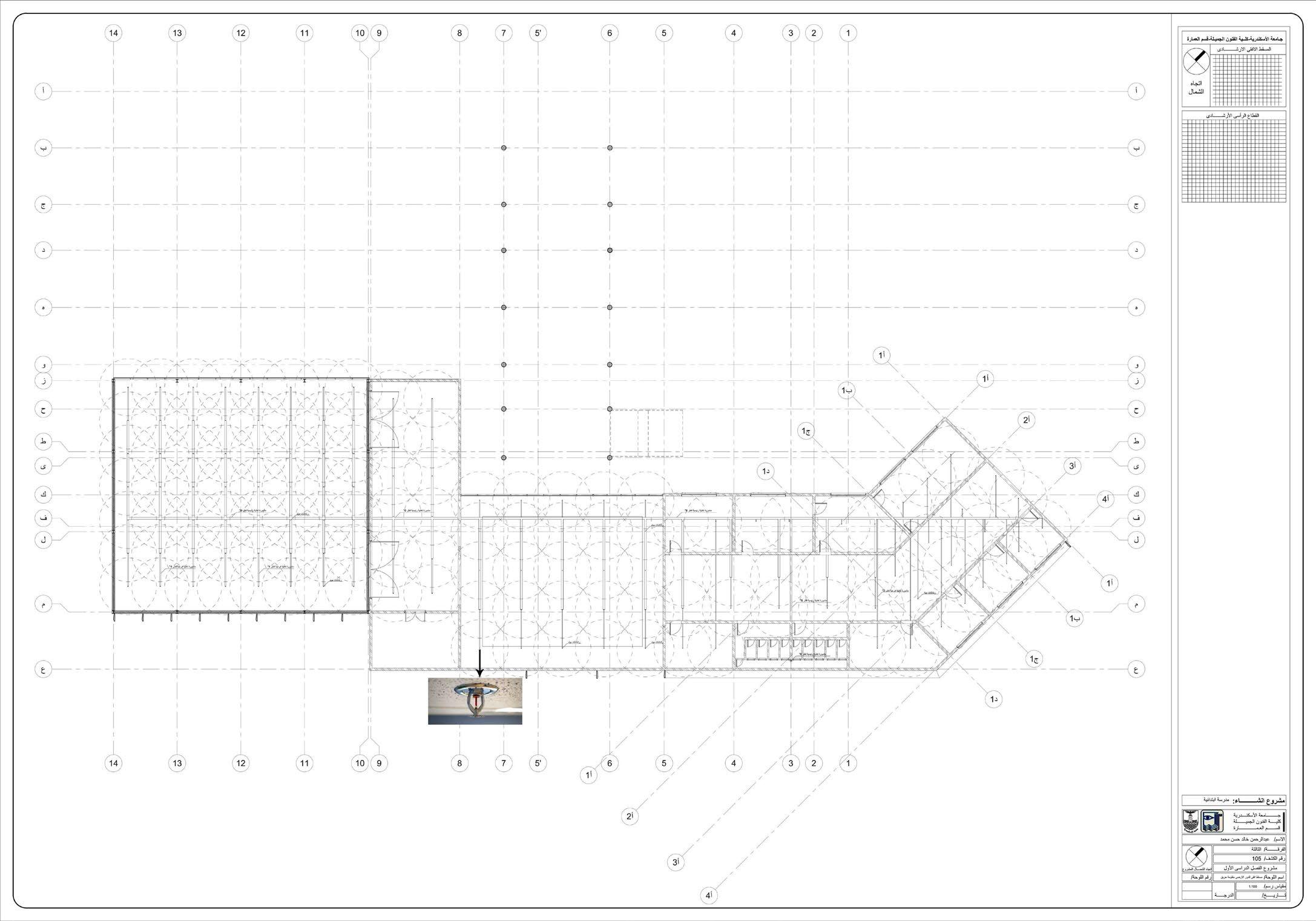

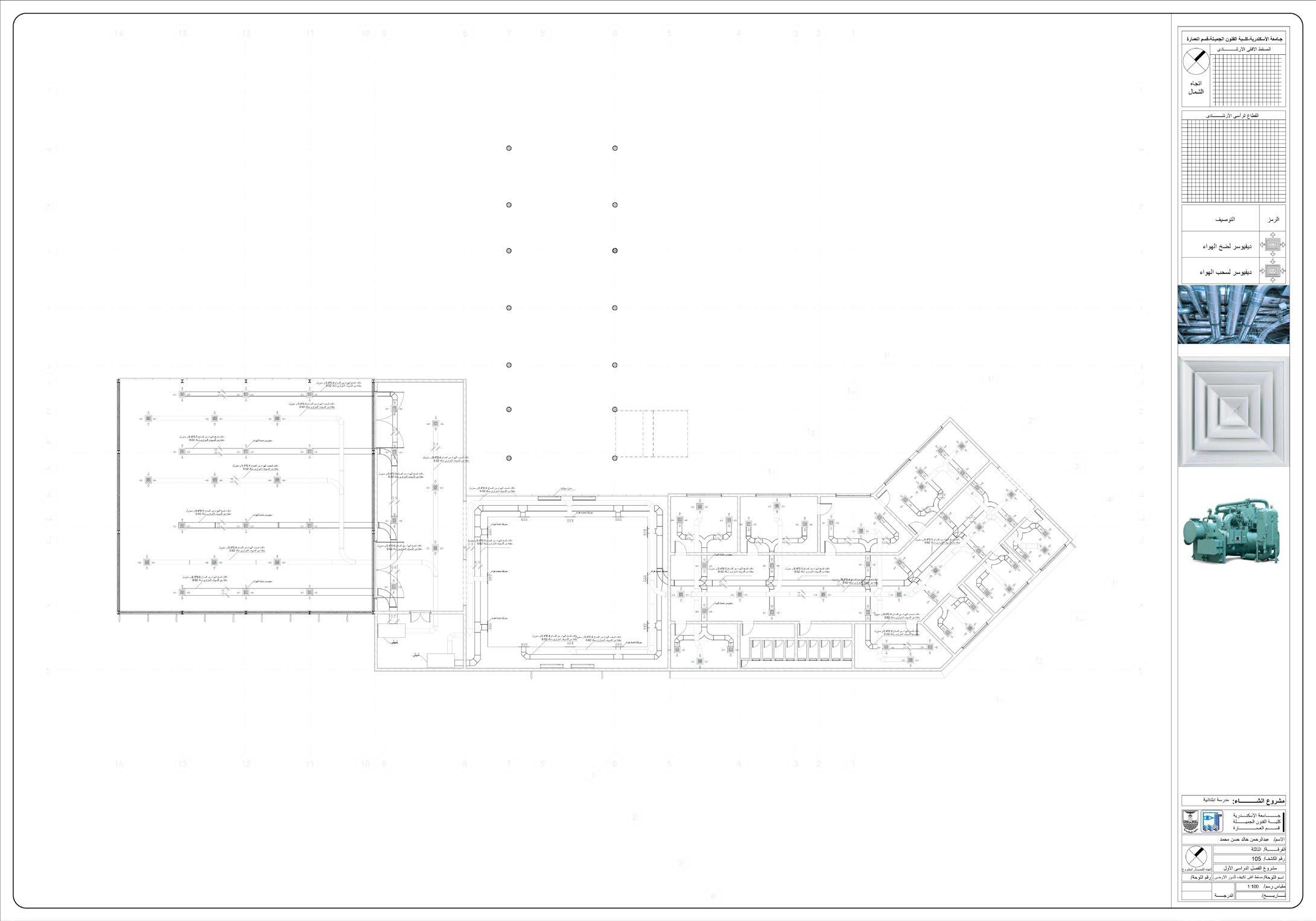

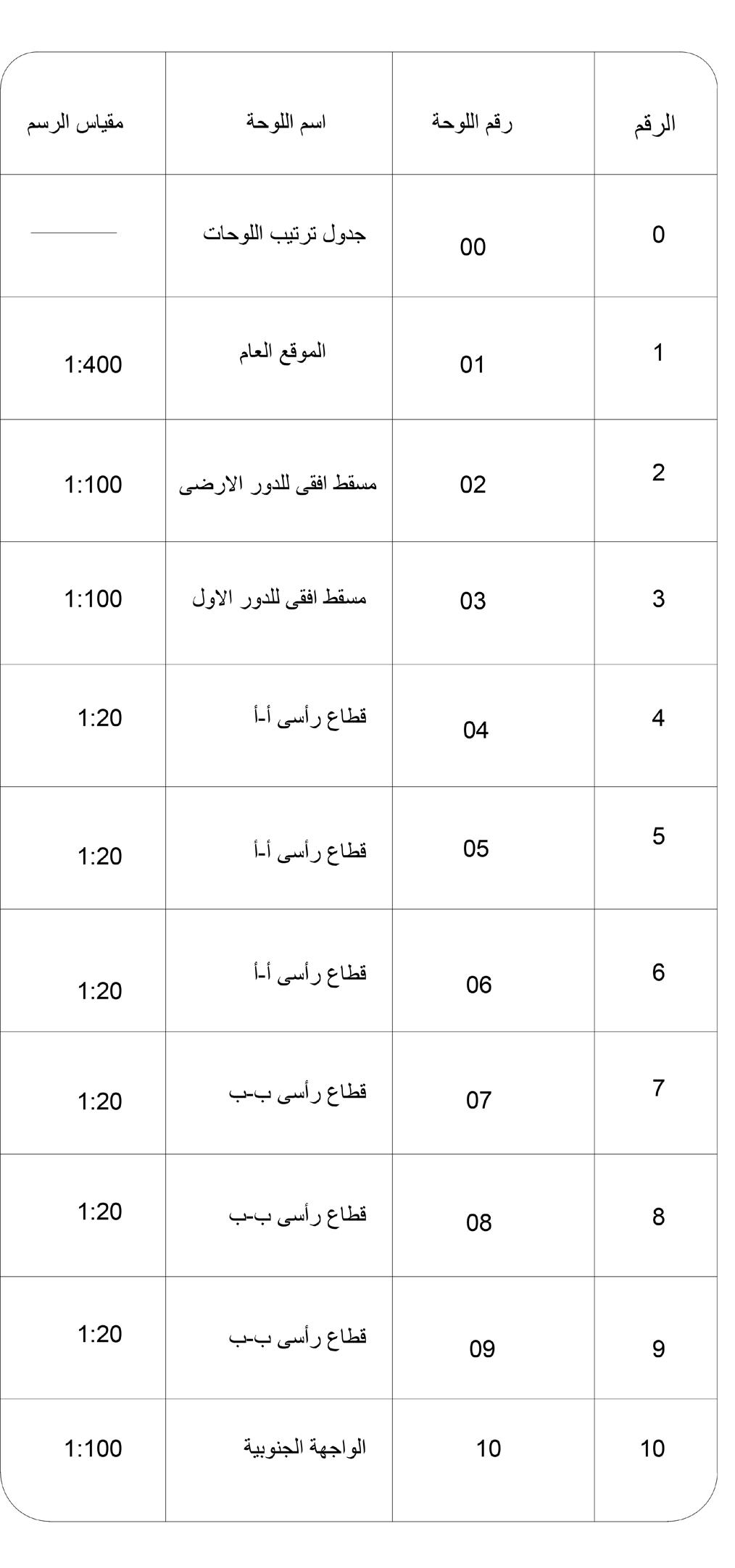

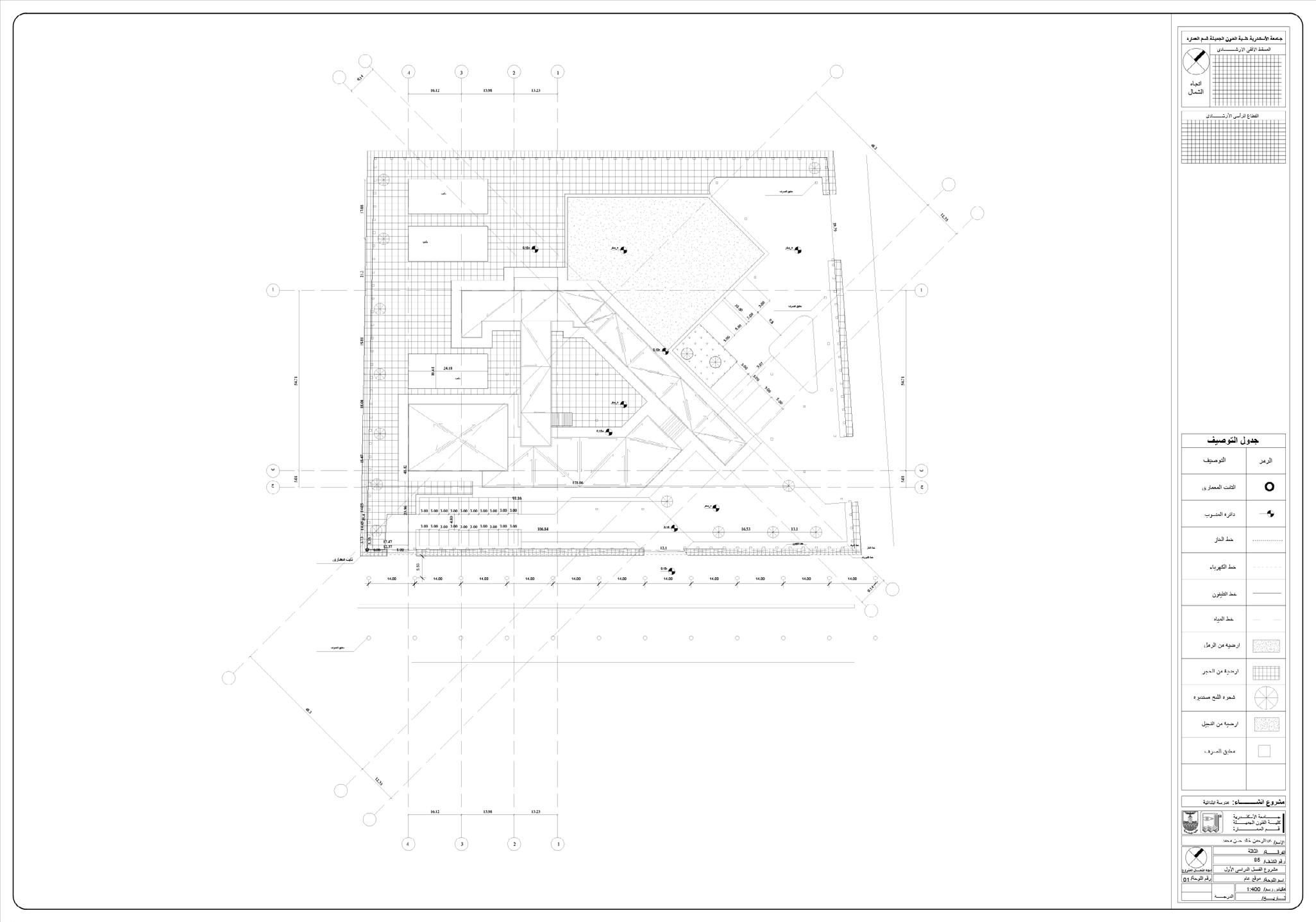

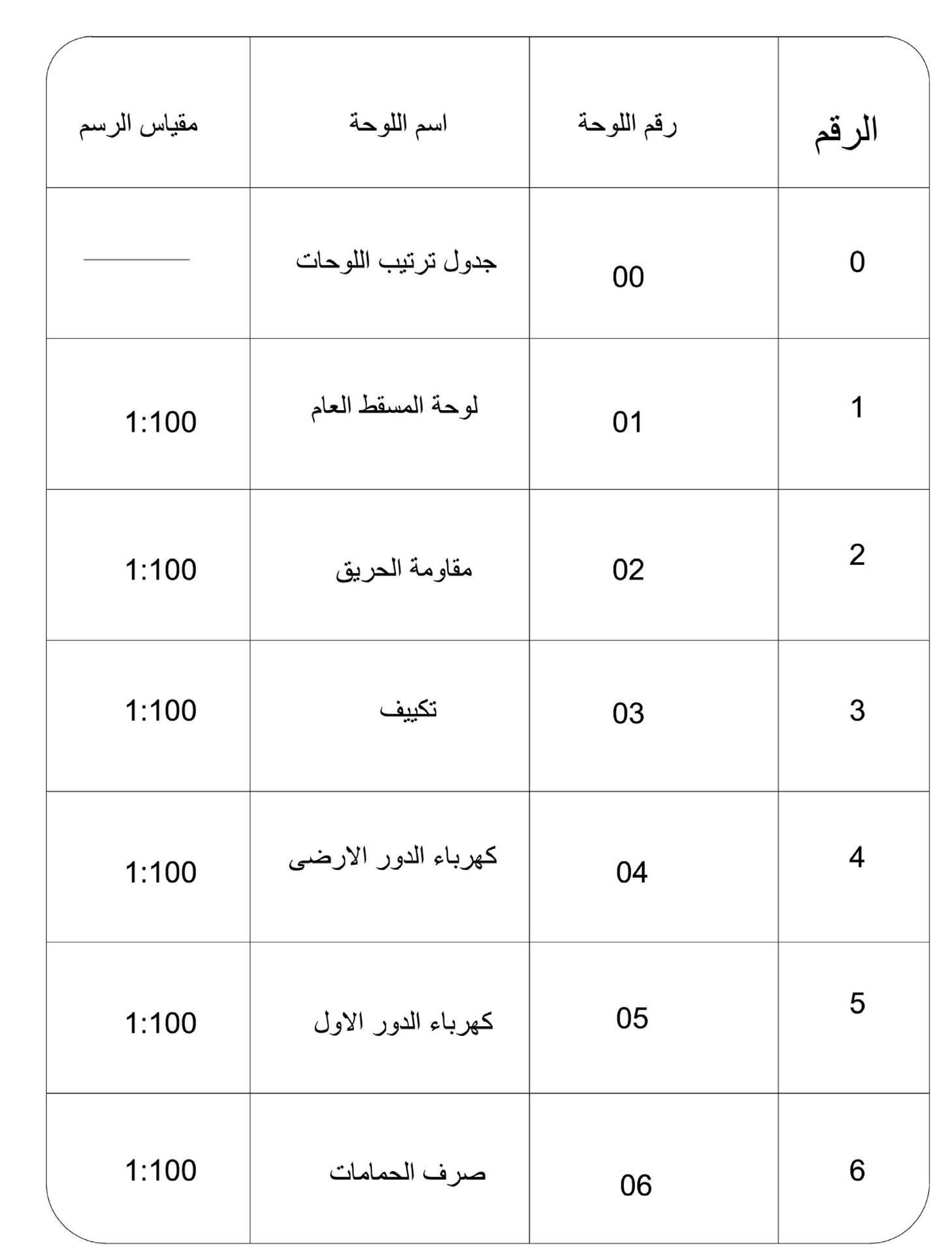

Working & shop Drawings

1.) School project

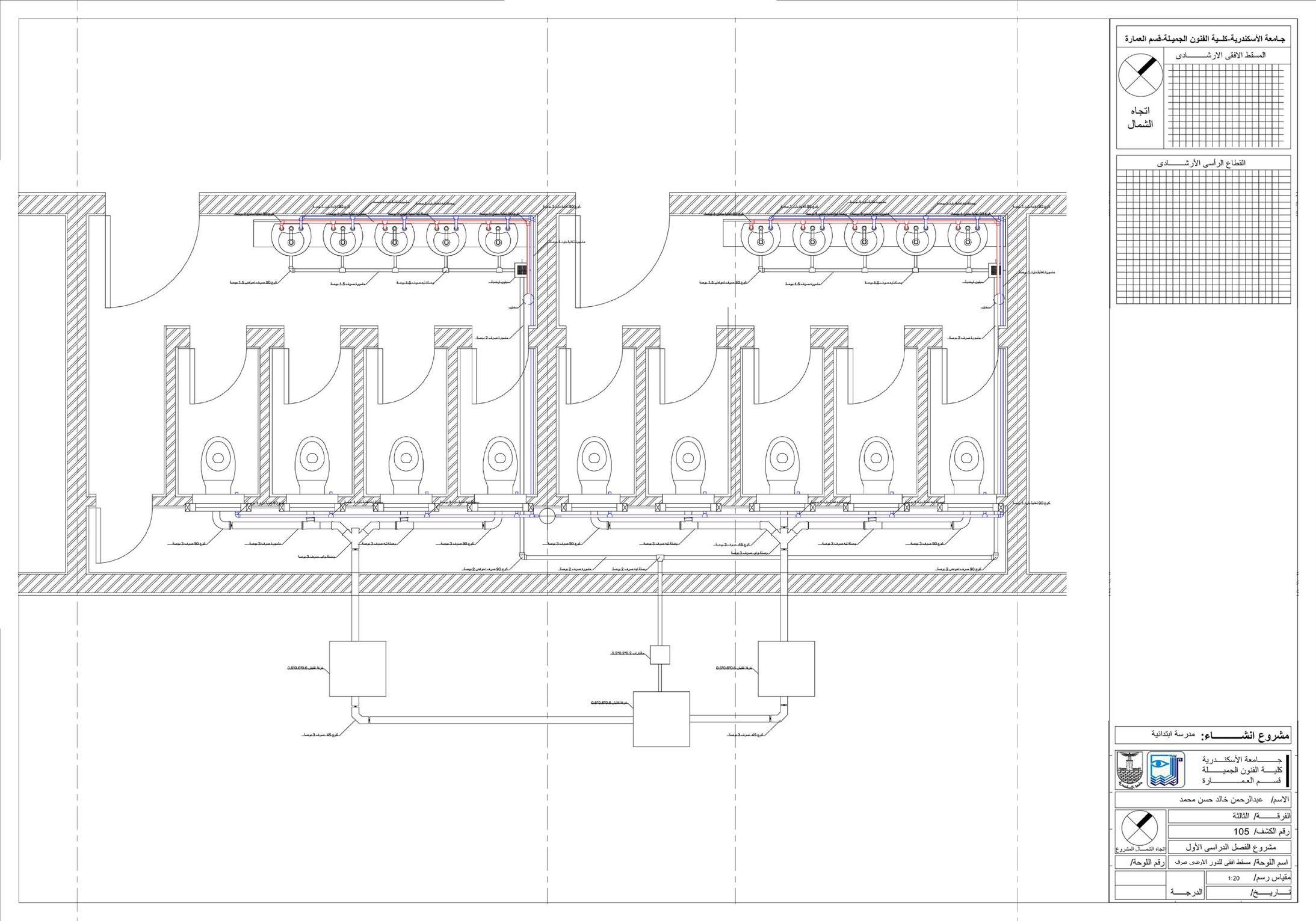

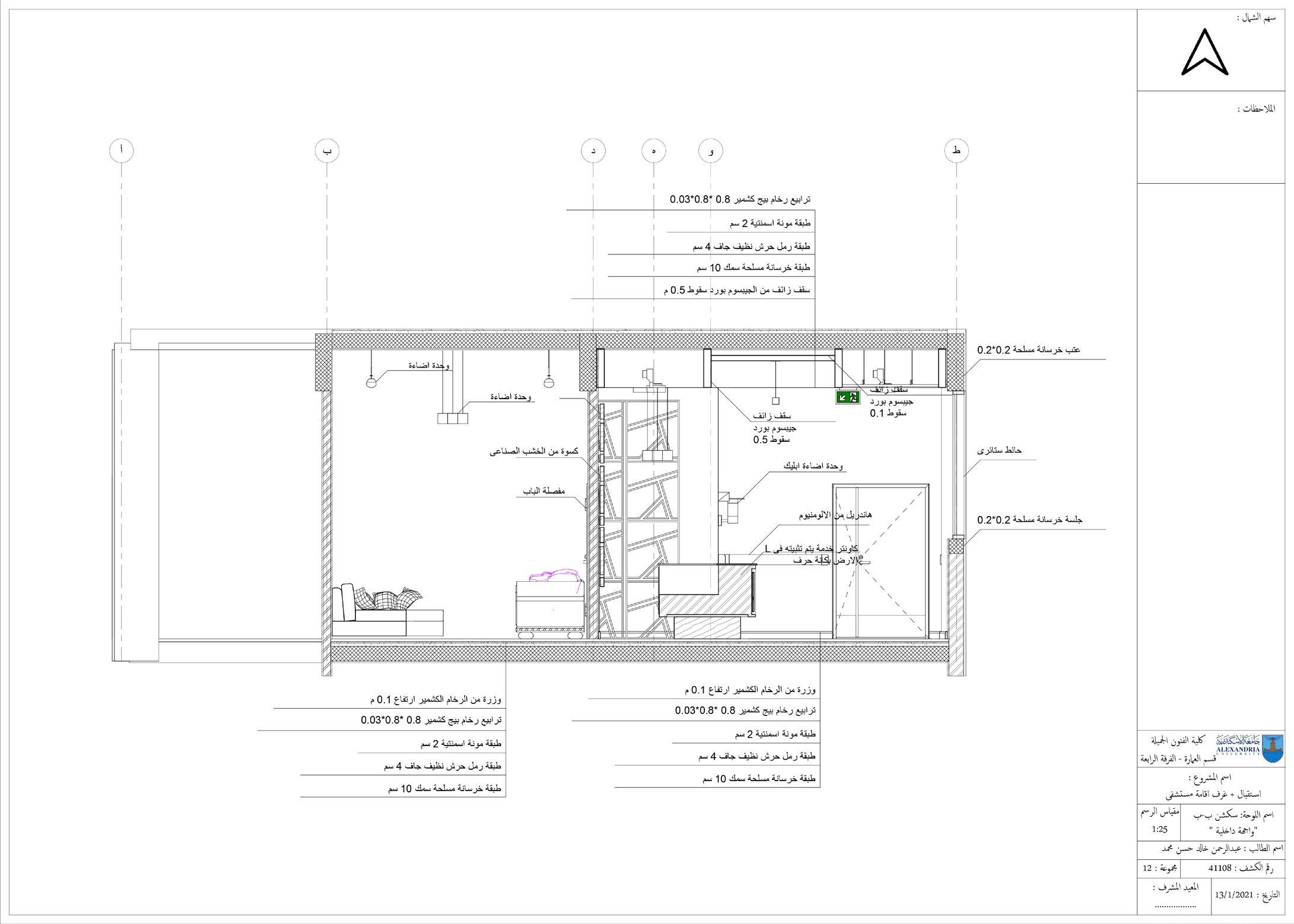

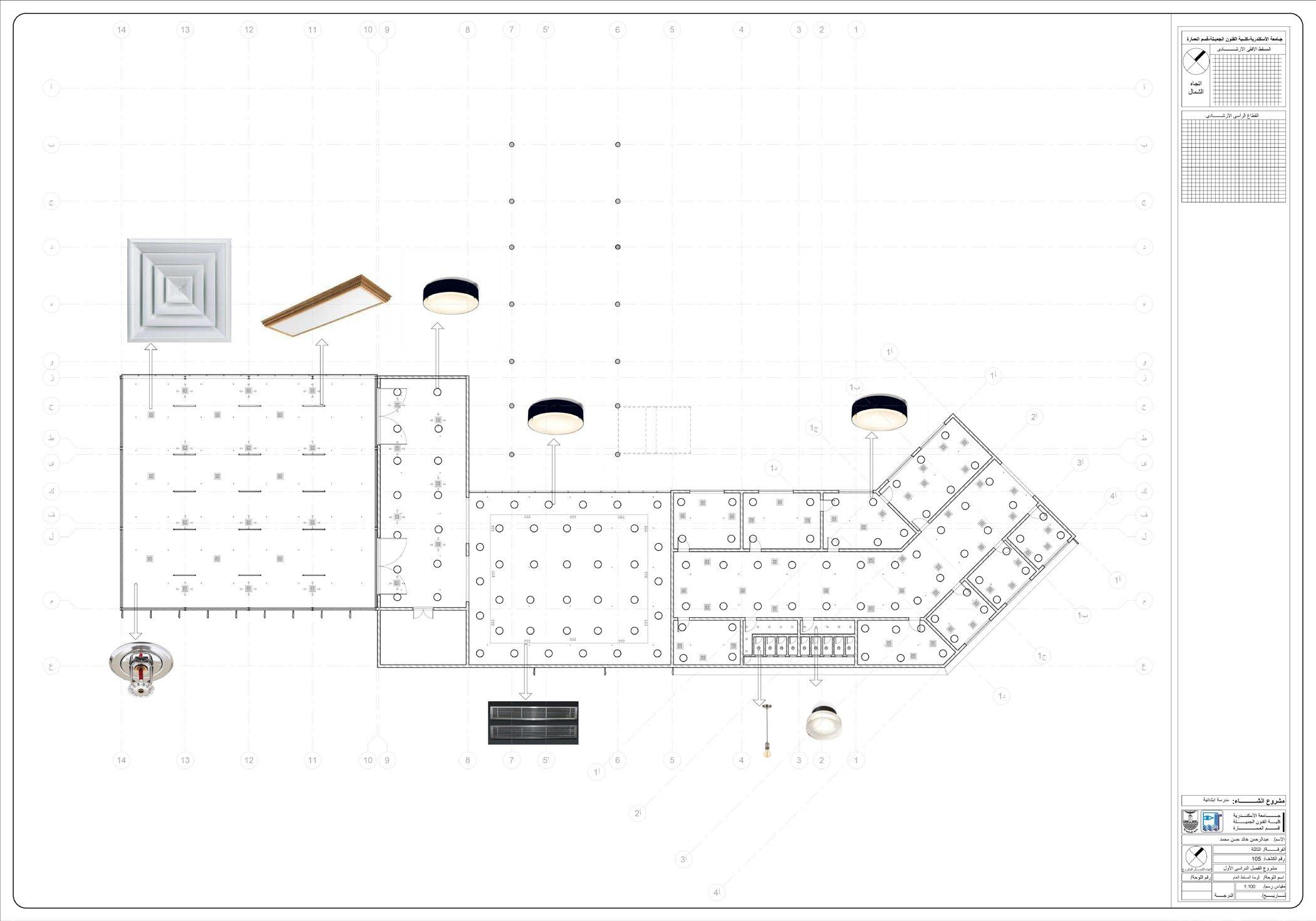

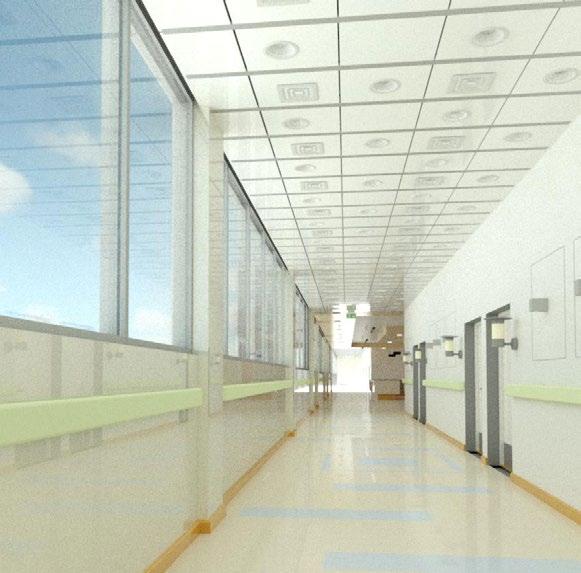

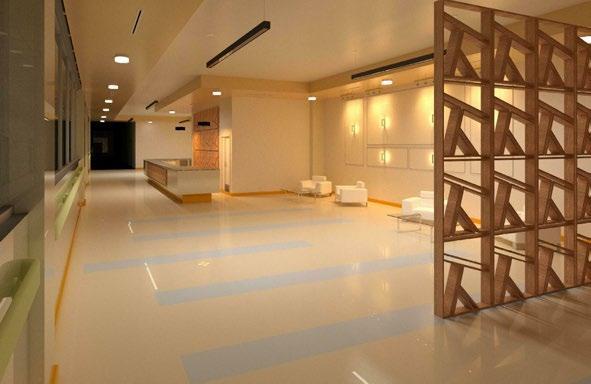

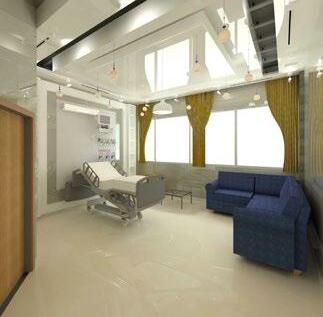

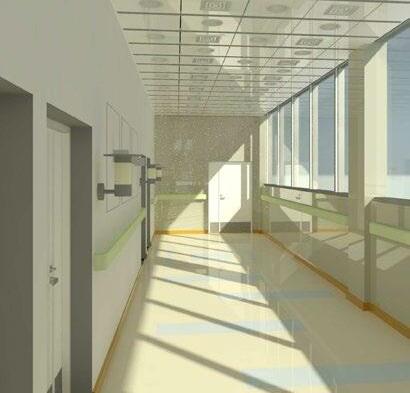

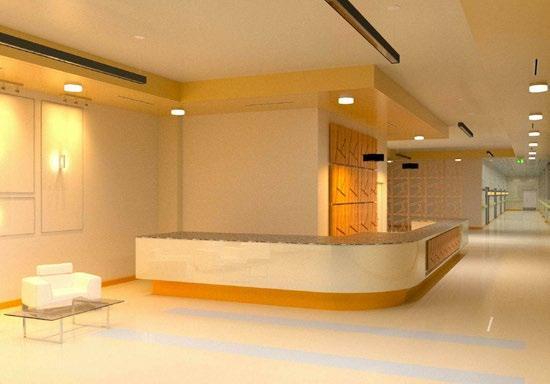

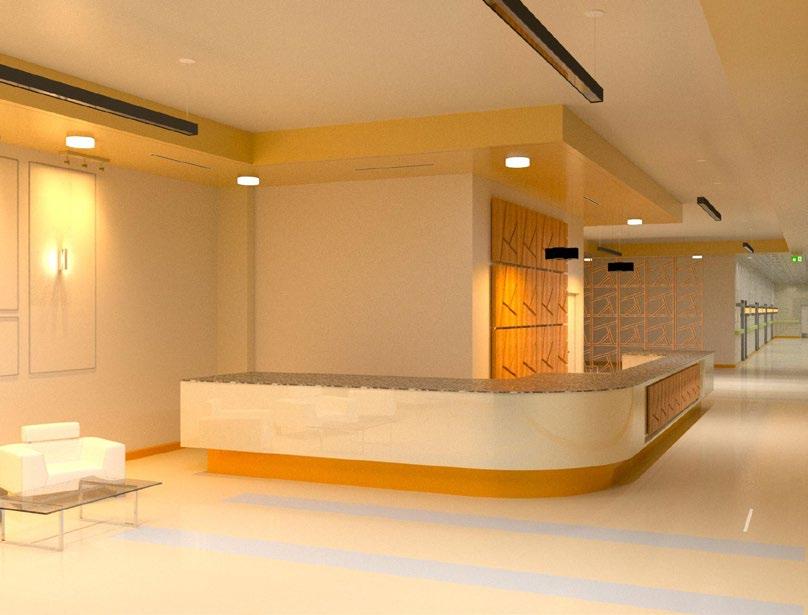

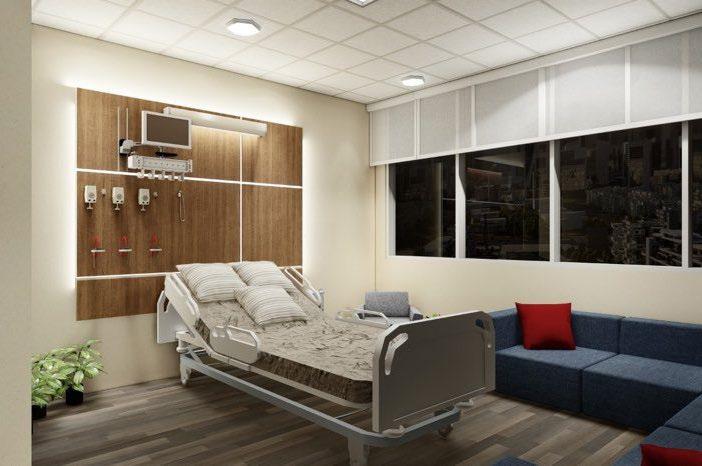

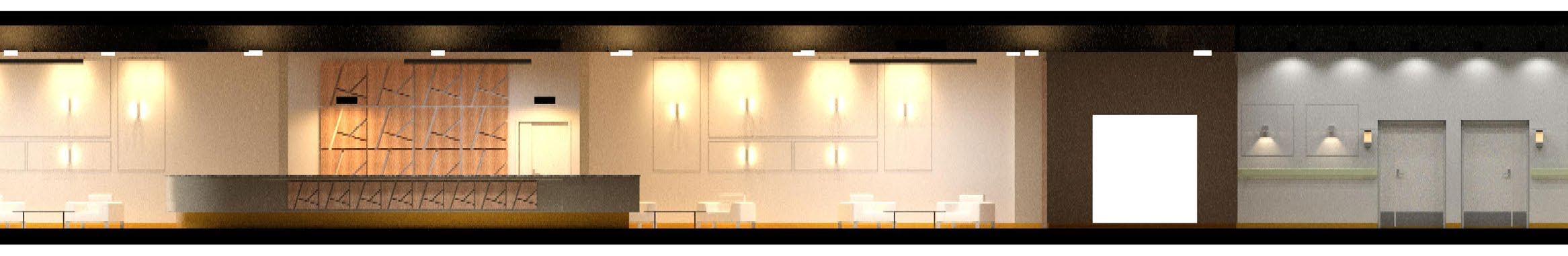

2.) Hospital interior design project

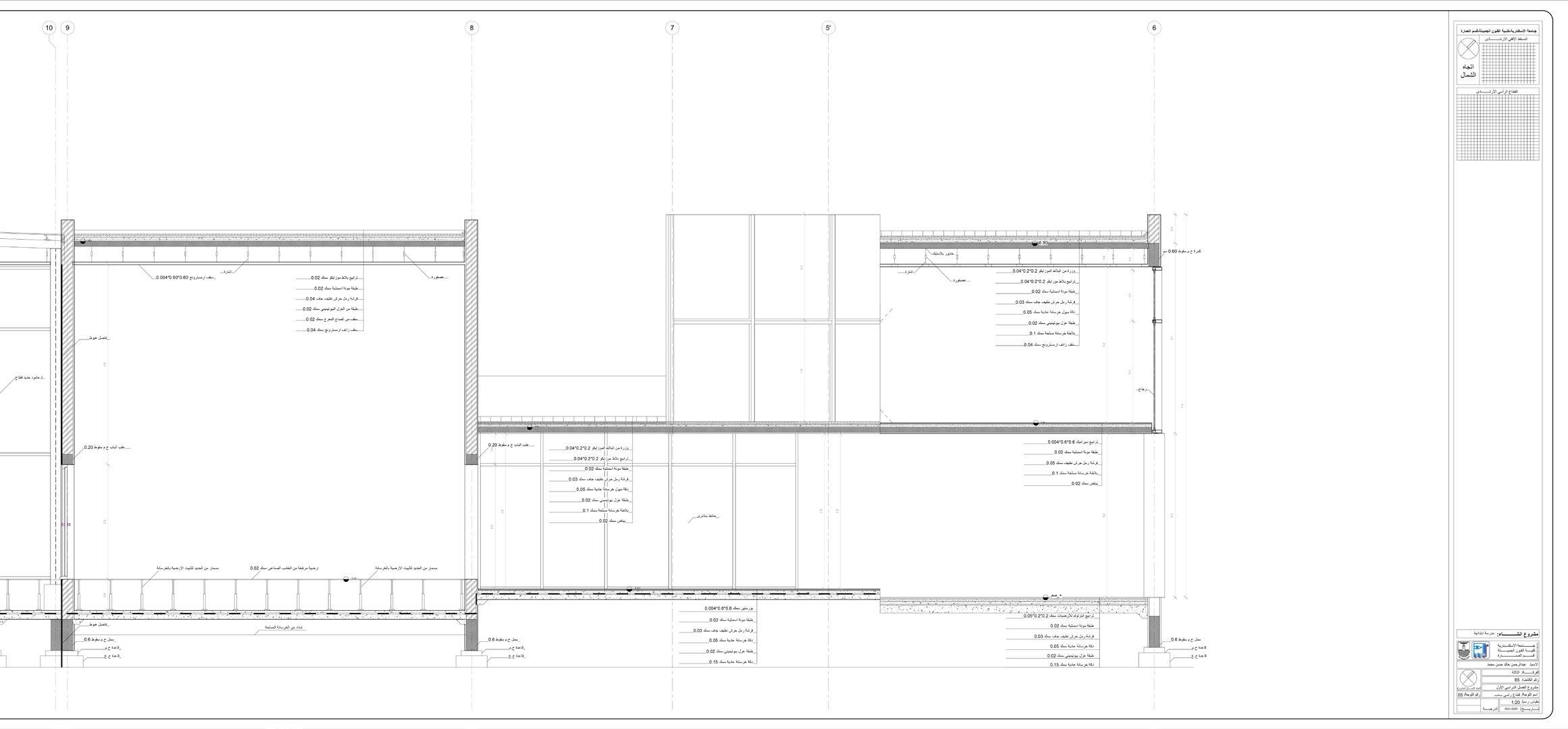

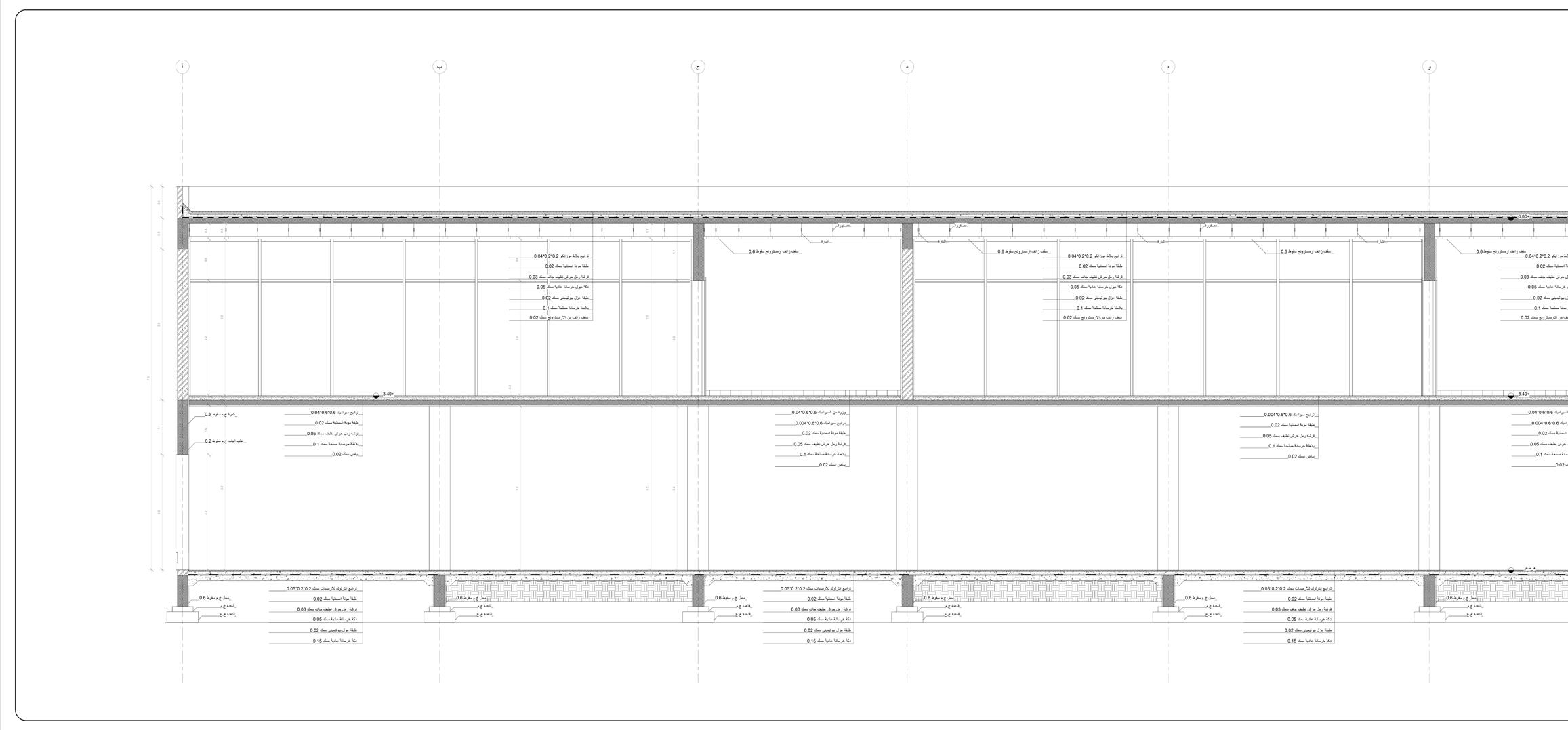

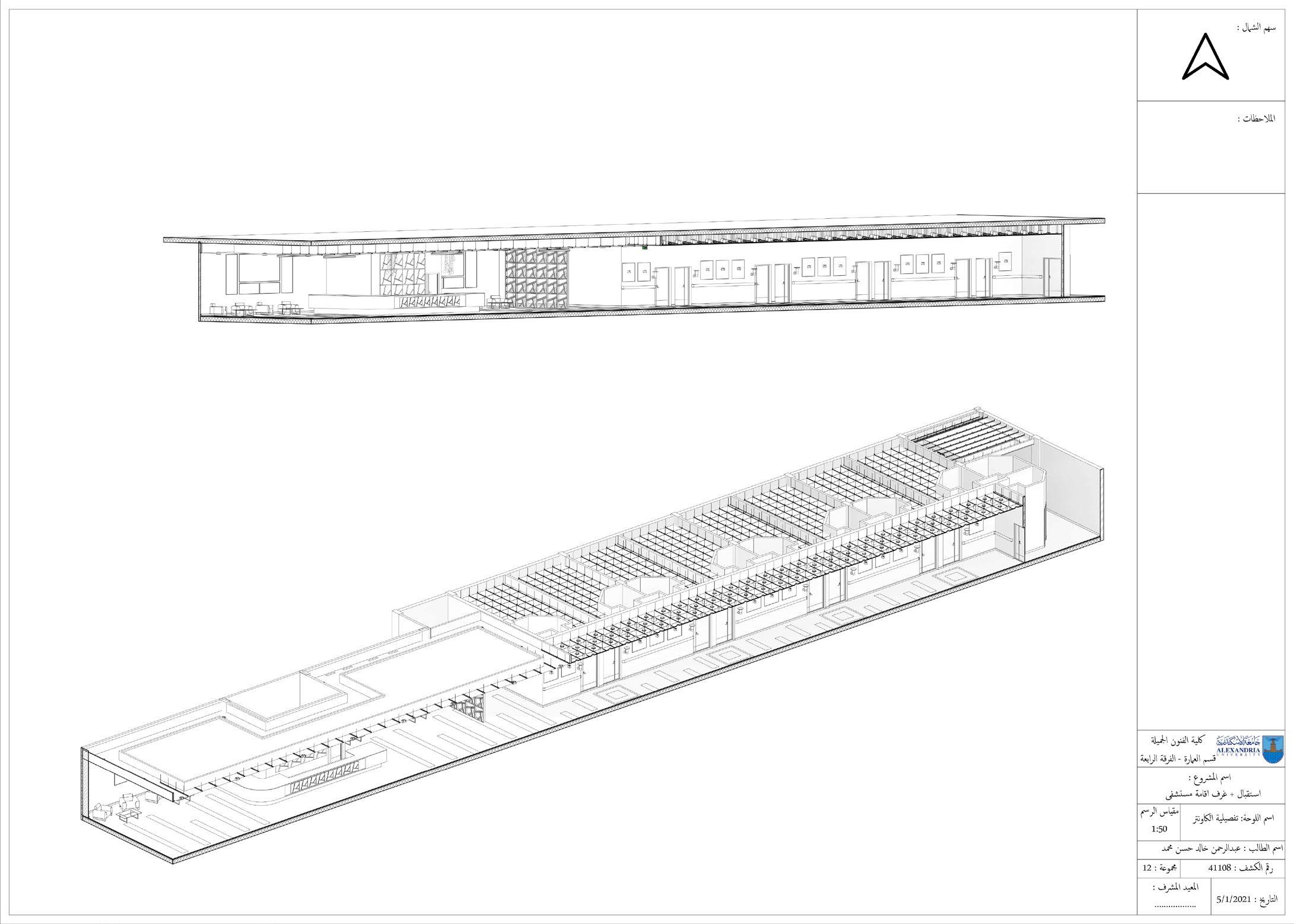

1.) School project

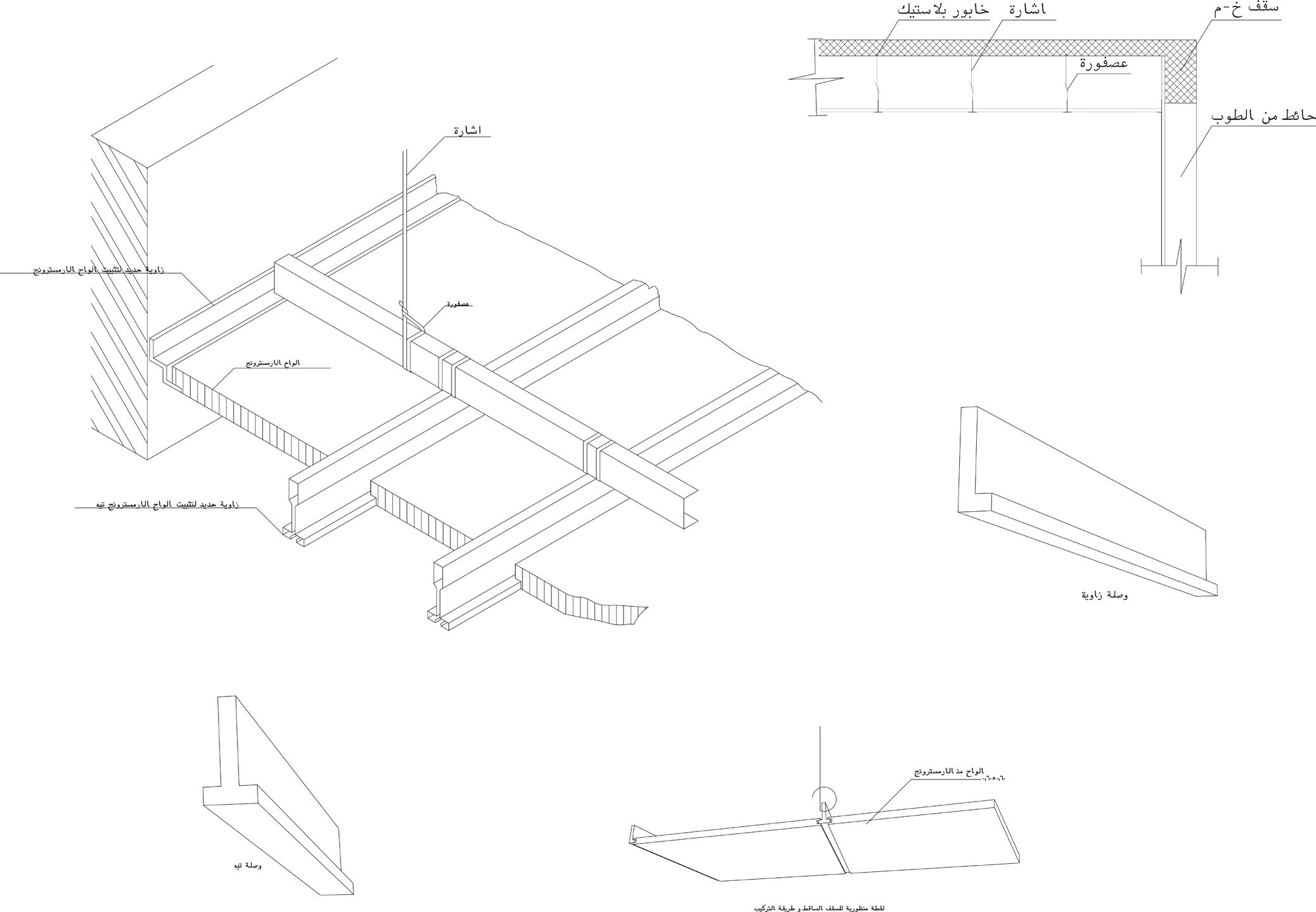

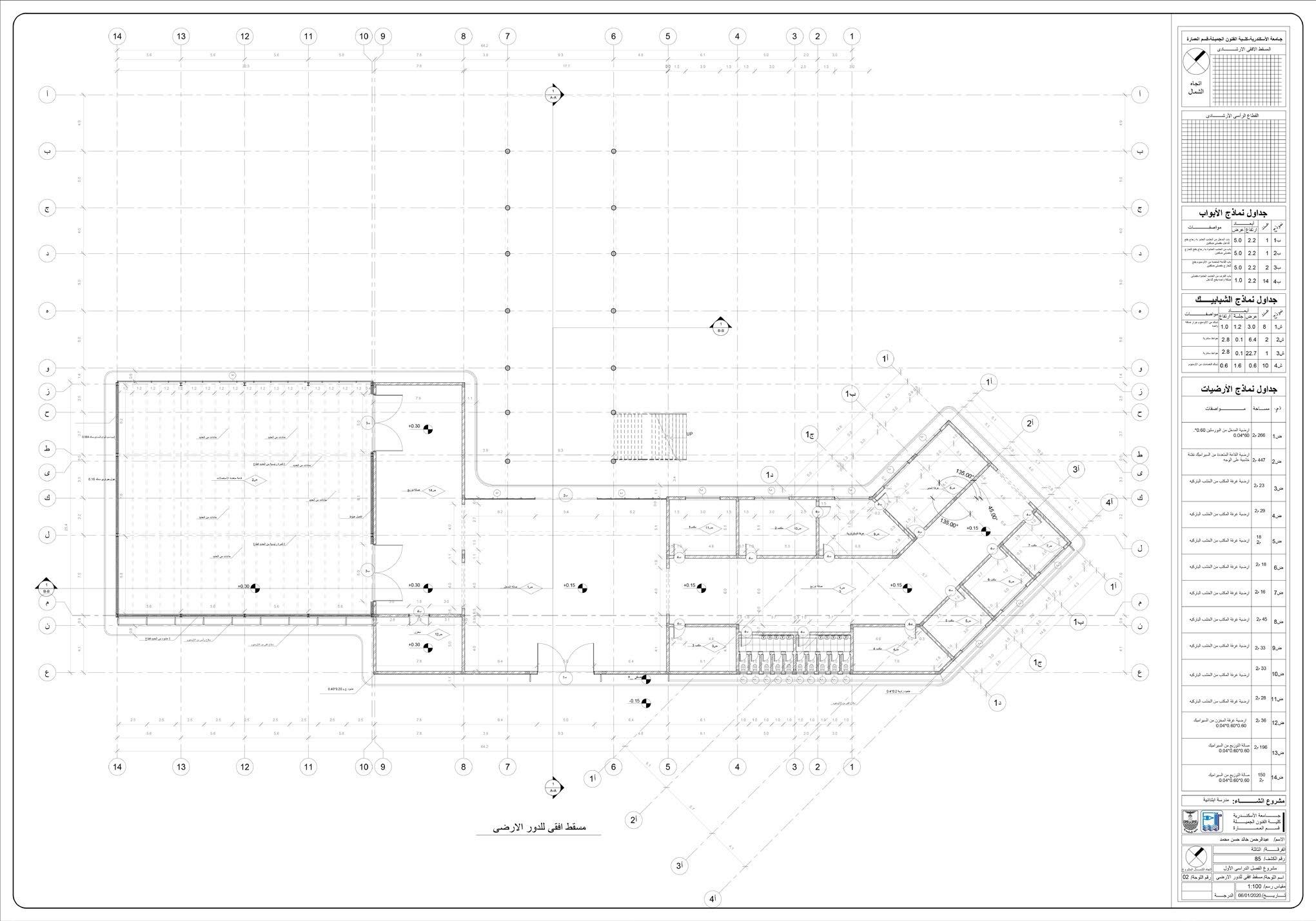

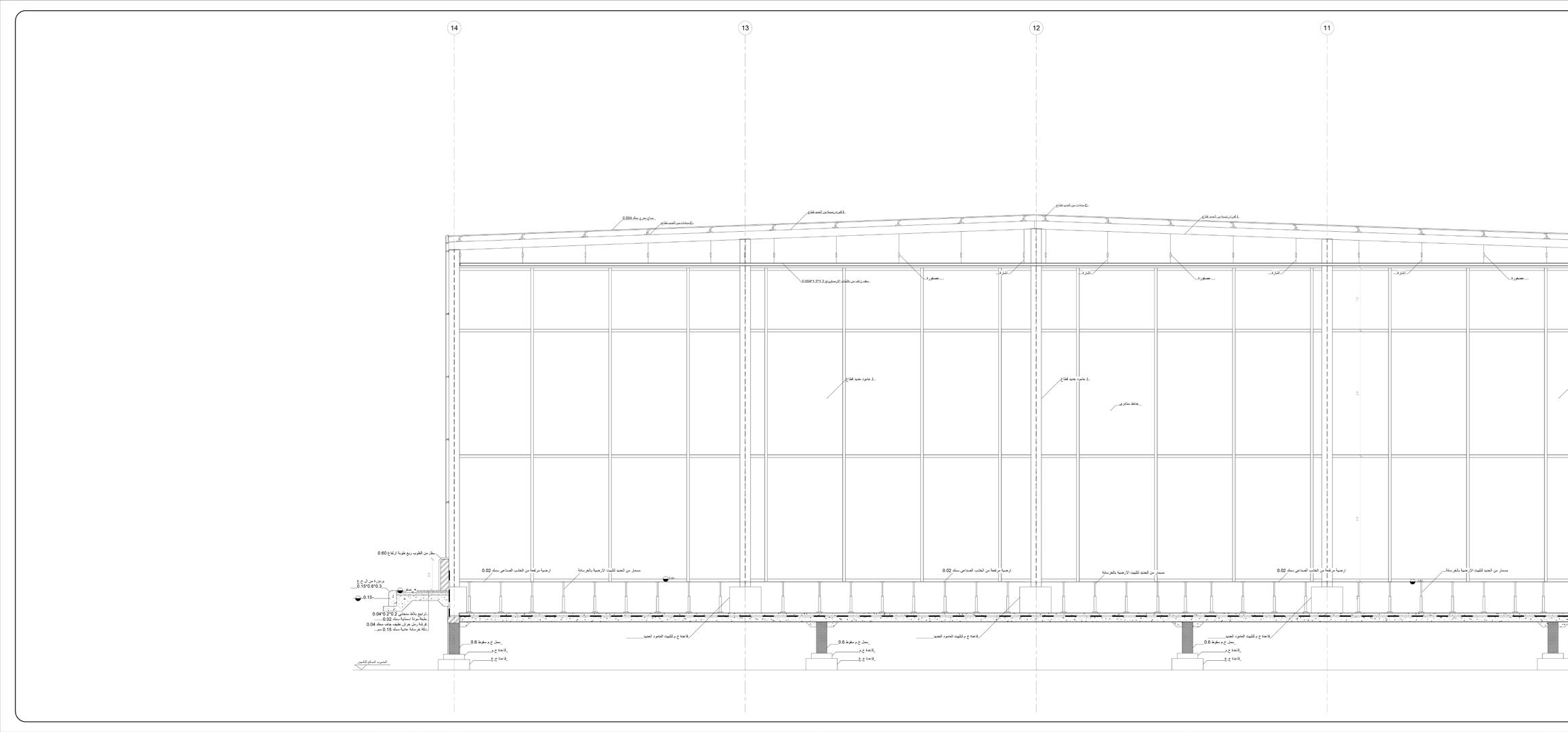

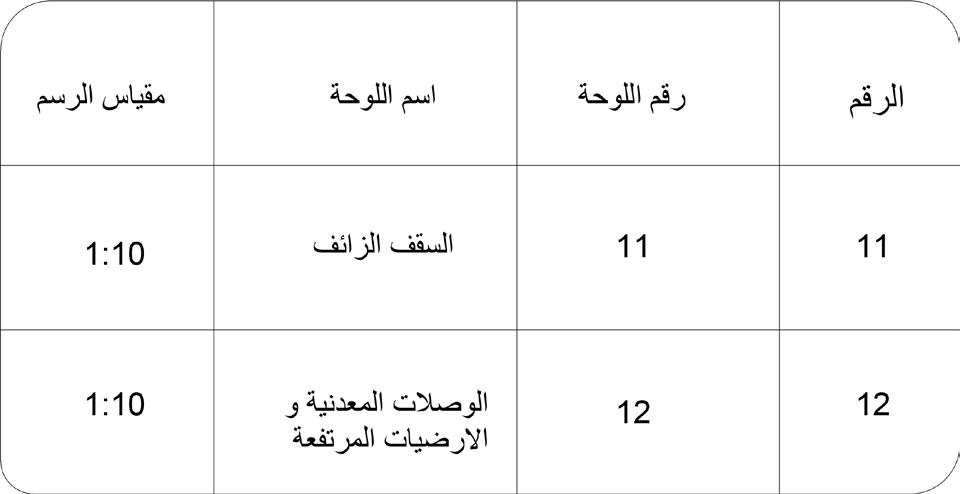

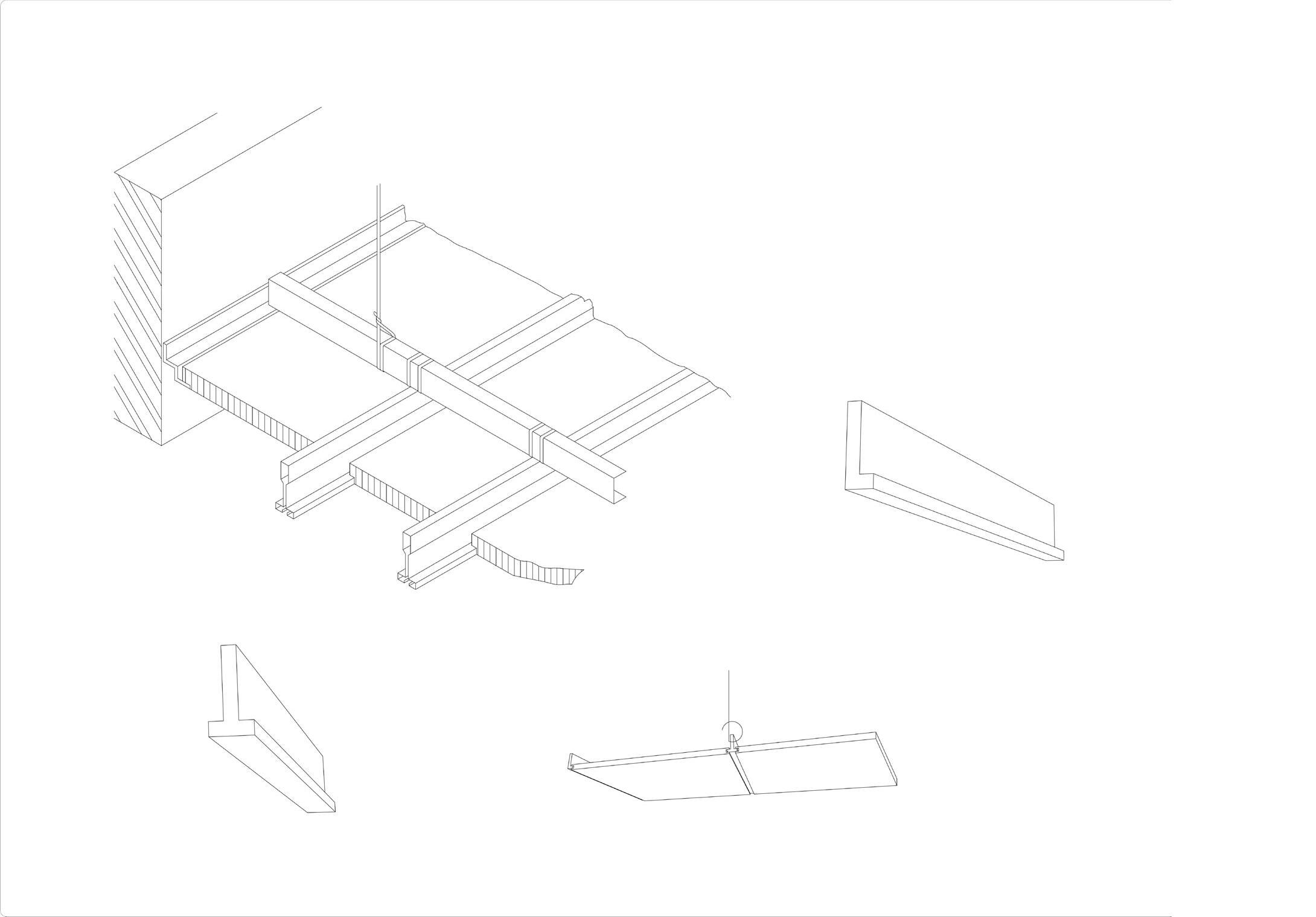

1.) School project fittings

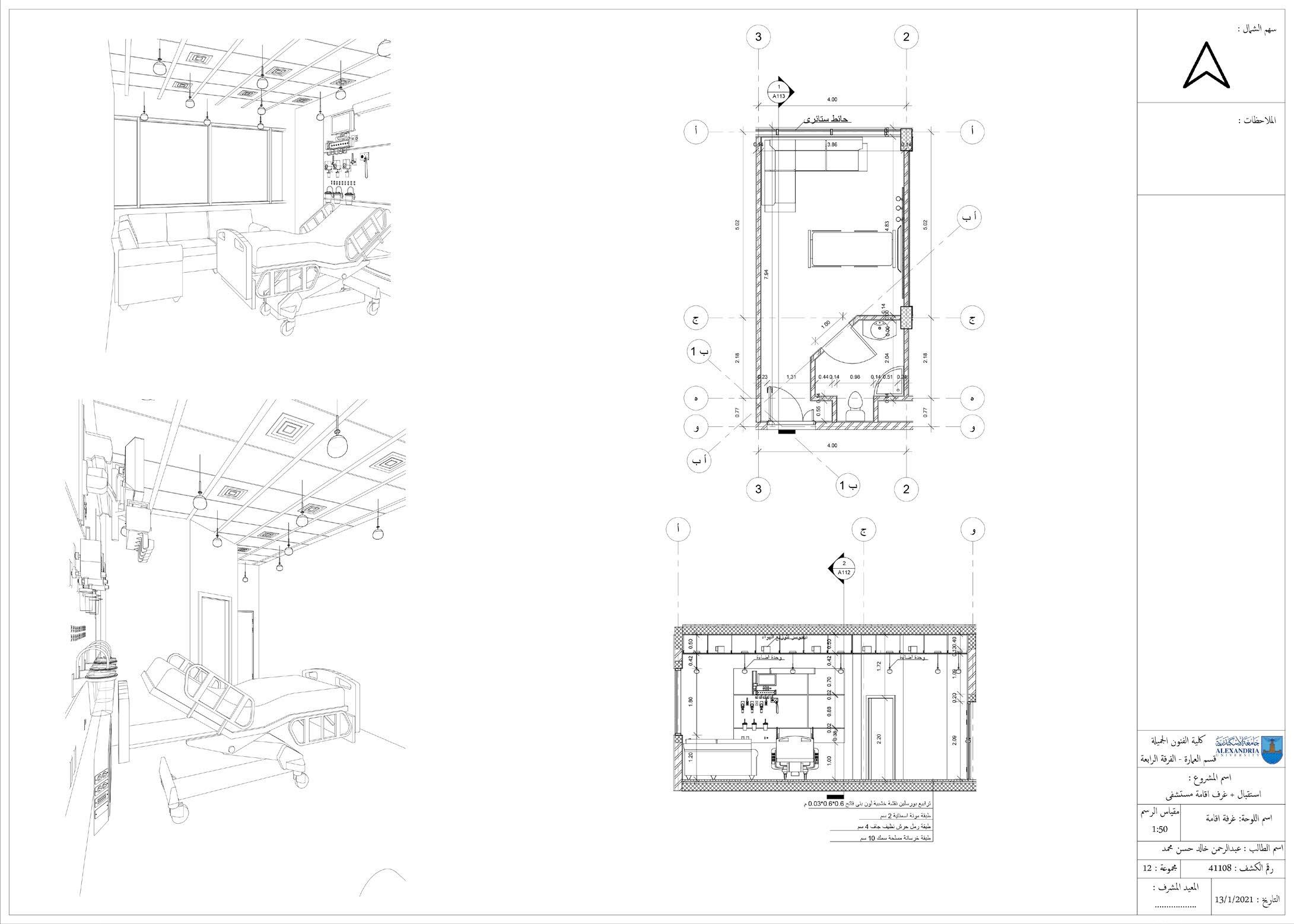

2.) Hospital interior design project
