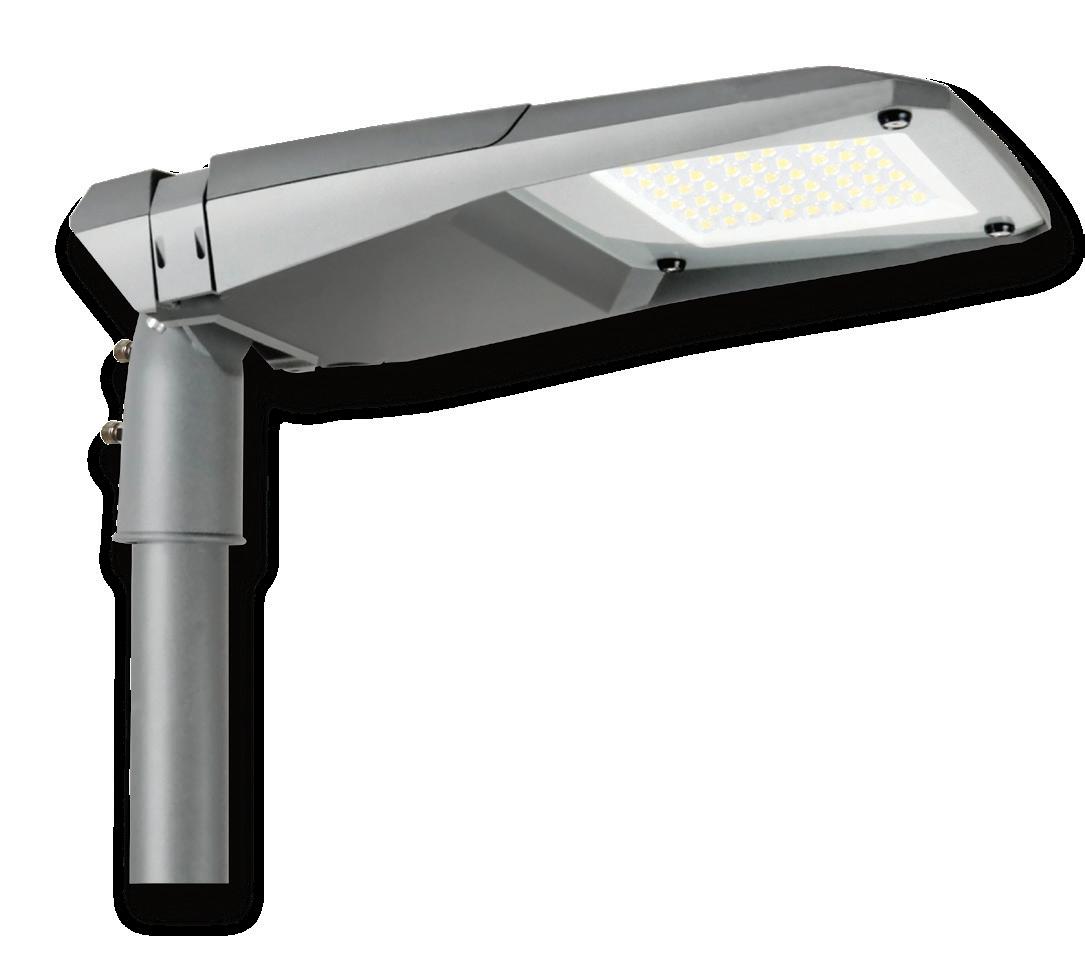

S-LUM Gen 3 - AL61300 Series
Specifications & Key Features:
Key Features:
•Efficacy up to 165 lm/W
•Screw-less access
•Die cast aluminium
•IoT compatible

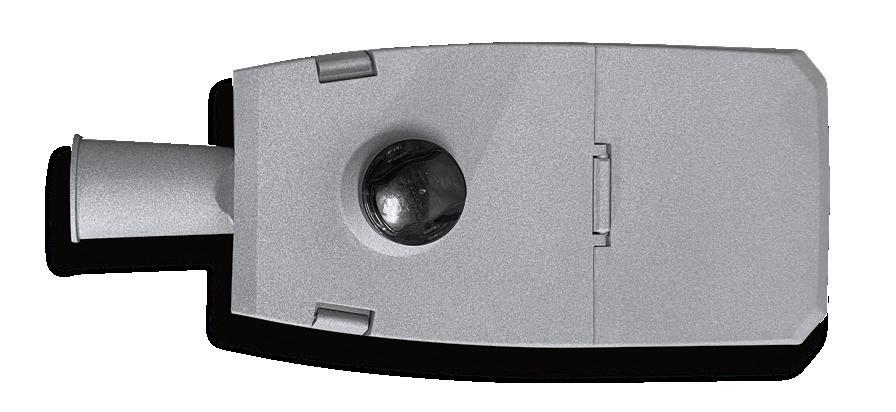

•Zhaga socket on top (Standard)
•Separate LED and driver compartments
•Integrated 5 level dimming module (optional)
•Overheat protection
•Constant light output (optional)
•Time-dependant luminous flux control
•Power reduction; flexible luminous flux
•Colour temp. 4000K as standard (options available)
•CRI ≥70 (80 optional)
•Power supply 220VAC - 240VAC
•Standard surge protection 6kV
•Mounting 60mm (Ø48 - 60mm)
•5 year Warranty
Finish:
Silver (RAL9023)
Driver:
•Dali D4i, 1-10V, RF or PLC
•IP66 and IK10 rated
•10W - 200W data available on request
An innovative road lighting luminaire of modular construction designed with ease of maintenance in mind. Tool-less upgrades of key components such as power supply and light engine along with fieldreplaceable LED modules ensure the luminaire takes full advantage of future improvements in LED technology.
Constructed from high pressure die-cast aluminium, the AL61300 series is available in four body sizes and offers six standard lumen packages, from 1,600 to 32,000 lumens, and comes with eleven different optics.
With a lifetime of 100,000 hours combined with an efficacy up to 165 lm/W, the AL61300 series keeps both operating and maintenance costs to an absolute minimum.
S-LUM Gen 3 - AL61300 Series
Technical Specifications:
Lifetime: L90B10 > 100,000 hours
Supply Voltage: 220VAC - 240VAC 50 - 60Hz Power: Small: 10 - 40W Medium: 40 - 80W Large: 80 -120W Extra Large: 120 - 200W
Luminous Flux: 1,600 - 32,000 lm
Power Factor: >0.96
Wind Area (EPA): Small = 0.05m2, Medium = 0.07m2, Large = 0.9m2 and Extra Large = 0.11m2 CCT: 4000K as standard (other CCT available on request)
Colour Rendering (CRI): ≥ 70 (80 optional)
IP Rating & Mechanical Strength: IP66 and IK10
Surge Protection: 6kV (SPD 10kV / 10kA optional)
Operating Temperature: -40°C to +55°C
Electrical Class: Class I
Weight: Small: 3kg Medium: 3.9kg Large: 6.4kg Extra Large: 9.3kg

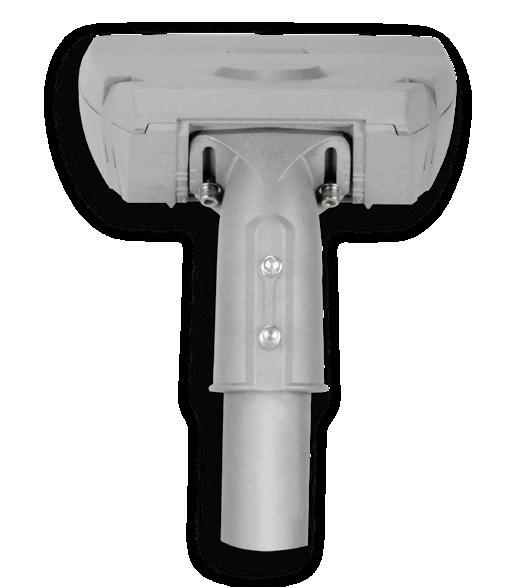

Mounting: Ø60mm pole (Internally Ø48 - 60mm Standard) & Ø76mm Externally
Tilt: -15° to +15° (horizontal and vertical installation)
Controls: DALI D4i + Zhaga socket on top (standard); RF, PLC, Narrow band optional, see accessories for all Zhaga socket options
Certificates: IEC 60598-2-3:2002 + A1:2011, IEC60598-1:2020 IEC 60598-2-3:2003 + A1:2011, EN IEC 60598-1:2021 + A11:2022 IEC 62031:2018, IEC/TR 62696:2011, IEC/TR 62778:2014; CE; ENEC; LM79
S LUM Gen 3 - Product Code Selector
Product Selection Example:
options may be subject to MOQs or longer lead times.

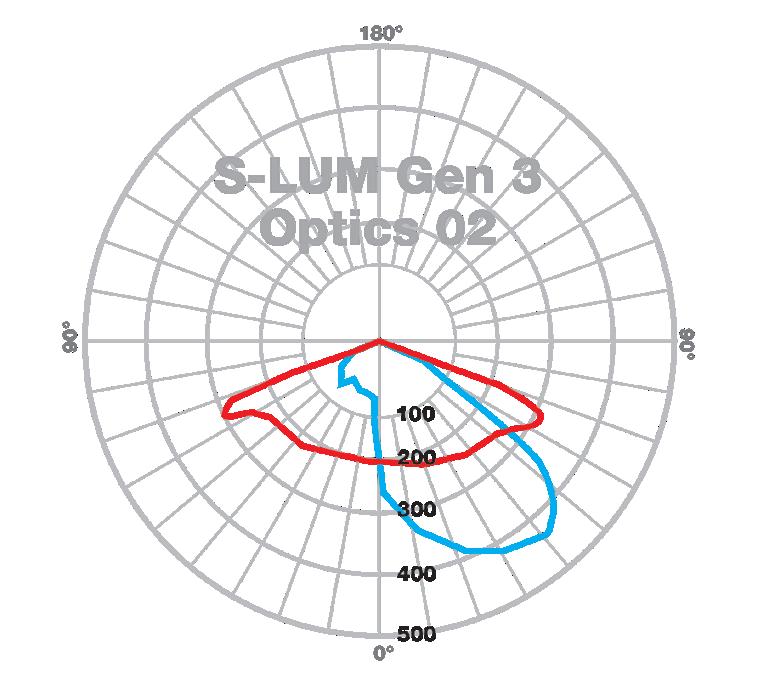

AL61302 (002):
Suitable narrow roads, access roads, cycling and pedestrian areas

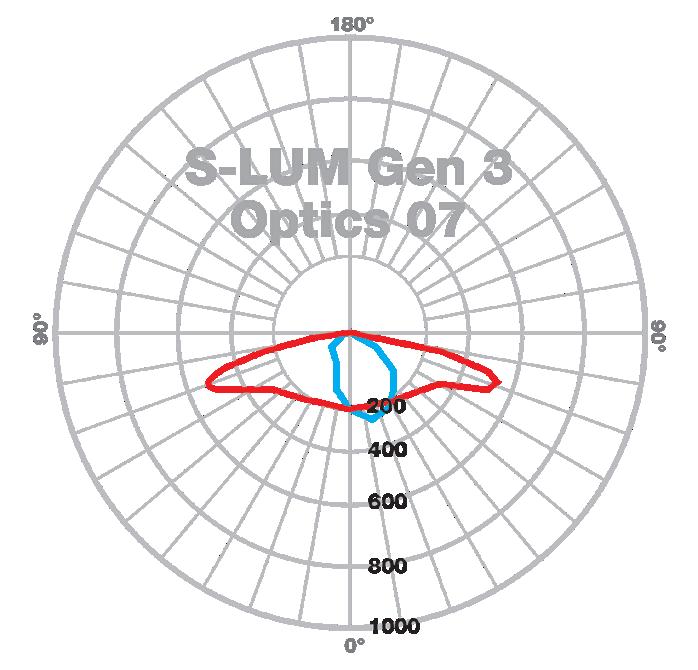

AL61307 (004):

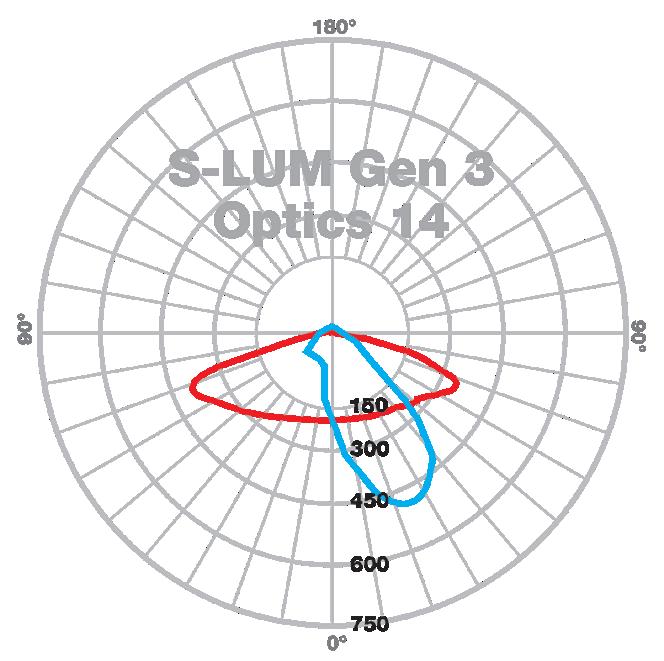

Photometry
AL61314 (012):
Suitable narrow roads, access roads, cycling and pedestrian areas

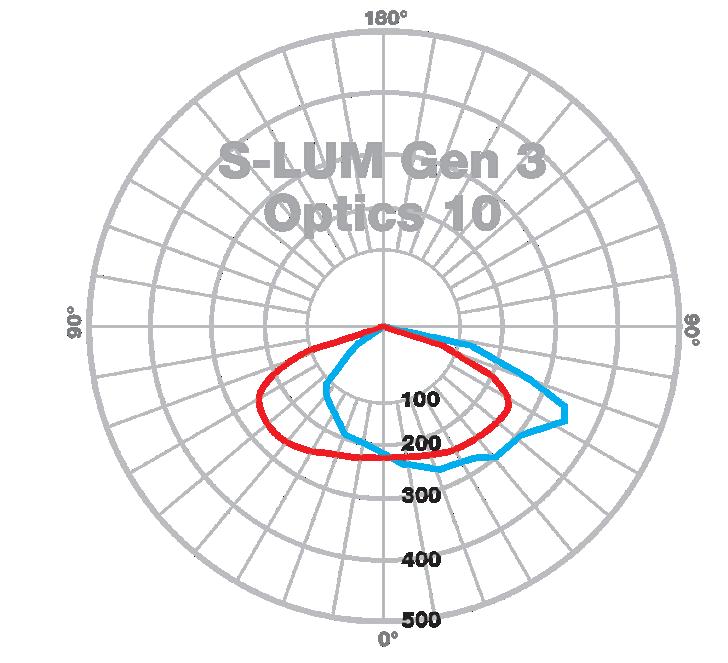

AL61310 (000):
Suitable for larger distances between columns and has a high longitudinal uniformity factor

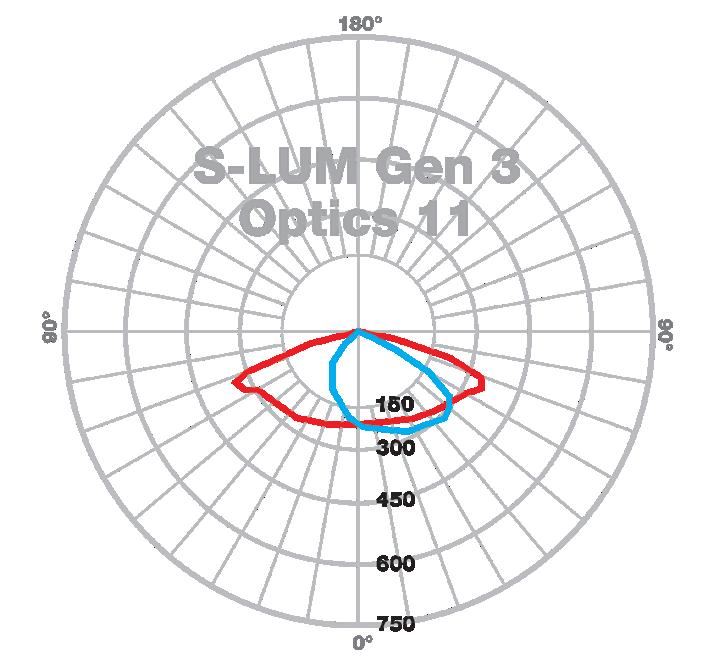

AL61311 (001):
Suitable for wider roads smaller distances between columns and car parks
Suitable for high installations, wider roads and large area car parks

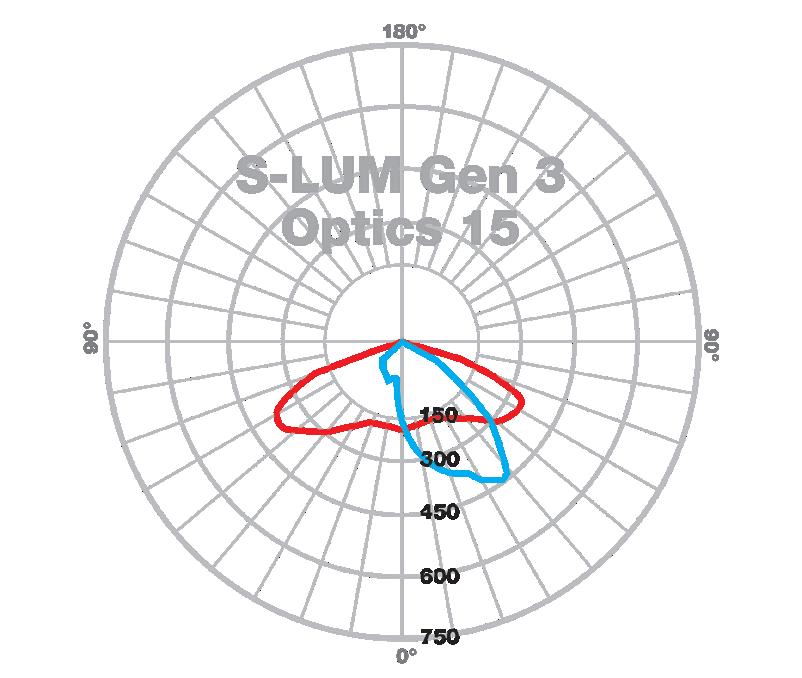

AL61315 (030):
Suitable for larger distances between columns, high mounting installation and high uniformity factor
