Emley Association Football Club Case Study
About Our Client:

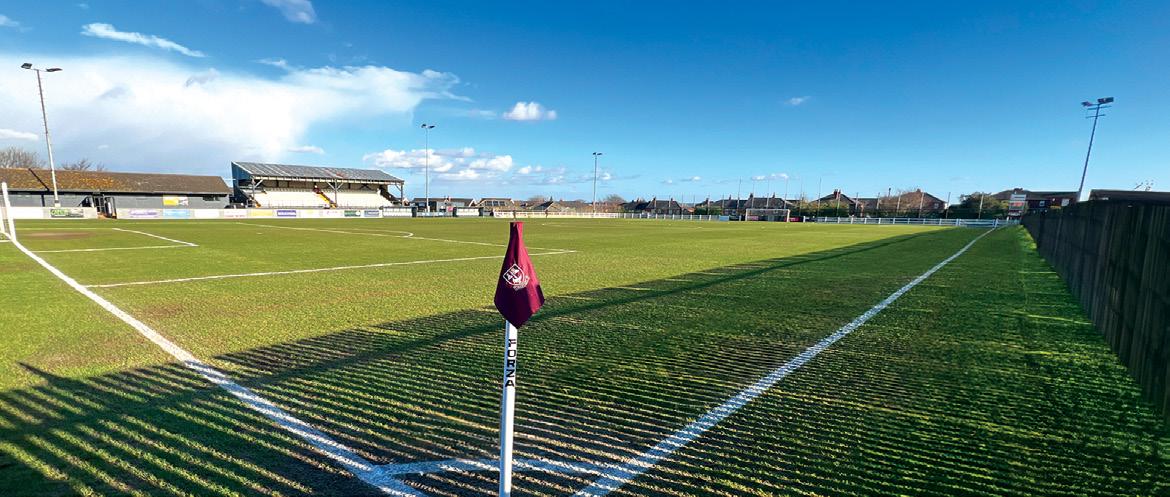

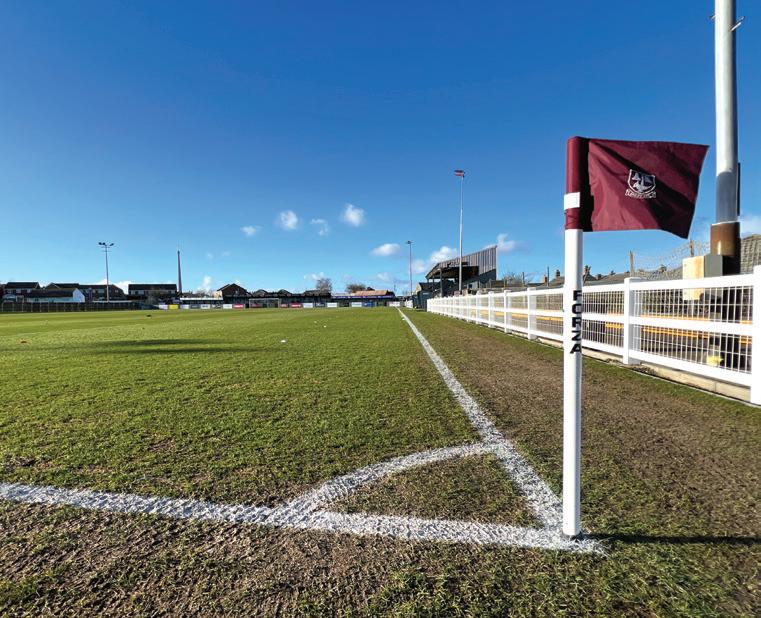

Emley FC is a long-standing football club with a rich history and connection to its community. Over the years, the club has sought to improve its facilities to provide the best possible environment for players and fans. Abacus Lighting has proudly supported Emley AFC for approximately 40 years, having originally installed their previous lighting system.
Emley FC is committed to maintaining a high standard of infrastructure to support its players and ensure a great matchday experience. Recognising the importance of efficient, high-quality lighting, the club has always prioritised modernising its facilities all around the ground. This latest project aimed to enhance energy efficiency and light quality while ensuring long-term sustainability.
The Solution:
Click Or Scan Here To View The Emley AFC Case Study Video!
The Challenge:
Emley FC’s old lighting system had become outdated, with issues surfacing more frequently over time. These challenges were escalating to the point where maintaining the system was no longer economically viable. With increased maintenance costs and declining performance, the club was struggling to meet the required lighting standards for competitive matches.
To continue providing a high-quality experience for both players and supporters, Emley AFC required a modern, efficient lighting solution that would not only enhance the quality of light on the pitch but also help reduce energy costs. The club also wanted a system that would be easy to control and maintain while reducing its environmental impact. Thanks to funding from the Premier League Stadium Fund, Emley AFC could move forward with upgrading their system.

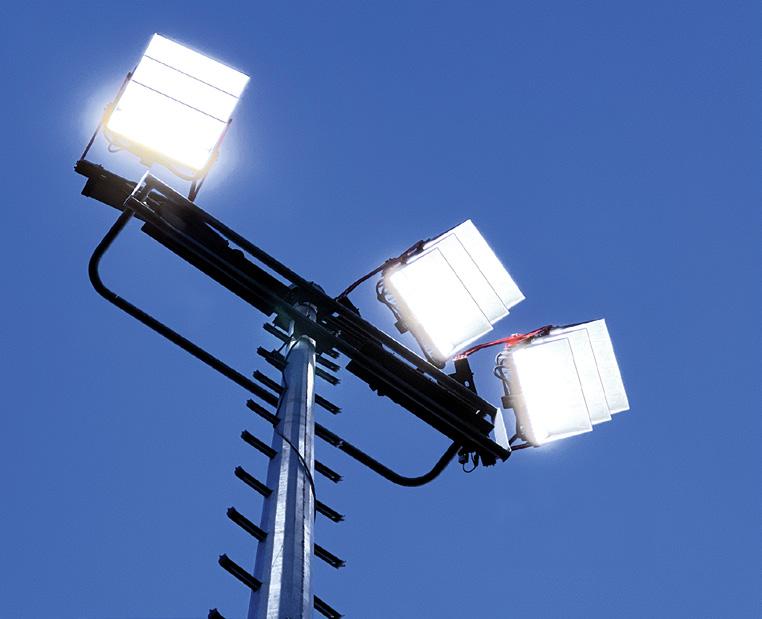

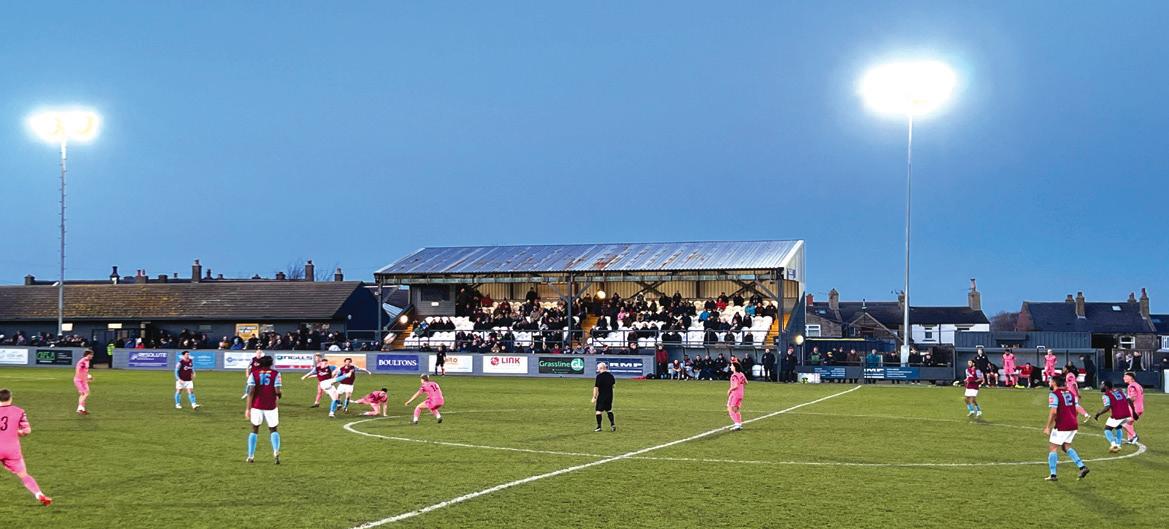

Abacus Lighting delivered a comprehensive turnkey solution, retrofitting six Challenger 3 LED floodlights and six Challenger 1 LED floodlights onto the club’s existing fixed masts. The installation was completed within the projected timeframe, with Abacus providing prompt responses to any issues that arose during the project. This modern lighting system was designed to deliver high-quality illumination while significantly reducing energy consumption. The new LED system offers superior brightness, uniform light distribution, and improved visibility for players, referees, and spectators alike.
One of the standout features of the new system is its advanced control capabilities, enabling Emley AFC to manage their lighting via a smartphone app. This functionality simplifies operations, allowing the club to easily set schedules, control brightness, and turn the lights on and off without needing to access the physical switch room. This not only enhances convenience but also contributes to further energy savings by ensuring the lights are only used when necessary.
By implementing the latest LED technology, Emley AFC now benefits from a more sustainable and cost-effective solution, reducing its carbon footprint while significantly lowering utility bills.
Scan Here
Emley Association Football Club Case Study
Testimonial:
Andrew Painten, Chairman of Emley AFC, shared his thoughts on the project:
“We’re delighted with the new system – it’s extremely reliable. The biggest impact as well as the quality of light is the cost saving; we already know we have saved around 25% on our utility bills. I personally love the fact we don’t have to run around going behind locked doors and finding switches. Now the switch room is right here on my smartphone, where we can set the lights on and off alongside controlling the brightness, which is a fantastic way of working.”

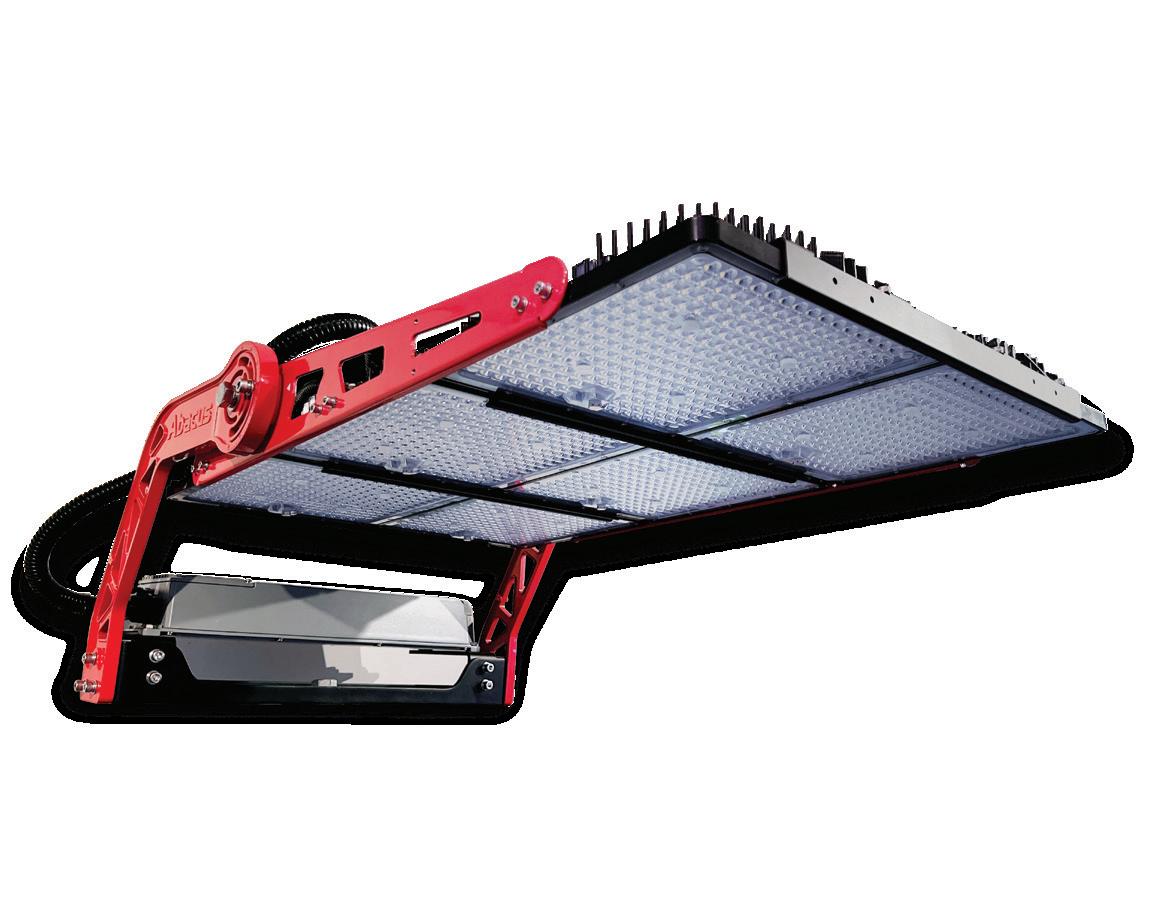

Challenger 3 LED
Key Features:
• Advanced design reduces light pollution and improves spectator viewing
• Precise optical control designed specifically for sport
• IP66 and IK10 rating for harsh environments
• Lens and lumen packages available in a versatile design for multiple applications
• Full cut off low spill design for control of light

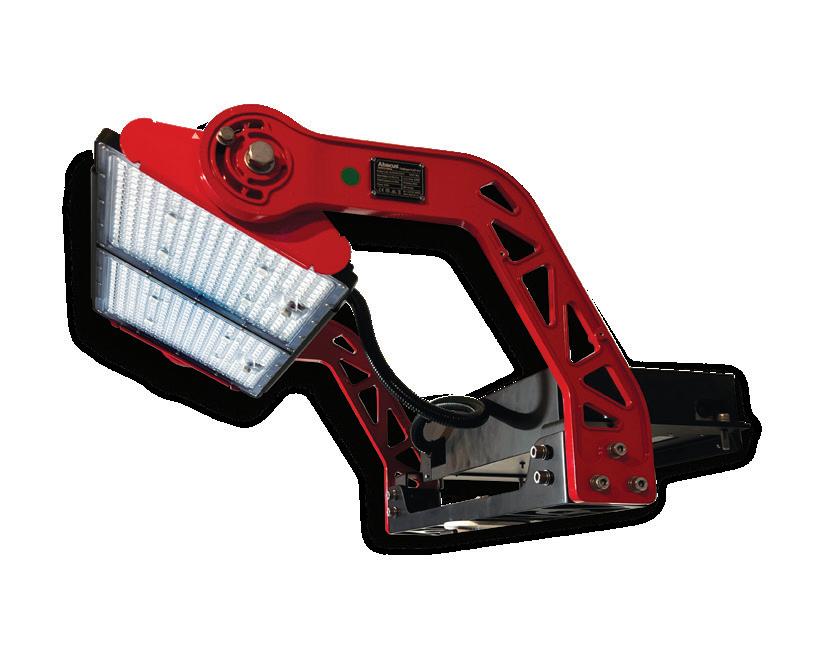

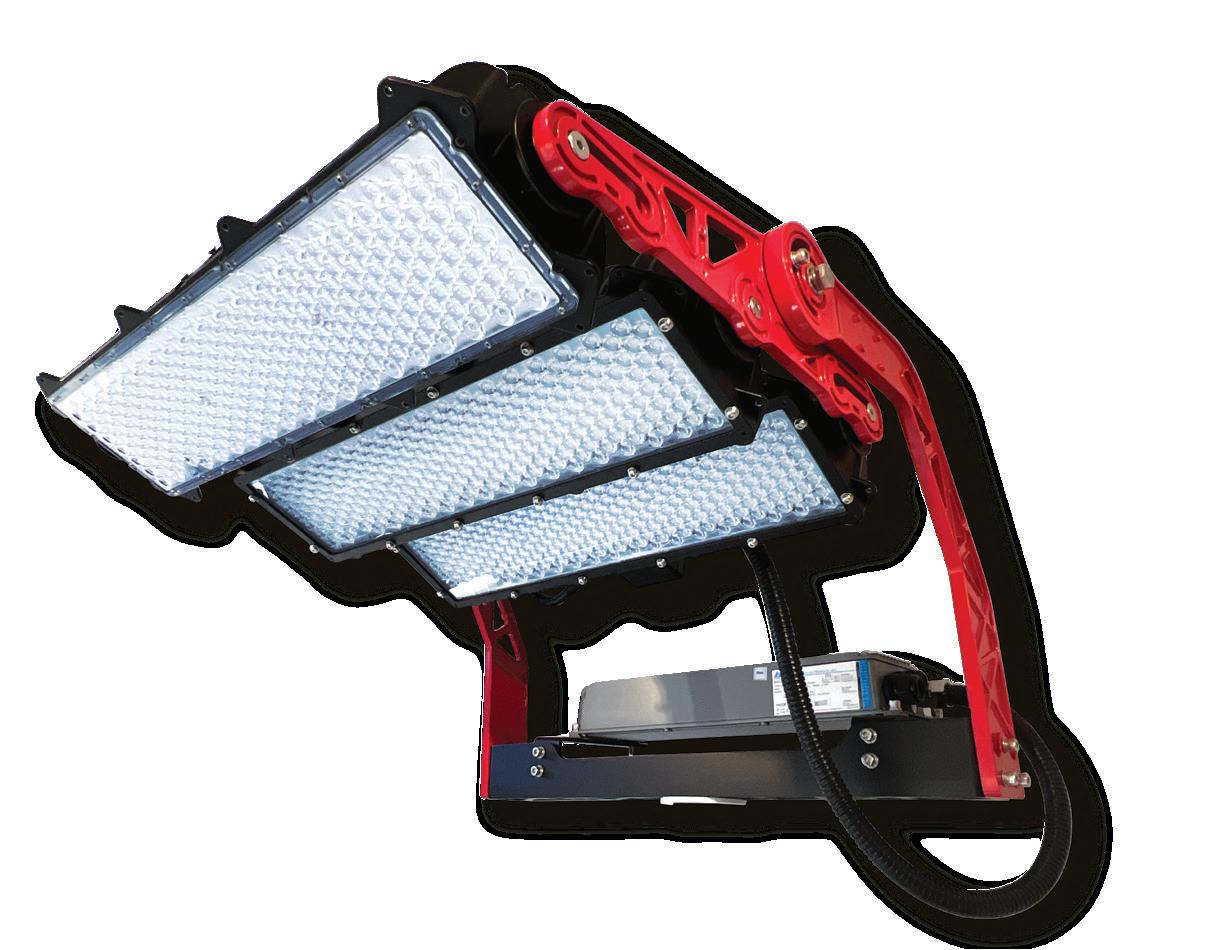

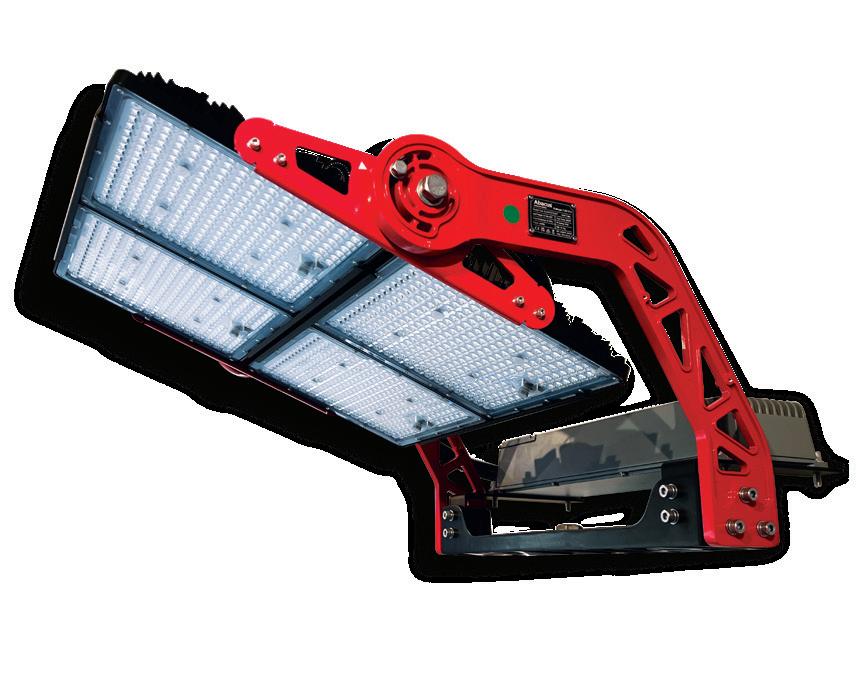

Challenger 1 LED
• Flat glass, double asymmetric floodlight
• Elegant and unobtrusive low profile design
• Available in 2, 4 and 6 module variants from 400W to 1500W

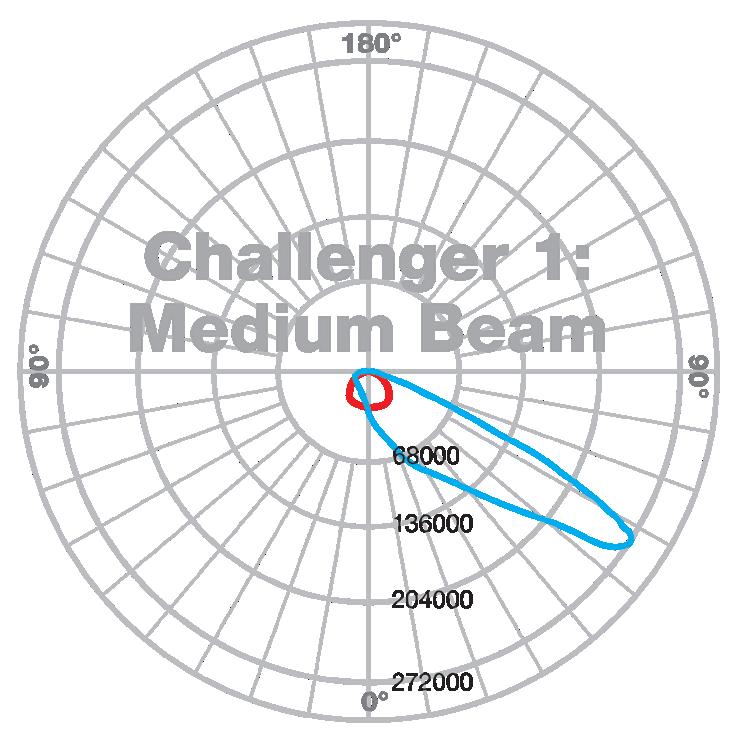

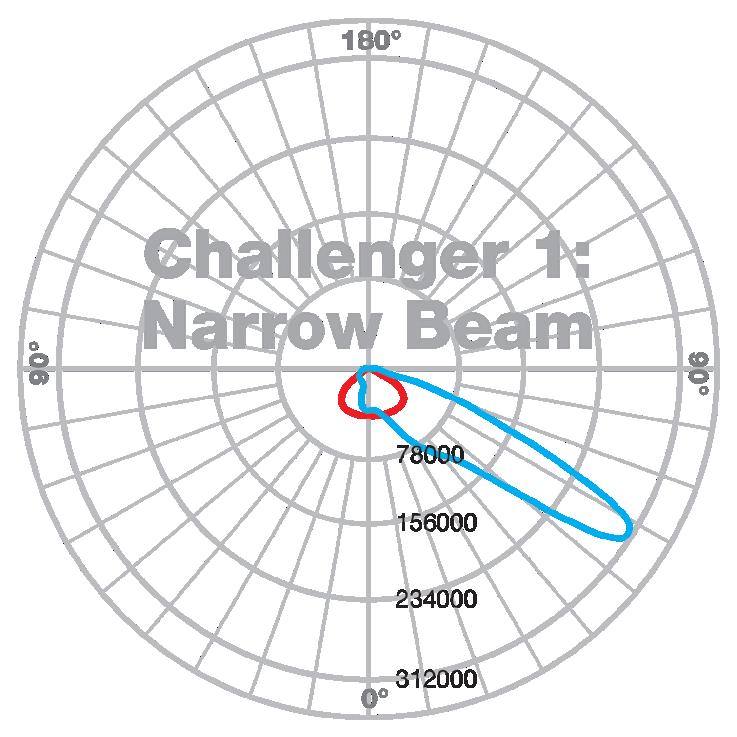

• Abacus designed medium and narrow light distribution, specifically for sports lighting
• Integral or remote driver options
• IP66 and IK10 rating for harsh environments
• Powder coated Black/Red finish
Specifications & Key Features:
Housing:

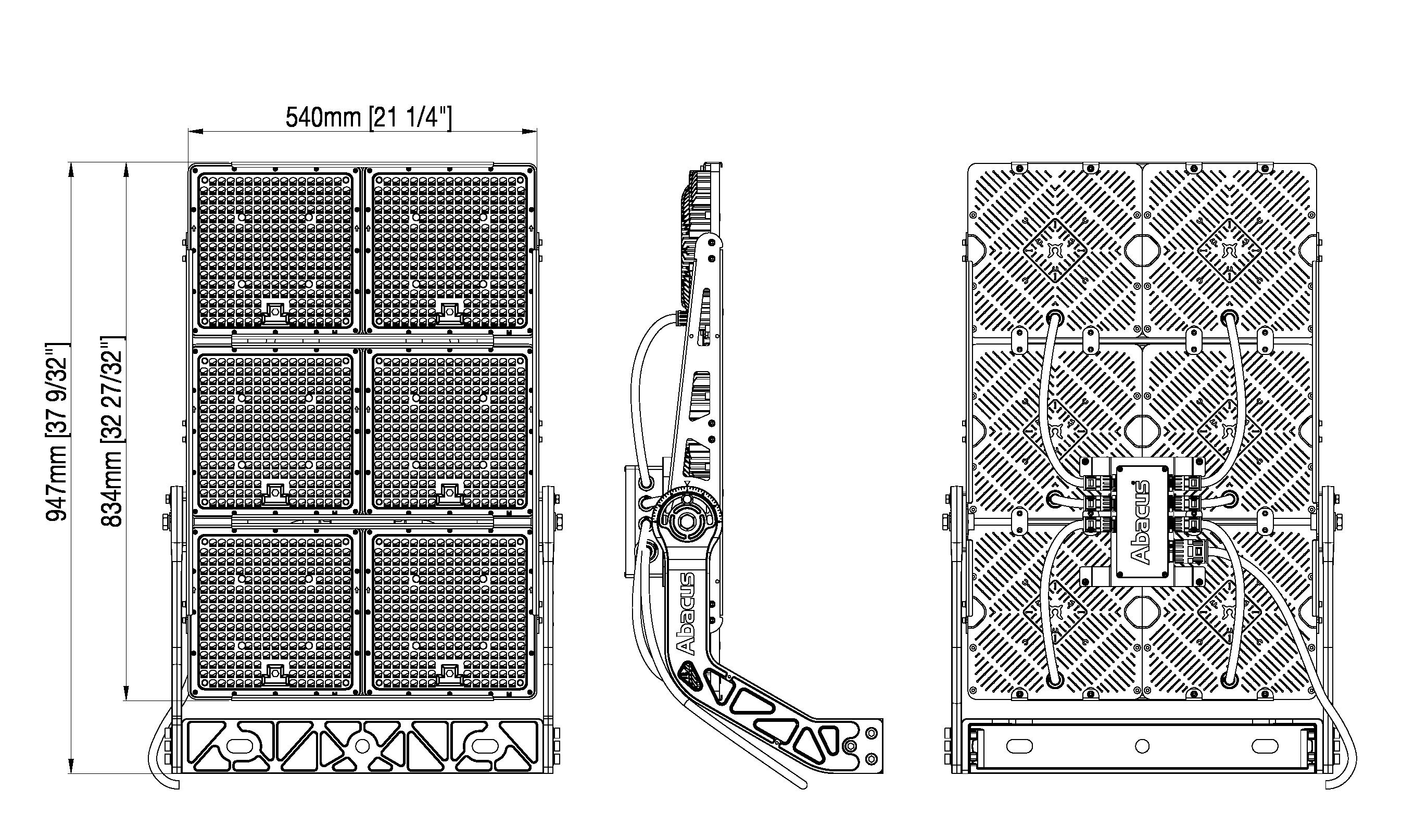

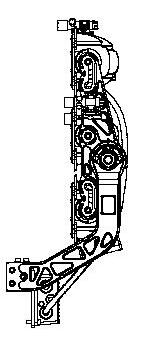

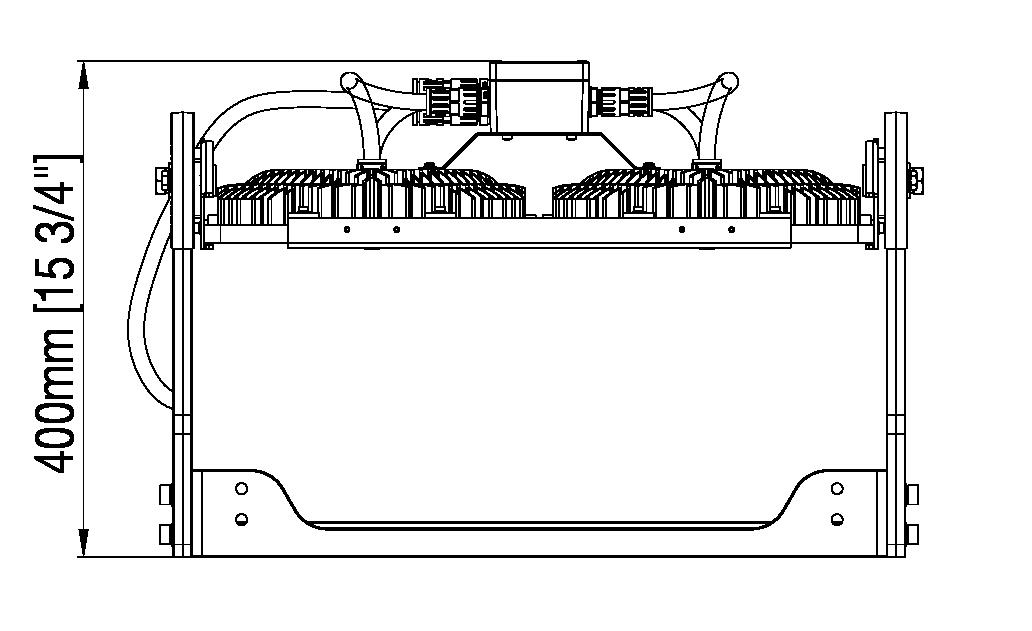

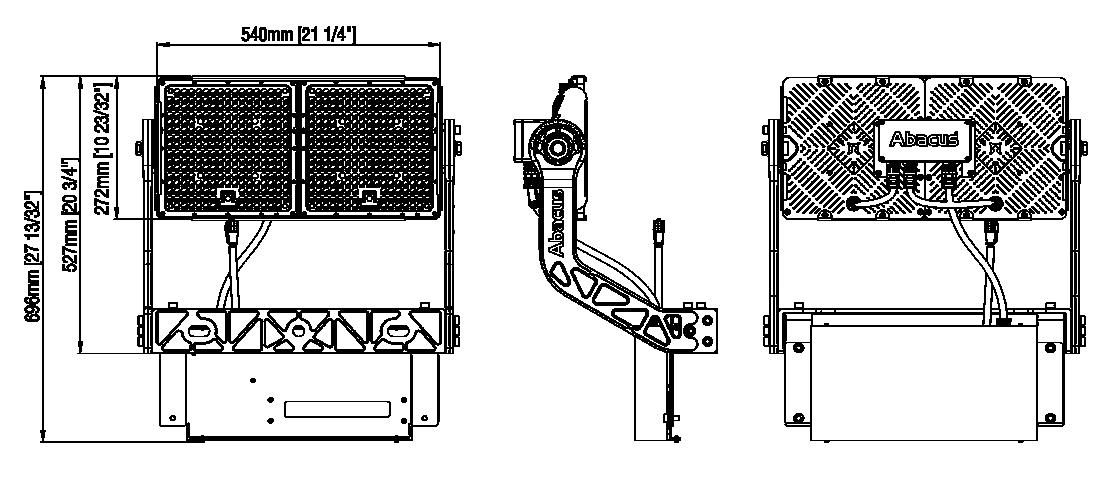

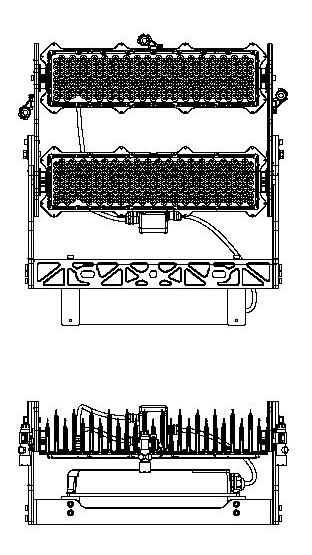

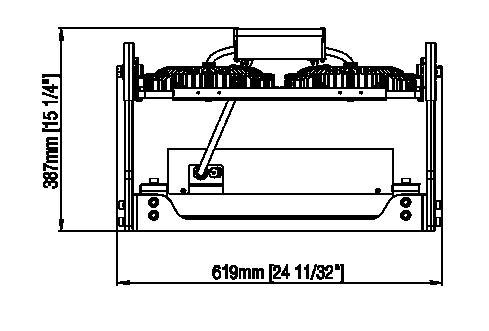

Challenger 1 LED AL6100 - AL6300 Series
Die-cast/profiled aluminium and steel are used to produce an elegant and unobtrusive low profile design.
Ratings:
UKCA, CE, CB, SAA, IP66
Finish:
Powder coated Black/Red
Driver:
• 1500W driver is 3ch. DALI2/DMX driver
• IP66 rated
• 400W - 1200W data available on request
• Integral or remote options available
Warranty & Lifetime:
5 years standard warranty
60,000 hours L80B10 25°C
Wind Area (flat glass installation):
6 module: 0.149m2
4 module: 0.130m2
2 module: 0.107m2
Product Applications:
Challenger 1 Product Overview:

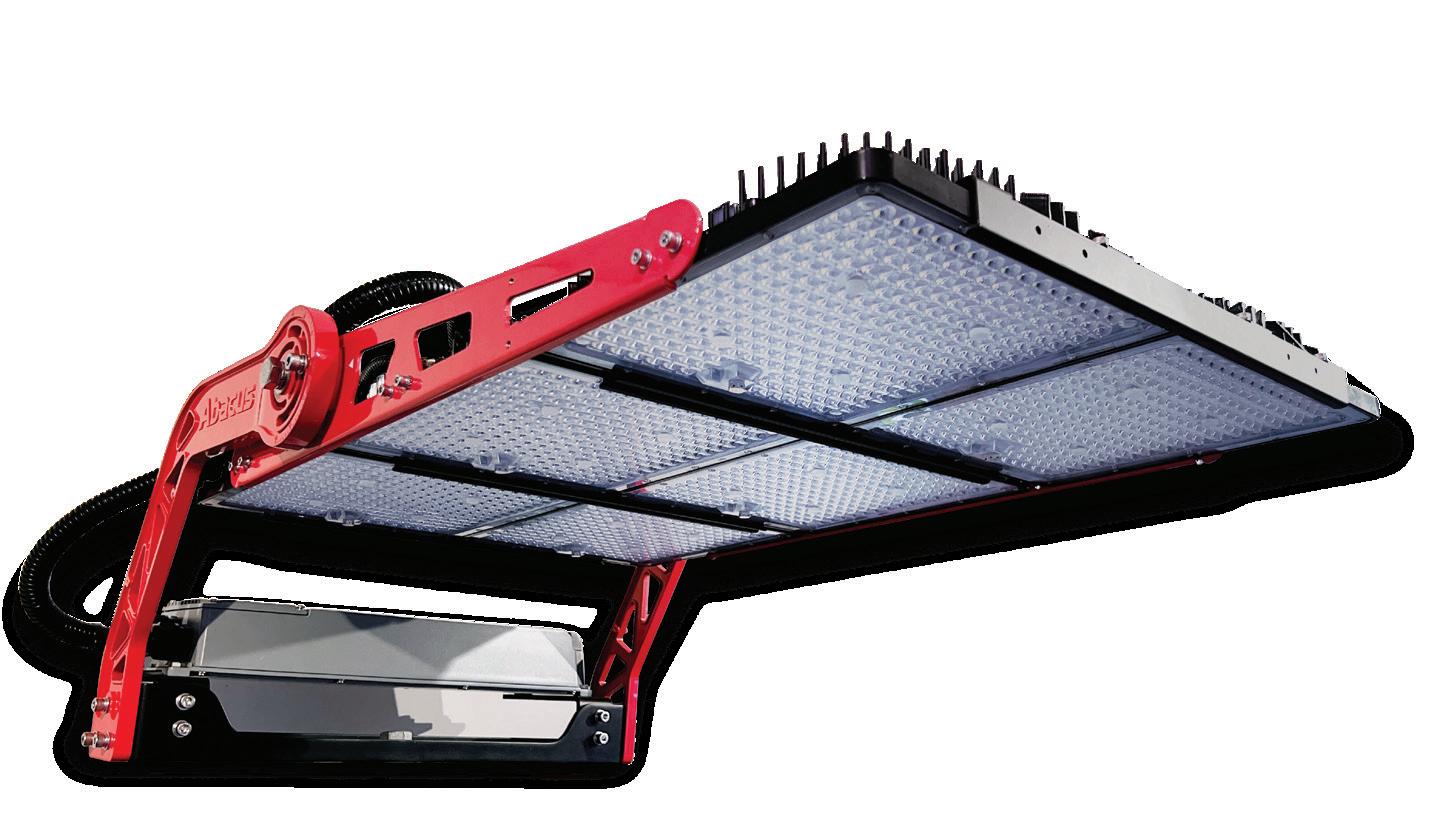

The Challenger 1 LED by Abacus Lighting is a cutting-edge floodlight that combines exceptional performance with a sleek, modern design and low cost of ownership. Featuring a flat glass, double asymmetric design, it provides precise and efficient illumination while minimising light spill. Available in 2, 4, and 6 module variants ranging from 400W to 1500W, the Challenger 1 LED is a versatile solution suitable for a wide range of applications. Whether used for sports facilities, industrial sites, large open spaces, or area lighting, it delivers powerful and reliable illumination tailored to specific project needs.
Built for durability, the Challenger 1 LED is IP66 rated, ensuring protection against dust and water ingress, making it a robust choice for even the harshest environments. With Abacus-designed medium and narrow beam optics, it provides excellent coverage and efficiency, enhancing visibility and safety.
The floodlight offers integral or remote driver options, allowing for flexible installation. Finished in a durable black or red powder coating, it not only performs exceptionally but also maintains a professional, modern aesthetic. Whether lighting up sports venues, industrial complexes, or large public spaces, the Challenger 1 LED sets the standard for high-performance floodlighting.
Challenger 1 LED AL6100 - AL6300 Series
Challenger 1 LED - Product Code Selector
Specifications & Key Features

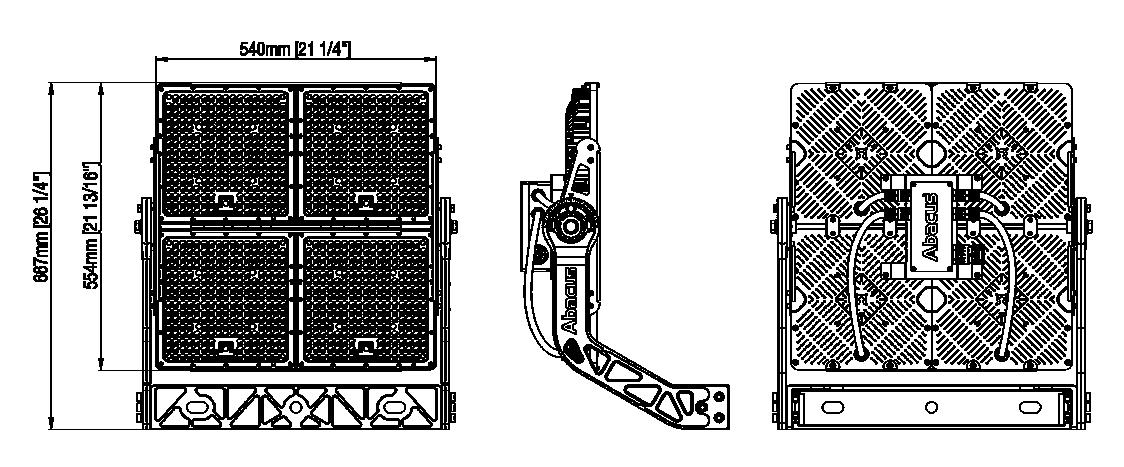

Challenger 3 LED AL7100 Series
• Advanced design reduces light pollution and improves spectator viewing
• Precise optical control designed specifically for sport
• Robust for all environments with an IP66 and IK10 rating
• Lens and lumen packages available in a versatile design for multiple applications
• Dali and DMX options
• Full cut off low spill design for control of light
Product Applications
• Sport
• Open Areas

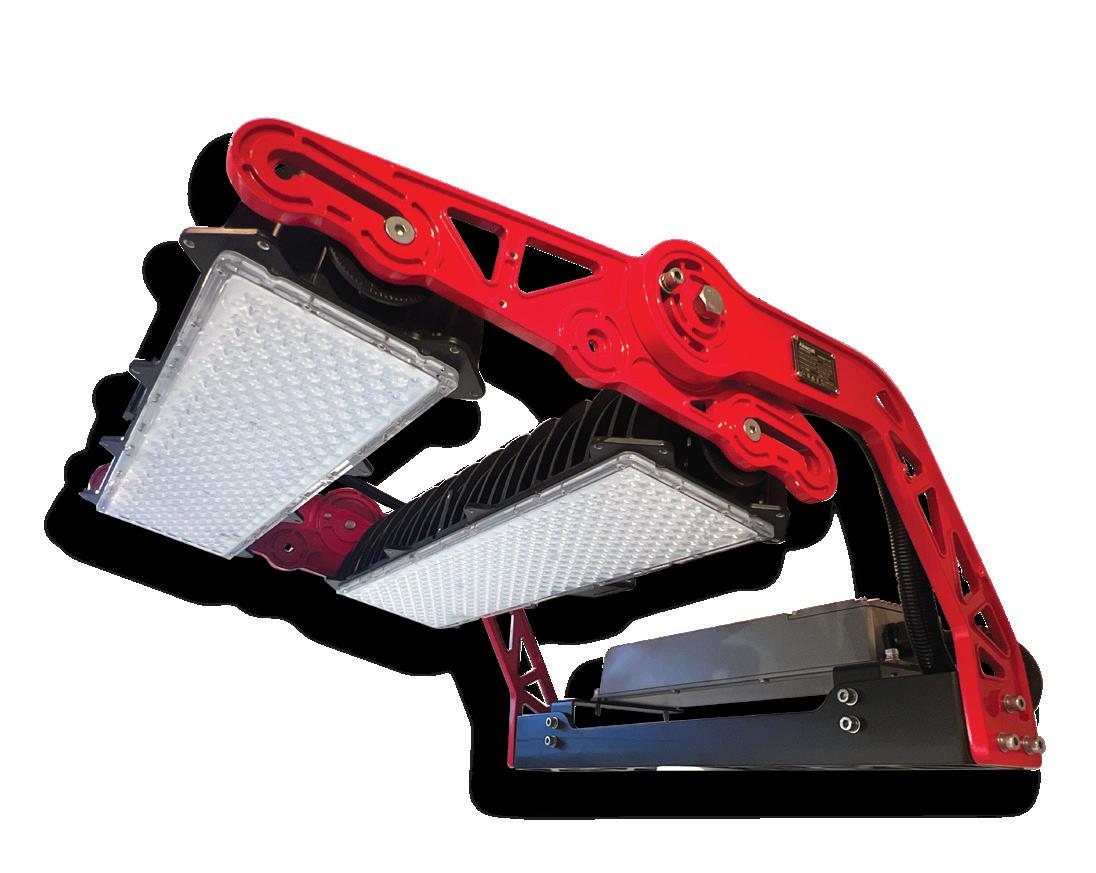

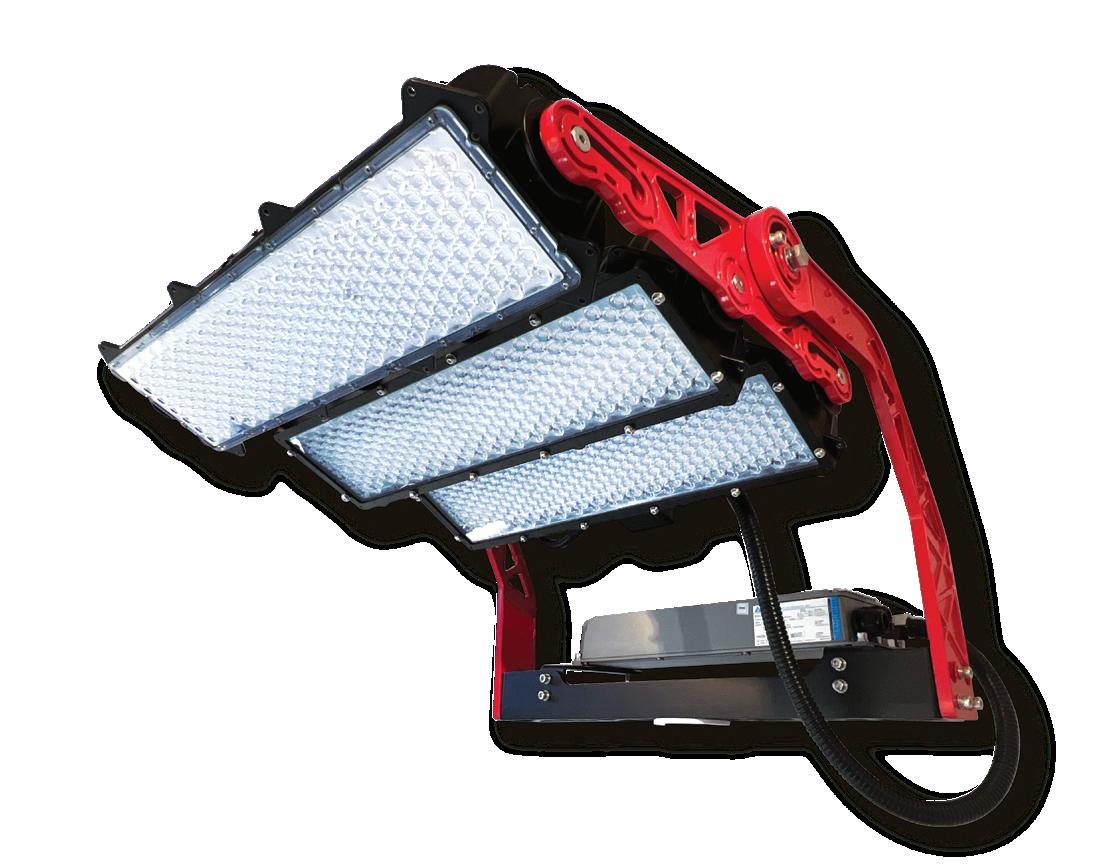

The Challenger 3 LED by Abacus Lighting is a high-performance floodlight designed for sports fields, arenas, and large outdoor spaces. Engineered with advanced optics and LED technology, it delivers exceptional illumination while minimising light pollution, ensuring optimal viewing conditions for players and spectators. Its modular design not only allows for straightforward installation but also simplifies maintenance, making it a preferred choice for high mast lighting solutions and stadiums worldwide.
Built to withstand the harshest environments, the Challenger 3 LED boasts an IP66 and IK10 rating. With precise optical control tailored specifically for sports applications, it offers full cut-off and low spill lighting, reducing glare and unwanted light spill. The floodlight’s versatile lens and lumen packages cater to various requirements, while DALI and DMX options provide advanced control capabilities. Whether illuminating a football pitch, a racetrack, or a multi-use sports facility, the Challenger 3 LED delivers powerful, efficient, and reliable lighting for any large-scale setting.
Product Overview

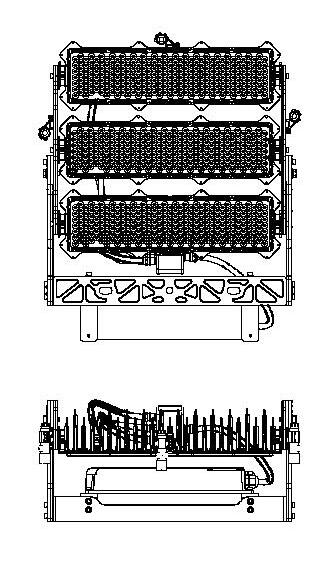

Challenger 3 LED AL7100 Series
Challenger 1 LED - Product Code Selector
Lumen output up to 162,865 up to
up to
LED Chips numbers 224 pcs 120 pcs 288pcs
Light Efficiency Up to 159lm/W
Beam Angle+ 17°, 25°, 50°
Colour Temperature 4000 - 6000K (5700 standard)
Colour Rendering Index (CRI) ≥70 (≥90 optional)
Colour Heat sink: RAL 9017, Bracket: RAL 9017 & Abacus red
IP Rating IP66
IK Rating IK10
Operating Temperature Range -40° - +50° (module)
Optional accessories Front glass, shields, aiming device
Input Voltage
AC 200-440V @50/60hz (Single or 3 phase L1/L2/PE)
Input Voltage - US Option AC 208-480V @50/60hz (Single or 3 phase L1/L2/PE)
*Non-standard options may be subject to MOQs or longer lead times.
