Specifications & Key Features
Challenger 3 LED AL7100 Series
• Advanced design reduces light pollution and improves spectator viewing
• Precise optical control designed specifically for sport
• Robust for all environments with an IP66 and IK10 rating
• Lens and lumen packages available in a versatile design for multiple applications
• Dali and DMX options
• Full cut off low spill design for control of light
Product Applications
• Sport
• Open Areas

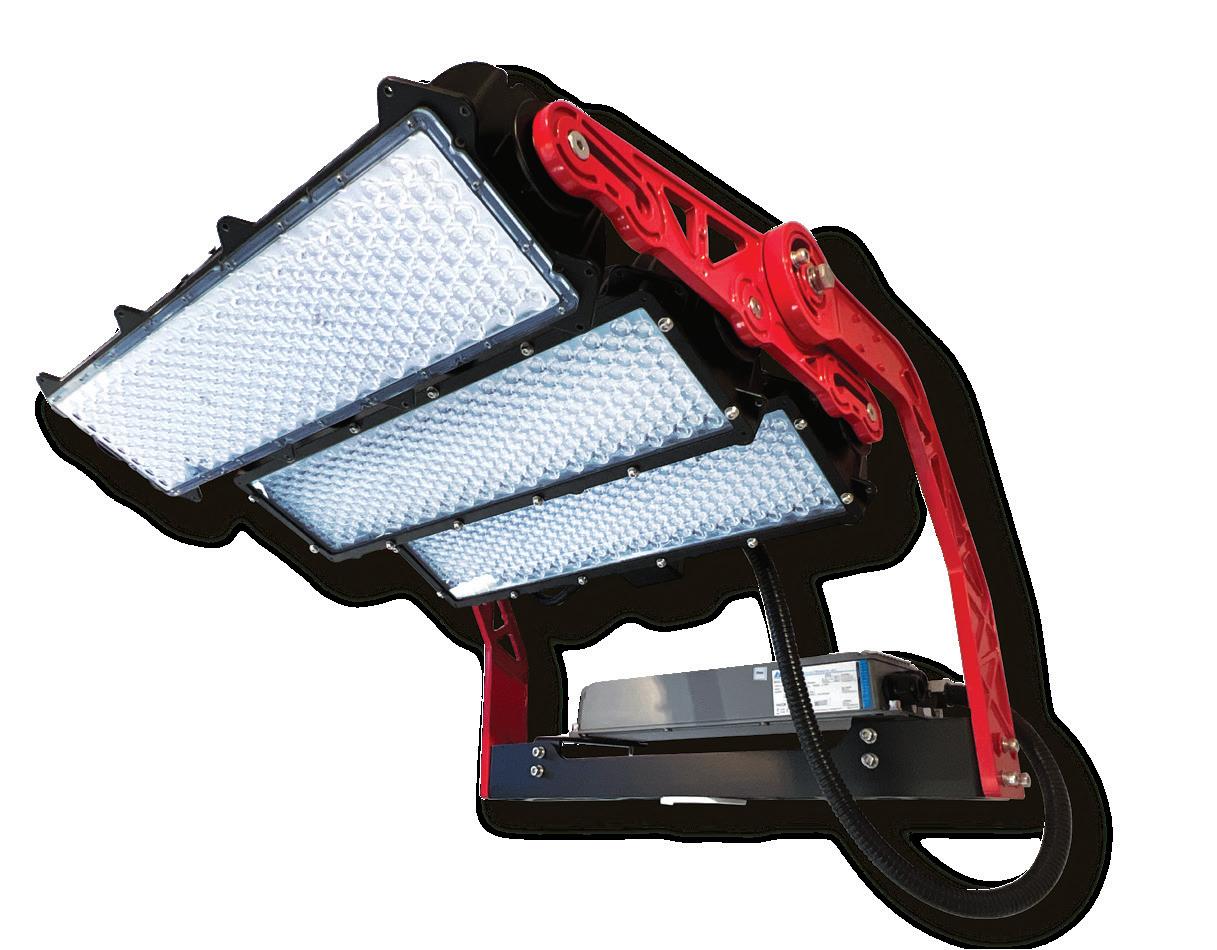

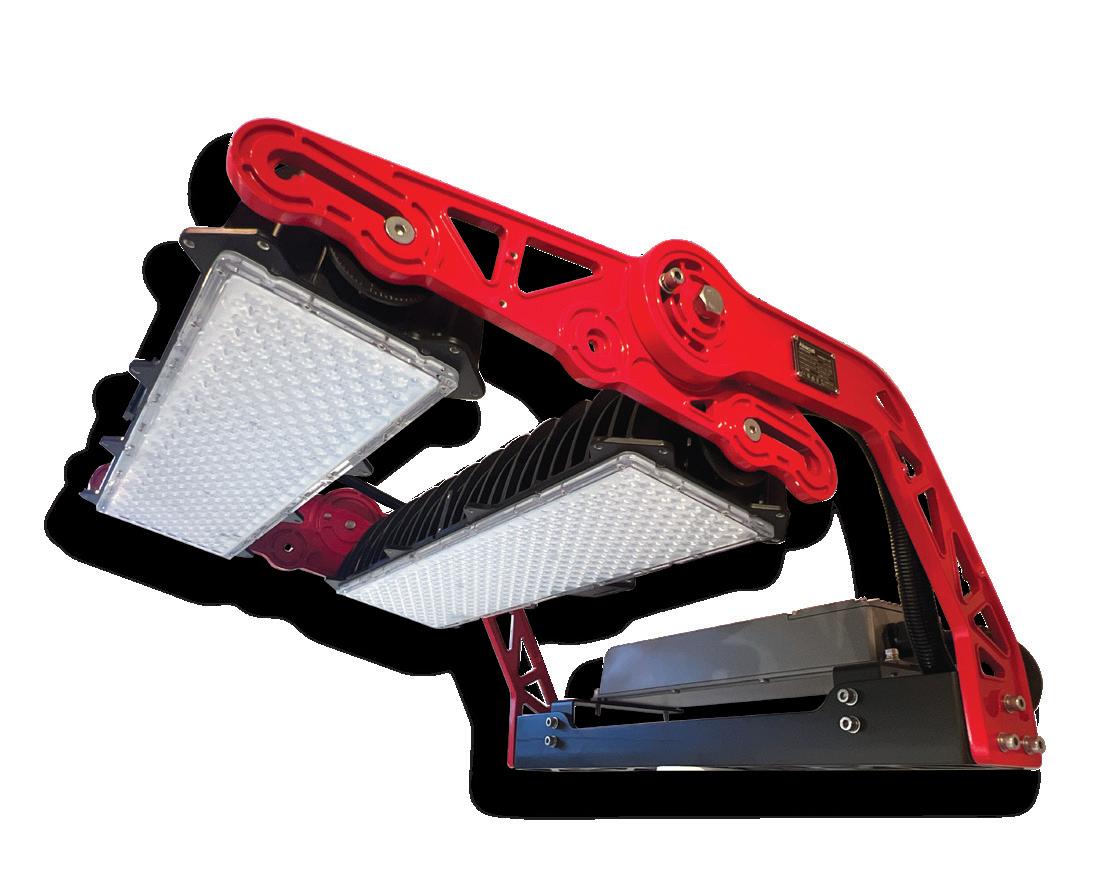

The Challenger 3 LED by Abacus Lighting is a high-performance floodlight designed for sports fields, arenas, and large outdoor spaces. Engineered with advanced optics and LED technology, it delivers exceptional illumination while minimising light pollution, ensuring optimal viewing conditions for players and spectators. Its modular design not only allows for straightforward installation but also simplifies maintenance, making it a preferred choice for high mast lighting solutions and stadiums worldwide.
Built to withstand the harshest environments, the Challenger 3 LED boasts an IP66 and IK10 rating. With precise optical control tailored specifically for sports applications, it offers full cut-off and low spill lighting, reducing glare and unwanted light spill. The floodlight’s versatile lens and lumen packages cater to various requirements, while DALI and DMX options provide advanced control capabilities. Whether illuminating a football pitch, a racetrack, or a multi-use sports facility, the Challenger 3 LED delivers powerful, efficient, and reliable lighting for any large-scale setting.
Product Overview
Challenger 3 LED AL7100 Series
Chips numbers 224 pcs 120 pcs 288pcs
Light Efficiency Up to 159lm/W
Beam Angle+ 17°, 25°, 50°
Colour Temperature 4000 - 6000K (5000 standard)
Colour Rendering Index (CRI) ≥70 (≥90 optional)
Colour Heat sink: RAL 9017, Bracket: RAL 9017 & Abacus red
IP Rating IP66
IK Rating IK10 Operating Temperature Range -40° - +50° (module)
Optional accessories Front glass, shields, aiming device
Input Voltage AC 200-440V @50/60hz (Single or 3 phase L1/L2/PE)
Input Voltage - US Option
*Non-standard options may be subject to MOQs or longer lead times.
