E.T.H.I.C. Museum

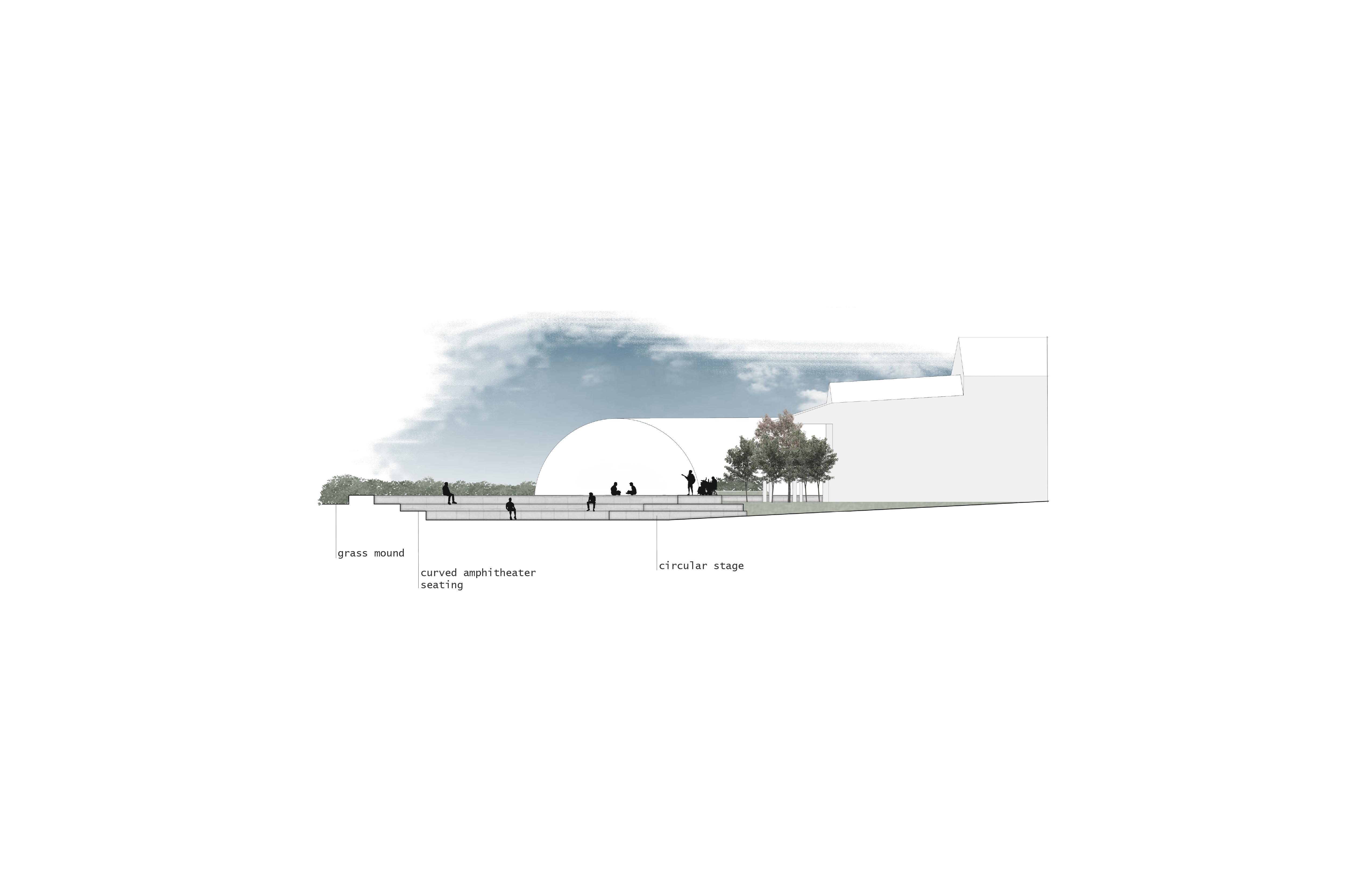

The Emmett Till Historic Intrepid Center (E.T.H.I.C) Museum is located in Gordo, MS and has a very devastating history. This was an extremely challenging project, given both the location and deep past in Gordo. The Site was designed to serve as a Community Center, Historical Landmark, and Public Community Space. The organic shapes lead you on a rounding path that notes the history of Emmett Till and also local art. There is an Amphitheater, Water Feature, and Public Seating.

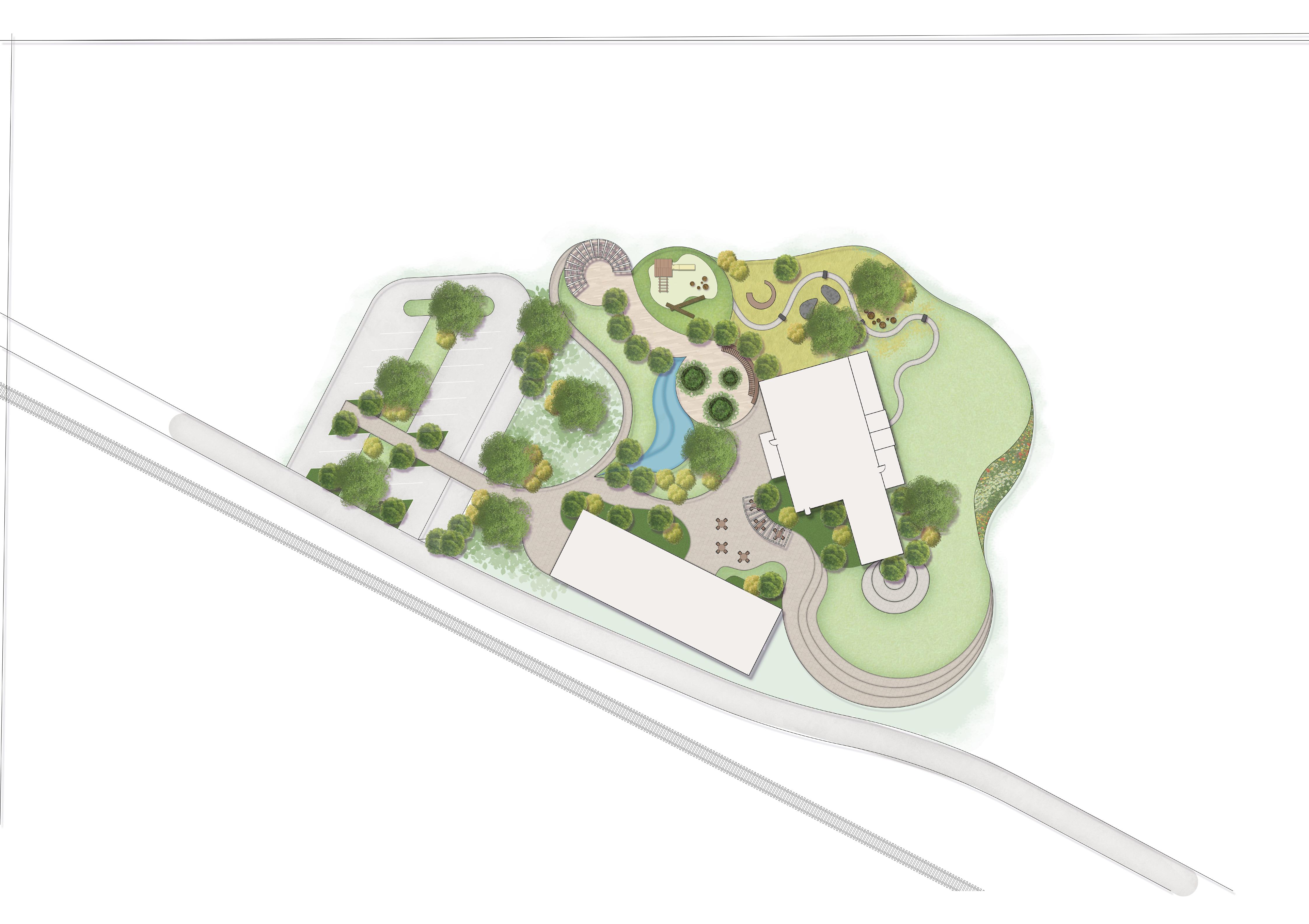

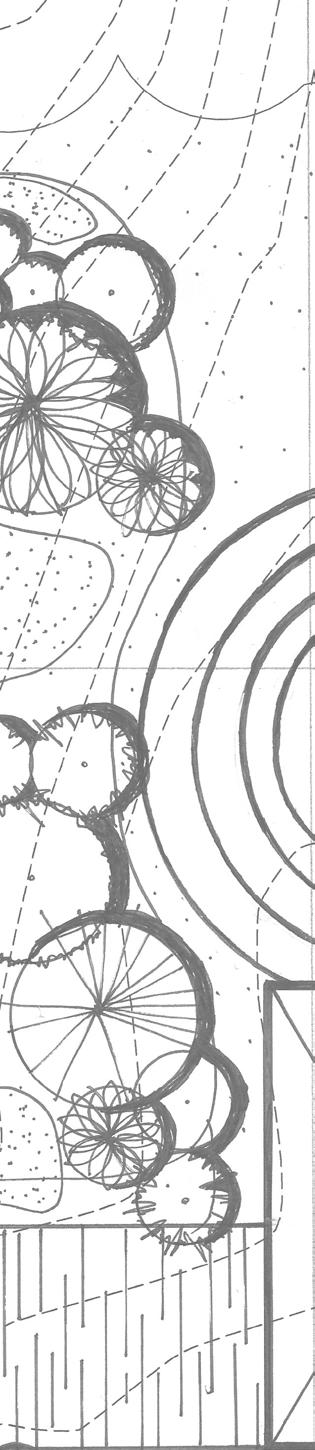

prairie grass curved bench stone seating overhead ring open field wildflowers stage amphitheater curved pergola concrete parking bio swale playground
Whitfield Eco-Village

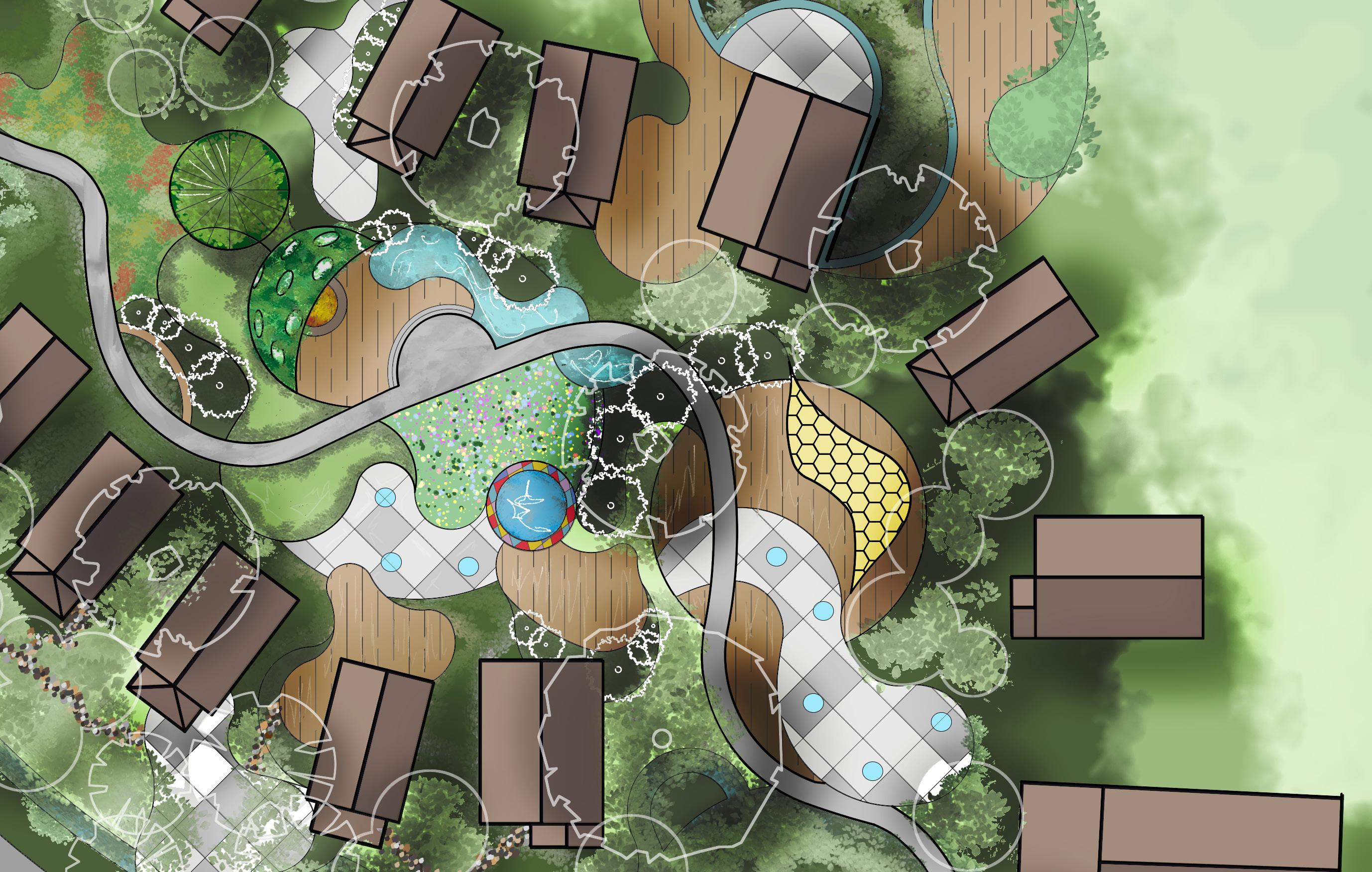

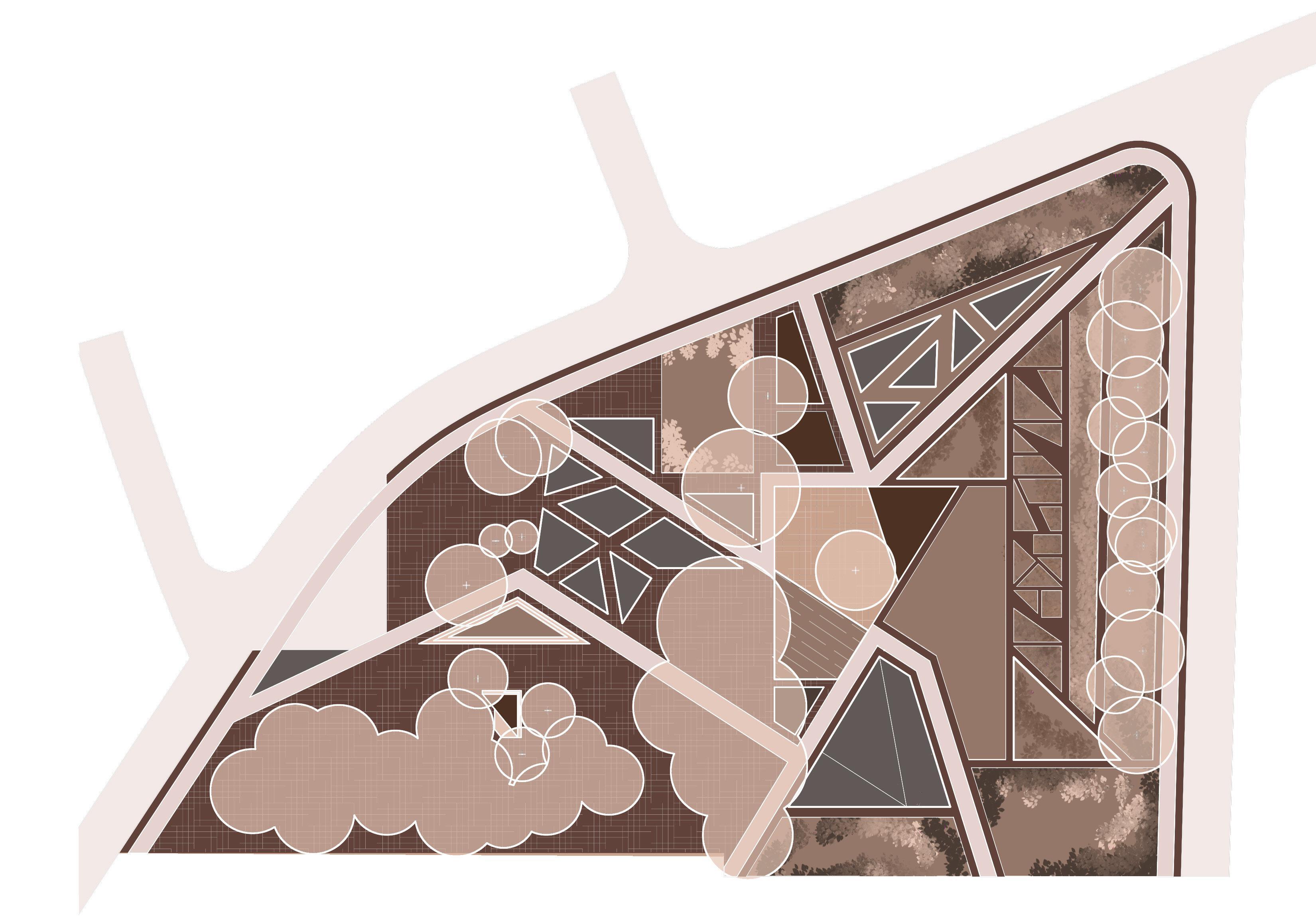

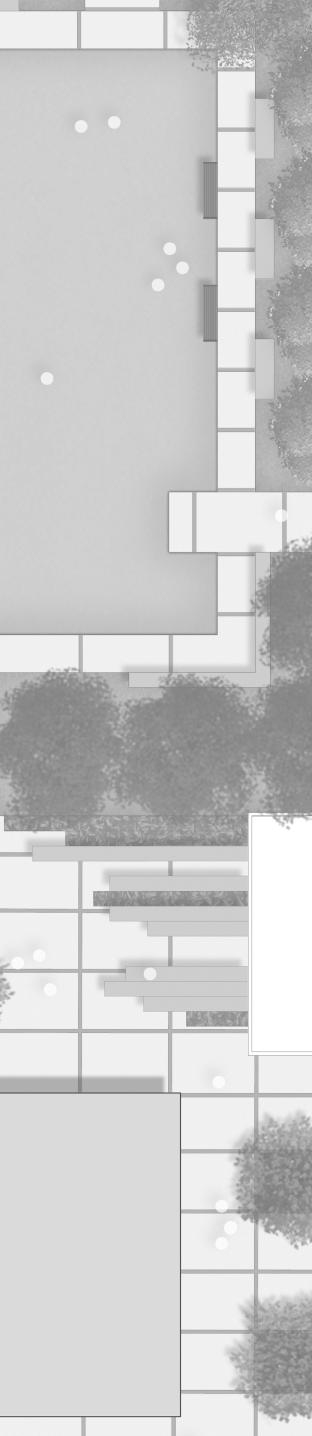

A monochrome Concept Plan created for CoHousing in Starkville, Mississippi.
This site serves as an Eco-friendly habitat that is completely self-sufficient.
Linework was completed in AutoCAD and then placed in Photoshop for Rendering. Perspectives were completed in Sketchup.
Meditation Area

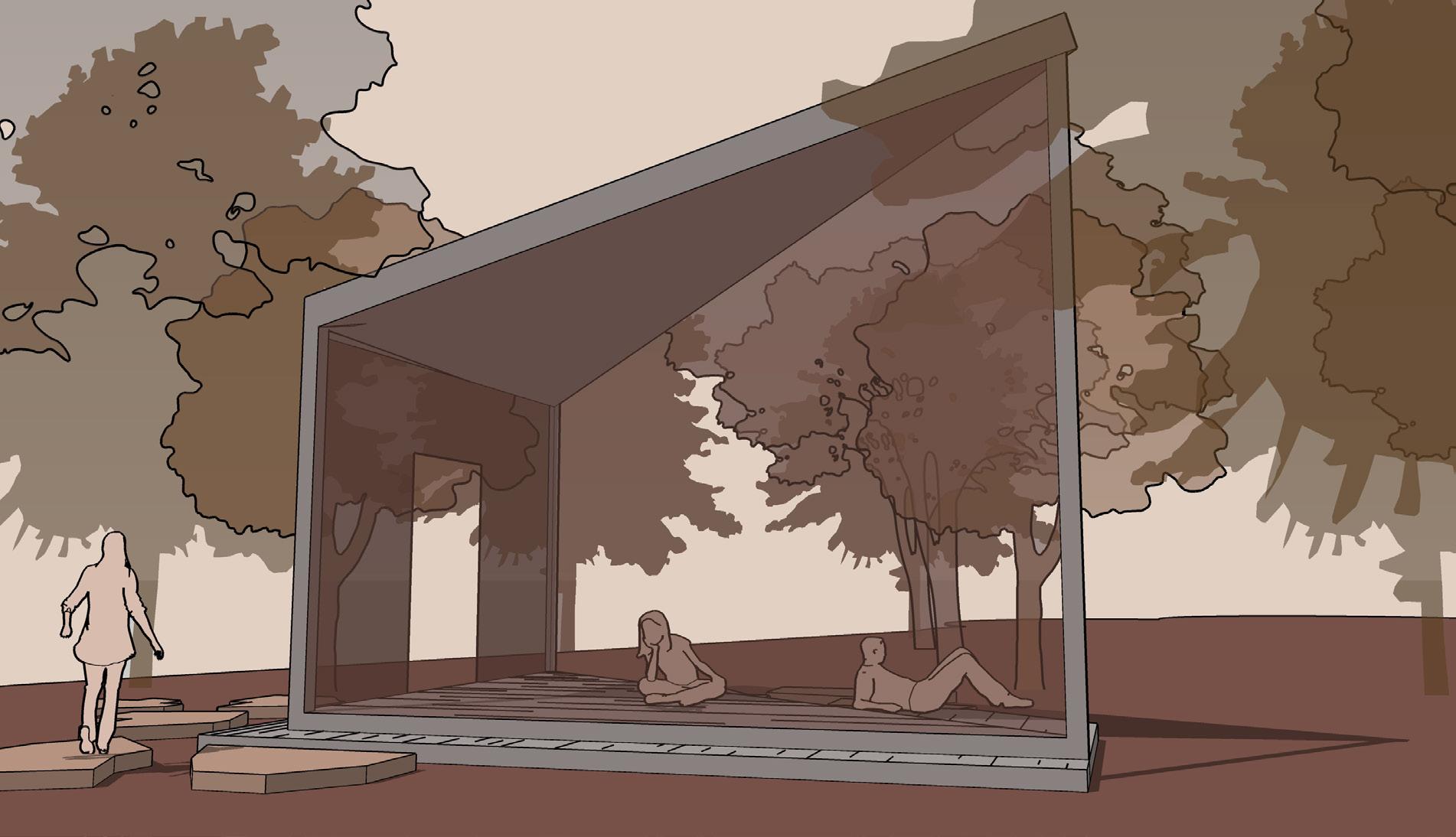

Located on the far right side of the site and glassed in on only two sides, its purpose is to allow a space of quiet enjoyment for nature.
Individual Housing

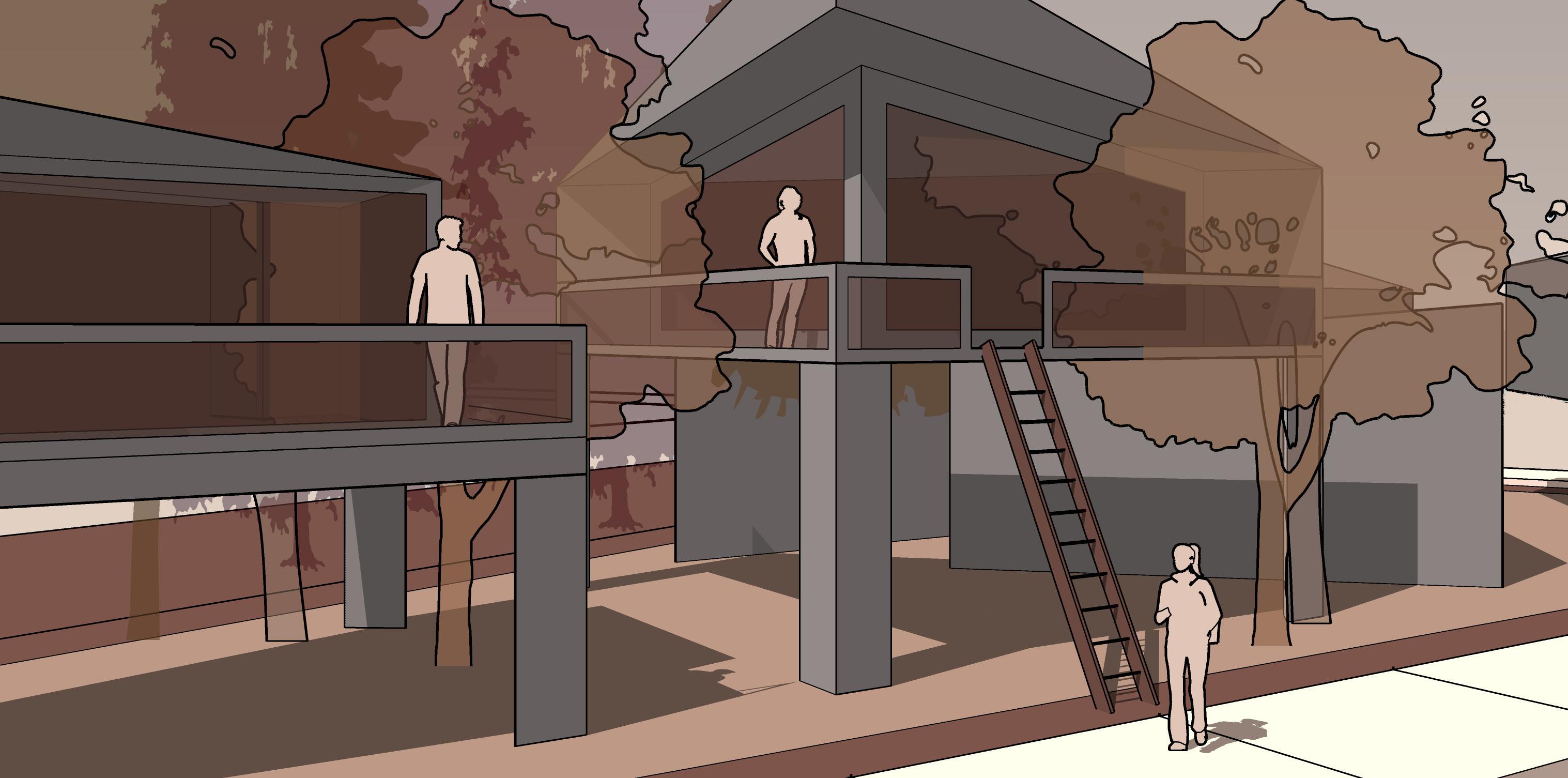

Located on the left side of the site. Most housing would be Tree-House style but site would also feature more accessible housing.
McKee Avenue Student Housing

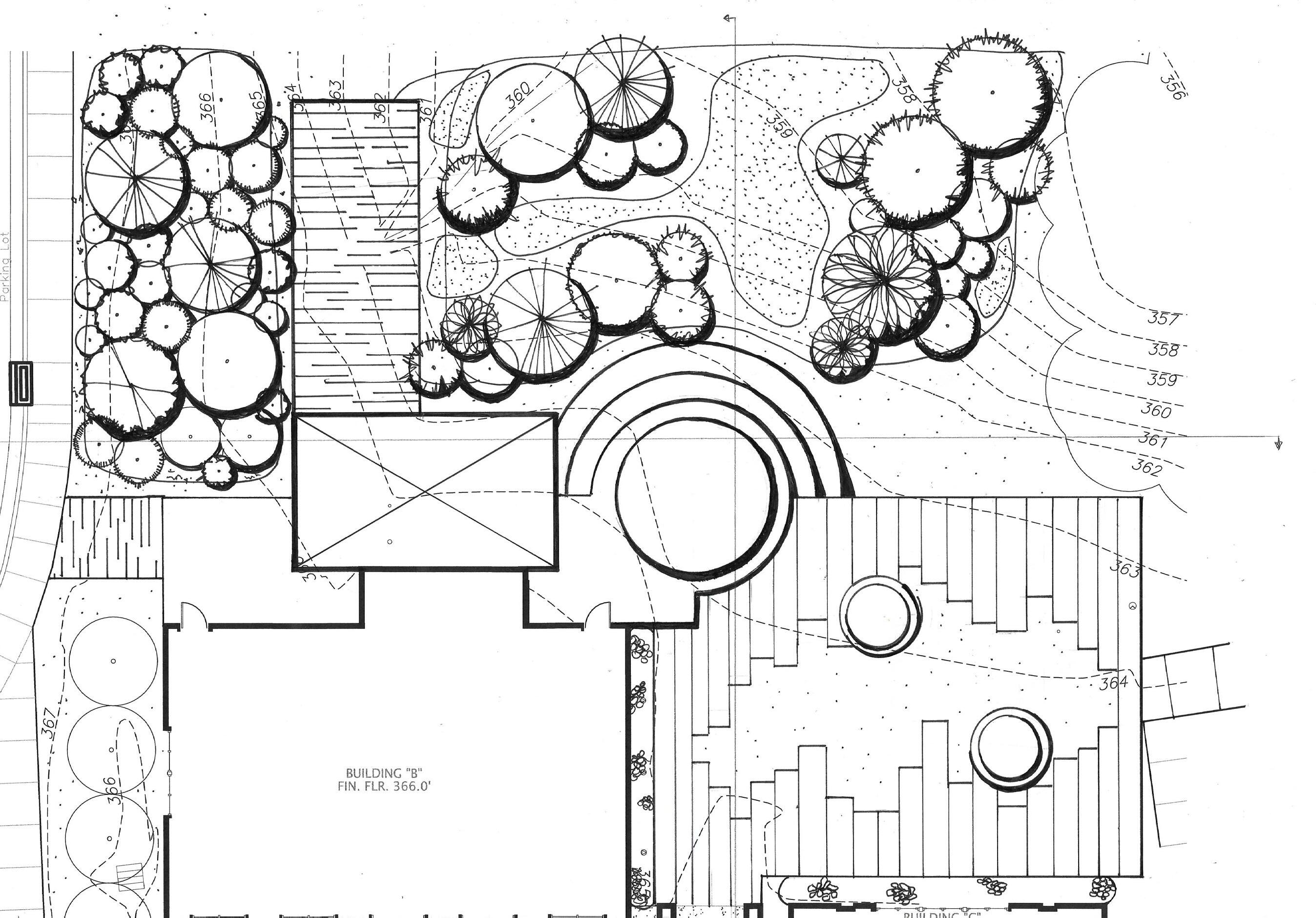

A Project for a Community Area in a neighborhood used for student housing. Site includes a Green Space, Interesting Paths, and a complex Overhead Structure. Site was designed to be an area where after a stressful day of class, students are able to completely relax and enjoy a sense of privacy.
Final Site Plan, Sections, and Perspectives were done in Photoshop.

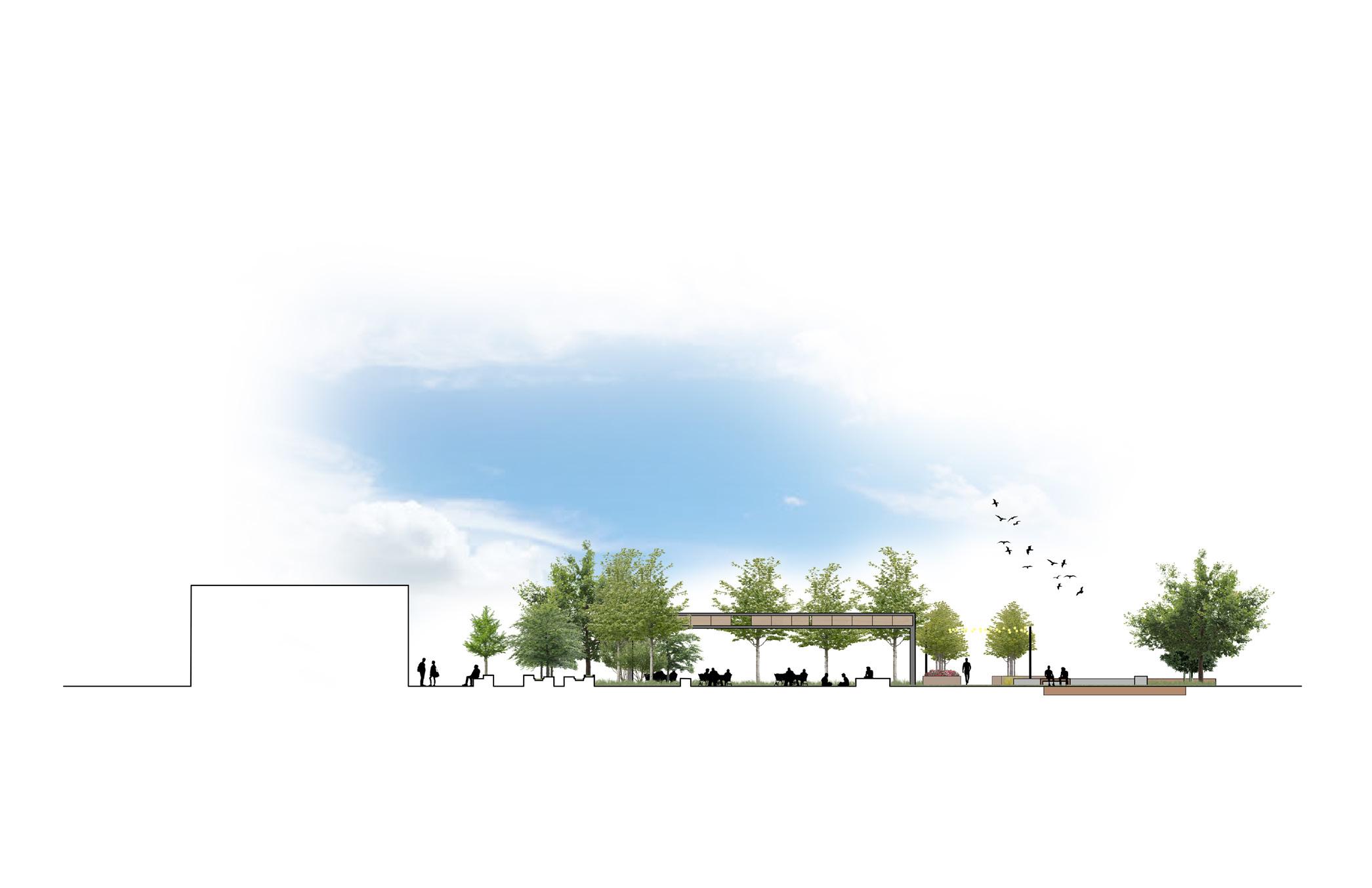

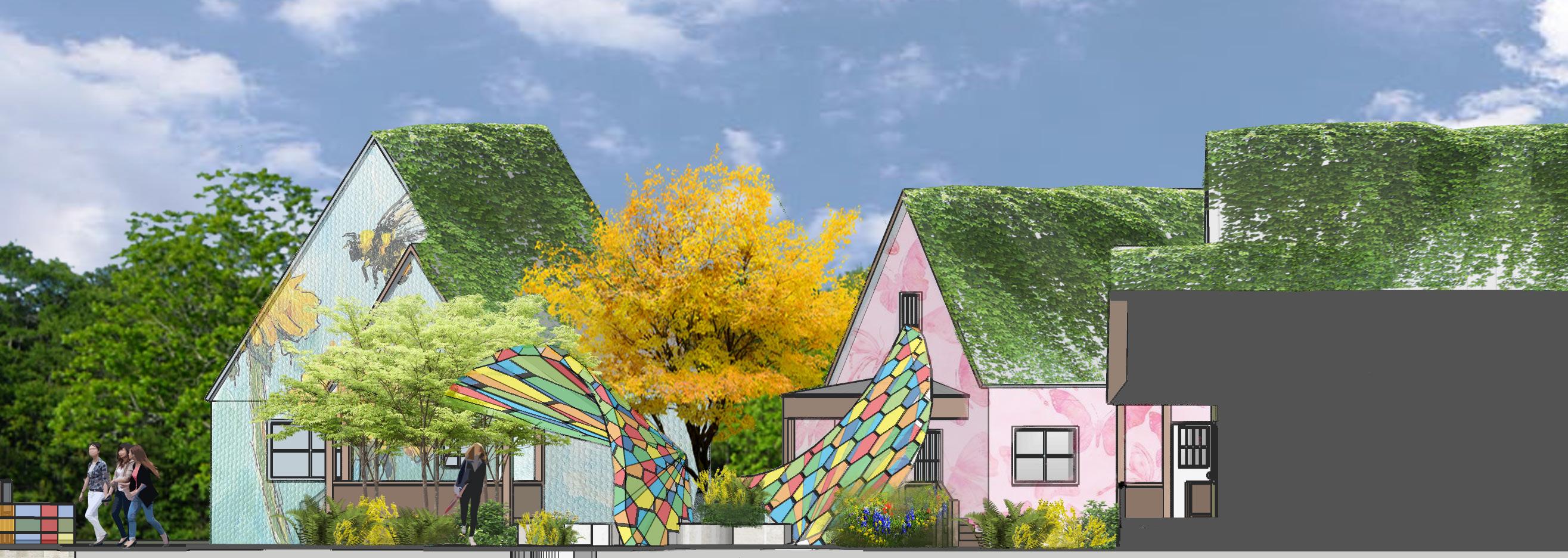

Section that features the overhead structure, murals, and green roofs located on the right side of the site.

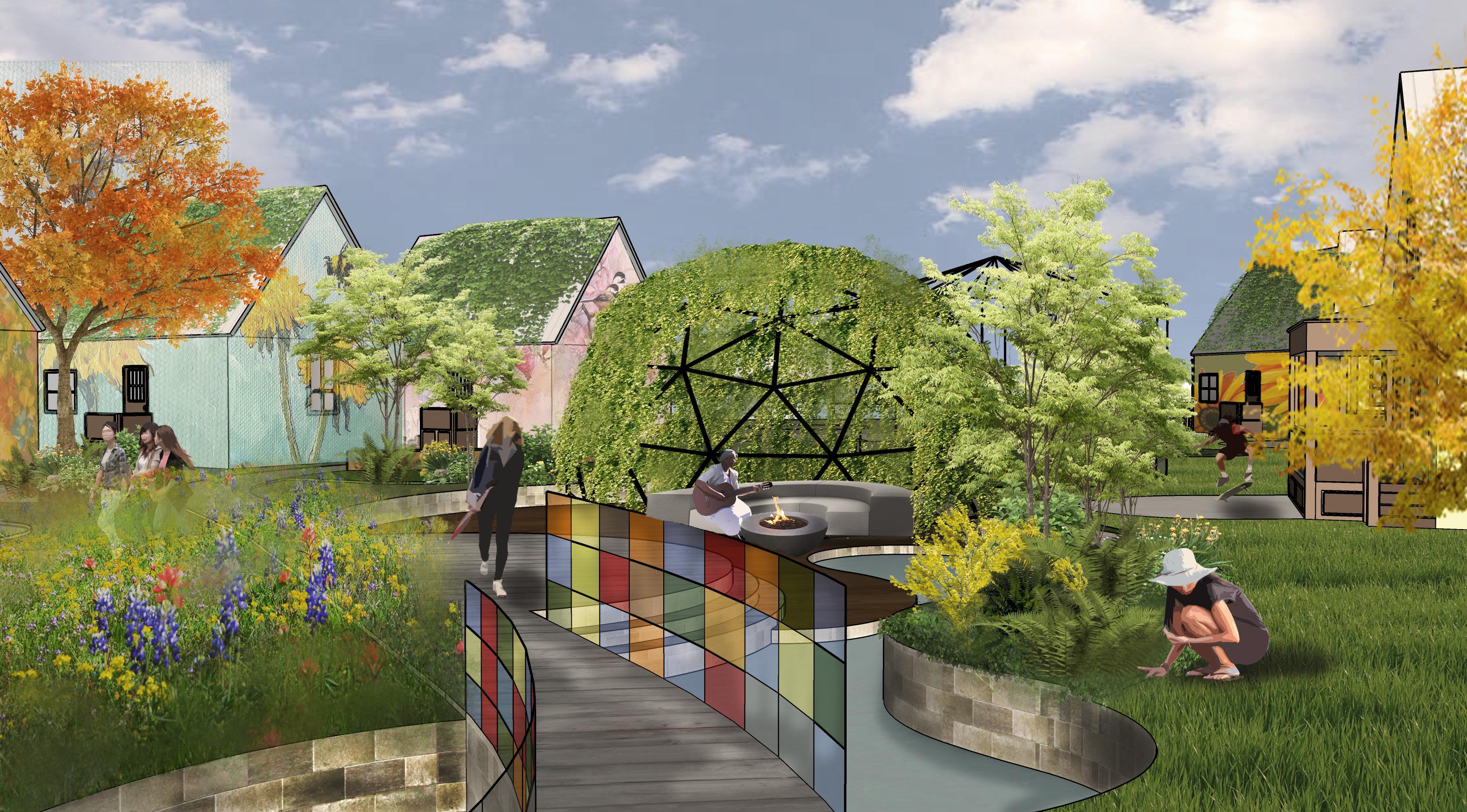

Perspective
Perspective that depicts the vegetated overhead structure, bridge, and elevation changes. The site is extremely vegetated and evokes a since of calm.
SECTION
NOTES: 1. FINISH GRADE OF FIELD SHALL FOLLOW SLOPE OF STRUCTURE BENEATH. 2. CONTRACTOR TO SUBMIT PRODUCT DATA FOR ALL MATERIAL REQUIRED TO CONSTRUCT FIELD 3. REFER TO SYNTHETIC TURF SURFACING SPECIFICATION 321813 FOR DETAILED SYNTHETIC TURF AND INFILL INFORMATION. 4. REFER TO TURF BASE SYSTEM SPECIFICATION 321824 FOR DETAILED GEOTEXTILE, STRUCTURAL BASE, AND PAD INFORMATION. 1-1/2 in. PILE HEIGHT SYNTHETIC TURF CARPET WITH 1" DEPTH COATED SAND INFILL 3/4" DEPTH STRUCTURAL AND DRAINAGE POLY PANEL TYP. 17-20MM HEIGHT NON-ABSORBING, POROUS POLYETHYLENE FOAM PAD WATERPROOFING MEMBRANE AND STRUCTURAL DECK, REFER TO ARCHITECTURAL DRAWINGS HEAVY DUTY WOVEN GEOTEXTILE PROTECTION LAYER REFER TO INFILLED SYNTHETIC TURF FIELD DETAIL 1 X 2" COMPOSITE WOOD NAILER FASTEN TO SEATWALL PER ARCHITECTURAL DRAWINGS TRENCH DRAIN, REFER TO ARCHITECTURAL DRAWINGS GAP BETWEEN PANEL AND PAD AND NAILER FOR EXPANSION SHEET METAL REGLET COUNTERFLASHING, SEE ARCHITECTURAL DRAWINGS WATERPROOFING MEMBRANE AND STRUCTURAL DECK, REFER TO ARCHITECTURAL DRAWINGS 2.0% MAX. DRAIN PIPE, REFER TO ARCHITECTURAL DRAWINGS WATERPROOFING 24" X 24" PRECAST CONCRETE PAVERS, REFER TO SPECIFICATION XX, TOP OF PAVERS FLUSH WITH ADJACENT SEATWALL LEVELING SHIM BOTTOM SEAT WALL, REFER TO ARCHITECTURAL DRAWINGS REFER TO INFILLED SYNTHETIC TURF FIELD DETAIL GAP BETWEEN PANEL AND PAD AND NAILER FOR EXPANSION 1 X 2" COMPOSITE WOOD NAILER FASTEN TO SEATWALL PER ARCHITECTURAL DRAWINGS BUILD UP OVER STRUCTURAL DECK, REFER TO ARCHITECTURAL DRAWINGS SEAT WALL, SEE ARCHITECTURAL DRAWINGS 24" 24" PRECAST CONCRETE PAVERS, REFER TO SPECIFICATION XX, TOP OF PAVERS FLUSH WITH ADJACENT SEATWALL REFER TO INFILLED SYNTHETIC TURF FIELD DETAIL PROPOSED SIDEWALK DETAIL, SEE CIVIL DRAWINGS GAP BETWEEN PANEL AND PAD AND NAILER FOR EXPANSION 1 X 2" COMPOSITE WOOD NAILER FASTEN TO CONCRETE PER ARCHITECTURAL DRAWINGS WATERPROOFING MEMBRANE AND STRUCTURAL DECK, REFER TO ARCHITECTURAL DRAWINGS 3' CLEAR 4" 4" 3' CLEAR 4" 4" 4' 4" 4" 4" 4" 3'-4" 5'-2" 5'-2" 1' 4" 2'-6" R3" 4" 4" 5'-6" 5'-6" TYP. 4" 4" 2'-6" 4" 4" 5.65' 5.65' TYP. 1' R3" 6" 6'-0" 3 in. DEPTH DOUBLE GROUND BARK MULCH, DO NOT INSTALL WITHIN 6" OF TRUNK CONCRETE SIDEWALK, PER ARLINGTON COUNTY STANDARDS IMPORTED PLANTING SOIL MIX CONTRACTOR TO SUBMIT SOIL INFORMATION FOR REVIEW. REFER TO EXTERIOR PLANTING SPECIFICATION 4in PERFORATED SMOOTH WALL HDPE DRAIN PIPE, REFER TO CIVIL PLANS FOR LAYOUT AND CONNECTION TO STORM DRAIN SYSTEM UNDISTURBED SOIL OR SOIL COMPACTED TO 95% STD. PROCTOR COMPACT BACKFILL SOIL MIXTURE TO 95% STD PROCTOR (BELOW ROOTBALL ONLY), SEE TREE PLANTING NOTES COMPACTED #57 STONE. LINE SIDES OF EXCAVATION WITH WOVEN GEOTEXTILE FABRIC (TYPAR 3601, MIRAFI 500X OR EQUAL) CONCRETE WALL, REFER TO STRUCTURAL DRAWINGS 3' 3" 1" APS HEIGHTS PHASE 2 1601 WILSON BLVD, ARLINGTON, VA 22209 VMDO Project Number 1316 Drawn By Checked By SUBMITTAL DATE ISSUES AND REVISIONS DRAWING NOT FOR CONSTRUCTION Client Project Number 2203115 ARLINGTON PUBLIC SCHOOLS NO. DESIGN DEVELOPMENT JAN. 22 1. PROGRESS PRINT 18 MAR 22 2. B. CIPRIANO P. MATHUR ATHLETIC FIELD DETAILS L-503 INFILLED SYNTHETIC TURF SCALE: 1-1/2" = 1'-0" A INFILLED SYNTHETIC TURF EDGE AT PARAPET SCALE: 1-1/2" = 1'-0" B INFILLED SYNTHETIC TURF EDGE AT SEATWALL PAVERS AT SEATWALL SCALE: 1-1/2" = 1'-0" D INFILLED SYNTHETIC TURF EDGE AT SIDEWALK SCALE: 1-1/2" = 1'-0" C RAMP/ METAL HANDRAIL - SECTION F-F' SCALE: 1/2" = 1'-0" F RAMP/ METAL HANDRAIL - SECTION G-G' SCALE: 1/2" = 1'-0" G RAMP/ METAL HANDRAIL - SECTION H-H' SCALE: 1/2" = 1'-0" H RAISED PLANTER SCALE: 1-1/2" = 1'-0" E 1:1 GORDON CIVIL ENGINEERING AND LANDSCAPE ARCHITECTURE
Magnolia Quarter

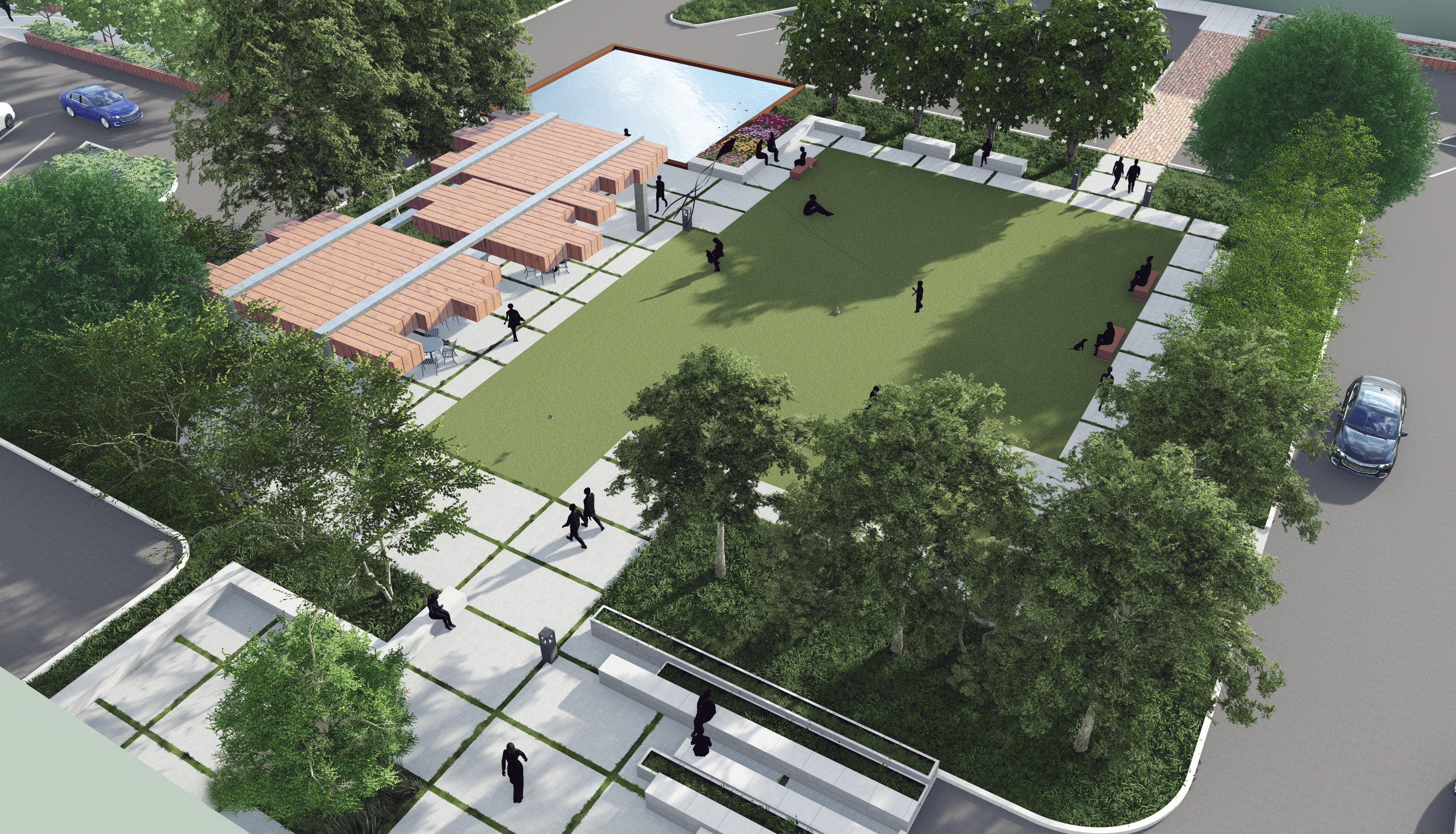

PERSPECTIVE

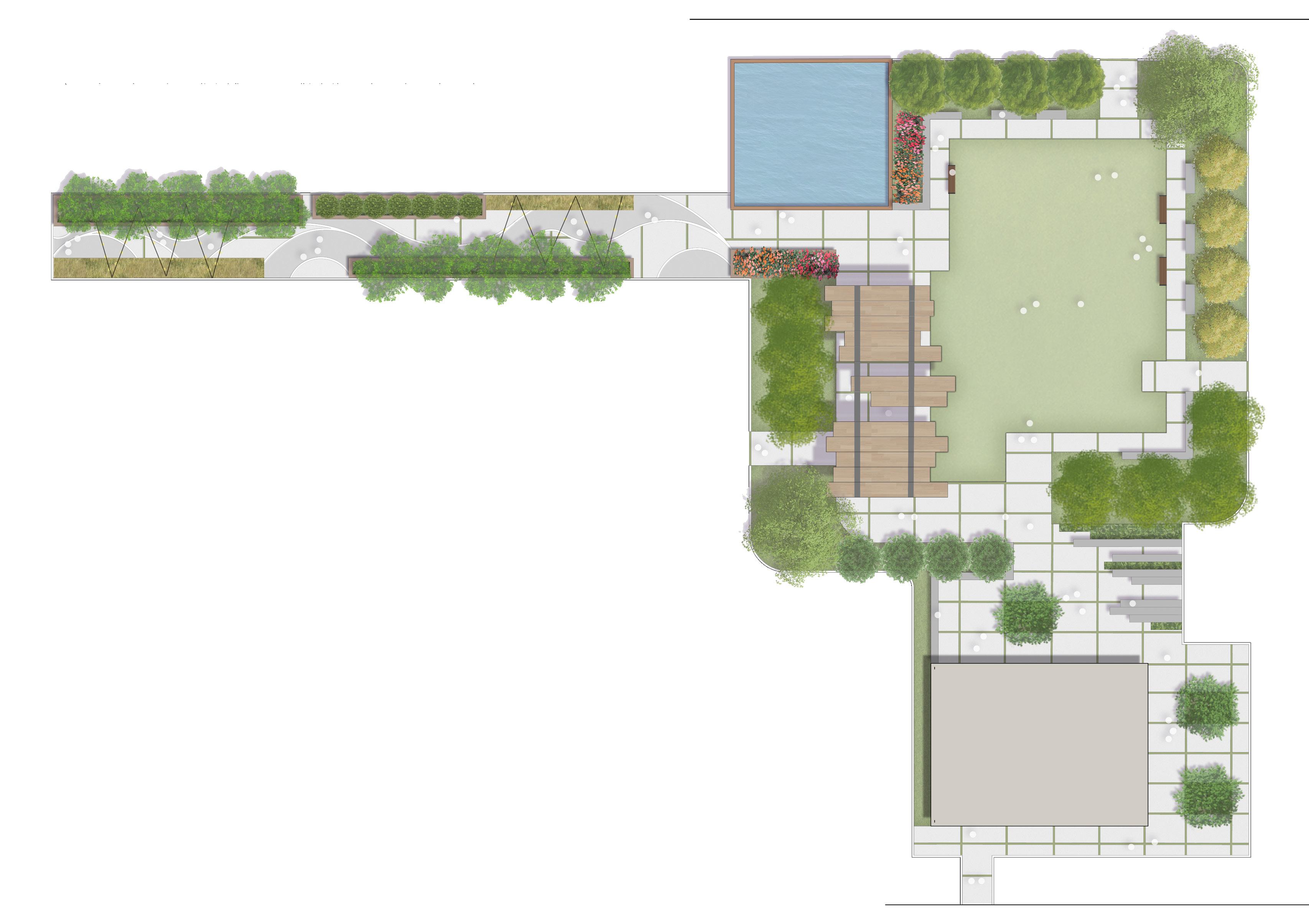

This site is located in Starkville, MS where a large parking lot can currently be found. The location has close access to residential and commercial properties and therefore there is a large potential to create a Mixed-Use outdoor space for community usage. A large Green Space is available to hold events, but also create a space to just hang out. There is Covered Seating, a Corten Steel Water Feature, and a well-lit Walk that leads to other parts of the site that was designed by classmates in a group project.

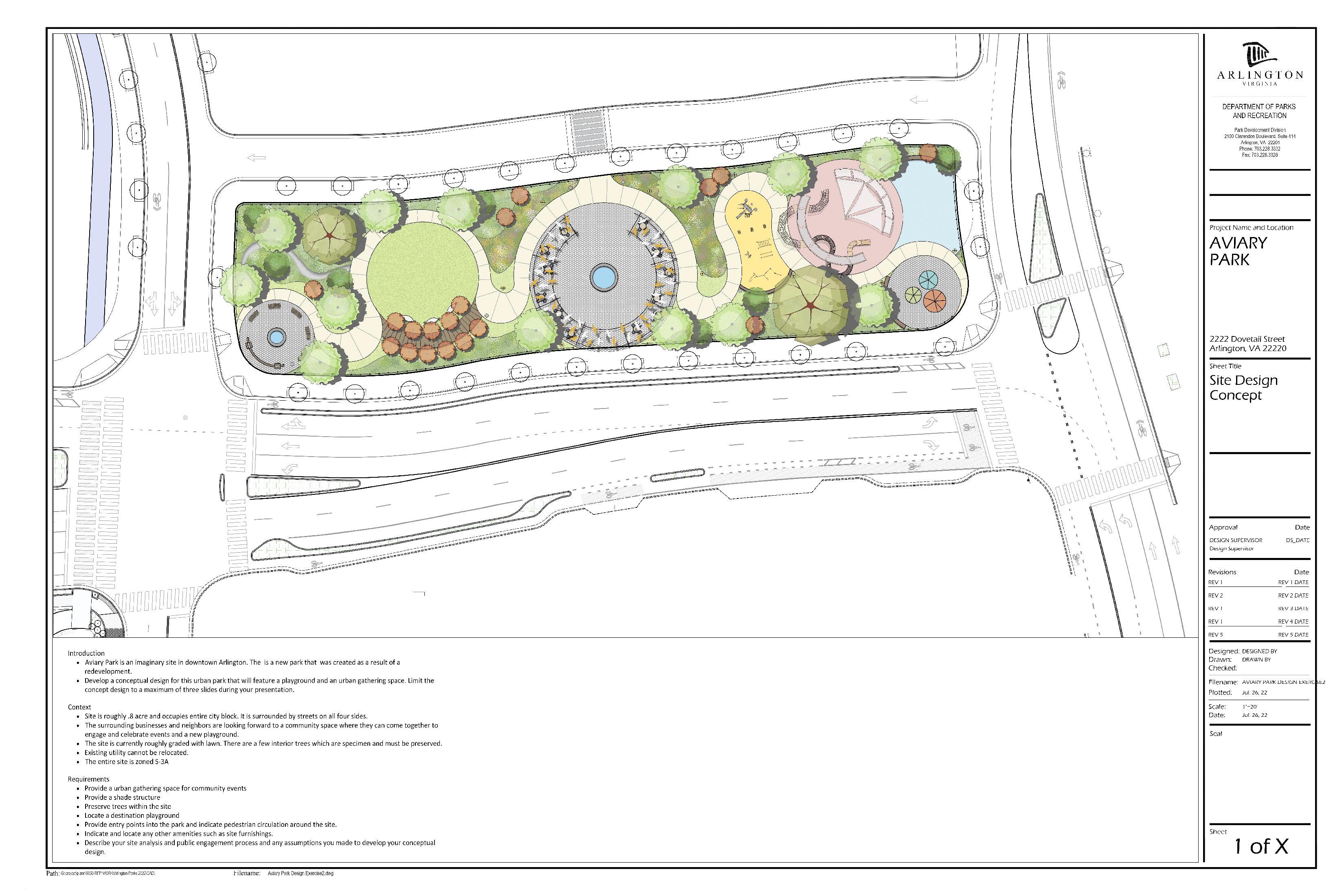

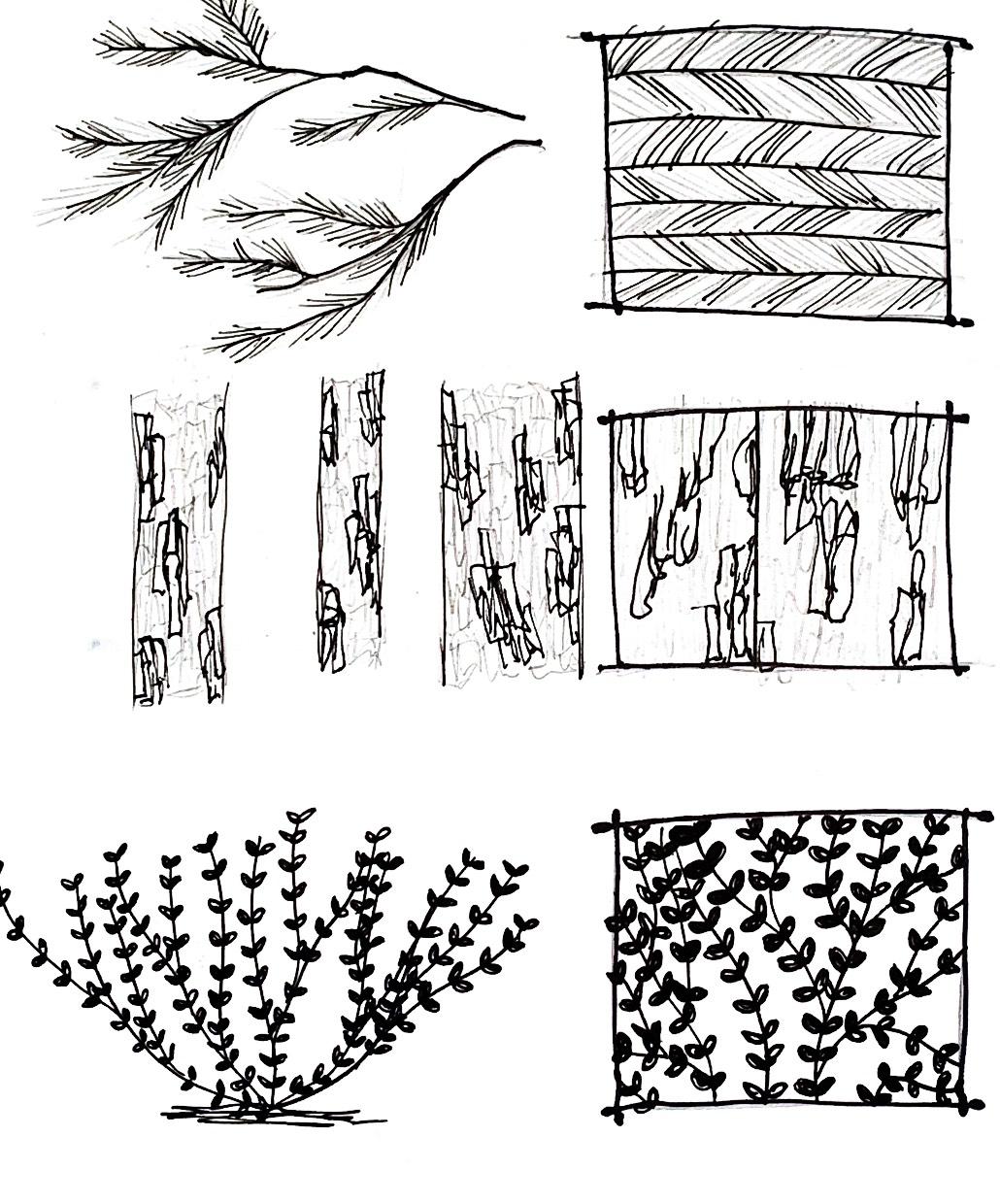

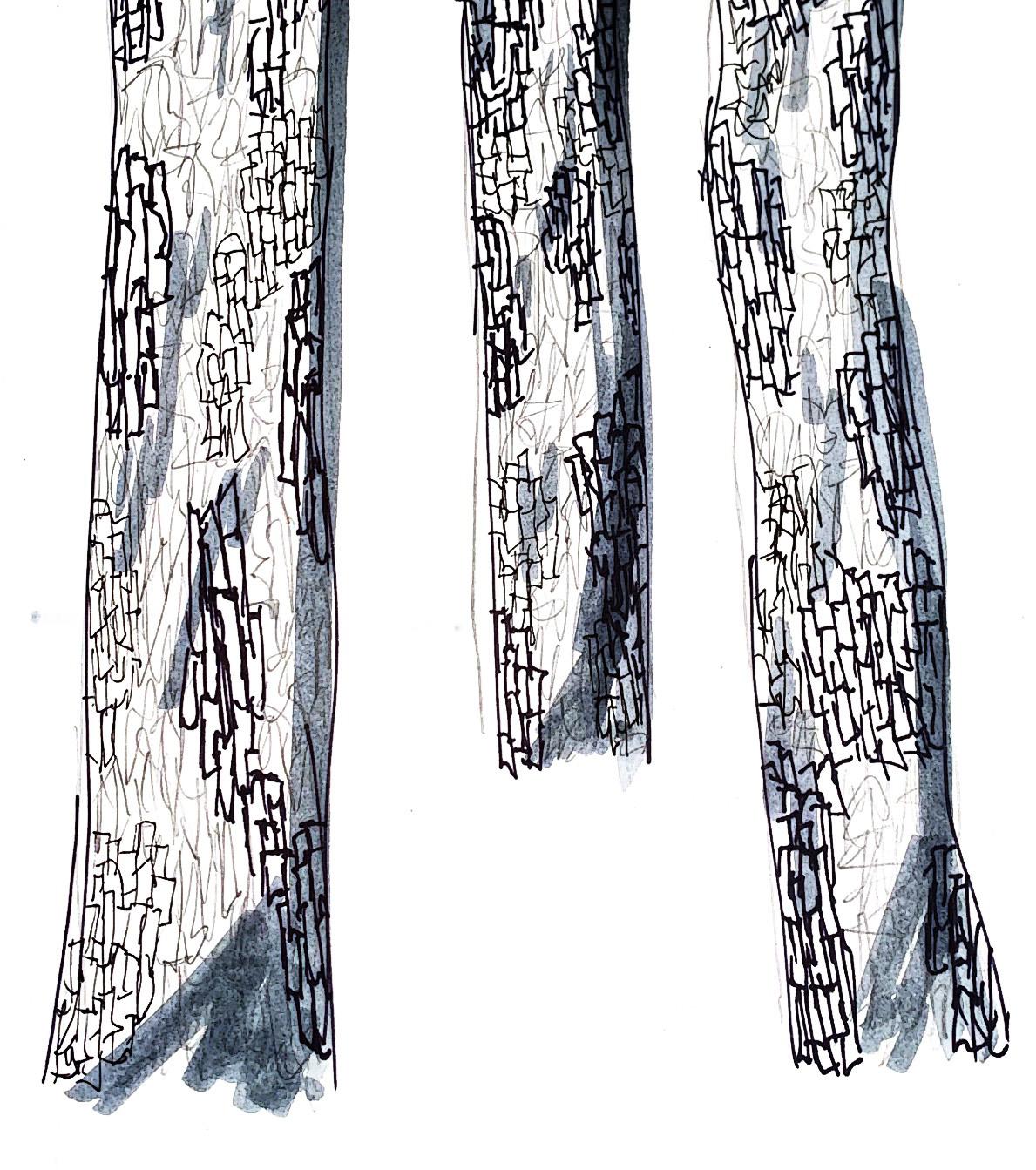

HAND RENDERINGS
