COMMUNITY EMPOWERMENT CENTRE
Concept

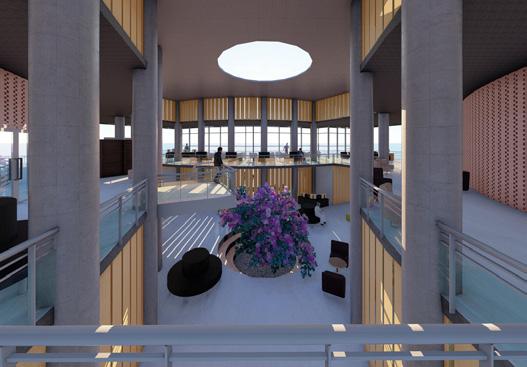

A large central atrium with a central courtyard and play of shadows that created by the voids of walls and skylight that connects clinic, skill and knowledge centre, And anganwadi which acts as a common lobby and intraction zone. It creats openess and flexibility of spaces that makes the users socialize and interact. Two elements glass and jali walls that creats transparency as well as makes the space private.

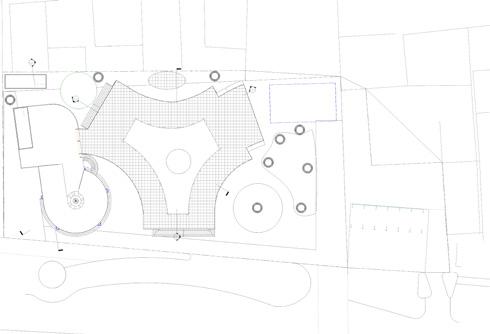

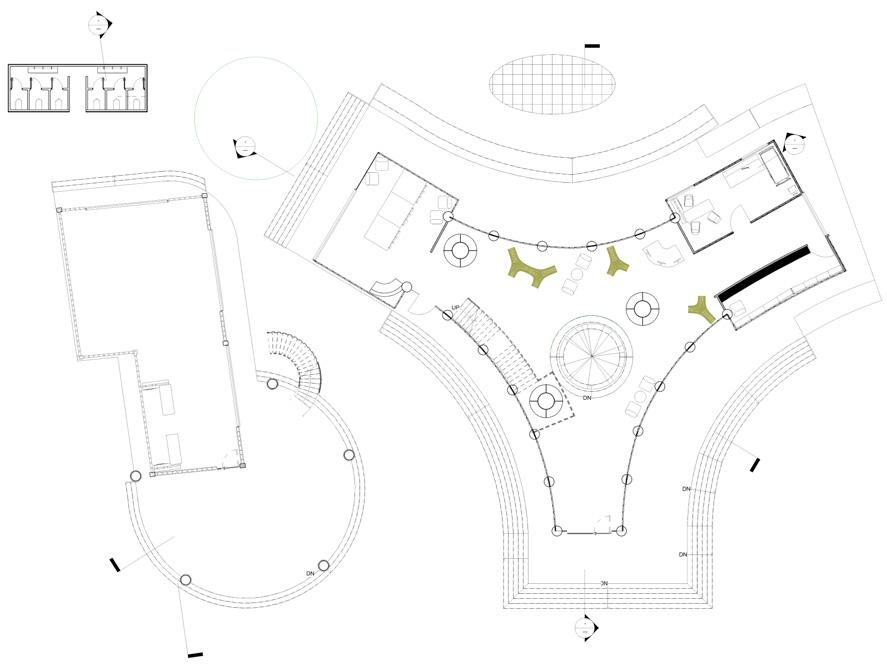

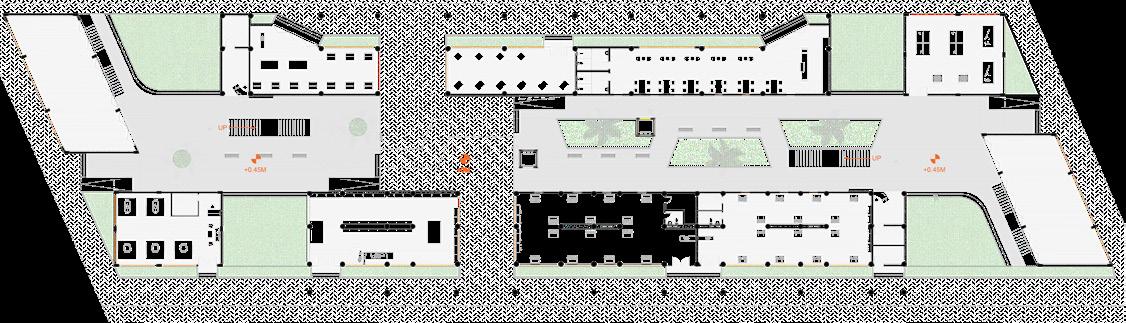

Ground Floor Plan
Three different zones are separated and connected through triangulation that respondns to their corresponding surroundings and interacts with it. Multiple informal spaces and green are flexible in their own ways and adaptable to the users, play of heights / levels and connections of different levels defines the hierarchy of individual spaces.
First Floor Plan
Different group of community that they share common interests, concerns & identity. This cec brings them together& enables communities to increase control over their lives. This helps to shape their lives, build capacities and gain access to things that they need.

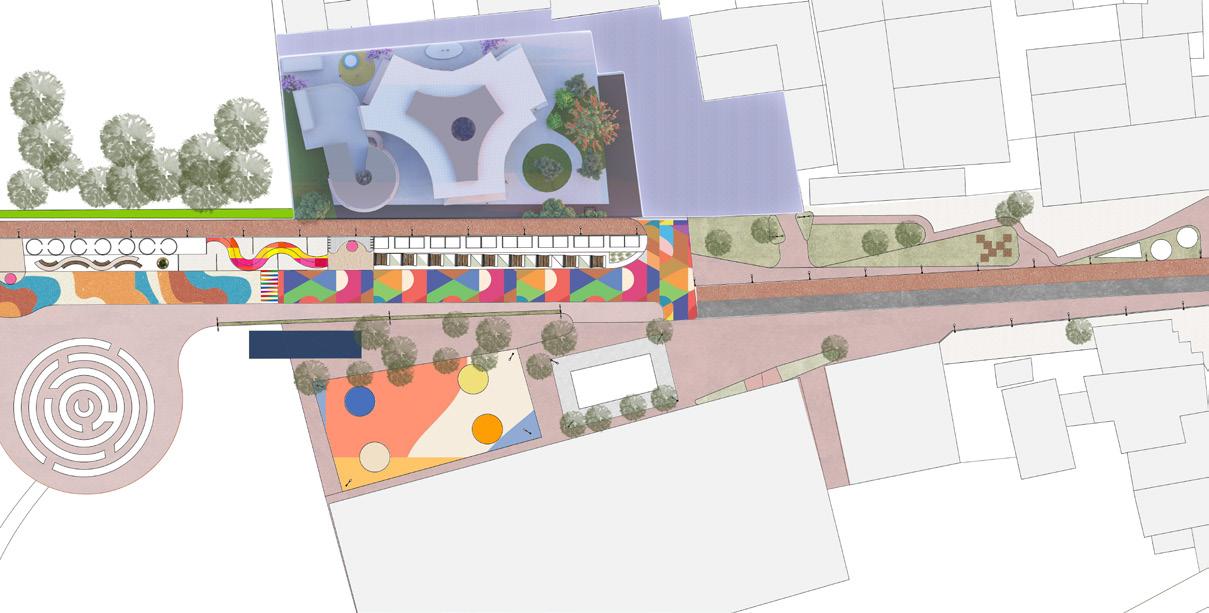

Site Plan & Surrounding Context
Ideation
Connect
Comfort
Convenience
Community Commerce
Make people life comfortable, availablity for elderly people for small journeys these are the oblectives that drove the design.

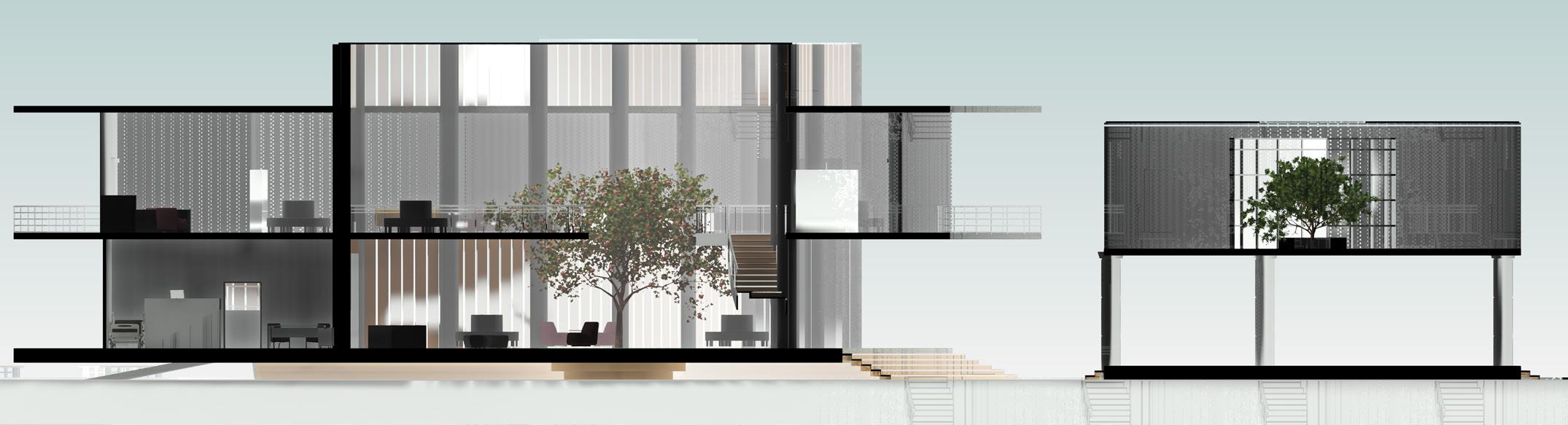

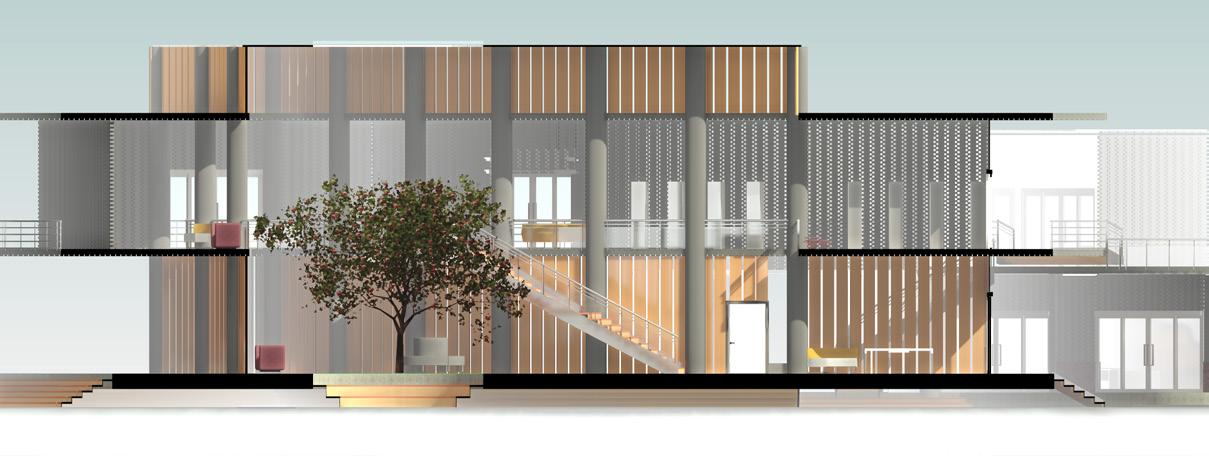

Section AA’
Section BB’

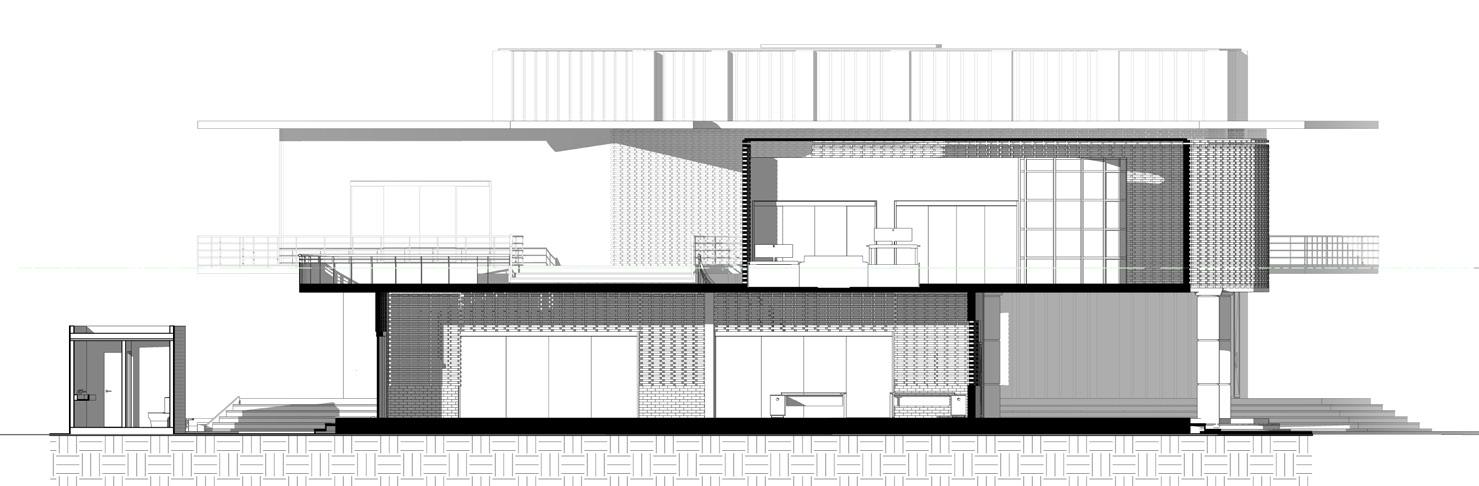

Section CC’
Section DD’
01
It is not only the involvement, participation and engaging of communities but also bringing ownership on their lives and community. To create communication between the communities.
Self employed people- vegitable vendors, cart pullers,… live in poor conditions and get harassed by local authorities, forced to take loans at higher rate of interest So, we can link all these self employed people to start their own shop to avoid middle men - mutual gain They can start their own bank this solves their problem to huge credit intrests
Collectively a scheme could be developed and provided for medical insurance which helps them for health coast with in their bank.
To provide day care facilities for children 6m -6 y for working mother’s in the community.
To improve nutrition and health status of children in the community Maternal care and counselling
visualization description

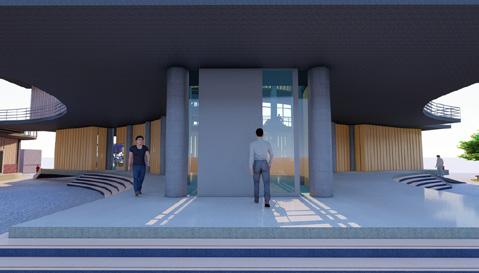

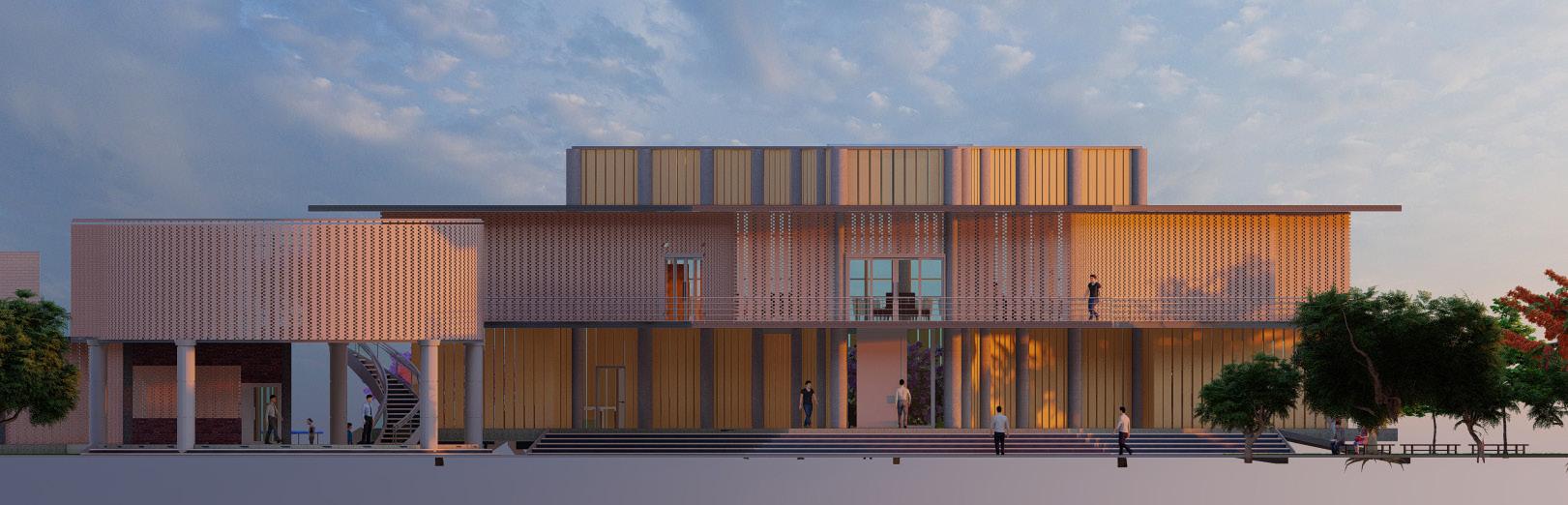

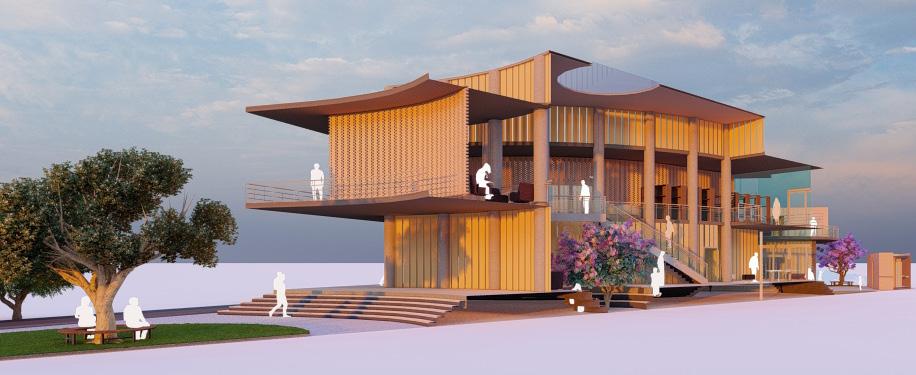

Entrance South Elevation Sectional view Sectional view Sectional view 02

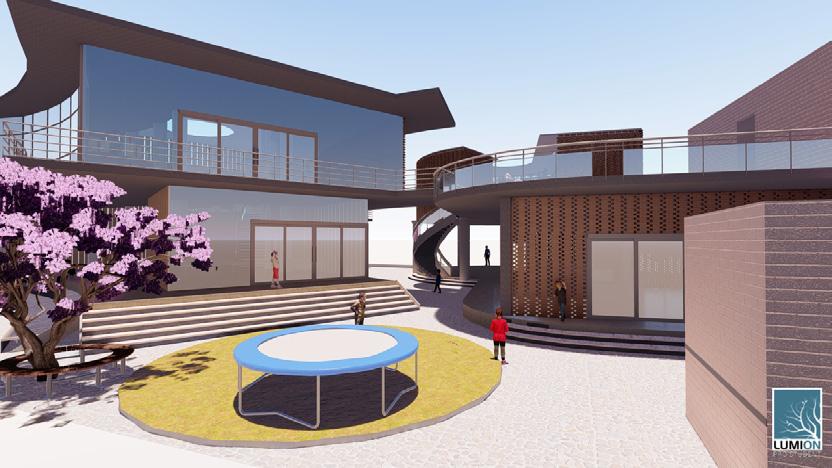

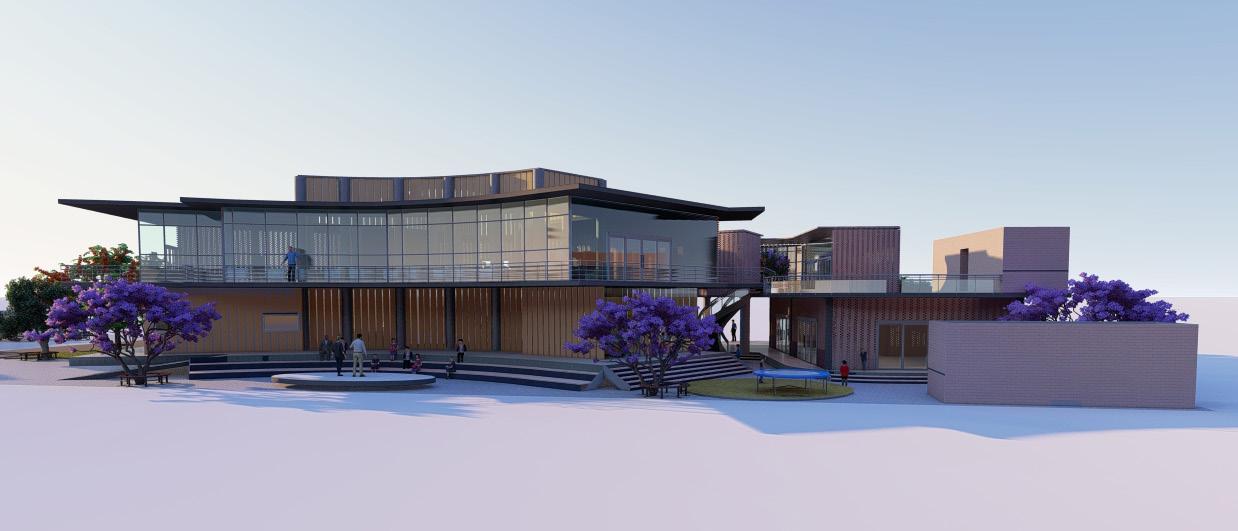

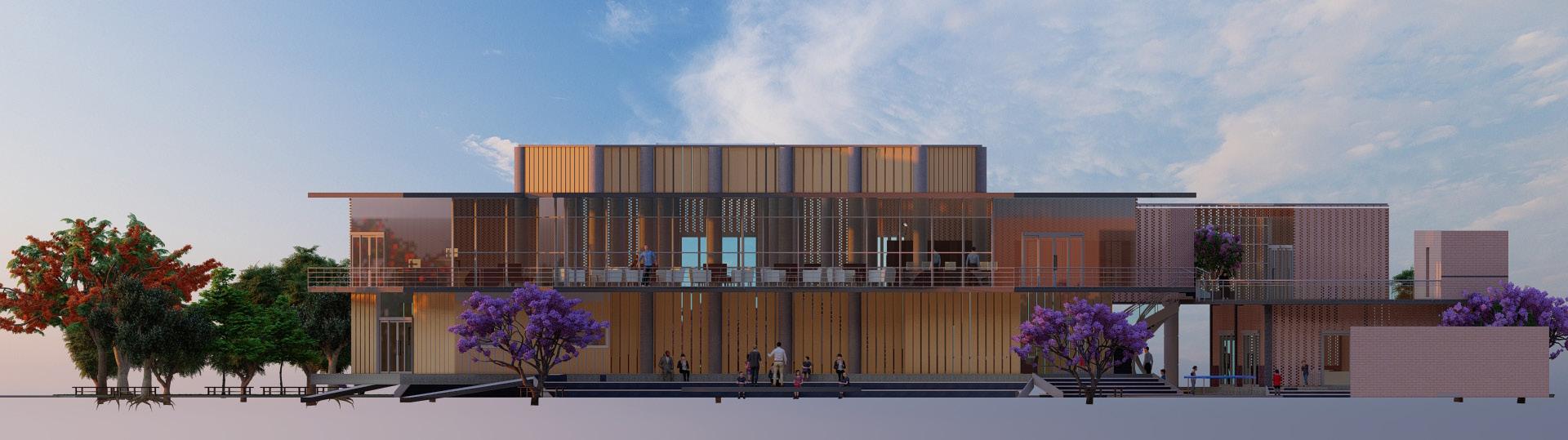

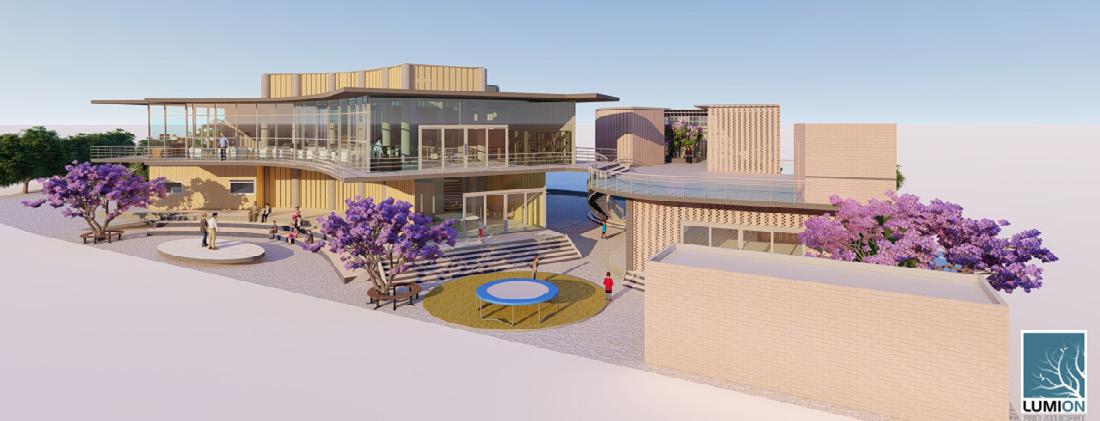

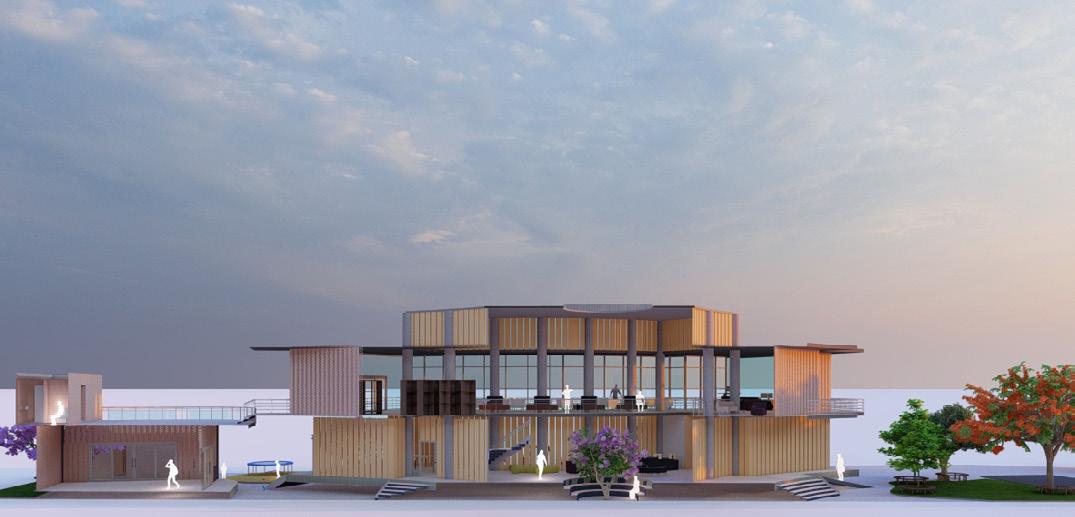

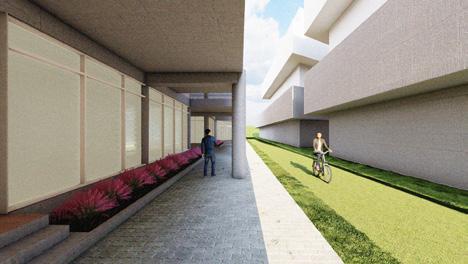

# 3D ViewsInterior & Exterior North Elevation

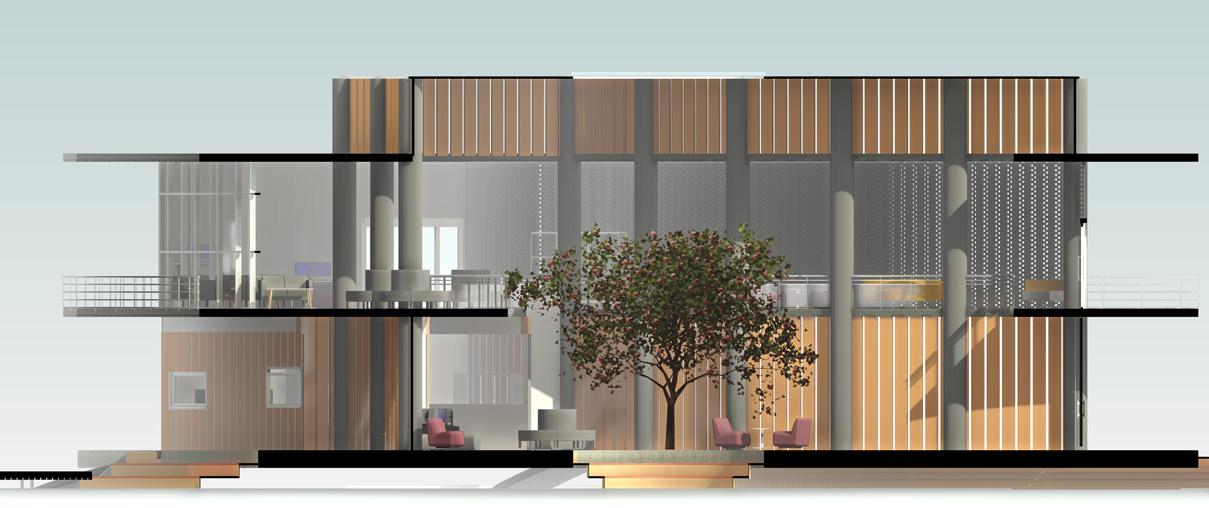

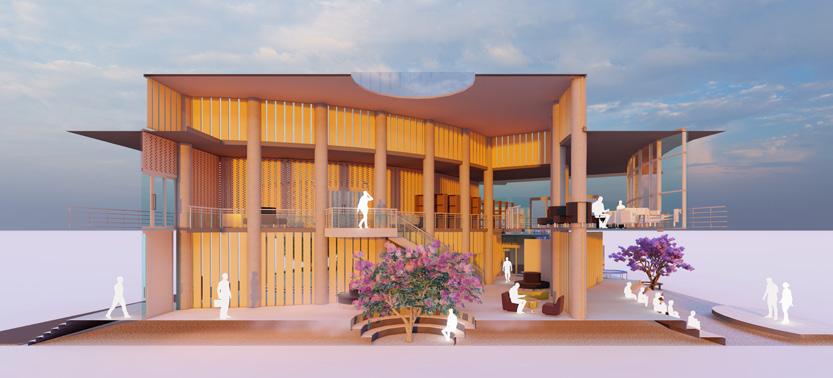

Sectional view

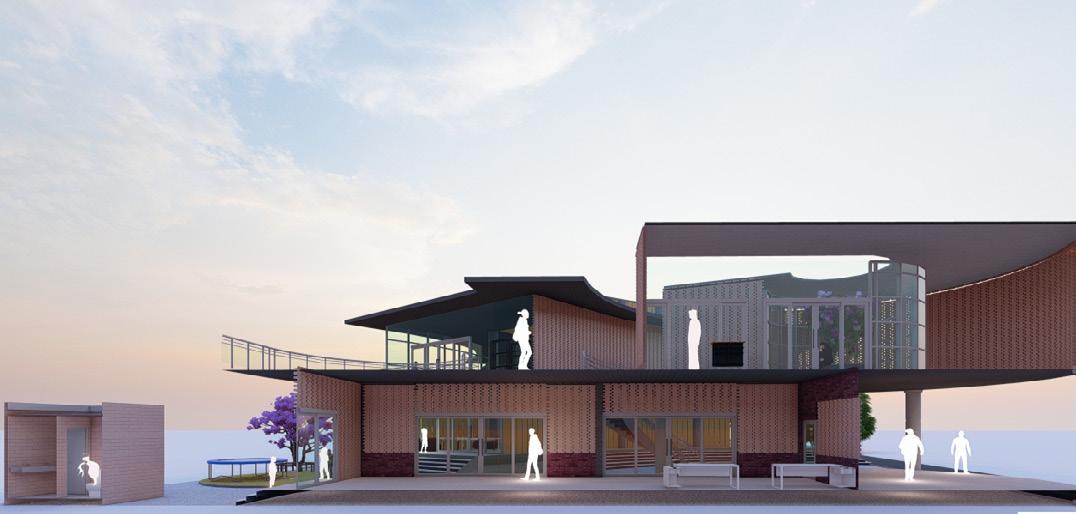

East Elevation
03

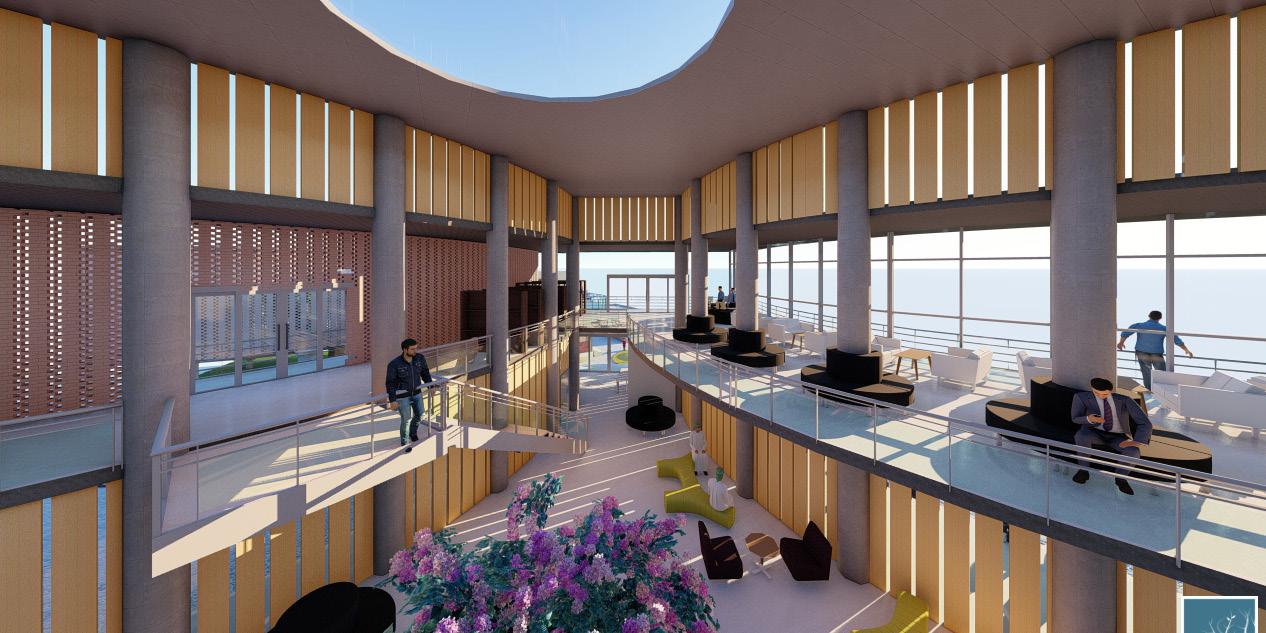

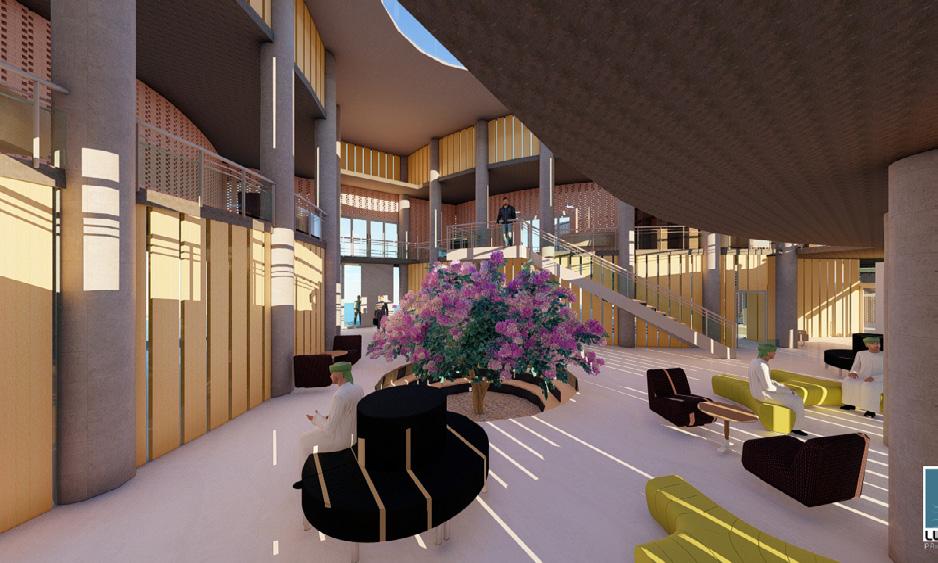

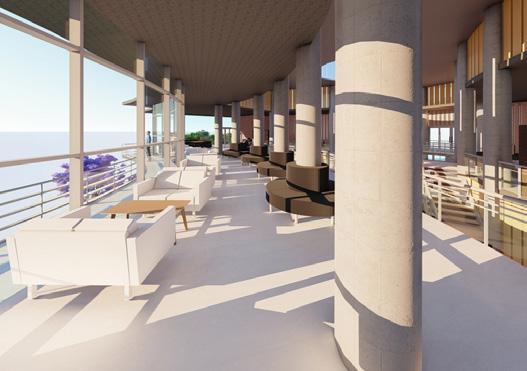

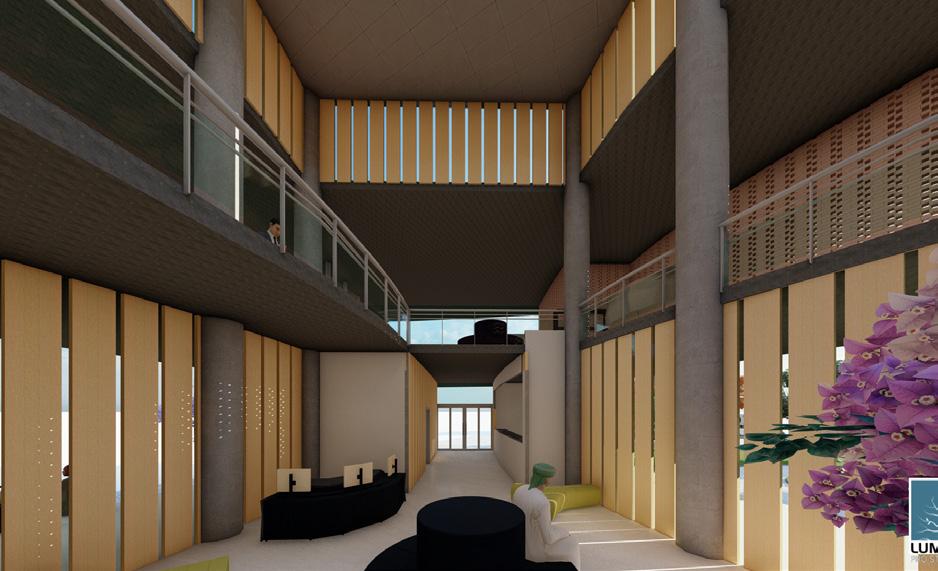

Interior View
04

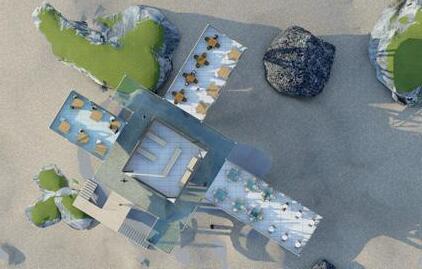

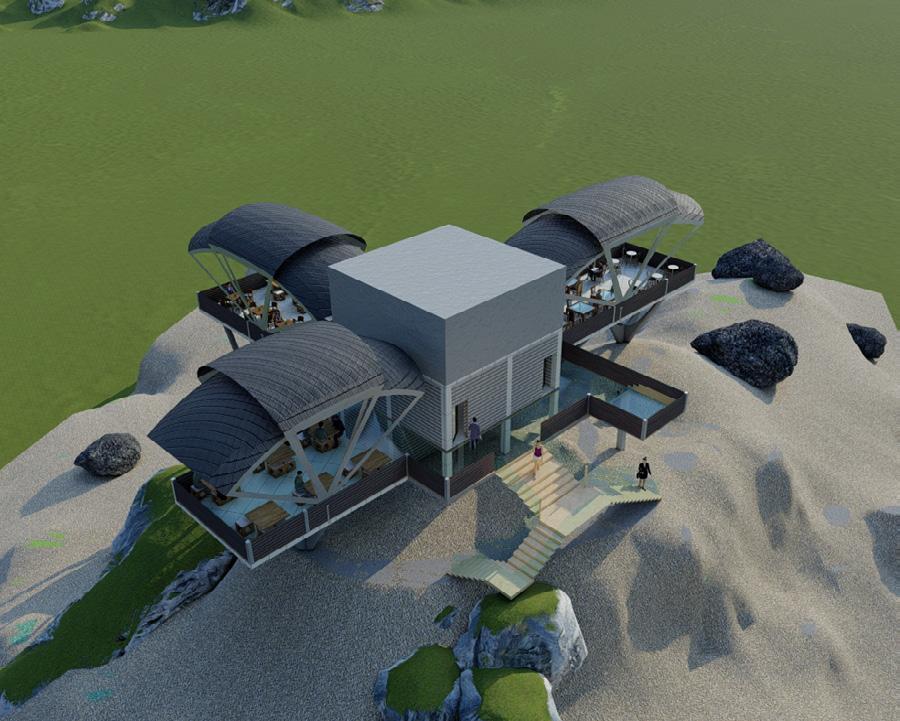

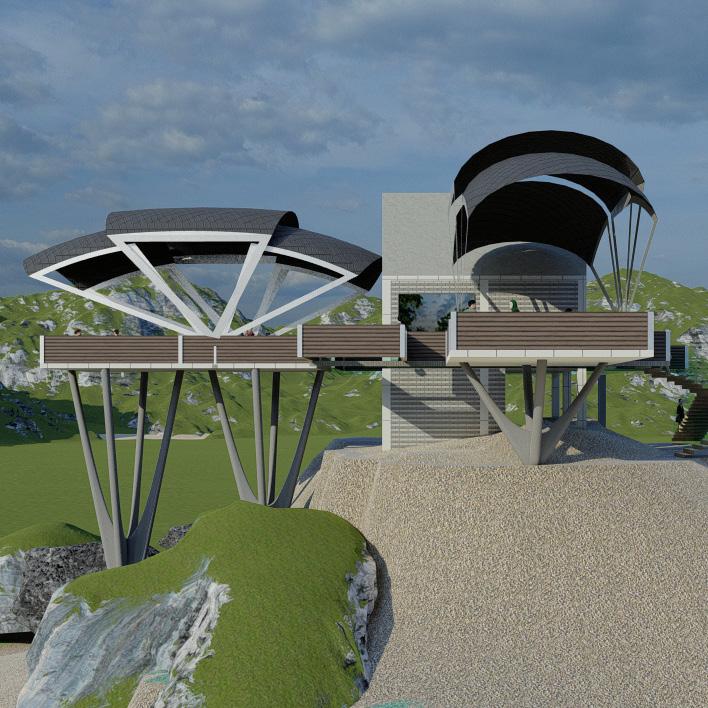

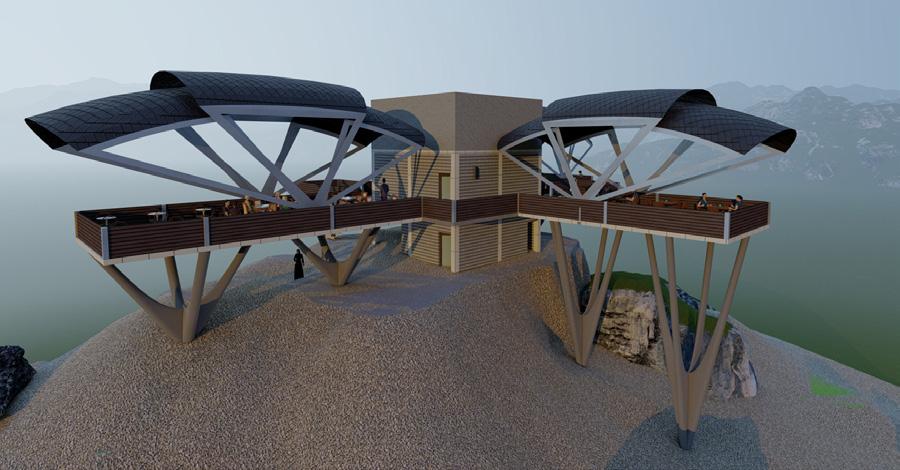

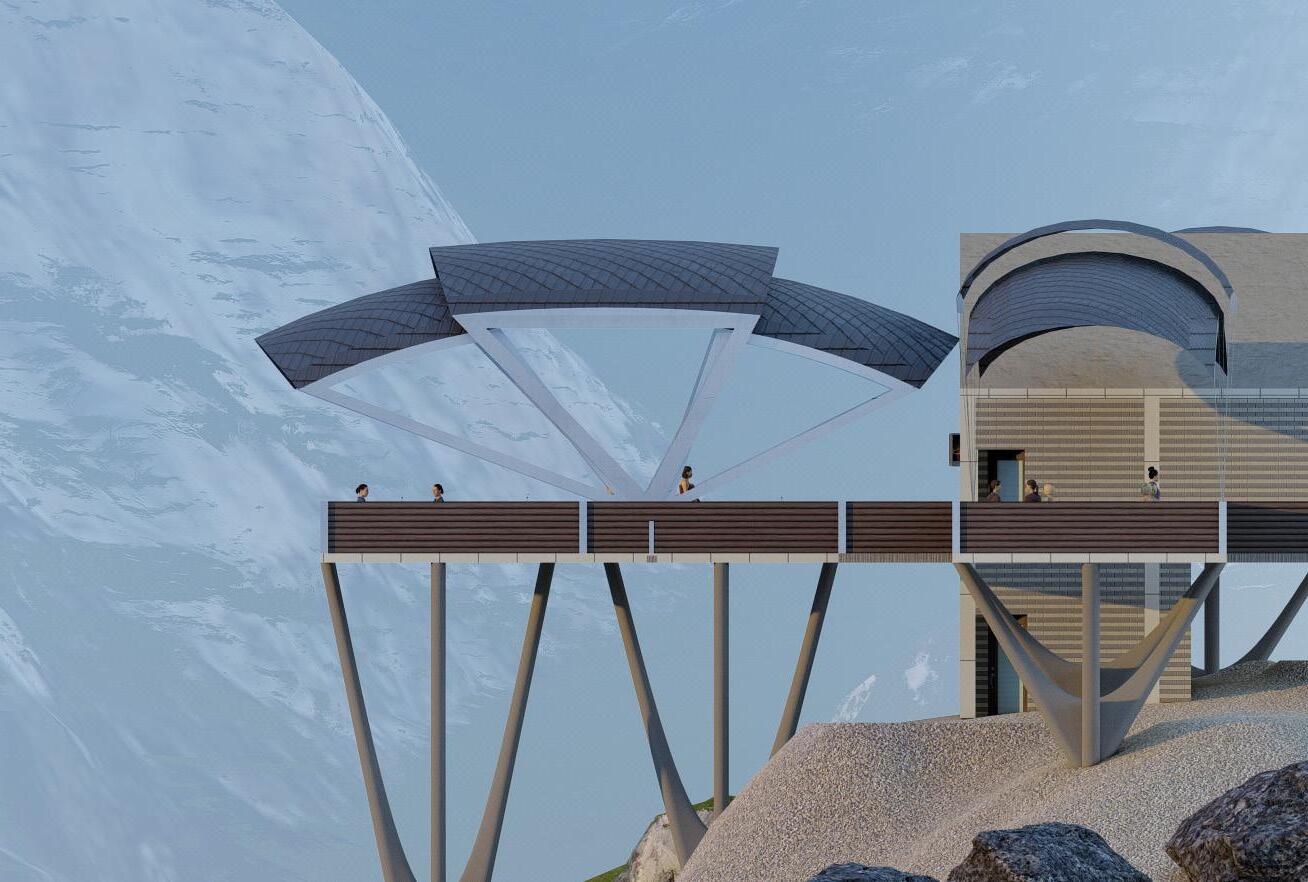

Hill Top Cafe
12
13

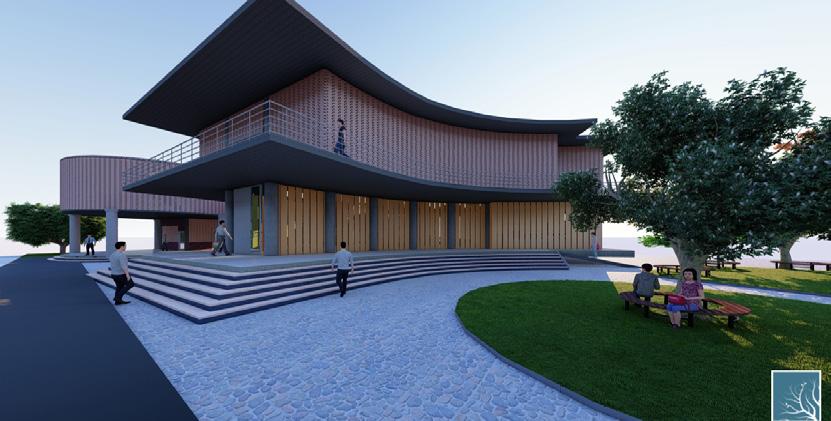

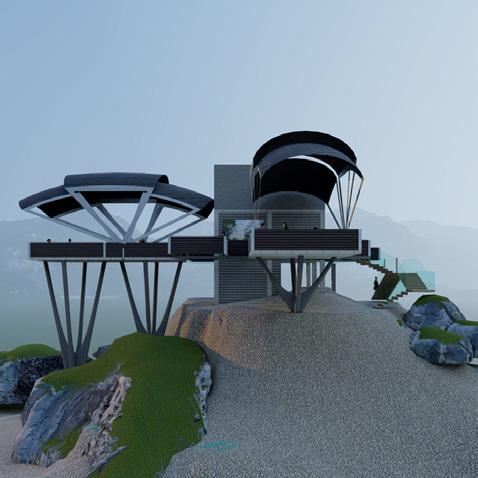

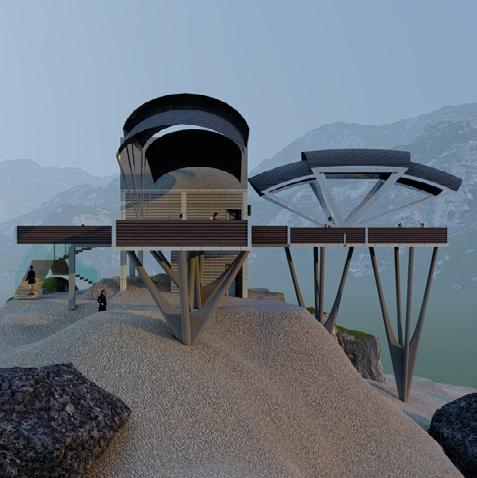

A view From North

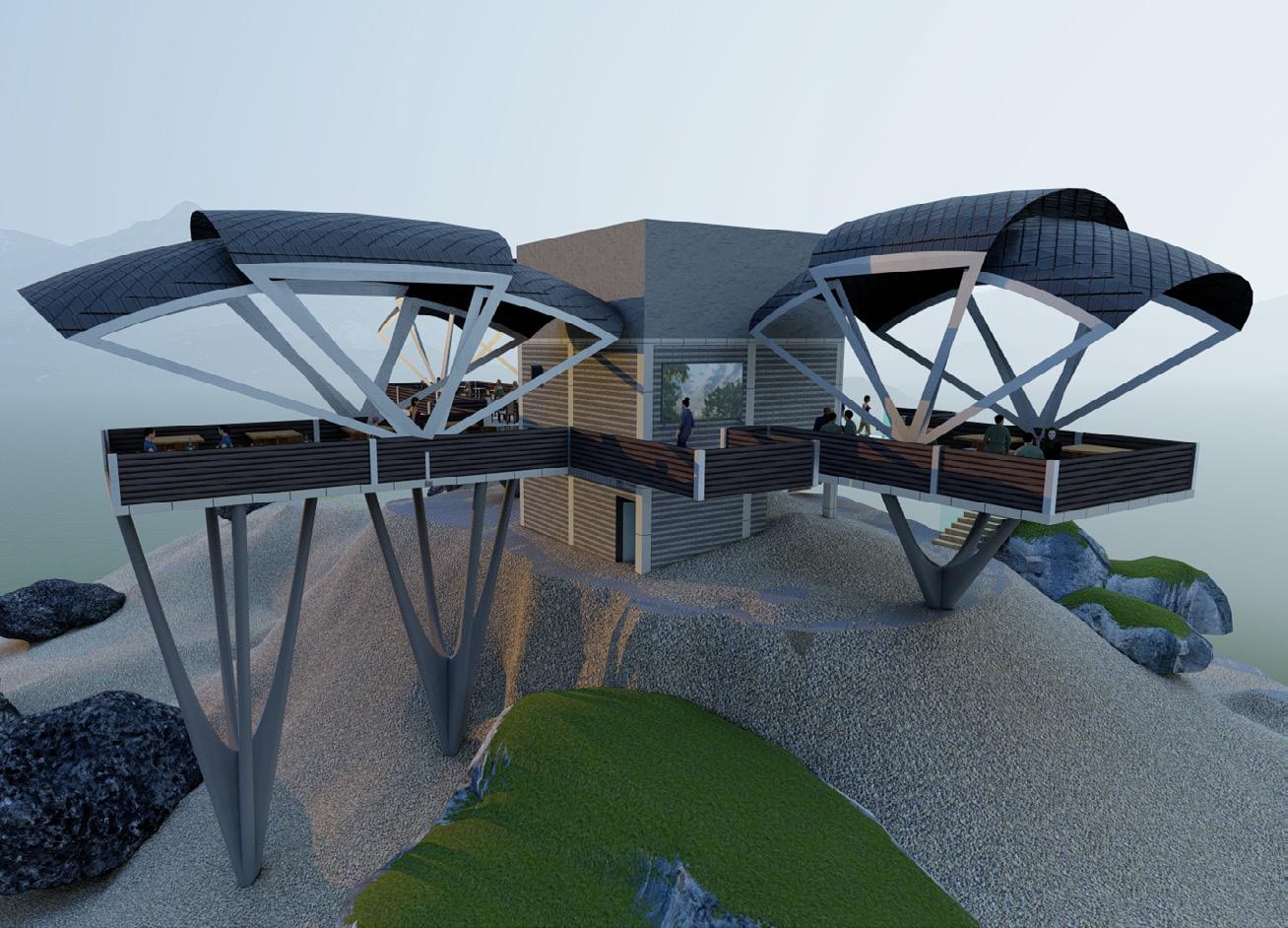

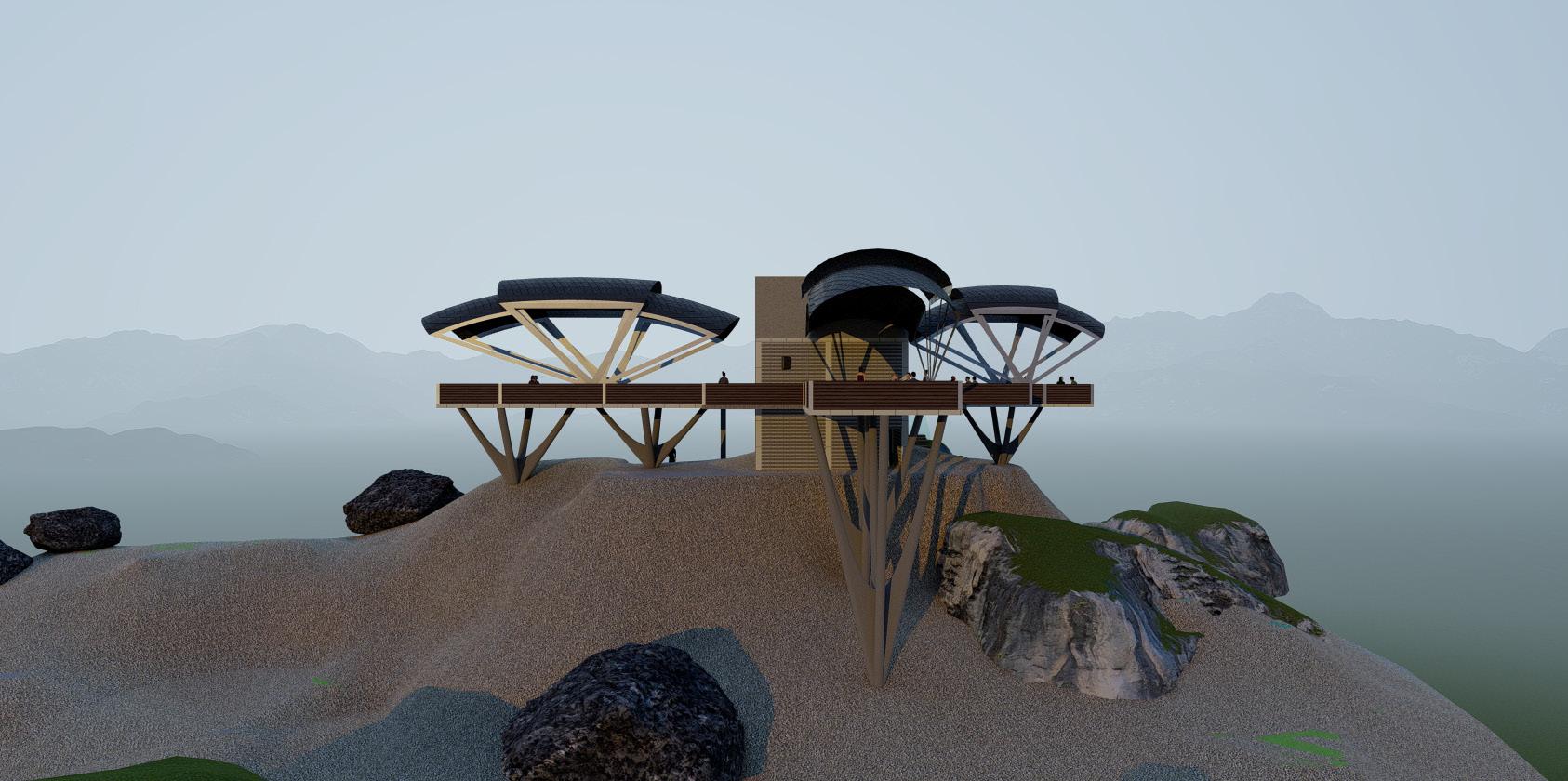

A view From North-East

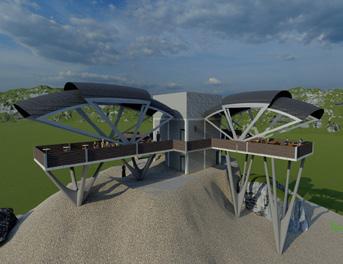

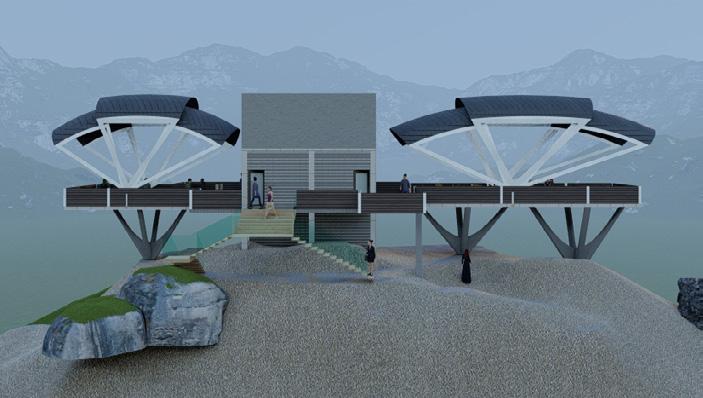

# 3D views

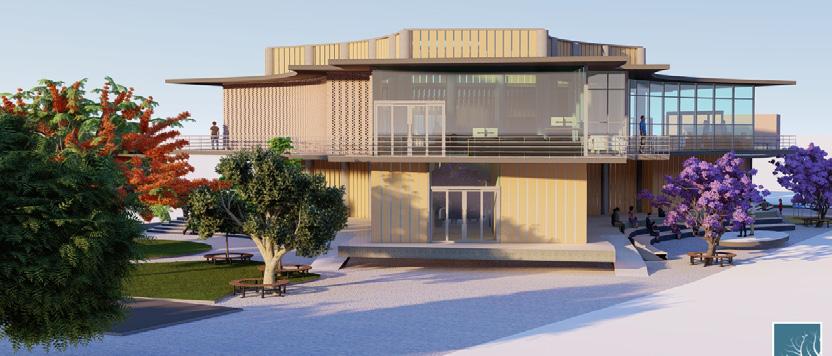

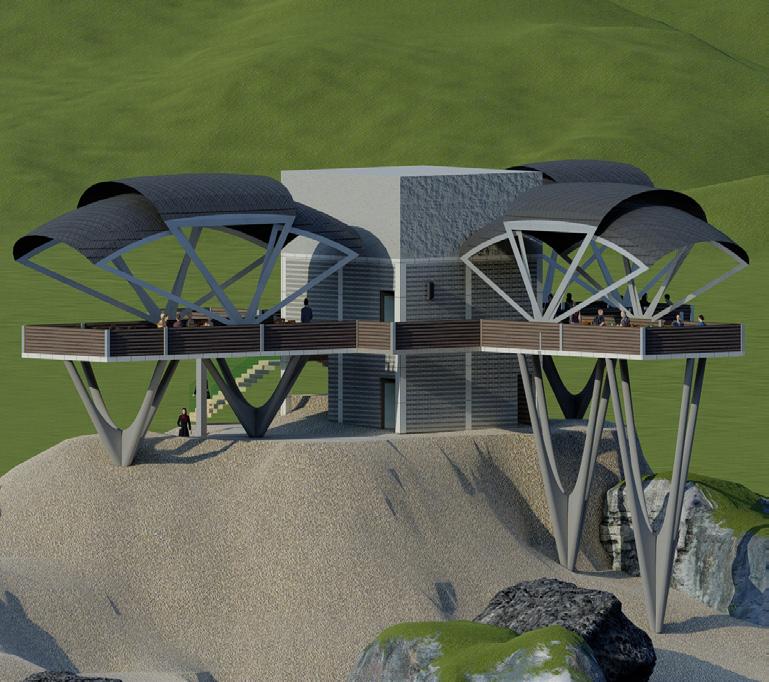

A view From North-West

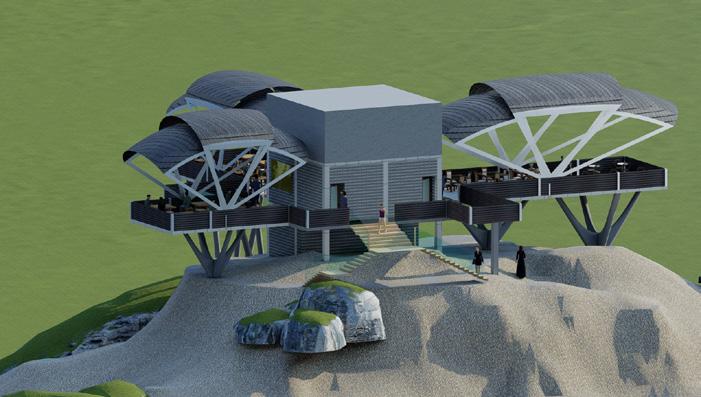

A view From South-West

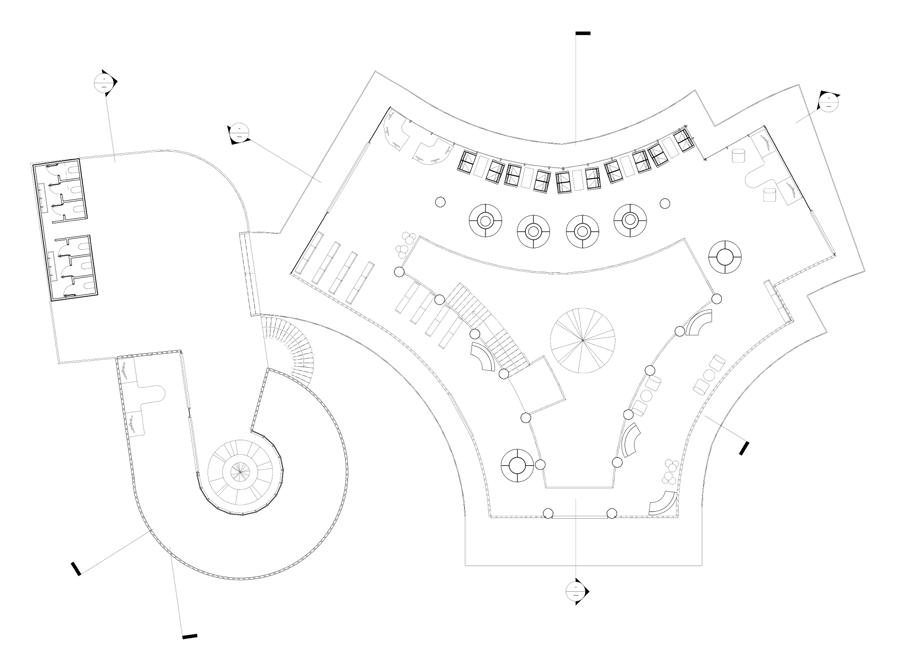

PLAN 14
A view From South-East

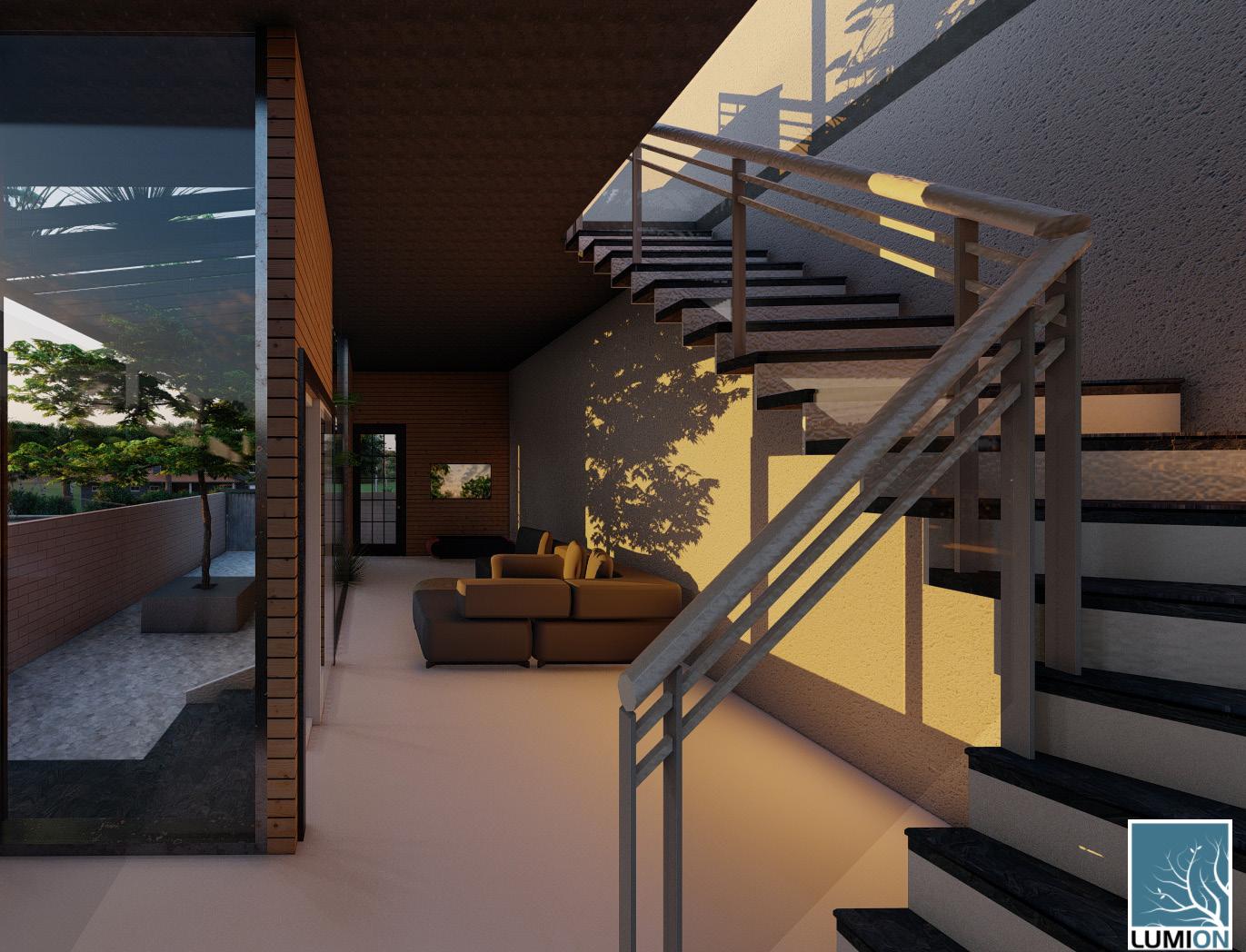

Single User House
15
Beyond BHK
18
Line Of Good Will - Beyond BHK
Site Area- 3600 m.sq., Builtup Area- 5050 m.sq., Mentors - Ar. Anupama Kundoo, Prof. SoniaGupta Line of Goodwill is a mixed-use project designed for 8,000 inhabitants, organised into co-housing clusters.
Proposal Brief
t is envisioned in the context of Auroville’s planned city by its chief architect Roger Anger, in the context of a car-free mobility. With no private ownership of land, the project offers different experimental sharing structures. It rethinks the urban tower, where the human scale is otherwise lost after eight storeys.

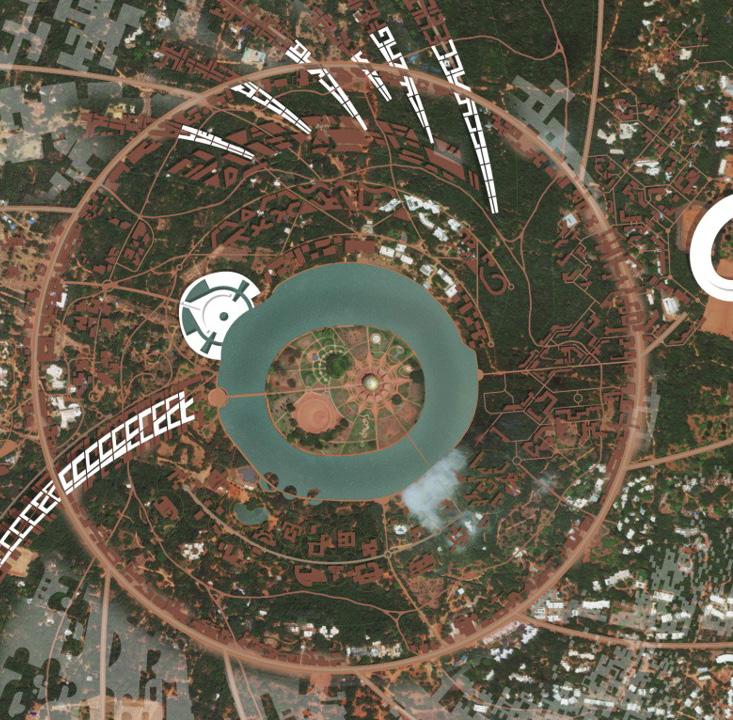

The gently descending cluster of buildings stretches over 800 m, resembling a hill that starts at the entrance to the city and culminates at the edge of the lake at the City Centre.
Sector A4 is one of the few sectors towards the Matrimandir in this 800 m long design.

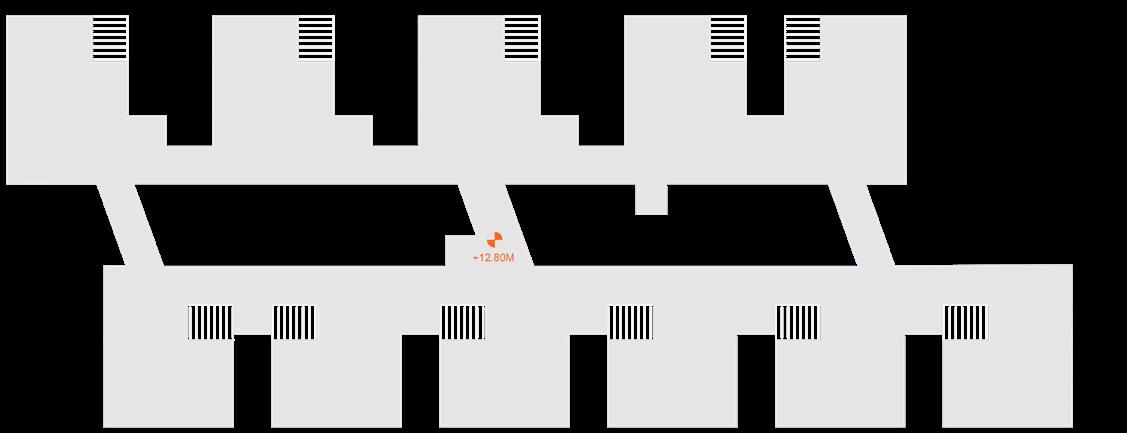

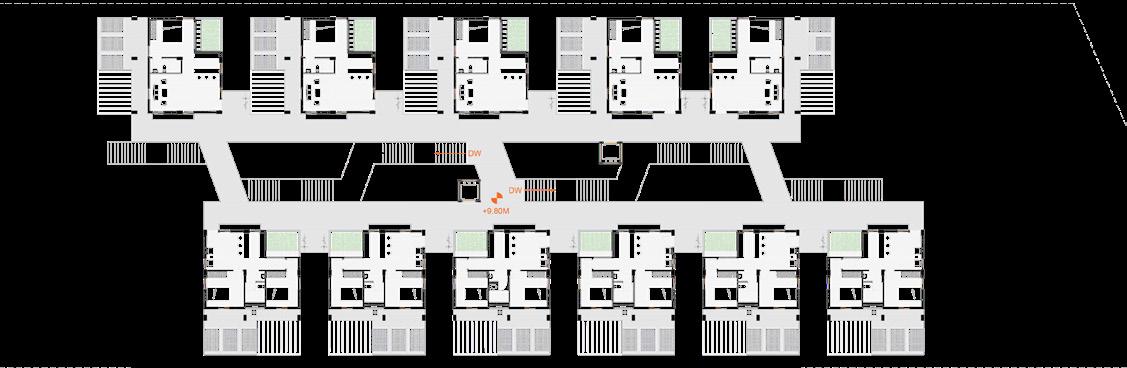

Second Floor PLan

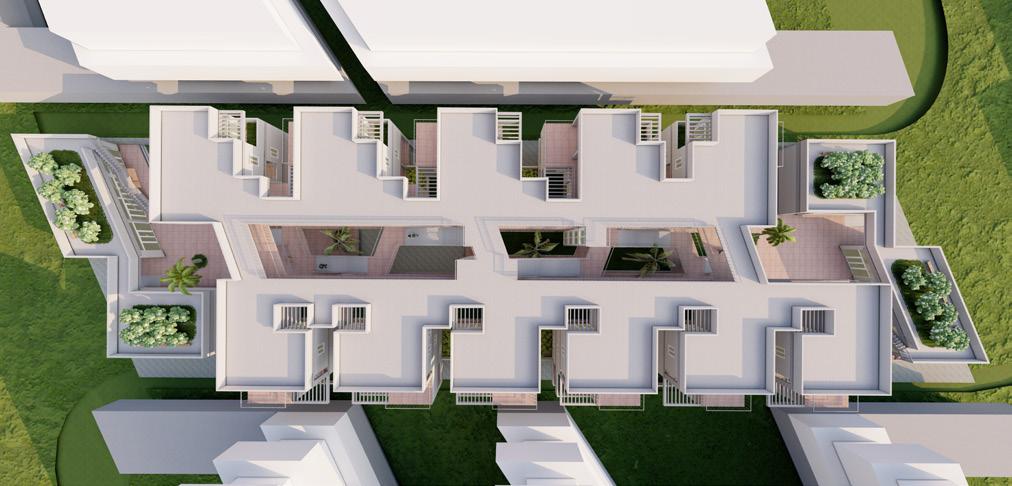

Site View

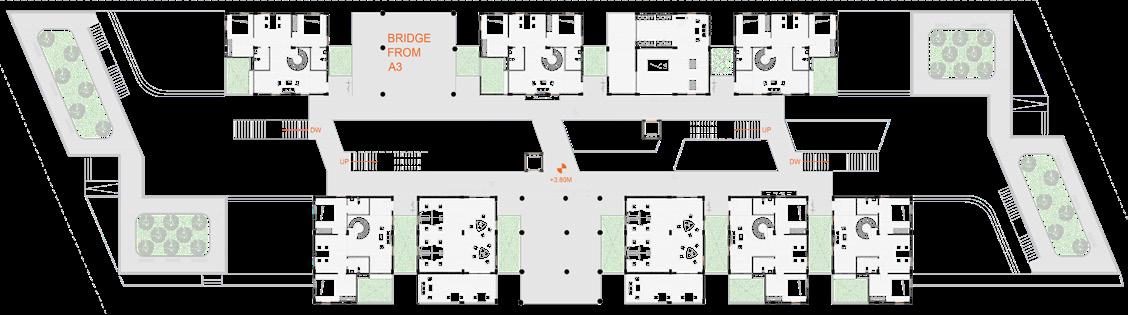

First Floor PLan

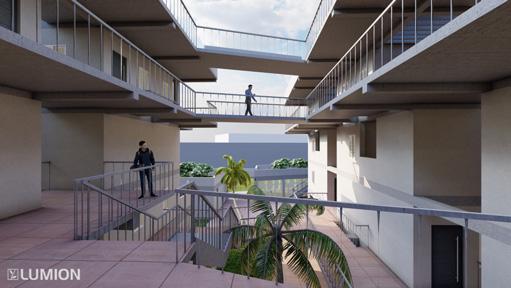

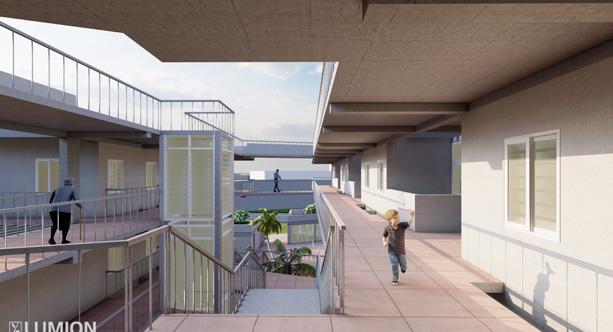

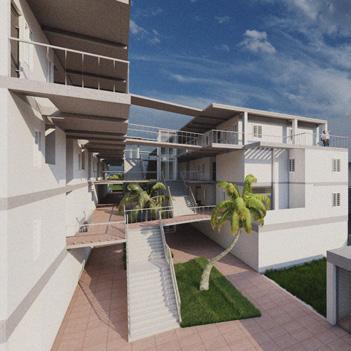

# 3D Views

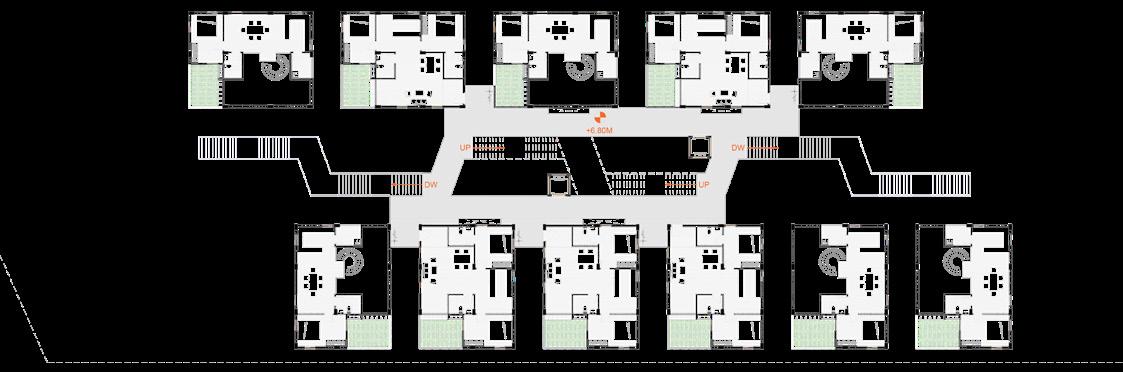

Ground Floor PLan
Concept

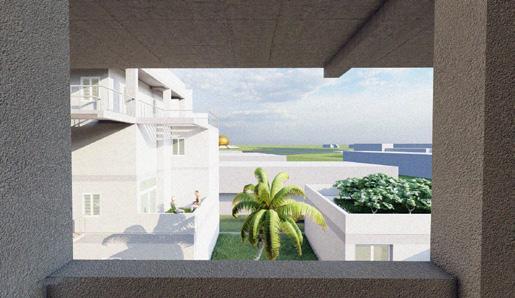

Each unit has their own court yard / green brakeout space and the common circulation spaces such as coridors, zig-zac staircase and visitors tracks at ground level are connect to the green pockets and trasparent to the surroundings and edge of every common spce at different level has a better view towards matrimandir.

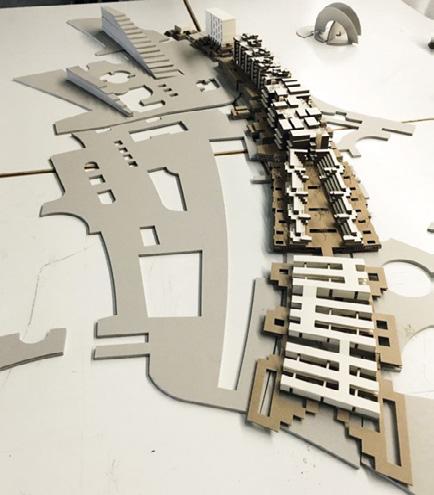

Conceptual Sketches
Site Plan
Keeping the orientation and prevailing wind direction the clusters were arranged in such a way that we take advantage of both along with the cross ventilation. The lower mass consists of family housing units along with double occupancy along with few private amenities.

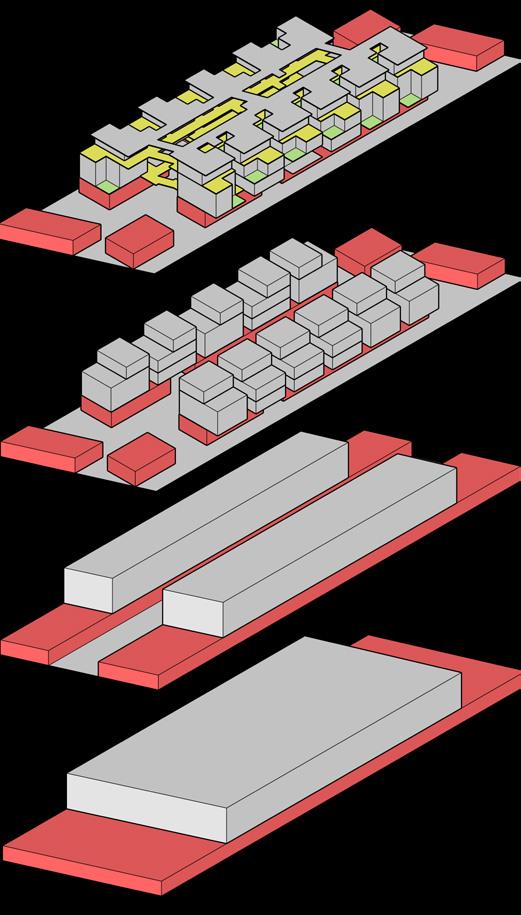

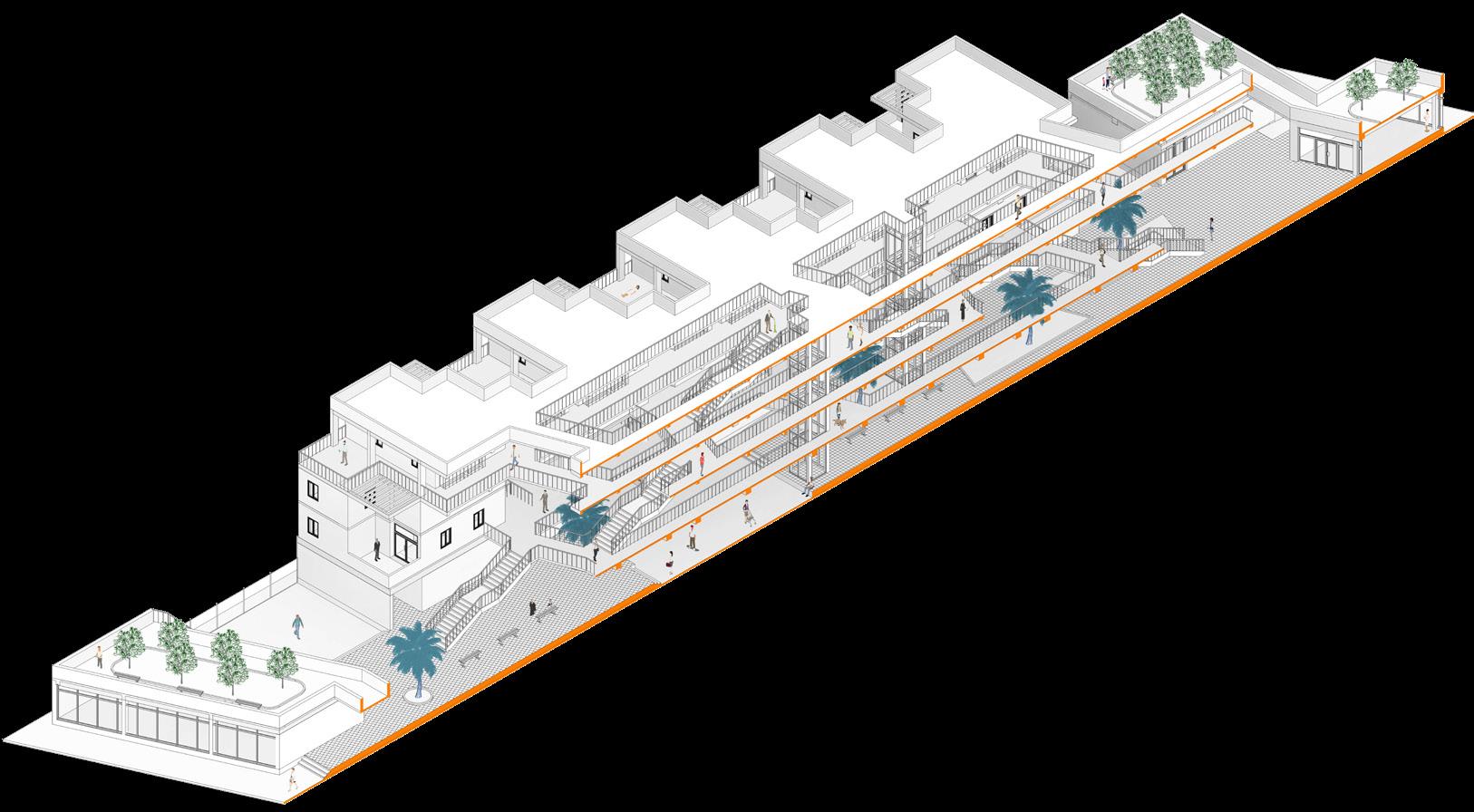

Isometric Sectional View
Third Floor PLan
Roof PLan
19
Working Drawings
20

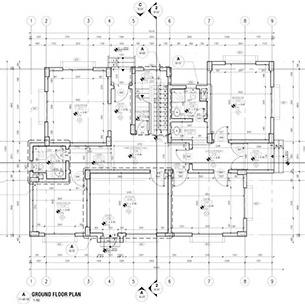

Ground Floor Plan
A' B' B D3
W2 W2 W2 W2
W2
First Floor Plan
KITCHEN 3860X2300 TOILET 1766X2769
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 METIS GYM FLOORING TILES 1000X600
TOILET 1766X2769
D1 D1 2100 1000 D2
First Floor Electrical Layout
D2 2100 D3 2100 750
DINING ROOM 3862X3067
W2 900 900 2100 1000 12 V1
5 3 W1
G G
D4 2100 1 900 2100 1200
FR
TOILET 1766X2769 DRESSING ROOM 2000X2770
V1 2250 2750 500 3
G FR TV
BEDROOM 3950X3950 BEDROOM 3950X3950 BEDROOM 3950X3450
DRESSING ROOM 2000X2770 DRESSING ROOM 2000X2770 TV
LIVING ROOM 3875X5000 DRAWING ROOM 4000X3539
Ground Floor Electrical Layout
LEGEND CEILING FAN CEILING LIGHT WALL LIGHT AC POINT HANGING LIGHT GEYSER REFRIGERATOR TELEVISION BELL POINT
JOHNSON PORSELANO TILES 1000X600 1 2 3 4 1 2 2 1 3 4 1 2 3
SWITCH BOARD G
BRECCIA AZURE TILES 1000X600
11) IT IS MUST FOR RESPECTIVE SITE ENGINEER TO CHECK AND CO-RELATE THE STRUCTURAL DRAWINGS WITH ARCHITECTURAL DRAWINGS. DOOR SCHEDULE NAME LINTEL SIZE WINDOW SCHEDULE NAME SILL LINTEL SIZE
SB CF CL WL AC HL GYS FR TV BP NOTES 1) ALL DIMENSIONS ARE IN MILLIMETER. 2) ALL MEASUREMENTS ARE FROM UNFINISHED SURFACE TO UNFINISHED SURFACE. 3) ALL DIMENSIONS ARE TO BE READ AND NOT TO BE MEASURED. 4) IN CASE OF ANY DISCREPANCY BETWEEN ARCHITECTURAL DRGS. AND OTHER DRGS., DISCREPANCY SHOULD BE BROUGHT TO THE NOTICE OF THE ARCHITECT BEFORE COMMENCEMENT OF THE WORK. 5) IN CASE OF ANY AMBIGUITIES ON SITE,THE ARCHITECT SHOULD BE INFORMED. 6) IT IS MUST TO INFORM AND TO HAVE PRIOR PERMISSION OF ARCHITECT BEFORE MAKING ANY CHANGES ON SITE. 7) REFER THE LATEST REVISED DRAWING. 8) IT IS MUST FOR RESPECTIVE SITE ENGINEER TO CHECK AND CO-RELATE THE COUNTER LVL. OF THE SURVEY DRAWINGS WITH THE COUNTER LVL. OF THE ARCHITECTURAL DRAWINGS. 9) IT IS MUST FOR RESPECTIVE SITE ENGINEER TO KEEP IN MIND THAT THE BUILDING LOCATION IS AS PER THE NODES GIVEN BY THE SURVEY DRAWING. 10) FOUNDATION & U.G.W.T DETAILS TO BE APPROVED FROM STRUCTURAL ENGINEER. REVISIONS NO. DATE DESCRIPTION
23820
16070 25210 15810 13260
12700 23210 10910 22280
27020 23600
21380 23690
DATE COPIES CLIENT ST. ENG. CONTR. ELEC. SRIRAMWAR's RESIDENCE, LOCATION:SADASIVPET
DATE : 02/03/23 DRAWN BY : CHECKED BY :
NOS. NOS. PRINTS ISSUED PROJECT : DRG. TITLE : FIRST FLOOR FLOORING LAYOUT DRG. NO. : SEM VI/WD/15 SCALE : 1:50 ARCHITECT ABHINAY SRIRAMWAR Semester: VI Roll No : 20WU0401025 Woxsen School of Architecture & Planning
AOSTA GREY OUTDOOR TILES 600X600 NOTES 1) ALL DIMENSIONS ARE IN MILLIMETER. 2) ALL MEASUREMENTS ARE FROM UNFINISHED SURFACE TO UNFINISHED SURFACE. 3) ALL DIMENSIONS ARE TO BE READ AND NOT TO BE MEASURED. 4) IN CASE OF ANY DISCREPANCY BETWEEN ARCHITECTURAL DRGS. AND OTHER DRGS., DISCREPANCY SHOULD BE BROUGHT TO THE NOTICE OF THE ARCHITECT BEFORE COMMENCEMENT OF THE WORK. 5) IN CASE OF ANY AMBIGUITIES ON SITE,THE ARCHITECT SHOULD BE INFORMED. 6) IT IS MUST TO INFORM AND TO HAVE PRIOR PERMISSION OF ARCHITECT BEFORE MAKING ANY CHANGES ON SITE. 7) REFER THE LATEST REVISED DRAWING. 8) IT IS MUST FOR RESPECTIVE SITE ENGINEER TO CHECK AND CO-RELATE THE COUNTER LVL. OF THE SURVEY DRAWINGS WITH THE COUNTER LVL. OF THE ARCHITECTURAL DRAWINGS. 9) IT IS MUST FOR RESPECTIVE SITE ENGINEER TO KEEP IN MIND THAT THE BUILDING LOCATION IS AS PER THE NODES GIVEN BY THE SURVEY DRAWING. 10) FOUNDATION & U.G.W.T DETAILS TO BE APPROVED FROM STRUCTURAL ENGINEER. REVISIONS NO. DATE DESCRIPTION
19960
Demarkation
15560 19740
13090 22660 22430 18380
11) IT IS MUST FOR RESPECTIVE SITE ENGINEER TO CHECK AND CO-RELATE THE STRUCTURAL DRAWINGS WITH ARCHITECTURAL DRAWINGS. DOOR SCHEDULE NAME LINTEL SIZE WINDOW SCHEDULE NAME SILL LINTEL SIZE
NOS. NOS. PRINTS ISSUED PROJECT :
DATE COPIES CLIENT ST. ENG. CONTR. ELEC. SRIRAMWAR's RESIDENCE, LOCATION:SADASIVPET
20120 15220
29250 11360
25080
21 UNFINISHED SURFACE TO UNFINISHED SURFACE. 3) ALL DIMENSIONS ARE TO BE READ AND NOT TO BE MEASURED. 4) IN CASE OF ANY DISCREPANCY BETWEEN ARCHITECTURAL DRGS. AND OTHER DRGS., DISCREPANCY SHOULD BE BROUGHT TO THE NOTICE OF THE ARCHITECT BEFORE COMMENCEMENT OF THE WORK. 5) IN CASE OF ANY AMBIGUITIES ON SITE,THE ARCHITECT SHOULD BE INFORMED. 6) IT IS MUST TO INFORM AND TO HAVE PRIOR PERMISSION OF ARCHITECT BEFORE MAKING ANY CHANGES ON SITE. 7) REFER THE LATEST REVISED DRAWING. 8) IT IS MUST FOR RESPECTIVE SITE ENGINEER TO CHECK AND CO-RELATE THE COUNTER LVL. OF THE SURVEY DRAWINGS WITH THE COUNTER LVL. OF THE ARCHITECTURAL DRAWINGS. 9) IT IS MUST FOR RESPECTIVE SITE ENGINEER TO KEEP IN MIND THAT THE BUILDING LOCATION IS AS PER THE NODES GIVEN BY THE SURVEY DRAWING. 10) FOUNDATION & U.G.W.T DETAILS TO BE APPROVED FROM STRUCTURAL ENGINEER. REVISIONS NO. DATE DESCRIPTION 11) IT IS MUST FOR RESPECTIVE SITE ENGINEER TO CHECK AND CO-RELATE THE STRUCTURAL DRAWINGS WITH ARCHITECTURAL DRAWINGS. DOOR SCHEDULE NAME LINTEL SIZE WINDOW SCHEDULE NAME SILL LINTEL SIZE NOS. NOS. PRINTS ISSUED PROJECT : DRG. TITLE : GROUND FLOOR PLAN DRG. NO. : SEM VI/WD/07 SCALE : 1:50 ARCHITECT ABHINAY SRIRAMWAR Semester: VI Roll No : 20WU0401025 Woxsen School of Architecture & Planning DATE : 02/03/23 DRAWN BY CHECKED BY : DATE COPIES CLIENT ST. ENG. CONTR. ELEC. SRIRAMWAR's RESIDENCE, LOCATION:SADASIVPET GUEST DRAWING ROOM DINING ROOM TOILET DRESSING ROOM +450 +450 +450 +450 +438 +426 +450 4000 1000 1000 3513 2931 4000 2770 1944 2059 2490 2770 267 2711 1855 100 1821 1826 1742 2599 1826 750 100 1798 1724 1259 115 2599 500 500 1106 1106 1000 1540 1000 335 122 2520 100 1000 100 1000 1676 2219 750 100 450 2490 230 2599 450 2520 750 50 3876 3320 450 1435 1000 1163 328 1642 450 3070 100 335 1995 1000 225 1000 1941 1000 230 3781 220 1920 750 100 1254 1881 1920 2770 1886 1135 500 1135 80 1000 3150 100 1205 115 3320 421 77 1642 1500 3230 4171 1163 1163 450 5464 6000 3770 4230 1179 3858 2800 1076 4345 931 2200 300 1076 1000
A D1
Toilet Details
Wall Section
Footing Layout
22 NOTES 1) ALL DIMENSIONS ARE IN MILLIMETER. 2) ALL MEASUREMENTS ARE FROM UNFINISHED SURFACE TO UNFINISHED SURFACE. 3) ALL DIMENSIONS ARE TO BE READ AND NOT TO BE MEASURED. 4) IN CASE OF ANY DISCREPANCY BETWEEN ARCHITECTURAL DRGS. AND OTHER DRGS., DISCREPANCY SHOULD BE BROUGHT TO THE NOTICE OF THE ARCHITECT BEFORE COMMENCEMENT OF THE WORK. 5) IN CASE OF ANY AMBIGUITIES ON SITE,THE ARCHITECT SHOULD BE INFORMED. 6) IT IS MUST TO INFORM AND TO HAVE PRIOR PERMISSION OF ARCHITECT BEFORE MAKING ANY CHANGES ON SITE. 7) REFER THE LATEST REVISED DRAWING. 8) IT IS MUST FOR RESPECTIVE SITE ENGINEER TO CHECK AND CO-RELATE THE COUNTER LVL. OF THE SURVEY DRAWINGS WITH THE COUNTER LVL. OF THE ARCHITECTURAL DRAWINGS. 9) IT IS MUST FOR RESPECTIVE SITE ENGINEER TO KEEP IN MIND THAT THE BUILDING LOCATION IS AS PER THE NODES GIVEN BY THE SURVEY DRAWING. 10) FOUNDATION & U.G.W.T DETAILS TO BE APPROVED FROM STRUCTURAL ENGINEER. REVISIONS NO. DATE DESCRIPTION 11) IT IS MUST FOR RESPECTIVE SITE ENGINEER TO CHECK AND CO-RELATE THE STRUCTURAL DRAWINGS WITH ARCHITECTURAL DRAWINGS. DOOR SCHEDULE NAME LINTEL SIZE WINDOW SCHEDULE NAME SILL LINTEL SIZE NOS. NOS. PRINTS ISSUED PROJECT : DRG. TITLE : FOOTING LAYOUT DRG. NO. : SEM VI/WD/04 SCALE : 1:50 ARCHITECT ABHINAY SRIRAMWAR Semester: VI Roll No : 20WU0401025 Woxsen School of Architecture & Planning DATE : 02/03/23 DRAWN BY : CHECKED BY : DATE COPIES CLIENT ST. ENG. CONTR. ELEC. SRIRAMWAR's RESIDENCE, LOCATION:SADASIVPET B C D E F G H I J K 1 0,0 0,0 2 3 4 5 6 7 8 9 10 B C A D E F G H I J K 1 2 3 4 5 6 7 8 9 10 490 340 120 50 110 3990 3410 490 110 2890 1230 110 2830 2830 110 3550 110 (230 450) (230 X 450) A Strart Point 680 590 580 680 590 680 680 590 590 680 680 590 680 590 590 680 590 680 590 680 680 590 680 590 590 680 680 590 680 590 590 590 680 590 680 680 590 680 NOTES 1) ALL DIMENSIONS ARE IN MILLIMETER. 2) ALL MEASUREMENTS ARE FROM UNFINISHED SURFACE TO UNFINISHED SURFACE. 3) ALL DIMENSIONS ARE TO BE READ AND NOT TO BE MEASURED. 4) IN CASE OF ANY DISCREPANCY BETWEEN ARCHITECTURAL DRGS. AND OTHER DRGS., DISCREPANCY SHOULD BE BROUGHT TO THE NOTICE OF THE ARCHITECT BEFORE COMMENCEMENT OF THE WORK. 5) IN CASE OF ANY AMBIGUITIES ON SITE,THE ARCHITECT SHOULD BE INFORMED. 6) IT IS MUST TO INFORM AND TO HAVE PRIOR PERMISSION OF ARCHITECT BEFORE MAKING ANY CHANGES ON SITE. 7) REFER THE LATEST REVISED 8) IT IS MUST FOR RESPECTIVE SITE ENGINEER TO CHECK AND CO-RELATE THE COUNTER LVL. OF THE SURVEY DRAWINGS WITH THE COUNTER LVL. OF THE 9) IT IS MUST FOR RESPECTIVE SITE ENGINEER TO KEEP IN MIND THAT THE BUILDING LOCATION IS AS PER THE NODES GIVEN BY THE SURVEY DRAWING. 10) FOUNDATION & U.G.W.T DETAILS TO BE APPROVED FROM STRUCTURAL ENGINEER. REVISIONS NO. DATE DESCRIPTION 11) IT IS MUST FOR RESPECTIVE SITE ENGINEER TO CHECK AND CO-RELATE THE STRUCTURAL DRAWINGS WITH ARCHITECTURAL DRAWINGS. DOOR SCHEDULE NAME LINTEL SIZE WINDOW SCHEDULE NAME SILL LINTEL SIZE NOS. NOS. PRINTS ISSUED PROJECT : DRG. TITLE : PLINTH BEAM LAYOUT DRG. NO. : SEM VI/WD/13 SCALE : 1:20 ARCHITECT ABHINAY SRIRAMWAR Semester: VI Roll No 20WU0401025 Woxsen School of Architecture & Planning DATE : 02/03/23 DRAWN BY : CHECKED BY DATE COPIES CLIENT ST. ENG. CONTR. ELEC. SRIRAMWAR's RESIDENCE, LOCATION:SADASIVPET SLOPE -24 230 395 438 566 252 618 356 WALL A WALL B WALL - C WALL D -12 WALL - B WALL - A WALL - C -12 WALL - D BRICK WORK FOOTING 150 MM THICK P.C.C PARAPET RCC SLAB 230 MM THICK BRICK WALL VATA RCC SLAB 100 MM THICK SAND FILLING POLYTHENE SHEET FLAT BRICK SOILING 150 MM THICK HARD CORE 75 MM THICK PCC 1O MM THICK TILES 10 MM THICK MORTAR EARTH COMPACTED OVERHANG DRIP COURSE 12MM THICK GLASS SKIRTING 900 3000 2100 750 30 600 3000
Miscellaneous
24
