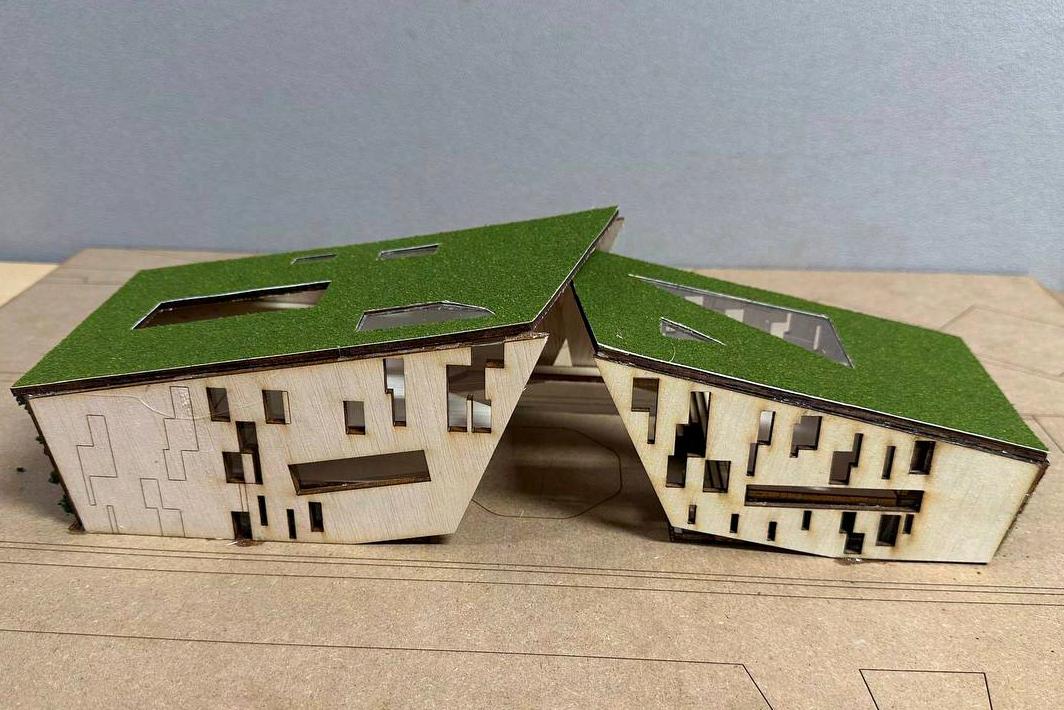

Quayle: a visitor centre at Lian Wah Hang Quail Farm boasting its free form and sustainable design.

Jalan Isnin 33: an entirely DFMA adaptable terrace house.

Rocks @ Jalan Besar: a community space with integrated programmes allowing residents to learn, harvest & cook their own crops.

Tetra: a luxury condominium with interactive communal facilities and landscape that both bonds and revitalise residents.

ADUNA: a contemporary and unique space that celebrates gathering for all.

OASIS: an extravagant community garden, lounge and linkway.

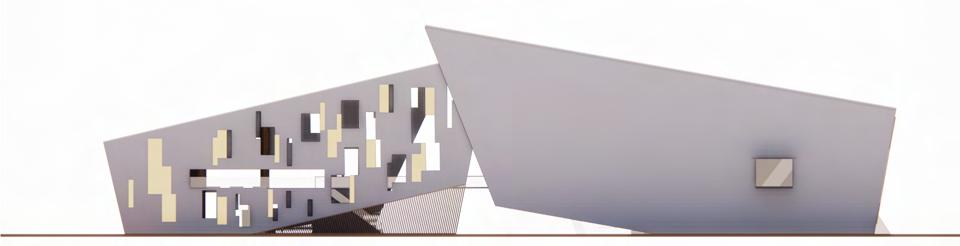

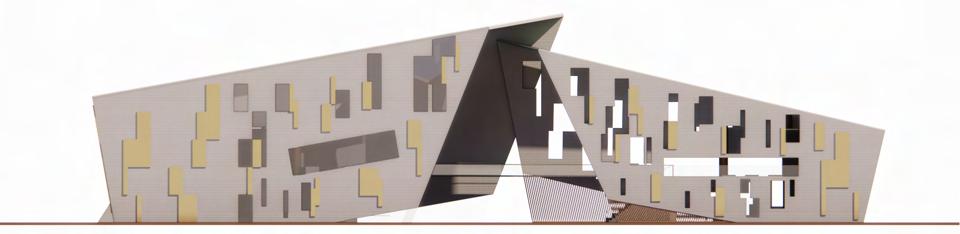

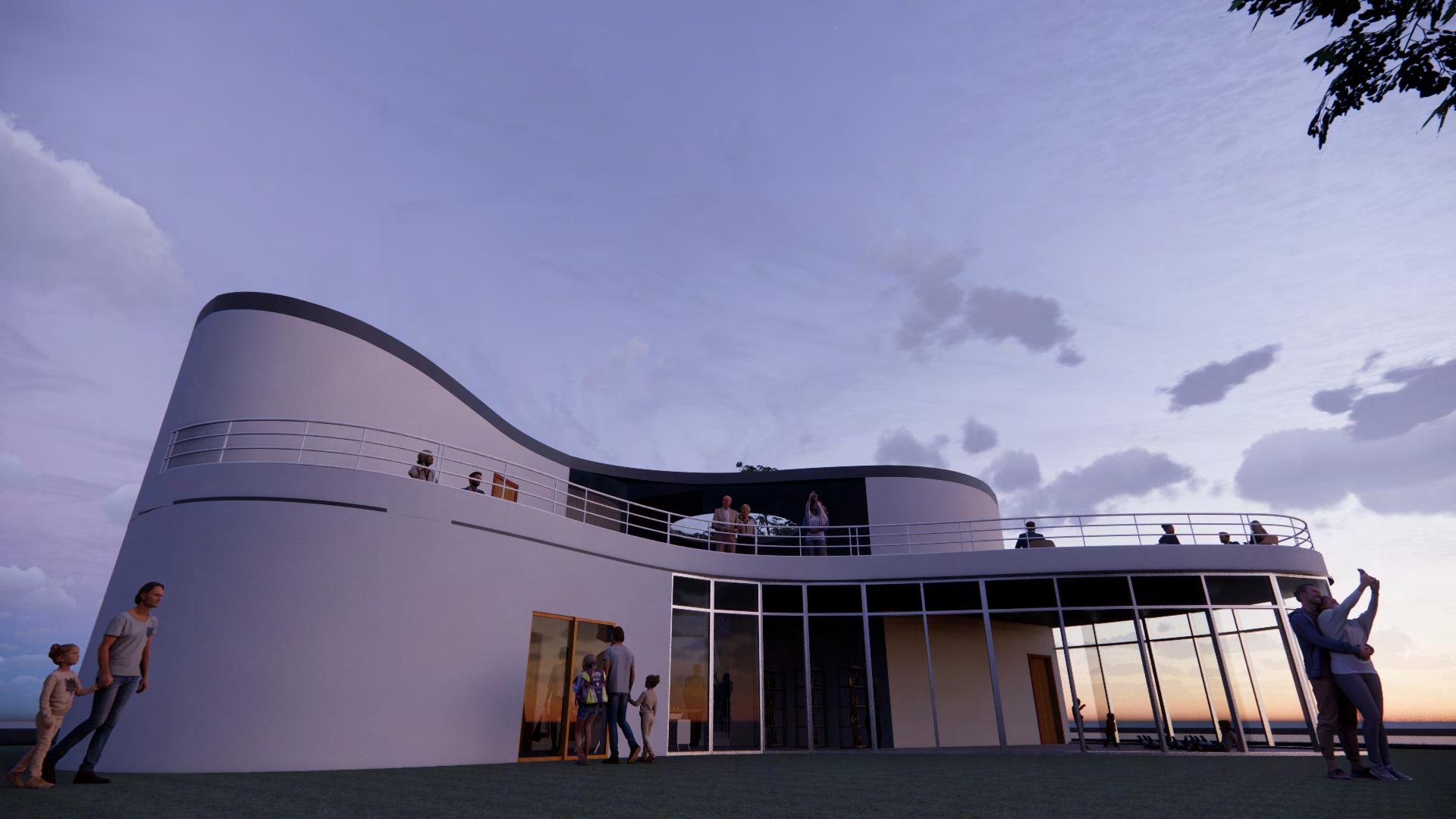

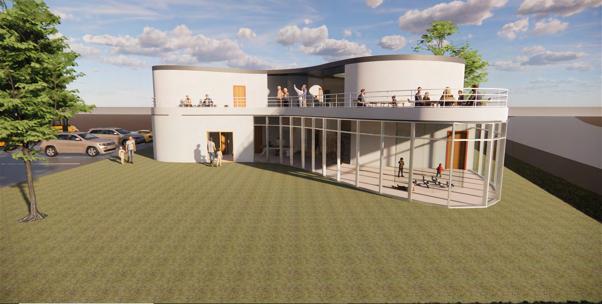

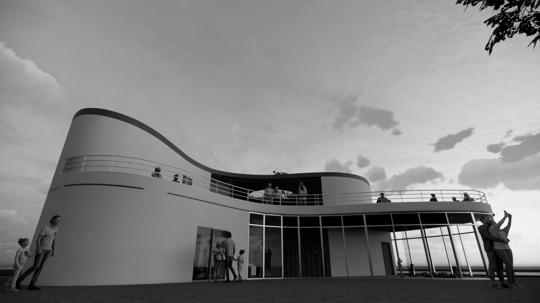

Quayle

project description:

Quayle, an interactive visitor centre designed to enchance the experience of people of all ages with its variety of facilities and unique spaces., The design of Quayle induces high levels of passive desgin strategies going from the material of construction to the strategic positioning of openings for sunlight. A true vitality of the Lian Wah Hang Quail Farm.

About

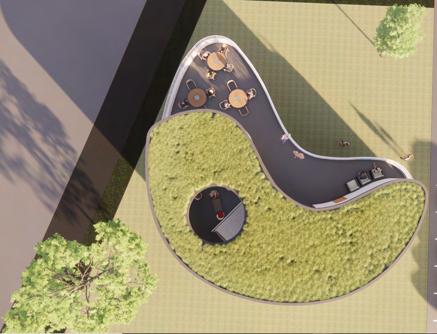

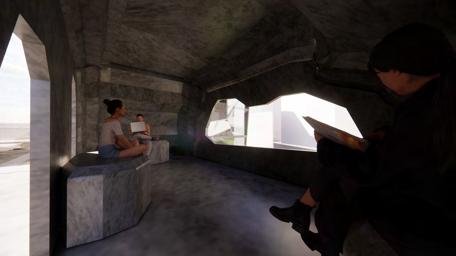

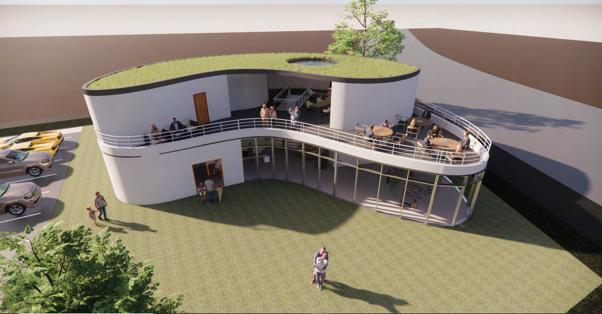

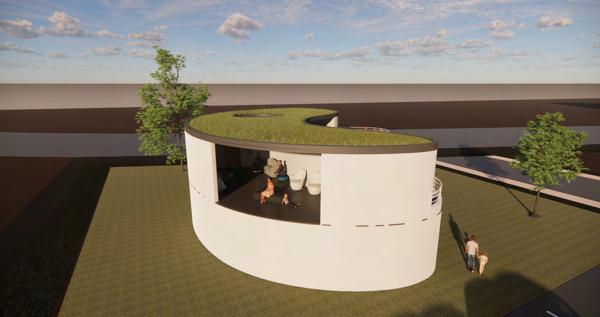

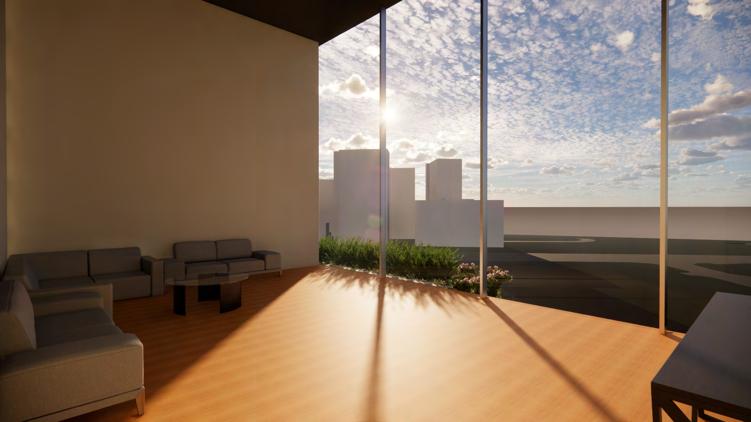

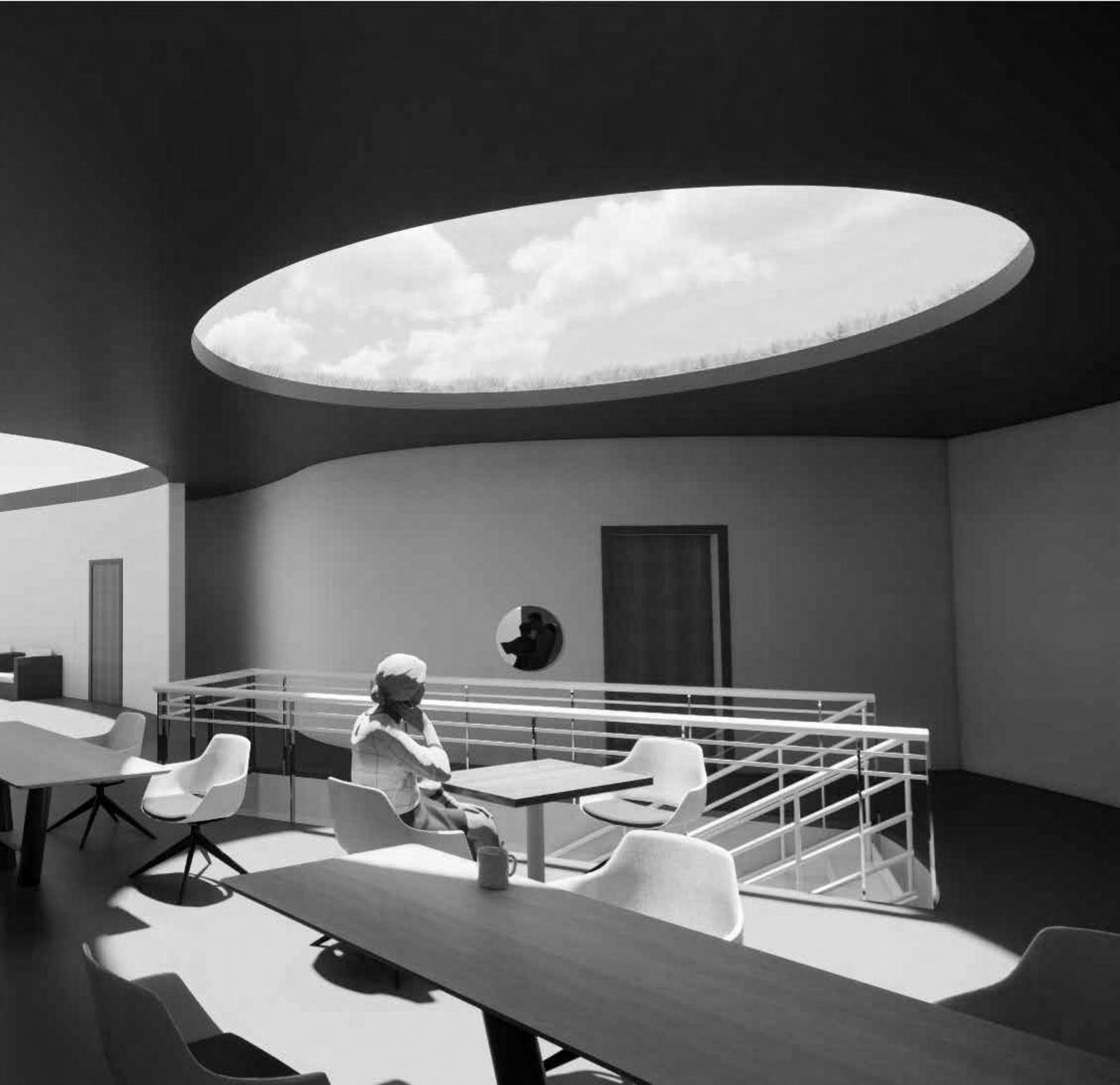

Quayle boasts many highly sustainable features such as its Oculus, well positioned curtain walls allowing natural lighting to fill the centre throughout the day and sedum green roofing which only requires a minimum amount of maintainance and brings along benefits at an economic, ecological and societal levels. There are also facilities to enchance the leducational experience for both visitors of all ages and the farm owner who loves giving educational tours through facilities such as a historical gallery, mini classroom, cafe, lounge and a souvenier shop all lined up with smooth human circulation.

Plus Programmes

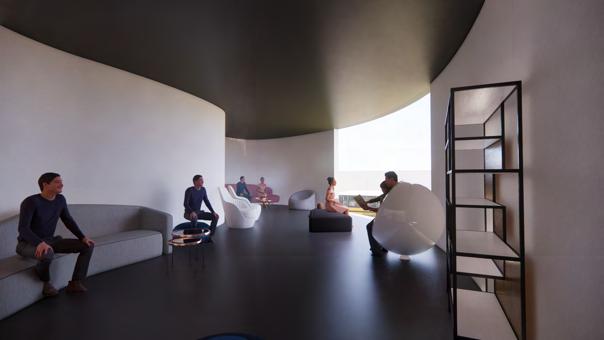

Cafe Lounge Interactive Quail Enclosure

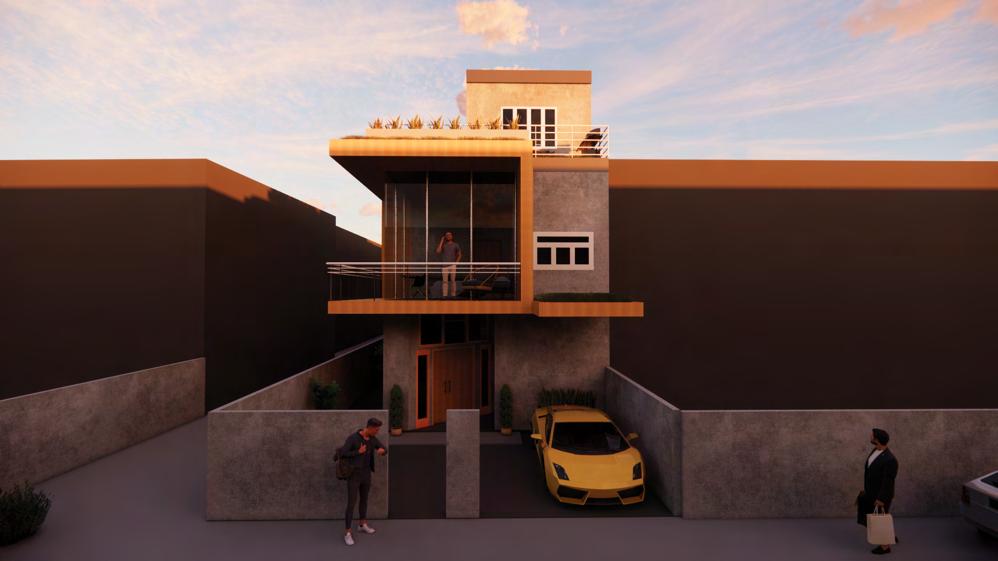

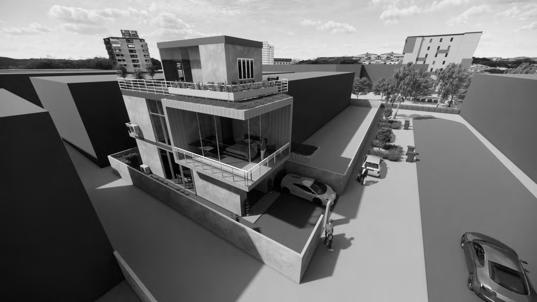

Jalan Isnin 33

project description:

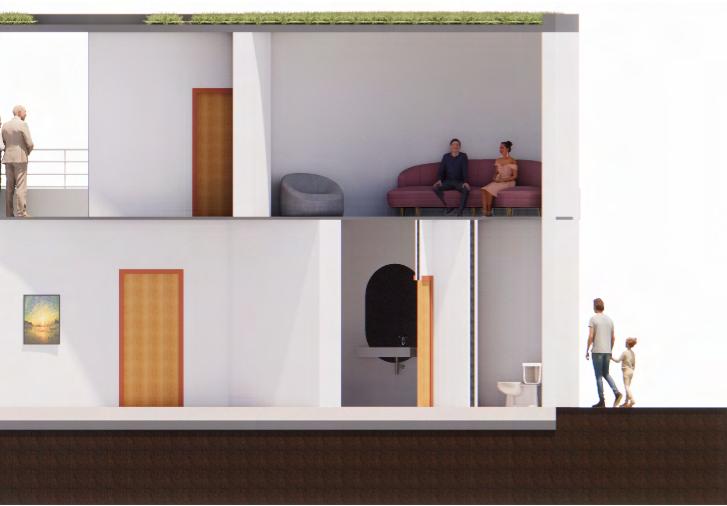

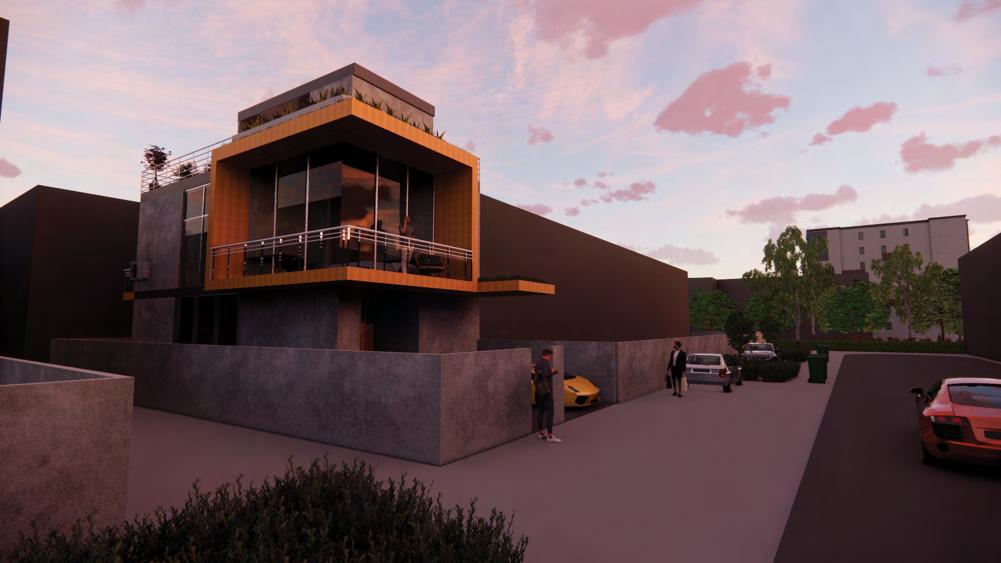

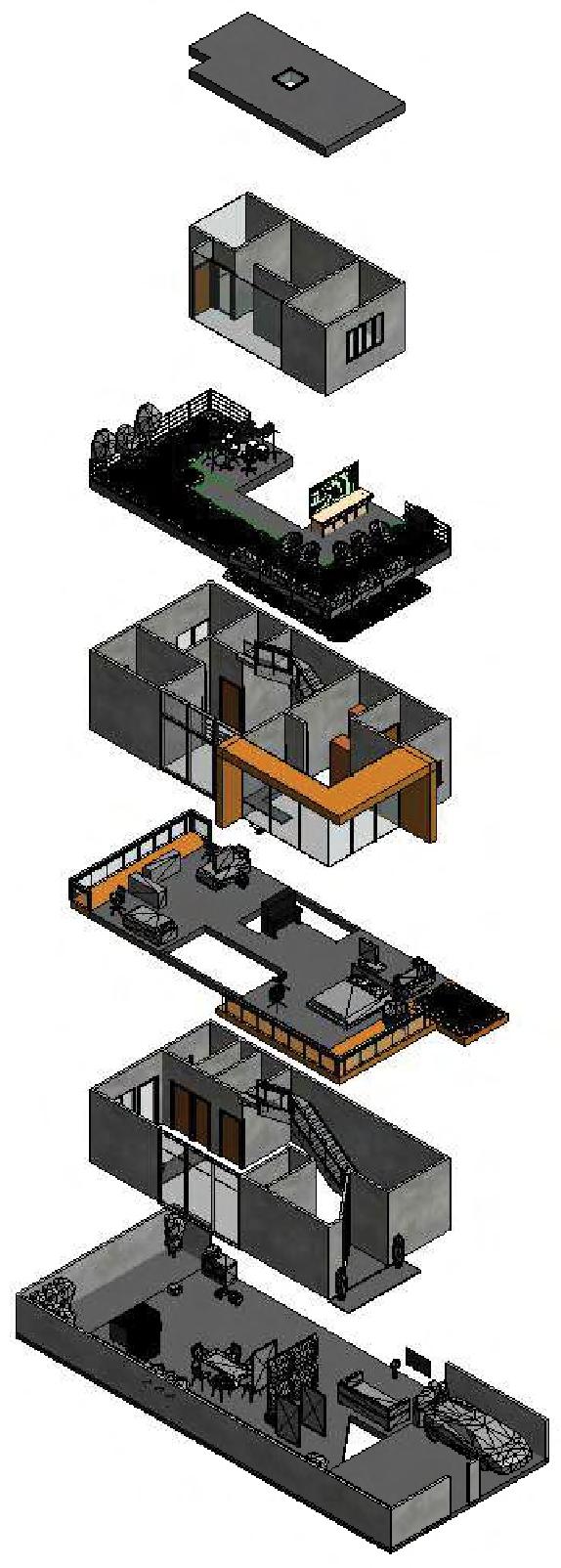

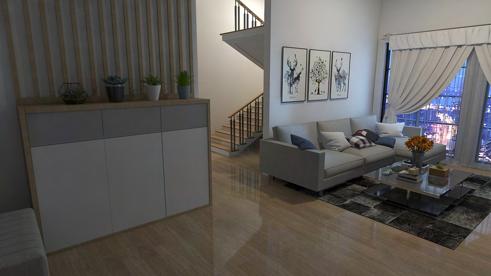

Tasked to construct an ideal home for a family of four while being DFMA. This is the ideal home with ample quality space for daily rituals to be celebrated within while also being adaptable to the different needs of the owners when events arrive.

Scale: 1:150

Desgin Challenge

The design challenge is, “How might we strengthen family cohesion while enabling them in their pursuit of passions?”

In our modern society, 1 in 4 families are seperated and disengaged despite living in the same house. Parents also often do not provide enough opportunities or support for their children to pursue their goals and aspirations.

With the aim of tackling these issues through the design of the house which personifies how the family’s relationship progresses. The goal of the design is to achieve the highest level of family cohesion possible and to let the members express their creative passions fully.

PERSONA PROFILE

Family of 4 2 adults, 2 teenagers

Age range: 13-48

Goals: The family is very outgoing and loves hosting events and entertaining guests, they also have many personal hobbies that they wish to work on.

Interests: DIY, Arts & Craft, Sports and Fitness, Music

PLUS PROGRAM

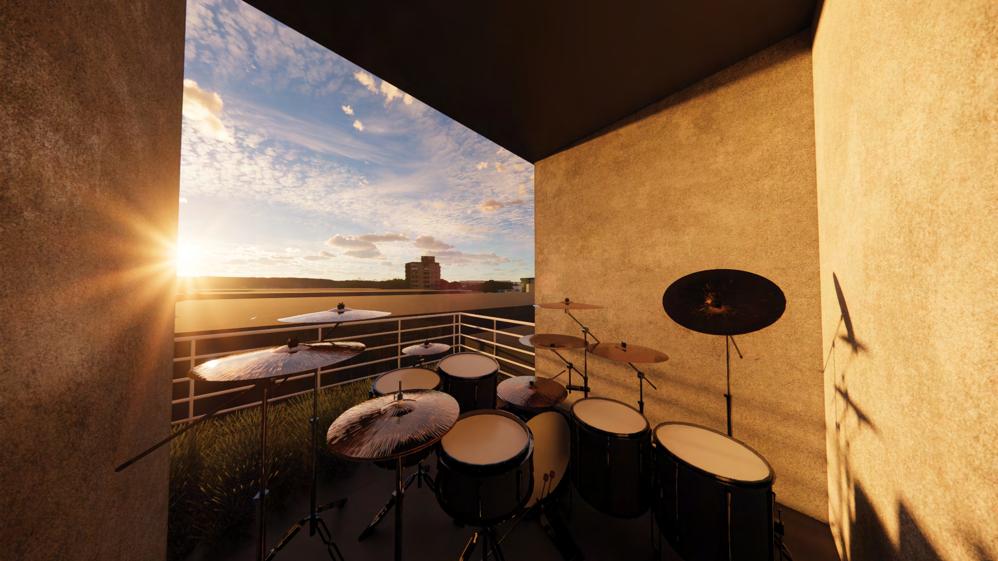

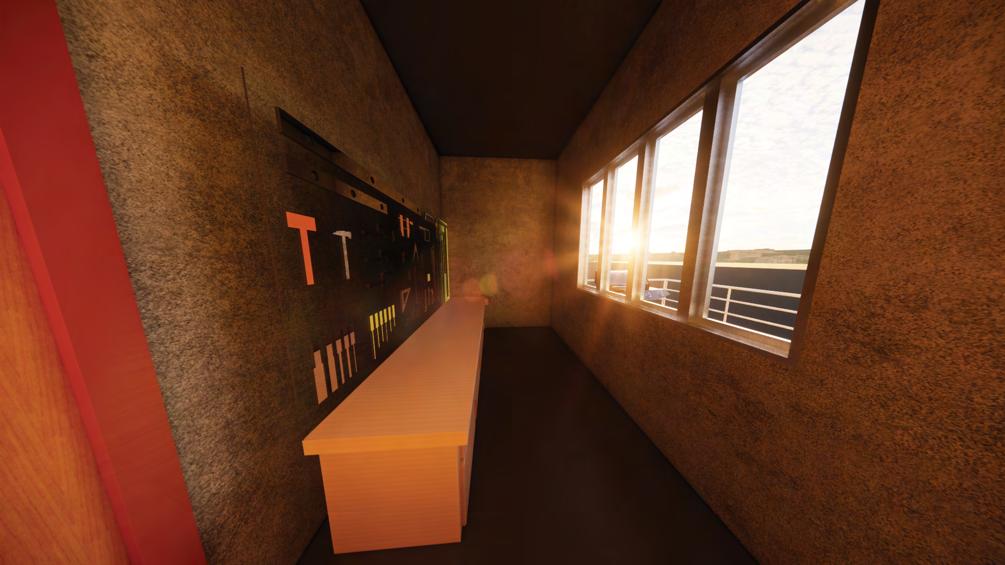

The plus programs in this house will be the Arts & Craft room and Music room on the 3rd floor.

The purpose of these rooms is to give opportunities to the individual family members to further explore their own hobbies and aspirations.

Tetra

project description:

Designed for the inclusivity and bonding of residents within families and neighbours. Filled with a vast variety of facilities that boosts cohesion, vitality and productivity of the space, Tetra is the home to have.

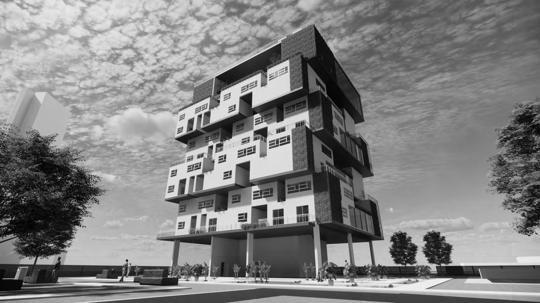

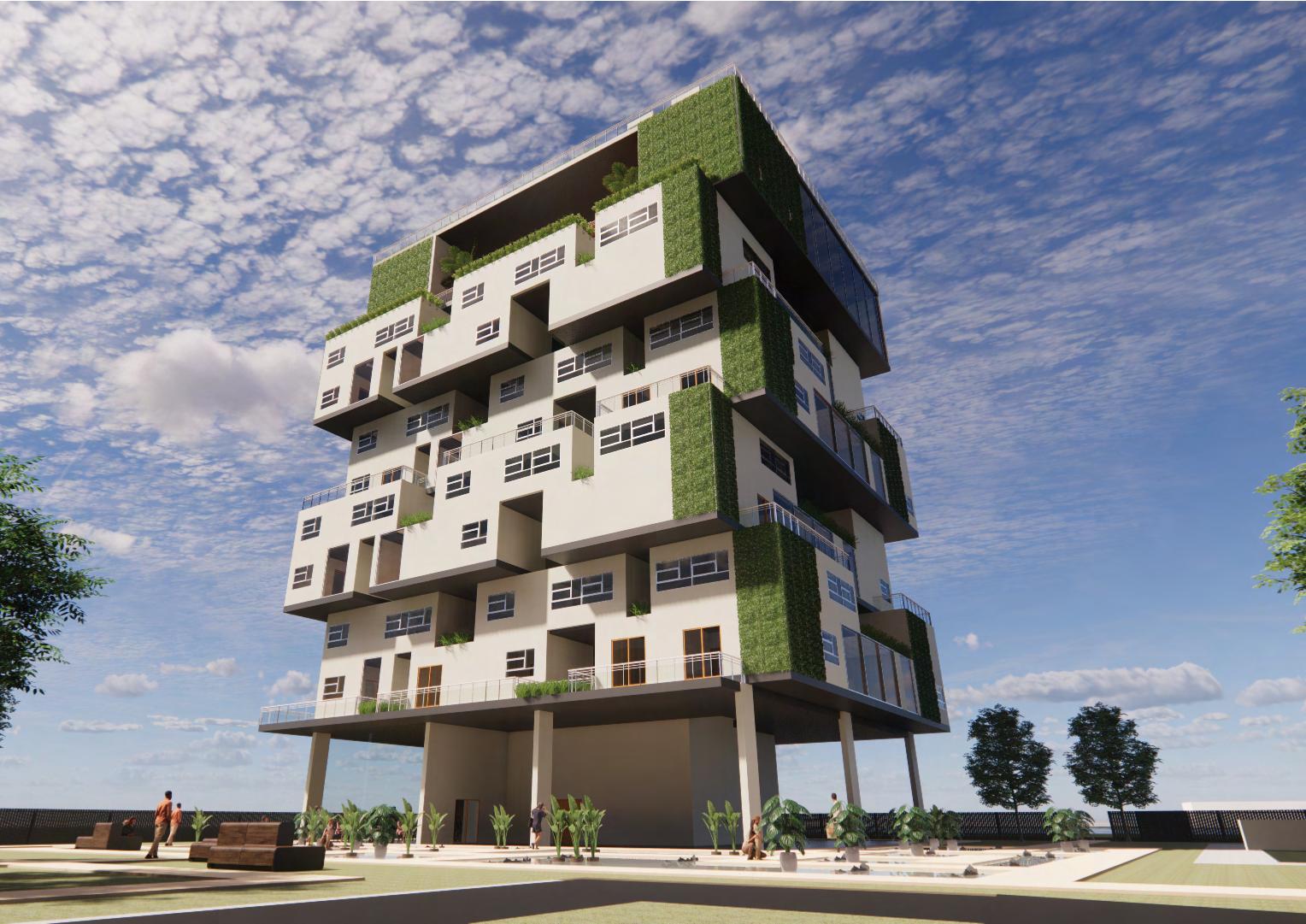

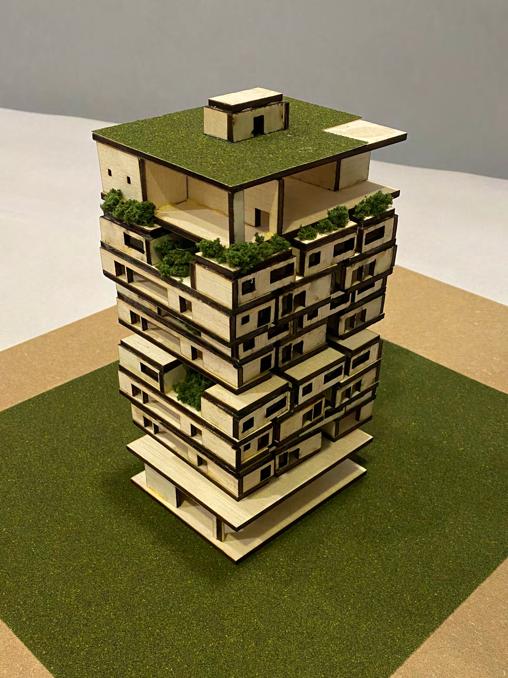

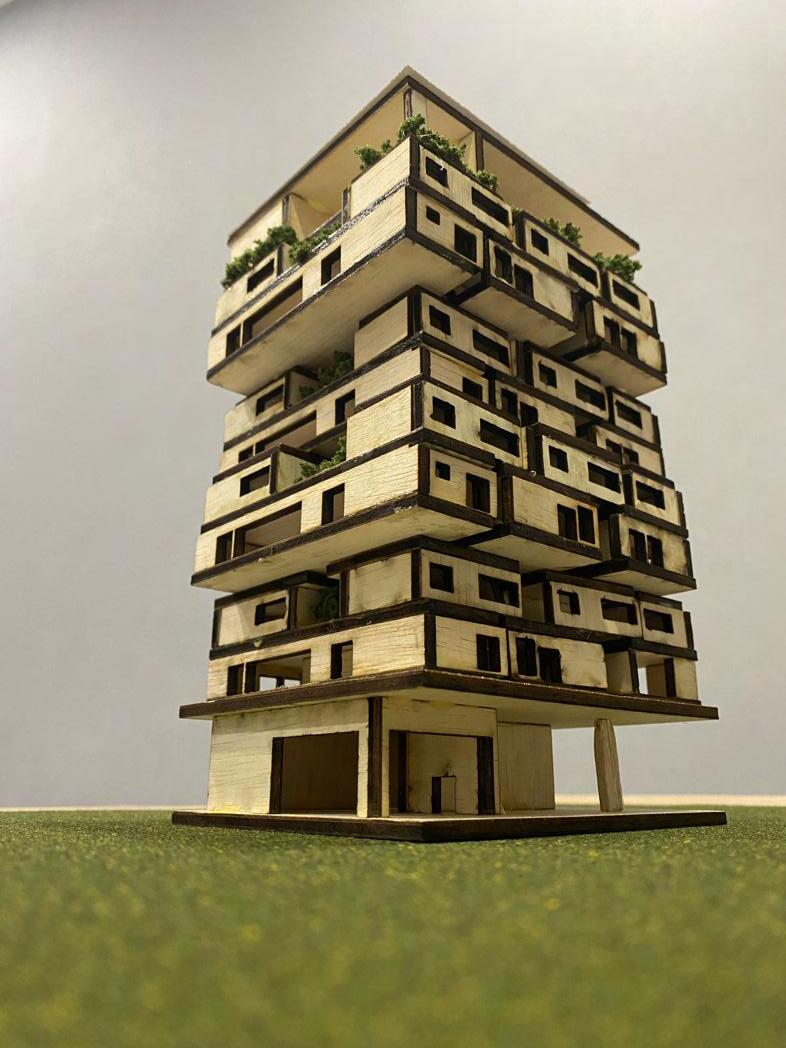

All units are formed using the same modules arranged and stacked in different variations with 2 room units formed by 2 modules while 3 room units are formed by 3.

Key Issue Challenges Opportunities

Teenagers these days are spending too much time on digital devices such as mobile phones computers and television and neglecting their health, family time and exposure to nature and its greenery.

Disconnected from the outside world, nature and neglecting health and communication between family.

Target Users Concept Plus programmes

Surrounding residents with greenery and outdoor views to constantly remind them of their surroundings and also bringing facilities of healthy living and communication to an absolute convenient location to strngthen bonds between family and neighbours healthily.

Integrate nature, greenery and sports facilities into living spaces for absolute convenience while in the vacinity of an amazing riverside view.

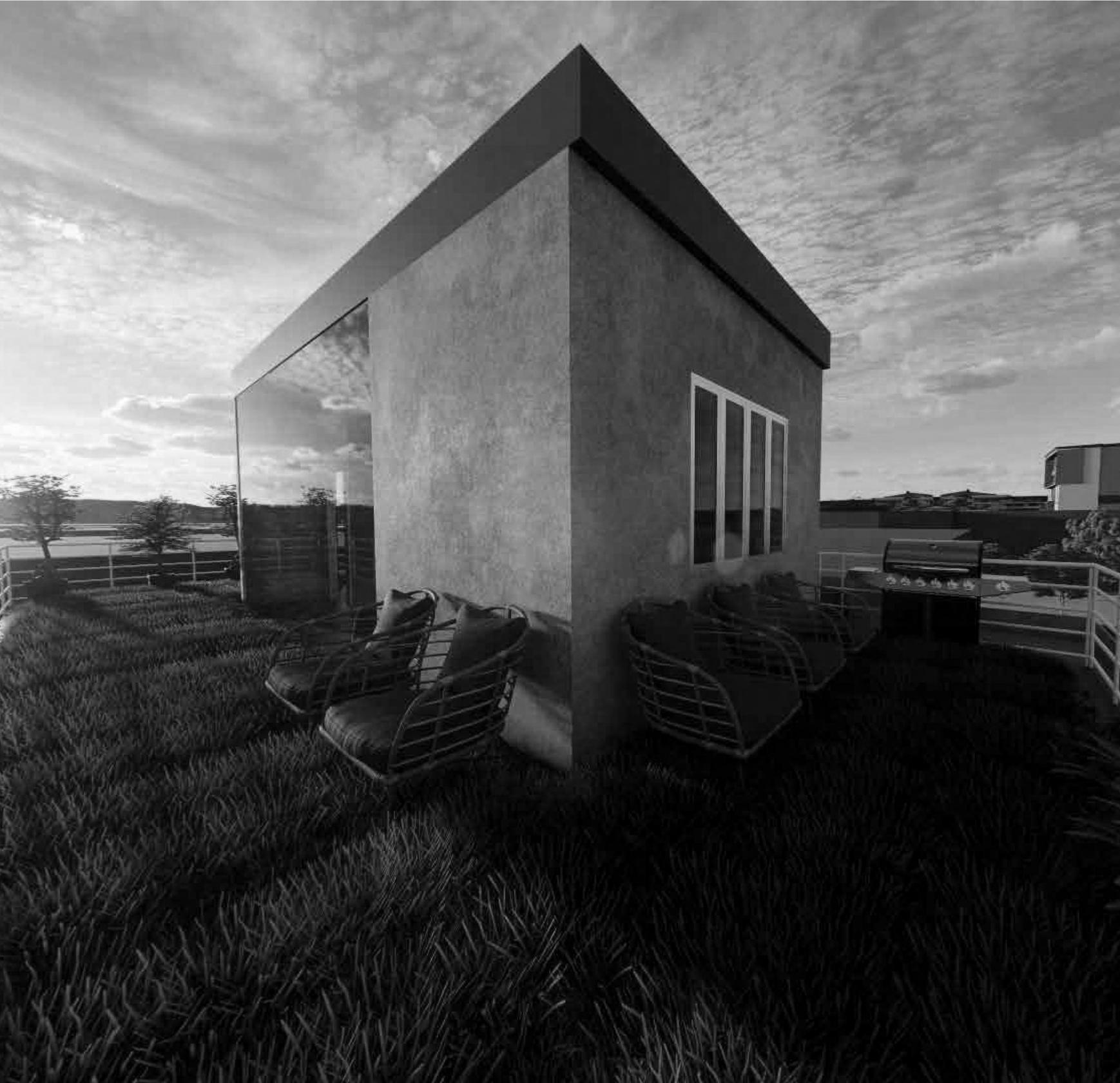

Open Roof Community garden

Rooftop Barbeque Gym

Infinty pool

Picnic area

Study Cafe

Tennis court

Nuclear families with teenage children

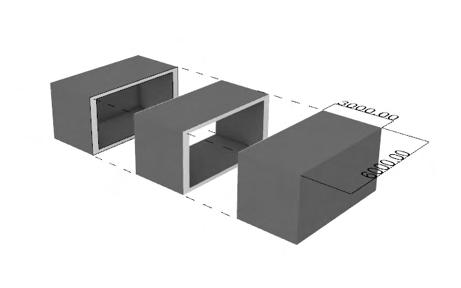

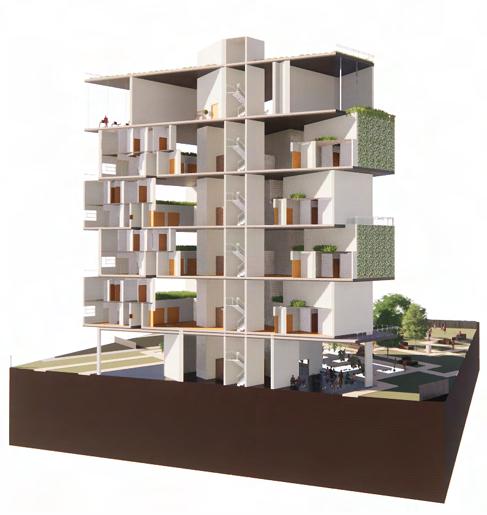

Each module is made up of 3 PPVC with the dimensions of 3000x6000x3000 lines up side by side to form a 9000x6000x3000 module.

Child Bedroom

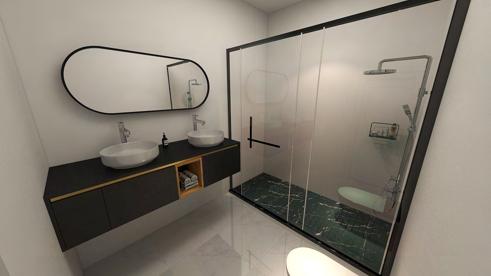

Master Bathroom

Main Entrance

Open Roof Garden

Function Room

Residential Landscape

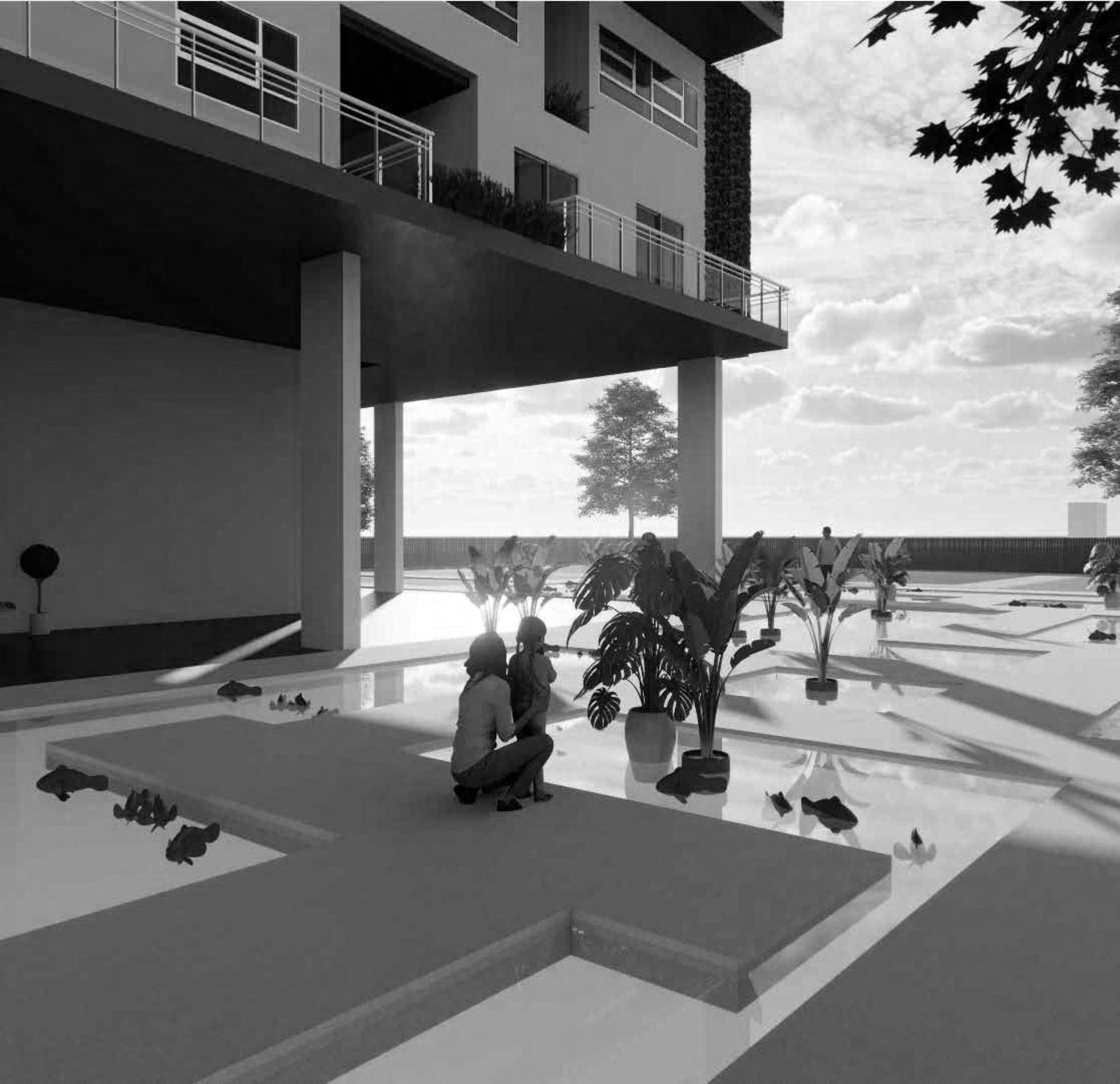

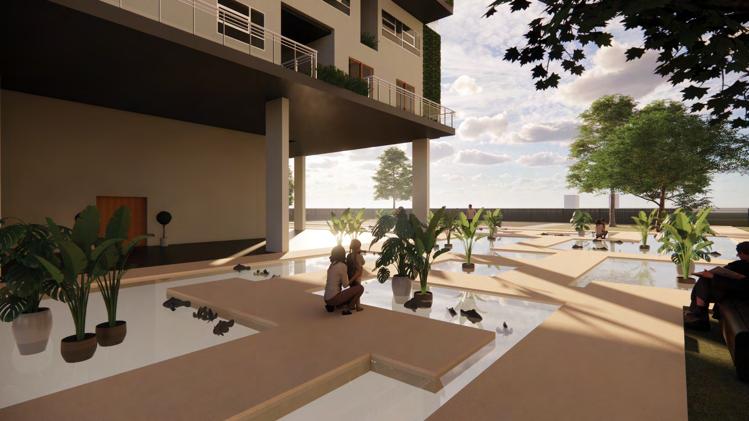

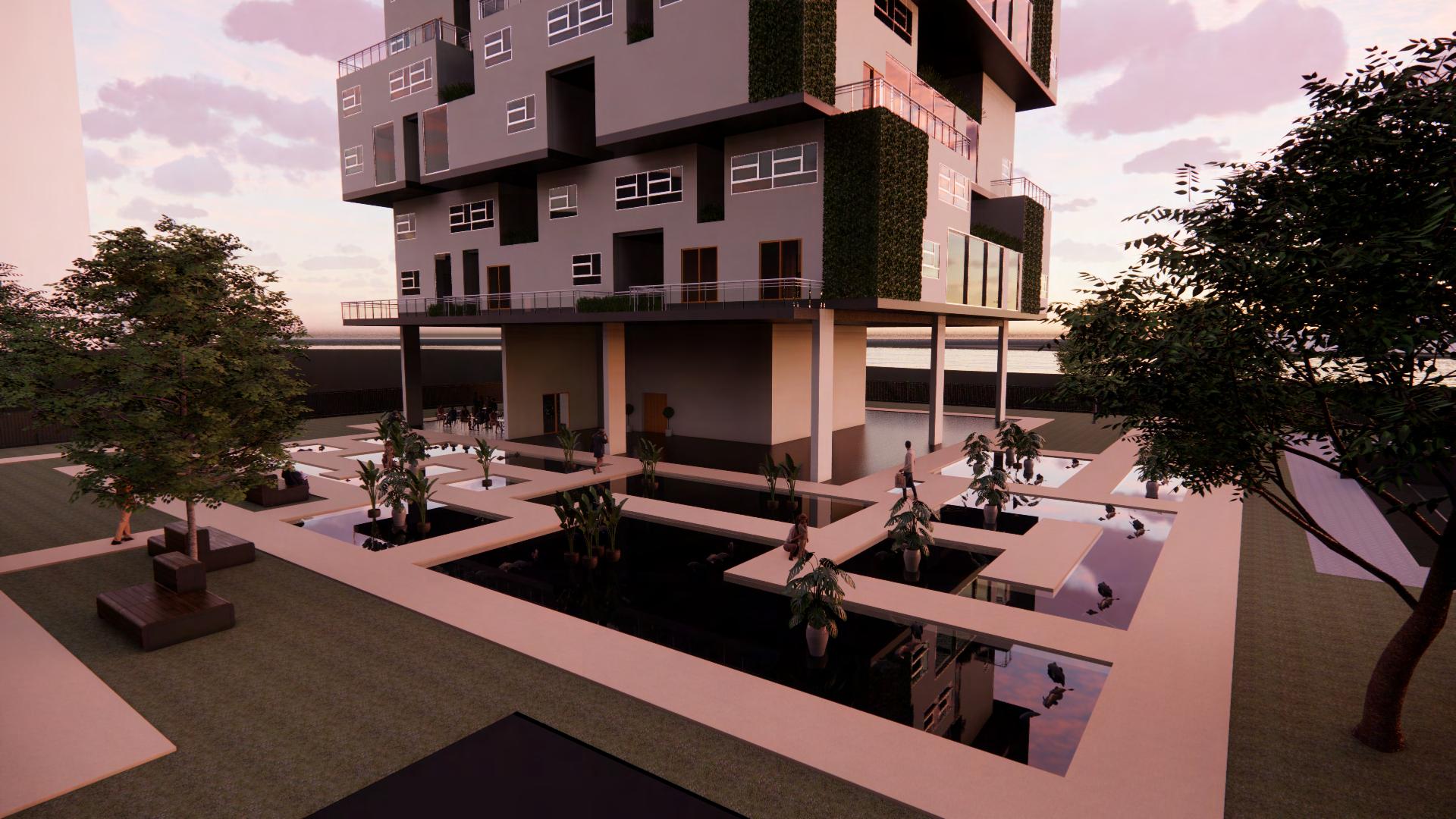

Lobby with Fish pond Study Cafe

Gym

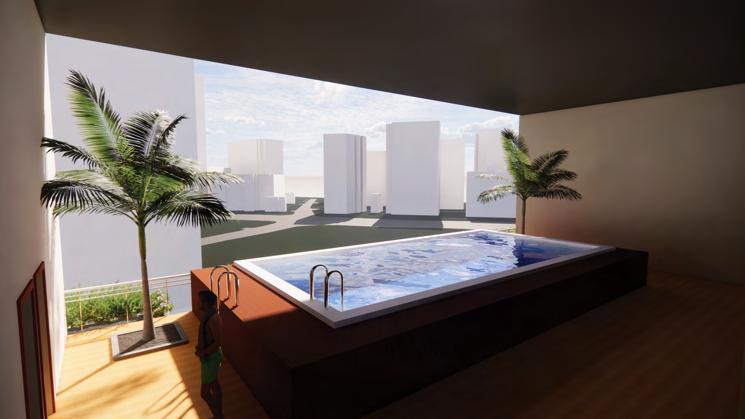

Infinity Pool

Lounge

Master Bedroom

Dining Room

Living Room

Passive Design Strategies Design

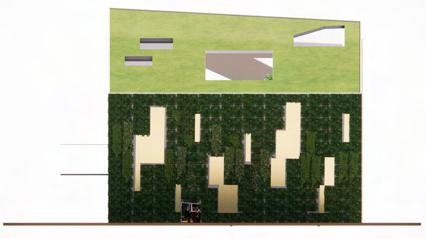

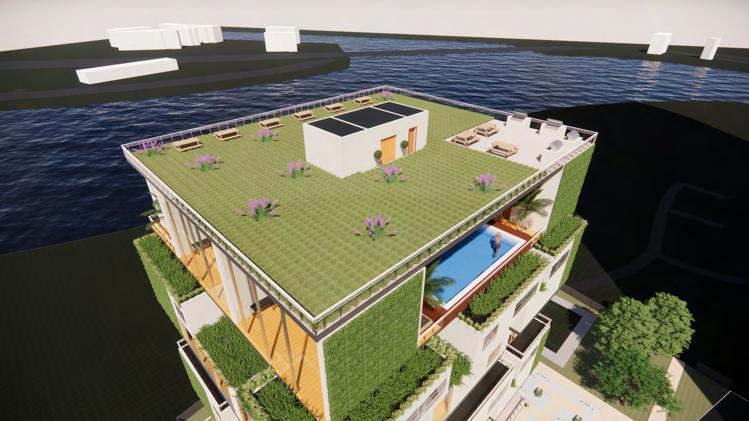

Every unit has its own piece of green walling and sedum roofing which reduces indoor temperature and cleanses toxins from air naturally.

Green walls and roofs enchances the appearance of the building while preserving its pure geometric form resembling the game of the past, tetris.

Green walling and sedum green roofs using mass amounts of Myoporum parvifolium which strives in sunny coastal areas, reduce average temperature of the building.

Great use of curtain walls and windoes allows natural lighting to bask units in.

Void spaces located at the ground floor, communal space at the 6th floor and every lift lobby sanctions fluent ventilation through out the building hence, reducing echos, reduces temperature and improves air quality.

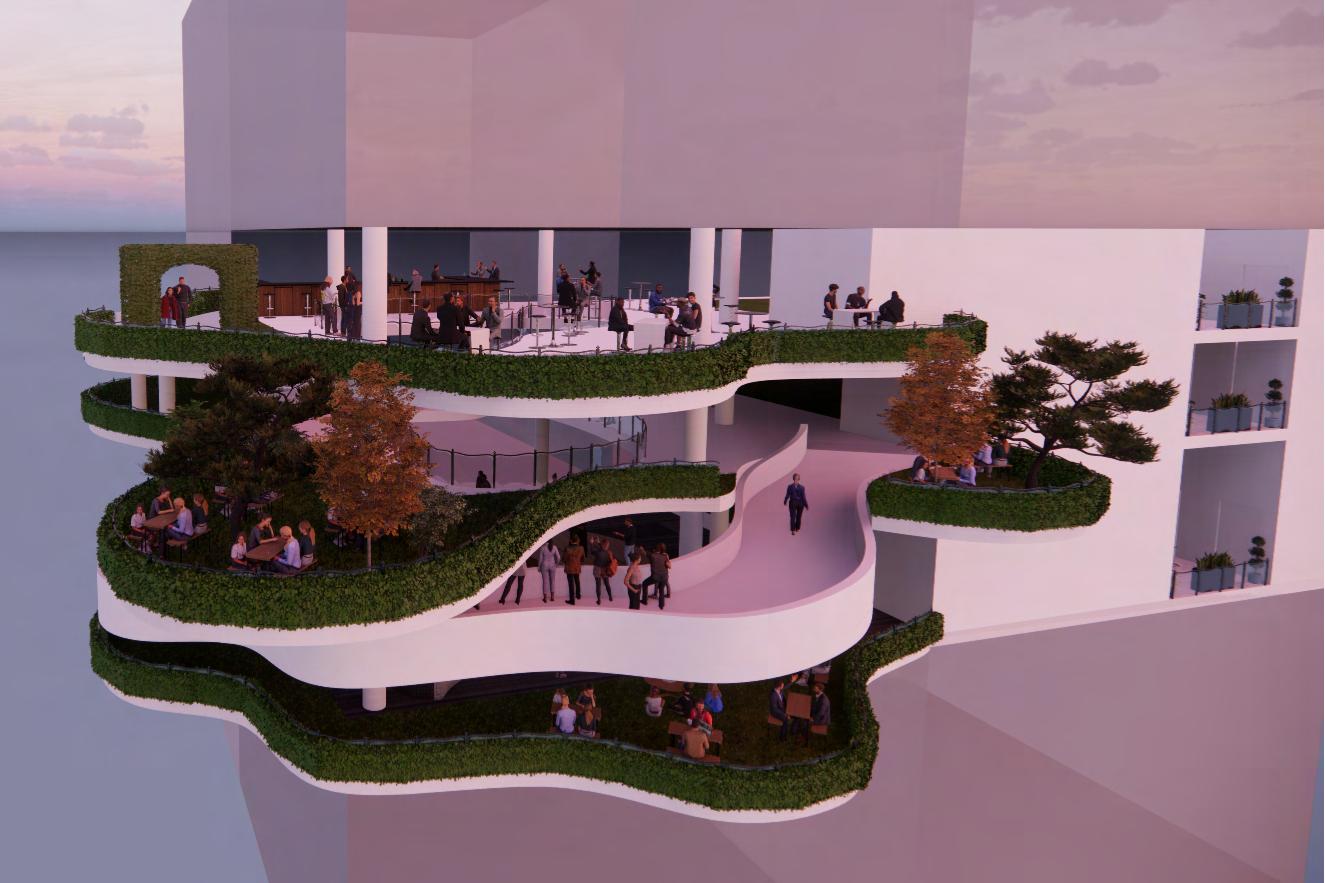

Aduna

project description:

Tasked to design an elevated Z-city area based off the given word, Gather. Aduna is a space where the experience of gathering is taken to countless new levels from private to collective spaces, day to night activities.

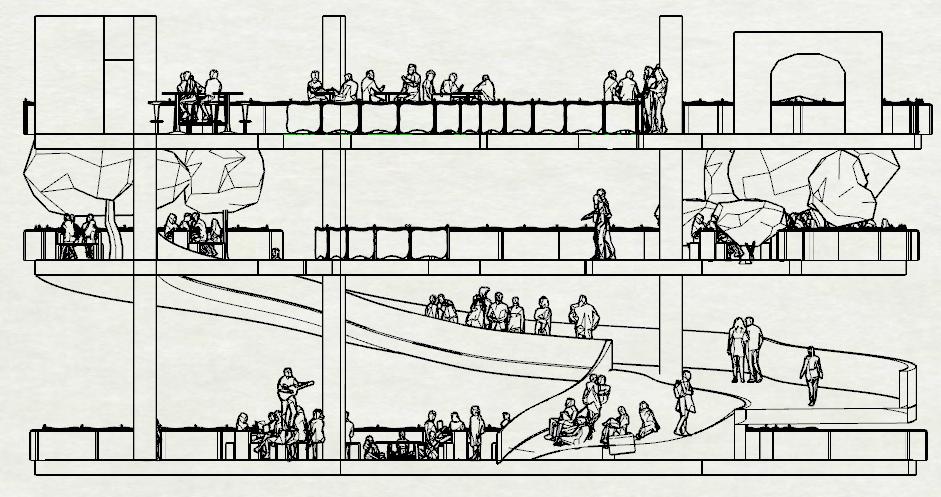

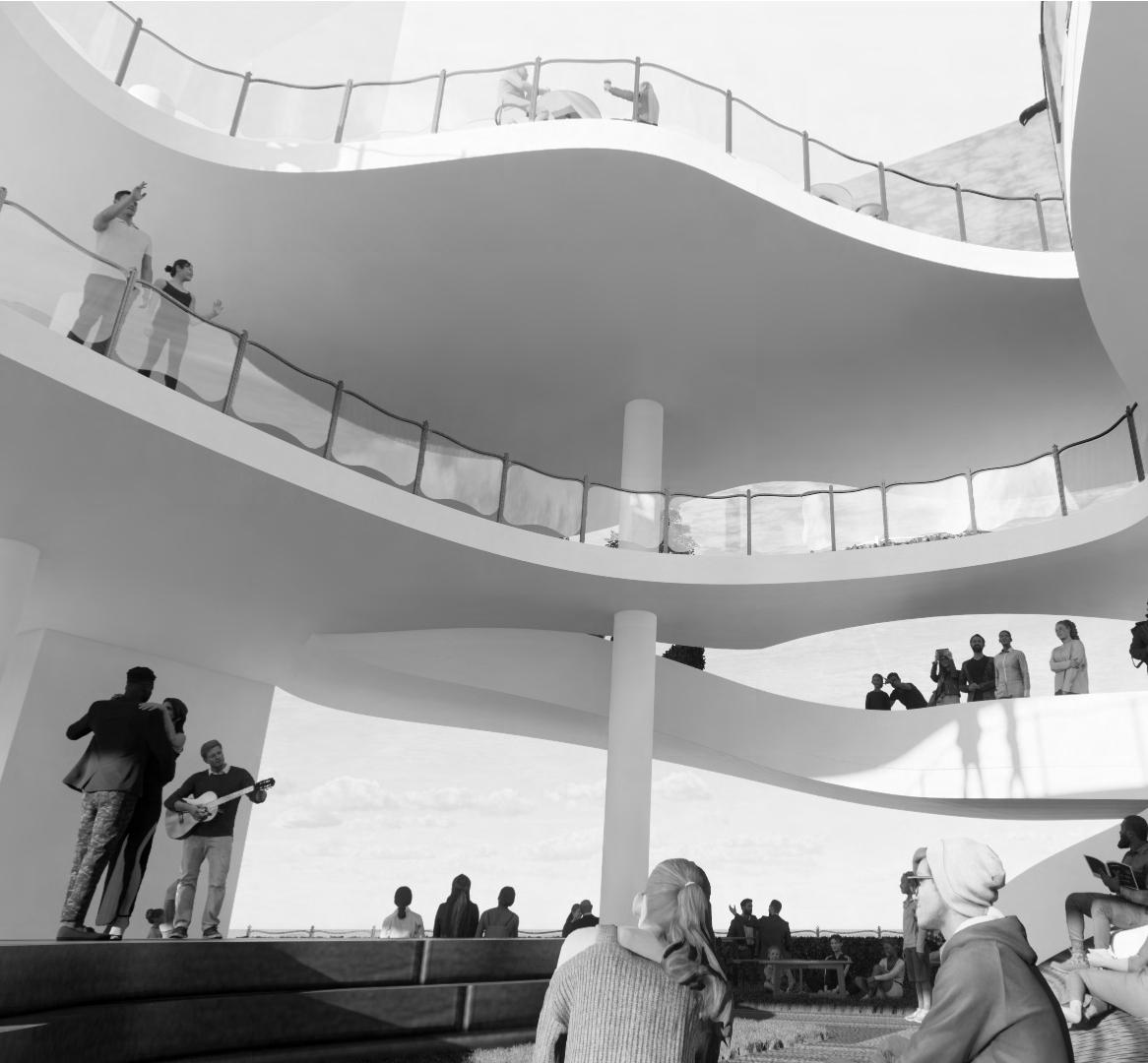

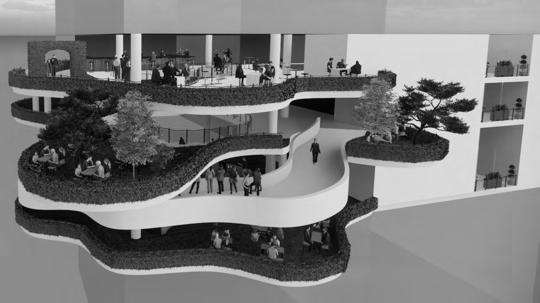

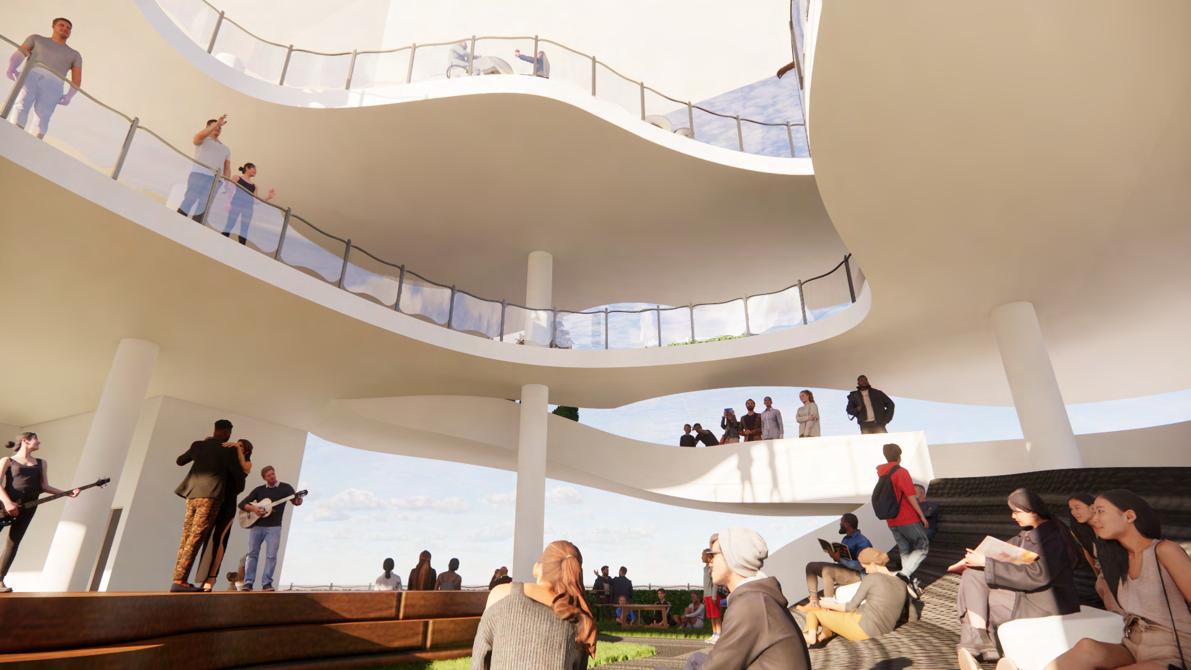

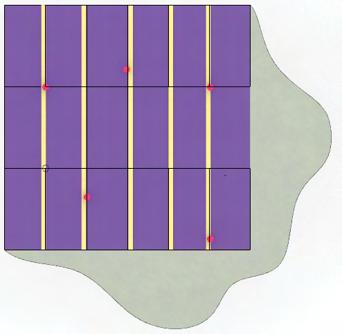

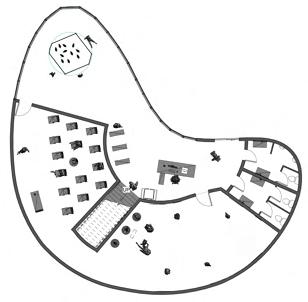

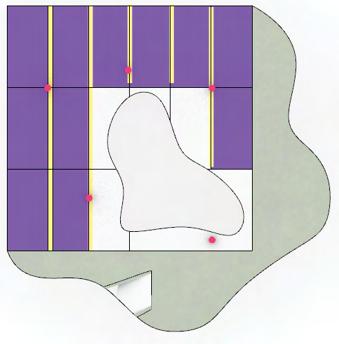

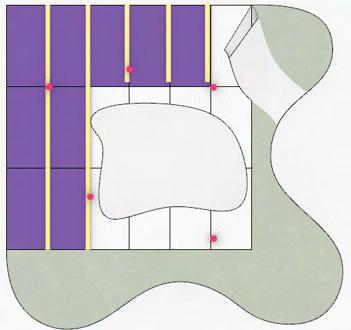

Floor Plans

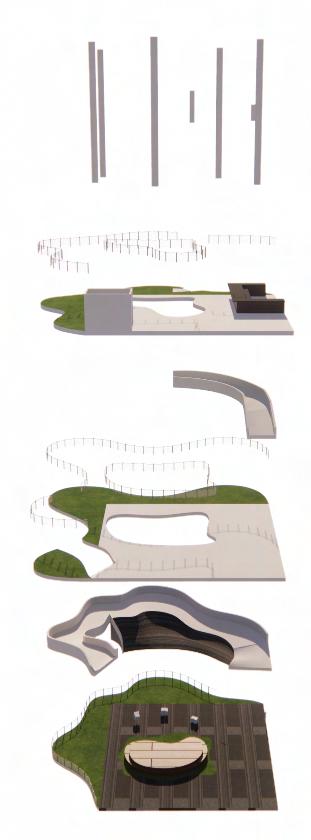

Exploded Axonometric

12 Meter steel columns spanning through beams in floors of each level.

Custom railings reflecting the amoebic form of each floor surrounding the inner void and outer edges of each floor.

The 10th floor consists up to 70% of DFMA construction methods(6x3m pre-cast).

Concrete ramp from level 9 to 10.

9x 18m steel beams spanning across floors

7x 6m steel beams

5x 12m steel columns that stands through steel beams located on all 3 floors.

38x 6x3x0.4m

Pre-cast concrete floor slabs

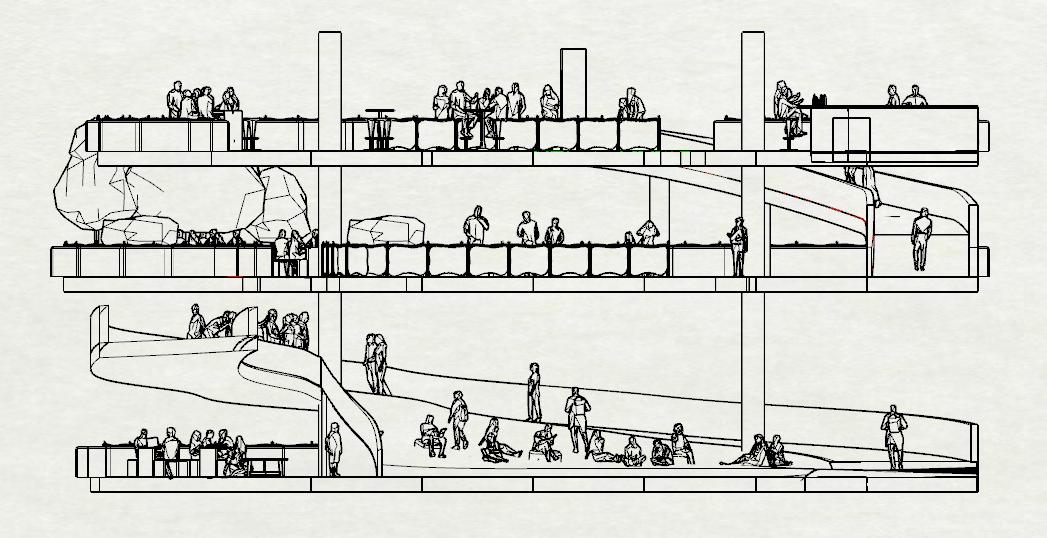

70% DFMA floor plates (6x3m) Large surface ramp from 8th to 9th floor where people can lay down and sit comfortably on the carpeted area to proceed with their own activities.

Base floor of the unit, a free sitting space with green cantilever surrounding the night time stage.

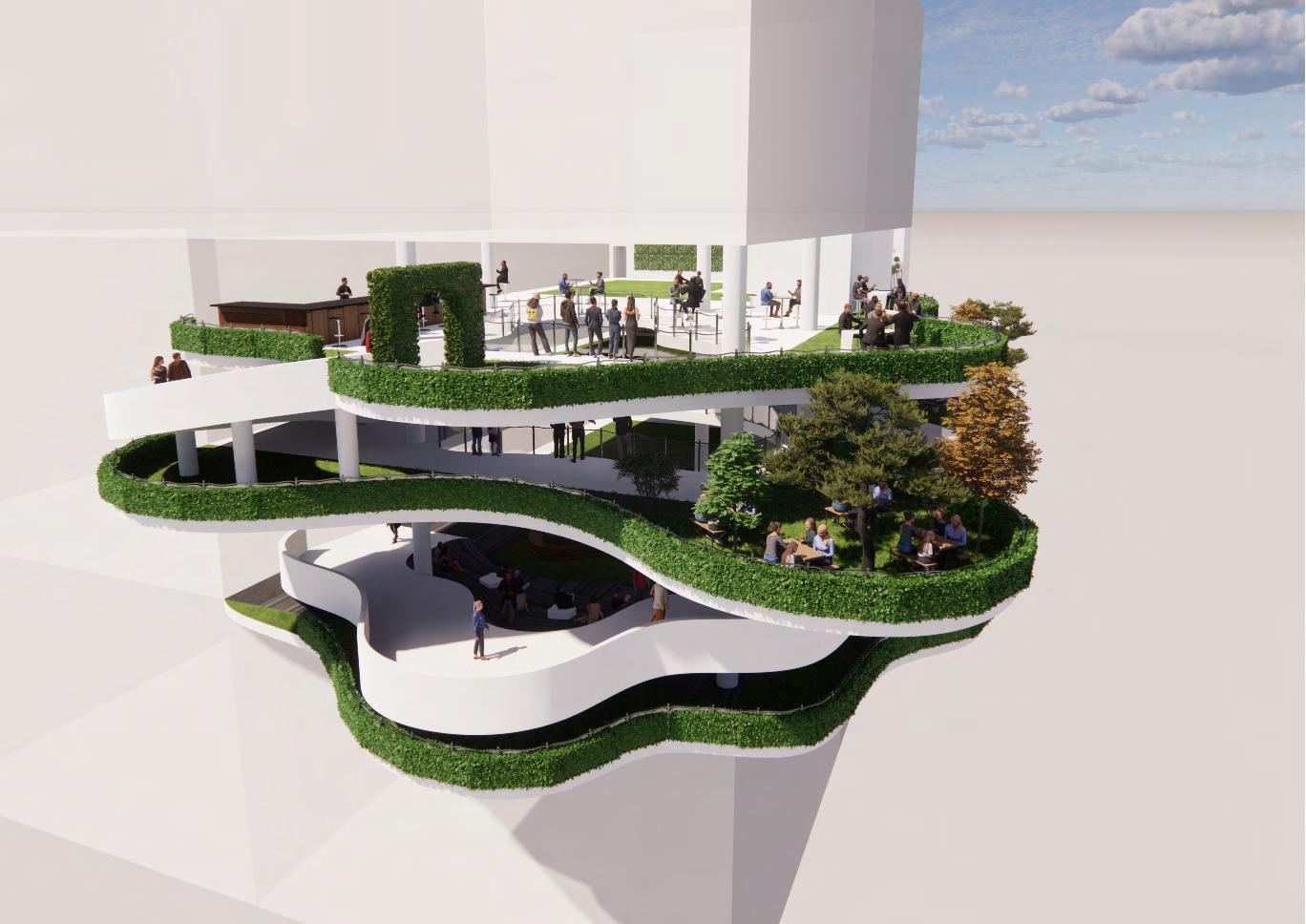

Description

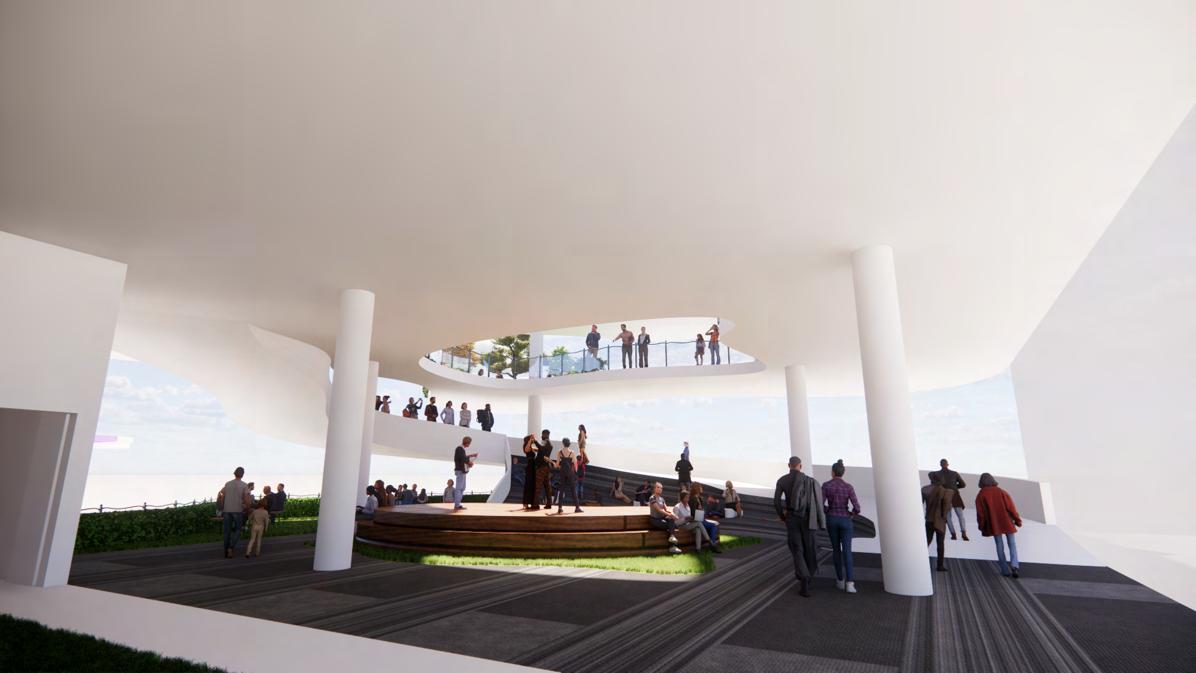

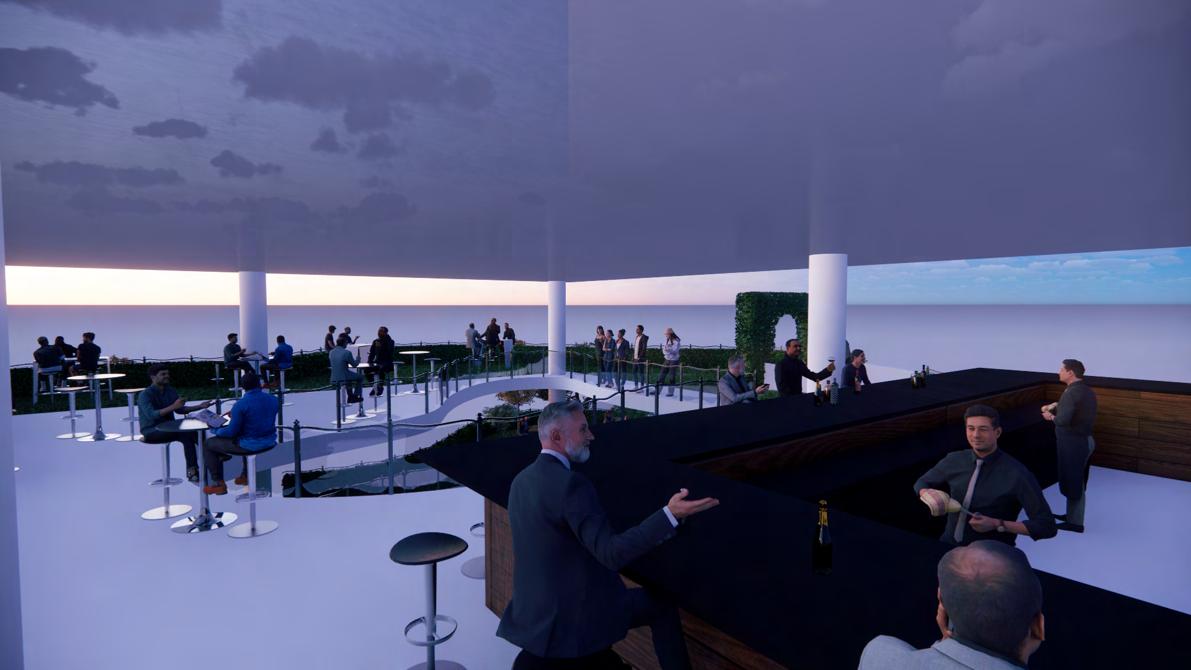

A space to gather, collect and most importantly to be. GATHERS is a space where people can gather for all purpose be it alone or in groups every last square inch of GATEHRS is a space where you can proceed with your own activity. The amoebic cantilever form was inspired by amoebas which are well known for their prominent characteristic of gathering with one another to form a mini colony. Gathers holds performances from time to time where the central space will turn into a stage which is already surrounded by the circulation of people and gathering spaces inclusive of all floors where there is a bar located on the top floor for a nice meet up with friends or tranquil green picnic areas on the second floor if you are looking to study or relax.

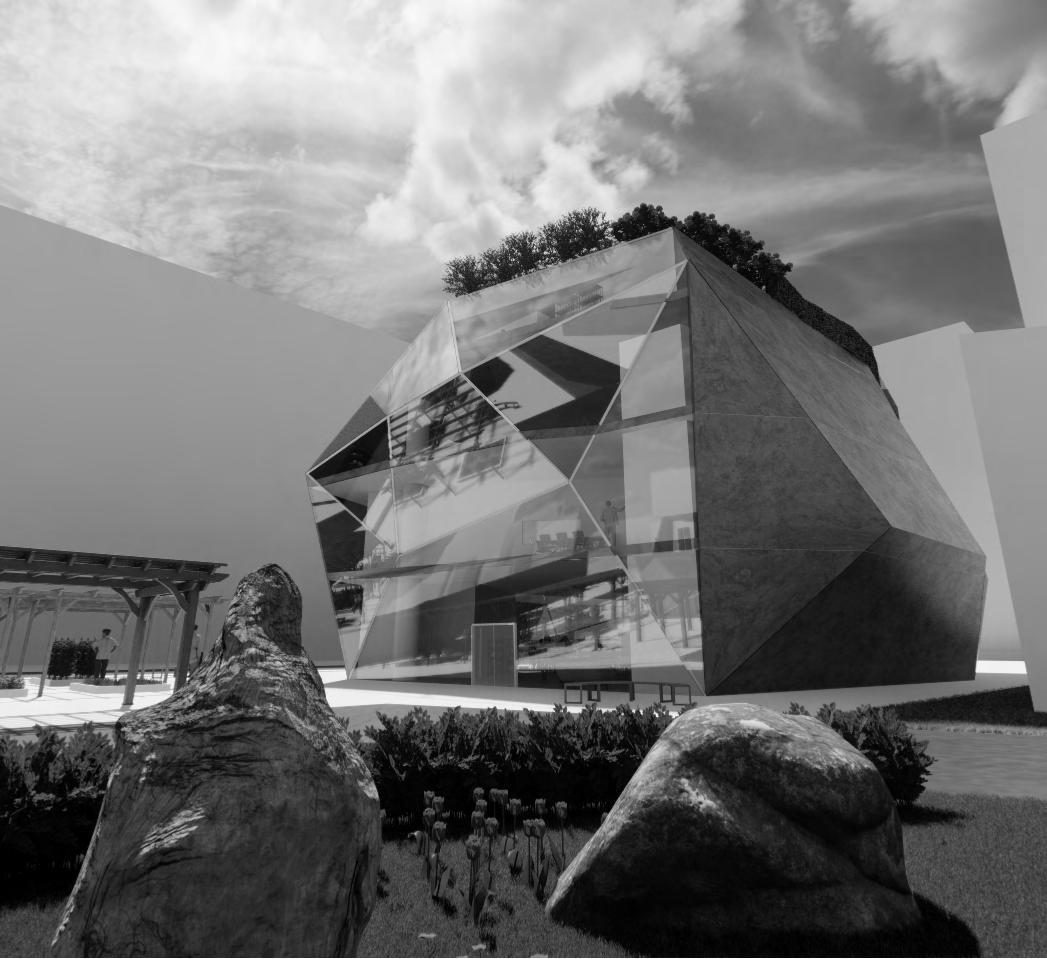

ROCKS @ JALAN BESAR

project description:

A new concept community hub that has a focused library that has supporting programmes such as a community kitchen and garden which will help enliven the old roads of Jalan besar.

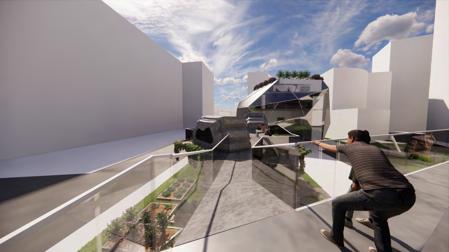

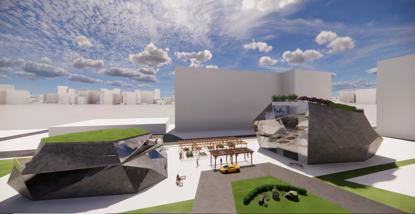

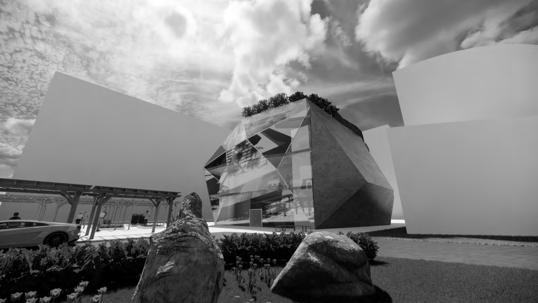

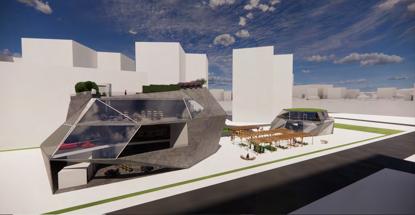

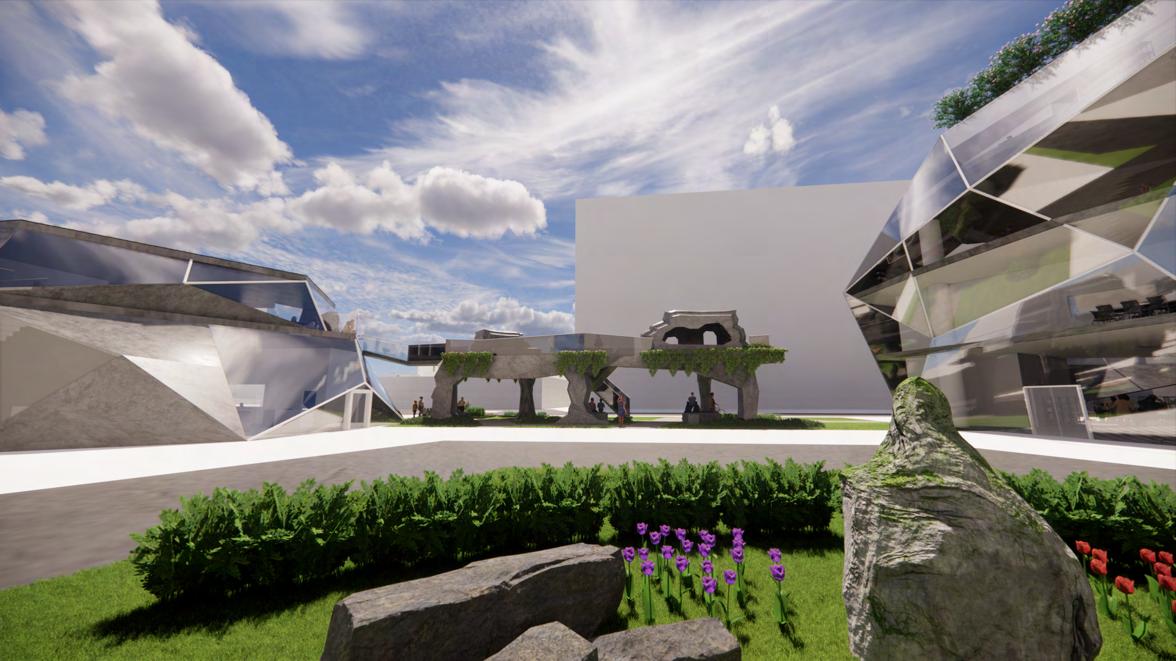

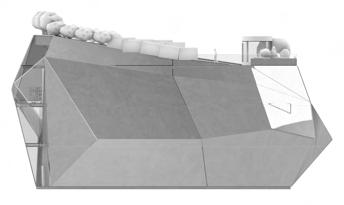

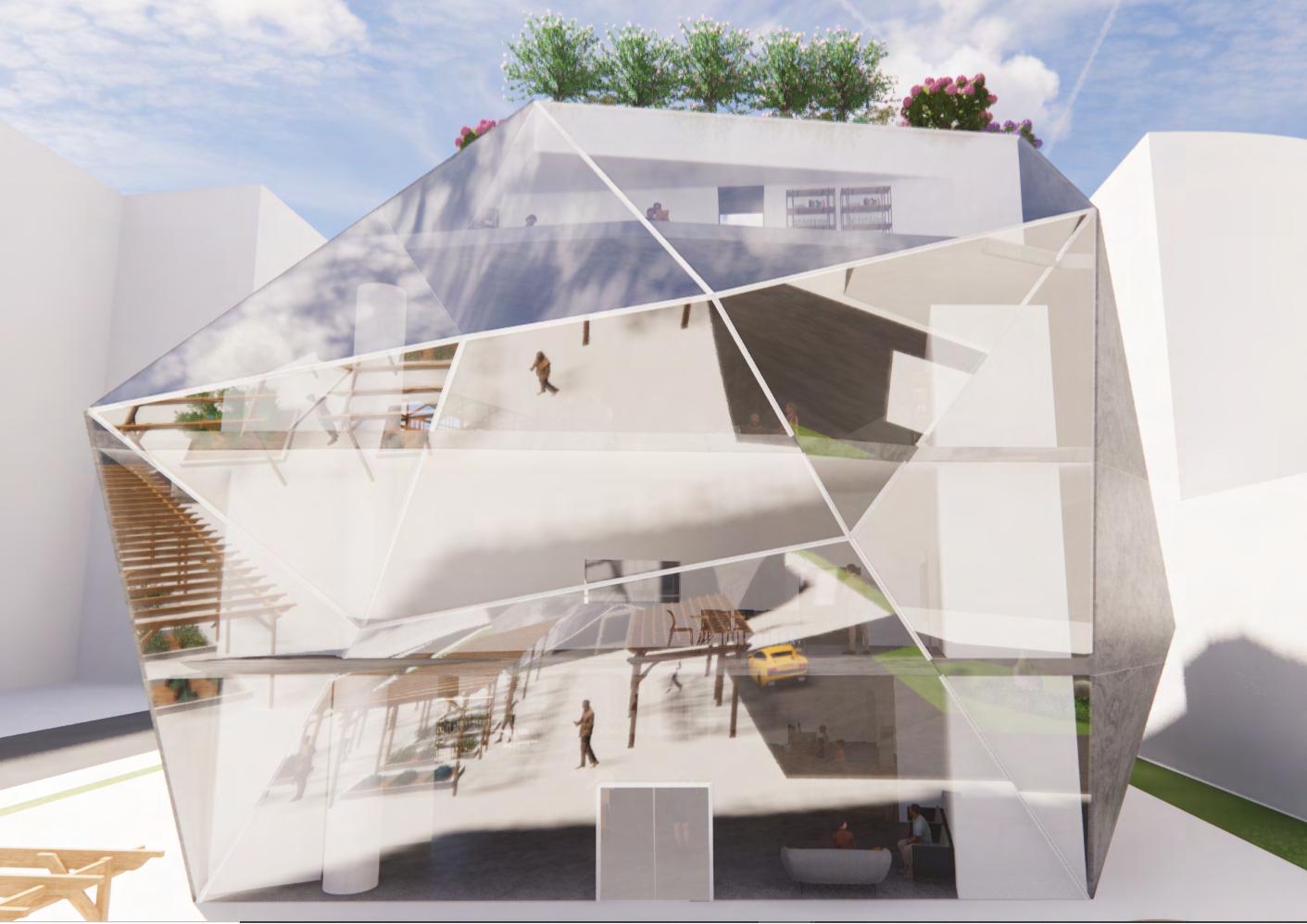

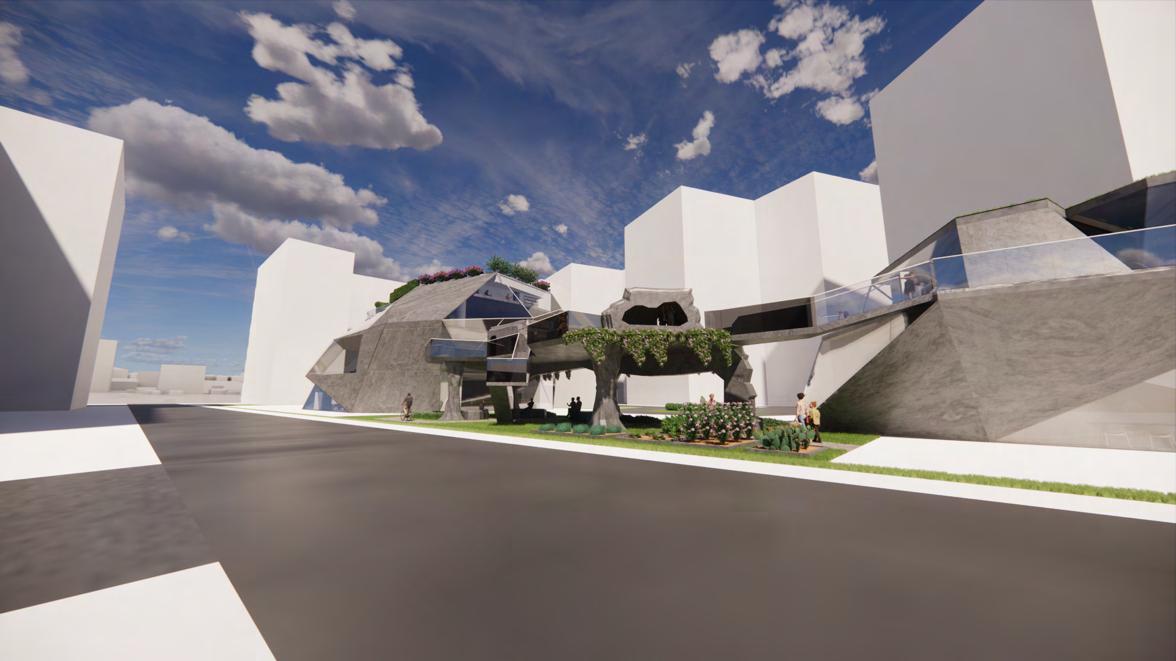

Rocks @ Jalan Besar

Rocks @ Jalan Besar is an integral community library and food hub focused on enchancing knowledge, producticity and creativity while also spicing up the life of near by residents through interactive public bonding facilities.

Rocks @ Jalan Besar provides community activities such as a herbs and spice garden which integrates with the programmes of its sandwhiching buildings such as the community kitchen and cafe in the East sitting Rock and the interactive cooking specialised library section in the West sitting Rock.

With the objective to educate and enchance the learning experience of residents through inclusive means. Programmes for all ages such as a library with both public and private, quiet and loud lively spaces. The library gives the opportunity of learning to all ages with an electronic station where elderlies can catch up with technology and workshop spaces for people to learn something new every week. A full focused interactive cooking related floor for people to learn about herbs and spices before being ready to try it out themselves in the community garden right outside before tasting the succession of their hardwork after bringing it to the community kitchen where people can interact and learn from one another.

Roof Top Amphitheatre

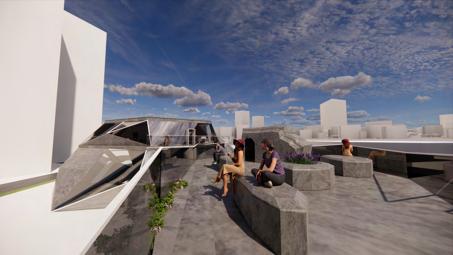

The open roof holds an amphitheatre that has a green barrier. The amphitheatre provides West facing views of Jalan Besar while also serving as an interactive community space for people to gather for small performances or read in open air. There is also a small enclosed reading area with North facing views of the rest of the communal hub.

Level 3 - Discover & Discuss

A level focused on Herbs and spices, with interactive glass huts with processed and raw spices and herbs for people to learn through touch. There are also multiple gathering spaces for people to come together to discuss their thoughts and possible findings from recipe and ingredient books.

Level 2 - Produce & Acquire

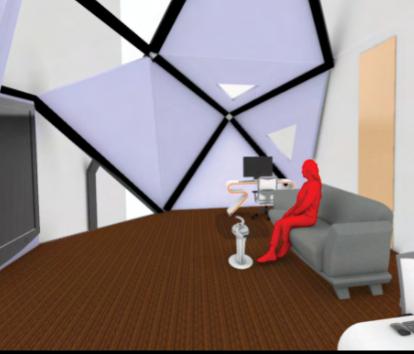

Showcasing a flexible meeting/workshop room, public electronic workstation space. There are semi private spaces to boost productivity and computer stations for public use. Small lounge area with views of the road side

Location Plan

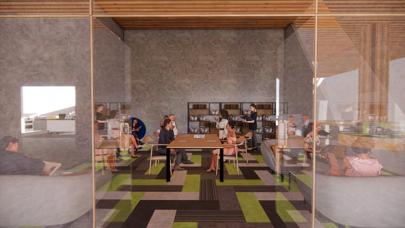

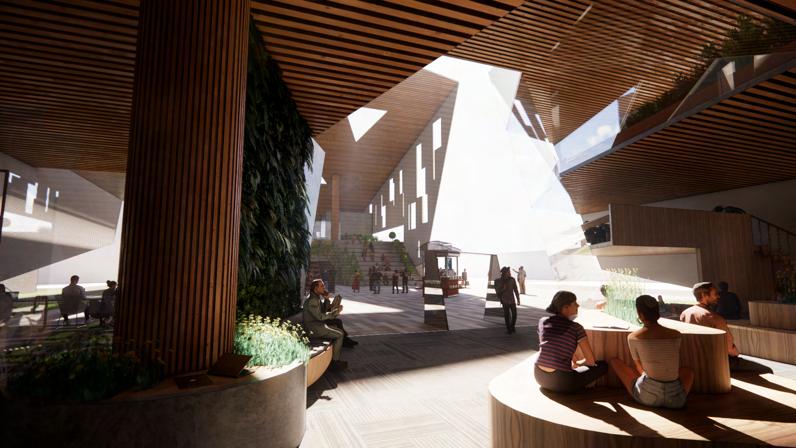

Level 1 - Communicate & Learn

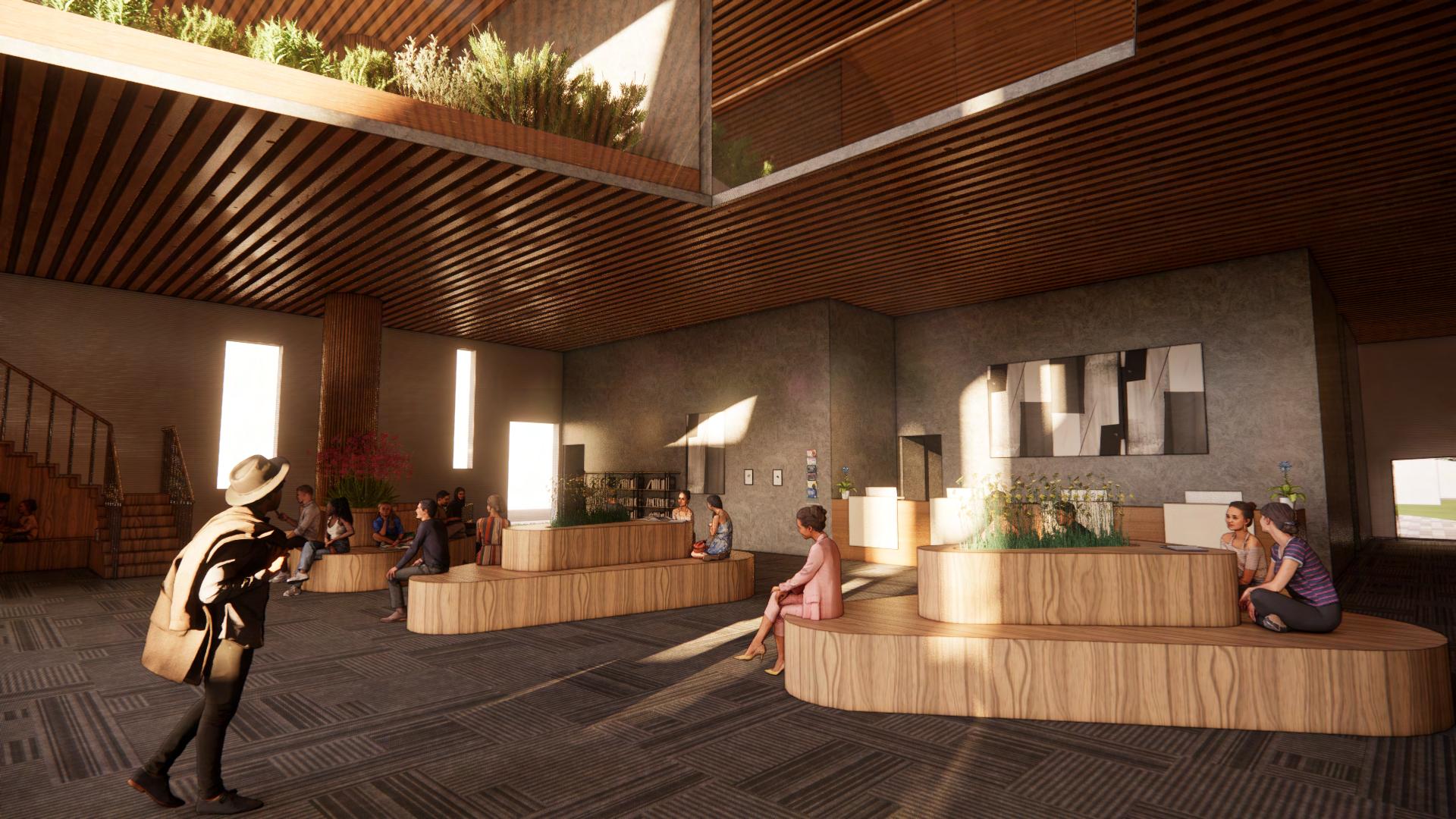

The first floor is a public space featuring double volumem mass seating spaces with a wide variety of general books. Reception is located here together with private staff meeting space and office, book archives and book return point.

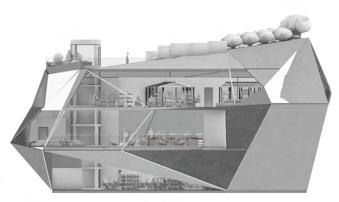

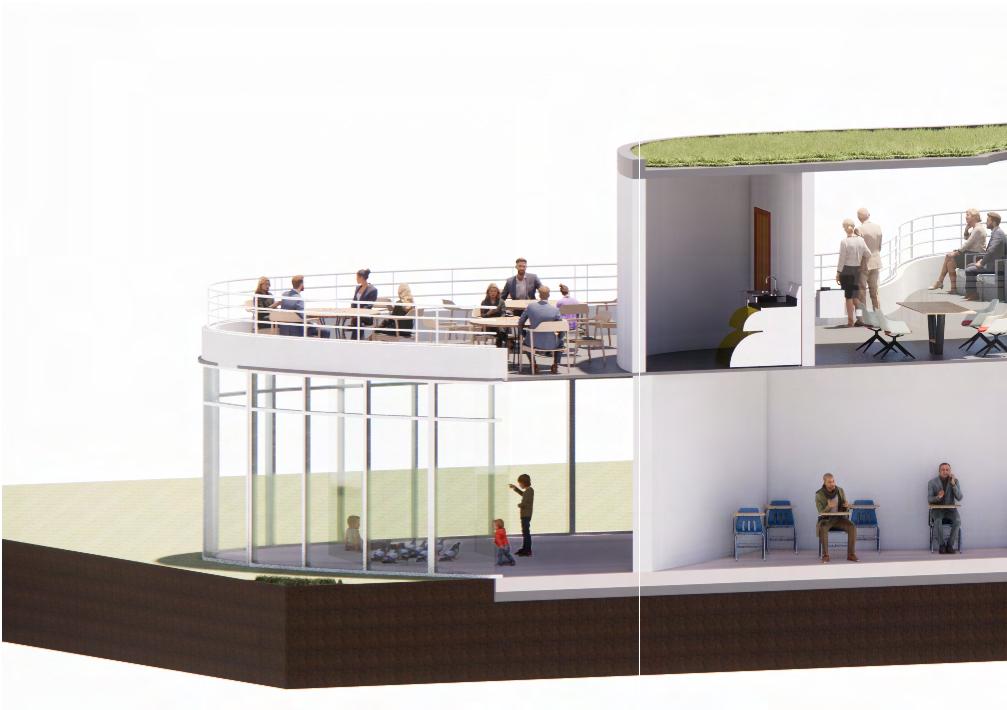

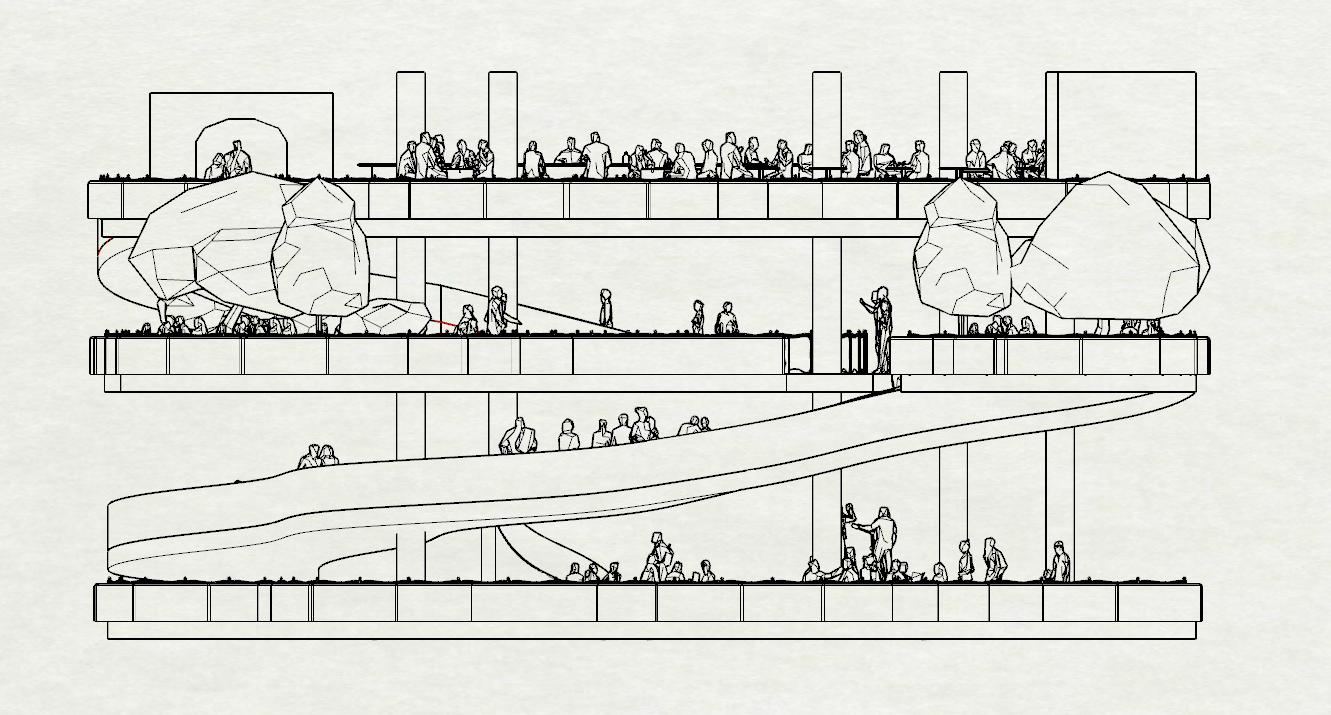

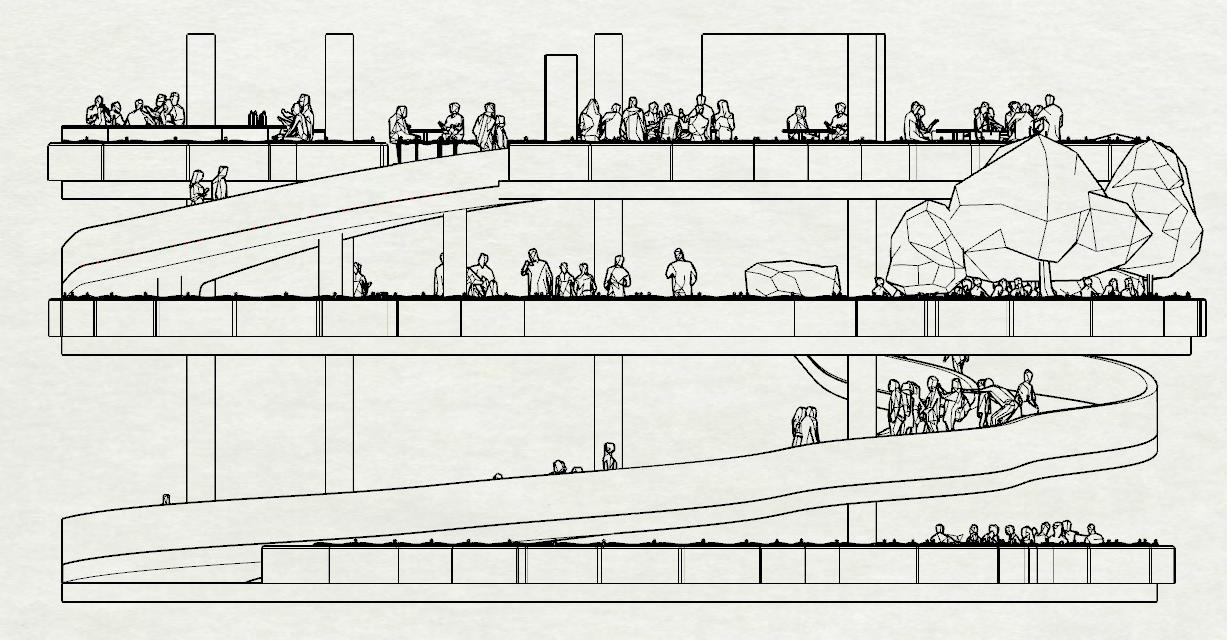

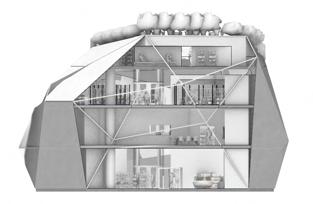

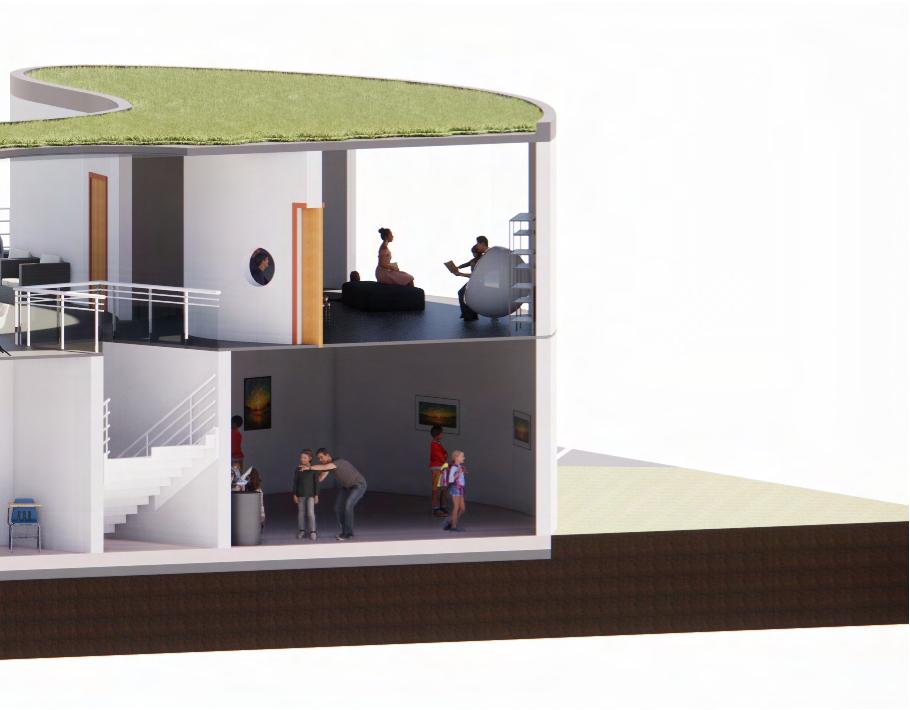

Sectional Perspective

DFMA

All floor plates and wall panels are made out of highly sustainablke self healing bio concrete

Modular structural wall panels of 3000 x 4000mm are used on everyfloor at toilet, staircase and lift cores.

Self Healing Bio Concrete 100m Facade Cladding

Photovoltaic Glass

With glass panels being strategically positioned the ensure the most amount of natural light is engaged wiuthout increasing the indoor temperature and maling it too blinding indoor, the large amount of surface area garunteed by these Photovoltaic glass panels serve as an active sustainable strategy that allows the building to generate its own energy while having a unique facade.

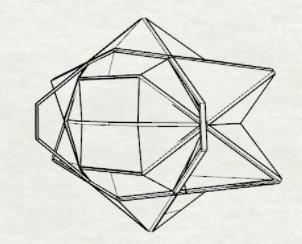

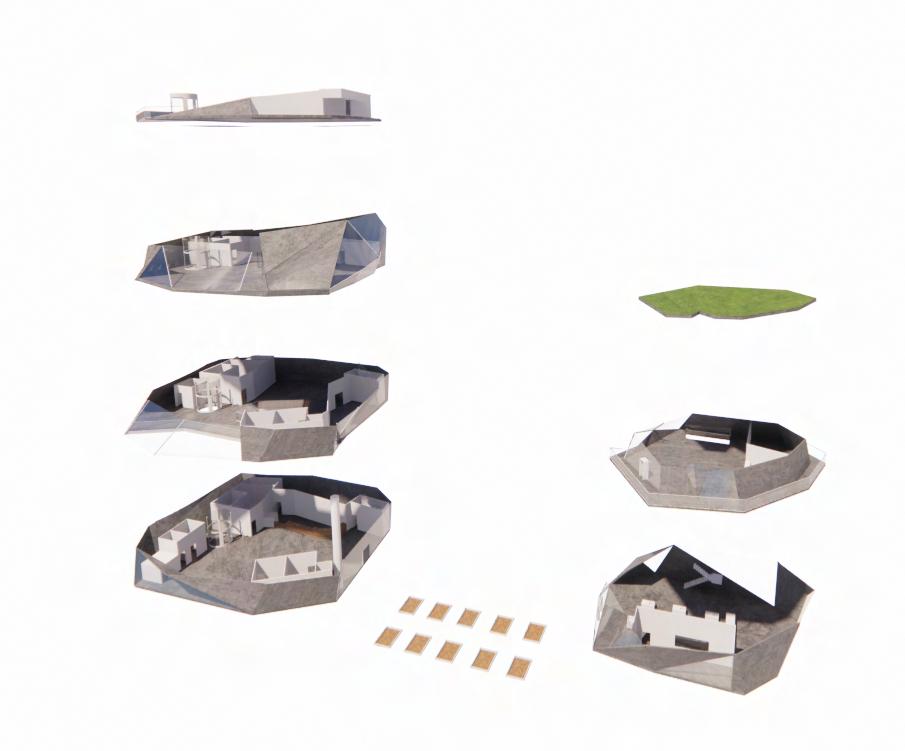

Exploded Axonometric

Modular floor plates of 5000 x 2500mm are maximised around the central area of the level.

Sedum Green Roof

The sedum green roof naturally reduces the indoor temperature of the building therefore reducing the workload of air conditioning. Sedum green roofs are also low maintanence with fire proofing qualities. This naturally increases the eco-friendly aspect of the space.

Photovoltaic Glass

Self Healing Bio Concrete 100mm Facade Cladding

With extended life span of the building using self healing concrete the building is here to stay with heavily reduces maintainace and therefore increasing the sustainability factor of the buildings.

Photovoltaic Glass

Self Healing Bio Concrete 100mm Facade Cladding

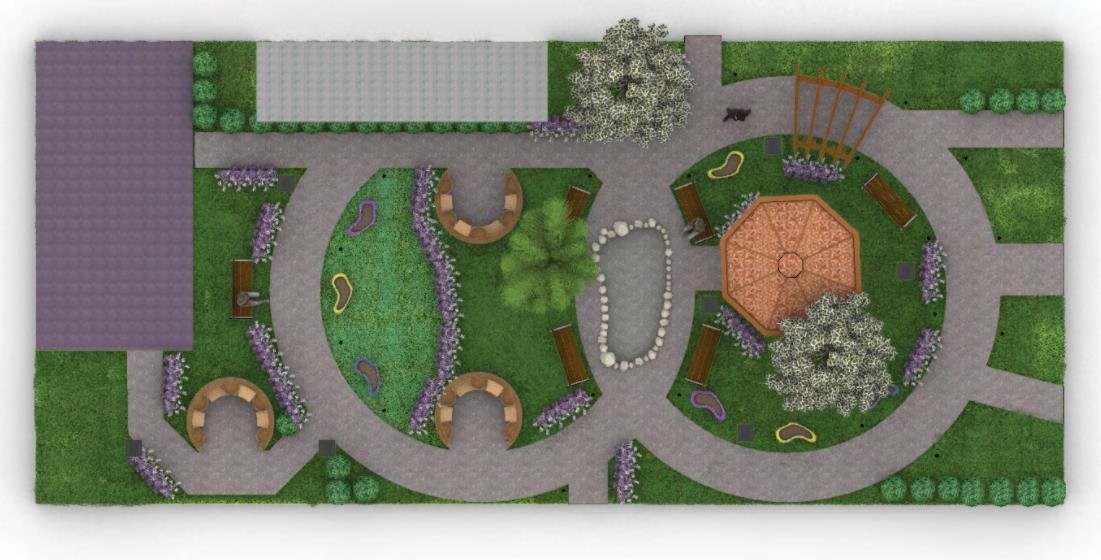

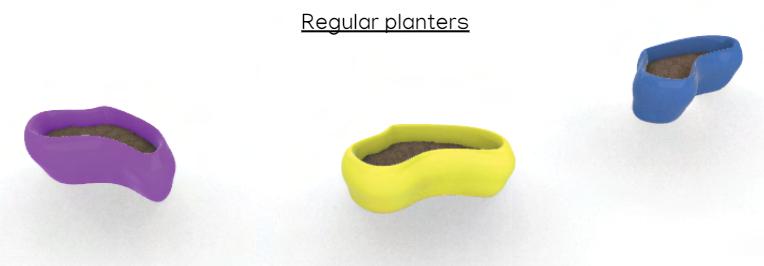

Community Garden

The community garden a place for the community to come together regardless of age to grow their own crops and put their knowledge that they have gained from the Herb and spices library to the test as the experiment and grow new crops they have never tyried before wither using it in the community kitchen or brought home.

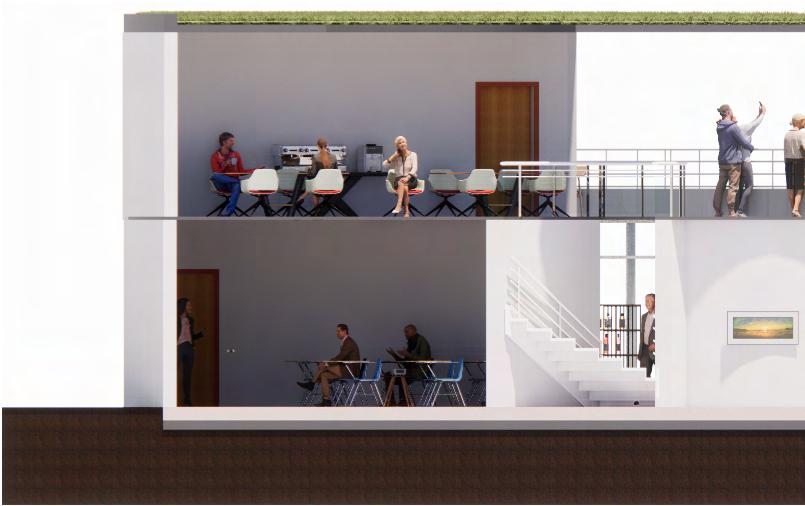

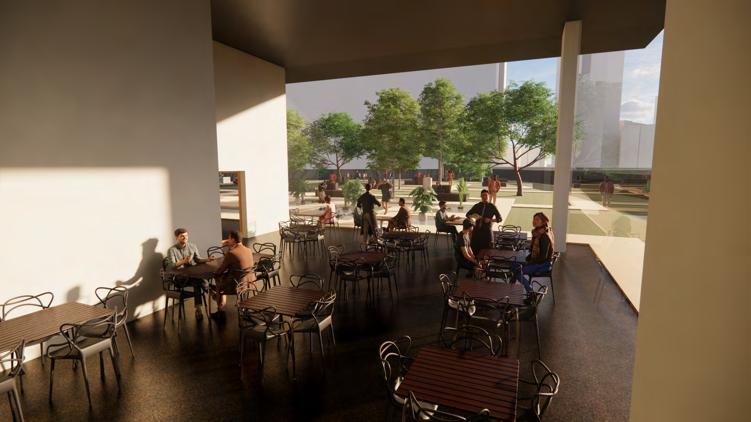

Level 2 - Cafe

The second floor is a cafe that interacts with the community kitchen below and the community garden outside. This allows handgrown herbs and spices to be used. With new recipes to be discovered every once in a while through the never ending learning of cooking from the community kitchen.

Level 1 - Community Kitchen

The community kitchen where residents can use to try out recipes they just learnt from the library. They can also use the handgrown herbs and spices they germinated for their own dishes to feel the accomplishment of their hardwork coming to succession.

Aaron Phang

OASIS

project description:

A shelter for leisure, rest and interaction. A unique shelter over a community garden with private spaces on the second floor together with link bridges to the the buildings of ROCKS @ Jalan Besar.

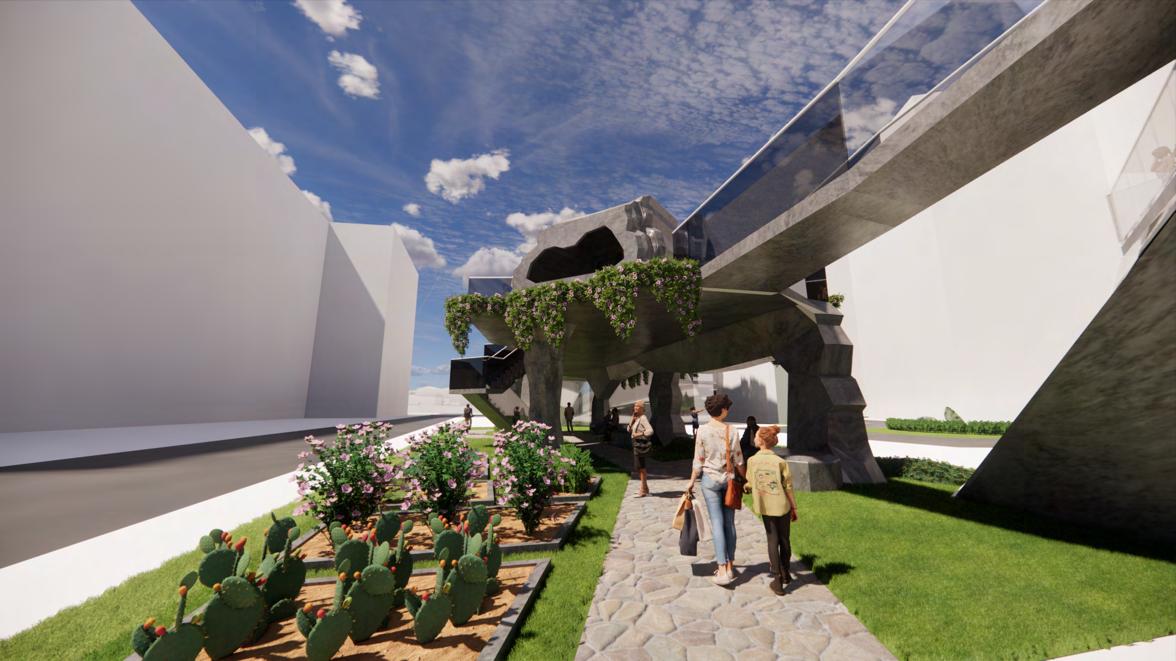

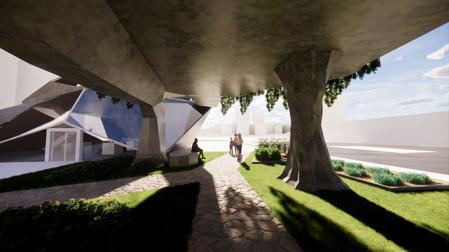

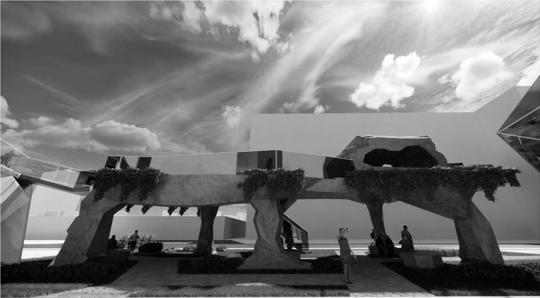

OASIS

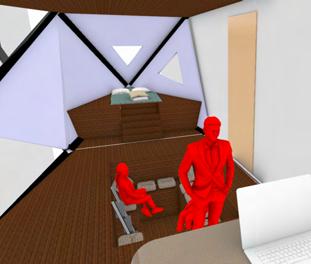

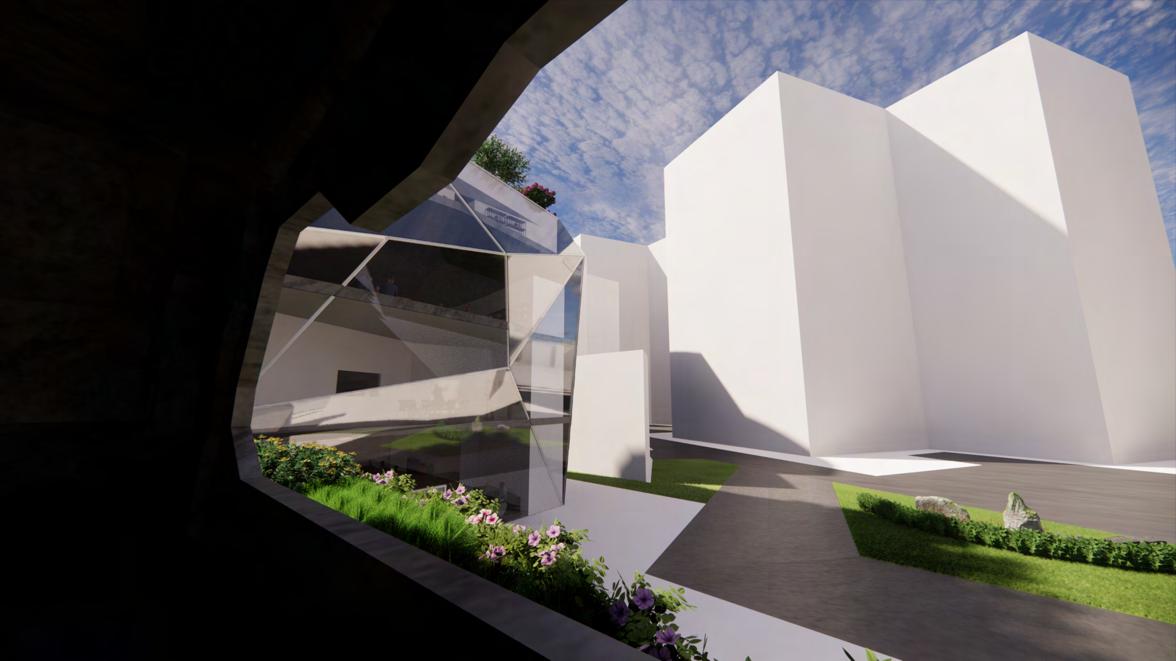

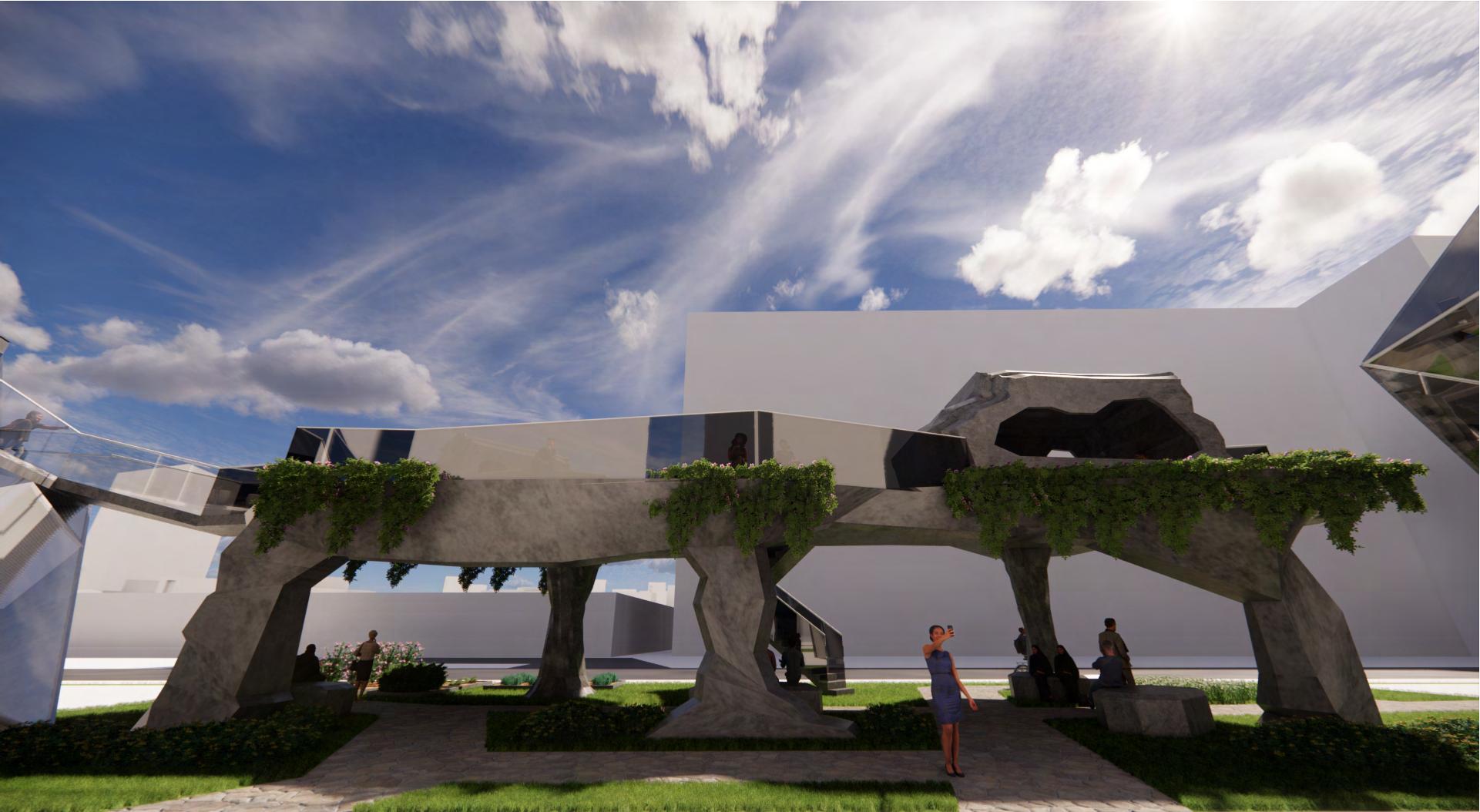

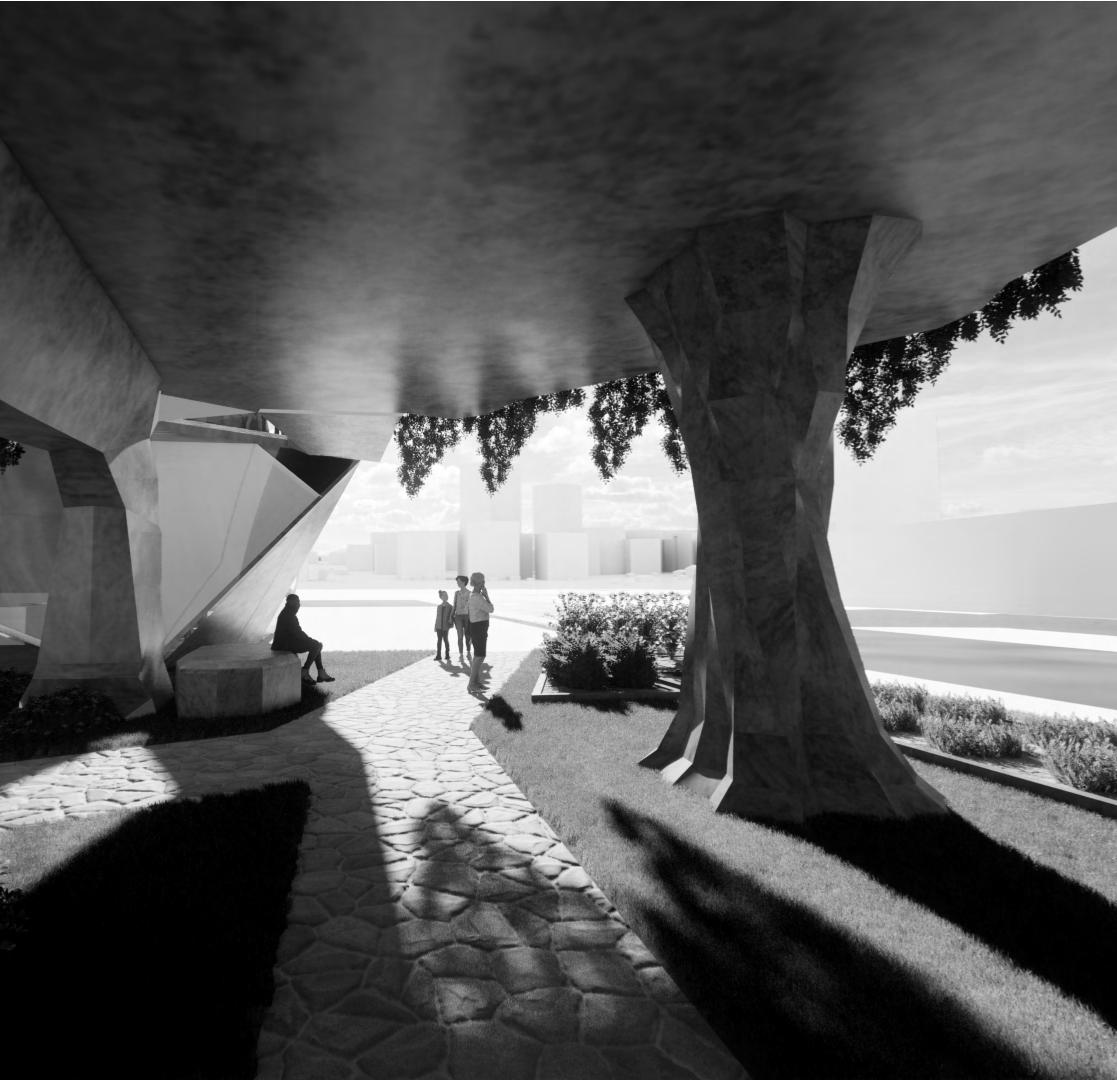

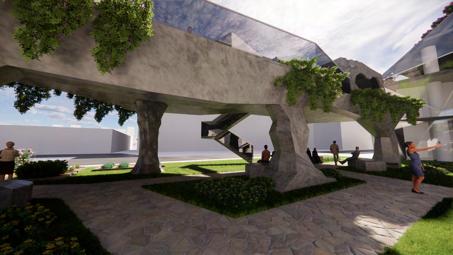

The Oasis is a Community garden with a cave like shelter that has private sitting spaces on top with views of the rocks at Jalan Besar and an open community garden on the rst oor with ampful sitting.

Surrounded by greenery the natural temperature of the space is lowered, therefore macking an absolute comforatbel resting area for people who need a break fropm their shopping at the nearby Pek Kio Market, people who are gardening or for people who just want to have a good chat with their friends and family.

The Oasis is made up of pillars shaped and no walls hence, having an open appearance from all directions, inviting people from all around to come and visit. A chamfer and green over hangs are set to directly face Pek Kio Market as to be more inviting from the hot spot (path from Pek Kio to HDBs) as identi ed from our VGA site analysis.

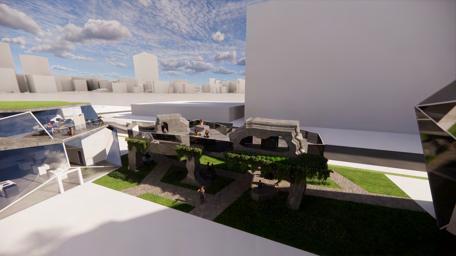

It also serves as a linking bridge for the 2 Rocks @Jalan Besar therefore increasing connectivity between both people and spaces.

VGA

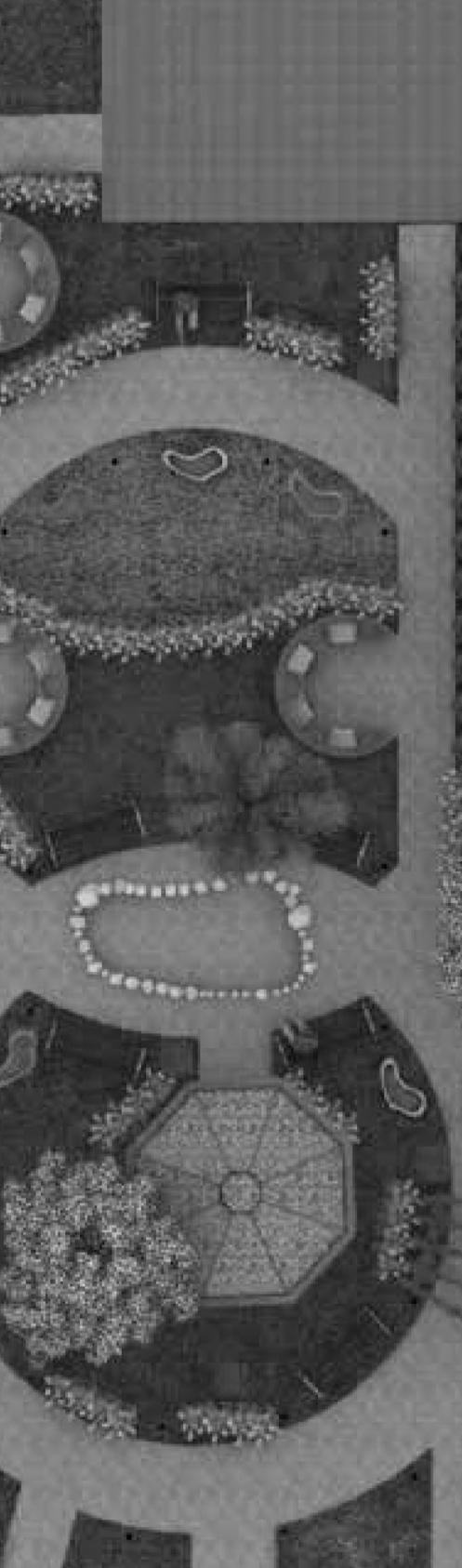

Ground FLoor Plan Section

2nd FLoor Plan

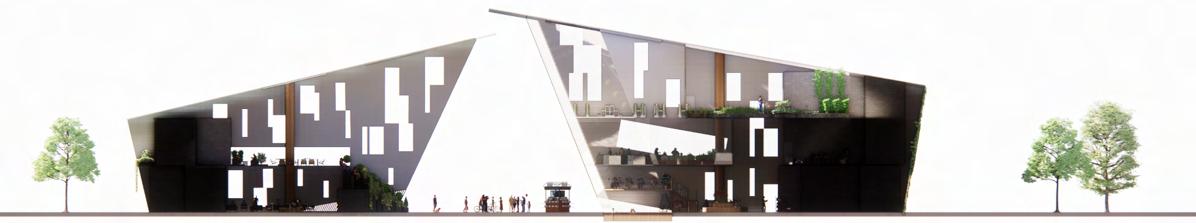

Elevation

Location Plan

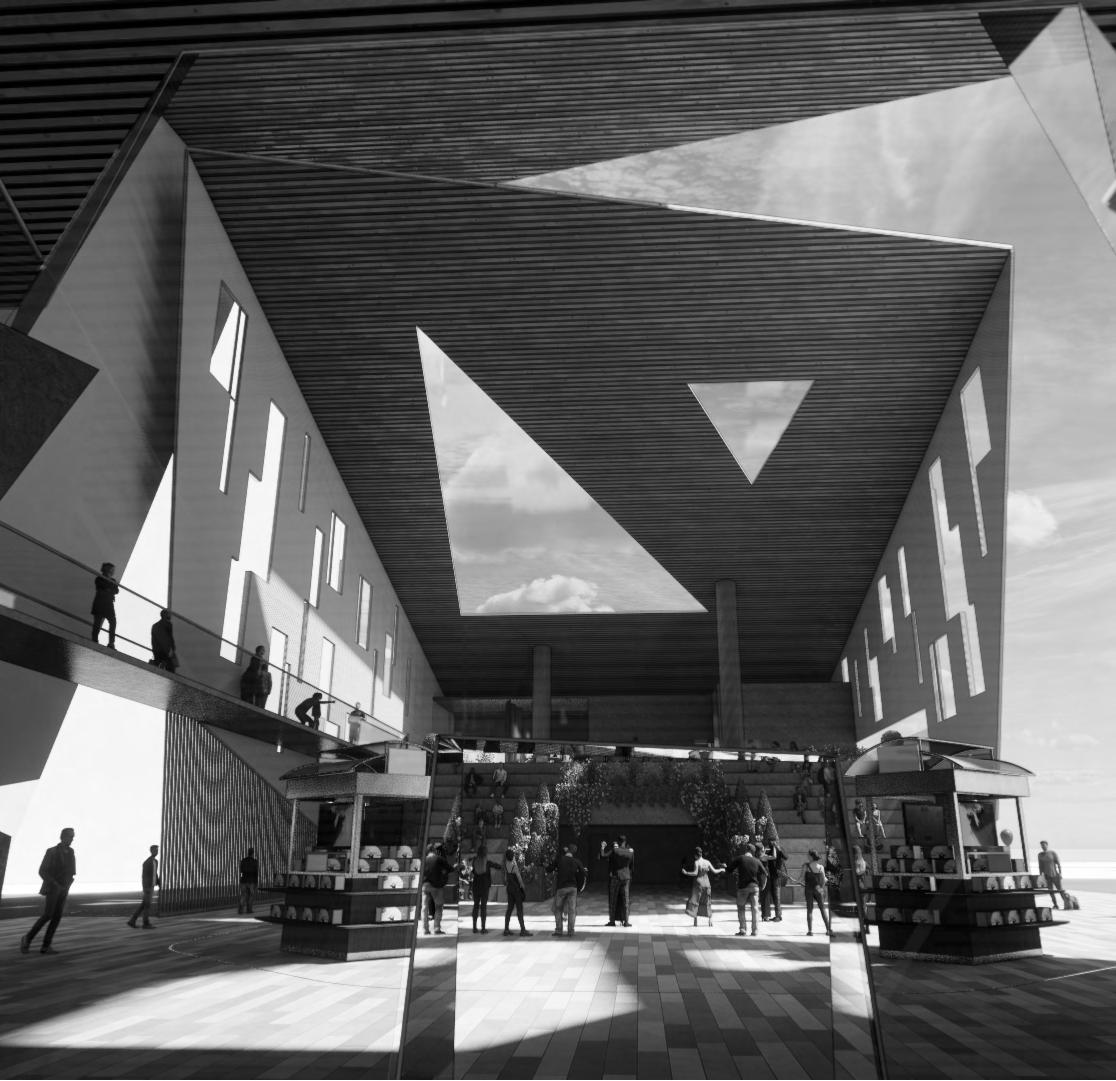

Pandora

project description:

Like the Pandoras Box, Pandora is here for the community to gain knowledge and boost interactions and experiences in a completely healthy and unforbidden way. Filled with unique programmes and spaces for people to enjoy and learn.

Location Plan

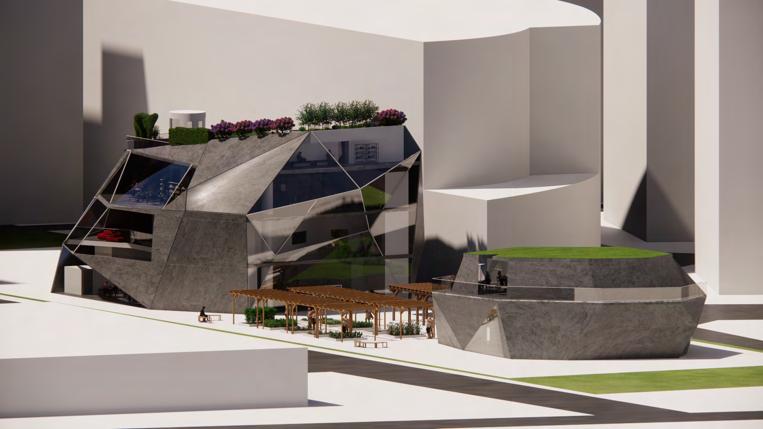

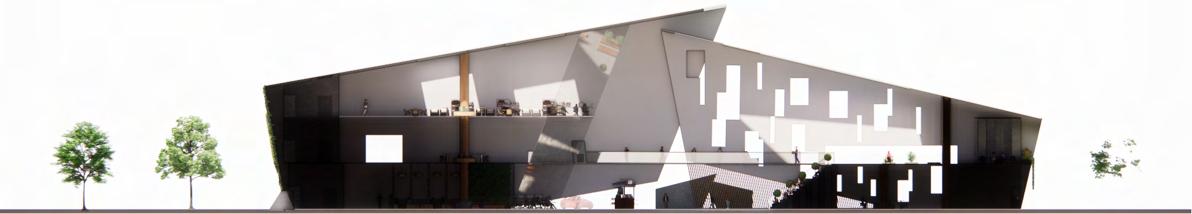

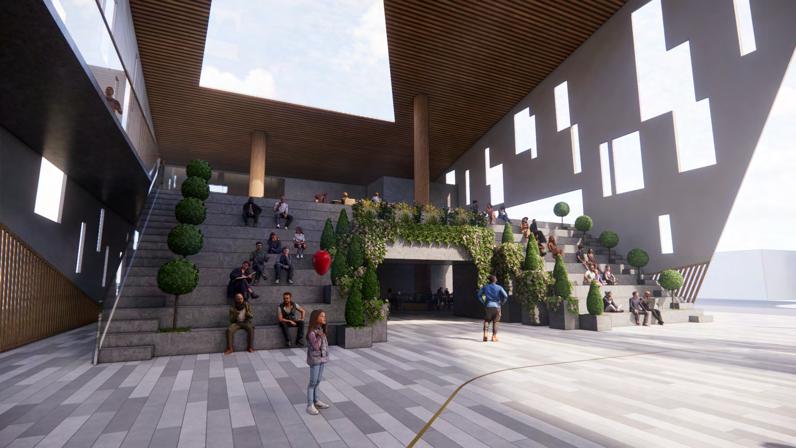

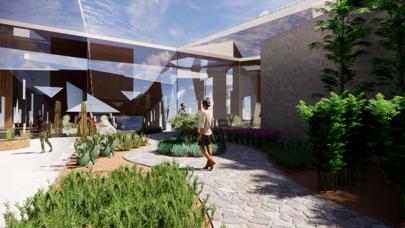

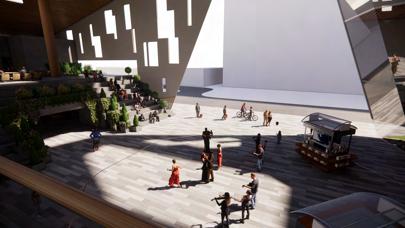

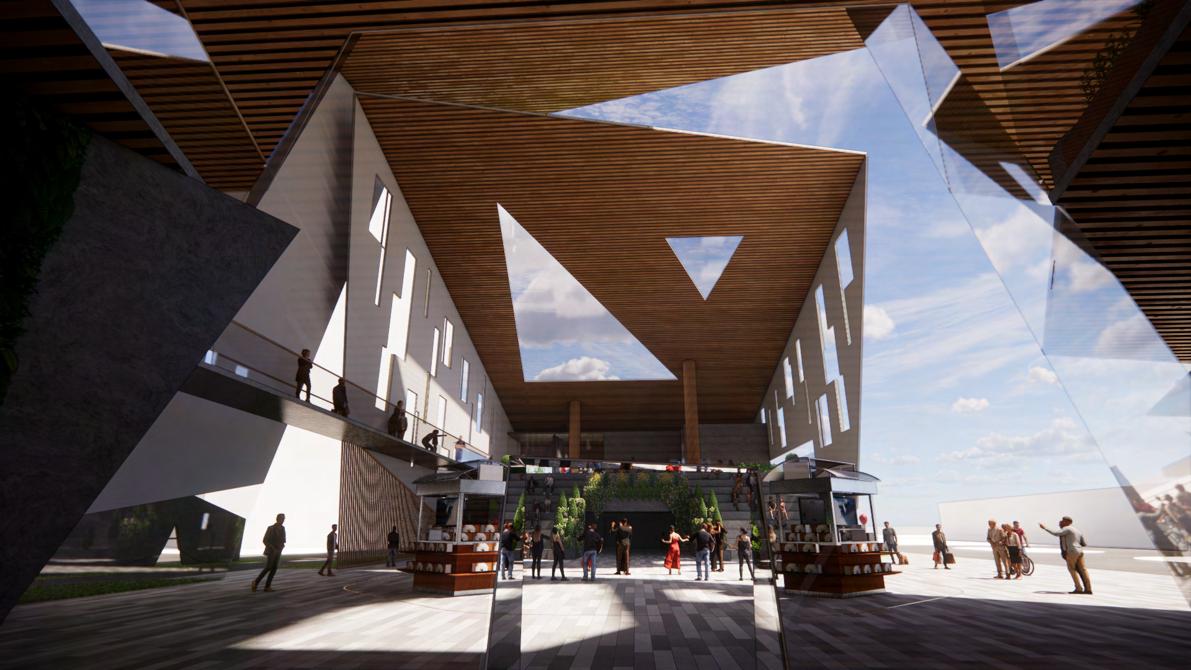

Pandora , a community bonding hub which enriches, relaxes and calms ones’ mind & body. With an Academy building linking to an open cafe, programmes such as library, community kitchen & dining, study lounge and various community gardens are sure to be unique enough to draw in both the residents and public alike.

Pandora brings along facilities and spaces unlike nowhere else with spaces sure to increase connectivity between people while also having some semi private spaces if one needs to concentrate.

Sustainability

Making use of Pandoras’ sloping roofs and openings, rain water is easily collected and stored to be recycled for the buildings toilets and ammeneties while also being able to water plants.

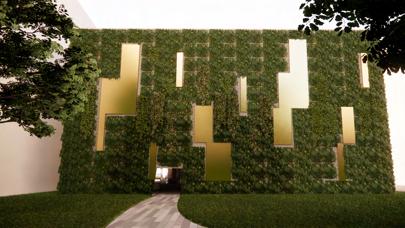

There is also a 150% green coverage ensured by the addition of Pandora, with it having a complete sedum green roof and green walls on the East and West exterior walls.

With multiple peforations and skylights, the use of natural ventilation and sunlight is maximised.

Therefore with all these factors electricty usage will be greatly reduced by the natural cooling by wind and green roof & walls water bills will also drop as the building recycles and collects rain water self sufficiently.

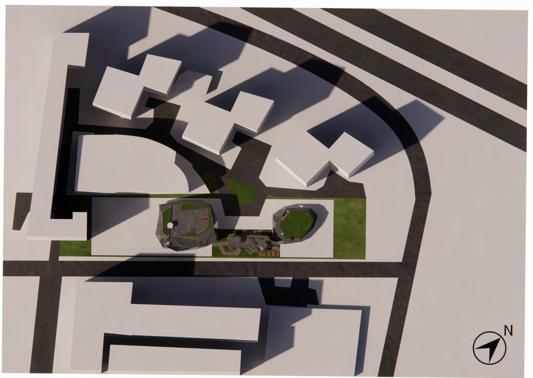

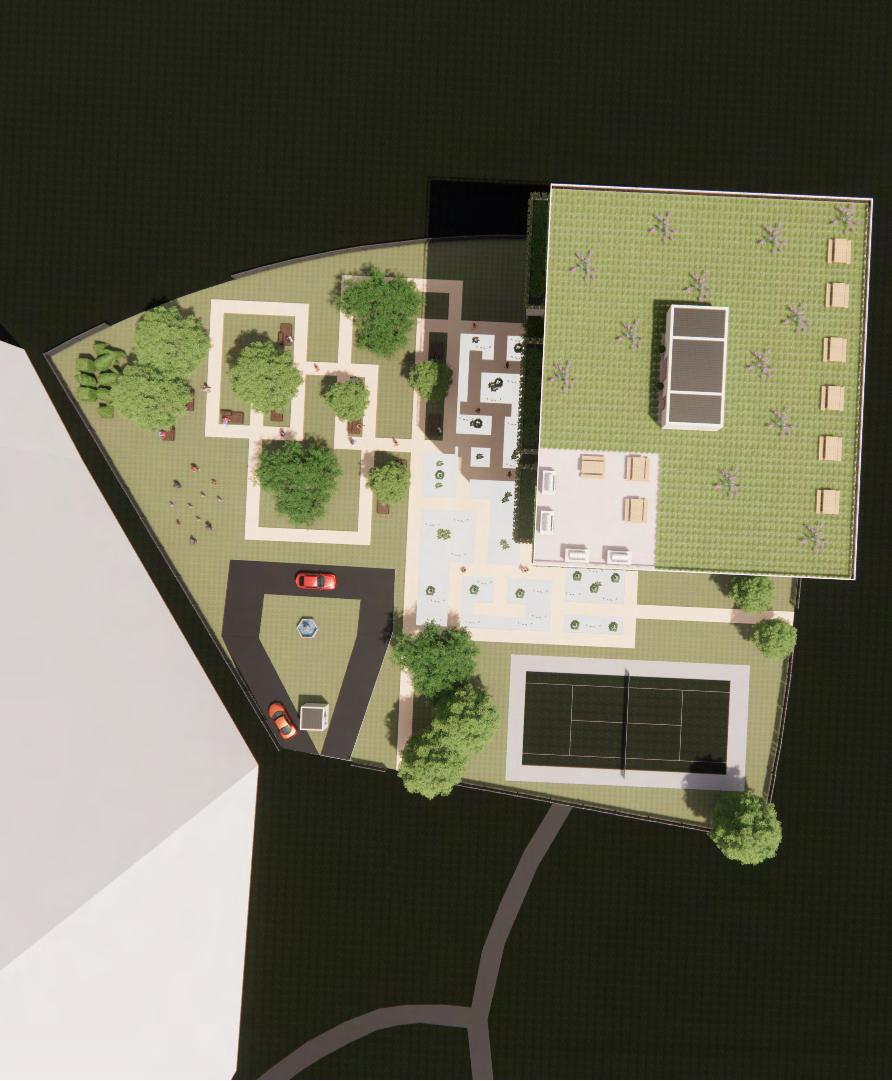

Site Plan

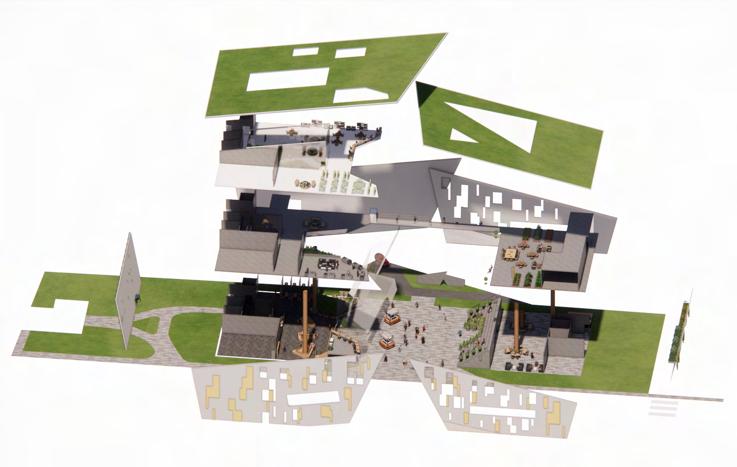

Conceptual Diagram

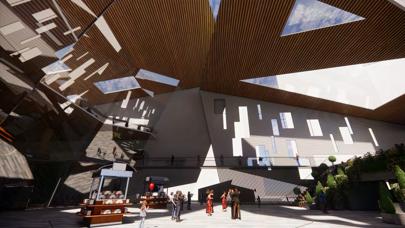

Peforate to access natural lighting

Programmes

-Cafe

-Recipe room

-Library

-Study lounge

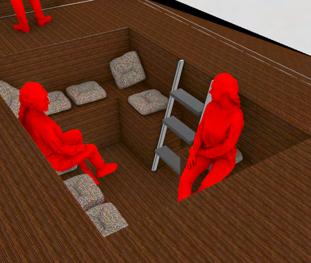

-Conversation Pit

-Community Kitchen

-Community dining area

-Community Garden

-Hydroponics

- Demo Rooms

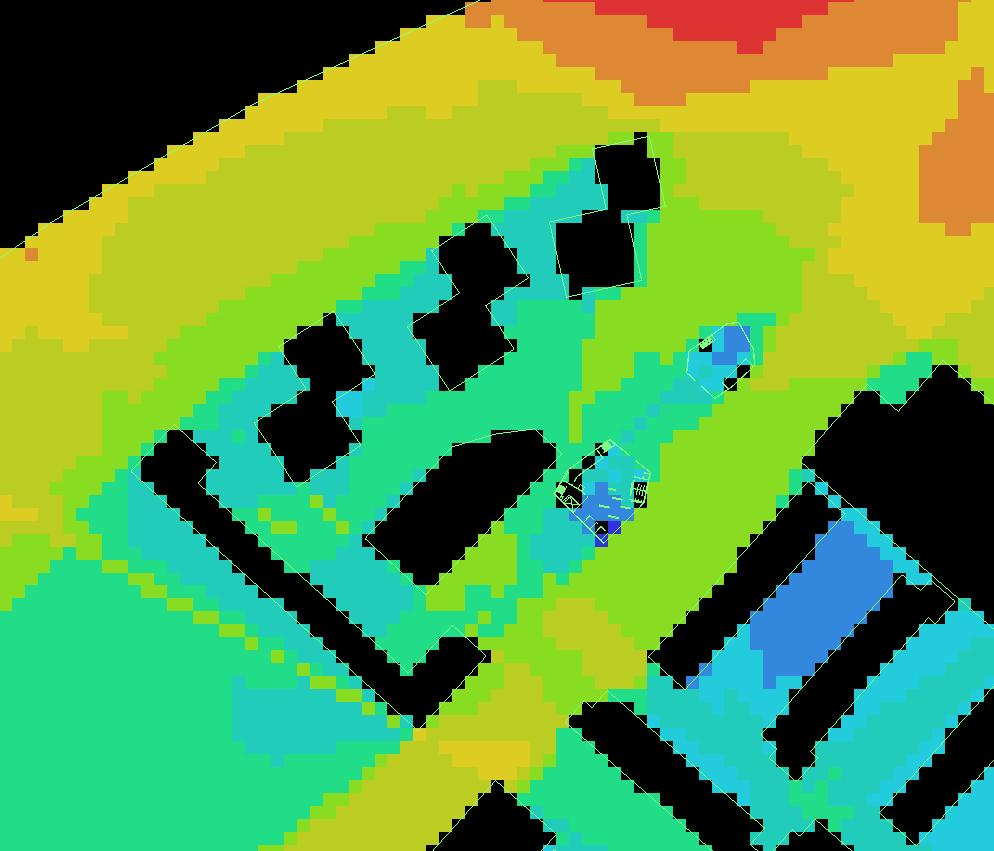

VGA(Visual Graphic Analysis)

As shown in the VGA there is a rather high visbilty from Pek Kio Market, the main road and the site. Therefore by creating a arge opening/entrance facing the main road, the visibility and accessibilty is maximised to entice and attract people to enter Pandora.

PANDORA PLANS

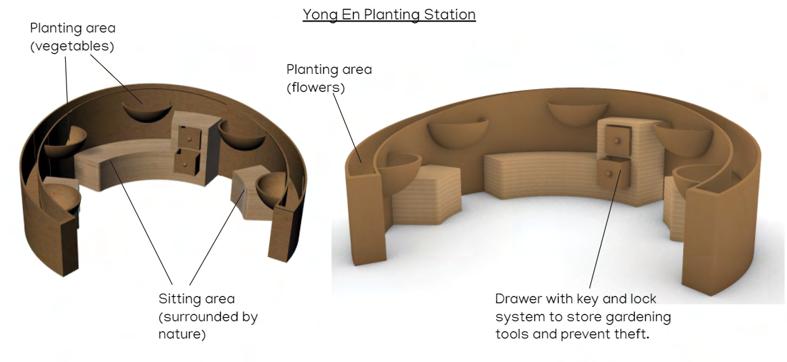

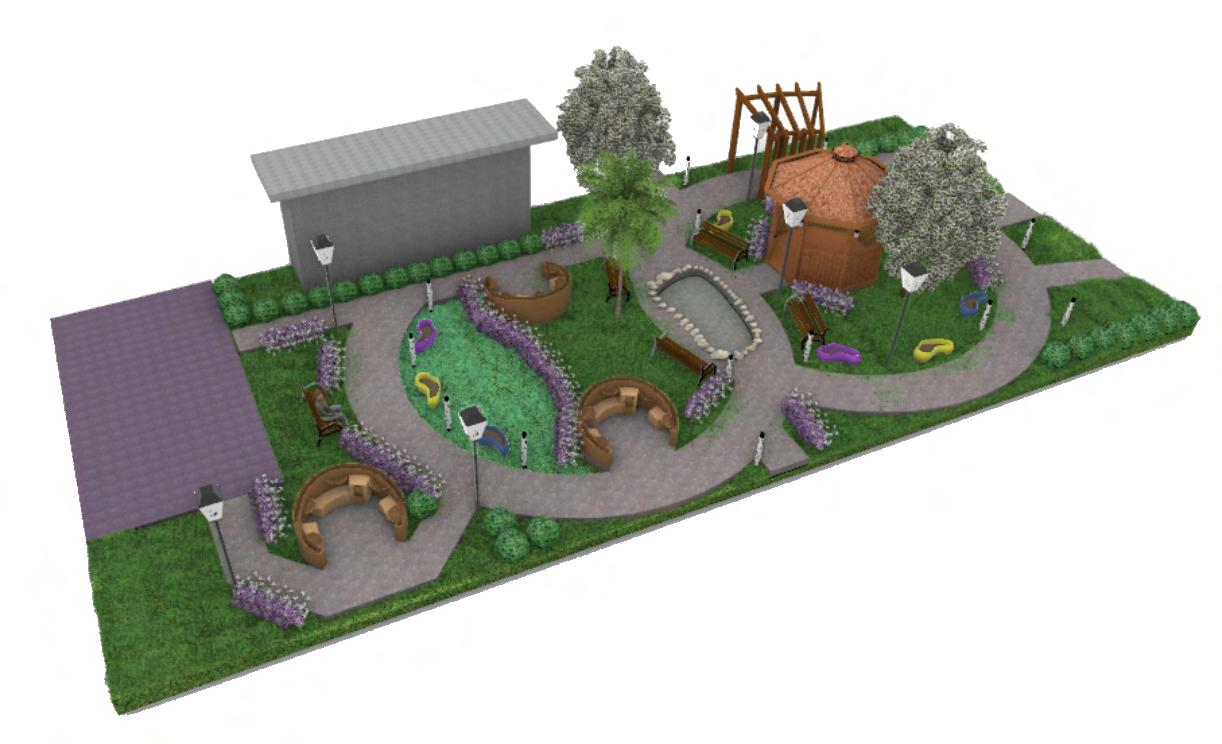

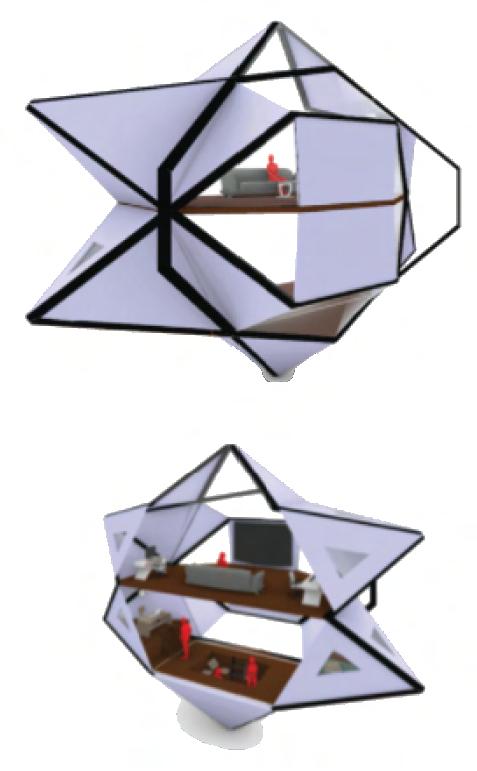

Other Works

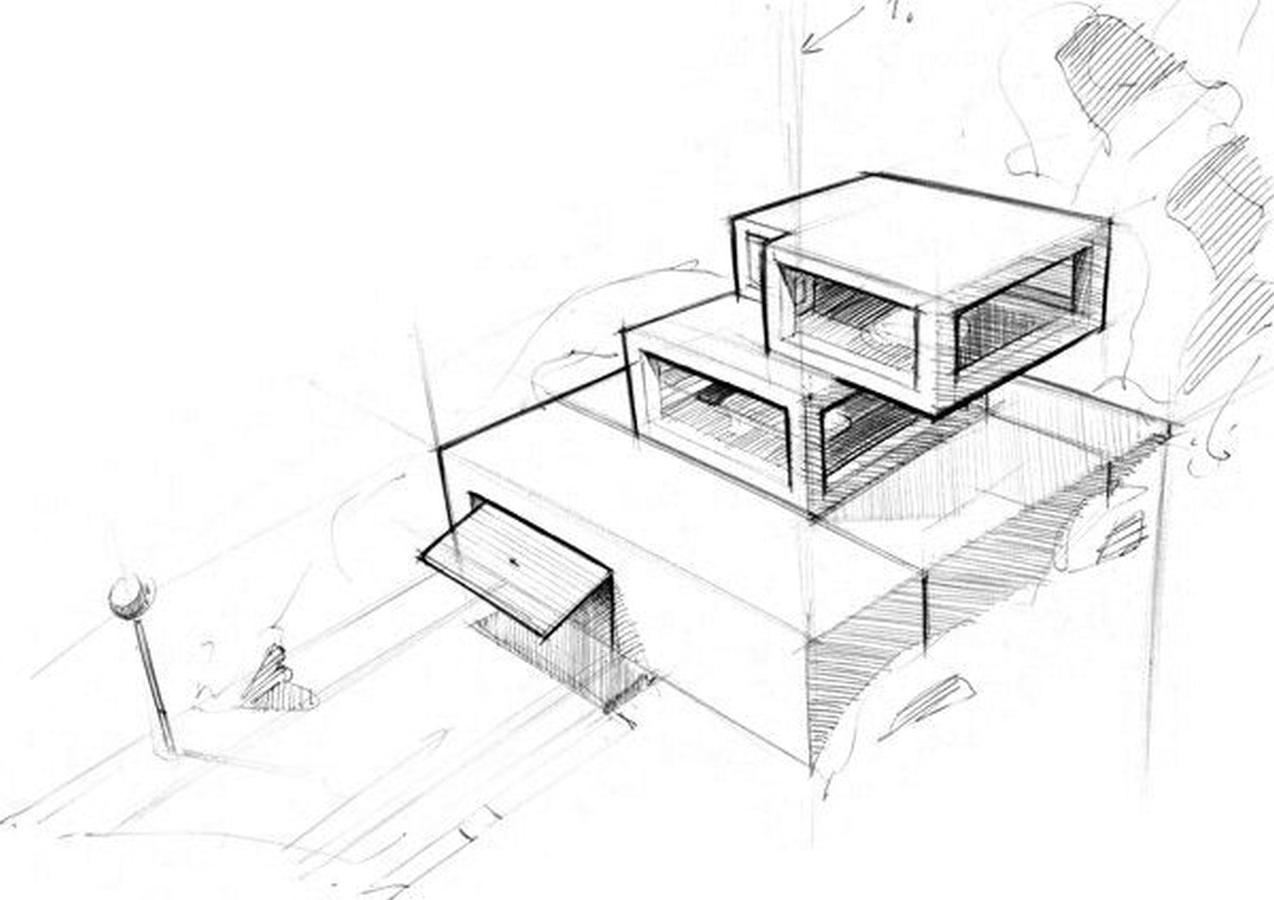

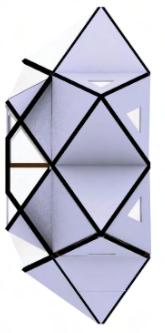

project description: Fragments from other projects I have completed and some things done during my free time.

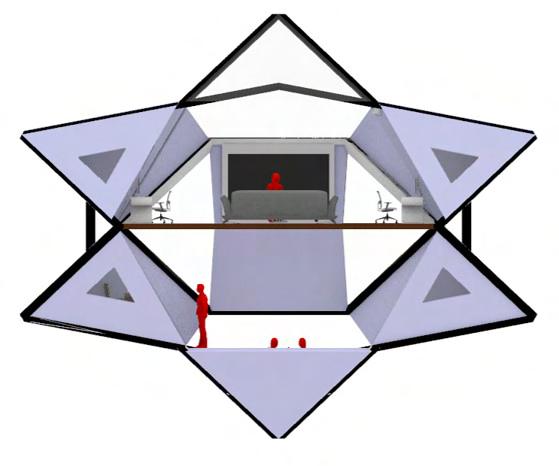

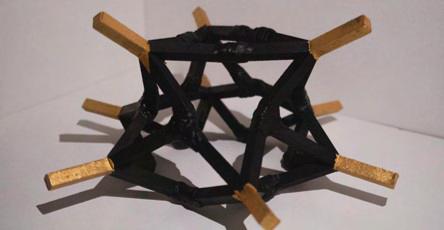

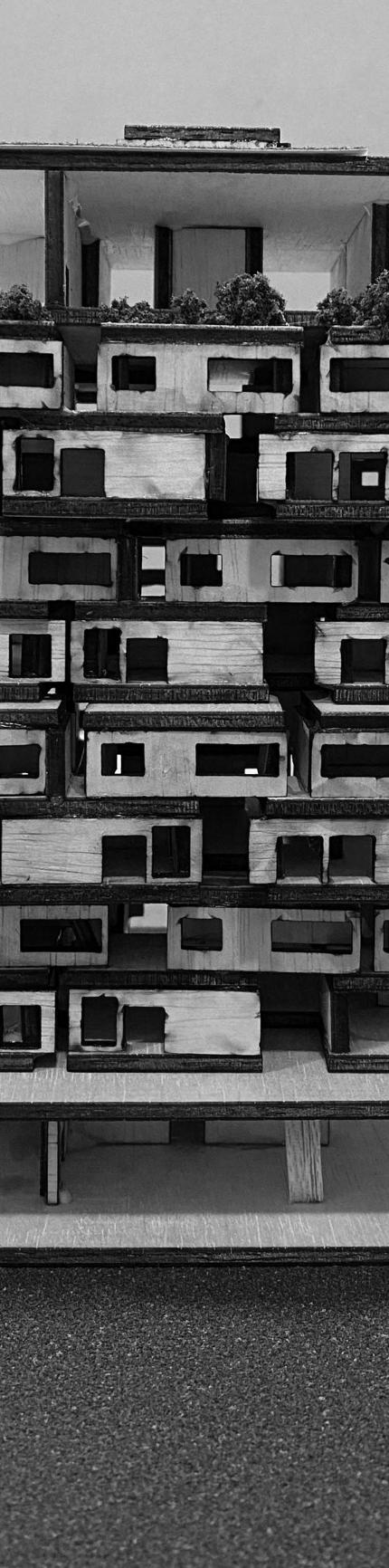

Model Making
