Microsoft Clarity Flutter SDK - iOS: Eventing Assessment

Aaron Gregory, Brand Advisor

Overview:

This assessment evaluates the usability of the Clarity Flutter SDK session data for creating smart events. Specifically, it calculates the percentage of eventable key performance indicators (KPIs) in a defined user flow. By measuring how well Clarity can event on critical KPIs, we can identify gaps and make data-driven decisions for improvement.

Key Objectives:

 Measure usability to assess how complete the product feature is, based on the percentage of key KPIs captured for smart events.

 Use the completion percentage to inform resource allocation decisions.

 Align findings with the product release timeline to ensure full functionality.

Eventing Usability Criteria:

 Find eventable data for each key performance indicator (KPI) in a defined flow.

 A KPI is the screen name or the identifier of the control the user has interacted with.

 Each KPI must occur in order and the correct number of times.

 Gestures must be the correct type and associated with the proper screen.

 Future assessments will include the smart event creation process.

Eventing Usability Calculation:

Eventable KPIs / Total KPIs = Eventing Usability %

Eventing Usability KPIs – Checkout Flow:

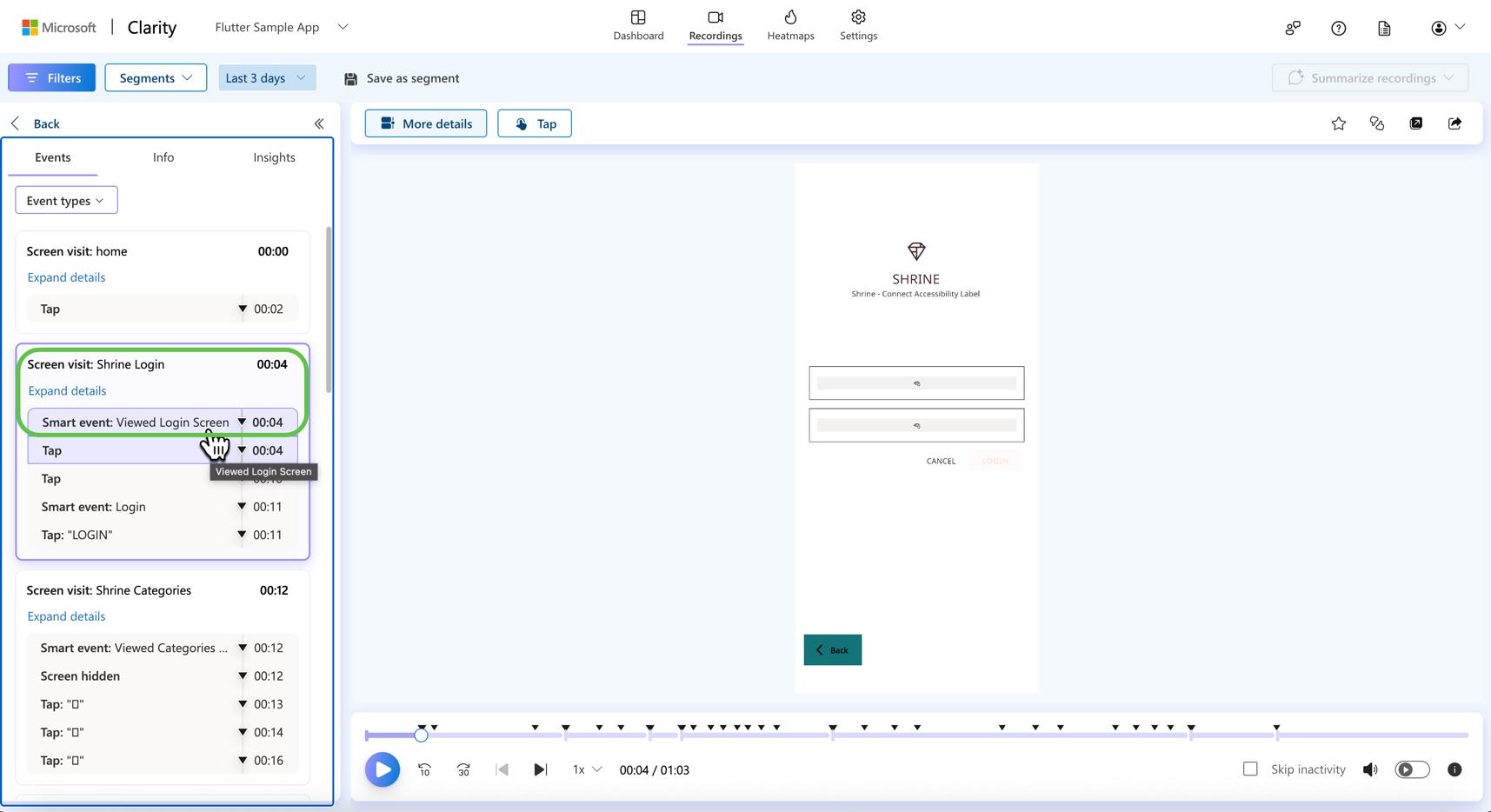

1. Viewed “Login” screen.

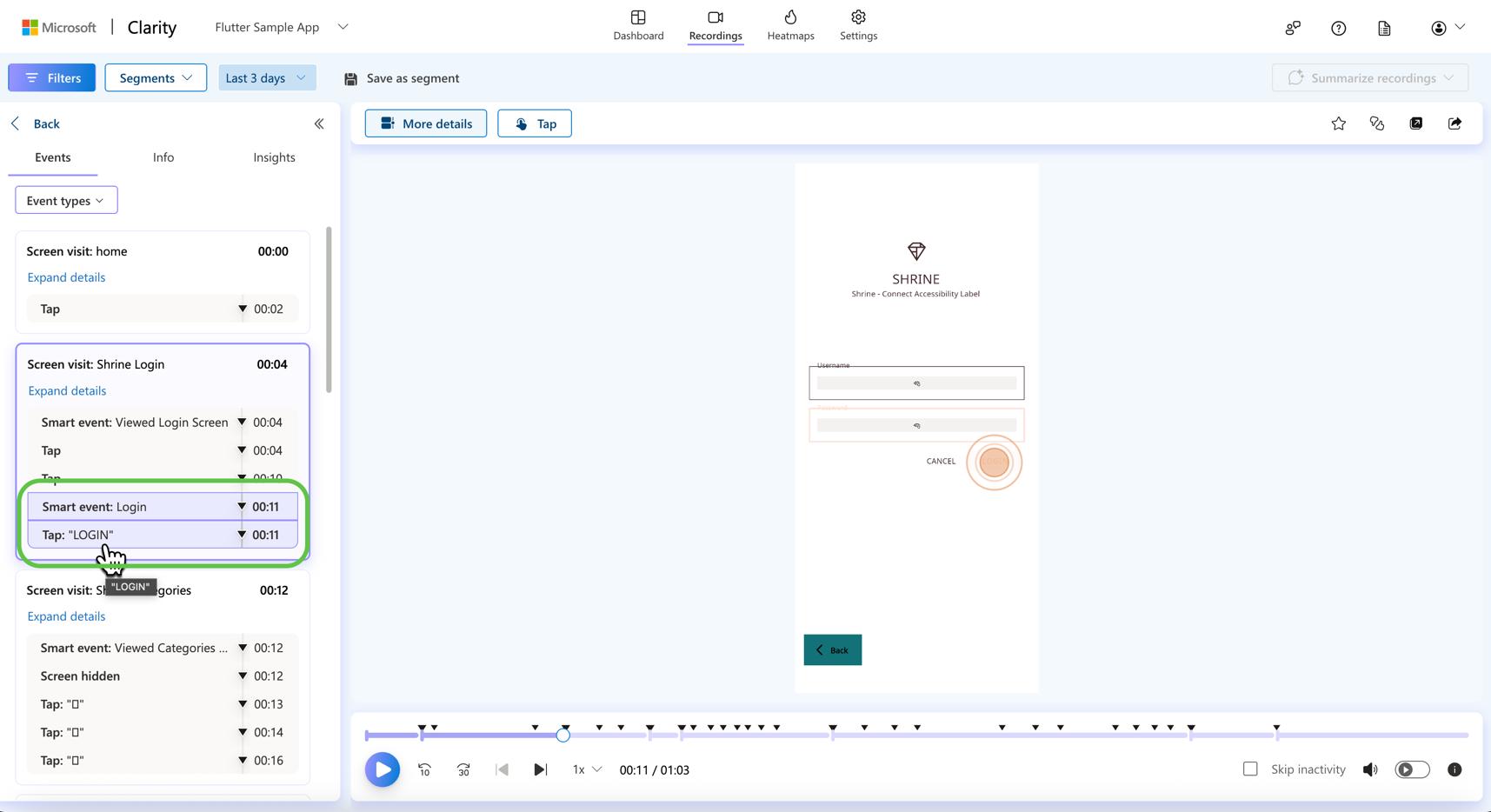

2. Tapped “LOGIN” button.

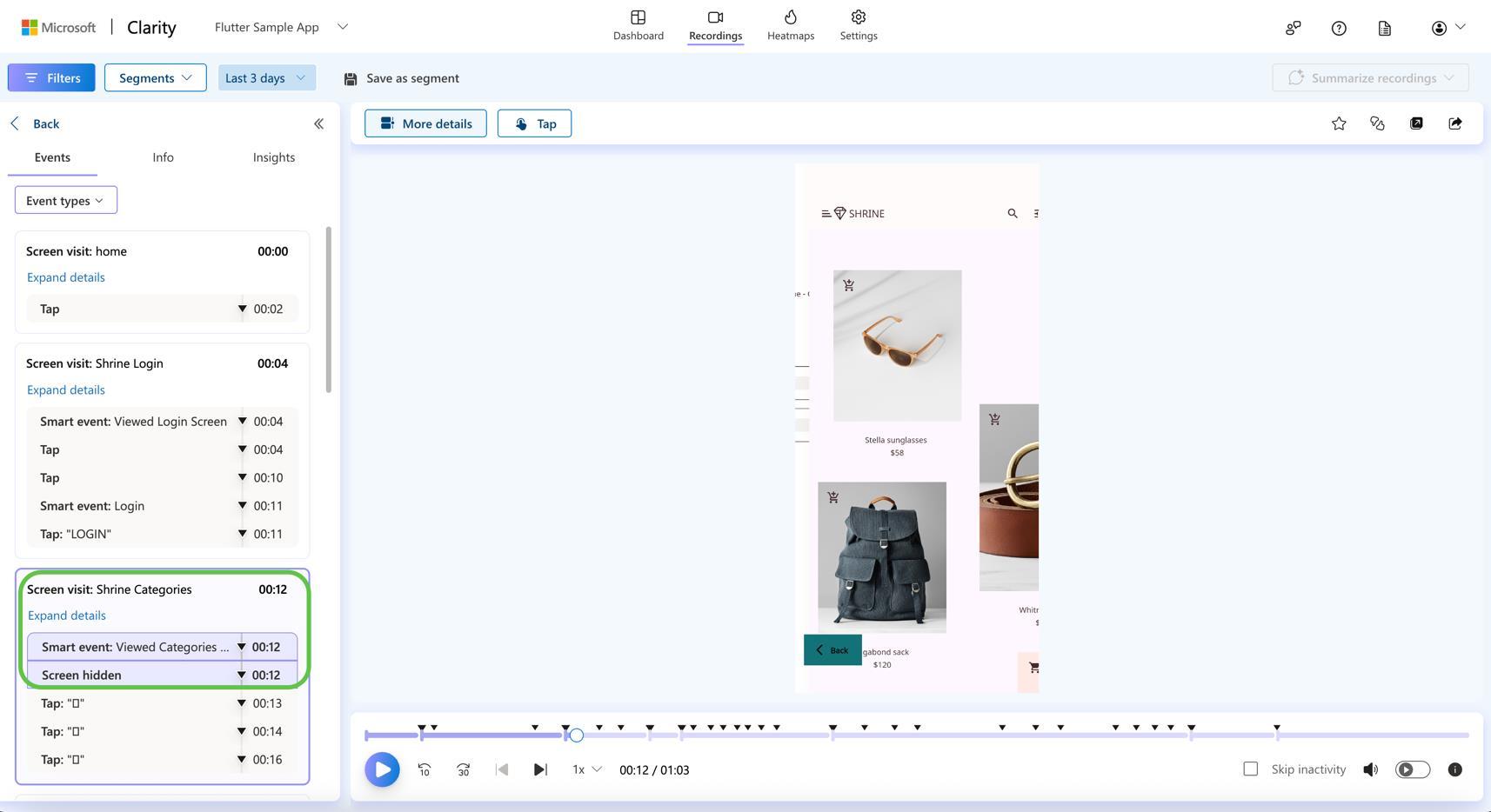

3. Viewed “Categories” screen.

4. Tapped “Add to Cart” button.

5. Tapped “View Cart” button.

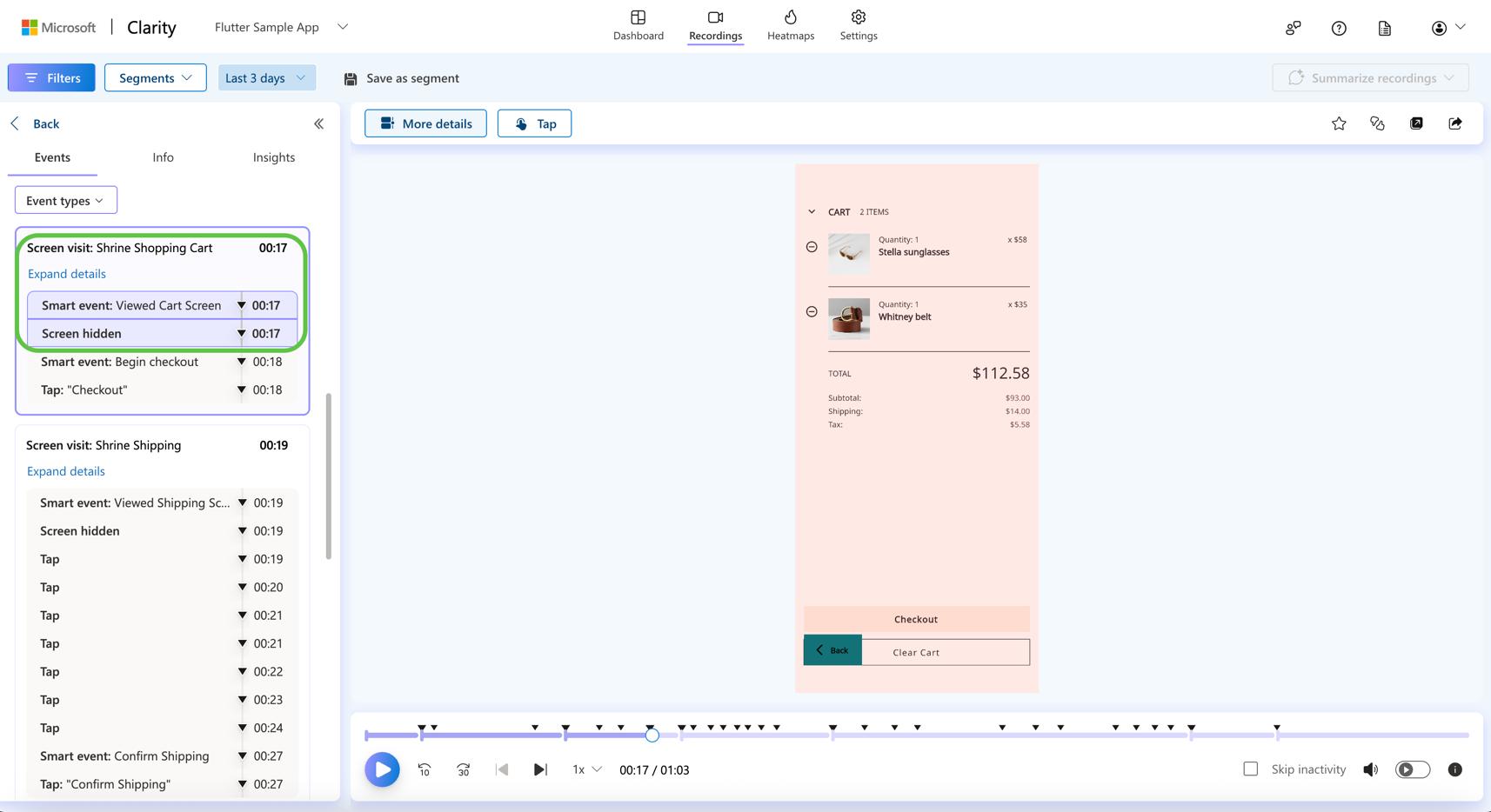

6. Viewed “Shopping Cart” screen.

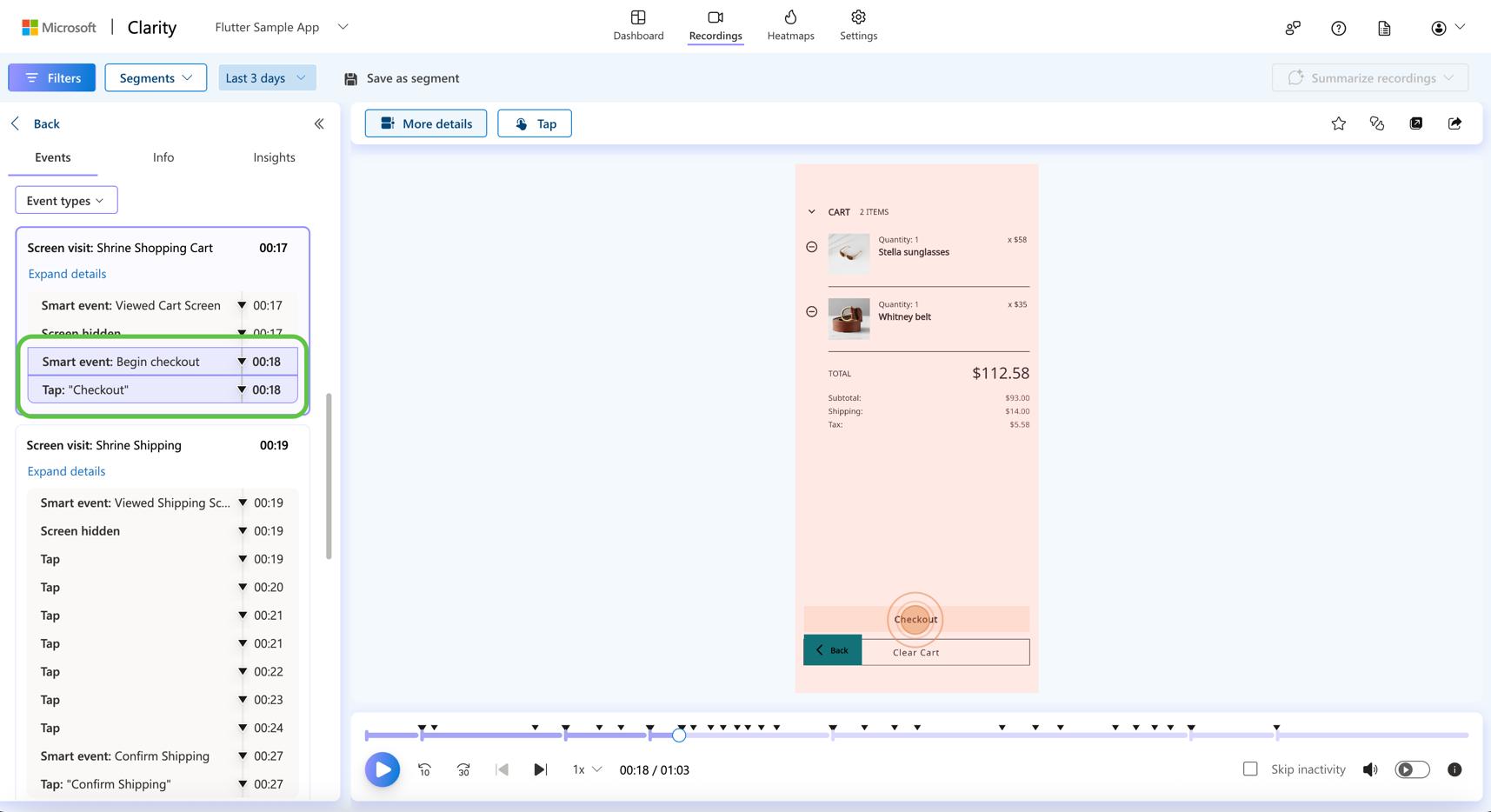

7. Tapped “Checkout” button.

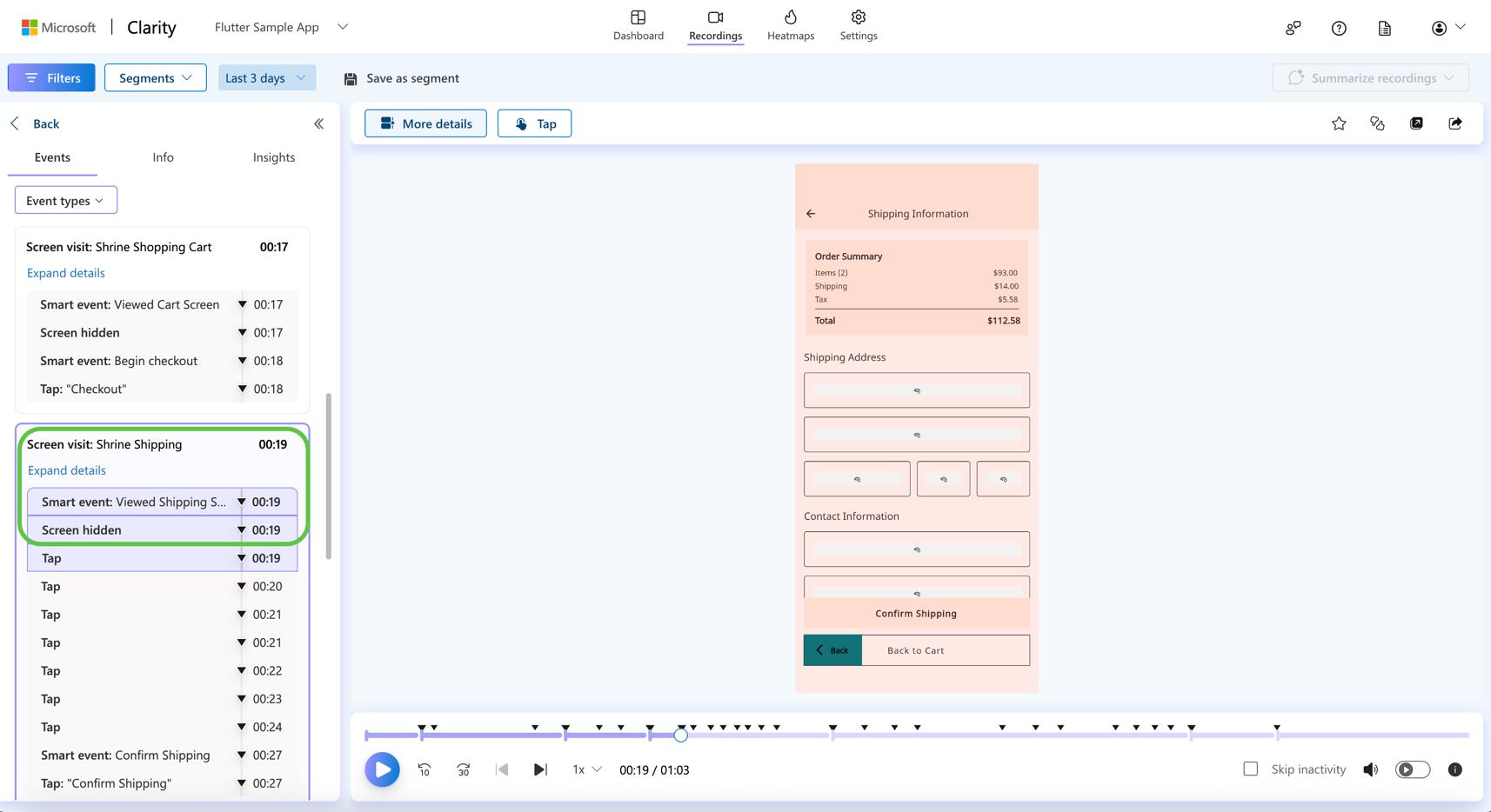

8. Viewed “Shipping” screen.

9. Tapped “Confirm Shipping” button.

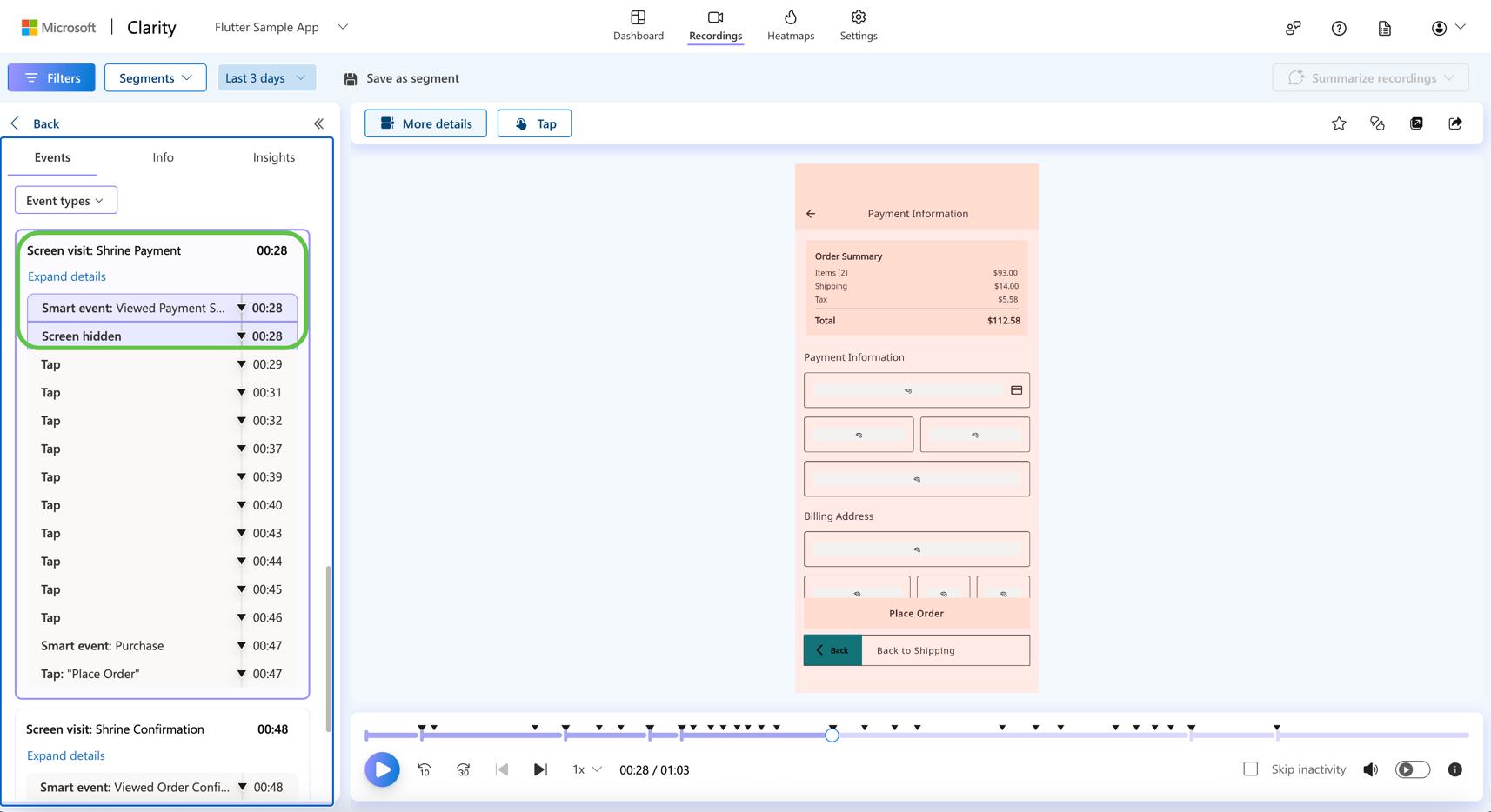

10. Viewed “Payment” screen.

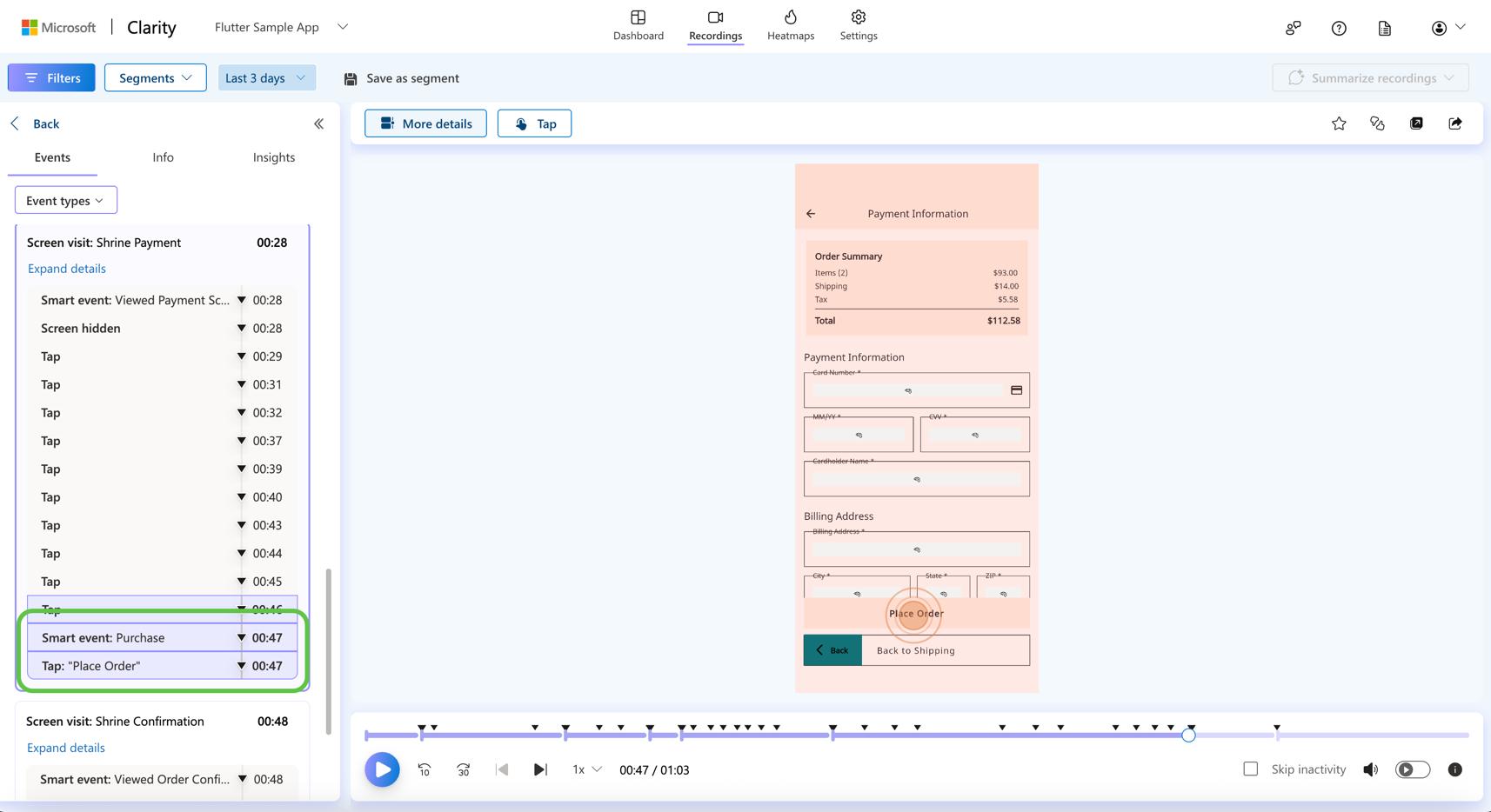

11. Tapped “Place Order” button.

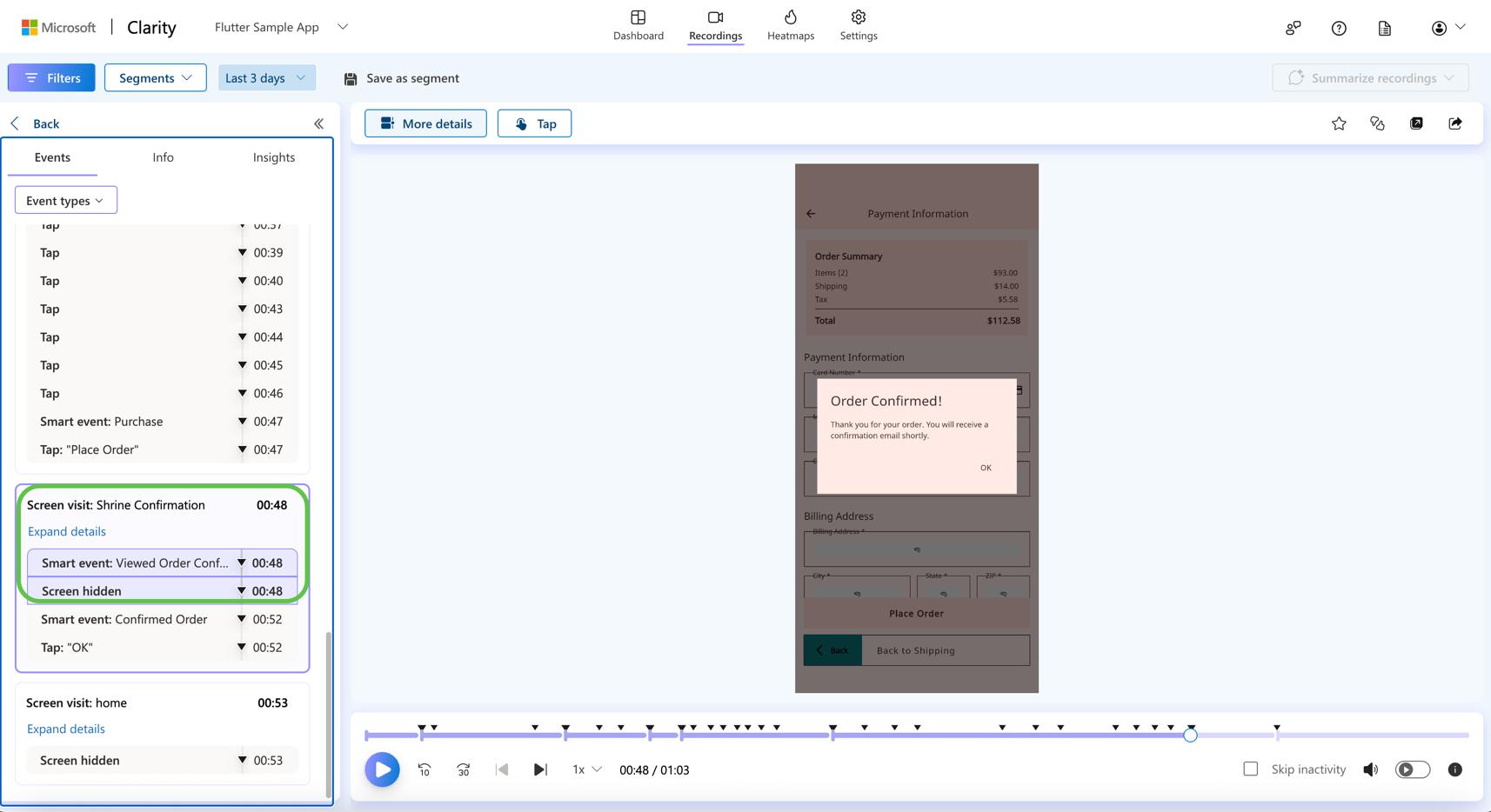

12. Viewed “Order Confirmation” screen.

1. Viewed “Login” screen.

2. Tapped “LOGIN” button.

3. Viewed “Categories” screen.

5. Tapped “View Cart” button.

6. Viewed “Shopping Cart” screen.

7. Tapped “Checkout” button.

8. Viewed “Shipping” screen.

9. Tapped “Confirm Shipping” button.

10. Viewed “Payment” screen.

11. Tapped “Place Order” button.

12. Viewed “Order Confirmation” screen.

Eventing Usability KPIs – Checkout Flow:

1. Viewed “Login” screen.

Tapped “LOGIN” button.

3. Viewed “Categories” screen.

4. Tapped “Add to Cart” button. 5. Tapped “View Cart” button. 6. Viewed “Shopping Cart” screen.

7. Tapped “Checkout” button.

8. Viewed “Shipping” screen.

Tapped “Confirm Shipping” button.

Viewed “Payment” screen.

Tapped “Place Order” button.

12. Viewed “Order Confirmation” screen.

Findings:

 Most interactions are not usable for smart events.

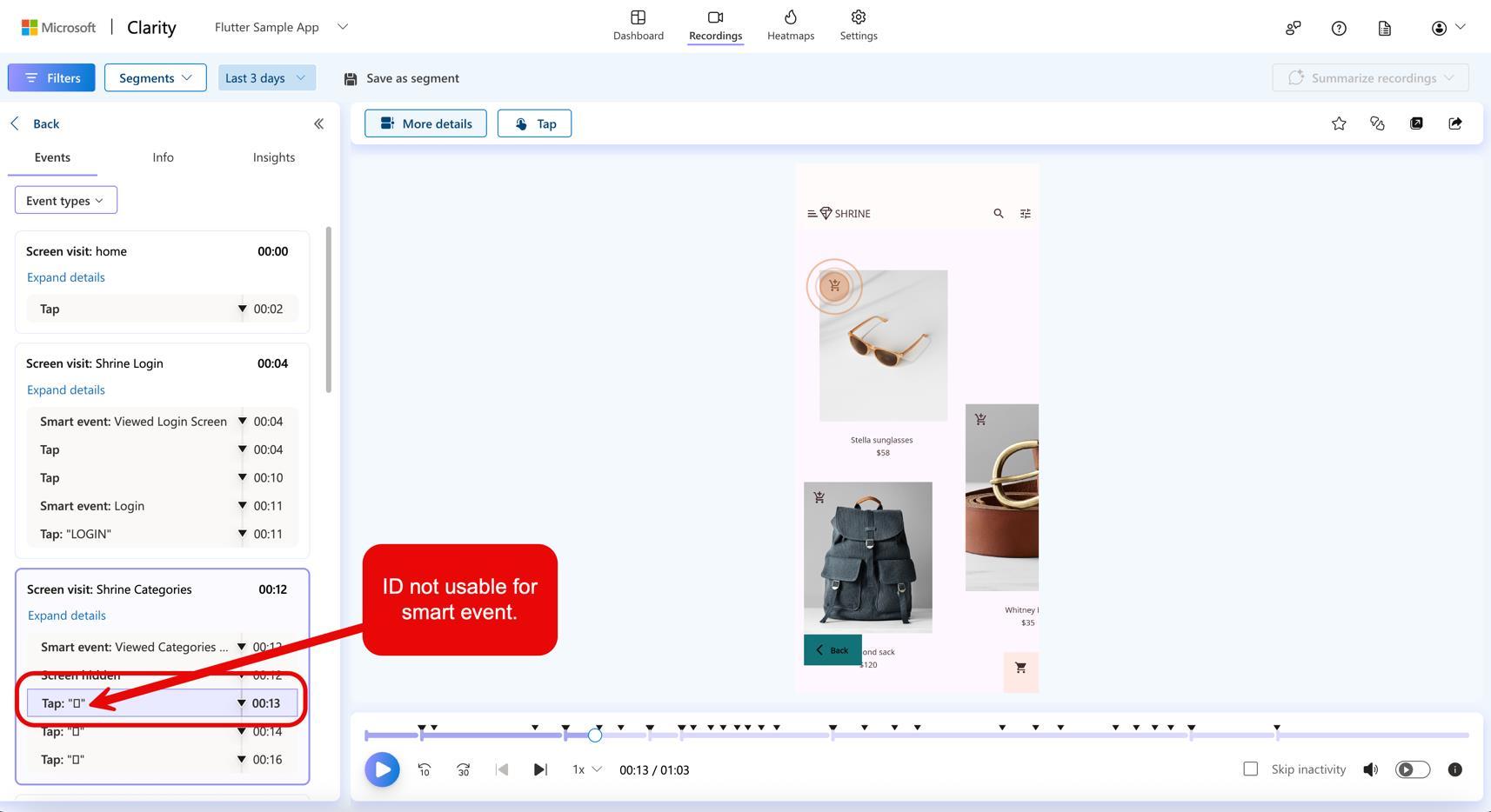

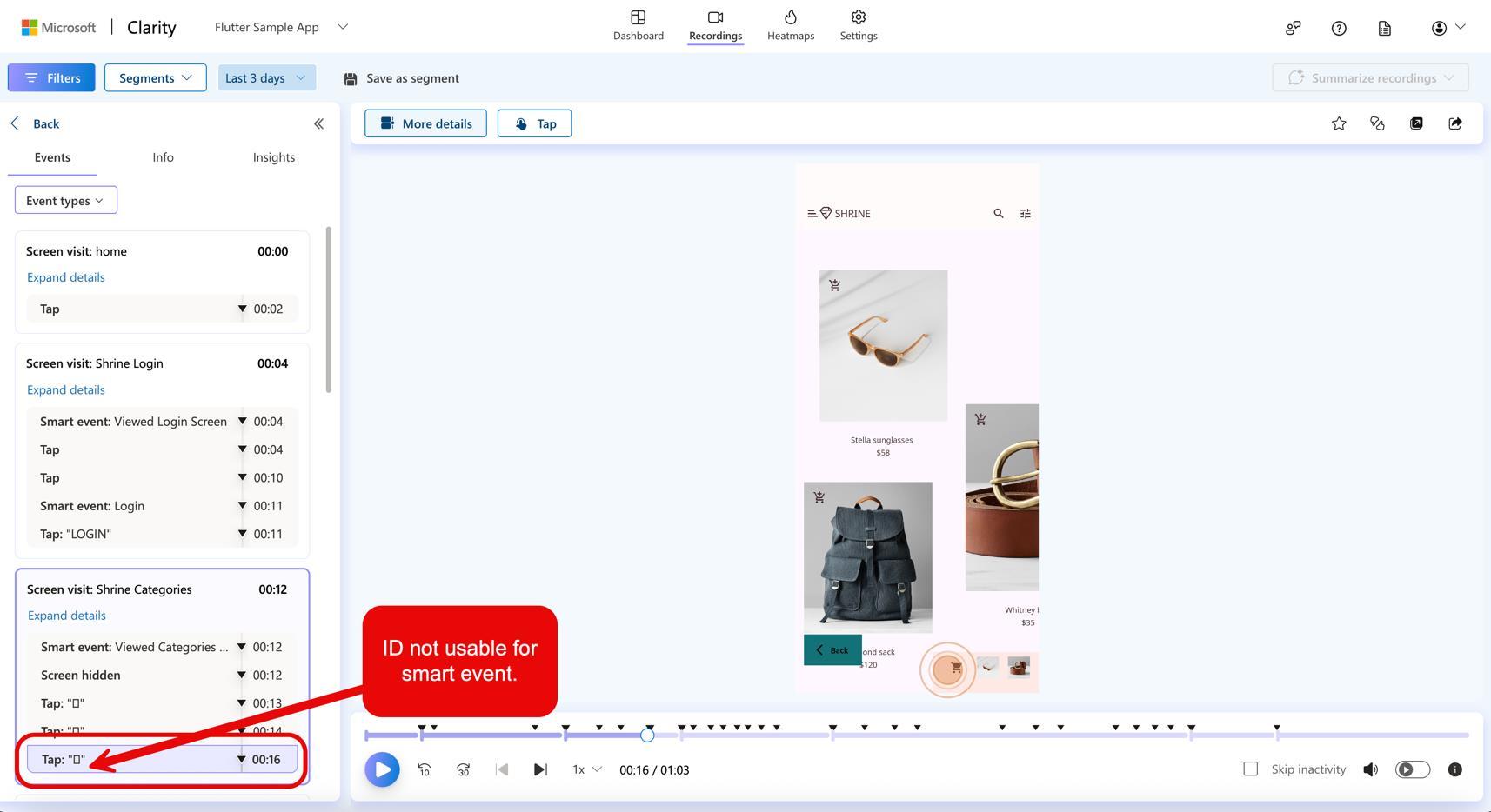

 Only buttons with visible text have enough data to be used for smart events.

 All interactions are reported as taps.

 Gaps exist in funnels due to lack of screen or gesture context.

 Enhancements are needed to allow reliable event-based analytics and KPI tracking.

 Unable to track form field completion.

 Apps that use graphical UI elements without text will not be able to fully leverage smart event capabilities.

Recommendations:

 Add support for identifying controls using accessibility identifiers (accessibility id, label, and hint).

 Leverage Flutter's Semantics widget to apply descriptive labels.

 Encourage developers to assign unique semantics labels to key interactive elements.

 Promote consistent use of accessibility labels across iOS and Android.

 Reference best practices such as W3C Mobile Accessibility and Flutter Semantics documentation.

Next Steps:

 Re-test eventing usability with updated SDK with semantics accessibility features.

 Develop proof-of-concept smart events using enhanced SDK features.

 Share implementation feedback with Clarity team.

 Evaluate cross-platform consistency (iOS vs. Android) and prepare parallel assessment.

 W3C Mobile Accessibility:

https://www.w3.org/WAI/standards-guidelines/mobile/

 Flutter Semantics Documentation:

https://api.flutter.dev/flutter/widgets/Semantics-class.html

 Implementing Semantics in Flutter:

https://www.geeksforgeeks.org/flutter/semantics-flutter/

 Flutter Session Recording:

https://clarity.microsoft.com/shared/recording/55d68a47-0908-4b19-bffaf567795754ae
