SPECTRA

01 SPECTRA TRANSITIONAL HOUSING APRIL 2023 RHINO / ILLUSTRATOR / PHOTOSHOP / INDESIGN

SELECTED WORKS

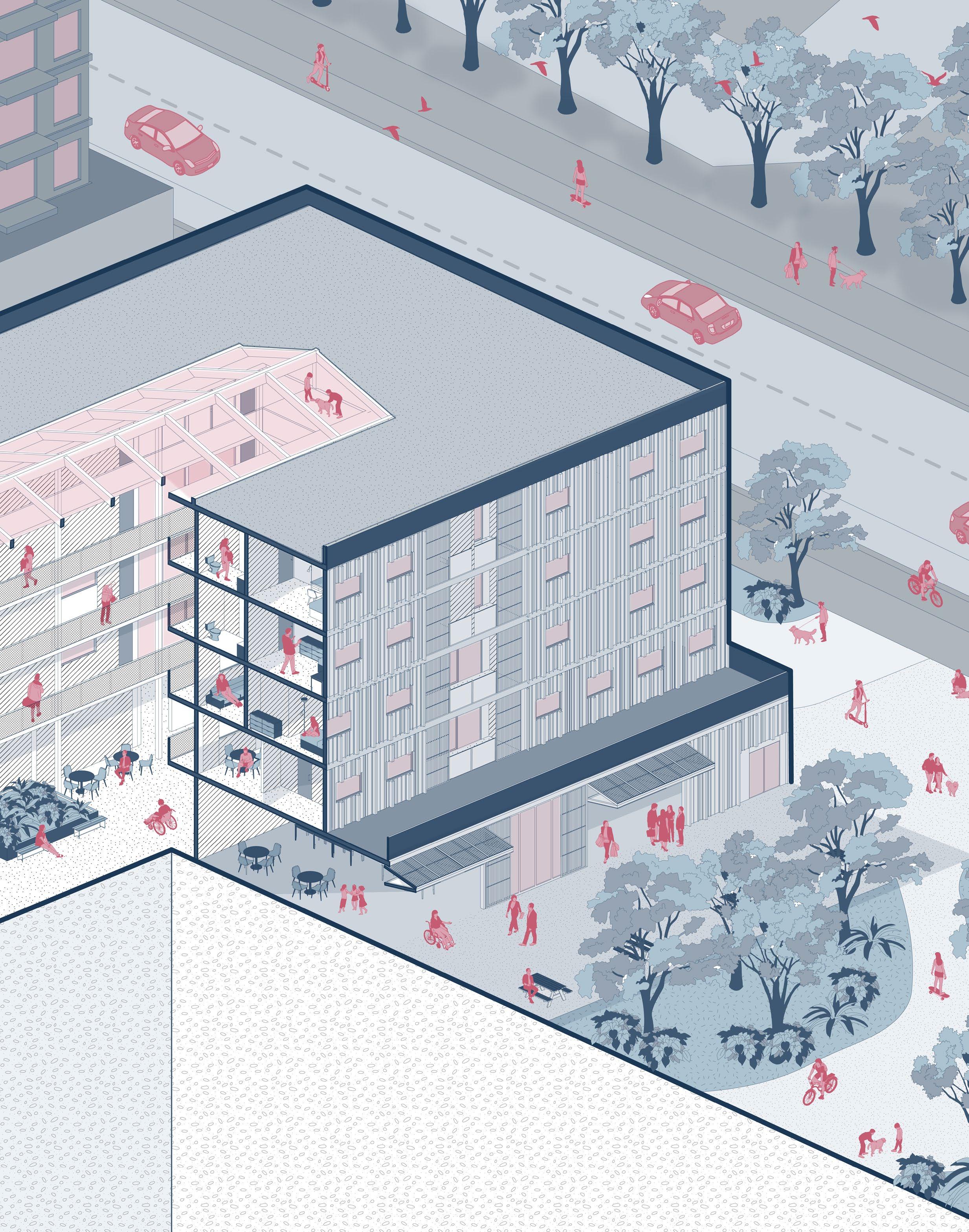

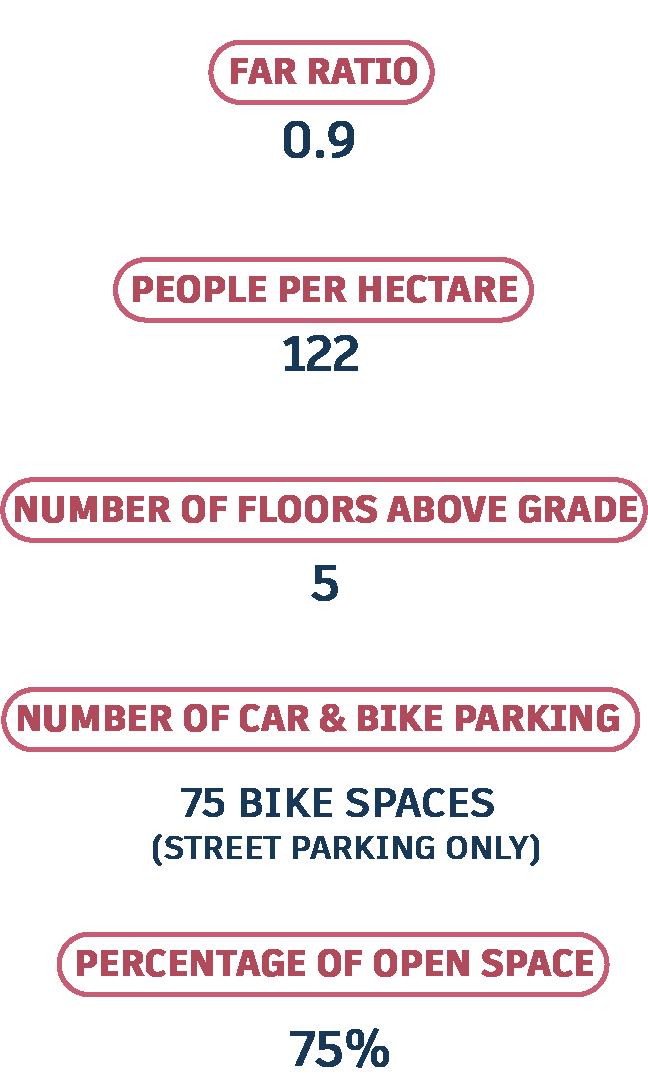

The Fairway Station transit area is influenced by unique factors and challenges. The Vanier neighbourhood has relatively affordable housing, but half the community in unsuitable/unaffordable housing conditions, and suffers from pockets of unfriendly and unapproachable spaces.

Spectra aims to tackle some of these issue present within the Fairway area by offering transitional, support, and social housing options for a wide spectrum of individuals who would benefit from services and spaces to transition back into independent and responsible living. Being steps away from the LRT station positions this housing in a highly activate and public space, which will help encourage growth not only between residents, but more importantly connect these people to the greater community.

The building itself is designed in a way to empower and provide agency to individuals, with units designed specifically to target users that fall within the spectrum of housing outlined earlier. Another spectrum of personal and communal agency varies as one goes up or down the building, all to support growth and foster a sense of community and belonging. Ultimately, the hope is that with support, these residents can eventually reintegrate back into society and give back to the community in a greater act of reciprocity.

8

VOLUME 4

2023

9

SPECTRA

SELECTED WORKS UNITS

4-5F UNIT TYPE SOCIAL HOUSING

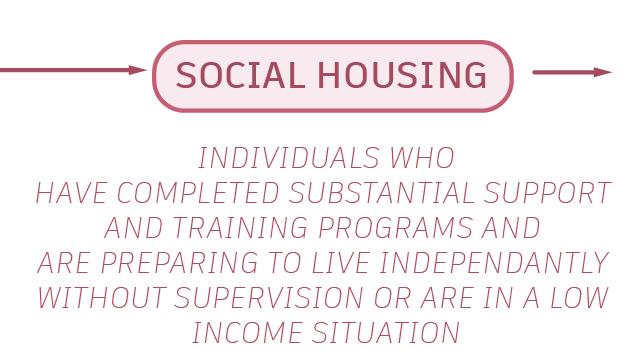

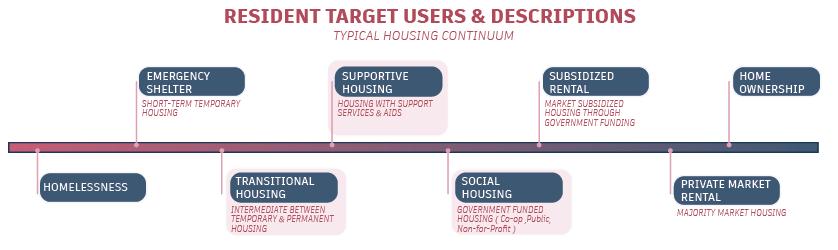

INDIVIDUALS WHO HAVE COMPLETED SUBSTANTIAL SUPPORT AND TRAINING PROGRAMS AND ARE PREPARING TO LIVE INDEPENDANTLY WITHOUT SUPERVISION OR ARE IN A LOW-INCOME SITUATION

3F UNIT TYPE

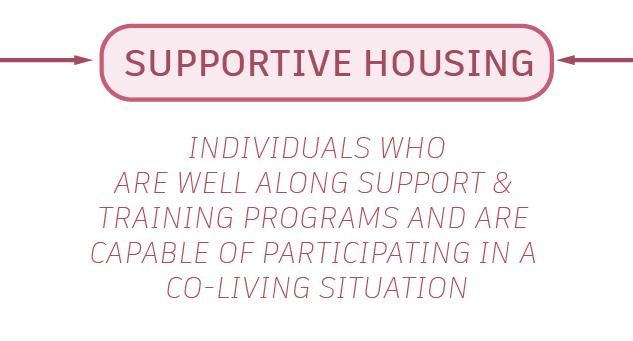

SUPPORT HOUSING INDIVIDUALS WHO ARE WELL ALONG SUPPORT & TRAINING PROGRAMS AND ARE CAPABLE OF PARTICIPATING IN A CO-LIVING SITUATION

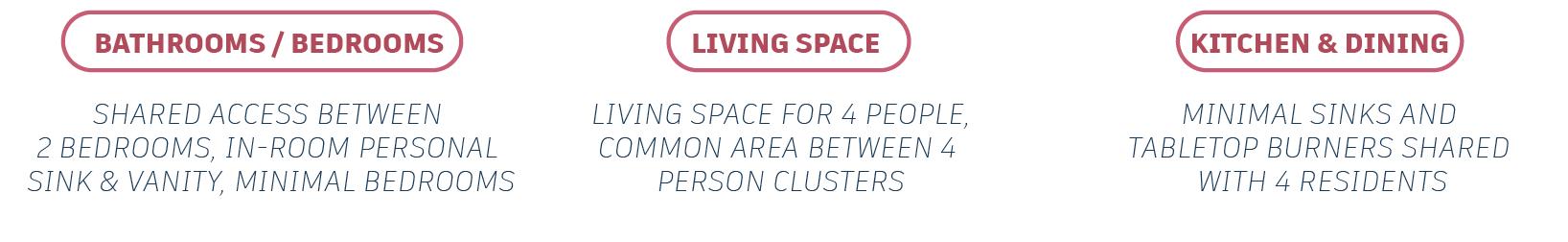

2F UNIT TYPE

TRANSITONAL HOUSING INDIVIDUALS WHO HAVE GONE THROUGH SOME SUPPORT & REHABILITATION BUT REQUIRE SUPERVISION AND CHECKUPS IN A CO-LIVING SITUATION

10

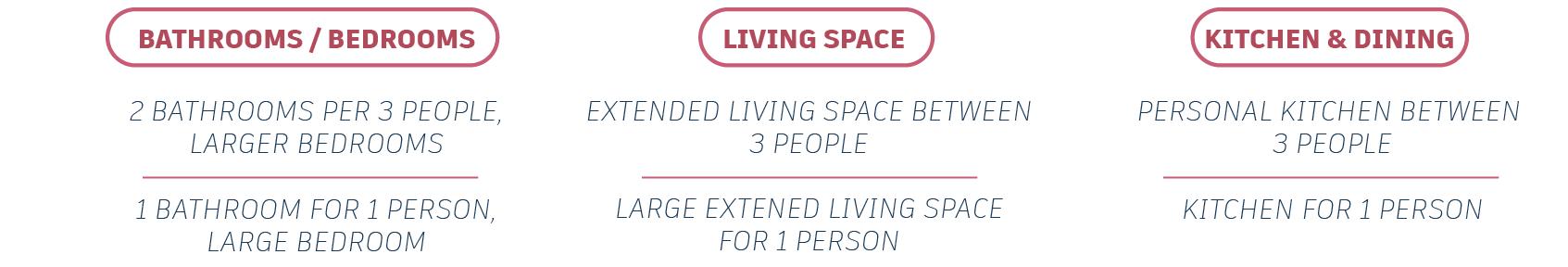

COMMON SPACE

VOLUME 4

2023

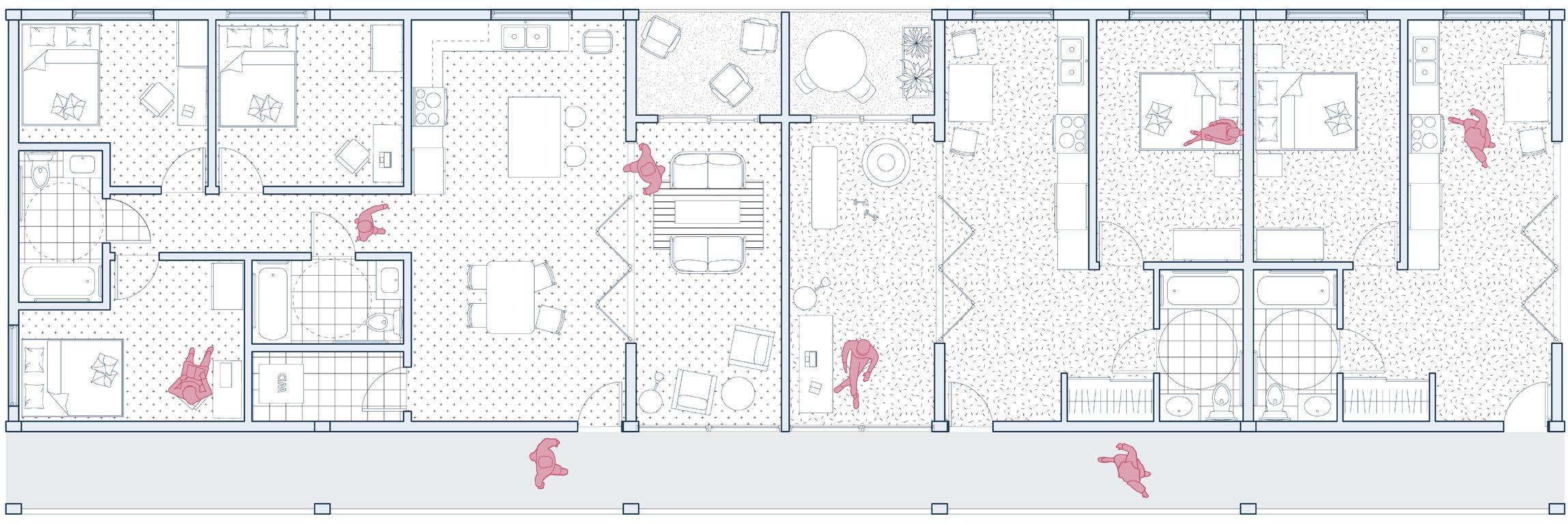

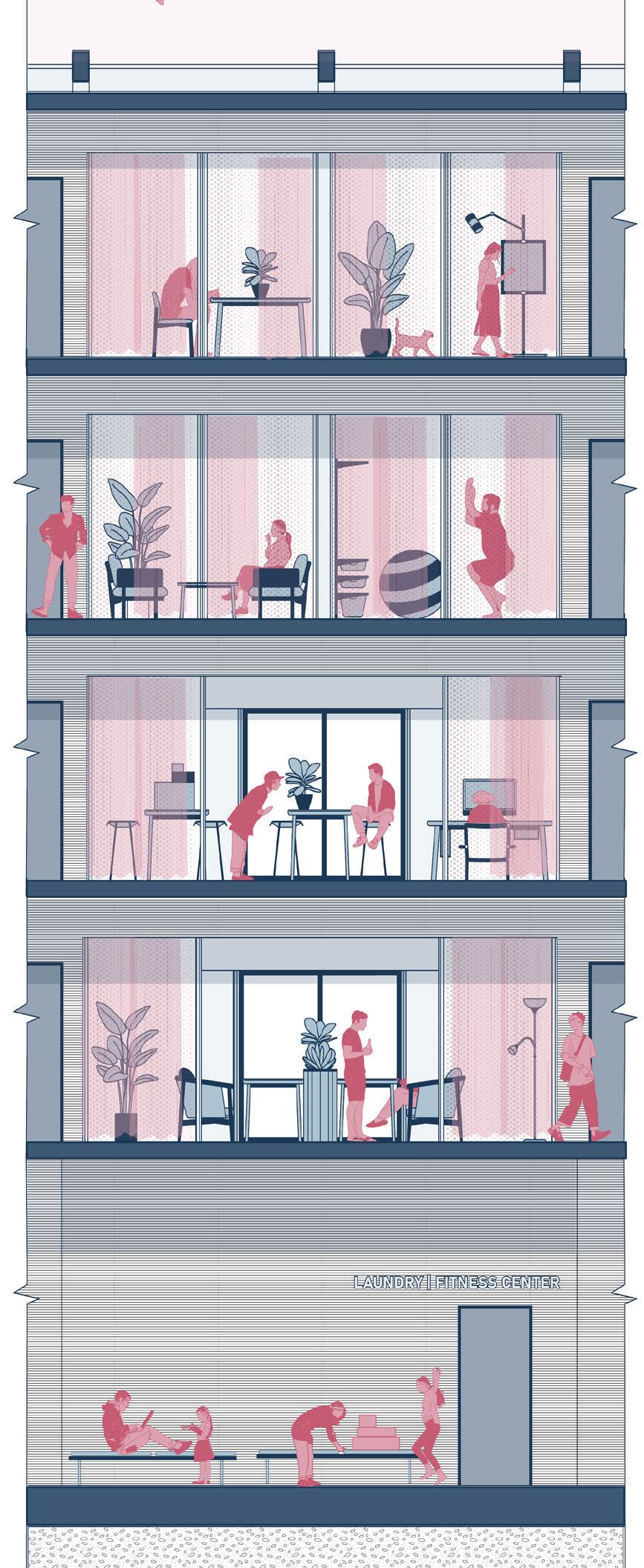

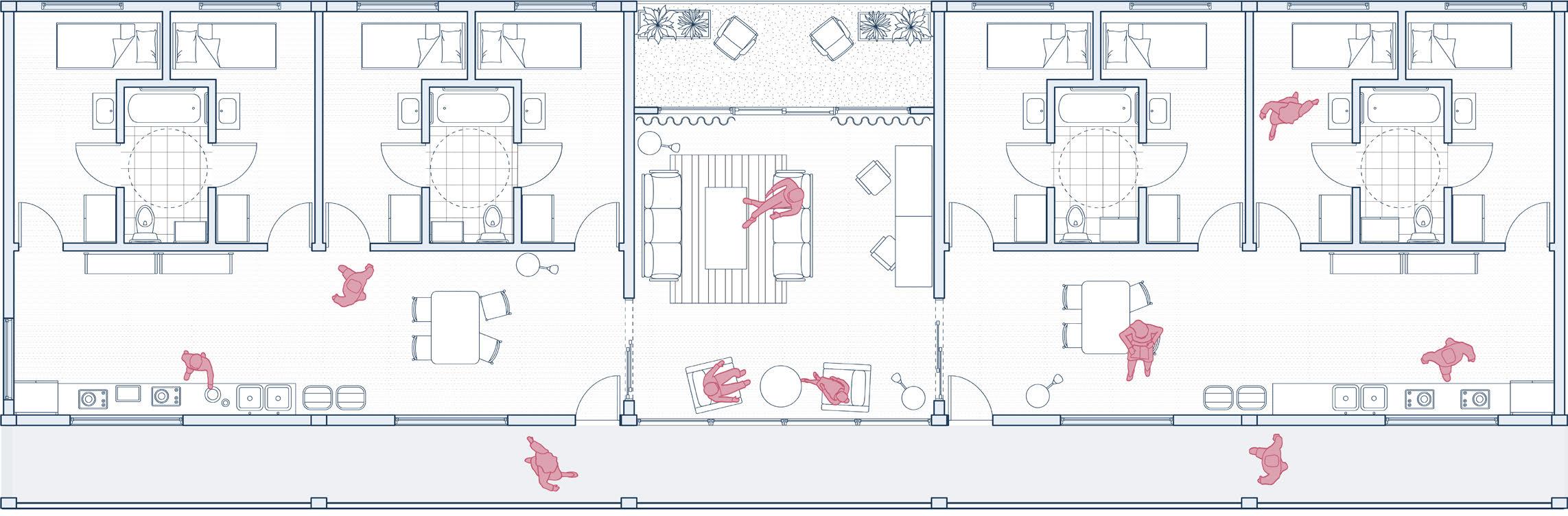

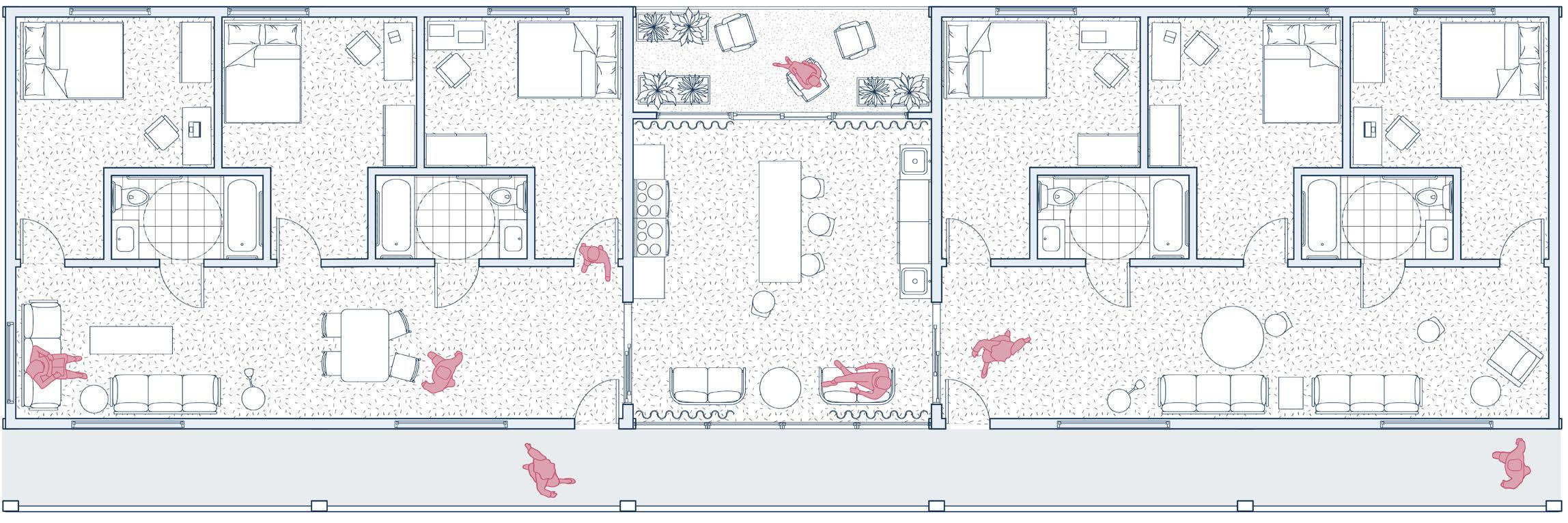

TYPICAL SOCIAL UNIT 1:50

TYPICAL SUPPORT UNIT 1:50

TYPICAL TRANSITIONAL UNIT 1:50

11

SPECTRA

SELECTED WORKS

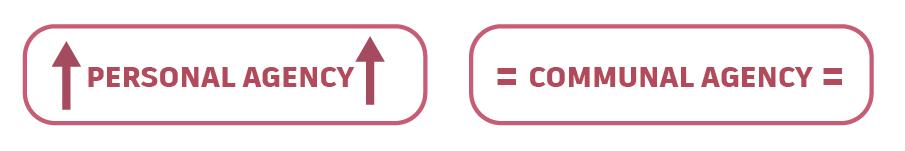

SOCIAL

5th FLOOR PRIVATE EXTENDED SPACE

SOCIAL

4th FLOOR PRIVATE EXTENDED SPACE

SUPPORT

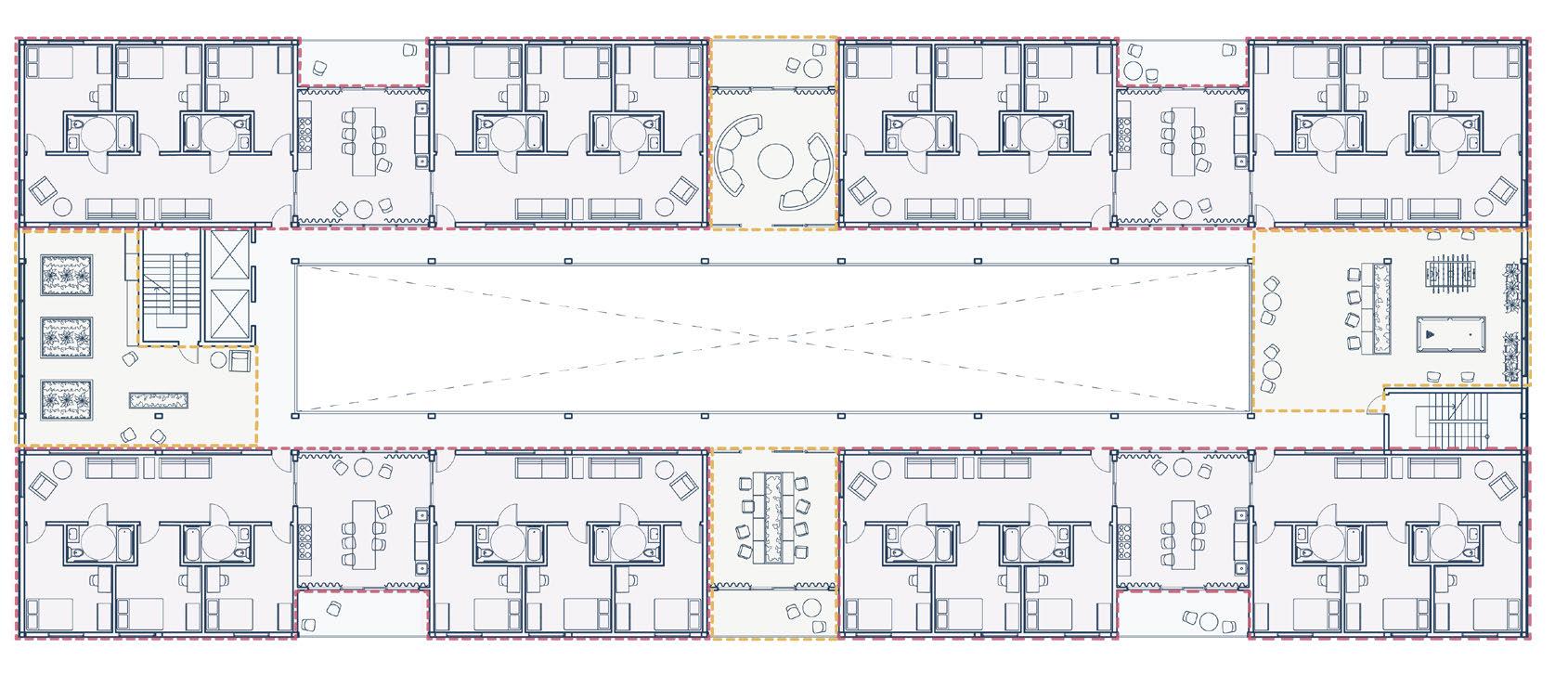

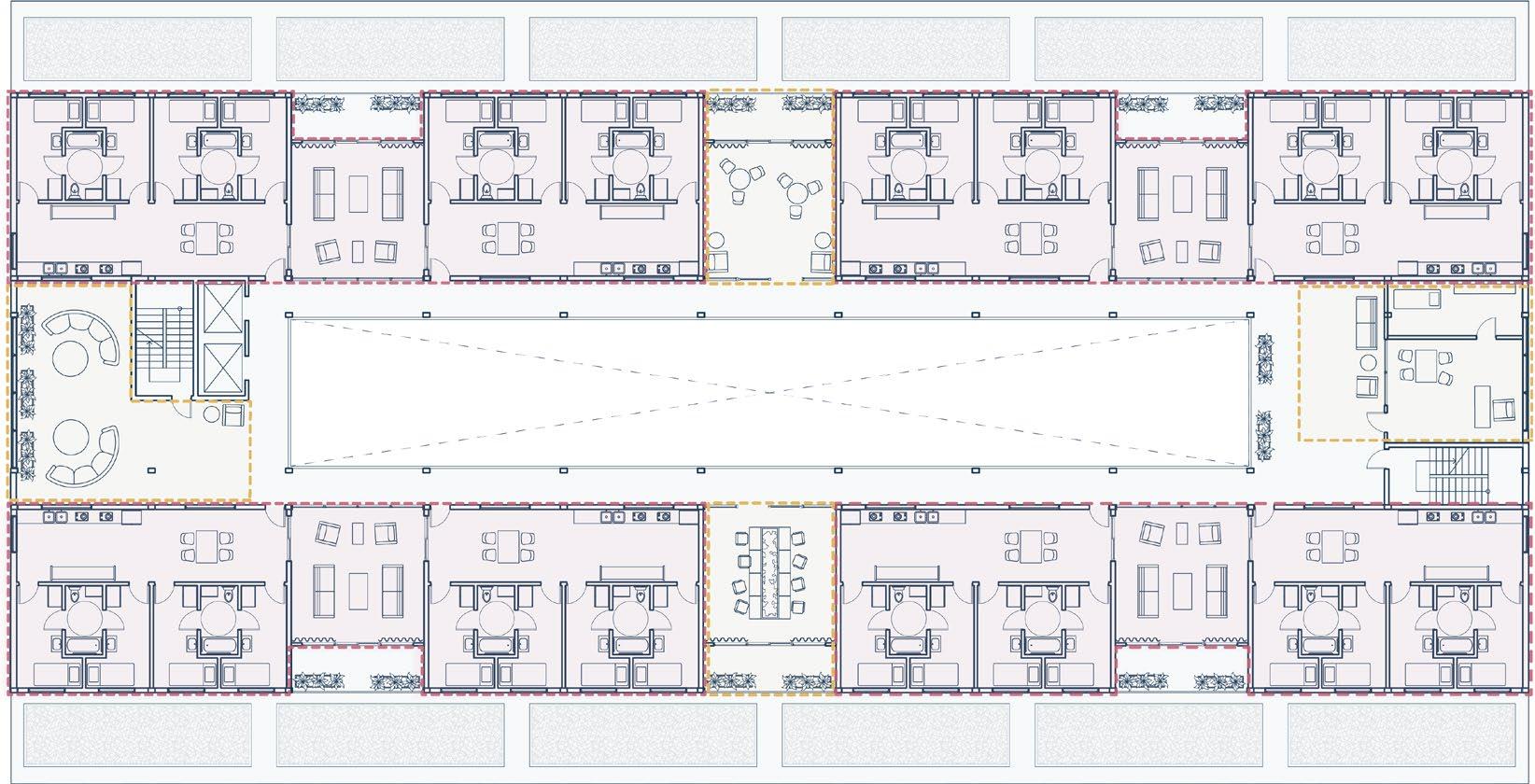

3rd FLOOR UNIT & FLOOR COMMON SPACE

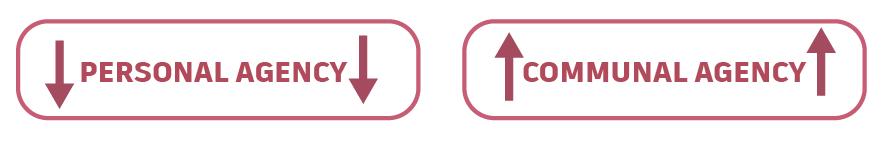

TRANSITIONAL

2nd FLOOR UNIT & FLOOR COMMON SPACE

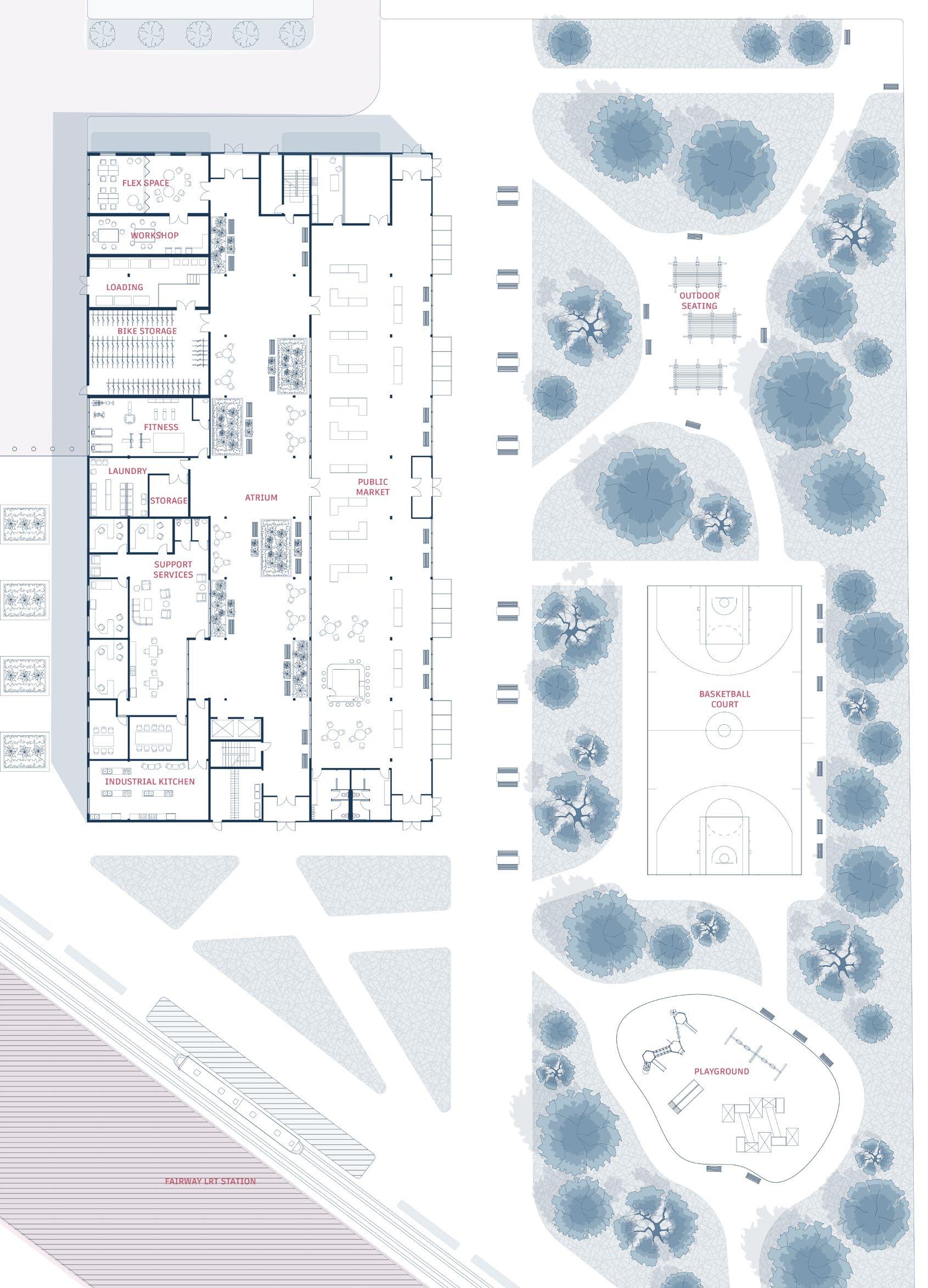

COMMUNITY SERVICES

GROUND FLOOR PUBLIC AMENITY

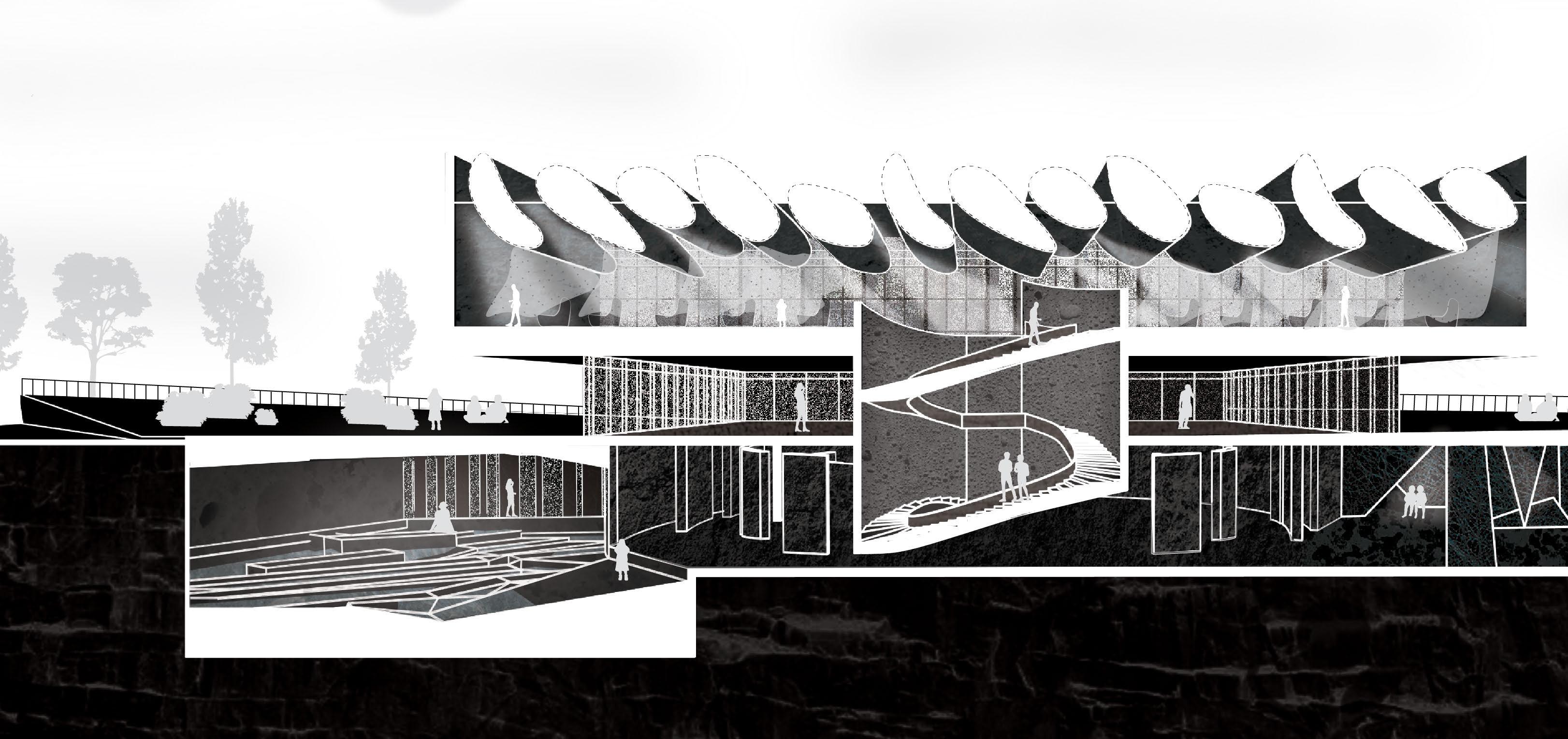

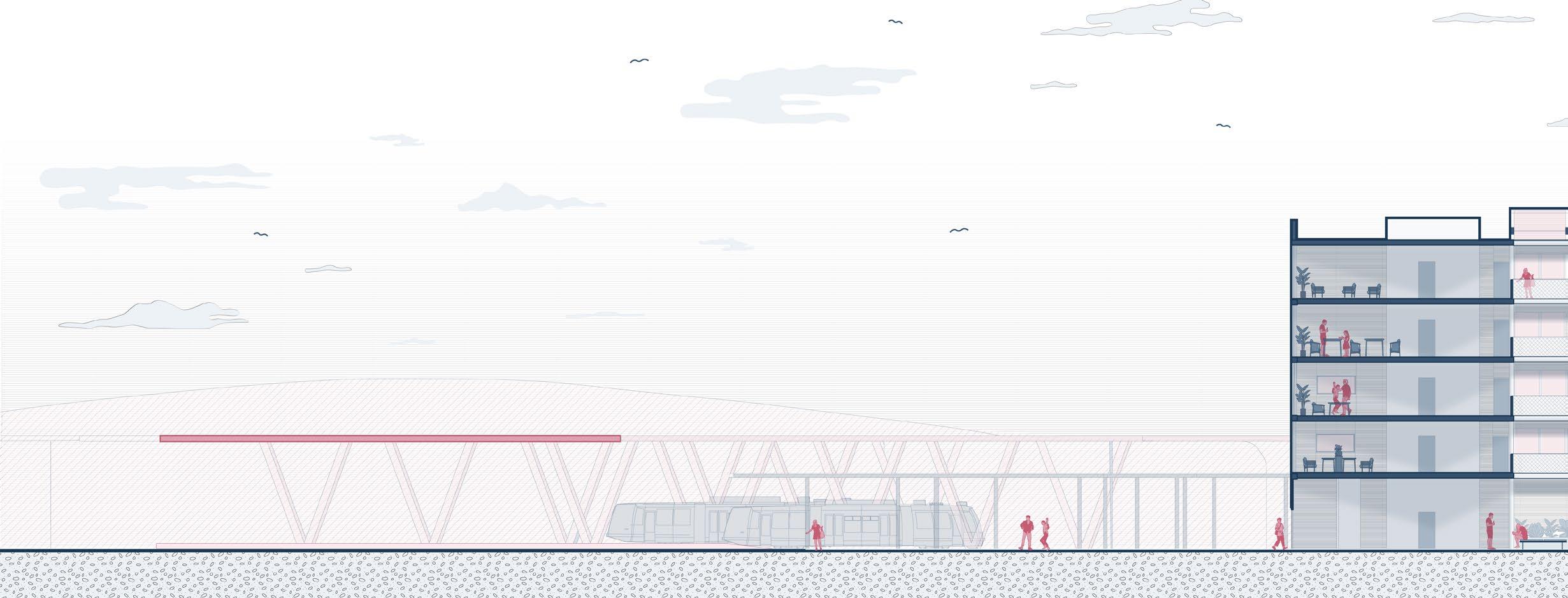

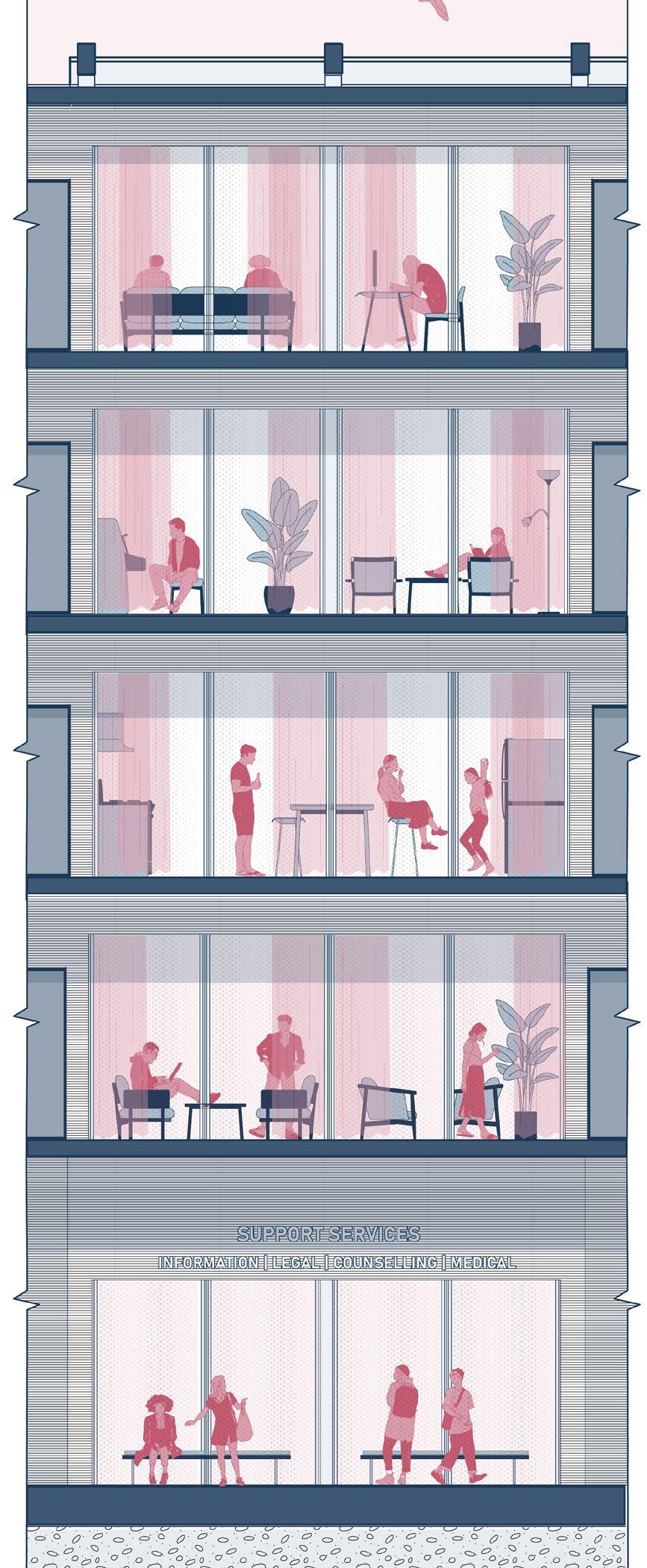

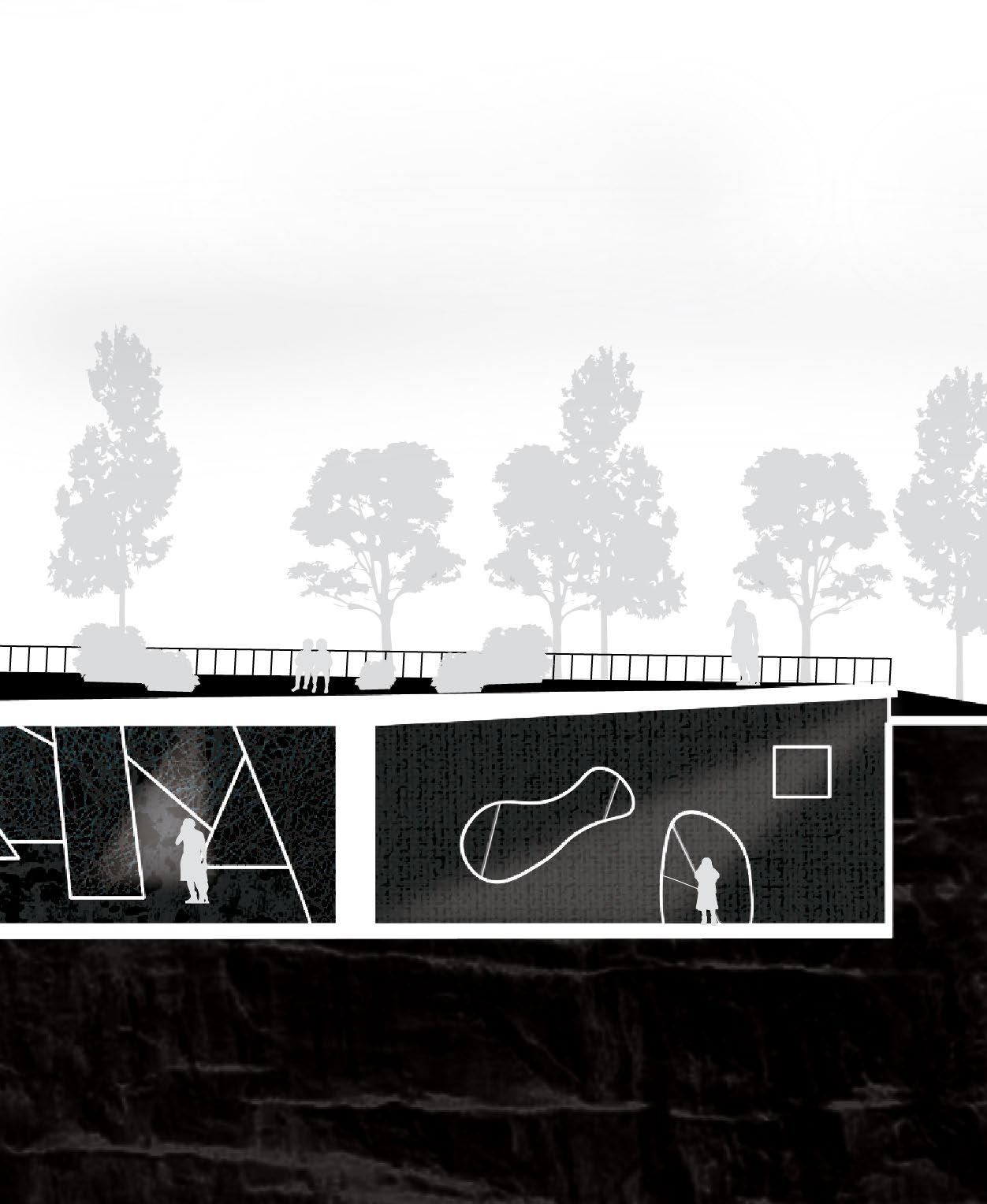

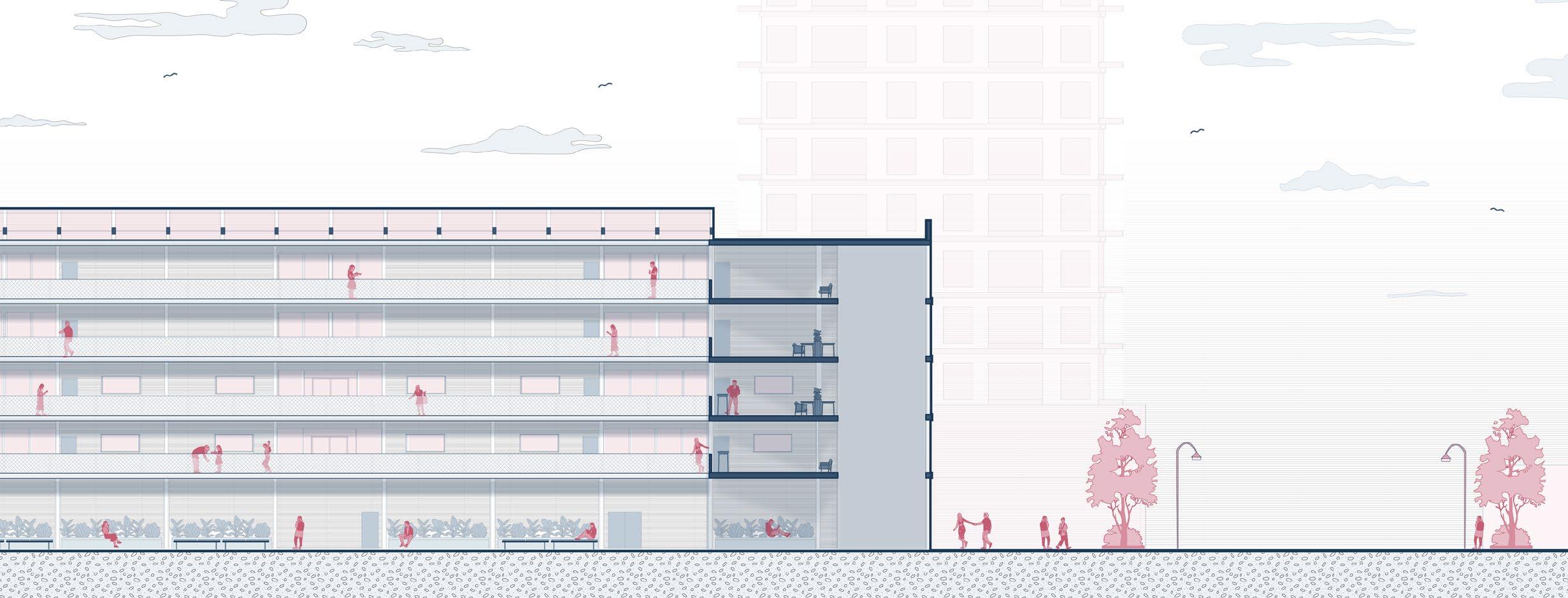

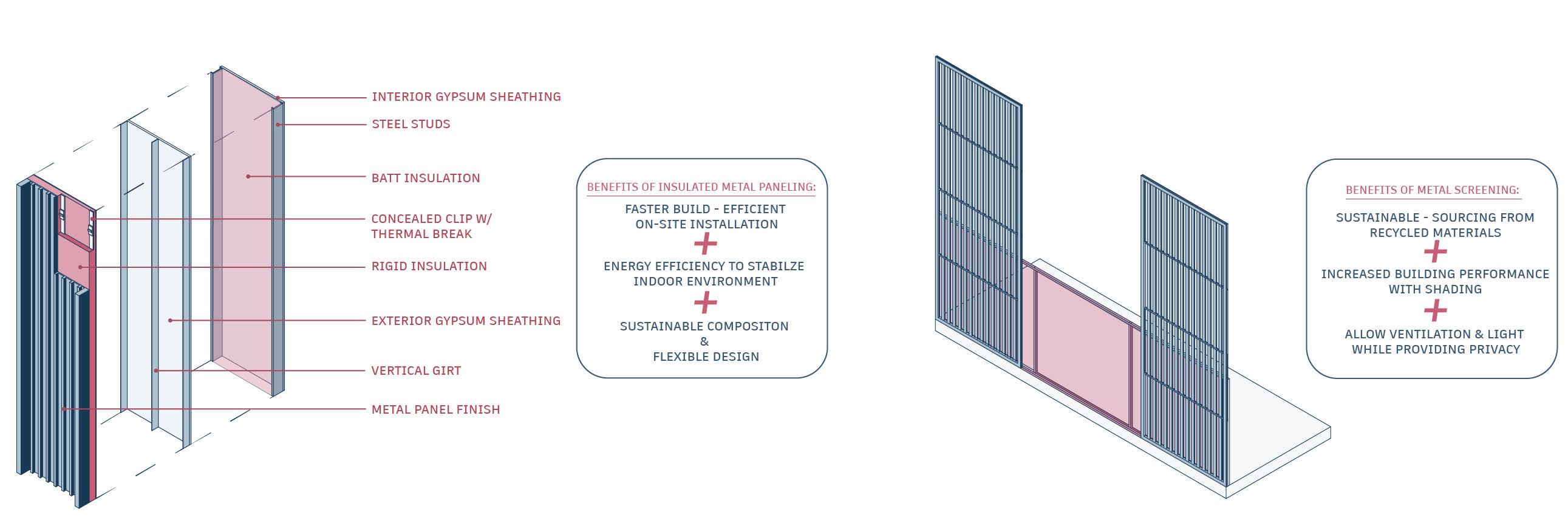

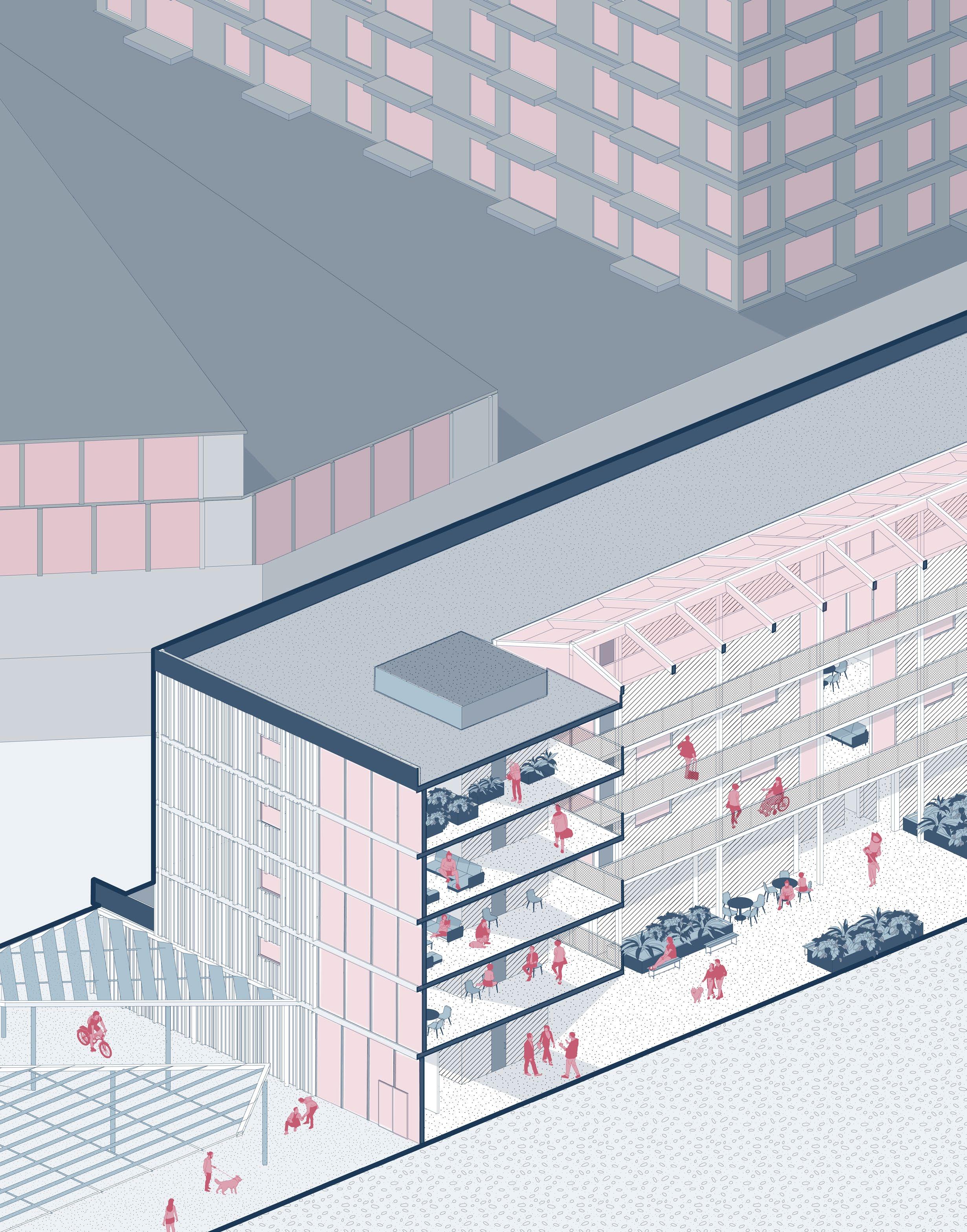

LONGITUDINAL SECTION 12

VOLUME 4

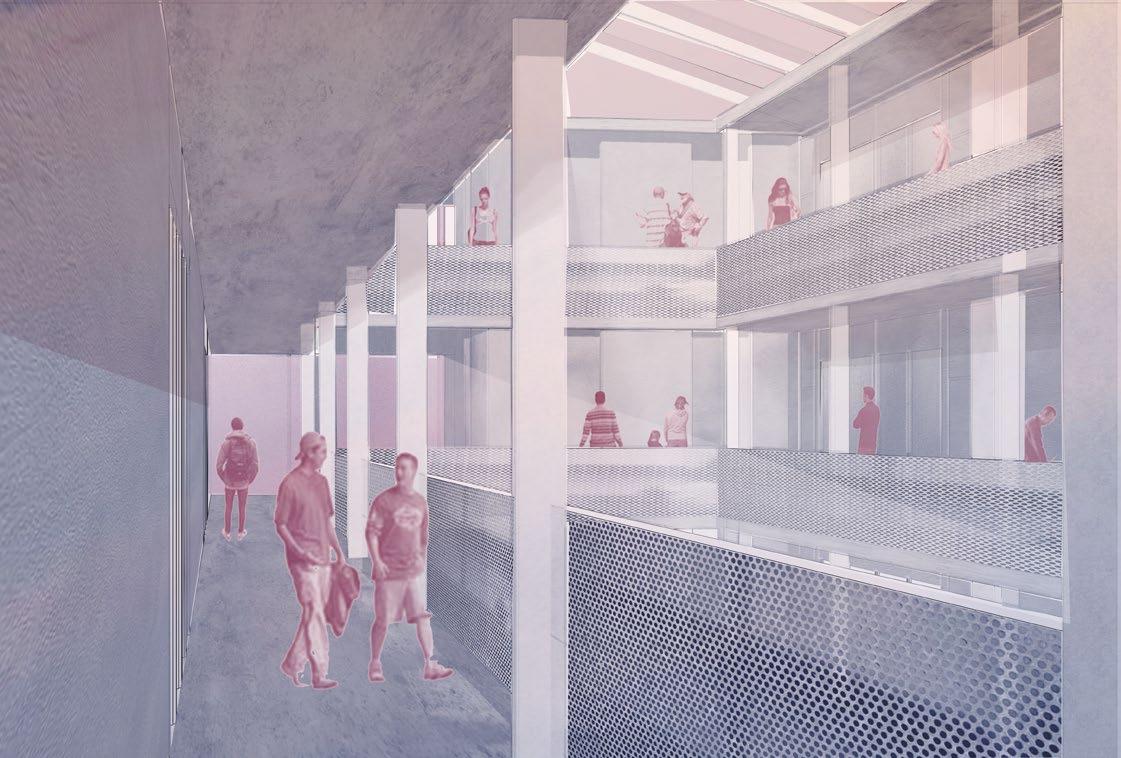

RESIDENTIAL CORRIDOR

2023

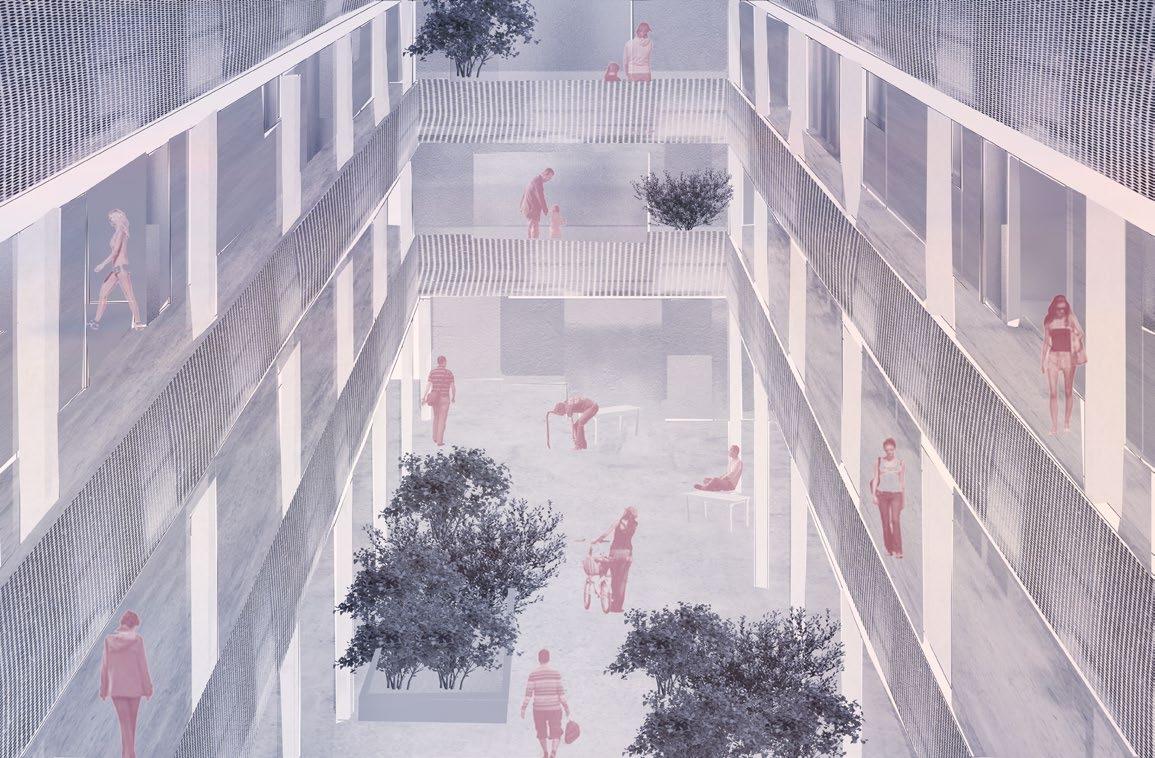

OPEN ATRIUM

13

SPECTRA

14

SELECTED WORKS

VOLUME 4

2023

15

G.R. REFUGE

02 GUADALUPE RIVER REFUGE JUSTICE & REHABILITATION NOVEMBER 2022 / COMPETITION RHINO / ENSCAPE / ILLUSTRATOR / PHOTOSHOP / INDESIGN > IN COLLABORATION WITH ANDREW MCDONALD > HONORABLE MENTION IN ARCH8 “THE CALLOW” COMPETITION

16

SELECTED WORKS

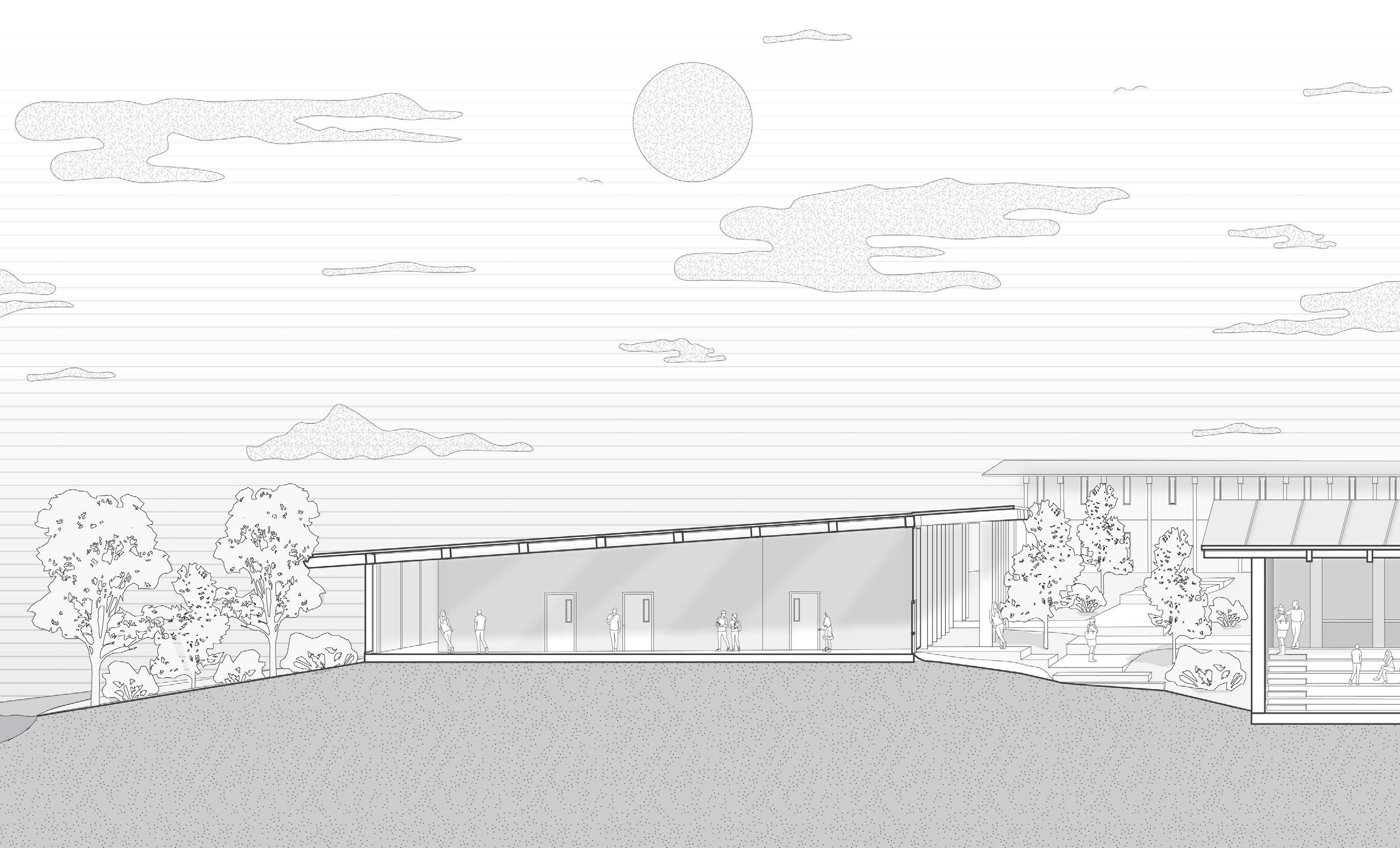

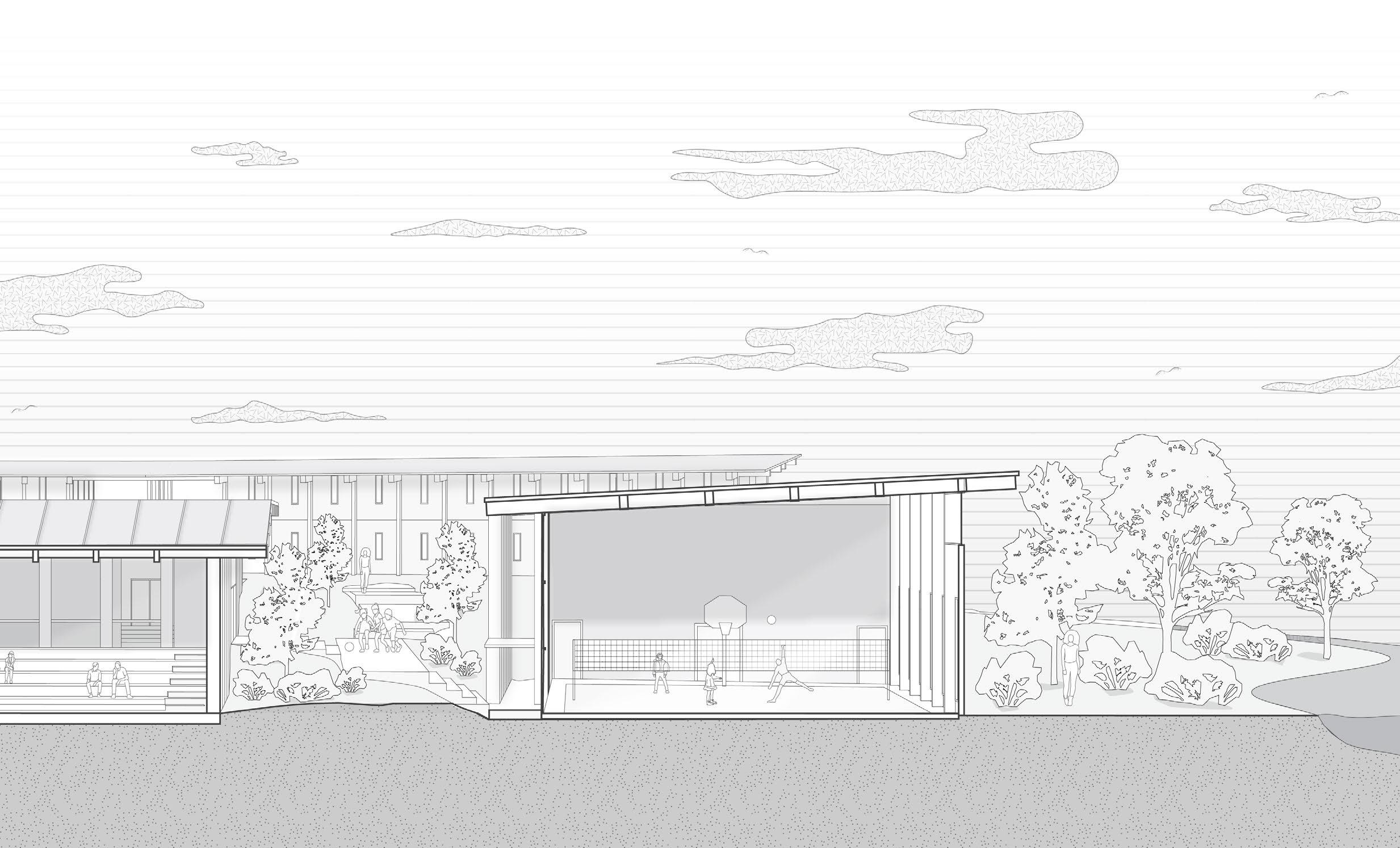

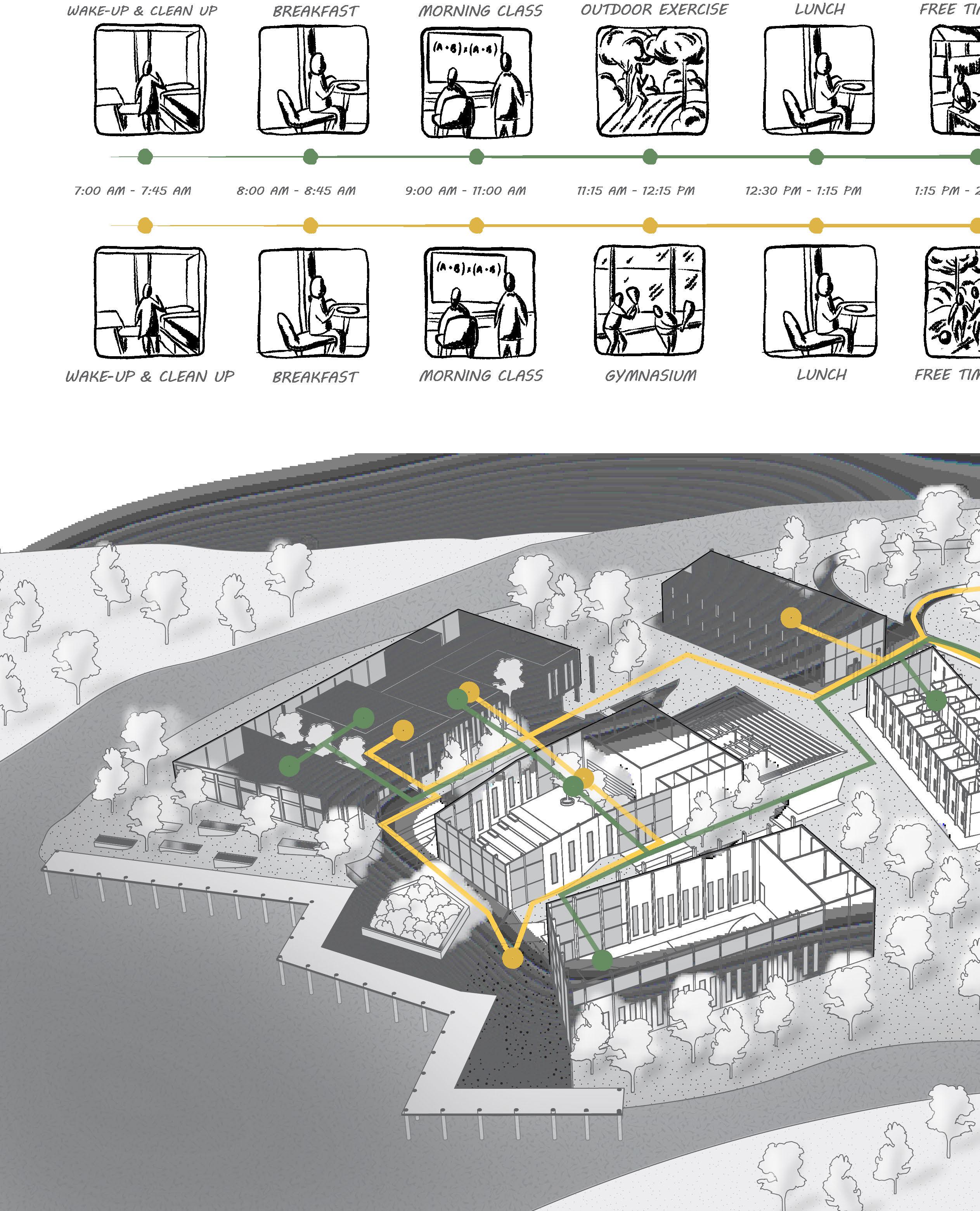

The Guadalupe River Refuge rethinks the American penitentiary system from one that is based in punishment to one that is based on wellbeing and education. This site is based North of San Antonio, Texas, by the Guadalupe River. This site was chosen because Texas’s juvenile system is currently nearing total collapse, with juveniles facing harsh living conditions.

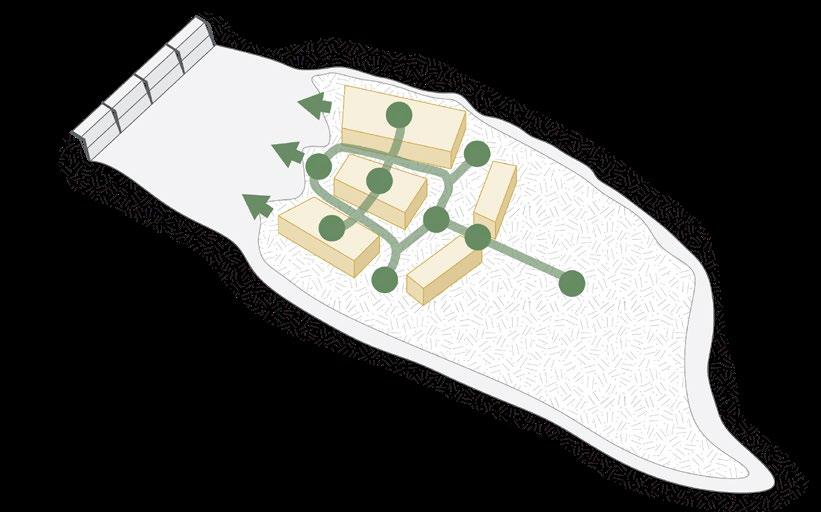

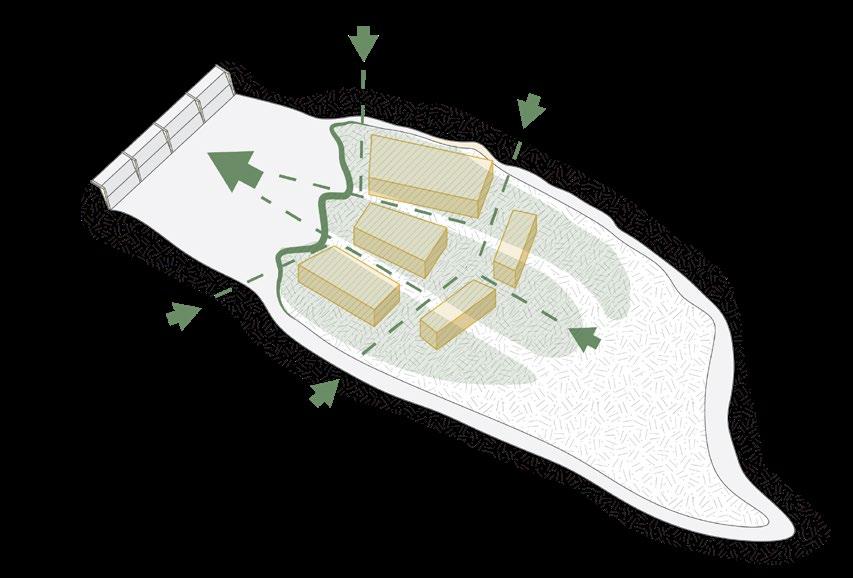

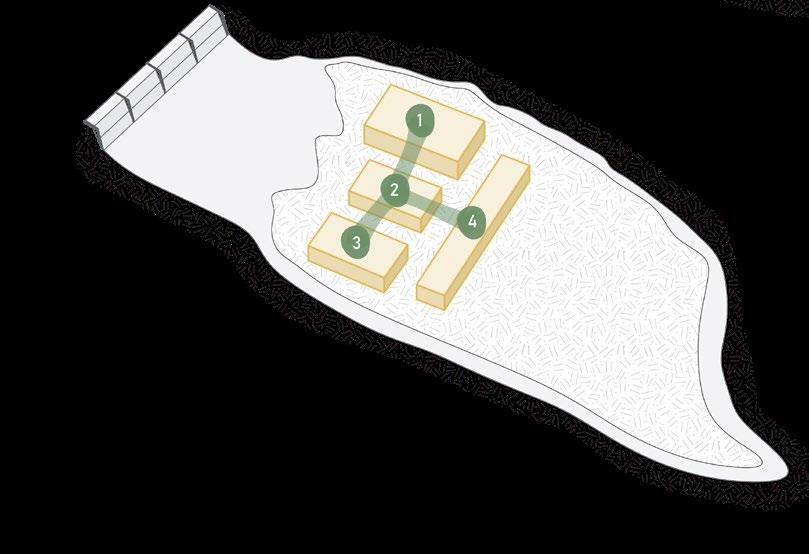

Having the site organized like a campus allows for the juveniles to have a “commute” to their daily activies where the planned circulation will take them through native vegetation and natural breezeways coming from the dam. A humane approach is used in the design, focusing on the wellbeing and development of the juvenile. Spaces are more generous so not to trigger any anxiety or fear, and warm and neutral materials are used across all the buildings. Direct visual access to outdoors are available in all rooms and buildings and access to water on site exist to instill peace and a sense of respite for the juveniles.

VOLUME 4

2023

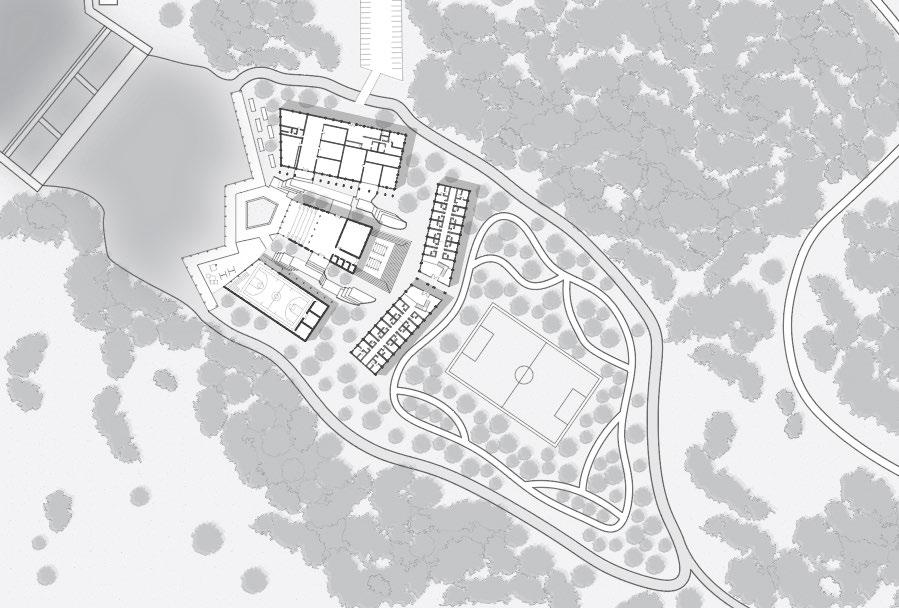

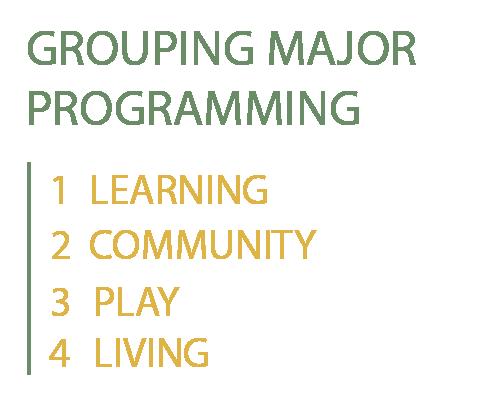

MAJOR PROGRAMMING

[ ] ADMINISTRATION

LEARNING

COMMUNITY

ACTIVITY

LIVING

CLASSROOMS FINE ARTS SPACE LIBRARY COMPUTER LAB

CAFETERIA SPACE KITCHEN GAREN/ORCHARD WATERFRONT SPACE

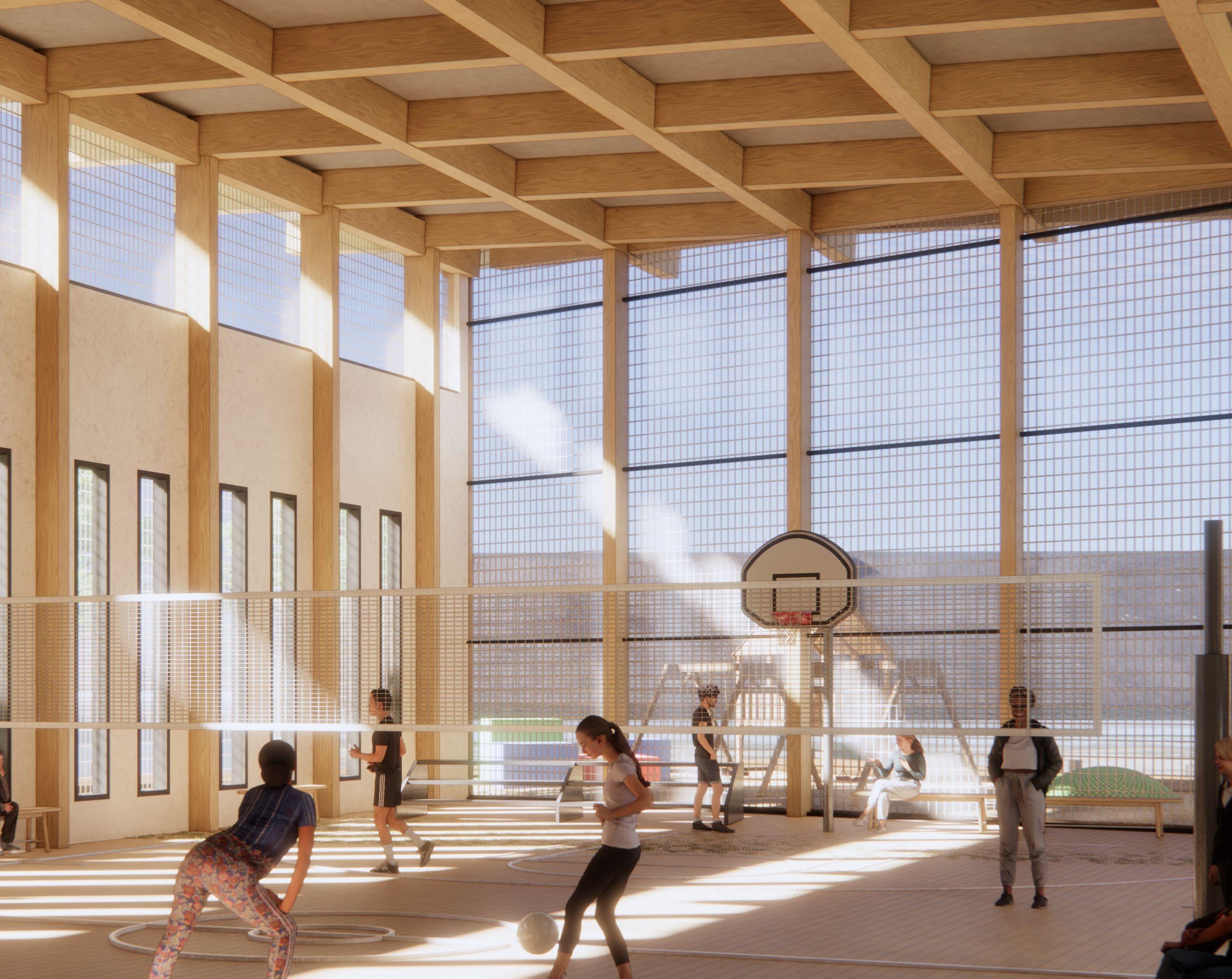

DANCE STUDIO SPORTS FIELD GYMNNASIUM PLAYGROUND

JUVENILE RESIDENCES STAFF RESIDENCES DOCTOR’S OFFICE COUNSELOR’S OFFICE

PARKING LOT RECEPTION OFFICES CONFERENCE ROOM SECURITY OFFICE

DESIGN PRINCIPLES

17

G.R. REFUGE

18

SELECTED WORKS

VOLUME 4

2023

19

20

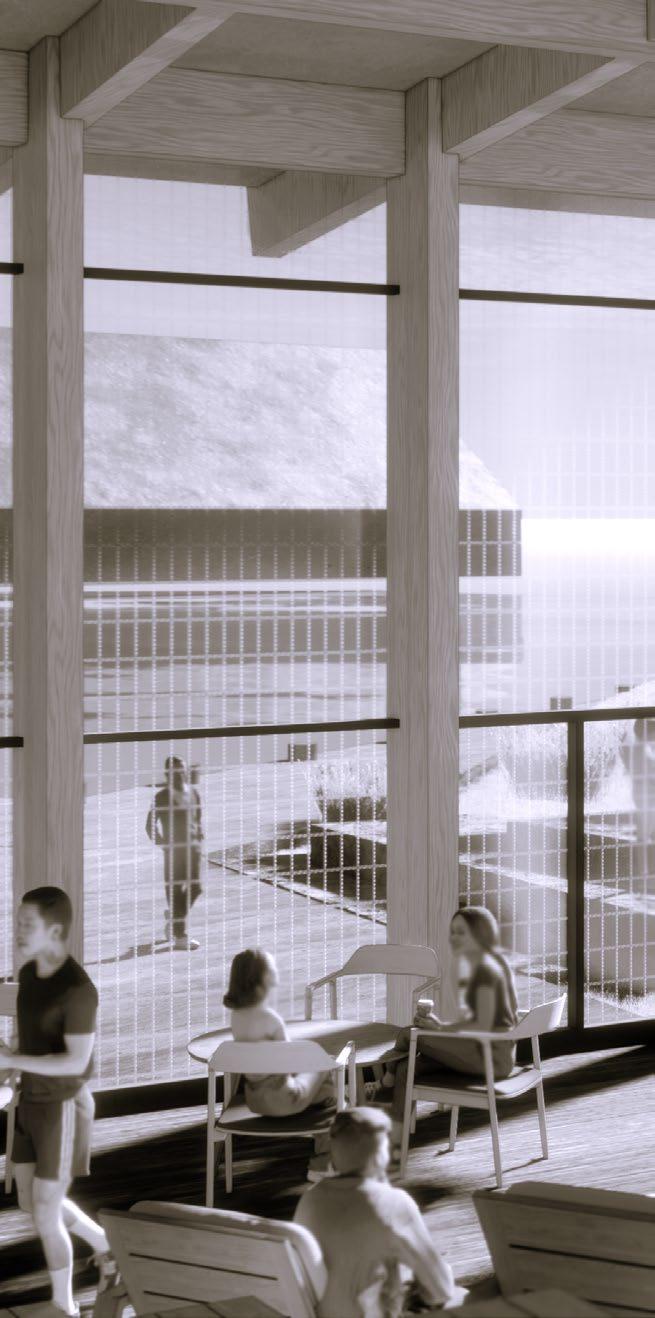

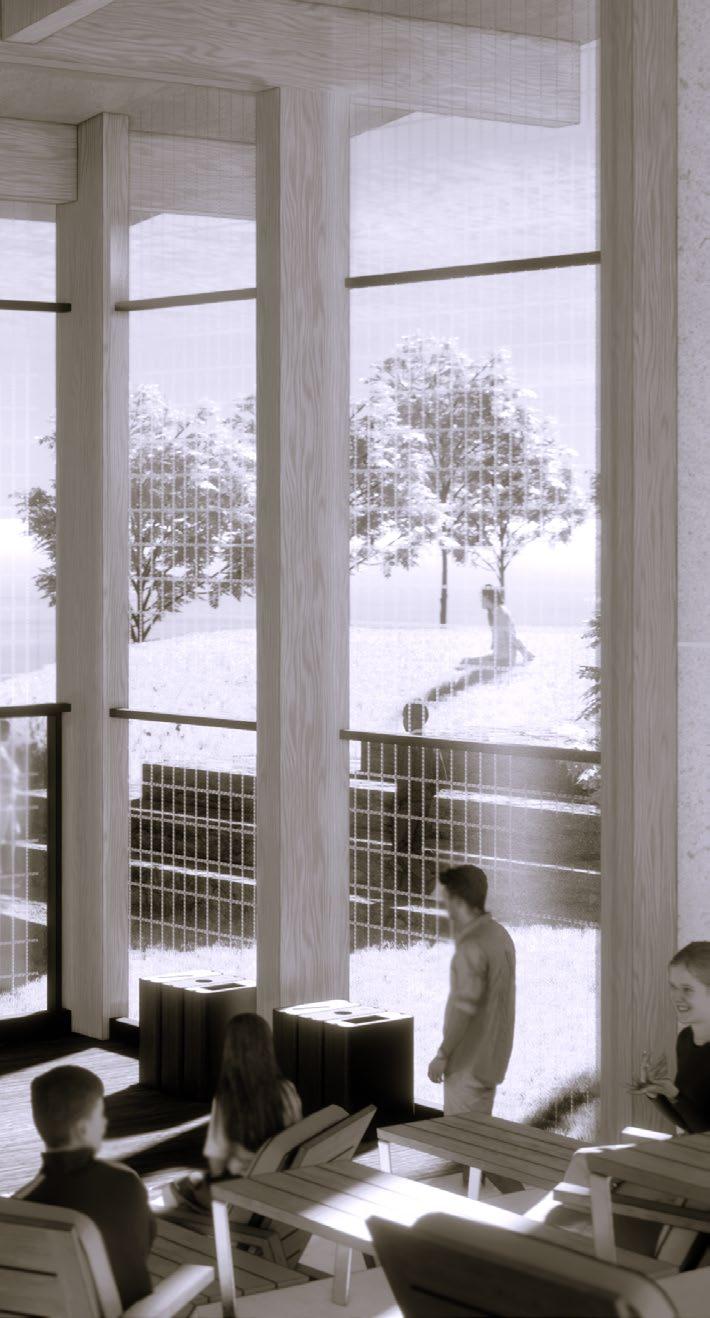

COMMUNITY: CAFETERIA & GATHERING

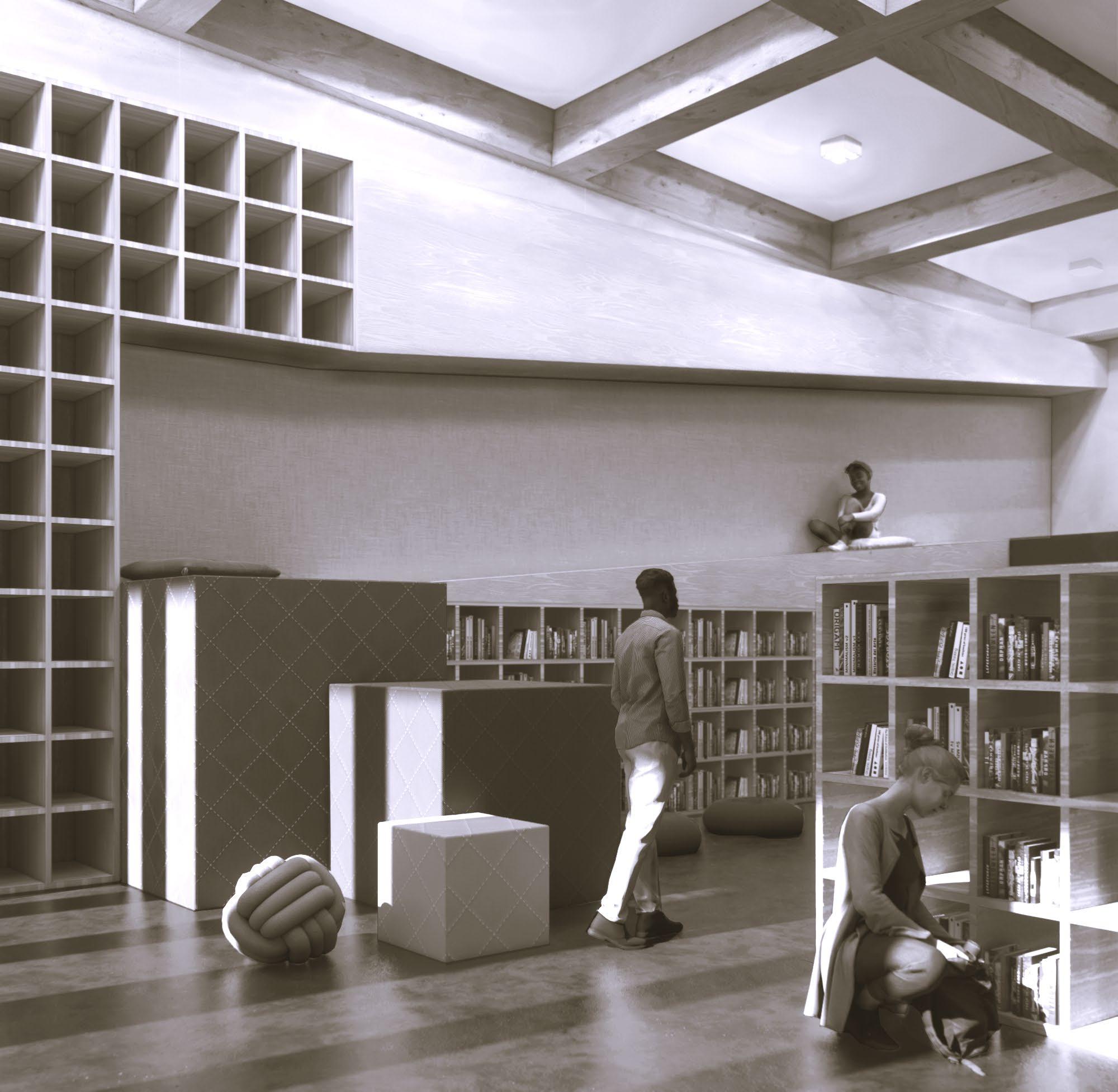

EDUCATION: LIBRARY & LAB SPACE

G.R. REFUGE SELECTED WORKS

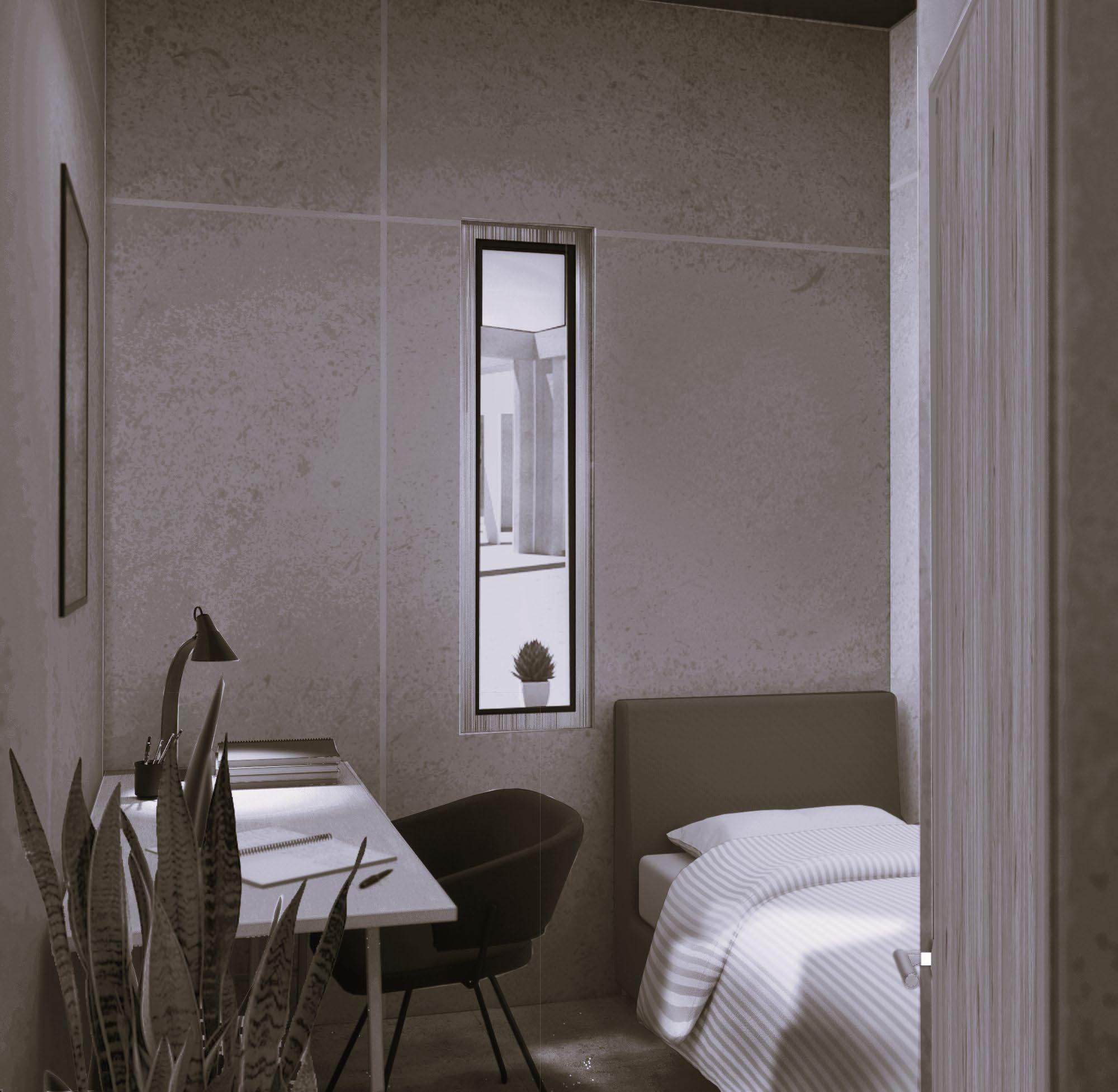

REST: PERSONAL QUARTERS VOLUME 4 2023

21

G.R. REFUGE

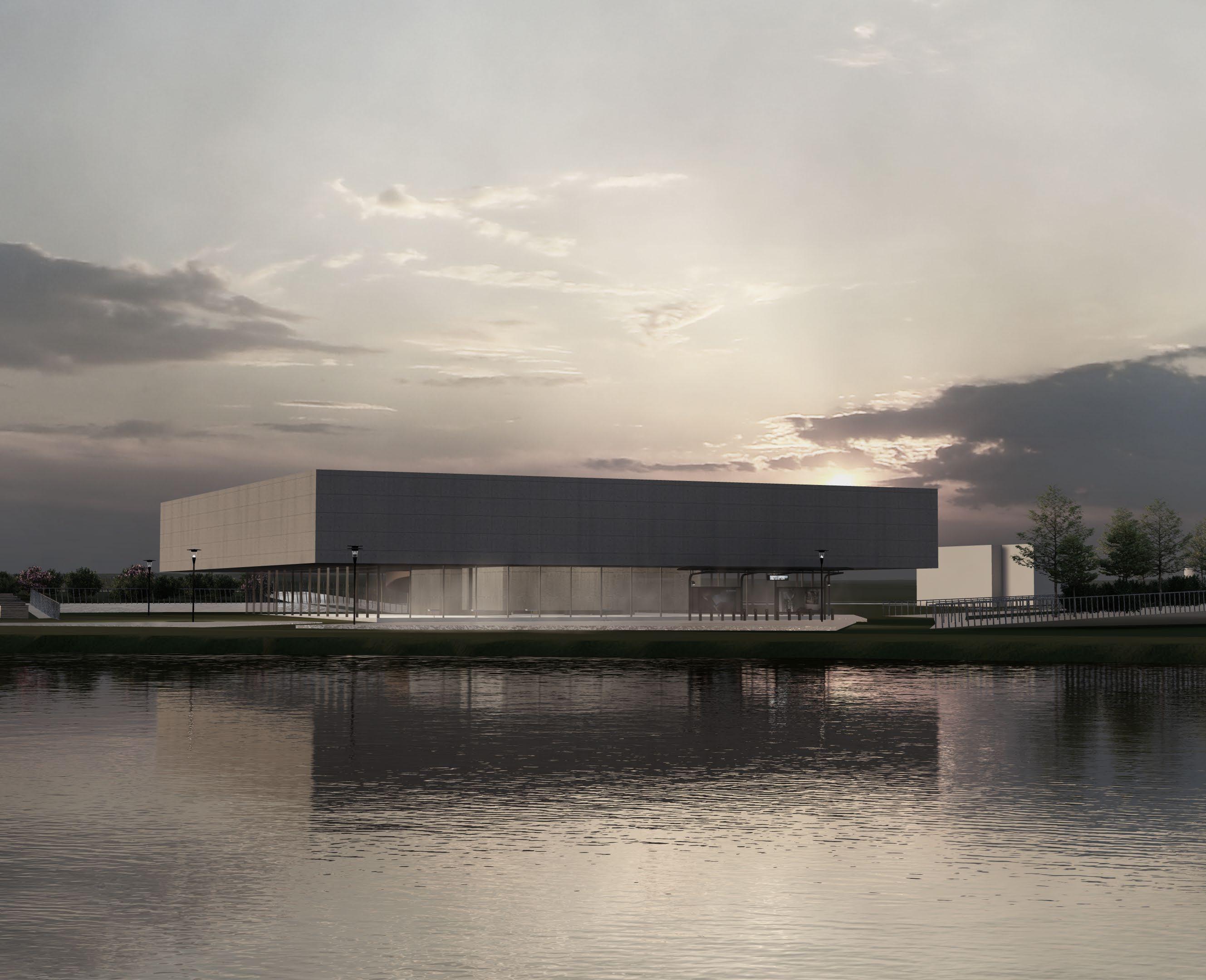

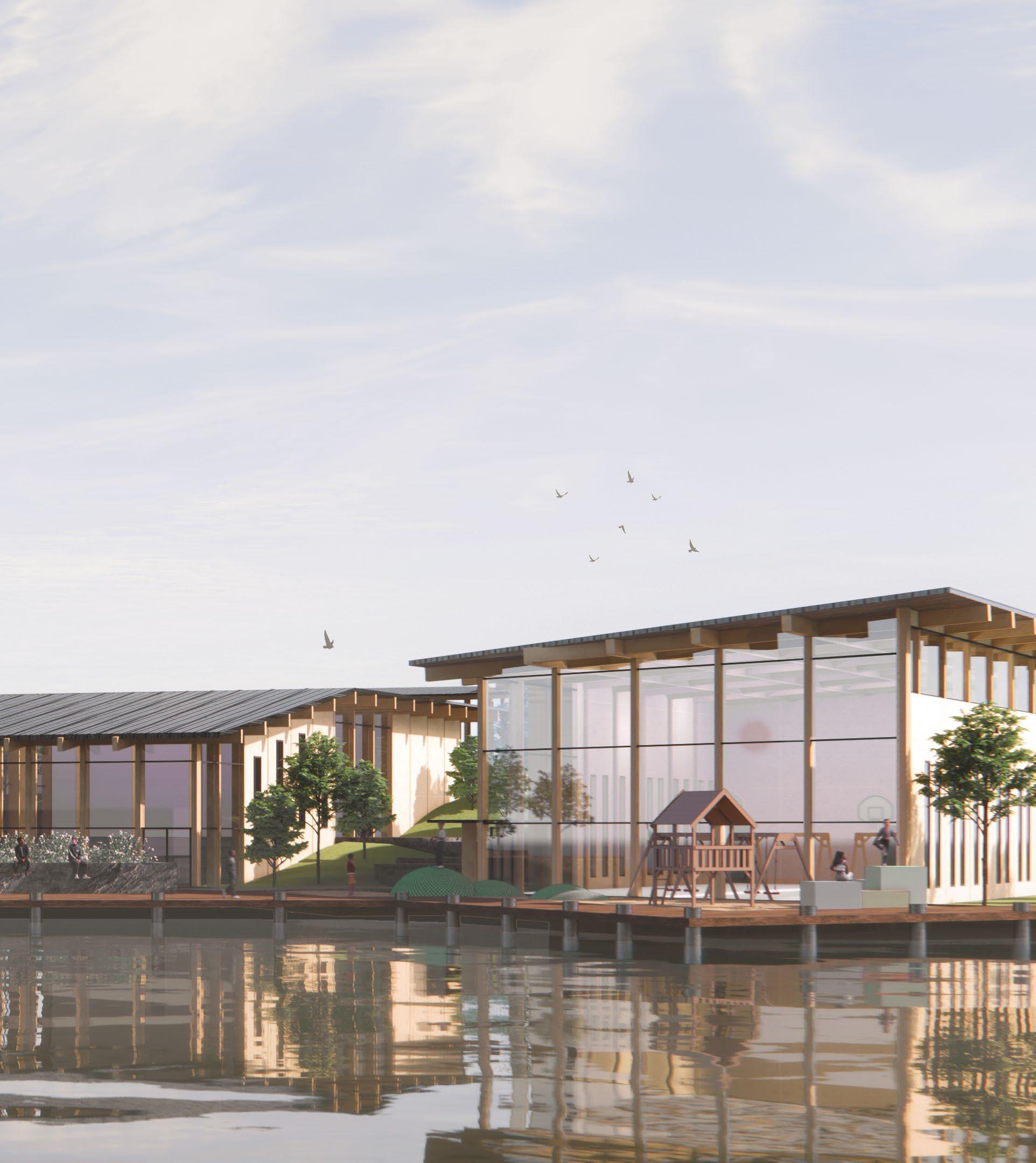

VIEW OF CAMPUS ACROSS THE LAKE 22

SELECTED WORKS

VOLUME 4

2023

23

REACTIVATING FAIRWAY

03 REACTIVATING FAIRWAY URBAN MASTERPLANNING FEBRUARY 2023 RHINO / ENSCAPE / ILLUSTRATOR / PHOTOSHOP / INDESIGN > IN COLLABORATION WITH BRIANNA KLEI, NATHAN CHOI, AND NAYA SANCHEZ

SELECTED WORKS

The Waterloo Region’s ION LRT system is a recently completed rapid transit system for the greater municipality.

Regional authorities are looking to future planning and strategies to develop strong transit oriented design along this LRT corridor and its various stops. Fairway station is the terminus station along the track, currently servicing a large shopping mall and other plazes and strip malls. This neighbourhood development vision seeks to transform the neighbourhood and commercial area around the station into a vibrant multigeneration community. These design principles guide the project’s development: 1. Develop Fairway into a transportation and community hub 2. Create substantial connectivity between surrounding communities and the central hub for both pedestrians, cyclists, and motorists.

3. Construct safe, direct, and convenient pedestrian access to all amenities.

4. Establish a multi-generational diverse community where residents are encouraged to linger and socialize.

5. Provide ample support for the Indigenous community in the surrounding area.

24

KIN GS WA YD RI V

E

14 VOLUME 4

5 6

12 17

15 5

E 3

8

13

18

11

6

3

15

16

5

14 9

14

KIN

12

3

13 5

D ROA AY3 W R FAI

18

2

17

16

5

11

3

10 7

NG SW AY DR IV

13

GS WA YD RIV E

4

2023

12 18

11

4 3

3

10 8

7

WILSO N AVE

NUE

9

8

3

K DBAC

S LAN ENOU INDIG

9

3

2

D ROA AY RW FAI

3

1

-WORK LIVE HOUSING LIVE-WORK HOUSING

10

A

2

TRANSIT STATION TRANSIT STATION

11

I

3

MIXED MIXED USEUSE

12

M

4

-OPHOUSING CO HOUSING CO-OP

13

C

5

-ORIENTED FAMILY FAMILY-ORIENTED HOUSINGHOUSING

14

F

6

SENIOR HOUSING SENIOR HOUSING

15

S

7

GALLERY + STUDIO GALLERY + STUDIO SPACESSPACES

16

F

8

INDIGENOUS CENTRE INDIGENOUS CENTRE

17

M

9

COMMUNITY KITCHEN COMMUNITY KITCHEN + CLASSROOMS

18

P

1

LIVE-WORK HOUSING

ARENA 10 ARENA

2

TRANSIT STATION

11

INDOOR RECREATIONAL POOL POOL INDOOR RECREATIONAL

3

MIXED USE

12

MEDICAL CLINIC + RESEARCH LABS MEDIAL CLINIC + RESEARCH

4

CO-OP HOUSING

13

COMMUNITY CENTRE + LIBRARY + COUNSELING COMMUNITY CENTRE + LIBRARY

5

FAMILY-ORIENTED HOUSING

FITNESS CENTRE CENTRE 14 FITNESS

6

SENIOR HOUSING

15

SENIOR CENTRE SENIOR CENTRE

7

GALLERY + STUDIO SPACES

16

FINANCIAL INSTITUTION FINANCIAL INSTITUTION

8

INDIGENOUS CENTRE

17

MOVIE AND COMMUNITY THEATRE MOVIE / COMMUNITY THEATRE

9

COMMUNITY KITCHEN + CLASSROOMS

18

PUBLIC PARK PUBLIC PARK

3

OAD YR A 1 RW FAI K DBAC

S LAN ENOU INDIG

1

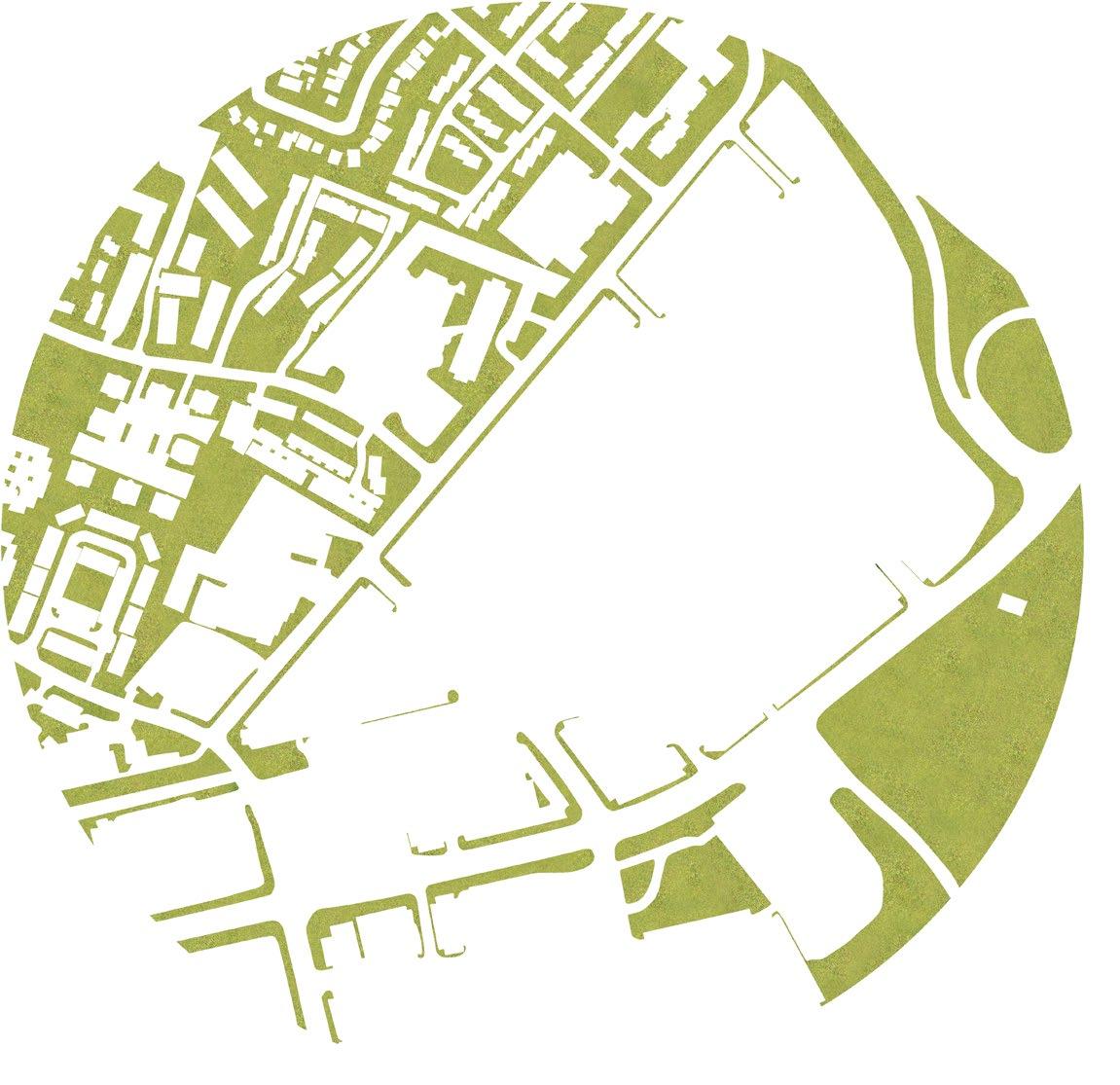

PARTI

K DBAC

S LAN ENOU INDIG

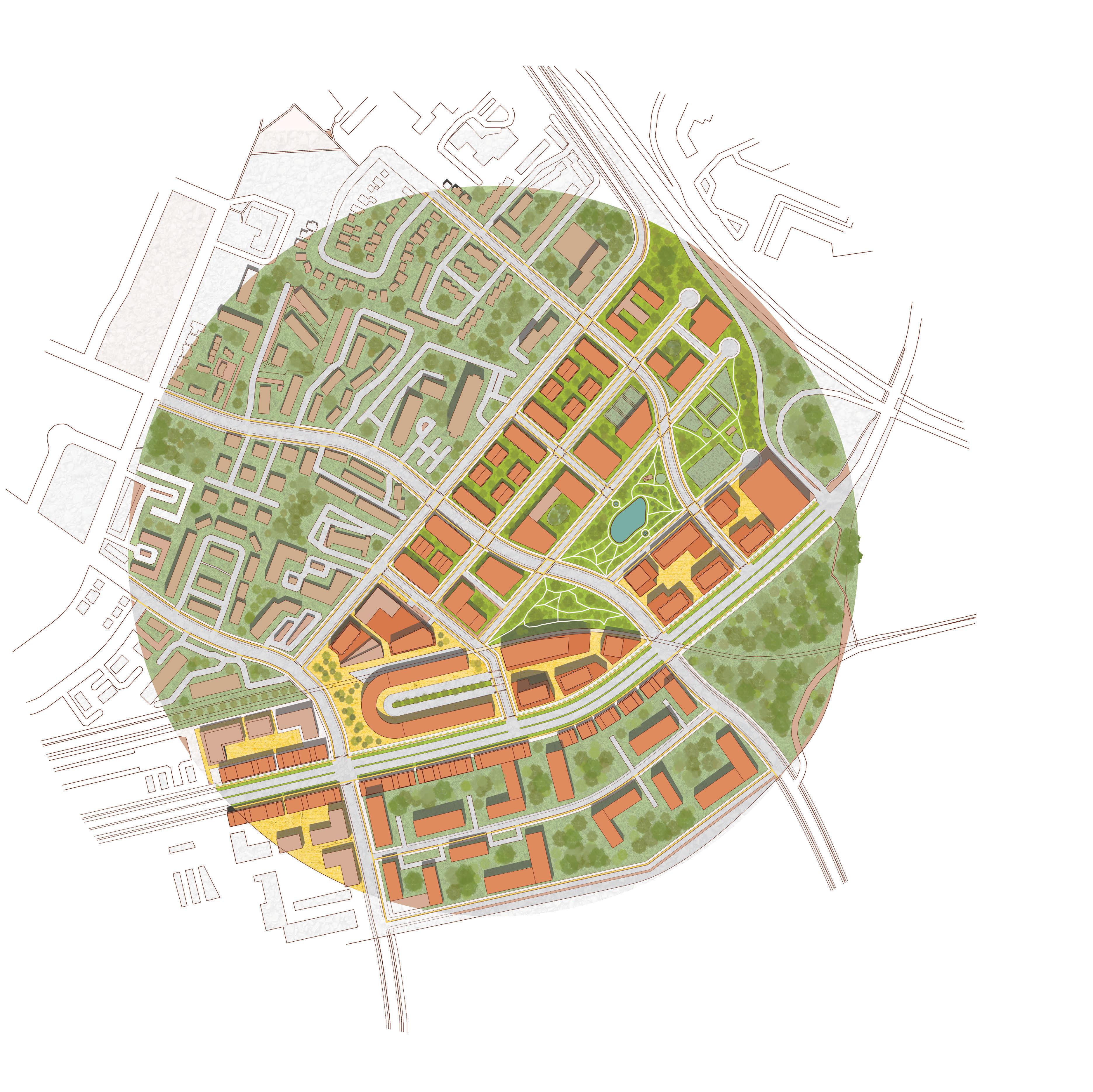

PROPOSED SITE PLAN

MOVIE THEATRE

WALMART

MEDICAL CLINIC

WALMART

FAIRVIEW PARK MALL FARM BOY

LEONS SHOPPERS DRUGMART CHICK-FIL-A

BEST BUY

MOXIES FARM BOY

MOVIE THEATRE

MEDICAL CLINIC

EXISTING SITE AMENITIES

PROPOSED SITE ZONES + AMENITEIS

25

SELECTED WORKS

REACTIVATING FAIRWAY

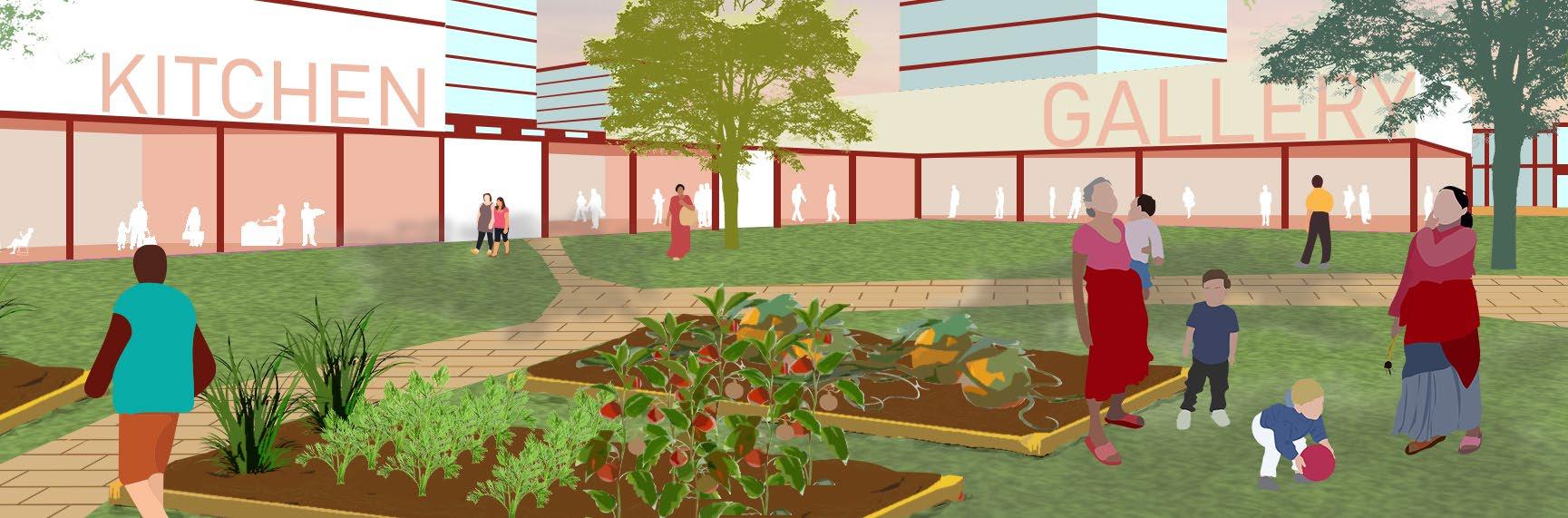

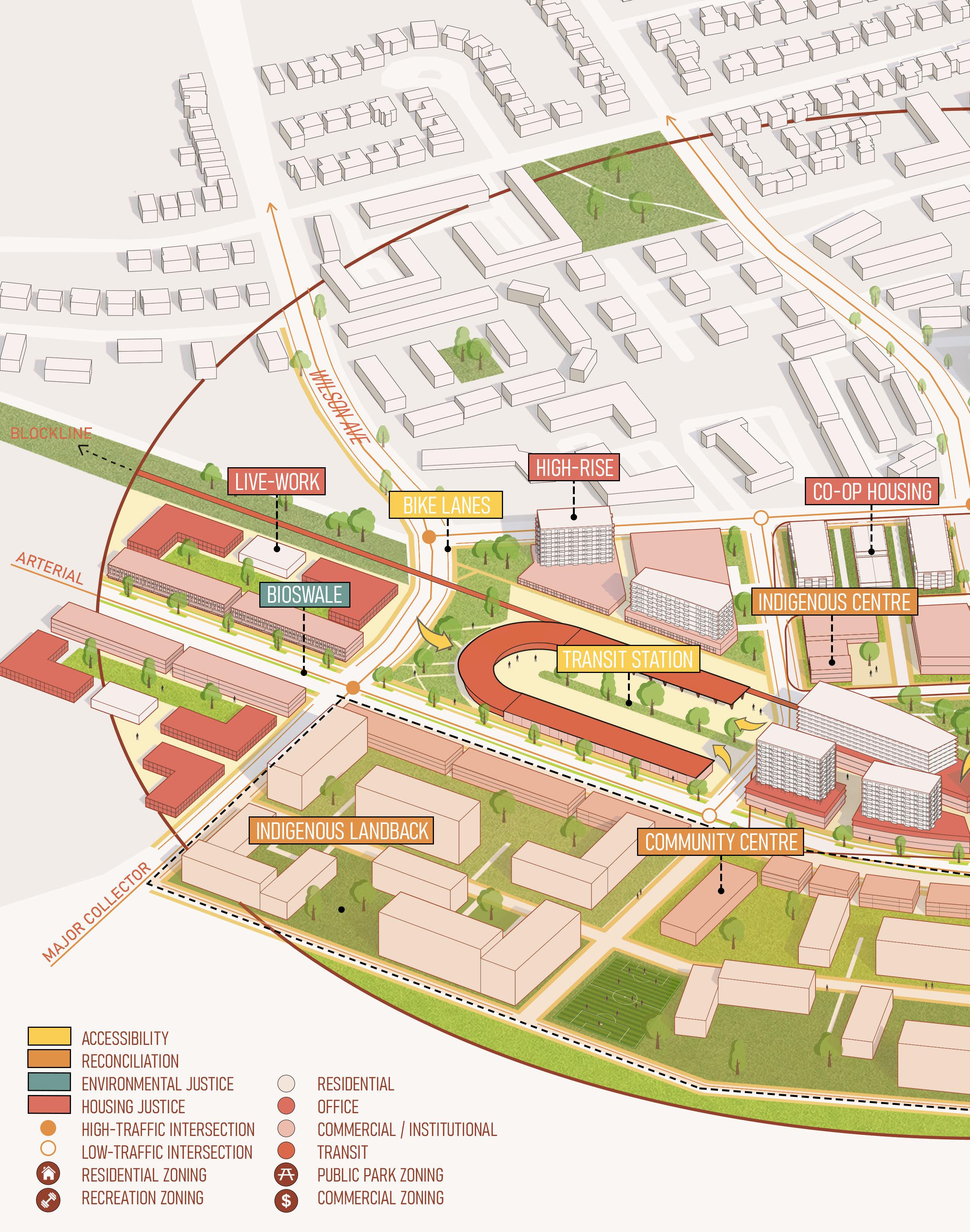

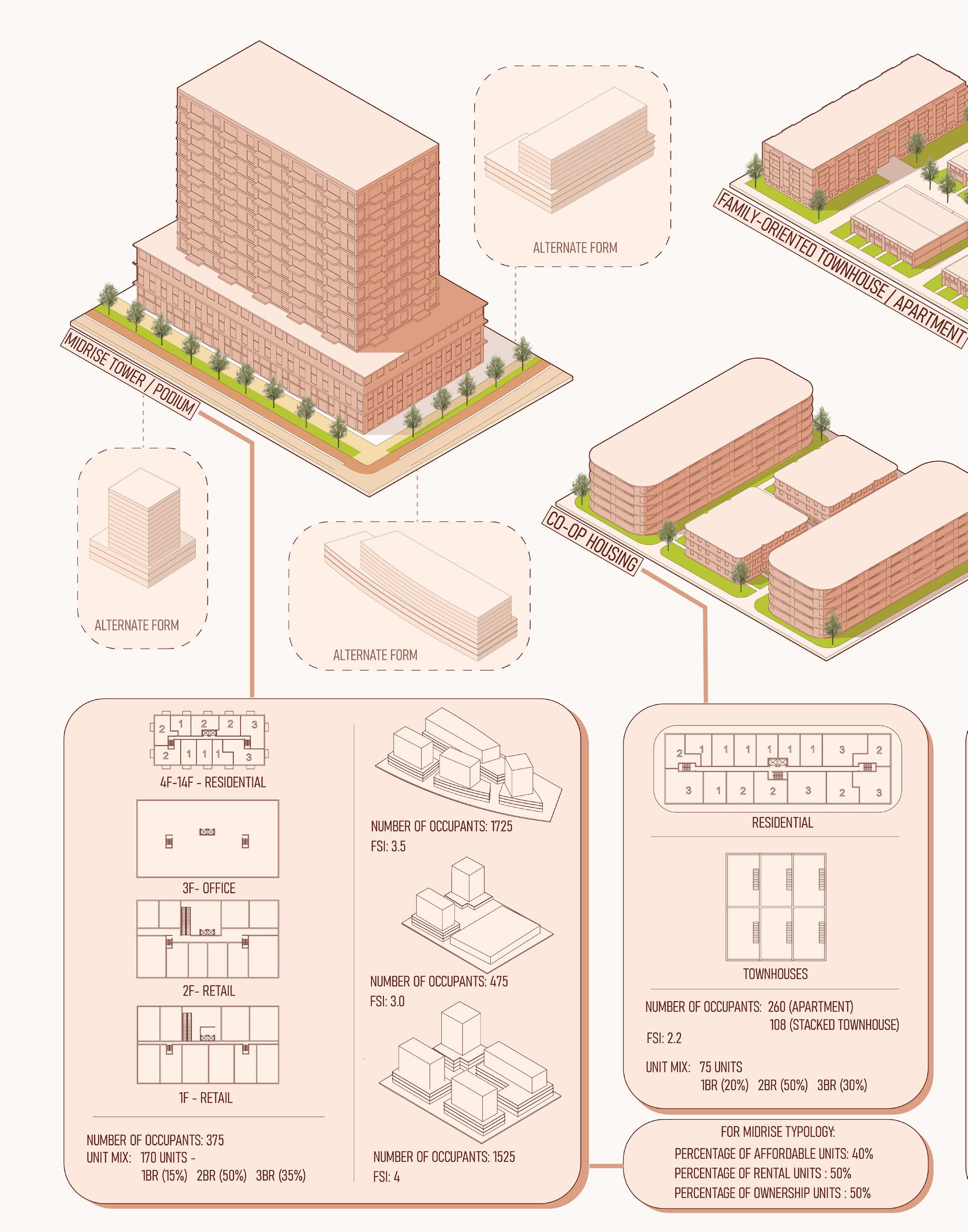

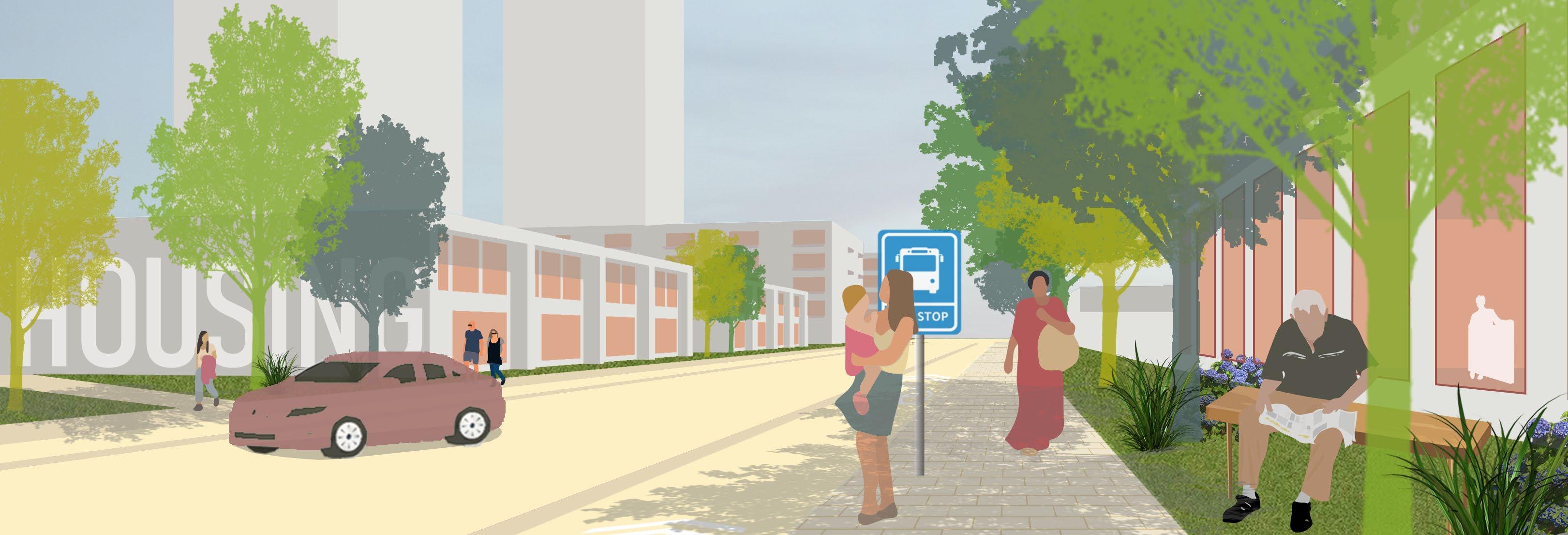

IMPROVING CIRCULATION DEFINING STREETS AS LIVING SPACES - A STAGE WHERE PEOPLE”S LIVES PLAY OUT LOCAL ROAD

MINOR COLLECTOR

RETAIL/RES. CORRIDOR

ARTERIAL ROAD

PARK CORRIDOR COMMUNITY CORRIDOR FAIRWAY ROAD

KINGSWAY DR.

TRANSIT HUB

TRANSIT CORRIDOR

MIXED-USE TRANSIT AMENITIES

MAJOR COLLECTOR

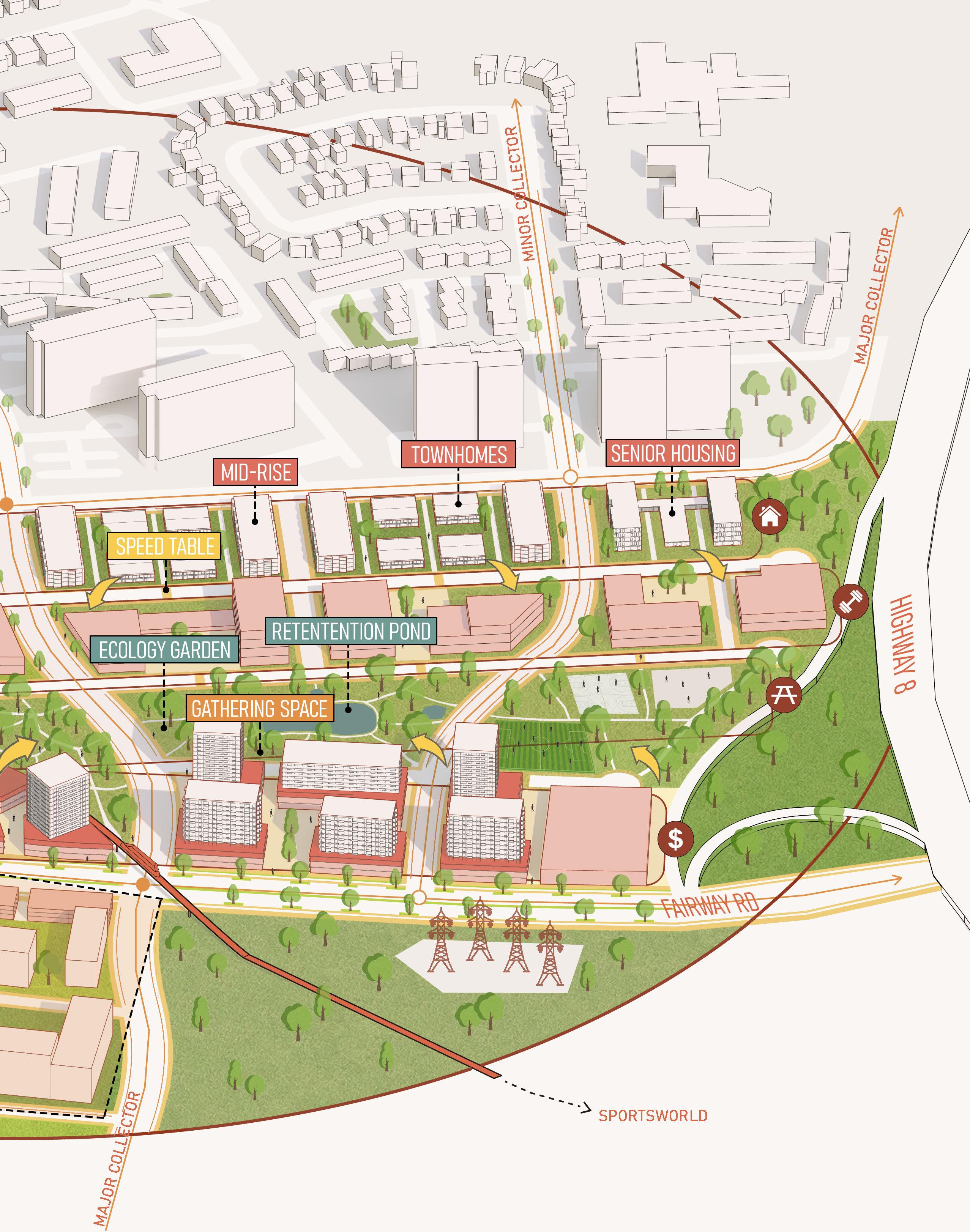

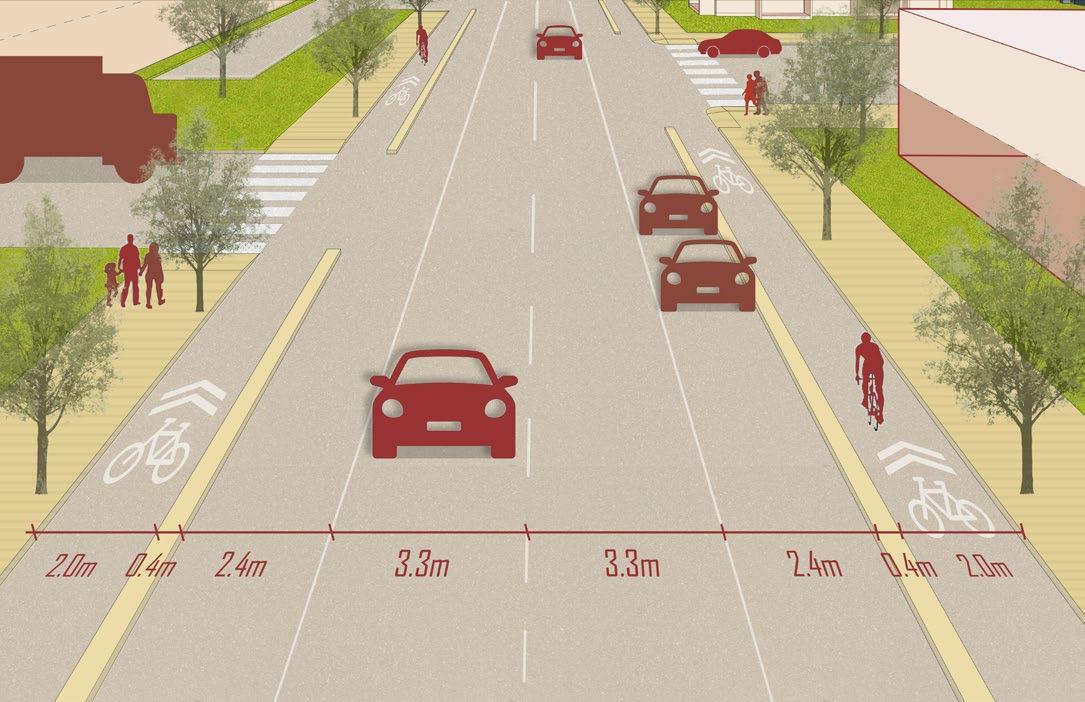

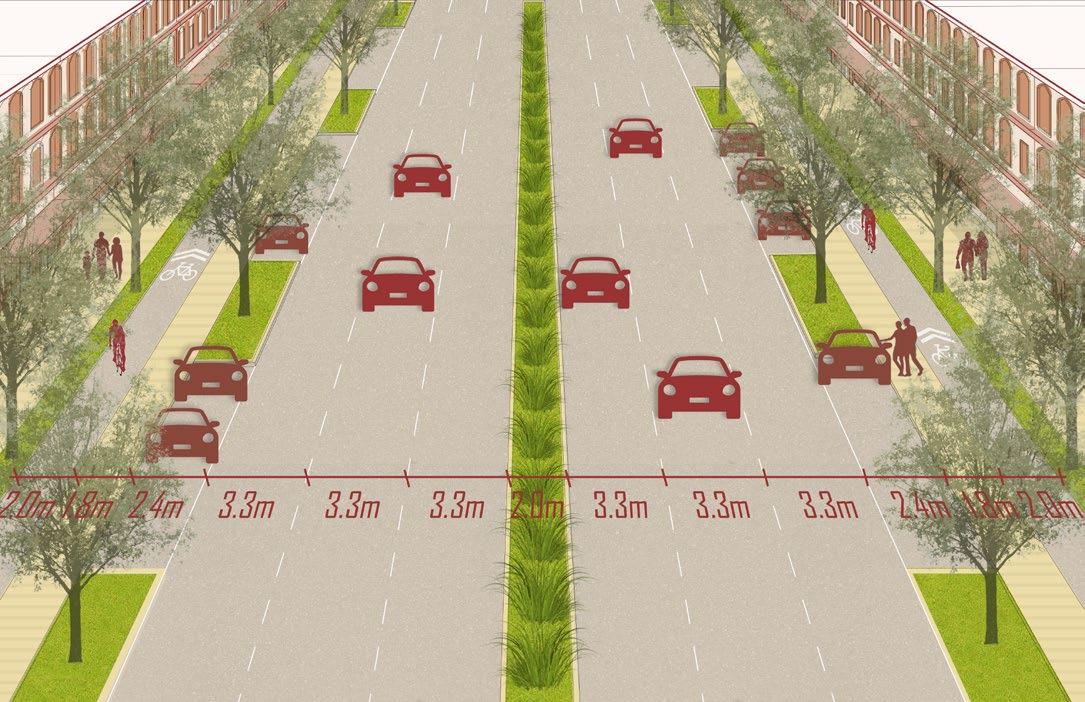

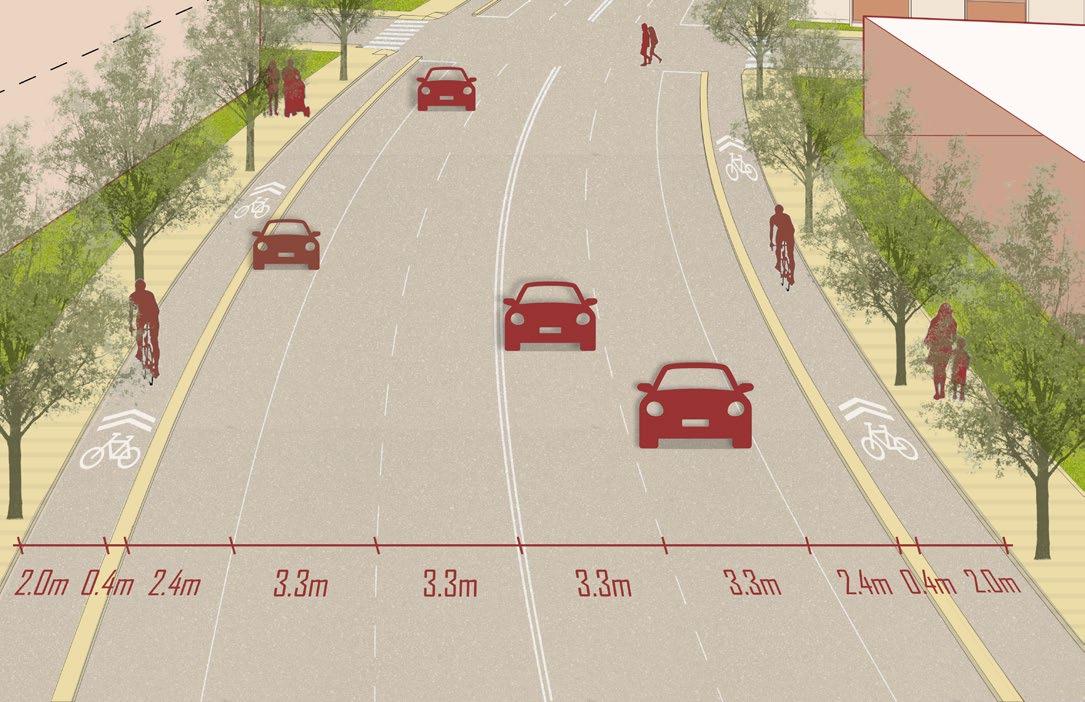

DESIGN STRATEGIES & STREET HIERARCHY BUFFERING BETWEEN VEHICLE, CYCLIST, AND PEDESTRIAN TRAFFIC

26

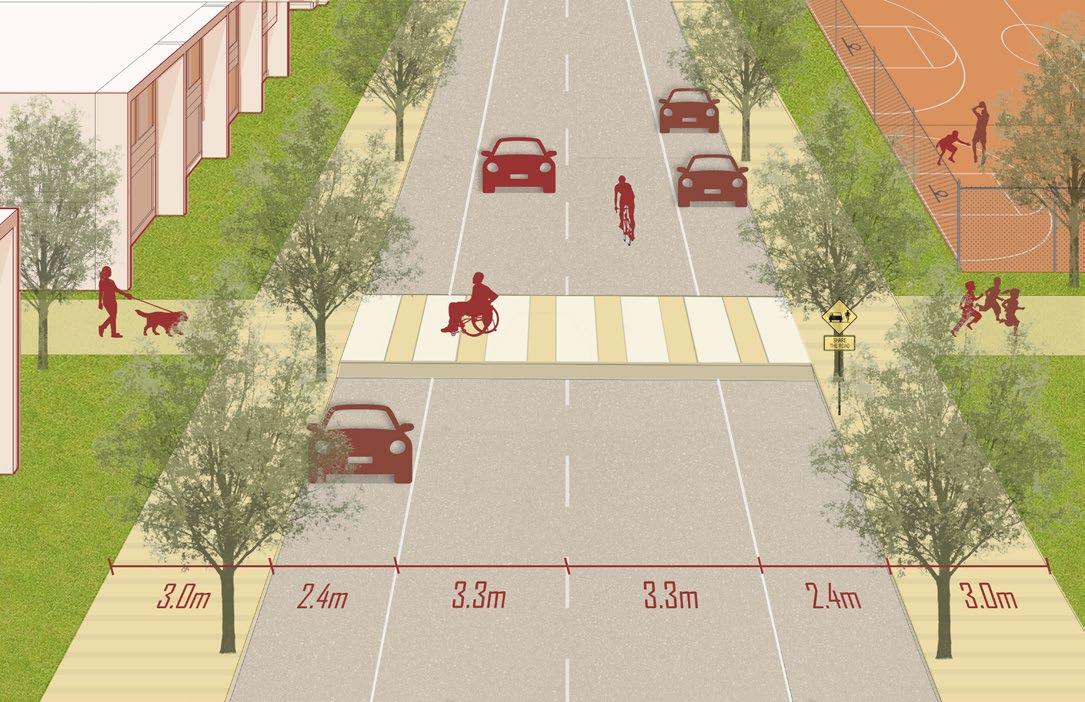

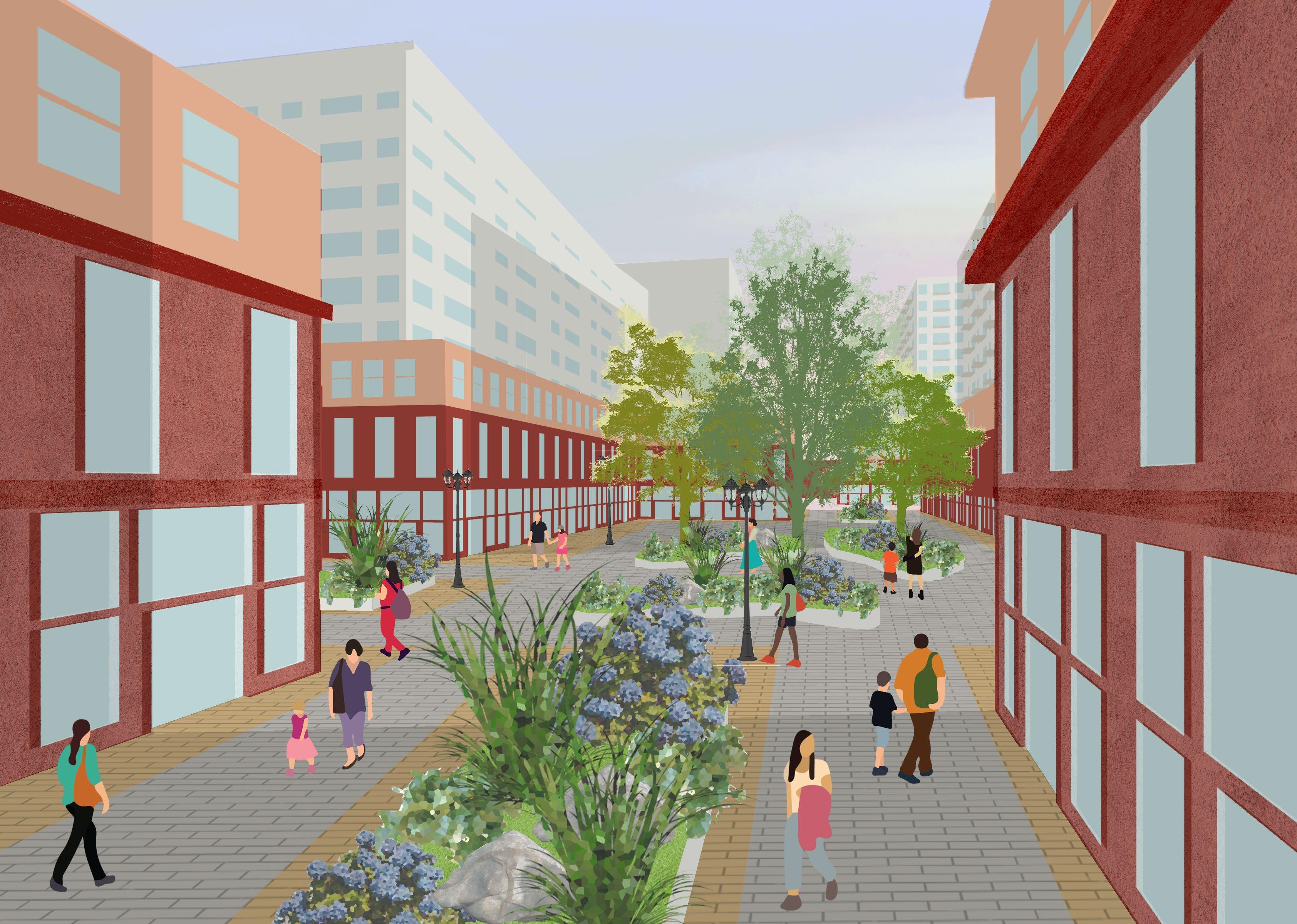

GREEN BOULEVARDS & WIDE SIDEWALKS

RAISED SPEED TABLES TO CONTROL VEHICLE SPEED

OPTIMIZED ACCESSIBILITY FOR WHEELCHAIRS & STROLLERS

ATERIAL ROAD

MAJOR COLLECTOR ROAD

MINOR COLLECTOR ROAD

LOCAL ROAD

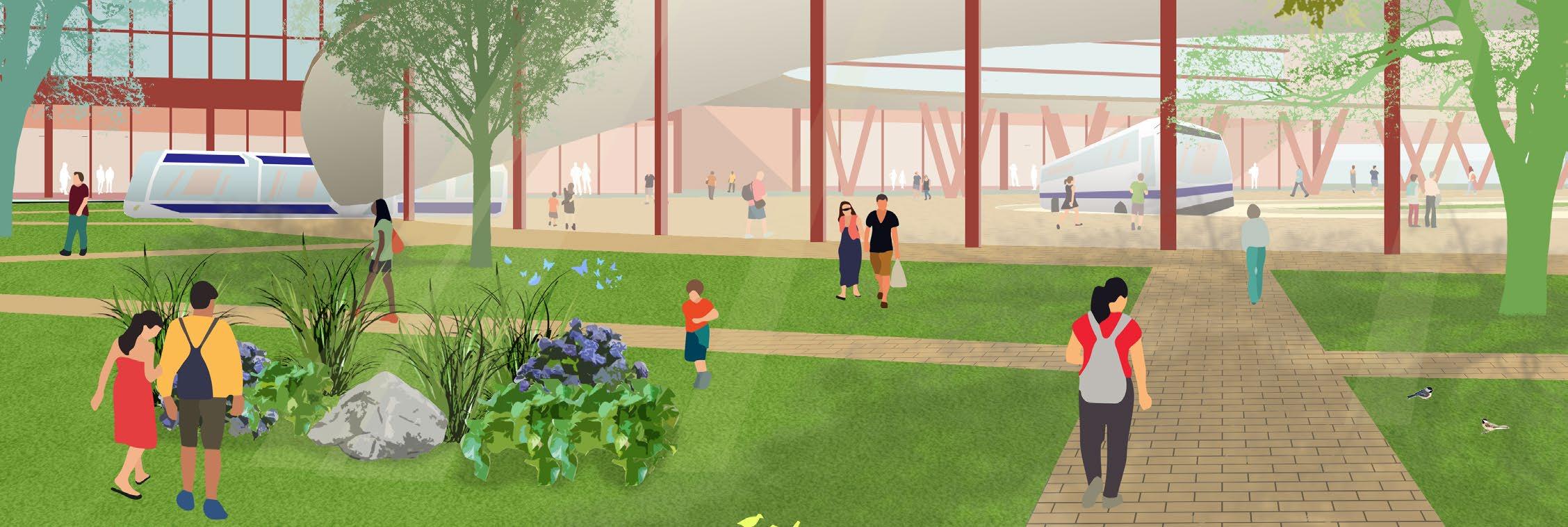

TRANSIT HUB

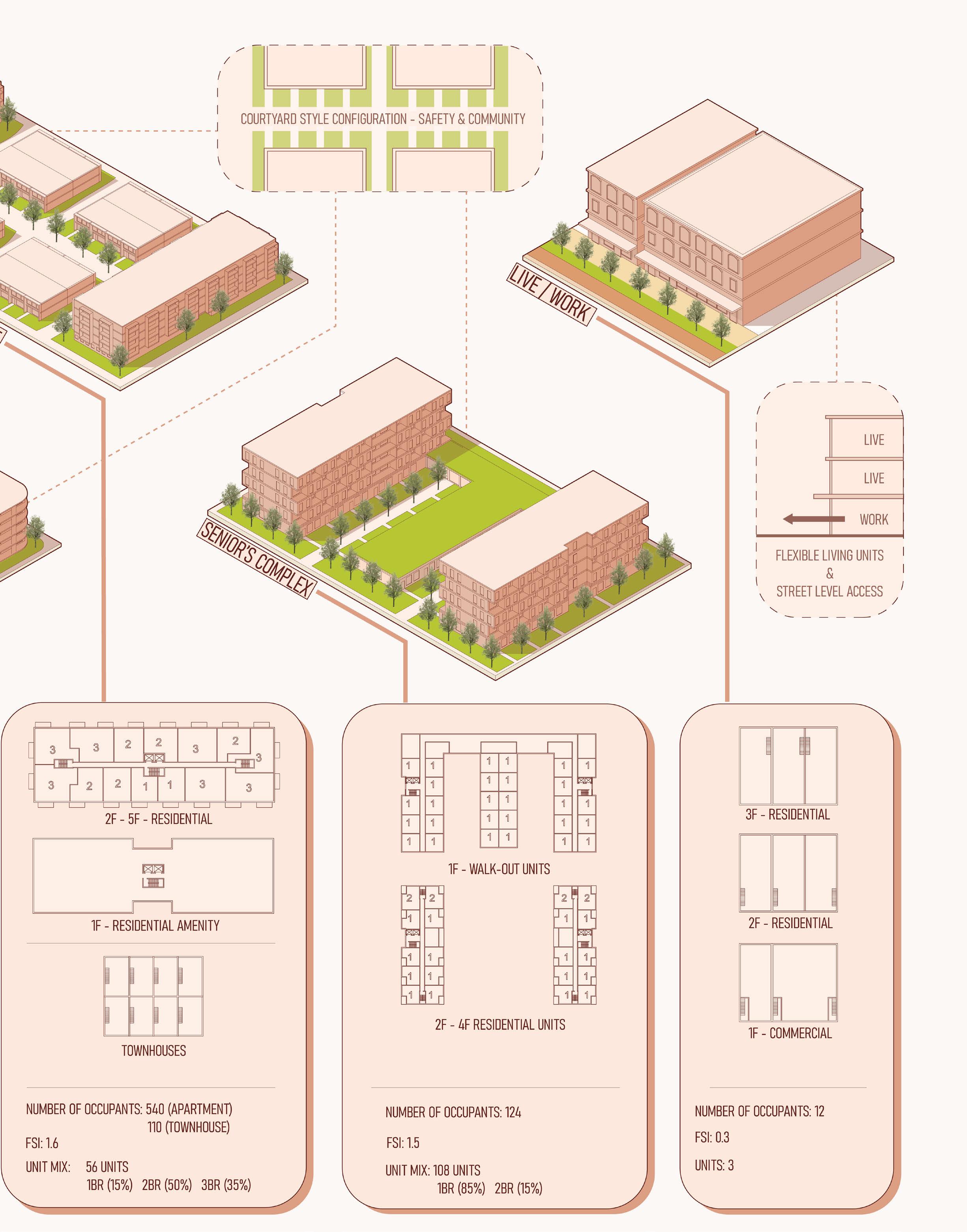

FAMILY ORIENTED TOWNHOUSING

COMMUNITY CENTER

PARK CORRIDOR

VOLUME 4 2023

27

REACTIVATING FAIRWAY

28

SELECTED WORKS

VOLUME 4

2023

29

REACTIVATING FAIRWAY

30

SELECTED WORKS

VOLUME 4

2023

31

[DYS] ORDER

04 [DYS] ORDER MUSEUM & EXHIBITION JUNE 2022 / COMPETITION RHINO / LUMION / ILLUSTRATOR / PHOTOSHOP / INDESIGN > IN COLLABORATION WITH LYDIA XIA AND JENNY CHEN > SUBMITTED TO BEE BREEDERS MUSEUM OF EMOTIONS COMPETITION

SELECTED WORKS

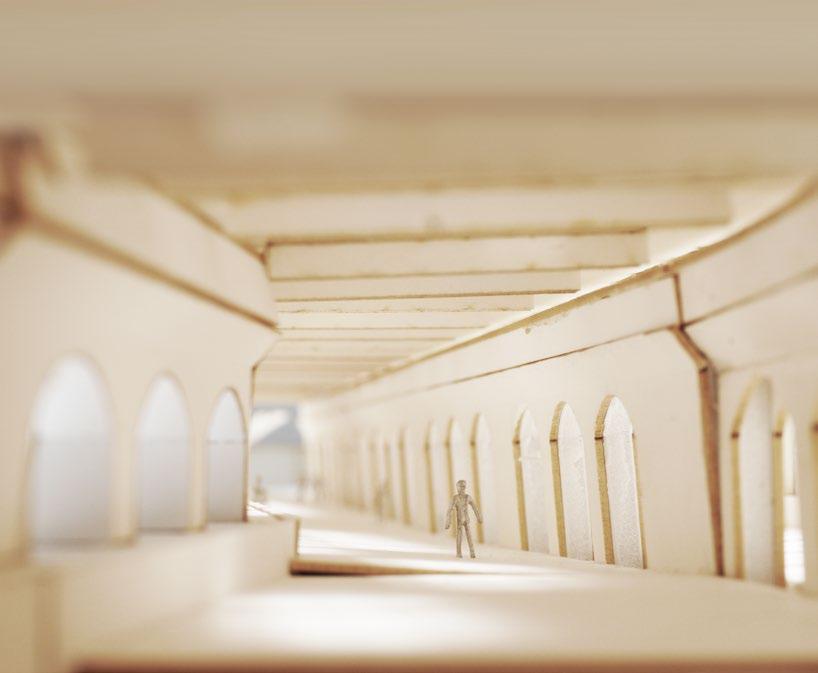

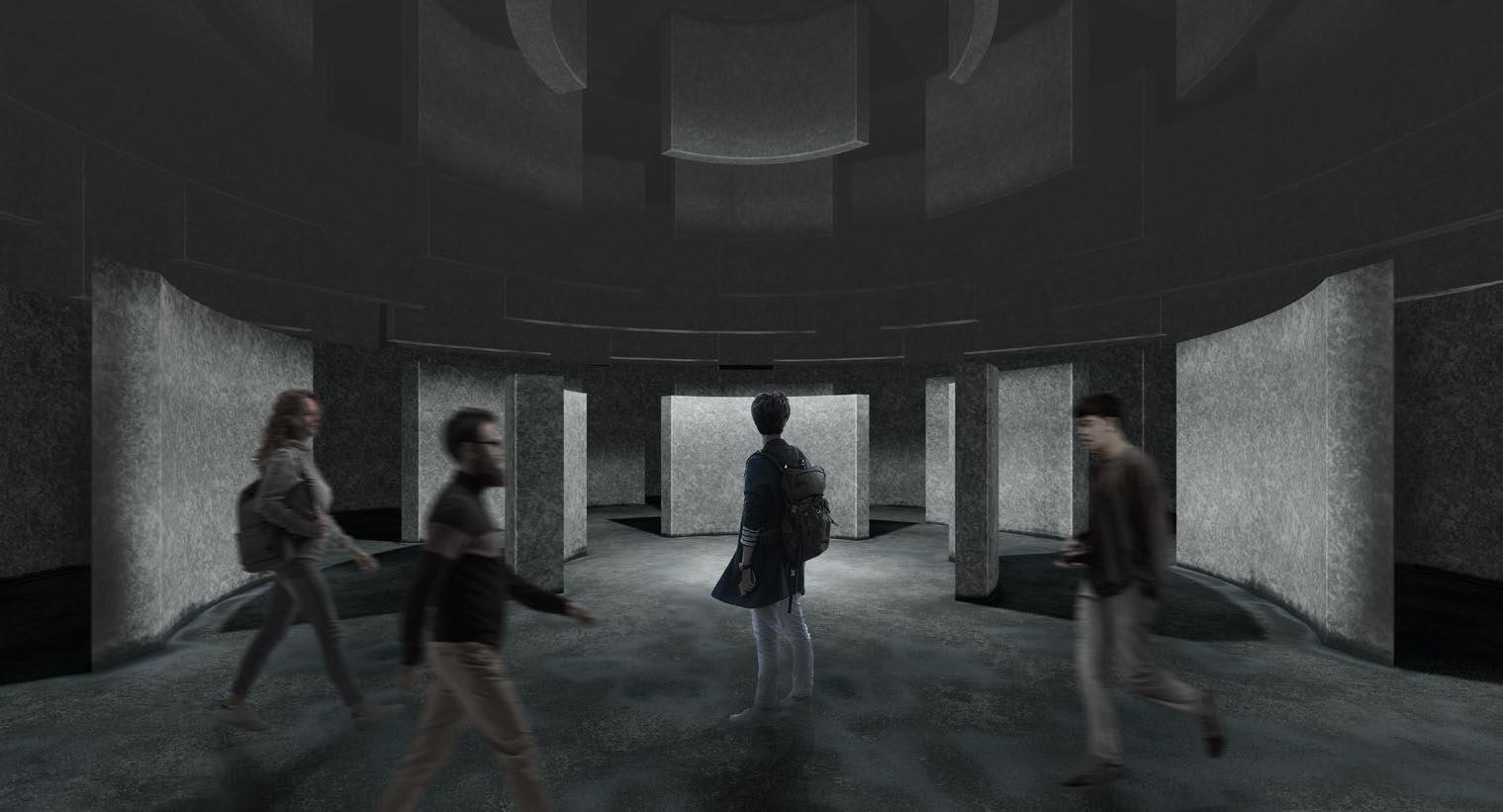

A museum that hosts architectural experimentations and moments as the work of an exhibition. The two halls explore Chaos and Calm as architectural drivers. The design questions architectural organizations, geometries, and ideas of order and disorder through a socio-political lens.

What does a calm space afford us?

What does a chaotic space take from us?

Can architecture truly be driven by chaos or is that notion contradictory?

Is there an intersection of order and disorder, calm and chaos.

Can one be found in the other?

The spaces play with factors that include light, circulation, viewpoints, planes of a wall, floor, and thresholds to manifest both emotions in tectonic experiences.

32

VOLUME 4

2023 4 11

RE EODO

TH

VELT

ROOSE

7

E

BRIDG

5

2

ON GT

L RIA

9

3

E

IDG

BR

MO

ME

6

LIN

AR

10

8

1

AC M TO PO

TIDAL BASIN

IV ER

R

14

13

12

- WASHINGTON D.C. USA

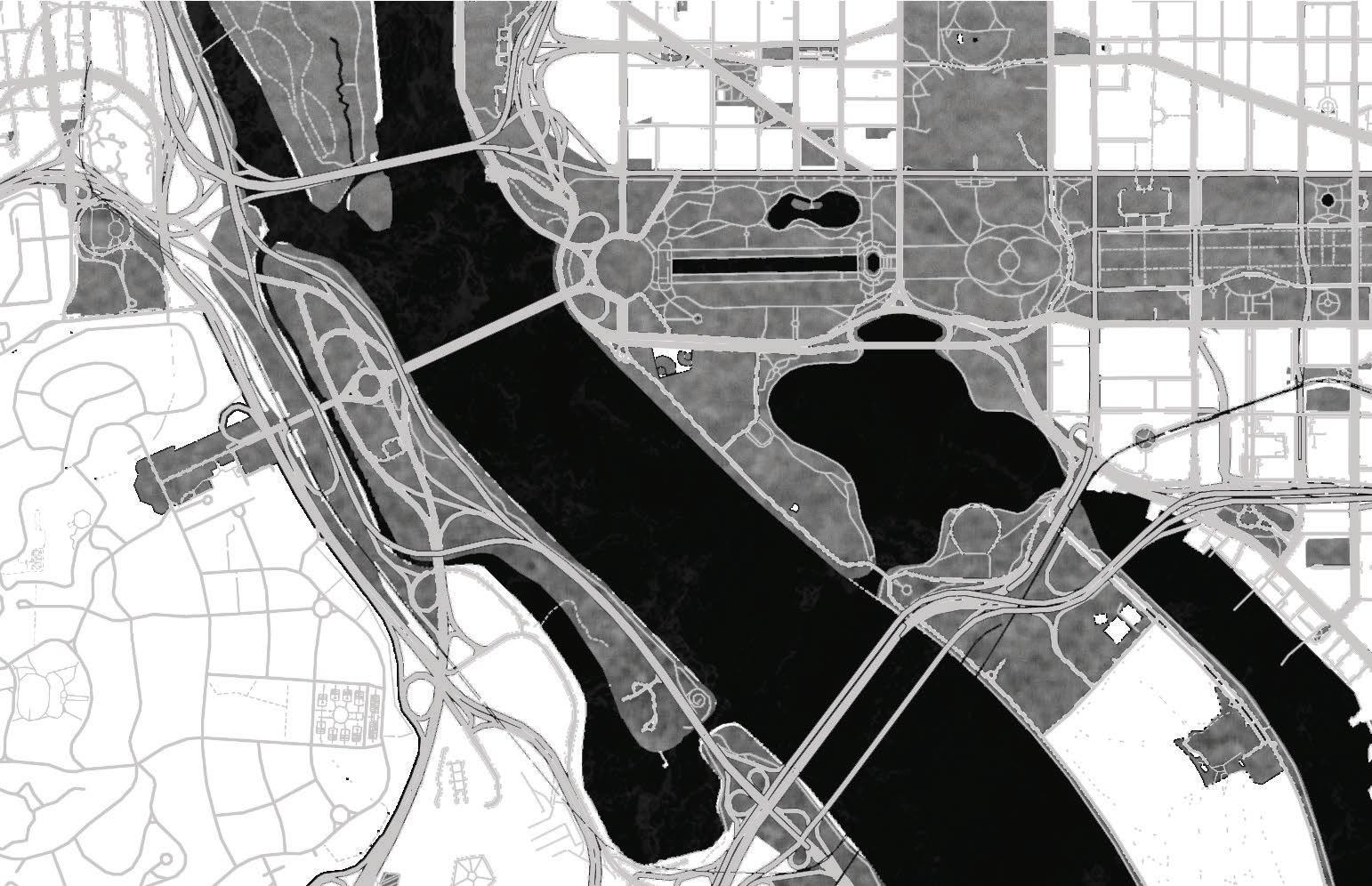

SITE CONTEXT

STACK HALLS

FRAGMENT GEOMETRY

LIFT VERTICES

ADD INTERMEDIARY

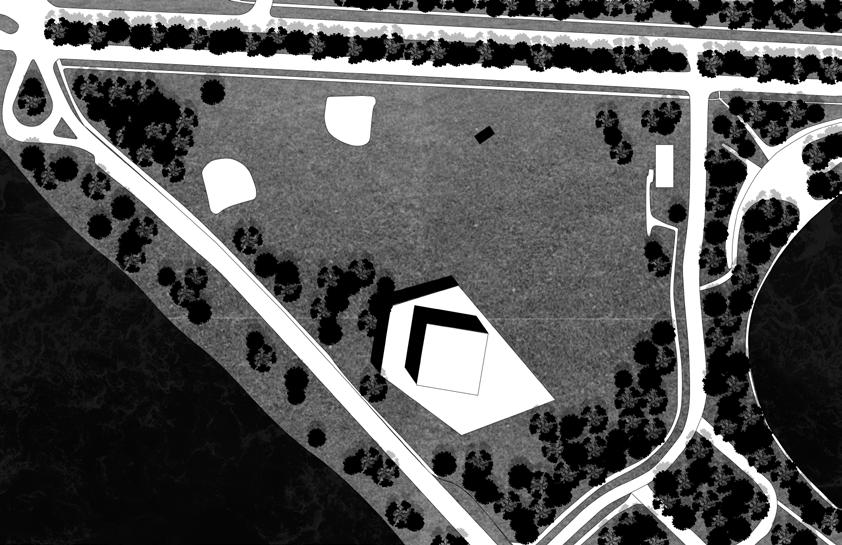

SECOND FLOOR PLAN

BASEMENT FLOOR PLAN

GROUND FLOOR PLAN 33

[DYS] ORDER

34

SELECTED WORKS

REFLECTION

O

CONFRONTATION

OB

VOLUME 4

2023

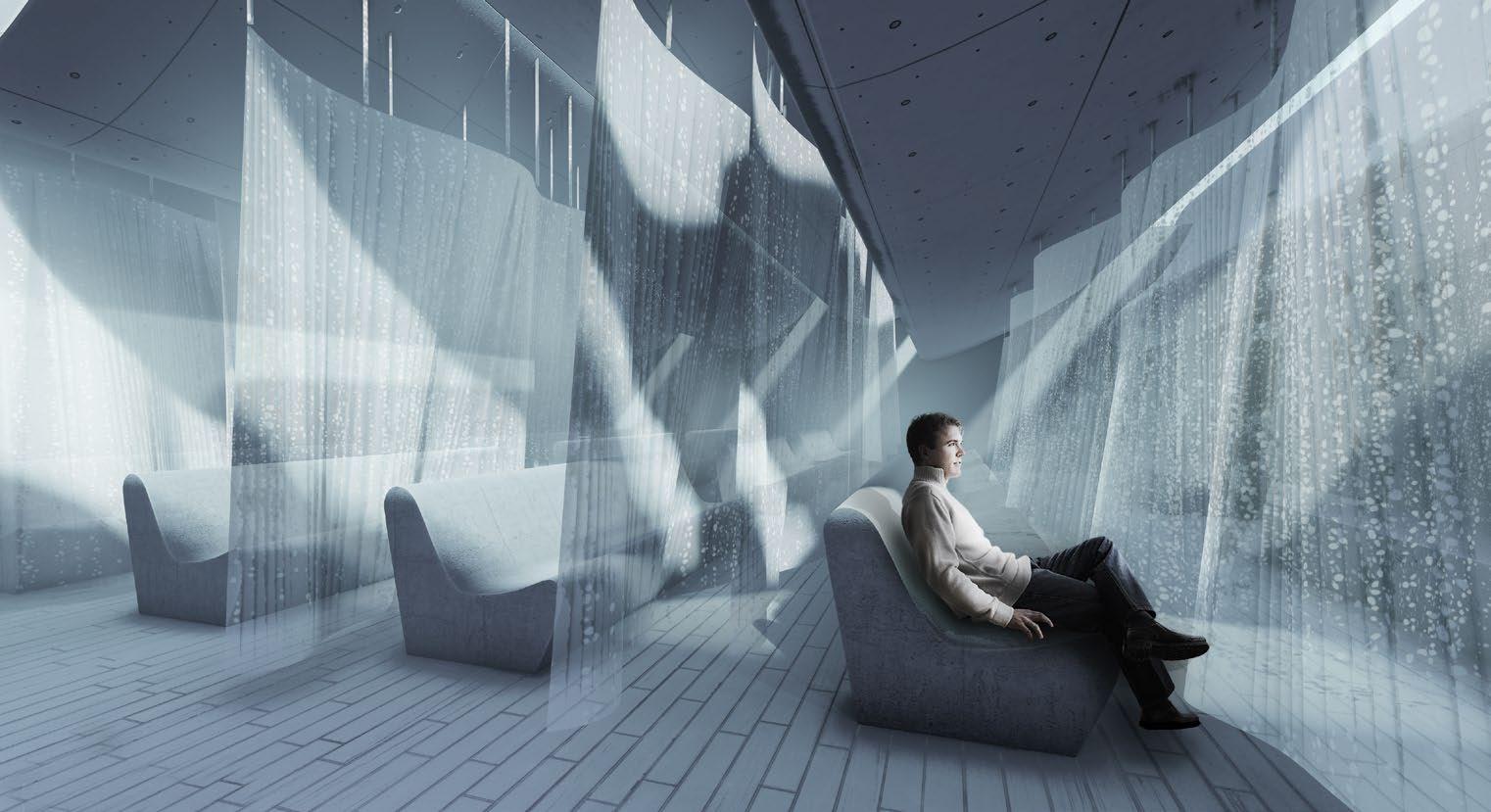

Light Filtraton

Organized Linear Geometries

OUTLOOK A Choice of Space

The Garden

The Church

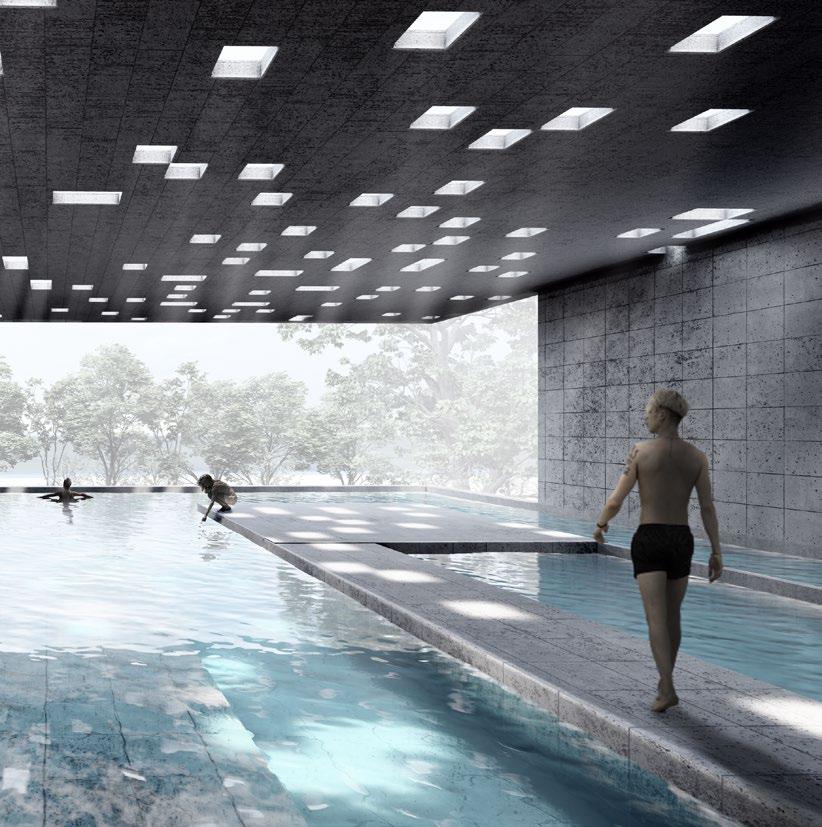

The Bathhouse

Neutral Reception Circulation

BSTACLES

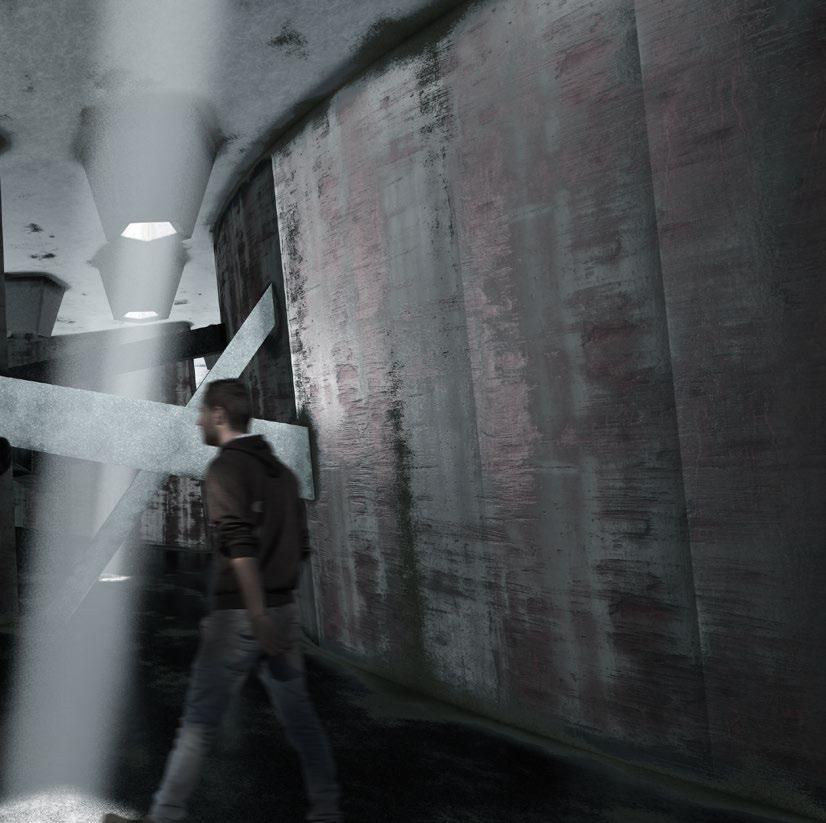

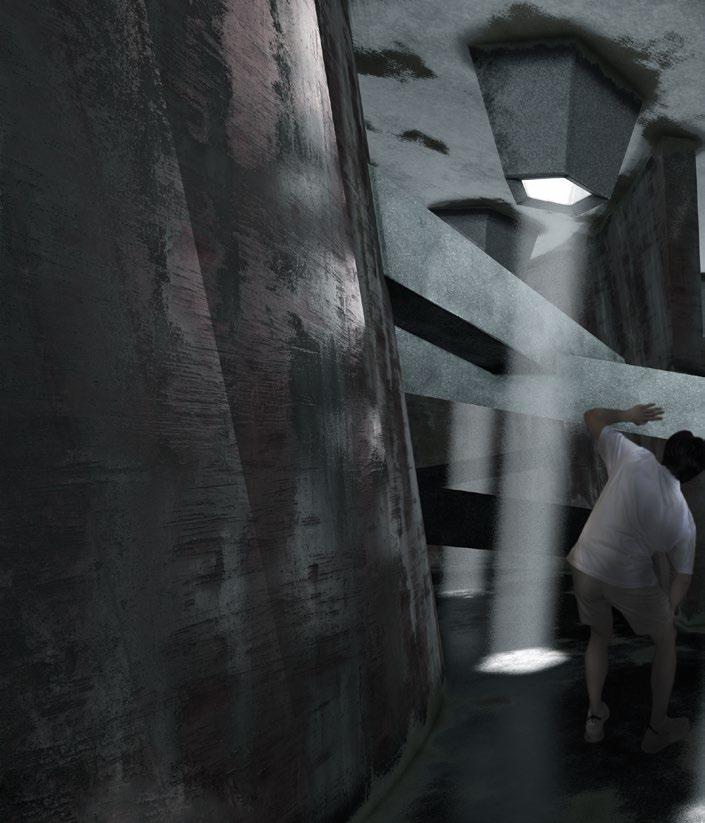

A Confrontation

Planes of a Wall

Landscaped Terrace Ground Surfaces

Colonnade Labyrinth

Invisible Thresholds

SPATIAL RELATIONSHIPS / EXPERIENTIAL JOURNEY 35

PROFESSIONAL WORK

PROFESSIONAL WORK WXY ARCHITECTURE + URBAN DESIGN

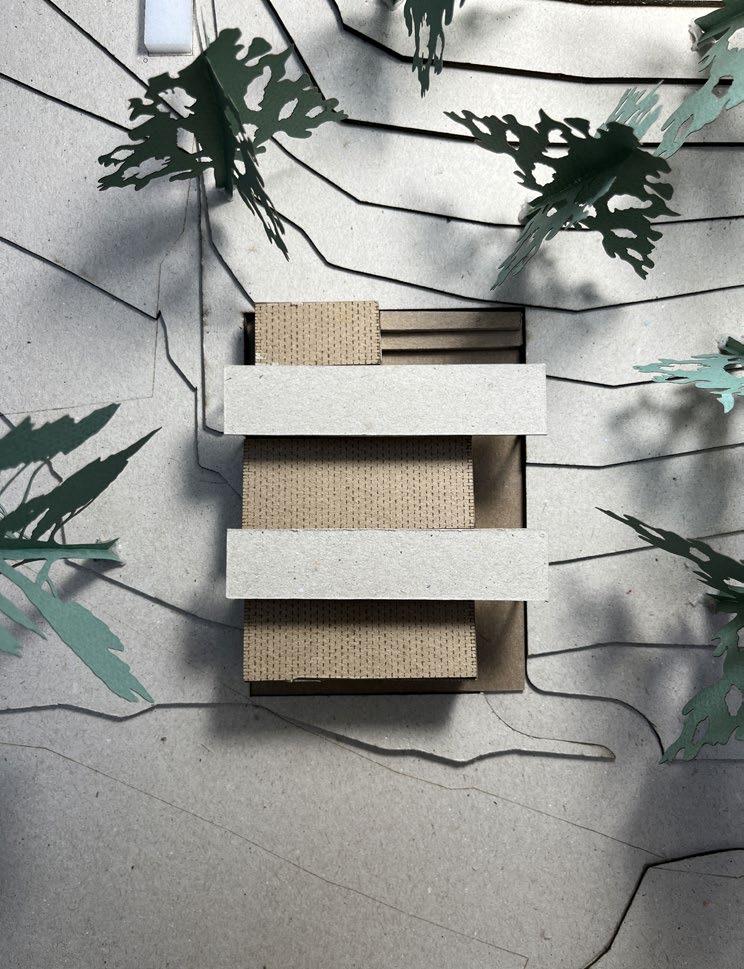

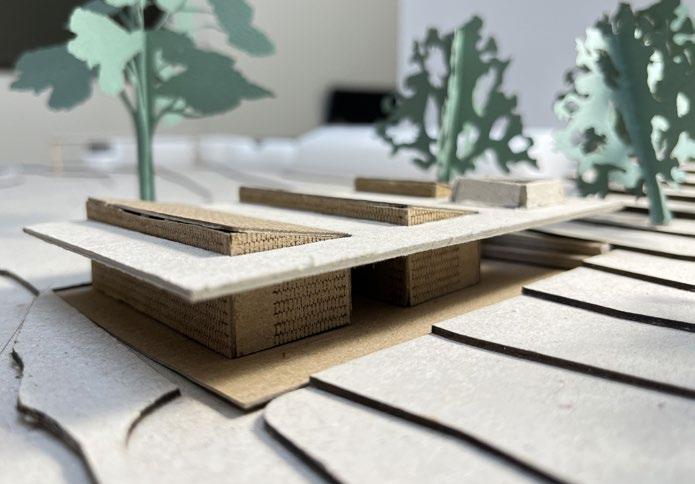

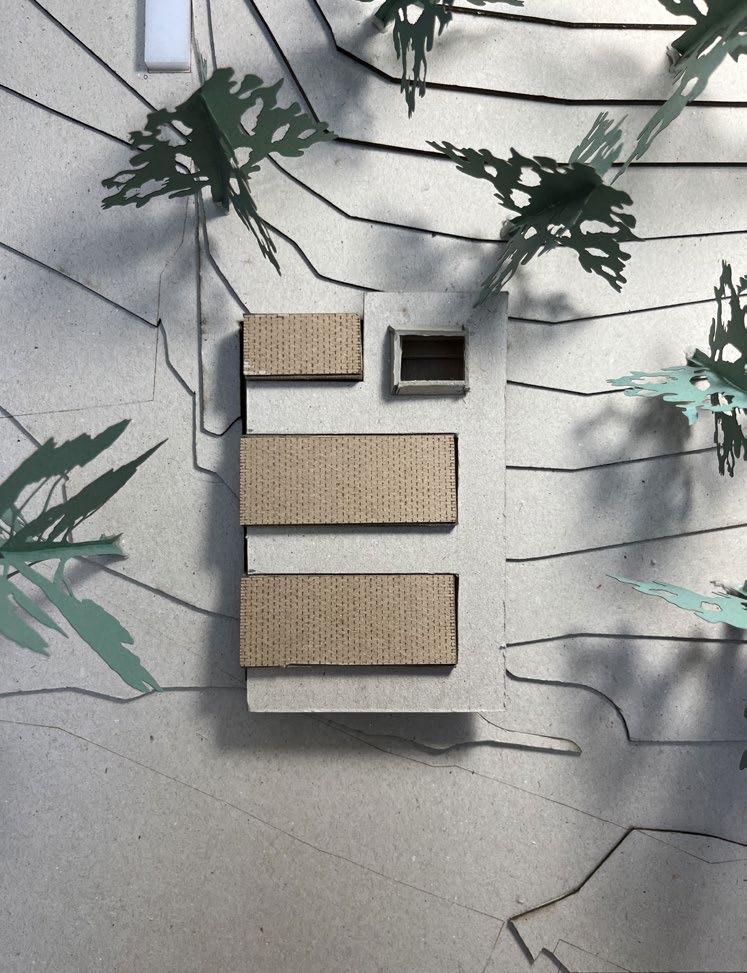

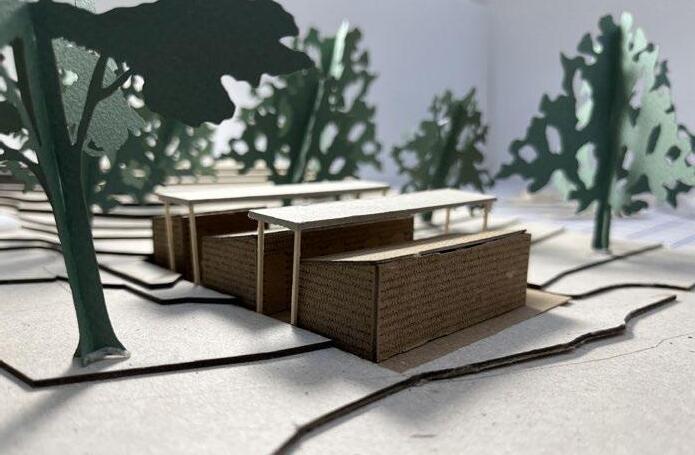

PROJECT: HITHER HILLS BATHHOUSE EARLY SCHEMATIC MODEL ITERATIONS

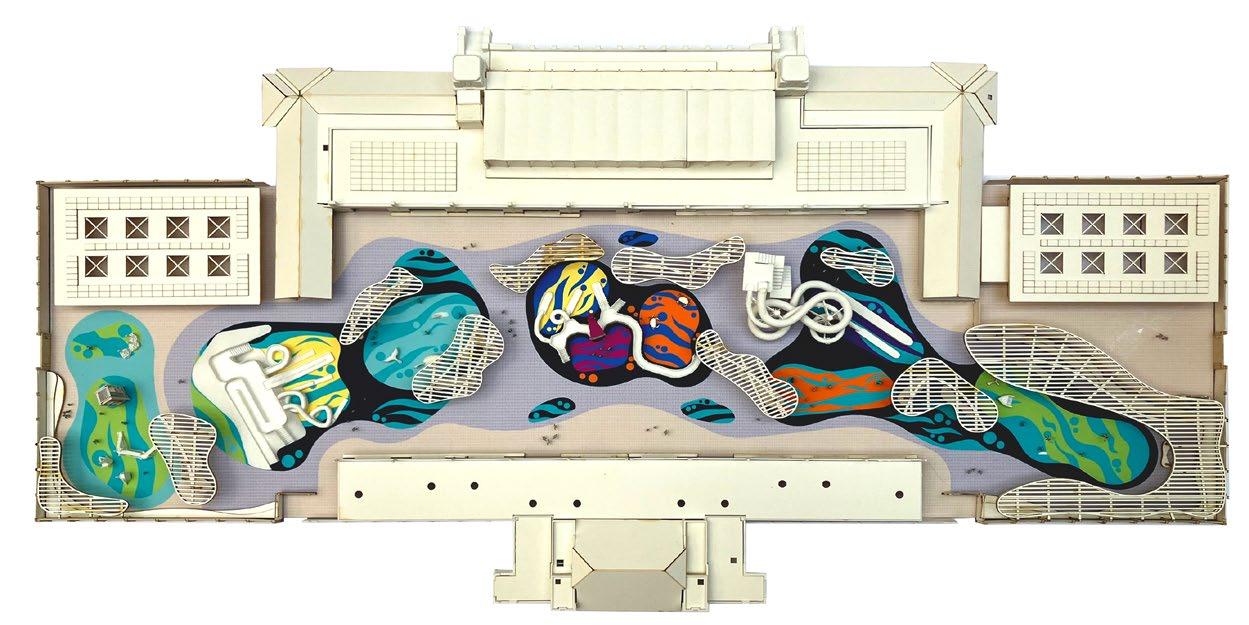

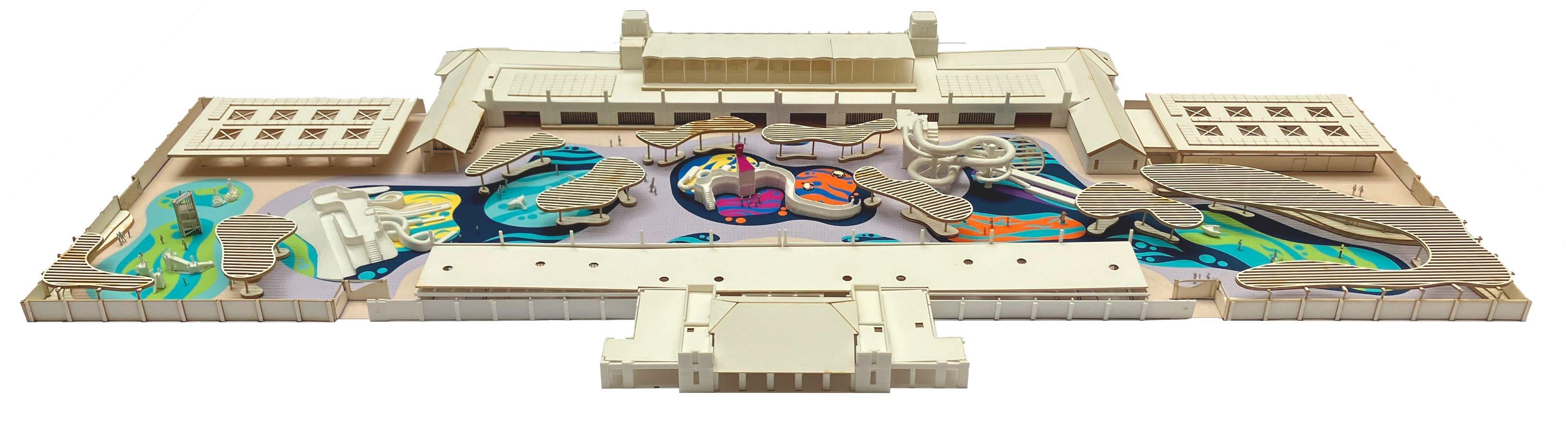

PROJECT: JONES BEACH EAST BATHHOUSE SPRAY PARK IN COLLABORATION WITH VARIOUS WXY TEAM MEMBERS

36

SELECTED WORKS

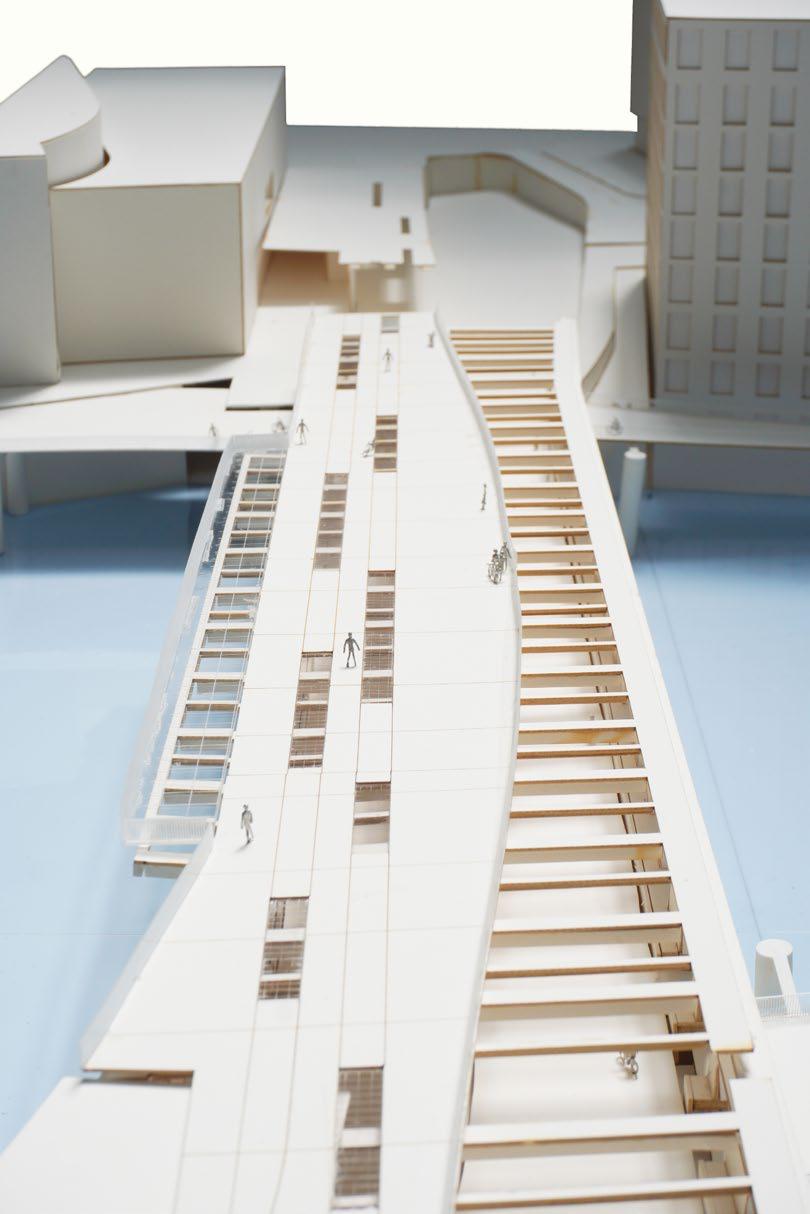

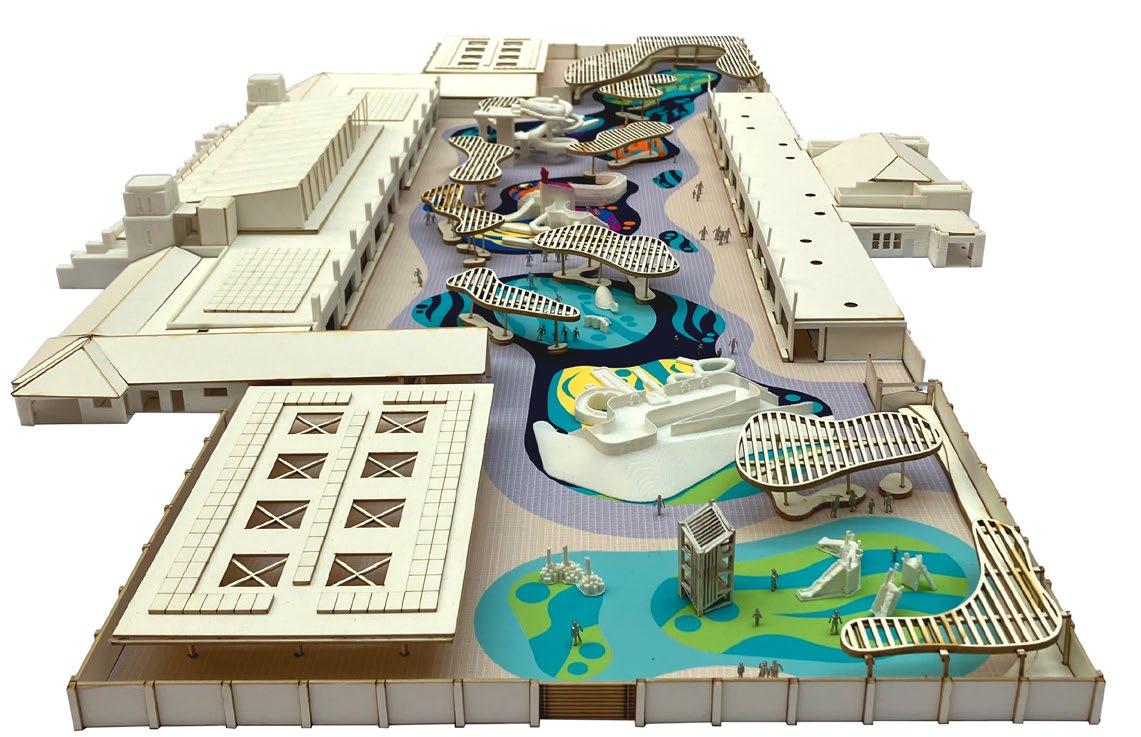

Various modelmaking projects completed during my internship at WXY Studio. Models were used to aid with design development and presentation material. this work was done in parallel to drafting work done in Revit/Rhino to develop drawing sets.

TOOLS: RHINO / LASERCUTTING / HAND MODELLING MODEL DIMENSIONS: 0.7m x 0.4m [1/128 scale]

TOOLS: RHINO / LASERCUTTING /3D PRINTING / HAND MODELLING MODEL DIMENSIONS: 1.2m x 0.5m [1/128 scale]

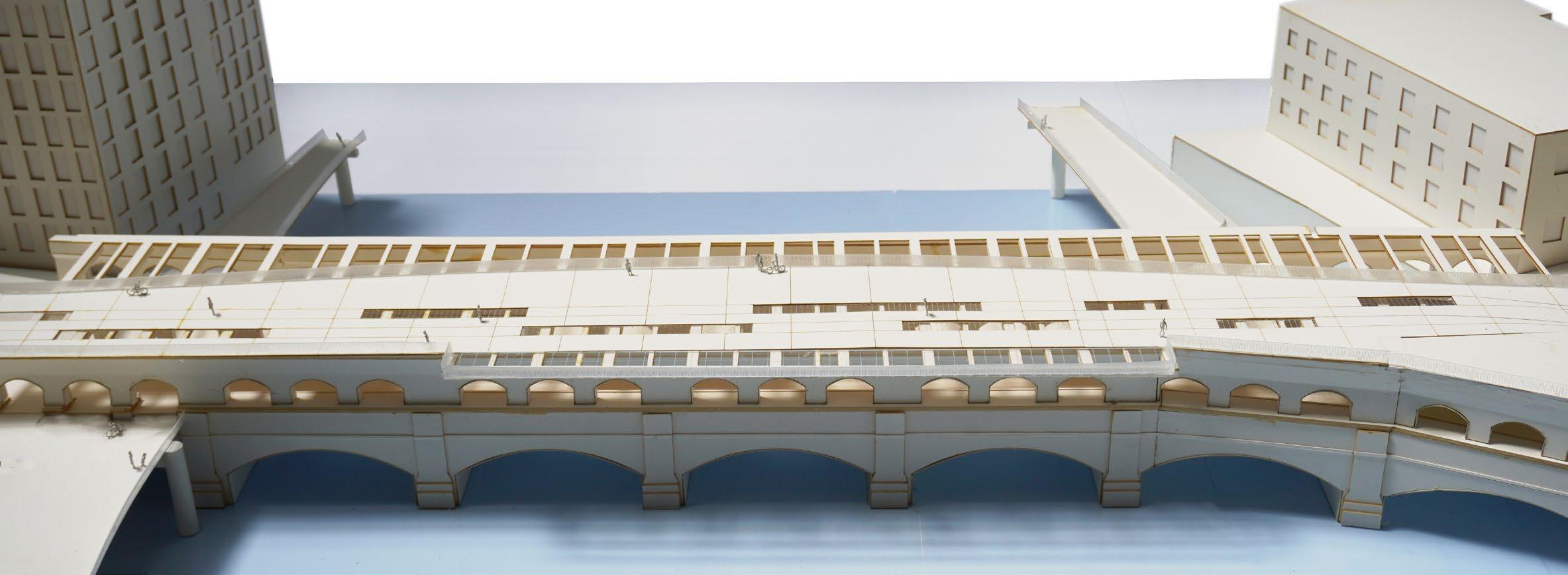

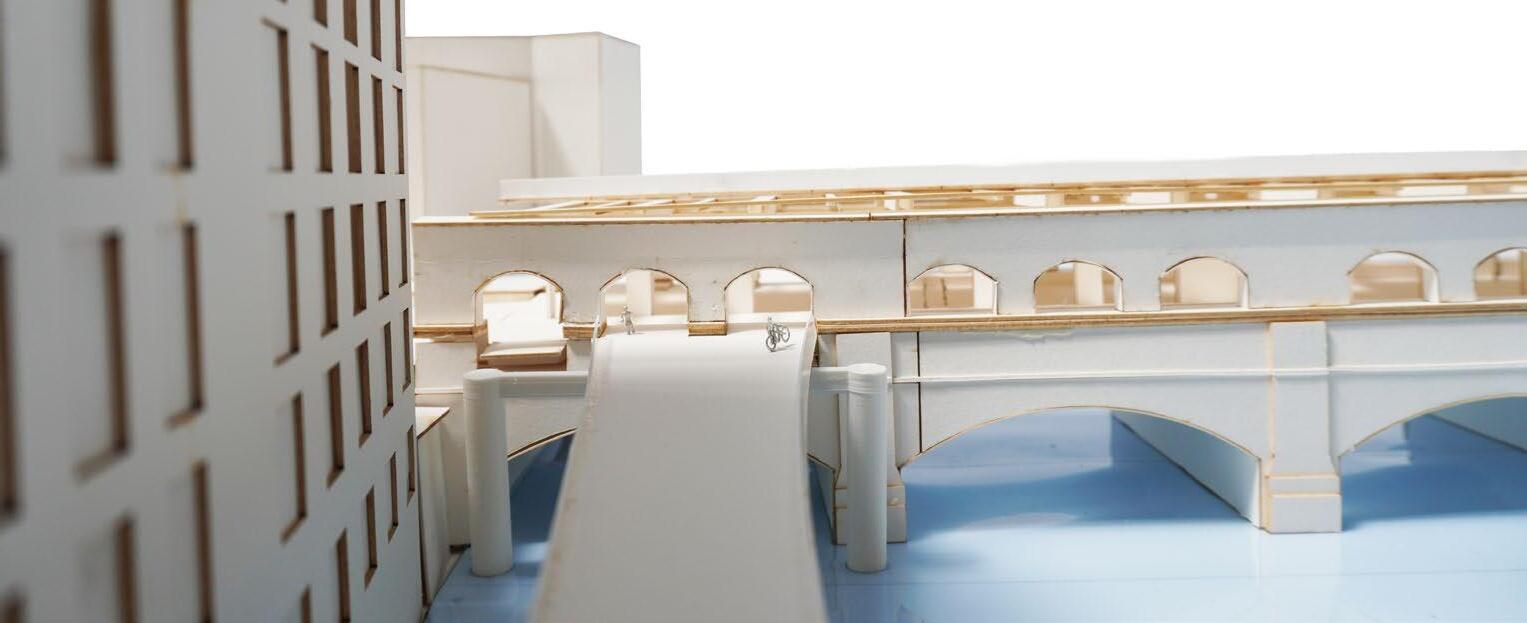

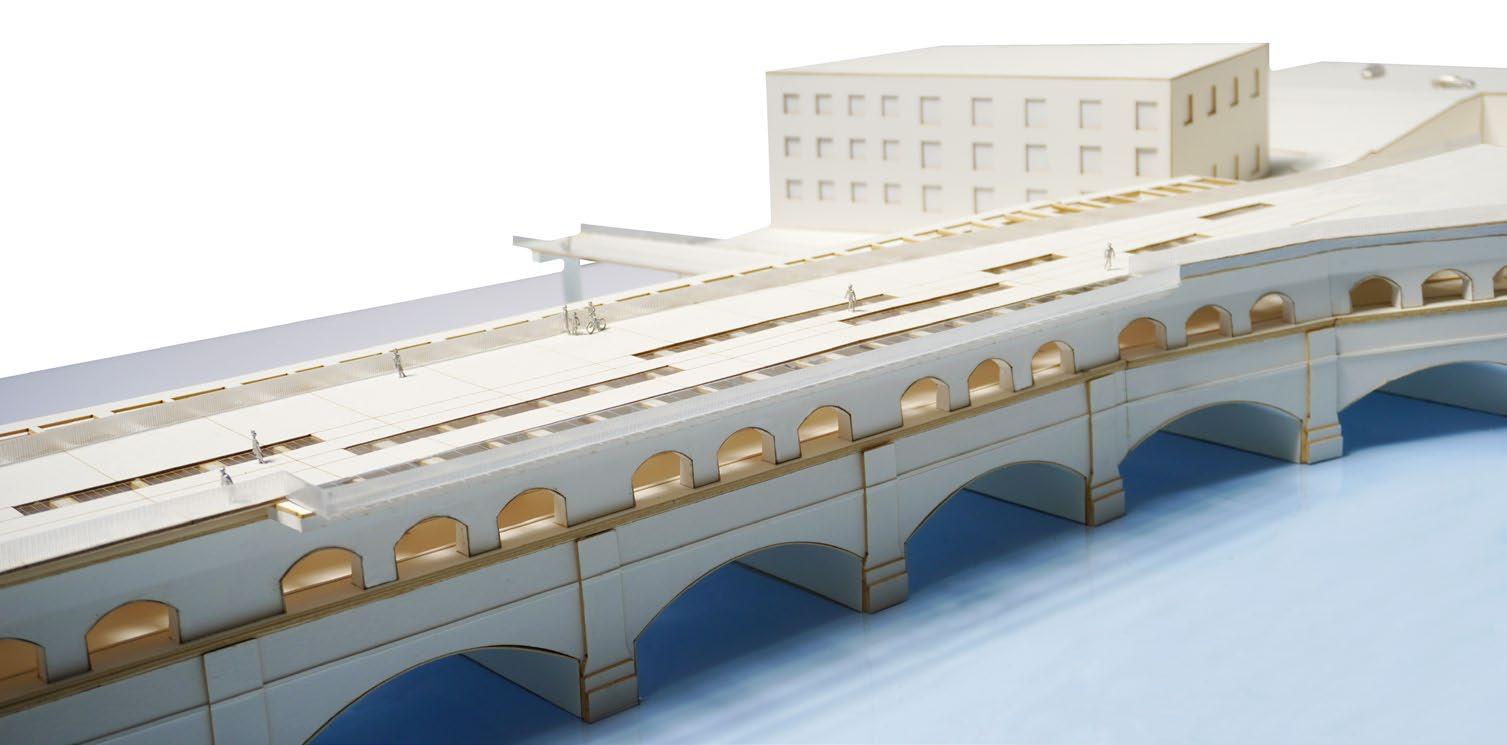

VOLUME 4 PROJECT: ROCHESTER AQUEDUCT PEDESTRIAN BRIDGE IN COLLABORATION WITH VARIOUS WXY TEAM MEMBERS

2023 TOOLS: RHINO / LASERCUTTING / 3D PRINTING/ HAND MODELLING MODEL DIMENSIONS: 2.6m x 0.8m [1/64 scale]

> WORKING MODEL HAD THE OPTION TO CONFIGURE BETWEEN EXISTING ROAD BED CONDITION AND PROPOSED DESIGNS

37

INVESTIGATION

05

INVESTIGATION: CHINESE GARDEN WINDOWS

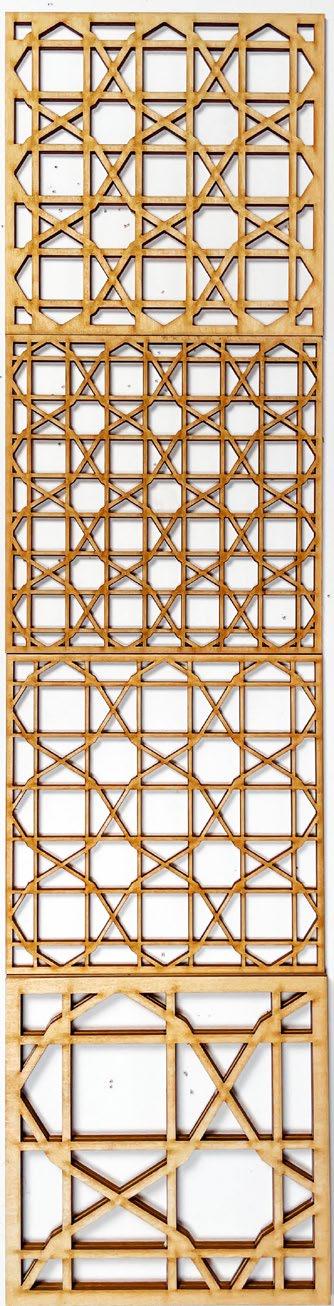

RESEARCH & FABRICATION AUGUST 2022 RHINO / GRASSHOPPER / LASERCUTTING > IN COLLABORATION WITH LYDIA XIA

SELECTED WORKS

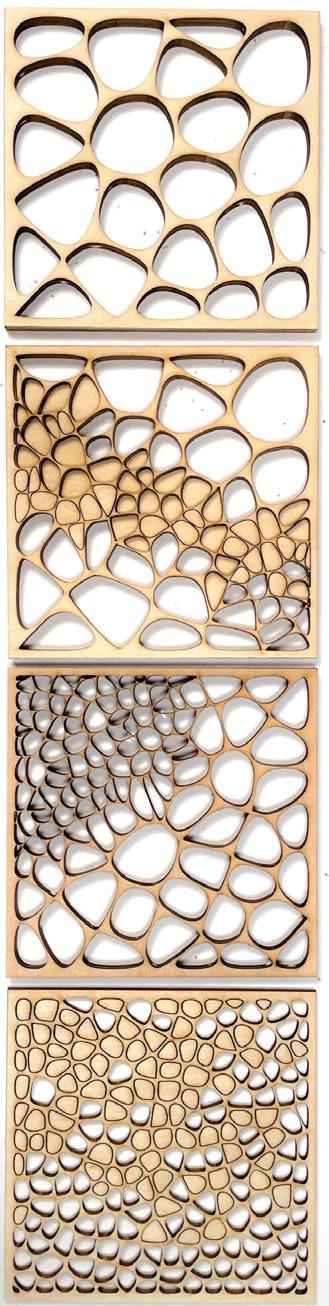

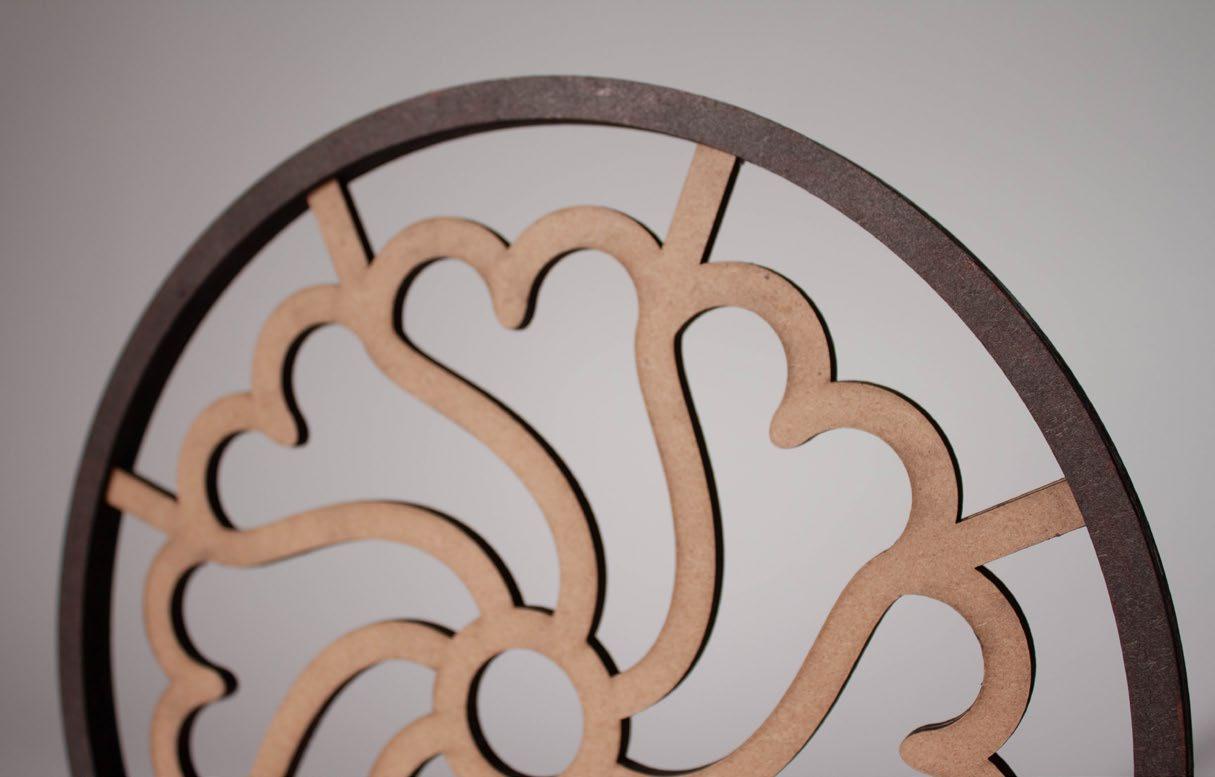

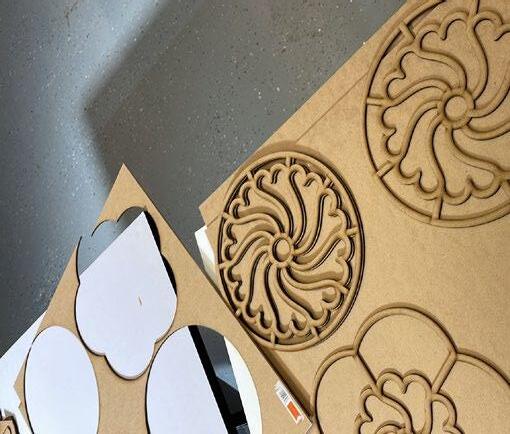

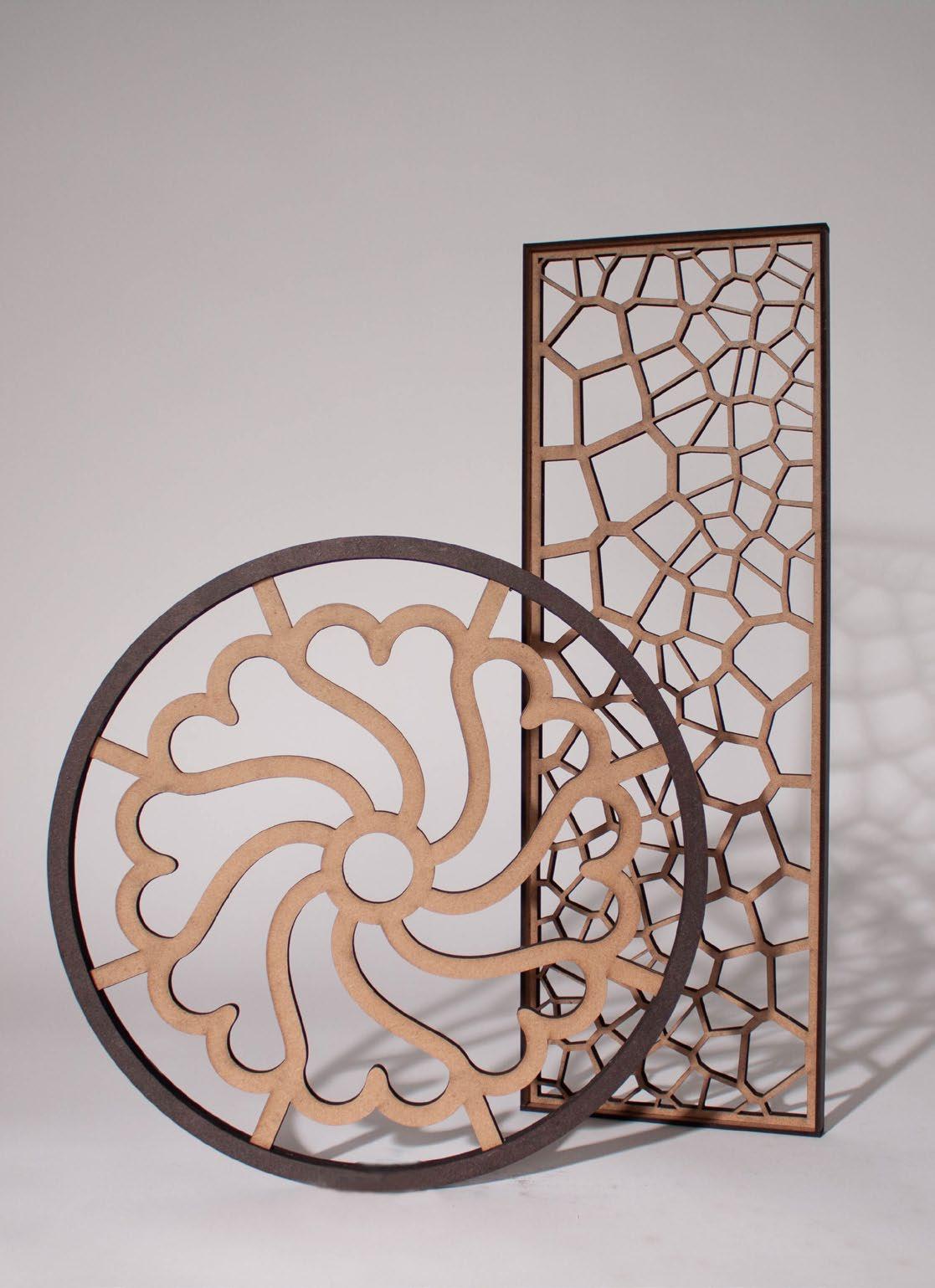

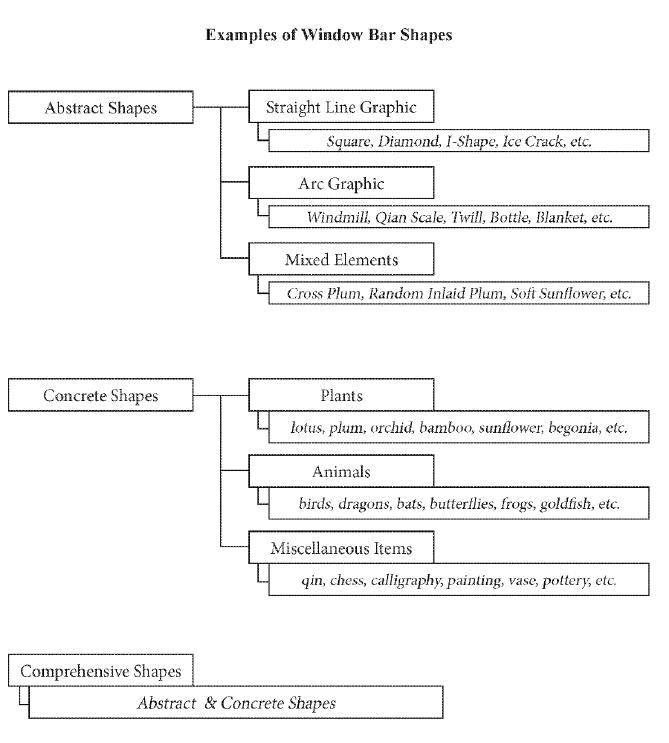

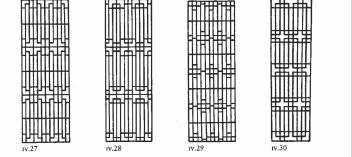

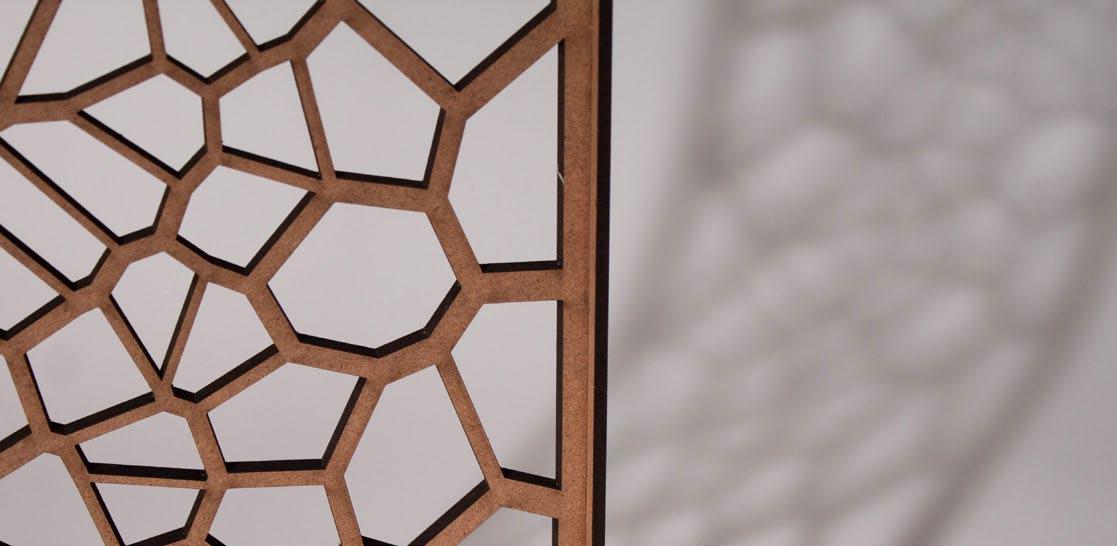

The Chinese Garden window is an architectural element that possesses functional purposes of providing light, ventilation, and framing views. However, it also has experiential and ideological purpose in composing a sequential unfolding narrative. These complex windows have cultural, historical, and artistic significance that has been lost in modern landscape architecture. Contemporary design seeks to return to an ideology grounded in the built environment’s connection with nature. To inherit the tradition of Chinese window design and to understand the principles behind that design are both integral parts of this return to the natural environment.

This exploration investigates the origins of these Chinese garden window designs with the intention to recreate, further elaborate, and reestablish them within contemporary contexts. After initial analysis, the project turns towards parametric models of pattern generation and digital fabrication methods to improve efficiency and add complexity.

38

VOLUME 4

2023

PHASE 1: HISTORICAL INVESTIGATION

The first phase of the report outlines the background research conducted to understand and distill the broad history of Chinese garden windows. Relevant research was divided into 2 parts that hone in on design motivations and intentions behind this typology.

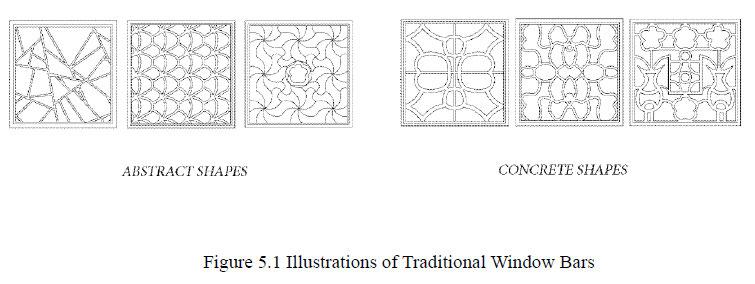

PART 1: STUDY OF CHINESE GARDEN DESIGN

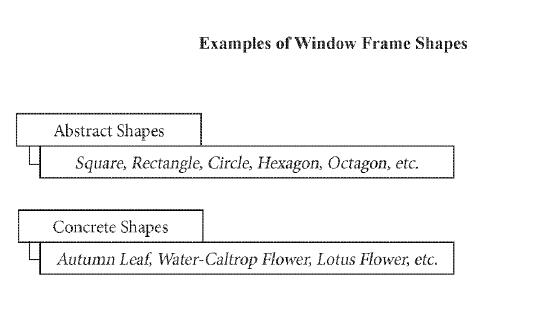

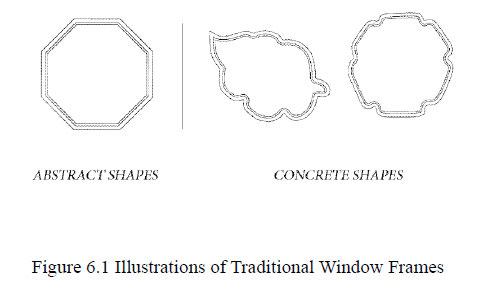

PART 2: STUDY OF GARDEN WINDOW DESIGN

1.

2.

3.

4.

5.

1. Influences 2. Styles 3. Materials & Techniques

Origins Spiritual philosophies Fengshui Painting & Poetry Composition & Design Strategies

The scope of the windows investigated in this exploration includes those in the private gardens from the Qing Dynasty, located in Southern Chinese cities. These cities located next to the Yangtse River (Suzhou, Hangzhou, and Yangzhou) embraced milder climates and lush vegetation which produced gardens with archetypal walls pierced with openings and screens that prioritized the views of landscapes.

39

INVESTIGATION

SELECTED WORKS

PHASE 2: PARAMETRIC RECREATION Three styles of garden window were chosen for deeper analysis. These styles represent some of the more commonly found window types and cover varied categories of type and form.

ICE CRACK STYLE

FLOWER STYLE

ANTIQUE LATTICE STYLE

DIGITAL ANALYSIS & ITERATION USING GRASSHOPPER

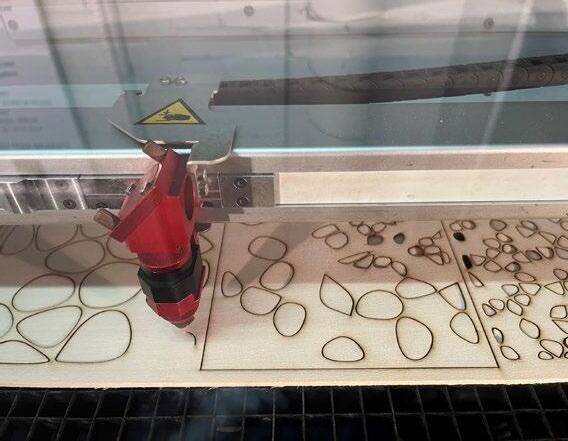

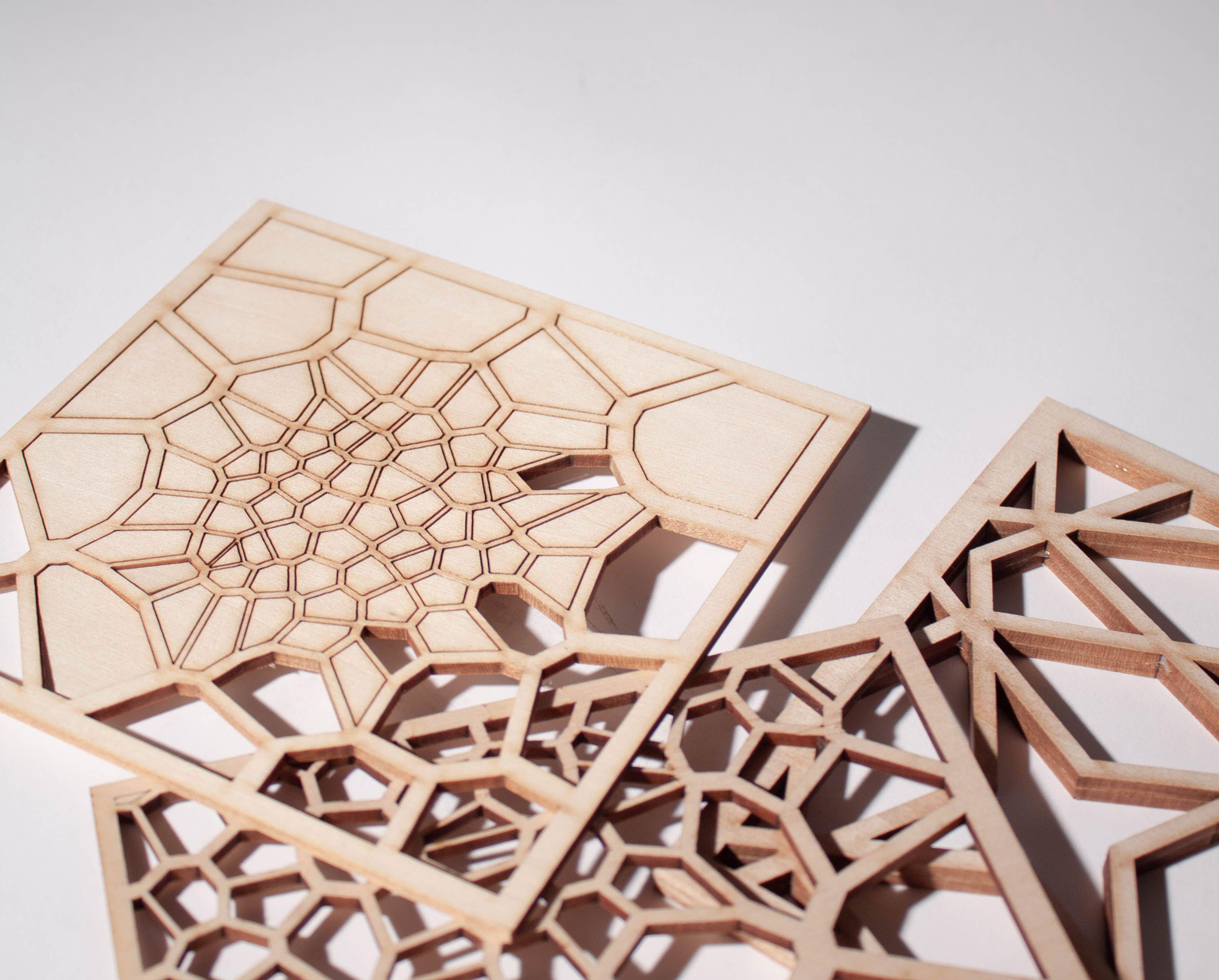

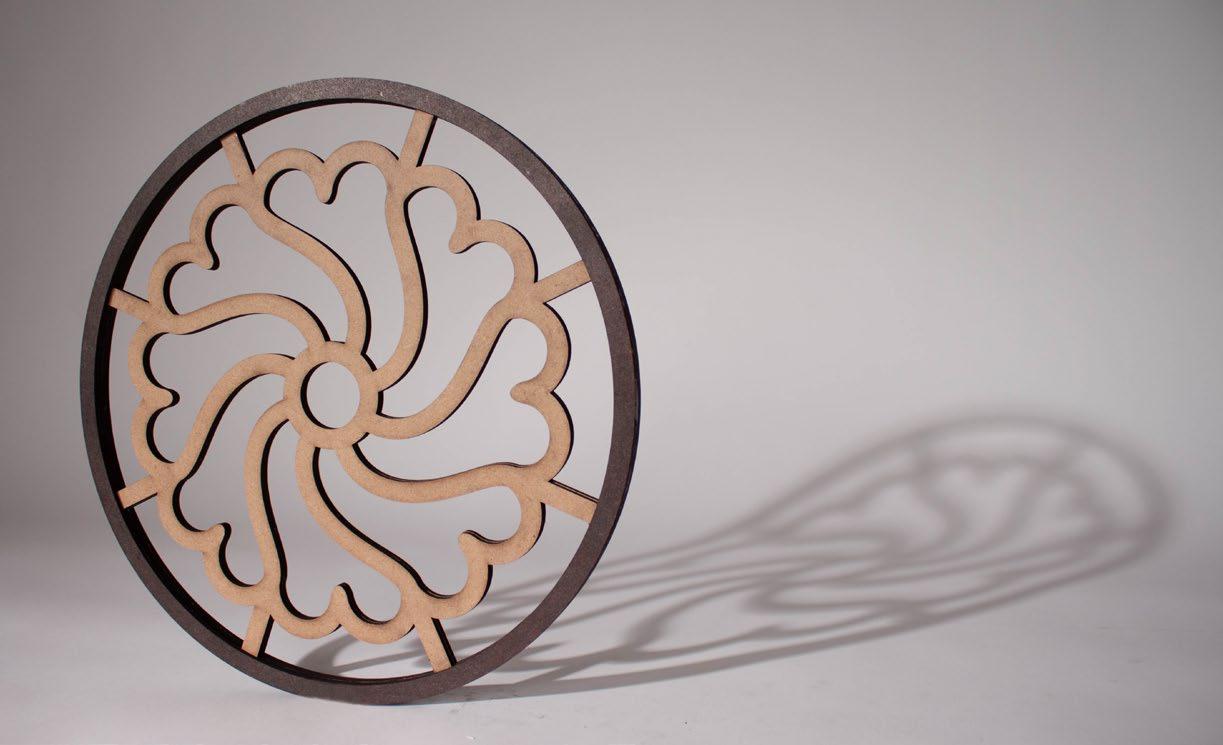

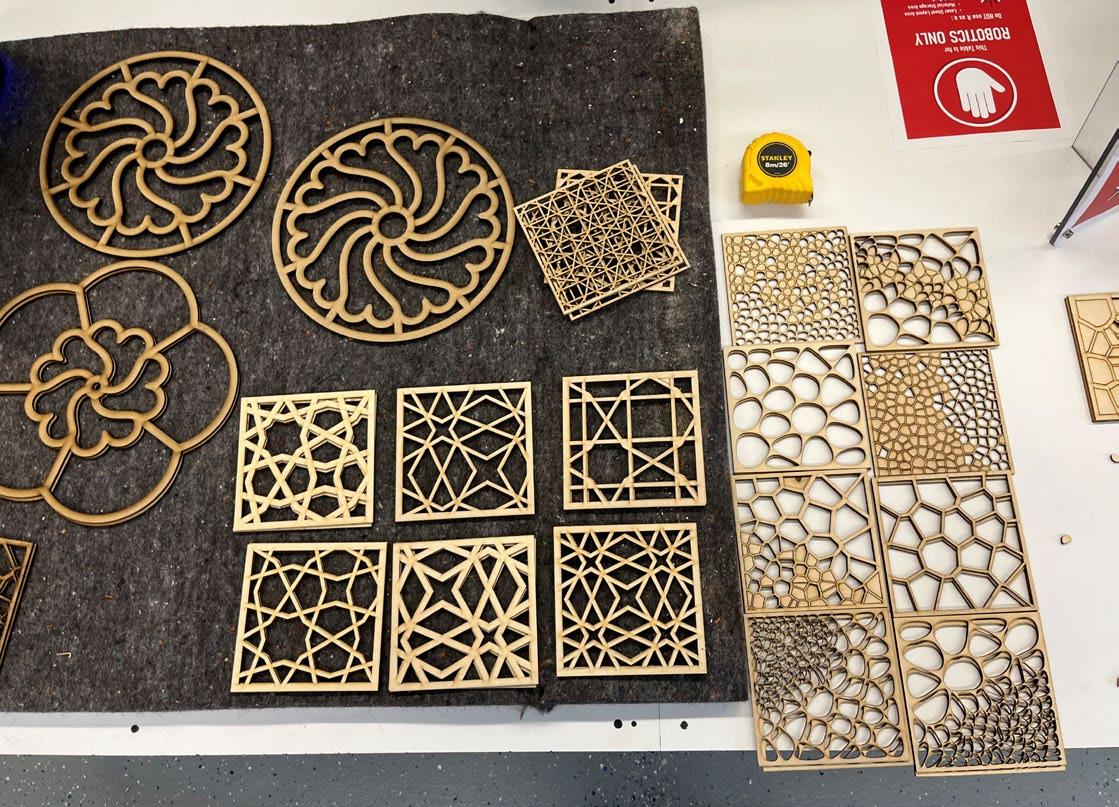

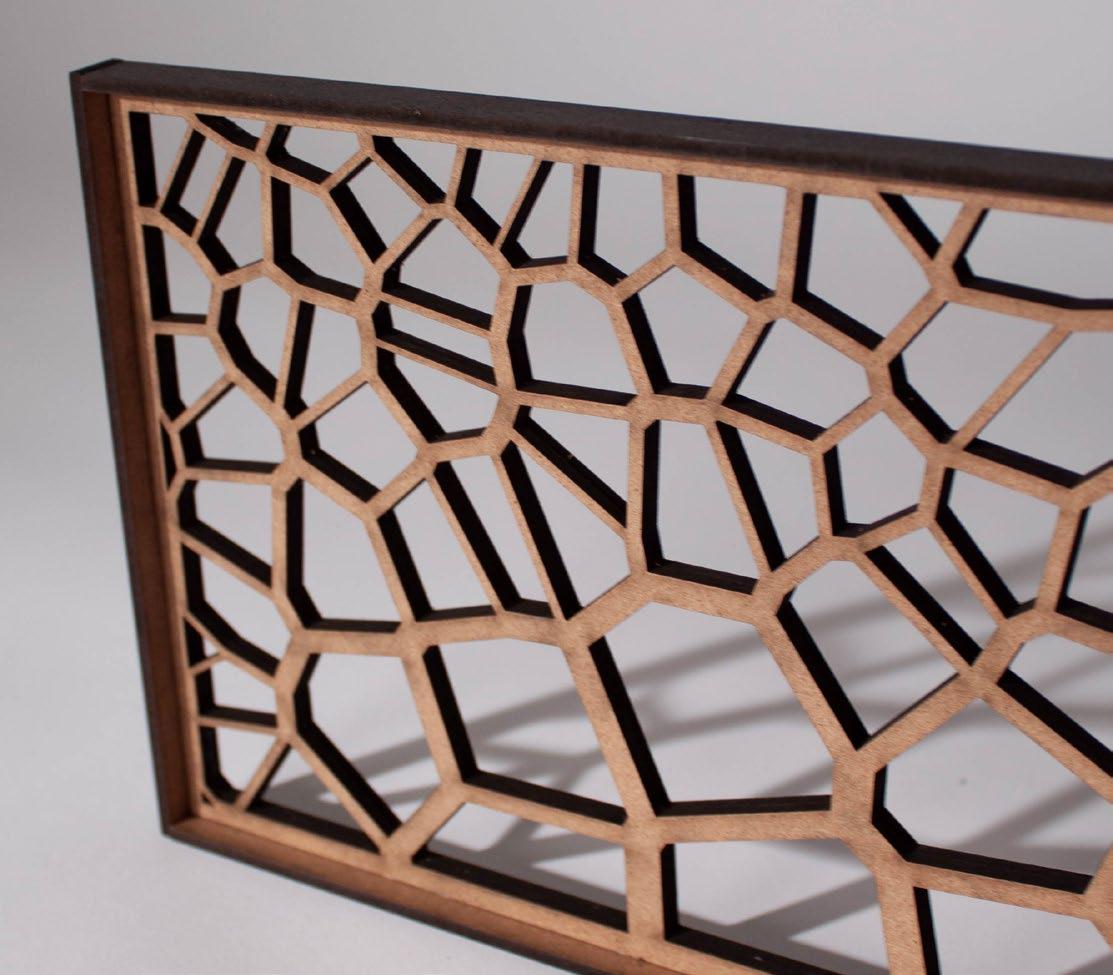

PHASE 3: FABRICATION The final phase of the investigation was taking the digitally created designs and iterations of the three windows chosen and lasercutting the frames from several materials. Initial tests were done with millboard sheets, then basswood sheets, and finally MDF wood for the final fabricated windows. Various tests on sizing and thicknesses were conducted to find a suitable feel and look.

40

VOLUME 4

2023

41

AKIN

06 AKIN FURNITURE DESIGN APRIL 2023 / COMPETITION RHINO / LUMION / WOODWORKING MACHINERY > IN COLLABORATION WITH LYDIA XIA AND ANDREW MCDONALD > SUBMITTED TO THE “KENGO KUMA & HIGASHIKAWA” KAGU DESIGN COMPETITION

SELECTED WORKS

With the increased frequency of social isolation and physical confinement due to the COVID pandemic, technology has taken over our ability to create deep, intimate, and memorable moments with the outside.

AKIN attempts to envision a lifestyle that reclaims our precious connections with others and with the natural environment. It creates an opportunity for people to slow down, take our time, and cultivate intimacy through open air activities. The unique form of AKIN allows for users to sit facing each other, without barriers, creating a space of connection in what was previously empty.

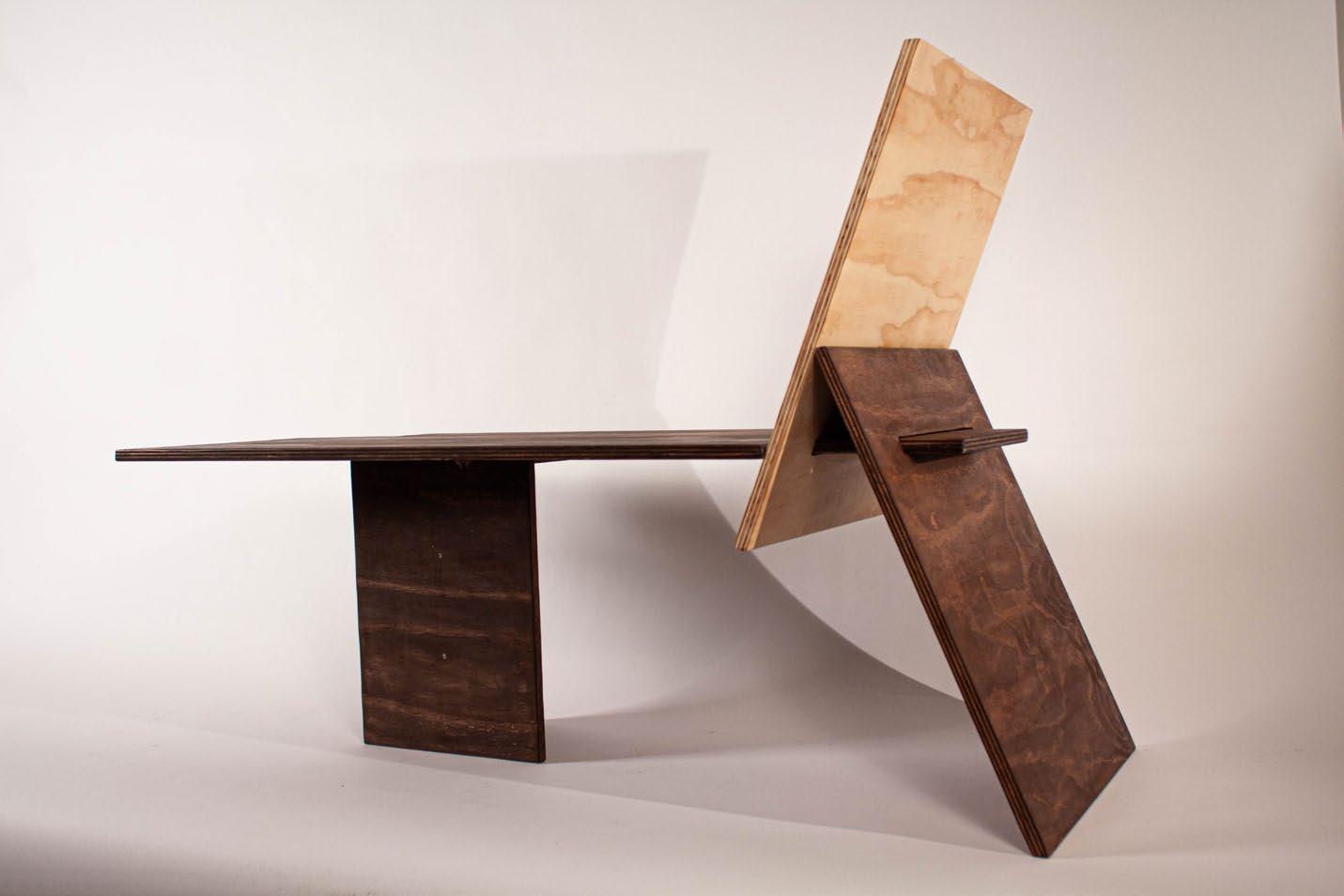

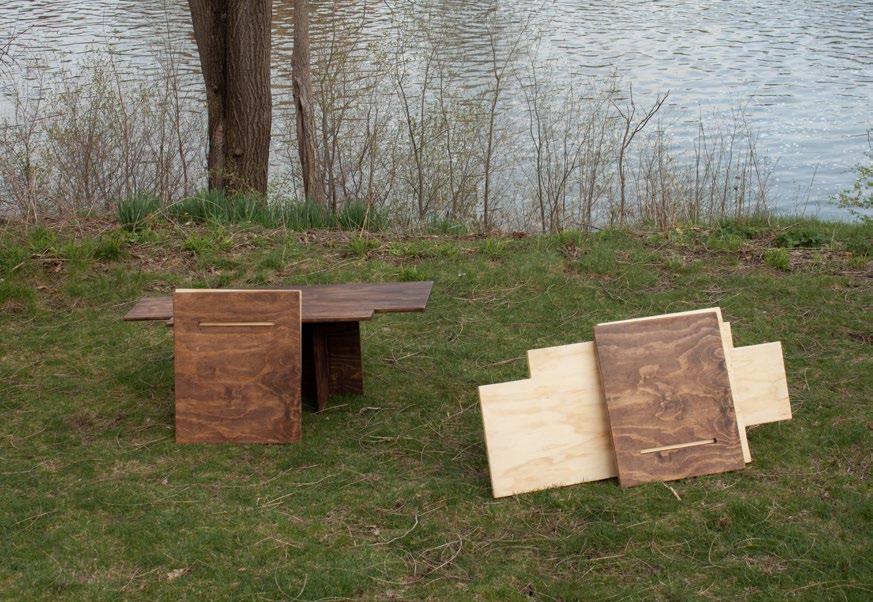

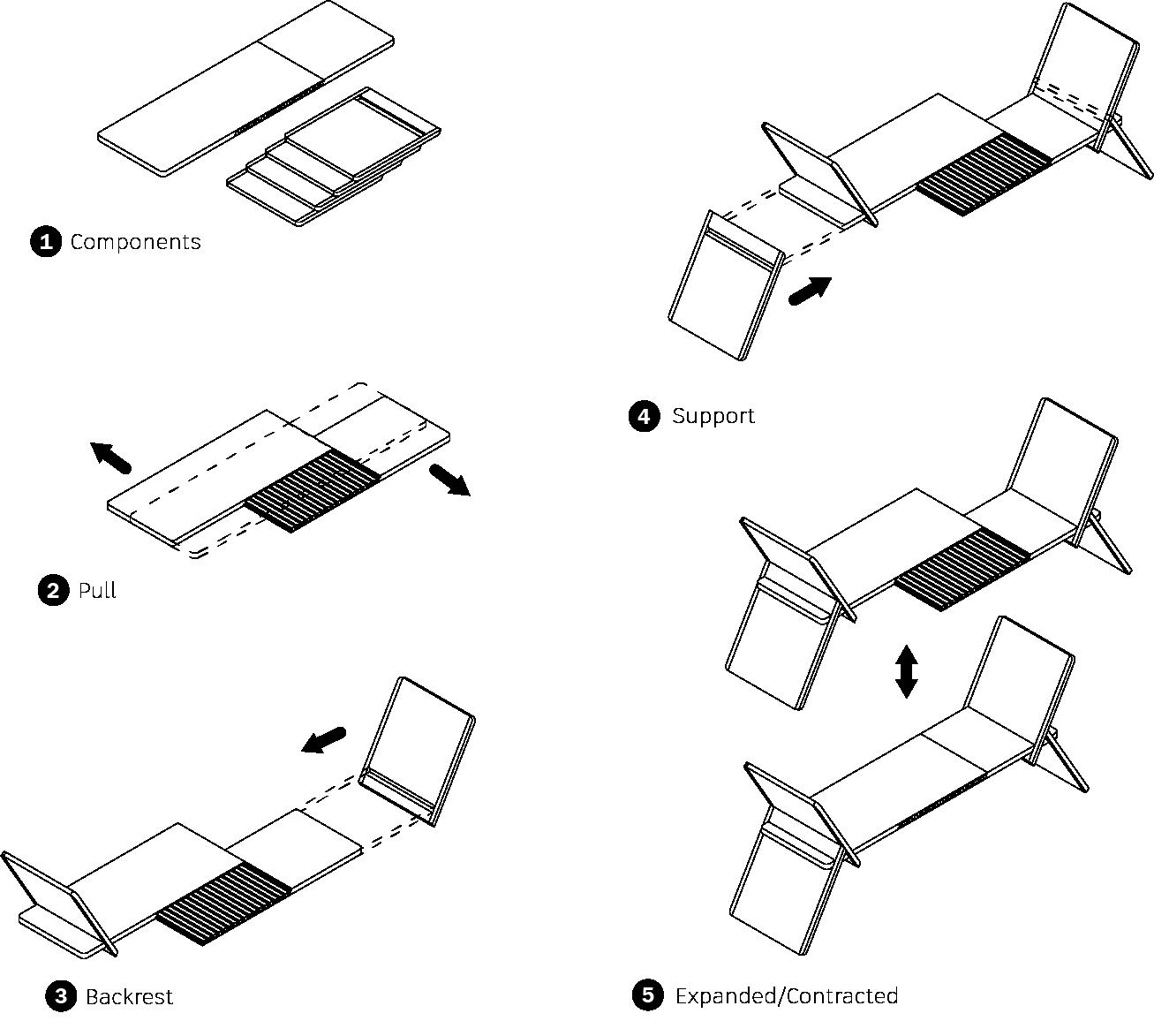

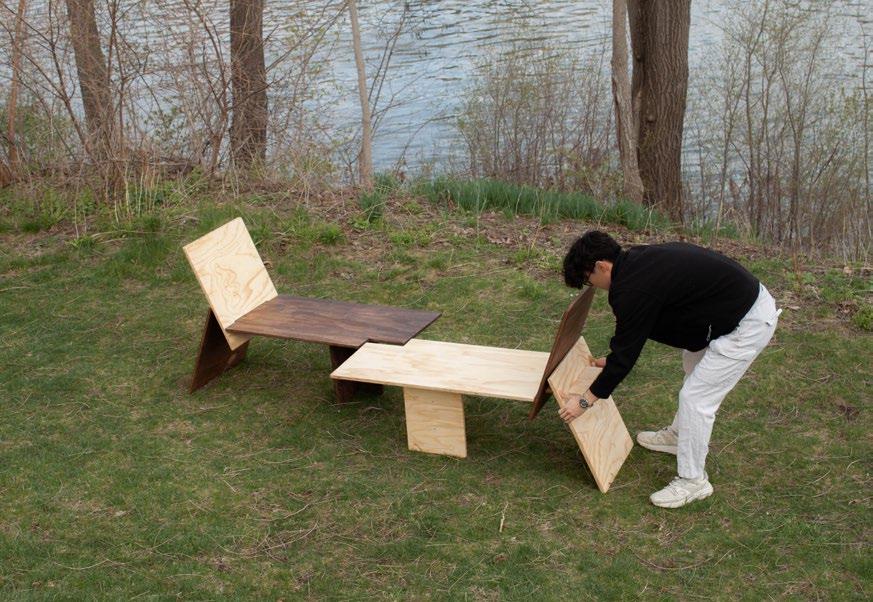

Designed for easy assembly, AKIN celebrates wood craft and joinery, becoming a versatile piece of furniture that can adapt to any situation. It is made with simple plywood to form six pieces that can be disassembled, transported, and reassembled. Two long pieces are joined with dovetail connections to create a surface that can slide in and out. Four identical support pieces provide flexible legs, backrests, and activity surfaces. AKIN acts as a chair, a bench, a table, and an intimate space.

42

VOLUME 4

2023

KEYWORDS GUIDING DESIGN DEVELOPMENT: OPEN AIR

–

CRAFT, CONSTRUCTION & MATERIALS

-

FLEXIBILITY

-

USABILITY

-

USER CONNECTION

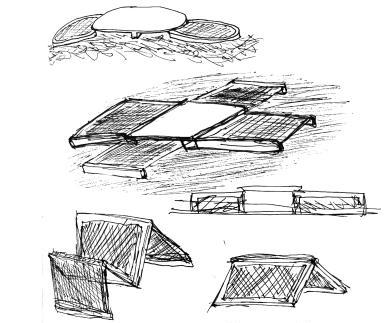

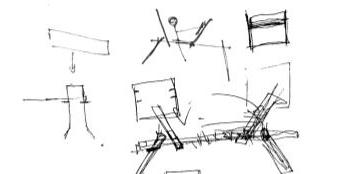

INITIAL ITERATIONS

1950mm 1370mm

440mm

925mm

120

PARTS

2150mm

SUPPORT

PULL

350mm 150mm

BACKREST

350mm

EXPAND / CONTRACT 900mm

550mm

FINAL ASSEMBLY + DIMENSIONING 43

AKIN

SELECTED WORKS

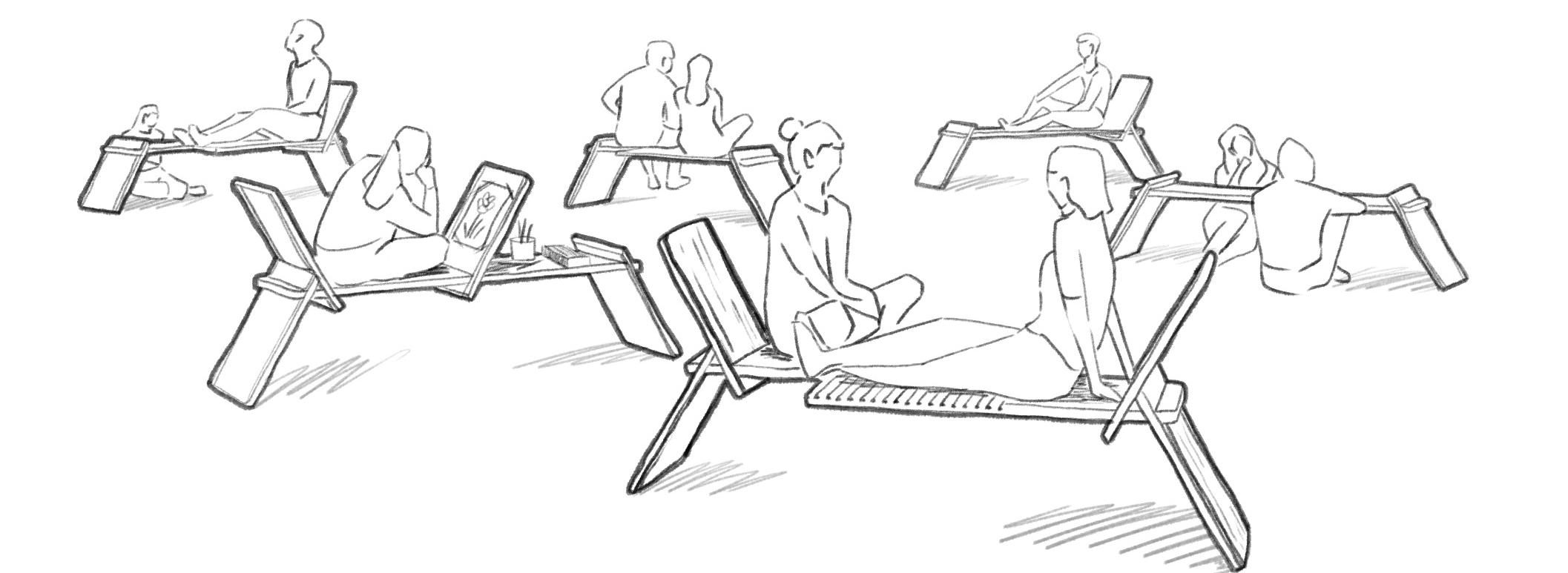

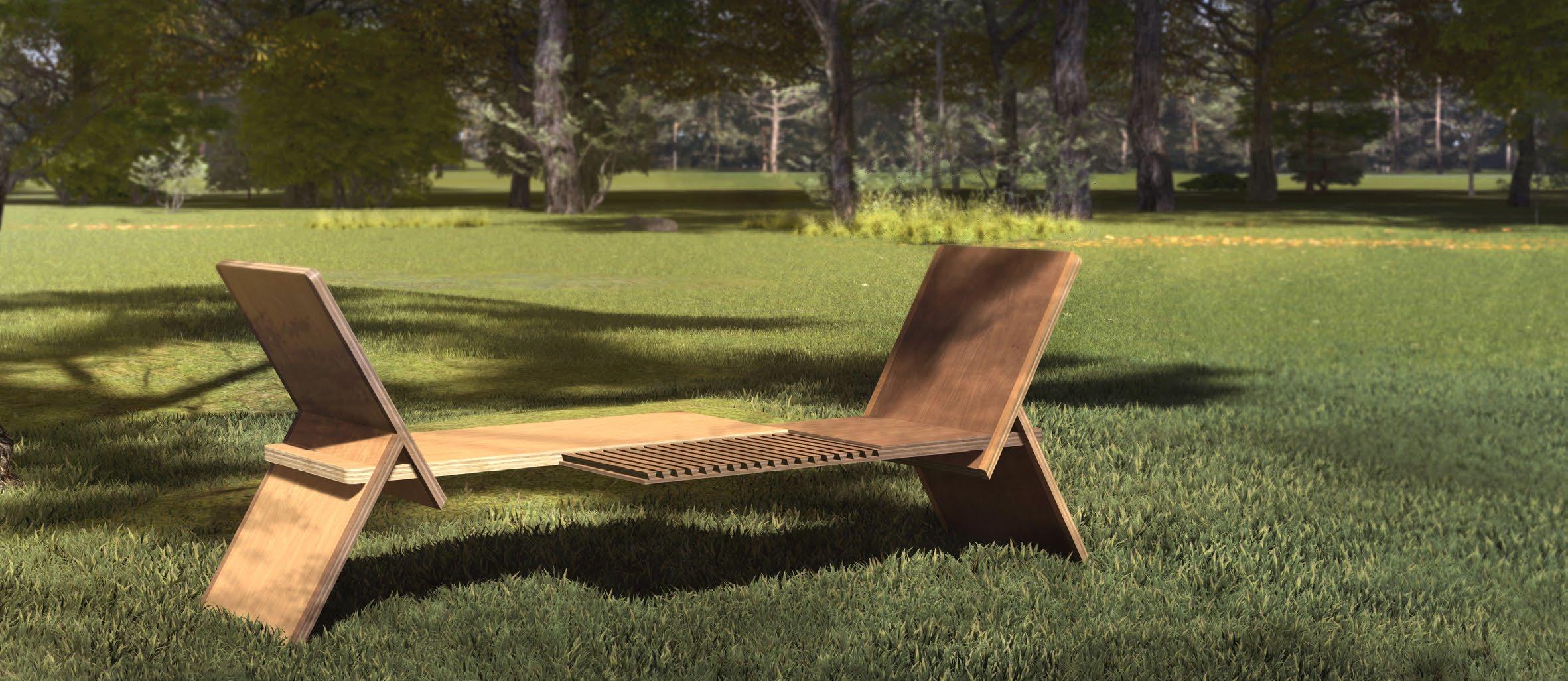

SECNARIOS OF USE + FINAL RENDERED SEATING

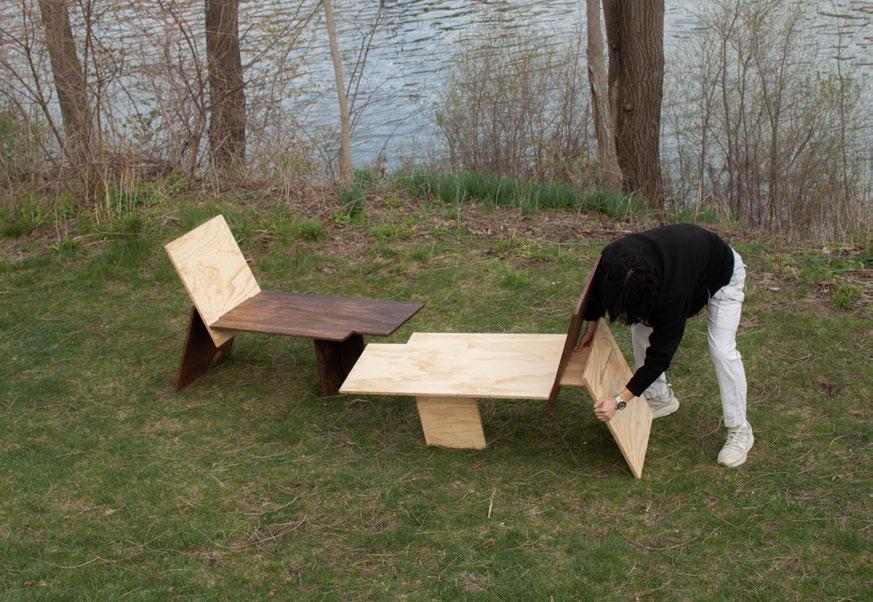

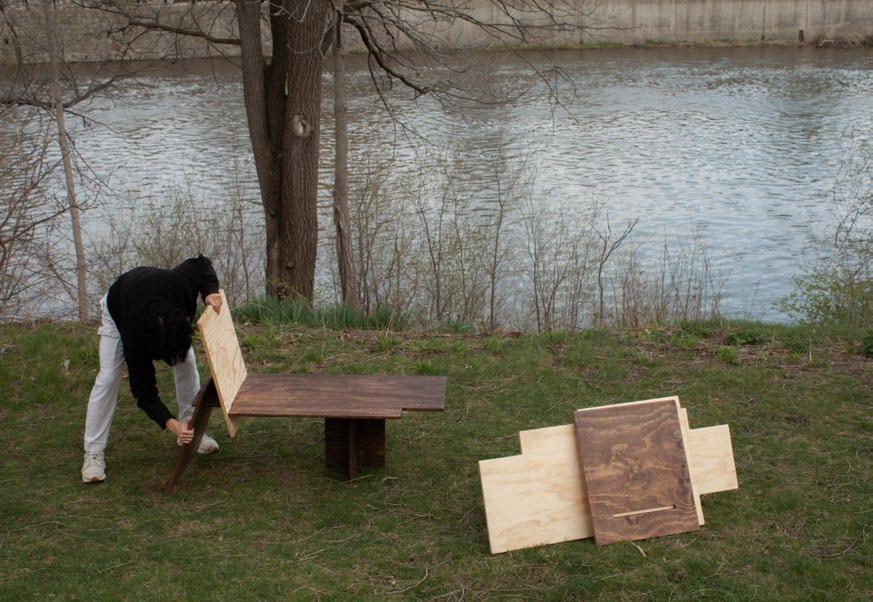

Because the competition design was developed only digitally, complex iterations were created more liberally and with less of an intent of physical fabrication past developing a digital model. When deciding to fabricate it, the difficulty of translating into a physical medium given the real-world constraints of materials, physics, and wood-working resources became apparent.

Test models needed to be created to begin understanding the real-world physics and mechanics of a bench, and after several iterations and consultations, a modified design was made while maintaining the original core design principles.

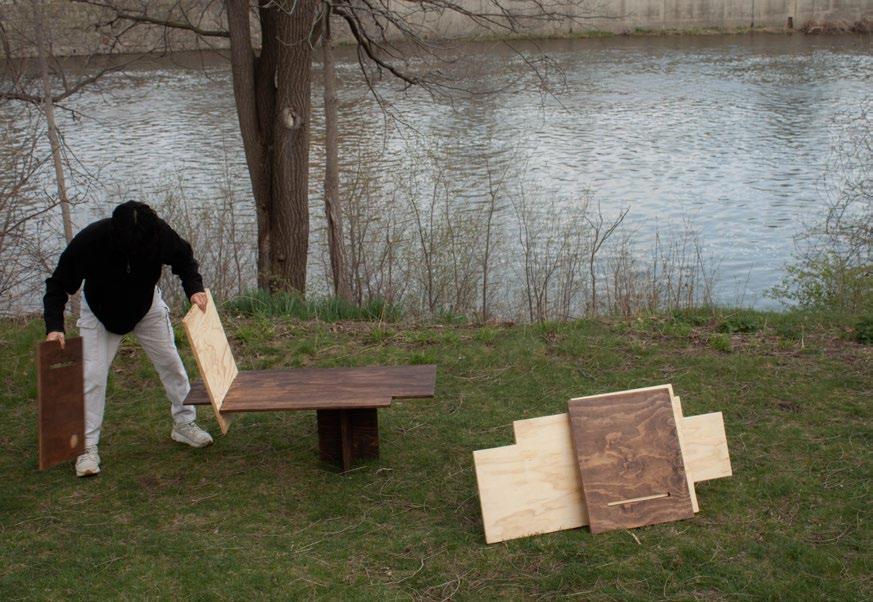

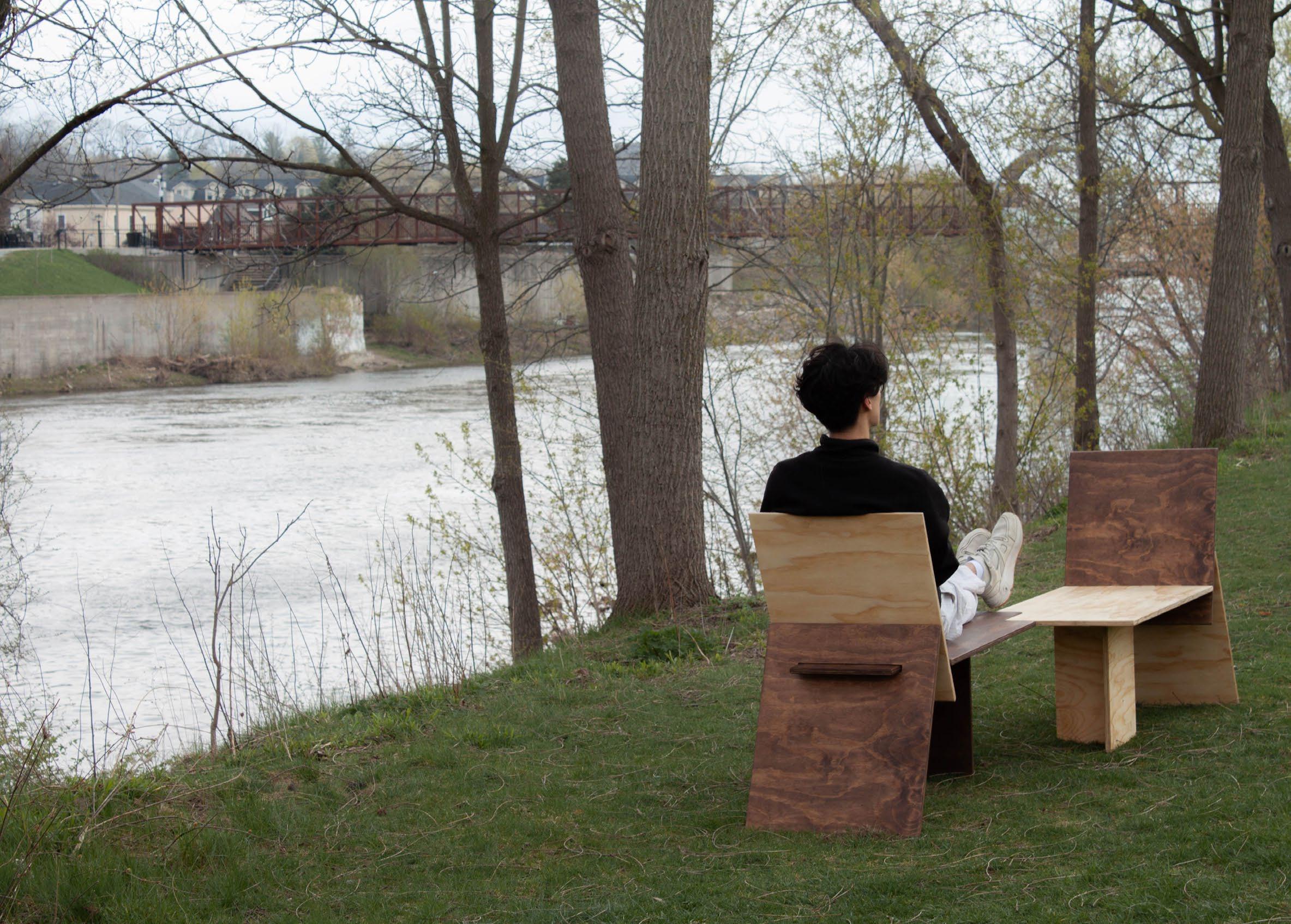

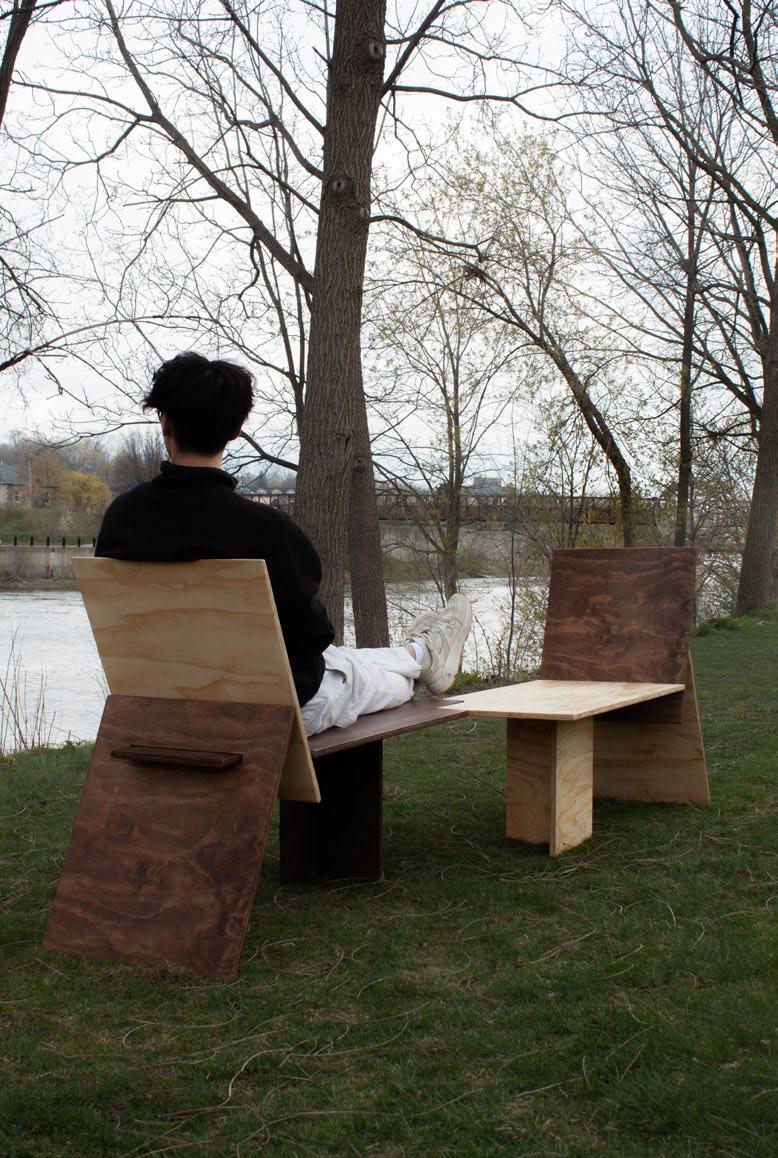

TRANSLATION INTO PHYSICAL FURNITURE 44

VOLUME 4

2023

45

THANK YOU!

AARON WONG

SELECTED WORKS / VOL.4 / 2023
