1. R | B VILLA
PRIVATE PROJECT - MANGAHUANTAG
QUITO | ECUADOR | BUILT | 2015
2. FACTORY IN A PARK
ARCH STUDIO IV - GRADUATE SCHOOL
CHICAGO | 2019
3. ESTANCIAS DEL AGUA
ARCHITECTURE AND LANDSCAPE LAB
RCR LAB | OLOT | 2017
4. THE DRIVERLESS CITY
RESEARCH ASSISTANT
CHICAGO | IIT | 2022
CLOUD STUDIO I - GRADUATE SCHOOL
CHICAGO | IIT | 2020 1 2 3 4 5

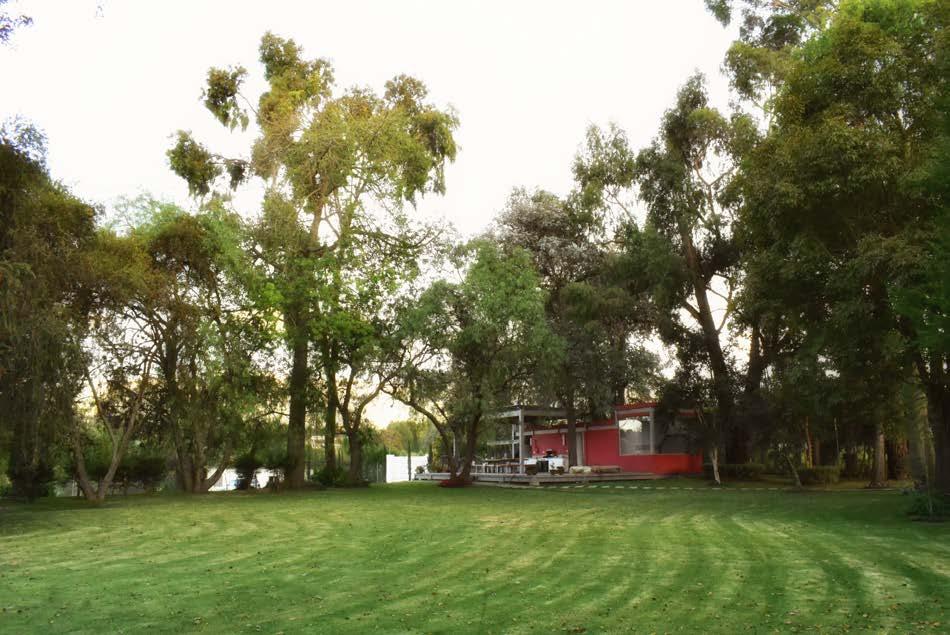

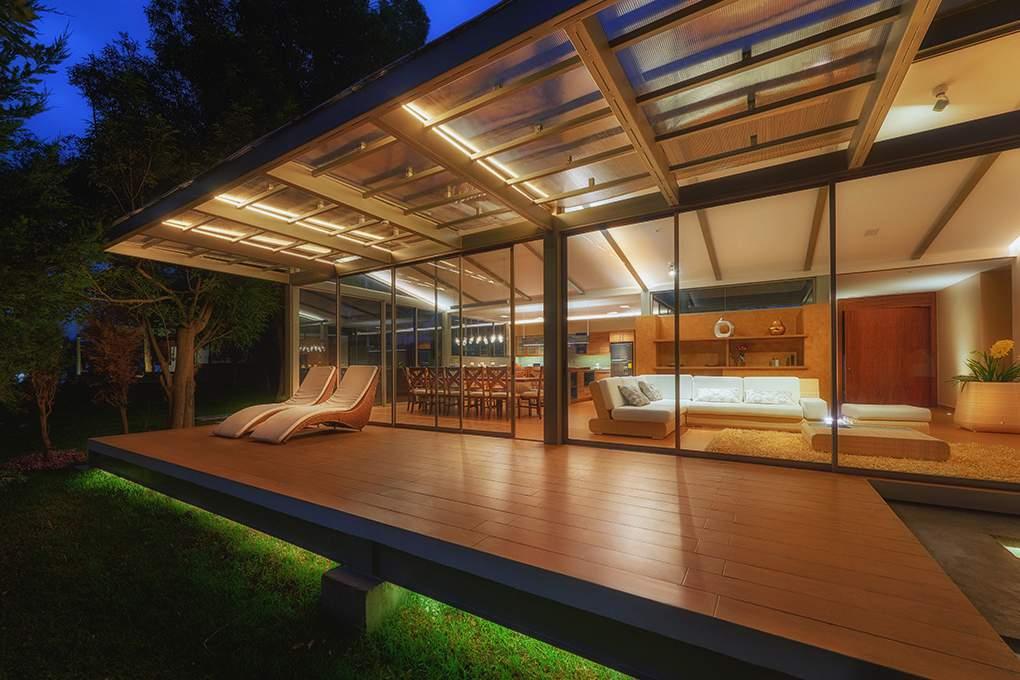

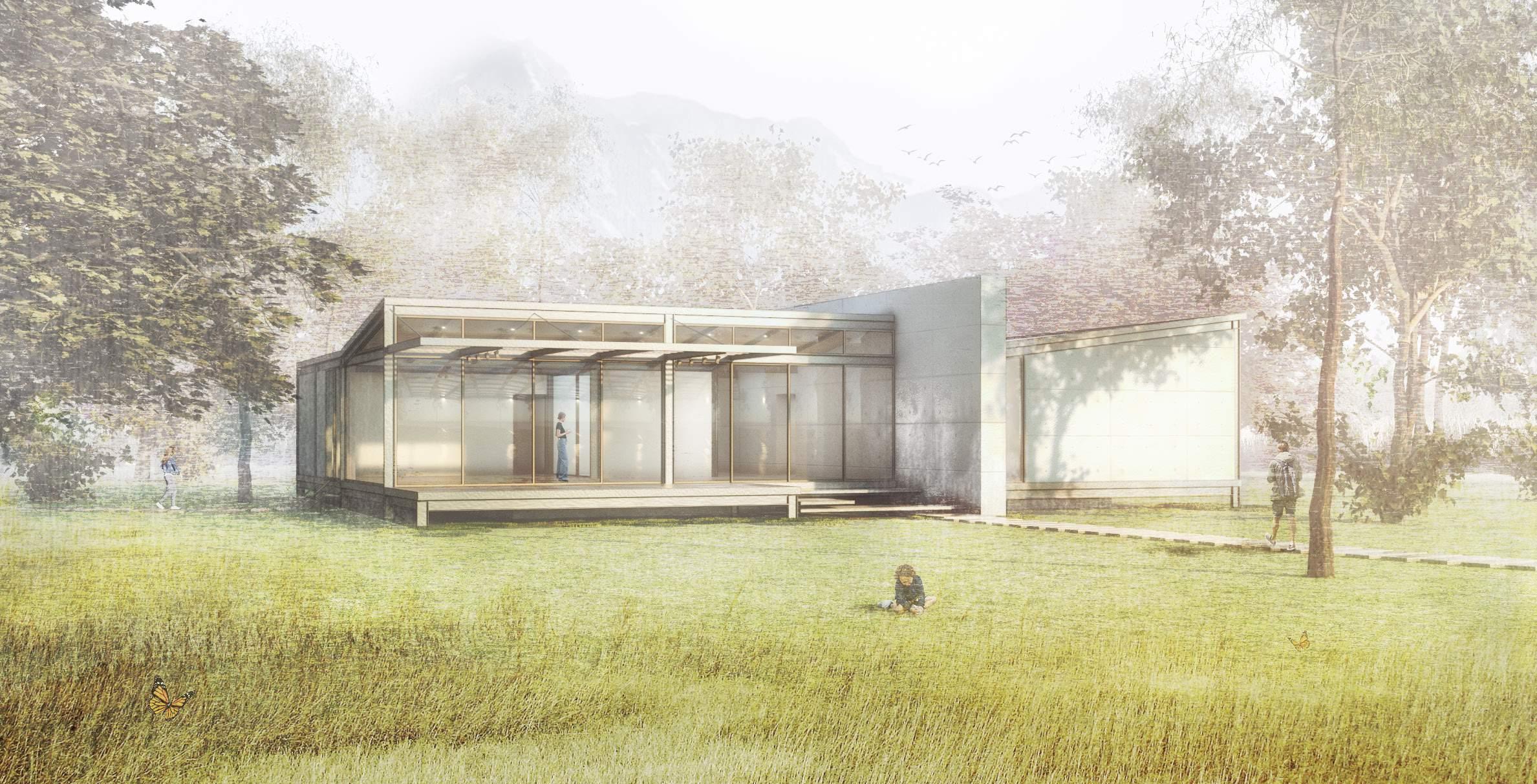

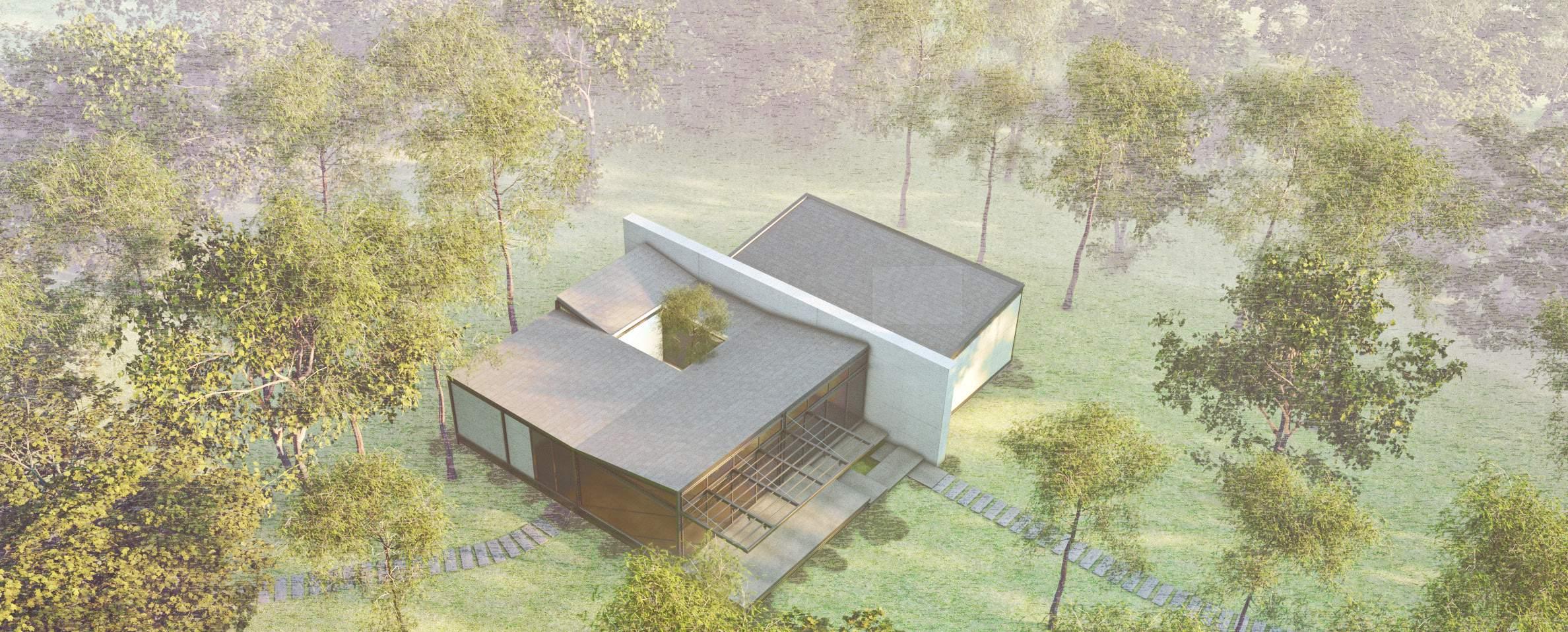

Located in Mangahuantag, a small suburb in the city of Quito, a space is proposed as a vacational hide-out for a small family.
The client’s vision for the project is to be a place of gathering, of social meetings, and also a place to share with her children and future grandchildren. This gave a guideline of the programmatic needs of the user.

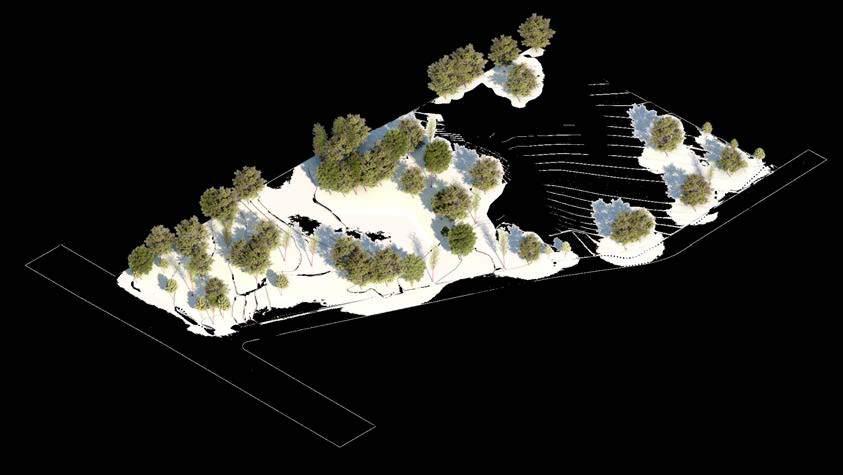

The site has unique nature features. It possess- es a unique and exotic vegetation with patrimonial trees like Ceibos and American Pines. Given this, the first decision on the project is not to tear down any of the existent trees, plan the house around this diverse and exotic, micro-landscape, and also to provide a central prairie for random activities.
Farming Area
Sloped Garden
Central court
Quincho site
House site
Private Garden

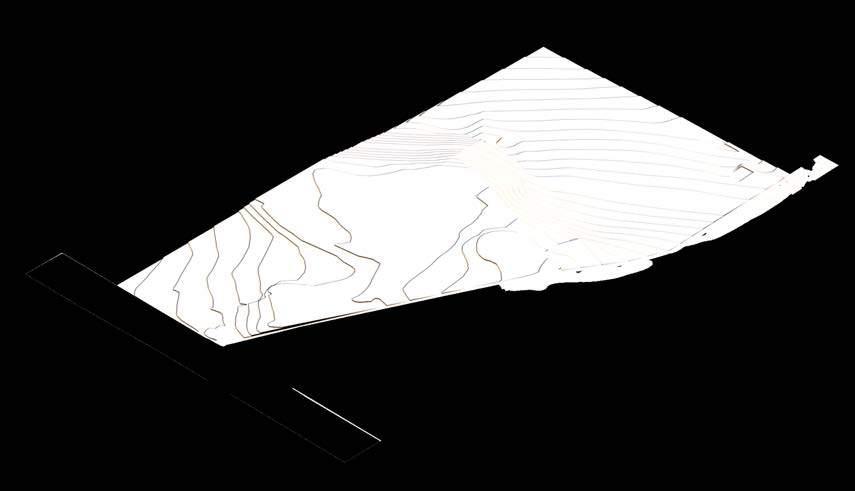

The highest elevation was designated for the Quincho, the lower zone is for farming, and the middle point has been selectd for the house.
The highest elevation was designated for the Quincho, the lower zone is for farming, while middle point has been selected for the main house.
The topography of the place suggests that the central architectural element has to be placed in the middle area of the land. However, the proposal prioritizes the landscape and green spaces. The area with a medium slope to the west has been dedicated to the house, and the area with a steeper hill to the east has been designated for crops. In contrast, the prairie area was designated for spontaneous events and the playground.
The program requirements suggested a linear typology in which the relations between spac es were connected sequentially. It required two well-identified areas, private and public. However, the physical conditions of the land and the desire to conserve all existent trees suggested the modification of the linear ty pology to fit in the proposed site of the prop erty while keeping the spatial configurations.
GROUND FLOOR 1/16”=1’-00”

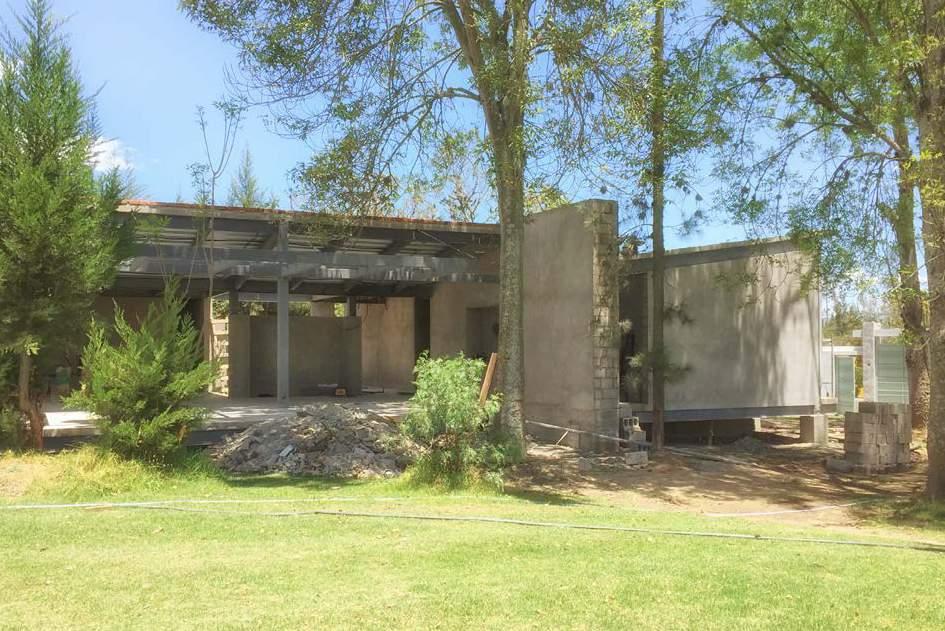

Construction planning and management were included in the contract. The project was planned to be completed in a period of 10 months, 2 of these dedicated to design, 1 to planning work and engineerings, and the rest of the time to the construction and adequation of the landscape. With the vision of streamlining the construction process, a metal structure was adopted as
a construction system, which was modulated and prefabricated to be assembled on site.
As a final result, it was possible to deliver an integral project between the landscape and the architectural element. By prioritizing the landscape, it was possible to frame views and scenarios of the site and enhance the importance of nature on the site.
ARCH STUDIO IV - GRADUATE SCHOOL | IIT | CHICAGO | 2019

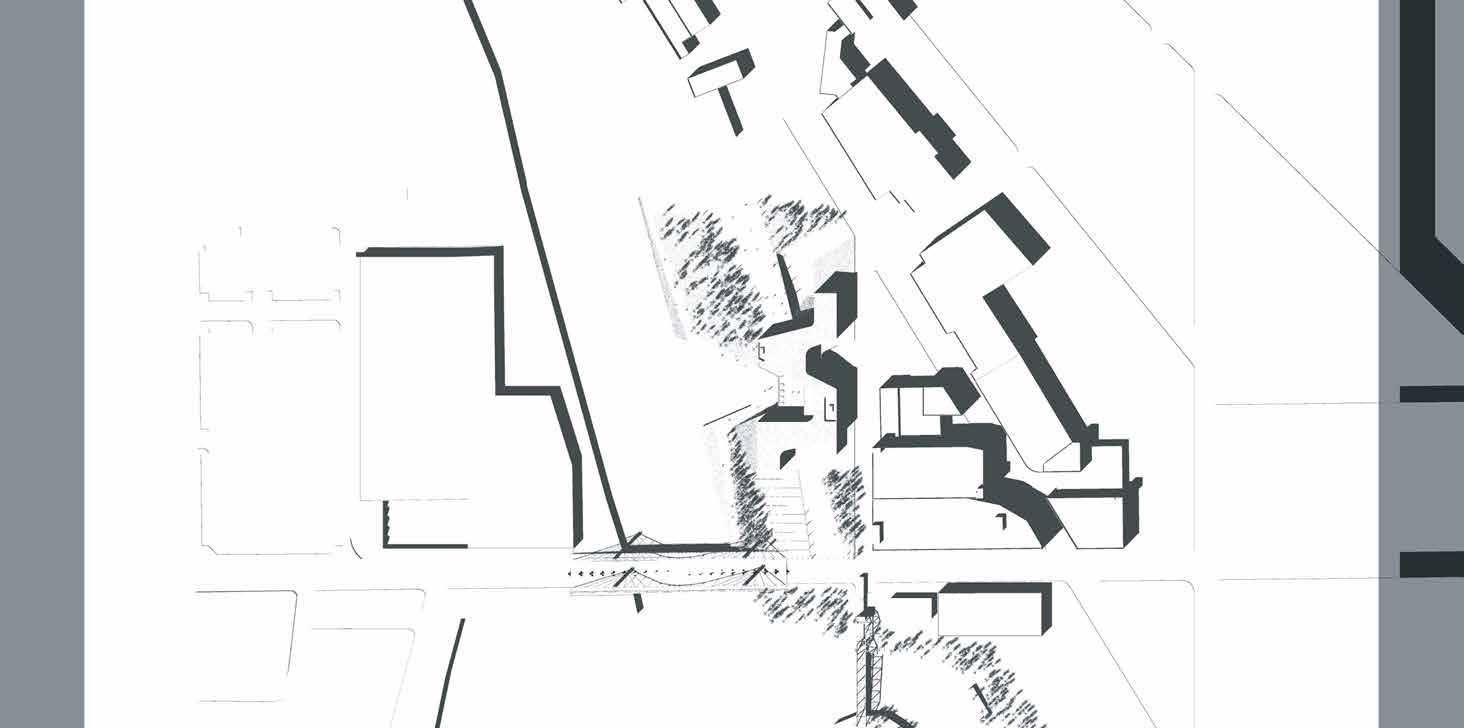

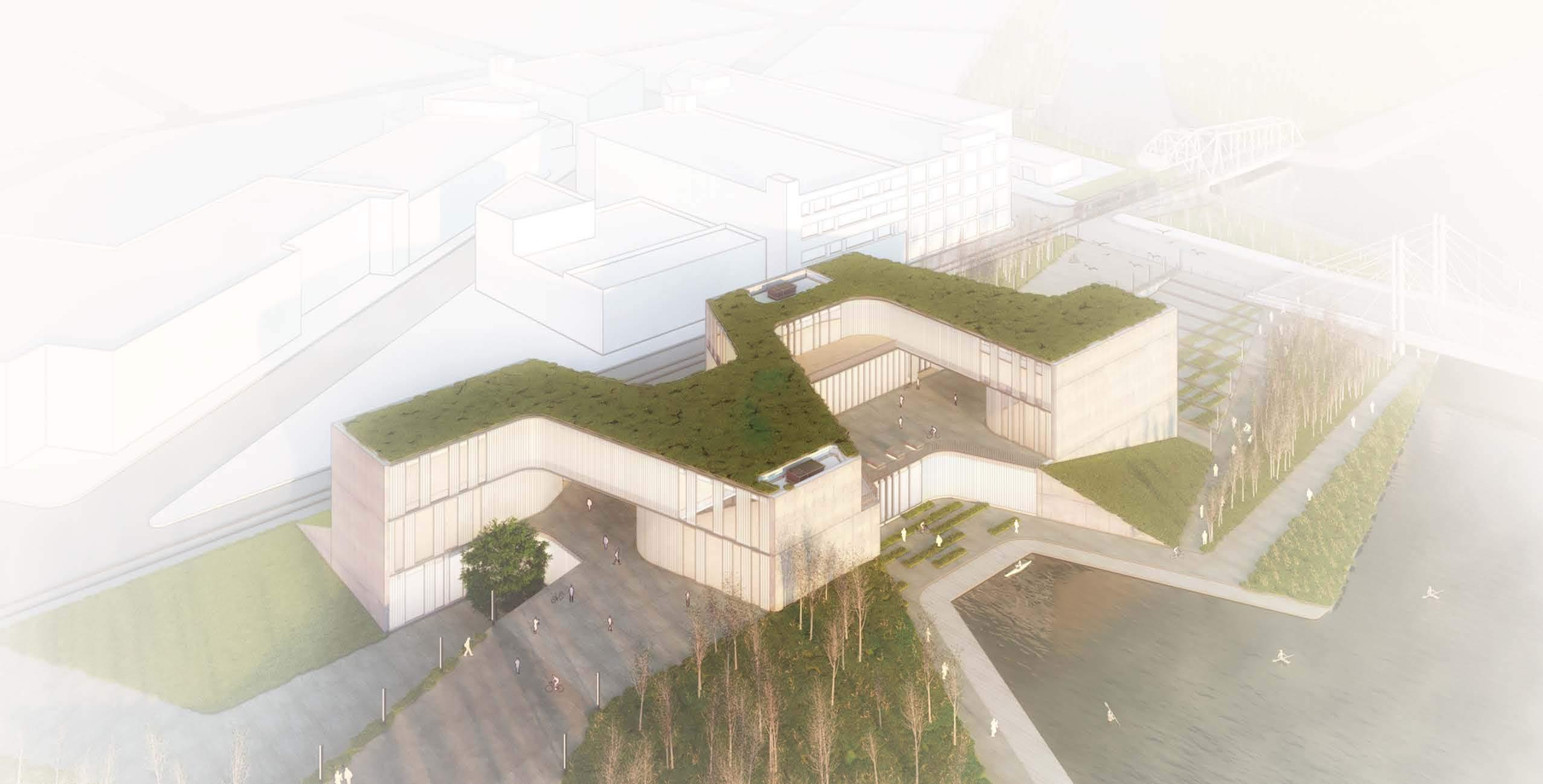

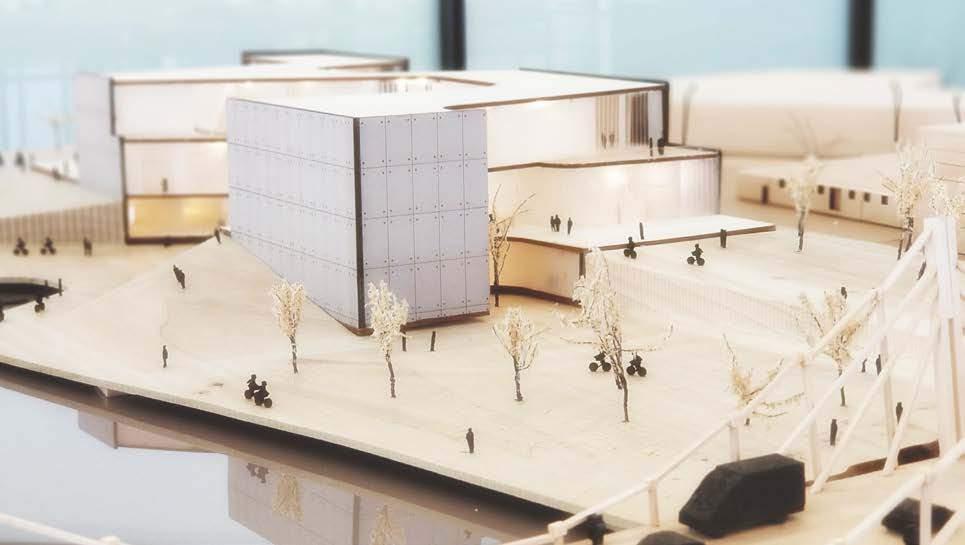

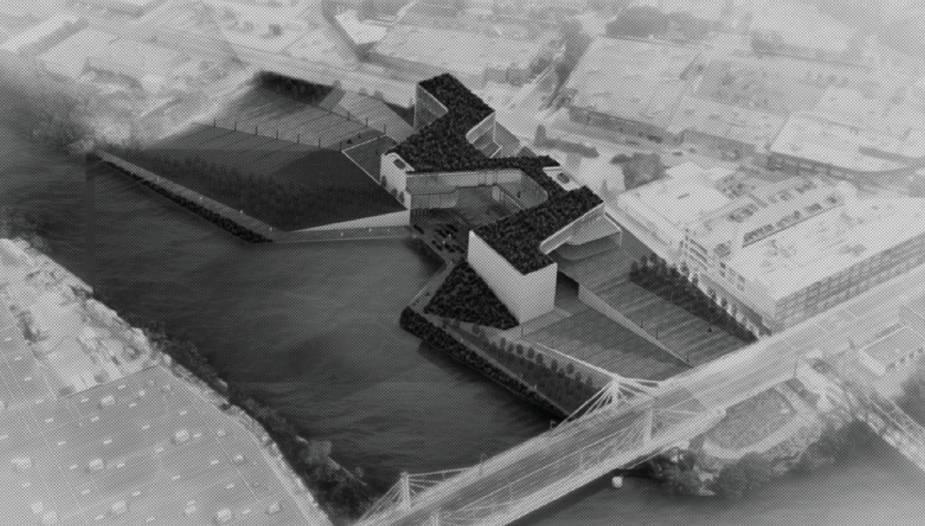

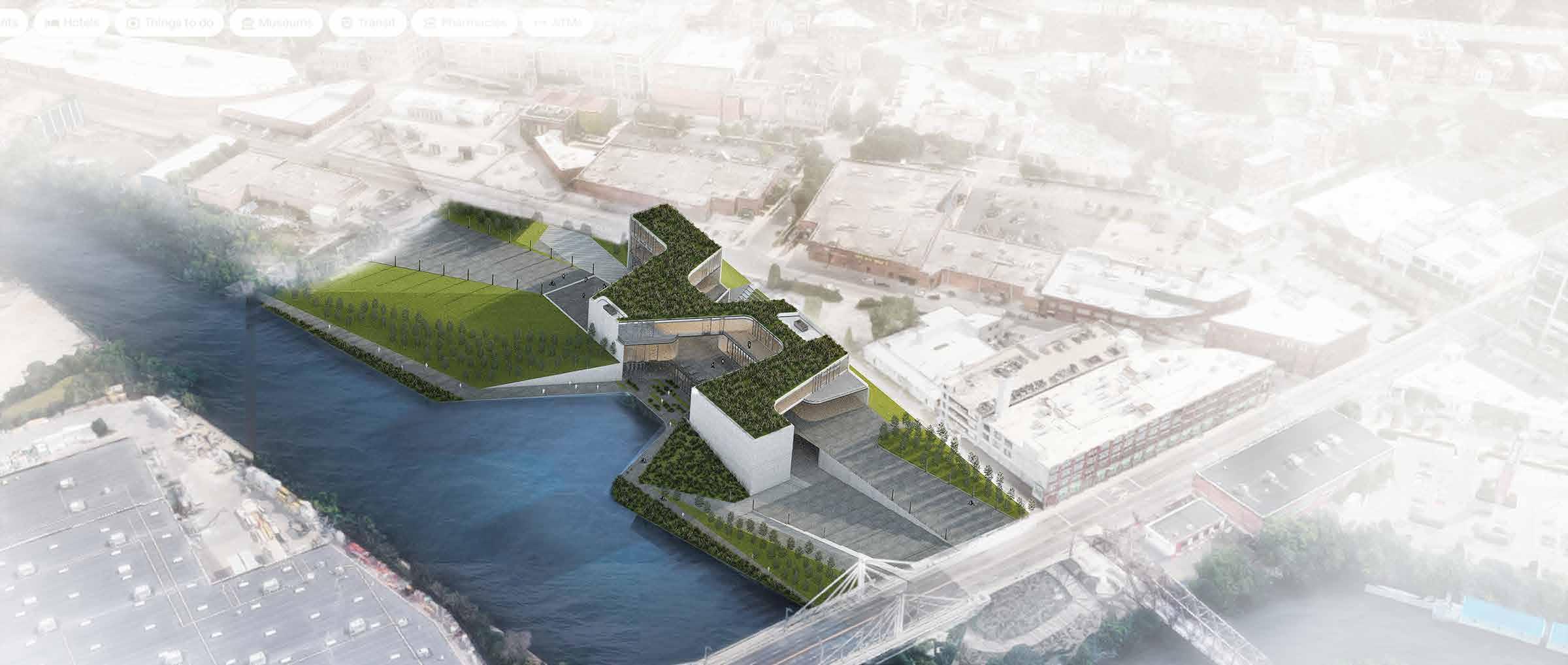

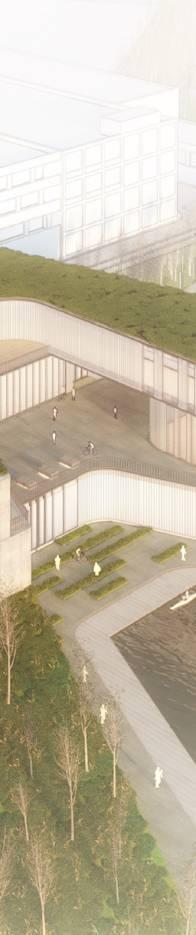

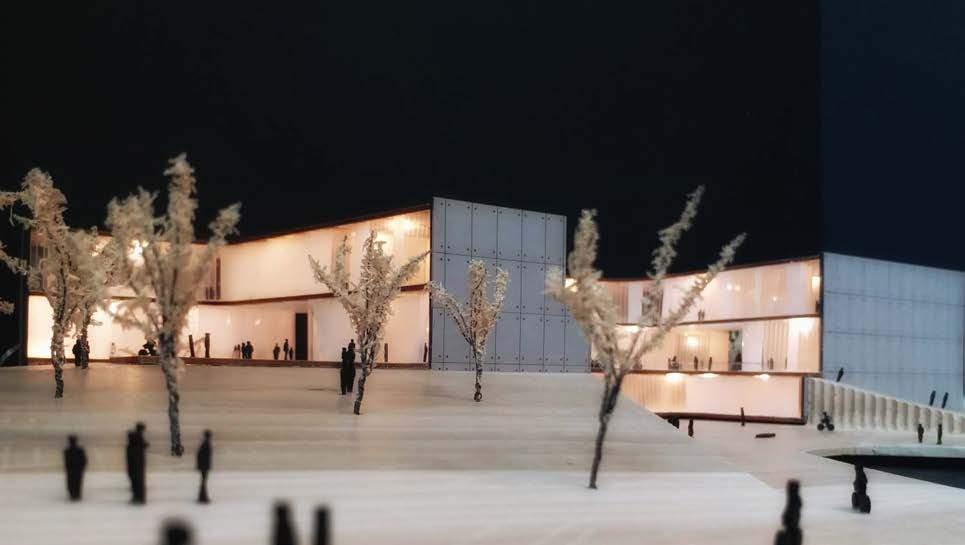

Located in the Chicago River edge in Goose Island, an abandoned site, currently a scrapyard, is proposed as the place for an urban bicycle manufacturing center.
The project aims not only to host industrial activities but also to be a social catalyst in the neighborhood, promoting bicycle culture in the city, and providing a safe passage for pedestrians
through this area.
This public-private intervention will not only help in revitalizing the neighborhood by opening the site for recreational spaces but will also provide new connections to the city.
The design communicates the idea of continuous connection by “stitching” the urban fabric in a structured and choreographed environment.
Created in 1850s, Goose Island was an essential component of the industrial corridor along the Chicago River. But with the transformation of its adjacencies (Lincoln Park), the island lost its identity as a manufacturing district, leaving remnants of its former operations and causing disruptions in the neighborhood and its continuity. With new development happening like Lincoln Yards, it is natural that sites like this need to go under an intensive
transformation, and being transformed into socio-economical corridors, mainly being located at the edge of the river. Therefore the proposal aims to create a passage between the city and the Chicago River, stitching them together to the urban fabric. The transformation of a scrapyard into a cultural hub was proposed. The architectural gesture responds to the adjacent context by providing sights and passage to the main places of the area.

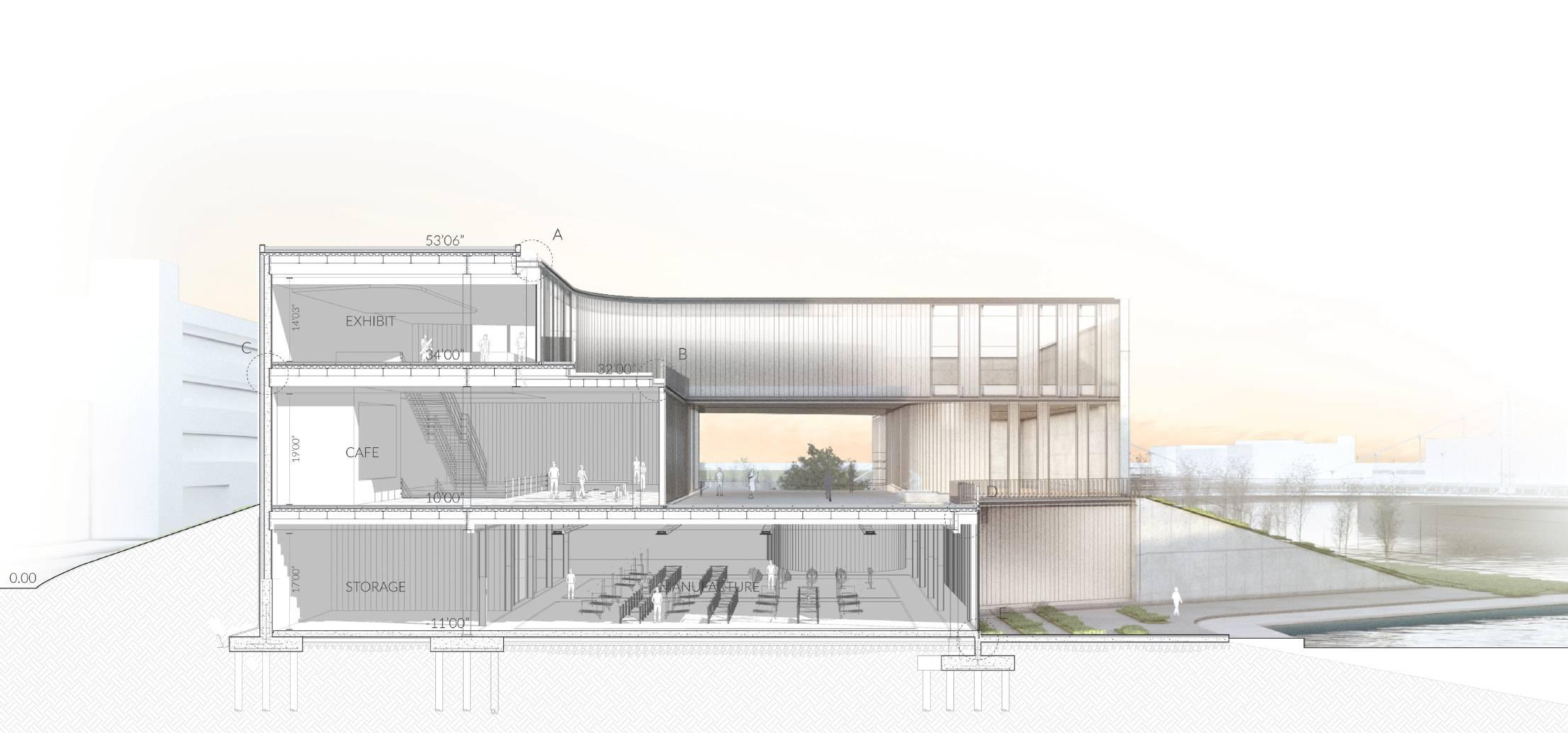

Program: To re-develop an inner-urban bicycle manufacturing center on a long abandoned site on the Chicago River edge in Goose Island. The proposed manufacturing unit will provide open access to general public at large to understand the process of bike production along with formal and informal exhibition spaces on clean and well maintained landscaped spaces. This public-private intervention will not only help in re-vitalizing the neighborhood by opening the site for recreational spaces but will also provide a new platform for bicycle community of Chicago.
1- Concrete Tiles
2- 1” Glass railing
3- 9” U Section Steel
4- Insulation
5- Aluminum receiver profile
6- Waterproof membrane
7- Railing Channel
8- W Section Beams
9- W Section Girder
10- W Section Column
11- 9” Steel Square Tube
12- Pin Connection
13- Fiber Cement Board
14- Protection Board
15- Pedestal Pavers

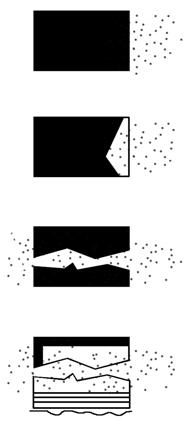

Strategy: “Concatenation”- to have series of unexpected experiences through the site while stitching the connections between the existing fabric to the 606 bike trail. The orchestrated programmatic interventions create multiple pauses for the pedestrians and bikers to host social activities therefore, create focal points for interactive gathering spaces across the site. The strategy is also
to sandwich public spaces between the private manufacturing unit and a semi-public exhibition spaces for bicycle community. These multi-level programs sew the link between both, the vertical and horizontal elements in the building. Architectural Expression: The design communicates the idea of continuous connection by “stitching” the urban fabric in a structured and choreographed.
South Entrance

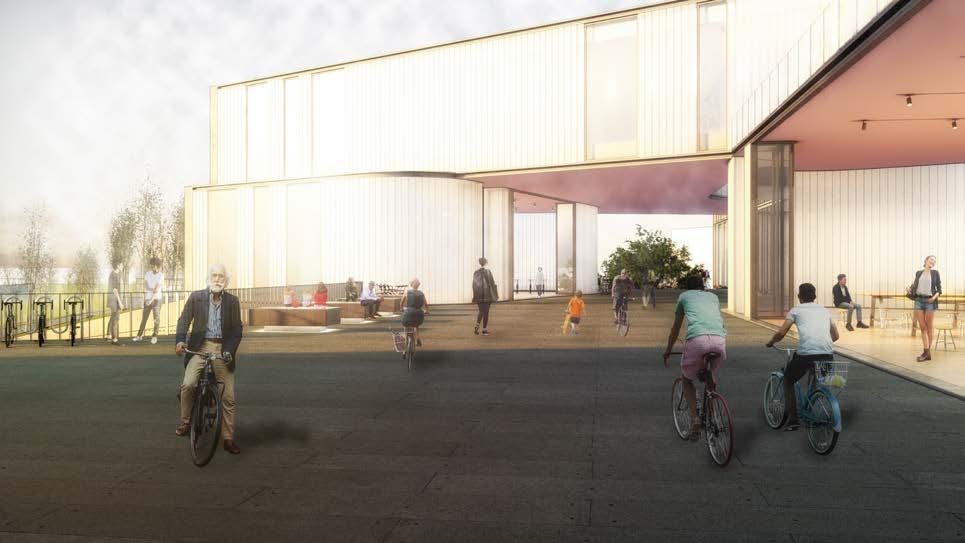

GROUND FLOOR PLAZA

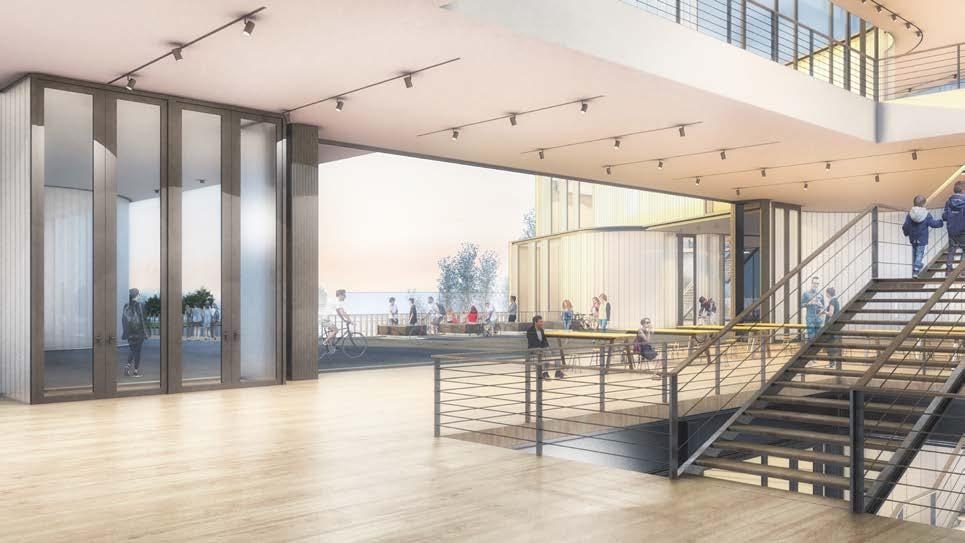

GALLERY ENTRANCE AND CAFETERIA
NORHT WEST VIEW
SOUTH WEST VIEW

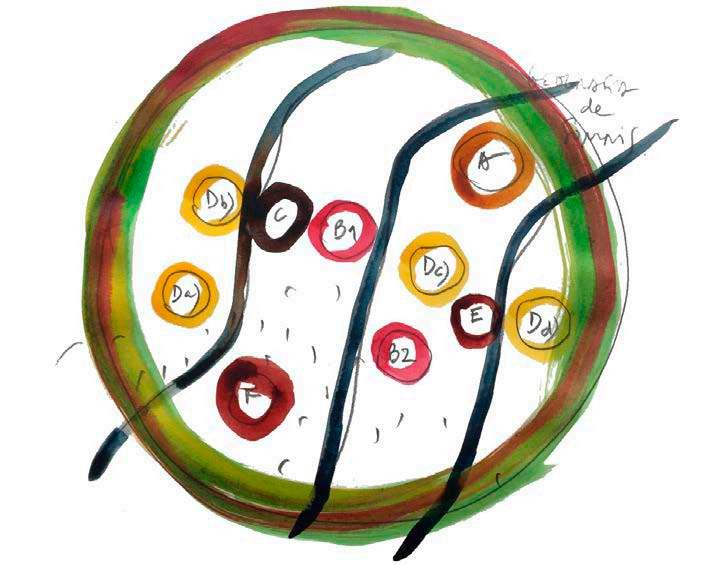

Having won the Pritzker Prize in 2017, RCR Arquitectes used this prestigious recognition as a platform to expand its operations into other fields. Among his imaginative proposals, they began with the planning of the “geography of dreams”. A space located in Sant Pere Despuig, in Girona, Spain, whose purpose is the imaginative exploration of its visitors. This space consists of a hotel and quarters based on phenom -
enological experiences, in addition to the “university of dreams.” Among these rooms, “the water chambers” are proposed, which propose water not as a tangible and physical resource, but as an articulating element of artistic discourse. Due to its ethereal quality, immateriality and physicality, water is picked as a guide in a ceremony of creation, introspection, and purification.

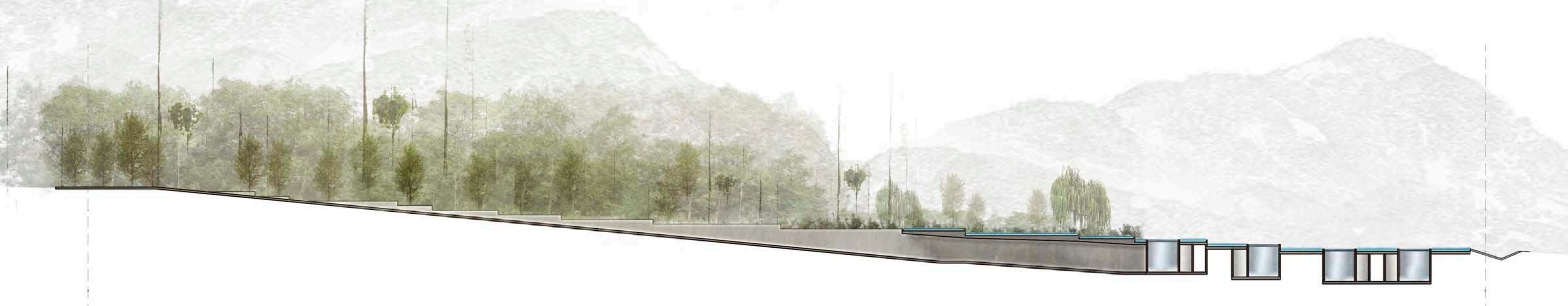

Water is used as the guidance system to navigate through the project. It is focused on 3 particular moments. Access or acumulation is the moment where the water gets collected from the neighboring highlands. It is the beginning of the ritual.

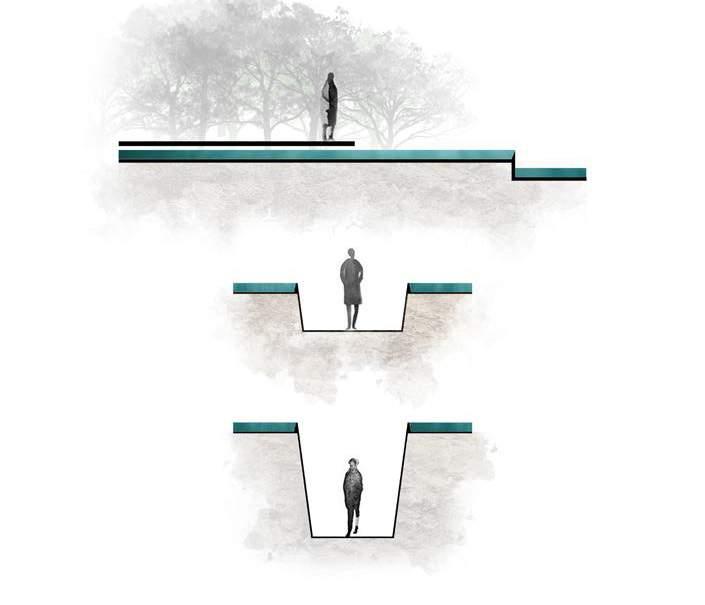

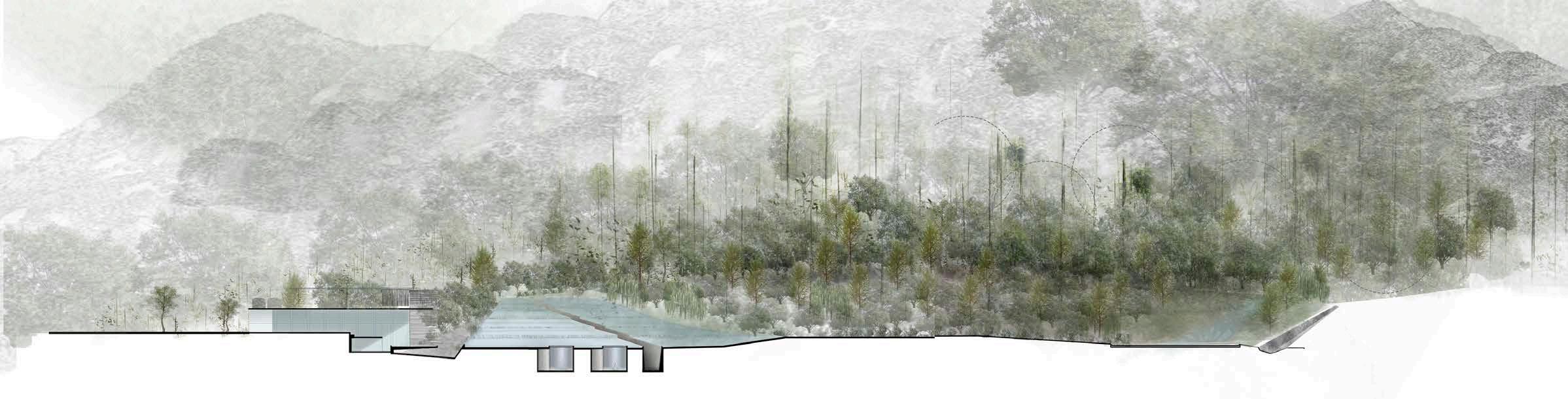

The Journey begins by understanding how gravity will move water across the site, it is intended as the cleansing part of the ritual. It creates a corridor that takes you underground where the meditation pods are located.

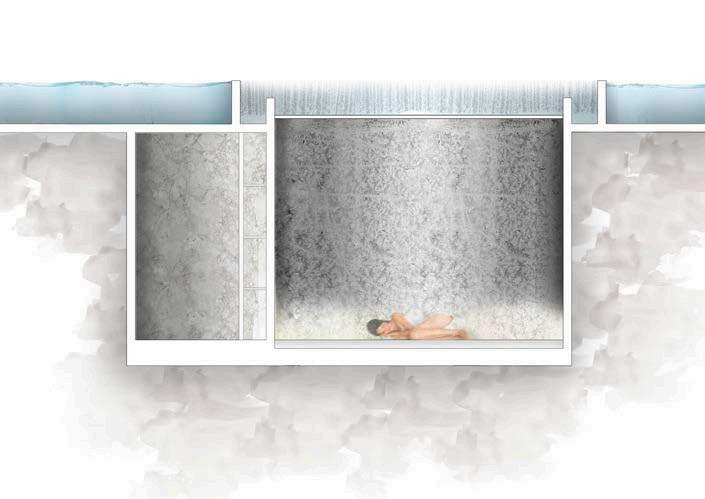

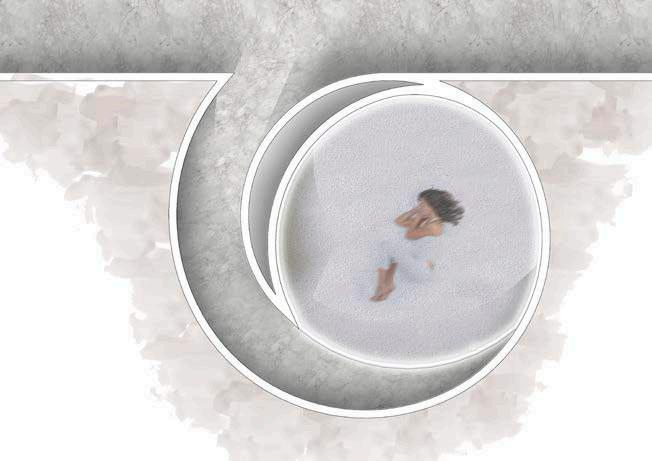

At the end of the journey meditation pods, are proposed, They are conceived as spaces for reflection, planned to be individual pods in which their users are forced to disconnect from the world and immerse themselves in ideas and creativity.

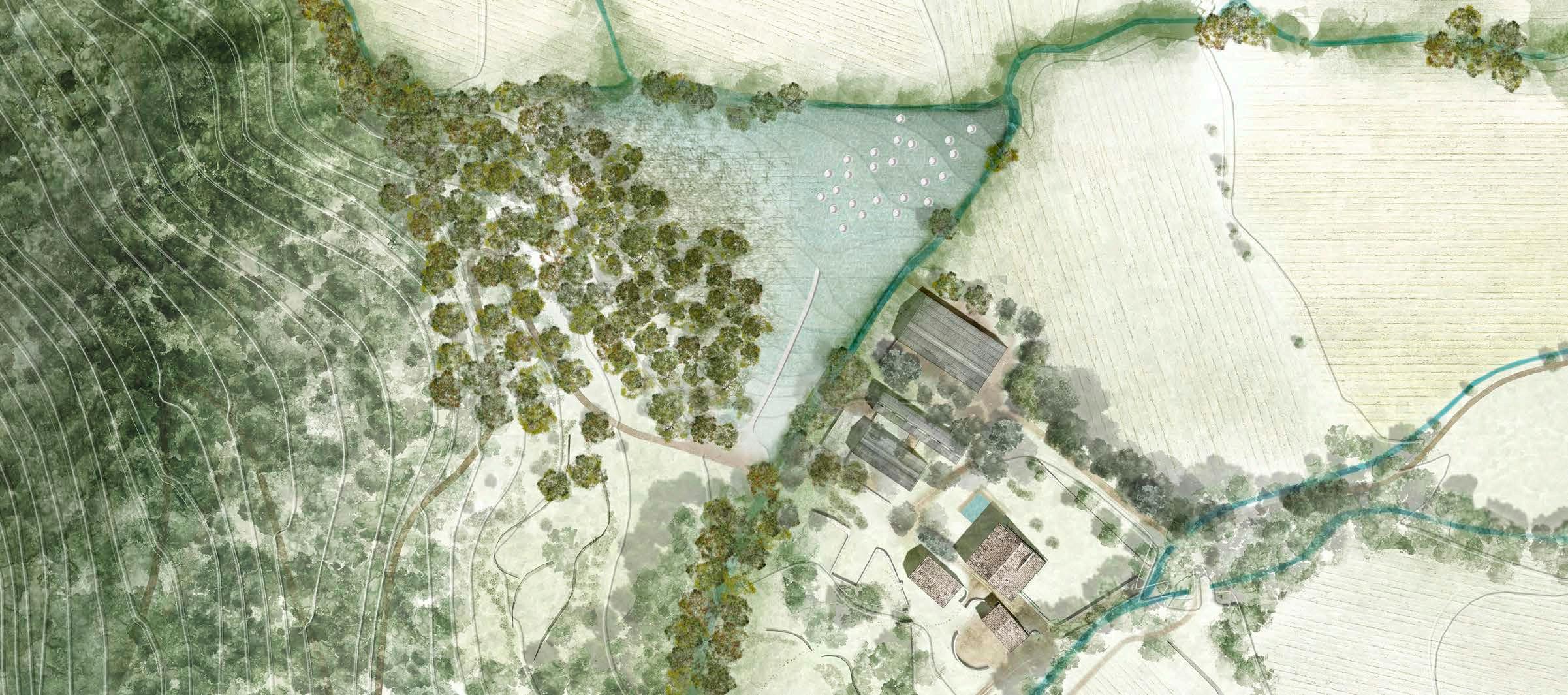

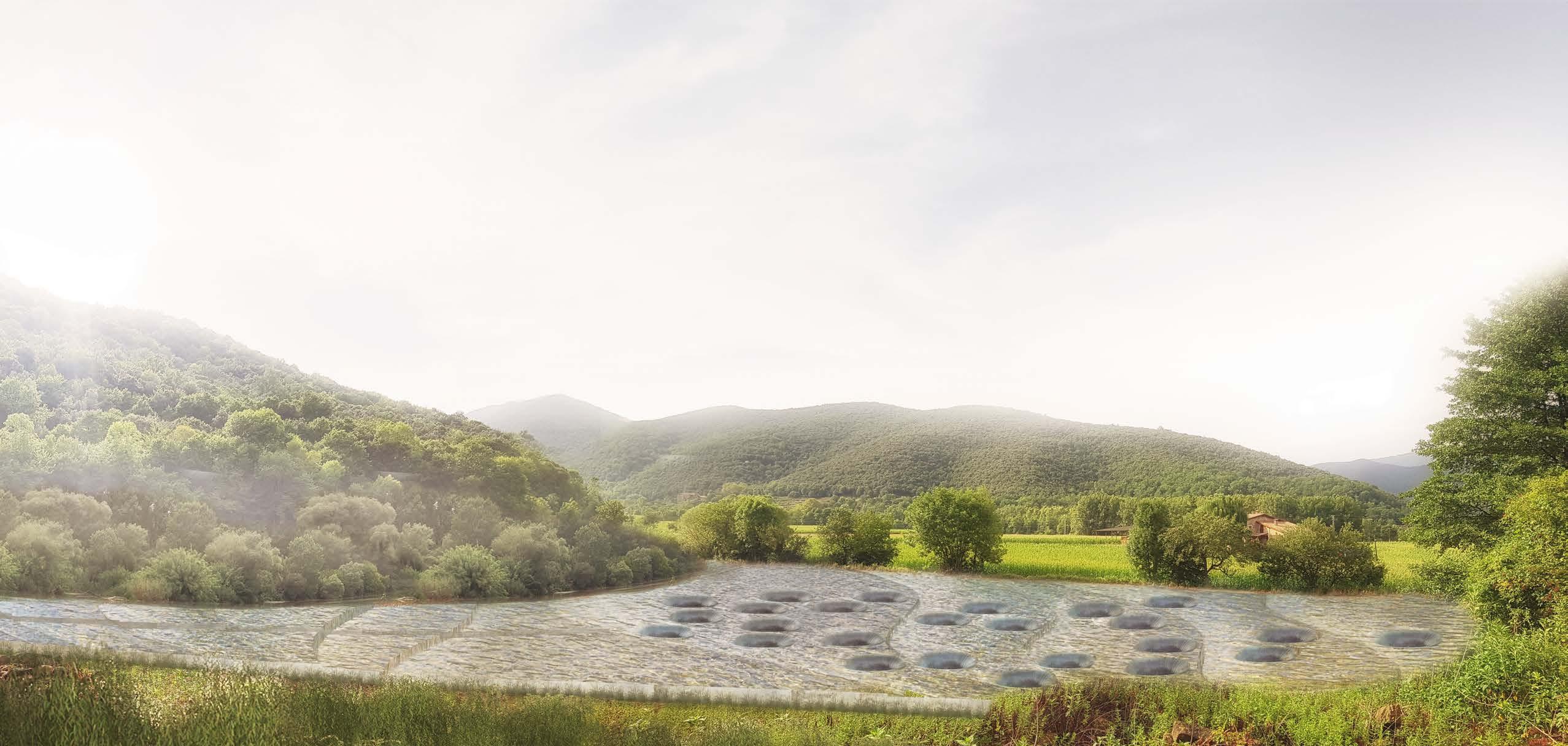

It is intended, through the initial idea of developing a set of 25 rooms in the physical area of a triangular -shaped portion of the agricultural field, having on two of its sides a riverbank, to enable an experience of living in a framework determined by the link with water, understood as matter and material, with the symbolic and mythological charge attributed to it, as well as with its value as an articulating element of the landscape.
Understanding in this act of “colonization” (sowing, tilling), the possibility of establishing a narrative discourse that is linked to the experience that the place proposes, understood as a set of pieces in the landscape that read, observe, explain, articulate, complement, sew, frame, signify.
It is, therefore, the possibility of highlighting and amplifying the natural conditions of that portion of the field
characterized by the perimeter stream, through the experience of inhabiting a new landscape, a landscape of water. The purpose of the project is to understand the place, time, and action as mechanisms to articulate an architectural-landscape discourse that emphasizes sensitivity to inhabitant’s worldview.
The units are narrated as “refuge”, that is to say, a shelter space, of physical protection in a natural environment already domesticated. The aim is to achieve areas that, through silence, allow us to live intensely calm, physical, and spiritual, using the mechanisms that the relationship with water, in this specific place, can provide us. These Cells are proposed as a mechanism to recover the essence of water and its nature in your room, besides enhancing the relationship between the natural and the spiritual.

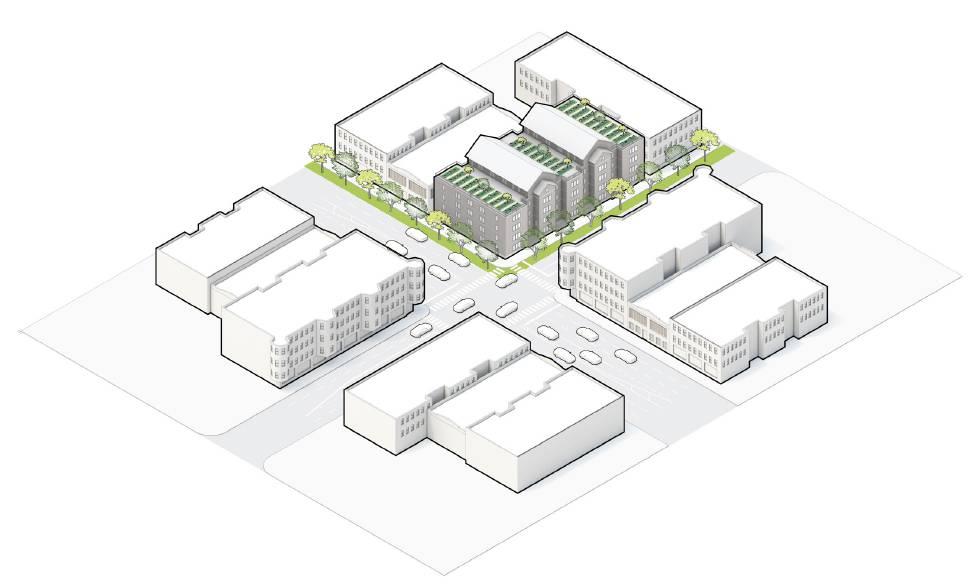

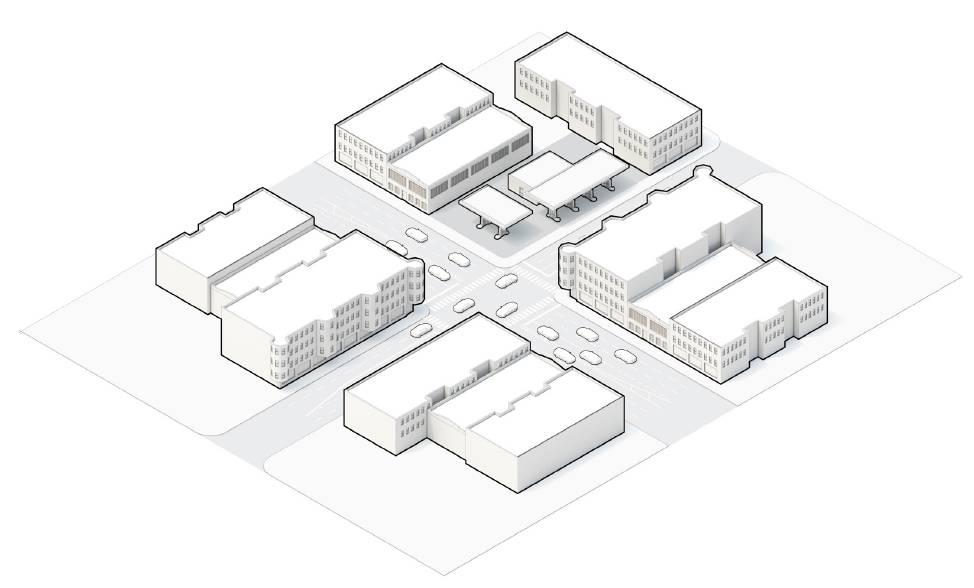

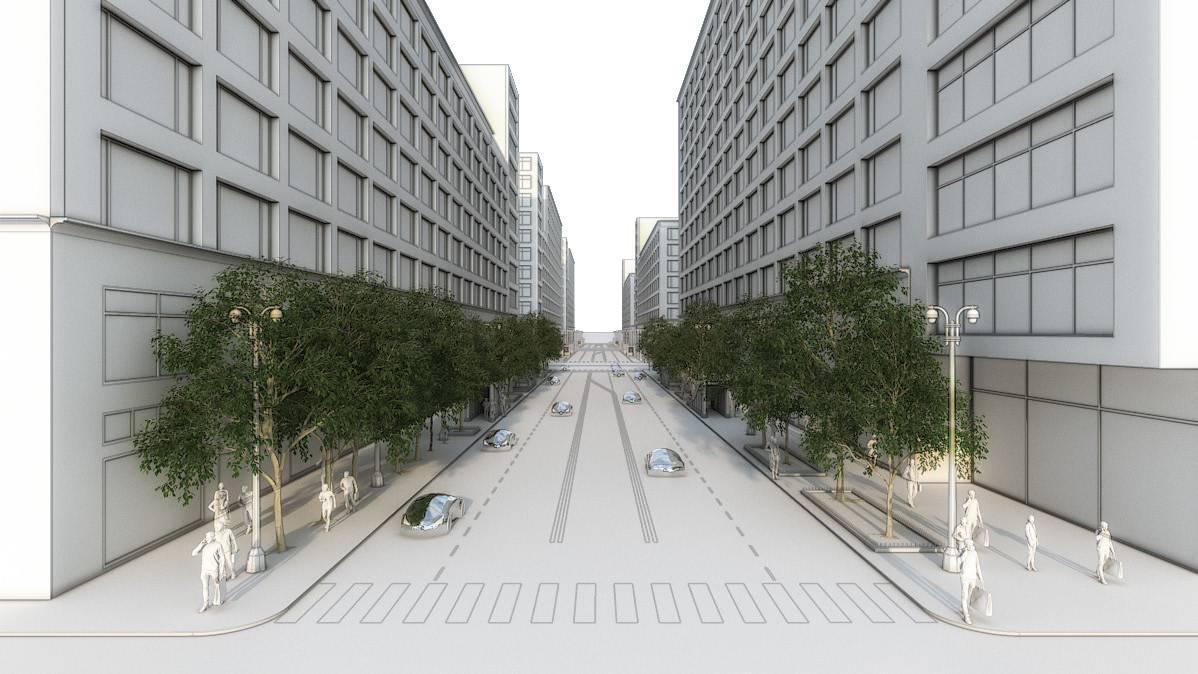

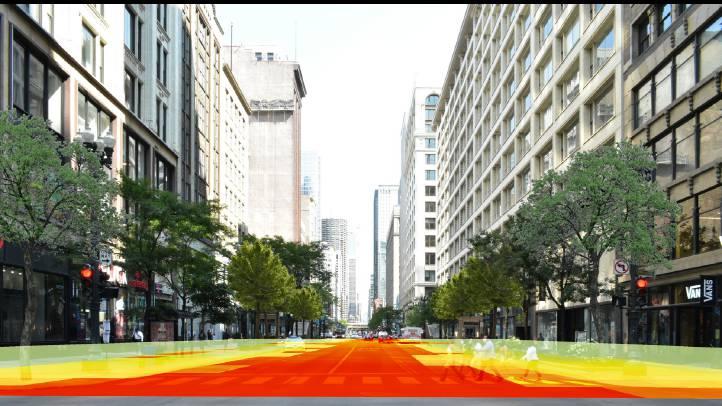

The advent of autonomous and ubiquitous co-robot technologies offers citizens, leaders, and stakeholders the opportunity to recalibrate current automobile transportation infrastructure and, therefore, the morphology of dense urban cores. To do so, we must balance the requirements for navigation safety, functionality, and experiential conditions. This research investigates these trade-offs to understand the impact of driverless vehicles in urban design. The result will be a framework of forecast scenarios that will advise urban designers, policymakers, stakeholders, and the autonomous vehicle industry, on critical factors to consider when deploying these technologies and how to achieve valuable social, environmental, and ex -
periential outcomes within the existing road infrastructure. This research will address how cities can leverage upcoming mobility technologies to retrofit late-nineteenth-century automobile transportation infrastructure into human infrastructure for the twenty-first century? Furthermore, how can urban public spaces (roads, sidewalks) be built to promote social equity and environmental performance as the number of autonomous vehicles increases? This research examines the possible implications of autonomous vehicles and navigation safety on State Street (Chicago), a significant commercial artery of the city and with a historical morphology intimately related to mobility and infrastructure innovations.

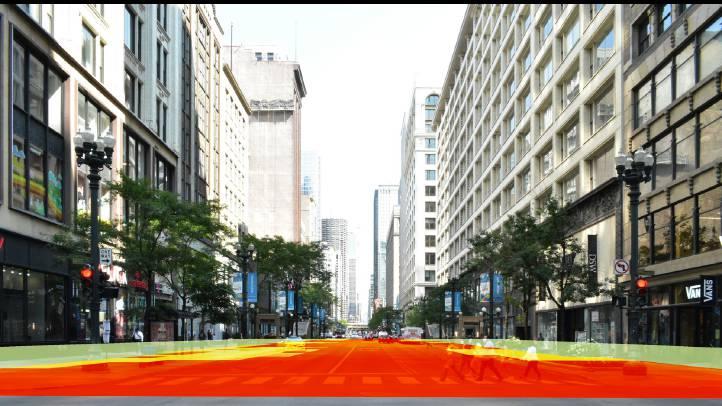

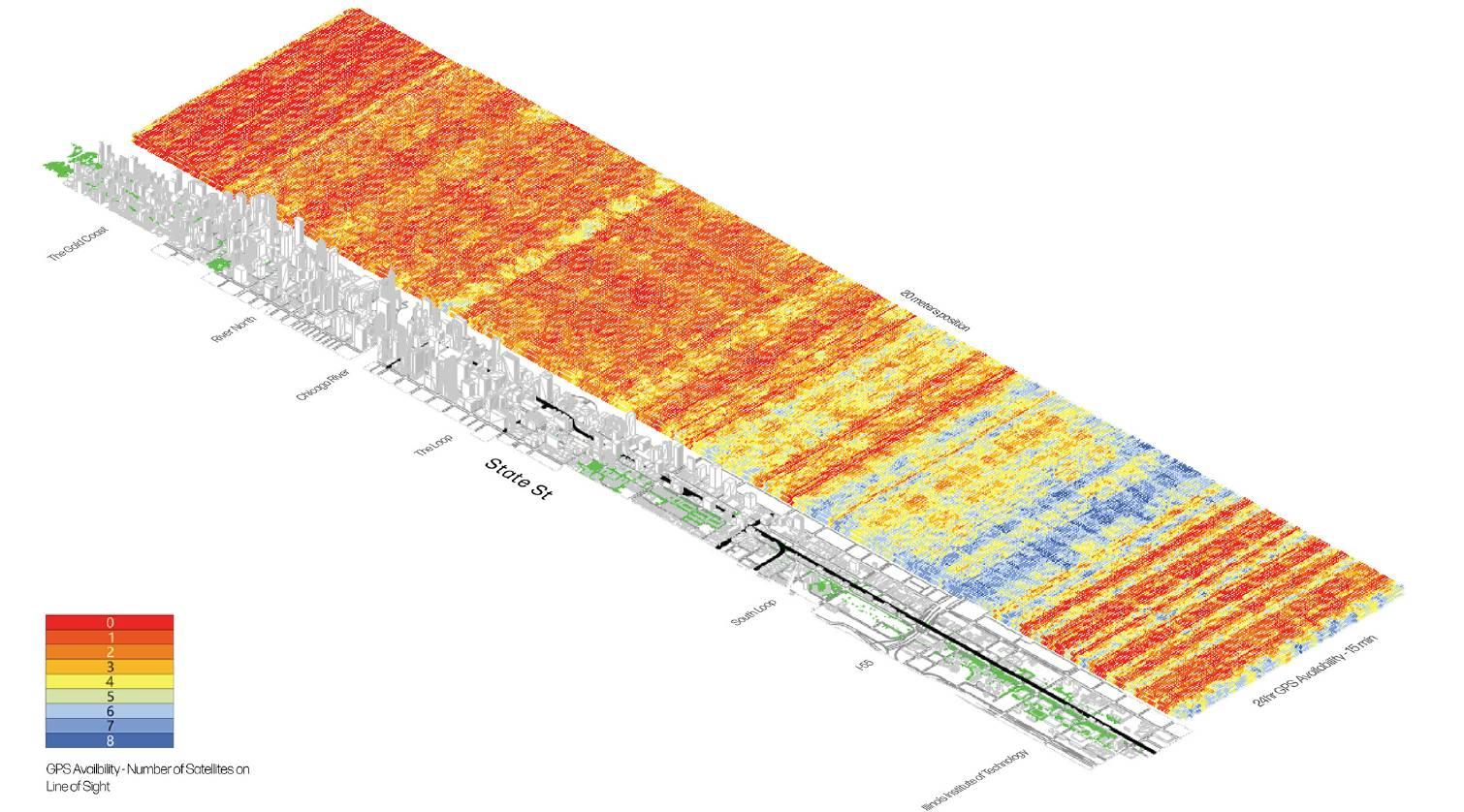

There is a clear link between an Autonomous Vehicle’s capability to localize within an environment and that environment’s physical structure. Tall buildings can severely compromise GNSS signals due to blockages in line of sight; for landmark-based navigation, landmarks spaced too far apart decrease localization accuracy, and the same landmarks
spaced too close together can introduce a higher probability of faulty measurement associations. This research builds a technical framework based on current driverless technologies and IIT’s Driverless City project methodology to understand the limitations of GPS availability and Landmark-based navigation. Lastly, the final component will
incorporate speculative scenarios to increase the localization safety of autonomous cars along the chosen transects from both cities. These operations are devised to address socio-environmental issues such as park accessibility, urban heat island effect, and water management.
This figure shows an example on how GNSS measurements were formed: a sky map of GNSS constellation is generated at a given time and given location; The grey area are buildings in the area, and any satellites of PRNs that locates within the grey area will be considered unavailable due to building blockage. The red dots on topright indicates GNSS satellites with Line of Sight (LOS), while blue represents non-Line of Sight(NLOS).
NON LINE OF SIGHT LINE OF SIGHT
SHADOW MASKING AND GPS SAT LOCATION
In response, the research team combines multiple Ranging and Inertial Sensors with a pseudo-random landscape strategy to provide quantifiable navigation integrity. All objects in urban environments are candidates for external ranging sources for LiDAR. However, we specifically focus on extracting pole-like landmarks (e.g., trees and streetlamps) be-cause of their location flexibility, relative ubiquity, and defined shapes.
The landscape objects are used in a binary error-correcting code to improve localization safety for autonomous vehicles. Prior research showed that LiDAR measurements using pole-like landmarks improved vehicle localization in
urban environments but that” the accuracy of the localization is highly dependent on the number and density of available landmarks at each scene”. In this work, each landmark mapped in the selected transect is assigned a unique identification (ID) with a given geographical area (Fig.3). This results in bidirectionally decodable landmarks so that robots can read the code while traveling in either direction along a given path. To provide a realistic scenario, we included urbanistic constraints on where these landmarks can be set up. The spacing be-tween new landmarks respects the landscape ordinance of Chicago, spacing trees between 6 and 7.5 meters.

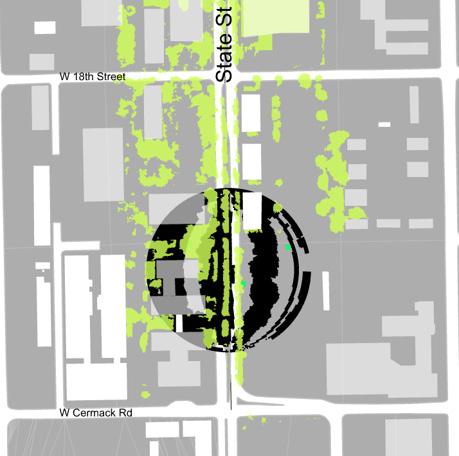

The landmarks in the neighboring area must be removed in a radius of 0.40 meters on the X-axis and 5.60 meters on the Y-axis. There a 170 existent landmarks that had to be re-moved in the total transect. In total, the number of landmarks accounting for the existent and the geocoded landmarks, and subtracting the removed, is a total of 3018 landmarks, representing an increase of 17% landmarks along the transect. Adding more Urban Forestry to cities has a positive impact on navigation safe -

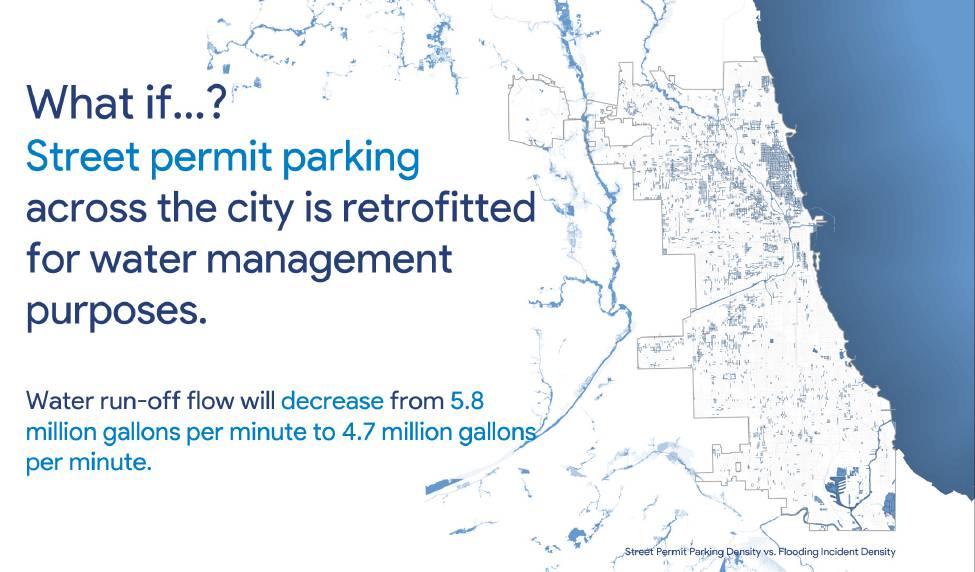

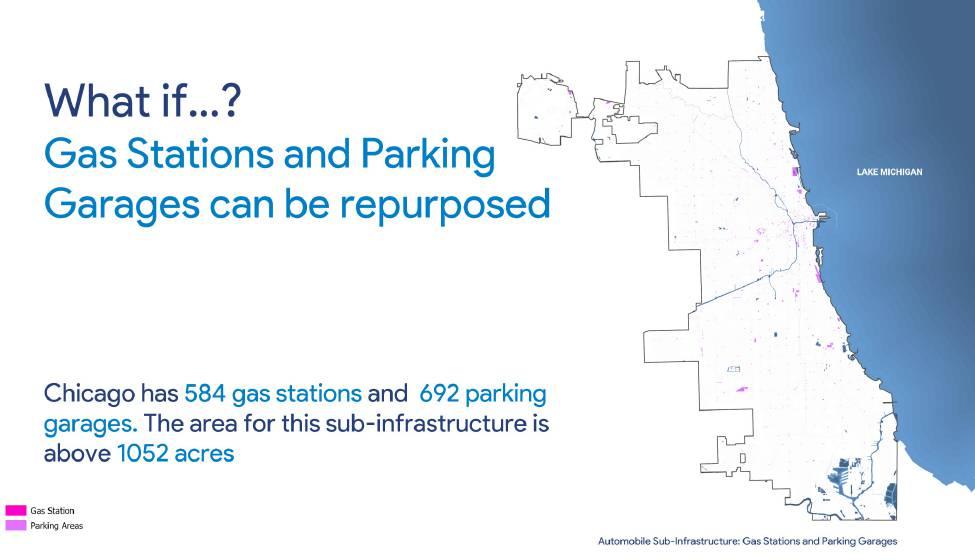

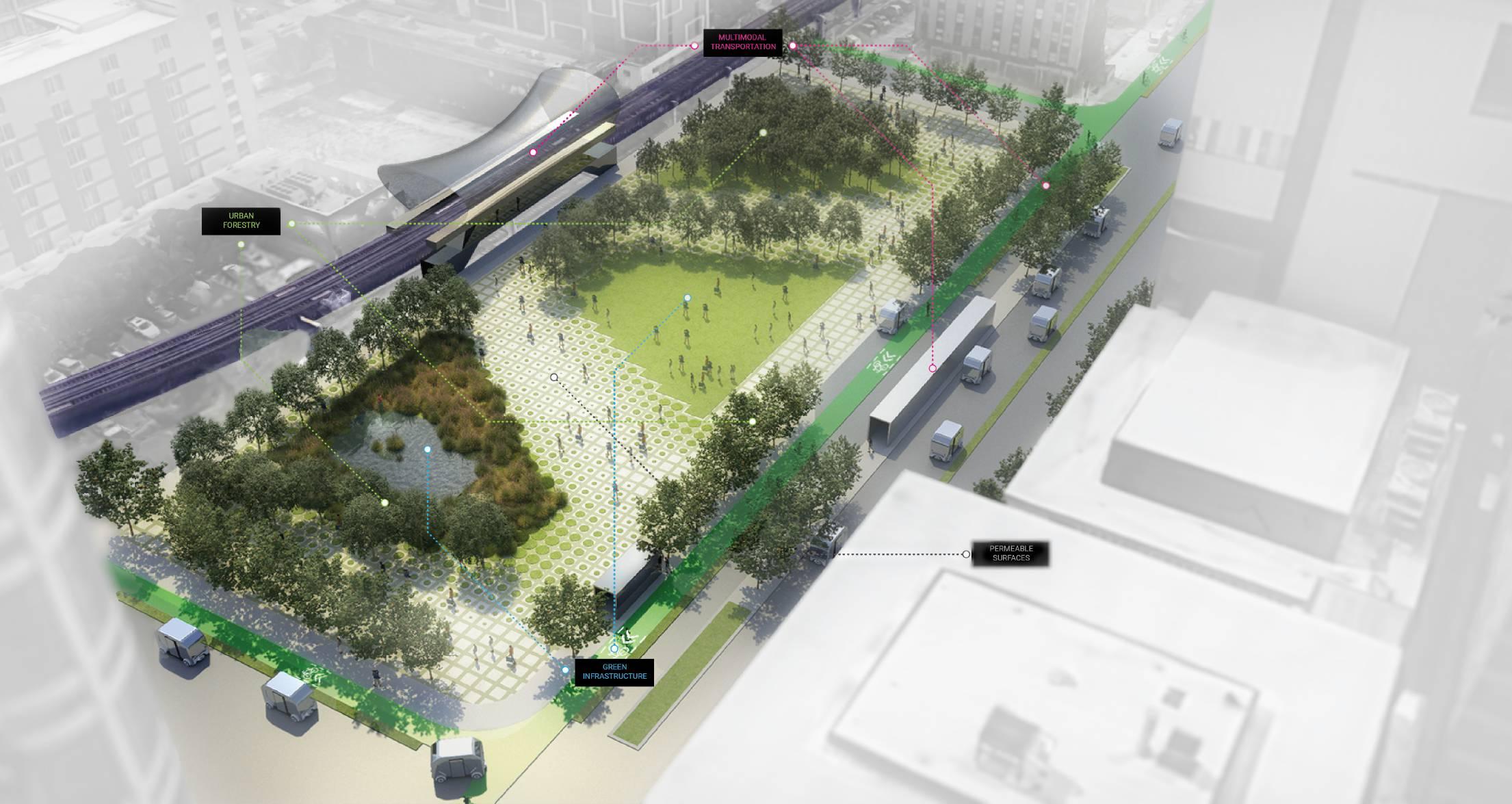

ty. Chicago’s current road infrastructure occupies thirty-nine percent of surface coverage, while Parks and public spaces account for only six percent (IBRAHIM ET AL., 2018); therefore, there is plenty of room to improve the urban forestry on public roads, exponentially increasing their benefits. An increase from 8\% to 22\% in canopy coverage can help mitigate the urban heat island effect, improve urban rainwater management, generate green and social corridors. amongst other benefits.

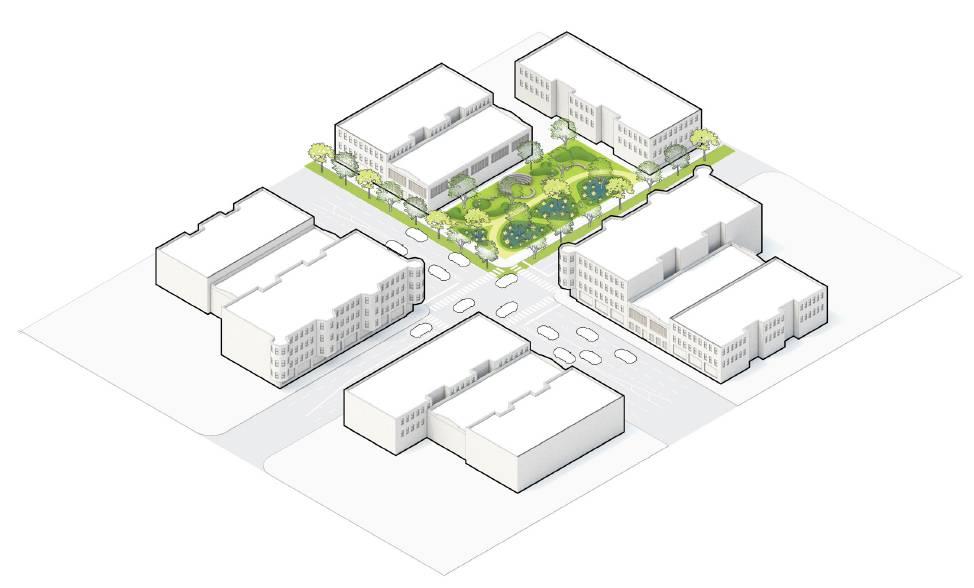

CAN WE REPURPOSE THIS PRIME LAND? FOR ECOLOGICAL BENEFIT OF CITIES?
OR FOR SOCIAL PURPOSES?

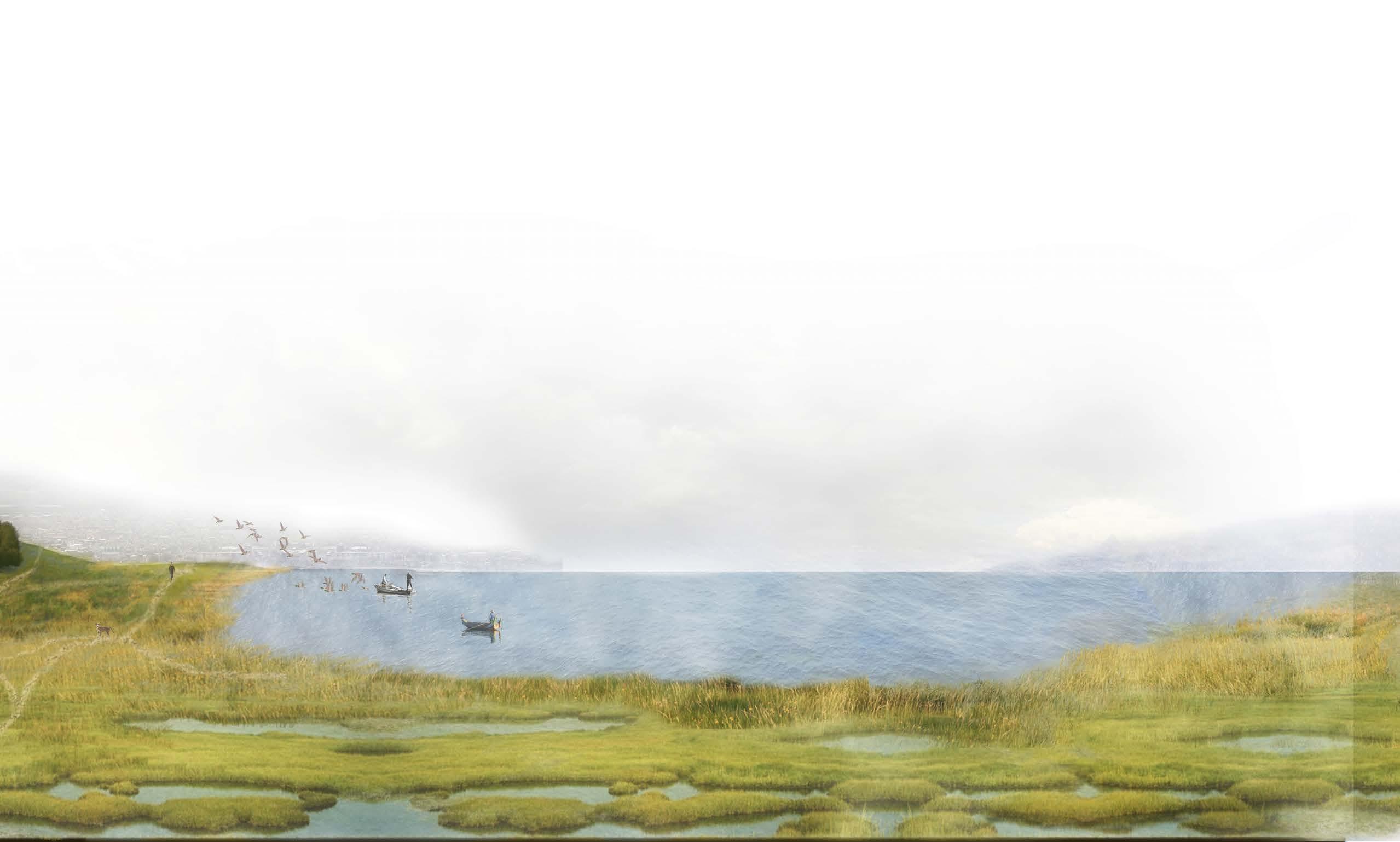

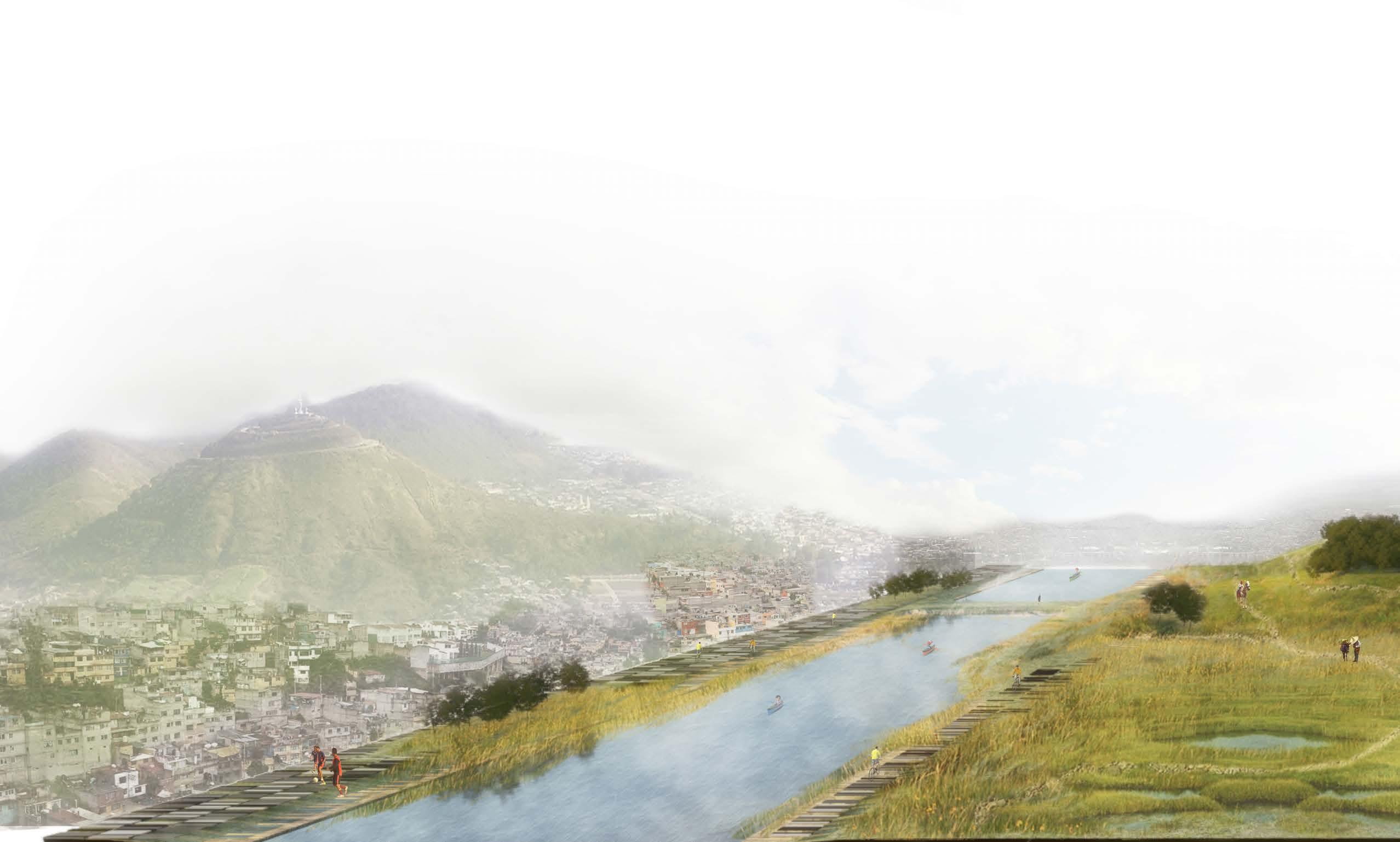

REGENERATION OF THE LACUSTRINE IDENTITY OF TEXCOCO
CLOUD

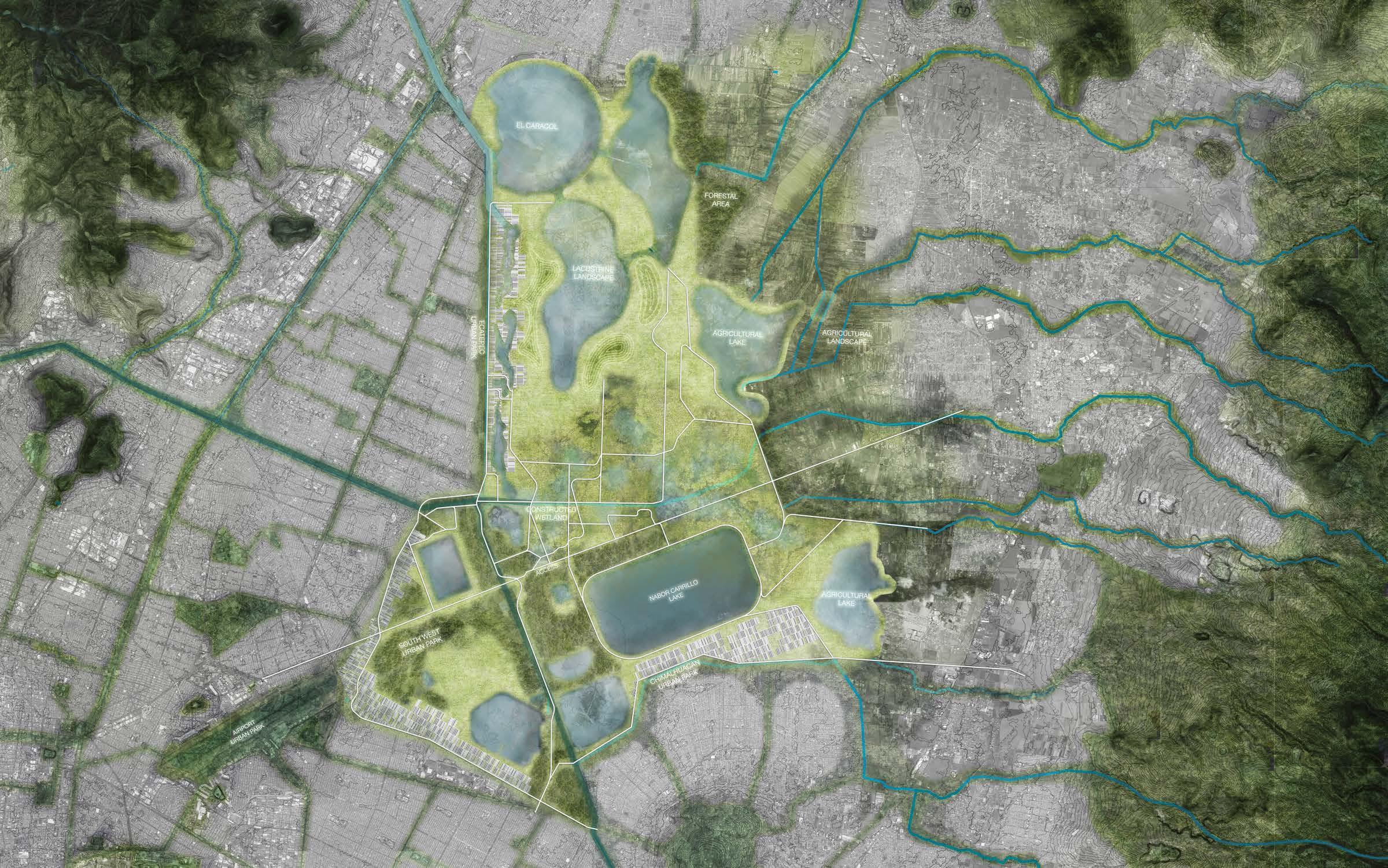

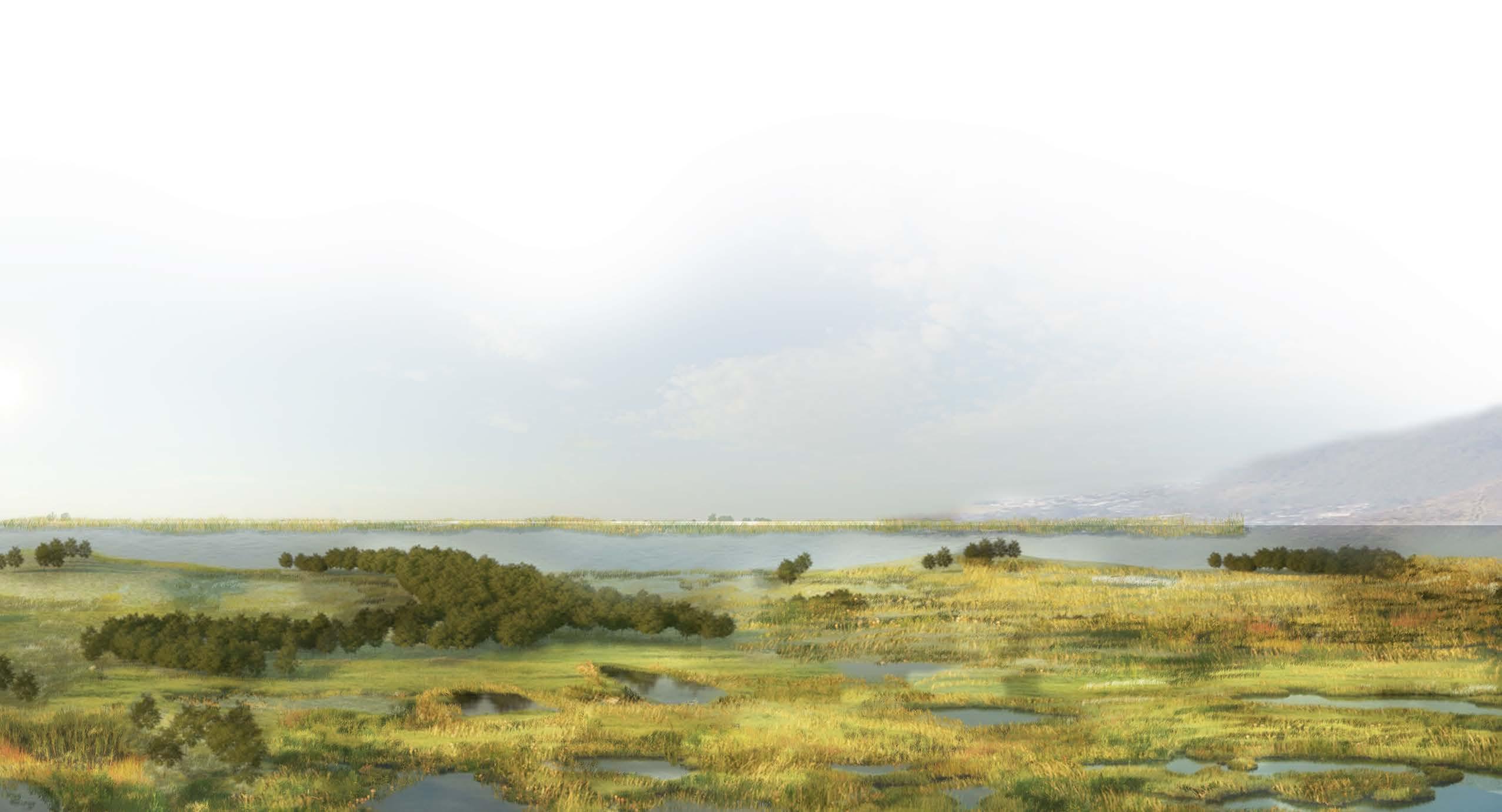

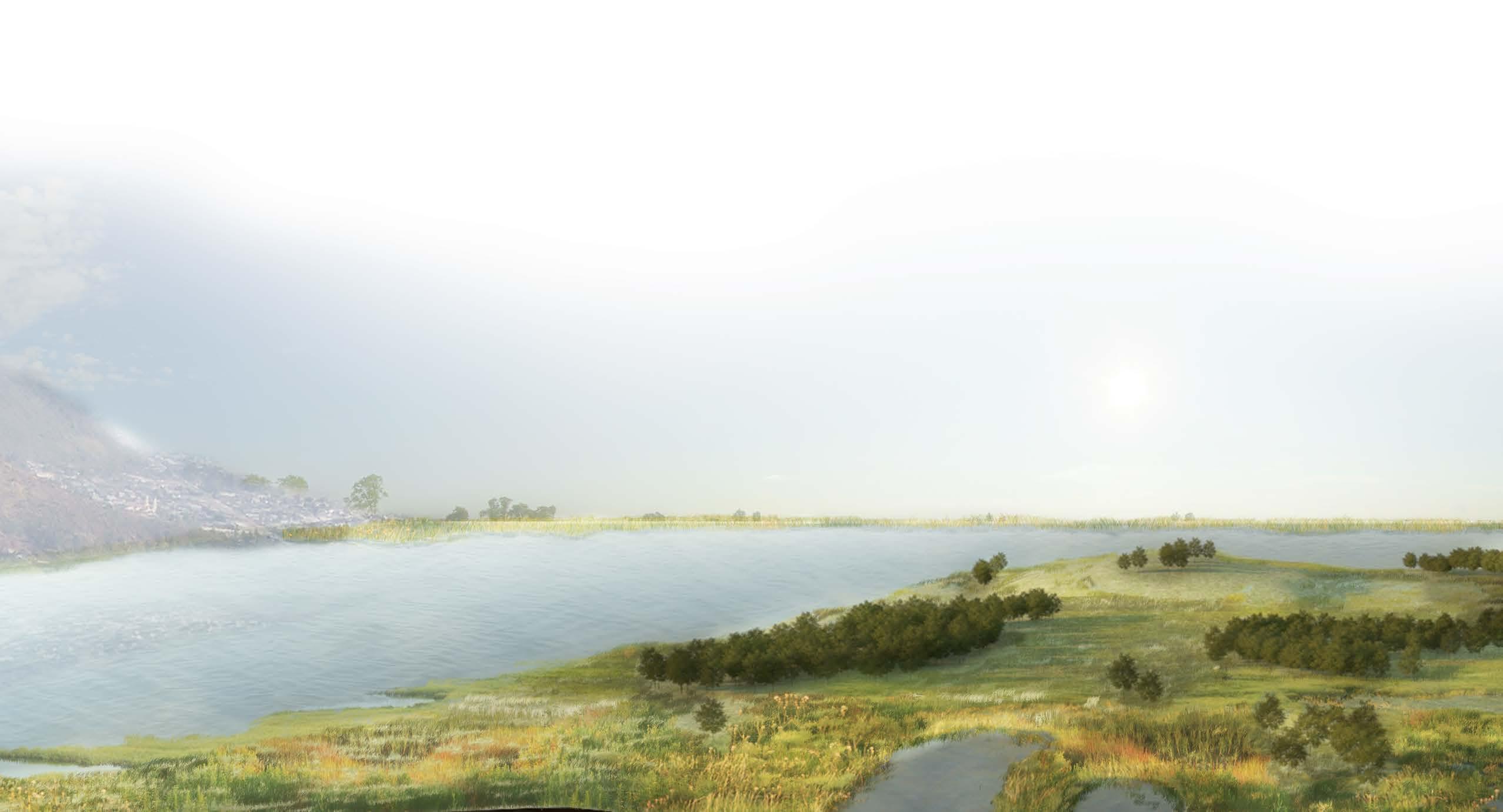

Transitional Ecologies establishes a successional botanical landscape for the site of the canceled project of Mexico City’s new airport. The place was the last remnant of Lake Texcoco, one of Mexico City’s historic lakes and a rare global high-altitude saline-lacustrine habitat. The proposed airport, designed by the architect, Norman Foster, was partially constructed, this operation required the drainage of the last water bodies existent on site. It required the
import of 30 million cubic feet of volcanic rock. It was an ecological disaster that was halted by the national referendum following the election of the new government of Mexico in 2018. The studio proposition was to design a botanic garden. As a consequence of the scale of the site, it will be the most extensive botanical garden in the world. Due to its environmental degradation, the design requires a re-thinking of the 21st century botanic garden.

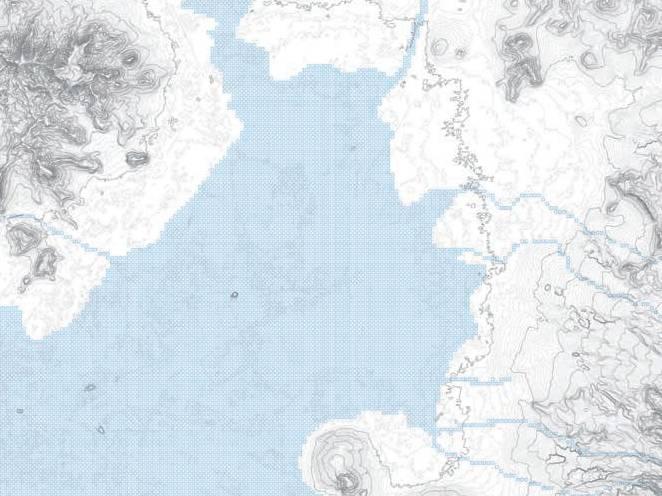

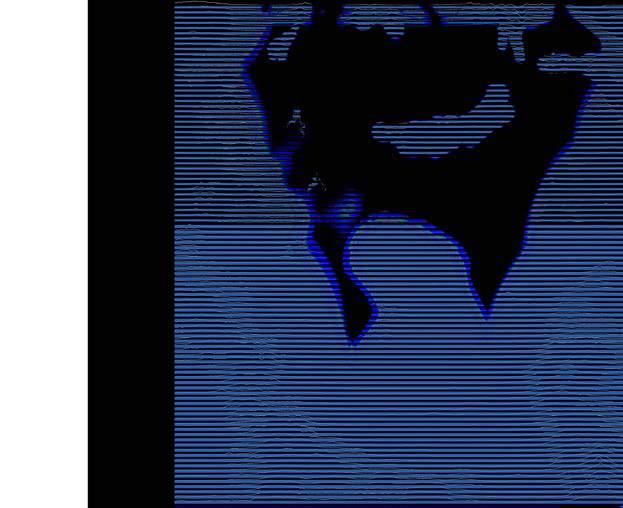

During the 17th century, the Texcoco Lake was the most important water body in the Mexico Valley watershed.
However, human operations drained the lake until its bed was exposed and consequently degraded to a point of desertification.
The project aims to rescue and use the remaining ecological features, with the intention of expanding them and to recover the landscape, understanding that it will never go back to its original identity.

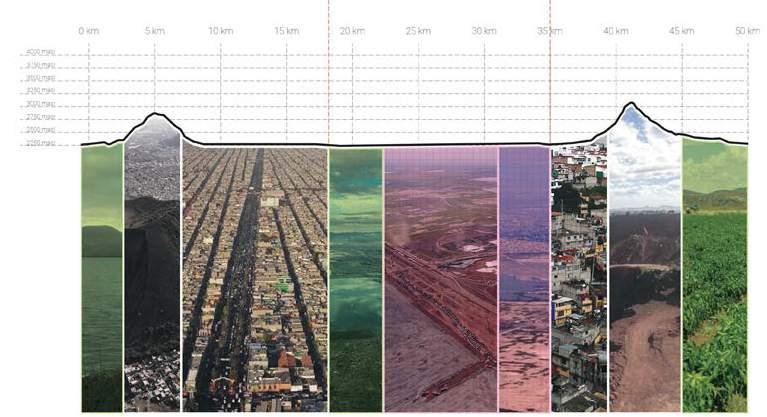

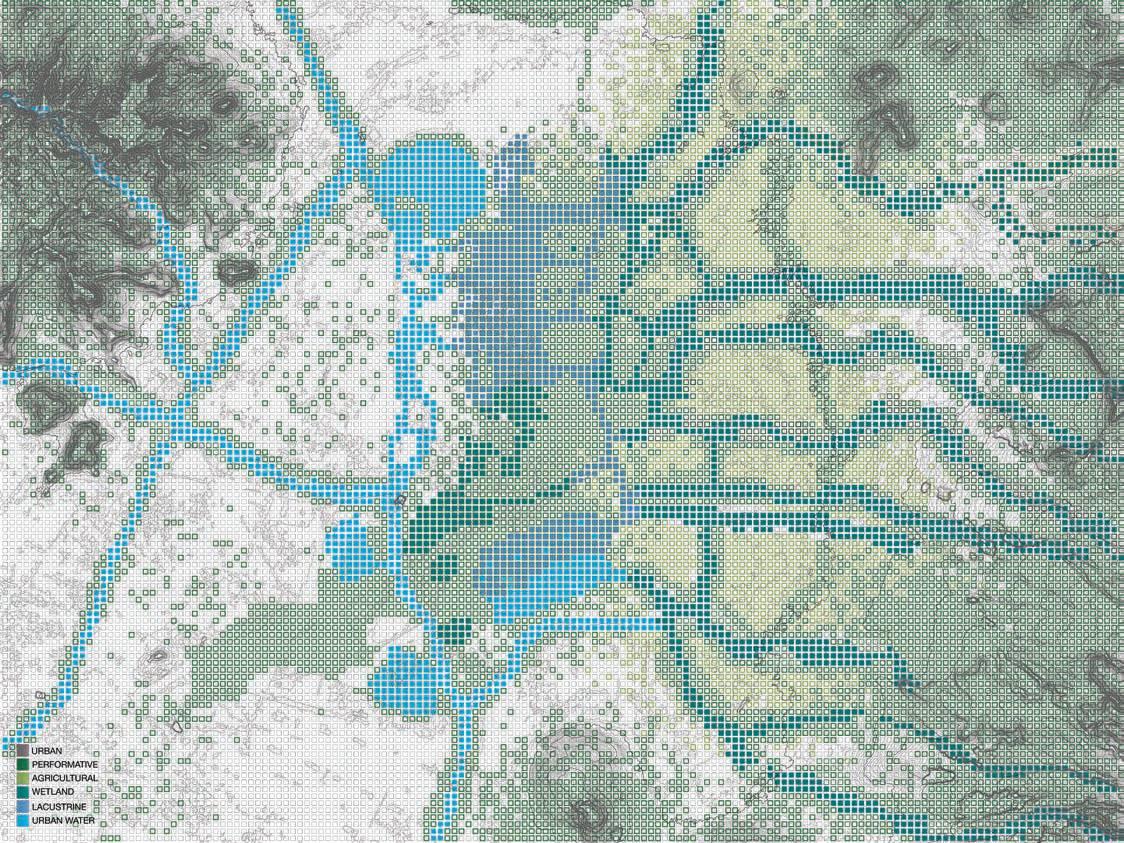

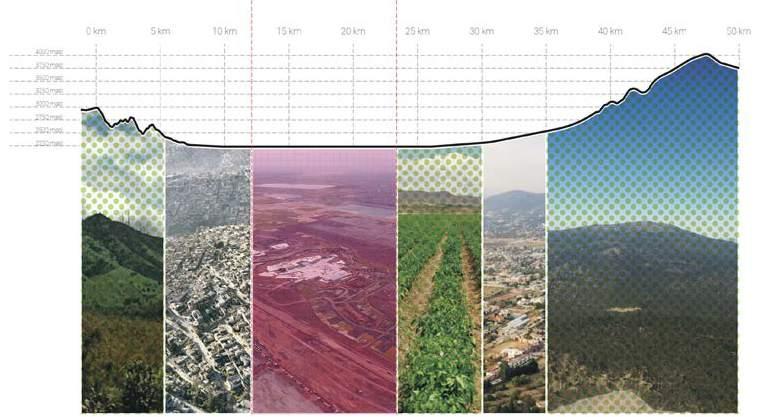

TEXCOCO TRANSECTS COMPOSITION
LAKE TEXCOCO SYSTEMATIC OPERATIONS

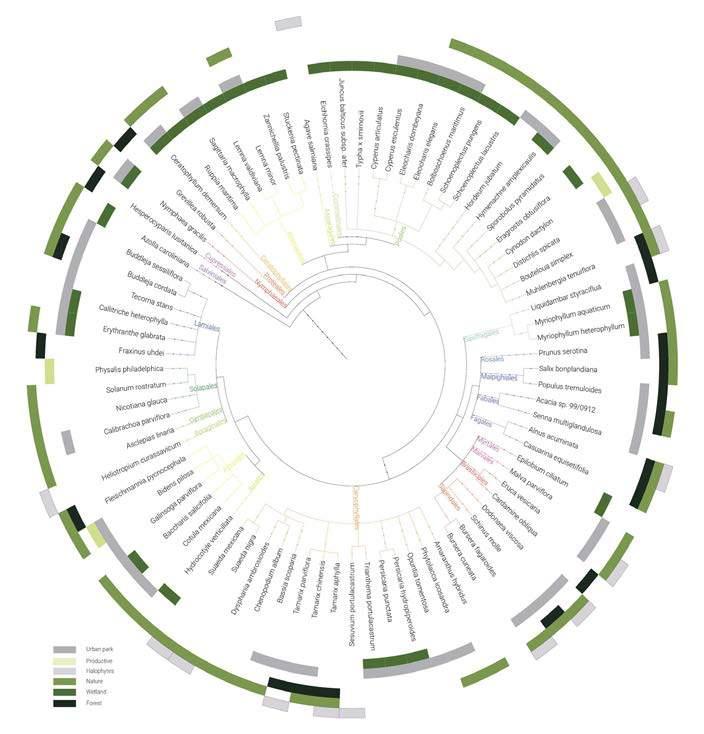

NATIVE SPECIES

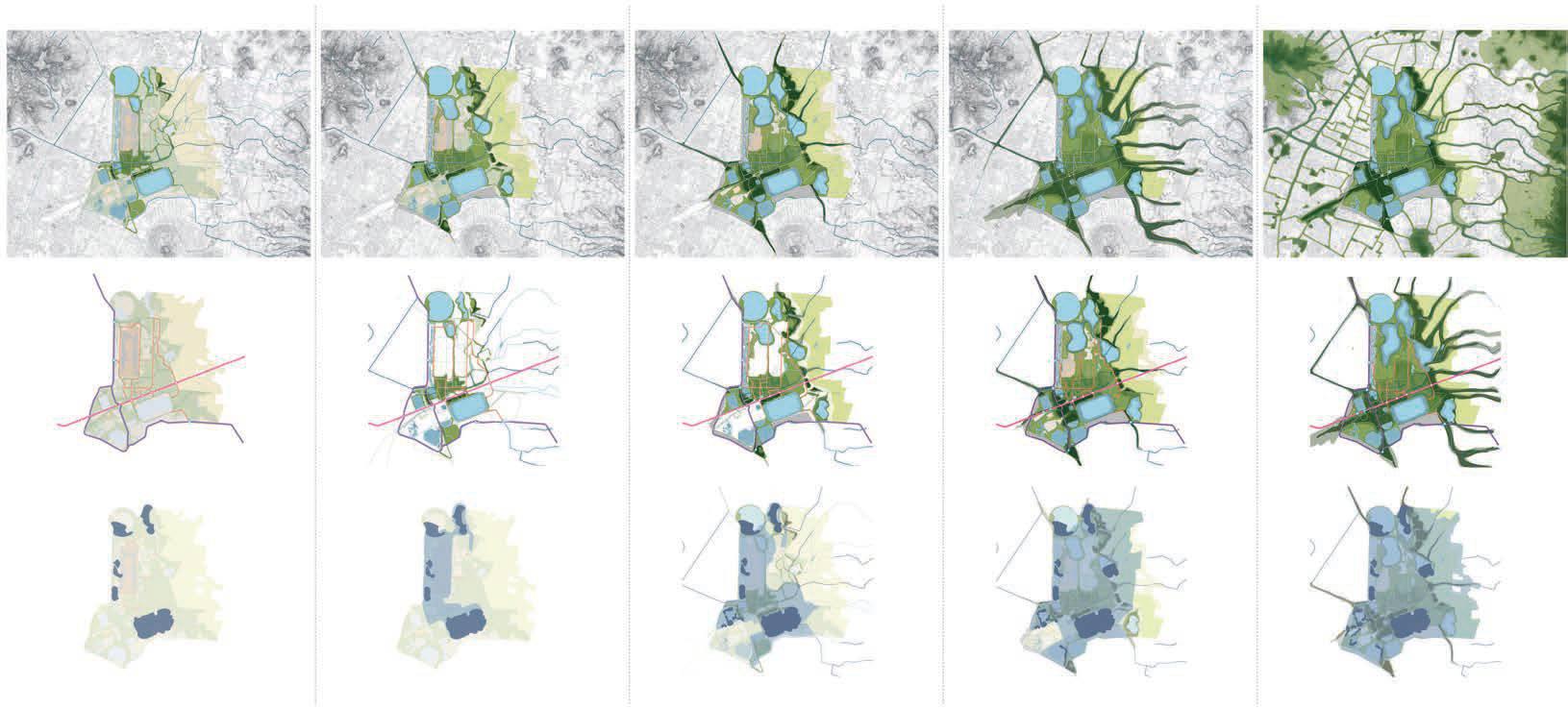

PHASES OF CONSOLIDATION
Mexico City is the third-largest city in Latin America. The city developed over time in a valley formed by a system of 5 lakes (Chalco, Xochimilco, Texcoco, Zumpango, Xaltocan) surrounded by the Guadalupe mountain range to the north, the Chapultepec mountain to the north-west, and the volcanic mountain range of Santa Catarina to the southeast. The studio explores this geological diversity and its role in the evolution of the botanical gardens in the city as a hybrid architectural and landscape ty pology. The work will focus on the cul tural, biological, and pedagogical leg acy of Mexico City’s botanical gardens and their long-lasting urban nature. Working together, students from differ ent backgrounds will have the opportu
nity to form personal and collective understandings of what cross-disciplinary explorations mean in their research, design proposals, and create hypothetical implementation strategies.

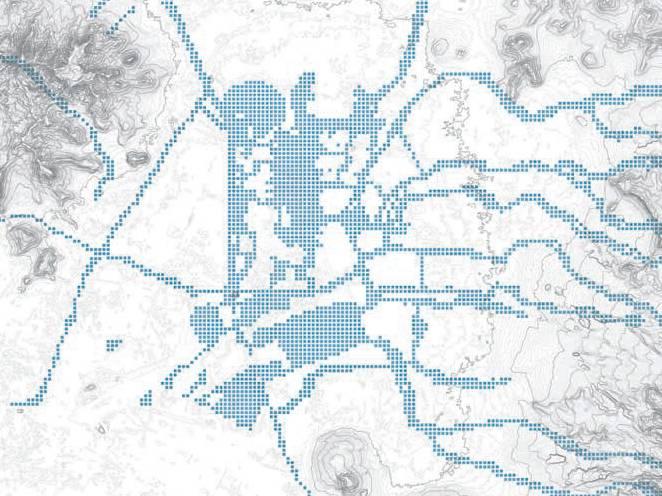

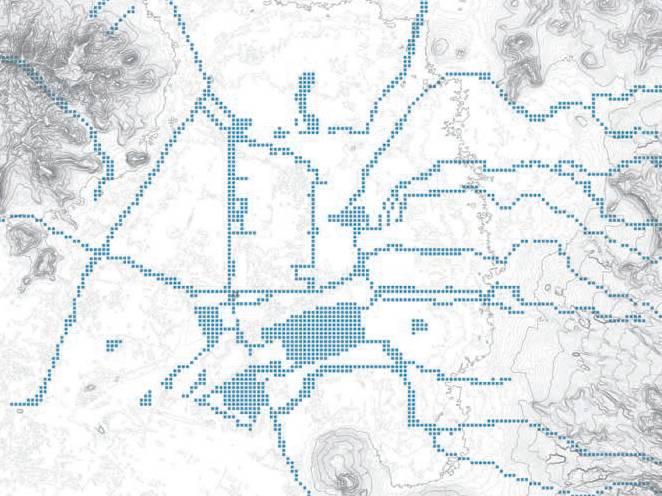

With such a large site to develop into a functioning and healthy space, the approach to the site is based in systematic operation of the habitats composing it. It enhances the existent areas to create most impact with the least amount of effort. These prioritized areas simultaneously would provide staging of plants and other resources for future areas, while also creating recognizable and accessible parts.
The project is focused on the understanding of how the diverse, multi-layered, complex conditions of the tropics works as a network that goes beyond political, geographical,
and chronological boundaries. This nutures a responsibility toward native landscapes and ecologies, that reflect a worldly awareness of vegetation, migrational patterns, and growth as a tool for self-sustaining resilience. Adding to this, the social component of ephemerality that forms long-lasting cultural conditions and the consequential identities of place and user.
Chicago - Illinois
Illinois Institute of Techonology
Master of Architecture
Master of Landscape Architecture
