GARAGE EQUIPMENT
JULY & AUGUST OFFERS
UNTIL 31ST AUGUST 2024
TECHNICAL DATA HAYNES PRO - WORKSHOP DATA
HaynesPro serves the automotive aftermarket through WorkshopData. Its database contains a vast amount of multilingual automotive OEM-based data.
WorkshopData is built on three main modules – Each with their own set of subjects and features.
The cornerstone of our ingenious WorkshopData application. This module contains extensive identification, repair and maintenance information, all at your disposal.
• Identification data
• Maintenance
• Adjustment data
• Lubricants and fluids
• Recalls
• Repair manuals
• Repair times
• Technical drawings
Helps technicians identify, locate and resolve electrical system and component errors using intelligent data applications such as our Vehicle Electronics Smart Assistant (VESA™).
• VESA™ MK II (Guided diagnostics)
• Fuses and relays
• Comfort wiring diagrams (LCVs only)
THE MOST EFFECTIVE APPLICATION FROM FAULT TO FIX.
Helps technicians reduce the time spent on fixing common faults and includes OEM Technical Service Bulletins (TSBs) and recalls.
• Verified fixes & tips (SmartCASE™)
• Technical service bulletins (SmatFIX™)
• Recalls
2.5T MOBILE SINGLE POST VEHICLE LIFT
Phoenix PA-7251
The Phoenix-7251 is designed for workshops where space is at a premium. It is totally mobile and can be moved by one person with ease once unloaded. The PA-7251 has the added advantage over other mobile vehicle lifts in that it will lift to a full working height like any conventional two post vehicle lift. The four swivel lifting arms are easily adjusted and will lock automatically and stay in place during operation. The perfect lift for all workshops.
FEATURES
Lifting height 1755mm
Fully mobile (when unloaded)
Four extendable swivel arms
Double screw adjustable pads
Lift pad extensions included (for small vans / 4x4)
12 Months Parts and Labour Warranty
TECHNICAL SPECIFICATION
Model No.
Lifting Capacity
Height Overall
Max. Lifting Height
Min. Height
3,000
3.5T FULL RISE SCISSOR LIFT - SURFACE
Phoenix PA-7135D2
The 3500 kg capacity low profile scissor lift is surface mounted, there is no need for expensive ground works. An ideal lift when space is tight and full working height is required.
KG 3500KG LIFTING CAPACITY
115mm minimum height
Lifting height 1900mm
Extendable lift platforms
Hydraulic failure safety system
Low voltage control system
Rubber lift blocks included
12 Months Parts and Labour Warranty TECHNICAL
Extendable Platforms
Drive up ramps can be locked in the upright position to extend the platform length.
No
Every pivot point is lubricated and fully brushed
4,350 +VAT
4T TWO POST LIFT CLEAR FLOOR
Phoenix PA-6246
The PA-6246 uses direct drive hydraulic rams and a single point safety lock release system. This means there are very few moving parts and components within the vehicle lift. The folded column design increase the post strength and also enables the lift to be installed in either Symmetrical or Asymmetrical configuration.
85mm Minimum pad height
CE Approved and certified
Single point manual safety locks
Asymmetrical or Symmetrical configuration
Lift pad extensions included (for SWB vans / 4X4)
Safety shut off bar on the overhead bridge
Available in single or 3 phase
12 Months Parts and Labour Warranty
TECHNICAL SPECIFICATION
Model No
Lifting Capacity
Height Overall
Width Outside Columns
Inside Columns
Min. Pad Height
Front Arm Reach
Rear Arm Reach
Max Lifting Height
Drive Through Clearance
C.E. Approved locks
Our automatic arm locks are fully C.E. approved tested and SAFE. Automatically disengage when lift is lowered. Lift pad extensions included
TWIN HYDRAULIC RAM
3,500 +VAT
4T TWO POST LIFT WITH HYDRAULIC RAM
Phoenix PA6140D
This lift is simple and robust. Uses a twin hydraulic ram design for steady raising and lowering operation. Although 4T capacity you can still lift the smallest cars with this machine. KG
98mm minimum pad height
50mm ultra low clearance base plate
CE approved and certified
Electric safety locks in each post
3 stage front arms and 2 stage rear arms
Lift pad extensions included (for SWB vans / 4X4)
Available in single or 3 phase
12 Months Parts and Labour Warranty
TECHNICAL SPECIFICATION
Model No
Lifting Capacity
Width Outside Columns
Inside Columns
Min. Pad Height
Front Arm Reach
Rear Arm Reach
Max Lifting Height
Drive Through Clearance
Lift pad extensions included (for SWB vans / 4X4)
2,650 +VAT
5T TWO POST LIFT WITH HYDRAULIC RAM
Phoenix PA6150D
This lift is ideal for lifting large vans and commercial vehicles, with its huge lifting capacity of 5000Kg. The design of the arms will also allow the machine to be used on cars.
KG 5000KG LIFTING CAPACITY
120mm minimum pad height
50mm ultra low clearance base plate
CE approved and certified
Electric safety locks in each post
3 Stage Front and rear Arms
Lift pad extensions included
Available in single or 3 phase
12 Months Parts and Labour Warranty
TWIN HYDRAULIC RAM
TECHNICAL SPECIFICATION
Model No
Lifting Capacity
Height Overall
Width Outside Columns
Inside Columns
Min. Pad Height
Front Arm Reach
Rear Arm Reach
Max Lifting Height
Drive Through Clearance
C.E. Approved locks
Our automatic arm locks are fully C.E. approved tested and SAFE. Automatically disengage when lift is lowered.
4,050 +VAT
6.4T - 4 POST ALIGNMENT & SERVICING LIFT
Phoenix PA-6764
The PA-6764 Alignment 4 post lift is designed for vehicle wheel alignment adjustment and the servicing of vehicles. The machine is fitted with front removable turn plates and multi-directional lockable rear slip plates on to the 5216mm long lift bed. The PA-6764 Alignment lift has the added advantage of being capable of lifting up to 6.4T without compromising its capabilities for lifting normal passenger cars.
3200Kg Jacking Beam included
(with rubber lifting blocks)
Front turn plates included
Rear slip plates
Extra-long drive-up ramps
Mechanical Air operated safety locks
Hydraulic failure safety devices
Mechanical failure safety locks
Floor bolts included
Fully C.E. approved
Low voltage control system
(as required by regulations)
The PA-6764 has the 3200kg capacity rolling jacking beam fitted as standard.
24” AUTOMATIC TYRE CHANGER WITH ASSIST ARM
Phoenix PA-7226IT
PA-7226IT Automatic – tyre changer with power assist arm.
The air operated bead lifting and pressing device makes tyre mounting and demounting much easier, especially stiff beaded low-profile tyres.
Fully Automatic style
Electrically operated turntable (forward and reverse)
Pneumatically operated jaw clamping
Pneumatic locking head
Fully-automatic pneumatic tilting column
Air operated assist arm
Built in air booster system
12”- 24” Rim clamping
Inflation gauge included
Plastic jaw protectors included
240V Single phase
PJFPA-7226IT
2,000
MOTORISED WHEEL BALANCER
Phoenix PA-7160
PA-7160 wheel balancer is capable of balancing wheels up to 24” diameter. This is a user-friendly machine and very simple to operate. The machine is complete and ready to use and is supplied with a set of four cones, measuring callipers and weights pliers. The powder coated cabinet and tough moulded hood makes this machine durable and robust.
Set of 4 cones included
Callipers, weight pliers included
Self-calibration program
10” – 24” rim diameter
1.5” – 20” rim width
240V single phase
OPTIONAL Centre less adaptor, Motorcycle adaptor, Extra-large
Selectable
VARIOUS P.J. FALLON & SON PRODUCTS
26" E72 Storage HUB Tool Trolleys with 7 Drawers
7 drawers heavy-duty tool trolley is based on a solid steel dual-walled case construction
Fully opening drawers equipped with ball-bearing sliders
Rubber wheels ensure maximum stability
Strong and secure round locking system protects the tool trolley against theft
15 Amp Fully Automatic Charger/Maintainer
10T Extra Long Trolley Jack
10T extra-long trolley jack allows long reach under the vehicle for
Suitable for boats, cars, camping vans, commercial vehicles, buses, agricultural vehicles, trucks, etc.
Designed for all types of lead-acid batteries like AGM, Cal/Cal, Gel, SLI, VRLA, EFB including Start&Stop
Float-mode monitoring: Automatically maintains optimum battery charge
Reverse polarity protection
Heavy duty steel construction for maximum durability
Sturdy steel wheels
Large and comfortable pedal for easy access from right or left side of lifting points
Composite curved handle for safe and comfortable use
Ø150 steel saddle
1/2" pneumatic impact wrench
Light, durable and insulated composite housing
Powerful twin hammer mechanism
Easy one-hand forward and reverse change
Power regulator
One-hand forward/ reverse change
Three-step power regulator
VARIOUS P.J. FALLON & SON PRODUCTS
Hydraulic Transmission Jack Double Piston
1000 kg transmission jack used in pits and beneath elevated vehicles, for safely removing, installing or transporting transmissions
Quick approach system with double piston enables reaching the full height in only 36 pump strokes
Hard chrome plated rod and pump piston
Large and comfortable pedal for easy lifting from right or left side

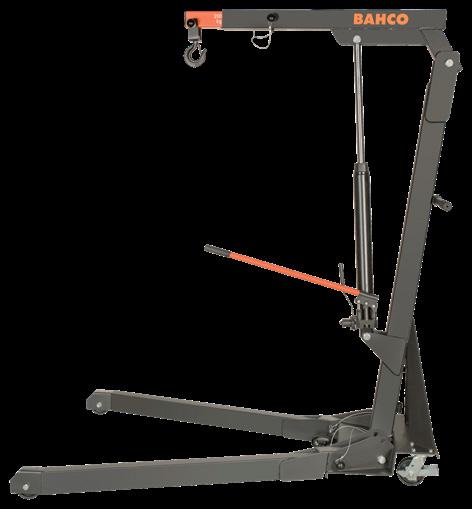

Foldable Crane
Used to lift and support a wide range of heavy vehicle parts, such as engines, transmission boxes, etc
4 fixed positions of the lifting arm:
2,000, 1,500, 1,000 and 500 kg
High flexibility and broad application area:
Minimum entry height: 130 mm
Maximum hook height: 2640 mm
Foldable legs enable compact storage of the crane when not in use
Dual piston system decreases the number of necessary strokes by 50%
Universal Saddle for Transmission Jacks
Universal gyroscopic adjustable saddle with chains for securing the load
Allows swivelling and positioning of the transmission at different angles
Adjustable angle -6° to 12°
Heavy duty solid mounting plates
Fits on transmission jacks ref. BH5SP500QA and BH5DP1000QA
VARIOUS P.J. FALLON & SON PRODUCTS
Hydraulic Transmission Jack Double Piston
50T Hydraulic Workshop Press
MacPherson spring
compressor with double pneumatic piston system
24,000 N maximum
compression capacity
It can compress more than 95% of the springs in the market, from light vehicles to 4x4
Working pressure: 5-10 atm
Cylinder stroke: 300 mm
Opening width between jaws: 450 mm
Spring anti-slip steel cable
Easy and quick operation
Heavy duty construction with rounded shapes and exclusive design
Large pressure gauge filled with glycerine for easy reading at convenient eye level
Hard chrome plated slide and piston
Quick approach feature using the pedal or the handle
Rulers to facilitate Centering the piston on the item to be extracted
Two V-blocks included, usable on V or flat side as needed
Auto-centering pins for the table
Phoenix Lite 2
The Phoenix Lite 2 is TOPDON’s new compact pro-level scan tool for streamlining jobs outside the shop or jobs that need to be resolved fast. With a robust array of special functions, online coding, and broad vehicle coverage, this versatile scan tool clears up jobs faster and gets shops moving. Generate the most complete diagnostic reports with advanced scanning functions and Bluetooth *battery testing compatibility.
What’s in the box?
- Phoenix Lite 2
- MDCI Lite-VCI Connector
- Battery Clamps/Cable Set
- Cigarette Lighter Cable
- Fuse (5*20mm)*4
- Fuse (6*30mm)*2
- Type-C to USB Cable
- Power Adapter
- OBDI Adapter BOX Transfer Line
- OBDII Extension Cable
- BZ-38 (BENZ)
- TA-22 (TOYOTA)
- TA-17 (TOYOTA)
- G/V-1- B-20 (BMW)
- CR-6 (CHRYSLER)
- HA-3 (HONDA)
- NN-14+16 (NISSAN)
- M/H-12+16
(MITSUBISHI/HYUNDAI)
- FT-3 (FIAT)
- User Manual
- Package List
- Password Letter2 (GM/VAZ)
The Next Gen Compact Pro
FEATURES
35 Maintenance Services
OE-Level Full System Diagnostic for 200+ Brands
Guided functions for vag vehicles
Vehicle auto VIN and Autodetect
Pre-scan and post-scan reporting
FCA Gateway Access
*Expand your capabilities with the BT MobileProS
DO MORE
IN LESS TIME
