logbook laag buk noun noun: logbook; plural noun: logbooks

ARCHITECTURE

an official record of events during the voyage of a ship or aircraft.

C O N T E N T S

M. ARCH 07

MIXED REALITY - SLIP CASTING M. ARCH FALL 2024

11

BRIDGING VOIDS M. ARCH SPRING 2024

15

MEMORIAL FOR DEATH OF INGENIOUS TRADE M. ARCH SPRING 2024

PROFESSIONAL NAMOKAR SQUARE COMMERCIAL COMPLEX

21

ANANT RESIDENTIAL BUILDING

23

INTERIOR DETAILS PHARANDE SPACES INTERIOR DETAILS

25

B. ARCH 27

CONCUR B. ARCH THESIS

33

AAKRUTI B. ARCH 8TH SEMESTER

37

ART AND CRAFT CENTRE B. ARCH 6TH SEMESTER

ALLIED WORKS TWIN ARCH M. ARCH FALL 2023

39

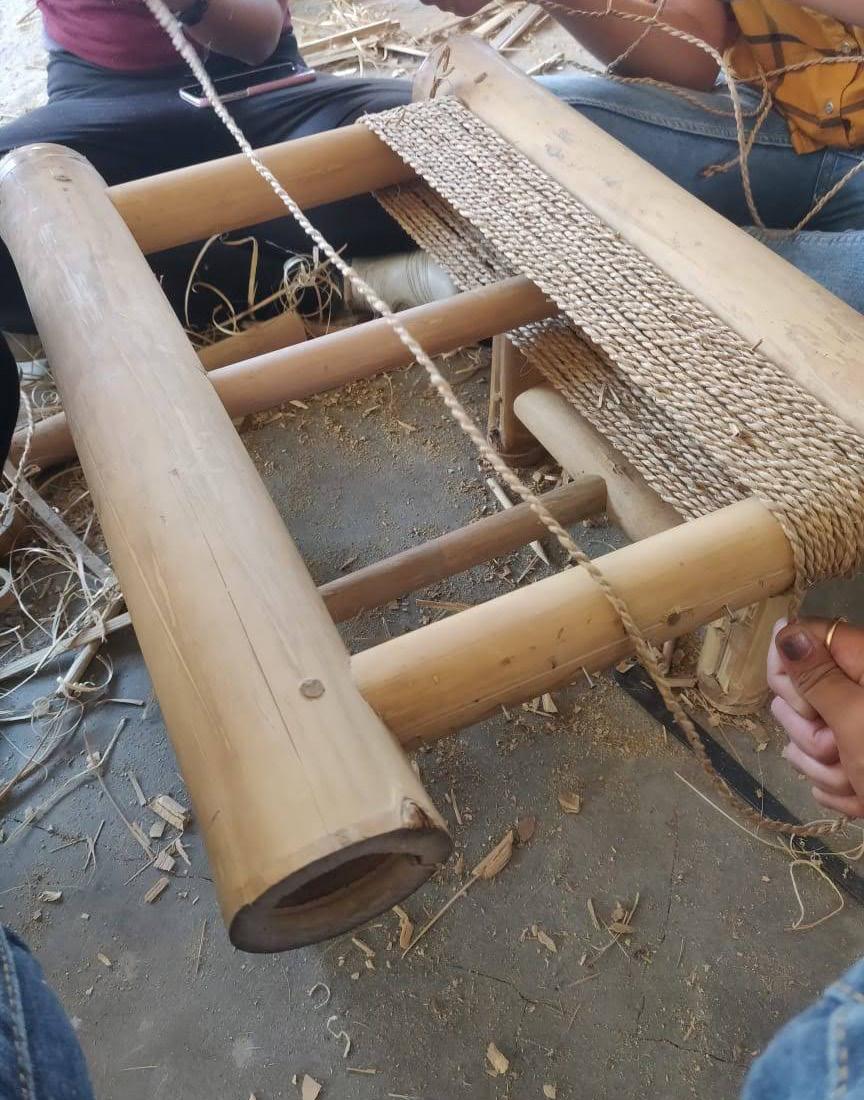

BAMBOO WORKSHOP MATERIAL STUDY

41

TITLE LOCATION TYPE SEMESTER GROUP PARTNER UNDER GUIDANCE -

MIXED REALITY SLIP CASTING

BUFFALO, NY ACADEMIC M. ARCH FALL 2024 VANESSA V. PROF. NICHOLAS BRUSCIA

Clay has been used as a construction material for thousands of year. This natural and sustainable material has many benefits, including environmental, technical and health advantages.

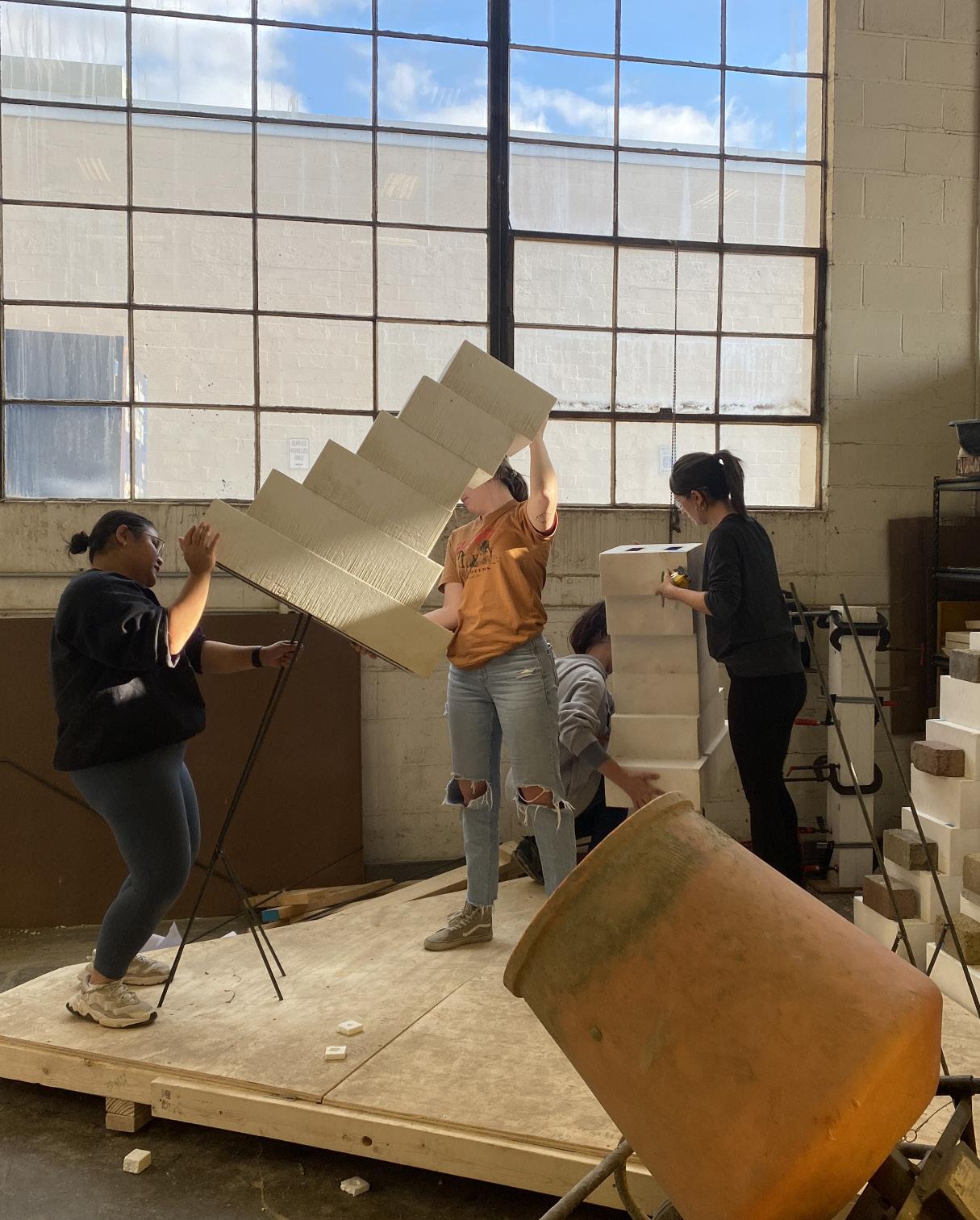

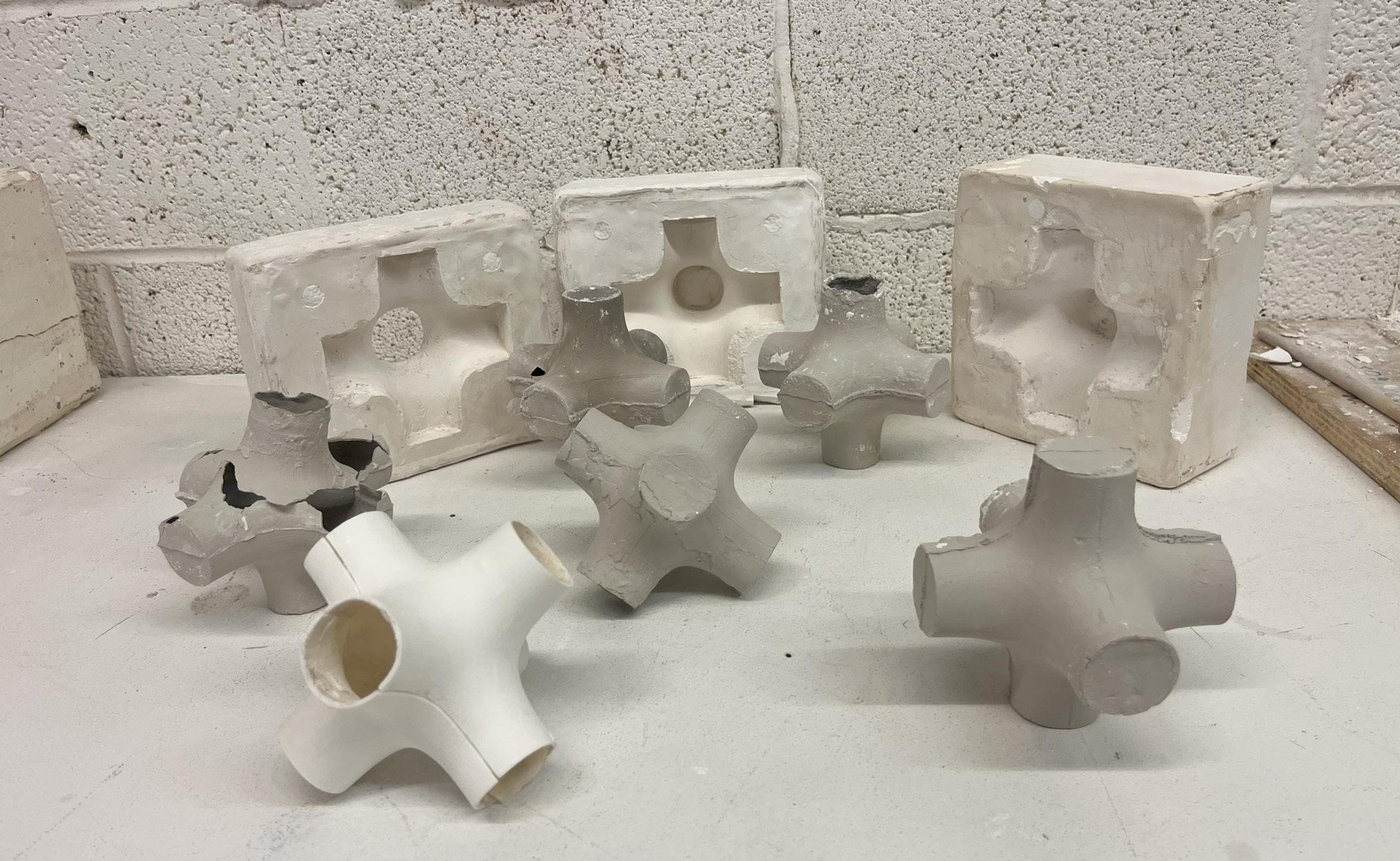

This research revolved around the process of slip casting. Slip casting is a technique where liquid clay is poured into a mold, allowed to dry and consolidate on the mold’s inner surface, before excess clay is drained, resulting in a hollow part. This process is commonly used in the industrial production of sanitary ware and in craft-based settings for creating different parts (Bechthold et al. 2015). Slip casting allows for the economic mass production of geometrically complex ceramic parts (Dawson 1964).

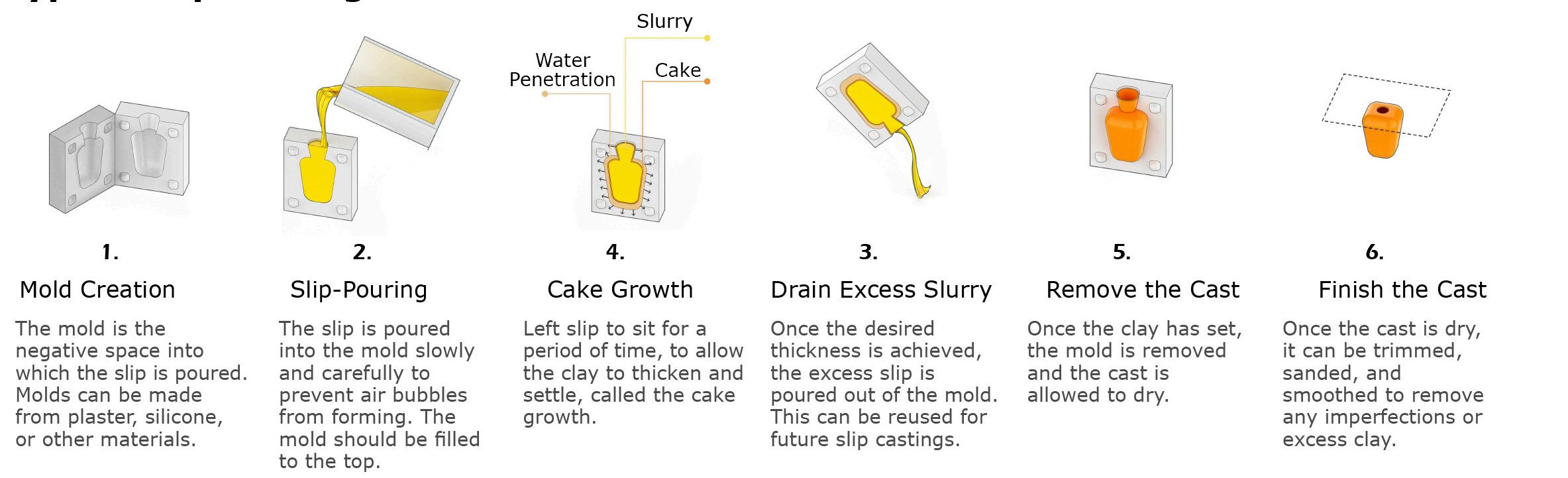

typical slip casting process

In today’s modern settings of industrial production of sanitary ware, slip casting has experienced further enhancements in process efficiency.

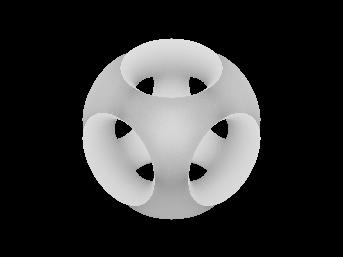

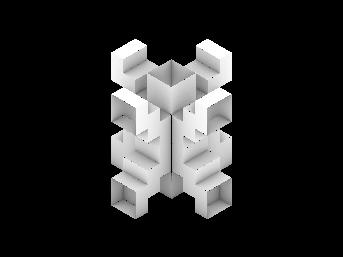

The script was developed understanding the axial rotation. The mould partially filled with slip was rotated guided by the fologram and Halolens. To ensure that each part of the mold is covered, we designed the script to repeat the axial rotation.

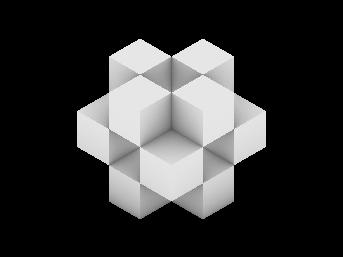

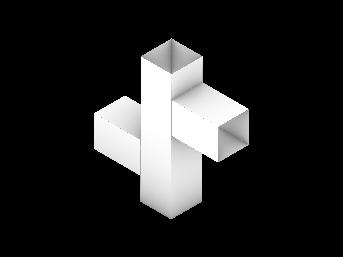

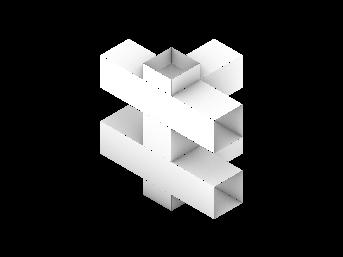

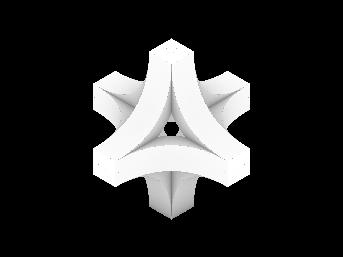

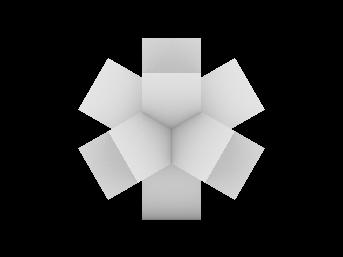

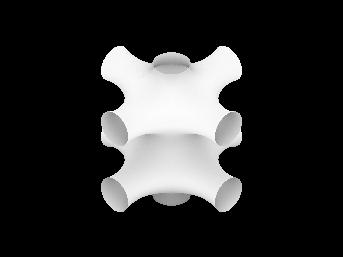

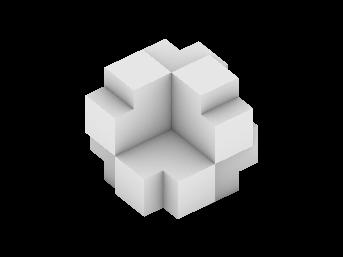

form findings 07

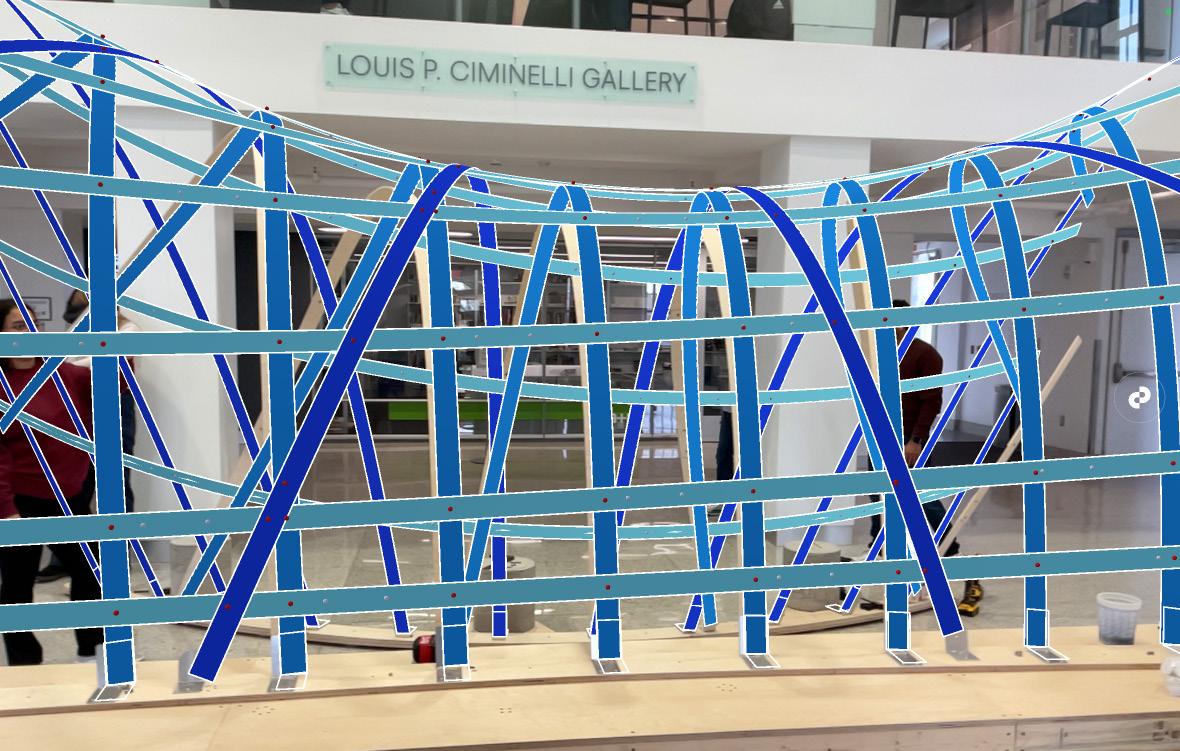

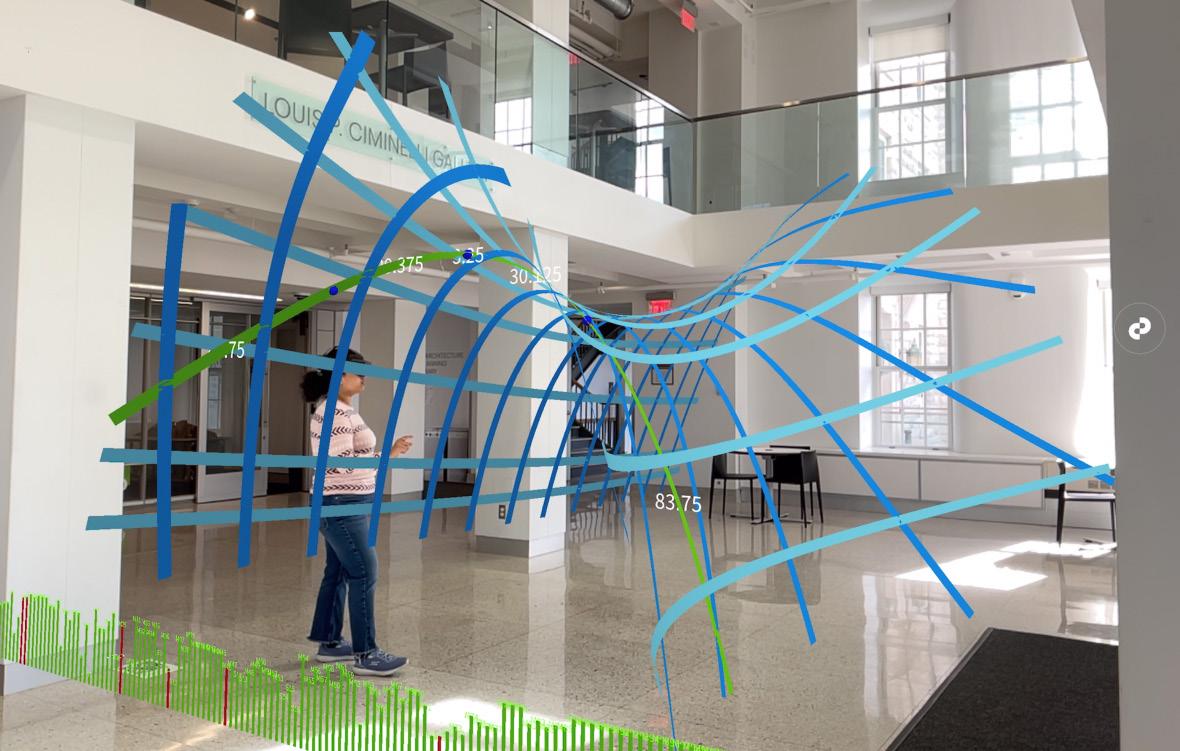

rotation of mold using halolens

image from fologram overlap

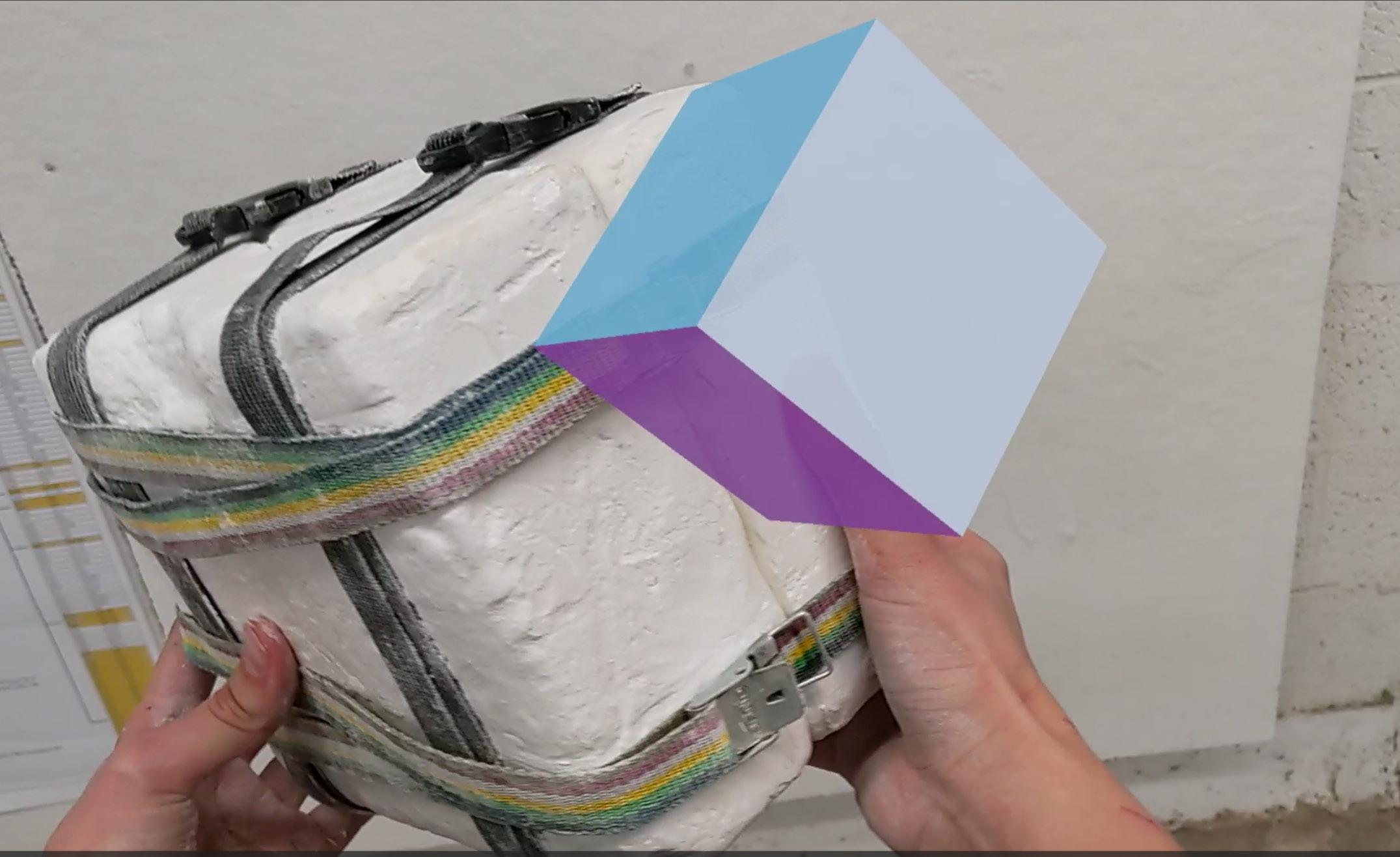

The Fologram showed the step by step process for rotation.

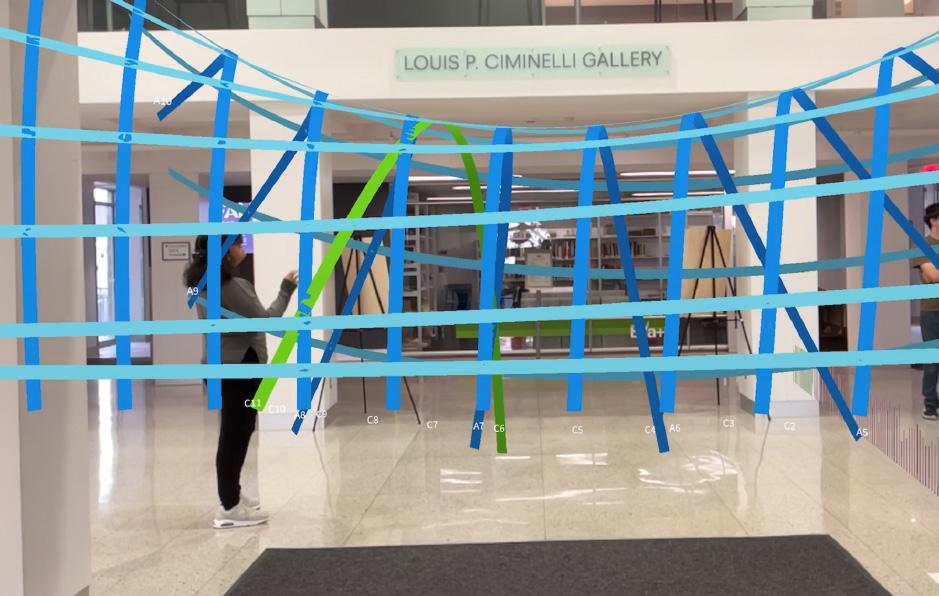

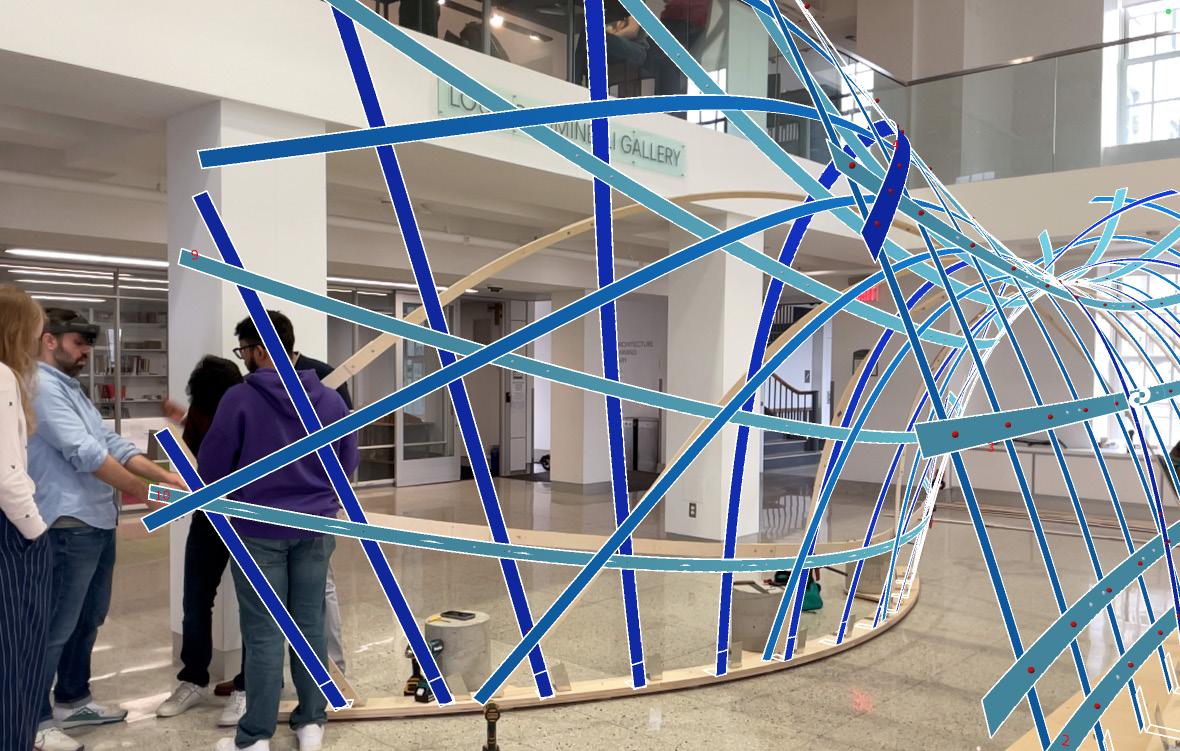

image captured through halolens

prototype testing results

Incorporating virtual reality (VR) technology into the design and fabrication process of bespoke slip casting has the potential to significantly enhance the user experience and expand therange of design possibilities.

By enabling users to manipulate the mold using hololens and fologram controllers, they can gain real-time visual feedback on theappearance of the actual piece, allowing for more intuitive design adjustments and exploration of unique forms.

This proposed method, which combines VR technology with slip casting, fosters a seamless integration between design and fabrication processes, encourages greater creativityand innovation, and enables users to better anticipate potential challenges in the fabrication process, such as slip shrinkage and surface tension issues. Ultimately, integrating VR technology into the bespoke slip casting process not only expands design possibilities but also has the potential to significantly improve the quality and adaptability of the final products.

08

TITLE -

GRIDSHELL

LOCATION

BUFFALO, NY

TYPE -

ACADEMIC

SEMESTER -

M. ARCH FALL 2024

GROUP PARTNERS -

STUDIO

UNDER GUIDANCE -

PROF. NICHOLAS BRUSCIA

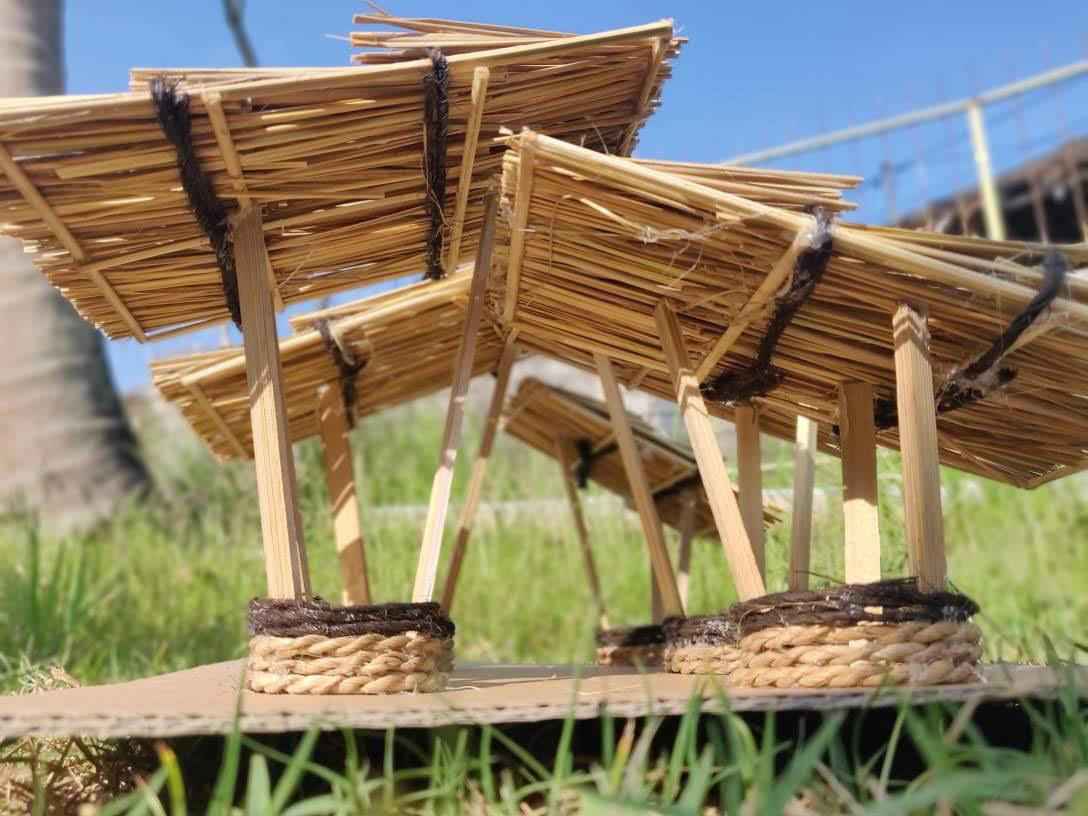

The studio was dedicated to developing new approaches to handwork fabrication informed by mixed reality guides, combining human intuition and experience with advanced holographic visualization tools and computational modeling.

To begin the semester, students were asked to design and construct a geodesic grid shell that obtains its strength through curvature and actively bending the material. The structure was to be assembled entirely in mixed reality — no drawing set or on-site measuring was used to complete the assembly, only holographic guides viewed through Microsoft HoloLens 2 headsets.

dividing of laths into segments

division of laths as per available material

All planks are geodesic to the surface, ensuring they remain straight with flush connections – keeping it efficient and inexpensive) The structure is built from reclaimed material (planks, hardware, and base) – and we used our own mixed reality workflow to allocate the entire catalog of used precut parts to this new structure.

I was part of the team performing bending tests. I collaborated with my classmates for testing of Hololens and Fologram simulations.

bending test for selected form 09

assembly

fabrication

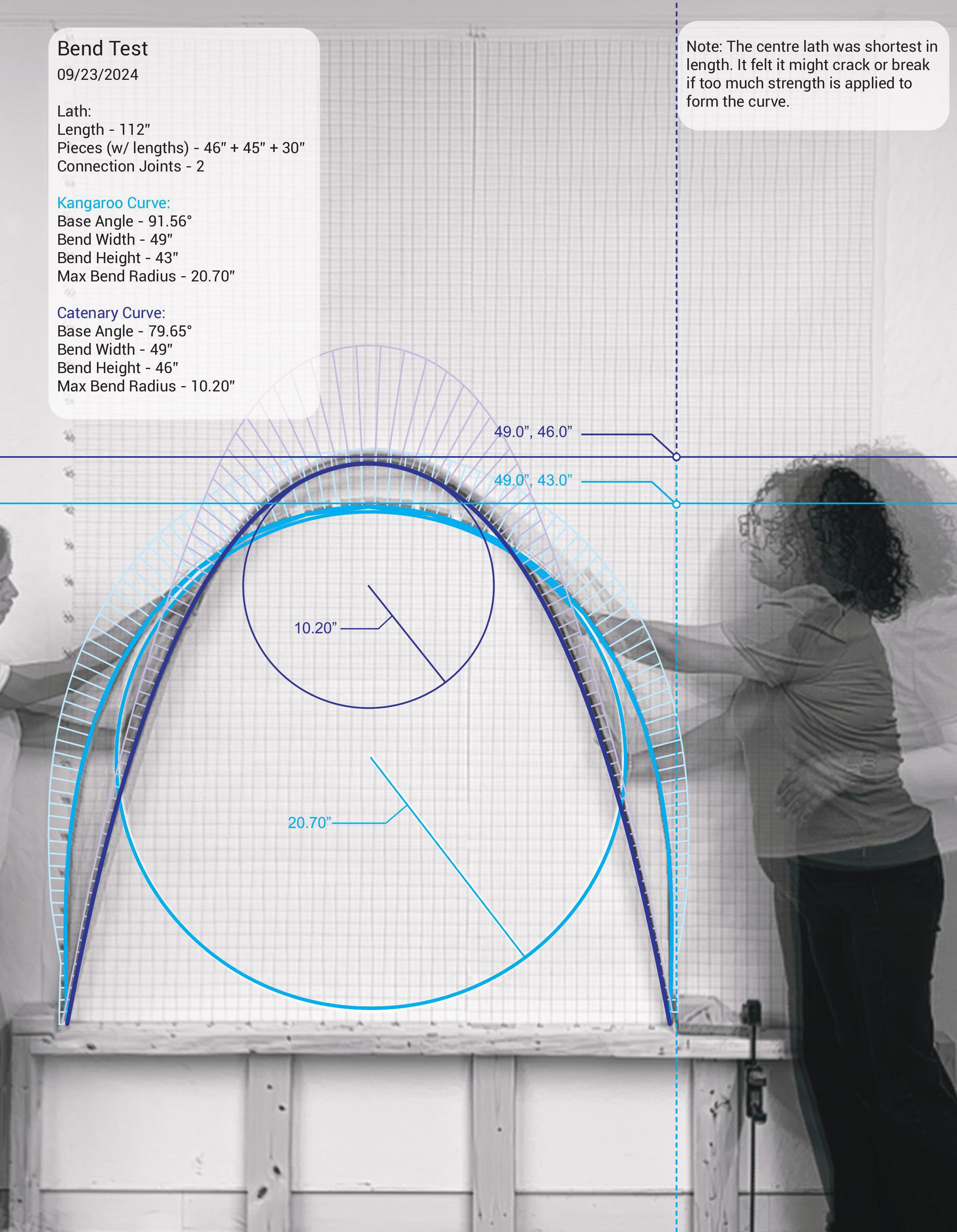

The bending test was conducted with reference to the form that was aimed at building. The tests were conducted using Fologram to bend the lath into desired curve and measure the bending radius. The material flexibility and variations in joints were examined to achieve the exact curve in the grid shell.

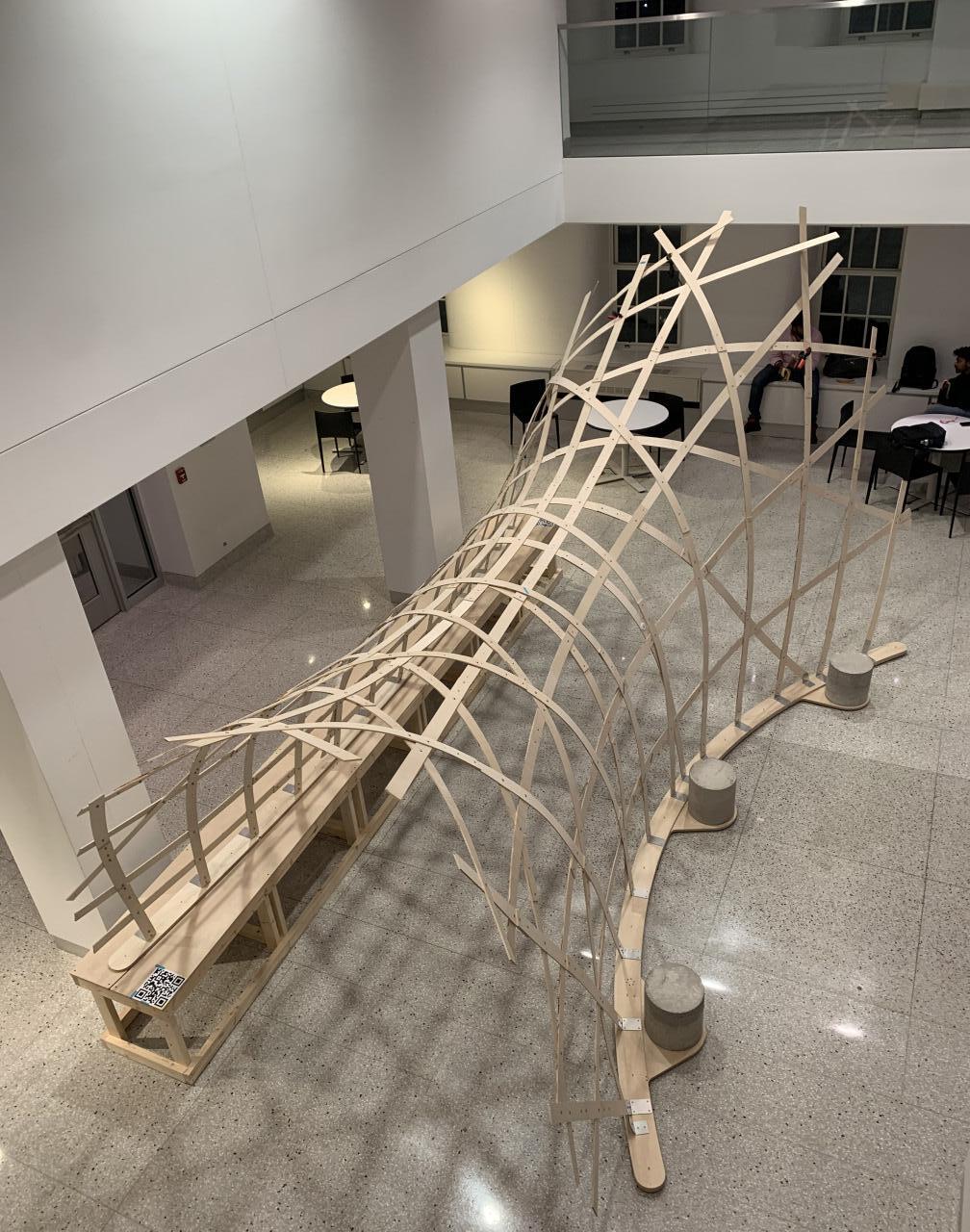

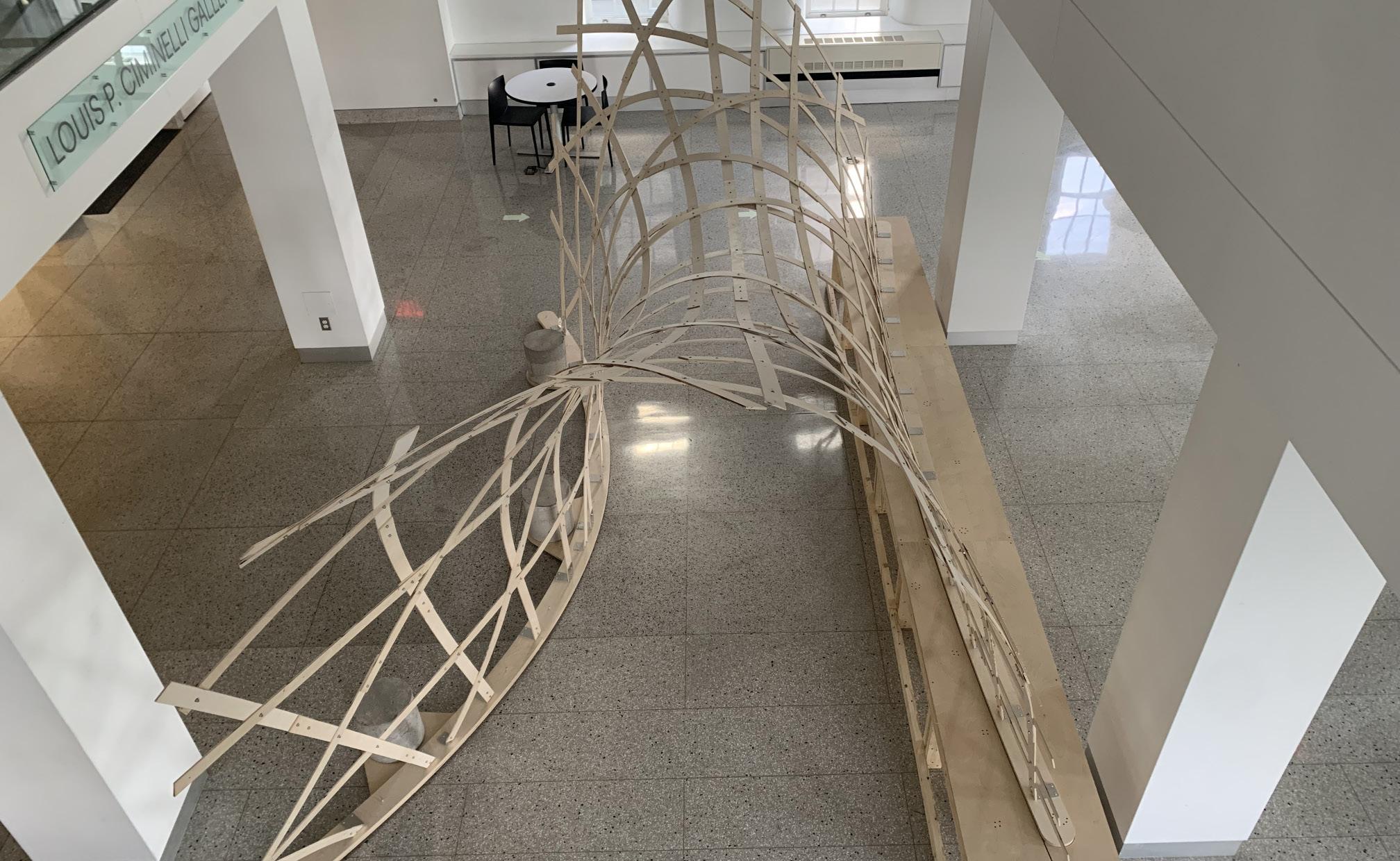

gridshell in hayes atrium

Longer central laths provide greater flexibility and a smoother transition when forming curves, as they distribute the stress more evenly across their length. This results in more consistent and accurate curved profiles, minimizing the risk of buckling or cracking during the bending process. In contrast, shorter laths tend to concentrate stress in smaller areas, making them more prone to material failure, such as cracking or splitting, especially under higher bending forces.

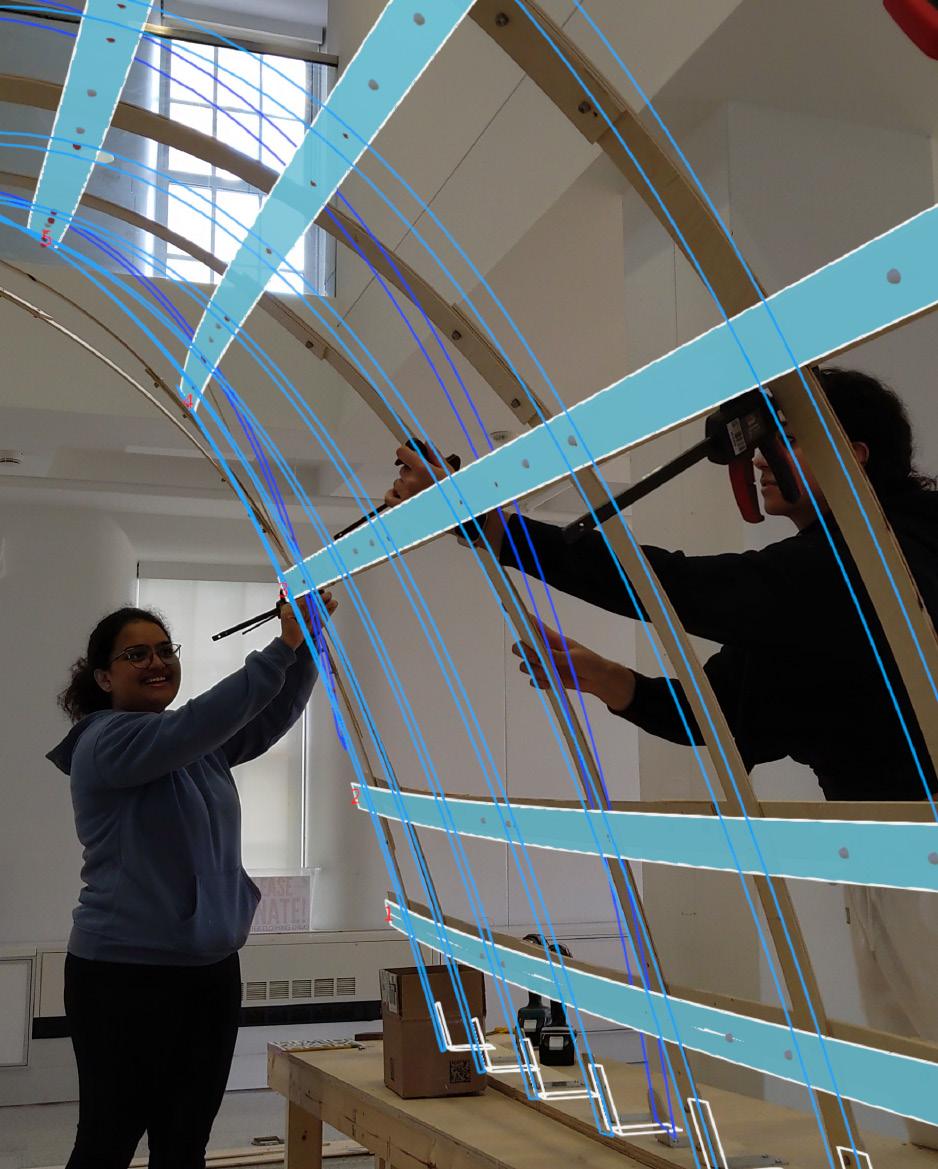

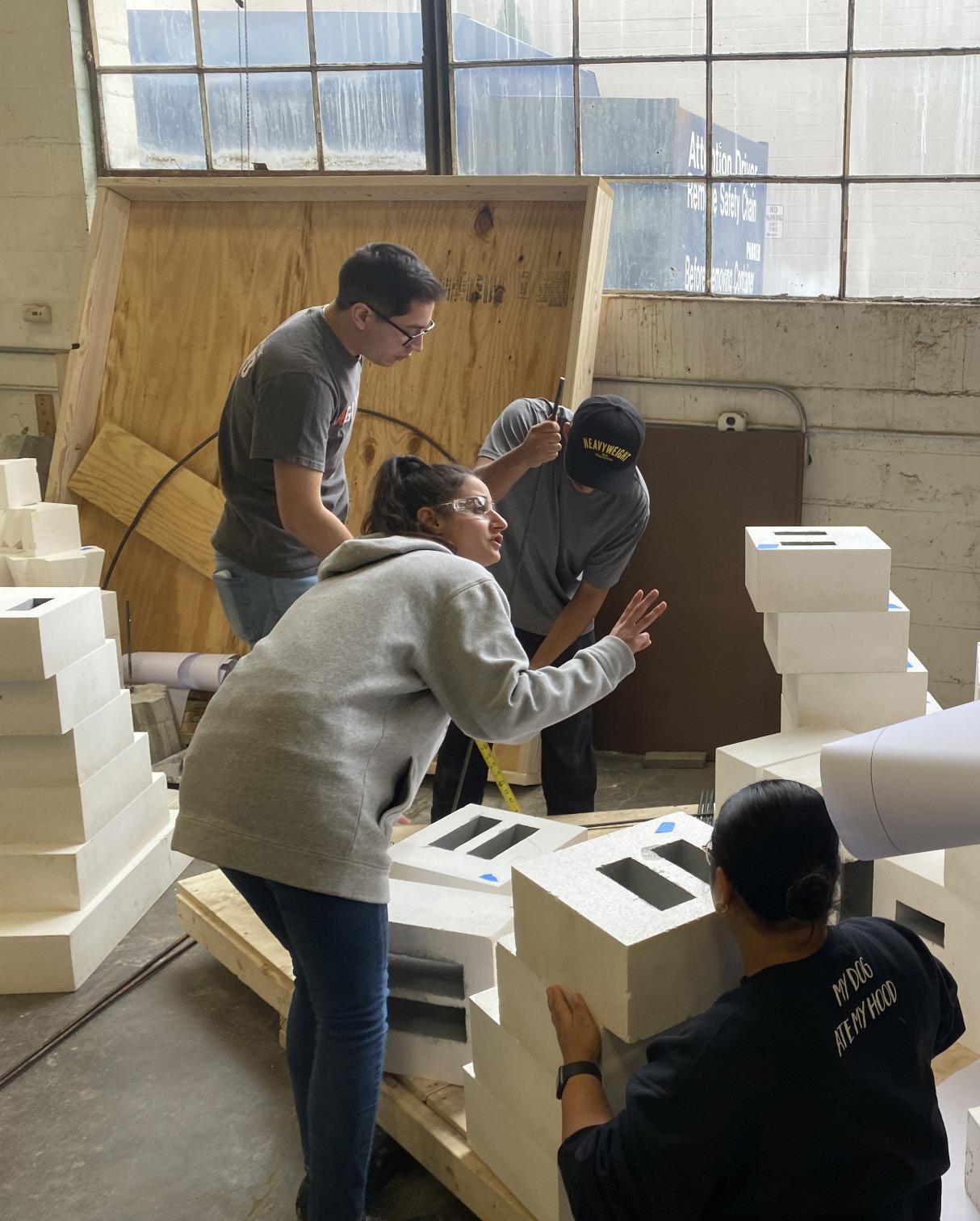

assembly of gridshell

gridshell in hayes atrium

The overall geometry of the curves, including their width, height, and radius, is directly impacted by the length of the laths, their assembly configuration, and the angles applied during bending, highlighting the importance of material selection and design strategy in achieving desired structural outcomes.

10

TITLE -

BRIGDING VOIDS

LOCATION -

BUFFALO, NEW YORK

TYPE -

ACADEMIC

SEMESTER -

M ARCH SPRING 2024

GROUP PARTNER -

MANASWITHA S.

UNDER GUIDANCE -

PROF. GREGORY SERWETA

This project envisages a new museum for Buffalo, which will house an important and growing permanent collection of post-World War II and contemporary art. The donor has given the collection to the public, together with a bequest to cover operating costs and to fund an ongoing program of acquisitions.

The building must be designed to support a wide range of curatorial and programmatic capabilities. It will include spaces to display pieces from the permanent collection host travelling exhibitions of significant contemporary artists from around the world; and provide venues for a diverse range of public programs. Today’s artists and architects are exploring new territories in media and materials, representation and communication.

The task of the studio was to speculate about the architecture that can best house this new work and enhance public cultural life in Buffalo.

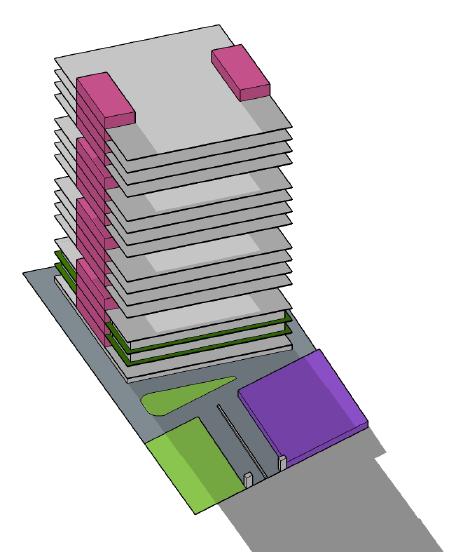

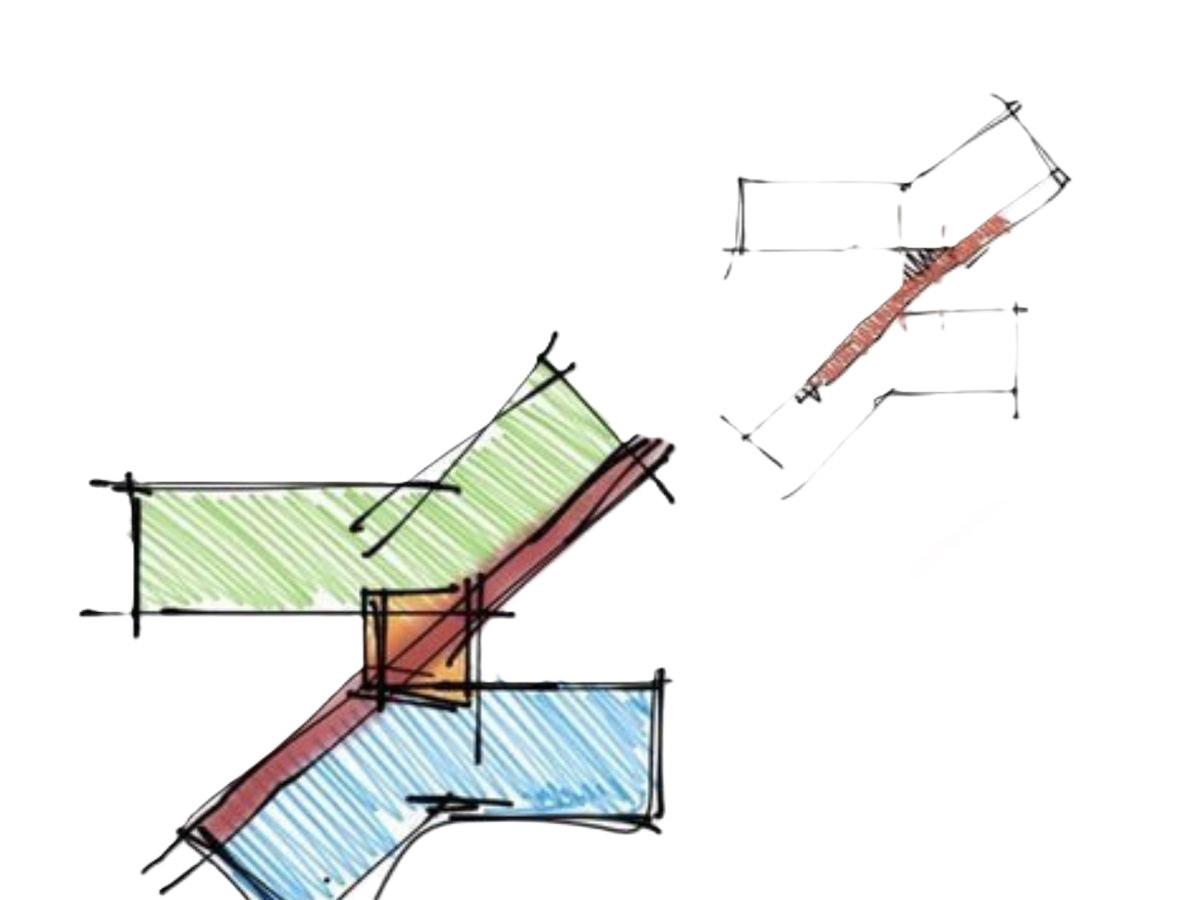

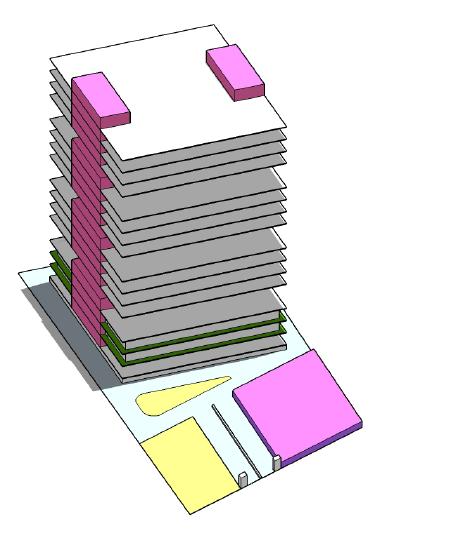

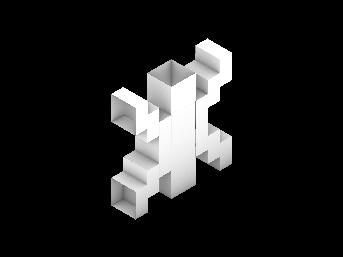

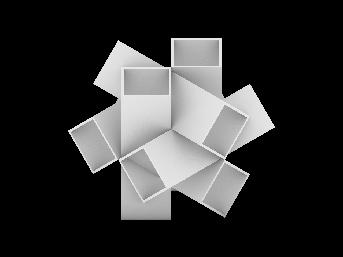

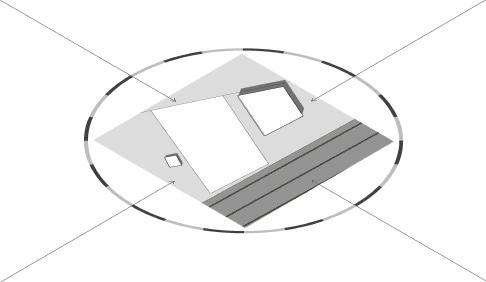

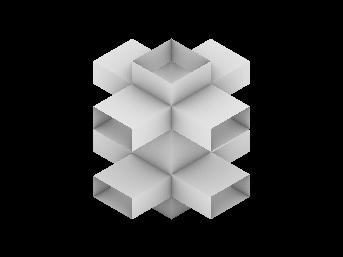

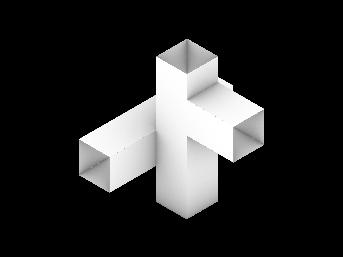

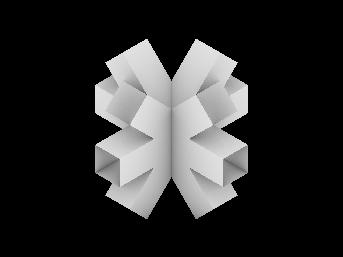

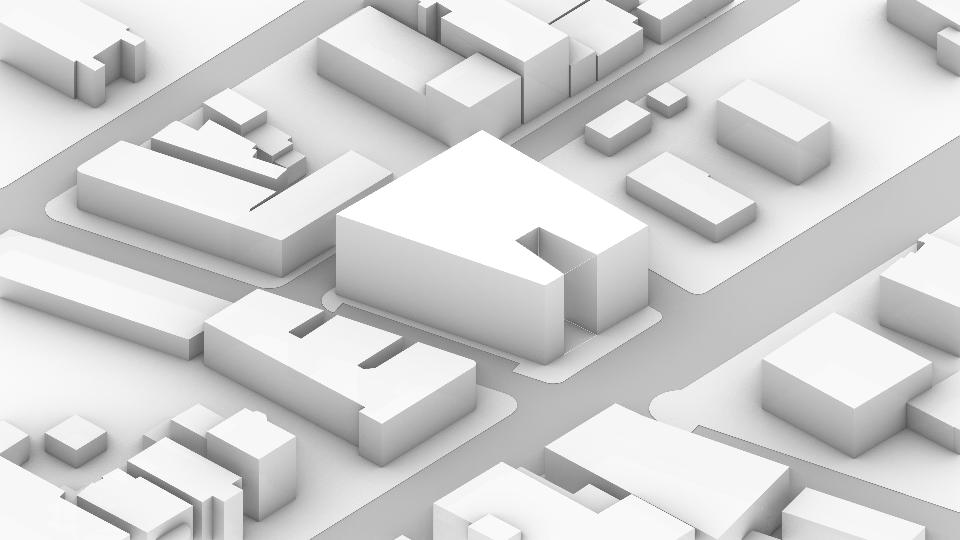

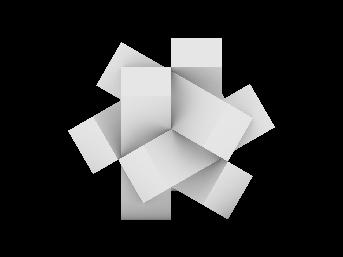

parti diagram 01

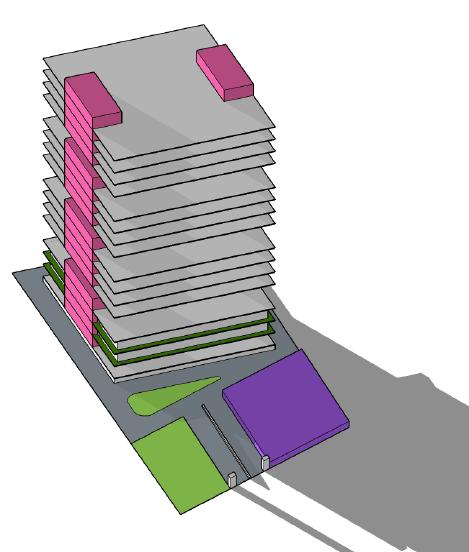

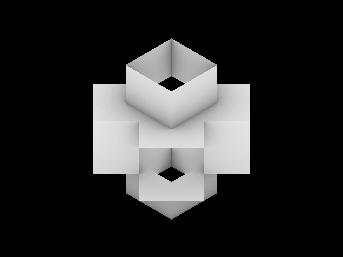

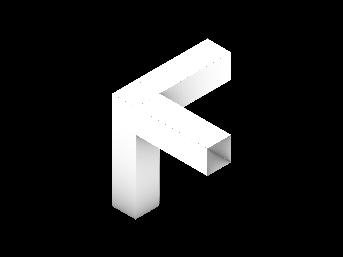

parti diagram 02

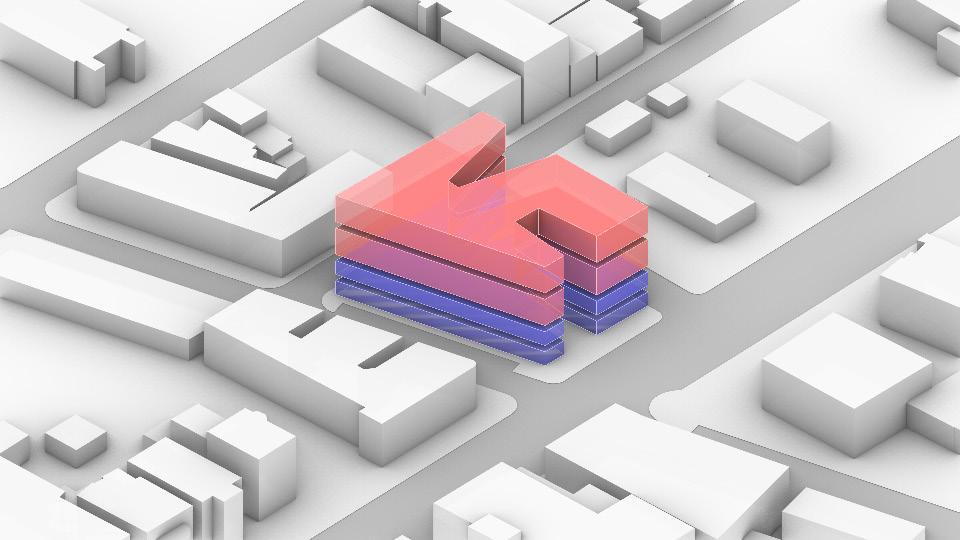

The idea was to create a play of solids and voids with the building. We fixed the stacking of the programs to create a journey for the visitor.

In this concept, solid elements represent the tangible components of a structure walls, floors, columns, and other architectural elements that define space. And the voids massing options

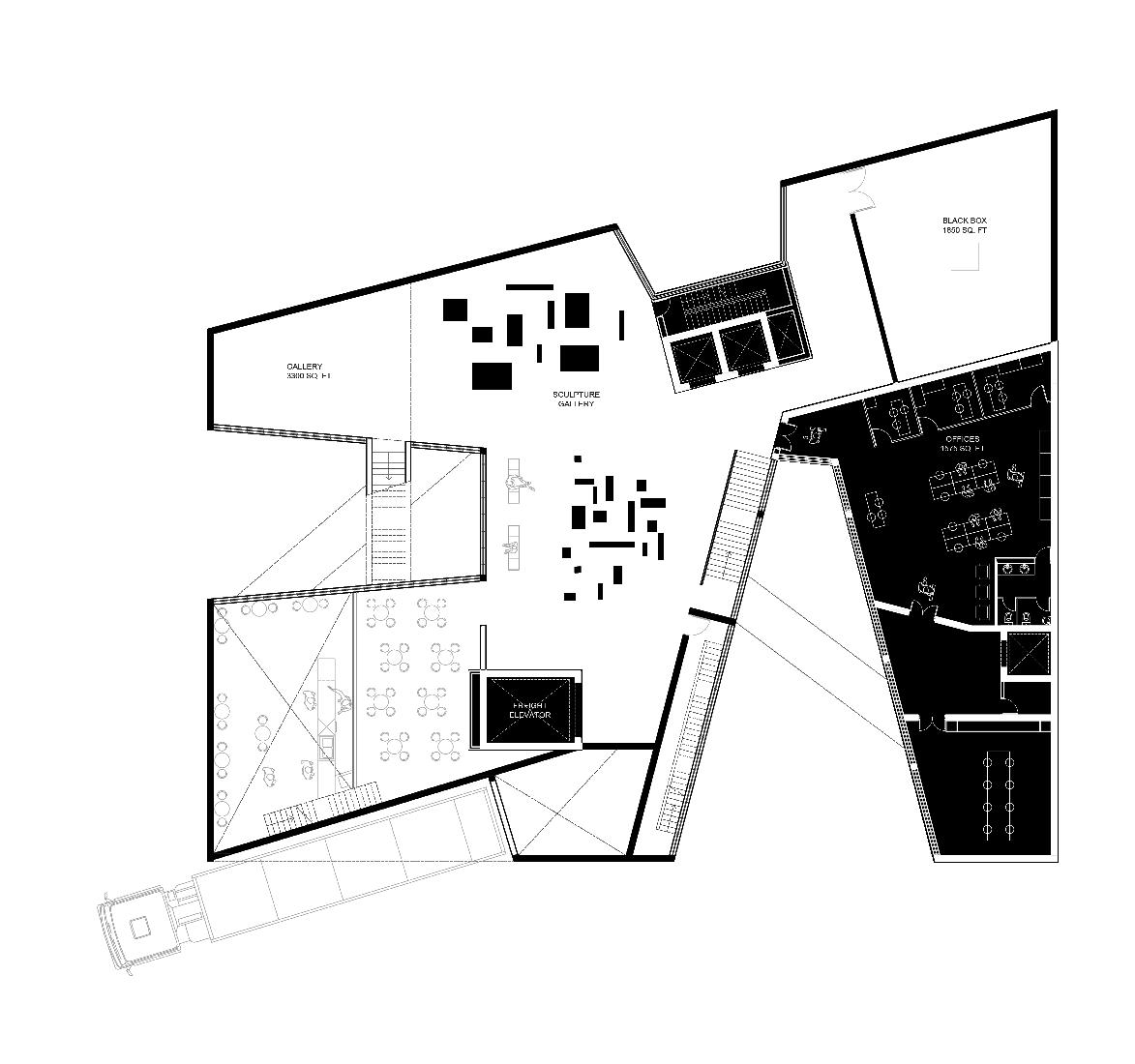

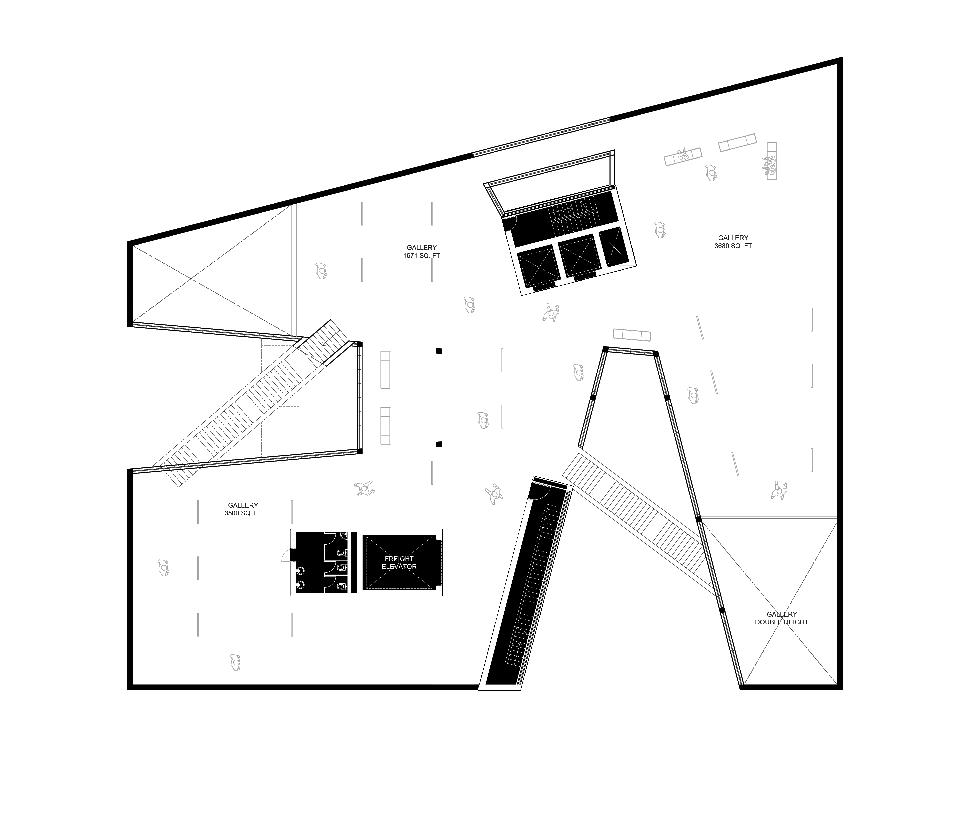

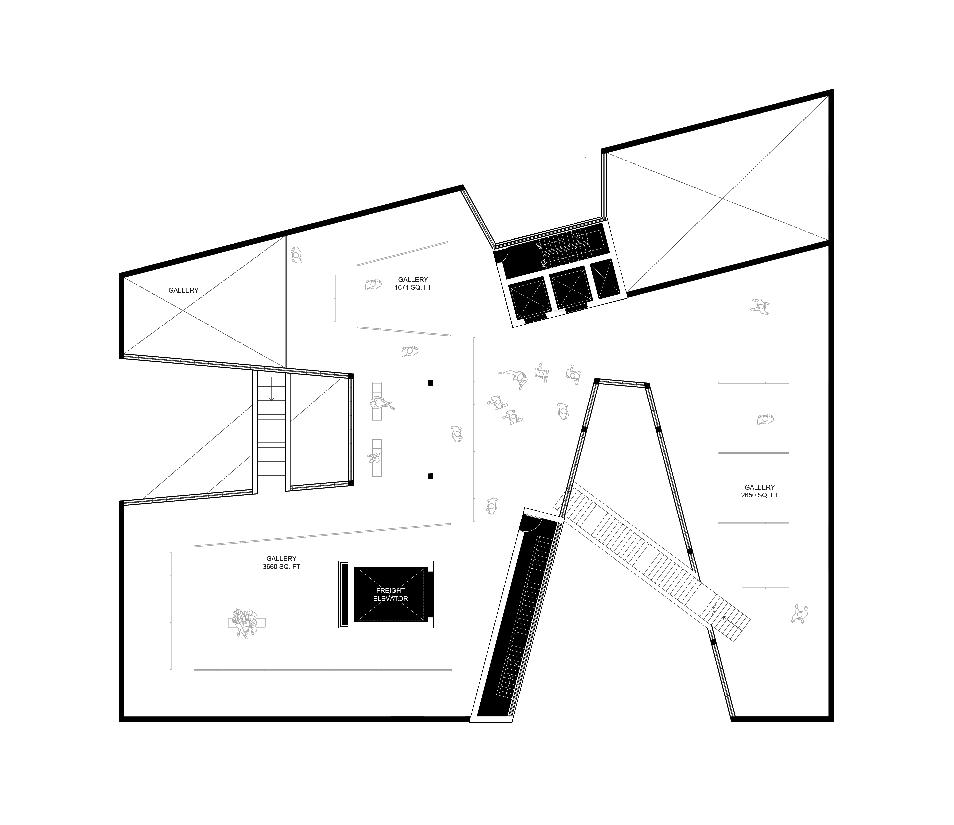

mezzanine floor plan

second floor plan

11

parti diagrma 04

DELAWARE AVENUE

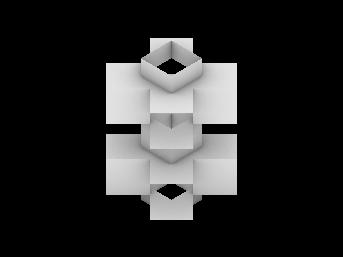

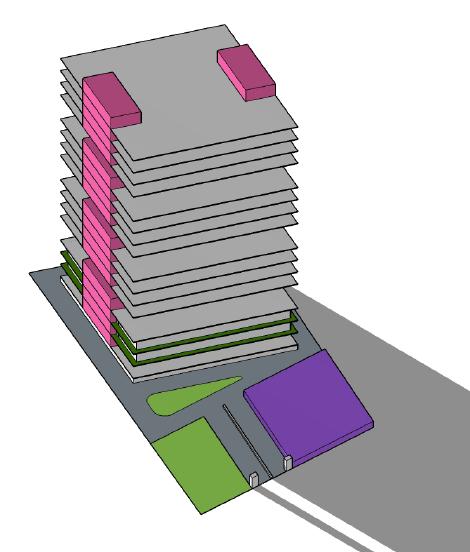

parti diagram 03

EN S

TRE

TRE

ET

DELAWARE AVENUE

ALL

EN S

CAF

E 59

PARKING LOT PROPOSED ROAD

PARKING LOT

play a crucial role in shaping the spatial experience, fostering connections between different parts of the building, and inviting interaction with the surrounding environment.

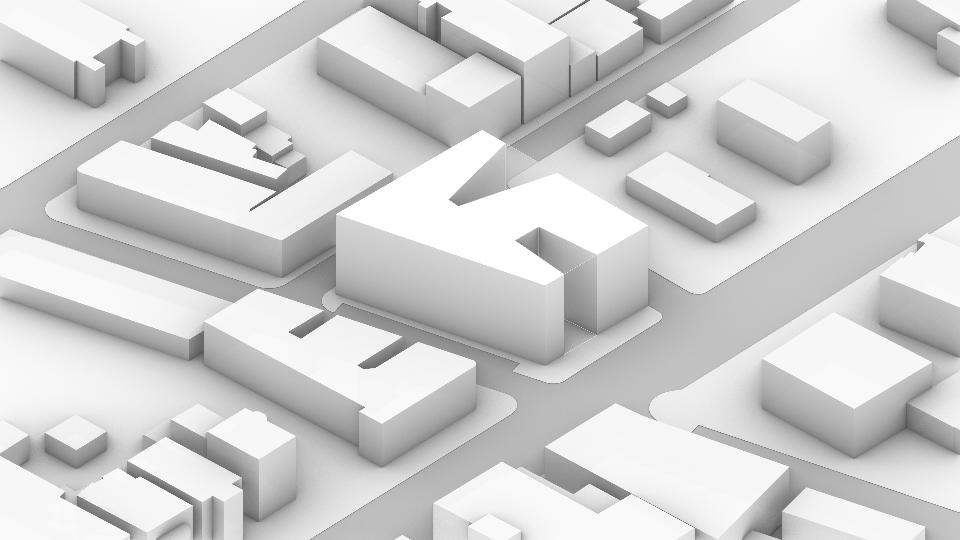

Looking at the site context, we wanted to propose a building that blends within the surrounding area.

The strategy was to take advantage of the streets and segregate the access for building from all streets. The main entrance is Delaware Street. The back of the house is from the proposed road on the south side.

Another Access to space is from Allen Street.

The education space entrance is from Virginia pl.

The plaza at the terminus becomes a focal point and a buffer zone.

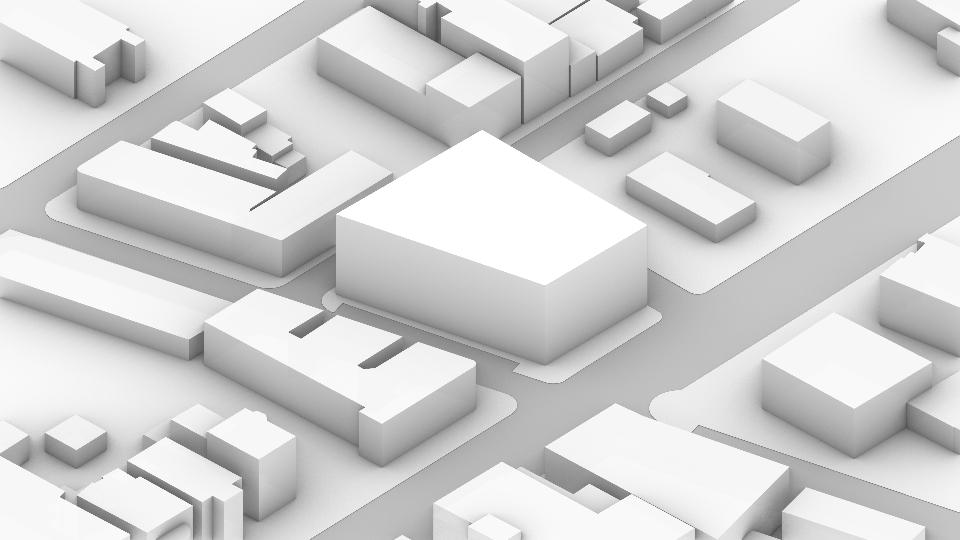

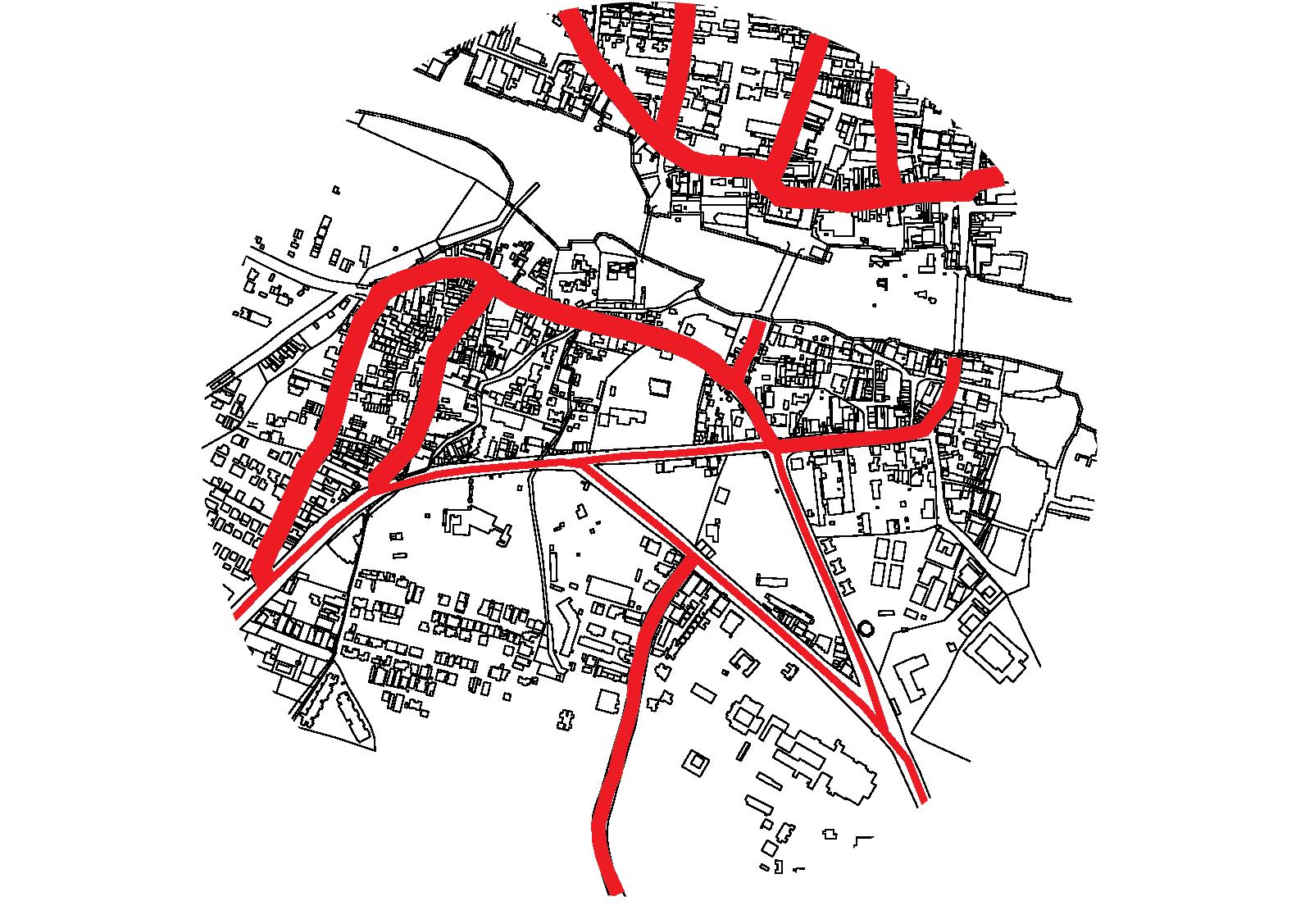

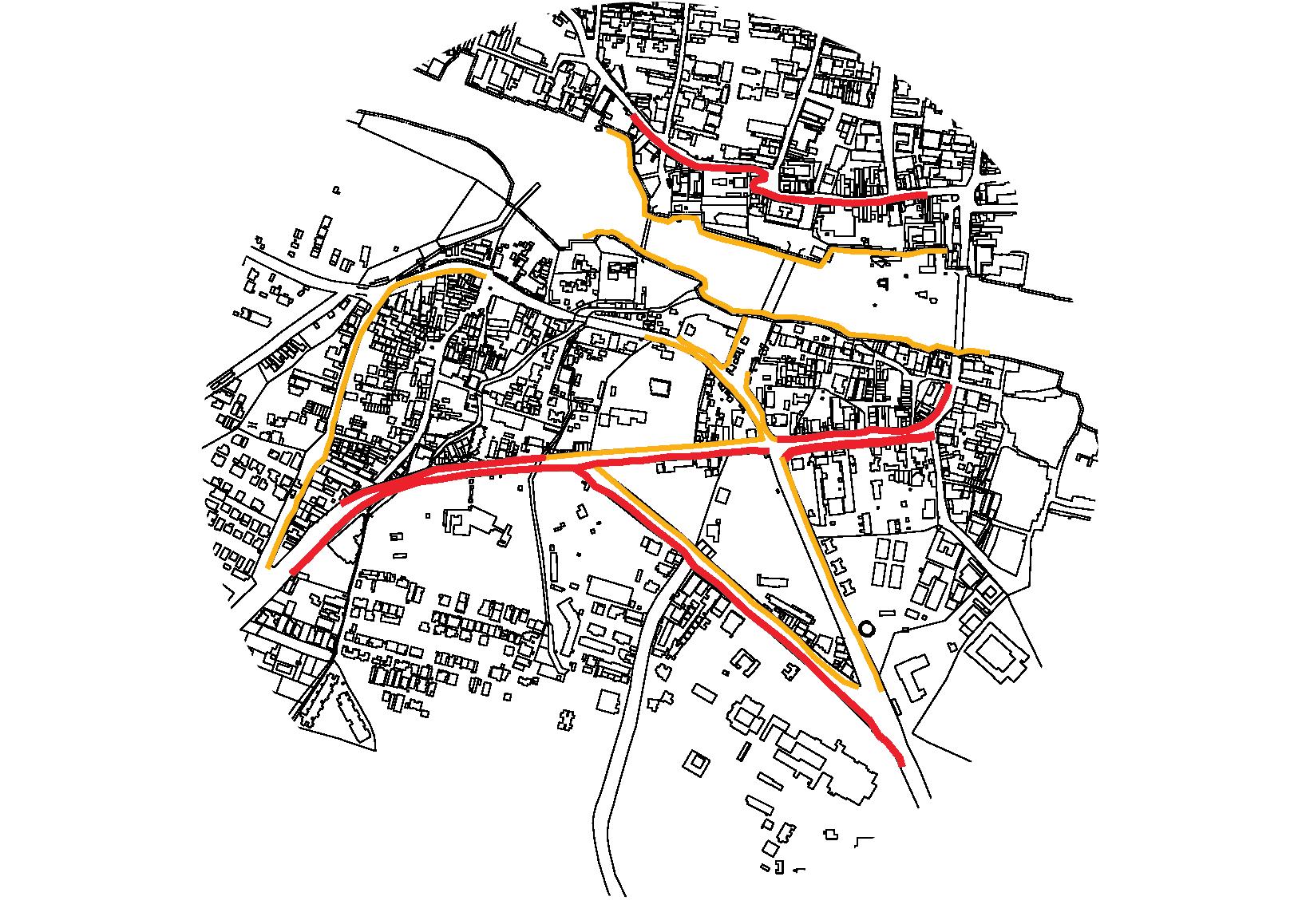

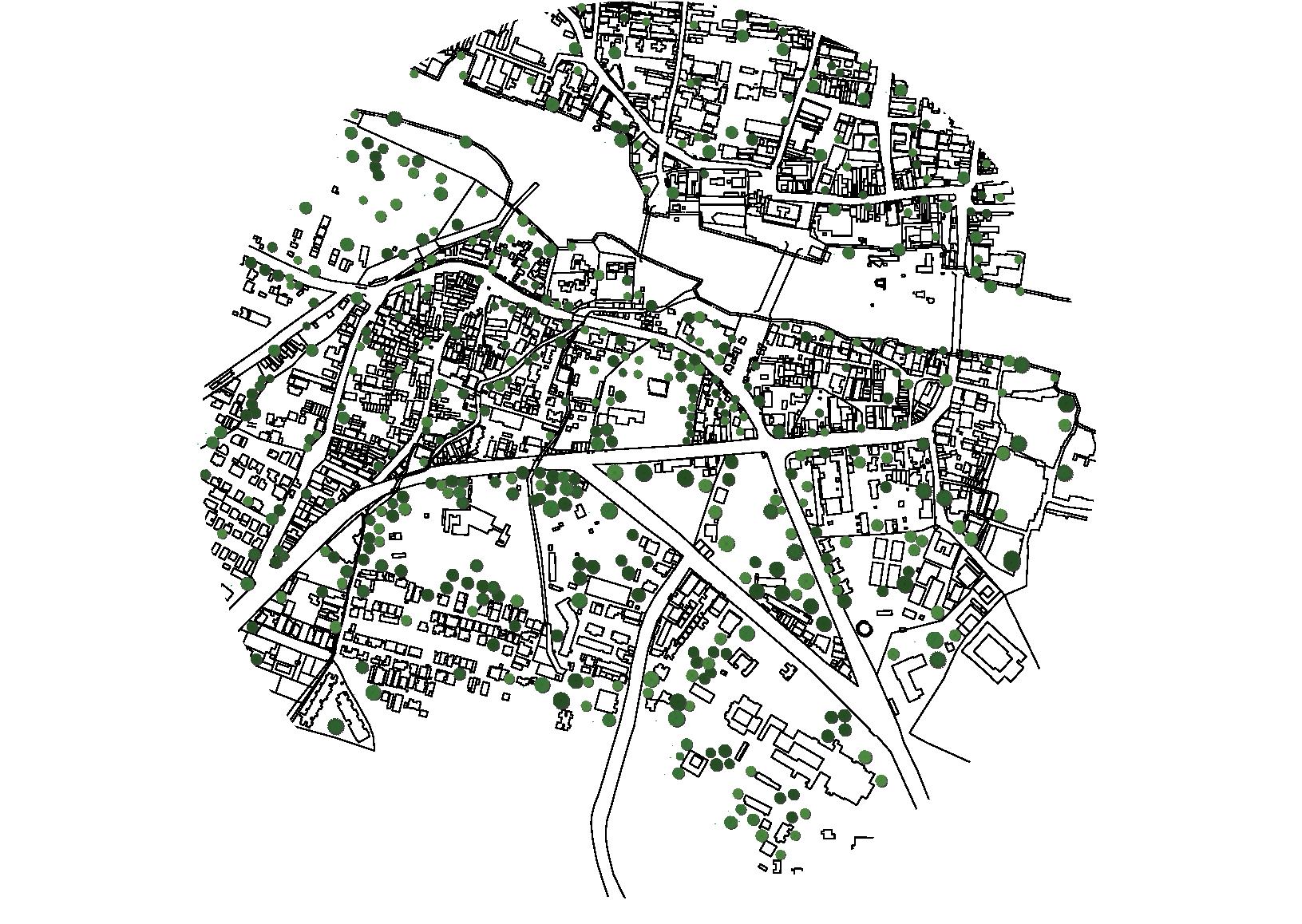

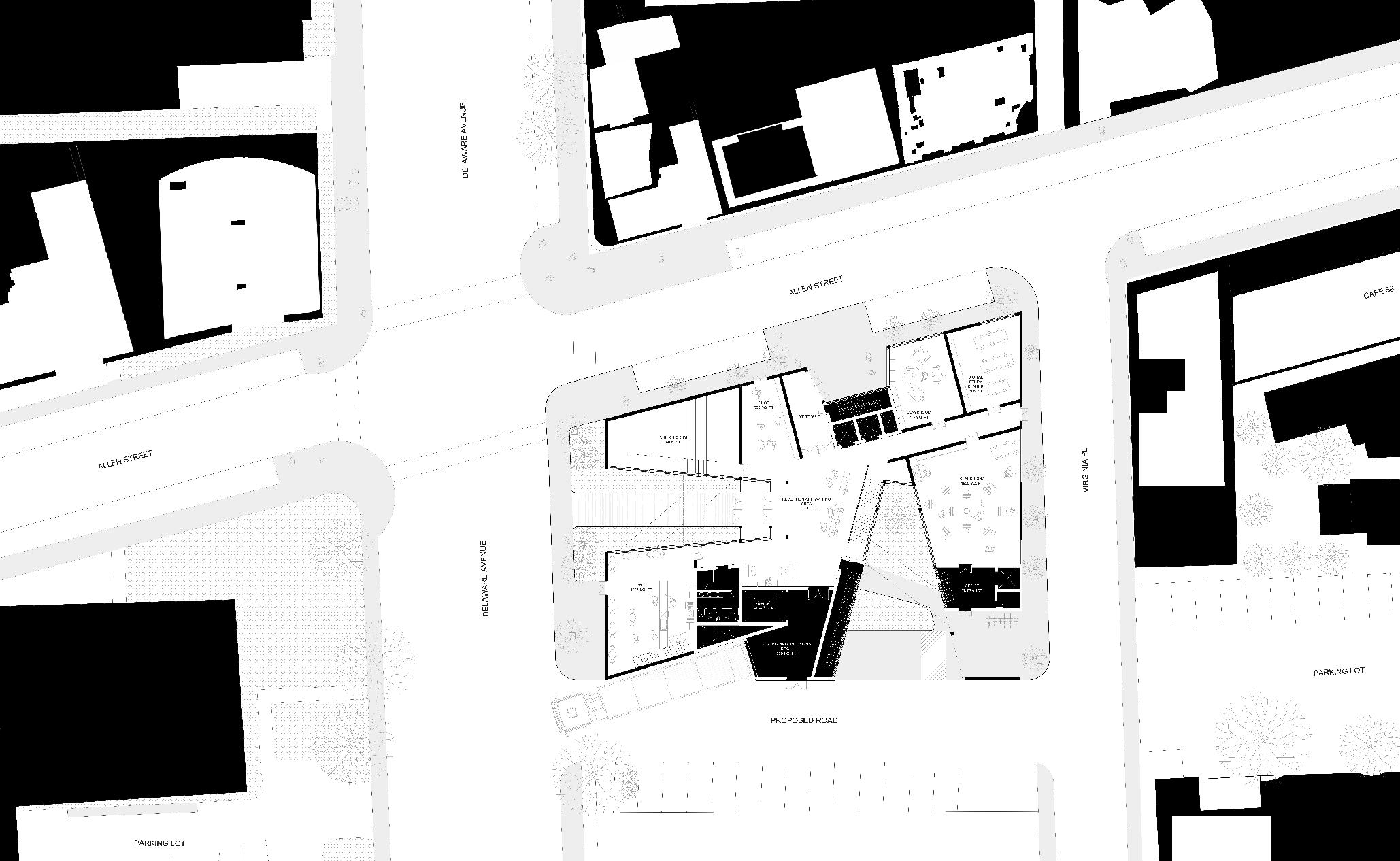

noli map

third floor plan

ET

VIRGINIA PL.

ALL

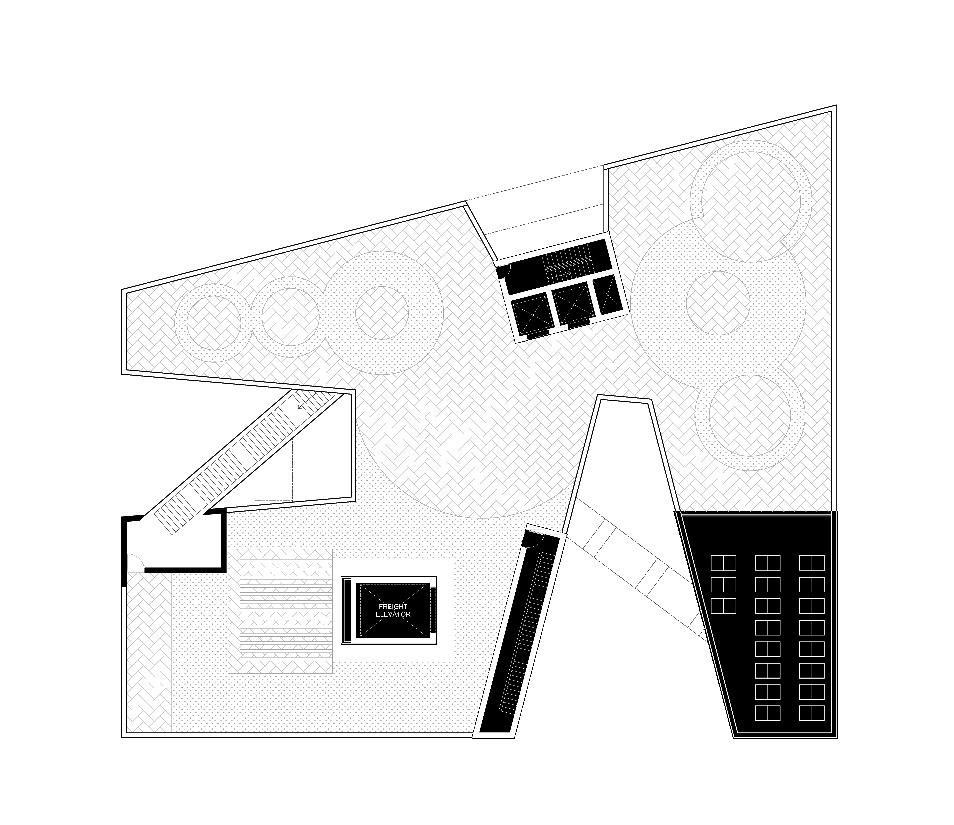

roof plan

When you enter from main street Delaware you are welcomed by an open plaza. With entrances carefully situated to embrace the flow of pedestrian traffic, the building becomes a seamless extension of the urban landscape, inviting exploration from all angles.

The plaza acts as a portal into the building. The first floor has all the public spaces to keep the space active throughout the day with various activities. The waiting and reception are located at central part for ease of movement.

12

The section reveals a symphony of solids and voids, where the interplay of light and shadow creates a mesmerizing visual. The varying heights of gallery enable to have diverse configuration of exhibits. The solids void and solid the stairs acting as a connecting link between the spaces.

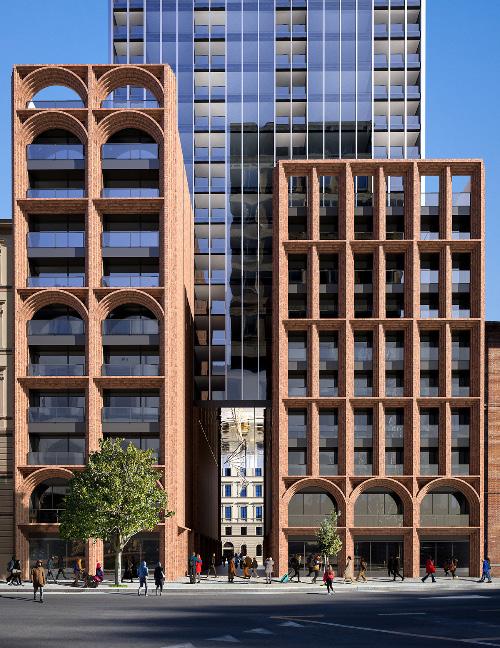

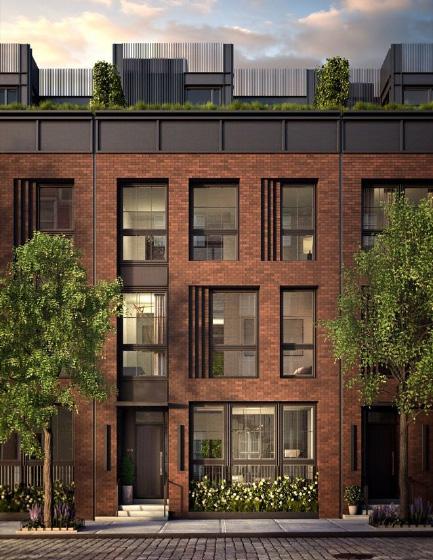

The Allen Street has a heavy use of bricks.

The buildings surrounding the site has brick in varying sizes and patterns. Since our initial idea was to blend into the context we choose brick as the façade material.

To break the brick hierarchy and heavy mass we introduced different brick joinery at each level. The elevation and voids create a visual of solid and voids.

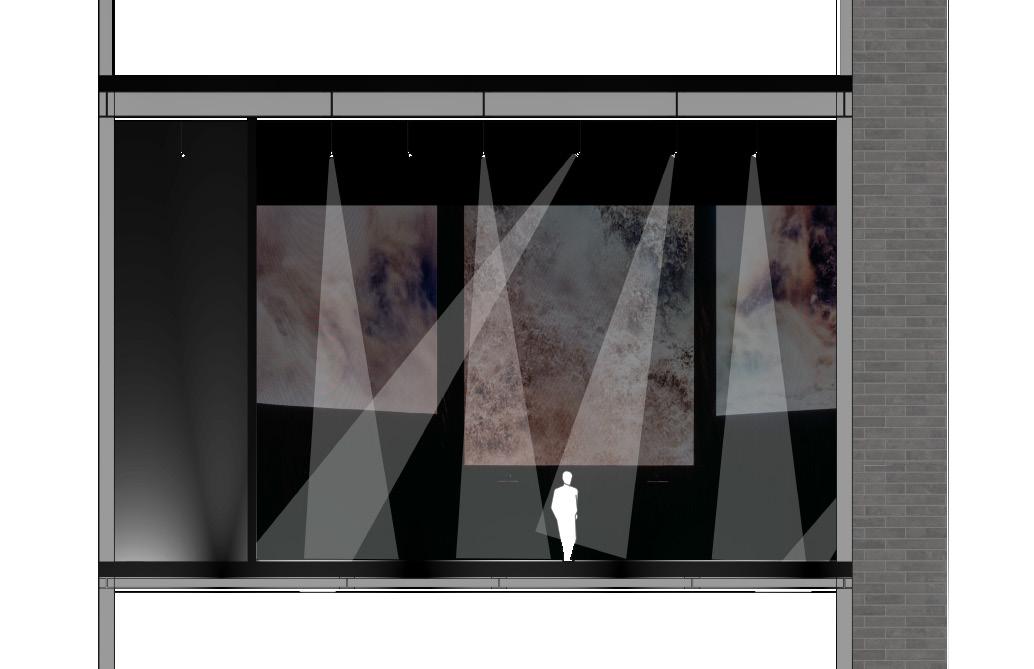

gallery section

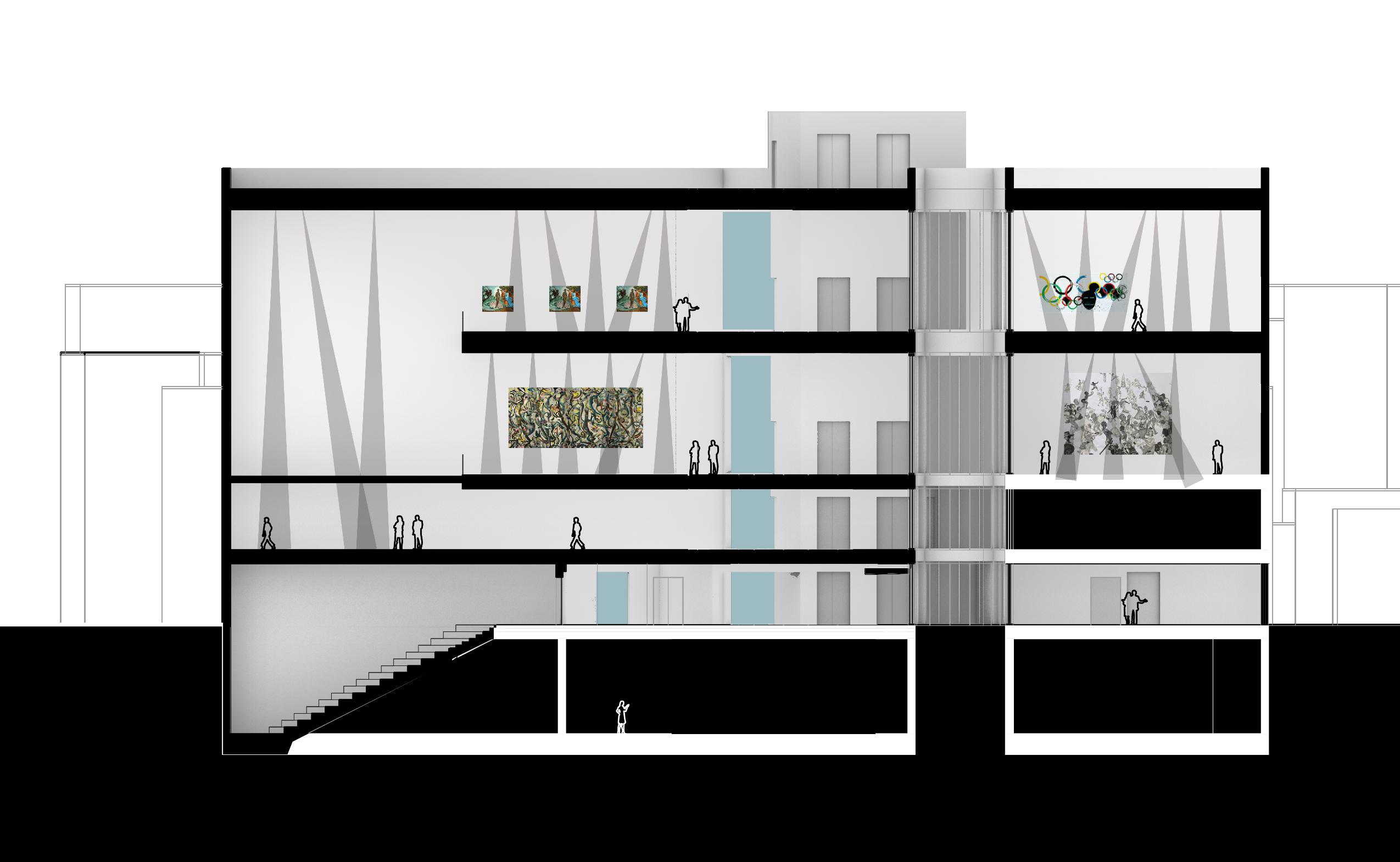

section bb

The voids in the volumes and gallery enable interaction between the different gallery spaces at different level. Daylight filters through the voids, animating the gallery spaces with a dynamic interplay of light and shadow. The daylight from the façade makes the space well lit throughout the day. We tried different configurations for gallery exhibits.

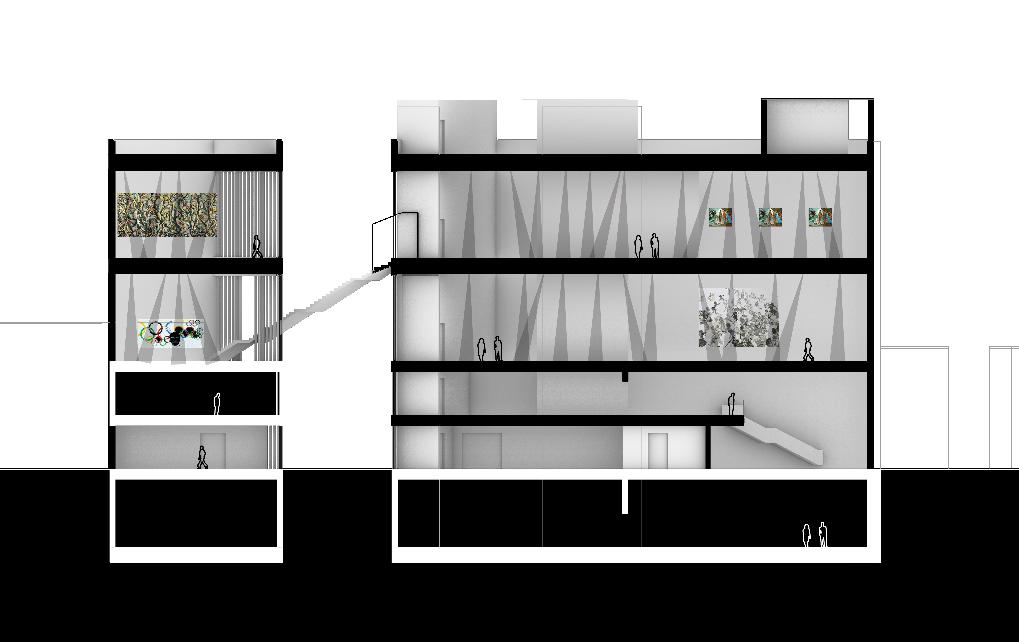

section aa

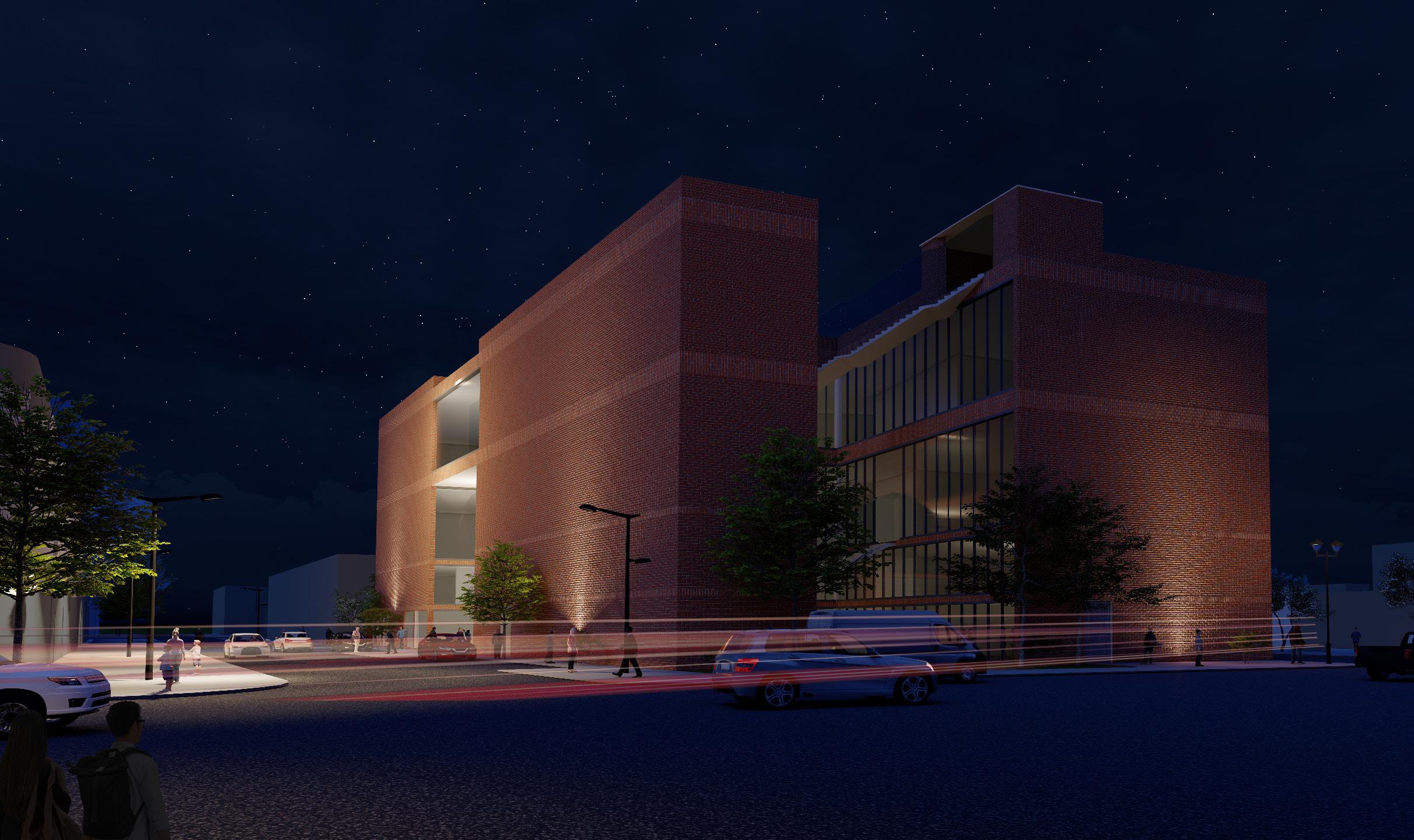

view from allen street 13

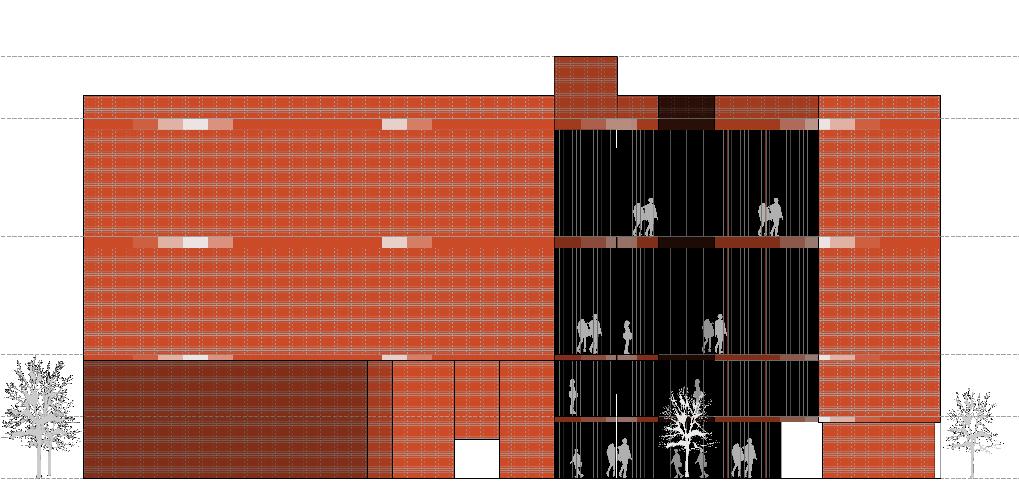

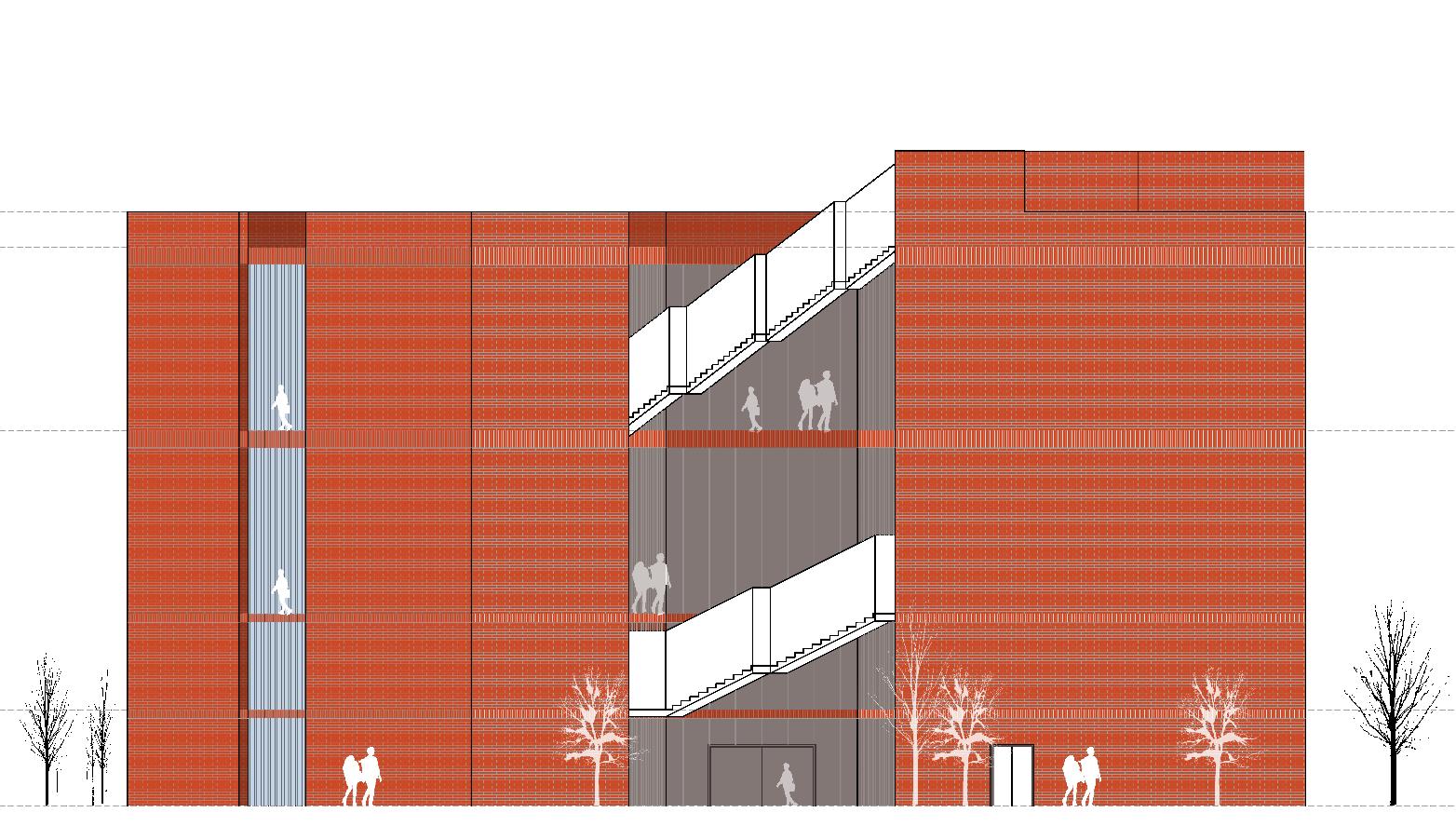

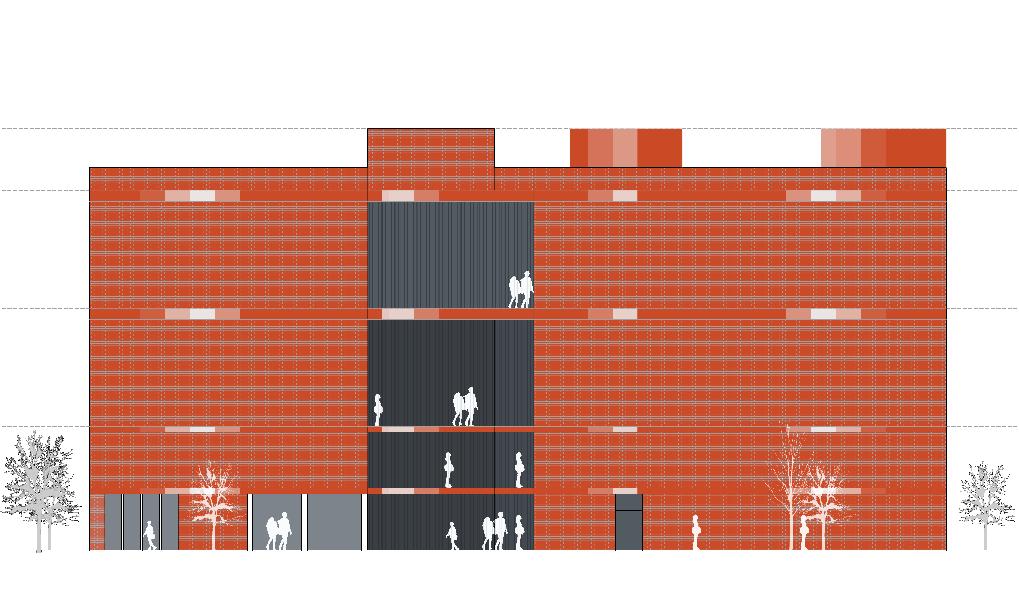

elevation

elevation

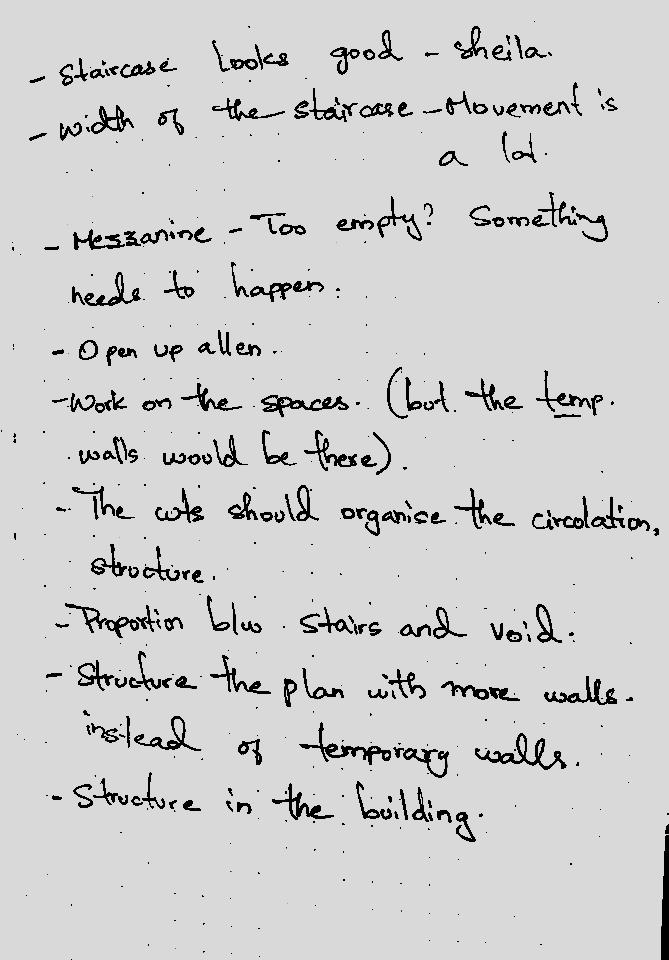

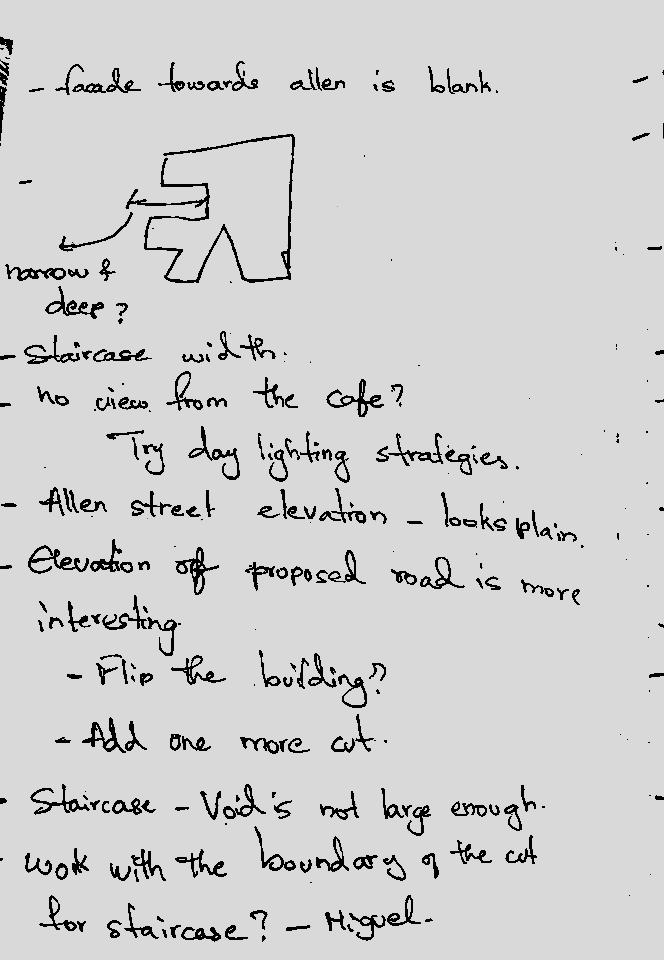

Comments From Sheila O Donnell And John Tuomey

elevation

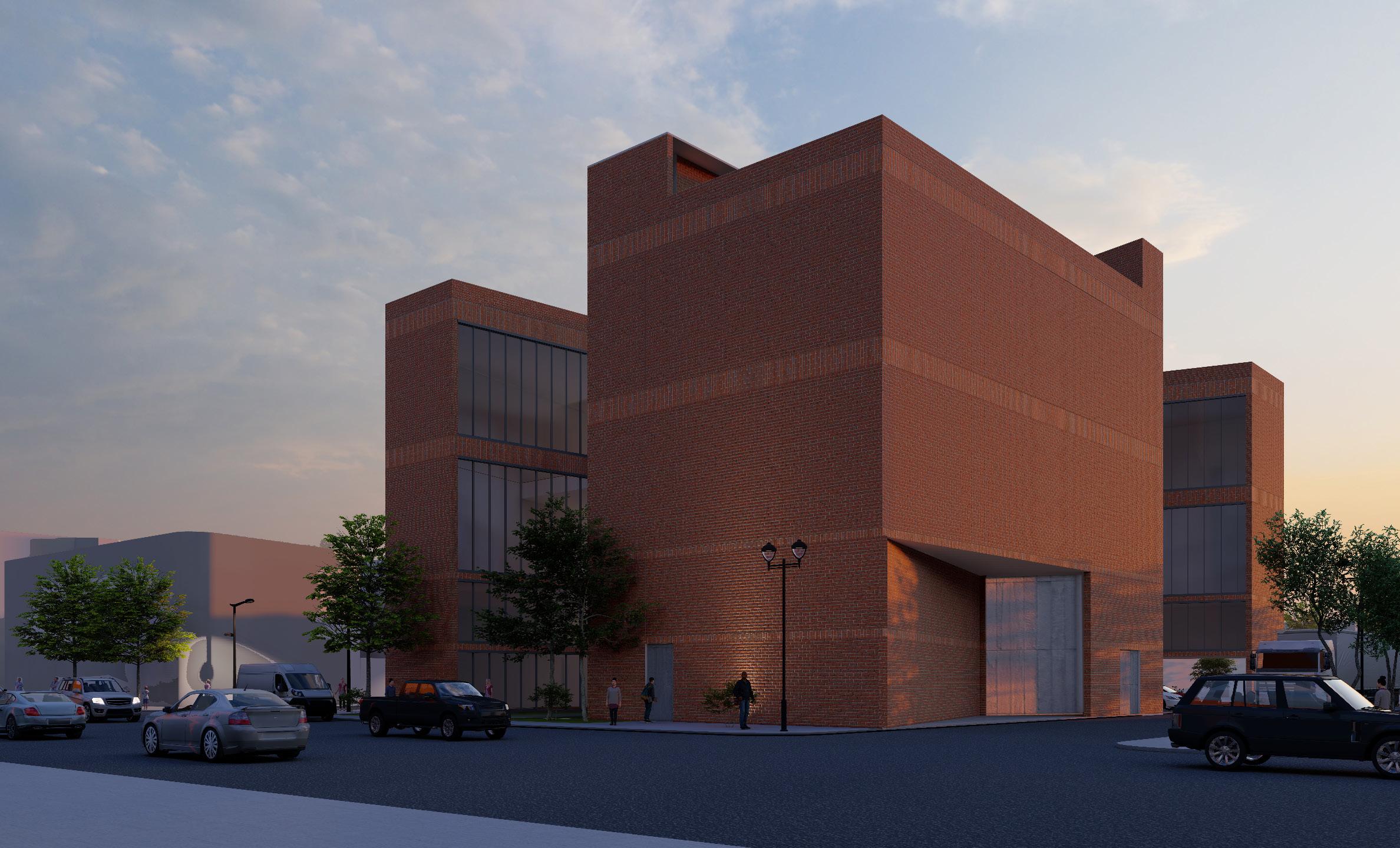

view from delaware avenue 14

TITLE -

DEATH OF INDIGENOUS TRADE

LOCATION -

BUFFALO, NEW YORK

TYPE -

ACADEMIC

SEMESTER -

M ARCH FALL 2023

UNDER GUIDANCE -

PROF. JOYCE HWANG

Centre for Sustainable Dying will memorialise the Death of Trading practices adapted by the native tribes between them. Trade within the tribe involved gift-giving, a means of obtaining needed items and social status.

Trade between tribes often took the form of an exchange of products of the hunt (bison robes, dried meat, and tallow) for agricultural products, such as corn, beans and squash. The Seneca procured many products in raw form from available resources in the Black Rock, Black Forest and the shores of Erie Canal.

Tribes often traded the items produced locally to obtain the items which they were unable to procure for the available resources. This centre will memorialise trading between tribes in the form of products rather than as a source of commerce. Trading back then was very different from what we see today, it was mainly carried out for livelihood and survival.

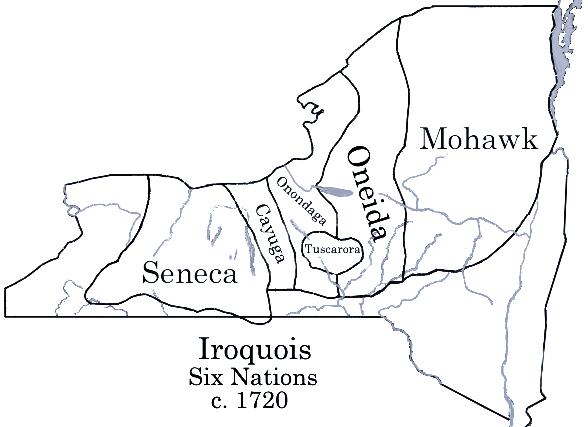

tribes of seneca

The Seneca use it for hunting and fishing lands; setting up temporary camps in various areas of Western New York. One of those seasonal camps existed at the junction of Lake Erie and the Niagara River. The most important neighbours of the Seneca tribe were the other Iroquois nations: the Cayuga, Onondaga, Oneida, and Mohawk’s. Before the Iroquois settlements around lake erie

15

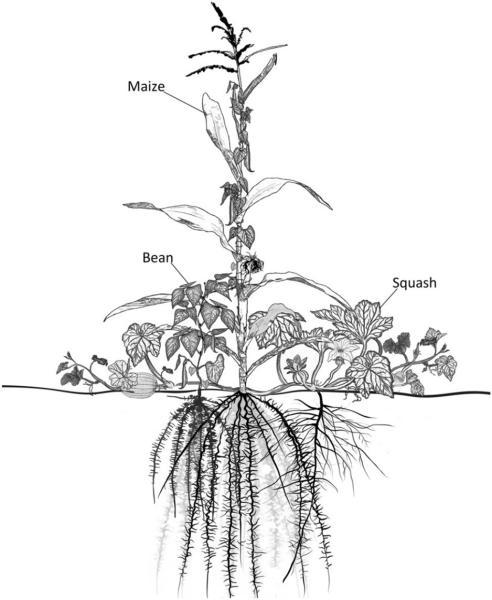

three sisters plantation

Confederacy existed the Seneca sometimes fought with the other Iroquois tribes, but once the alliance was formed, they were loyal to each other. The Seneca also engaged in trade with their neighbours, exchanging corn and wood crafts for furs and qua-hog shells (hard clam). existing site at buffalo

The people relied heavily on agriculture for food, growing the Three Sisters: corn, beans, and squash, which were known as “the life supporters.”

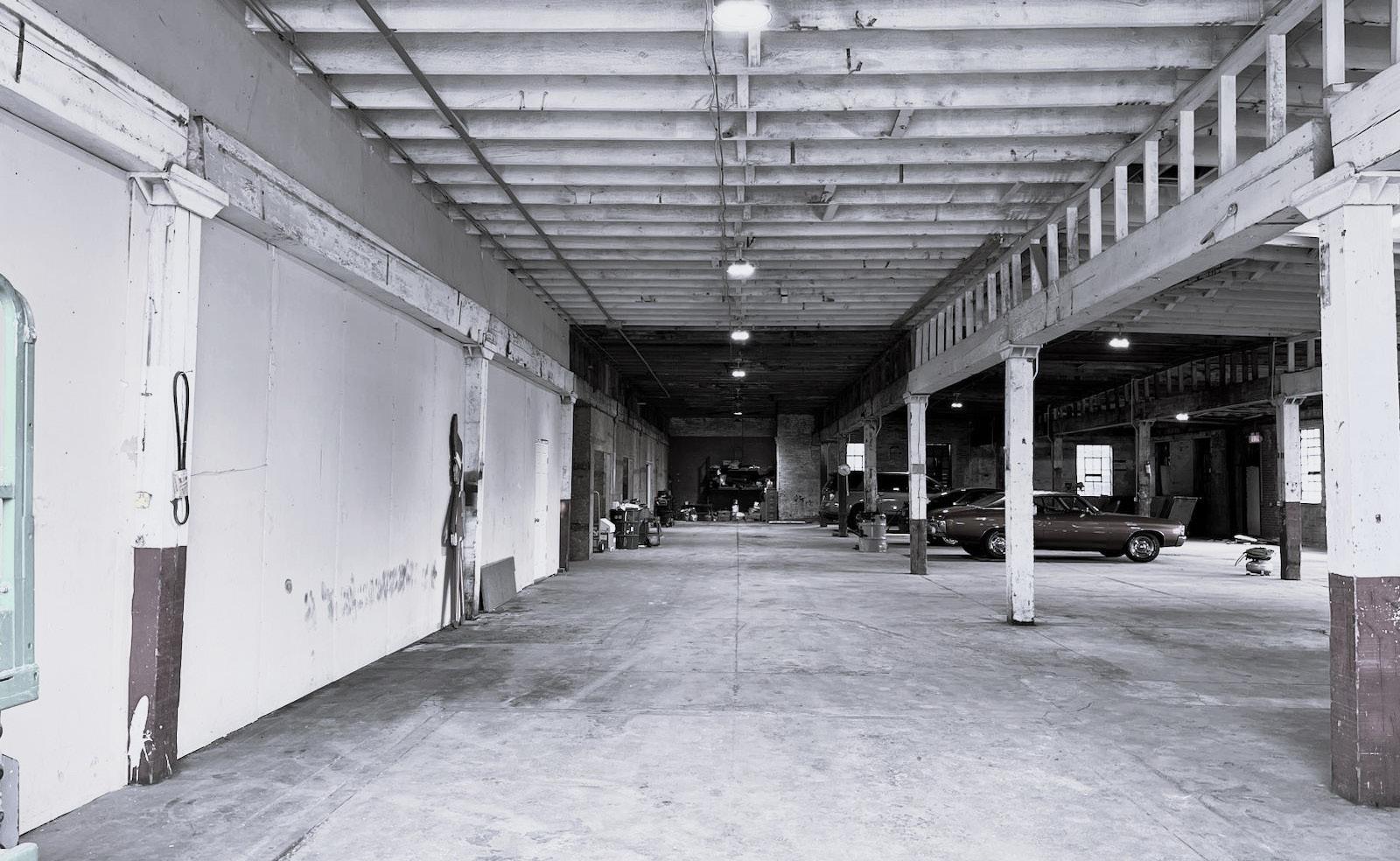

Using an existing building as a concrete foundation minimizes the amount of concrete used for structure. The form comes to resembles peeling the rooftop of the existing building to form the “waves” or the stripes which will create spaces beneath them.

Glue-laminated curved beams form the main structure of the stripes which will be bolted down to the foundation.

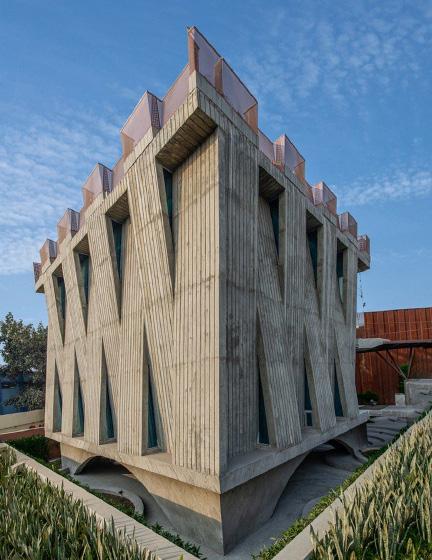

The Memorial is a symbolic structure that simulates the re-emerging of the wooden material (Mass Timber) and the rise of a more environmentally cautious and resourceful thinking. Emerging from the industry of heavy concrete building.

16

Total greenhouse gas emissions arising from the manufacturing, transportation, installation, maintenance, and disposal of above building materials is 1,53,542 kg CO₂e. Considering architectural strategy in response to the relevant principles, this emits less carbon in comparison.

The idea of connecting the present with the future, working generation with the local minds was reflected into peeling the existing concrete structure and forming grained timber structure that resembles that transition.

option 01

option 02

Total greenhouse gas emissions arising from the manufacturing, transportation, installation, maintenance, and disposal of above building materials is 48,710 kg CO₂e.

The amount of embodied carbon emissions associated with upstream—extraction, production, transport, and manufacturing of above building materials is 8,78,074 kg CO₂e.

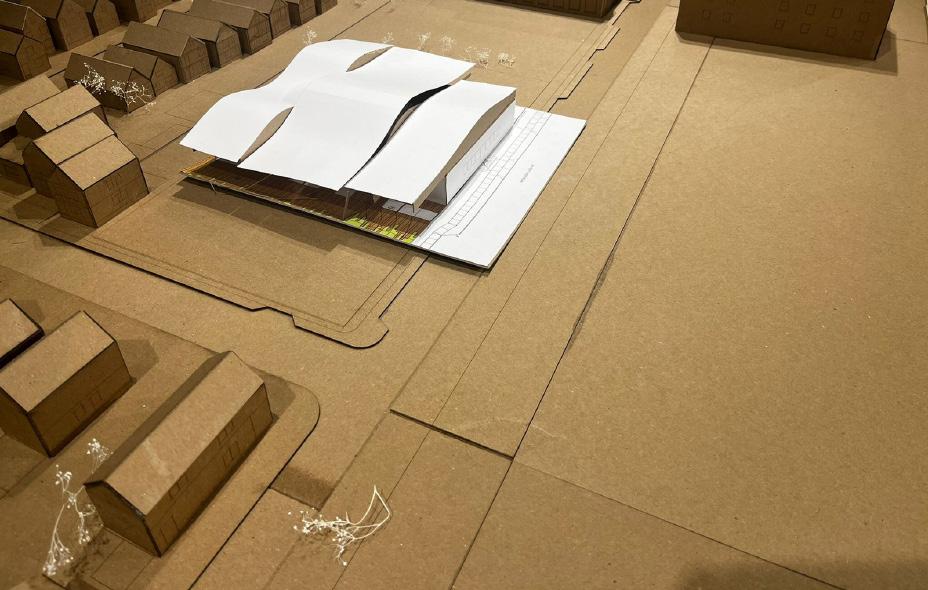

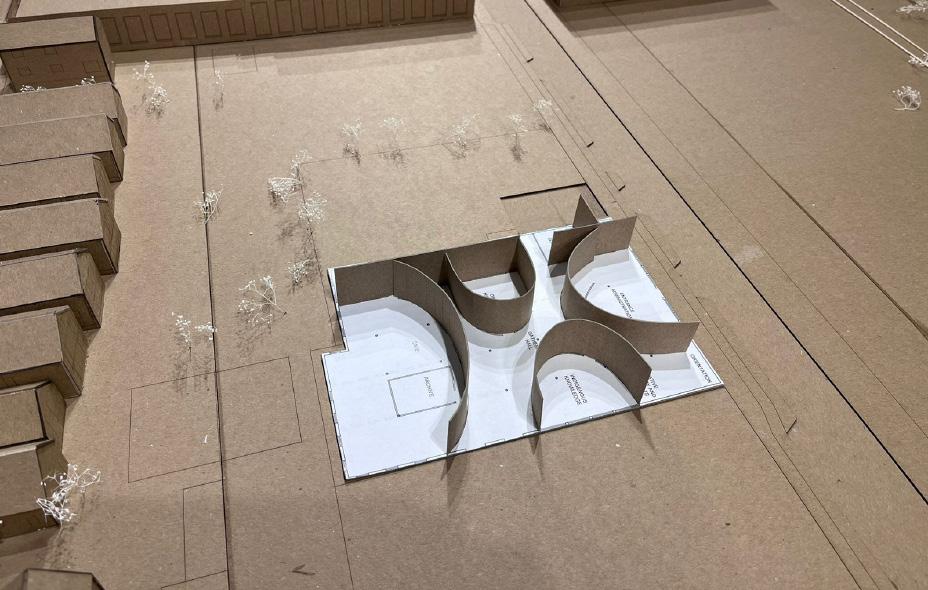

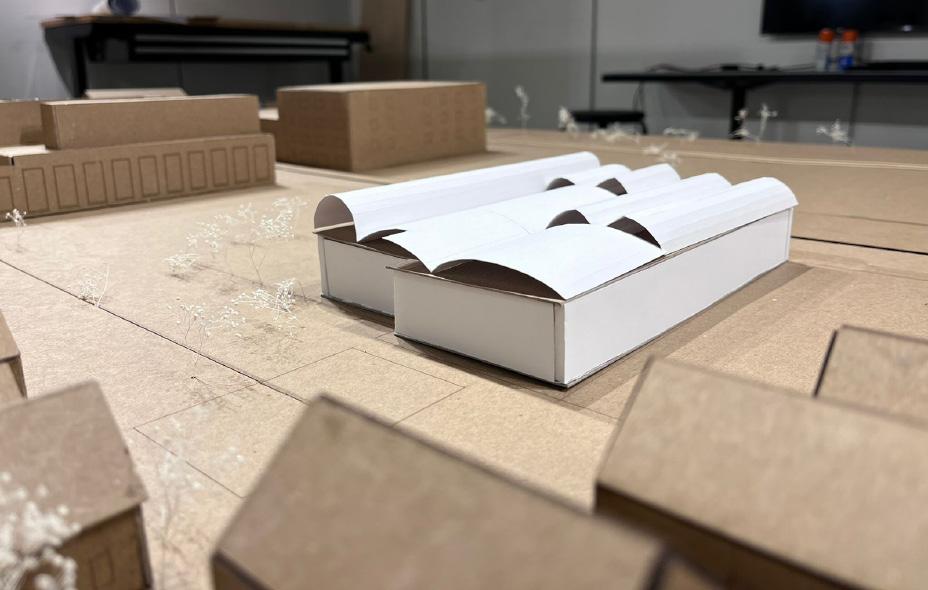

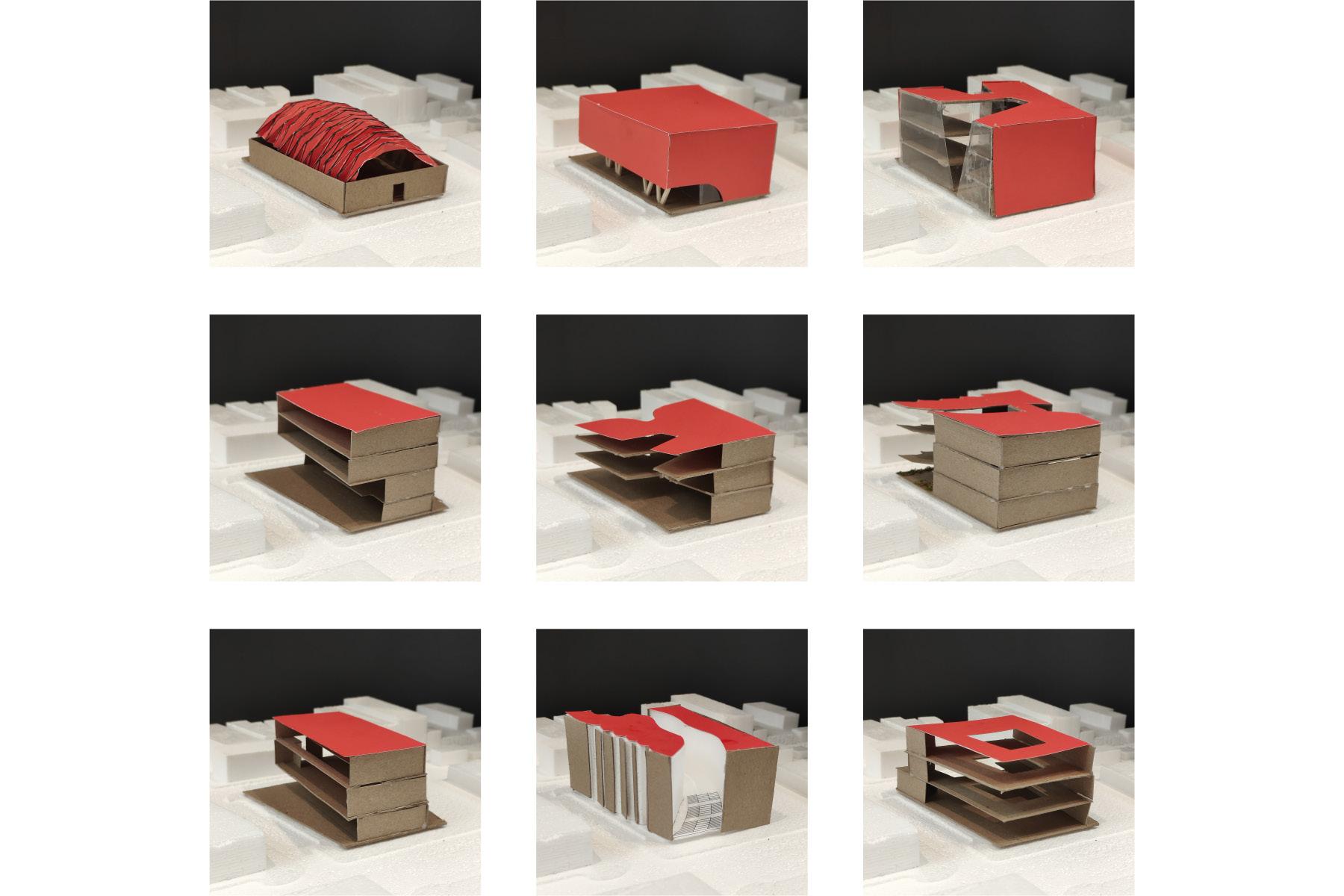

study model - option 01

study model - option 02

OPTION 01

OPTION 02

Dry wall partitions Glass Total

31,698.576 17,011.645 48,710.221

kgCO2e kgCO2e kgCO2e

Dry wall partitions Glass Timber Asphalt roof Total

27,047.826 95,444.205 7,105.7074 7,48,476.568 8,78,074.3064

kgCO2e kgCO2e kgCO2e kgCO2e kgCO2e

17

the study of carbon analysis helped to concise the material preferences for final option.

option 03

option 04 final proposal

Concrete is biggest source of embodied carbon. The amount of embodied carbon emissions associated with upstream of above building materials is 99,106 kg CO₂e.

Concrete is biggest source of embodied carbon. The amount of embodied carbon emissions associated with upstream of above building materials is 99,106 kg CO₂e.

study model - option 03

study model - option 04

OPTION 03

OPTION 04

Dry wall partitions Glass Timber Concrete Total

50,669.46 56,732.91 41,655.45 4,484.184 153,542.01

kgCO2e kgCO2e kgCO2e kgCO2e kgCO2e

Dry wall partitions Glass Timber Concrete Total

28,362.165 56,732.91 9,526.9059 4,484.184 99,106.1649

kgCO2e kgCO2e kgCO2e kgCO2e kgCO2e

18

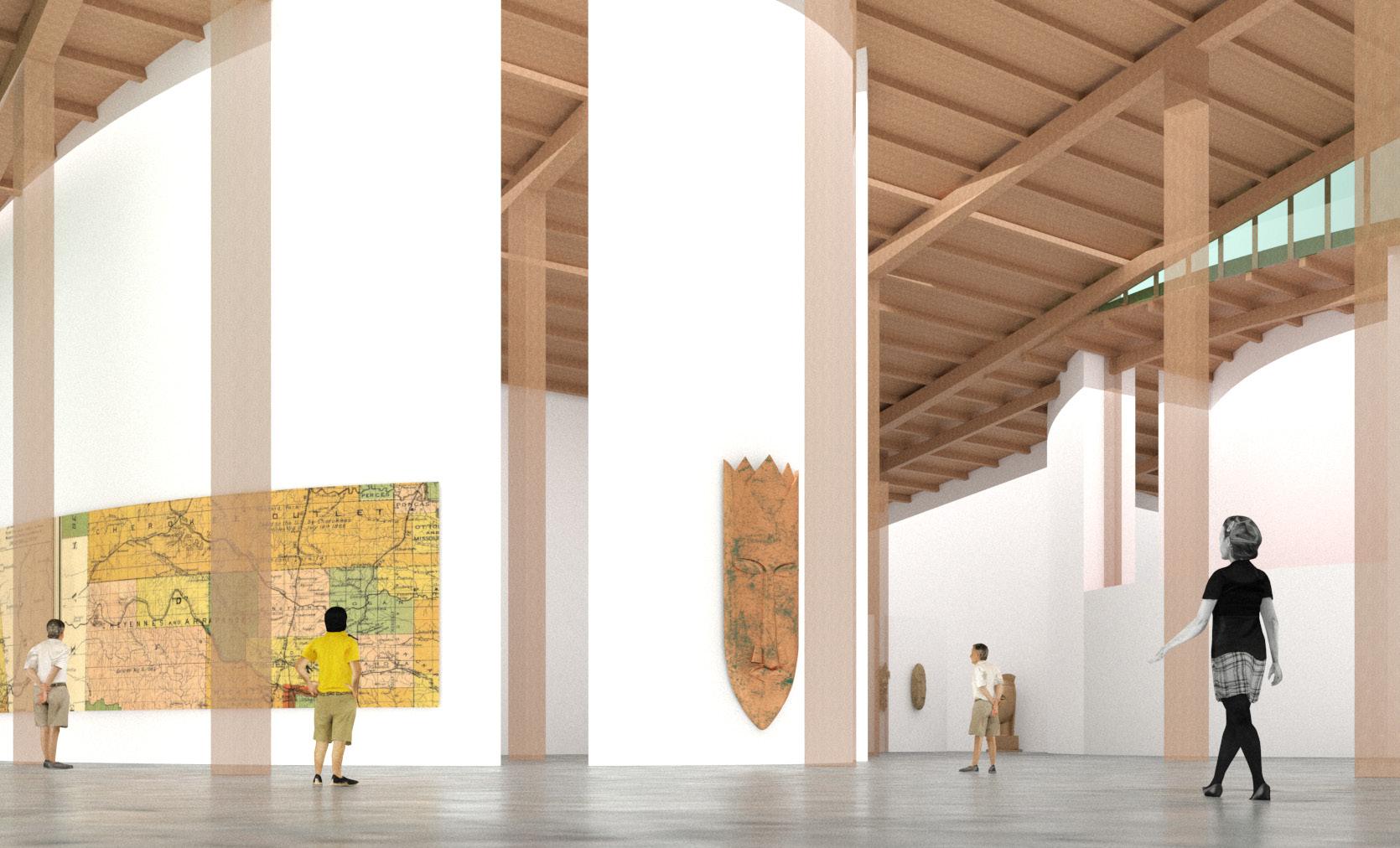

exhibition space

The memorial will represent the Seneca’s trade practices as Native Americans. The commence point will highlight the products produced by Seneca for trading and in ways trading was carried out, products that were exchanged between tribes and the transition from exchange of products as means of livelihood to commerce in trade.

24 FT WIDE 24 FEET WIDE ROAD ROAD

ENTRY LOADING ENTRY

ENTRANCE ORIENTATION

LOADING AREA

STORAGE NATIVE HISTORY AND PRODUCTS

SERVICES

STORAGE

INDIGENOUS KNOWLEDGE

ABORIGINAL MARKET

ORAL HISTORY

KITCHEN

ARCHIVE

GARDENING AREA

24 FEET WIDE ROAD

ENTRY

The centre will start with exploring the birth of trade between tribes in the form of exchange of products. It will also highlight the places where trading was mainly practiced. The Black Rock, Black forest and the shores of Erie Canal planned an important role in trading activities between tribes.

24 FT WIDE ROAD

MECHANICAL AND ELECTRICAL

ADMIN

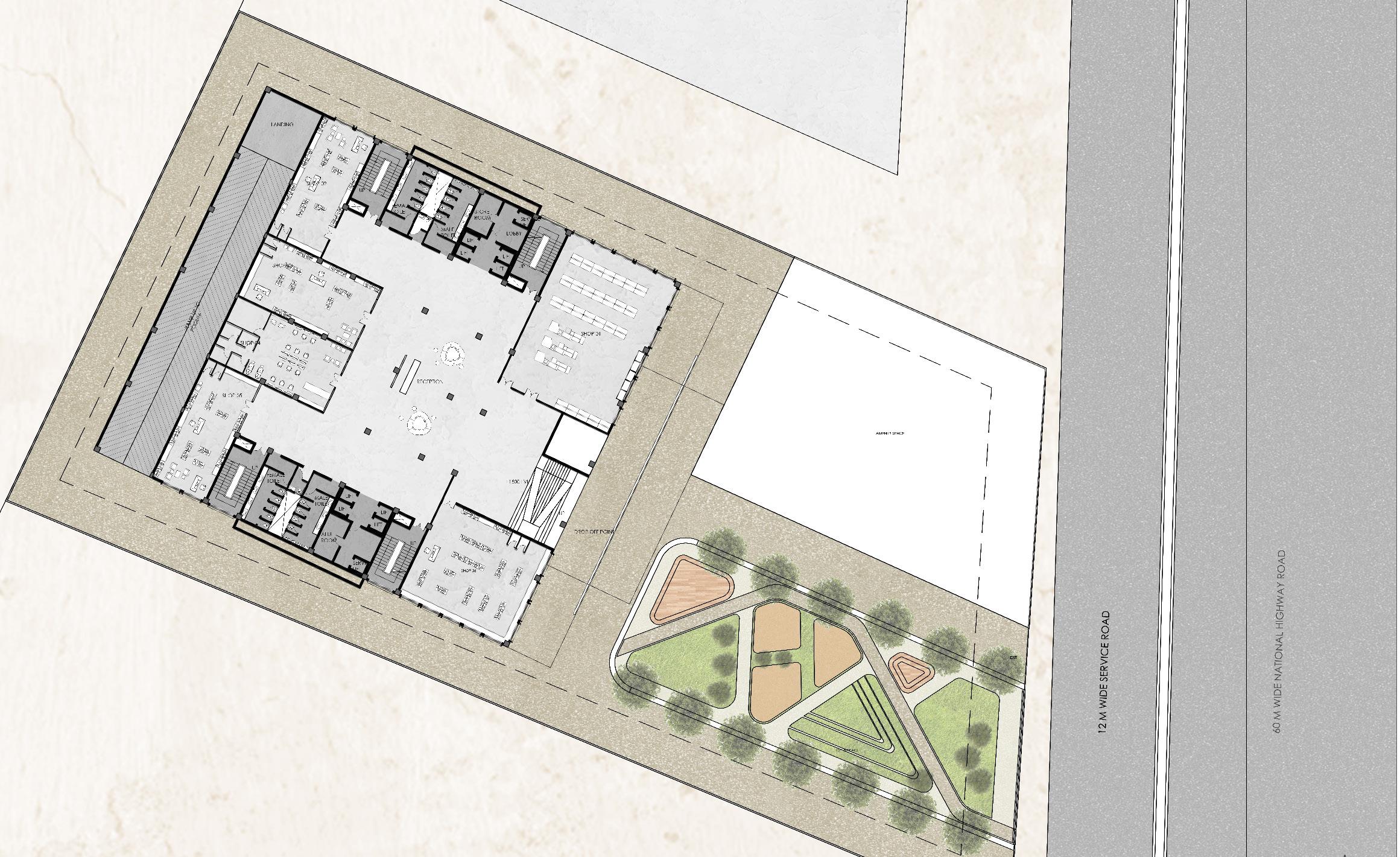

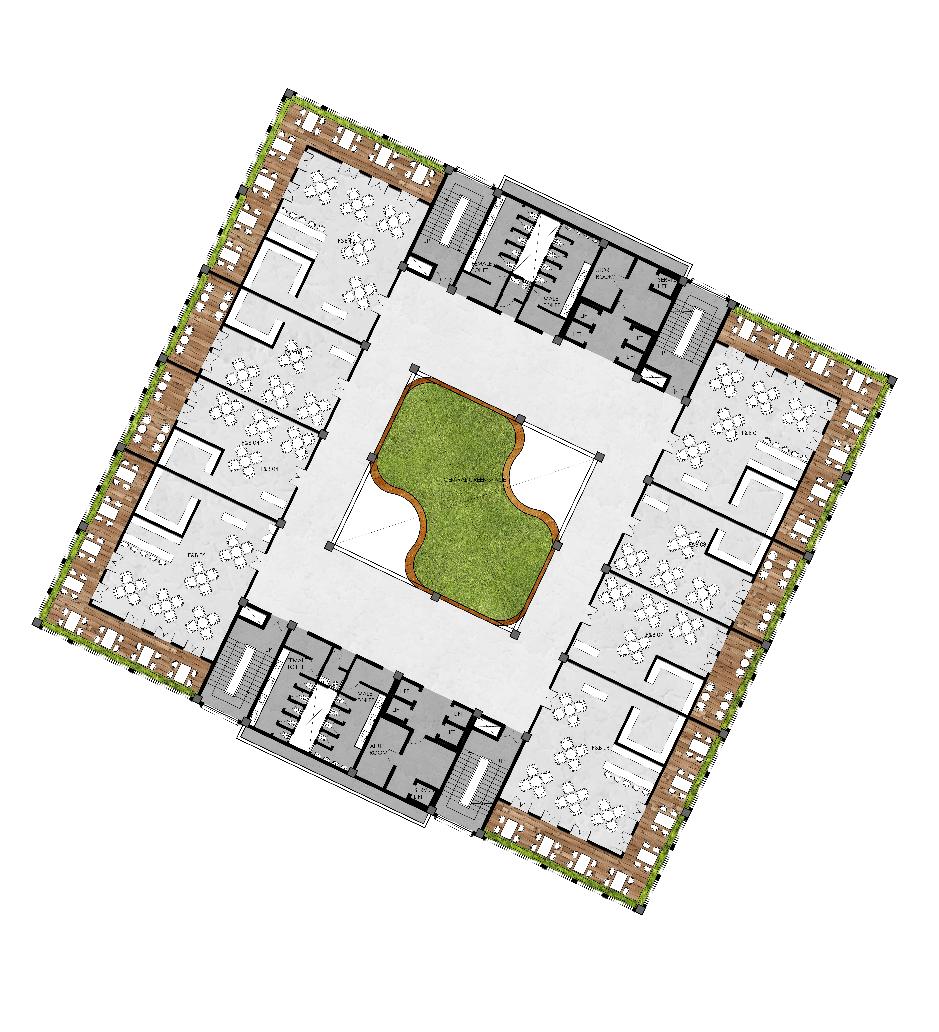

first floor plan

19

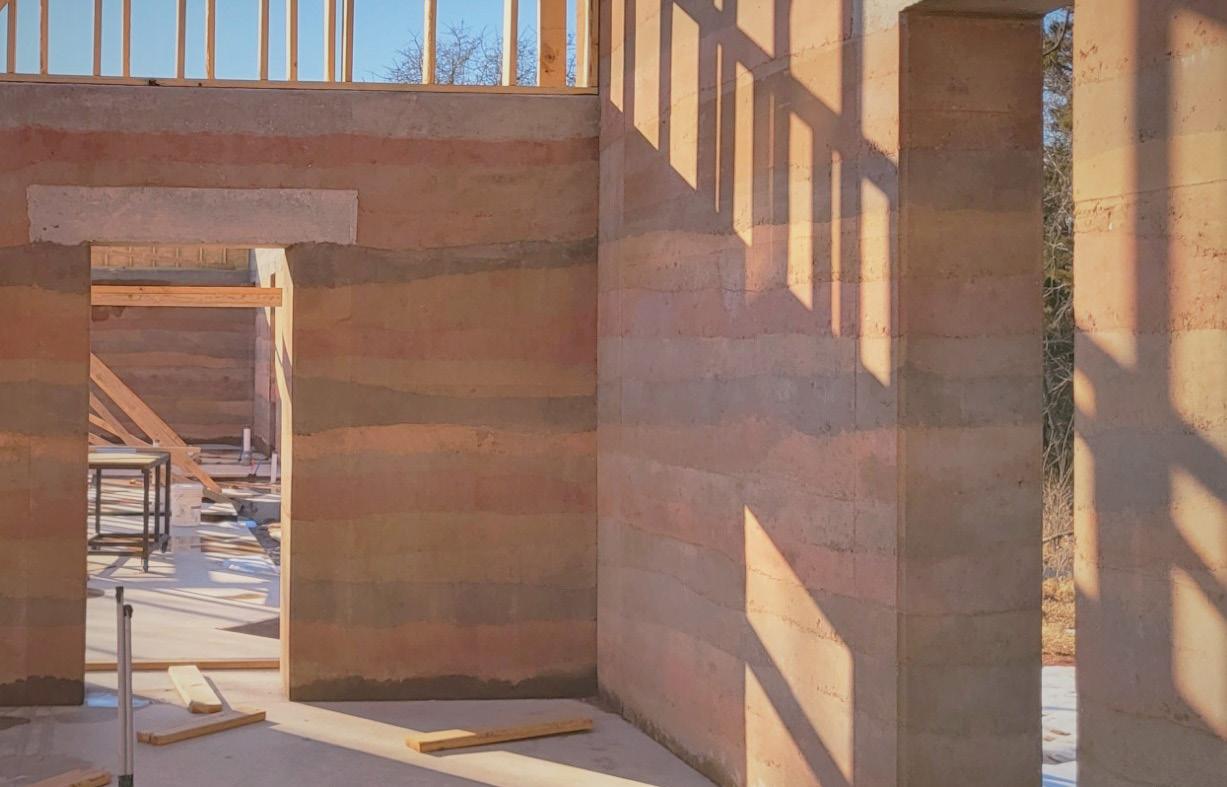

Roof The form comes to resembles peeling the rooftop of the existing building to form the“waves” or the stripes which will create spaces beneath them.

GLT beams divided and connected by metal plates will hold the form and connect to existing columns.

Outer Protection The envelope consists of the sheathing boards, insulation, plywood sheathing, waterproofing membrane and wood finish.

Curtain Walls Curtain walls made rectangular wood profiles form a shear wall, enveloping the structure.

Timber Structure The structure challenges the timber material by creating uncommon curvature beams and hold the structure laterally.

Internal Walls Open space airy floor plan with immediate connection to the outdoor.

Existing Building As a concrete foundation minimizes the amount of concrete used for structure.

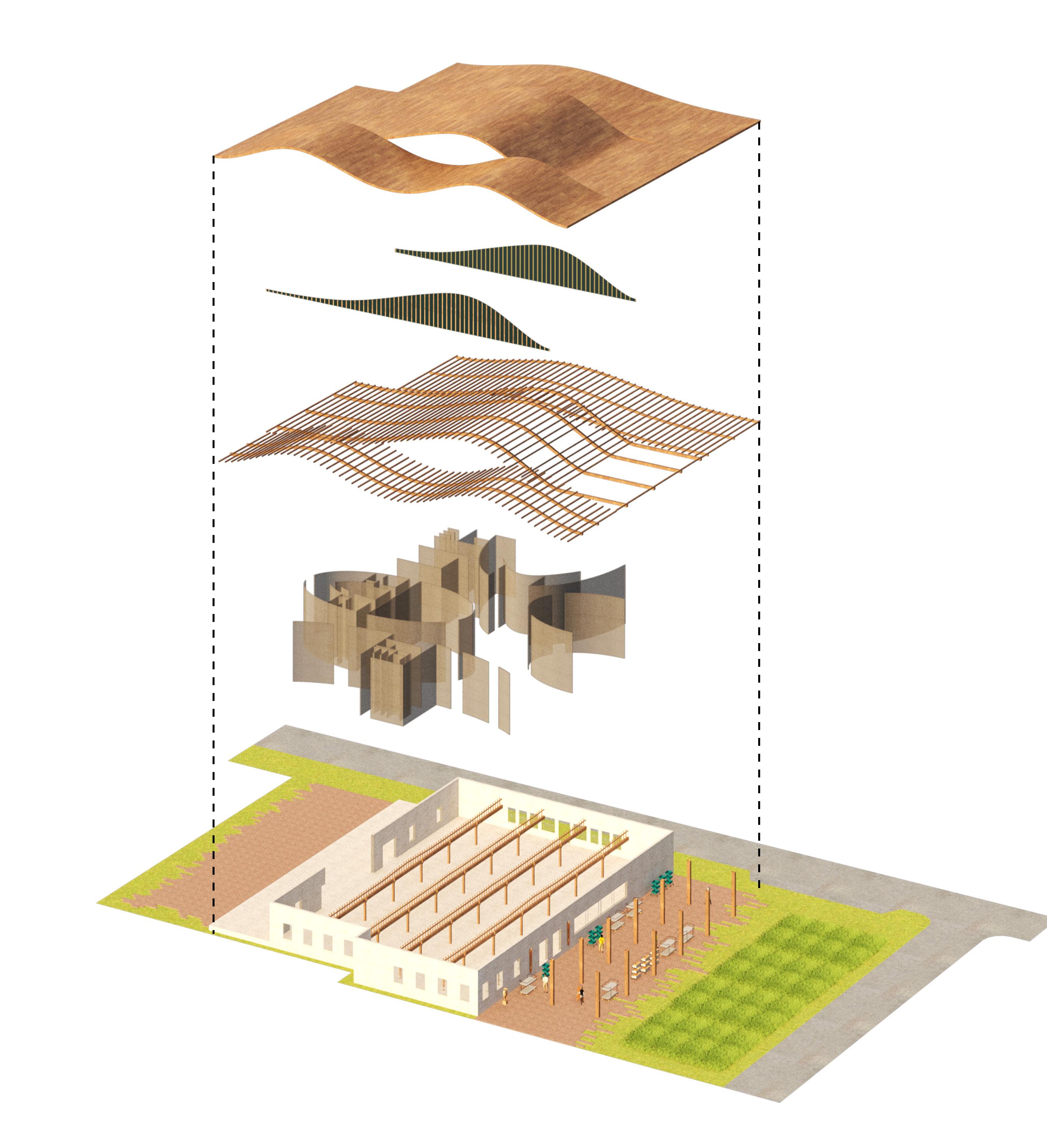

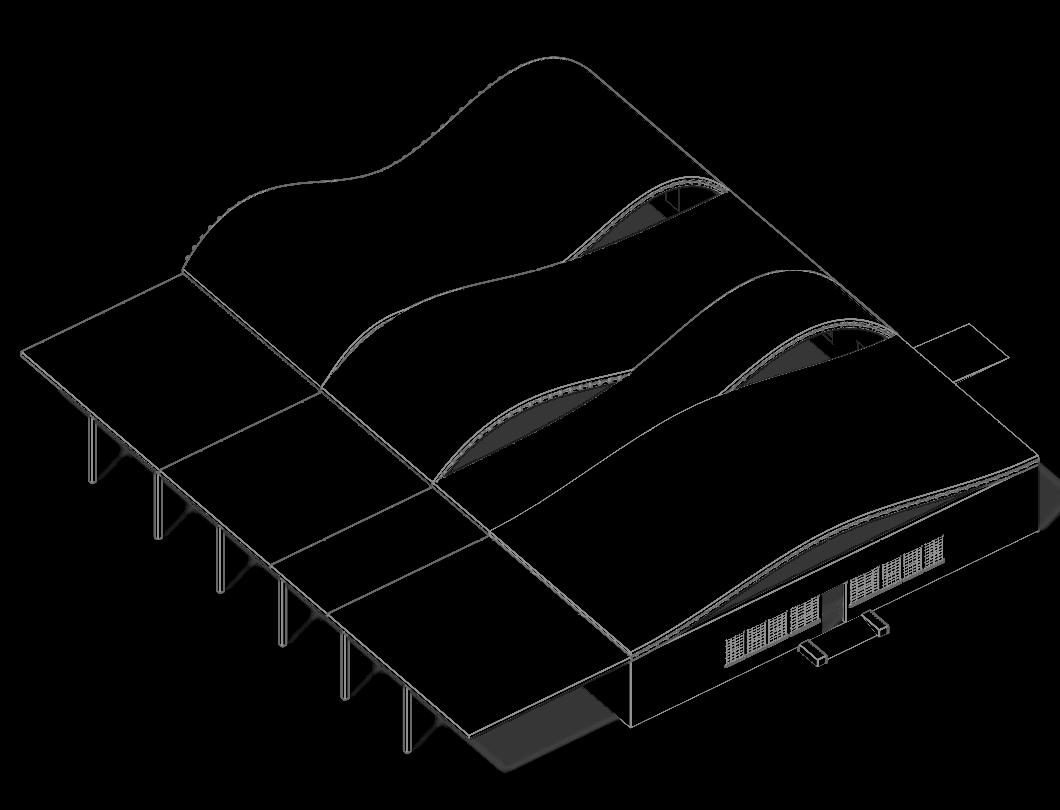

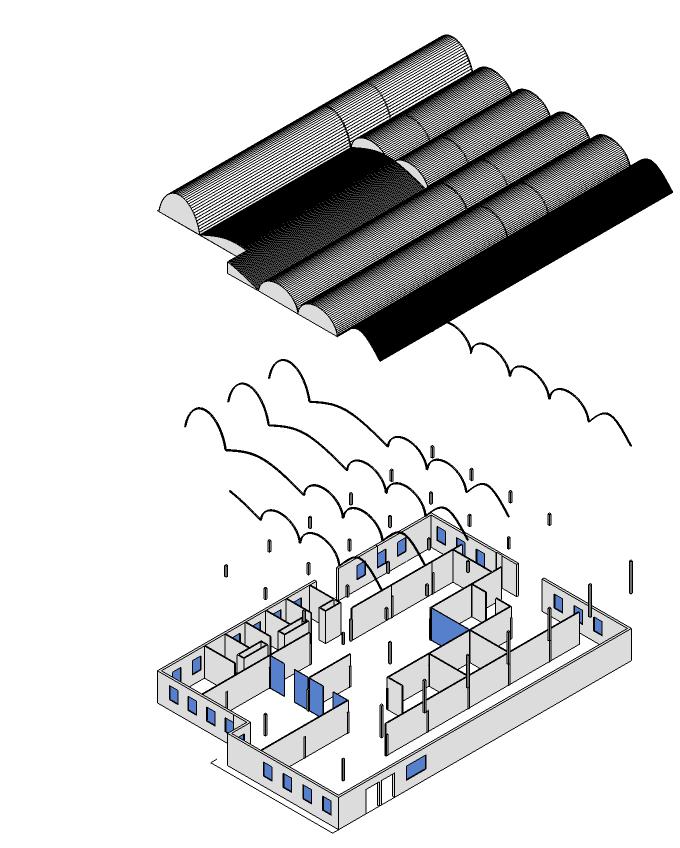

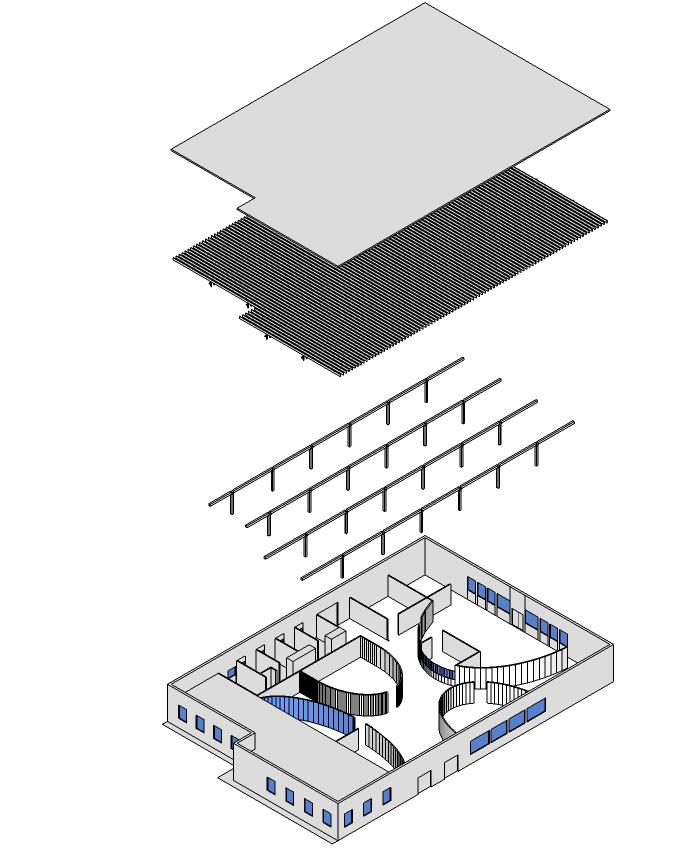

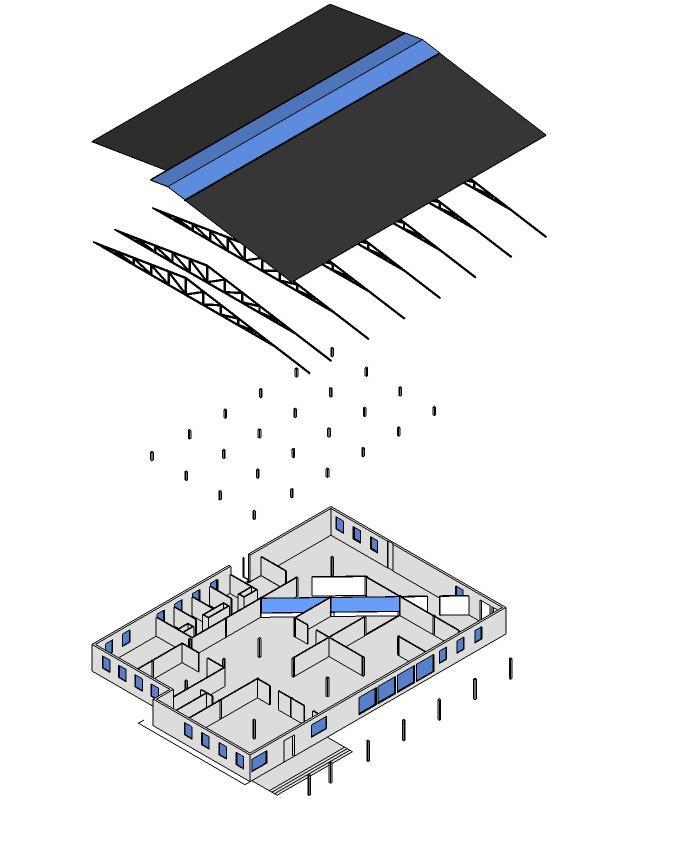

exploded axon of the memorial 20

LOCATION TYPE PROJECT FIRM -

NAMOKAR SQUARE

PUNE, INDIA PROFESSIONAL COMMERCIAL ARCTURE

1200

TITLE -

+16400 MM TERRACE FLOOR

3600

230 MM THICK BRICK WALL

I was working as a part of design team for this project. Drafting of presentation drawings, construction drawings were my main tasks.

With my collegue, the execution phase was overlooked and documented.

2100

COMBINATION WINDOW AS PER VENDOR DETAILS

3600

600

THIRD FLOOR

300

ISSUE OF

+9200 MM

1. ALL THE DIMEN

SECOND FLOOR

site photograph

2. ALL THE LEVE LEVEL

i.e. ROAD LEVEL

3. DIMENSIONS IN

300

150 MM THICK BRICK WALL

4. COLUMN, BEAM

REFERRED FRO SLAB

ISSUE OF NAME

R0

3600

Site and Access: Site Location: The building has access from both a main road and a secondary road, which allows for separate entrances to the retail and office spaces. This separation is an important feature as it ensures clear differentiation between public and private zones, optimizing the flow of visitors and tenants.

+12800 MM

230 MM THICK BRICK WALL

REVISION

+5600 MM

Building Design and Space Hierarchy: Vertical Movement: The design incorporates a clear spatial hierarchy, guiding movement from the public street level to the private office spaces on higher floors. This arrangement creates a sense of privacy and separation for the office areas, making it easy for users to distinguish between public and private spaces.

REV. NO.

FIRST FLOOR

ABBREV

GLASS FACADE AS PER VENDOR DETAILS +3200 MM

5000

MEZZANINE FLOOR

DRAWN SA

PROJECT CLIENT:

+600 MM GROUND FLOOR

Facade and Aesthetics: Facade Design: The facade is a key design element, particularly due to its visibility from both the main and secondary roads. The design uses a strategy of breaking the facade into smaller, distinct parts of varying dimensions.

ARCHITEC

± 00 GROUND LEVEL

STRUCTU

BUILDING

-2100 MM BASEMENT FLOOR SCALE

1:60

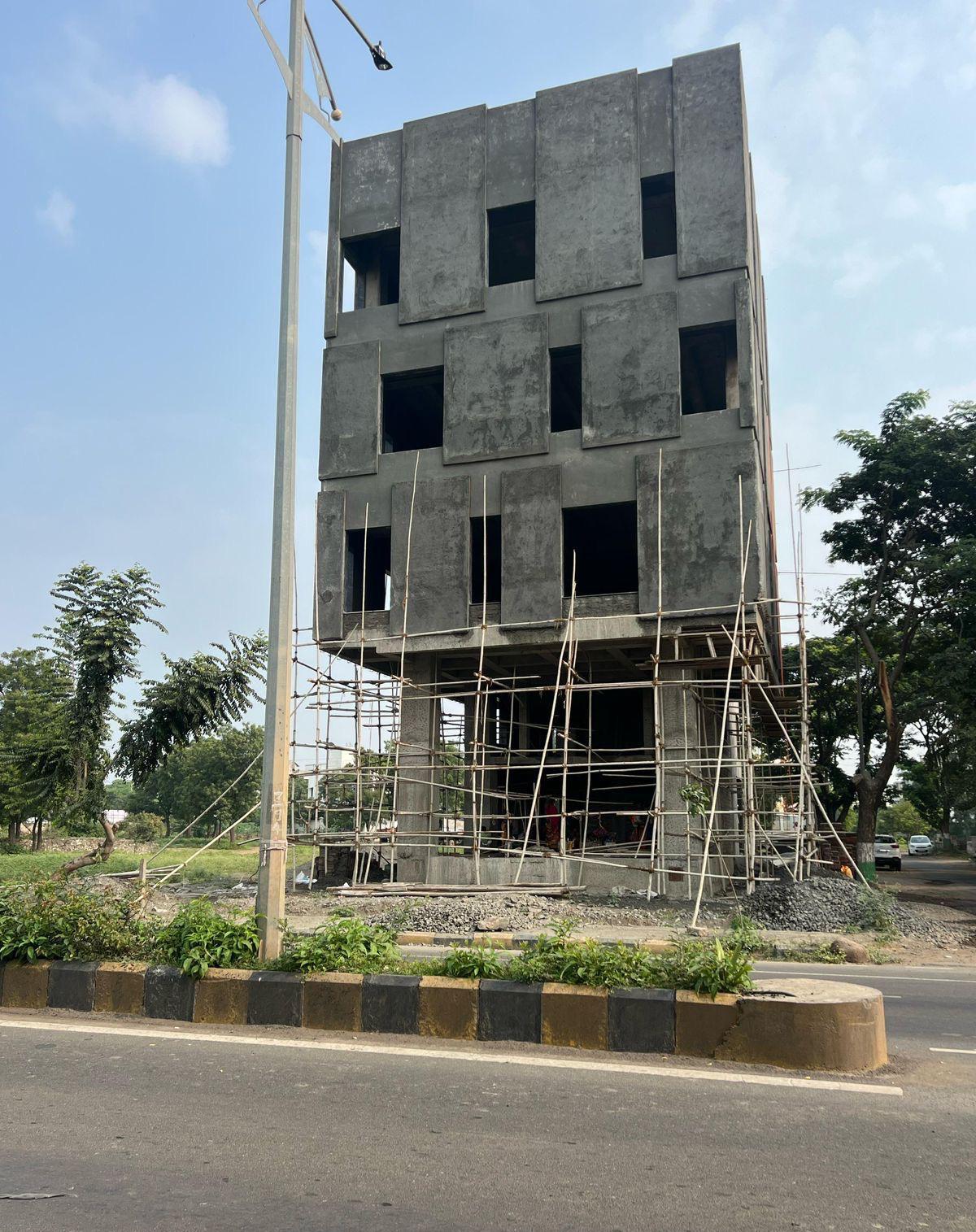

construction stage

wall section

TYPICAL WALL SECTION 1:60 @ A3

1

TITLE:

A-301

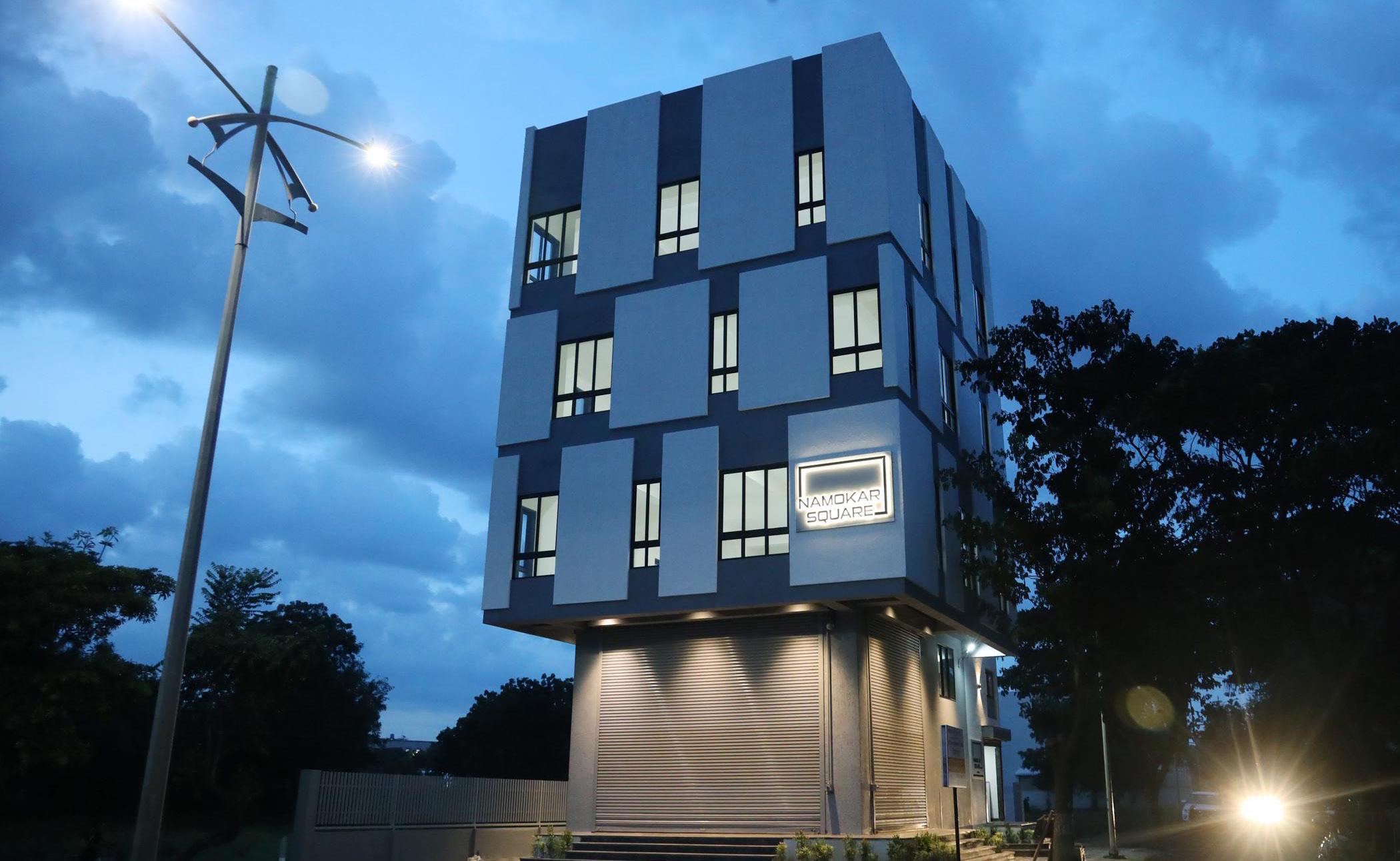

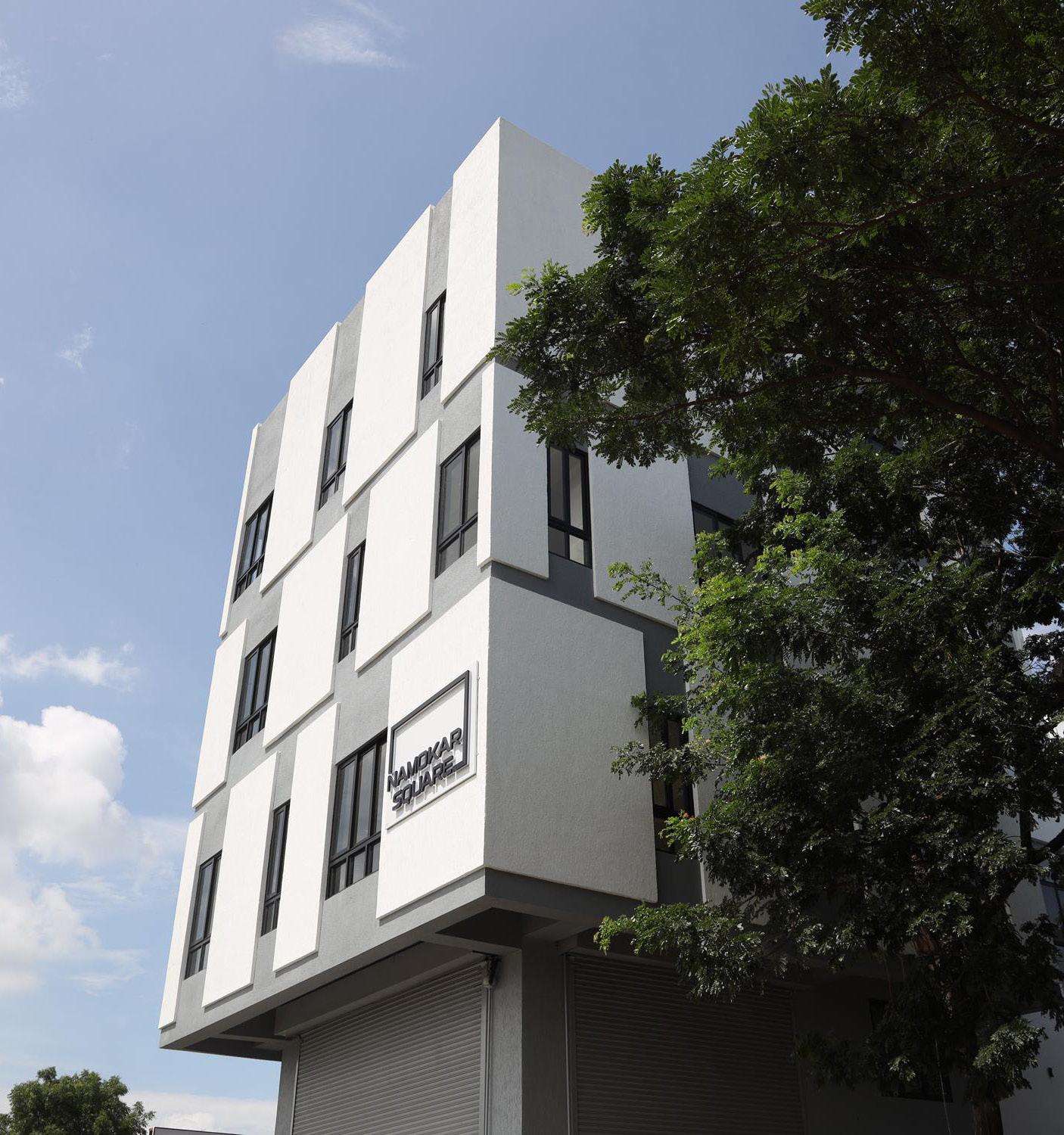

site photo at evening 21

+16400 MM TERRACE FLOOR

+12800 MM THIRD FLOOR

+9200 MM SECOND FLOOR

+5600 MM FIRST FLOOR

+3200 MM MEZZANINE FLOOR

+600 MM GROUND FLOOR ± 00 GROUND LEVEL

FRONT ELEVATION

1

+16400 MM TERRACE FLOOR

+12800 MM THIRD FLOOR

+9200 MM SECOND FLOOR

+5600 MM FIRST FLOOR

+3200 MM MEZZANINE FLOOR D:\ARCTURE\00_PROJECTS\COMMERCIAL BUILDING\03_3D\LIBRARY\ms.png

D:\ARCTURE\00_PROJECTS\COMMERCIAL BUILDING\03_3D\LIBRARY\fbb1.png

NAMOKAR SQUARE 1. MARKS & SPENCER 2. MAKEO TOOTHSI 3. ALLEN INSTITUTE

+600 MM GROUND FLOOR ± 00 GROUND LEVEL

4. GOLD'D GYM

SIDE ELEVATION

elevation

2

This approach not only reduces the visual bulk but also gives the building a more dynamic and engaging appearance.

Geometry and Color: The facade features strong geometric shapes, reinforcing a modern and minimalist aesthetic. The use of light and white colors on the facade contrasts with the darker background, helping to visually expand and enlarge the building. This choice of materials and color helps attract attention and create a strong architectural presence.

Challenges and Solutions: Narrow Site: The narrow width of the site posed a limitation for the exterior design, particularly in terms of the facade’s scale and proportion.

However, the use of smaller elements and varied dimensions helps to mitigate the impact of this constraint, making the building more visually appealing.

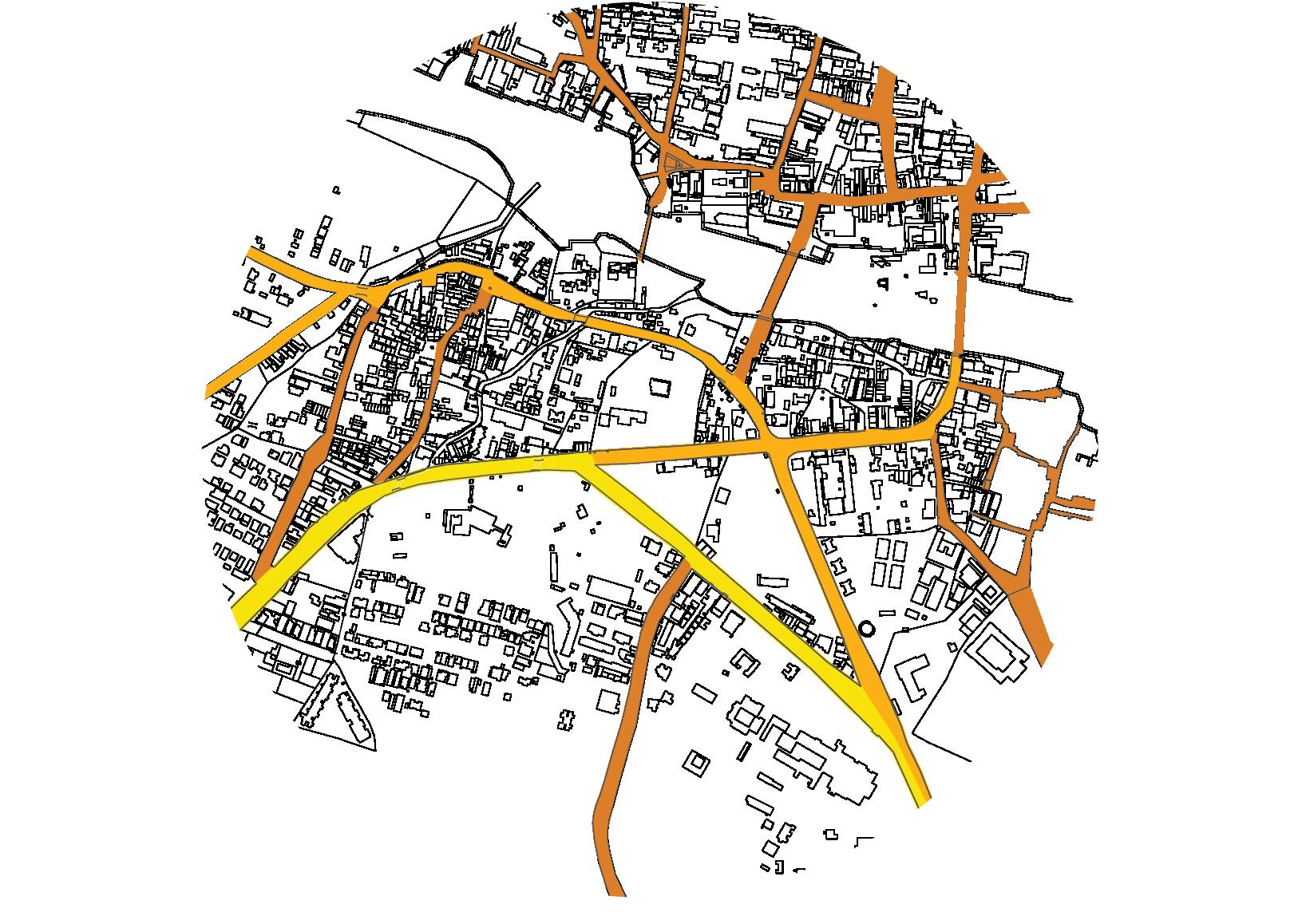

site plan

Budget Constraints: Given the speculative nature of the development and the economic budget, the design team faced the challenge of creating a building that would have architectural presence while being costeffective. The solution involved selecting materials and construction techniques that achieved a balance between cost and aesthetic value.

22

TITLE -

ANANT

LOCATION

PUNE, INDIA

TYPE -

PROFESSIONAL

PROJECT -

RESIDENTIAL

FIRM -

TELESIS

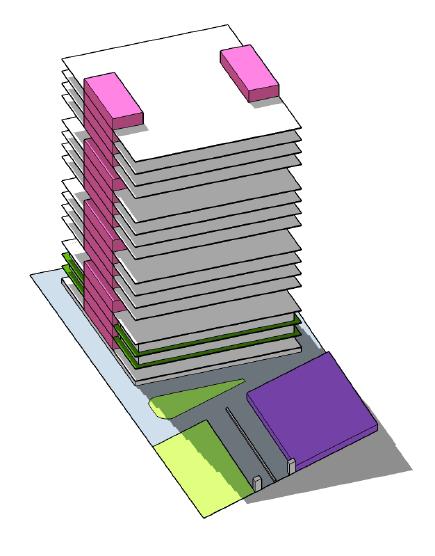

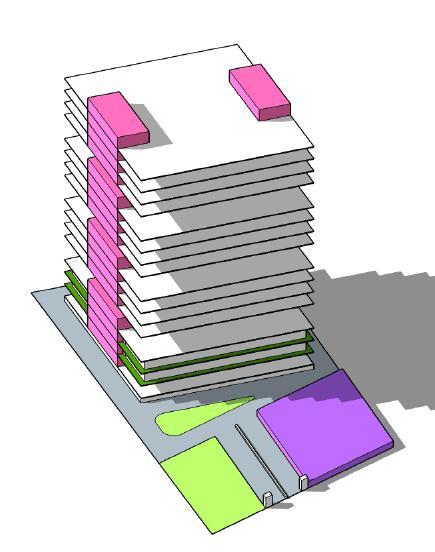

Anant Residences is a high-rise residential redevelopment project situated in Pune, designed to address the unique challenges of urban intensification while ensuring a seamless transition for the existing residents.

This project re imagines the potential of redevelopment by prioritizing equity, efficient space planning, and architectural elegance, making it a key addition to any portfolio of urban residential design.

My role was significant in the design development. The inclusion of old and new tenements while ensuring the carpet area allotment was a main challenge. The project is at construction phase nearing completion.

Redevelopment with Equity: One of the primary challenges of this project was ensuring that existing residents retained their rightful floor areas as part of the redevelopment. Each unit was designed to reflect the initial apartment sizes while enhancing spatial quality and functionality, ensuring a smooth transition for the users.

Optimized Floor Plate Design: The project leveraged a compact yet efficient floor plate of 1,000 sq. ft, allowing for a total built-up area of 14,000 sq. ft.

OHWT TOP LEVEL 50.15 M OHWT BOTTOM LEVEL 47.8 M

TERRACE LEVEL 44.95 M

14TH FLOOR LEVEL 42.05 M

13TH FLOOR LEVEL REFUGE 39.15 M

12TH FLOOR LEVEL 36.25 M

11TH FLOOR LEVEL 33.35 M

10TH FLOOR LEVEL 30.45 M

9TH FLOOR LEVEL 27.55 M

8TH FLOOR LEVEL REFUGE 24.65 M

7TH FLOOR LEVEL 21.75 M

6TH FLOOR LEVEL 18.85 M

5TH FLOOR LEVEL 15.95 M

4TH FLOOR LEVEL 13.05 M

3RD FLOOR LEVEL 10.15 M

2ND FLOOR LEVEL 7.25 M

1ST FLOOR LEVEL 4.35 M

GROUND LEVEL 0.0 M

side elevation

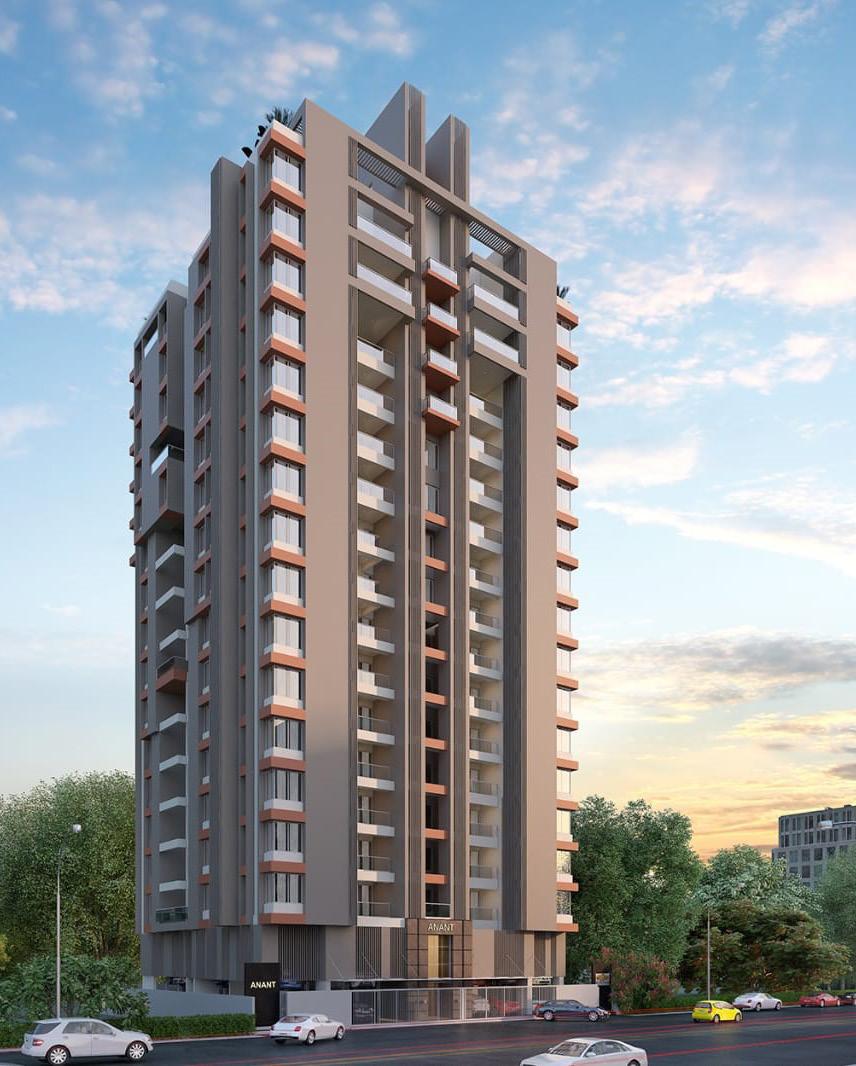

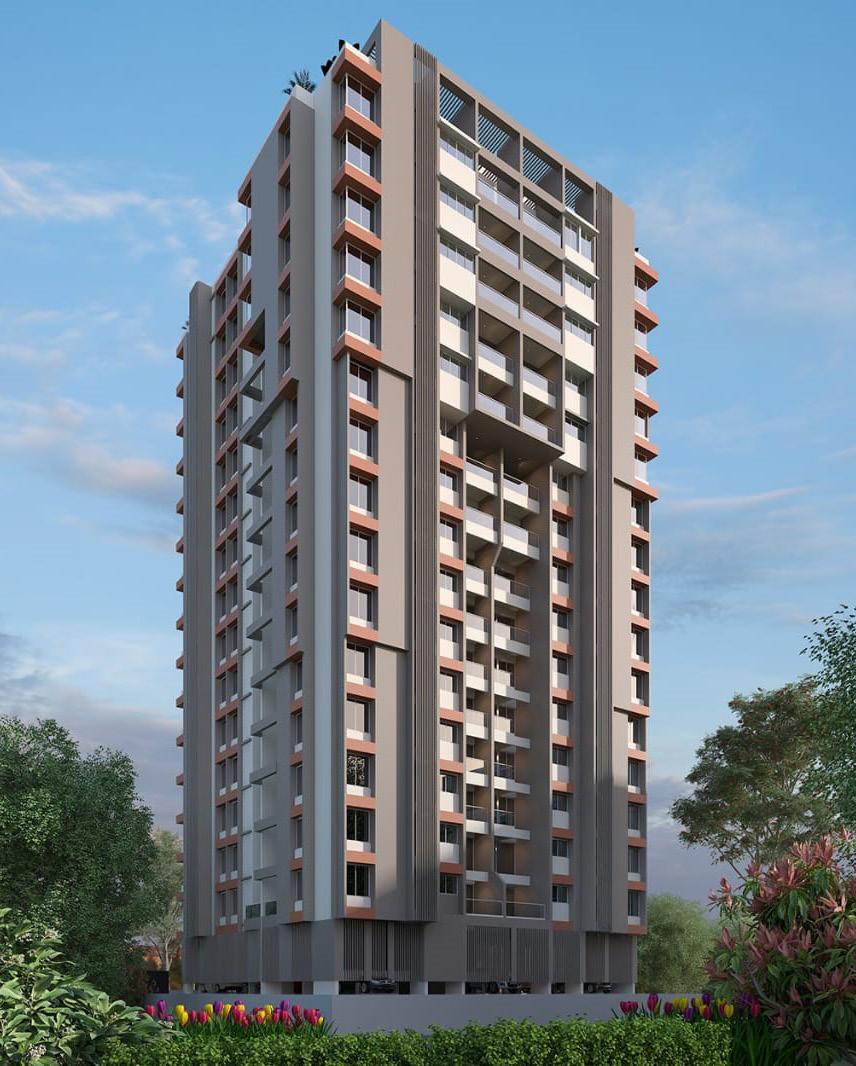

render view front

SOUTH SIDE ELEVATION

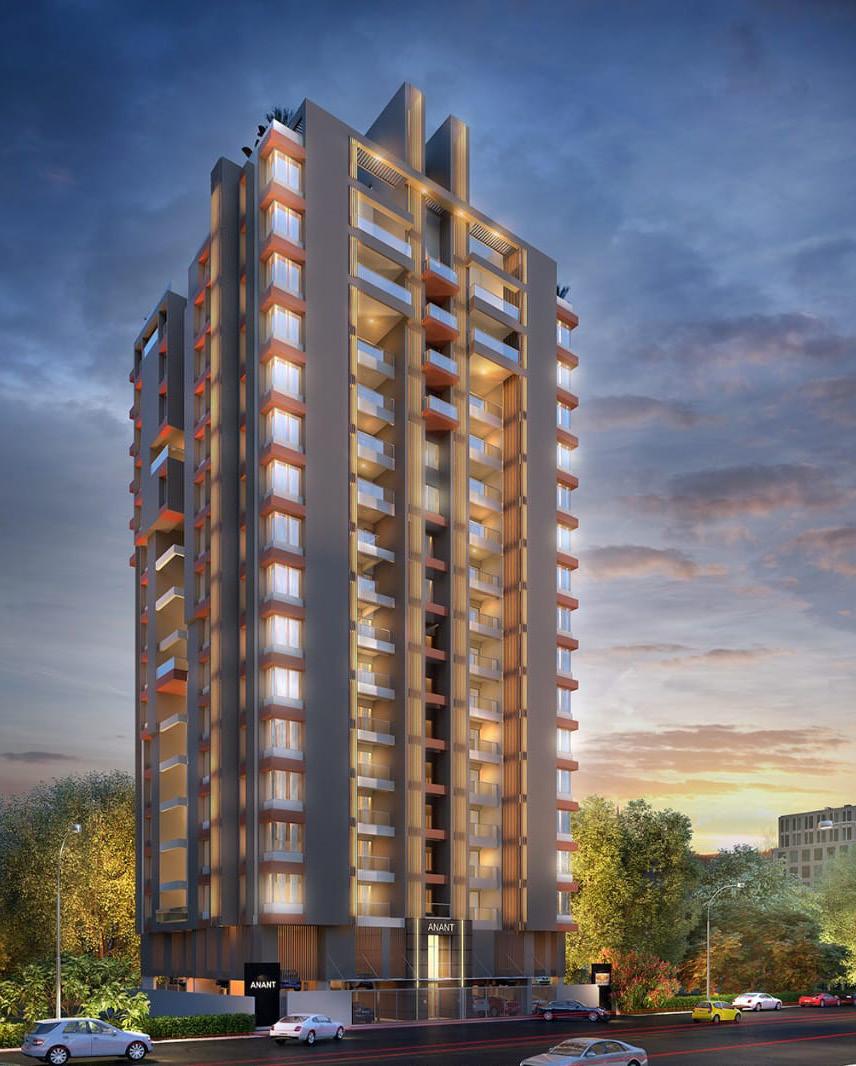

render view front 23

OHWT TOP LEVEL 50.15 M OHWT BOTTOM LEVEL 47.8 M

TERRACE LEVEL 44.95 M

14TH FLOOR LEVEL 42.05 M

13TH FLOOR LEVEL REFUGE 39.15 M

12TH FLOOR LEVEL 36.25 M

11TH FLOOR LEVEL 33.35 M

10TH FLOOR LEVEL 30.45 M

9TH FLOOR LEVEL 27.55 M

8TH FLOOR LEVEL REFUGE 24.65 M

7TH FLOOR LEVEL 21.75 M

6TH FLOOR LEVEL 18.85 M

5TH FLOOR LEVEL 15.95 M

4TH FLOOR LEVEL 13.05 M

3RD FLOOR LEVEL 10.15 M

2ND FLOOR LEVEL 7.25 M

1ST FLOOR LEVEL 4.35 M

GROUND LEVEL 0.0 M

front elevation

The design maximizes usable space while adhering to stringent building regulations and urban planning constraints.

WEST SIDE ELEVATION

Complexity of Phasing and Construction: Redevelopment projects inherently require careful phasing, especially when existing users are involved. This project successfully integrated the additional built-up area while maintaining operational continuity for the residents during the redevelopment process.

render view rear

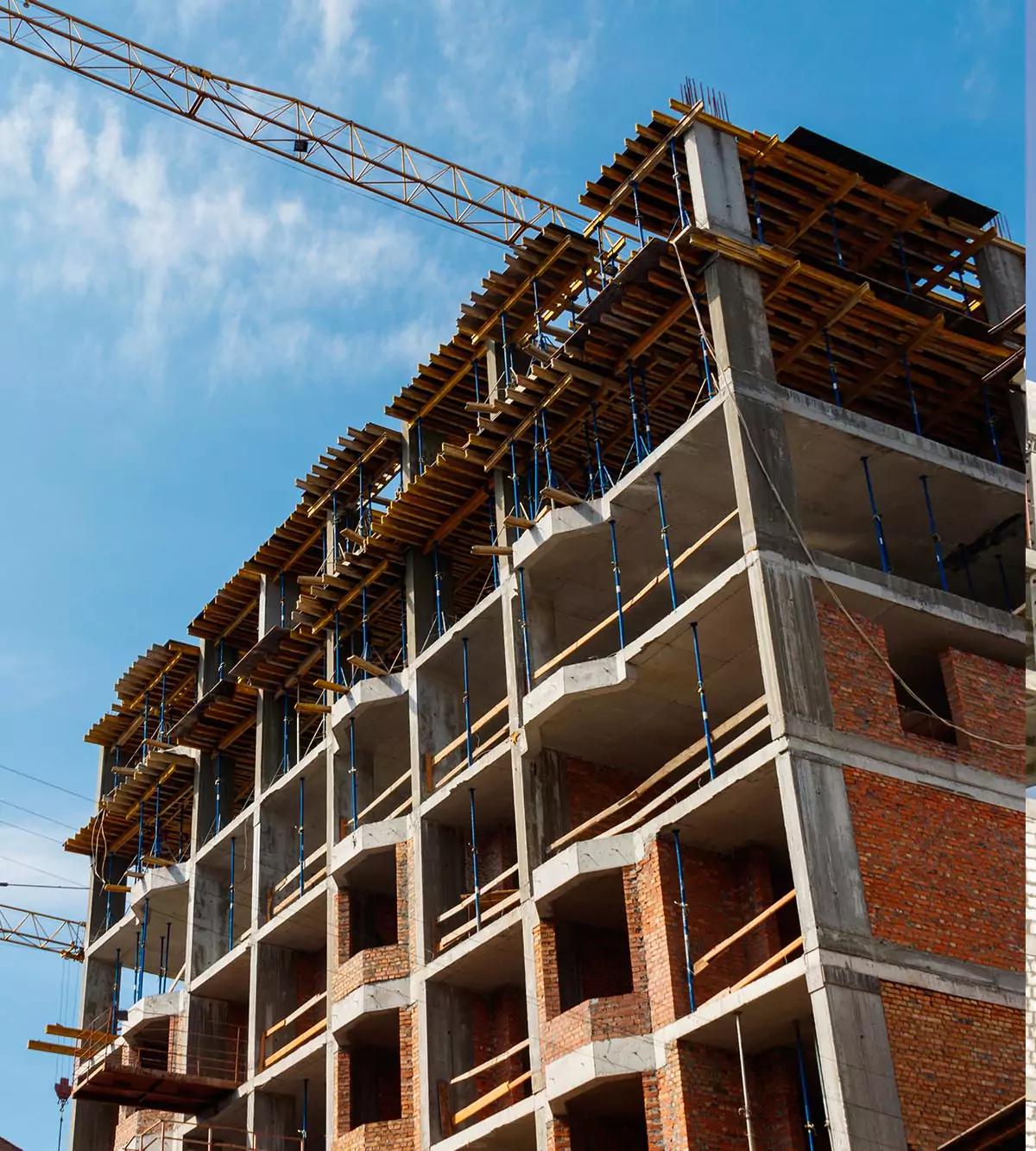

construction stage

Sustainability and Contextual Design: The project incorporates passive design principles to enhance natural light and ventilation, improving indoor environmental quality for residents. Ground-level green landscaping and rooftop spaces serve as communal areas, fostering interaction while mitigating the urban heat island effect.

24

PHARANDE SPACES

TITLE -

STRETCHER LIFT-2 3.05X1.90

OWNER NAME : PHARANDE SPACES

PROJECT NAME : " F E L I C I T Y "

DWG NO.

01

'A1'-TYPE BLDG(2P+12FLOOR) DWG TITLE :

NTS

SCALE

SACHIN B.

D E T A I L S .

CHKED BY

L O B B Y

DRAWN BY

DWG TYPE :

07.10.2020

DATE

R0 31.08.2019 WORKING DWG ADVANCE COPY WITH SINGOFF PURPOSE.

DADO TO SPECIFICATIONS

HL DADO

LIFT DOOR TO SPECIFICATIONS

DADO TO SPECIFICATIONS

HL DADO LIFT DOOR TO SPECIFICATIONS CREME COLOR TEXTURE PAINT

1200

DADO TO SPECIFICATIONS

DOORBELL

DUCT ABOVE

DOORBELL

L.V. DUCT

CHAJJA ABOVE

1.70 M WIDE PASSAGE

1.20 M HT PARAPET WALL

FLOORING TO SPECIFICATION

SCHEDULE O TYPE W W1 W2 W3 V SD D D1 D2 PARAPET WALL

STANDARD DET

IMPORTANT DIS

FLOORING TO SPECIFICATION HL DADO

ELEVATION A - OPTION 2

1200

ELEVATION A - OPTION 1

CREME COLOR TEXTURE PAINT

FLOORING TO SPECIFICATION

CREME COLOR TEXTURE PAINT

ELEVATION B

L.V. DUCT

CREME COLOR TEXTURE PAINT

LIFT DOOR TO SPECIFICATIONS DOORBELL

DADO TO SPECIFICATIONS

FLOORING TO SPECIFICATION

R5 07.10.2020 R4 13.03.2020 R4 17.12.2019 R3 23.09.2019

R2 07.09.2019

R1 03.09.2019 R0 31.08.2019

LOBBY PLAN - OPTION 1

ROOM

LIFT DADO AND LOBBY

DATE

D

07.10.2020 DWG TYPE : DWG TITLE :

PROJECT NAME

ADVANCE COPY FOR CHECKING & ESTIMATION PURPOSE ONLY NOT FOR CONSTRUCTION DATE - 07.10.2020

TILE

SIZE

DYNA TILE

600 X 1200

OWNER NAME

PROJECT : PRO AT AT FOR

FLOORING TILE (AS PER SPECIFICATIONS)

DOORBELL

Flooring: Overseeing the selection and installation of high-quality flooring materials lobby elevations FLOORING TILE (AS PER SPECIFICATIONS) (tiles, wood, marble, etc.), ensuring

ELEVATION A - OPTION 2

150

250

250

150

B

1700 250

A

1.20 M HT PARAPET WALL

1700

UP

DN

LOBBY PLAN - OPTION 1

LIFT-1 1.90X1.90

1.50 M WIDE PASSAGE

CHAJJA ABOVE

CHAJJA ABOVE

1200

CHAJJA ABOVE

1025

1200

150

1.50 M WIDE PASSAGE

STAIRCASE

150

STRETCHER LIFT-2 3.05X1.90

VOID

1200

1200 1425

FIRE STAIRCASE

FIRE DUCT

ARCHITECTS l PLAN info@atconsultants. website - www

DUCT ABOVE

STAIRCASE

ELECTRIC DUCT

UP

1.20 M HT PARAPET WALL

1425

1200 150

VOID

L.V. DUCT

LIFT-1 1.90X1.90

ELECTRIC DUCT

250

1.70 M WIDE PASSAGE

1700

1500

150

FIRE DUCT

Interior Detailing: Doors and Windows: Finalizing the selection of materials, dimensions, and finishes for all doors and windows, ensuring that each installation aligns with the design vision while maintaining functionality and aesthetic appeal.

1200

1.50 M WIDE PASSAGE

1200

1500

150

FLOORING TO SPECIFICATION

ELEVATION A - OPTION 1

150

ELECTRIC DUCT

B

CHAJJA ABOVE

250

LIFT DOOR TO SPECIFICATIONS

ELEVATION B HL DADO

1200

150

CHAJJA ABOVE

CREME COLOR TEXTURE PAINT

150

150

1200

My scope of work was preparing of construction drawing for the interior details.

With the contractor, these set of drawing were beneficial in estimating the cost and duration of the last phase of project.

A

FLOORING TO SPECIFICATION

150

DUCT

1.20 M HT PARAPET WALL

1025

1.50 M WIDE PASSAGE

CREME COLOR TEXTURE PAINT DOORBELL

1200

250

R5 07.10.2020 FOR STUDY PURPOSE & SIGN OFF PURPOSE R4 13.03.2020 IST FLOOR TOILET CHANGES AS PER PLUMBING DWG. ( G F C ) R4 17.12.2019 REVISE FOR BEAM GRID- GOOD FOR CONSTRUCTION GOOD FOR CONSTRUCTION R3 23.09.2019 1ST & 2ND FLOOR GOOD FOR CONSTRUCTION DWG & ABOVE R2 07.09.2019 FLOOR ADVANCE COPY WITH NOTE FOR SINGOFF PURPOSE. R1 03.09.2019 1ST & 2ND FLOOR WORKING DWG GOOD FOR CONSTRUCTION.

DOORBELL

STANDARD DETAILS

DN

1200

L.V. DUCT

ELECTRIC DUCT

FIRE STAIRCASE

1700

IMPORTANT DISCLAMER FOR USE OF THIS DRAWINGS ON SITE :

SILL LEVEL 0.54 0.54 0.54 1.44 1.44 SCHEDULE OF DOORS & WINDOWS TYPE SIZE W 1.80 X 1.80 W1 1.20 X 1.80 W2 0.90 X 1.80 W3 1.20 X 0.90 V 0.60 X 0.90 SD 1.80 X 2.34 D 1.05 X 2.34 D1 0.90 X 2.34 D2 0.75 X 2.34 PARAPET WALL & RAILING DETAILS

Pharande Spaces in Pune is a premier residential development that combines modern luxury with comfort, offering residents state-of-the-art amenities in a beautifully designed environment. As part of the final stage of construction, the interior detailing of the project, which includes the completion of essential elements such as doors, windows, flooring, railings, lobbies, entrances, toilets, gates, balconies, gardens, and landscapes.

Their role involves working closely with the construction and design teams to ensure the precise execution of all interior and exterior elements according to the approved designs.

KEY PLAN

'A1' TYPE BLDG

LINTEL LEVEL 2.34 2.34 2.34 2.34 2.34 2.34 2.34 2.34 2.34

PUNE, INDIA PROFESSIONAL INTERIOR DETAILS A & T CONSULTANTS

1200

LOCATION TYPE PROJECT FIRM -

DUCT

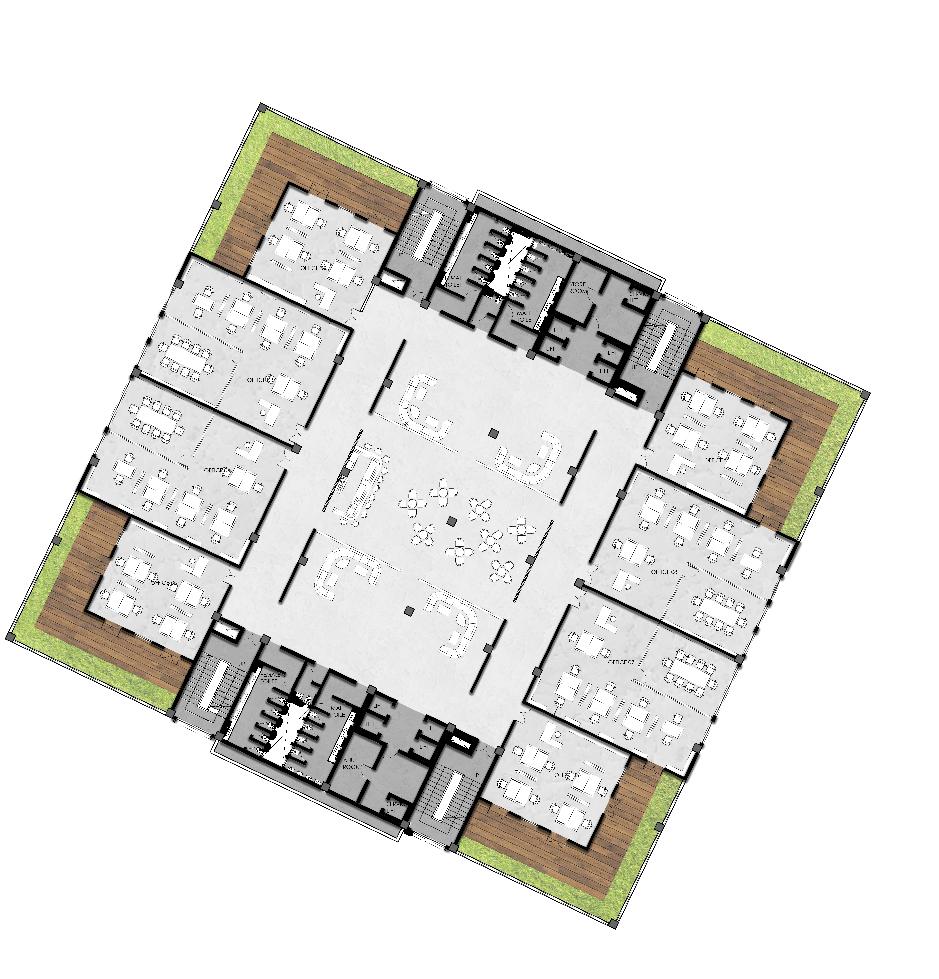

floor plan 25

'A1' TYPE BLDG

A

C

EQ

700

700

C

175

25 40 100 EQ 25 40

175

ELEVATION A

INSIDE

20 X 40 MM SPACER

1800

EQ

EQ EQ EQ EQ EQ EQ EQ EQ EQ EQ EQ EQ EQ EQ EQ

STANDARD DETAILS

2 X 20 MS STEEL PLATE POWDER COATED/PAINTED

EQ

PLAN AA

IMPORTANT DISCLAMER FOR USE OF THIS DRAWINGS ON SITE :

2 X 20 MM MS PLATE POWDER COATED/PAINTED INSIDE

EQ

DETAIL A

20 X 40 MM SPACER

1800

EQ

25 MM KADAPPA FRAME

12 MM NICHE FOR FINISH

EQ 20 X 40 MM SPACER

MOSQUITO NET 25 MM THK ANODIZED FRAME

2 X 20 MM MS PLATE POWDER COATED/PAINTED

SLIDING WINDOW FRAME

100

8 X 8 MM MS STEEL BAR POWDER COATED/PAINTED 25 MM THK KADAPPA FRAME

LINTEL LEVEL 2.34 2.34 2.34 2.34 2.34 2.34 2.34 2.34 2.34

8 X 8 MS STEEL BAR POWDER COATED/PAINTED PLACED C/C <120 MM

EQ

SLIDING WINDOW FRAME

SILL LEVEL 0.54 0.54 0.54 1.44 1.44 -

PARAPET WALL & RAILING DETAILS

EQ EQ

MOSQUITO NET 25 MM THK ANODIZED FRAME

SCHEDULE OF DOORS & WINDOWS TYPE SIZE W 1.80 X 1.80 W1 1.20 X 1.80 W2 0.90 X 1.80 W3 1.20 X 0.90 V 0.60 X 0.90 SD 1.80 X 2.34 D 1.05 X 2.34 D1 0.90 X 2.34 D2 0.75 X 2.34

OUTSIDE

SECTION CC

2 X 20 MM MS PLATE POWDER COATED/PAINTED

25 MM THK KADAPPA FRAME

SLIDING WINDOW ANODIZED FRAME

B

ELEVATION B

8 X 8 MM MS STEEL BAR POWDER COATED/PAINTED

KEY PLAN

SLIDING WINDOW MOSQUITO NET

2 X 20 MS STEEL PLATE POWDER COATED/PAINTED

40

50

50

8 X 8 MS STEEL BAR POWDER COATED/PAINTED PLACED C/C <120 MM B

175

C

1800

A

100

B

8 X 8 MM MS STEEL BAR POWDER COATED/PAINTED

100

EQ

2 X 20 MS STEEL PLATE POWDER COATED/PAINTED

1750 EQ

EQ

EQ

B

25 MM KADAPPA FRAME 20 X 40 MM SPACER 2 X 20 MM MS STEEL PLATE POWDER COATED/PAINTED

EQ

20 X 40 MM SPACER

EQ EQ EQ EQ EQ EQ EQ EQ EQ EQ EQ EQ EQ EQ EQ

700

SLIDING WINDOW

B

DRIP MOULD

175

A

1800

1600

1800

MOSQUITO NET A

40

25 MM KADAPPA FRAME

100

EQ

SLIDING WINDOW ANODIZED FRAME

A

C

C

40

25 MM KADAPPA FRAME

50

50

50

1800 1670

700

1800 1600

50

40

50

EQ

50

OUTSIDE

PLAN BB

D

SLIDING WINDOW SLIDING WINDOW ANODISED FRAME

R5 07.10.2020 FOR STUDY PURPOSE & SIGN OFF PURPOSE. R4 13.03.2020 IST FLOOR TOILET CHANGES AS PER PLUMBING DWG. ( G F C ) R4 17.12.2019 REVISE FOR BEAM GRID- GOOD FOR CONSTRUCTION GOOD FOR CONSTRUCTION R3 23.09.2019 1ST & 2ND FLOOR GOOD FOR CONSTRUCTION DWG & ABOVE R2 07.09.2019 FLOOR ADVANCE COPY WITH NOTE FOR SINGOFF PURPOSE. R1 03.09.2019 1ST & 2ND FLOOR WORKING DWG GOOD FOR CONSTRUCTION.

DETAIL D

20 X 40 MM SPACER

ADVANCE COPY FOR CHECKING & ESTIMATION PURPOSE ONLY NOT FOR CONSTRUCTION DATE - 07.10.2020

25 MM KADAPPA FRAME 2 X 20 MS STEEL PLATE POWDER COATED/PAINTED

R0 31.08.2019 WORKING DWG ADVANCE COPY WITH SINGOFF PURPOSE. DATE

DRAWN BY

07.10.2020 DWG TYPE :

25 MM KADAPPA FRAME

SACHIN B.

8 X 8 MM MS STEEL BAR POWDER COATED/PAINTED C/C < 120 MM

DETAIL B

KEY PLAN OF FLAT 102

SCALE

DWG NO.

NTS

01

WINDOW DETAILS.

'A1'-TYPE BLDG(2P+12FLOOR)

PROJECT NAME : " F E L I C I T Y "

SLIDING WINDOW ANODISED FRAME MOSQUITO NET

20 X 40 MM SPACER

CHKED BY

consistency and precision across all spaces within the project.

DWG TITLE :

OWNER NAME : PHARANDE SPACES

PROJECT : PROPOSED RESIDENTIAL & COMMERCIAL BUILDINGS AT S.NO.78(P), 86/2(P) AT RAVET, DIST-PUNE FOR M/S FIRM FOUNDATION REALTORS

SLIDING WINDOW

Lobby and Entrance: Managing the detailed execution of finishes in the lobby area, including approved designs and specifications. flooring, lighting, and design elements that contribute to a welcoming and elegant atmosphere. The entrance is designed to ensure smooth traffic flow and security.

DETAIL C

window installation details

ARCHITECTS l PLANNERS l URBAN DESIGNERS info@atconsultants.in l wd@atconsultants.in website - www.aandtconsultants.in

'A1' TYPE BLDG

ELECTRIC DUCT

FIRE STAIRCASE DN 250

STRETCHER LIFT-2 3.05X1.90

150

150

ELEVATION B

1200

1500

1.20 M HT PARAPET WALL

1.50 M WIDE PASSAGE

CHAJJA ABOVE HL DADO LIFT DOOR TO SPECIFICATIONS CREME COLOR TEXTURE PAINT

SCHEDULE OF DOORS & WINDOWS TYPE SIZE W 1.80 X 1.80 W1 1.20 X 1.80 W2 0.90 X 1.80 W3 1.20 X 0.90 V 0.60 X 0.90 SD 1.80 X 2.34 D 1.05 X 2.34 D1 0.90 X 2.34 D2 0.75 X 2.34 PARAPET WALL & RAILING DETAILS

DADO TO SPECIFICATIONS

DUCT ABOVE 1200

L.V. DUCT

CHAJJA ABOVE

1.70 M WIDE PASSAGE

1.20 M HT PARAPET WALL

FLOORING TO SPECIFICATION

STANDARD DETAILS

B

ELECTRIC DUCT

A

KEY PLAN

FLOORING TO SPECIFICATION

150

1700

DUCT

CREME COLOR TEXTURE PAINT DOORBELL

1200

250

L.V. DUCT

DOORBELL

Estimation and Assembly: Compiling the final construction details that are used for estimation and assembly, ensuring all elements are accounted for in the project’s budget and time line.

Coordinating with suppliers, contractors, and vendors to source materials and ensure timely delivery and installation.

SILL LEVEL 0.54 0.54 0.54 1.44 1.44 -

LINTEL LEVEL 2.34 2.34 2.34 2.34 2.34 2.34 2.34 2.34 2.34

IMPORTANT DISCLAMER FOR USE OF THIS DRAWINGS ON SITE :

CHAJJA ABOVE

250

1700

1200

1425

150

1.50 M WIDE PASSAGE

150

1500

150

ELEVATION A - OPTION 3

FIRE DUCT

250

HL DADO LIFT DOOR TO SPECIFICATIONS DOORBELL

VOID

CREME COLOR TEXTURE PAINT

1200

LIFT-1 1.90X1.90

UP

DADO TO SPECIFICATIONS

FLOORING TO SPECIFICATION

Site Visits and Work flow Management: Providing approvals on completed work and ensuring that any necessary adjustments are made to maintain the desired quality and design standards.

R5 07.10.2020 FOR STUDY PURPOSE & SIGN OFF PURPOSE R4 13.03.2020 IST FLOOR TOILET CHANGES AS PER PLUMBING DWG. ( G F C ) R4 17.12.2019 REVISE FOR BEAM GRID- GOOD FOR CONSTRUCTION GOOD FOR CONSTRUCTION R3 23.09.2019 1ST & 2ND FLOOR GOOD FOR CONSTRUCTION DWG & ABOVE R2 07.09.2019 FLOOR ADVANCE COPY WITH NOTE FOR SINGOFF PURPOSE. R1 03.09.2019 1ST & 2ND FLOOR WORKING DWG GOOD FOR CONSTRUCTION.

STAIRCASE

R0 31.08.2019 WORKING DWG ADVANCE COPY WITH SINGOFF PURPOSE.

LOBBY PLAN - OPTION 2

option 02 for lobby

DATE

ELEVATION A - OPTION 4

DRAWN BY

CHKED BY

07.10.2020

SACHIN B.

SCALE

DWG NO.

NTS

01

DWG TYPE :

L O B B Y

DWG TITLE :

'A1'-TYPE BLDG(2P+12FLOOR)

D E T A I L S .

PROJECT NAME : " F E L I C I T Y "

FLOORING TILE (AS PER SPECIFICATIONS) ROOM

TILE

SIZE

LIFT DADO AND LOBBY

DYNA TILE

600 X 1200

ADVANCE COPY FOR CHECKING & ESTIMATION PURPOSE ONLY NOT FOR CONSTRUCTION DATE - 07.10.2020

OWNER NAME : PHARANDE SPACES PROJECT : PROPOSED RESIDENTIAL & COMMERCIAL BUILDINGS AT S.NO.78(P), 86/2(P) AT RAVET, DIST-PUNE FOR M/S FIRM FOUNDATION REALTORS

ARCHITECTS l PLANNERS l URBAN DESIGNERS

26

TITLE -

CONCUR

LOCATION

PUNE, INDIA

TYPE -

ACADEMIC

SEMESTER -

B ARCH THESIS (10TH)

UNDER GUIDANCE -

PROF. SURABHI GADKARI

WHAT IS A COMMERCIAL SPACE ?

Commercial areas in a city are areas, districts, or neighbourhoods primarily composed of commercial buildings , such as a downtown, central business district, financial district, “main street”, commercial strip, or shopping centres.

SHOPP

AFTER WO

CA FE S

RK

O N

O

AG EG

RO

ENER

ARCADE

UP

USES & ACTIVIES

USEFUL

TEAM

K OR AT IV E

NE TW

FUN

N

DUC T

G IN ET

AT IC

HELP

ME

RY

CE

E

RA

CO NF ERE N

UN ITY

L AB

E TIV EA CR

REAL

S OM RO

E VATIV INNO

LIB

OFFICES

SER VIC E PP U

RT

SY ST EM

O

KIOSKS

TASK

O

IO

AS

U

PRO

CREATE

E OIC

N PI

Z PLA E AT NIC

TIVE RAC INTE

AIN ST SU

ST

COLLABORATE

TS

DIVERSE

NT

CH

IO UD

MM CO

CONNECT

PROJECT STRATEGY

EF F ICIE

CO WORK

E LIS CIA SO

M IC

GY

AN AR TU

PE R

EC EA S

S RE

CO O

AR

E

MO N

R ISU LE

CO M

AL VIT

E

ES GAM

US

ION CELEBRAT

ED

ACTIVE

T

OR MF

M IX

DIVERSE

PANTRY

STA TIO NS

E NG

LOU

ADMIN

To create a space which can form the node for holding and experiencing commercial and social activities. The aim of the study is to achieve a design proposal to give the people of Pune an interactive space and platform where a person does not walk in only with business in mind but quality of space will be such that

ING

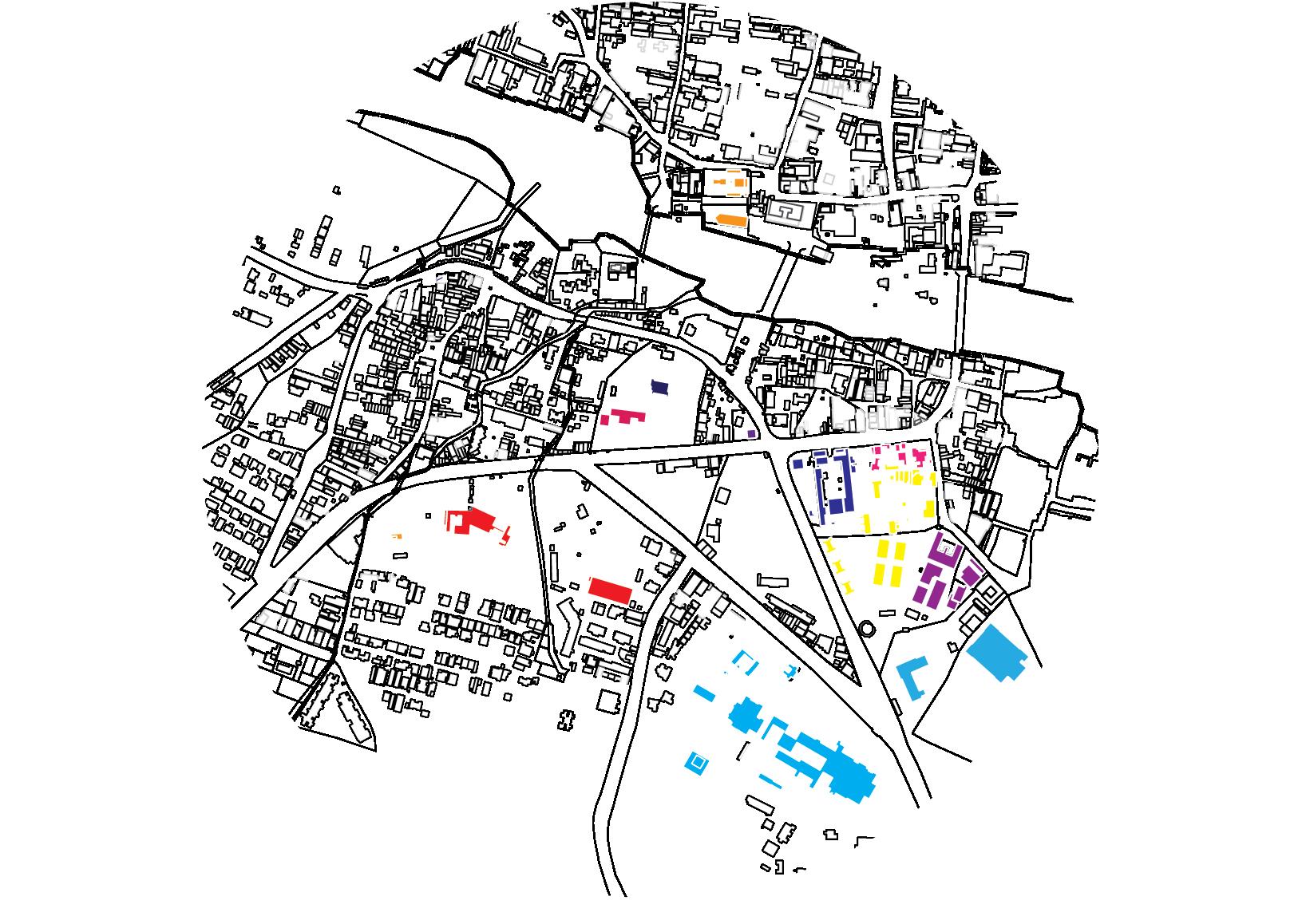

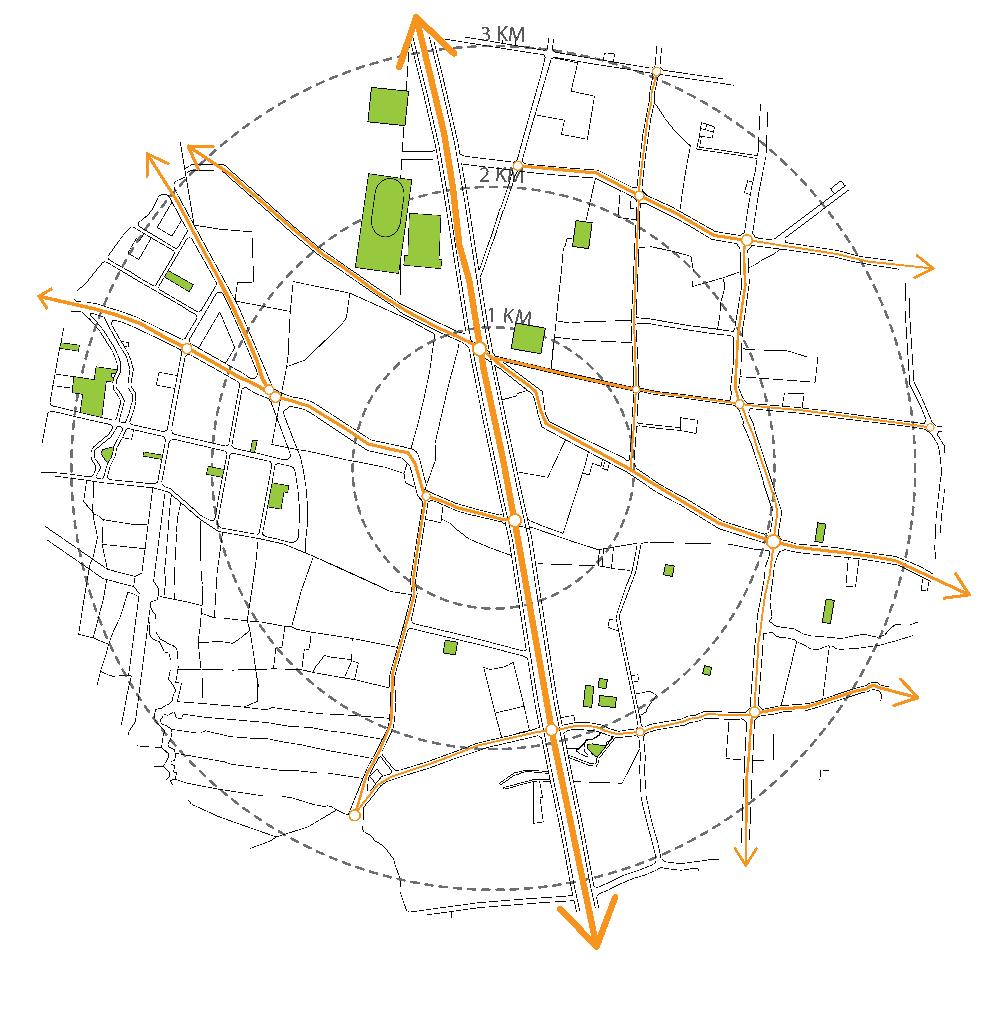

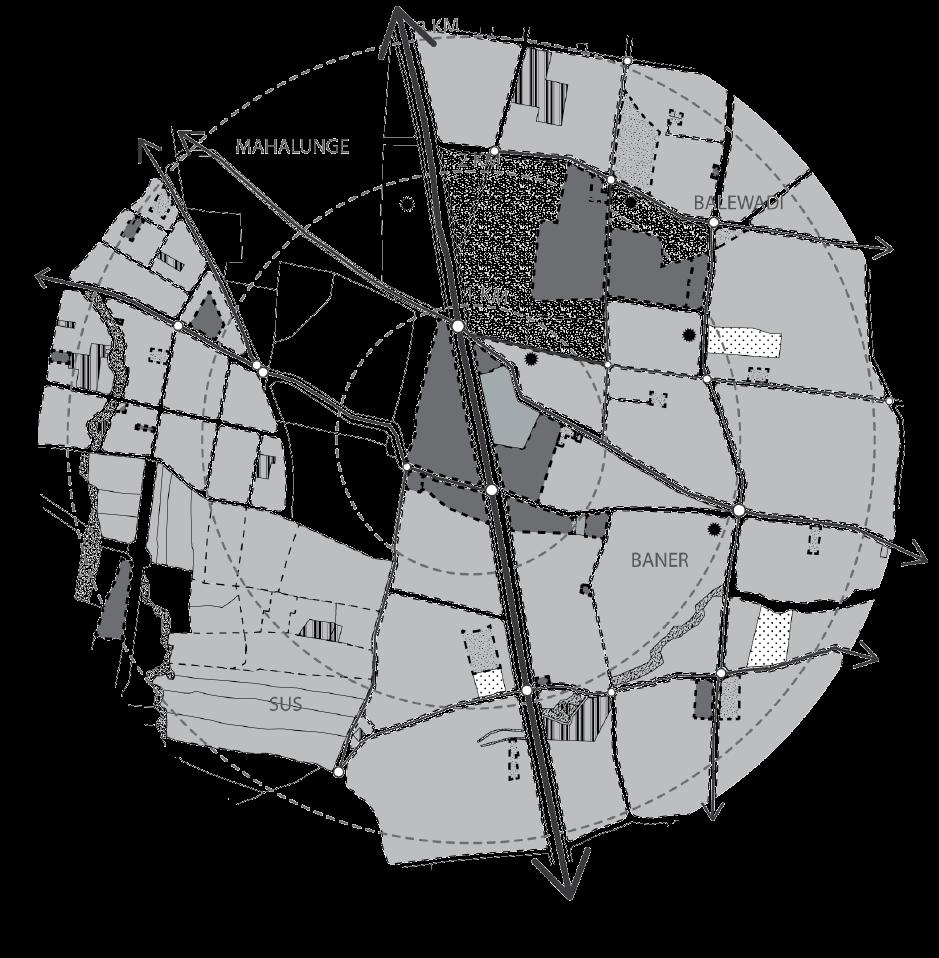

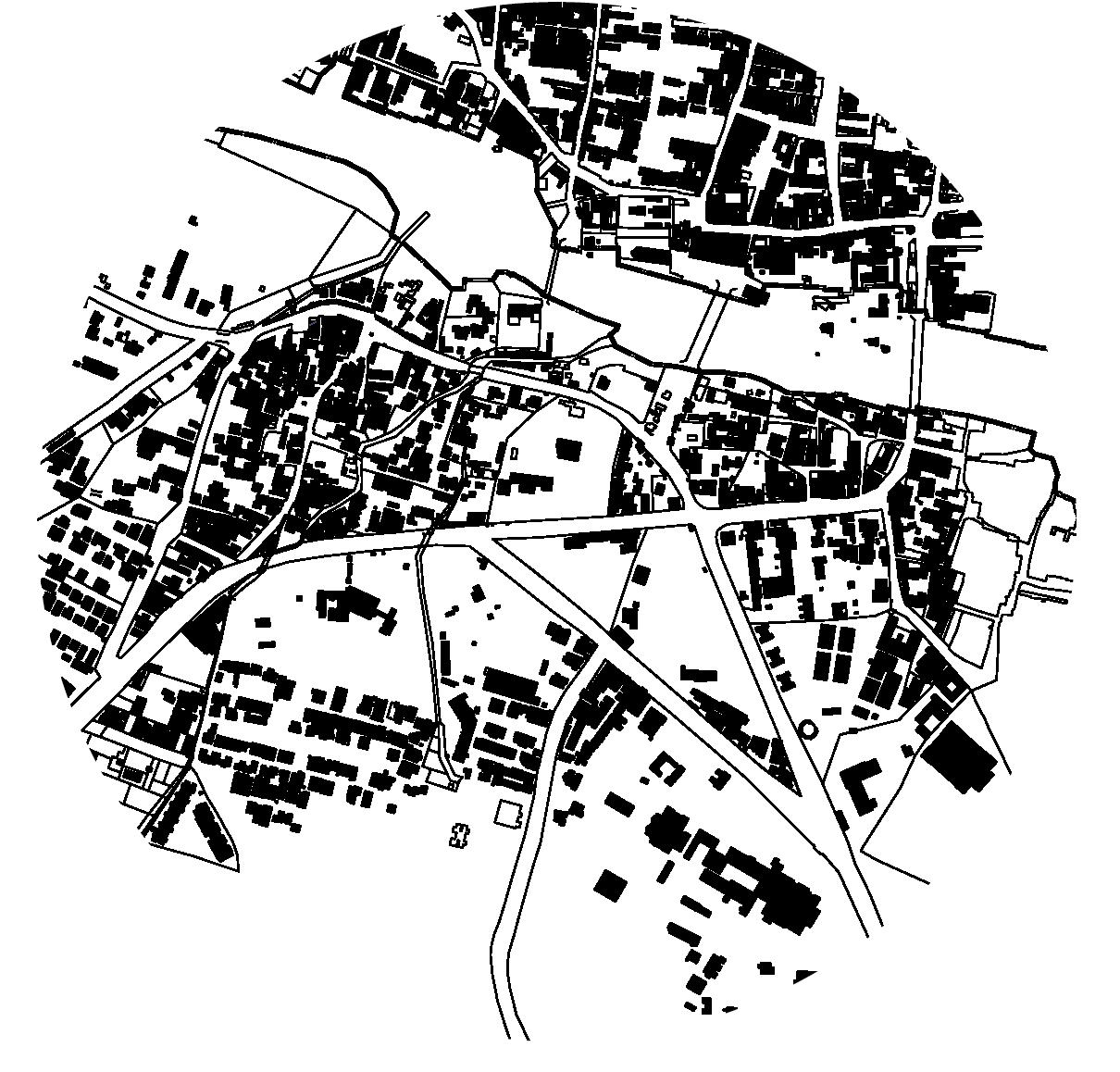

lynch map

CO

Interconnection between different commercial activities within an area will not only form a greater landmark but also help in building the potential of land. A group of architecturally unified commercial establishments built on the site, which is planned, developed and managed as an operating unit related in it location, size and type of shops.

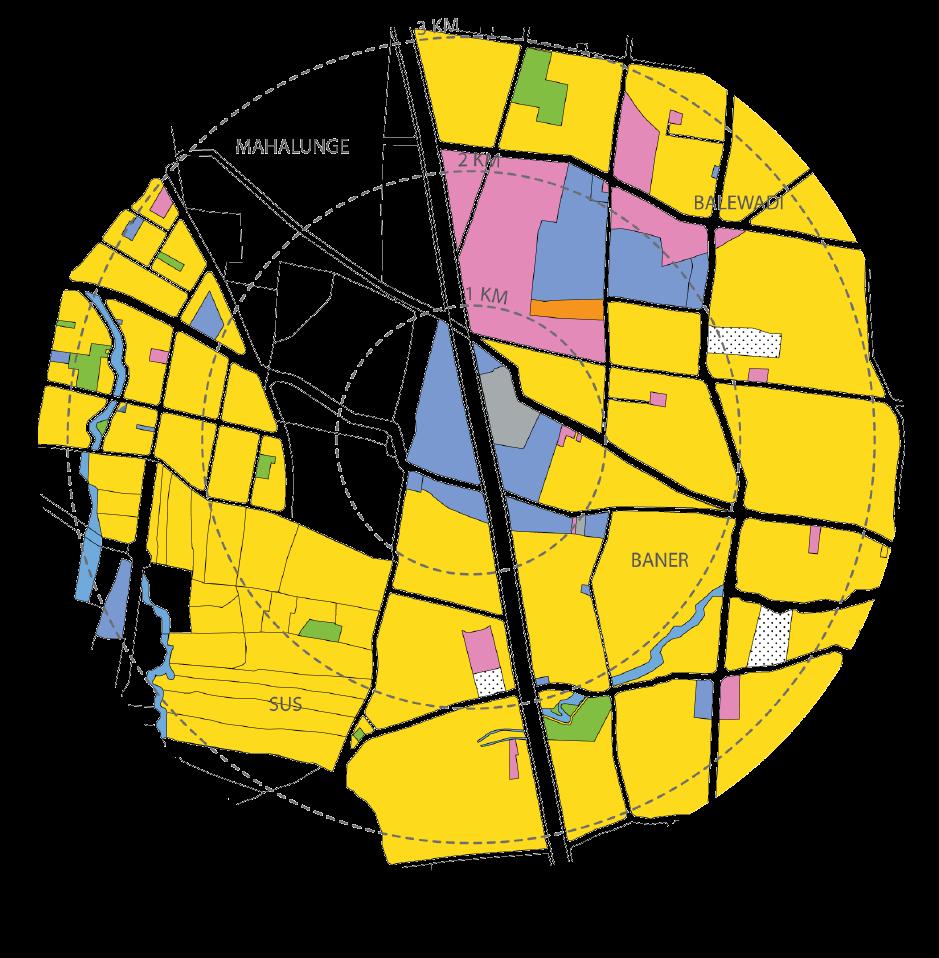

landuse

MEETING

Commercial properties are mostly looked upon as capital gains, profits rather than a vital space for productivity, a space for self improvement and growth.

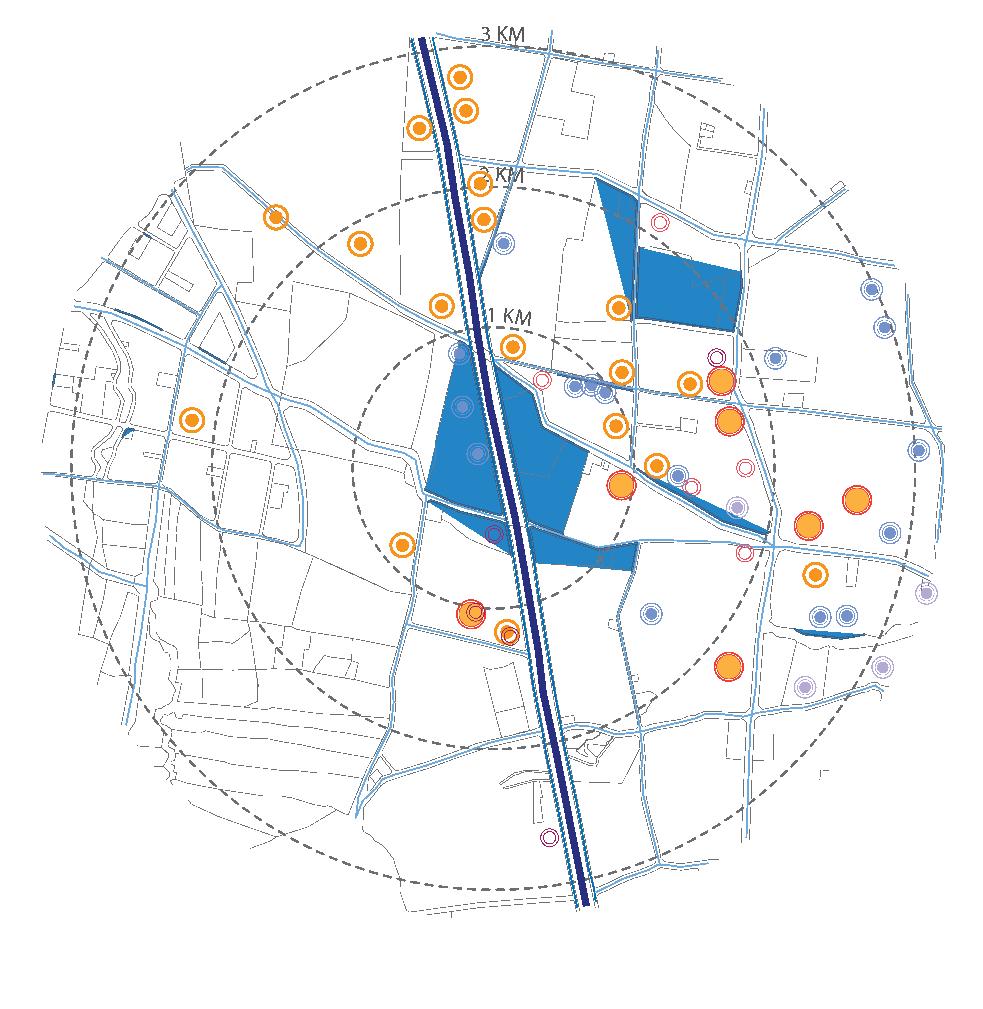

inference from the area study

27

road network

commercial spaces and frontages

orientation

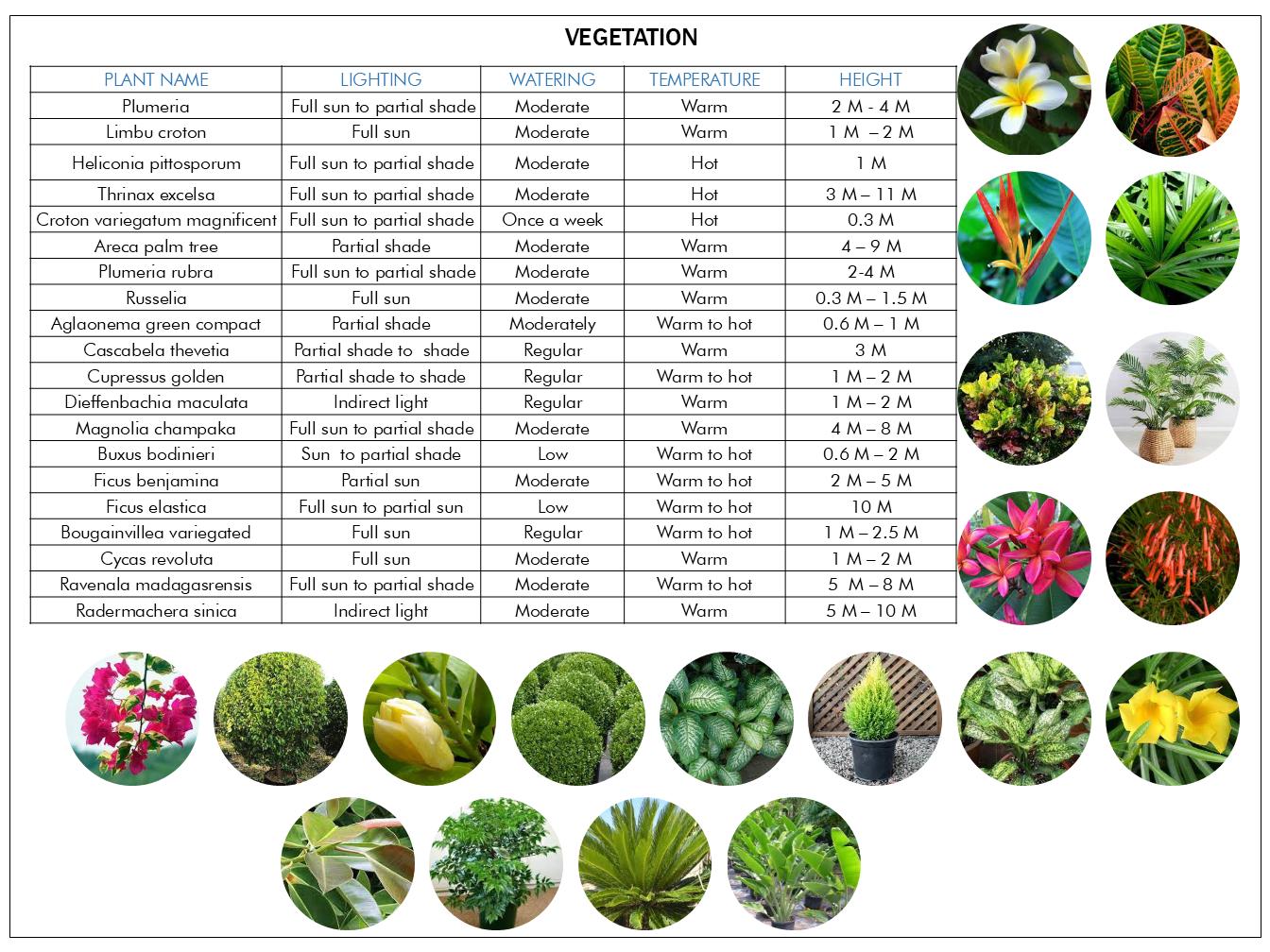

vegetation

sensory (sound and feel)

ORIENTATION STRONGEST WIND IDENTIFIED BLOWING TOWARDS SITE BY THE SOUTH WEST SIDE OF SITE.

VEGETATION BUSH GROWN ON SITE PERIPHERY

LOUD NOISE COMING FROM ROAD

NO LARGE TREE SEEN ON SITE

AIR POLLUTION

sensory (towards circulation SENSORYsite) (TOWARDS SITE) VIEW TOWARDS SITE

circulation

SENSORY (SOUND AND FEEL)

CIRCULATION PEDESTRAIN CIRCULATION

circulation (car park) PARK) utilities CIRCULATION(CAR

CIRCULATION

CAR PARKING FOR ADJACENT BUILDINGS

PEDESTRAIN

UTILITIES COMPOUND WALL SURROUNDING SITE ELECTRIC POLE

VEHICULAR

Baner is a residential and commercial hub of Pune and large portions are occupied by various IT companies.

The future growth in population and development is going to pressurize the proposed commercial land. Post covid planning of large open spaces and plazas is necessary to ensure obedience of social distancing norms, having large open spaces also encourage more outdoor activities making neighbourhood lively around the clock and reduces creation of grey areas.

N

W

the complex will act as not only a meeting point of people but will also have spaces for after hours leisure and entertainment.

Inference from Area and site analysis.

E

Organization and allocation of sufficient parking area for cars and motor cycles is necessary to ensure free flow of traffic. Planning of cycle tracks is required. It lacks prominent landmarks.

Considering the present and proposed commercial activities the commercial frontages along the main road are low.

The public to semi public to private transaction is missing in office spaces. There is no definite link between the corporate areas in region.

S

site analysis 28

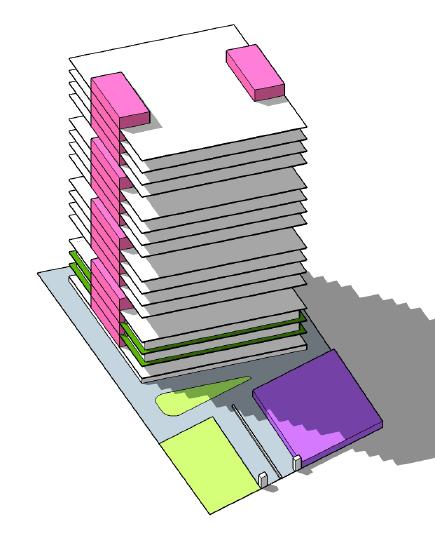

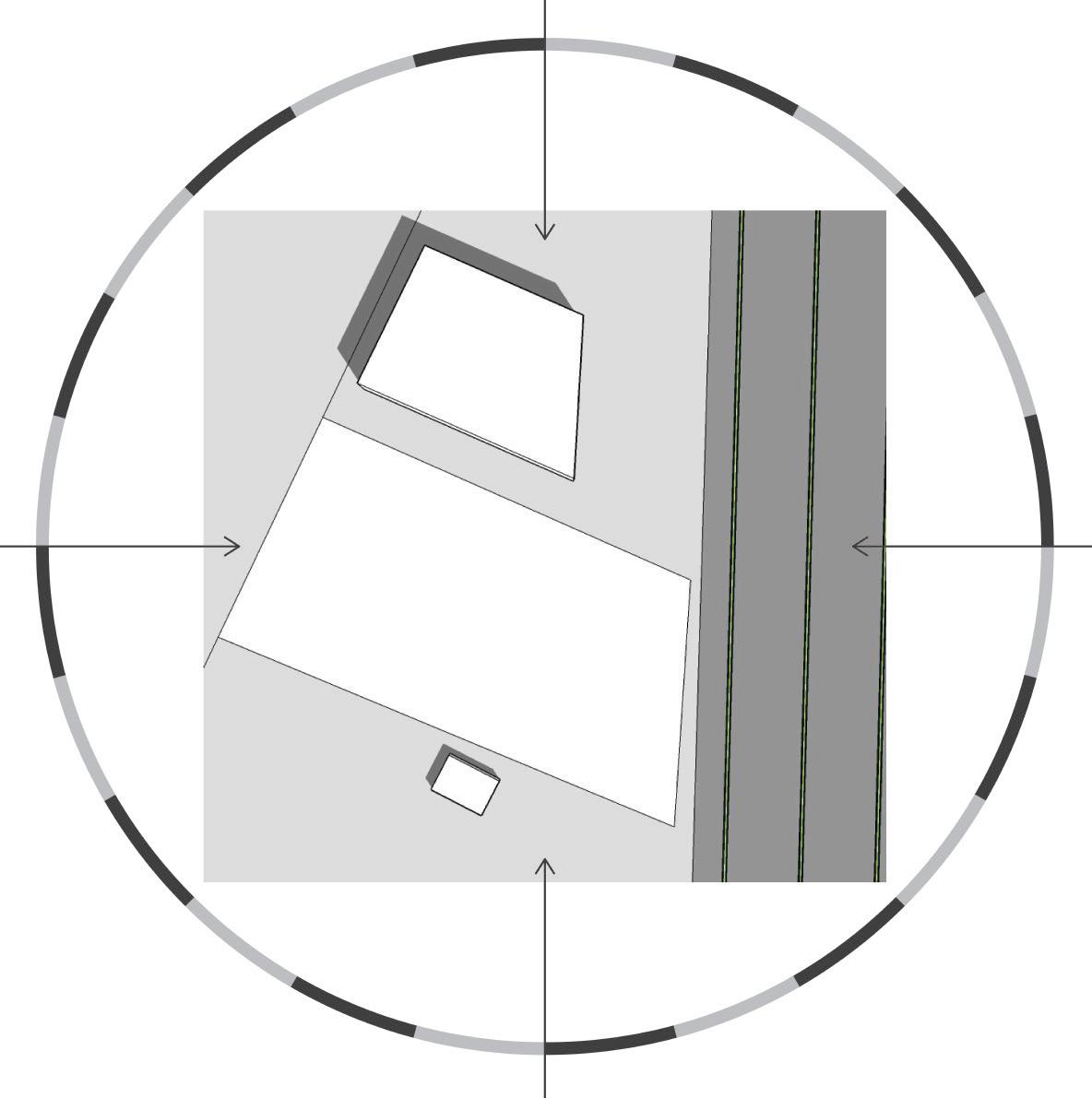

VERTICAL STACKING ACCORDING TO FUNCTION VERTICAL STACKING ACCORDING TO FUNCTION OPEN SPACE FOR EACH CLUSTER

A single complex having all types of shops accommodated will have a greater user experience and will also reduce travelling to various stores separately.

A large scale area housing various eateries with open to semi open seating is necessary post pandemic. Major of small industries are software developing companies.

Offices and retail also make good partners, given again that the demand is there and the level of design and finishes compliment each other. So it follows on quite naturally that a mixed use development of retail, hotel and offices all together make a good mix, but creates difficulties in planning. It is imperative that there is sufficient parking, clearly demarcated, and that the entrance to the offices and hotel are separate. In favour of the multi mixed use developments is the fact that they help to mitigate the cyclical economic risks. In other words, when the retail sector is under pressure, the hospitality or commercial sector may be better. The question of mixed use with apartments directly above retail introduces a whole lot more difficulties. Whereas hotel and office occupants are transient, and therefore are more likely to put up with temporary inconveniences that may be a result of being

MAXIMIZE OUTDOOR SPACE

CO WORKING SPACES

OFFICES RETAIL AND CAFES

THE TOWER

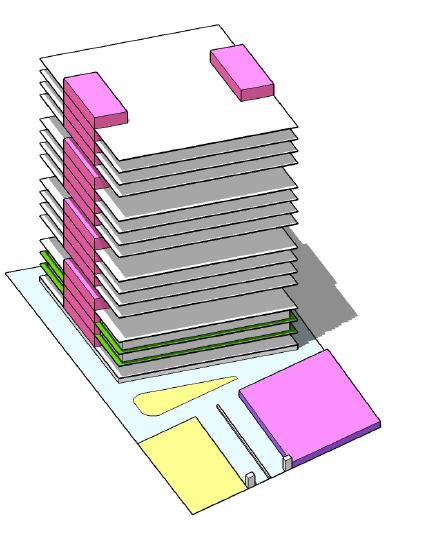

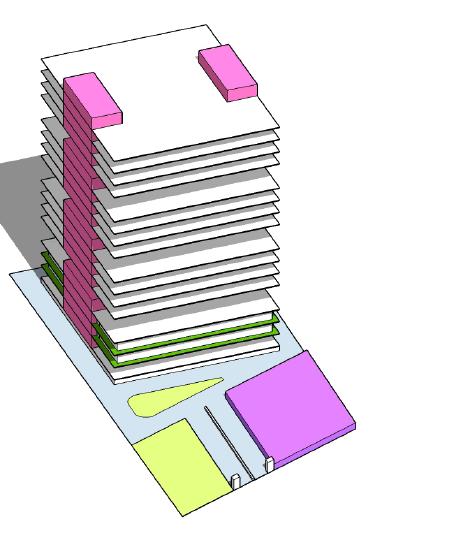

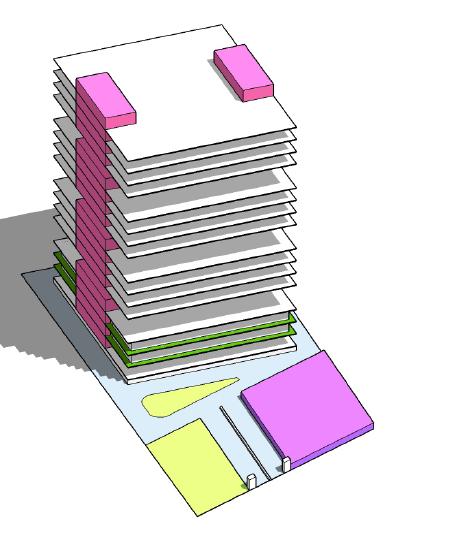

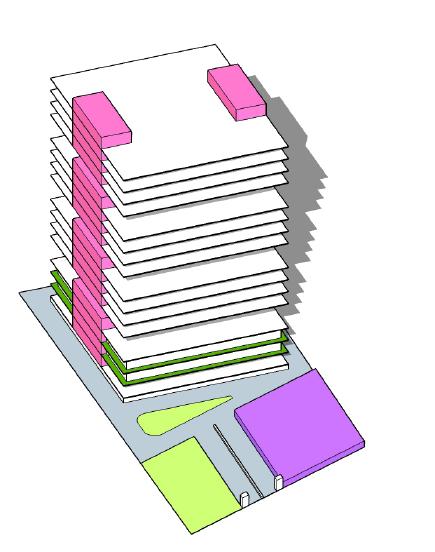

vertical staking

THE TOWER

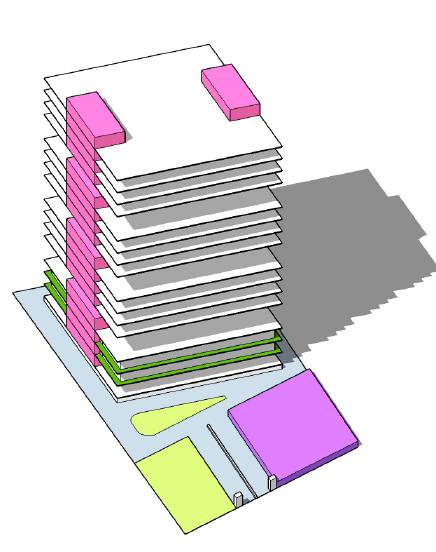

program distribution

THE TOWER

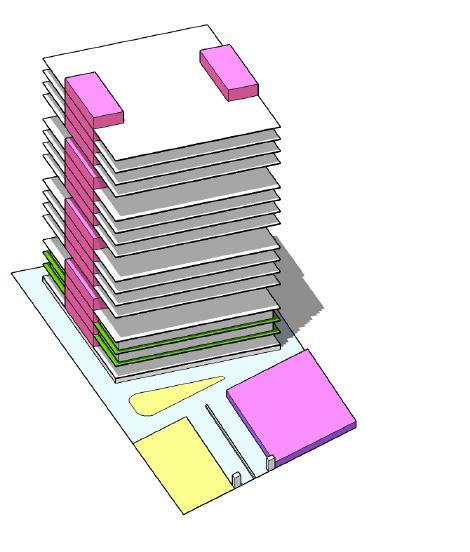

open space for each cluster

THE TOWER

maximize outdoor space

section 29

plantation orientation according to sun path and building facade orientation

typical floor plan

typical floor plan

60 M WIDE NATIONAL HIGHWAY

12 M WIDE SERVICE ROAD

ROAD

located above a commercial center, occupants of apartments are more permanent, and consequently more demanding. On the other hand, the economics of the development as a whole can assist in providing more affordable housing, by gearing of the finances of the commercial developments.

Mixed use reflects a physical and functional integration of its various components , which can be provided within a vertical mix of uses into a single mixed use building, the planned positioning of key plan components around a central public space or land use (for example, a shopping center), or through a town center/ urban village setting that interconnects uses through pedestrian friendly facilities.

ground floor plan 30

march time - 10:00

march time - 12:00

march time - 15:00

march time - 18:00

june time - 10:00

june time - 12:00

june time - 15:00

june time - 18:00

september time - 10:00

september time - 12:00

september time - 15:00

september time - 18:00

december time - 10:00

december time - 12:00

december time - 15:00

december time - 18:00

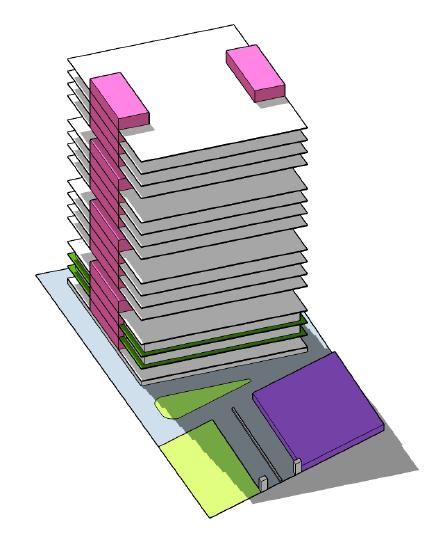

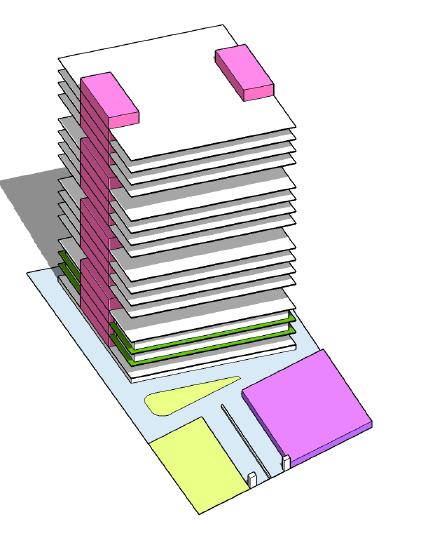

Sun path analysis The analysis is carried out of shadow pattern through out the year. The months considered for analysis are March, June, September and December. The pattern is studied with time intervals of three hours during day time.

The study concluded that the facade facing east receives sunlight till noon. Post noon the facade Facing south receives sun light till late evening. The facade facing west receive very less direct sun light. The facade facing north is mostly in shadows throughout the year. Facade treatment is required to reduce the direct sun light entrance and to minimize the heat gain by facade.

The design of facade with reference to light and shadow pattern is necessary to reduce the heat gain and reduce direct light in building.

The excessive heating of facades may lead to warm interiors which will need more power for cooling. The more power consumption for cooling and heating makes building less energy efficient and more expensive.

T​ he facades of a building visible from a street play an important role in contributing to

31

the amenity and attractiveness of an area.

Facades should therefore be designed to have a pleasing scale and appearance, proportion and rhythm, solid-to-void relationship and materiality. Care and attention should be given to their design to ensure the building stands up to critical observation from near and afar. It is essential that all building elevations are considered and designed as an integral part of the overall development.

The site is east west orientated with access road on east side. Being east west orientated the site is in sunlight all day. Less surrounded by building the site is not in shade. The prevailing wind direction is west - southwest may cause warm breeze to enter building if left untreated.

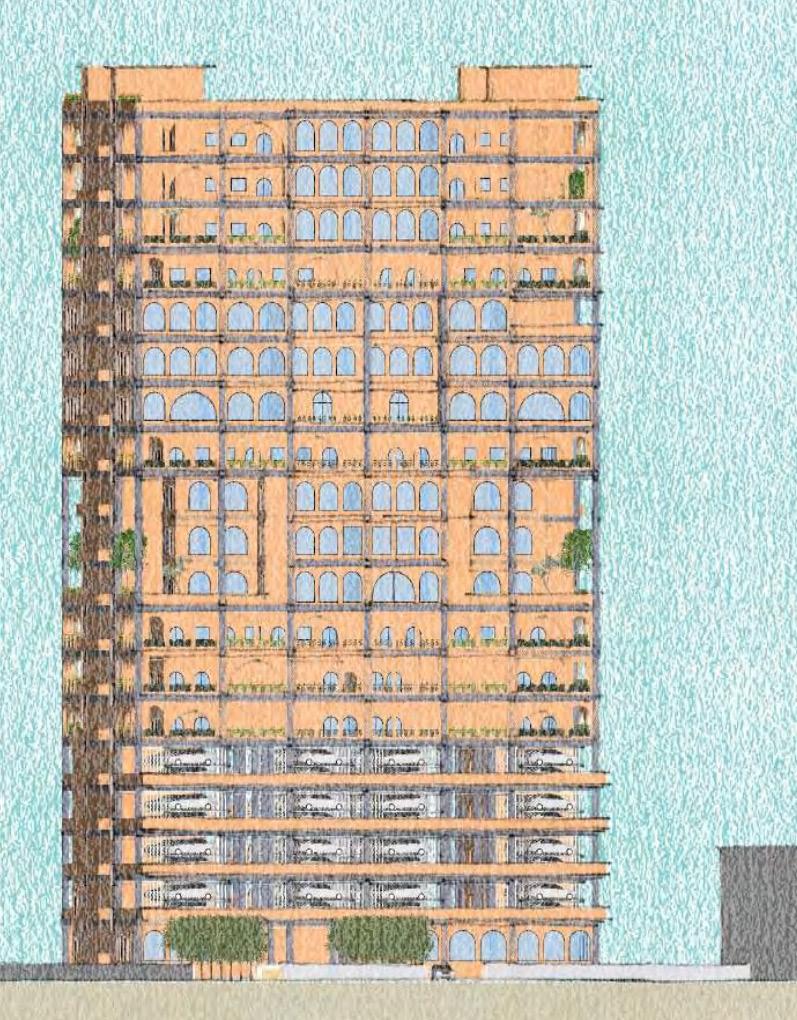

elevation

arch

fins

wood

brick

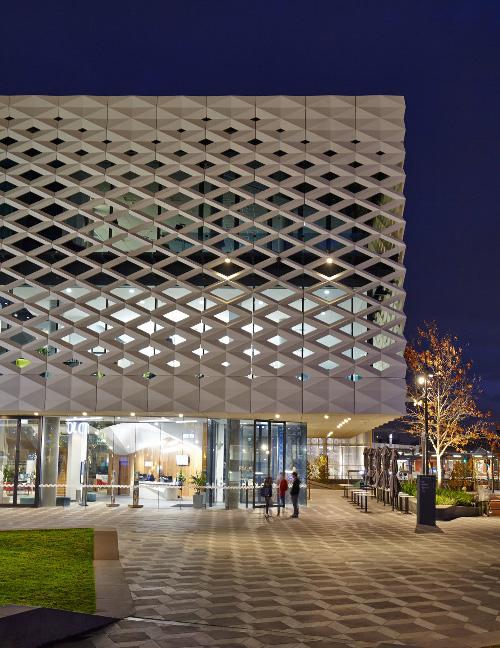

perforated

concrete

metal

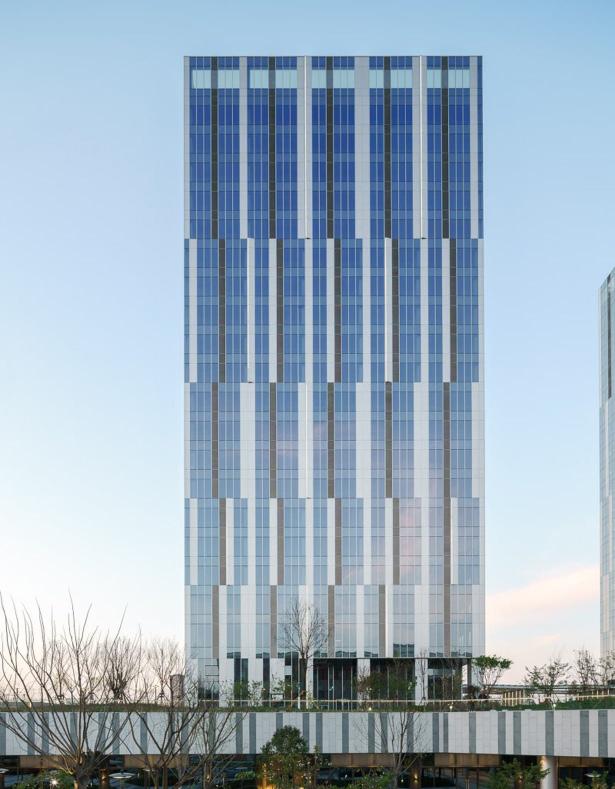

glass

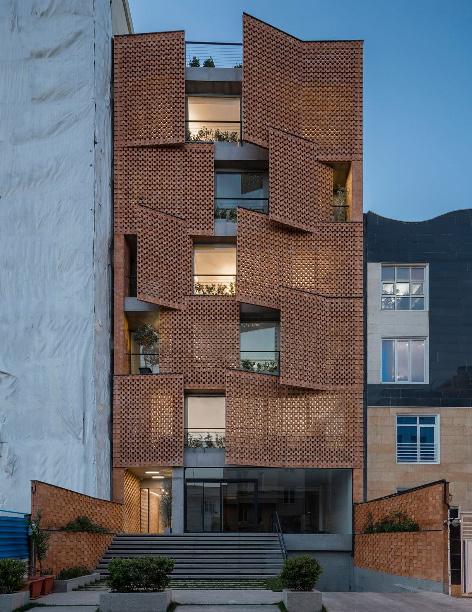

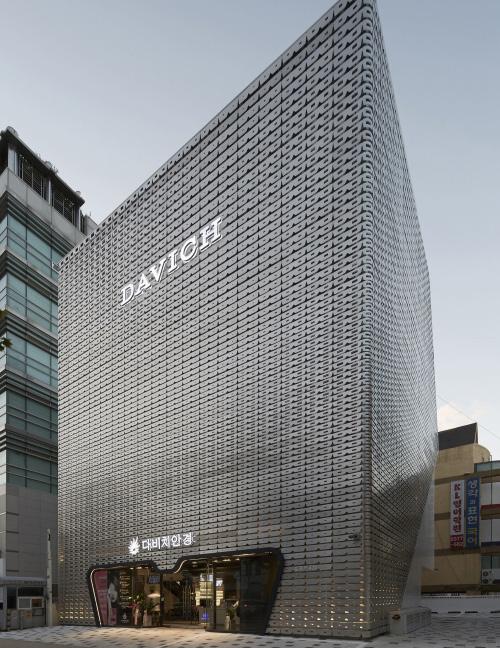

Consideration of building materials for facade that are climate responsive and economic is necessary. The Sustainability of materials is important for the building to live longer. This will ensure less harm to Environment and more human comfort during working hours.

Various facade materials were studied to choose the better option available. A combination of aesthetic and structural materials is need for facade to be aesthetically appealing and structural stability with protection from all year climatic conditions.

32

TITLE -

AAKRUTI

LOCATION

PUNE, INDIA

TYPE -

ACADEMIC

SEMESTER -

B ARCH

UNDER GUIDANCE -

PROF. SOURABH AGASHE

Since a long time, Wai is always seen under the shadow of Panchagani and Mahabaleshwar as these Hill stations are an all time favourite of the tourists.

Wai is famous and scenic tirtha kshetra or place of pilgrimage, place of historical importance and centre of knowledge in Satara district of south Maharashtra.

Wai is the first town along Krishna river after its origin at Mahabaleshwar. The river flows from west to east, and its northern bank shows dense urban growth, dotted with temples and ghats of rich visual character.

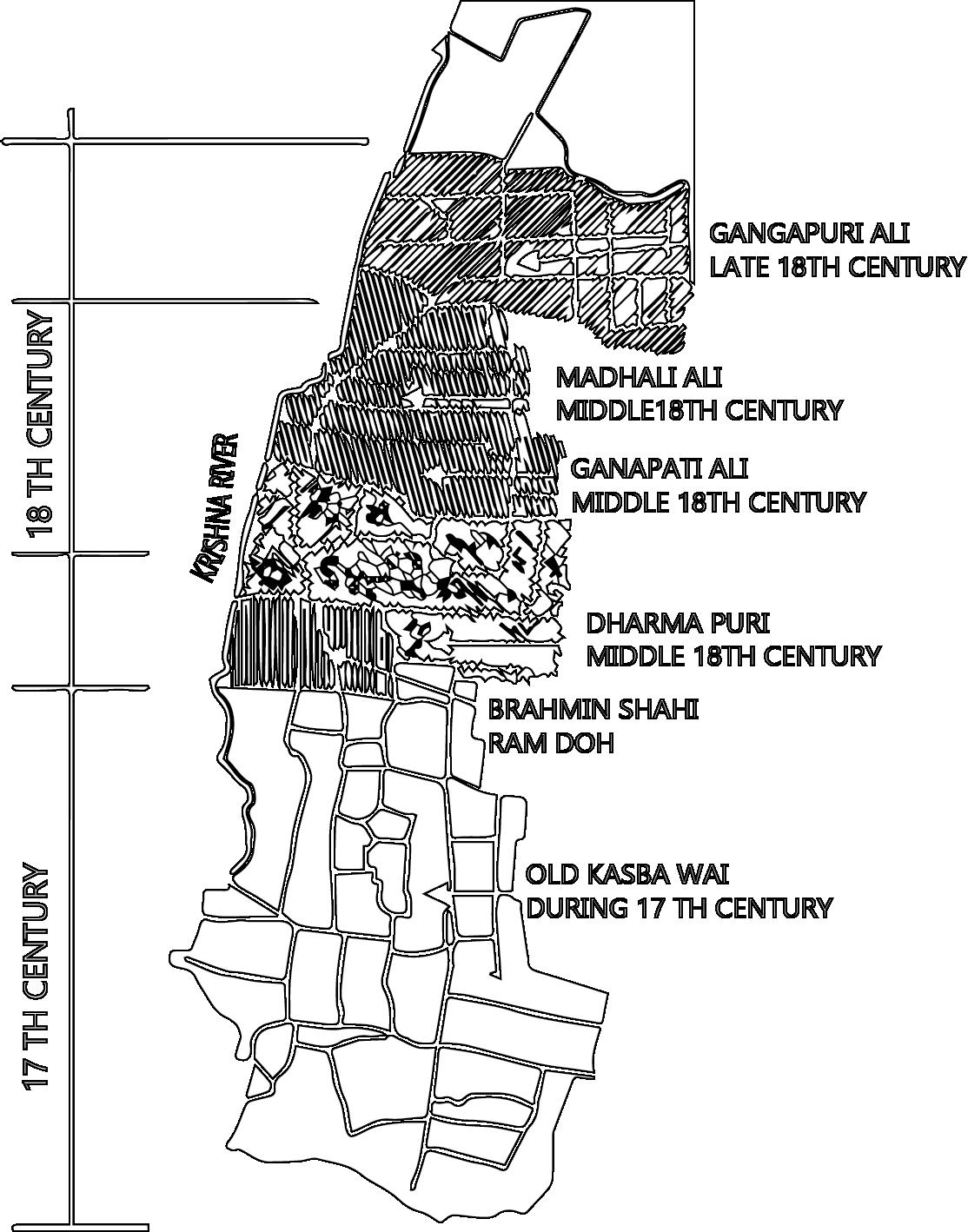

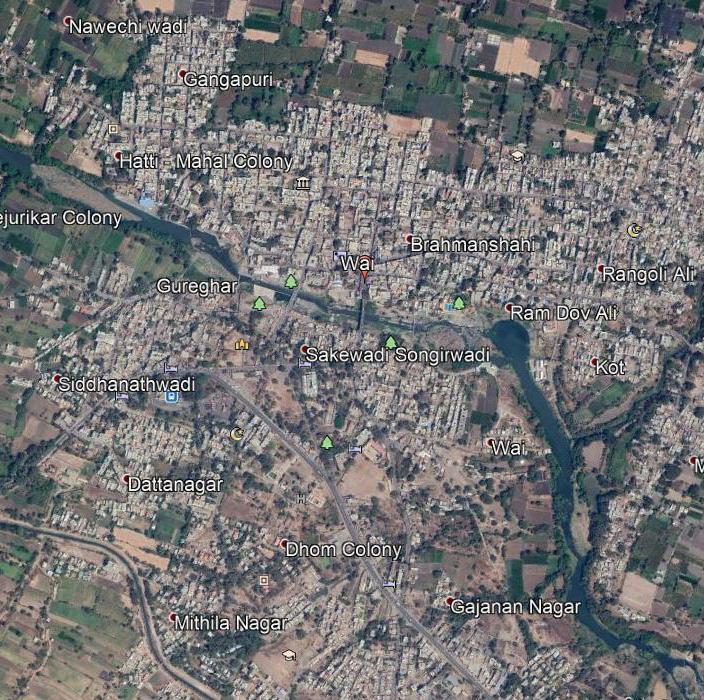

wai map

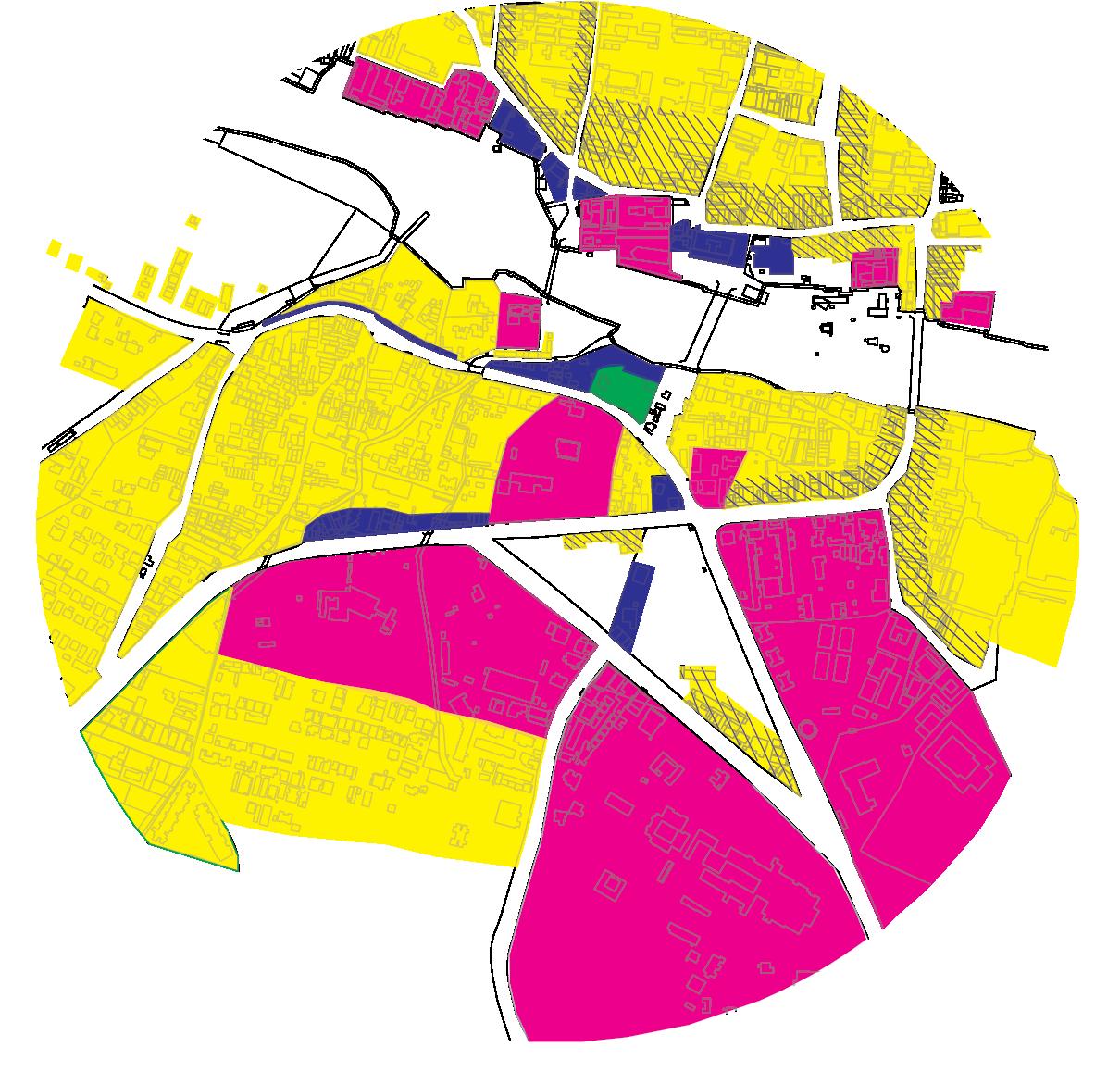

landuse

This town is an interesting example of culturally evolved landscape, where the resources and limitations put forth by nature , together with culture in the region has evolved a particular physical manifestation in the form of land – water interface, ghats temples, river associated agriculture based settlements, river regulation and it also is associated modern infrastructure unit dhom dam.

The town has a rich and a glorious past known for years as ‘ dakshin kashi’ among the vedic scholars.

In the recent times Wai has become a notable centre of culture on account of

existing map of wai

vegetation 33

landuse

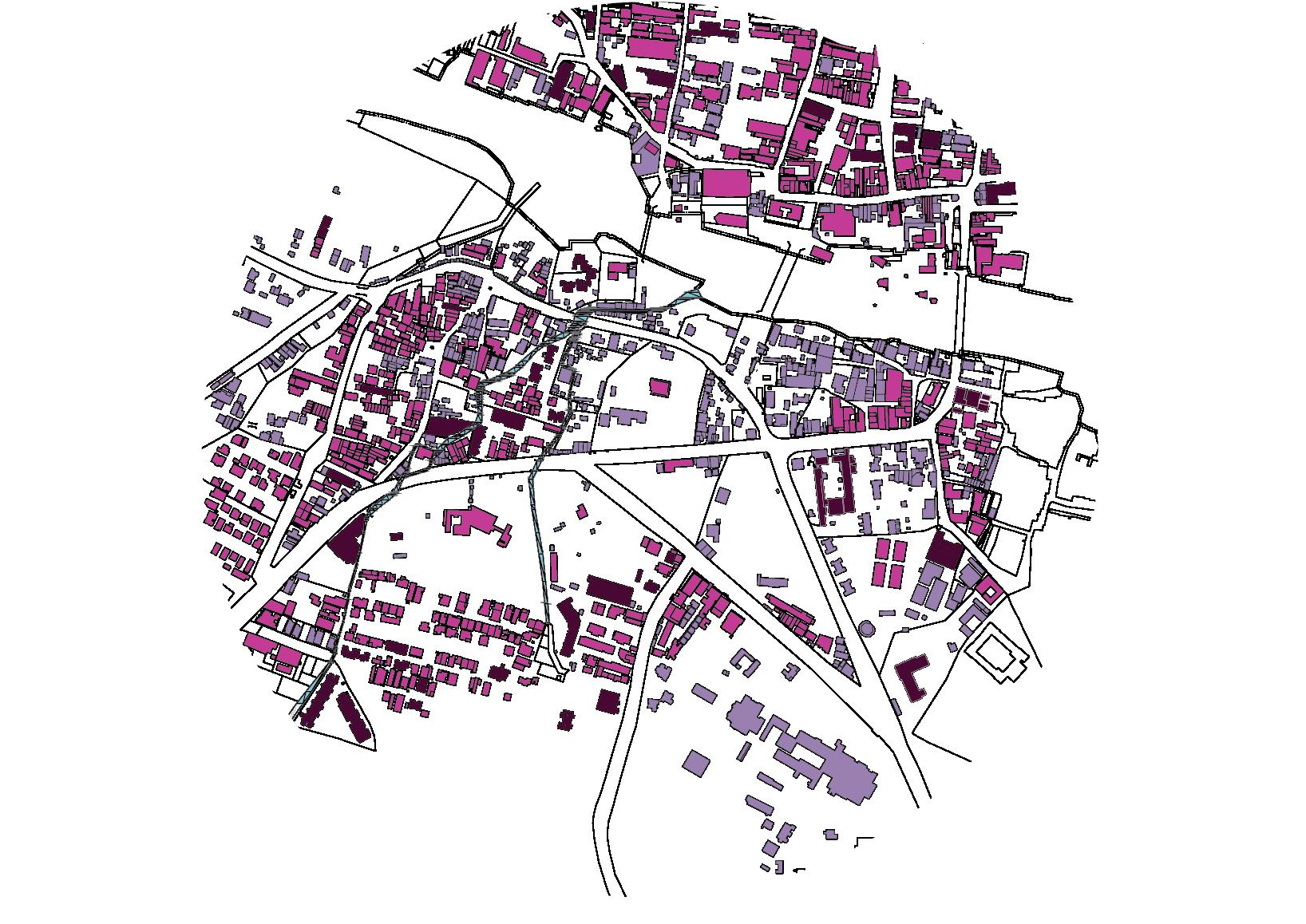

urban grain

the pradhnya pathshala, established by late swami kevalananda, and the vishvakosh (a center of research in indian culture and tradition), also founded by him.

existing network

Wai is also important center for sanskrit education in Maharashtra.Landuse More residential and mixed use spread in old Wai. Commercial frontages along the road towards Mahabaleshwar and opposite to bus station.

No open space proposed in new Wai. Segregation of official buildings in new Wai. Organic development in old Wai. Urban Grain Dense spread in old Wai across river Krishna.

Planned development in new Wai. Road Networks Hierarchy of roads is maintained.

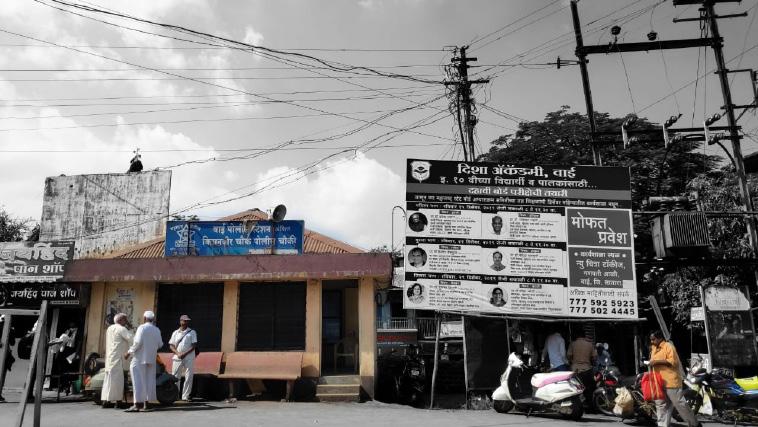

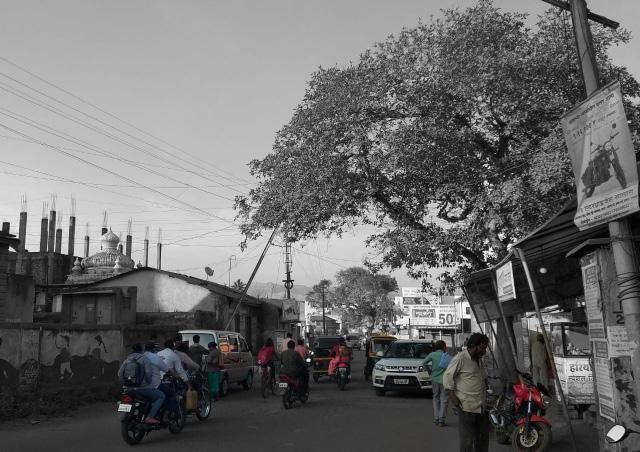

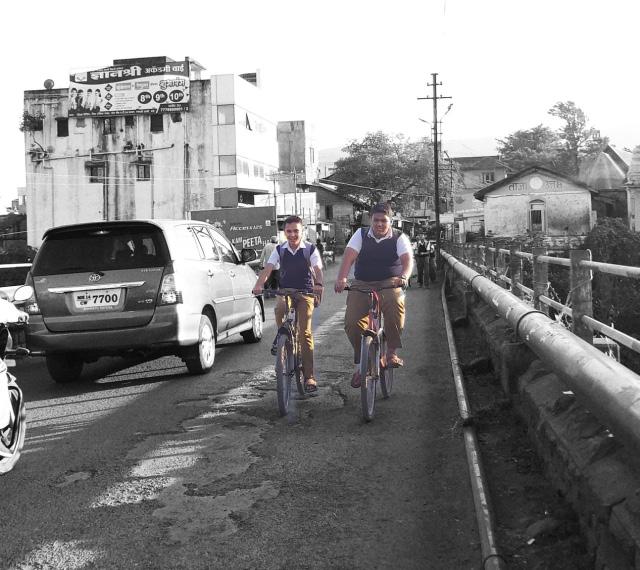

Footpaths are not maintained along the road.

No provision of roadside parking leading to congestion in peak hours.

No segregation of pedestrian zones.

Shops encroaching on road reduces effective road width.

time speed analysis

Average time speed on existing network Effective road width and type of road determine the speed of vehicle.

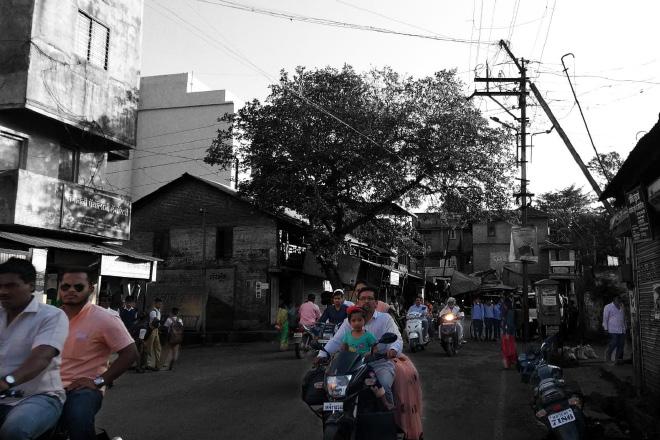

Congestion seen in old Wai due to road width and speed limit.

34

activity mappind around town

Building heights of existing buildings Most buildings in old Wai have 2 storey building.

Newly built buildings in new Wai have heights more than 2 storey.

Many 2 storey buildings are mixed use buildings.

Important buildings of Wai Bus Station Mission Hospital St Thomas high school Church Damodar Ashram Sub Divisional office Zilla Parishad and Post office Police Lines Panchyat Samiti Dravid high school

building heights

major landmarks 35

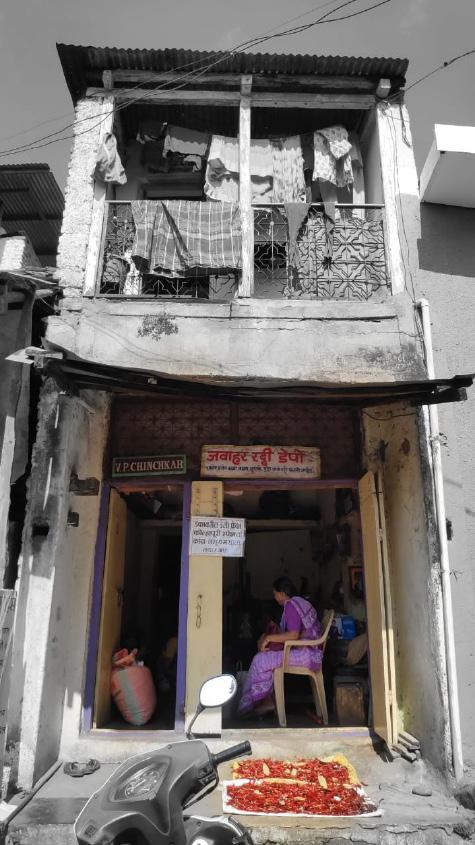

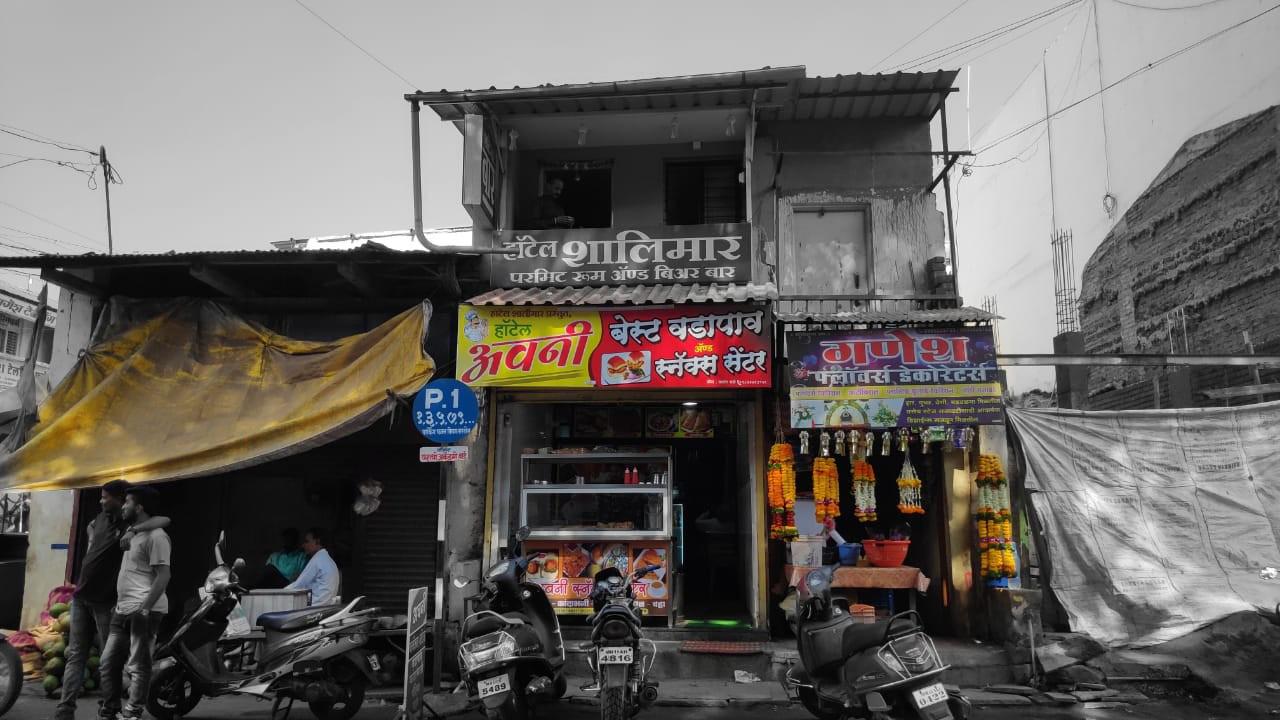

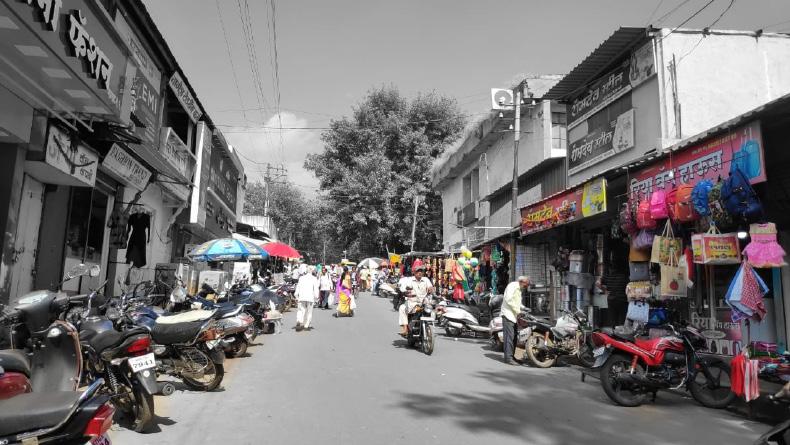

roadside and shop frontages usage

Active Frontages Many buildings in new Wai have active frontages located along main road.

River front not active due to no development for people to connect to river.

River front used only during festivals like Ganapati procession, Krishna mai festival.

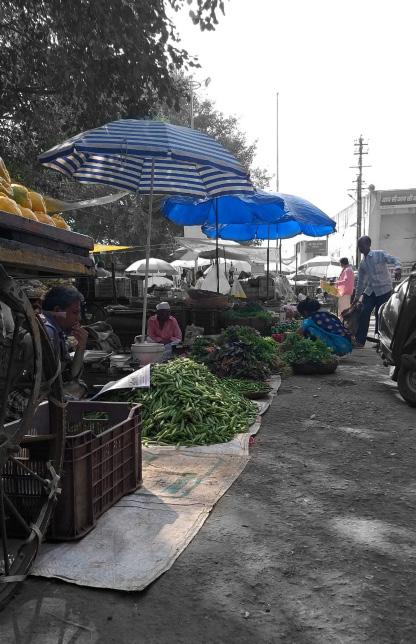

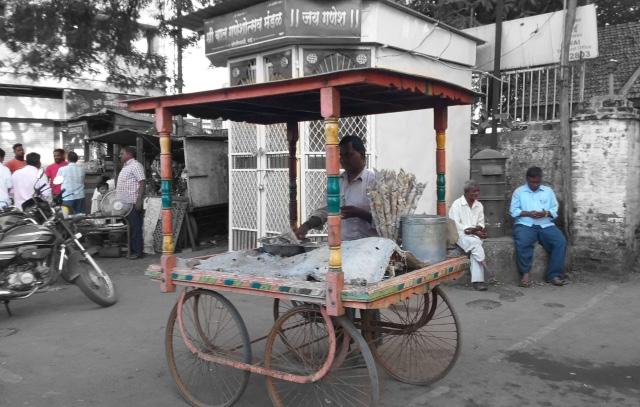

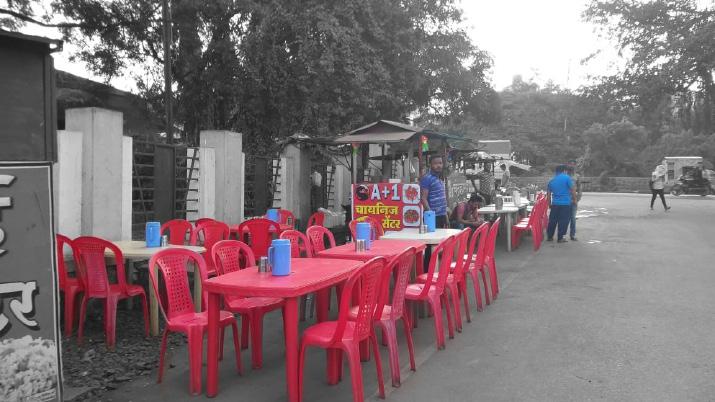

Activity Mapping In morning people waiting for public transport, student going to school is observed.

Food stalls open in evening.

Congestion during peak hours due to mixed activity Slum encroached on river banks.

active frontages

activity mapping 36

TITLE -

ART AND CRAFT

LOCATION

BHUJ, INDIA

TYPE -

ACADEMIC

SEMESTER -

B ARCH

UNDER GUIDANCE -

PROF. DANASHREE S.

conceptual sketch

In the early hours of January 26, 2001, an earthquake that lasted for but a few seconds in the state of Gujarat wiped out 13,805 lives and with that destroyed property and infrastructure worth billions. A culture of resilience has now been imbibed in the land that traces its roots to the Harappan Civilization anchored in the Dhola Vira excavations from 4500 years ago.

The idea was to bring people back together through informal exchanges and encounters.

The building was set in the extensive program where not only would studies in Kutch culture be undertaken, but it would also serve as a multi purpose nucleus for interaction between the crafts person and designers, development of craft techniques and use of materials, business and documentation support, training and enhancement of skill, archiving, data banks and traditional knowledge systems and sales and marketing.

The Art and Craft Centre is a joint exploration of architectural capacities to reawaken the local crafts and impart a meaning to tradition, far beyond its origin, in the wake of the devastation, wreaked by an earthquake in the year 2001.

demolition caused by earthquake

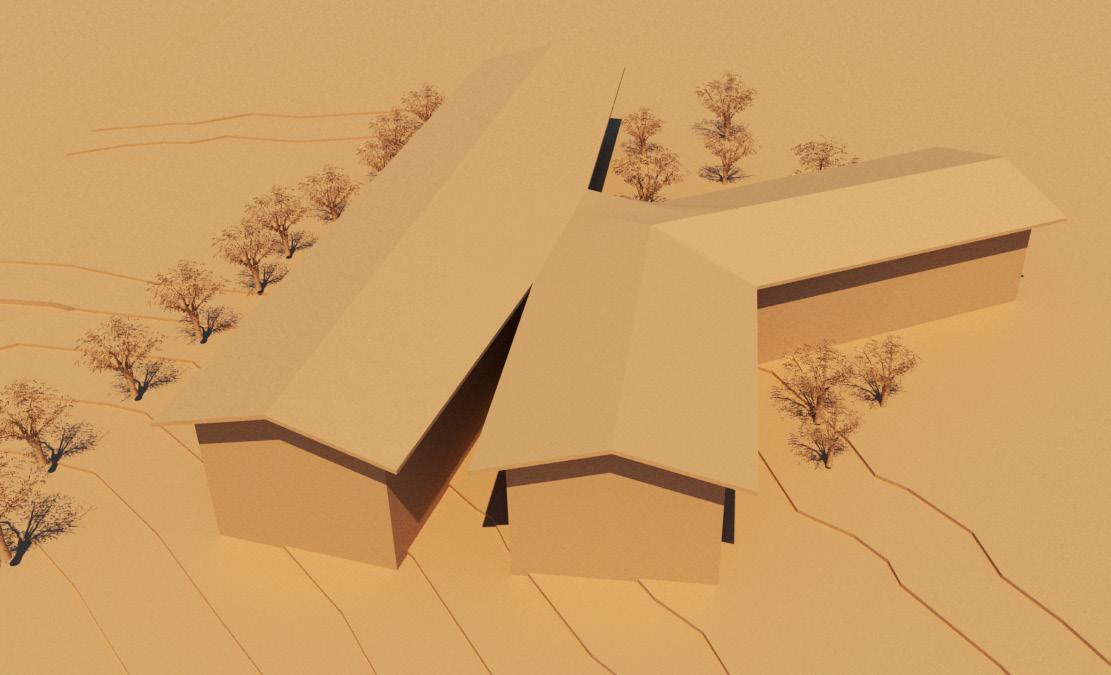

perspective view 37

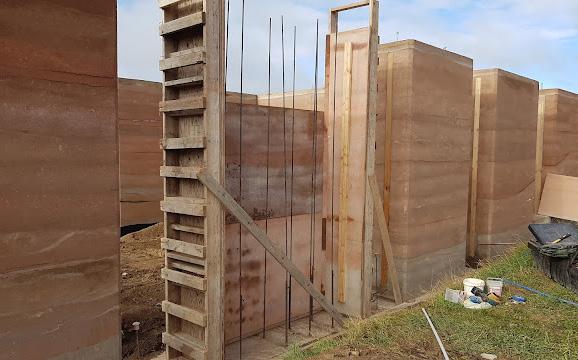

rammed earth construction

rammed earth walls

Users: The artisans and crafts person who practice their crafts.

Designers with similar interests of handicrafts.

National and international organizations for collaborating with the locals.

Visitors for learning from the artisans and exploring the setting.

6

7

1

2

As a seemingly simple plan, the design facilitates a rather complex sequence of movement, revealing only parts of the campuses one walks through, encountering plausible points for informal exchanges in between- sometimes under the shade of a tree, sometimes amidst a cluster of buildings- in many ways tapping into a familiar way of living, congregating and working.

8

4

3

5

N

ground floor plan 0

1

2

3

4

5

10

As Earth tapers towards east so floors are divided in two parts. Lower Ground Floor accommodates Craft school and Upper Ground Floor accommodates Craft Museum.

Rammed Earth Rammed earth’s compressive strength and cohesive nature naturally resist cracks and fractures. The interlocking particles within the rammed earth mixture provide inherent stability.

Rammed earth’s eco friendly nature, thermal efficiency, and unique aesthetic appeal make it a compelling choice for those seeking a more harmonious and sustainable living environment.

1

4

Rammed Earth with reinforcement Hybrid structures have potential which means amalgamation of different techniques such as use of tensile as form work and fly-ash mixed with earth to be rammed to provide stabilization.

2

ENTRY

3

N

lower ground floor plan

38

9M WIDE ROAD

0

1

2

3

4

5

10

TITLE -

TWIN ARCH

LOCATION

BUFFALO, NEW YORK

TYPE -

ACADEMIC

SEMESTER -

M ARCH FALL 2023

UNDER GUIDANCE -

PROF. RANDY FERNANDO

ARCH/VAULT

The precedent assigned for this assignment was beam/column structure at Oriente Station, Lisbon (1998) designed by Santiago WEEK 08: FORMWORK DIAGRAM & Calatrava.

The structure supoorting the EXPLODED AXONOMETRIC station at lower level is reinforced concrete.

The GROUP originalNUMBER: arch was 2modified by pinching in Member 01: through center,Sean for Brunstein better structure, it was Member 02: Lindsey Bruso an overall height strecthed vertically to achieve Member 03: Allison Gomez of 8 ft. Radial repitition of one leg was inclined Member 04: to Ehler Htoo at equal angles form three way arch vault.

Member 05: Omar Ibrahim 06: Samantha The Member construction of the Mambrino twin arch followed Member 07: Brandon Rosas making of formwork of form. The formwork Member 08: Ray Terry was modeled in rhino and with help of Member 09: Staci Tubiolo water jet, the form work was cut into Member 10: Tanmayee Yadav percise pieces. The form work was lined with beeswax to make the removal of formwork after contrete casting easier.

The casting of twin arch was carried out in three stages to ensure uniform cast. This resulted in achieving percision in placing of the formwork and casting around rebars.

base formwork

middle formwork

1.ARCH/VAULT FOOT FORMWORK

top formwork

2. BODY FORMWORK

3. TOP FORMWORK

5.

WEEK 08: KARAMBA ANALYSIS GROUP NUMBER: 2 Member 01: Lindsey Bruso Member 02: Sean Brunstein Member 03: Allison Gomez Member 04: Ehler Htoo Member 05: Omar Ibrahim Member 06: Sam Mambrino Member 07: Brandon Rosas Member 08: Ray Terry Member 09: Staci Tubiolo Member 10: Tanmayee Yadav

The karamba analysis helped in ARCH/VAULT understanding of distribution of stress WEEKreflected 08: FORMWORK DIAGRAM & and strain. The analysis altering EXPLODED AXONOMETRIC design of one leg for better stability.

WORK RMWORK

GROUP NUMBER: 2 Member 01: Sean Brunstein Member 02: Lindsey Bruso Member 03: Allison Gomez Member 04: Ehler Htoo Member 05: Omar Ibrahim Member 06: Samantha Mambrino Member 07: Brandon Rosas Member 08: Ray Terry Member 09: Staci Tubiolo Member 10: Tanmayee Yadav

3. TOP 3. TOP FORMWORK FORMWORK

rebars

5. REBAR 5. REBAR CAGE CAGE

1. FOOT FORMWORK

2. BODY FORMWORK

6. FINAL 6. FINAL FORMWORK FORMWORK

complete formwork 3. TOP FORMWORK

5. REBAR CAGE

EXPLODED

FINAL CASTED MODEL

PAGE 21

PAGE 21

PAGE 19 FINAL CASTED MODEL three way vault proposed

6. FINAL FORMWORK

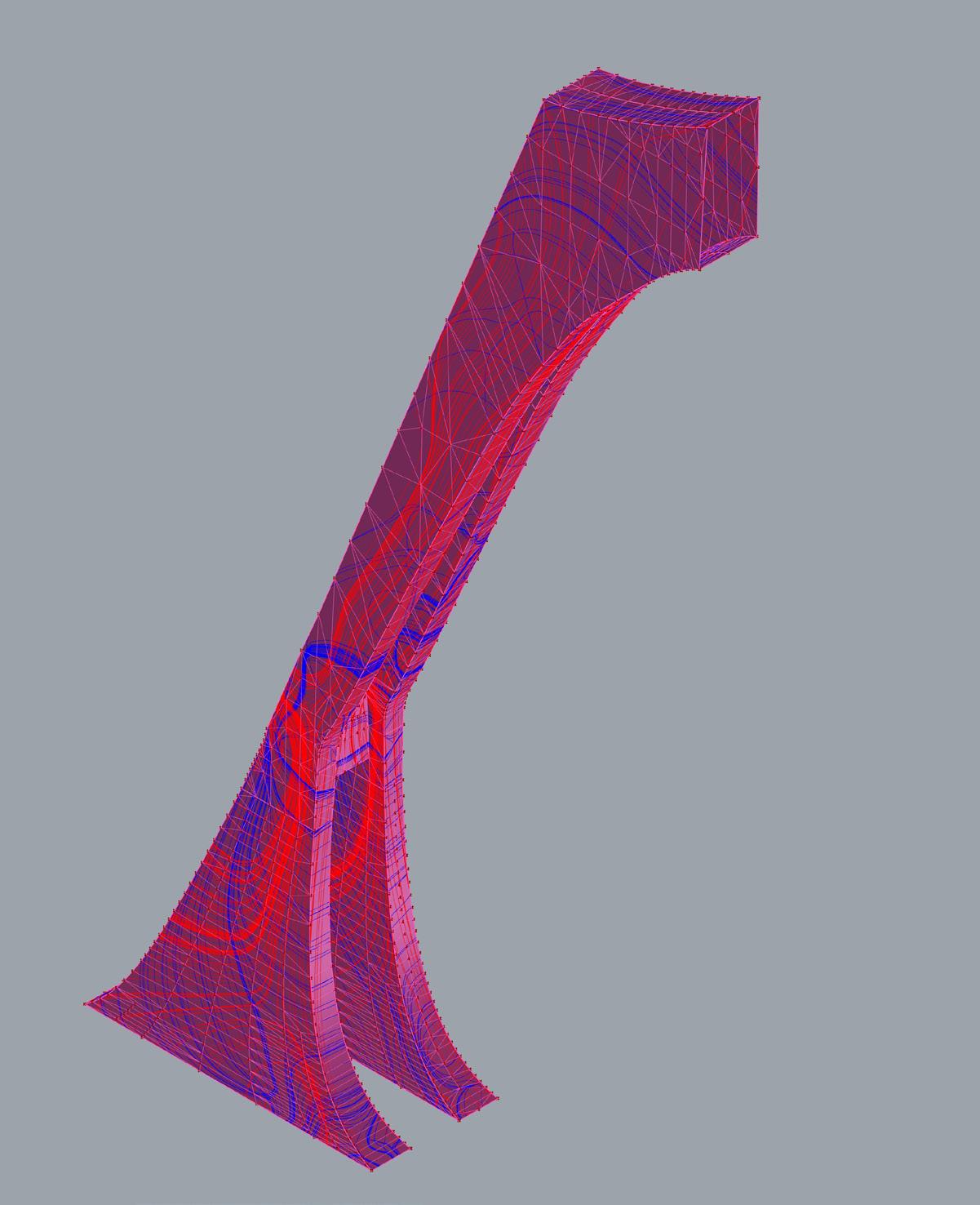

EXPLODED AXONOMETRIC MODEL karamba analysis of one stem

39

ULT

L OF PRECEDENT

unstein Bruso omez oo ahim ha Mambrino Rosas y biolo e Yadav

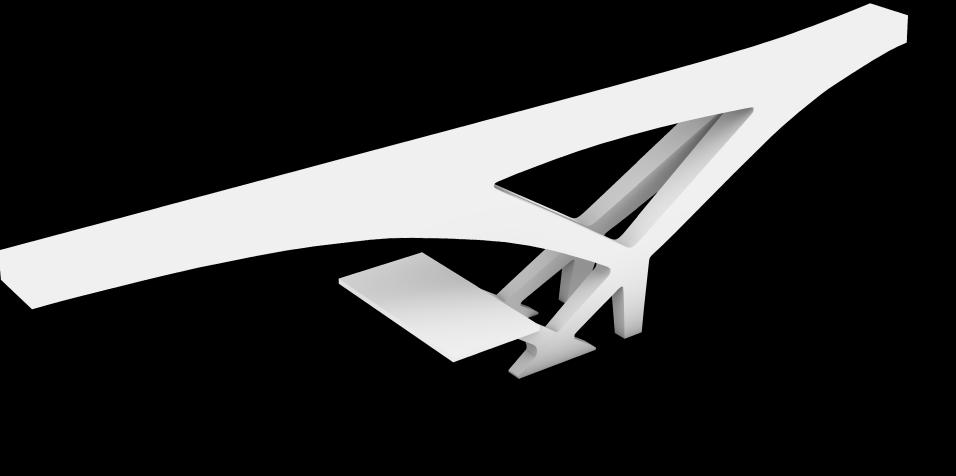

PERSPECTIVE OF ARCH

ELEVATION

BEAM/COLUMN @ ORIENTE STATION (LOWER LEVEL)

CLOSE UP RELIEFS IN CONCRETE

precedent arch ARCHITECT: SANTIAGO CALATRAVA COMPLETED: 1998 MATERIAL: REINFORCED CONCRETE

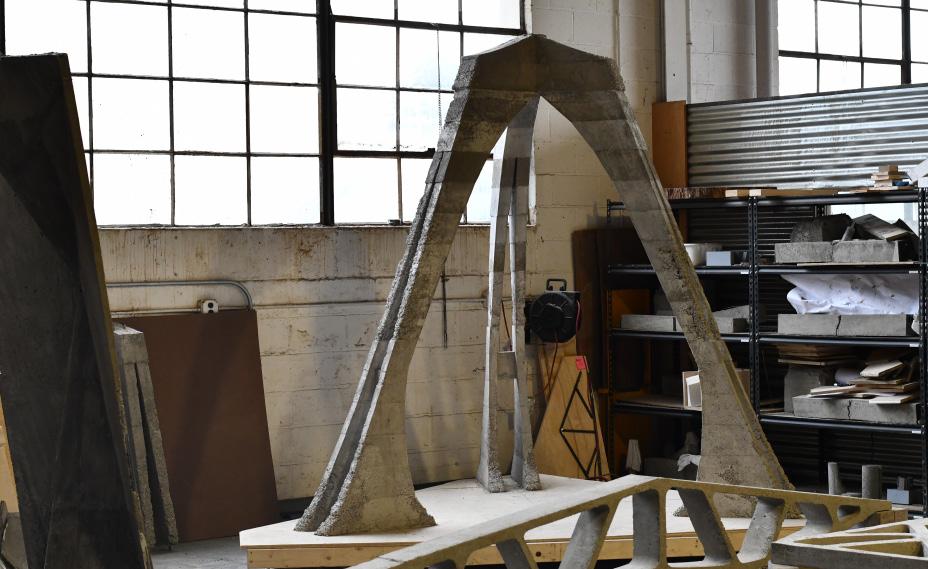

final structure after casting

aligning of rebars before casting

placing of formwork with rebars

I was assigned the role to perform karamba analysis on the iterations we made. The comparison between different iterations helped us model a stable section of arch. The load distribution visuals were extracted from Rhino + Karamba.

Group Number: 02

formwork removal

Lindsey Bruso Sean Brunstein Allison Gomez Ehler Htoo Omar Ibrahim Sam Mambrino Brandon Rosas Ray Terry Staci Tubiolo Tanmayee Yadav 40

TITLE -

BAMBOO WORKSHOP

LOCATION

BALI, INDONESIA

TYPE -

ACADEMIC

SEMESTER -

B ARCH

UNDER GUIDANCE -

PROF. MAHESH BANGAD

Asali Bali Studio is a creative and innovative design hub located in the heart of Bali, specializing in sustainable architecture and craftsmanship. The studio embraces the natural beauty of Bali and focuses on using eco friendly, renewable materials such as bamboo to create unique and environmentally conscious design solutions.

Asali Bali Studio blends traditional craftsmanship with modern techniques, producing functional yet artistic structures and products that highlight the inherent beauty and strength of natural materials.

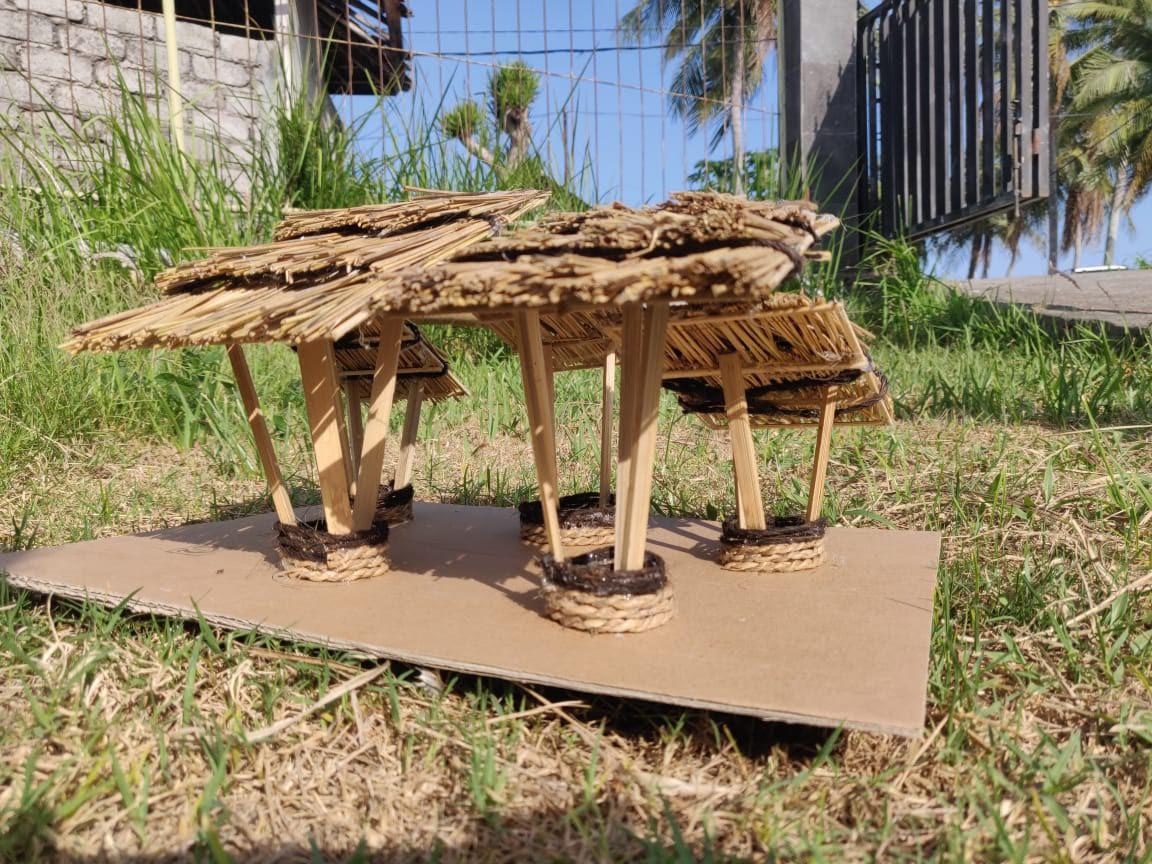

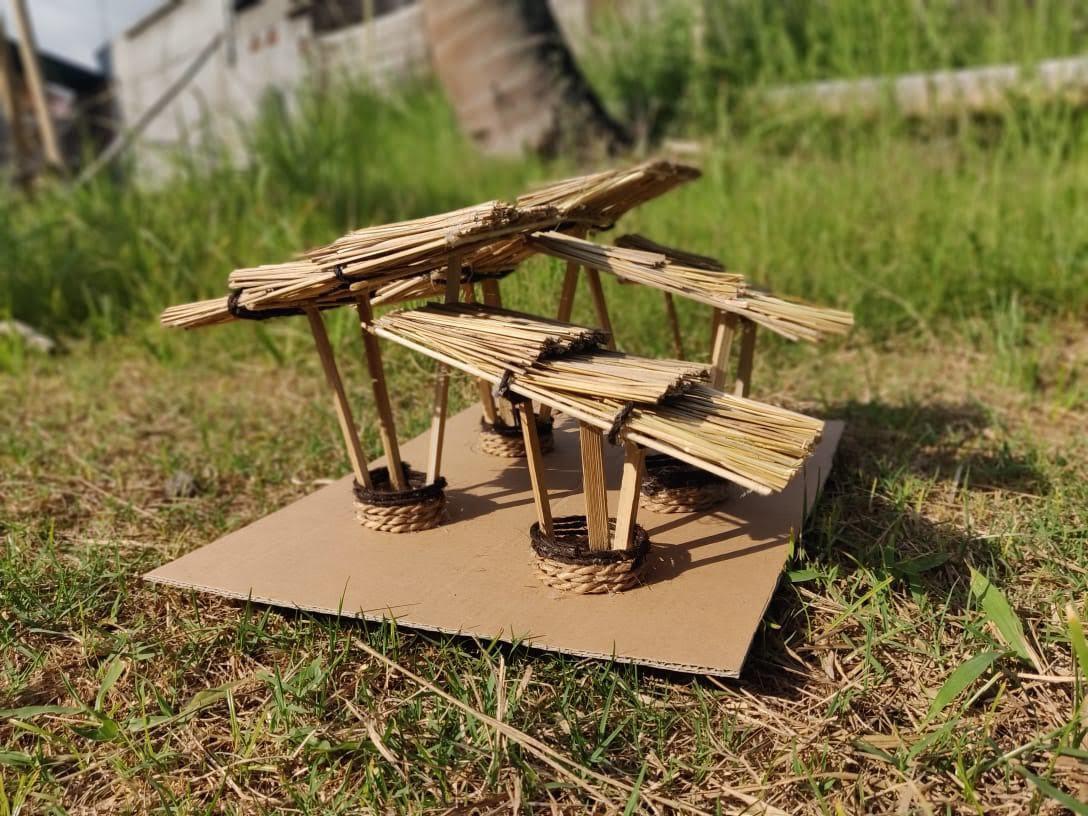

pavillion

pavillion

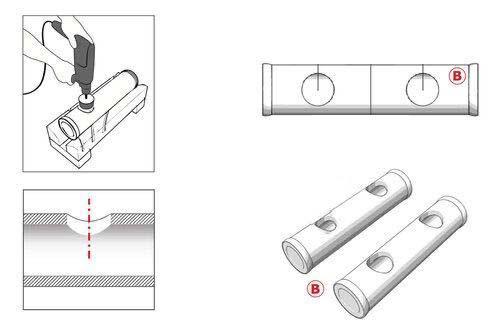

base

support legs

The studio serves as a collaborative space, welcoming designers, architects, and artisans to explore sustainable practices in architecture and design. Offering workshops and events, the studio aims to educate and inspire individuals to create sustainable, impact projects that promote environmental consciousness.

From conceptual designs to detailed construction, Asali Bali Studio offers expertise in every aspect of the design and building process.

In addition to design, the studio is dedicated to fostering a creative community where innovation and collaboration are at the fore front.

With a strong commitment to sustainability and a deep respect for the environment, Asali Bali Studio continues to push the boundaries of what is possible in sustainable architecture, offering a platform for those passionate about making a positive impact through design.

joinery details 41

pavillion

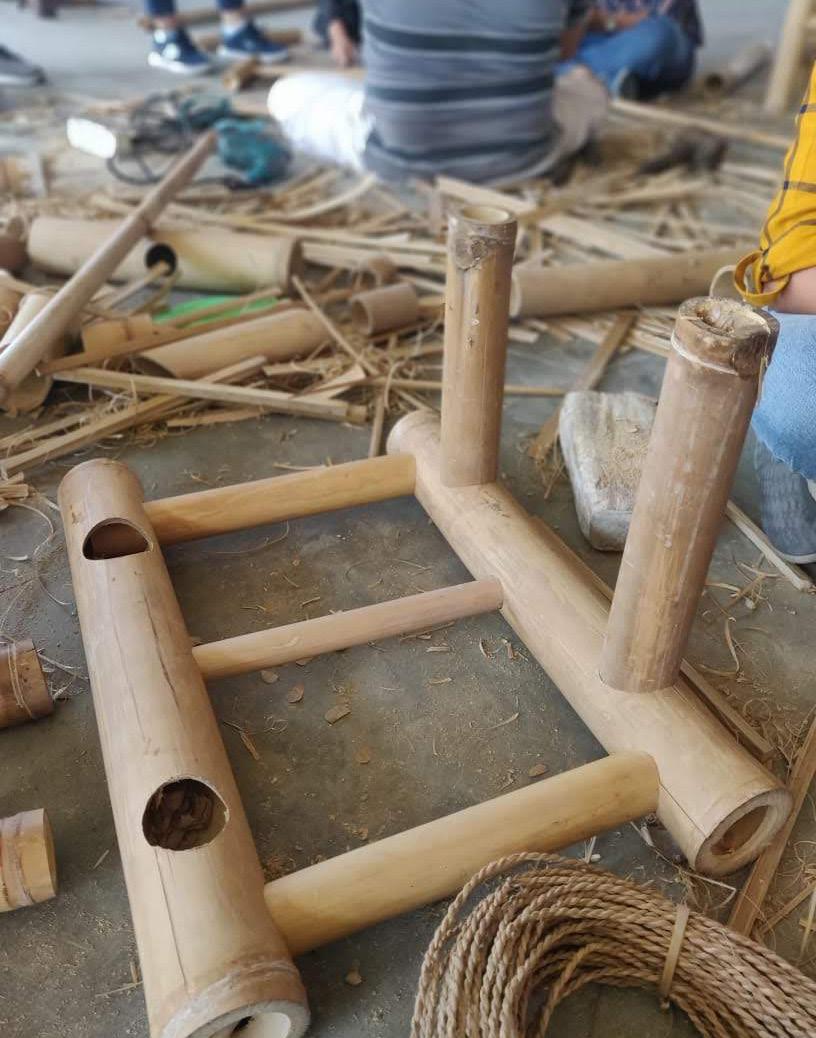

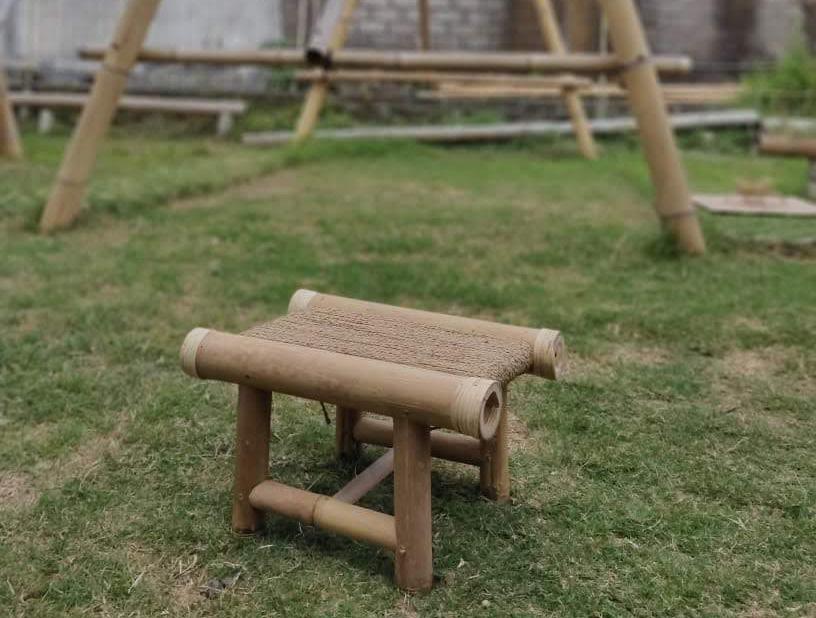

stool

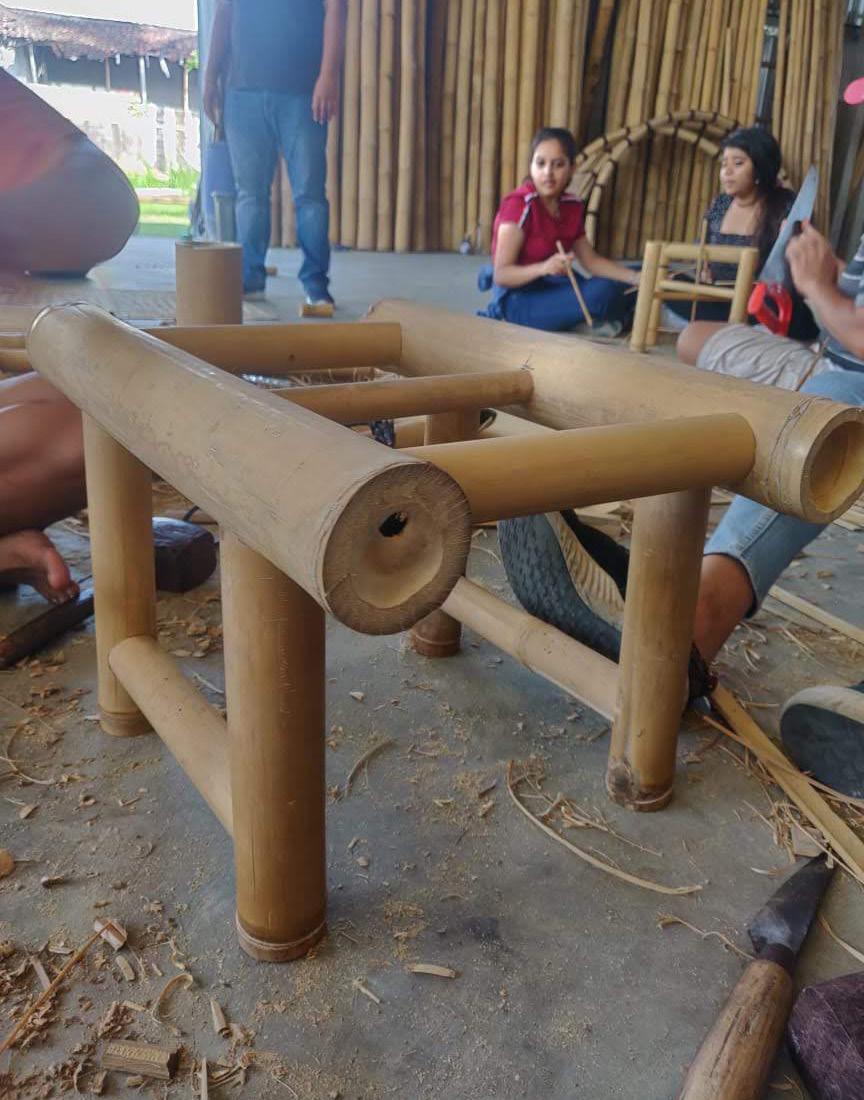

frame for stool

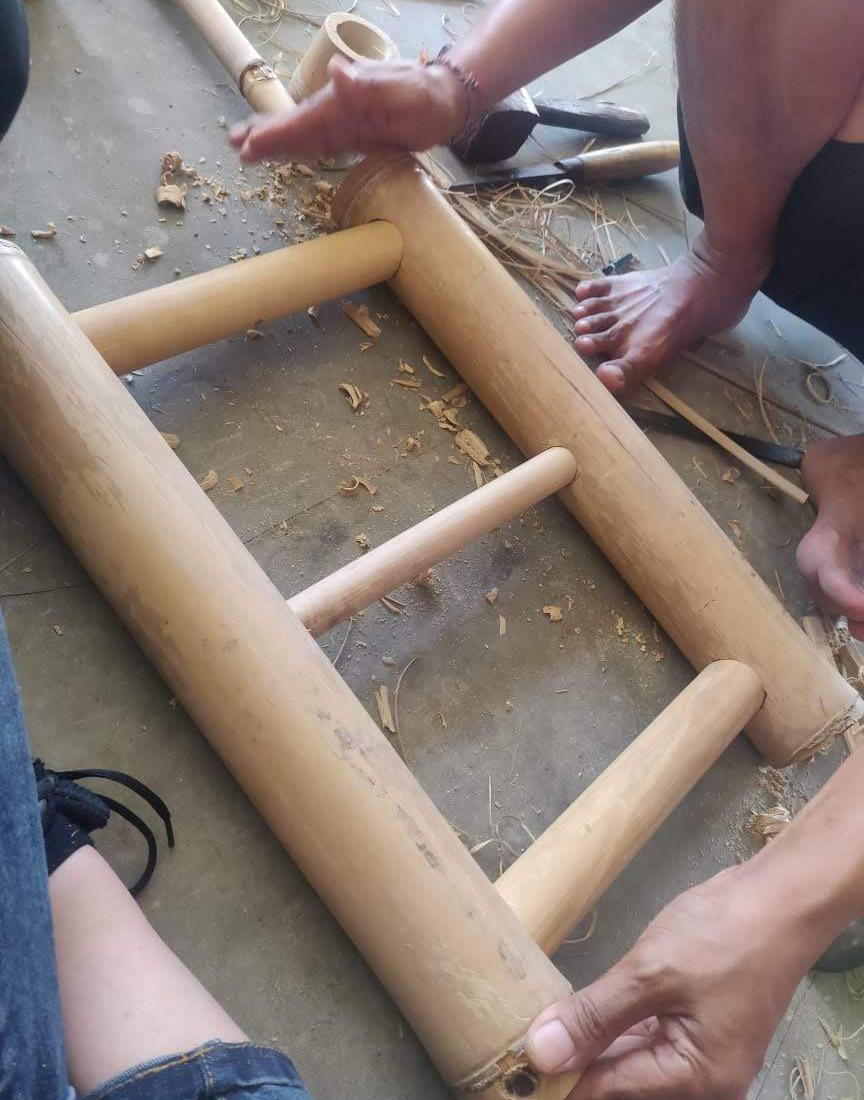

final touches

finished stool 42

TANMAYEE YADAV tanmayeeashokyadhav@gmail.com +1 716 306 8934
