Interior portfolio

Page 1


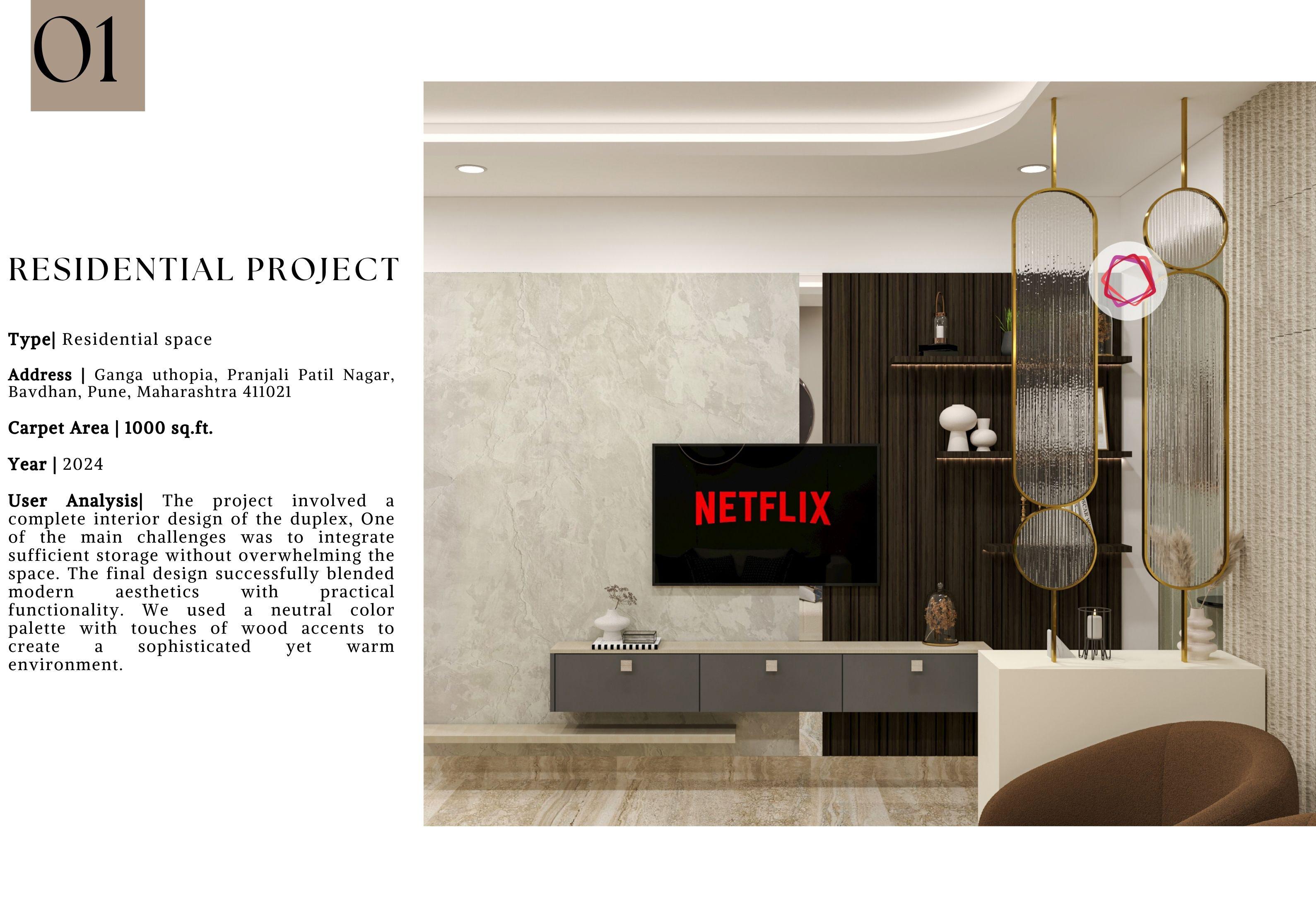

2190X1270 PASSAGE 01 1670X1210

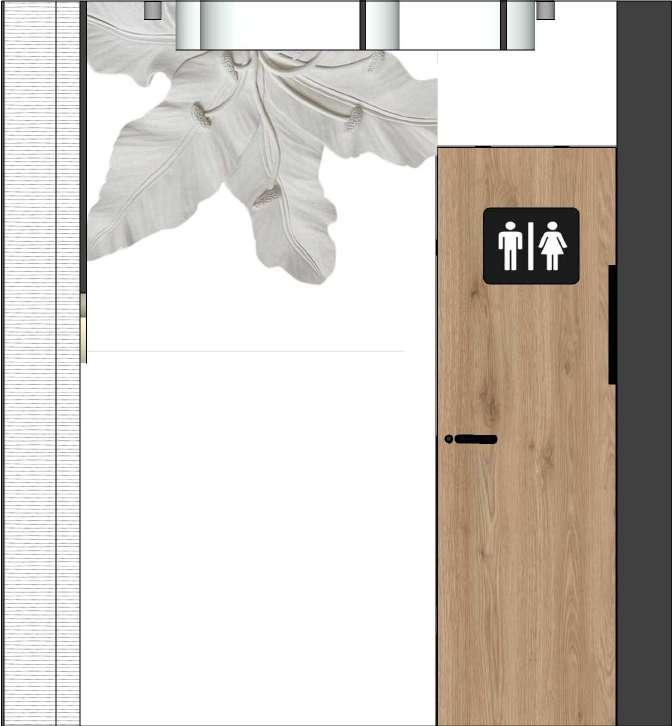

TOILET 1290X1340

BEDROOM 02 3290X3230

4430X2450

BEDROOM 01 3310X3230 STAIRECASE PASSAGE AREA 3350X2920 LIVING ROOM 4010X5410

BALCONY 1770X3250 FOYER AREA 1230X1360

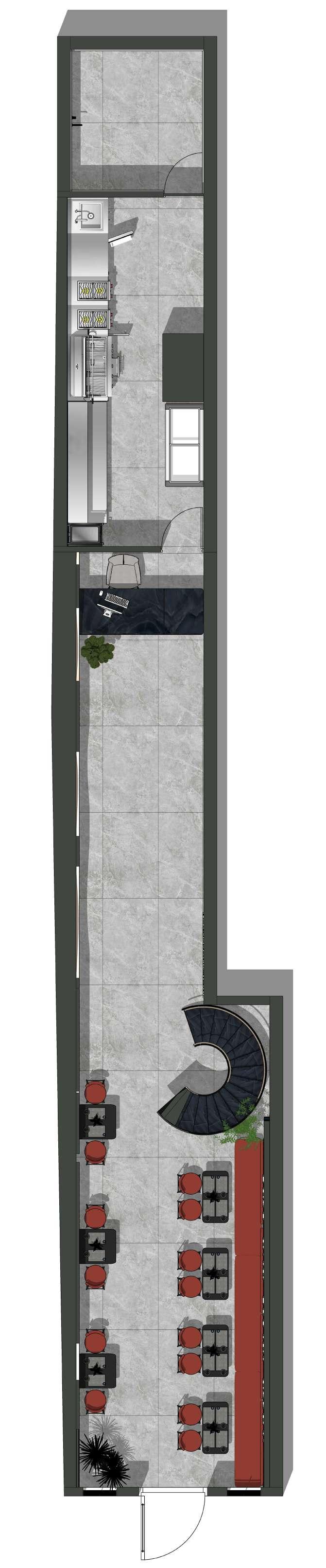

GROUND FLOOR PLAN

2170X1280 BALCONY 1820X3240

STAIRECASE PASSAGE AREA 3960X2970

2380X2240

BEDROOM 03 5440X3840 WALKING AREA 2310X1380

FIRST FLOOR PLAN

Grade Plywood_With Ply Framing _ Merino or Equivalent Laminate or equivalent

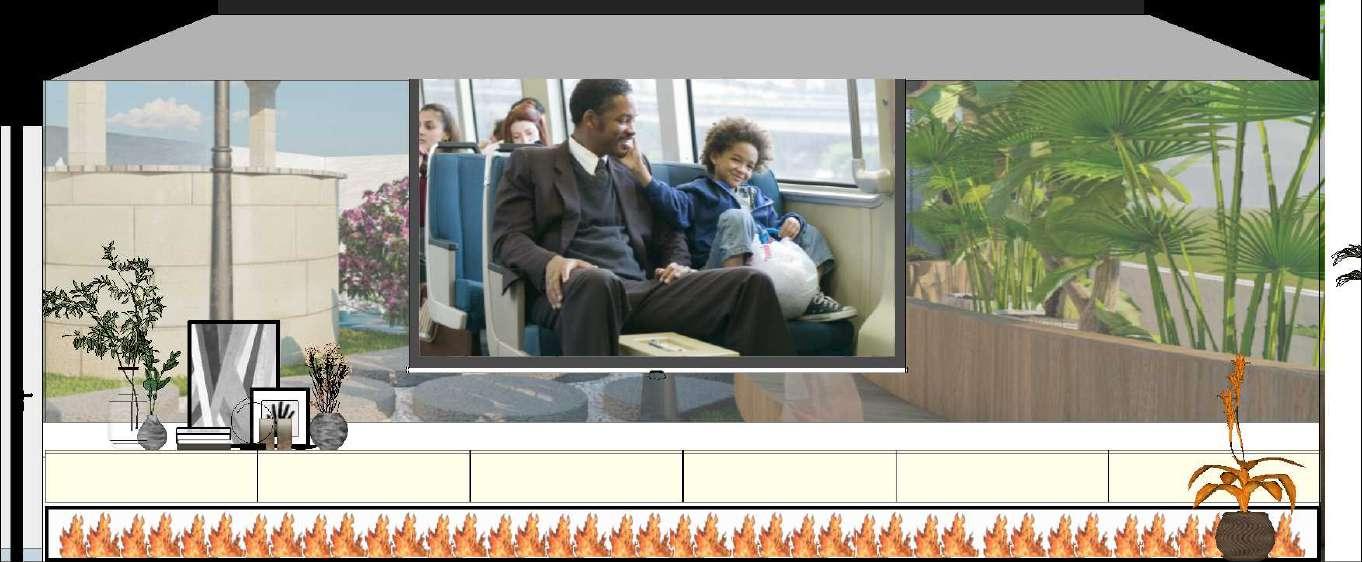

Diamond cut bevelled Mirror Ele-04-Size-2170mmx136mm in between tv unit-8

Panelling_Mirror_12mm Ply backing with 12 mmbevelling -Diamond cut mirror

Only Installation of Strip light cove /panneling

Ledge

Size-1-1000mmx200mm

Size-2-800mmx200mm

Size-3-600mmx200mm Ledge 36mm thick_Laminate Finish_MR Grade Plywood ,External Laminate 2000/sheet

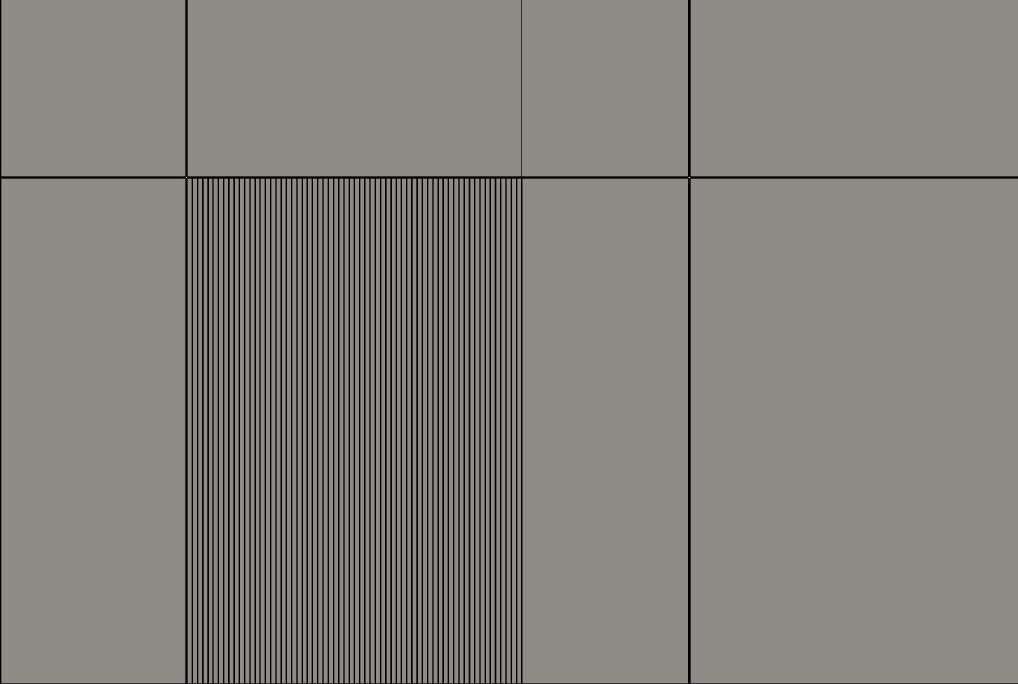

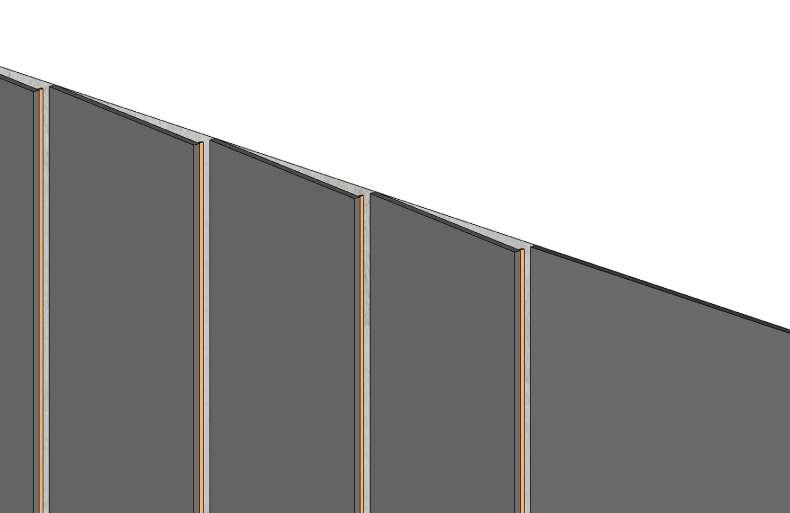

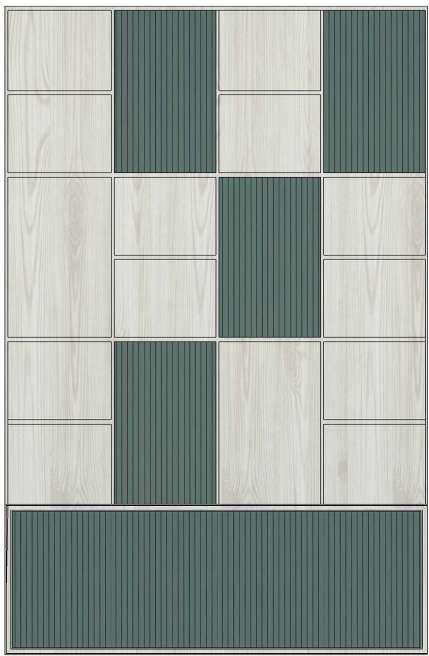

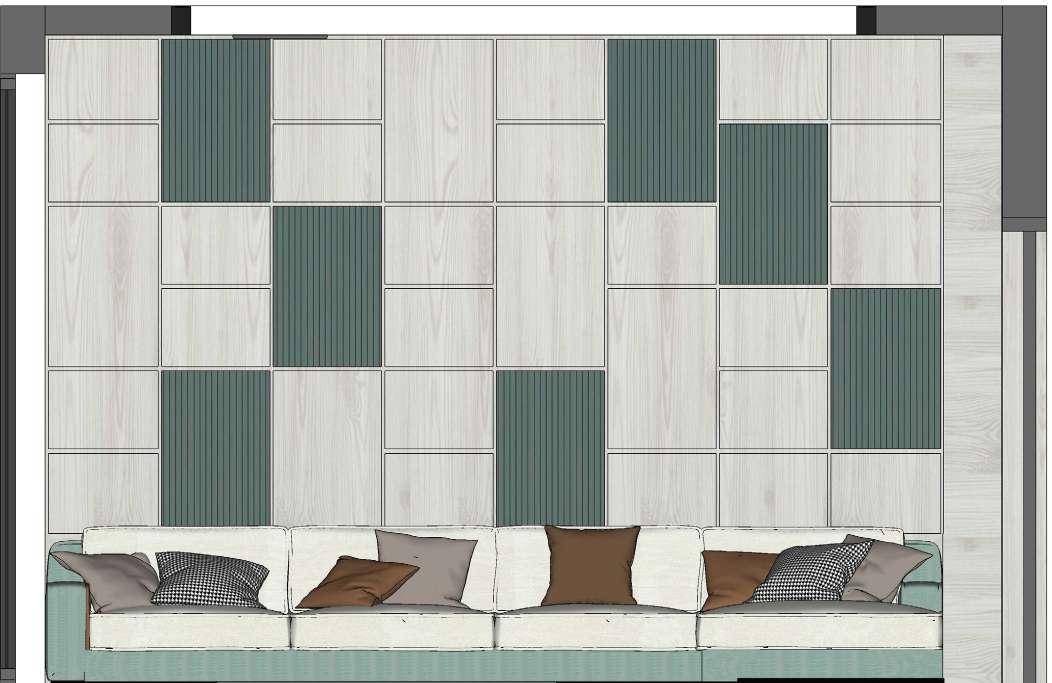

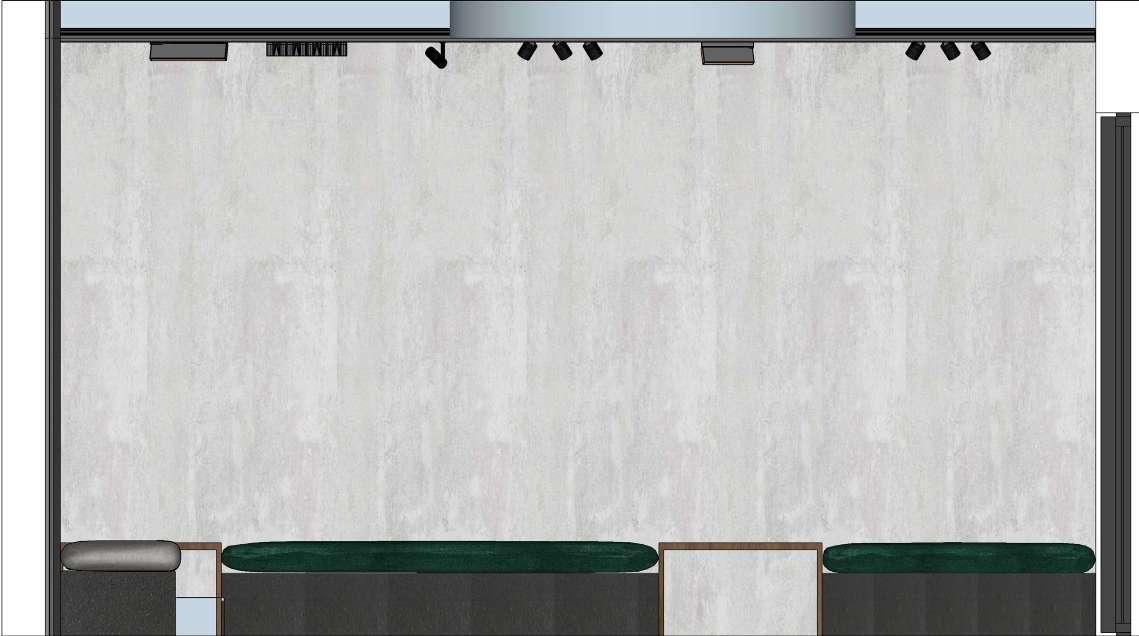

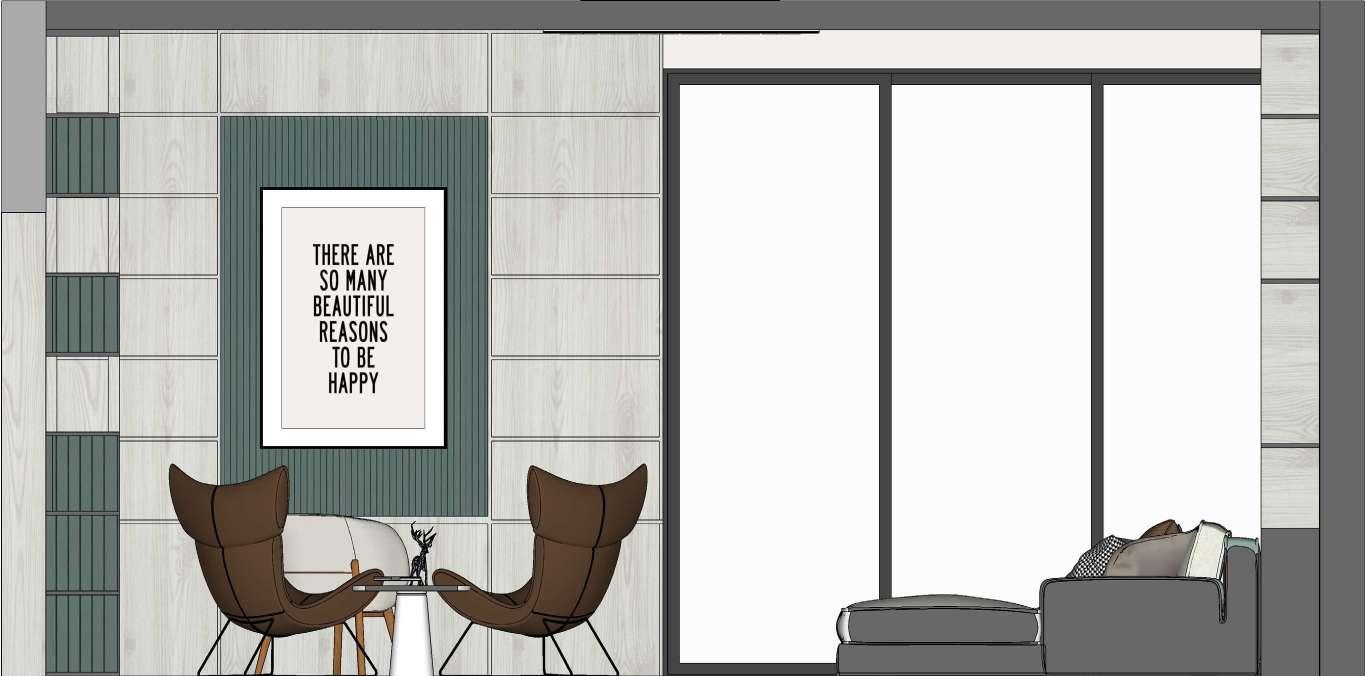

Paneling Size-1295mmx2195mm-32 With Groove Panelling

As per Reference 6 mm Groove with Hand Polish in Groove-Ele-4 "Plywood Panelling_ Upto 75 mm thick_SF Laminate

Finish_Rs.2000/Sheet_MR Grade Plywood_With Ply Framing _ Merino or Equivalent Laminate or equivalent Rate may vary depending upon the design for example Merino or Equivalent Laminate | MR Grade Plywood(addition of finish grooves, deisgn

Ply packing for wall pannels Agt order from canvas Ele-06

Size-913mmx2482mm-26sqft 12 mm ply packing for wall panel installation ,Wall panels cost not included in these ,Wall panel installation through Aralite with Boxing considered

Ply Mdf Groove Panelling Size=3000mmx2482mm ,Ele-06 Qty.: 83SqFt x 1Nos Wall Mdf Panelling in Satin Paint finish with Ply Boxing support with Depth upto 30mm with Unfinished ply with 4 mm plane md sheet with satin paint finish considered

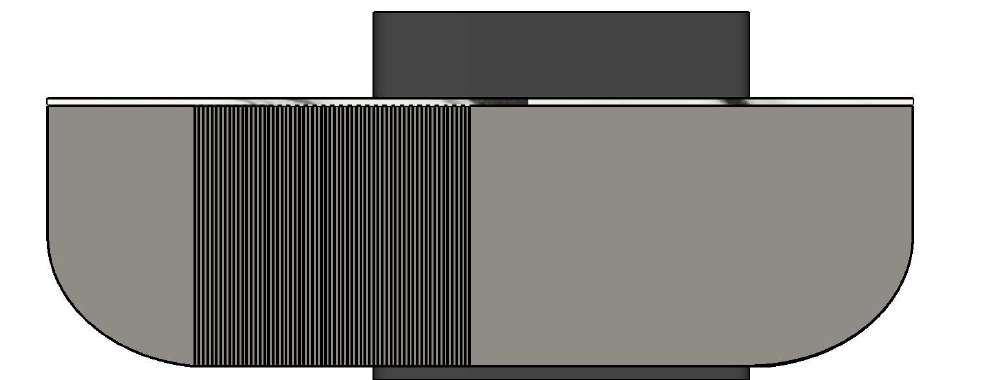

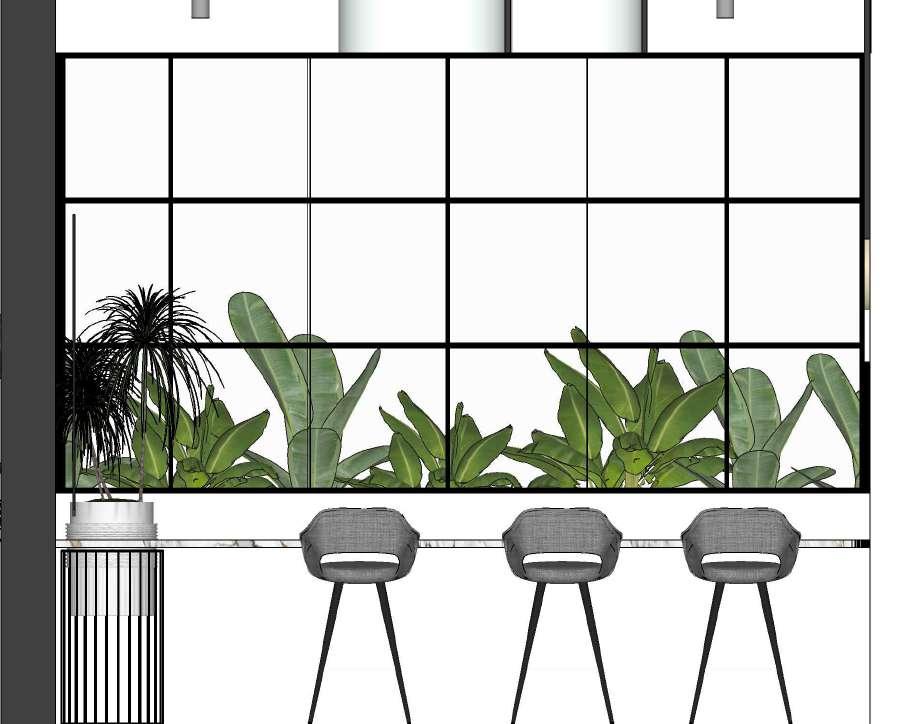

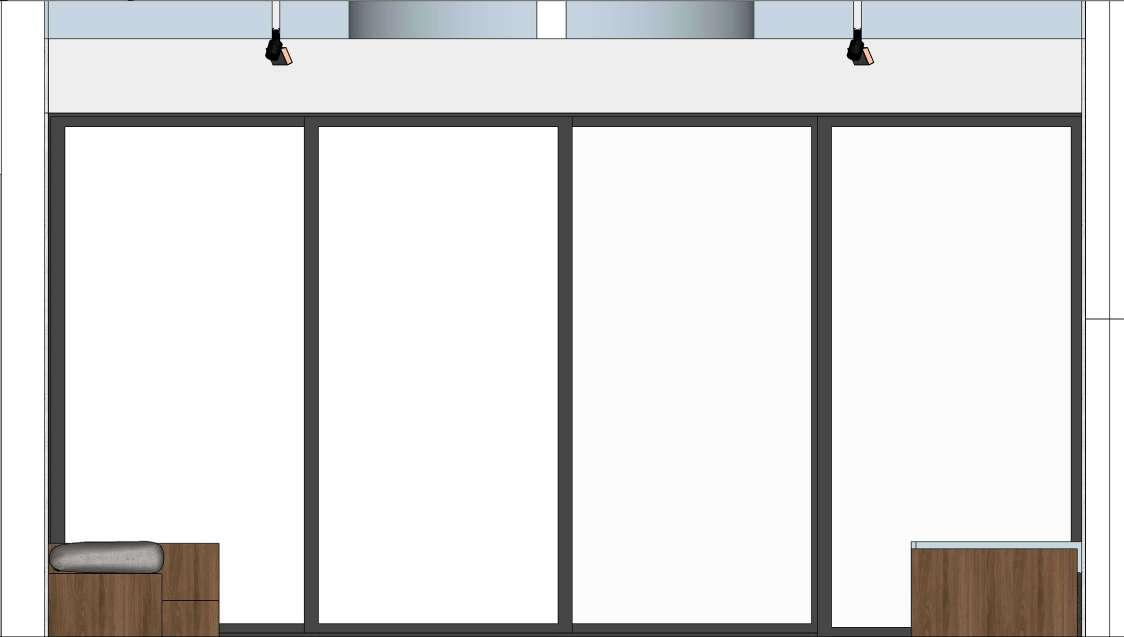

Partition

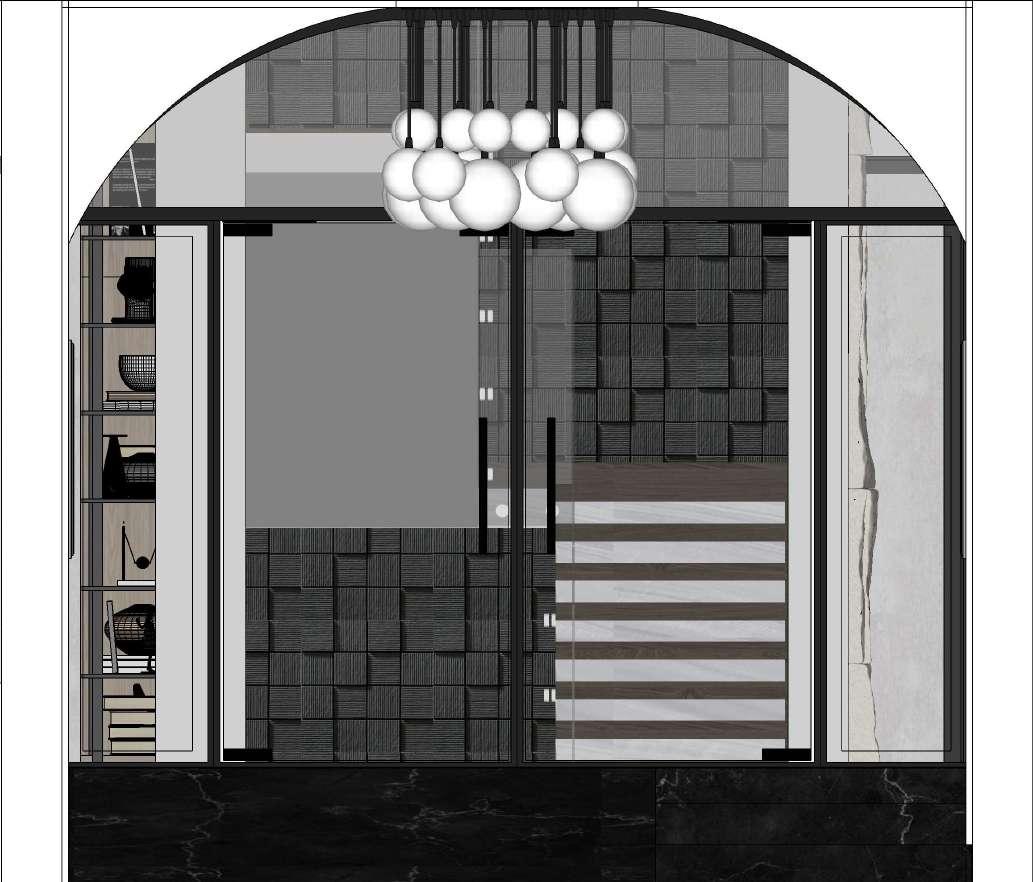

Size-1600mmx260mm-2nos Big size round-260mmx996mm Small round=260mmx260mm Pvd Coating Partition with 5 mm Fluted Glass with Installation on Modular wit supply & Installation with Adequate fittings

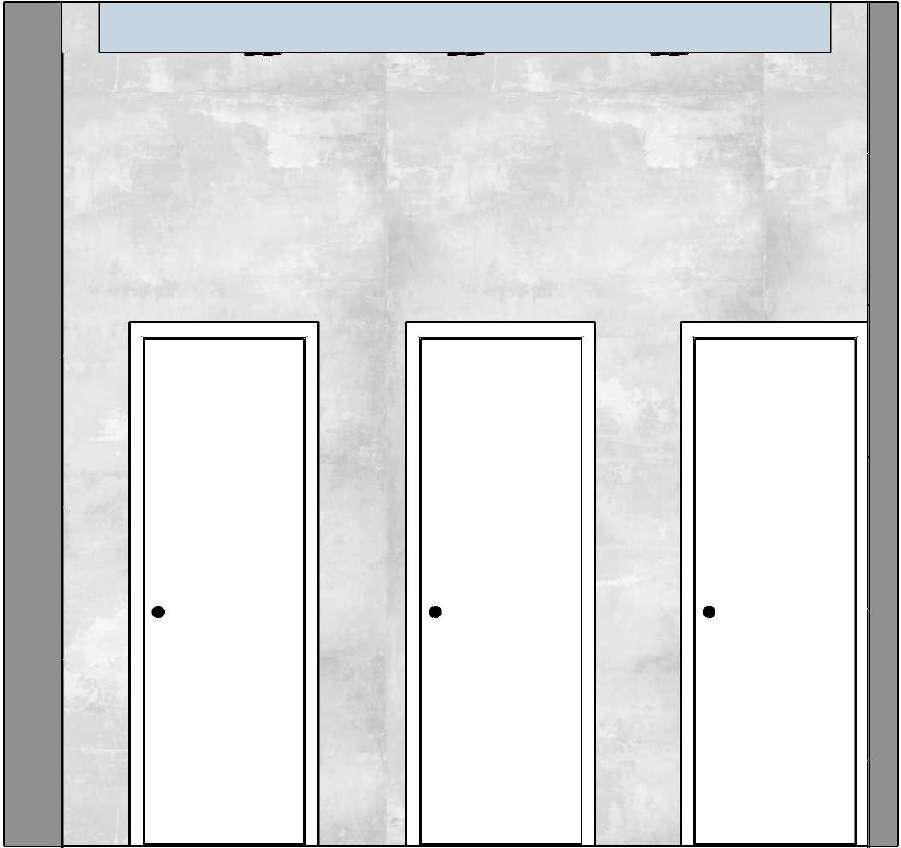

(Light /

Ply + Gypsum Pelmet Location

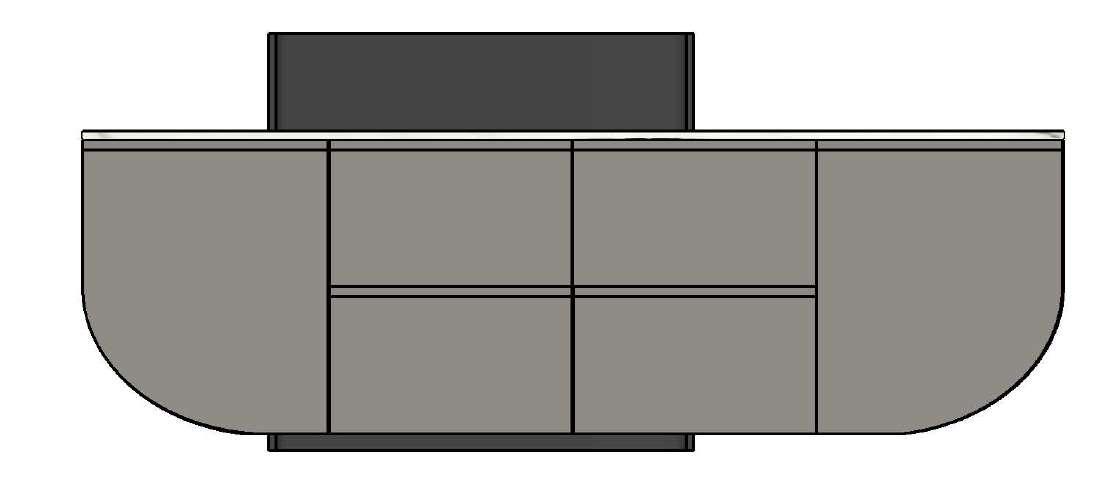

Additional Super Ground floor =Living-1800mmx600mm -12, Pelmet upto 6"_ plywood with gypsum

Finish_MR Grade Plywood Wall poaint finish if Considered no light

Trims Installation Only

Size-438mmx2004mm-2nos -34

Inside-308mmx1874mm-2nos-30

Ele=03 Trims Order from canvas (Trims order from canvas)(35mm trims)

Qty.: 82RFt x 1Nos Description: Installation of trims only,Trims not included in these cost Wall paint finish if Considered

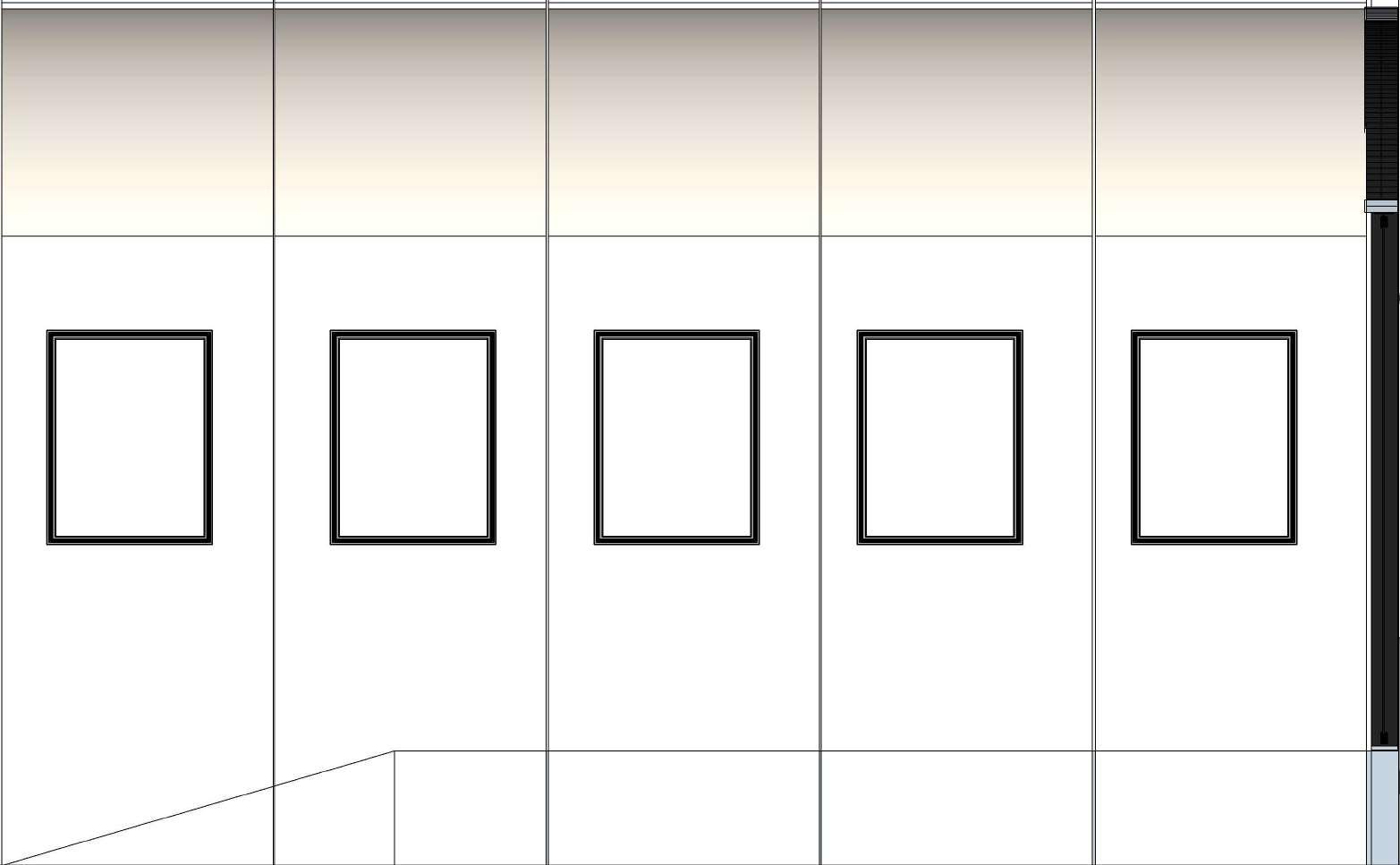

Diamond cut bevelled Mirror

Size-950mmx2004mm ,Ele-03-22sq

Ele-04-Size-2170mmx136mm in between tv unit-8

Size-2225mmx2670mm , Qty.: 66SqFt x 1Nos Panelling_Mirror_12mm Ply backing with 12 mmbevelling -Diamond cut mirror

Relocation of Existing 4Module 5A Point

New 8 Module 5A point For ceiling light (Schneider Electrical Brand for Switch Boards) with Study Unit Only Light Fixing Provided By Cx Inside Open unit-3 Light in client

installation through Aralite with Boxing considered

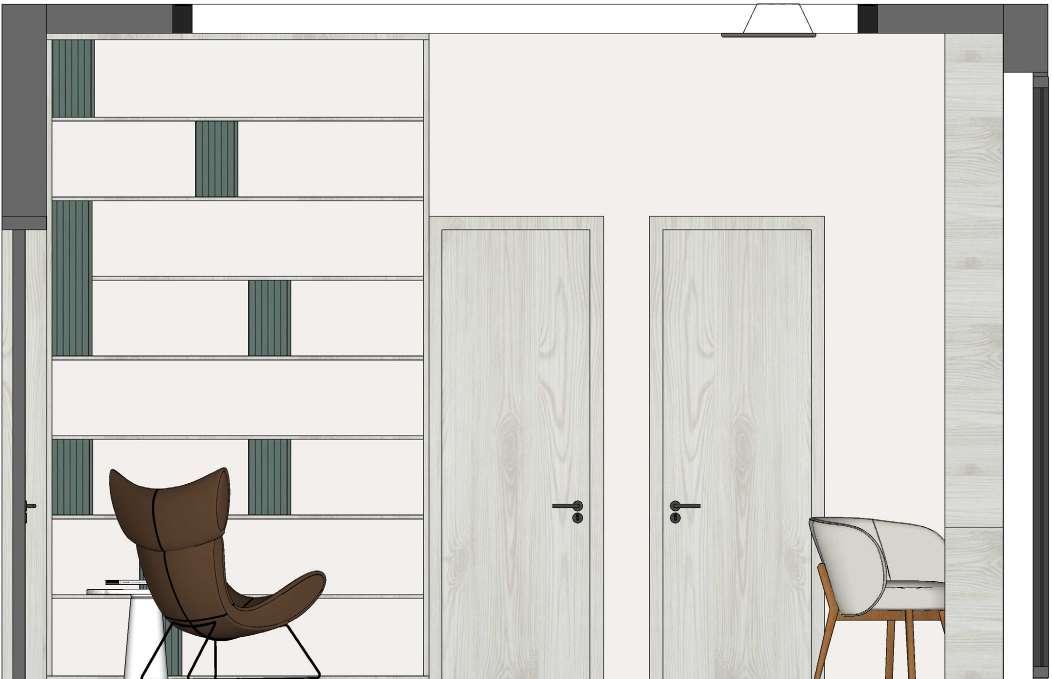

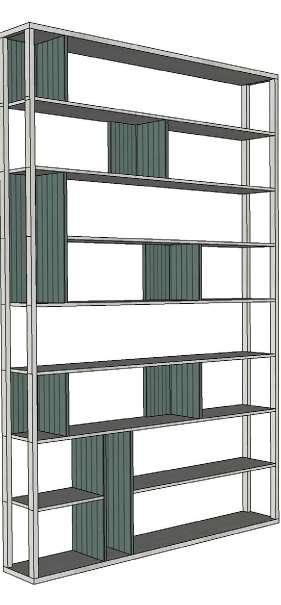

Open Unit Laminate Finish

Size-450mmx1200mmx450mm ,El-06 (Same laminate as open unit) Qty.: 6SqFt x 1Nos "Open Unit_ Laminate Finish_MR Grade Plywood+Plywood Carcass_External Laminate 2000/sheet_PVC Edge Banding,Single colour lainate finish"

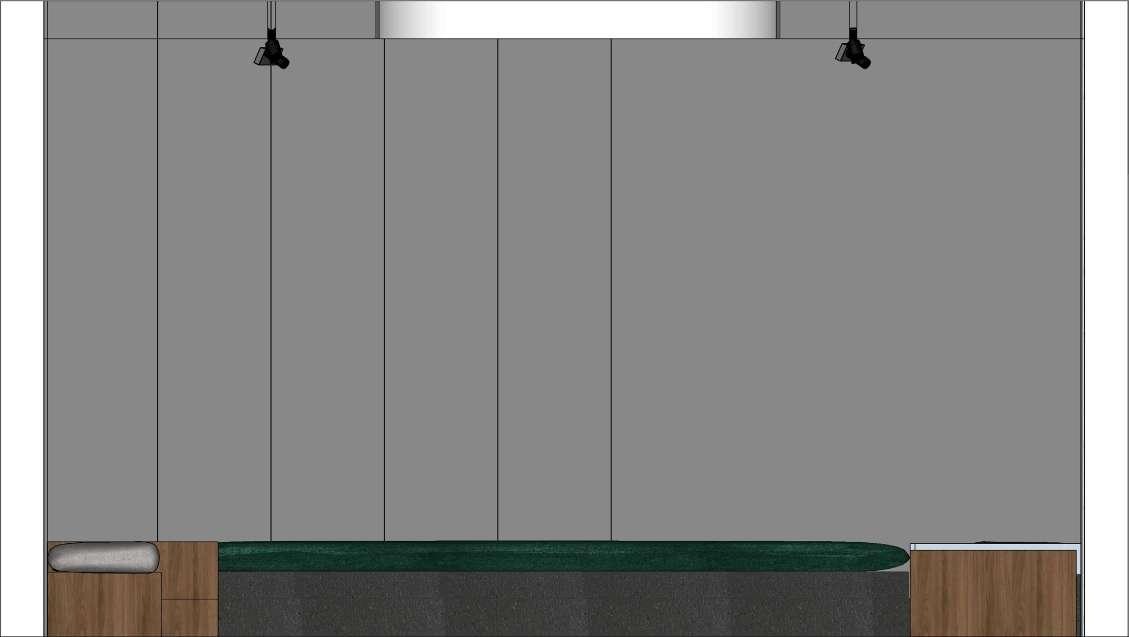

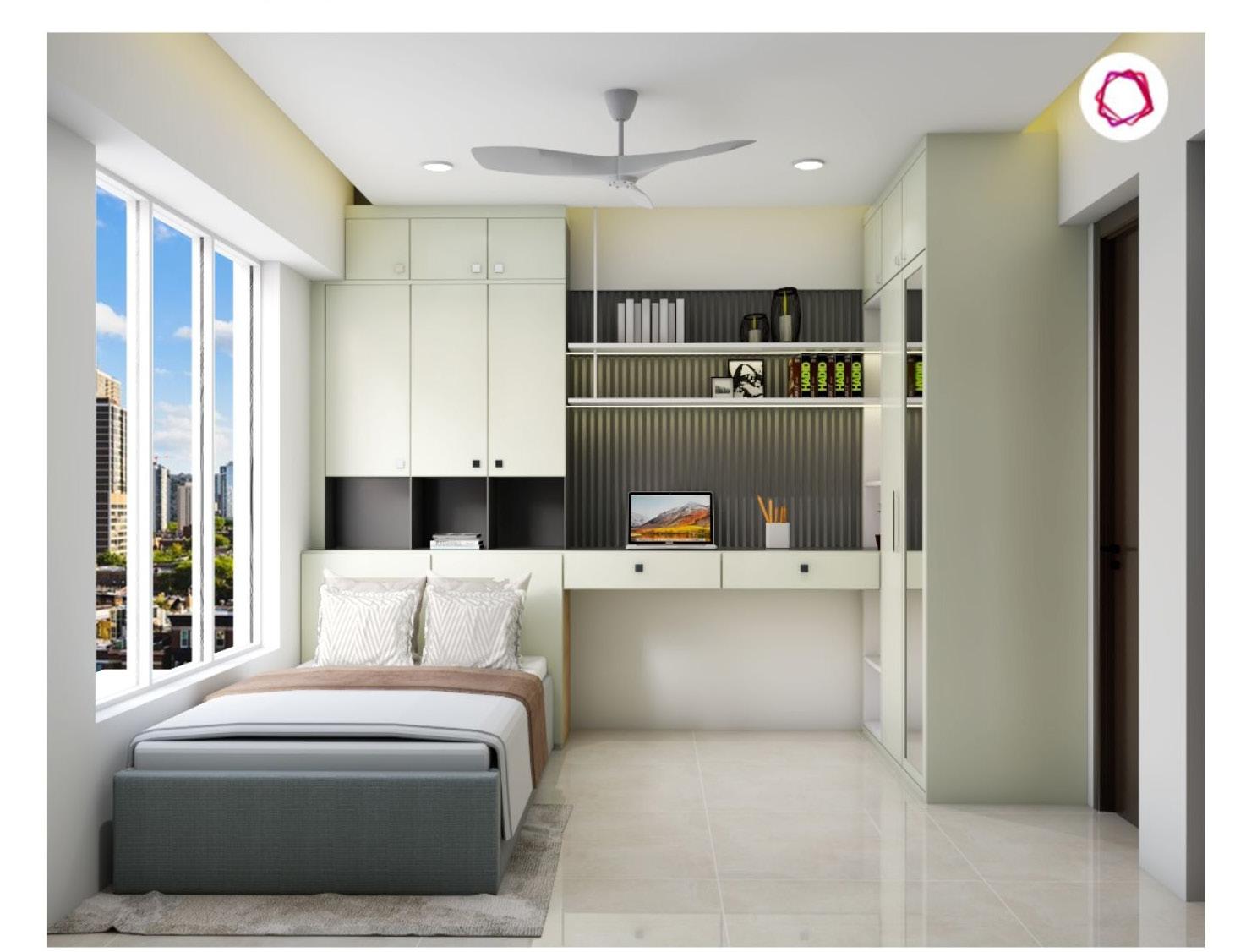

Platfor Bed :

Size-1200mmx300mmx2140mm ,Ele-06 & 05 (No Matress) Qty.: 29SqFt x 1Nos

Bed_Laminate Finish_MR Grade Plywood Finish_MR Grade Plywood-With Hydraulic fitting_External Laminate 2000/sheet_Internal laminate 500/sheet_PVC Edge Banding Ht upto 300mm or 350mm

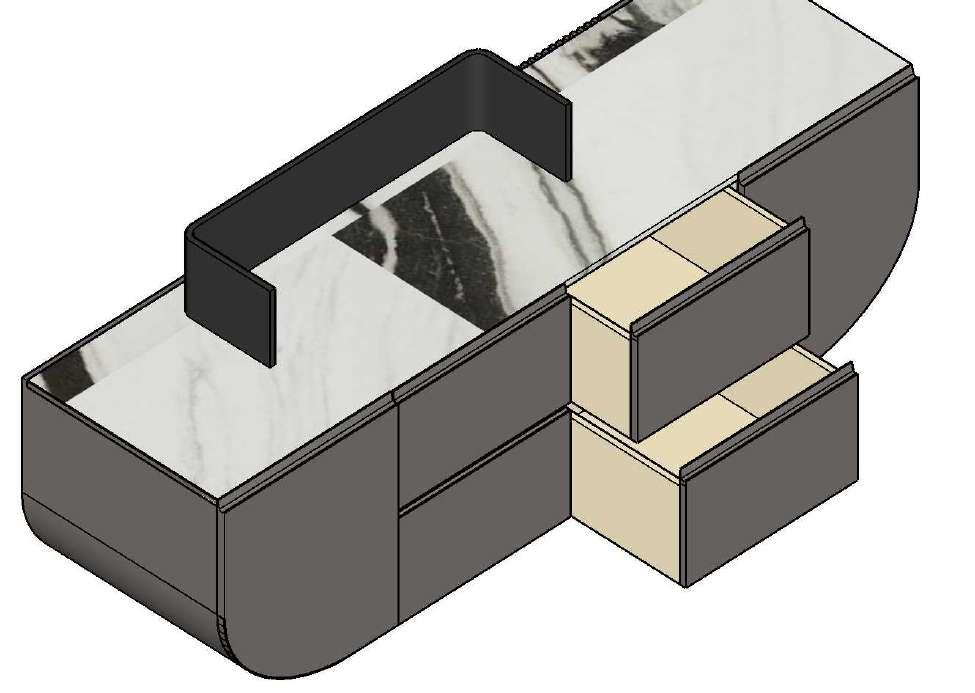

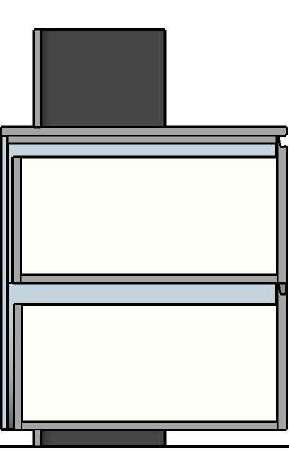

Flap Up Storage Unit

Size-1200mmx450mmx800mm ,Ele-06 -with above side top lift no hydraulic with right side one shuter (Same laminate as open unit) Qty.: 14SqFt x 1Nos Storage upto 24" Depth_ Laminate Finish_MR Grade Plywood +Ply Carcass+ softclose hardware+ Handle @200/ Pc__External Laminate 2200/sheet_Internal laminate 500/sheet_PVC Edge Banding

Platfor Bed :

Size-1200mmx300mmx2140mm ,Ele-06 & 05 (No Matress) Qty.: 29SqFt x 1Nos

Bed_Laminate Finish_MR Grade Plywood Finish_MR Grade Plywood-With Hydraulic fitting_External Laminate 2000/sheet_Internal laminate 500/sheet_PVC Edge Banding Ht upto 300mm or 350mm

Laminate as per selection
Knob
Laminate as per selection

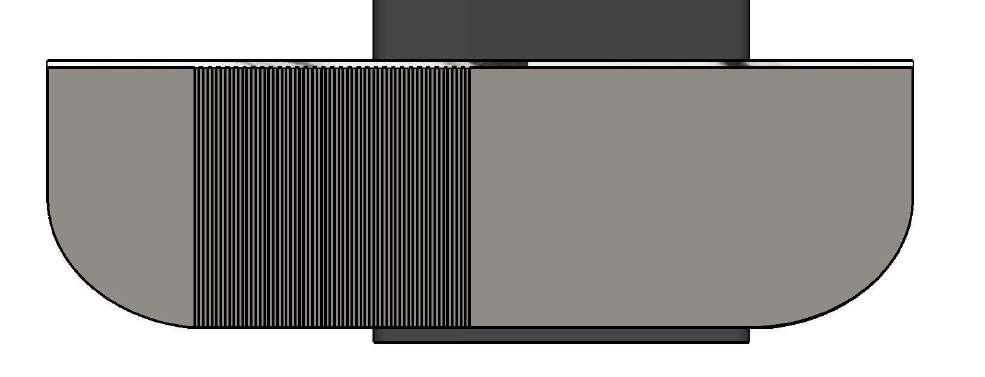

3" Skirting Foot rest Laminate as per selection

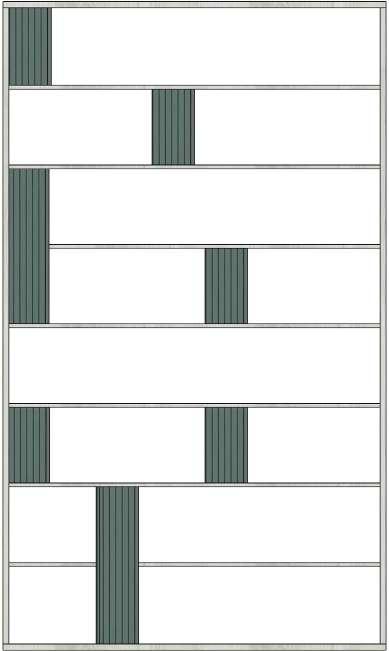

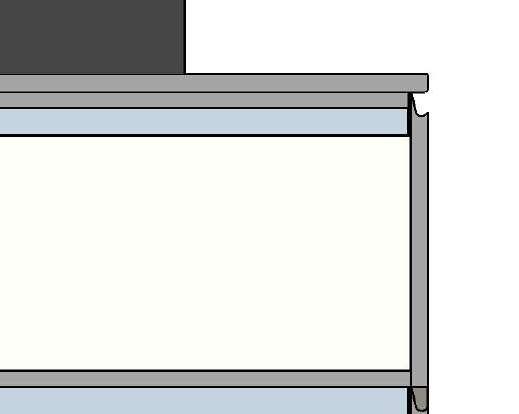

Shutter opening DETAIL-A
Torento

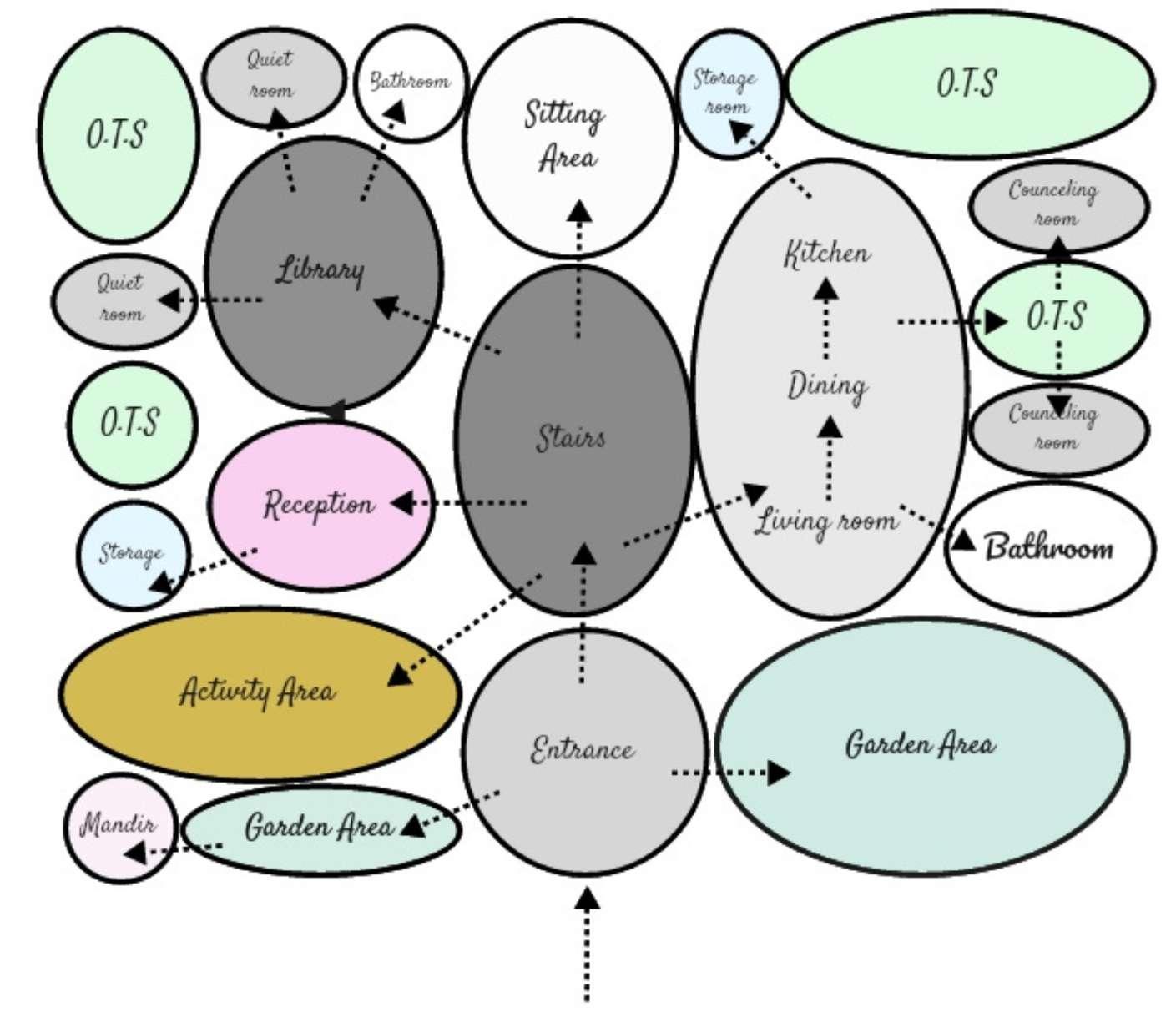

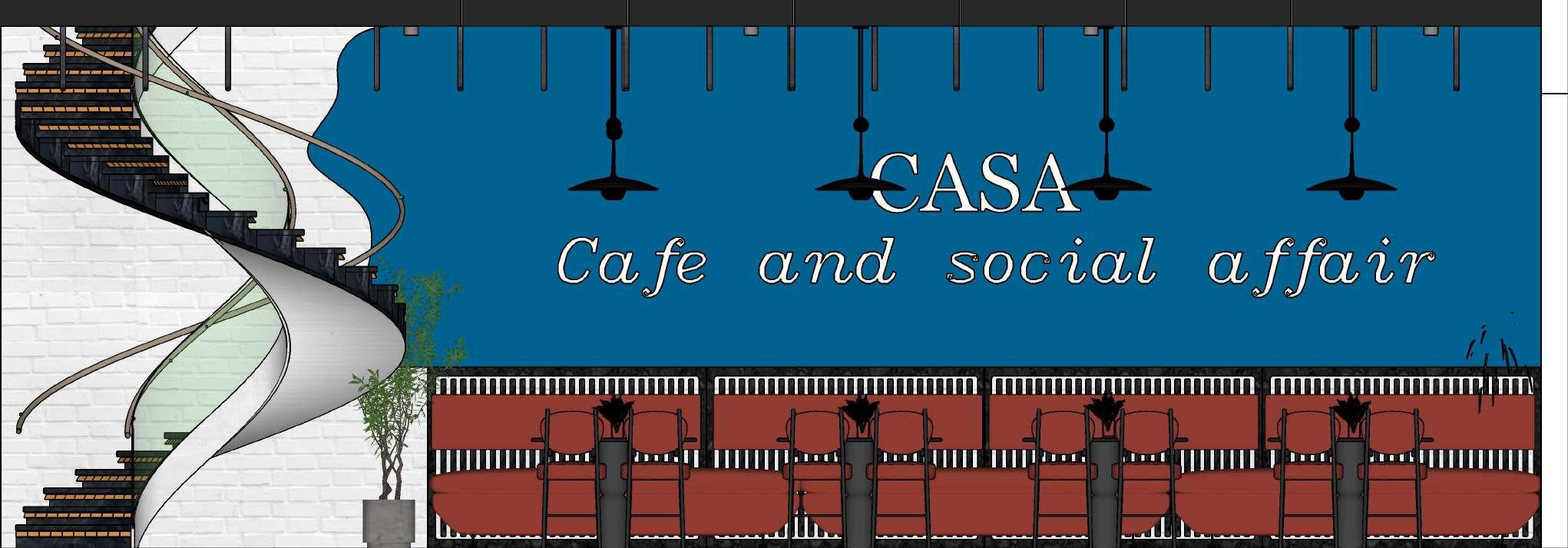

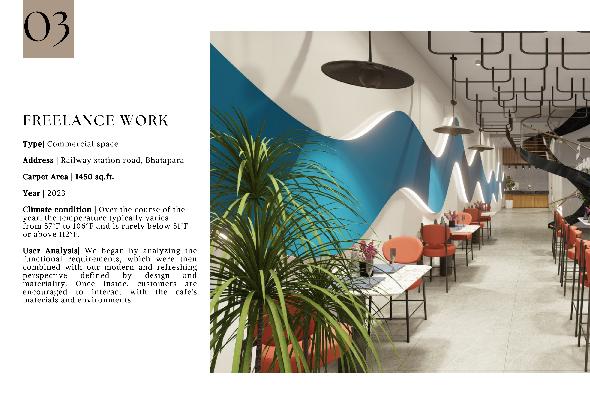

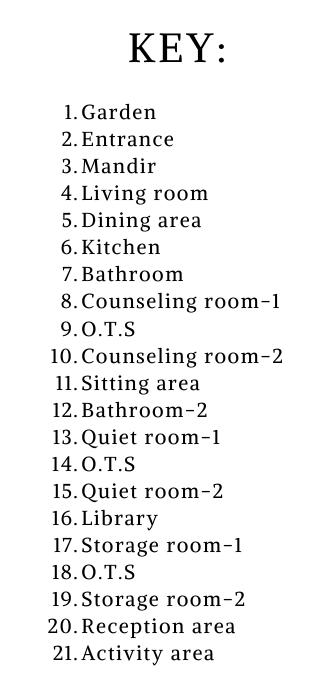

Bubble DIGRAM

LEGENDS:-

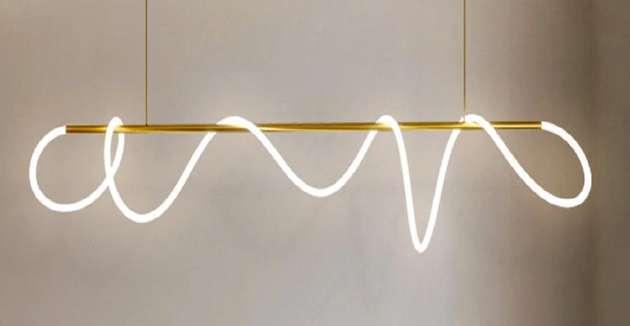

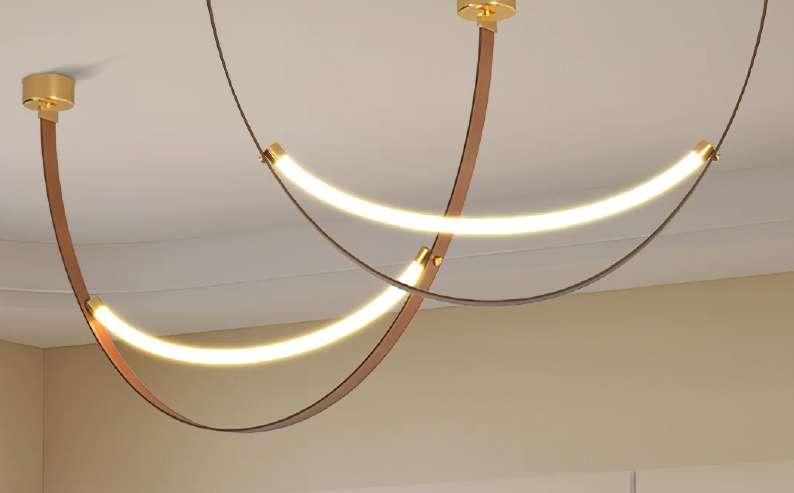

Globe chain pandent Belt pandent light
Bar flex silicone neon led tube light

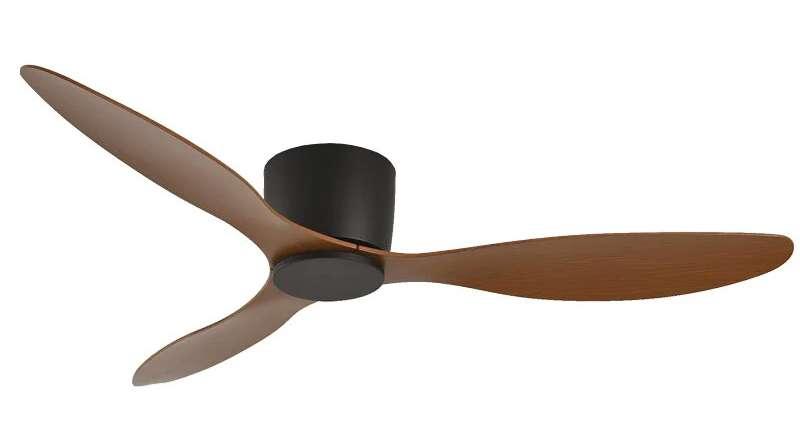

Energy-saving Ceiling Fan Eco Plano Wood Bronze / Natural Wood with Remote Control

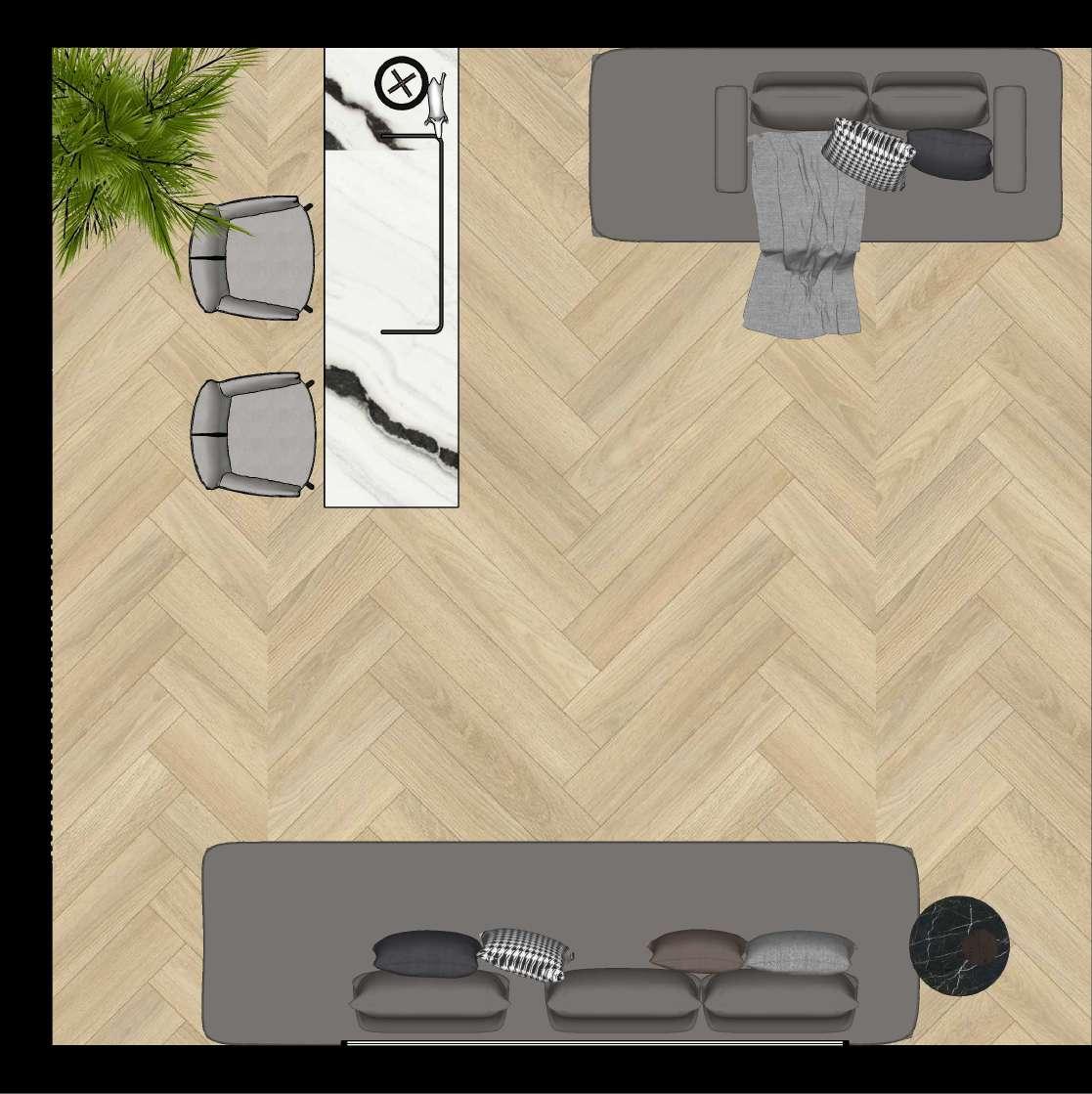

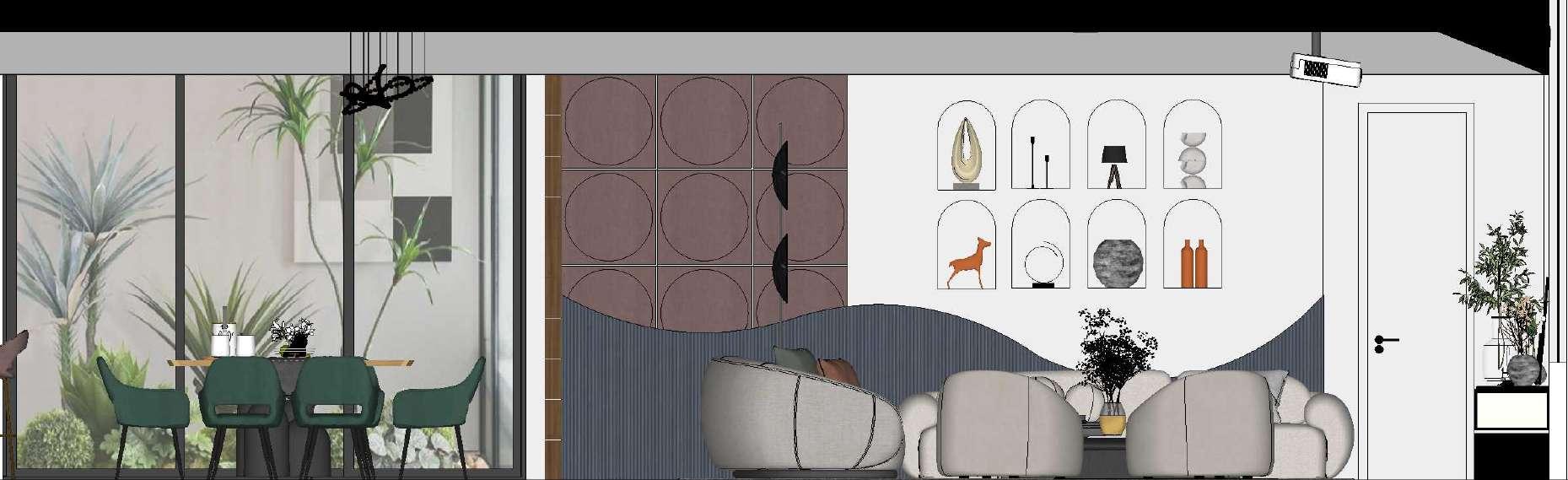

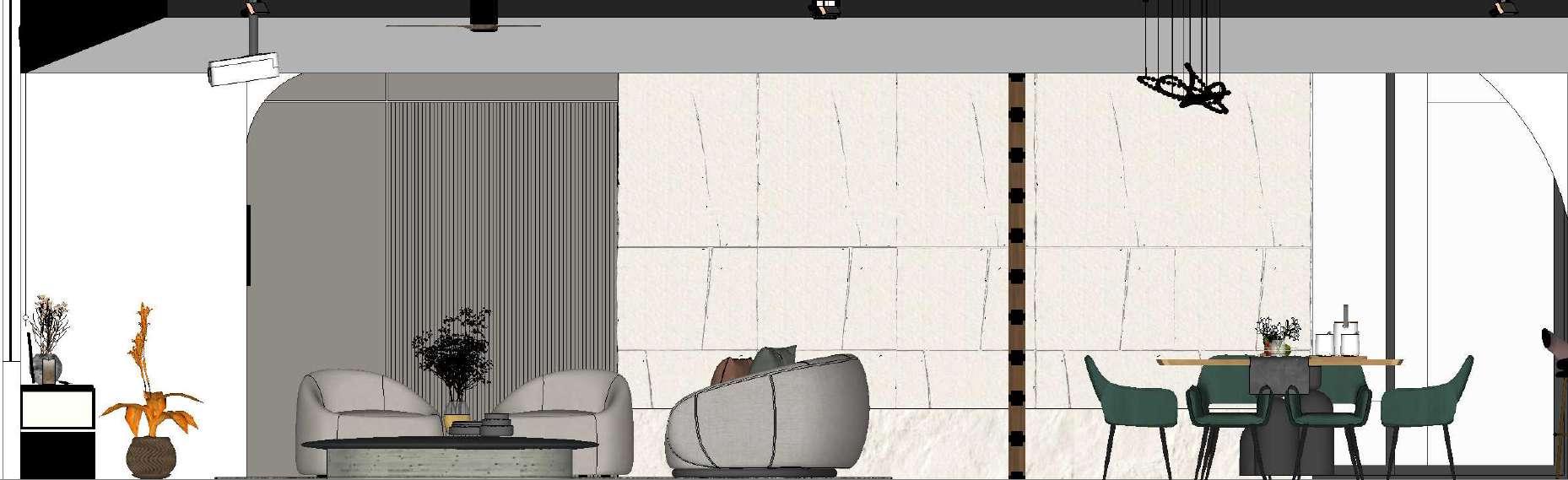

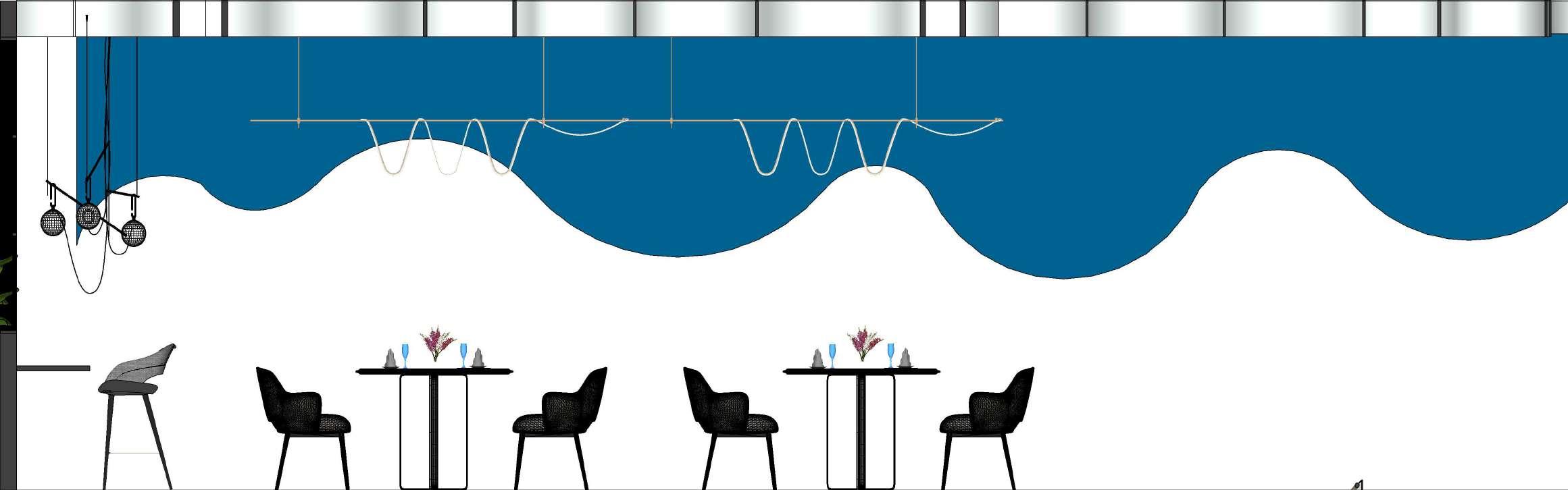

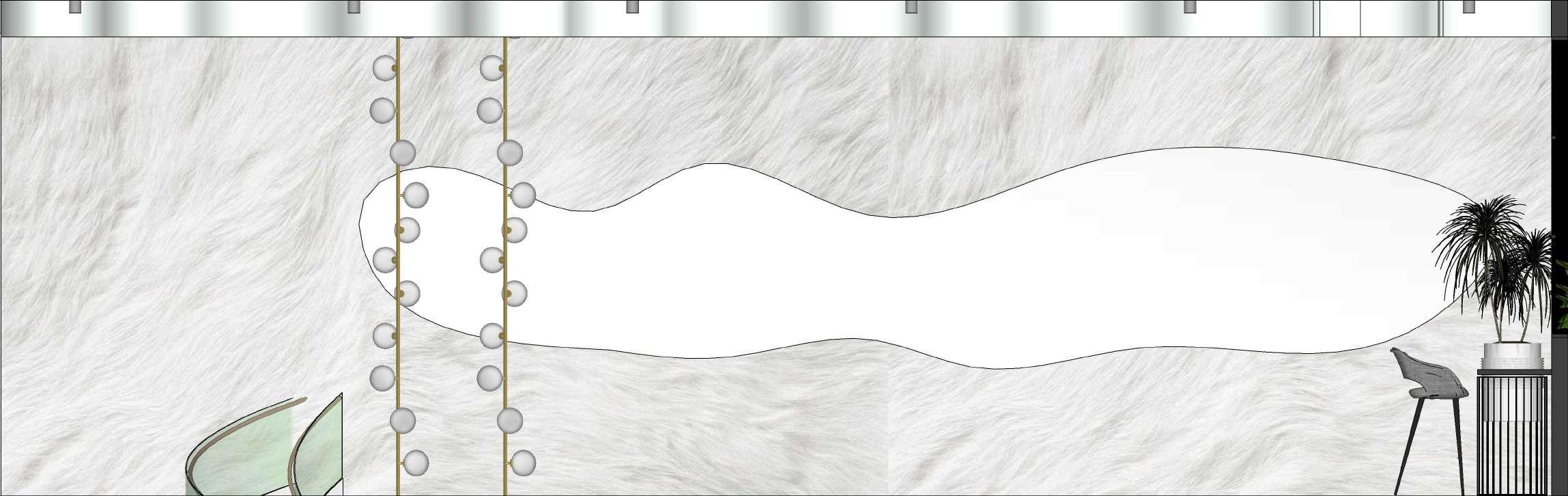

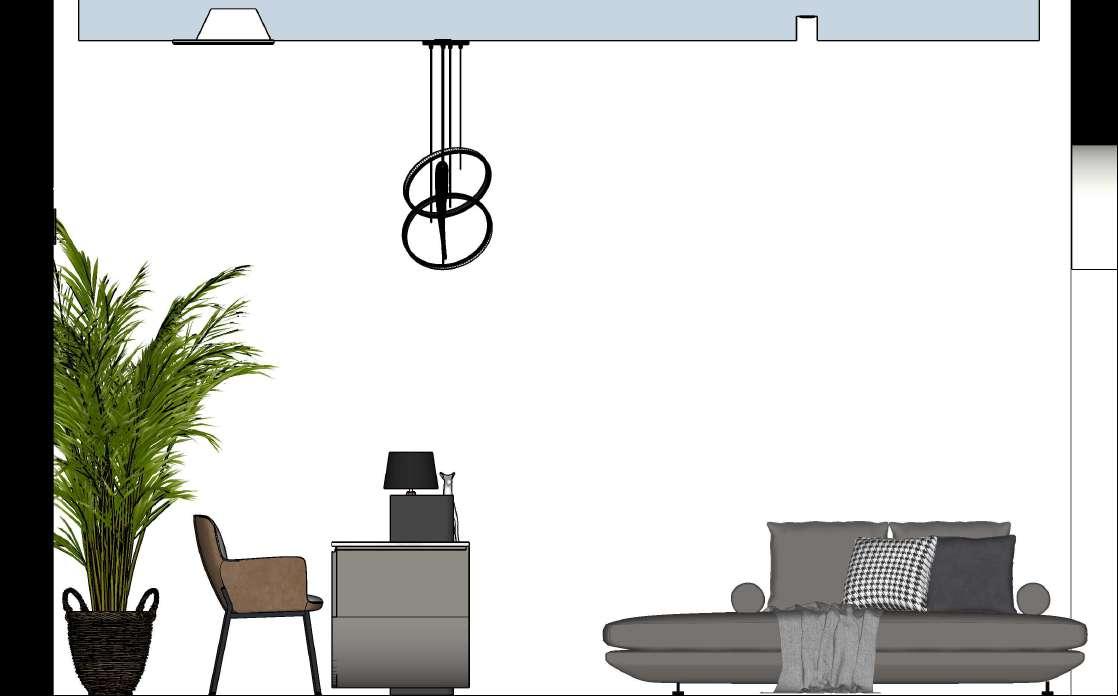

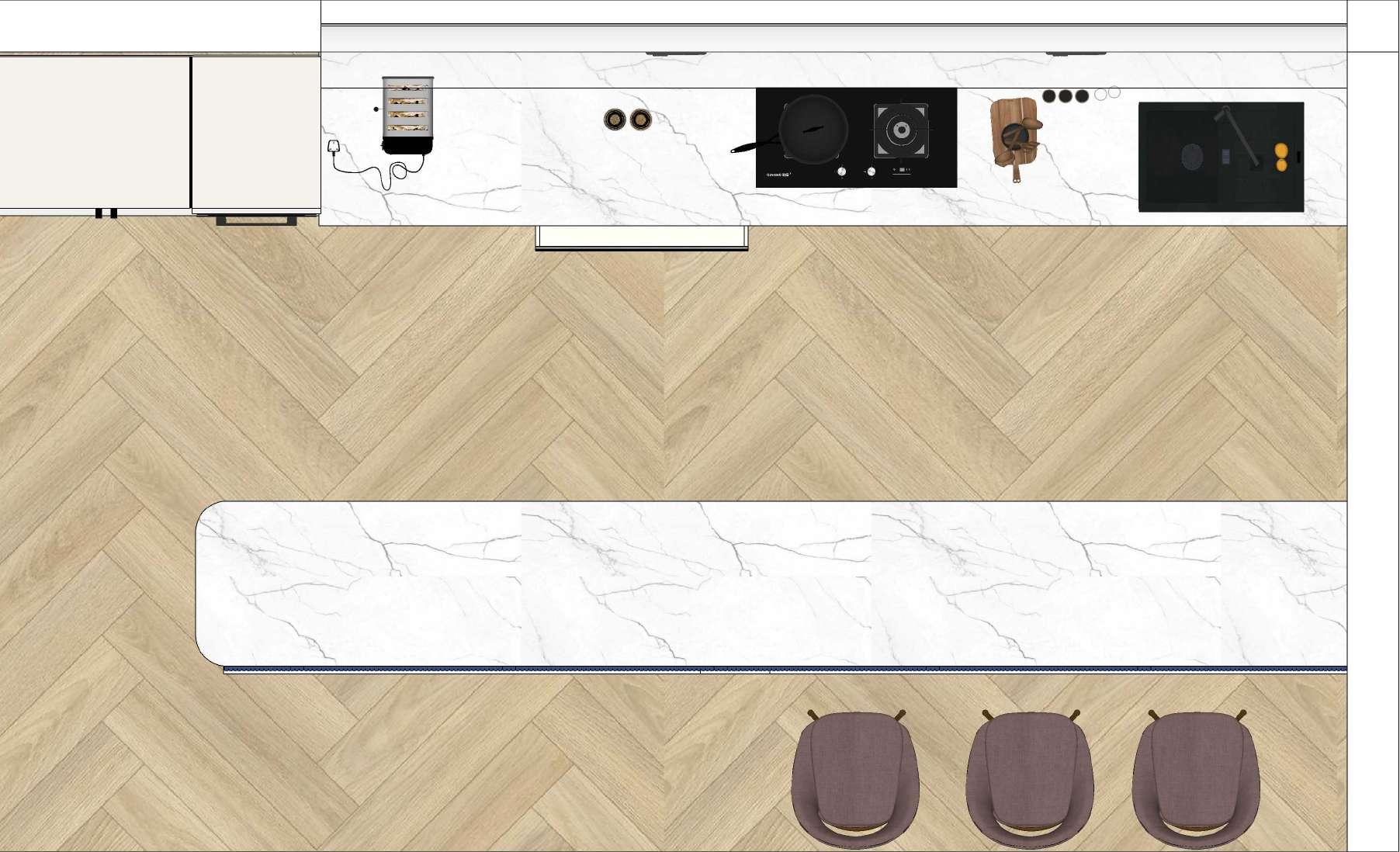

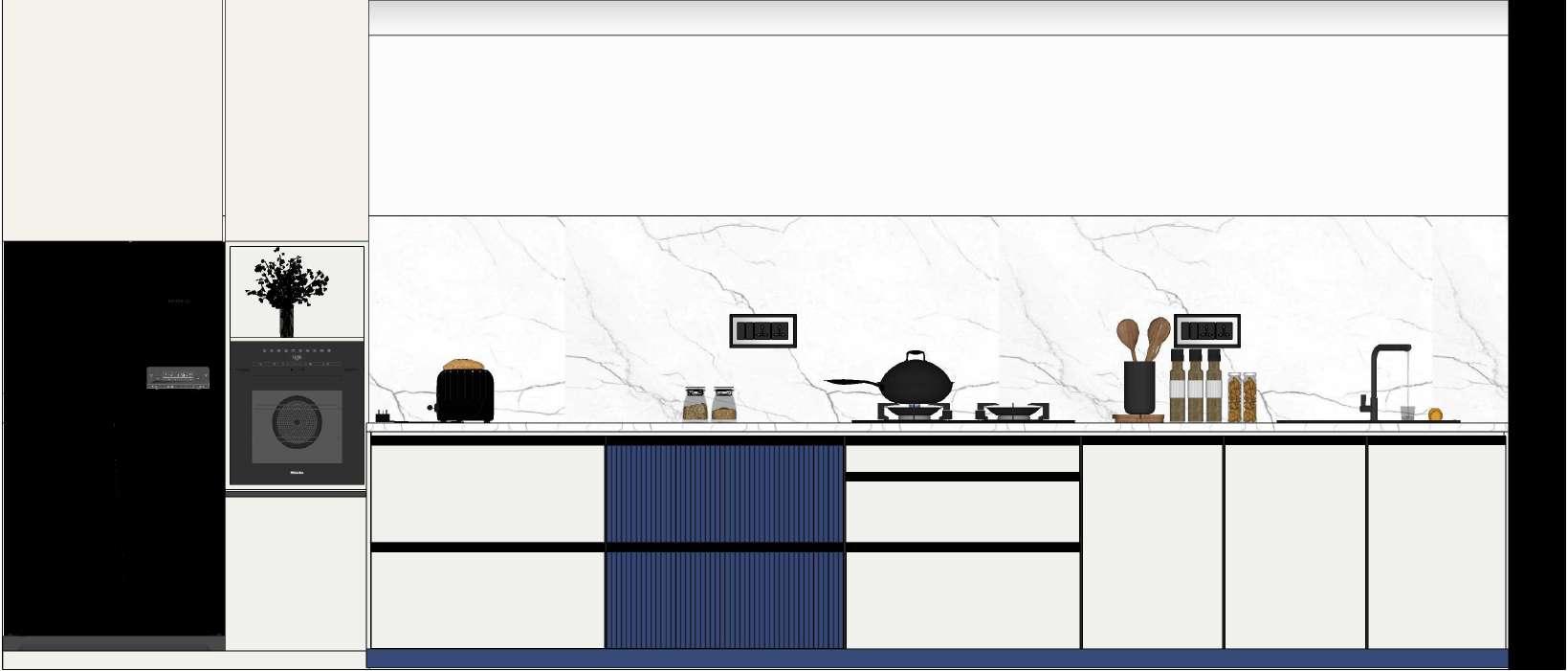

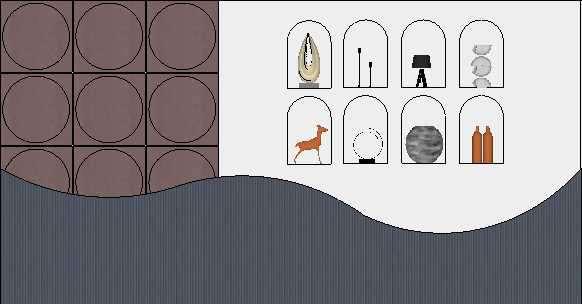

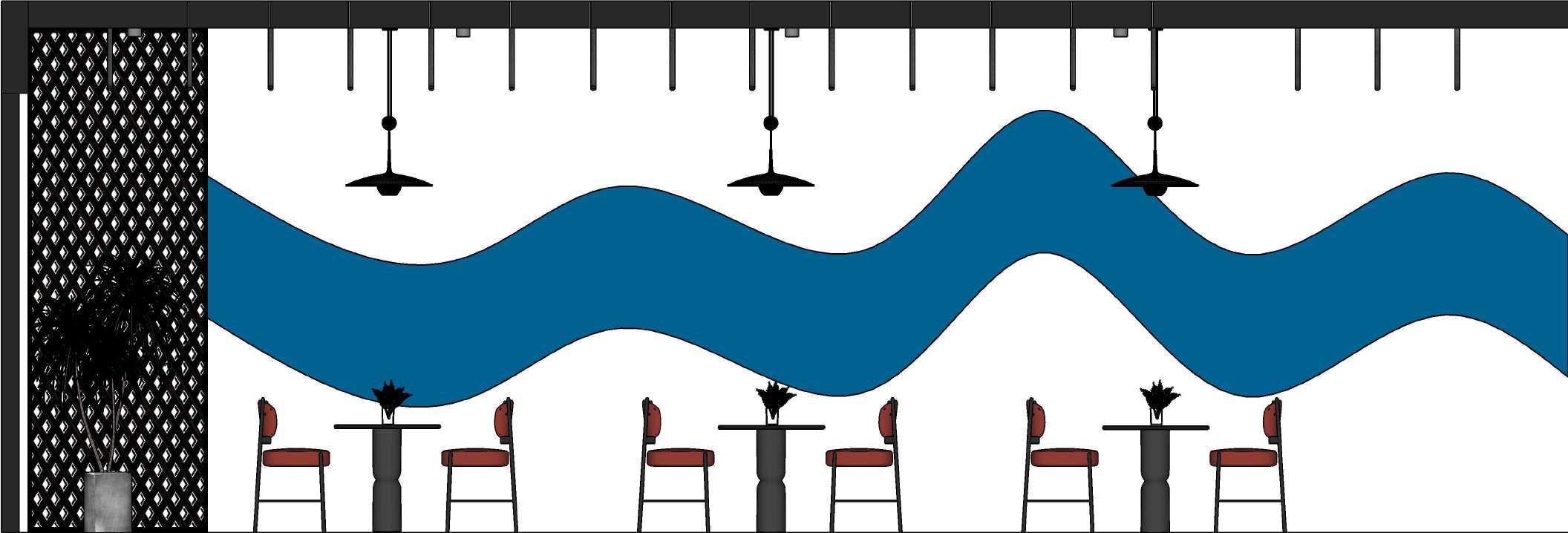

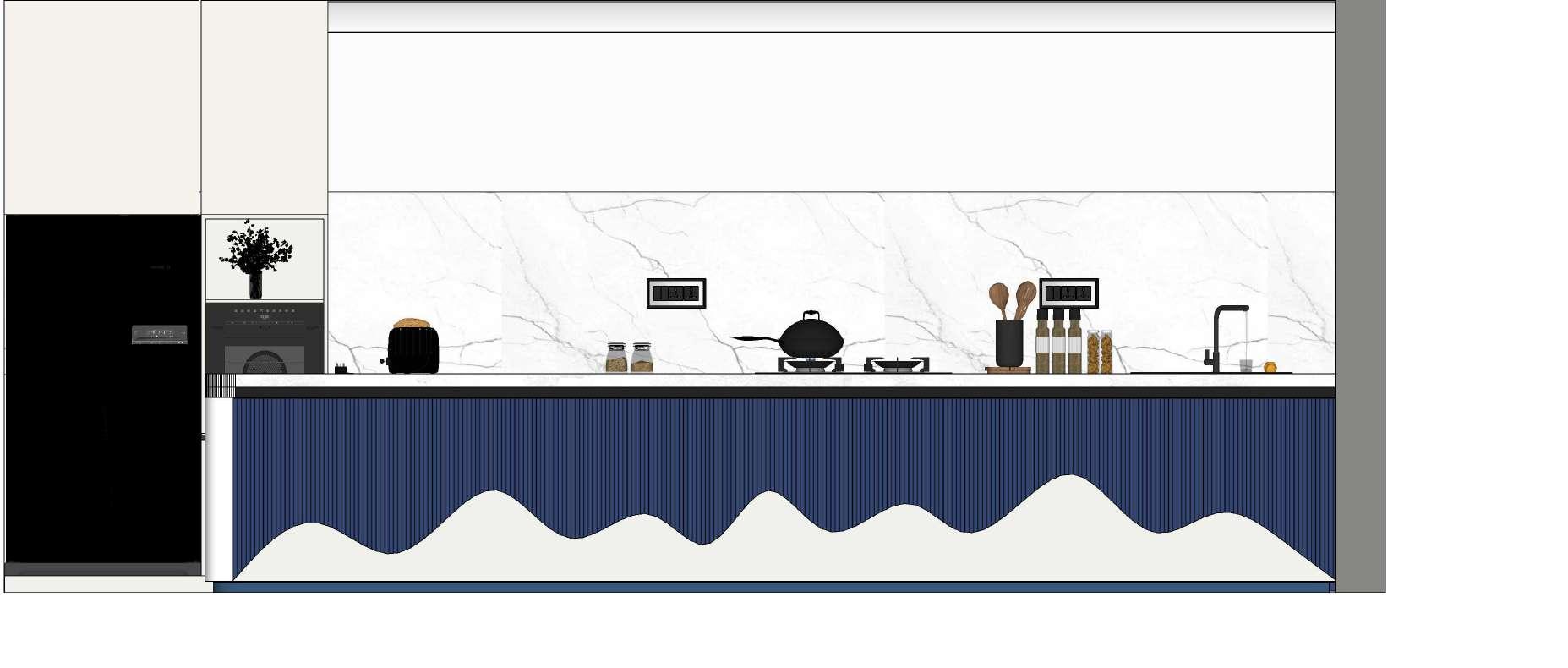

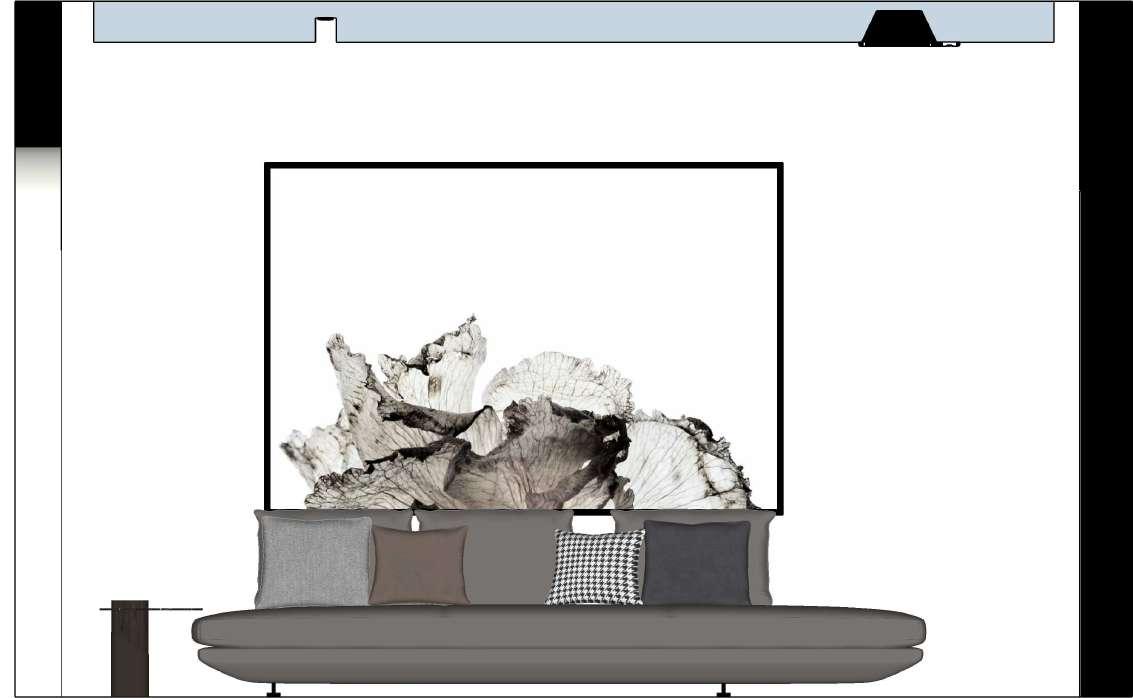

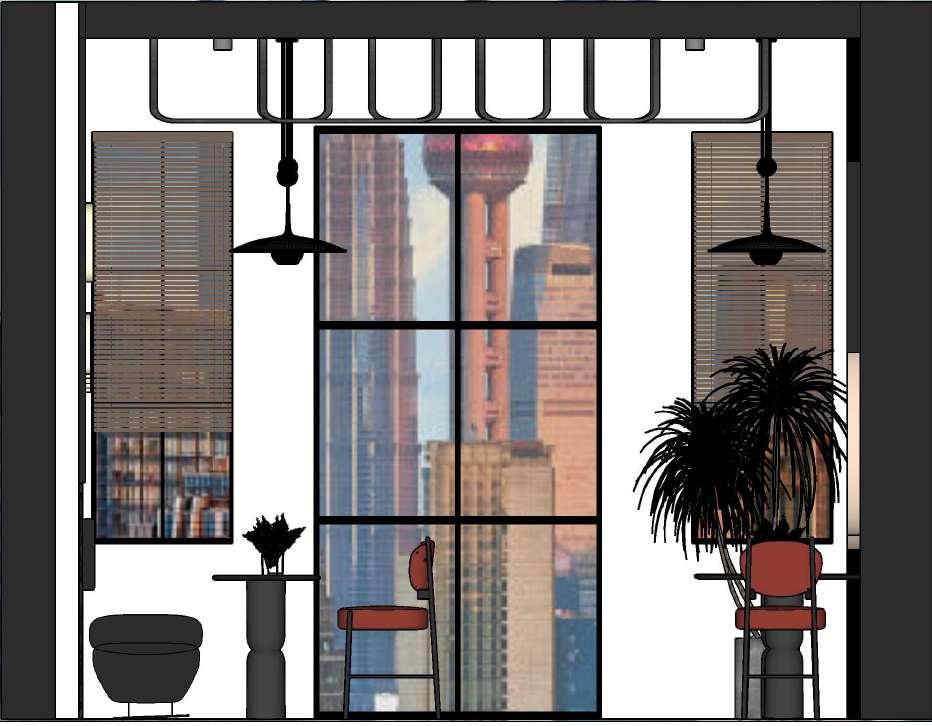

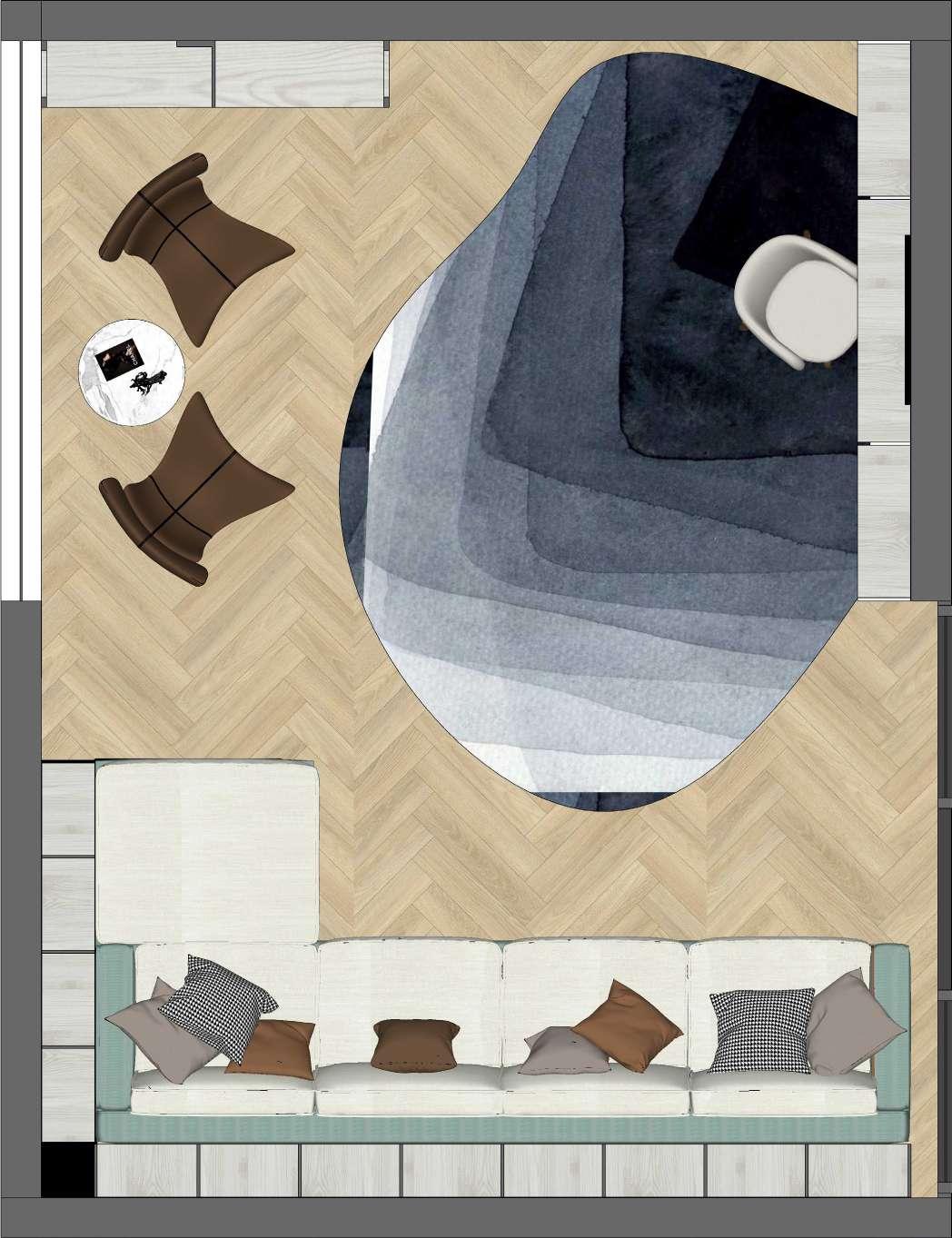

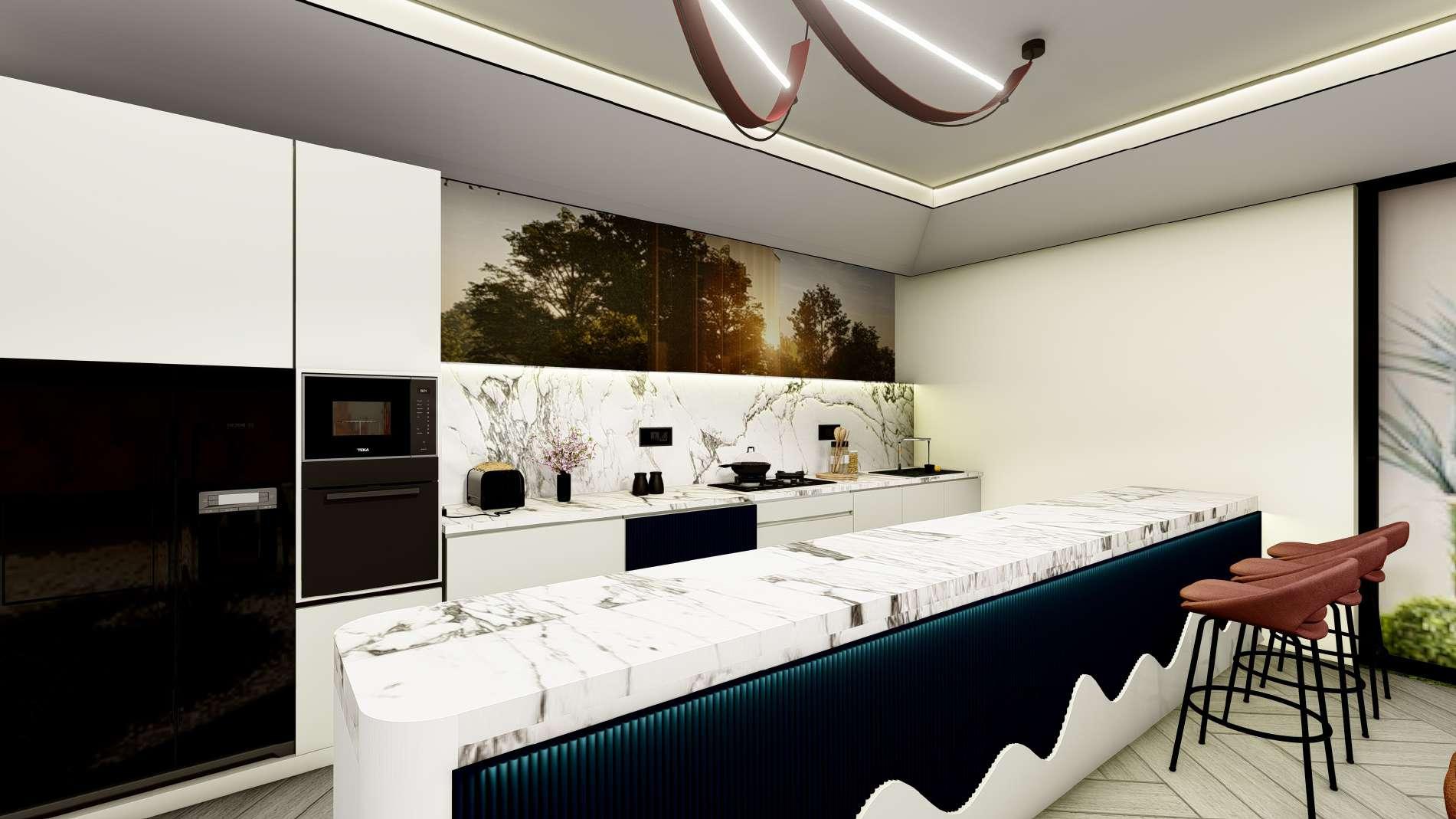

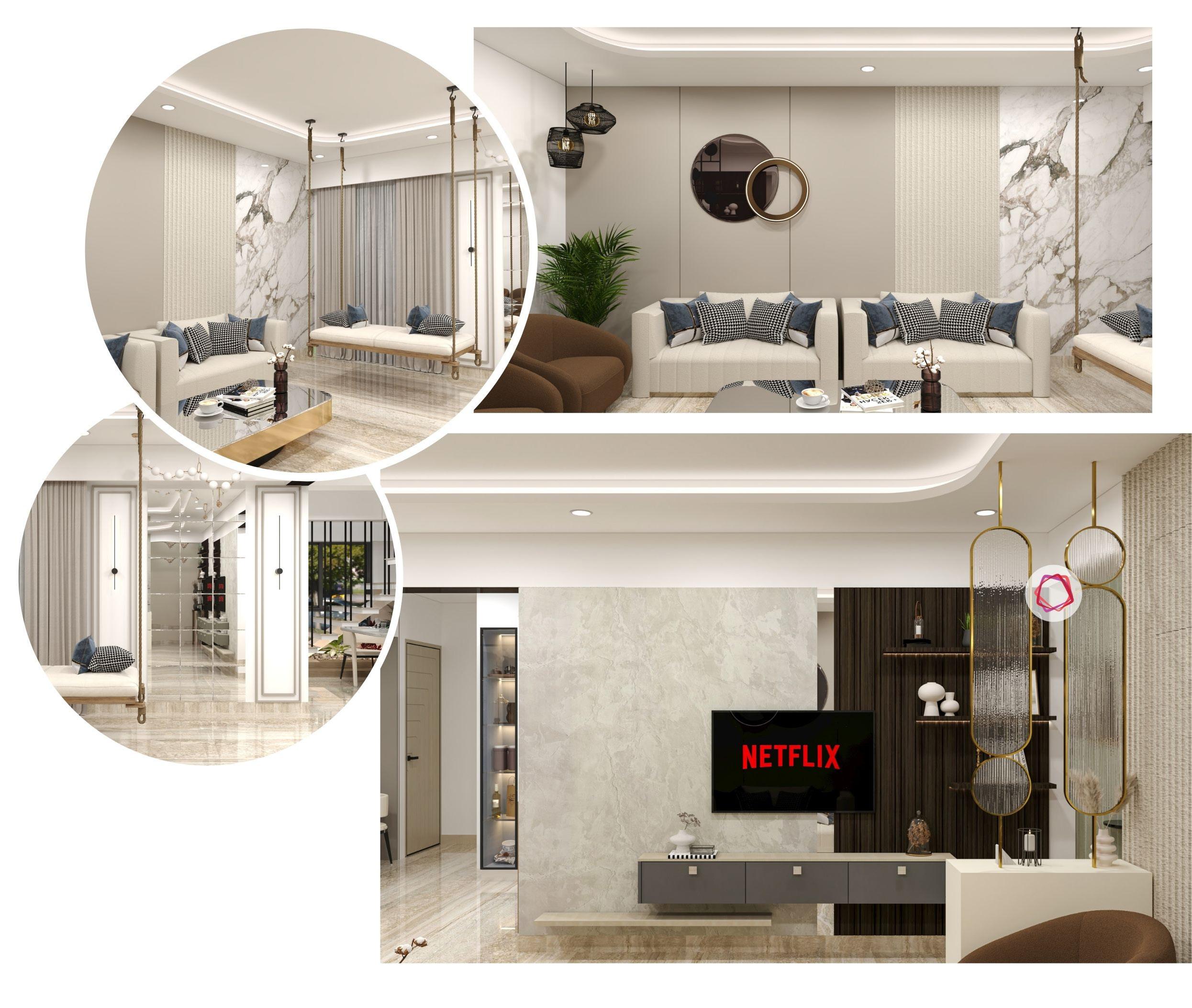

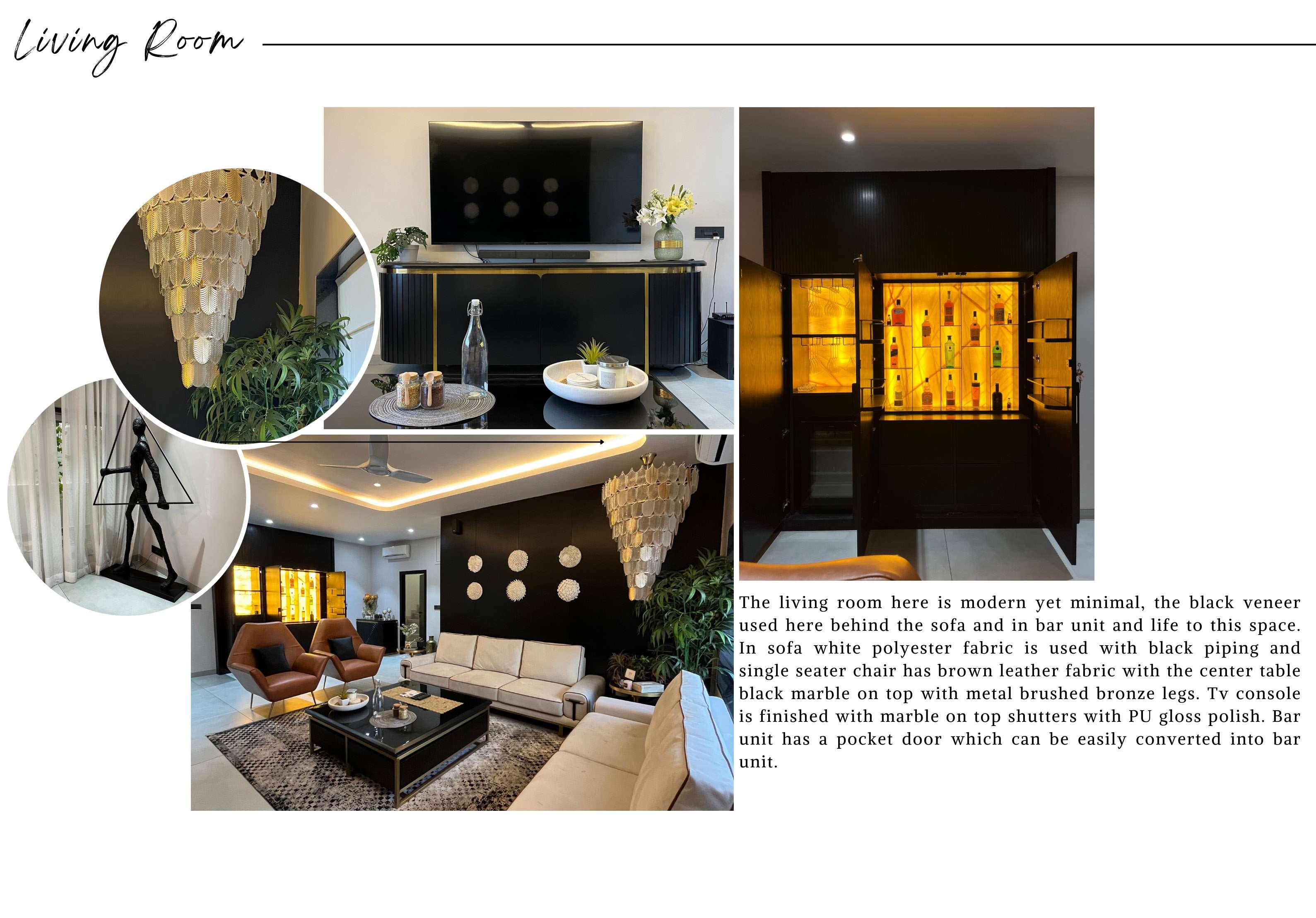

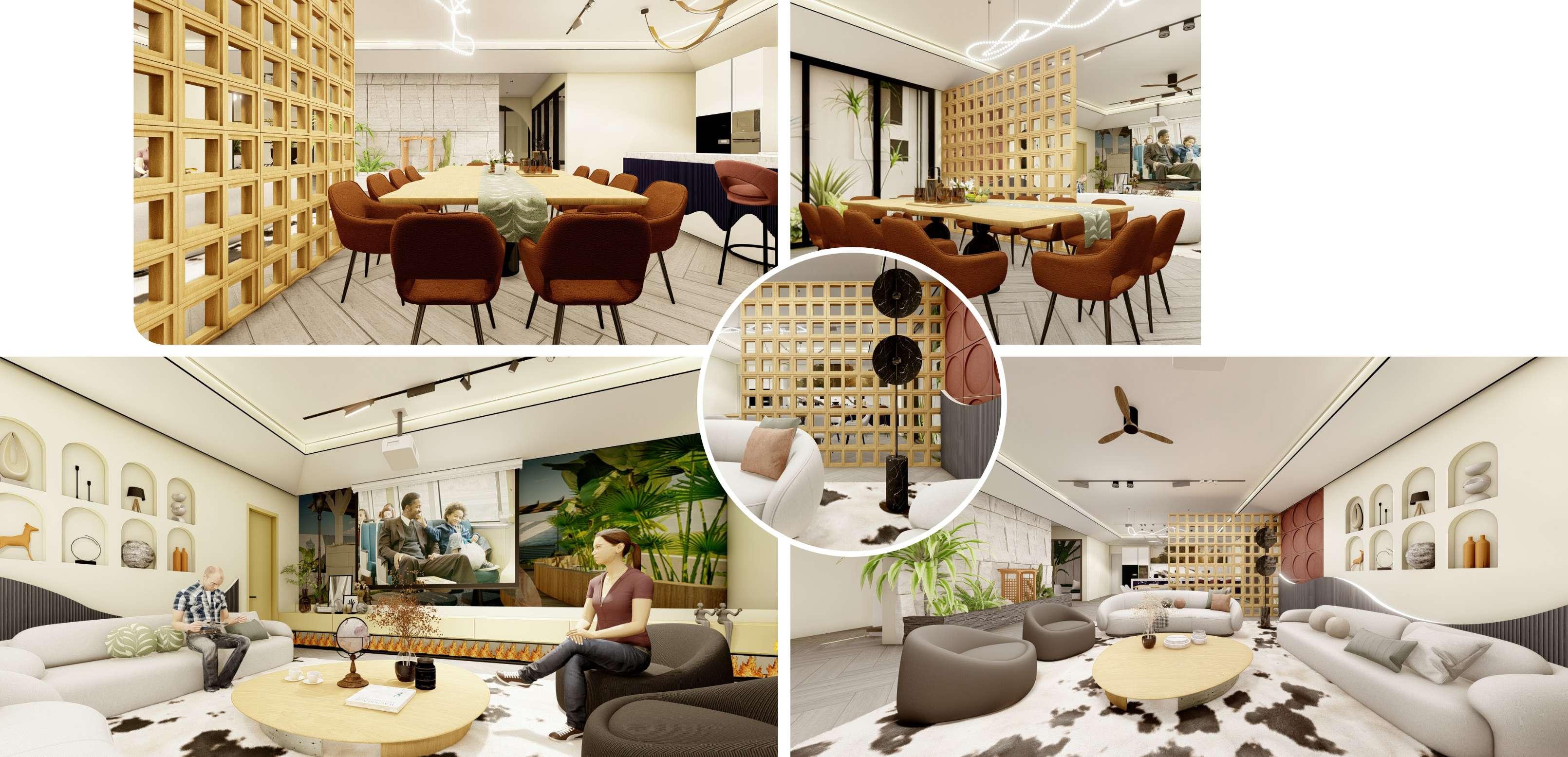

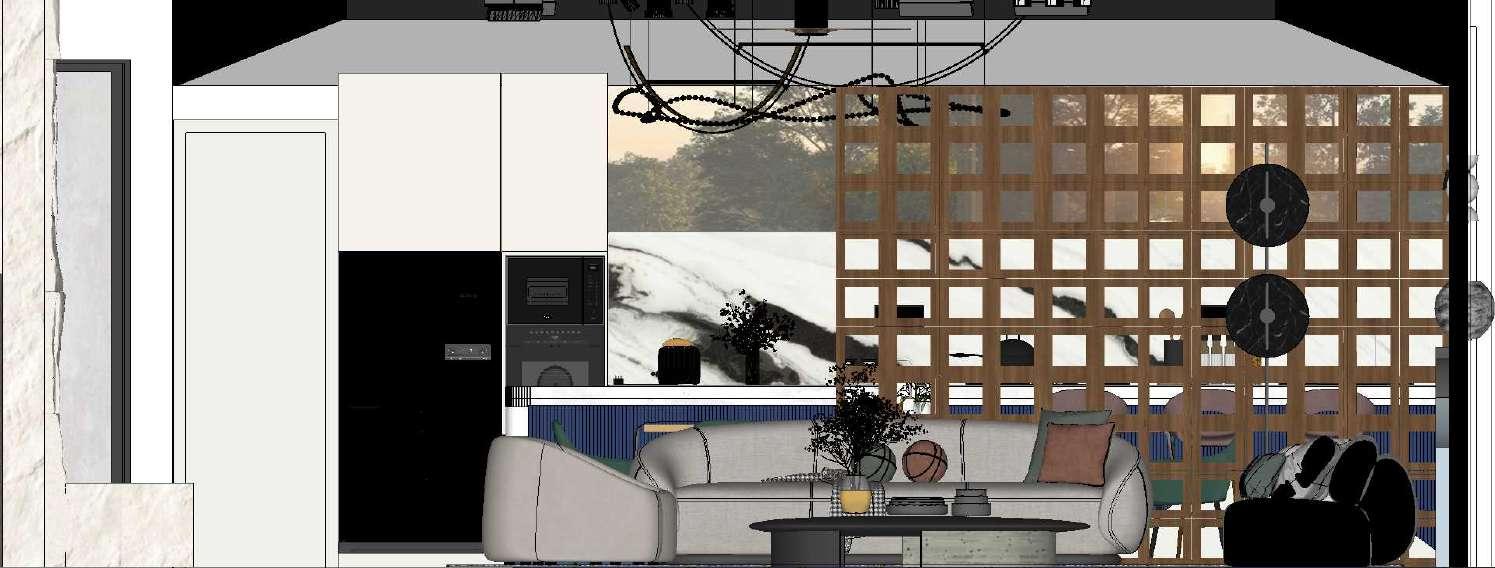

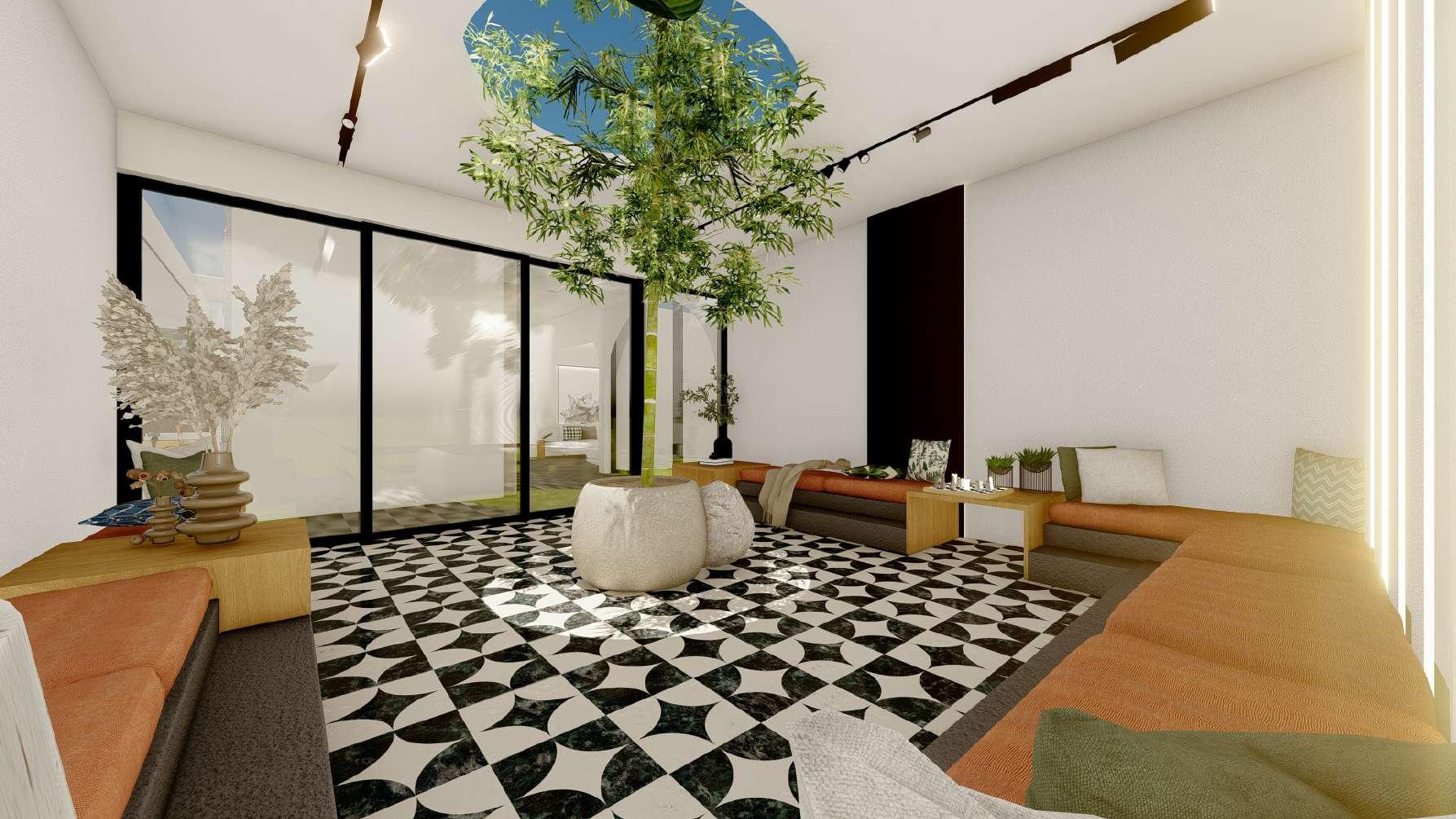

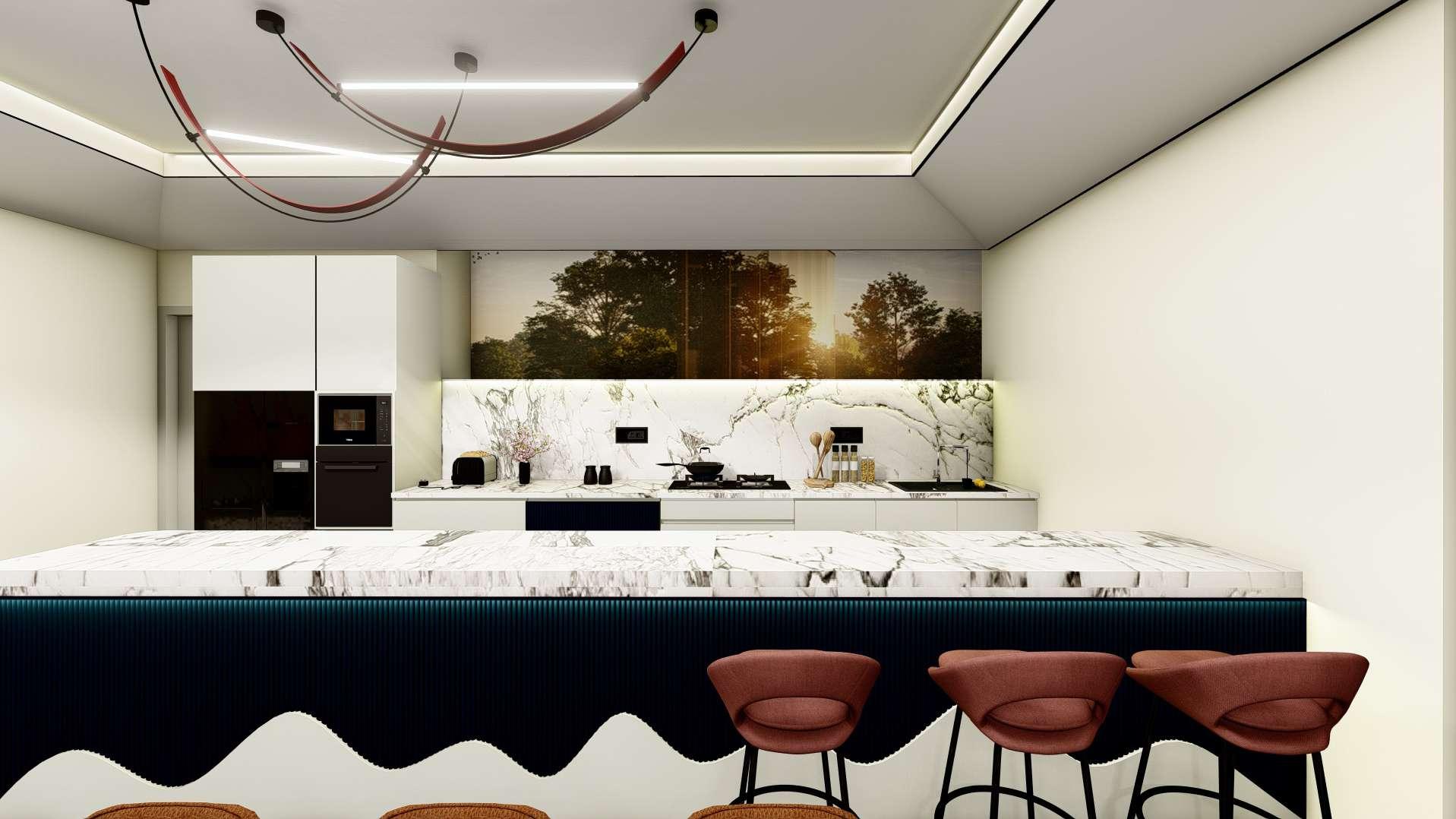

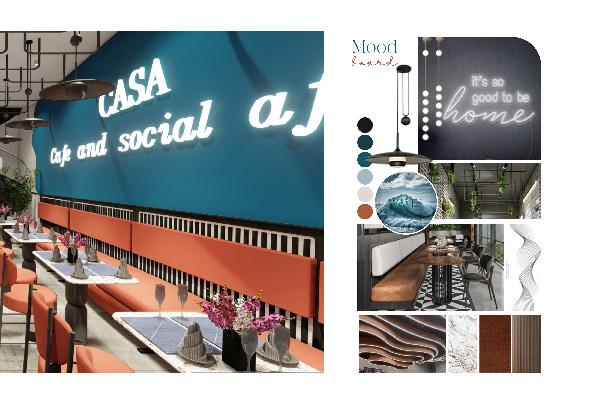

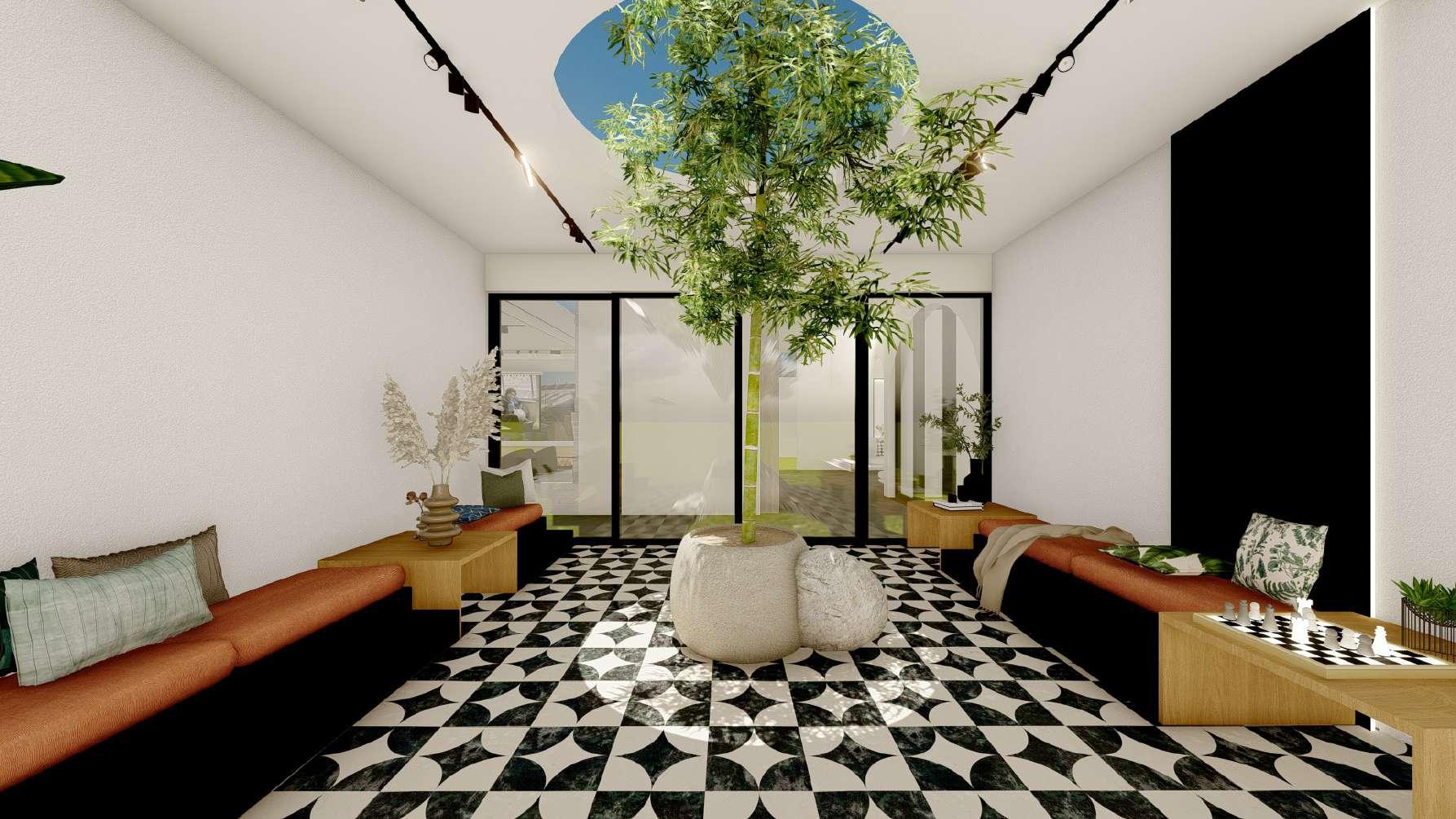

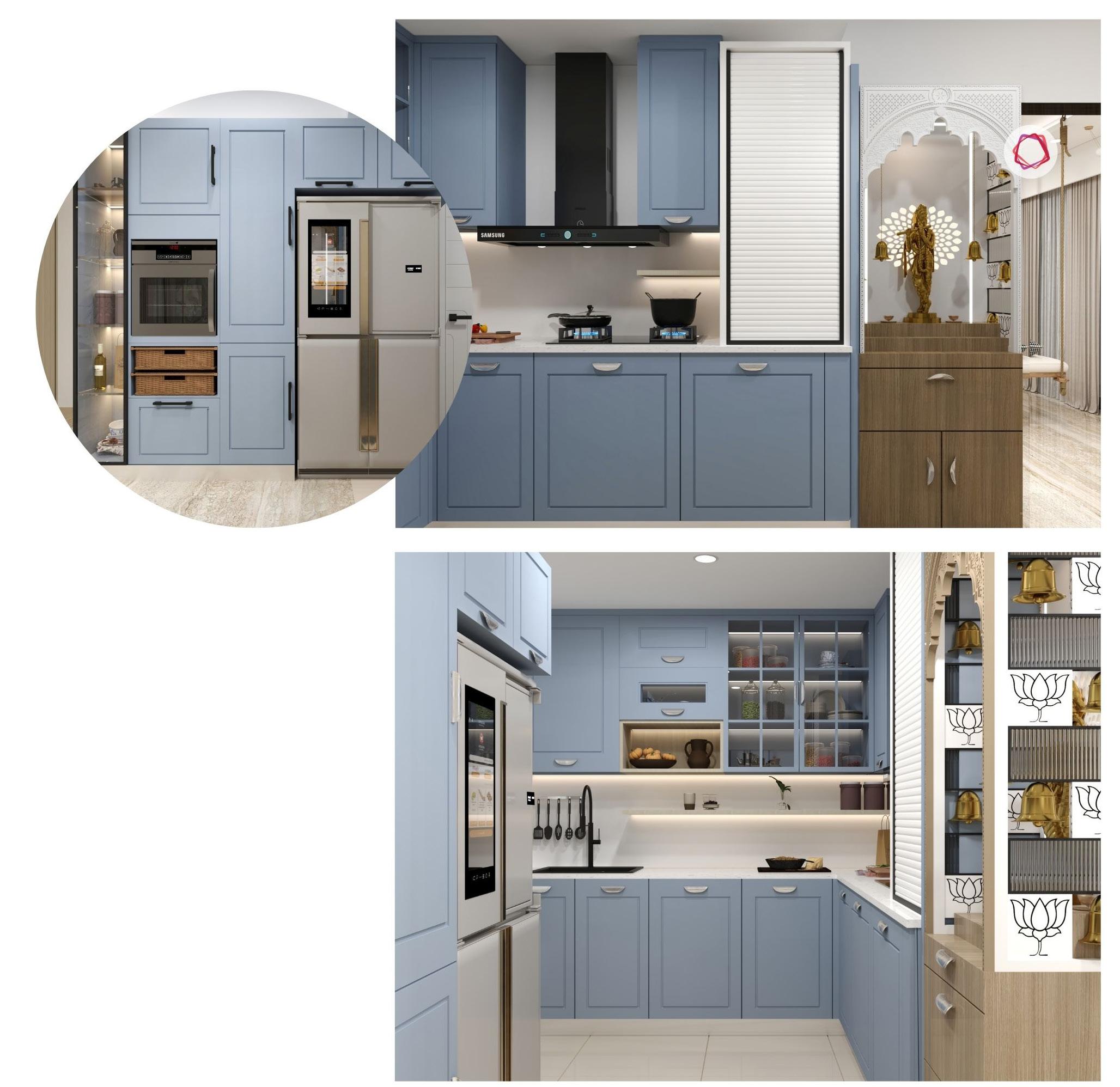

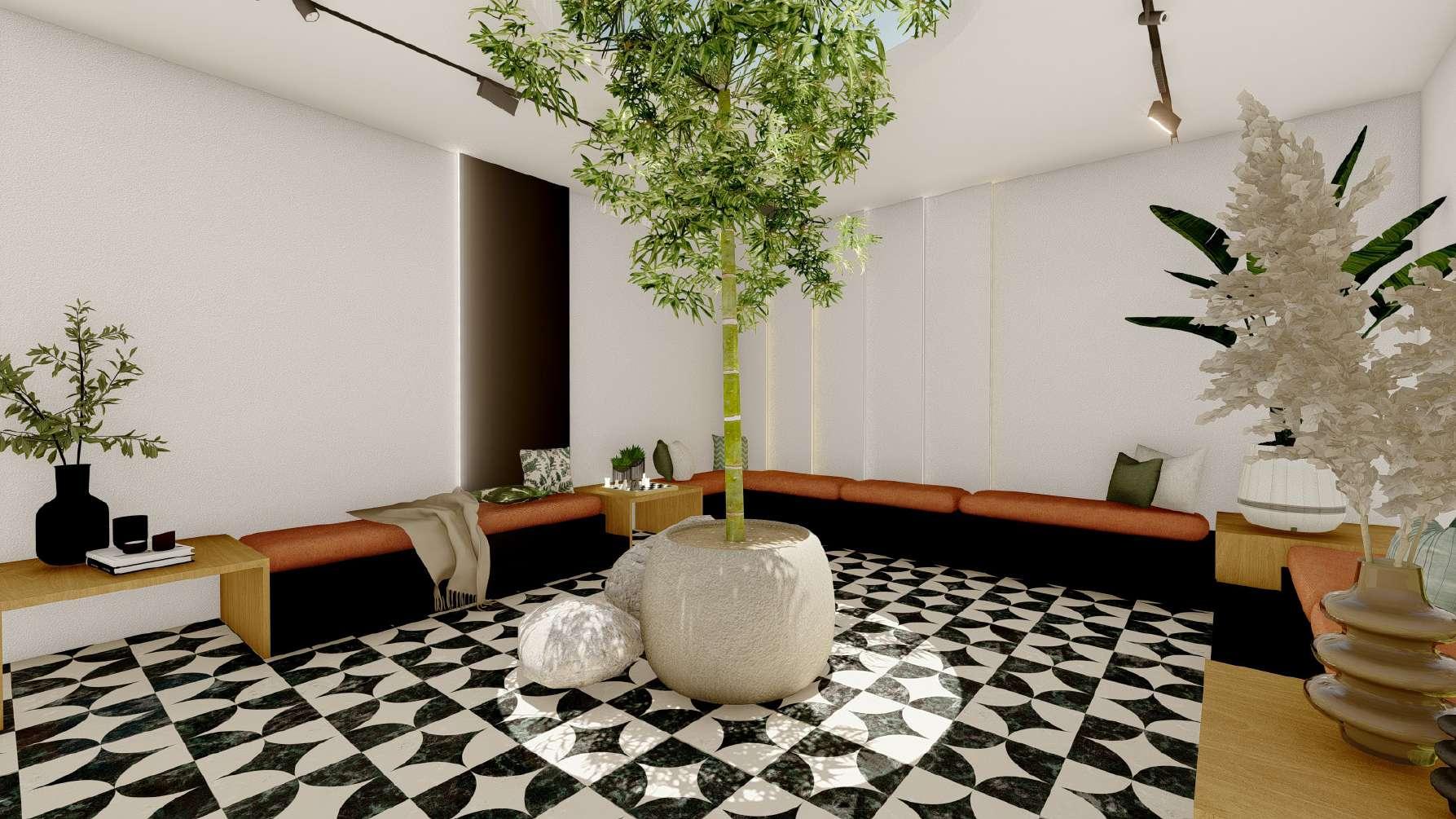

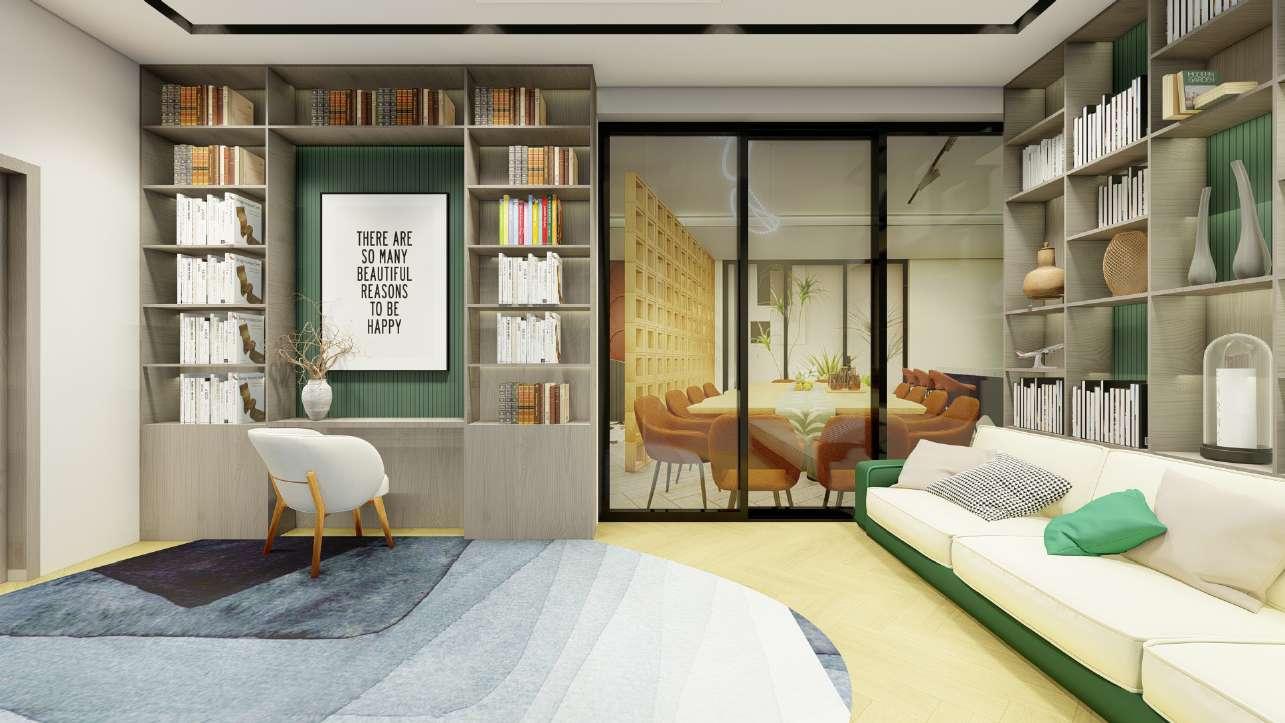

Living, dining and kitchen are interconnected with each other. The space is designed very modern and minimal, wall panels at the back of the sofa brings a subtle textures into the whole space, highlighted with free standing lamp.

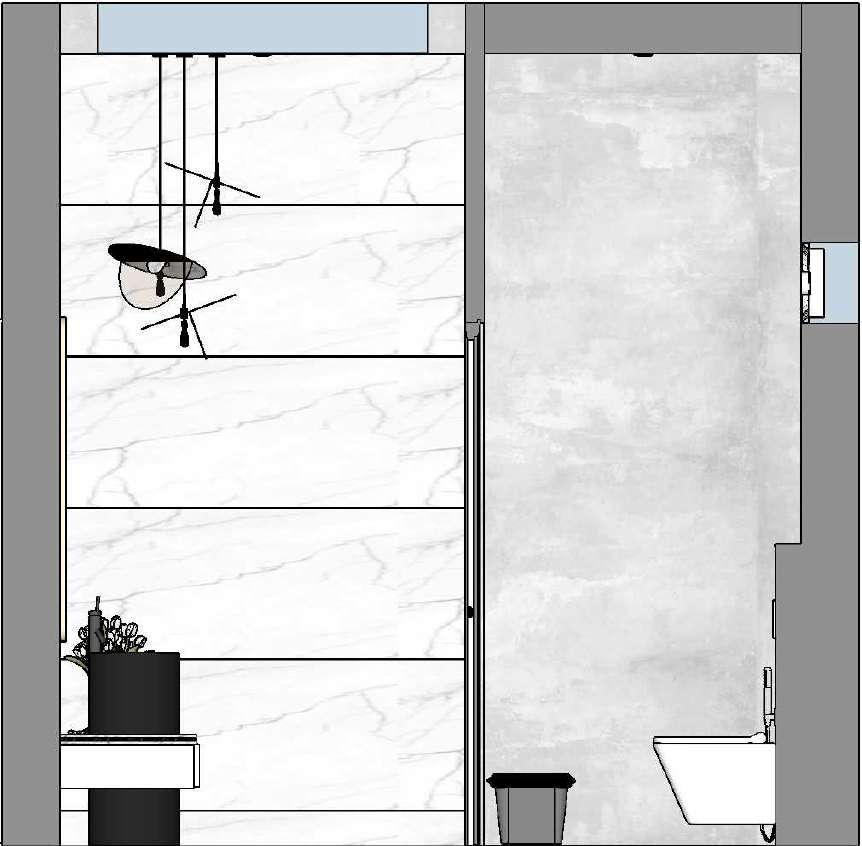

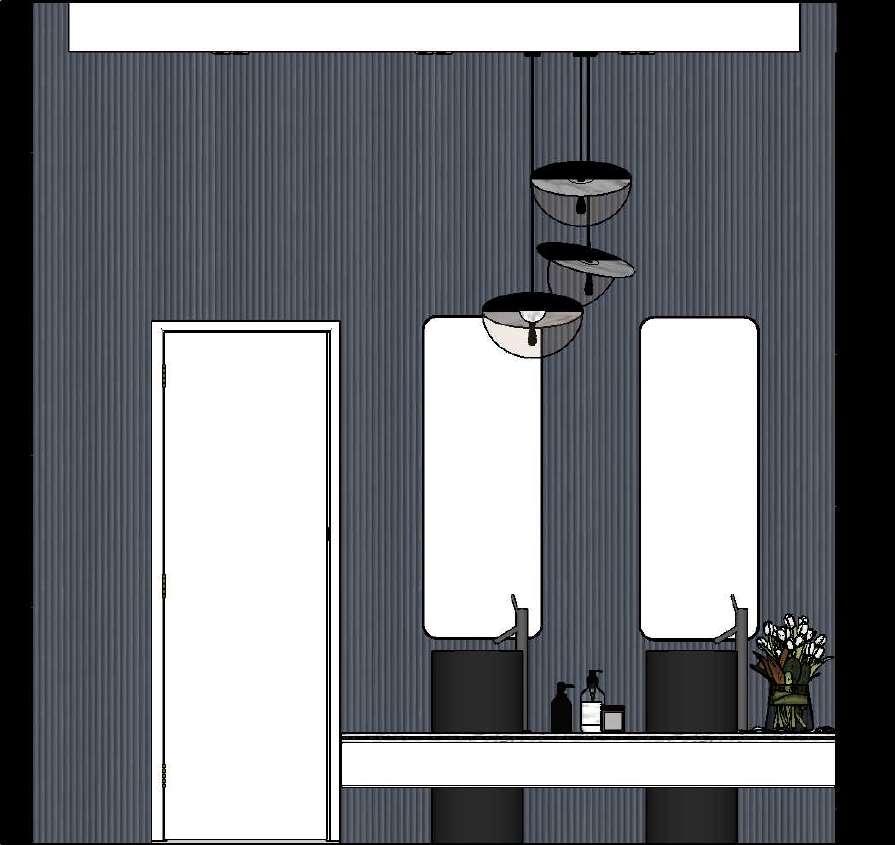

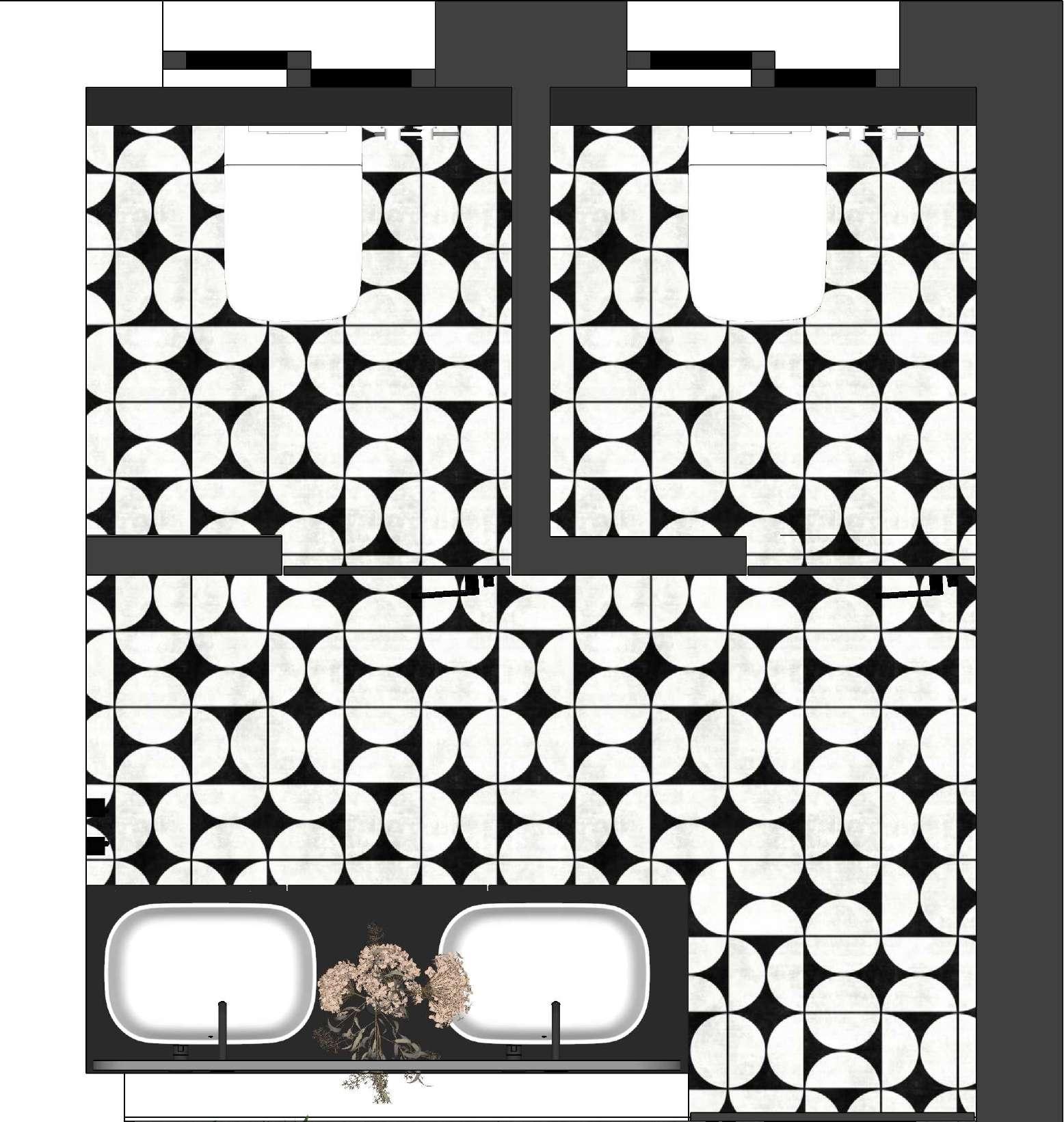

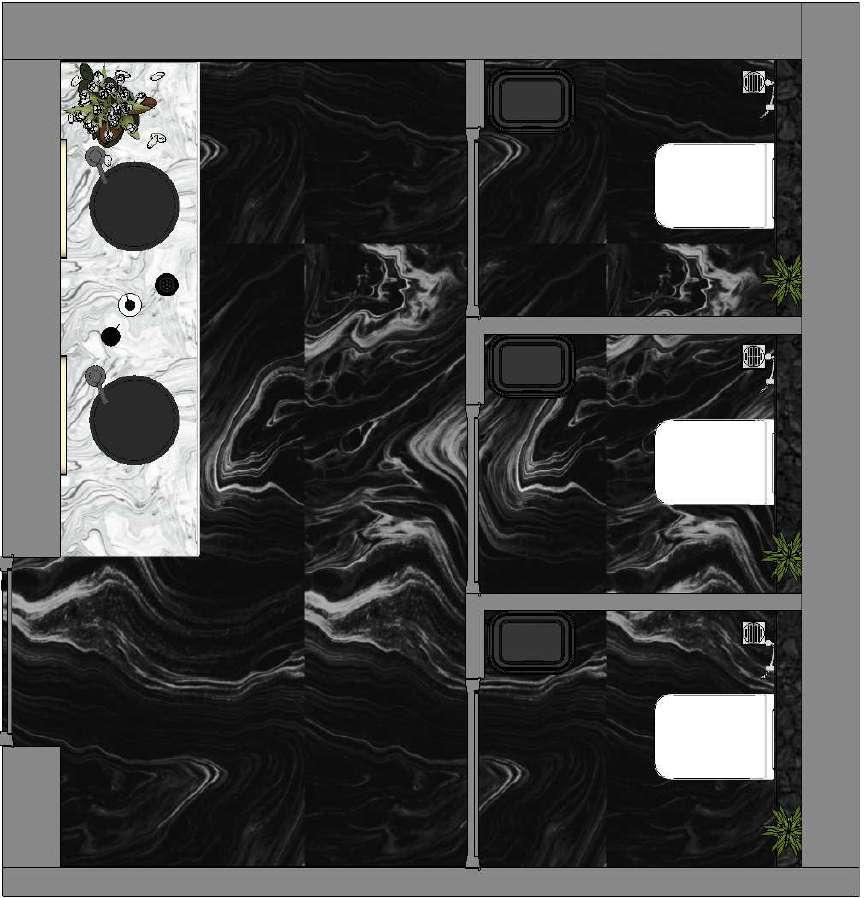

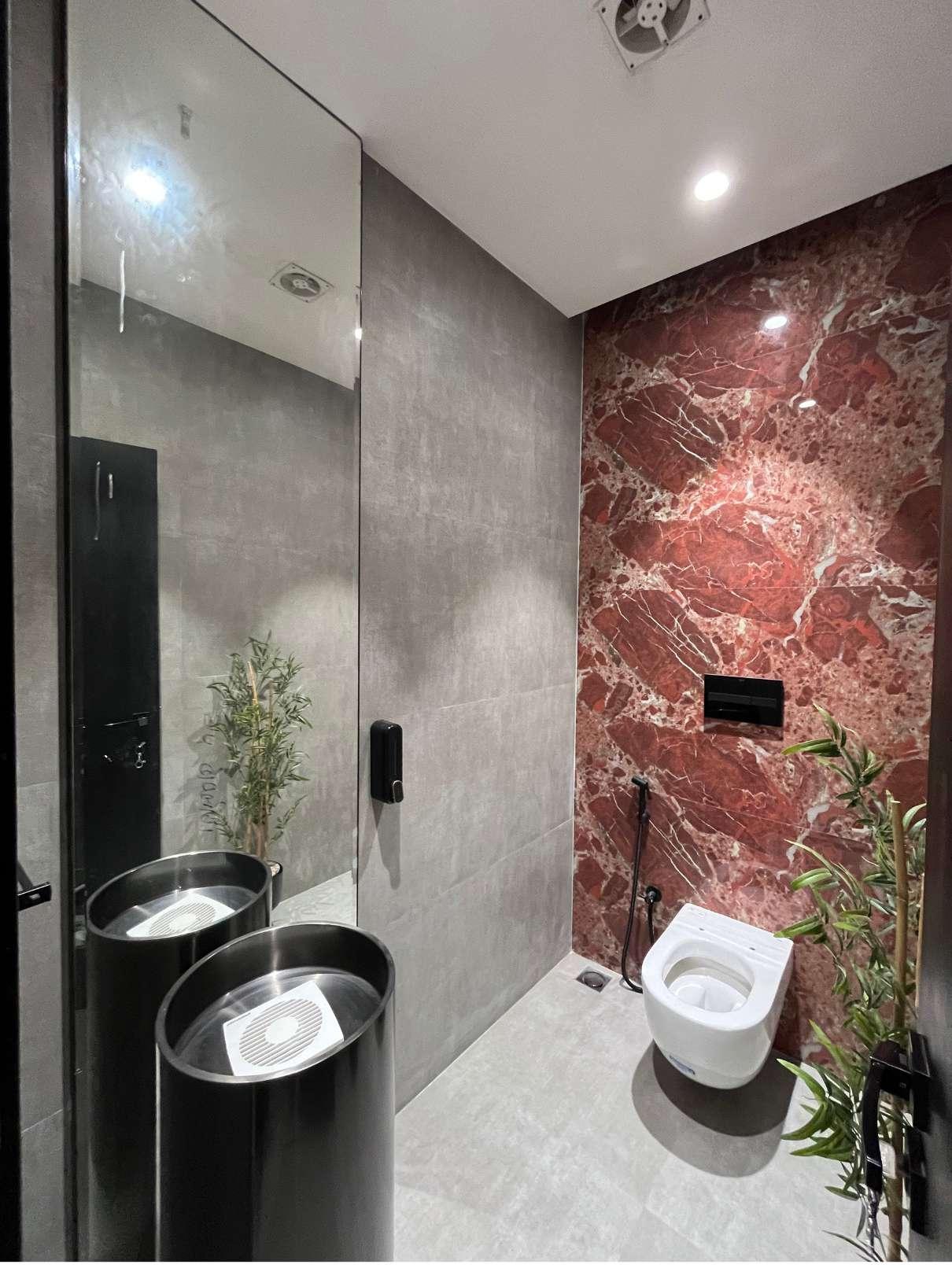

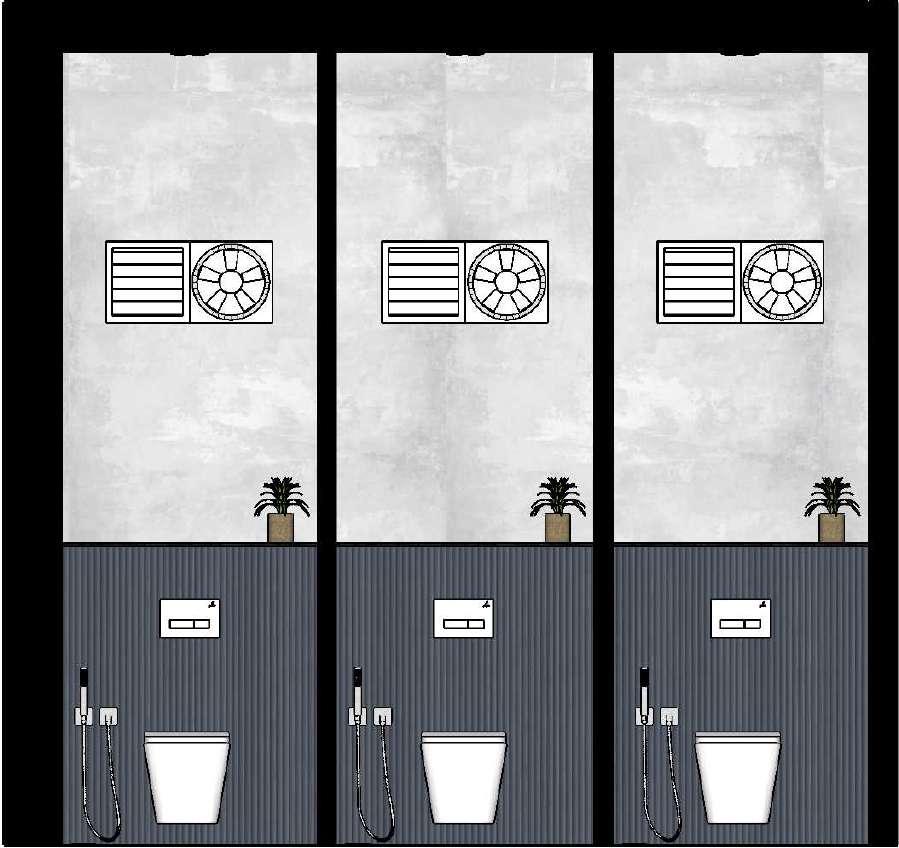

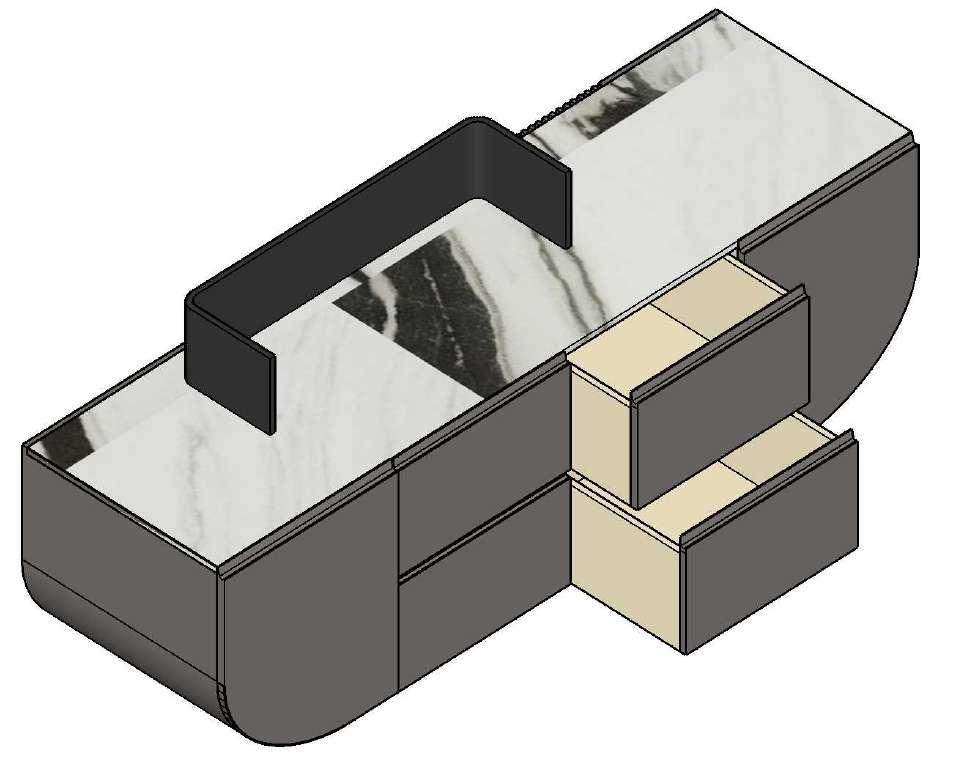

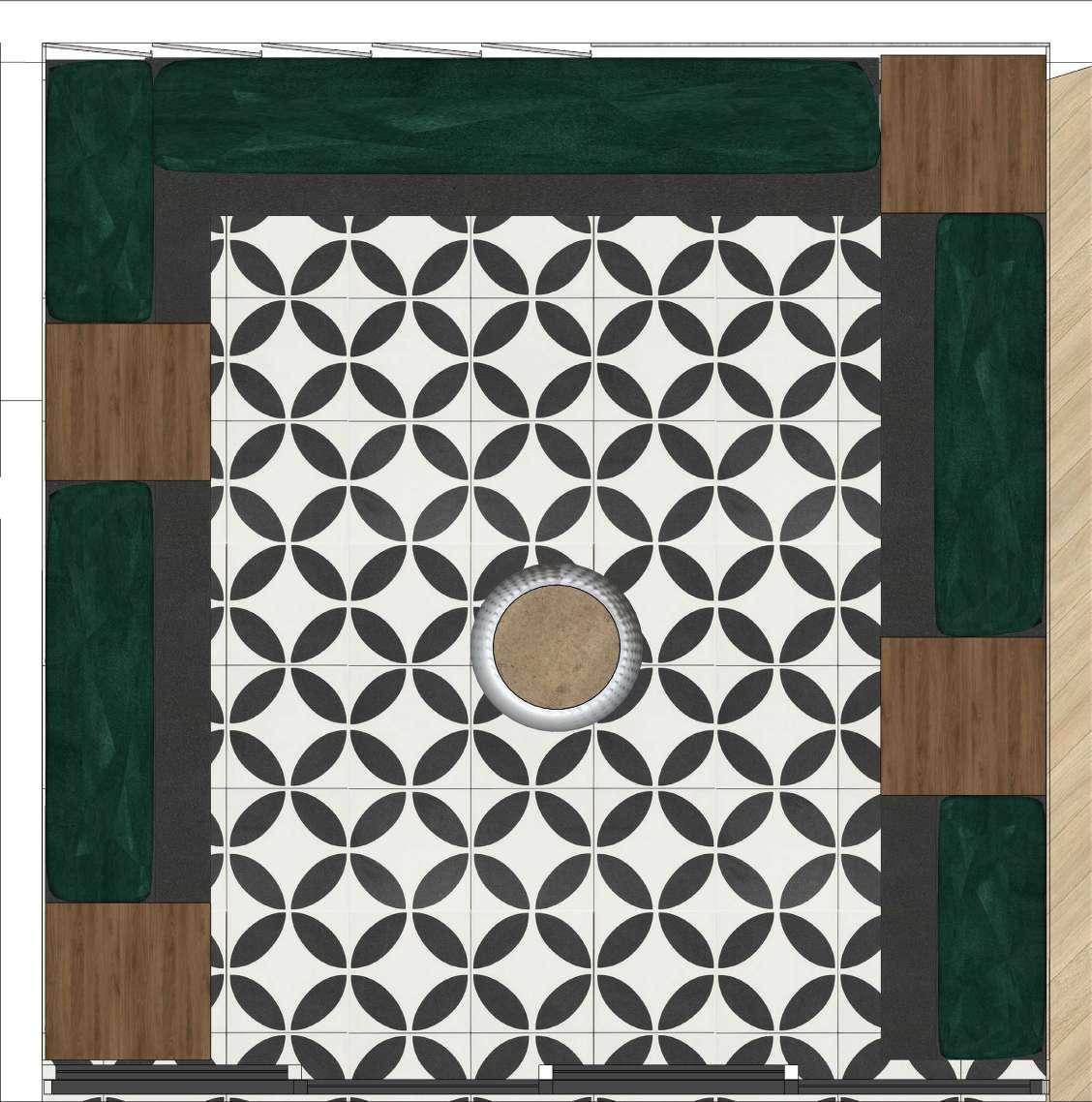

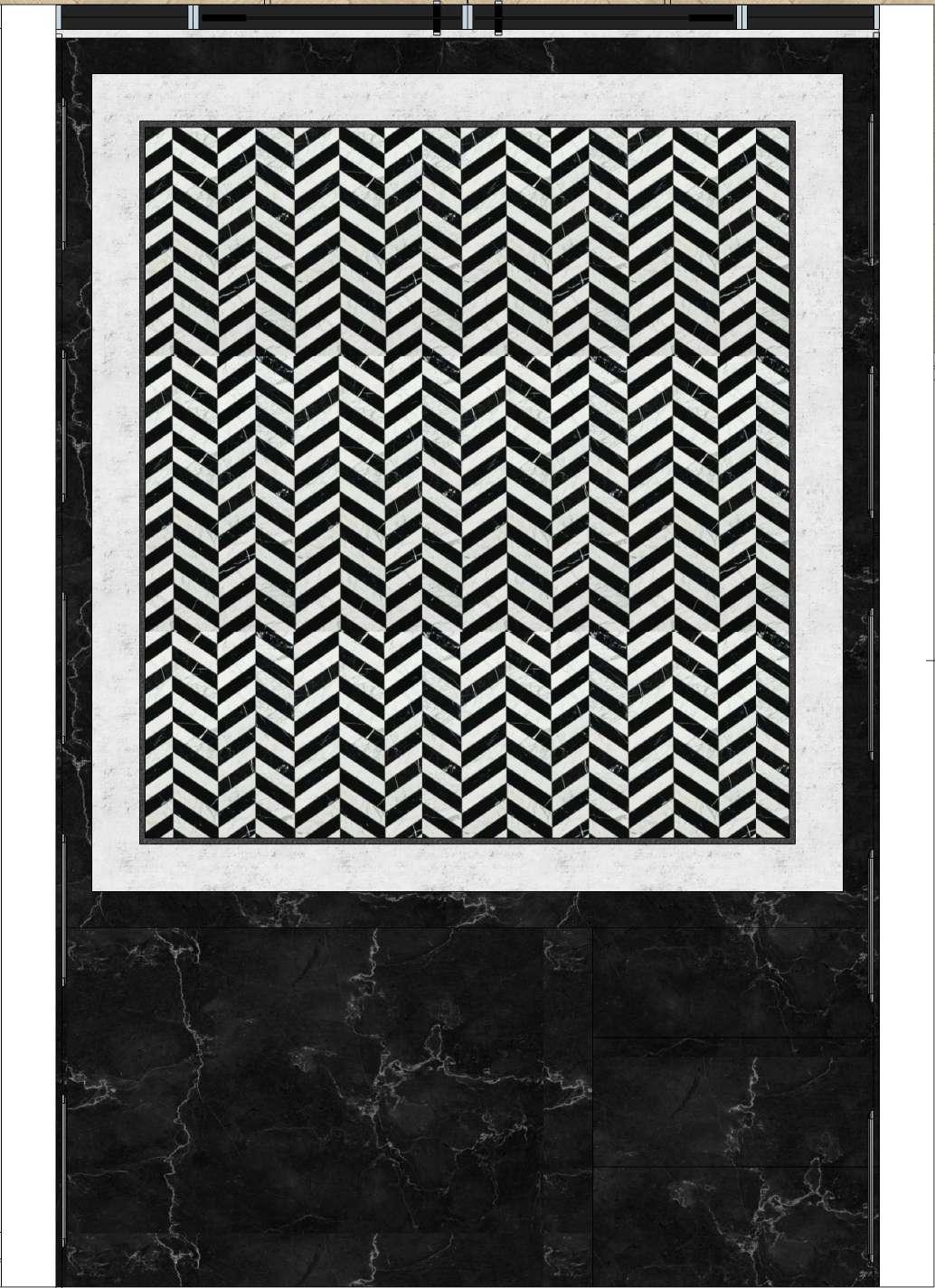

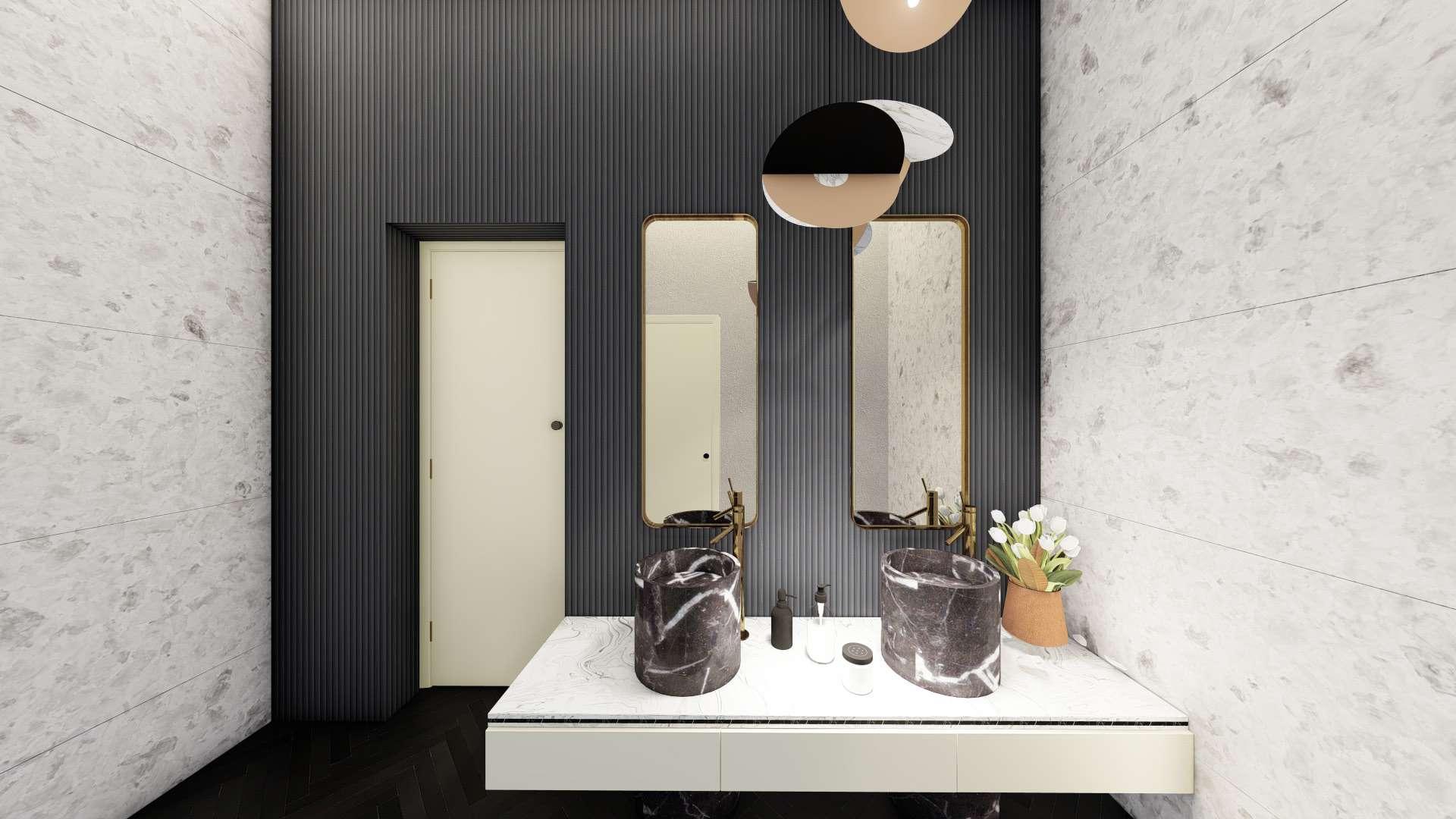

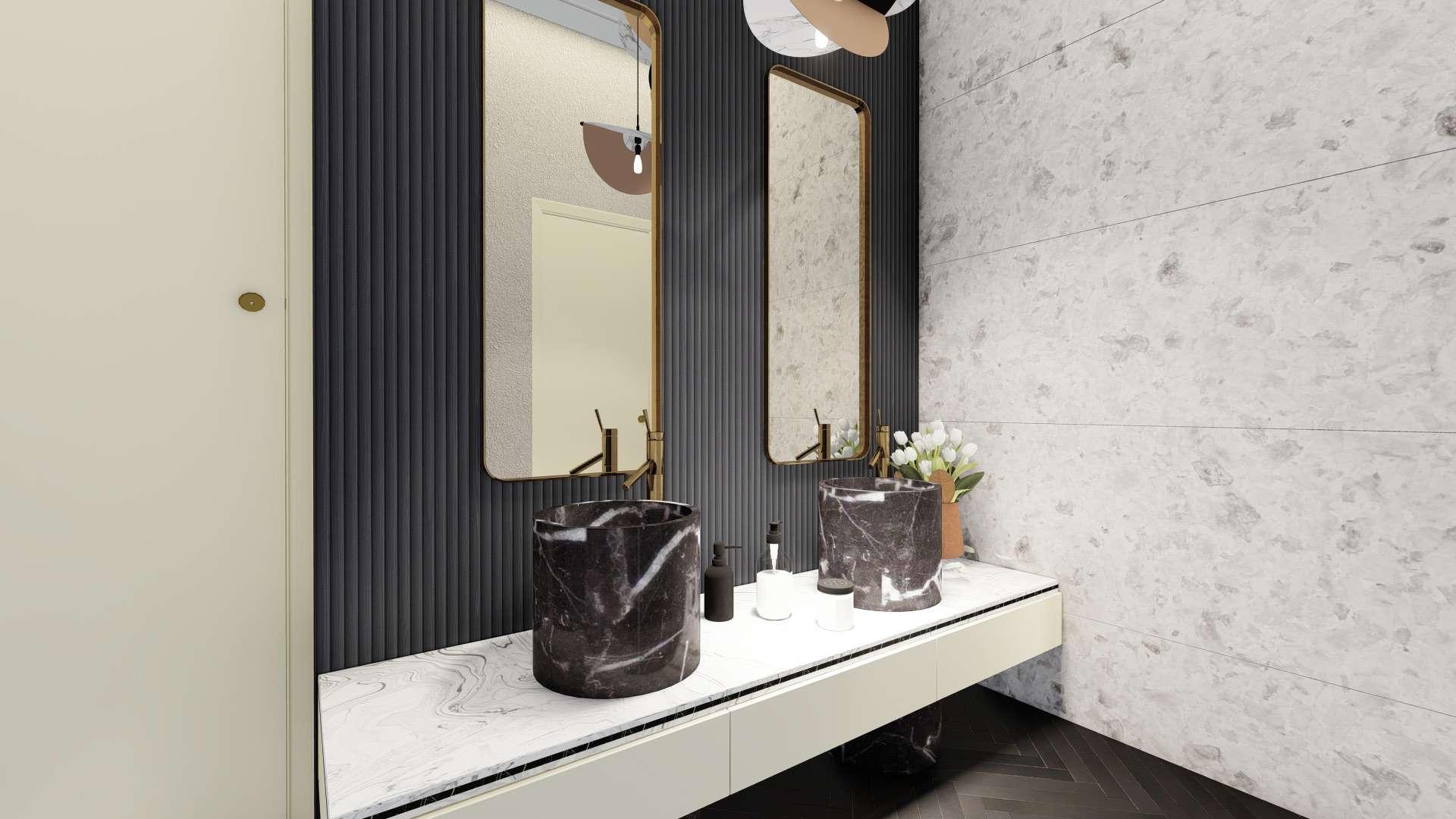

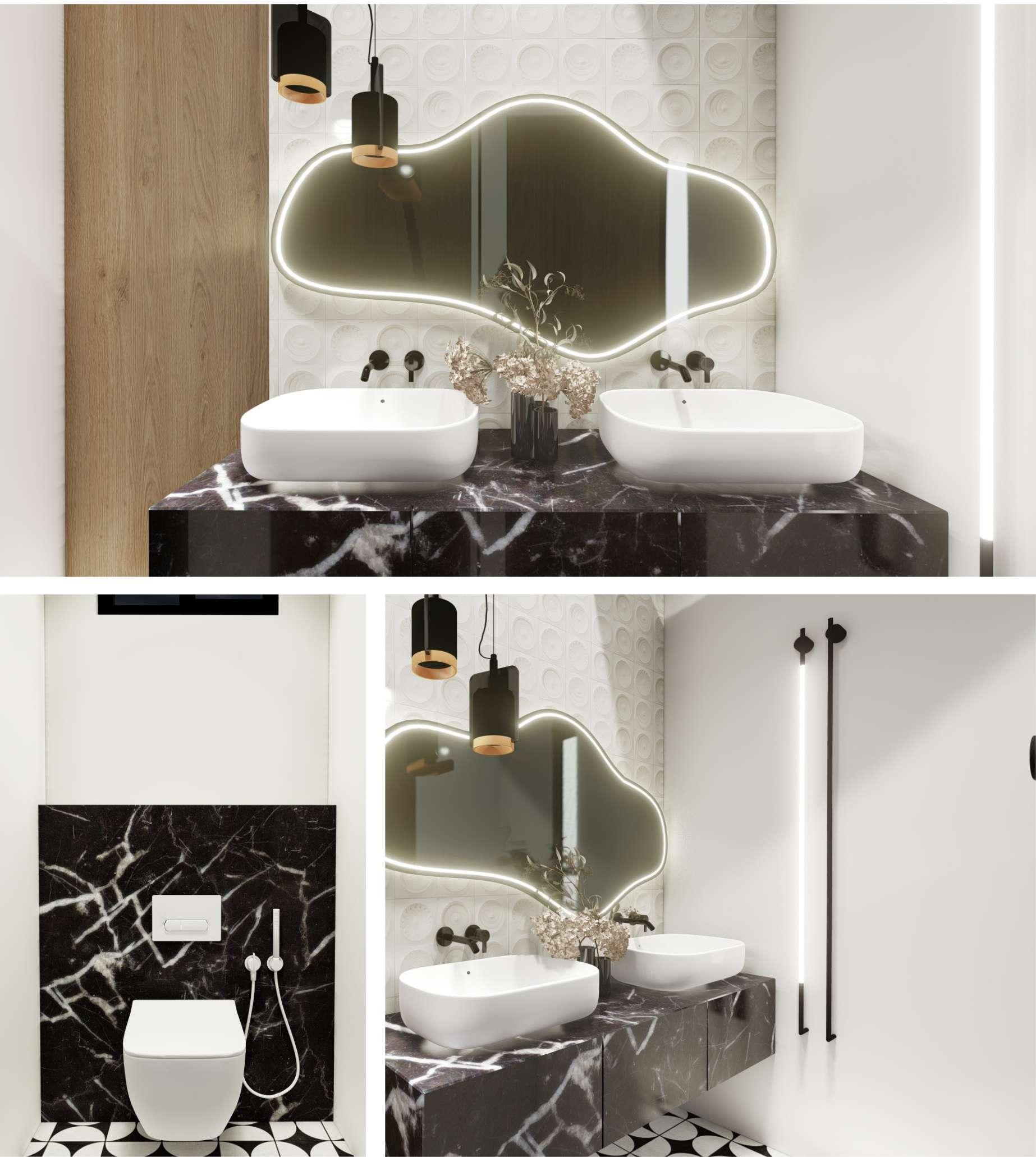

BATHROOM PLAN
