TABLE OF CONTENT
Page NumberPage Title Page Reference
01-000-TOC ENGINE, FUEL AND EXHAUST SYSTEM01-000-TOC 02-000-TOC FRAME AND SUSPENSION 02-000-TOC 03-000-TOC STEERING SYSTEM 03-000-TOC 04-000-TOC DRIVE TRAIN SYSTEM 04-000-TOC 05-000-TOC BRAKE SYSTEM 05-000-TOC 06-000-TOC HYDRAULIC SYSTEM 06-000-TOC 07-000-TOC ELECTRICAL SYSTEM 07-000-TOC 08-000-TOC CHASSIS 08-000-TOC 09-000-TOC DECALS 09-000-TOC 10-000-TOC WHEELS 10-000-TOC 11-000-TOC IMPLEMENT LIFT SYSTEM 11-000-TOC
GC1705
ENGINE, FUEL AND EXHAUST SYSTEM
Page Number Page Title Page Reference
01-0001 BELT AND FILTER GUIDE 80579
01-0002 CYLINDER HEAD MFC8613-1
01-0003 CYLINDER HEAD COVER MFC8614-1
01-0004 INTAKE MANIFOLD MFC8615-1
01-0005 EXHAUST MANIFOLD MFC12580-1
01-0006 CYLINDER BLOCK 406099
01-0007 OIL PAN 404697
01-0008 ENGINE BEARINGS - UNDERSIZE MFC8618-1
01-0009 REAR PLATE MFC8620-1
01-0010 TIMING GEAR CASE MFC12581-1
01-0011 ENGINE LIFTING MFC9246-1 01-0012 ROCKER SHAFT MFC8623-1
01-0013 CAMSHAFT 404787
01-0014 CRANKSHAFT 405803
01-0015 PISTON - STANDARD MFC8625-1
01-0016 PISTON - OVERSIZE MFC8626-1
01-0017 COOLING FAN 404832
01-0018 OIL PUMP MFC12582-1
01-0019 WATER PUMP AND THERMOSTAT MFC12583-1 01-0020 INJECTOR MFC8631-1
01-0021 INJECTOR - COMPONENTS MFC8638-1
01-0022 INJECTION PUMP MFC12584-1 FOR GC1715 / GC1720
01-0023 INJECTION PUMP - COMPONENTS MFC12585-1 FOR GC1715 / GC1720
01-0024 INJECTION PUMP MFC12678-1 FOR GC1705 / GC1710
01-0025 INJECTION PUMP - COMPONENTS MFC12586-1 FOR GC1705 / GC1710
01-0026 FUEL RETURN LINE MFC9249-1 01-0027 GOVERNOR STOP 405380
01-0028 STARTER AND ALTERNATOR 405613
01-0029 STARTER - COMPONENTS MFC8640-1
01-0030 ELECTRICAL PARTS MFC12587-1 01-0031 OVERHAUL KIT 405655 01-0032 ENGINE MOUNTING MFC12588-1 01-0033 COOLING INSTALLATION MFC12589-1 01-0034 INSULATOR 1922100
USED TO PREVENT MOWER FROM BRINGING GRASS INTO THE RADIATOR
FIRST USED GC1705 S/N - MGC050FJH74003
FIRST USED GC1710 S/N - MGC100FJH84901
FIRST USED GC1715 S/N - MGC150FJH94203
FIRST USED GC1720 S/N - MGC200FJH04103
01-0035 MUFFLER MFC12590-1 01-0036 AIR CLEANER MFC12591-1 01-0037 FUEL PUMP 405880
01-0038 FUEL FILTER - COMPONENTS MFC8716-1 01-0039 FUEL TANK MFC12592-1 01-0040 HAND THROTTLE CONTROL 405939
Massey Ferguson
1 3710280M3 FILTER CARTRIDGE
2 6259119M91FILTER AIR CLEANER
3 6258877M91HYDRAULIC FILTER
4 3608255M1 FUEL FILTER ELEMENT
5 6252466M1 BELT FAN 7073007M91GUARD SET

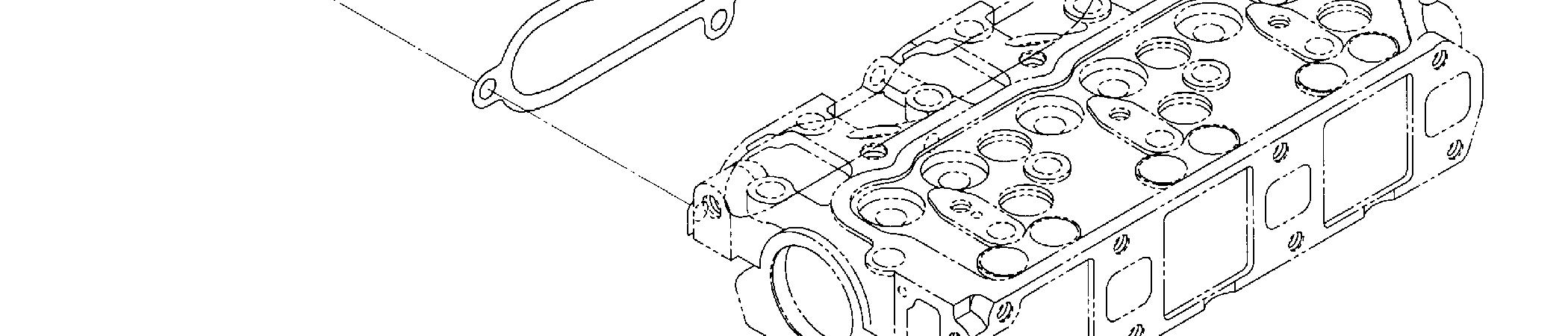

CYLINDER HEAD
ItemPart NumberQtyDescription Comments
1 4266468M93 1 CYLINDER HEAD INCLUDES ITEMS 2-5
2 3704389M1 2 CUP
Technical Specification
3 3707877M2 5 PIPE PLUG 1/2"
4 3710256M1 6 VALVE OIL SEAL
5 3711713M1 1 BALL
6 3710144M2 1 CYLINDER HEAD GASKET
7 6252529M1 14BOLT
8 3607420M1 2 STUD BOLT M8 X 71 (1.25)
CYLINDER HEAD COVER
1 3608539M92 1 VALVE COVER
2 3710188M1 1 OIL FILLER CAP
3 3710151M1 1 SEAL
CYLINDER HEAD COVER
4 3710127M2 2 CAP NUT M8
5 4267629M1 2 SEAL
6 3710124M2 1 HOSE
INTAKE MANIFOLD
ItemPart NumberQtyDescription Comments
1 3710307M91 1 INTAKE MANIFOLD
2 3710309M1 1 GASKET INTAKE
Technical Specification
3 3757910M1 3 HEXAGONAL HEAD BOLT M8 X 30
4 4267570M1 1 HEXAGON FLANGE BOLT
EXHAUST MANIFOLD
Comments
1 6259704M1 1 EXHAUST MANIFOLD
2 3710312M1 1 GASKET EXHAUST
3 3704677M1 6 HEX CAP SCREW

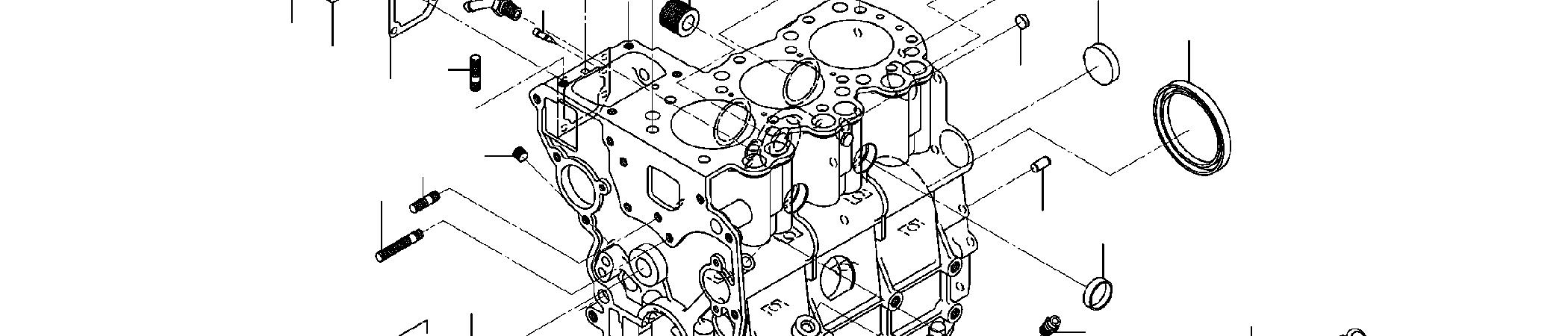

CYLINDER BLOCK
ItemPart NumberQtyDescription Comments
6259693M91 1 ENGINE
COMPLETE ENGINE FOR GC1705 6259694M91 1 SHORT BLOCK 4330274M91 1 KIT, HEATER
1 3710152M98 1 CYLINDER-BLOCK
Technical Specification
2 3710110M2 8 HEX CAP SCREW 3 3710130M2 2 SEALING CAP ?28 MM 4 4265580M1 4 SEALING CUP ?36 MM 5 6254909M2 3 PLUG 1/8" 6 3710247M2 1 PIN
7 4265579M1 2 CUP 8 3710160M1 4 BEARING CAP SEAL 9 3710161M1 2 BEARING CAP SEAL ?7 MM
103710175M91 1 KIT, BEARING 113711637M1 4 BEARING
123711638M1 4 BEARING 133710184M1 2 BEARING THRUST 143710132M1 1 OIL SEAL
153710137M2 2 DOWEL PIN 164266242M1 2 STRAIGHT PIN ?8 X 16 MM
173757960M1 2 PIN ?6 X 12 MM
183706536M1 1 STUD BOLT M8 X 40 193704806M1 1 STUD BOLT 203704353M1 2 STUD BOLT M8 X 22 213758287M1 2 DOWEL PIN 223704382M1 1 NIPPLE 236259695M1 1 SCREW PLUG SEAL 243710284M1 1 CONNECTORS 253710162M2 COVER 263710163M1 1 COVER SEAL 274267405M1 4 HEXAGON FLANGE BOLT 283710411M1 1 SPRING PIN 296254496M3 1 GAUGE 306254497M91 1 DIPSTICK TUBE
OIL PAN Page01-0007
ItemPart
1 6256424M91 1 PAN OIL
2 3607358M2 1 PLUG M14 (1.5)
3 3707793M1 1 O-RING
4 4267404M1 14HEXAGON FLANGE BOLT
ENGINE BEARINGS - UNDERSIZE
ItemPart NumberQtyDescription
Comments
1 3710178M91 1 KIT, BEARING .5MM CRANKSHAFT
2 3710184M1 2 BEARING THRUST CRANKSHAFT
3 3710181M91 1 KIT, BEARING 1.0MM CRANKSHAFT
4 3710184M1 2 BEARING THRUST CRANKSHAFT
5 6252648M1 3 BEARING .5MM CONNECTING ROD
6 6252649M1 3 BEARING 1.0MM CONNECTING ROD
3 3704341M1 8 HEXAGONAL HEAD BOLT M10 X 20 (1.25)
TIMING GEAR CASE
ItemPart NumberQtyDescription Comments Technical Specification
1 6259700M91 1 GEAR CASE 2 6254909M2 2 PLUG
1/8" 3 4265578M1 1 SEALING CUP ?16 MM 4 3710133M1 1 OIL SEAL 5 4267576M1 1 HEXAGON FLANGE BOLT 6 4267573M1 2 HEXAGON FLANGE BOLT 7 4260467M1 1 HEX NUT M8 8 4267566M1 3 HEXAGON FLANGE BOLT 9 4267571M1 5 HEXAGON FLANGE BOLT
