DescriptionComments

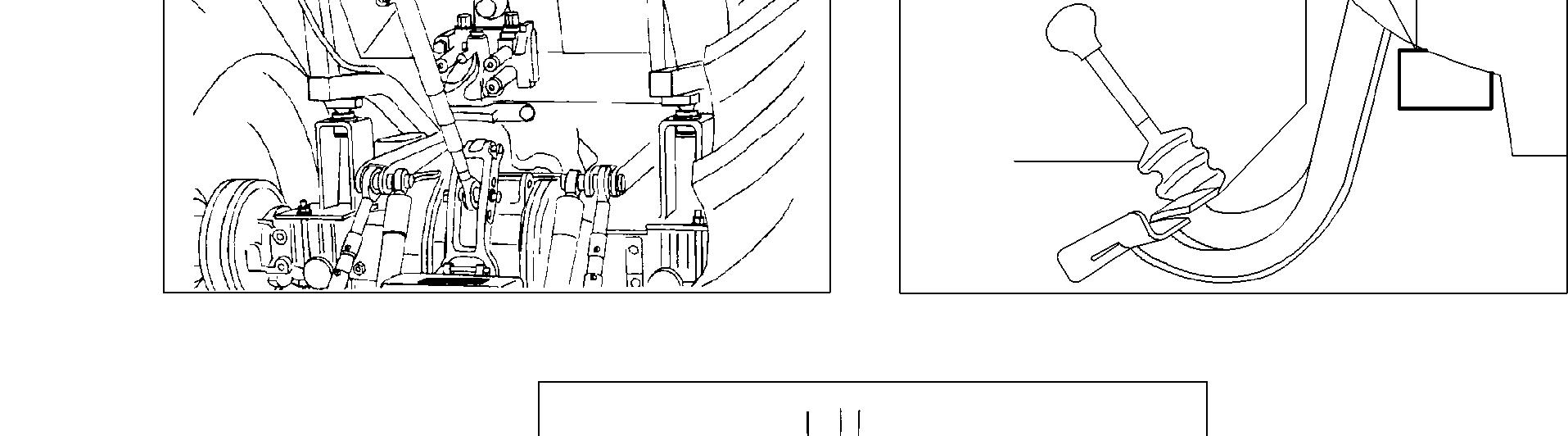

SERIAL NUMBERS
FOR UK ONLY OR ANY TEXT IN ENGHISH ONLY NUMEROS DE SERIES
FOR FRANCE ONLY OR ANY TEXT IN FRENCH ONLY SERIEN NUMMER
FOR GERMANY ONLY OR ANY TEXT IN GERMAN ONLY MATR.O NUMERO
FOR ITALY ONLY OR ANY TEXT IN ITALIAN ONLY E NUMERO SERIE
Cylinder Block - "BLUE" - See Section 10-15 For PERKINS Build List
ItemPart NumberQtyDescriptionComments
1 4222540M911 Kit,Cyl.Block
2 1 Block (1)
NOT SERVICED, ORDER REF. 1
3 5 Bearing Cap (1) NOT SERVICED, ORDER REF. 1
4 748216M14 Liner [A] 748215M14 Liner [B] (1)
5 731354M15 Plug (1) DIAMETER 32,397+/-0,114MM
6 4224385M914 Jet (1)
7 4222512M14 Dowel (6) 8 376670X11 Plug 9 733072M110 Ring (1) 10 1476108X110 Screw (1) 11 363819X11 Plug (1)
12 4222017M11 Bush (1) 13 746259M14 Plug (1) 14 4222012M12 Plug (1) 15 1476282X11 Plug (1)
16 736868M11 Plug (1)
17 3638708M11 Joint (1) 18 746259M12 Plug (1) 19 4222043M11 Plug (1)
REPLACE AND REPAIR.OLD NOT INTERCHANGEABLE WITH NEW 3637015M1
20 376180X11 Plug (1) 21 4224555M11 Washer (1) 22 4224532M11 Housing 23 1650388M11 Washer 24 3638809M11 Screw 25 4223587M11 Joint 26 3637011M112 Screw M8 X 25 27 3641756M12 Screw 28 4222048M11 Plate (1) 29 731947M12 Dowel 30 4222439M12 Dowel (1) 31 731354M11 Plug (1) 32 3637005M914 Valve (1) 33 1 Body (32) NOT SERVICED, ORDER REF. 32 34 3637006M11 Ball (32) 35 748149M11 Spring (32) 36 3637007M11 Retainer (32) 37 731996M11 Plug 38 3638424M14 Screw (1) M10 X 25 39 3641736M11 Plug (1) DIAMETER 25,971+/-0,063MM 40 3637221M13 Nut 41 4222720M13 Stud
FOOTNOTE[A] SLIP FIT
FOOTNOTE[B] PRESS FIT
Crankshaft, Pistons And Connecting Rods - "BLUE" - See Section 10-15 For PERKINS Build List
ItemPart NumberQtyDescription Comments
1 4223939M911 Kit, CrankshaftUP TO SERIAL OR ENGINE NUMBER U523961J 1 Kit, Crankshaft[D]
FROM SERIAL OR ENGINE NUMBER U523962J
2 1 Crankshaft (1)
NOT SERVICED, ORDER REF. 1
3 735168M911 Kit, Bearing [A] (1)
735169M91X Kit, Bearing [A] THICKNESS (-) 0,25MM
735170M91X Kit, Bearing [A] THICKNESS (-) 0,50MM
735171M91X Kit, Bearing [A] THICKNESS (-) 0,75MM
4 3637791M911 Kit, Bearing [A] (1)
UP TO SERIAL OR ENGINE NUMBER U523961J
3637792M91X Kit, Bearing [A]
UP TO SERIAL OR ENGINE NUMBER U523961J THICKNESS (-) 0,25MM
3637793M91X Kit, Bearing [A]
UP TO SERIAL OR ENGINE NUMBER U523961J THICKNESS (-) 0,50MM
3637794M91X Kit, Bearing [A] UP TO SERIAL OR ENGINE NUMBER U523961J THICKNESS (-) 0,75MM
4225063M911 Kit, Bearing [A]
FROM SERIAL OR ENGINE NUMBER U523962J 4225064M91X Kit, Bearing [A]
FROM SERIAL OR ENGINE NUMBER U523962J (+) 0.010"
4225065M91X Kit, Bearing [A]
FROM SERIAL OR ENGINE NUMBER U523962J (+) 0.020"
4225066M91X Kit, Bearing [A]
FROM SERIAL OR ENGINE NUMBER U523962J (+) 0.030"
5 747128M12 Thrust Washer (1) 735742M1X Washer THICKNESS (+) 0,19MM 6 747129M12 Thrust Washer (1) 735743M1X Washer THICKNESS (+) 0,19MM 7 3638115M11 Thrust Block (1) 8 3638113M13 Screw (1) 9 3637028M914 Kit, Conrod UP TO SERIAL OR ENGINE NUMBER U523961J 10 1 Conrod (9) NOT SERVICED, ORDER REF. 9 11 1 Cap (9) NOT SERVICED, ORDER REF. 9 12 744971M11 Bush (9) UP TO SERIAL OR ENGINE NUMBER U523961J 13 4222485M12 Screw (9) 1/2-20 X 3 14 3637030M12 Nut (9) UP TO SERIAL OR ENGINE NUMBER U523961J 15 4222821M12 Sleeve (9) UP TO SERIAL OR ENGINE NUMBER U523961J 16 4223849M914 Kit, Piston 17 1 Piston Pin (16) NOT SERVICED, ORDER REF. 16 18 1476196X11 Circlip (16) 19 1476196X11 Circlip (16) 20 1 Piston (16) NOT SERVICED, ORDER REF. 16 21 3638105M11 Gear 22 709058451 Key 23 3638098M11 Pulley [C] 24 747631M11 Pulley,Crank [B] 25 3641316M911 Kit, Piston Ring 26 4225011M914 Kit, Conrod FROM SERIAL OR ENGINE NUMBER U523962J "F" 4225012M914 Kit, Conrod FROM SERIAL OR ENGINE NUMBER U523962J "G"
Crankshaft, Pistons And Connecting Rods - "BLUE" - See Section 10-15 For PERKINS Build List
ItemPart NumberQtyDescription Comments
26 4225013M914 Kit, Conrod FROM SERIAL OR ENGINE NUMBER U523962J "H"
26 4225014M914 Kit, Conrod FROM SERIAL OR ENGINE NUMBER U523962J "J"
26 4225015M914 Kit, Conrod FROM SERIAL OR ENGINE NUMBER U523962J "K" 26 4225016M914 Kit, Conrod FROM SERIAL OR ENGINE NUMBER U523962J "L"
27 4224864M12 Bolt (26)
FROM SERIAL OR ENGINE NUMBER U523962J 28 1 Conrod (26) NOT SERVICED, ORDER REF. 1 29 4224827M11 Bush (26) FROM SERIAL OR ENGINE NUMBER U523962J
FOOTNOTE[A] PRE-FINISHED FOOTNOTE[B] WITH AIR CONDITIONING FOOTNOTE[C] WITHOUT CONDITIONED AIR FOOTNOTE[D] NUMBER TO BE ADVISED FOOTNOTE[E] WITH POWERSHUTTLE TRANSMISSION FOOTNOTE[F] WITH FRONT LINKAGE 5T
4245 / 4255 TRACTORS - |---> K37009 - 819918
Cylinder Head - "BLUE" - See Section 10-15 For PERKINS Build List
ItemPart NumberQtyDescription Comments
1 4222358M911 Kit, Cyl. Head 2 1 Cylinder Head (1) NOT SERVICED, ORDER REF. 1 3 731354M11 Plug [A] (1)
4 733536M14 Plug [A] (1)
5 3640677M14 Insert [A] (1)
6 3640712M14 Insert [A] (1)
7 3640597M14 Valve Inlet (1) 8 4223073M14 Guide [A] (1)
REPLACE AND REPAIR.OLD NOT INTERCHANGEABLE WITH NEW 3640676M1 9 733824M14 Washer (1)
10 740467M14 Spring (1) 11 740465M14 Spring (1) 12 3637041M14 Seal (1) 13 740468M14 Cap (1) 14 736453M18 Cotter (1)
15 748309M14 Valve Exhaust (1)
16 4223074M14 Guide [A] (1)
REPLACE AND REPAIR.OLD NOT INTERCHANGEABLE WITH NEW 748420M1
17 733824M14 Washer (1) 18 740467M14 Spring (1) 19 740465M14 Spring (1) 20 3637041M14 Seal (1) 21 740468M14 Cap (1) 22 736453M18 Cotter (1) 23 4222358M911 Kit, Cyl. Head 24 4224501M1 1 Head GasketREPLACE AND REPAIR.OLD NOT INTERCHANGEABLE WITH NEW 4222534M1 25 745663M112 Screw 1/2-20 X 4.1/4 26 745662M18 Screw 1/2-20 X 3.5/8 27 4224584M14 Plug [A] (1)
REPLACE AND REPAIR.OLD INTERCHANGEABLE WITH NEW 1476192X1 28 1476243X12 Screw 29 731410M11 Plug (1) 30 376178X11 Washer (1) 31 3637050M11 Plate 32 3637051M12 Screw M10 X 25 33 3638411M11 Plate 34 3637051M12 Screw M10 X 25 35 3637139M12 Screw M10 X 20 36 3639268M12 Dowel 37 4222439M12 Dowel (1)
FOOTNOTE[A] ALSO INCLUDED IN REF.23
Rocker Shaft
ItemPart NumberQtyDescription Comments
1 3641234M911 Rocker Shaft Ass[B]
2 3637395M911 Rocker Shaft [B] (1)
3 1 Rocker Shaft (2)
NOT SERVICED, ORDER REF. 2
4 731330M12 Plug (2)
5 3638403M14 Bracket (1) 6 4223075M914 Rocker [B] (1) RIGHT HAND
7 1 Lever (6) NOT SERVICED, ORDER REF. 6
8 895748M11 Bush [B] (6)
9 4223076M914 Rocker [B] (1) LEFT HAND
10 1 Lever (9) NOT SERVICED, ORDER REF. 9 11 895748M11 Bush [B] (9)
12 733811M12 Spring (1)
13 733812M12 Spring (1)
14 3638499M11 Connection (1)
15 3638500M11 Screw (1)
16 4224336M12 Shim (1)
17 4223933M18 Screw (1)
18 376123X18 Nut (1)
19 747876M12 Washer [B] (1)
20 376137X12 Circlip (1) 21 376525X1 1 Olive (1) 22 3637066M13 Stud 23 733817M18 Rod 24 4222069M18 Tappet 25 3637073M11 Screw [A] M12 X 50 26 3637067M13 Nut
FOOTNOTE[A] SECURES NUMBER 3 ROCKER SHAFT BRACKET FOOTNOTE[B] SEE SECTION 10-15 FOR "BLUE" PERKINS BUILD LIST
Massey Ferguson
4245 / 4255 TRACTORS - |---> K37009 - 819918
Timing Gear And Camshaft - "BLUE" - See Section 10-15 For PERKINS Build List
ItemPart NumberQtyDescription Comments
1 4222312M11 Timing Case
2 4222314M11 Gasket
3 3637011M17 Screw M8 X 25
4 3638435M12 Screw M8 X 20
5 735852M11 Hub
6 3638220M911 Gear
7 731033M12 Bush (6)
8 3641760M11 Plate
9 3637076M13 Screw M10 X 60 10 3641840M911 Camshaft
11 733728M11 Washer
12 1476145X11 Dowel 13 3641739M11 Gear 14 709058451 Key 15 3640340M11 Screw M10 X 45 16 747557M11 Washer 17 4222313M11 Timinggear Cover
18 1447690M11 Seal (17) 19 4222563M11 Joint REPLACE AND REPAIR.OLD NOT INTERCHANGEABLE WITH NEW 3641190M1
20 3637095M14 Screw M8 X 60
21 3638435M114 Screw M8 X 20 22 744659M11 Inspection Cover 23 4222095M11 Gasket 24 3641755M14 Screw M8 X 16 25 3641018M11 Screw M6 X 12 26 3637139M11 Screw M10 X 20
Balancer Unit - "BLUE"
ItemPart NumberQtyDescription Comments
1 4224108M911 Balancer
2 3638234M11 Frame (1) 3 1 Cover (2) NOT SERVICED, ORDER REF. 2
4 3637076M12 Screw (2) M10 X 60
5 3637734M12 Screw (2) M10 X 35
6 3638636M11 Cover (1)
7 747823M11 Joint (1)
8 3638369M14 Screw (1) M8 X 30
9 3637593M11 Shaft (1) 10 1447727M911 Bearing (1) 11 3637489M911 Oil Pump (1) 12 746954M11 Gear,Balancer (1)
13 1447723M11 Bearing (1) 14 3638128M11 Nut (1) 15 4222836M12 Screw (1) M8 X 75
16 3637110M11 Screw (1) M8 X 35
17 3638104M11 Gear (1) 18 747769M11 Hub (1) 19 3640963M11 Screw (1) 20 1447679M11 Bearing (1) 21 746557M11 Washer (1) 22 747502M11 Plunger (1) 23 747504M11 Spring (1) 24 4224338M11 Cap (1) 25 1476310X11 Pin (1) 26 3637329M11 Weight (1) 27 3637330M11 Weight (1) 28 1476278X14 Bush (1) 29 1476279X12 Dowel (1) 30 747464M11 Cover (1) 31 1447725M14 Screw (1) 32 4224584M11 Plug (1) 33 747824M11 Plug (1) 34 3641737M12 Plug (1) 35 3640341M12 Screw M10 X 75 36 3640341M11 Screw M10 X 75 37 3637096M12 Screw M10 X 65 38 3640343M11 Screw M10 X 85
4245 / 4255 TRACTORS - |---> K37009 - 819918
Fuel Injection Equipment (Diesel) - M.F 4245 - "BLUE" - See Section 10-15 For PERKINS Build List
ItemPart NumberQtyDescription Comments
1 4222266M911 Injection Pump 2 4224321M1 1 Solenoid (1) 3 3640953M11 Pinion 4 3637135M11 Sleeve 5 734674M11 Seal 6 734675M11 Wire 7 3638367M14 Clamp 8 4222709M13 Stud 9 3637137M13 Nut 10 3640954M11 Pipe CYL. No 1 11 3640955M11 Pipe CYL. No 2 12 3640956M11 Pipe CYL. No 3 13 3640957M11 Pipe CYL. No 4 14 3640958M12 Clip 15 3640959M11 Clip 16 3641041M14 Atomiser 17 3637194M11 Holder (16) 18 3640923M11 Nozzle (16) 19 747139M14 Spacer 20 747140M14 Seal 21 376091X14 Washer 22 3637048M18 Screw M8 X 45 23 3640962M11 Pipe 24 731567M11 Bolt 25 376518X11 Washer 26 376518X11 Washer 27 731568M13 Union 28 376518X13 Washer 29 376518X13 Washer 30 3640952M11 Pipe 31 3637157M11 Nut (30) 32 376524X1 1 Olive (30) 33 376521X11 Union Nut 34 376524X1 1 Olive 35 4224464M11 Cap 36 376659X11 Screw 37 744170M11 Nipple 38 1476033X11 Washer 39 354039X11 Pin
