SECTION DIVIDER
DescriptionComments
For UK only or any text in English only SERIAL NUMBERS
..............
For France only or any text in French only NUMEROS DE SERIES
For Germany only or any text in German only SERIEN NUMMER
For Italy only or any text in Italian only MATR.O NUMERO
E NUMERO SERIE

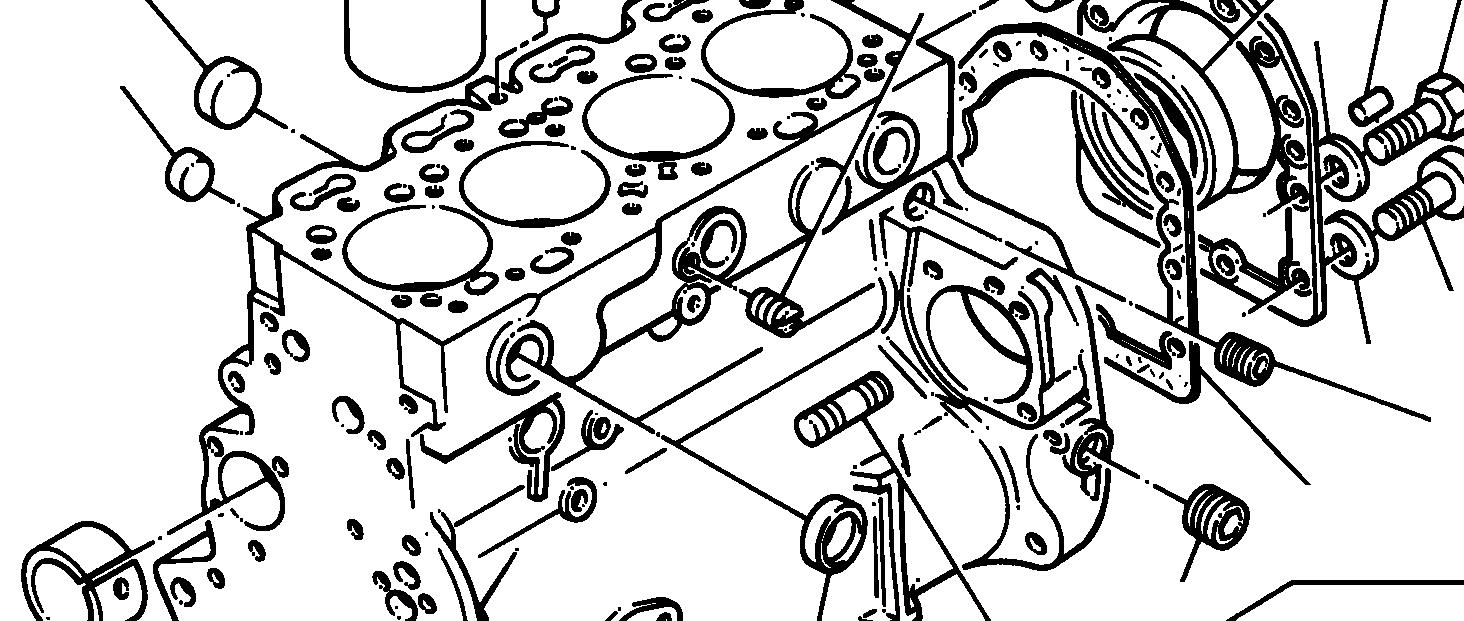

CYLINDER BLOCK - AT4.236 ENGINE
ItemPart NumberQtyDescription Comments AT4.236 ENGINE
1 3637381M911 Cylinder Block 2 1 Cylinder Block (1) Not serviced, order REF.1
3 5 Bearing Cap (1) Not serviced, order REF.1
4 1476108X110 Screw (1) 5 733072M110 Ring (1)
6 3637331M14 Liner (1) (A)
6 3637332M1X Liner (B) 7 731354M16 Plug (1) 8 735944M14 Plug (1) 9 731354M12 Plug (1) 10 1476282X11 Plug (1) 11 3638579M11 Bush (1)
Repairs and replaces 3638093M1 Repairs and replaces 734883M1 12 733705M11 Plug 13 735869M14 Plug 14 736868M11 Plug 15 3638294M11 Gasket 16 3638347M911 Housing Repairs and replaces 748163M91 17 1 Housing (16)
Not serviced, order REF.16 18 1447691M11 Seal (16) 19 740828M11 Joint 20 353519X110 Screw Unf 21 375703X110 Washer 22 731947M12 Dowel 23 357987X12 Bolt 24 745015M12 Washer 25 376180X11 Plug 26 376196X11 Washer 27 748040M11 Plug 28 733067M12 Plug 29 731996M11 Plug 30 376670X12 Plug 31 733067M11 Plug 32 745017M11 Pointer 33 731862M13 Stud
(A) PRESS FIT
(B) SLIP FIT
CRANKSHAFT, PISTONS AND CONNECTING RODS - AT4.236 ENGINE
ItemPart NumberQtyDescription Comments AT4.236 ENGINE
1 3637402M911 Kit, Crankshaft
2 1 Crankshaft (1)
Not serviced, order REF.1
3 735168M911 Kit, Bearing (1) (A)
3 735169M91X Kit, Bearing (A) Thickness (-)0.25MM Thickness (-)0.010"
3 735170M91X Kit, Bearing (A) Thickness (-)0.50MM Thickness (-)0.020"
3 735171M91X Kit, Bearing (A) Thickness (-)0.75MM Thickness (-)0.030"
4 736950M911 Kit, Bearing (1) (A) Repairs and replaces 3637791M91
4 736951M91X Kit, Bearing (A) Thickness (-)0.25MM Thickness (-)0.010"
4 736952M91X Kit, Bearing (A) Thickness (-)0.50MM Thickness (-)0.020"
4 736953M91X Kit, Bearing (A) Thickness (-)0.75MM Thickness (-)0.030"
5 747128M12 Washer (1) 735742M1X Washer Thickness (+)0.19MM Thickness (+)0.0075"
6 747129M12 Washer (1) 735743M1X Washer Thickness (+)0.19MM Thickness (+)0.0075"
7 3638115M11 Thrust Block (1) 8 3638113M13 Screw (1) 9 3637028M914 Kit, Conrod 10 1 Conrod (9) Not serviced, order REF.9 11 1 Cap (9) Not serviced, order REF.9 12 744971M11 Bush (9) 13 3637029M12 Bolt (9) 14 3637030M12 Nut (9) 15 3637367M914 Kit, Piston (B) 3637360M914 Kit, Piston (C) 16 1 Piston (15) Not serviced, order REF.15 17 1 Pin (15) Not serviced, order REF.15 18 1476196X11 Circlip (15) 19 1476196X11 Circlip (15) 20 747602M914 Kit, Piston Ring 21 734749M11 Gear 28T 22 2196X1 Key 23 747856M914 Jet 24 355822X14 Pin 25 3637005M914 Valve 26 1 Body (25) Not serviced, order REF.25 27 1 Ball (25) Not serviced, order REF.25 28 1 Spring (25) Not serviced, order REF.25 29 1 Retainer (25) Not serviced, order REF.25 30 747631M11 Pulley
(A) PRE-FINISHED
CRANKSHAFT, PISTONS AND CONNECTING RODS - AT4.236 ENGINE
ItemPart NumberQtyDescription Comments
(B) UNTOPPED (C) PRE-TOPPED
CYLINDER HEAD - AT4.236 ENGINE
ItemPart NumberQtyDescription Comments AT4.236 ENGINE
1 3637385M911 Cylinder Head
2 1 Cylinder Head (1)
Not serviced, order REF.1
3 731354M11 Plug (1) 4 731410M11 Plug (1)
5 376178X11 Washer (1)
6 748420M14 Guide (1)
7 743097M14 Insert (1)
8 747552M14 Valve Exhaust (1)
9 733824M14 Washer (1)
10 735525M14 Spring (1)
11 735521M14 Spring (1)
12 1447652M14 Ring (1) 13 3637041M14 Seal (1) 14 746698M14 Cap (1) 15 736453M18 Cotter (1) (A)
16 3637056M14 Guide (1) 17 746823M14 Valve Inlet (1) 18 733824M14 Washer (1)
19 735525M14 Spring (1) 20 735521M14 Spring (1) 21 3637041M14 Seal (1) 22 746698M14 Cap (1) 23 736453M18 Cotter (1) (A)
24 748368M11 Plate (1) 25 3637039M11 Joint (1) 26 353518X12 Screw Unf (1) 27 1650484M12 Washer (1) 28 353518X11 Screw Unf (1) (B) 29 375703X11 Washer (1) (B) 30 1650484M11 Washer (1) (B) 31 738651M11 Stud (1) (B) 32 353916X11 Nut Unf (1) (B) 33 1650484M11 Washer (1) (B) 34 731325M12 Stud (1) (B) 35 376123X12 Nut (1) (B) 36 375706X12 Washer (1) (B) 37 1650486M12 Washer (1) (B) 38 353517X14 Screw Unf (C) 39 1650484M14 Washer (C) 40 353536X12 Screw Unf (C) 41 1650486M12 Washer (C) 42 747743M18 Screw 43 747742M112 Screw 44 747741M12 Screw 45 3638320M11 Housing Repairs and replaces 3637349M1 46 734695M11 Joint 47 1447384M11 Thermostat 48 747944M911 Kit, Hose 49 1 Hose (48) Not serviced, order REF.48 50 364125X11 Clamp (48) Repairs and replaces 3638538M1
CYLINDER HEAD - AT4.236 ENGINE
ItemPart NumberQtyDescription Comments 51 364125X11 Clamp (48) Repairs and replaces 3638538M1 52 376606X11 Plug 53 376606X11 Plug 54 1476303X11 Stud 55 375797X11 Nut 56 1650486M11 Washer 57 361509X11 Screw 58 1650484M11 Washer 59 354226X11 Bolt Unf 60 1650484M11 Washer 61 353518X12 Screw Unf 62 1650484M12 Washer 63 353540X12 Screw Unf 64 1650486M12 Washer 65 731410M11 Plug 66 376178X11 Washer 67 737156M11 Connection 68 745106M11 Joint 69 345127X12 Bolt 70 1650486M12 Washer 71 747835M11 Plate 72 16589X2 Bolt 73 1650486M12 Washer 74 736678M11 Plate 75 16589X2 Bolt 76 1650486M12 Washer
(A) SERVICED IN PAIRS
(B) REMOVE AND FIT REFS 38,39,40 AND 41
(C) FITTED IN PLACE OF SCREWS,STUDS,NUTS AND WASHERS S UPPLIED WITH CYLINDER HEAD ASSEMBLY.
ROCKER SHAFT - AT4.236 ENGINE
ItemPart NumberQtyDescription Comments AT4.236 ENGINE
1 3637391M911 Rocker Shaft
2 3637395M911 Rocker Shaft (1)
3 731330M12 Plug (2)
4 3638403M14 Bracket (1)
Repairs and replaces 3637063M1
5 3637071M914 Lever (1)
Right Hand
6 895748M11 Bush (5)
7 3637072M914 Lever (1)
Left Hand
8 895748M11 Bush (7) 9 733811M12 Spring (1) 10 733812M12 Spring (1)
11 3637064M11 Connection (1) 3638499M11 Connection Repairs and replaces 3637064M1 12 3637065M11 Screw (1) 3638500M11 Screw (A)
13 376137X12 Circlip (1) 14 747876M12 Washer (1) 15 731516M18 Bolt (1)
16 376123X18 Nut (1)
17 739513M912 Shim (1) 18 740671M18 Tappet 19 733817M18 Rod 20 376525X11 Olive 21 361543X14 Bolt 22 1440275X14 Washer Metric 23 734912M911 Cover 24 3638482M11 Joint Repairs and replaces 748277M1 25 376192X14 Bolt 26 344107X14 Washer 27 353441X14 Lock Washer 28 740497M11 Pipe 29 3638598M11 Clip Repairs and replaces 375790X1 30 740498M911 Pipe 31 375829X11 Screw 32 375703X11 Washer 33 1650484M11 Washer
(A)
USED ONLY WITH 3638499M1
TURBOCHARGER - AT4.236 ENGINE
ItemPart NumberQtyDescription Comments AT4.236 ENGINE
1 1447769M911 Turbocharger
2 3638056M11 Housing (1)
3 3638060M11 Cover (1)
4 3638061M11 Gasket (1) 5 4 Stud (1) (A)
6 3638057M14 Nut (1) 7 4 Washer (1) (A)
8 3638055M12 Clamp (1) 9 3638042M16 Bolt (1) 10 1896262M13 Lock (1) 11 3638050M11 Hose (1)
12 3638238M11 Clamp (1)
13 3638238M11 Clamp (1) 14 3638051M11 Elbow (1) 15 3638244M11 Housing (1) 16 3638323M11 Gasket (1)
Repairs and replaces 3638245M1
17 3638044M16 Bolt (1) 18 3638052M11 Clamp (1) 19 3638053M11 Clamp (1) 20 3638054M11 Clamp (1) 21 3637324M11 Housing (1) (B) 22 1 Housing (21)
Not serviced, order REF.21 23 1 Nut (21)
Not serviced, order REF.21 24 1 Wheel (21) Not serviced, order REF.21 25 1 Plate (21) Not serviced, order REF.21 26 1 Ring (21) Not serviced, order REF.21 27 1 Bearing (21) Not serviced, order REF.21 28 1 Ring (21) Not serviced, order REF.21 29 1 Collar (21) Not serviced, order REF.21 30 1 Circlip (21) Not serviced, order REF.21 31 1 Bearing (21) Not serviced, order REF.21 32 1 Circlip (21) Not serviced, order REF.21 33 4 Bolt (21) Not serviced, order REF.21 34 1 Circlip (21) Not serviced, order REF.21 35 1 Bearing (21) Not serviced, order REF.21 36 1 Circlip (21) Not serviced, order REF.21 37 1 Shroud (21) Not serviced, order REF.21 38 1 Piston Ring (21) Not serviced, order REF.21 39 1 Wheel (21) Not serviced, order REF.21 40 746618M11 Joint (A)
SERVICED BY GARRETT AIRESEARCH LIMITED. (B)
MF 3070 TRACTOR - 1637172 1637172
TURBOCHARGER - AT4.236 ENGINE 9
ItemPart NumberQtyDescription Comments COMPONENT PARTS OF TURBOCHARGER CENTRE HOUSING REP AIRED AND REPLACED BY GARRETT AIRESEARCH LIMITED.
