51WORLD'S PRESENTATION AT ASAM INTERNATIONAL CONFERENCE 2022

–

Agenda • OpenSCENARIO 2.0 Compiler Implementation • OpenSCENARIO 2.0 Grammar Check Tool • OpenSCENARIO 2.0 Extension - 51SDL • OpenSCENARIO 2.0 Migration and Compatibility

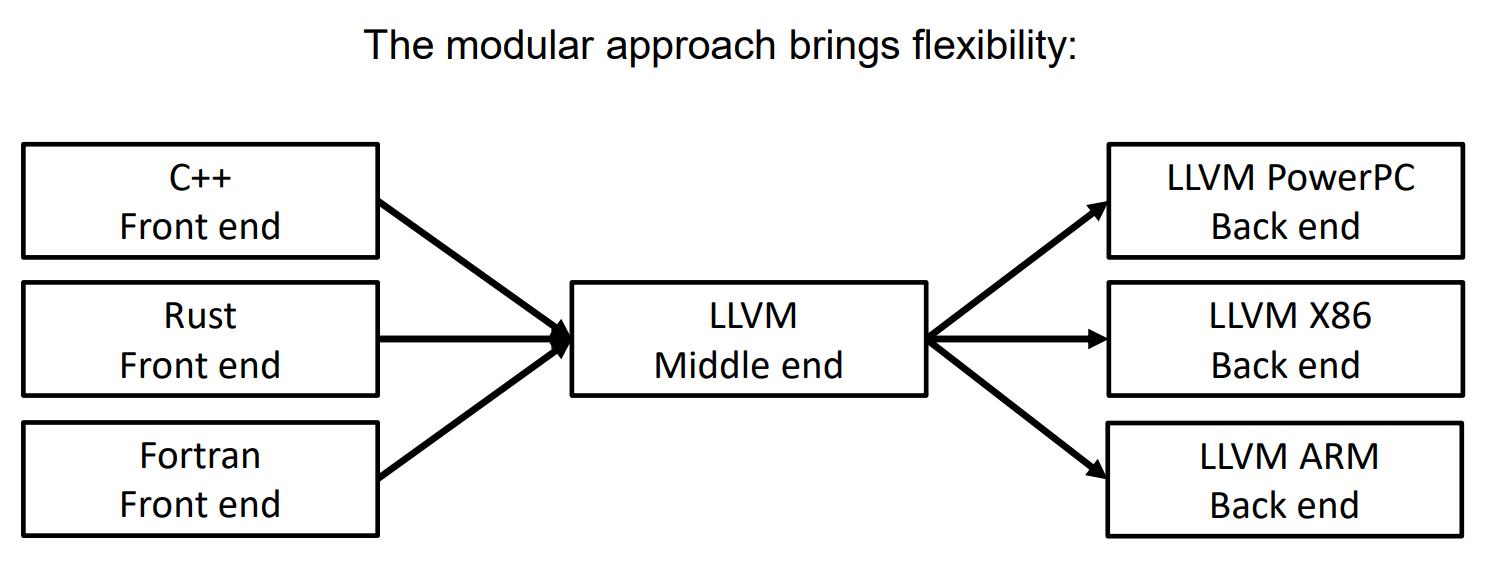

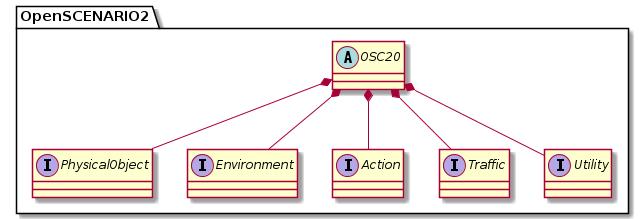

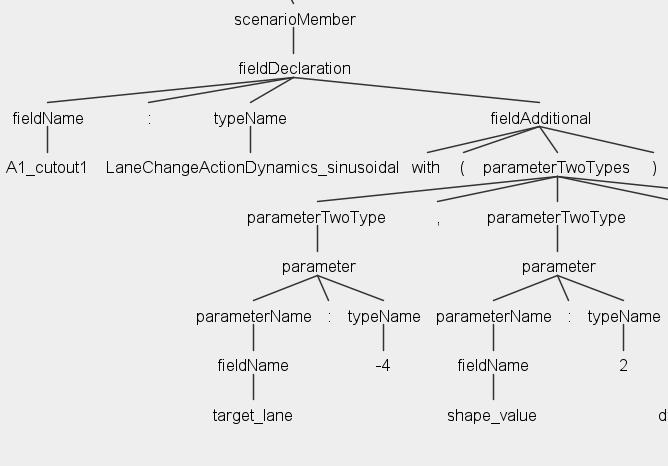

OpenSCENARIO2.0 Scenario Compiler DSL Script Semantic Model Syntax Tree Script Engine Grammar - EBNF Lexical & Syntax Parser Semantic Parser & VM Compiler Frontend - Antlr4 Compiler Backend - Scenario Engine Domain Model State Machine Standard Library Preprocess Standard Library

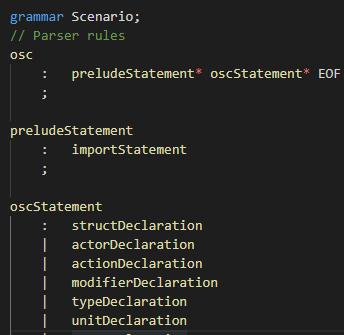

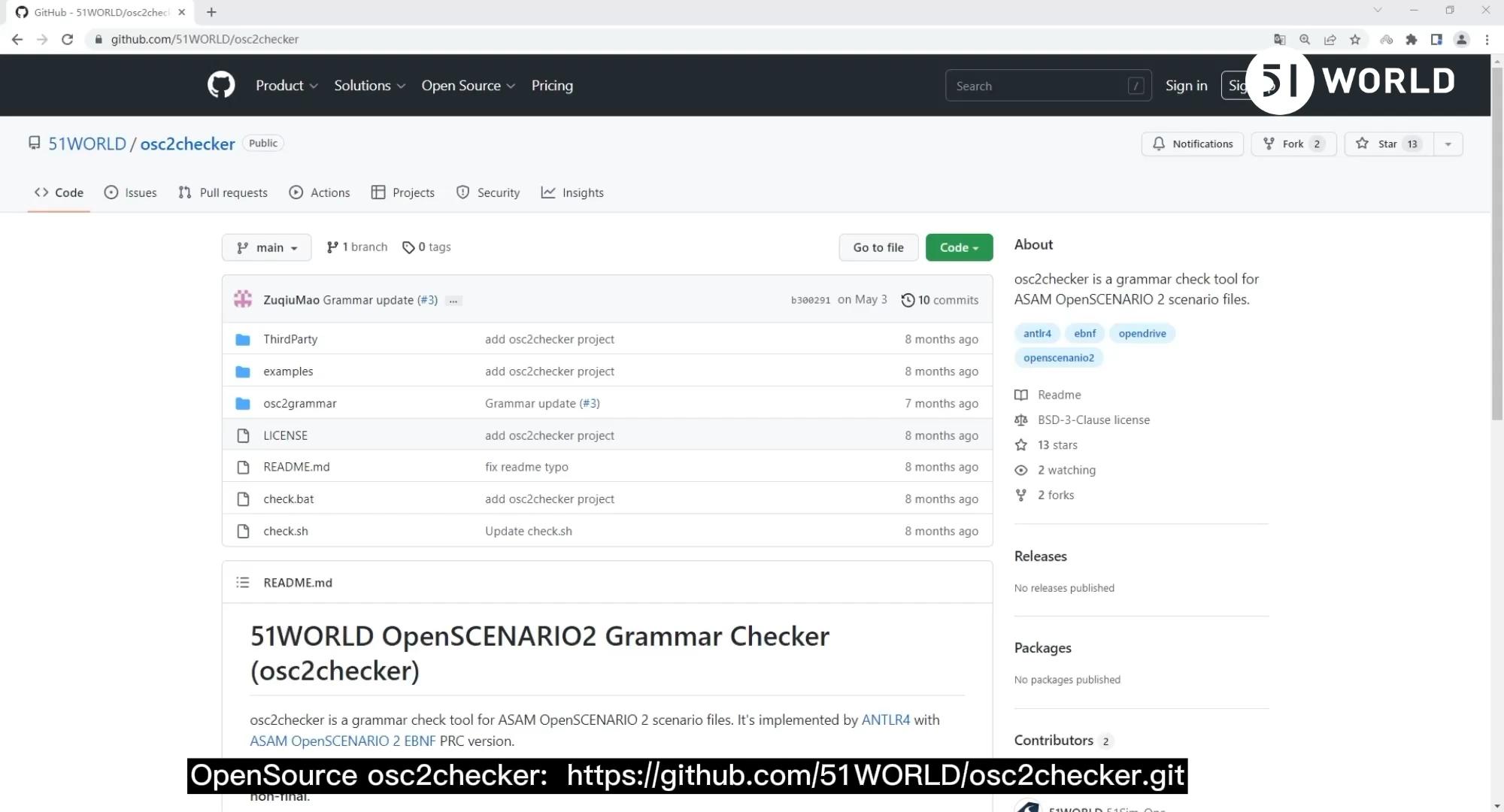

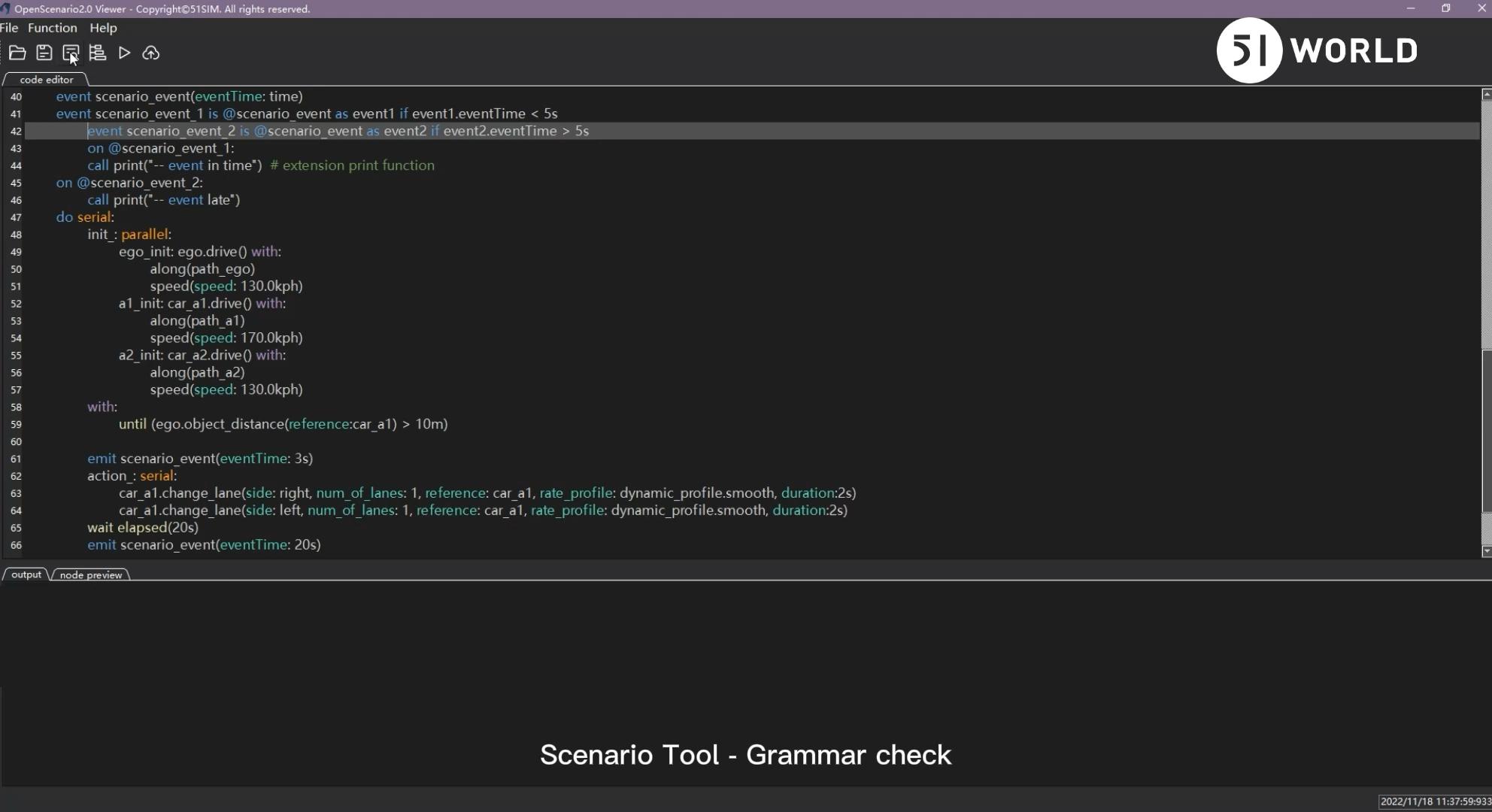

Open Source Grammar Check Tool with EBNF of OpenSCENARIO2.0 • Implementation: • Use Antlr4 grammar to implement EBNF of specification • Useful • Useful for OpenSCENARIO 2.0 programmers • Useful for Simulation Implementers Lexical & Syntax check Semantic check More… Basic Check - early Advanced Check - later Antlr4 version of EBNF has been already open source: https://github.com/51WORLD/osc2checker.git

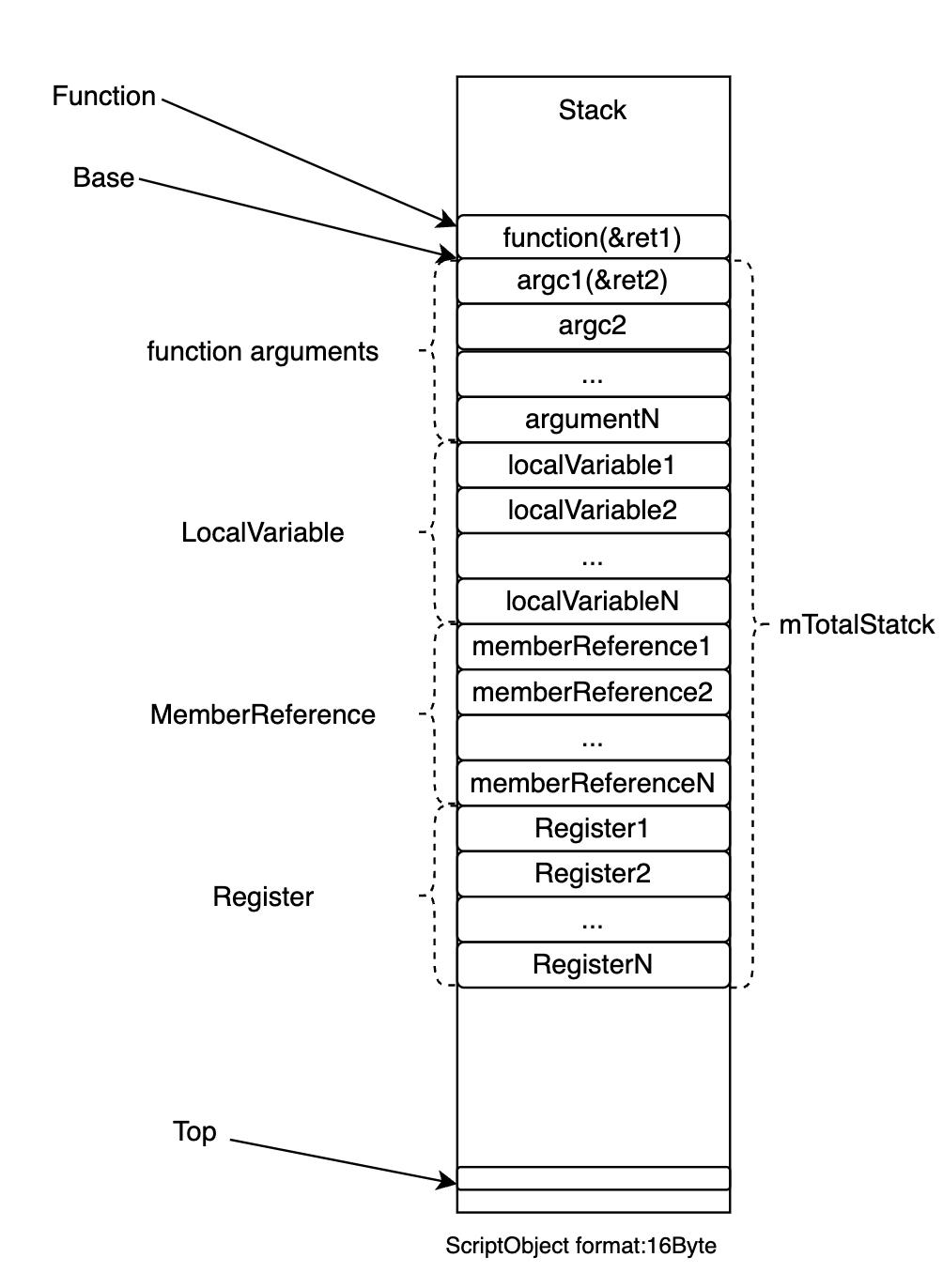

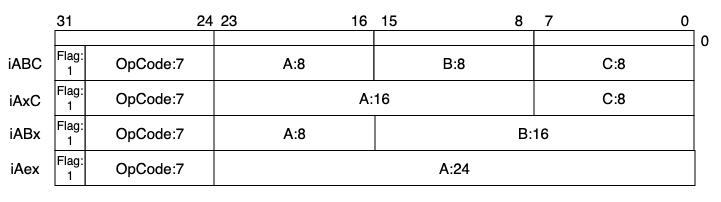

Backend - Virtual Machine Instruction format: ego.drive EVMCode_GetUpVal Ax:0 C:0 EVMCode_PushMemberFunction A:0 Bx:12 EVMCode_Push Aex:1 EVMCode_Push Aex:5 EVMCode_Push Aex:2 EVMCode_Call Ax:65532 C:0 EVMCode_CoroutineAutoReturn Ax:0 C:0 Instruction Sample:

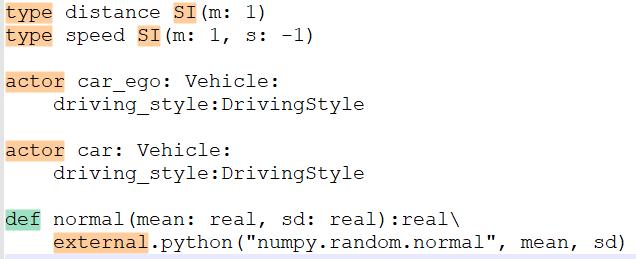

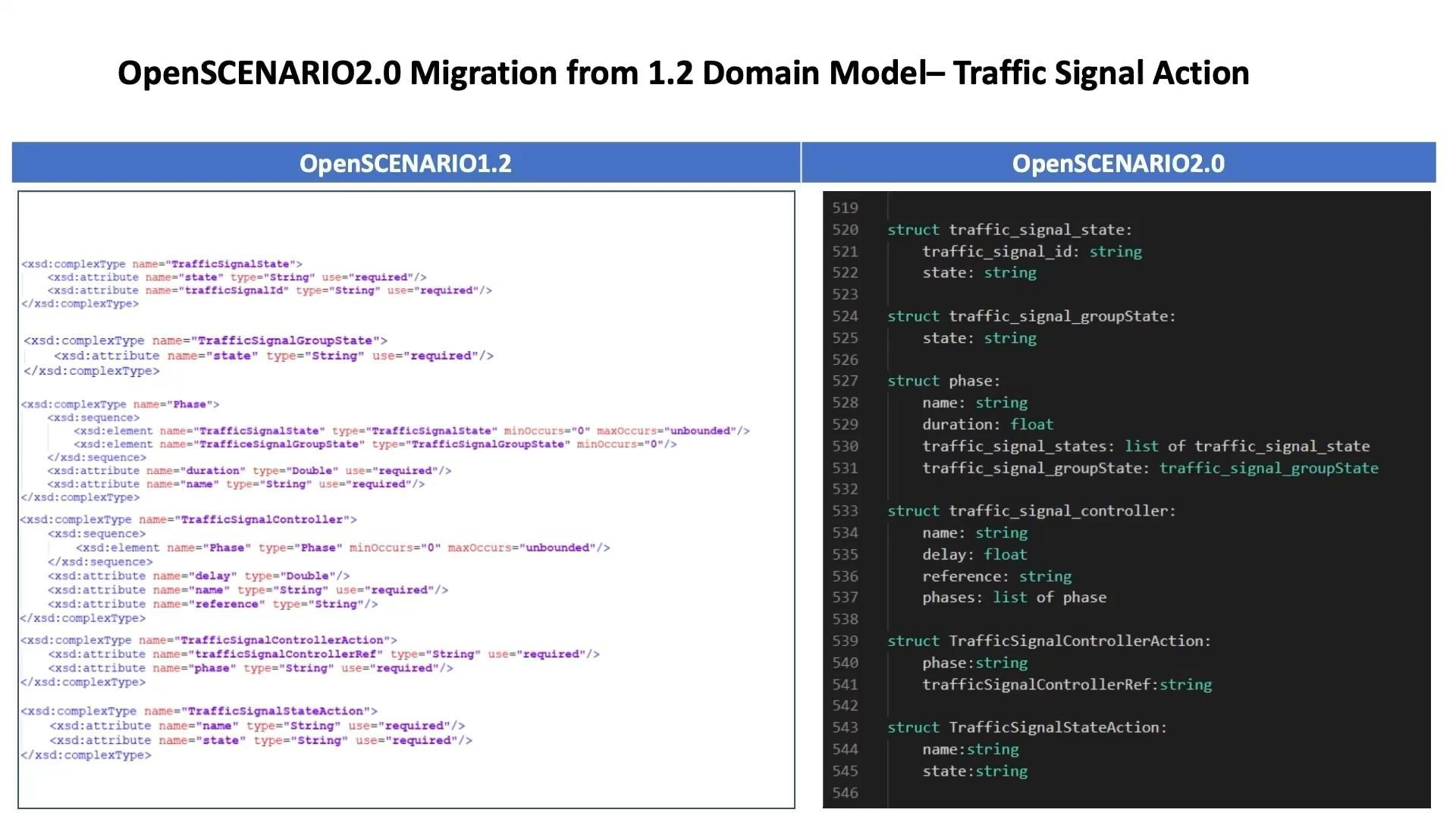

OSC2.0 Extension - 51SDL • Entry point extension • top.main • OSC1.2 migration extension • OSC1.2 domain model directly translated to OSC2.0 grammar for full compatible • Utility extension • print • Turing complete extension • Support for and if for library implementation

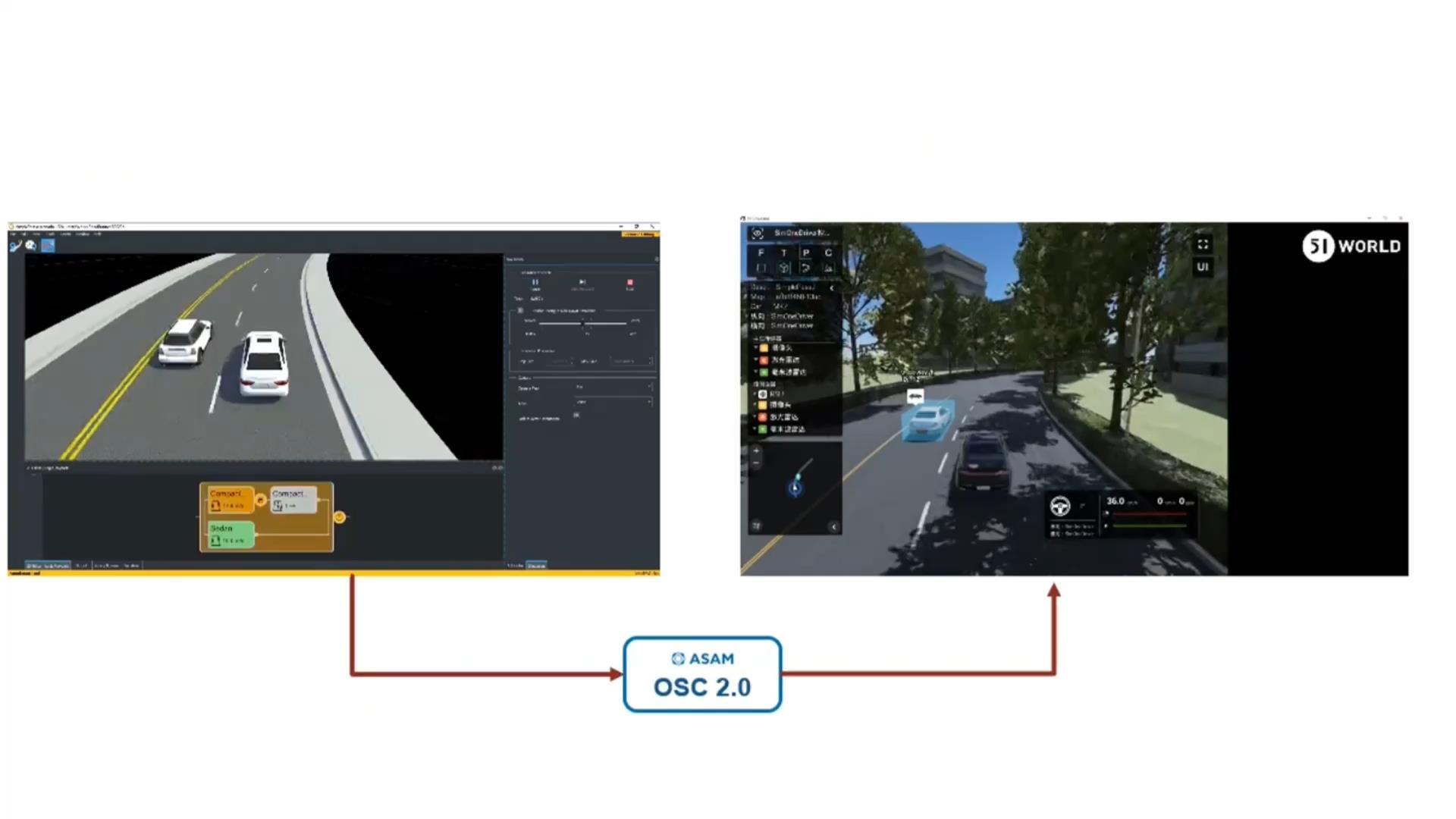

51Sim-One

RoadRunner

Enquiry: pr-intl@51aes.com; Website: www.51aes.com or www.51sim.com Thank You!
