VARINDER SINGH PORTFOLIO

1

2

BIG HOUSE 4-11

READING ROOM 12-15

6

7

LAKE HOUSE 30-33

CHURCHILL CENTRE 34-39

SELECTED WORKS

3

4

5 Diagram, Sketch or Image preview

STATIONSVEJ 46 16-19

VISTA HOUSE 20-25

FEATHER APARTMENT 26-29

8

9

10

TINY HOUSE 40-43

ART GALLERY 44-47

PHYSICAL MODELS 48-51

1

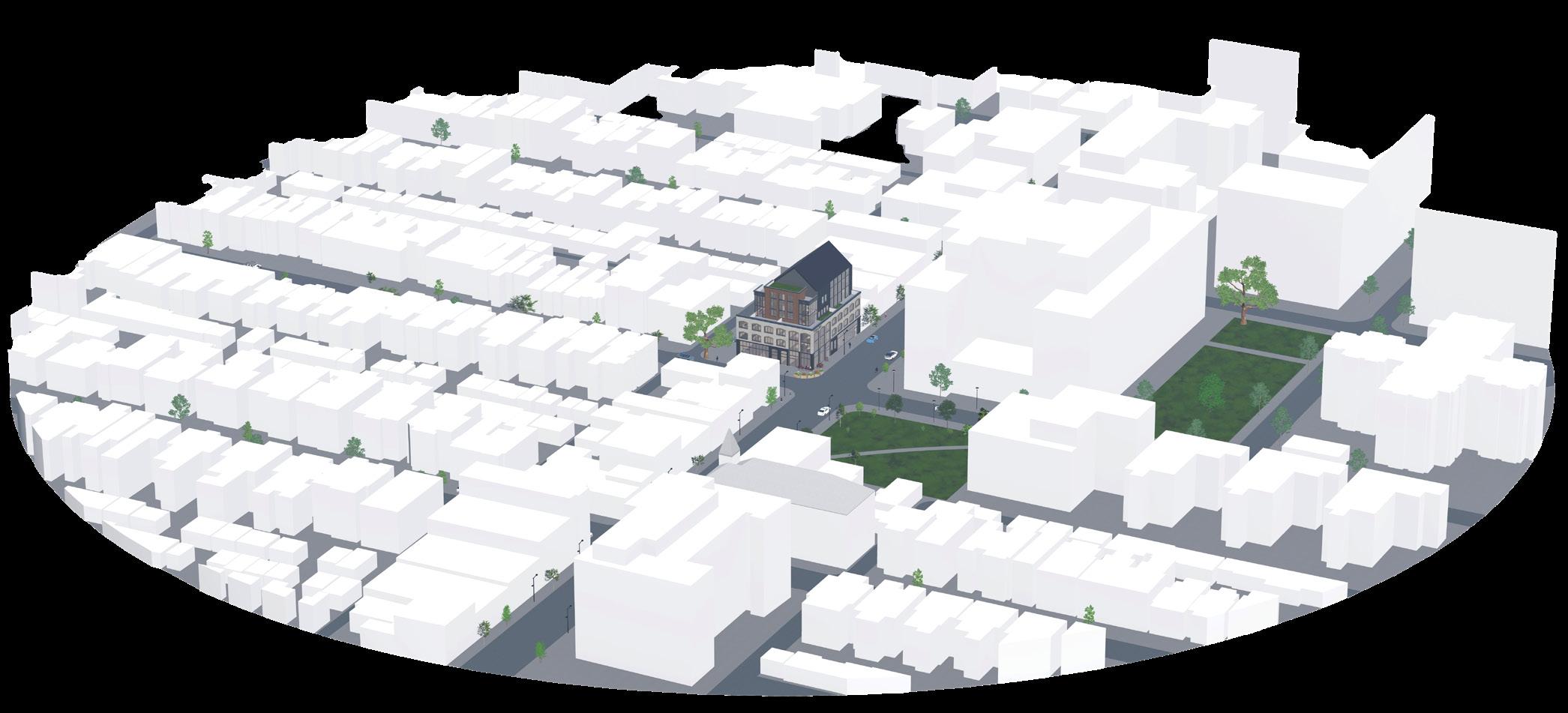

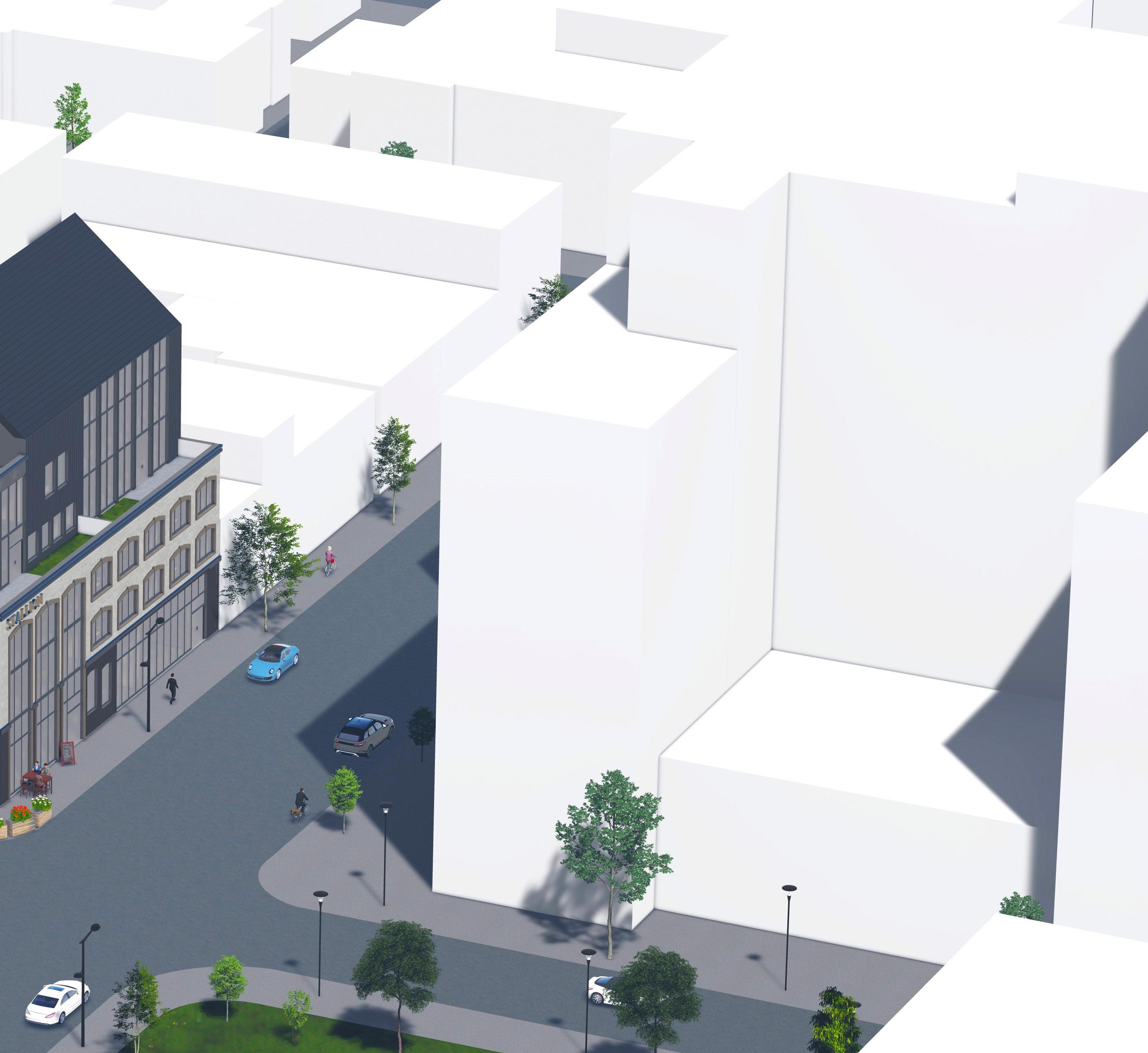

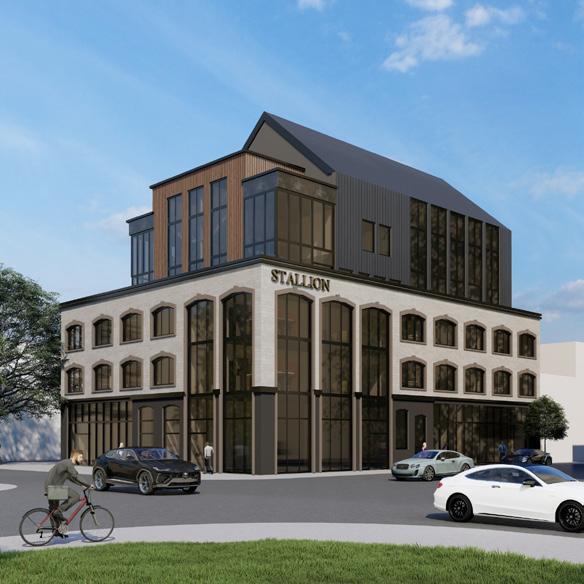

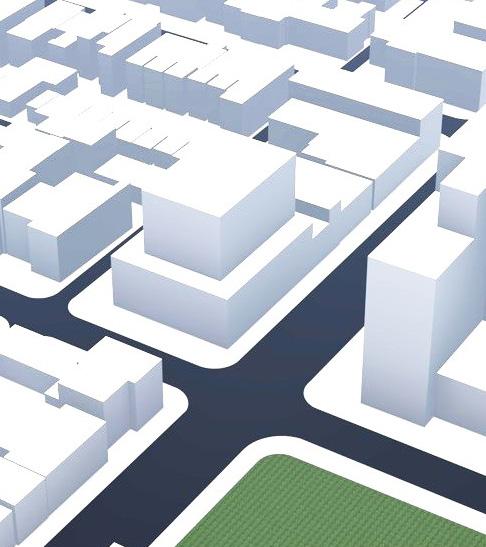

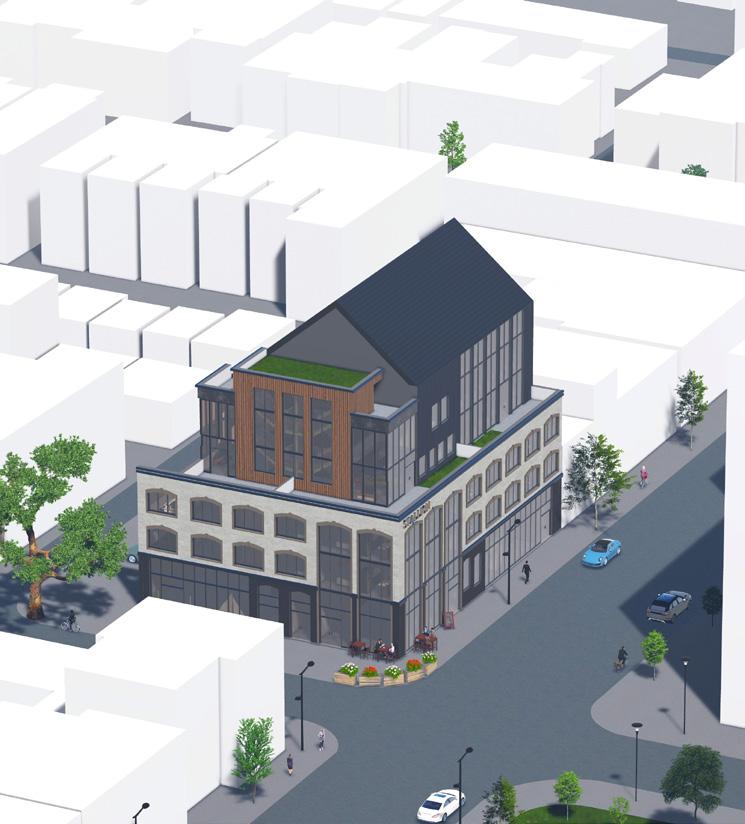

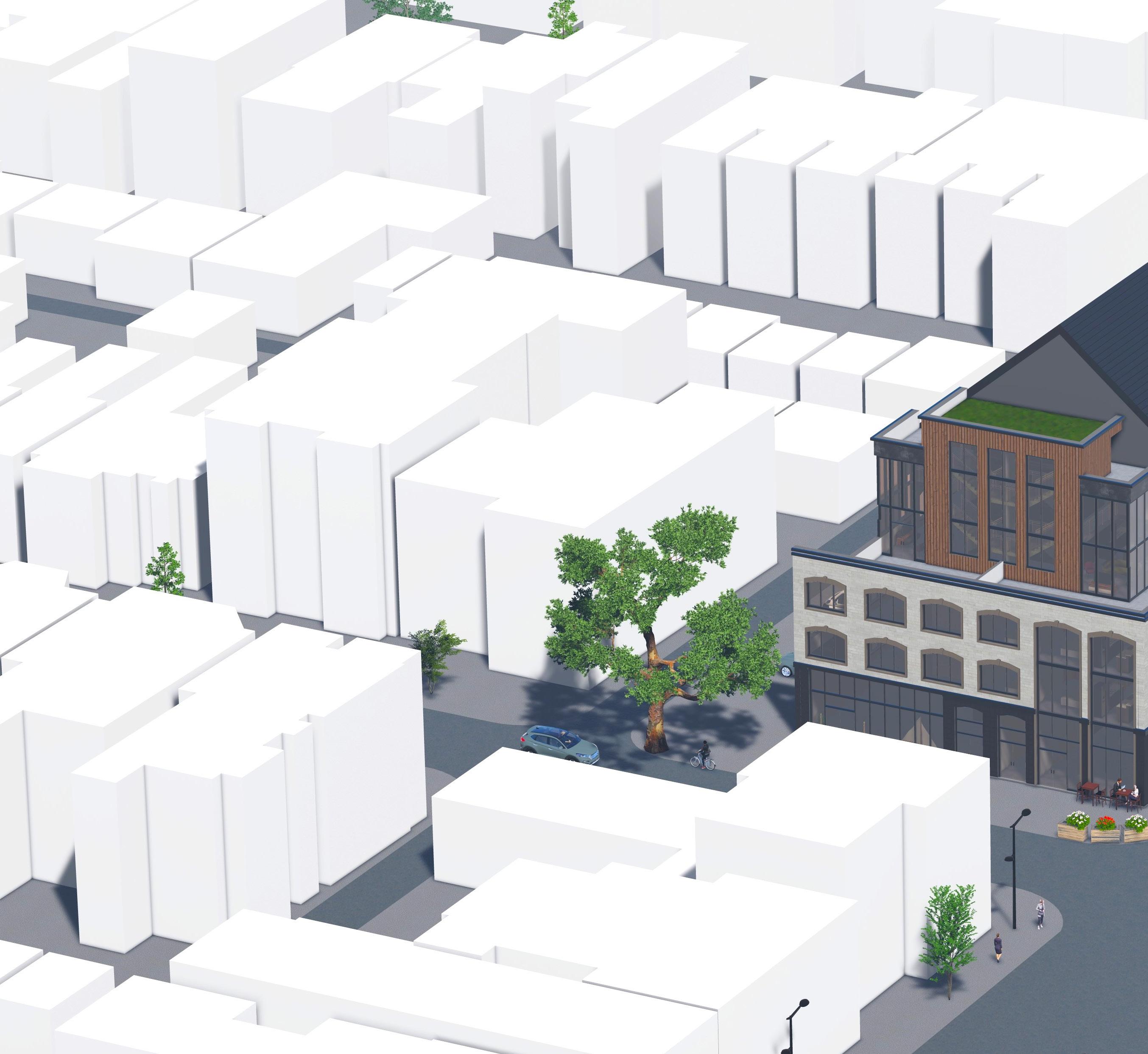

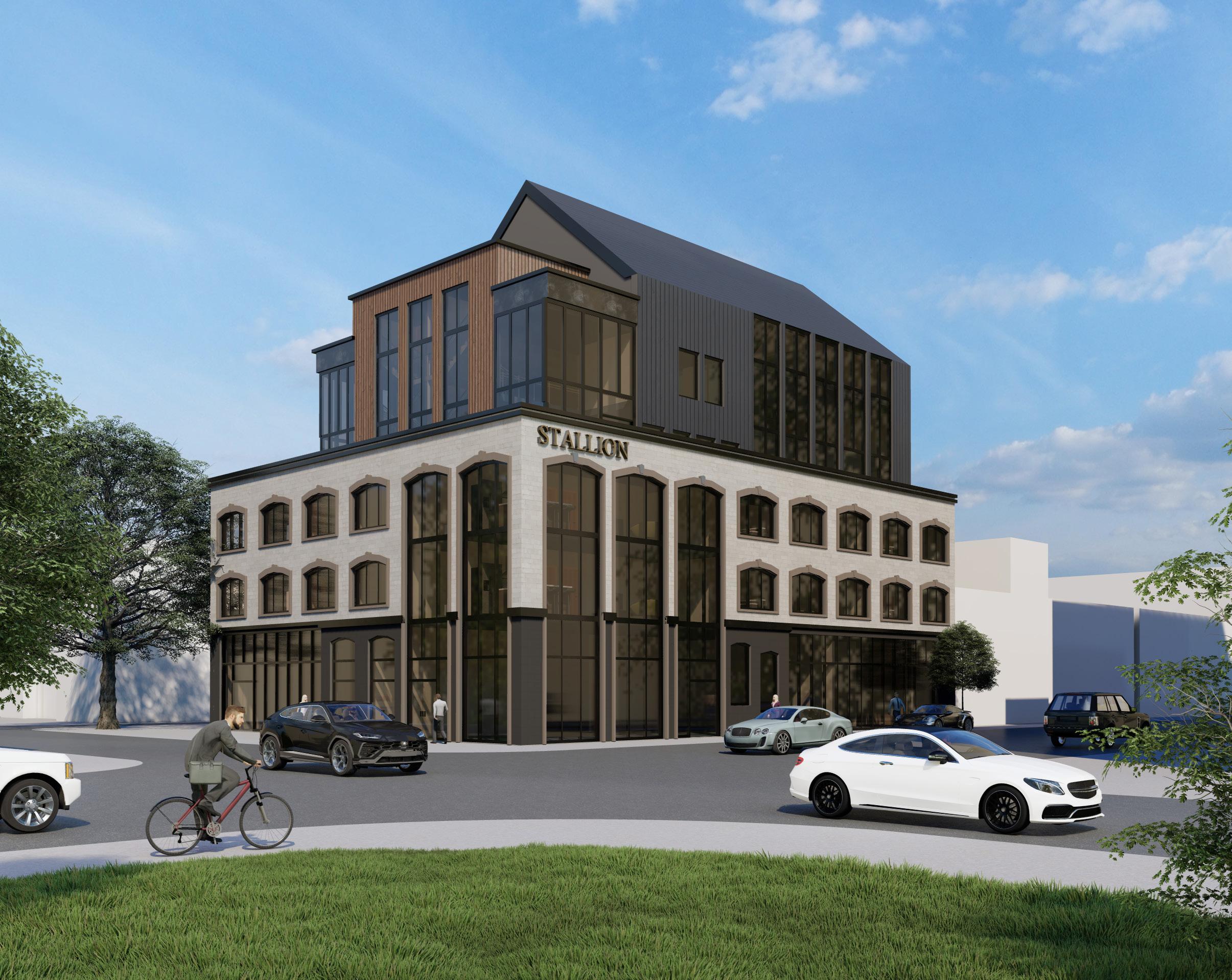

BIG HOUSE 1056 QUEEN ST W, TORONTO

MID RISE BUILDING Designed a mixed-use building in Toronto that adheres to the Ontario building code, the accessibility standard, and the Toronto performance standard. This building’s distinctive form is designed to reflect the street’s vitality.

As Queen Street acts as a dividing line between the residential houses and mid-rise buildings we’ve got

the opportunity to combine the sloping roof shape of the houses with the monotonous shape of the midrise buildings. By complying to the Toronto mid-rise performance standards and zoning, we are able to successfully achieve our objective of designing a building with a distinctive form.

5 4

6

5

2 8 7

5 5 3

7

7

1

7

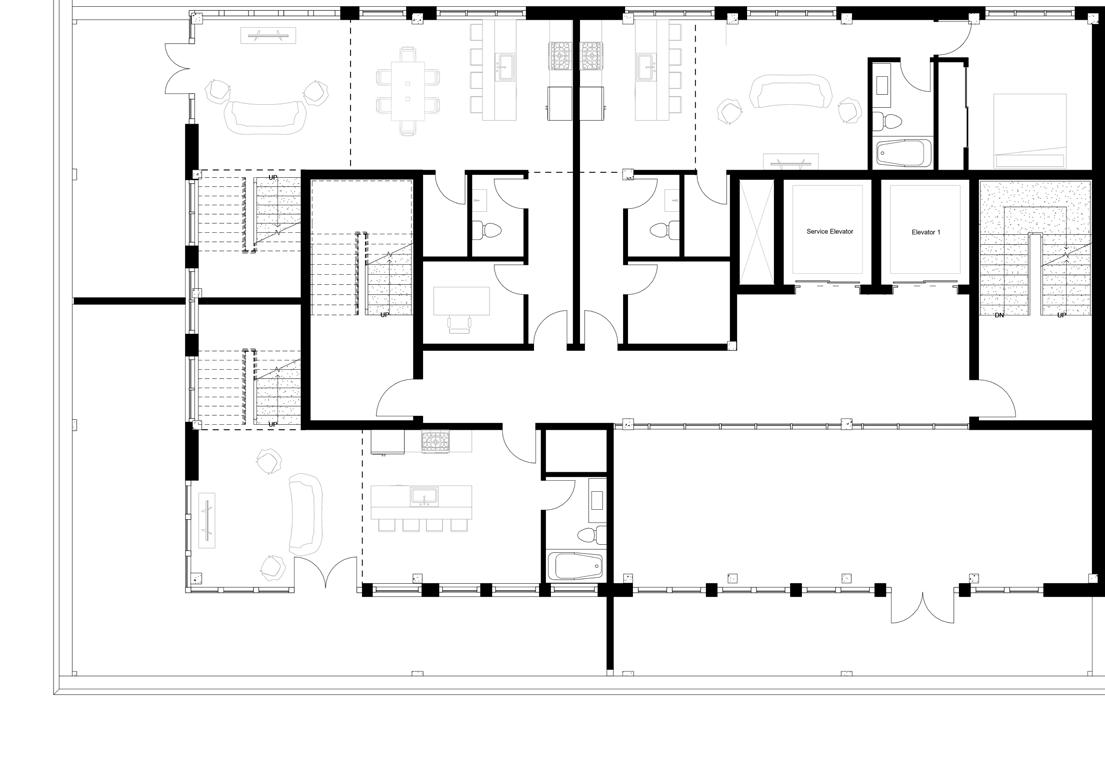

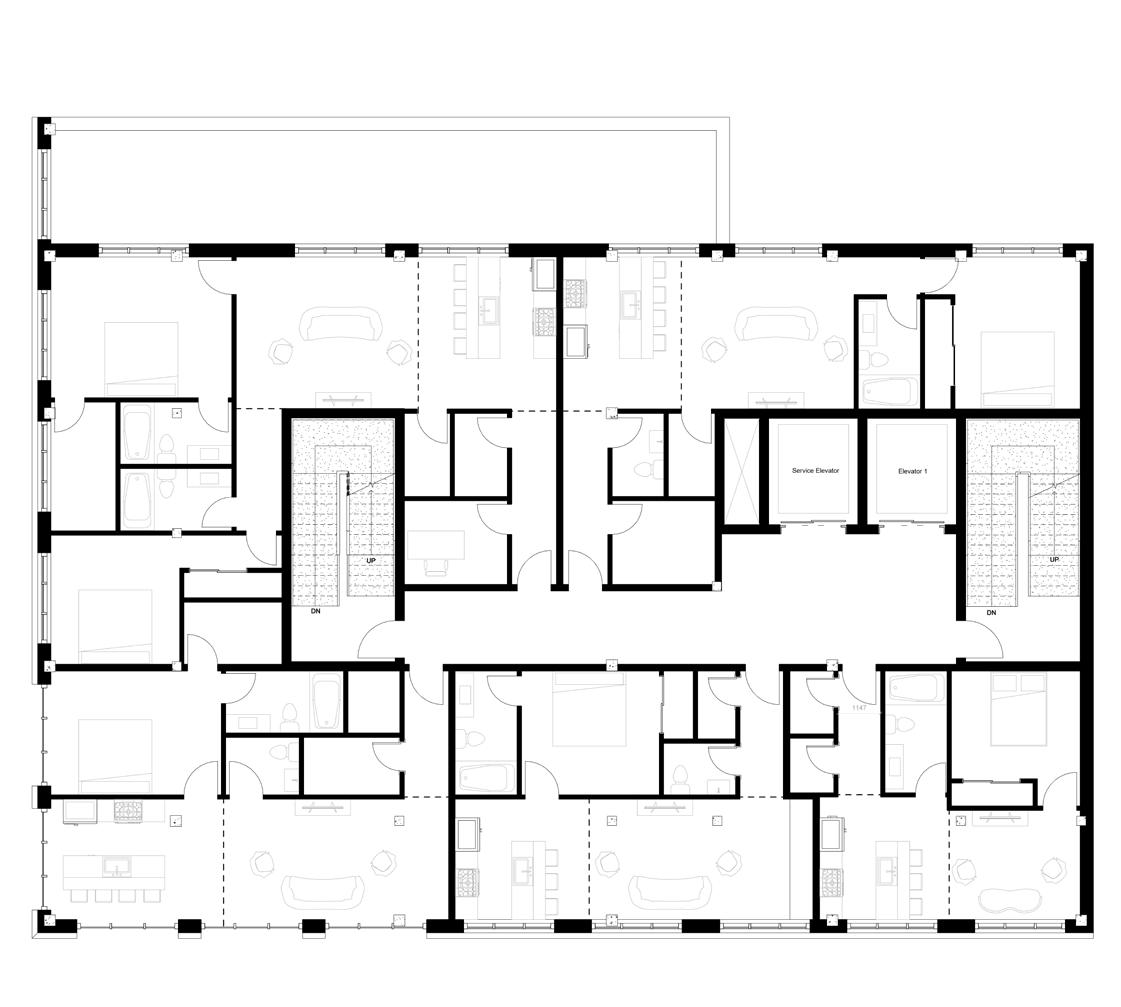

2nd & 3rd Floor Plan

Ground Floor Plan

Legend 1Lobby 2 Bike Storage 3 Bakery 4 Art gallery 5 Washroom

8 7

10

10

8

9 10

45

An gu

la r

Pla

n

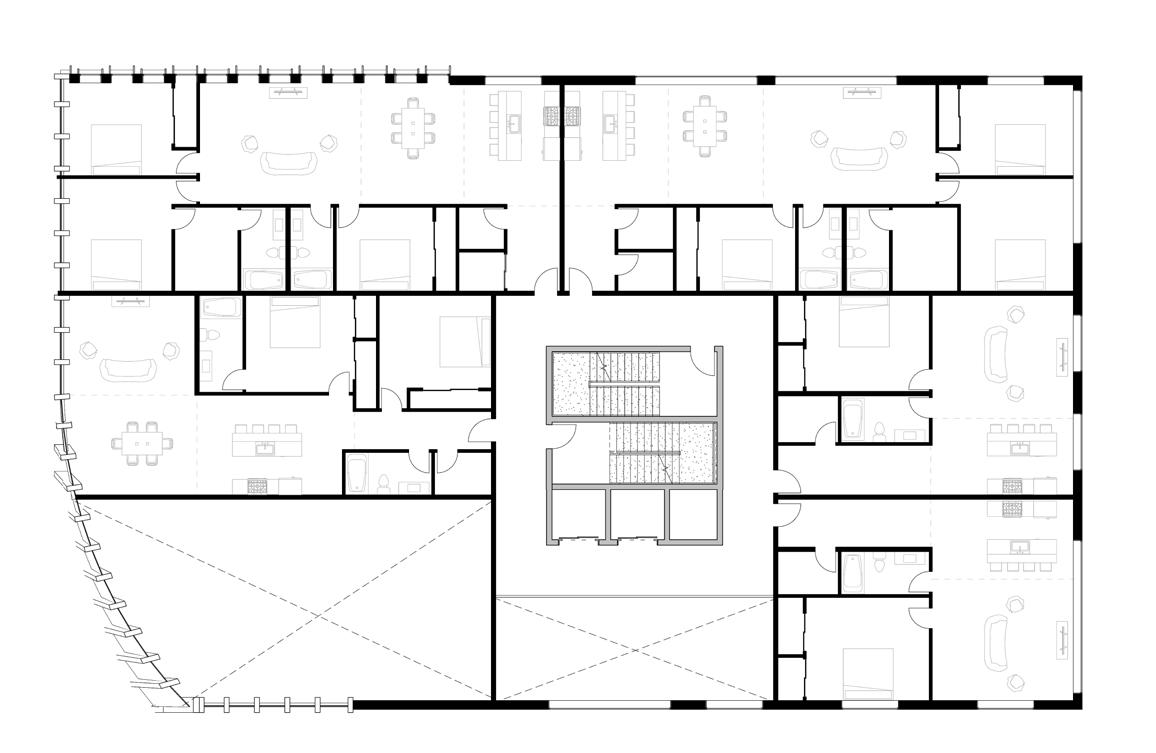

Forth Floor Plan

Mechanical Space Residential Units Commercial Units

Existing Building

6

Setback 7.5m

6 Garbage Area 7 One Bedroom Unit 8 Two Bedroom Unit 9 Common Space 10 Balcony

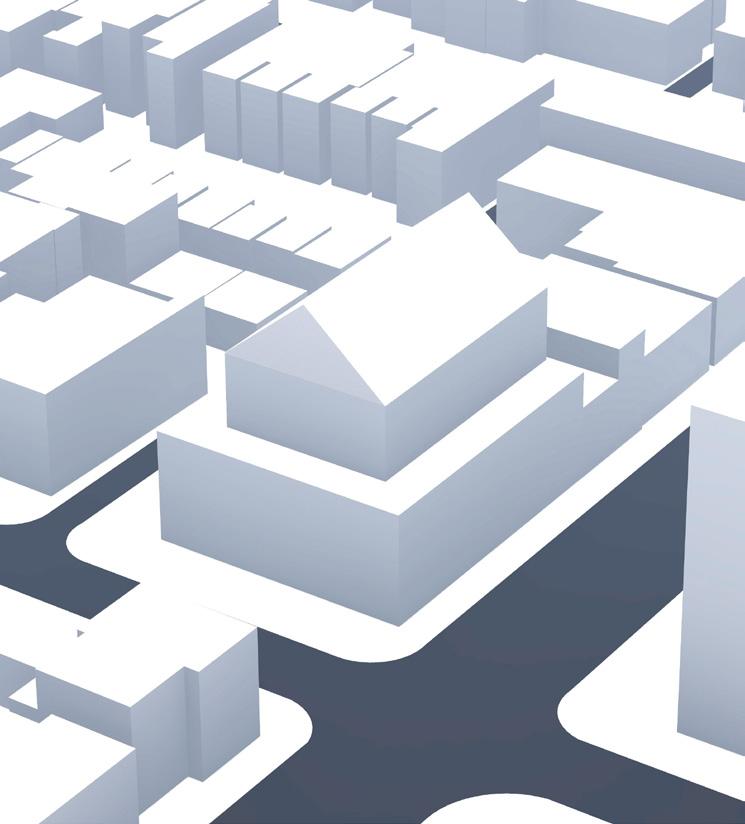

Combining house and mid rise building shape

45 Angular Plane

Final Shape

7

Girder C Channel Joists Steel Columns

Shear Walls

Shear Walls

Concrete Columns

Concrete Beams

Concrete Slabs

Concrete Beams

Slab On Grade Foundation Walls

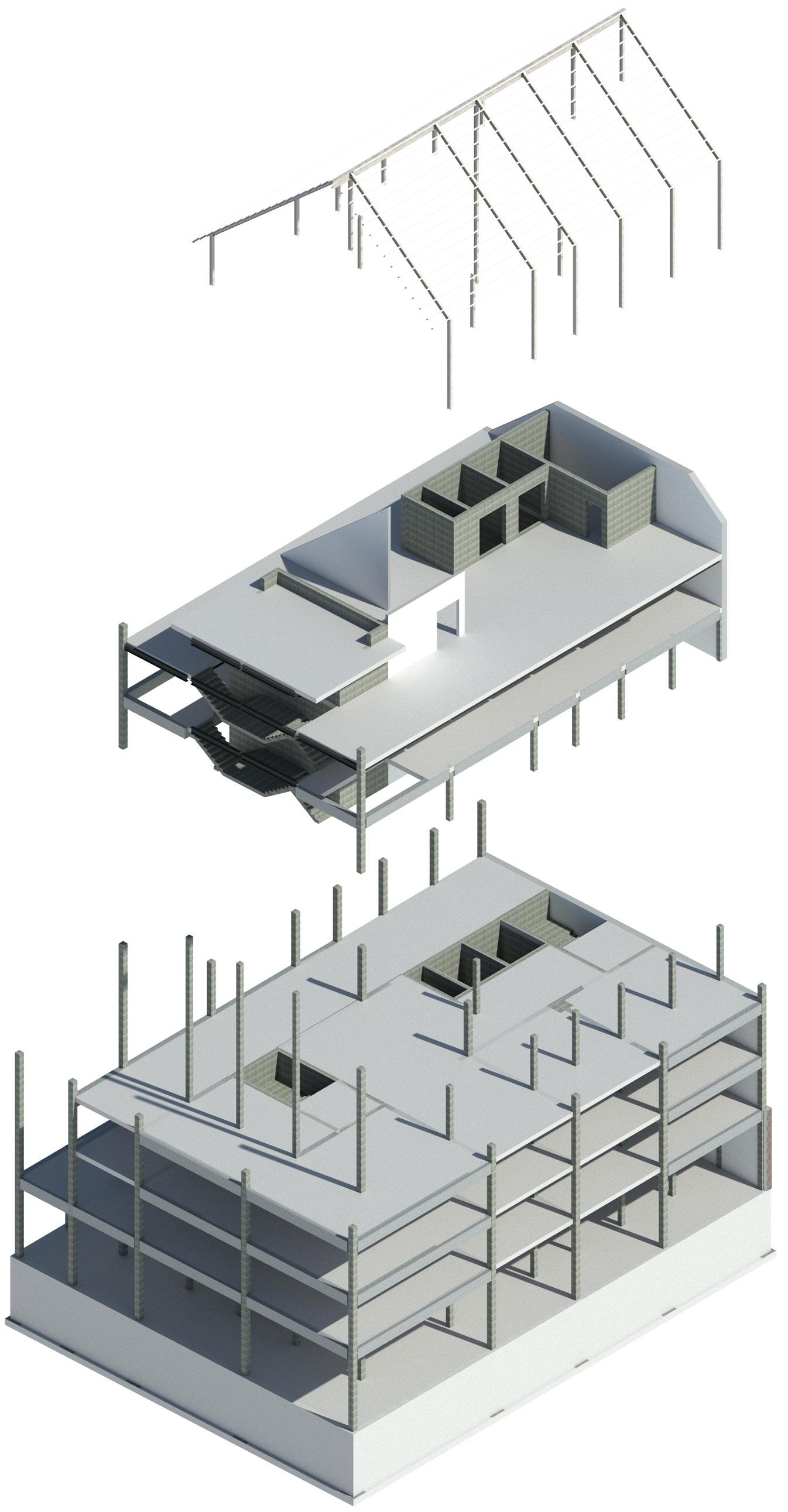

Structural Diagram

10

90mm Prodema Roof Panel 35mm Air Space 50mm Rigid Insulation Air Barrier C Channel Joists With Insulation Beam System Vapor Retarder 13mm Gypsum Wall Board

Steel Column Boiler Room

200mm Metal Rood Deck on Beam and OWSJ System Ceiling Tiles

90mm Prodema Roof Panel 25mm Air Space 75mm Rigid Insulation Air Barrier 13mm Wood Sheathing 152 Metal Stud Layer Vapor Retarder 13mm Gypsum Wall Board Sixth Floor

Steel Beam Steel Column

Gym

Double Glazed Curtain Wall

30mm Floor Finish 12mm Acoustic Pad 200mm Concrete Floor Slab 13mm G.W.B Fifth Floor

Concrete Beam

Concrete Column

Common Space

30mm Floor Finish 12mm Acoustic Pad 200mm Concrete Floor Slab 13mm G.W.B

50mm Gravel 20mm Sloping Filter Membrane 90mm Rigid Insulation 15mm Water Proofing Membrane Air Barrier 200mm Concrete Slab 13mm G.W.B

102mm Brick 75mm Rigid Insulation Air Barrier 13mm Wood Sheathing 152mm Metal Stud Layer 13mm Wood Sheathing Air Barrier 75mm Rigid Insulation 102mm Brick Fourth Floor

13mm G.W.B 92mm Steel Stud 13mm G.W.B

Concrete Column

Double Glazed Window Hallway

Kitchen

Wall Section

11

2

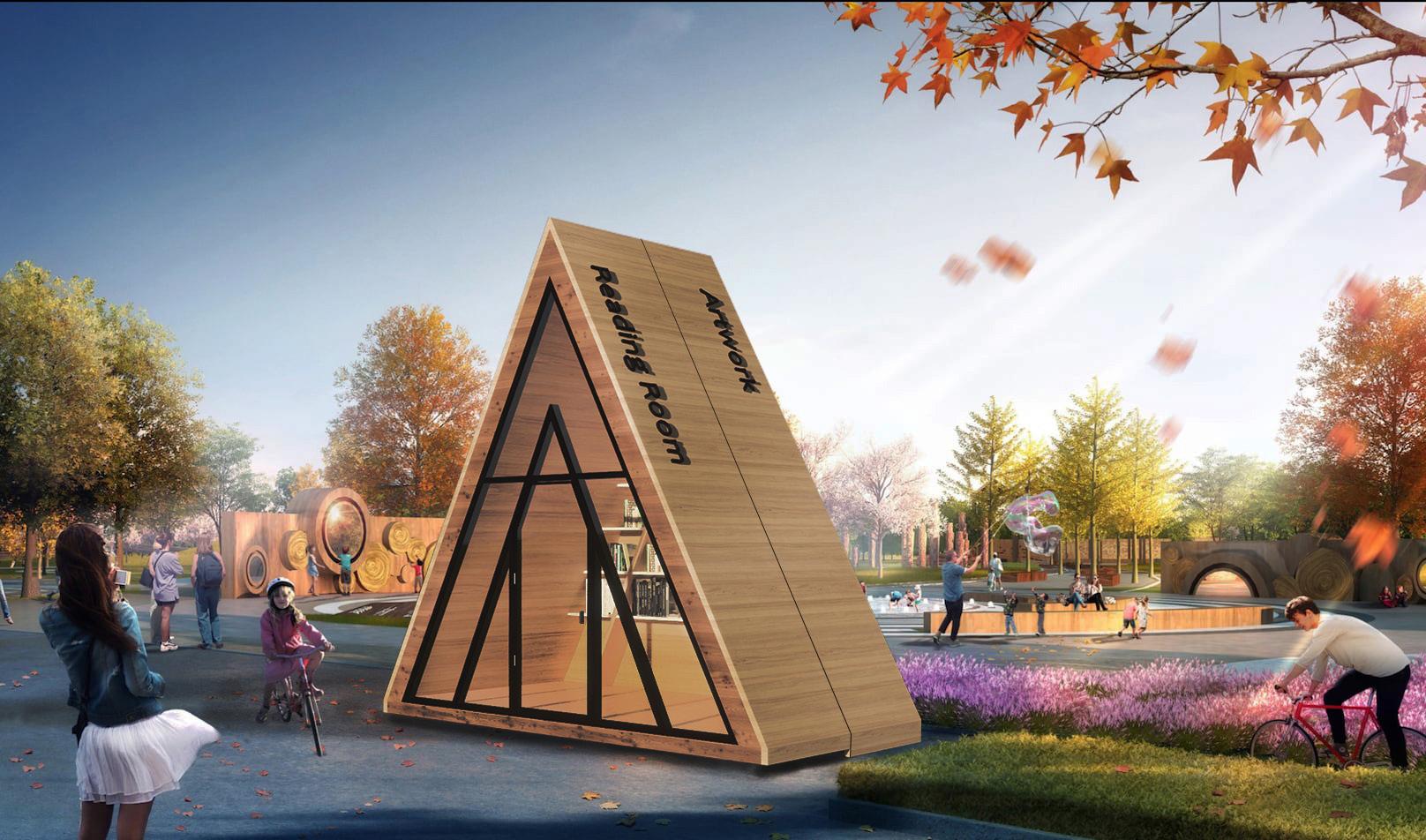

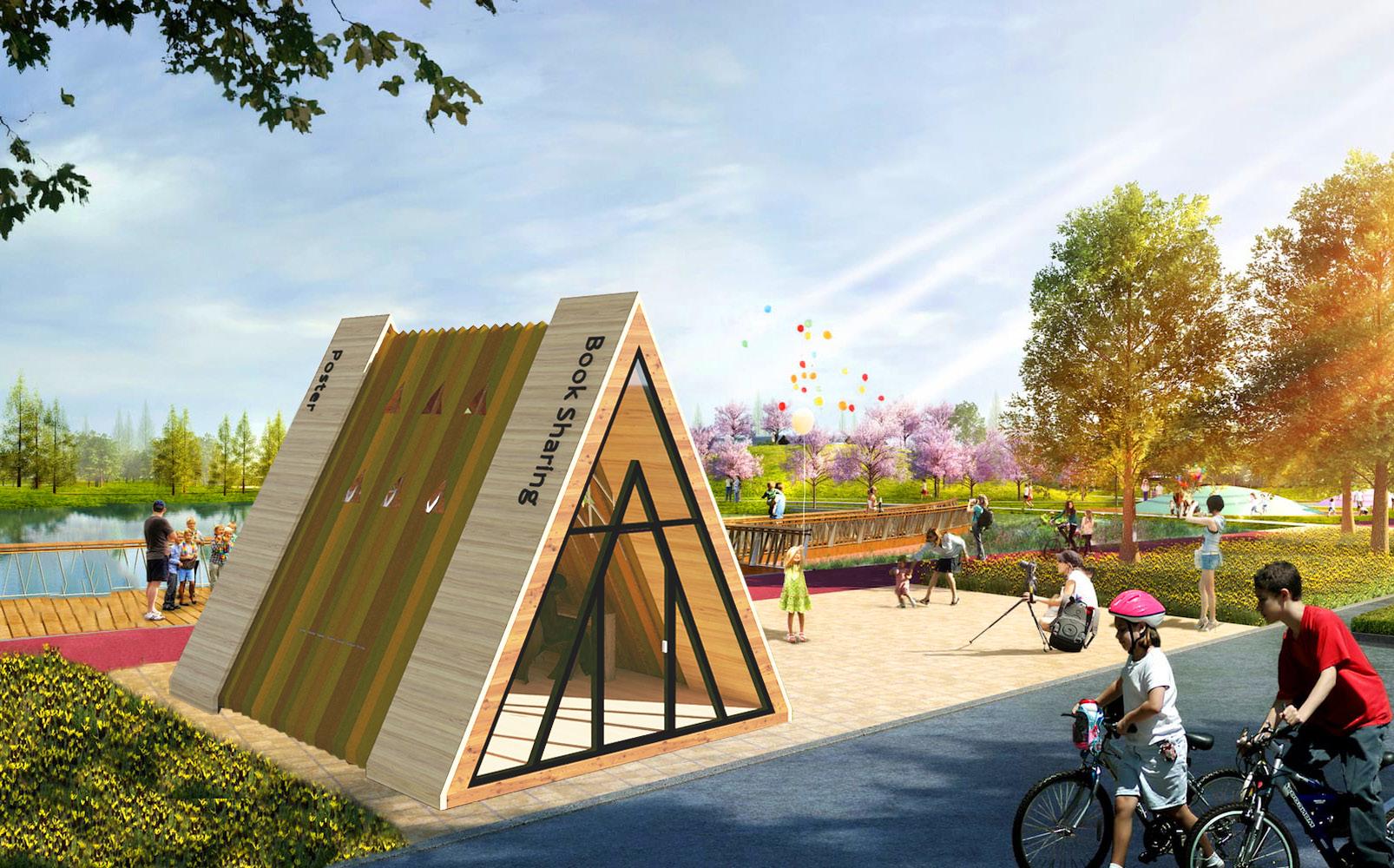

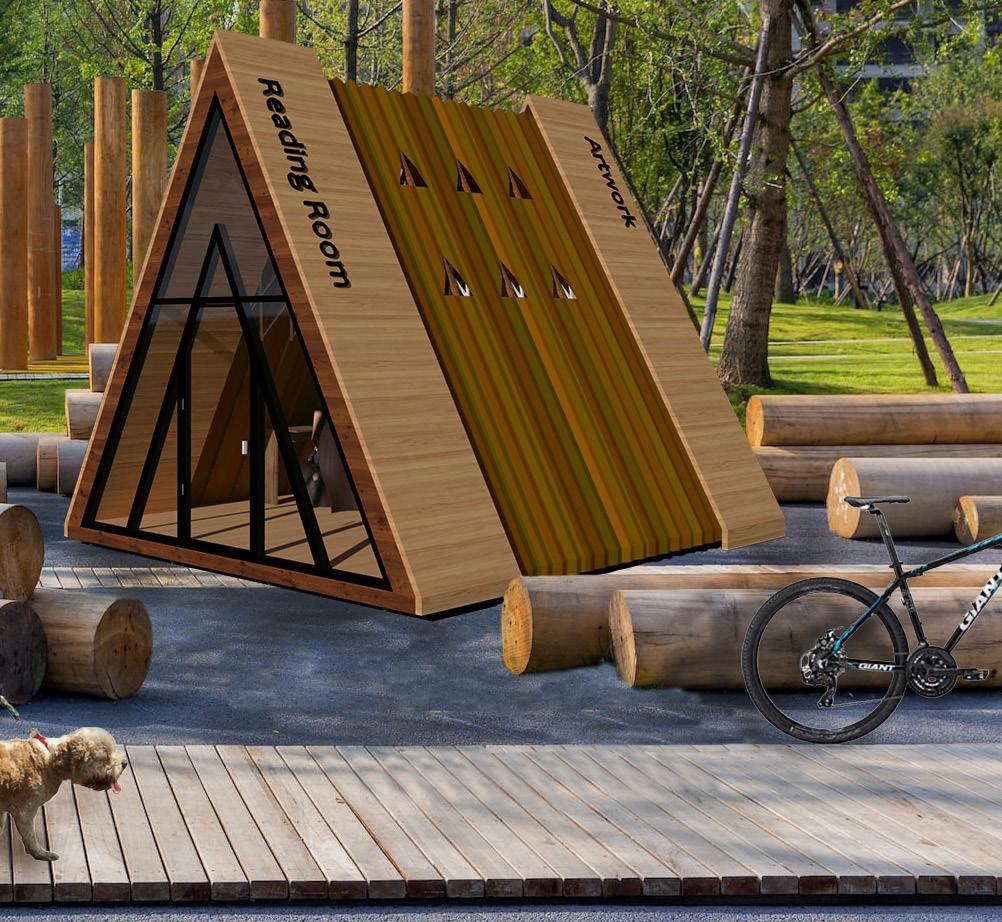

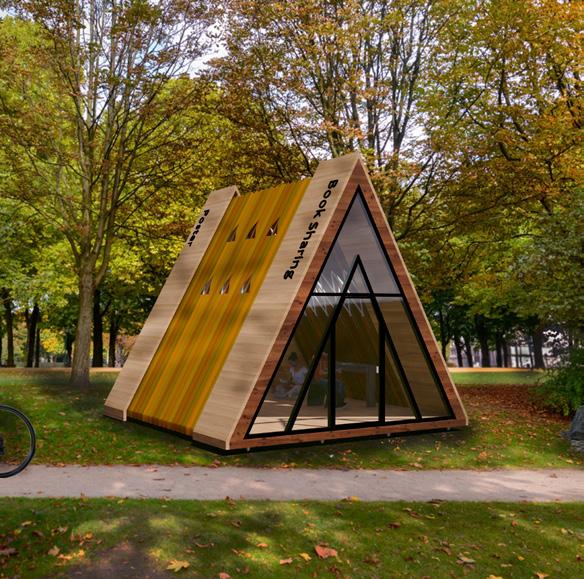

PORTABLE READING ROOM

ARCHITECTURAL COMPETITION This portable reading room structure can be embedded within existing public spaces in multiple location around the world. It function as a meditative space in which people can read and exchange books. The structure is highly versatile it can be put in various locations and can function in any climate and any season. Its functionality

can change throughout the year operating as a simple book exchange box during colder months and a more immersive and interactive reading experience during milder weather. This reading rooms have the potential to enrich the community in which it is placed

1

3

4

5

2

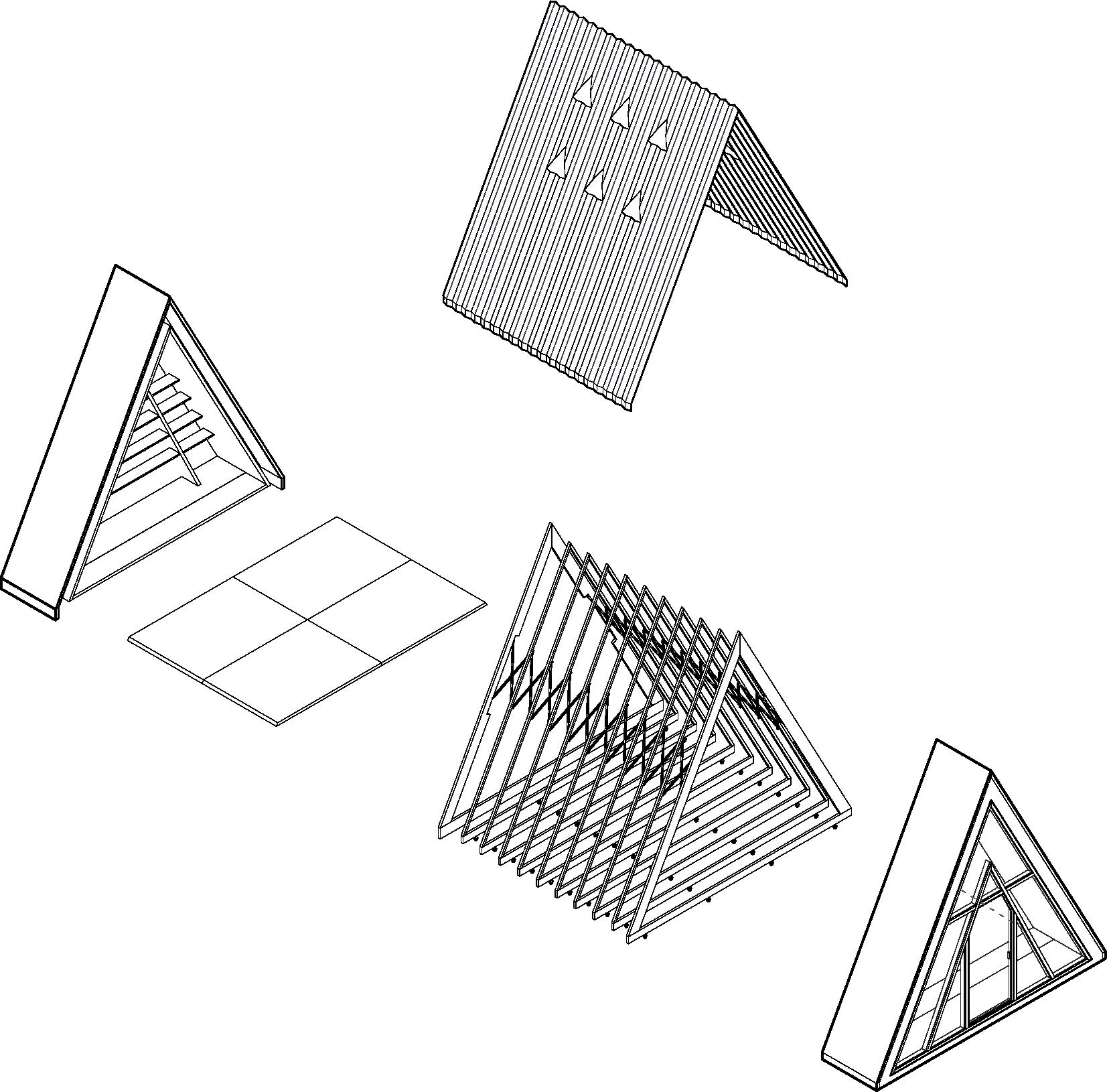

Structural Diagram 1. Folding Waterproof Tarp 2. Folding Structure 3. Treated Wood Sheathing 4. Book Shelf 5. Folding Floor 6. Rolling Wheels 7. Plastic Glass

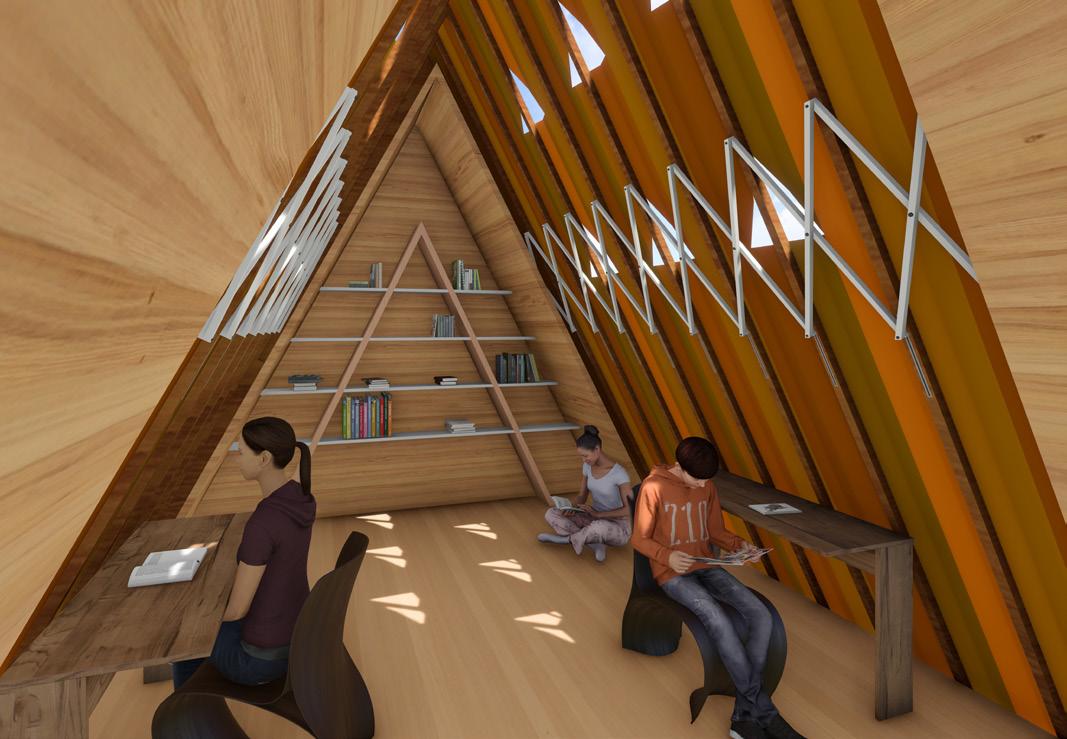

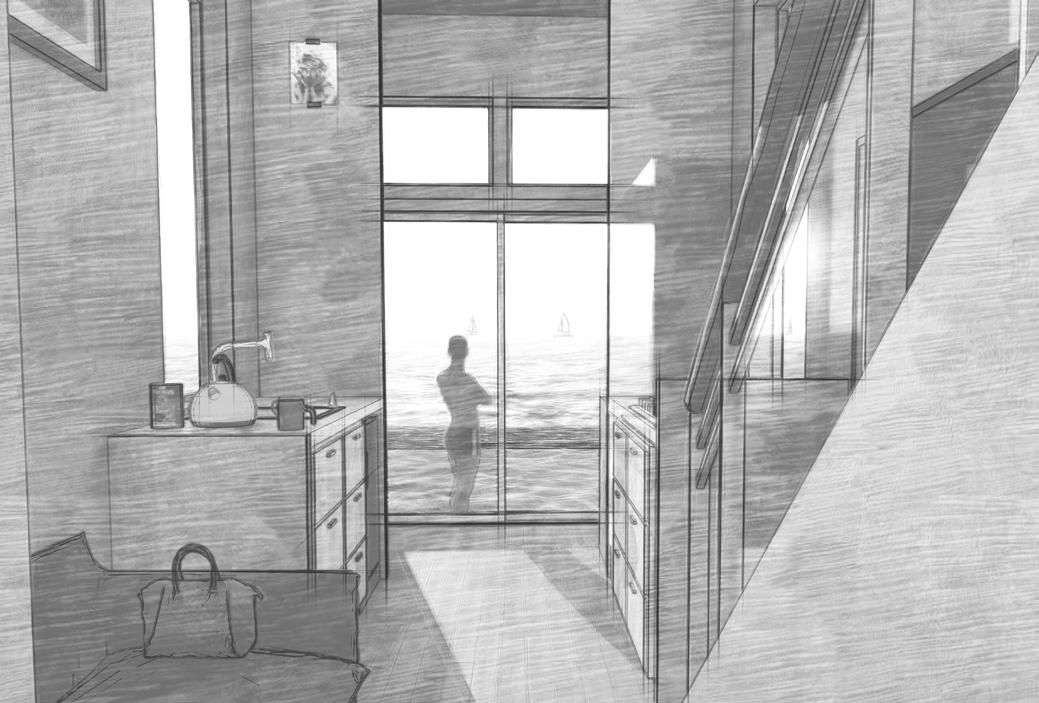

Interior View

14

6

3 7

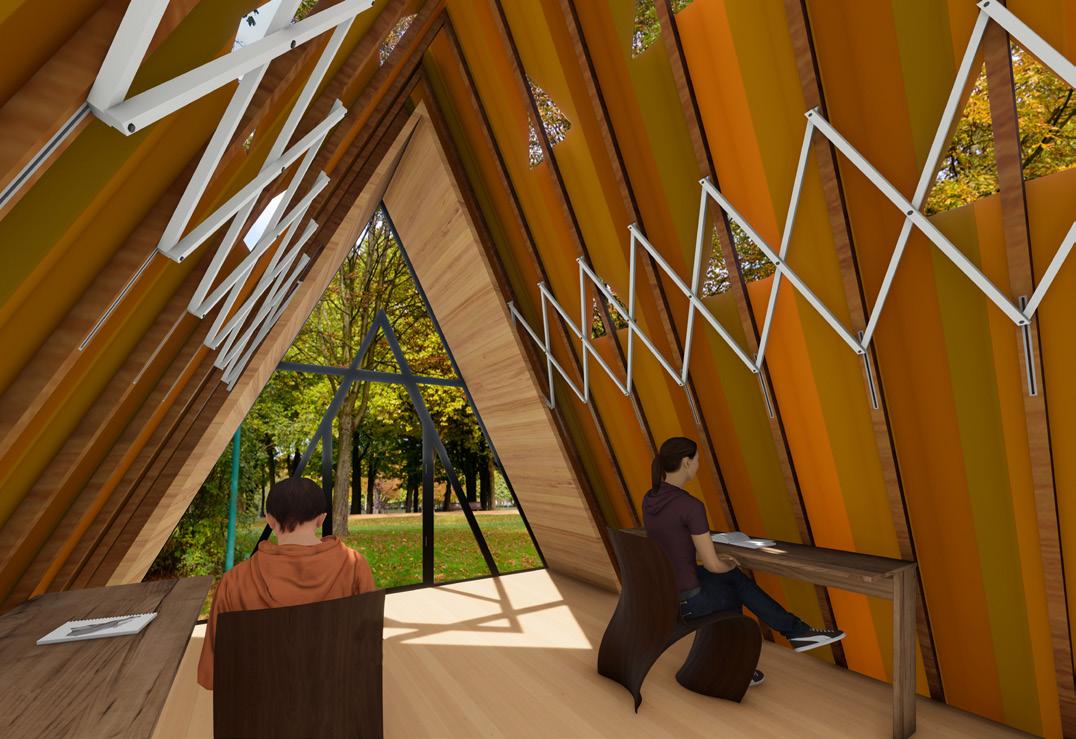

Interior View

Compressed Form

Extended From

15

3

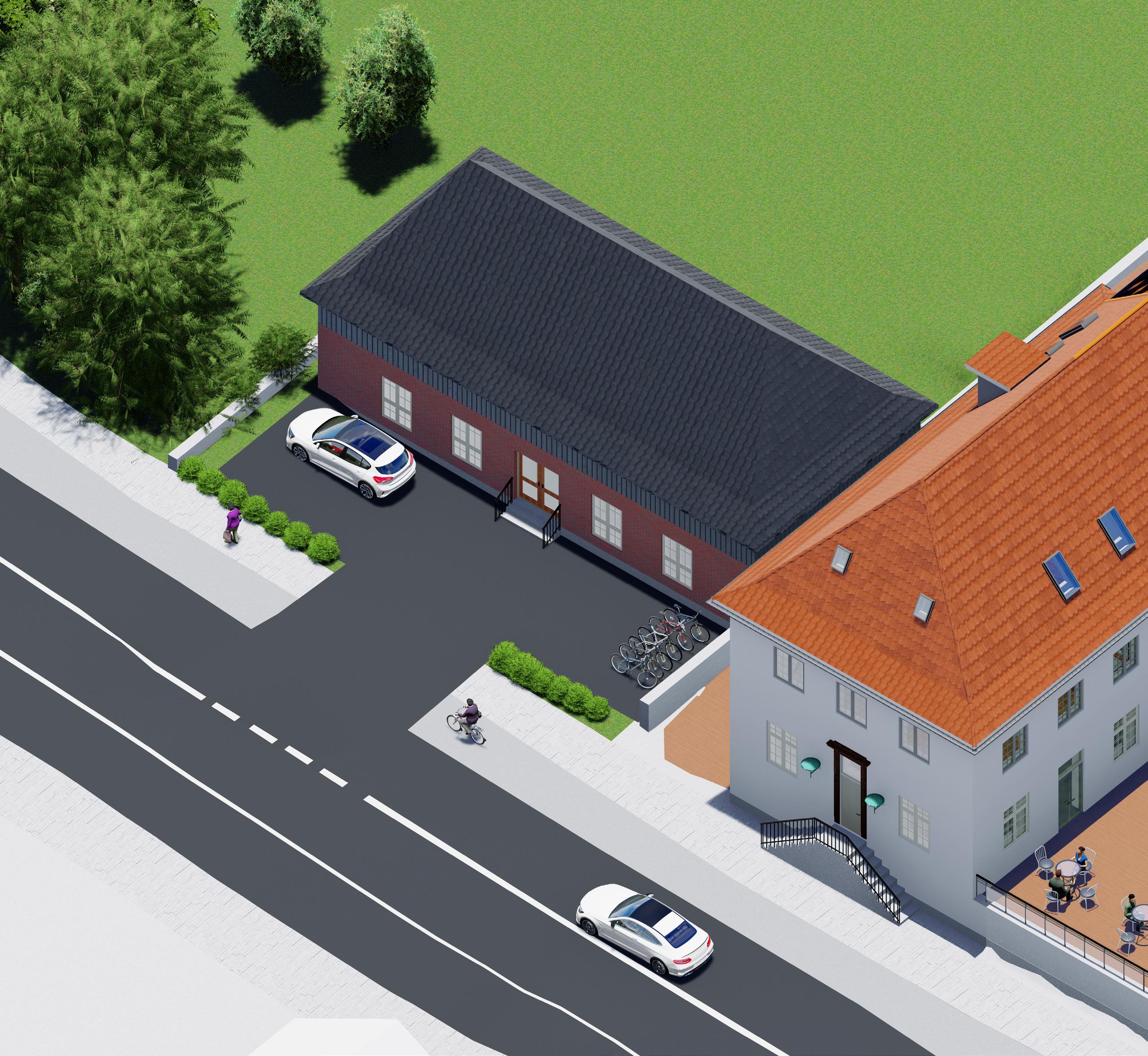

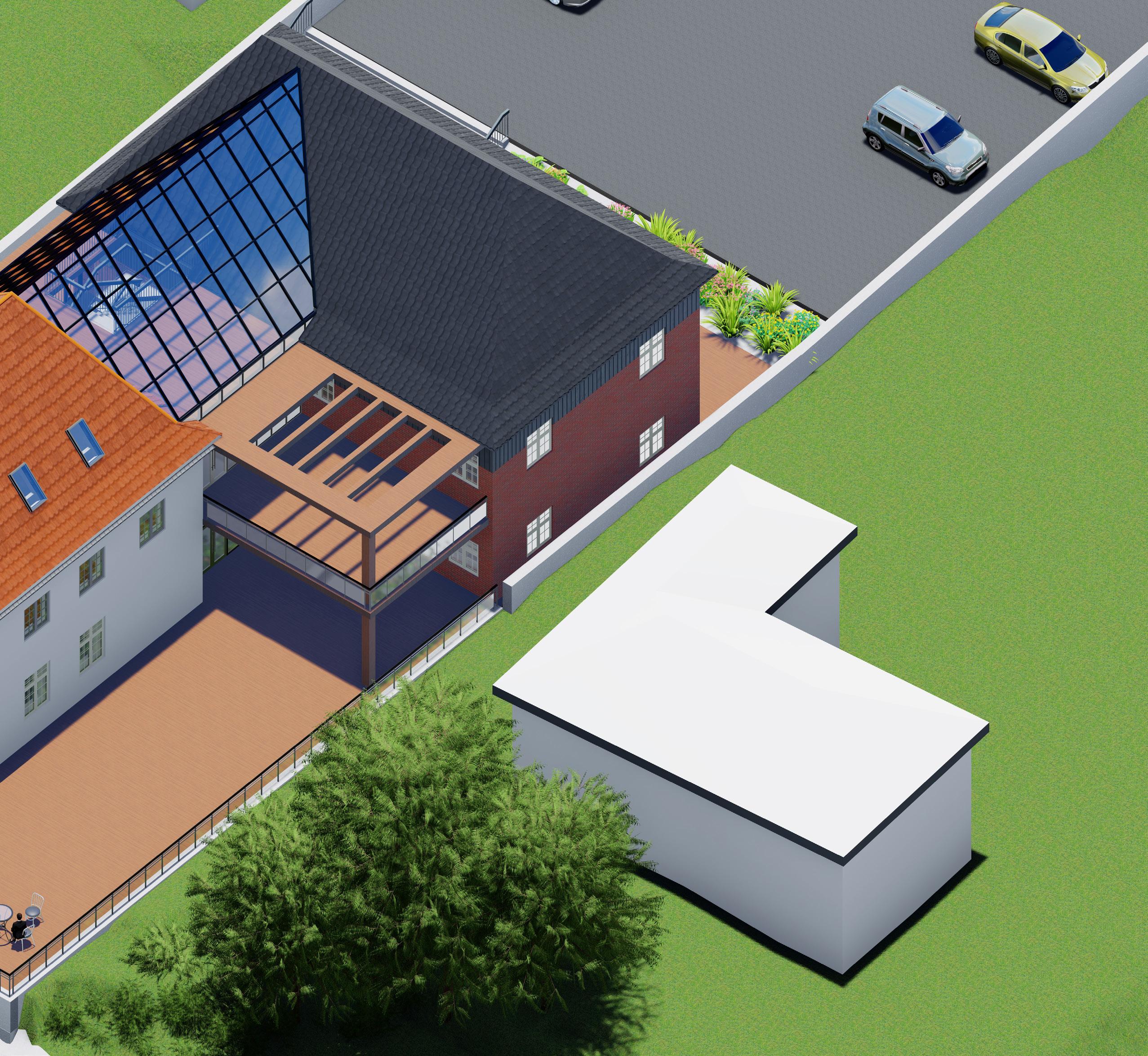

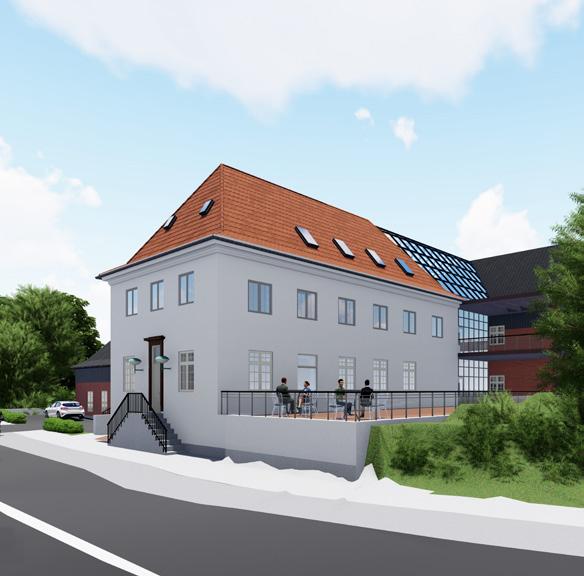

STATIONSVEJ 46 3640 BIRKERØD, DENMARK

ADAPTIVE REUSE PROJECT This project is completed under a global skill opportunity (GSO) program that allowed me to virtually collaborate internationally on an adaptive reuse project for a post office in Birkerød, Denmark. The design proposal includes a restaurant in the existing building on the ground floor with an outdoor patio, and the new addition includes a bike shop on the left side lot and residential units

in the new building on the north side of the existing building. The existing building has a sophisticated design with distinctive features. The design constraints demand preservation of the appearance and roof. The new building will retain the original look, with a glass extension connecting the two structures.

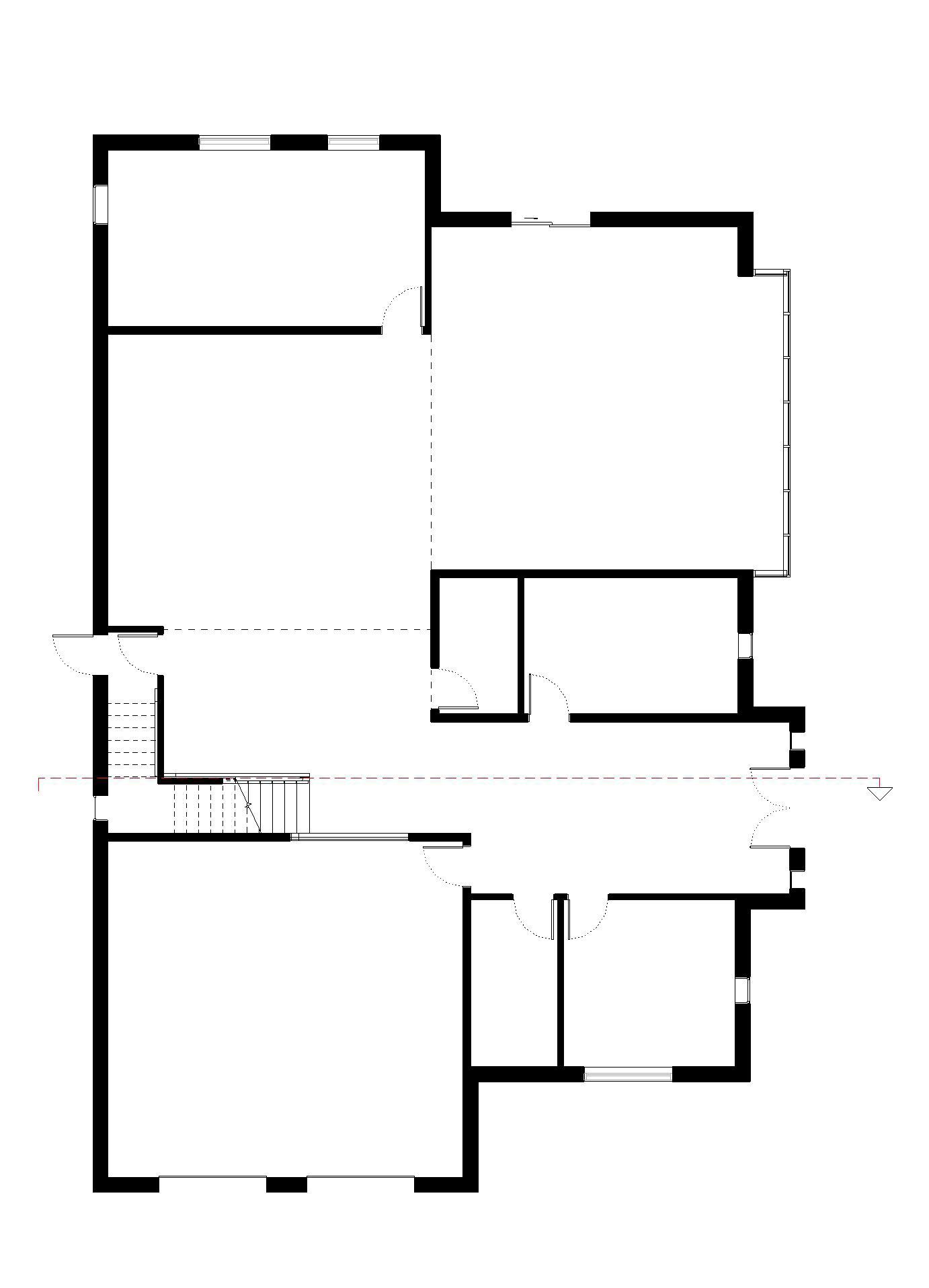

Ground Floor Plan UP

1 Restaurant 2 Kitchen 3 Common Area 4 Unit 1 5 Unit 2 6 Bike Shop

4

5

Existing New Addition 3

2 6

DN

1 UP

Section

East Elevation 18

3D Wall Section 19

4

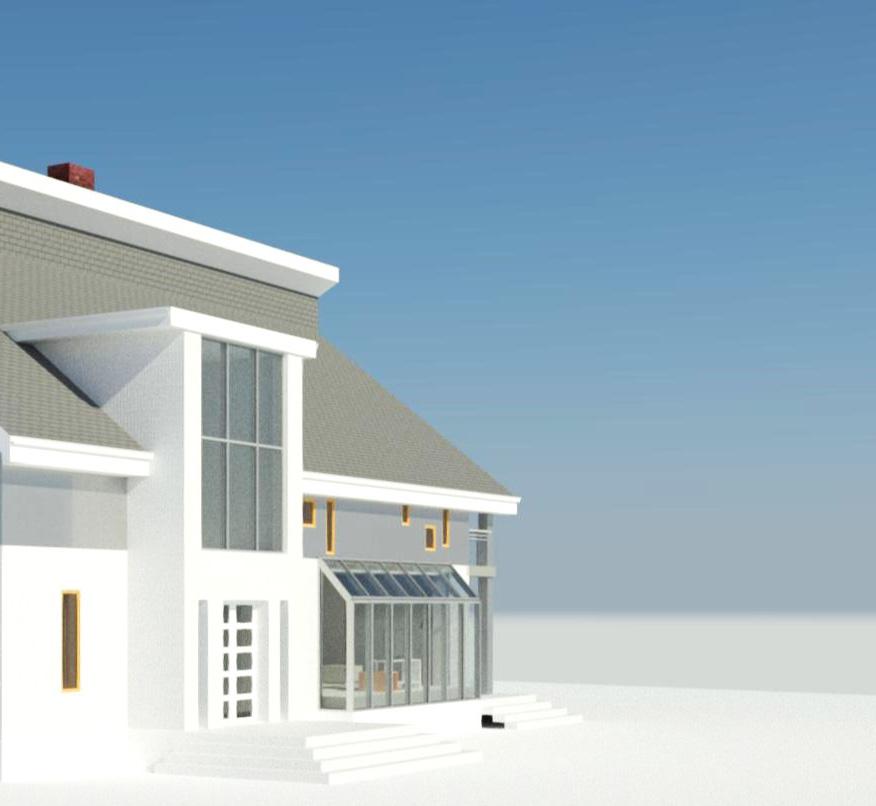

VISTA HOUSE 2010 CAMERON DR, MILTON ON

HOUSE RENOVATION The goal of this project was to renovate the house located on a 2-acre lot in order to increase its floor area and give it a new, modern appearance while preserving as much of the existing structure as possible. The pond on the Site played an important role in the layout of the

floor plans. The focus is on creating a design that is both aesthetically pleasing and functional, taking into account the family’s budget. All of the client’s new requirements are met, including more natural light, a home office with a separate entrance, and the addition of a new bedroom.

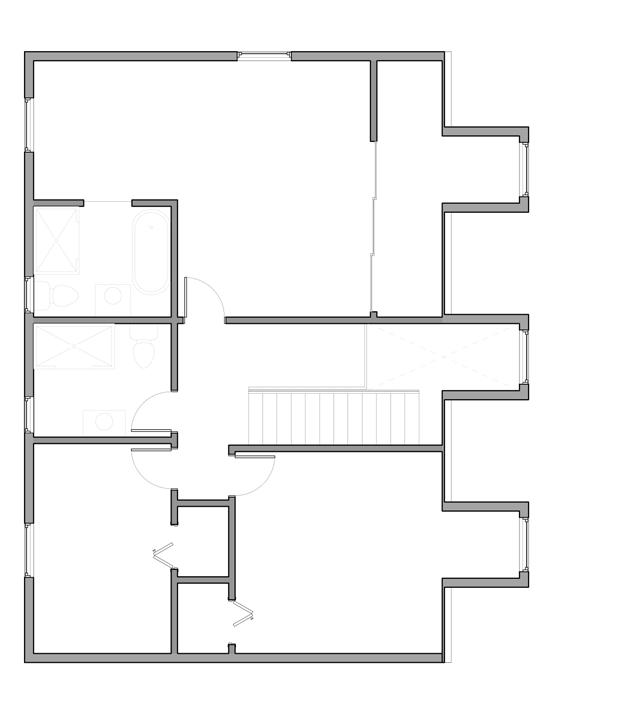

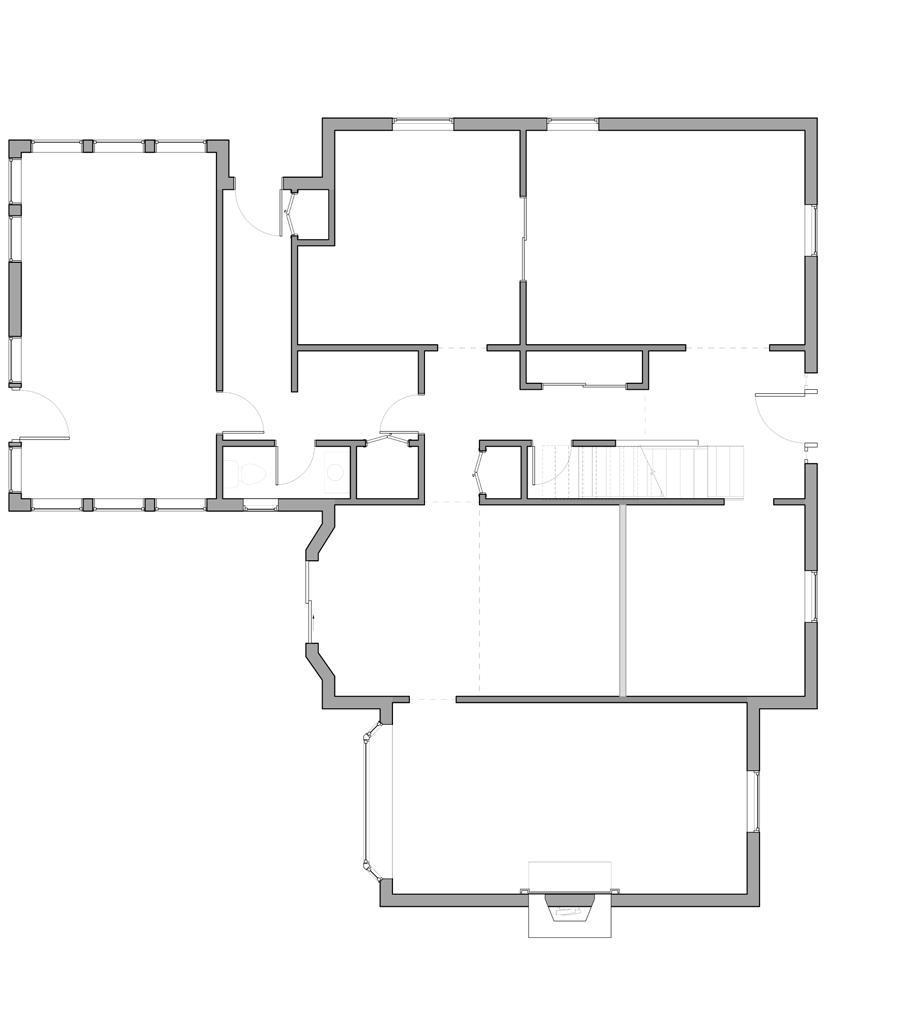

Existing

11

Proposed

13

7

10

9

12

Existing

22

14

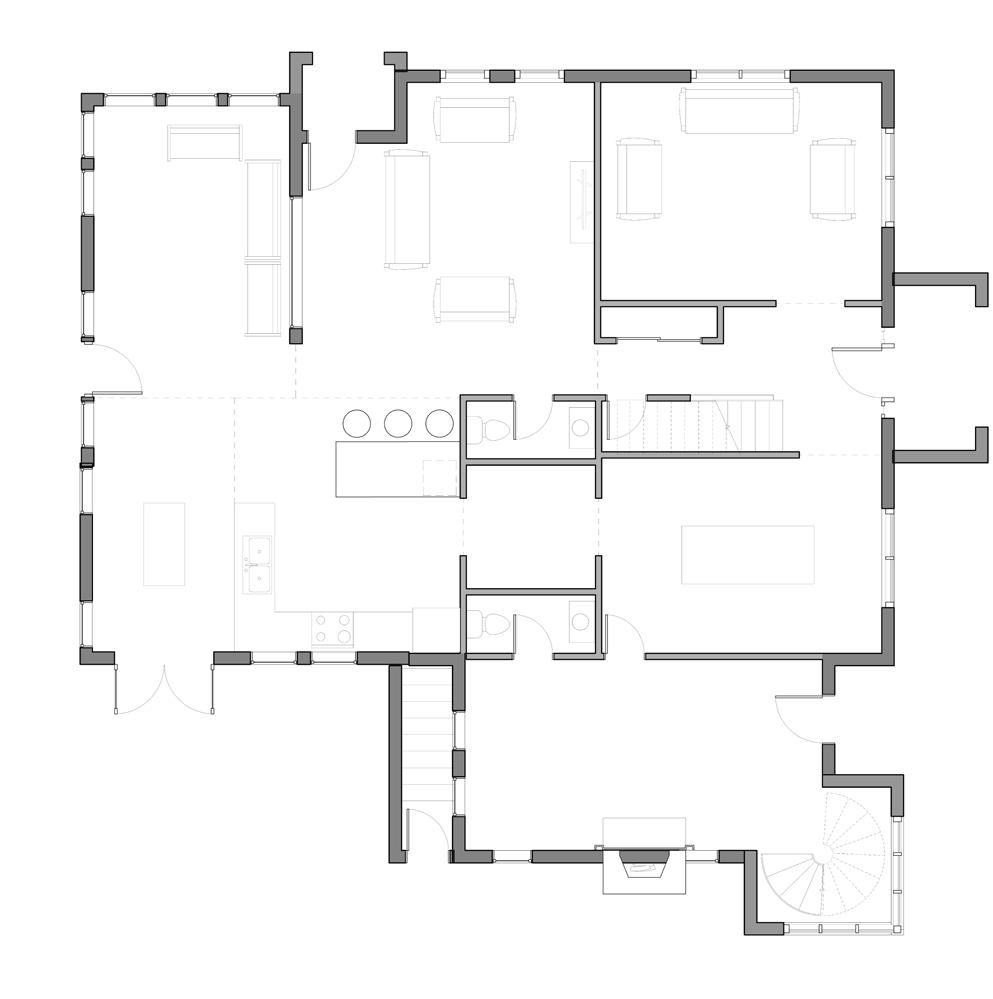

Ground Floor Plan 7 Dining Room 8 Butler’s Kitchen 9 Kitchen 10 Breakfast Nook 11 Outdoor Family Room 12 Family Room 13 Living Room 14 Office

11

10

12

9

13

8

14

Proposed

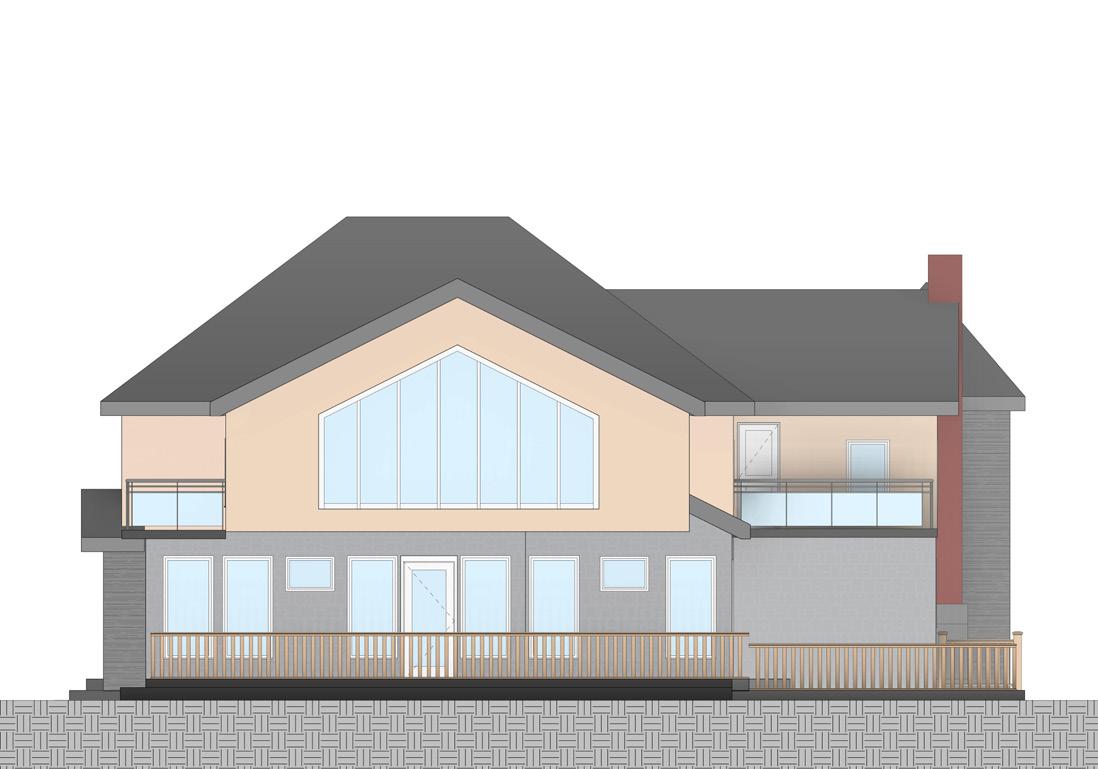

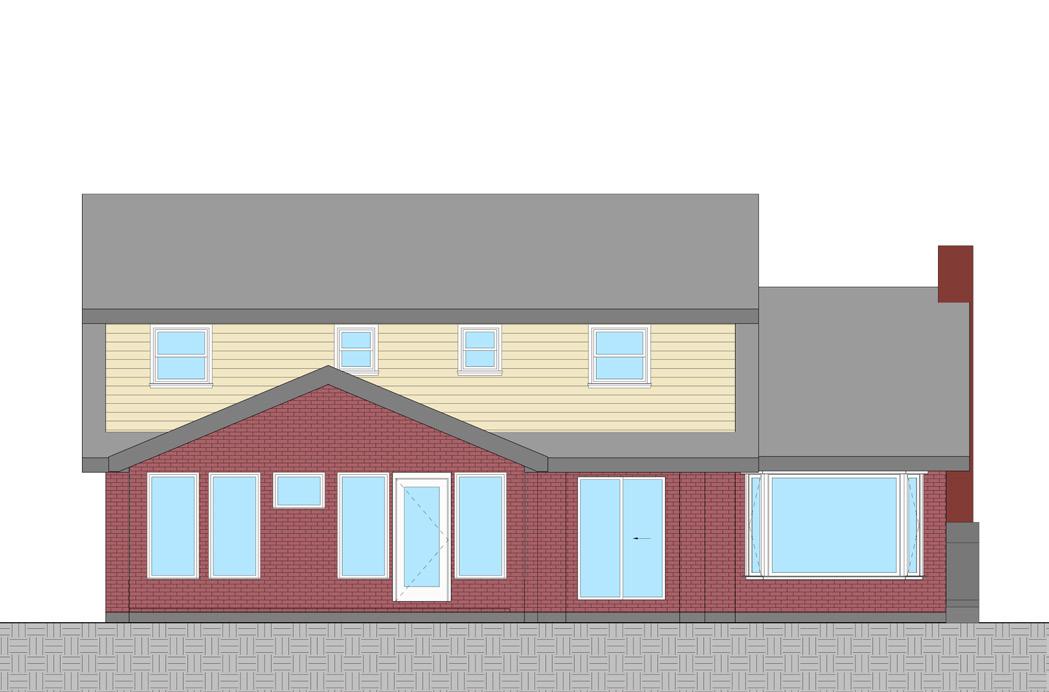

West Elevation

West Elevation

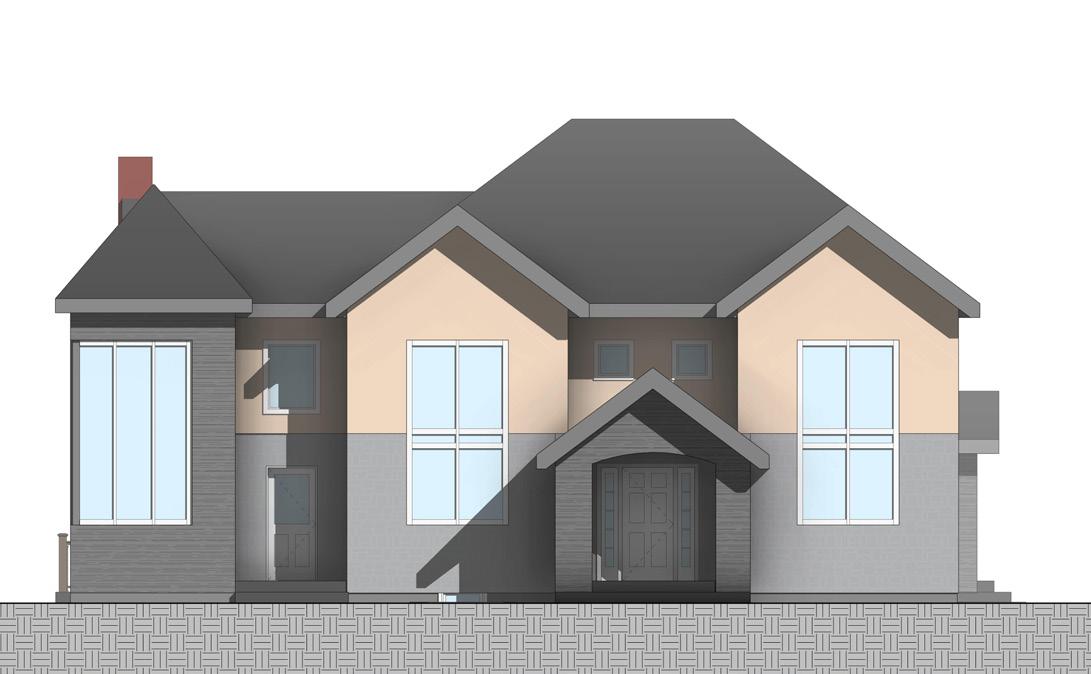

East Elevation

East Elevation

7

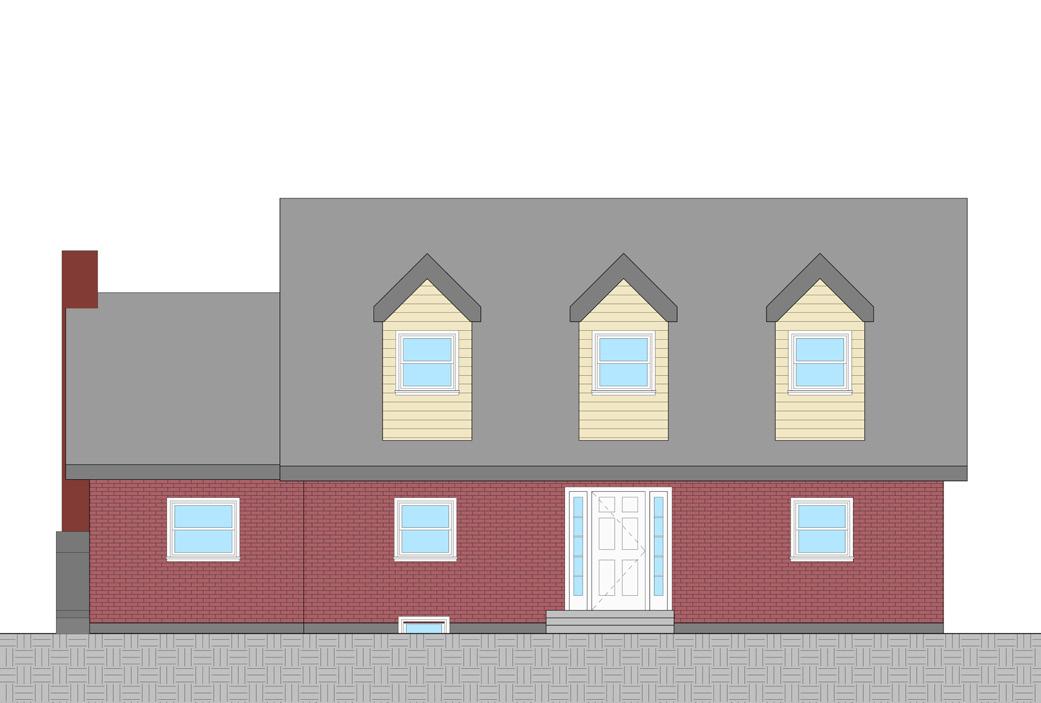

Existing

Proposed

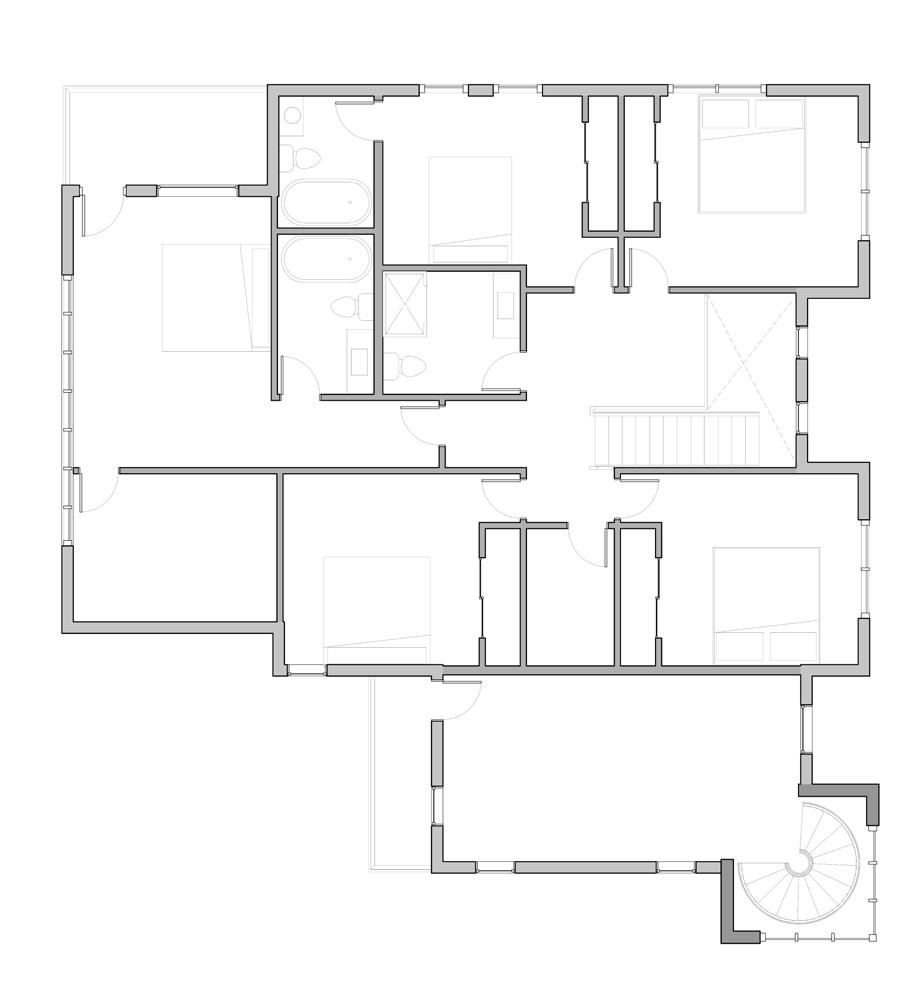

Second Floor Plan

17

20

16

15

15 Bedroom 16 Common Washroom 17 Primary Bedroom 18 W/D 19 Den 20 Open To Below 21 Balcony 22 Closet

15

21

15 15 16

20

17

22

15

18

15

19

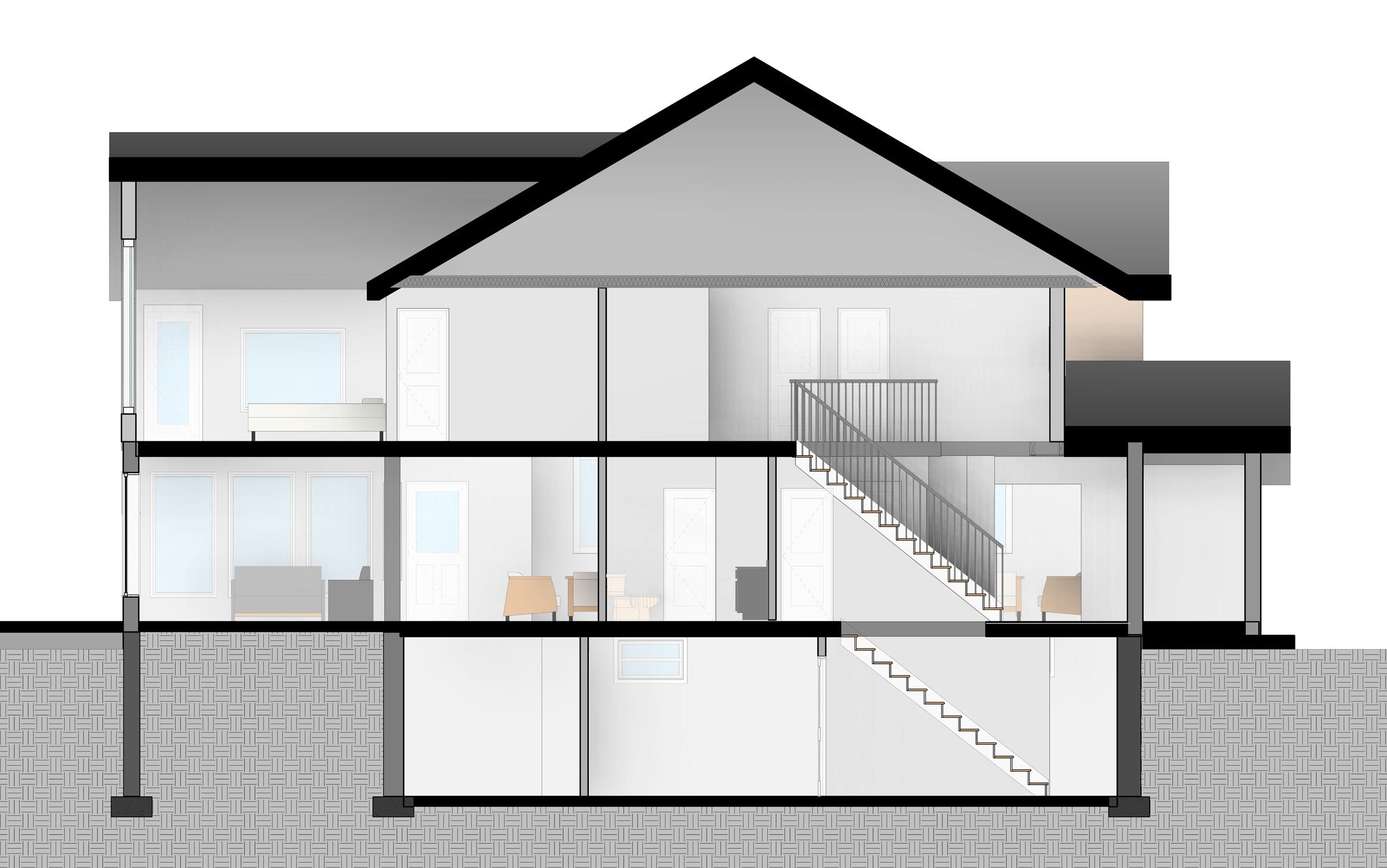

Open to below

Primary Bedroom

Outdoor Family Room

Family Room

Gym

Powder Room

Recreation Area

23

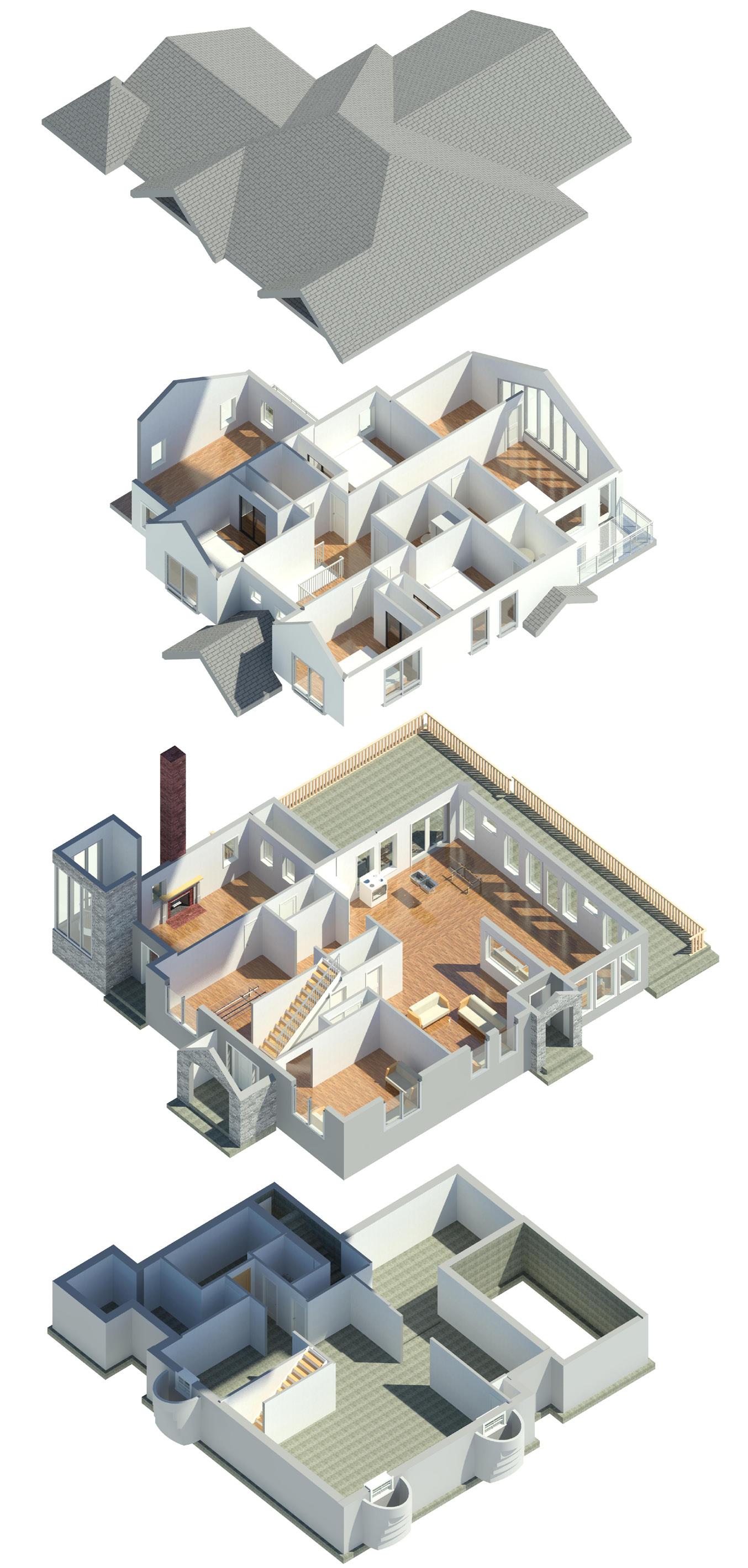

Gable Roof Ceiling Gable Roof

New Den with Separate Stairs

Continuous Windows

Primary Bedroom New balcony

Bigger Deck Spiral Stair inside rectangular form

Open Concept Floor Plan

New Porch New Porch

New Entrance for basement

Basement Extension

New Basement Windows New Basement Windows

24

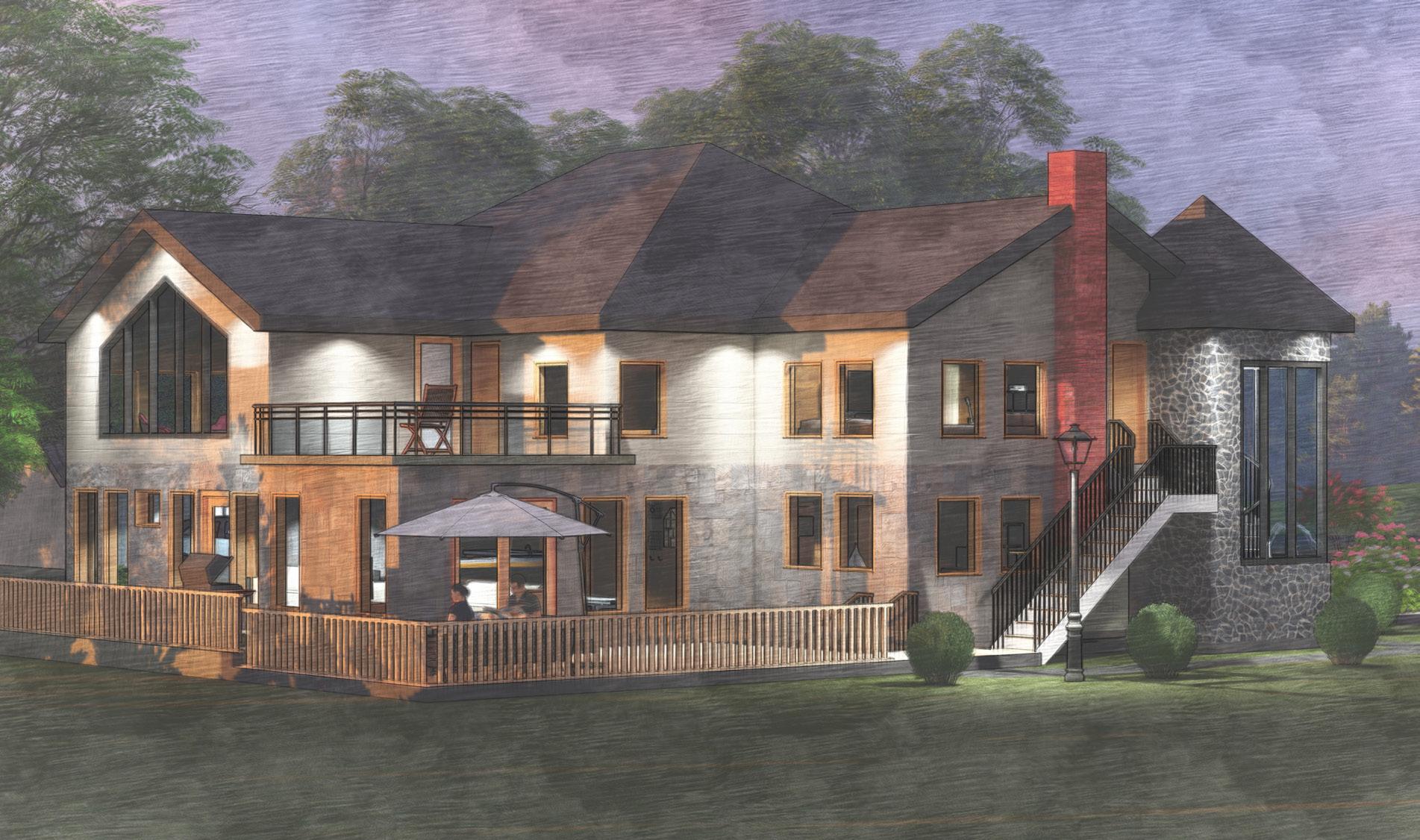

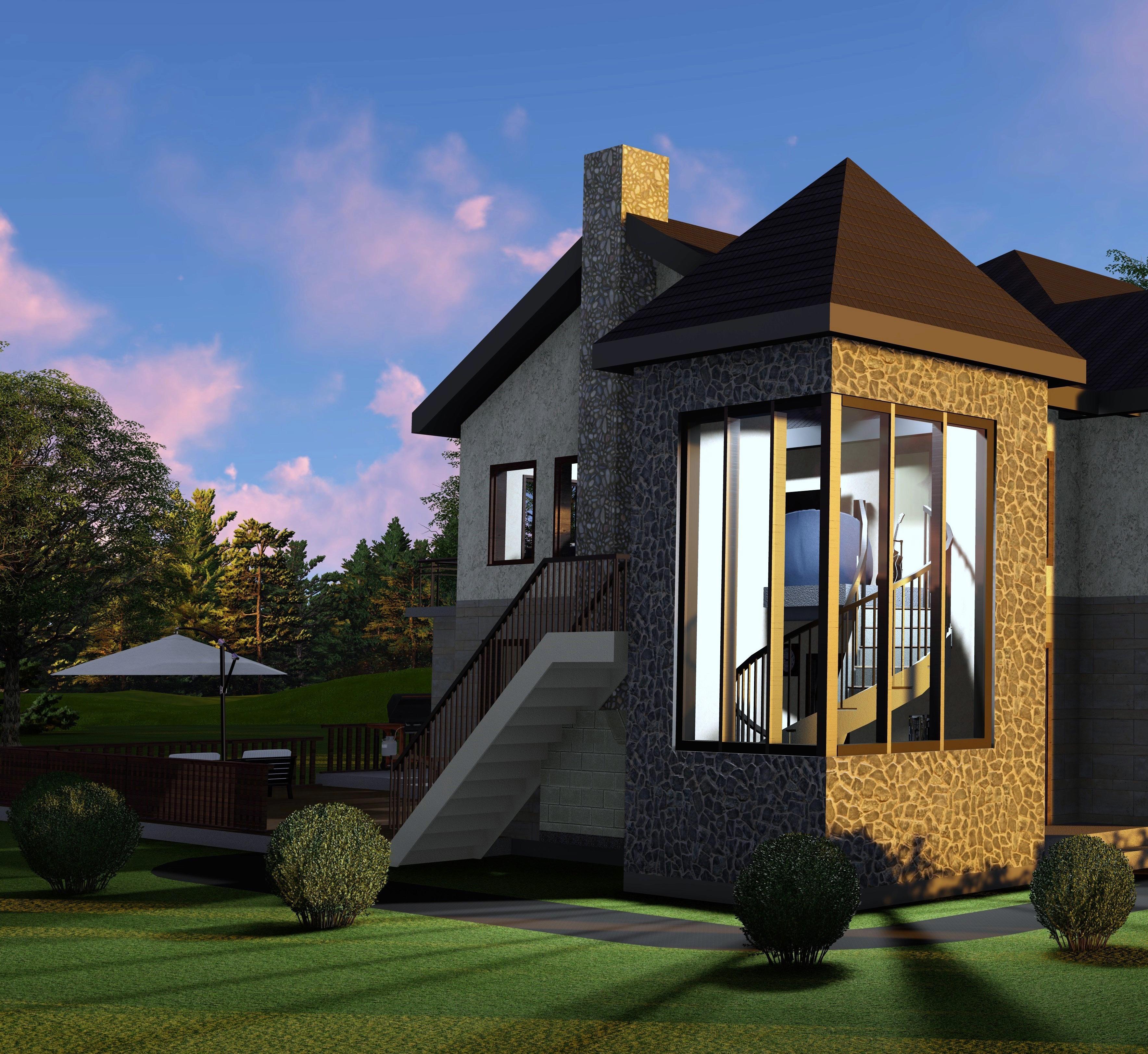

Backyard

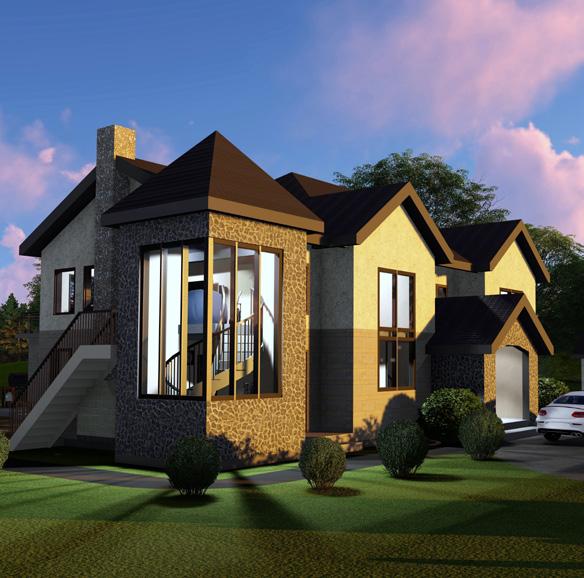

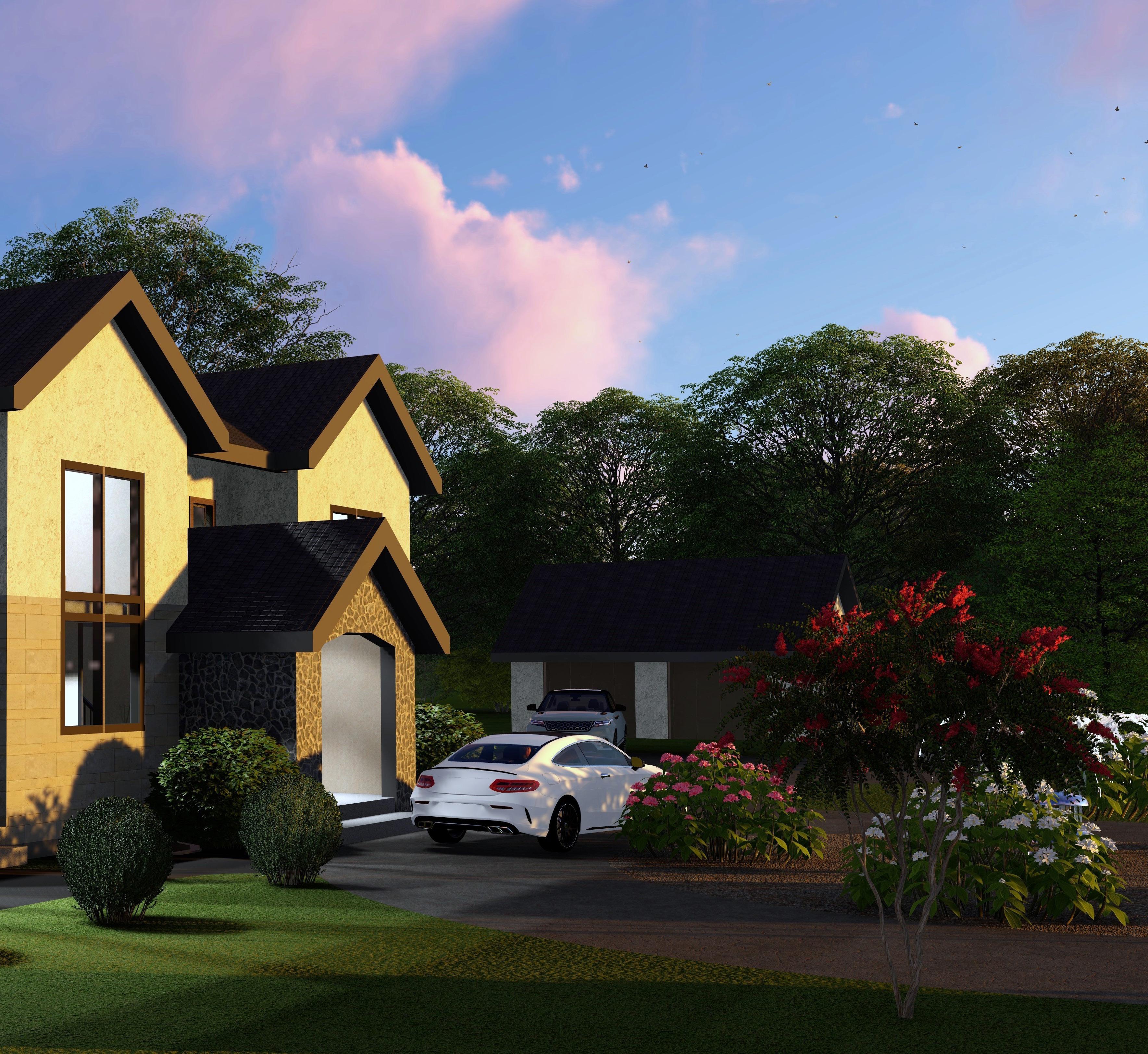

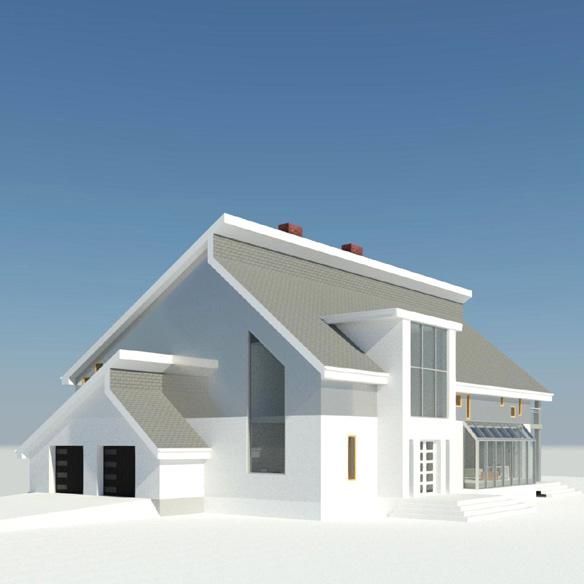

Front Entrance View

25

5

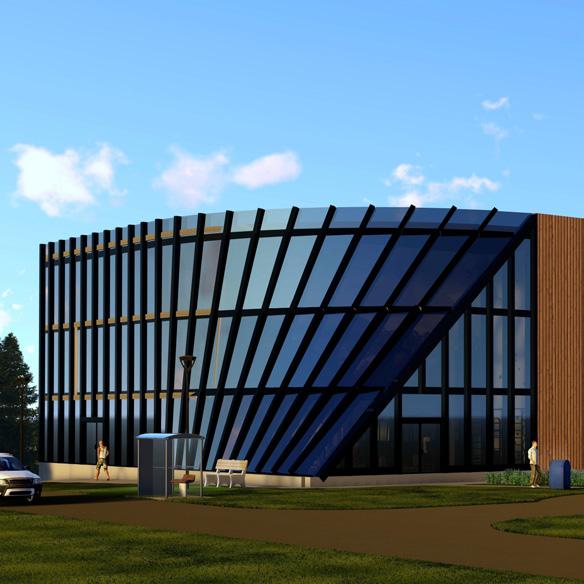

FEATHER APARTMENT MILTON, ON

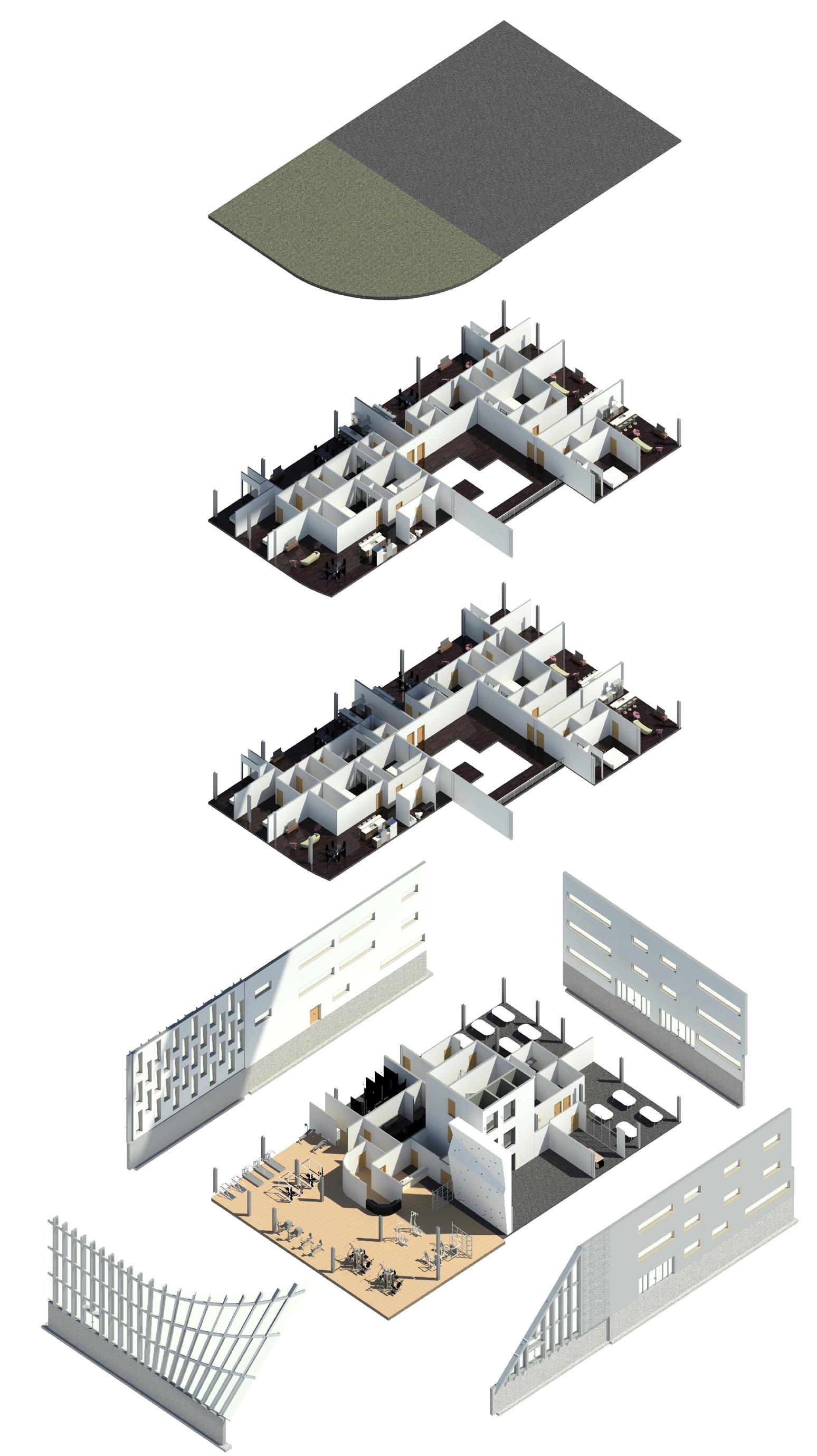

ADAPTIVE REUSE PROJECT This innovative adaptive reuse project involves the addition of a gym and a significant expansion of the floor area, transforming the original office building into a dynamic mixed-use structure. The design draws inspiration from the patterns of Bird feathers and

incorporates elements from BIG Isenberg school project, resulting in a striking and harmonious architectural composition. The captivating curtain wall forming a continuous structure on the west façade, making this building one of a kind.

Green Roof

2 Bedroom unit

2 Bedroom Unit

2 Bedroom Unit

1 Bedroom unit 1 Bedroom unit

Existing Windows Existing Windows

Office Entrance

Custom Windows

Open Gym Area

Curved Curtain Wall

Rock Climbing Wall

Apartment Entrance Gym Entrance

28

4 3

8

6

2 8

2

5

1

10

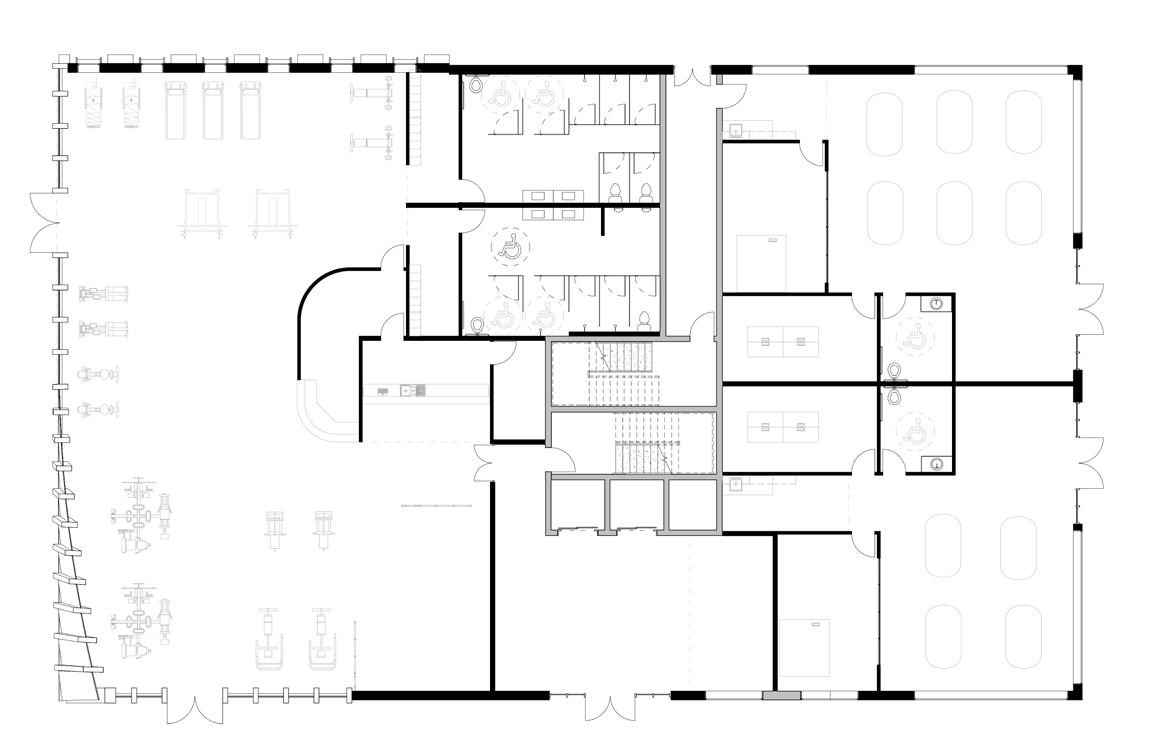

Ground Floor Plan 1Lobby 2 Office

9

7 7 10

2nd & 3rd Floor Plan

3 Men Washroom 5 Rock Climbing Area 4 Women Washroom 6 Gym

7 One Bedroom unit 8 Two Bedroom Unit

9 Three Bedroom Unit 10 Open To Below

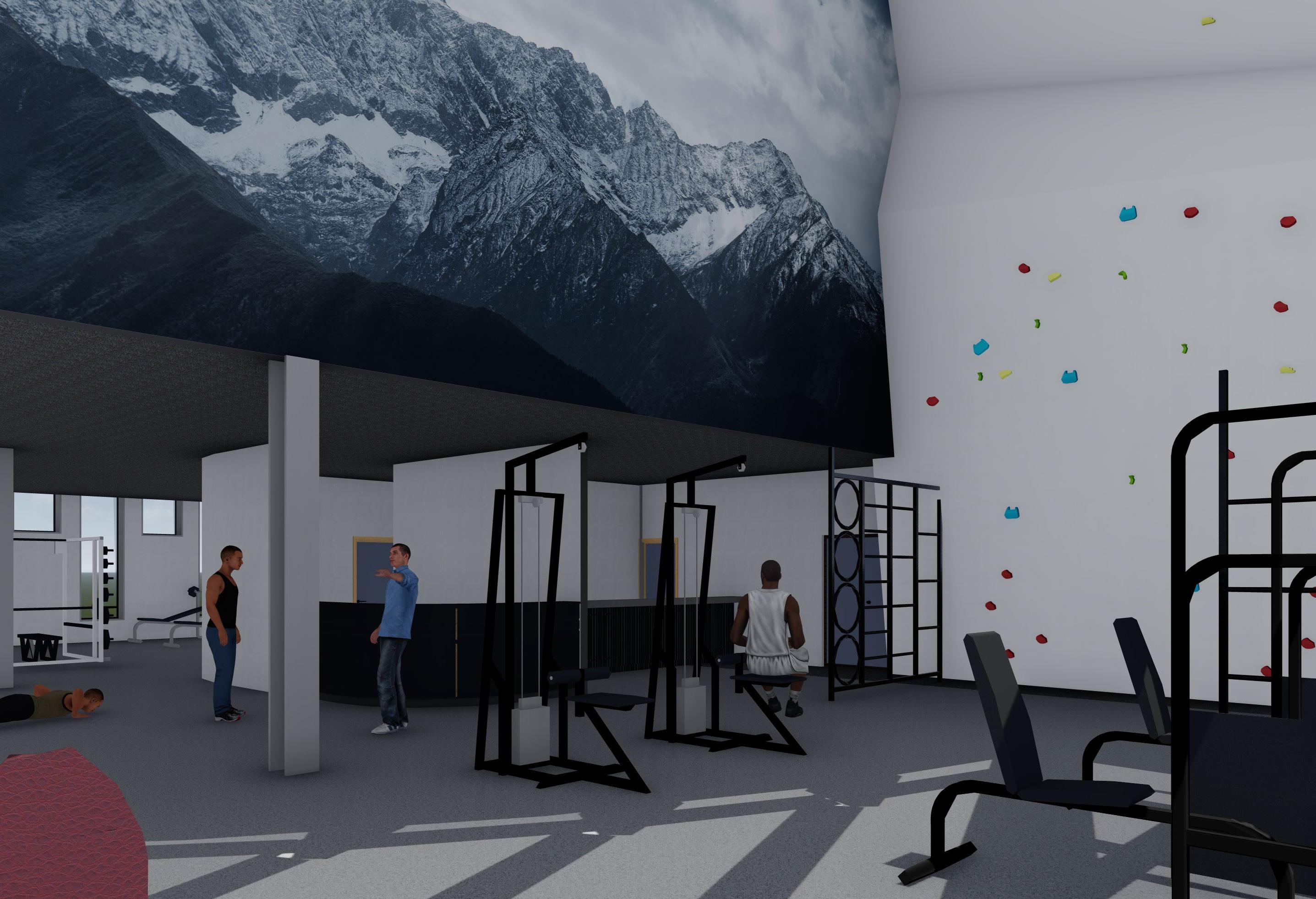

Rock Climbing + Gym Area

29

6

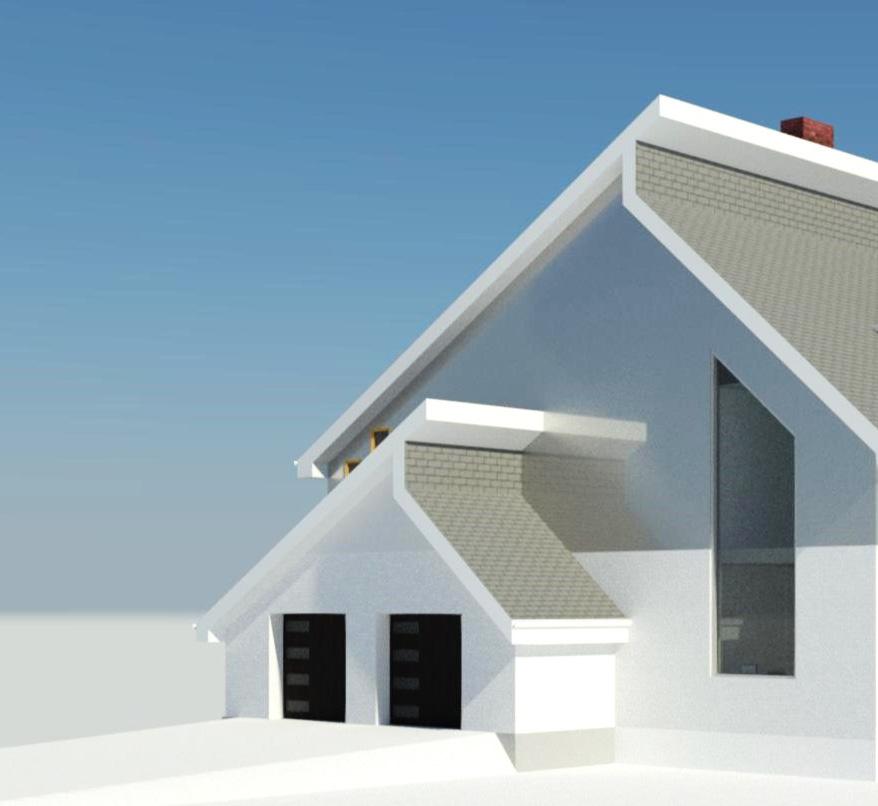

LAKE HOUSE AREA DRIVE, MISSISSAUGA

CUSTOM HOUSE DESIGN Custom House Design for a young couple featuring a spacious basement and two elegantly designed floors above ground. The open-concept ground floor seamlessly integrates a contemporary living room, a modern kitchen, and a stylish dining area, with easy

access to the garden through a sliding door. The big windows start from the first floor to the second floor, creating the illusion of a single-story building. The other windows follows a photograph pattern which is a client hobby.

14

14

13

12

13

12

13 10

14

11 12

16 17 12

13

15 14

Second Floor Plan 10 Family Room 11 Circulation 12 Bedroom

13 Closet 16 Library 14 Washroom 17 W/D 15 Studio

9

7

8

6

5

4

1

2

3

Ground Floor Plan 1 Garage 2 Washroom 3 Office

32

4 Foyer 7 Kitchen 5 Music Room 8 Living Area 6 Closet 9 Gym

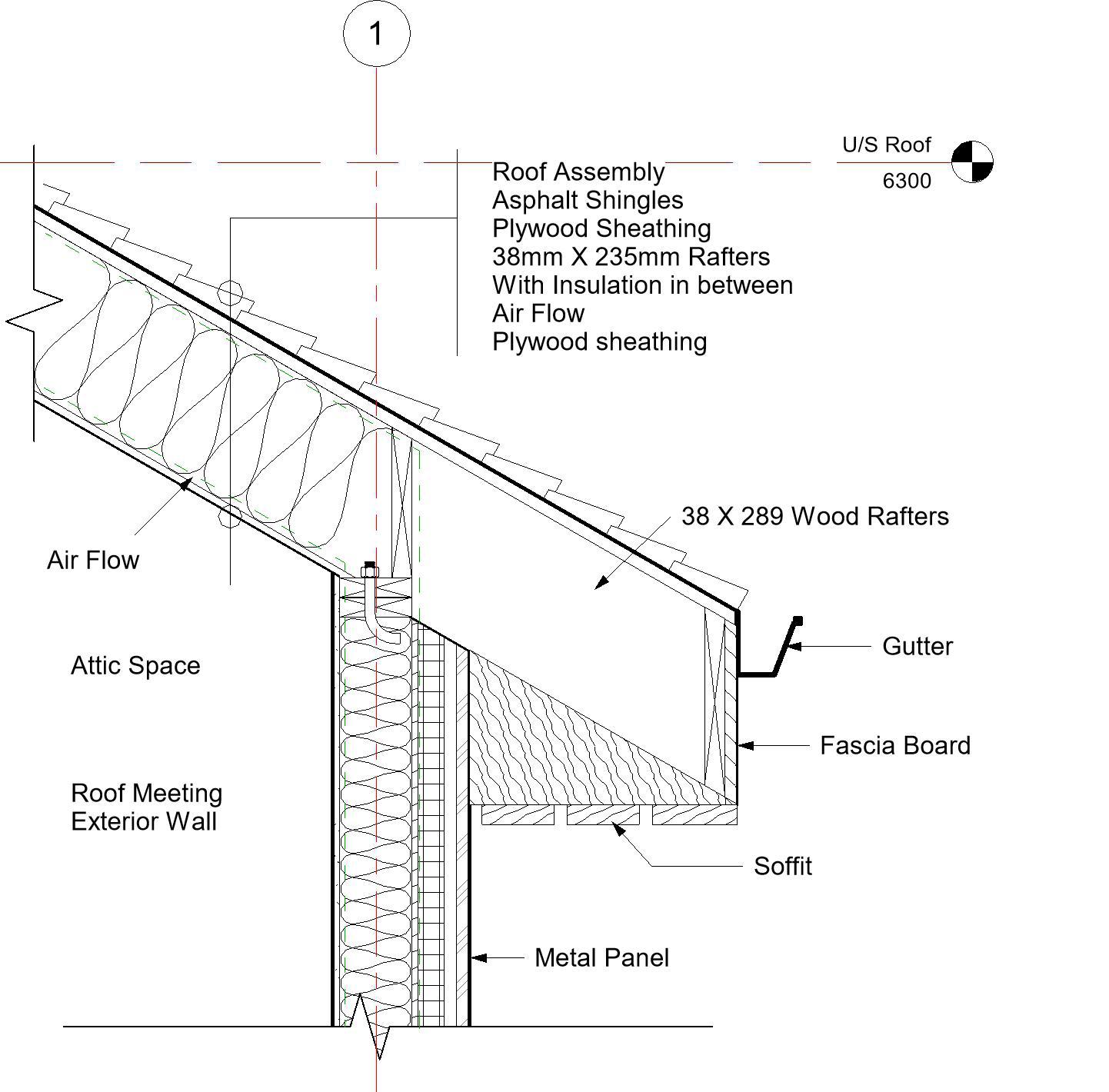

Exterior Wall at Roof

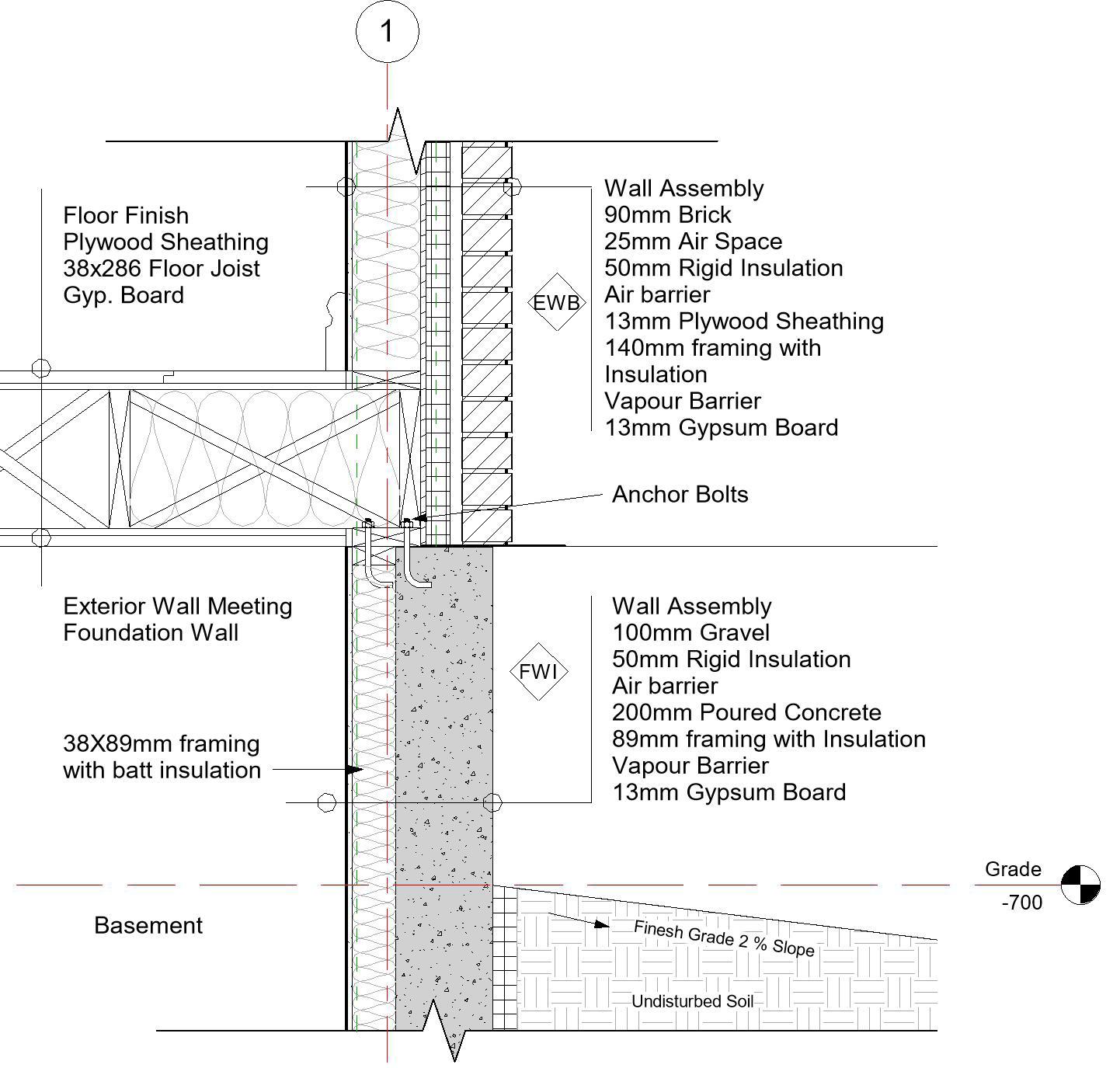

Exterior Wall at Foundation

33

7

CHURCHILL CENTRE 5320 NINTH LINE, MISSISSAUGA

COMMUNITY CENTRE PROPOSAL The envisioned 2-story Community Centre presents an exciting array of amenities, such as recreational facilities, a library, an art gallery, rental spaces, ample car parking, and essential building services thoughtfully incorporated within its partial basement. The building’s design is centered around the basketball court.

The thoughtfully planned site proposal features an array of outdoor attractions, including two soccer fields, a designated off-leash area for dogs, a picturesque trail park, a vibrant kids’ play and splash area, a tennis court, an efficient storm management system, and a charming gazebo.

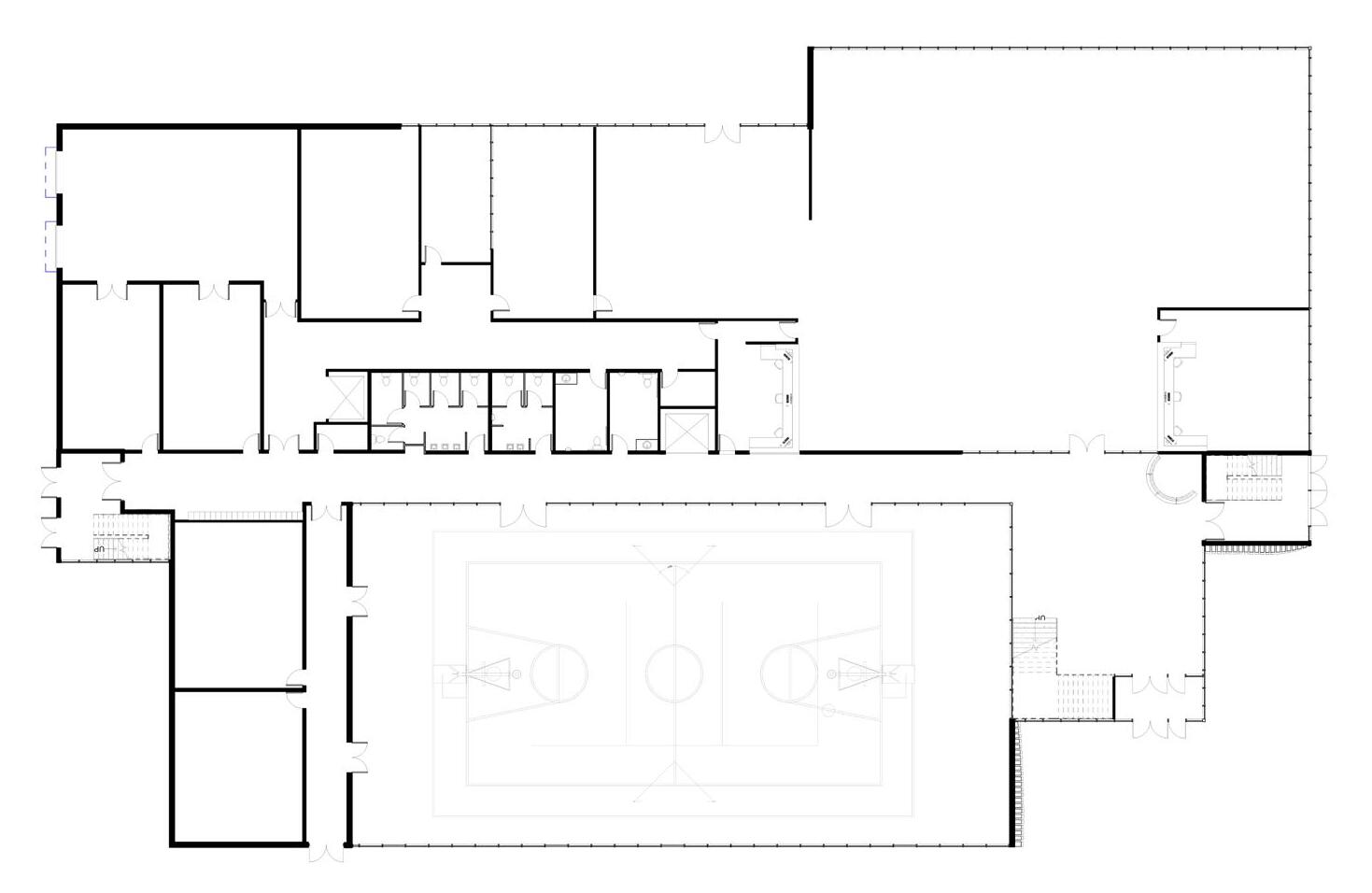

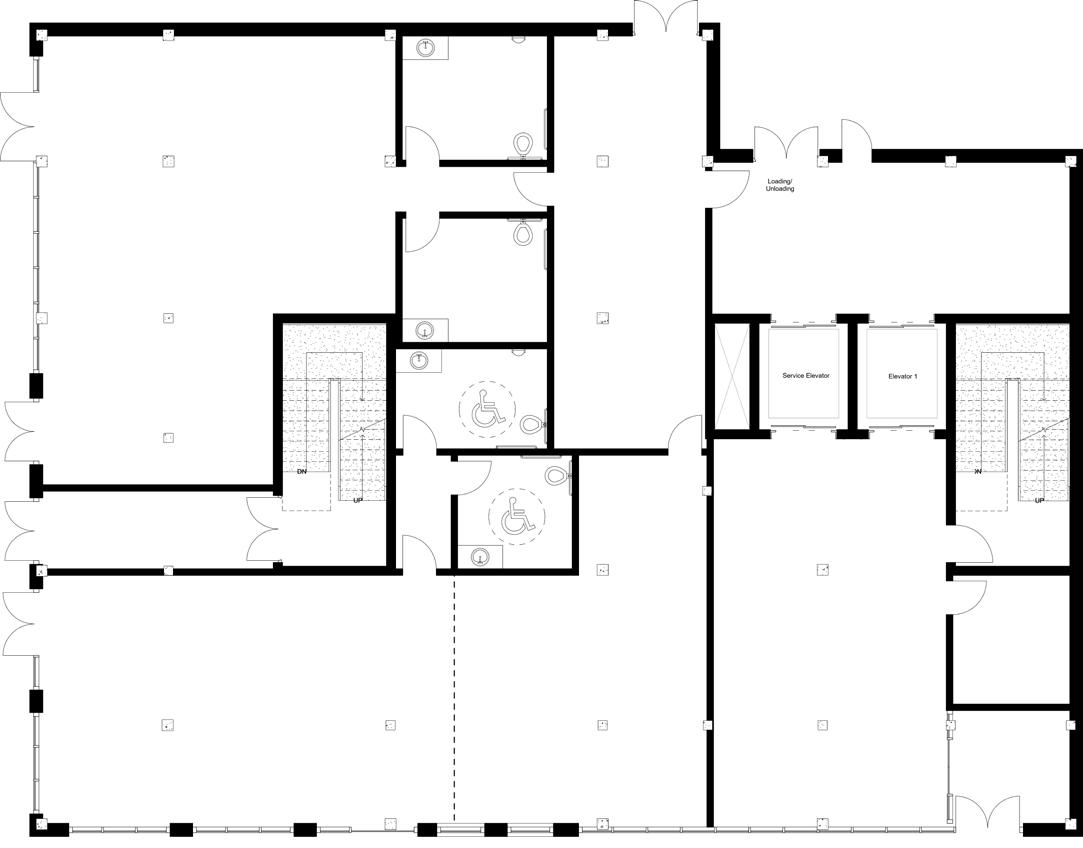

Ground Floor Plan 5

1 Atrium 2 Library 3 Kid Zone Area 4 Staff Area 5 Loading Area 6 Mens Change Room 7 Womens Change Room 8 Female Washroom 9 Male Washroom 10 Universal Washroom 11 Basketball Court

3

2

4 8

9 10 10 1

6 11 7

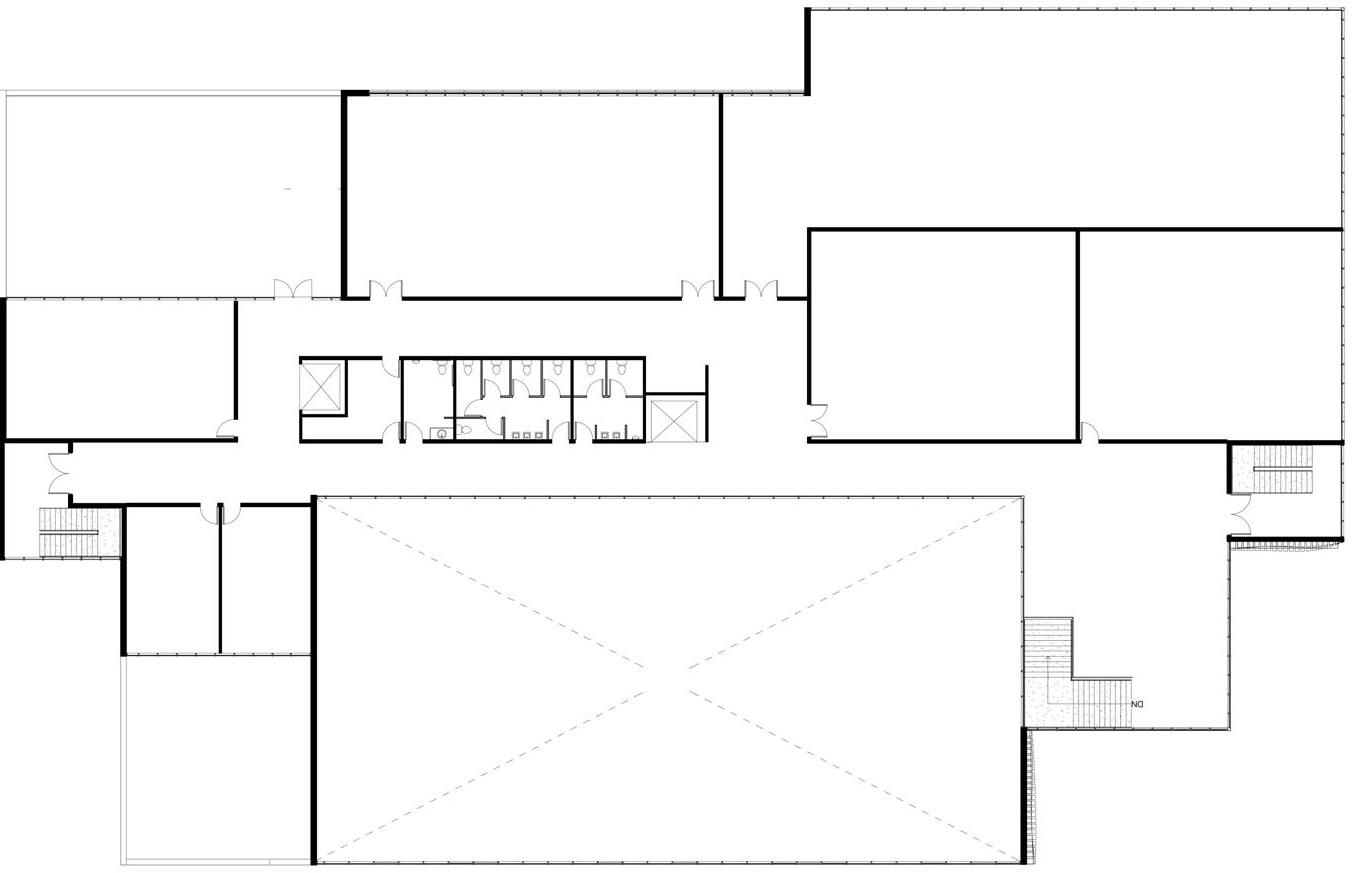

Second Floor Plan 16 12 Lobby 13 Classroom 14 Theatre 15 Art Gallery 16 Green Roof 17 Multi Purpose Room 18 Meeting Room 19 Maker's Space 20 Universal Washroom 21 Female Washroom 22 Male Washroom 23 Open To Below

17

18

20

21

13

15

22

14

12

19 23

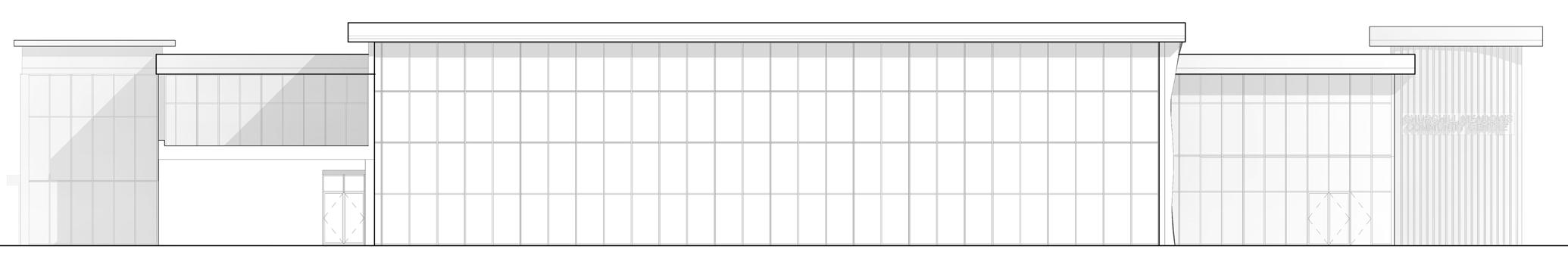

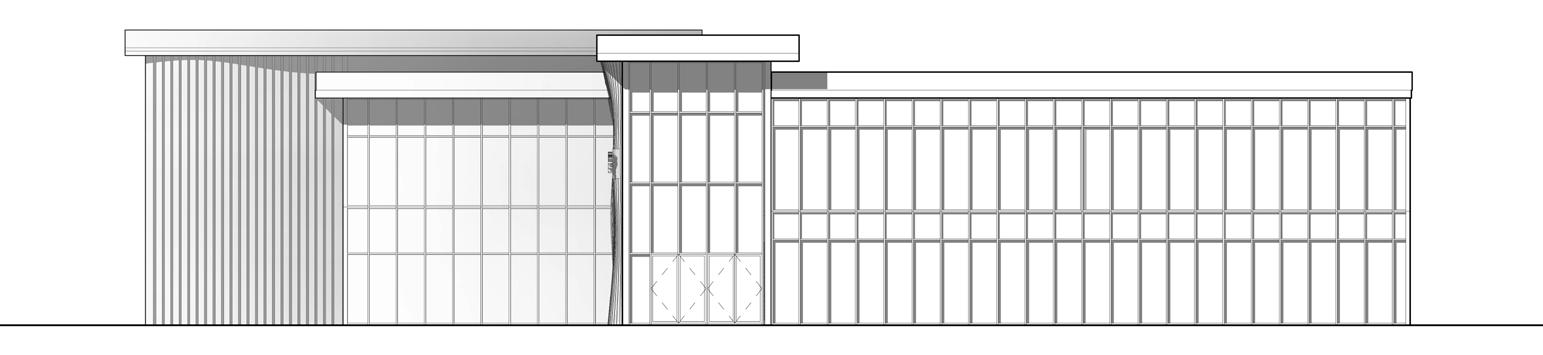

North Elevation 36

13

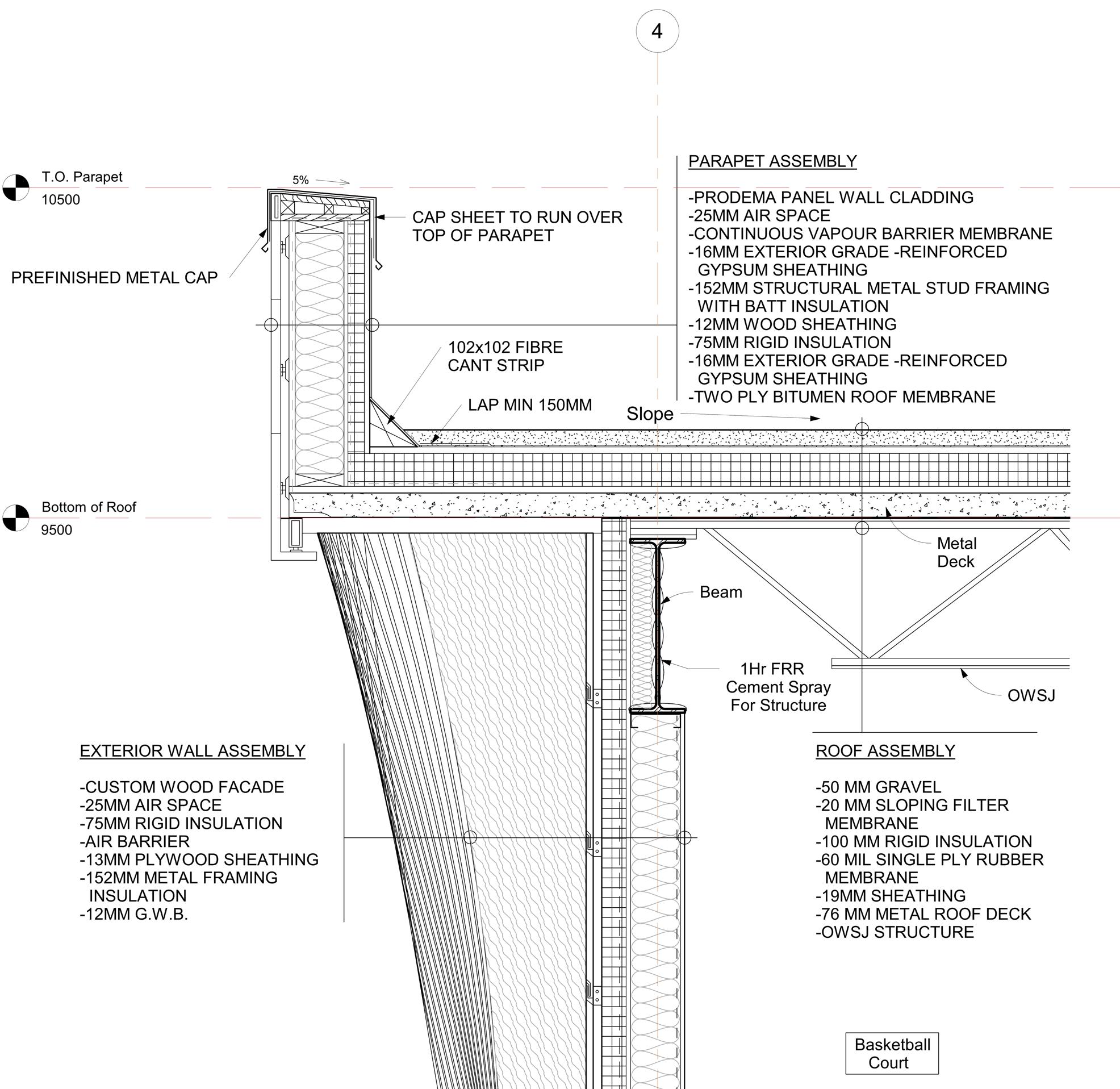

Exterior Wall at Roof

West Elevation 37

Building Roof

Basketball Court Roof

Green Roof

Terrace

Curtain Wall around Corridor

Exit Stairs B

Basketball Court

Wood facade Exit Stairs A

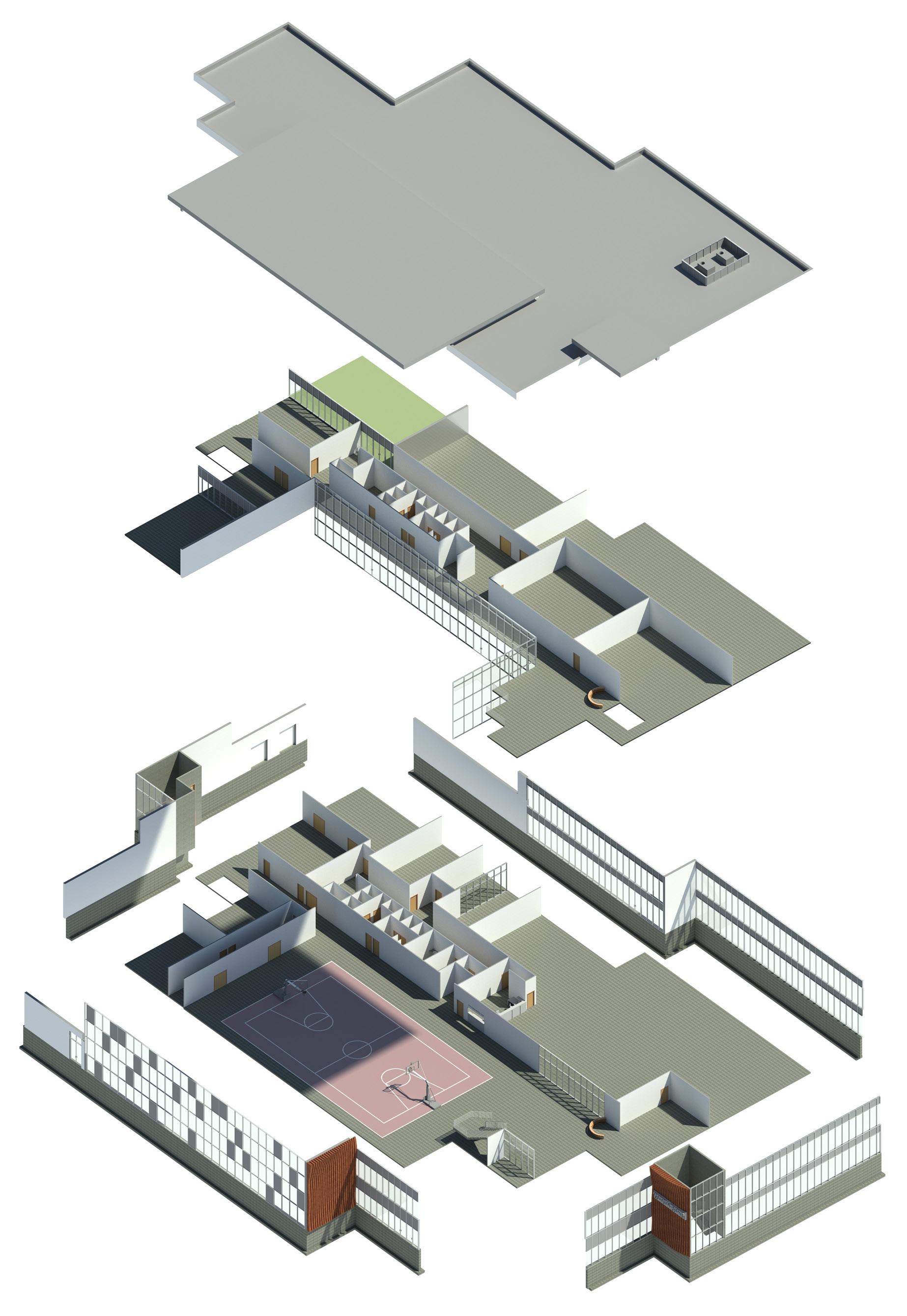

Exploded Diagram

38

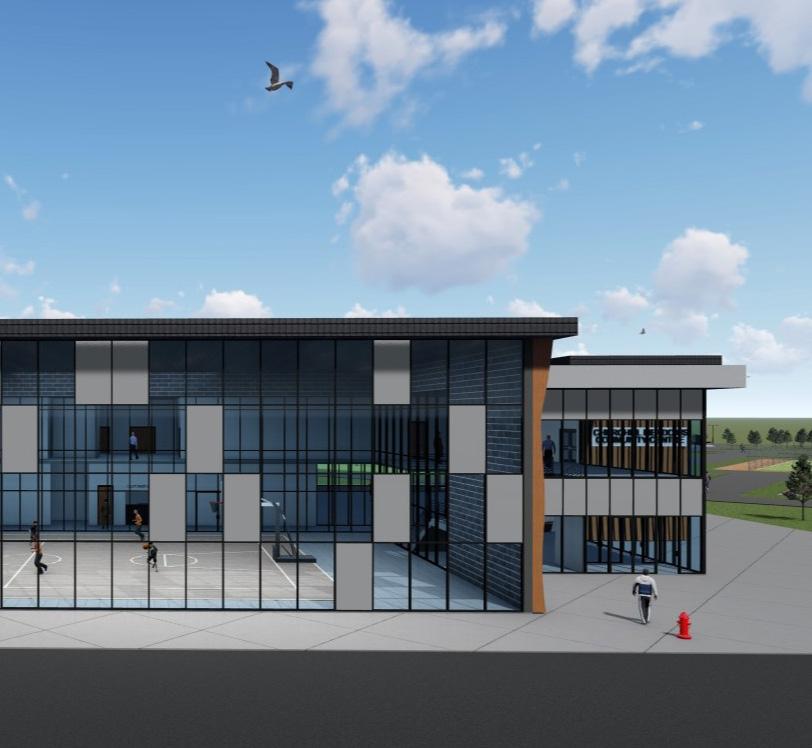

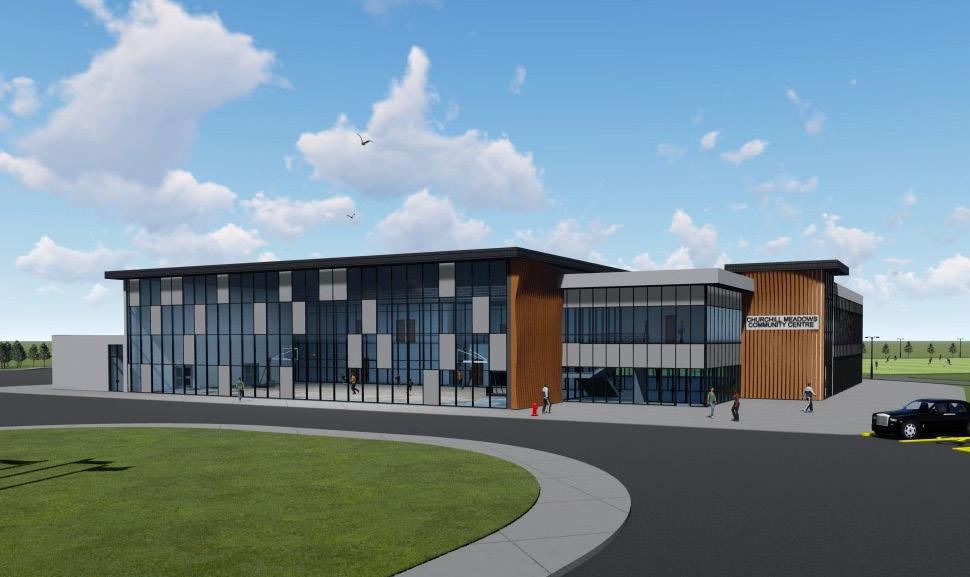

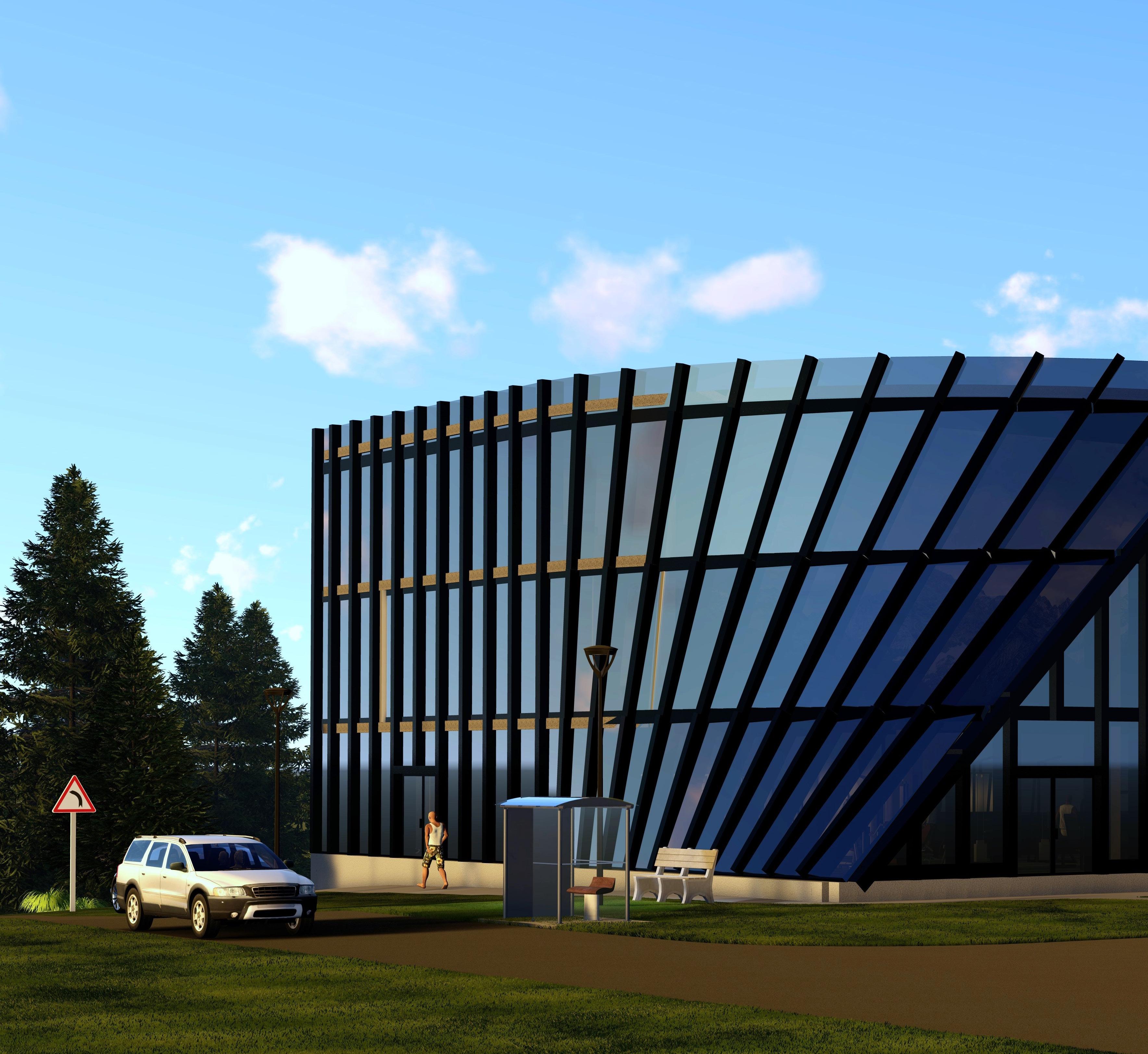

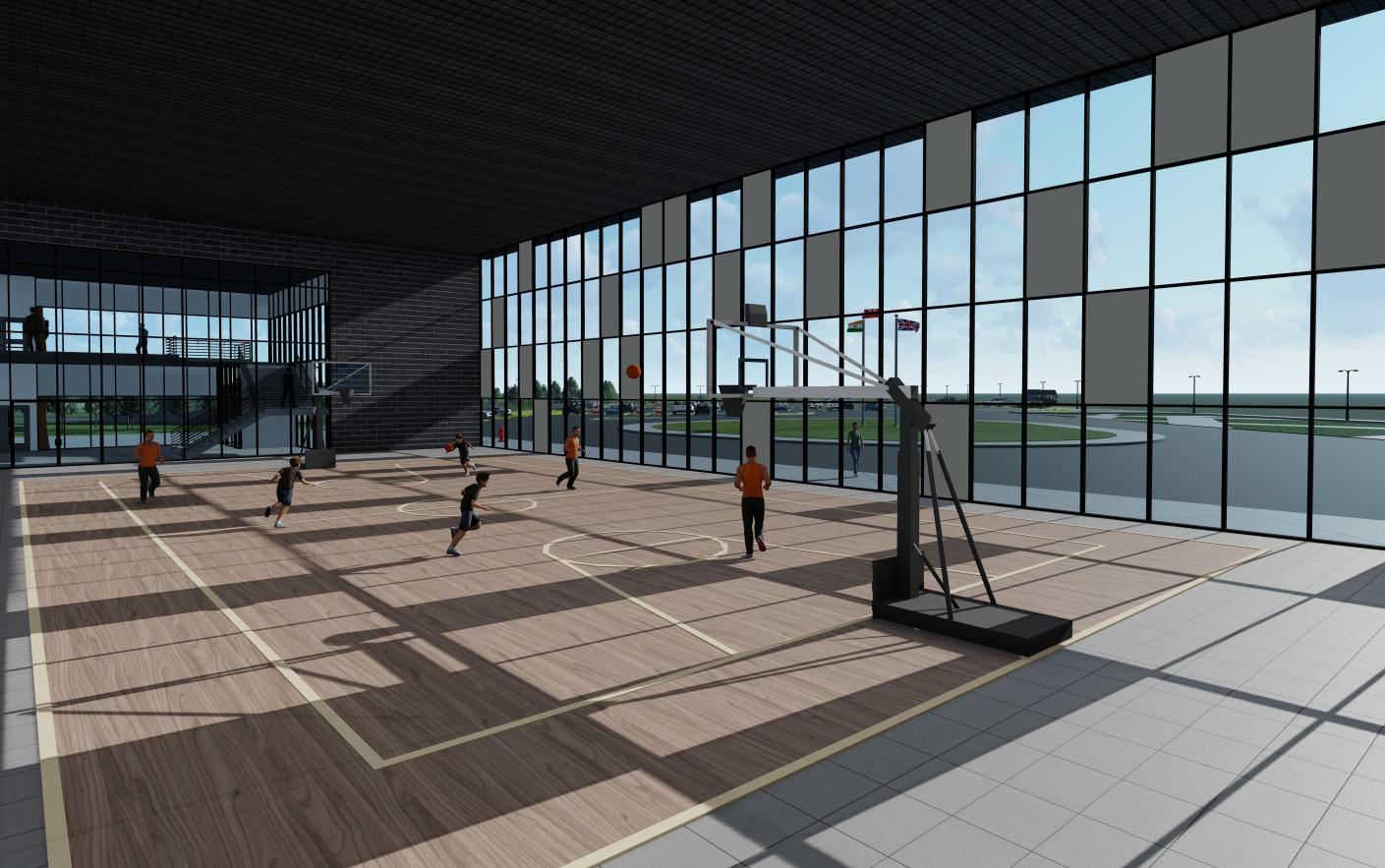

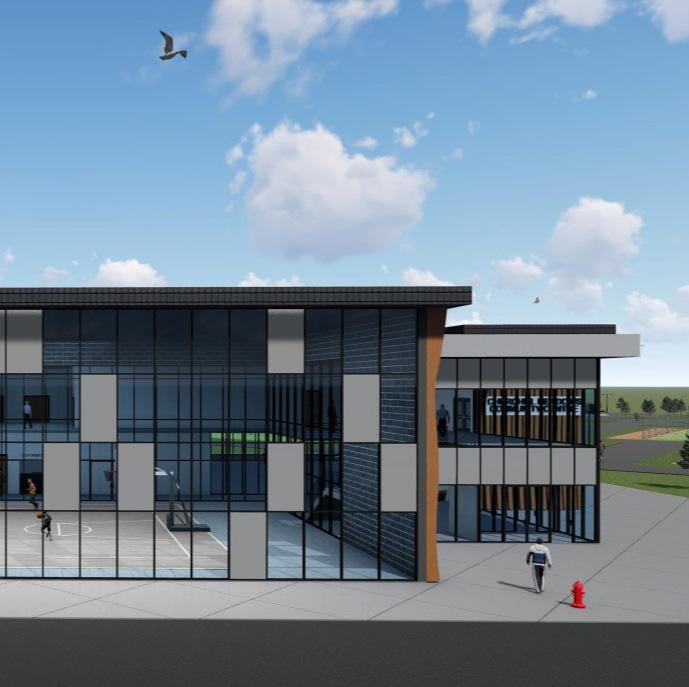

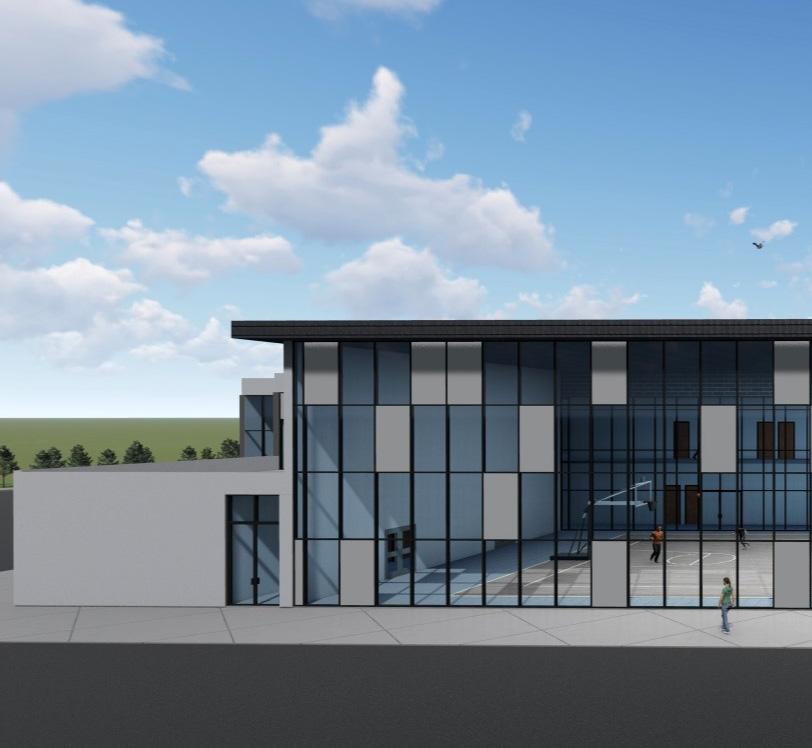

Exterior View

Basketball Court

39

8

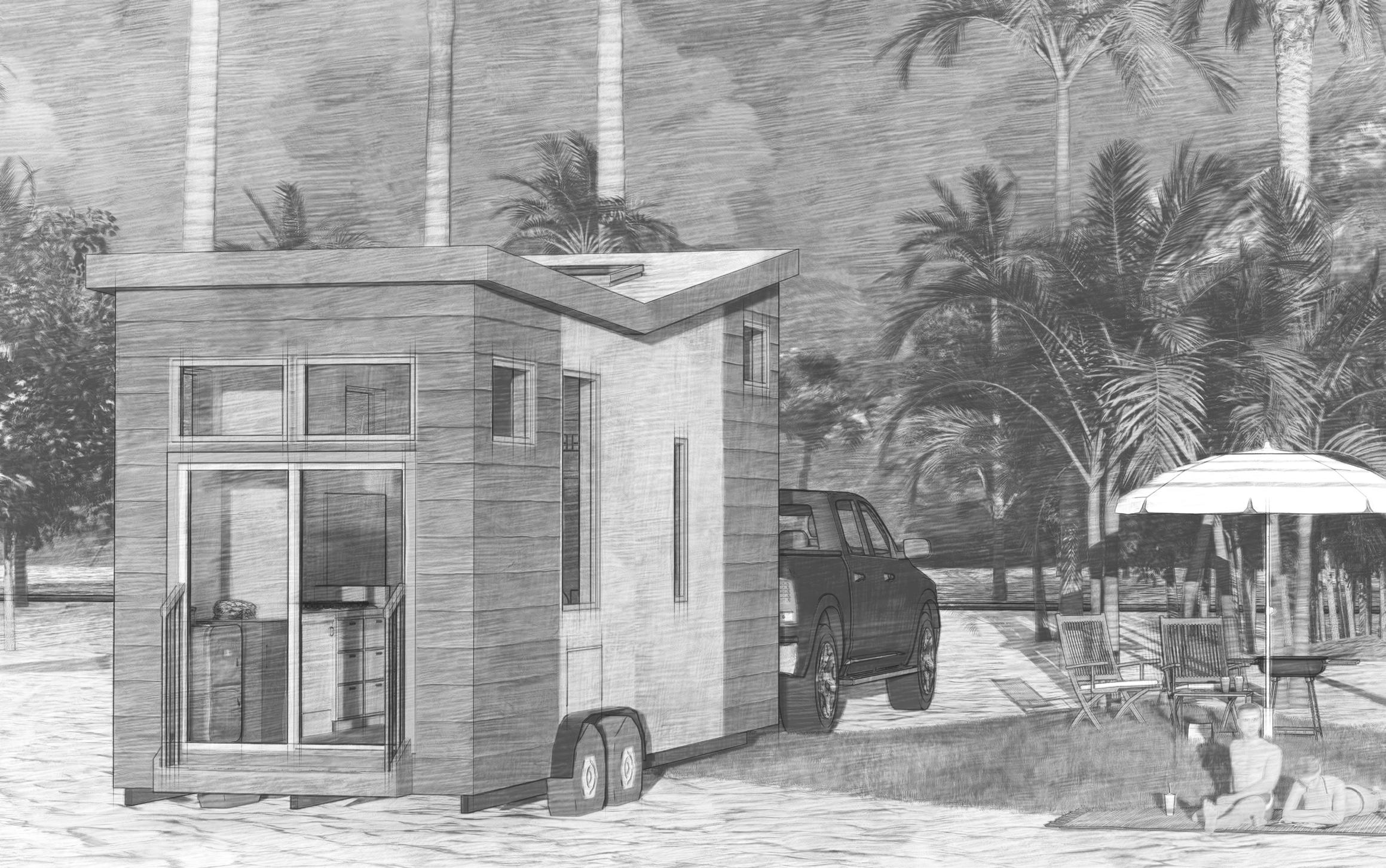

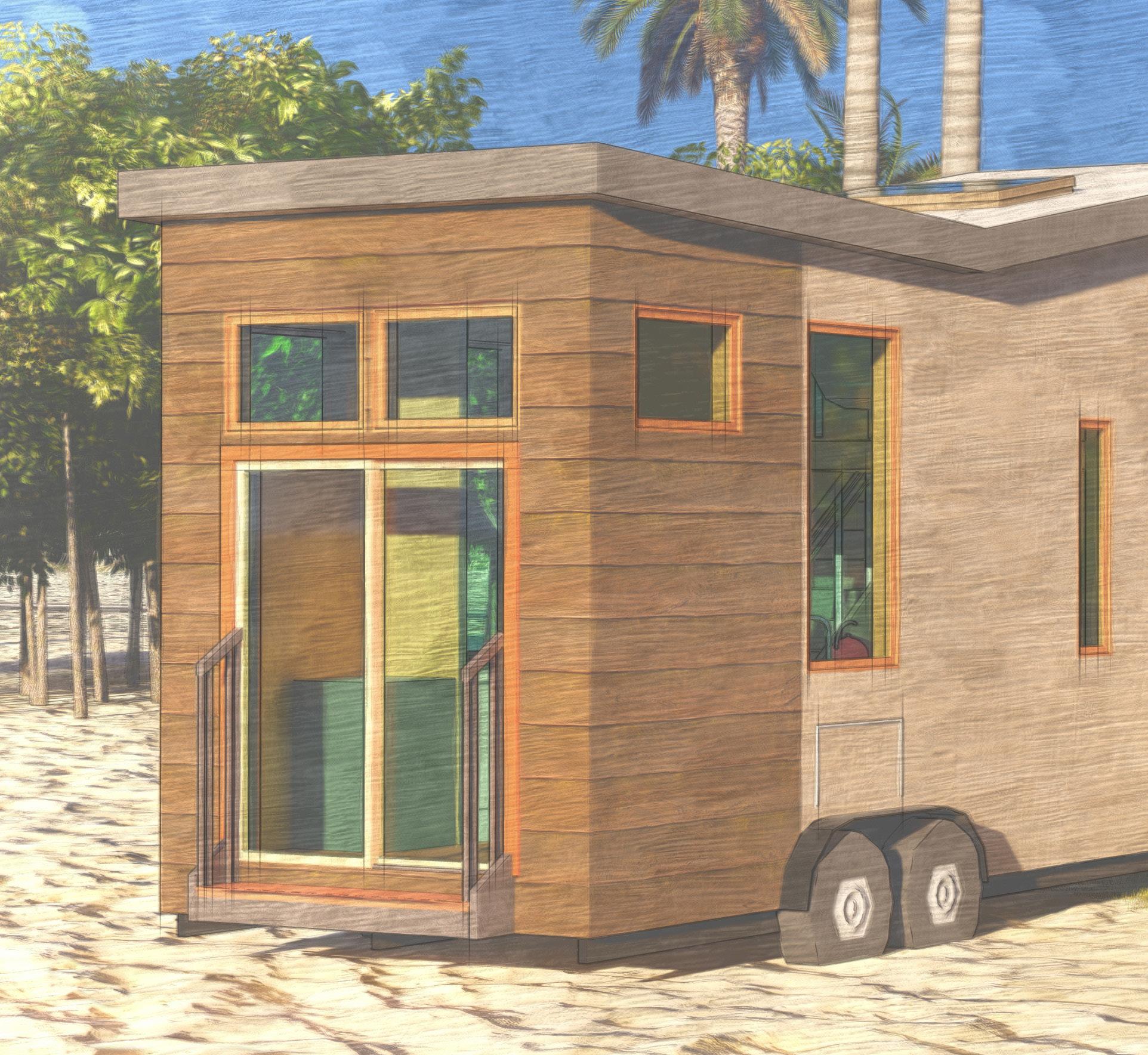

WHEEL HOUSE OFF-THE-GRID

TINY HOUSE Our vision for the mobile tiny home was to travel coastto-coast across Canada off-grid, resembling a rustic cabin with ample storage and living space. The floor space includes a dining area, kitchen, living area, and bathroom, while the loft has a queen-size bed with a

skylight for stargazing. Eco-friendly materials, local sourcing, and sustainable finishes were incorporated, along with a grey water collection system and solar panel installation. Off-grid necessities were strategically placed for convenience and safety

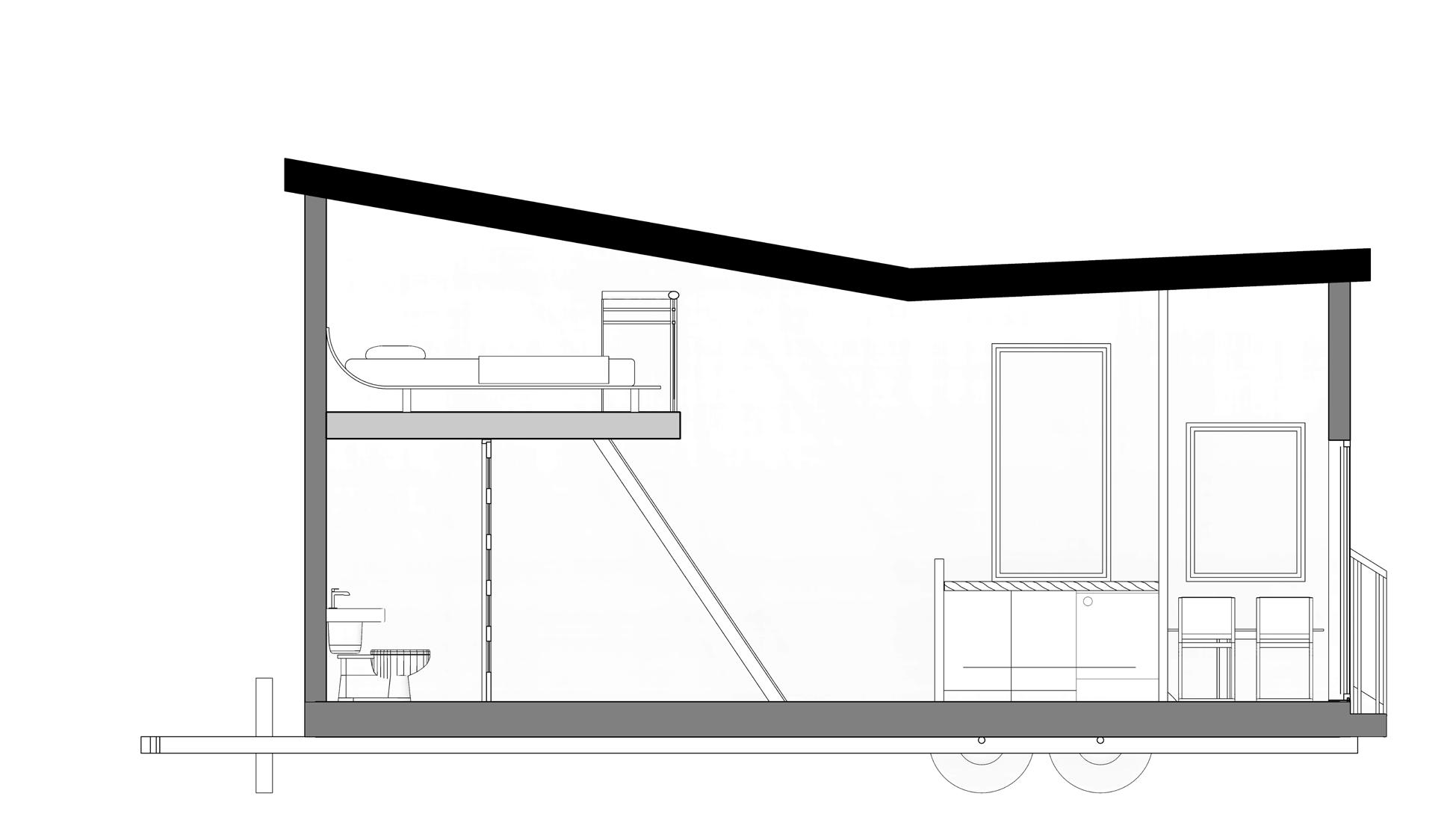

Section 1 Eating area 2 Kitchen 3 Living area 4 Storage 5Washroom 6 Sleeping area 7 Trailer frame

6

5

7

Physical Model

42

4

3

2

1

Interior View

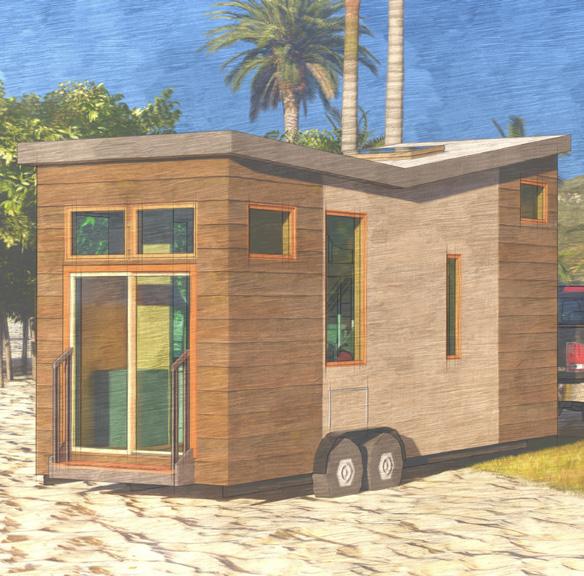

Exterior View

43

9

ART GALLERY AS BUILT

AS-BUILT DRAWING & MODEL As a skilled architectural draftsman, I crafted the as-built drawings and 3d model of the art gallery, capturing every intricate detail and ensuring precise representations of the architectural elements.

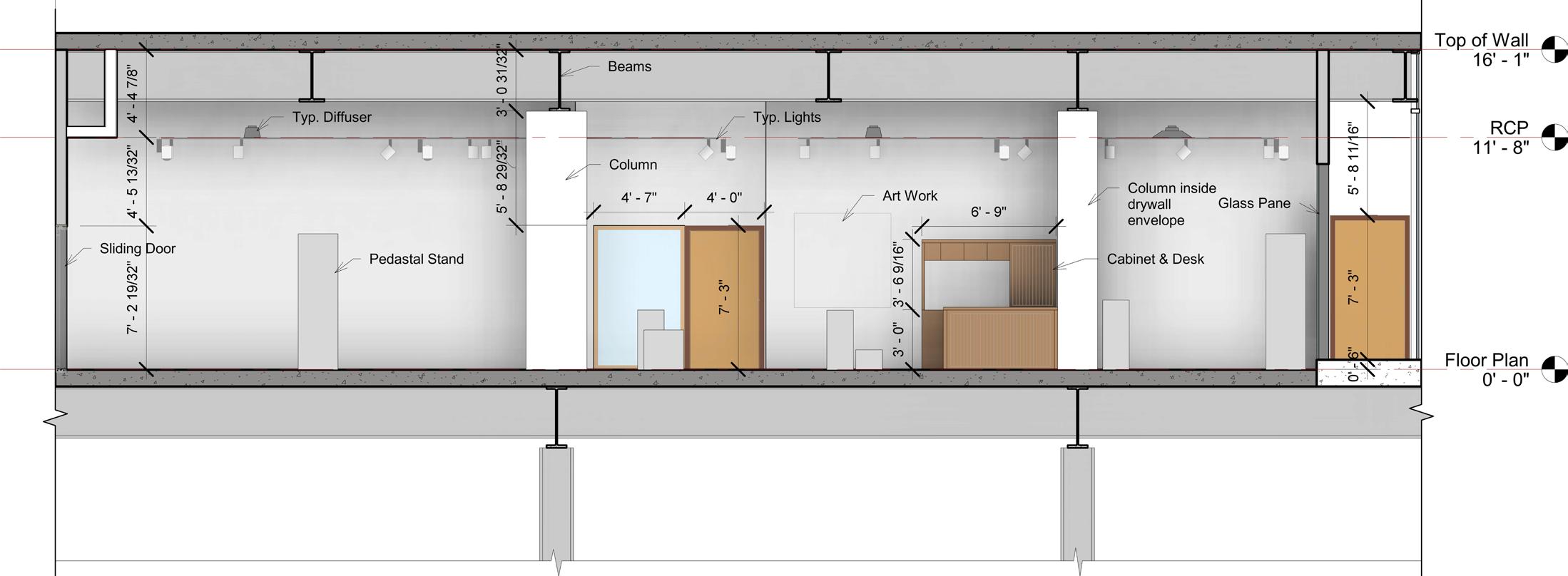

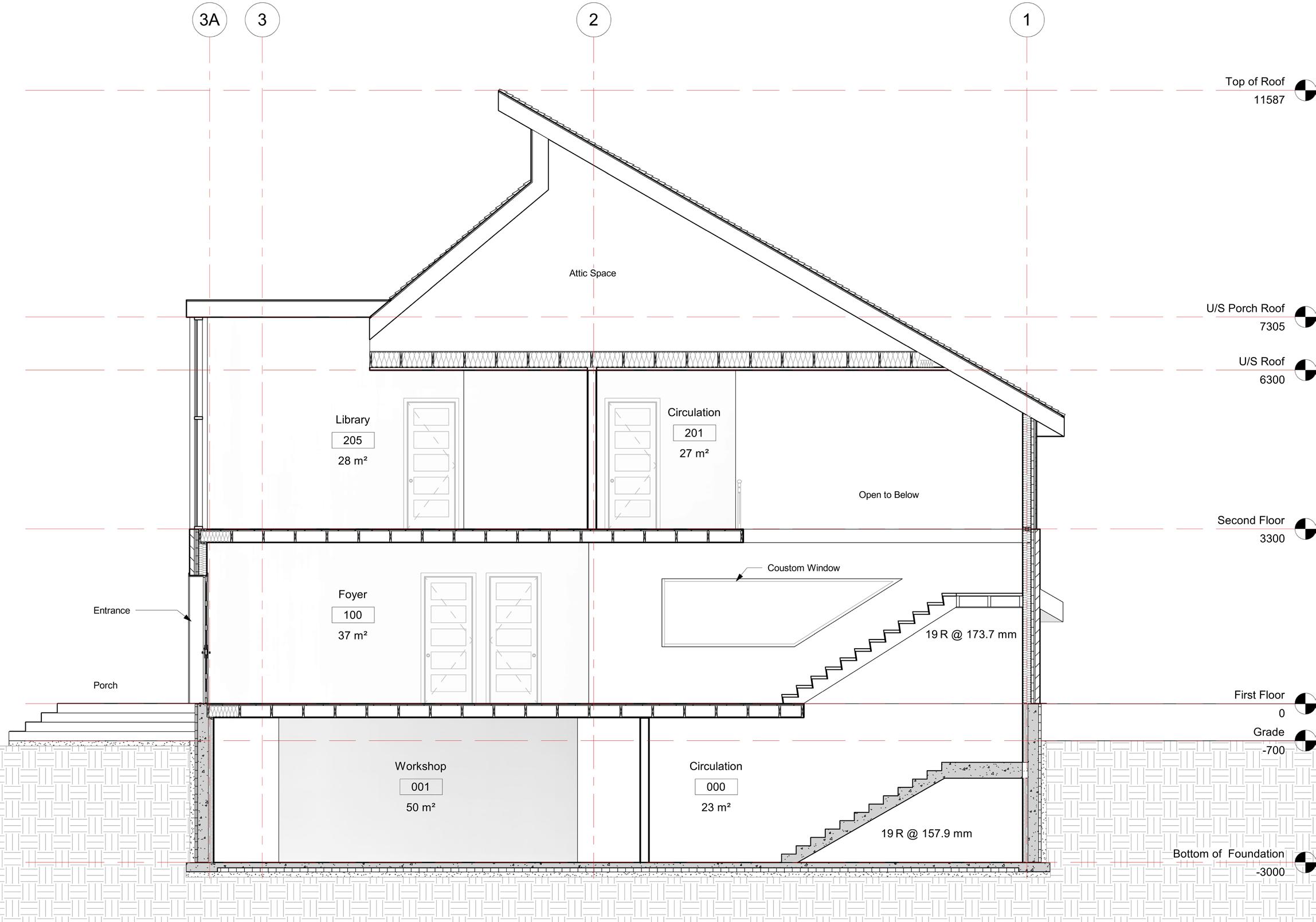

Section

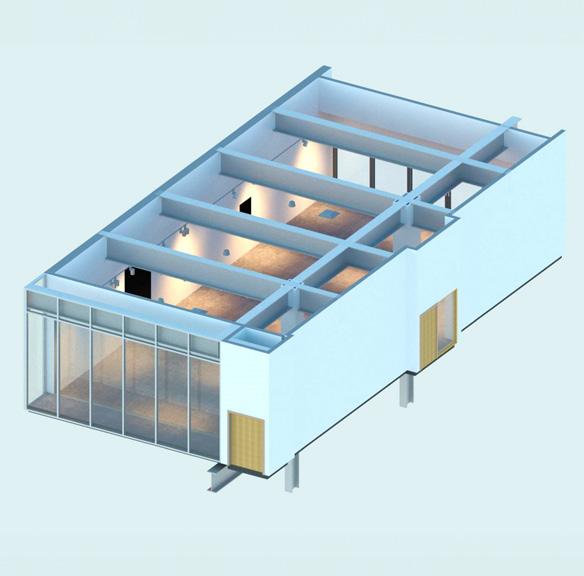

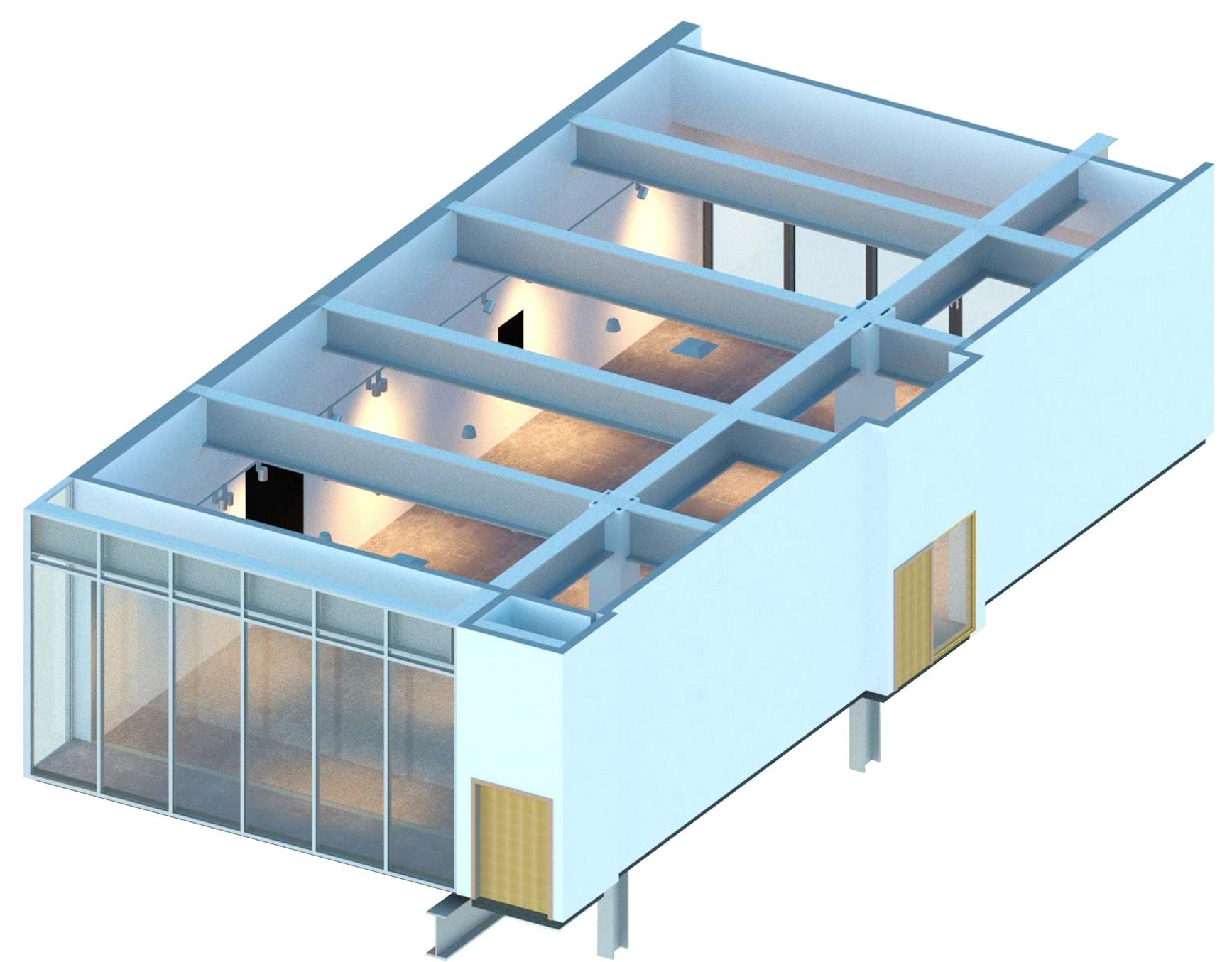

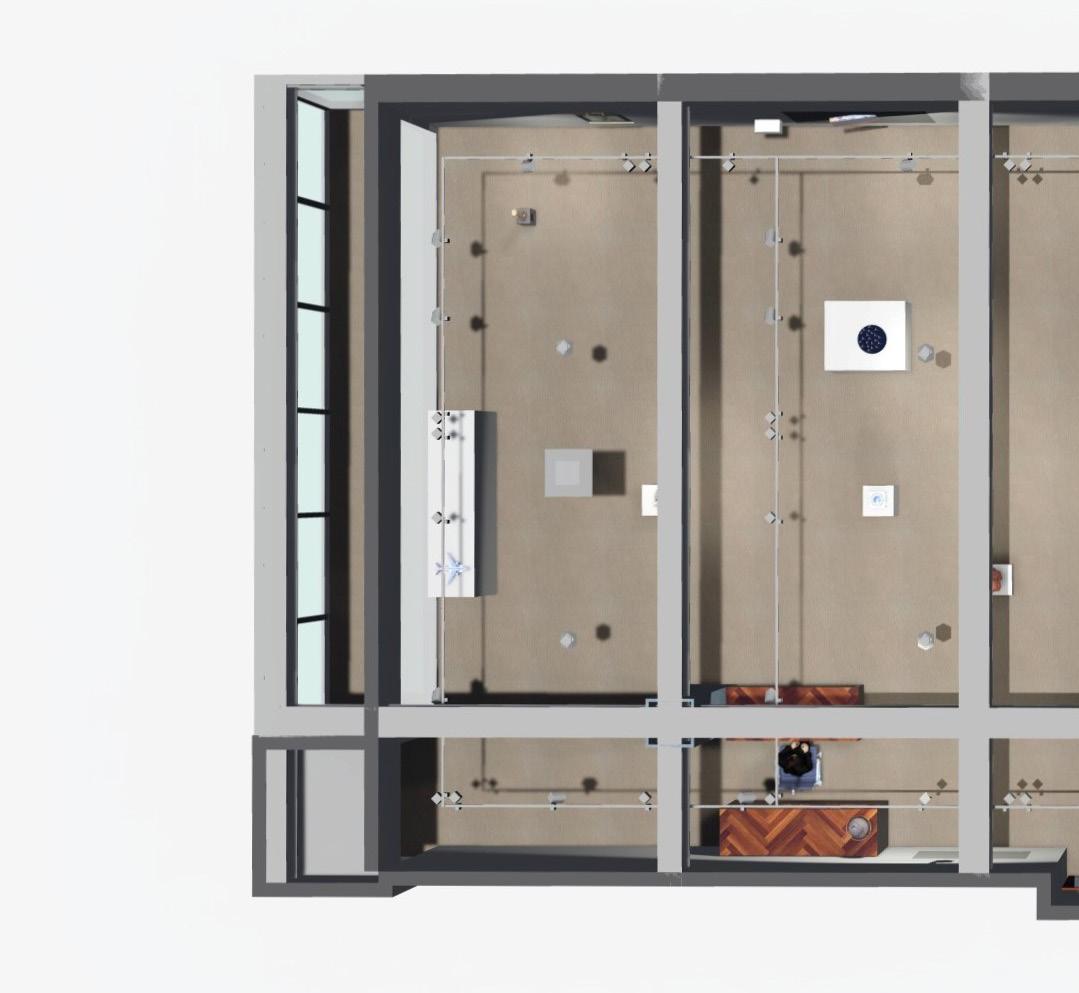

3D Model 46

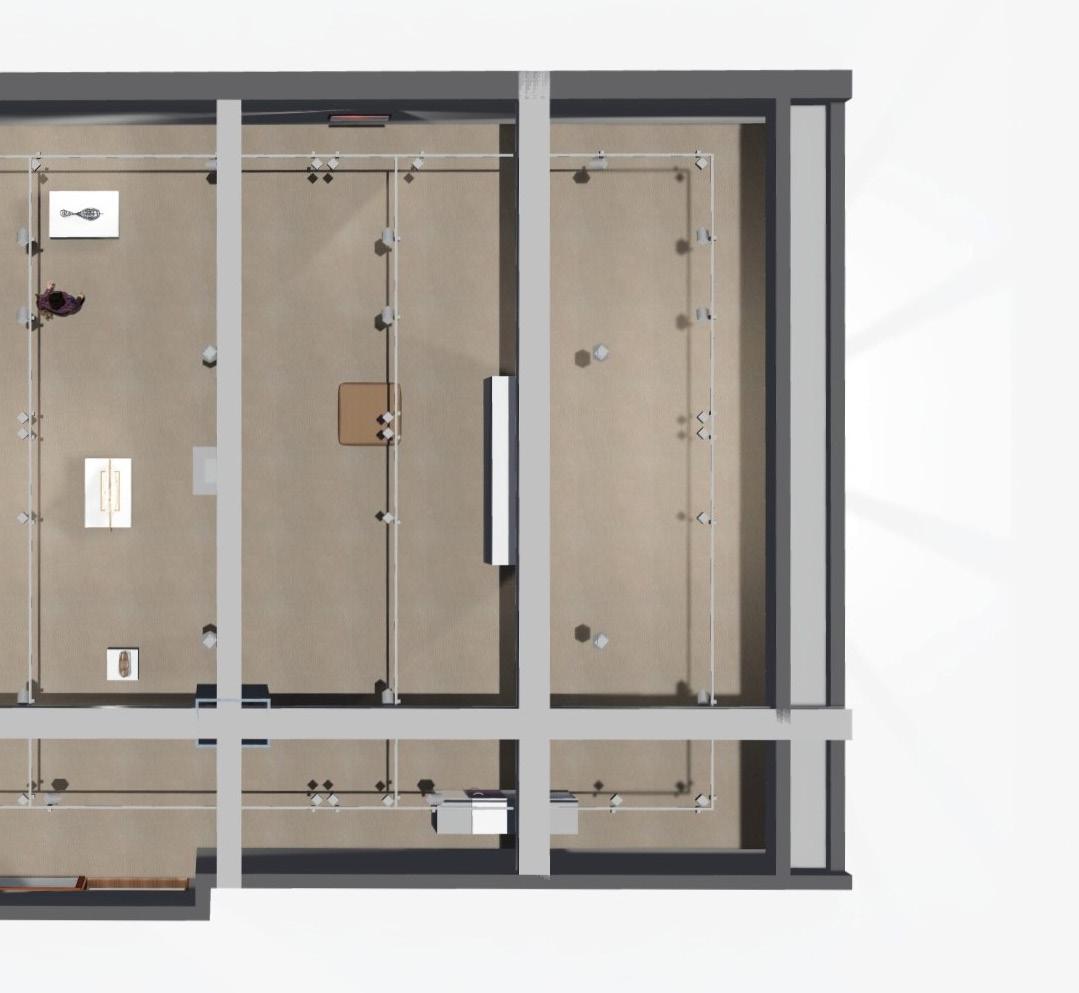

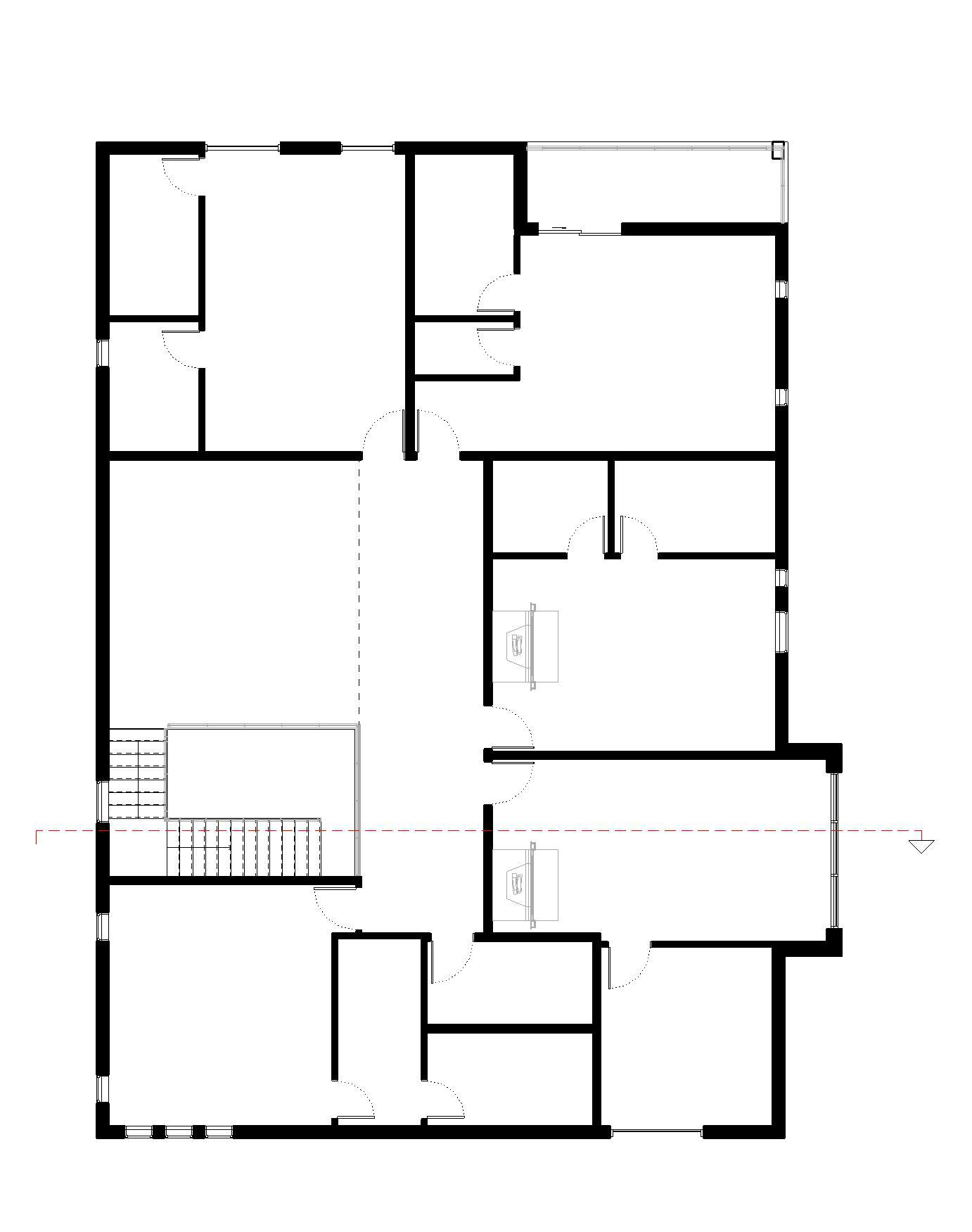

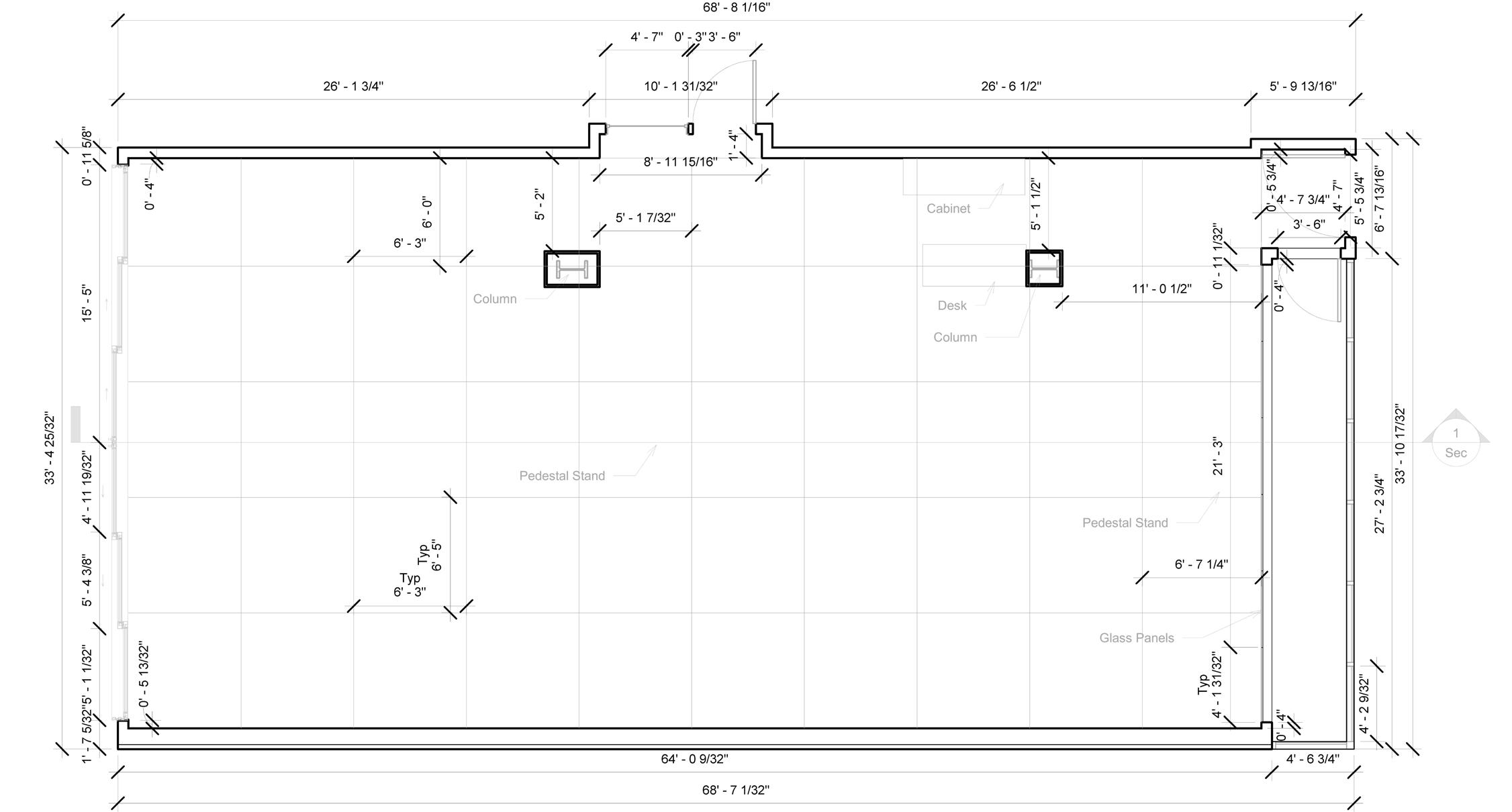

Floor Plan

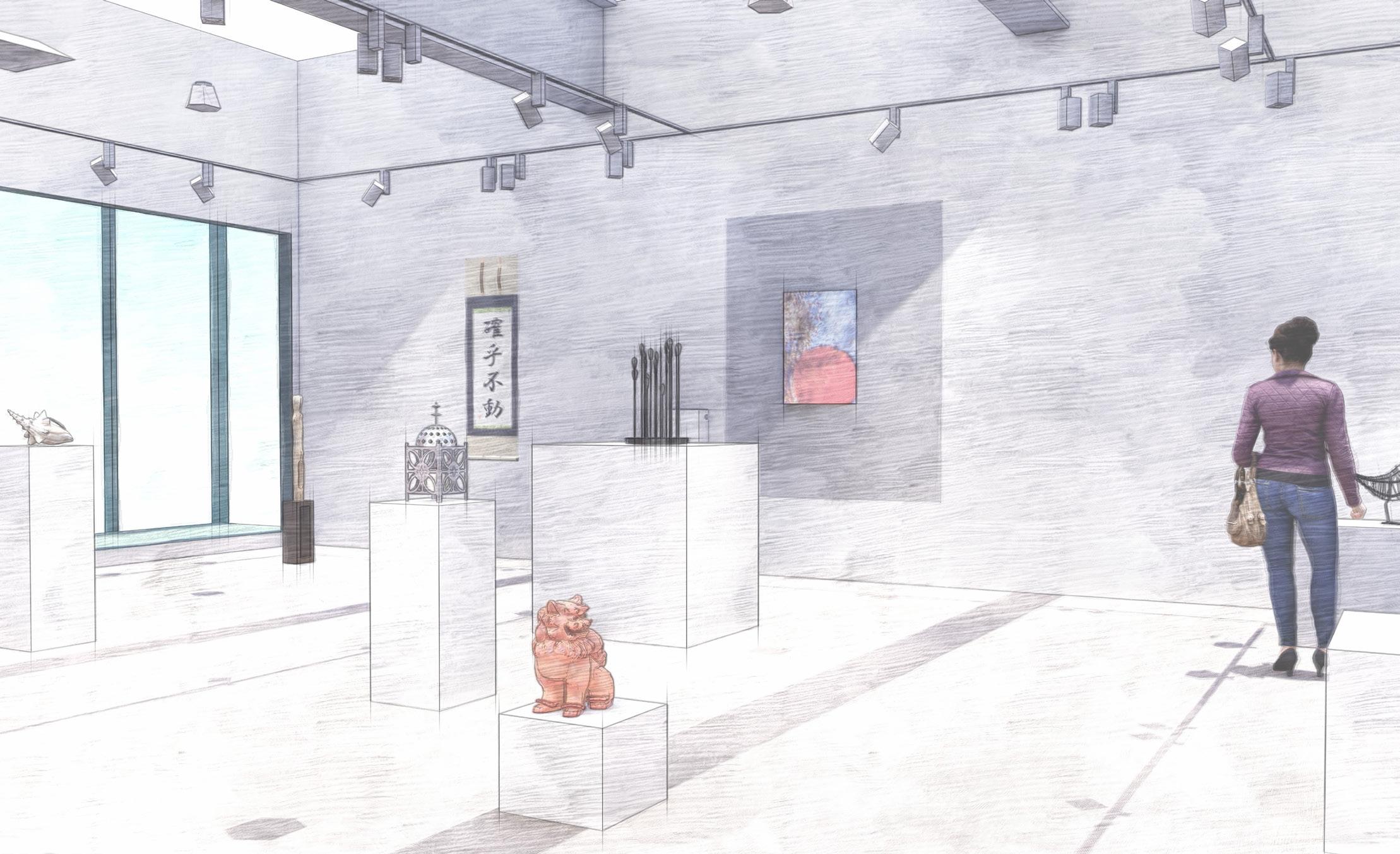

Interior View 47

10

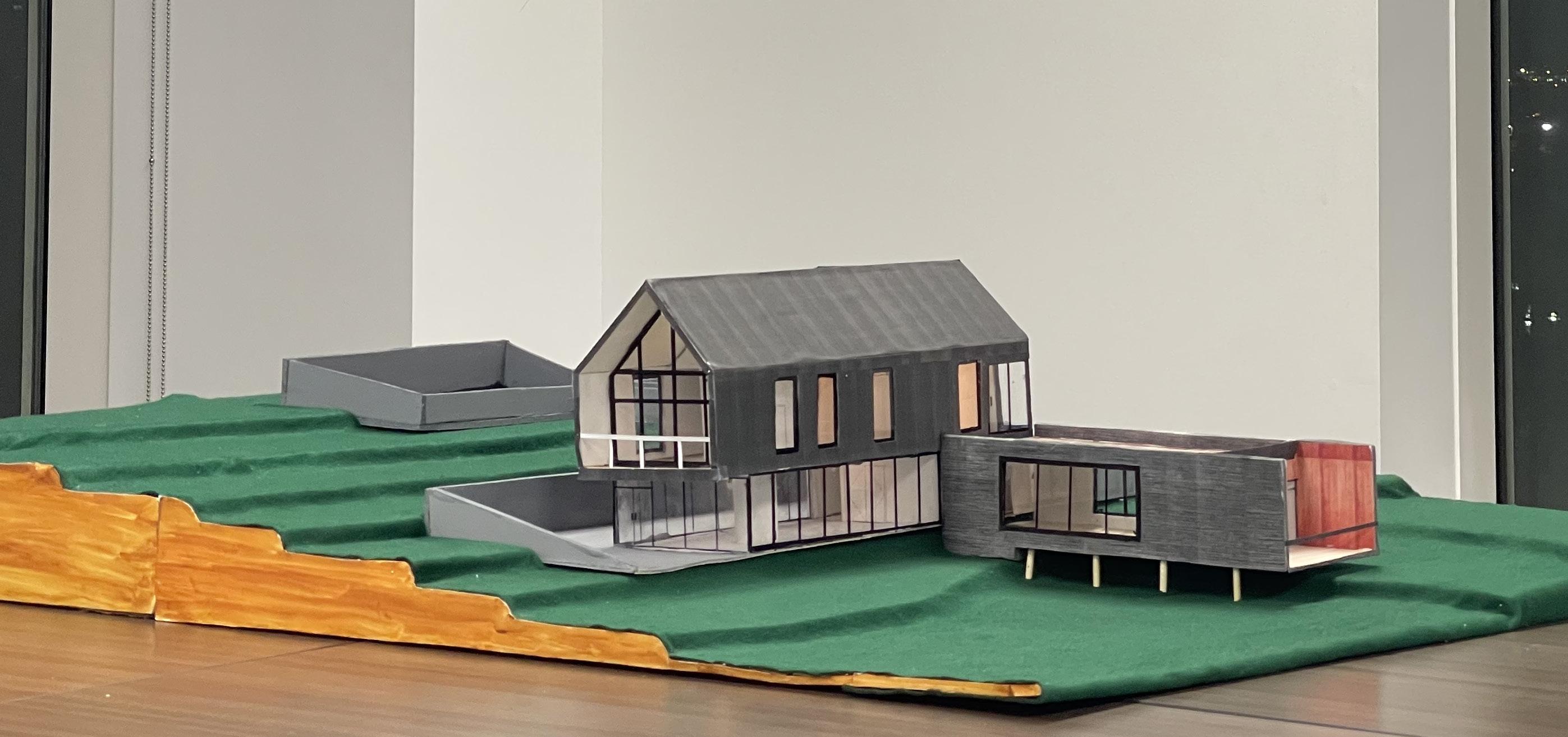

PHYSICAL MODELS A DYING ART

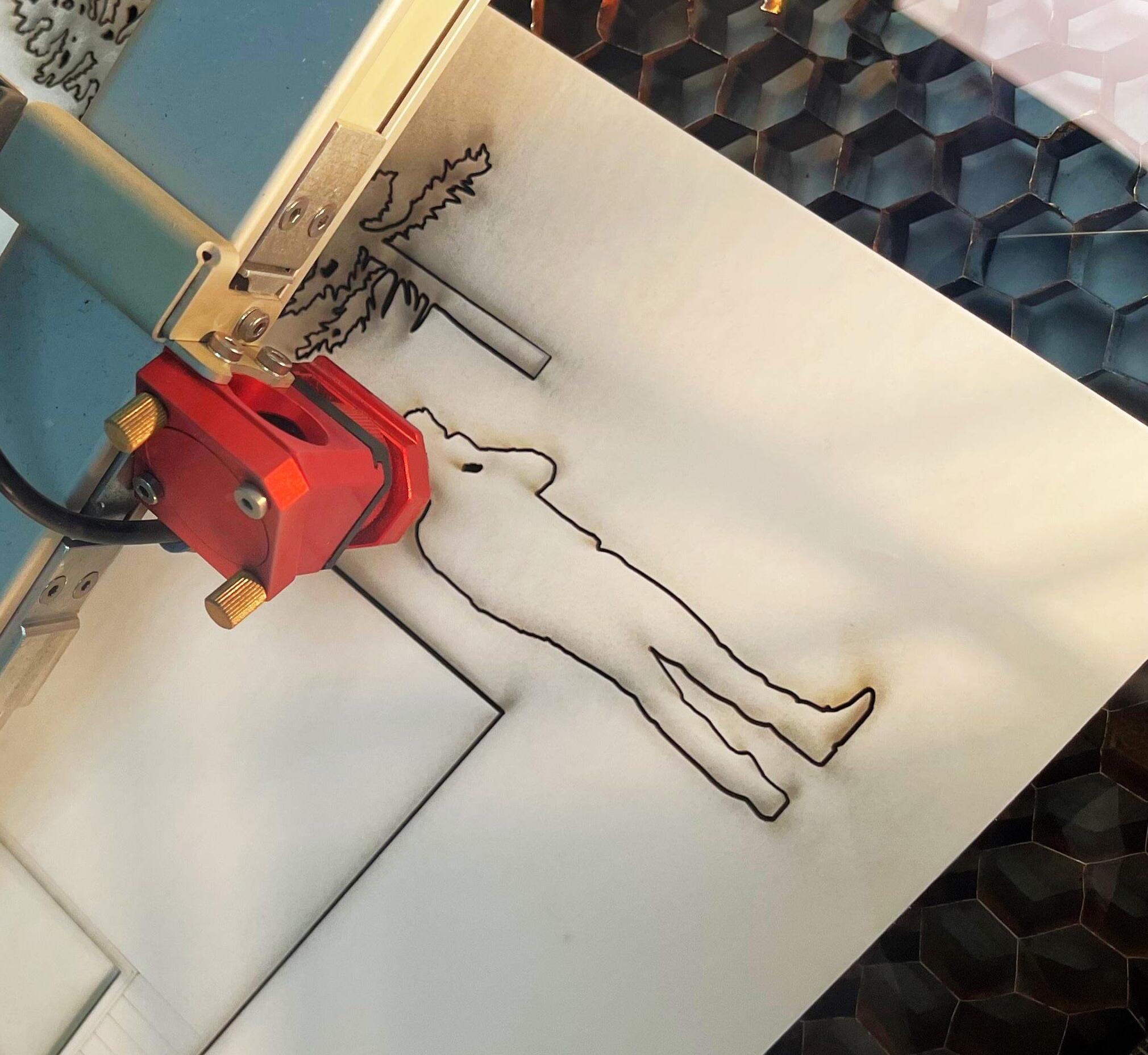

IMPORTANCE OF MODEL MAKING My portfolio features a diverse range of models, including presentation models, site models, wood framing models, and rebar and form work models. I excel in deciphering information from 2D and 3D drawing files, sketches, photos, and maps to create accurate and detailed physical models. Utilizing various shop

equipment, laser cutters, 3D printers, Bandsaws, Jigsaws, power drills, and hand tools, I fabricate models with precision. These models showcase my expertise and experience in architectural design and model making, reflecting my ability to blend creativity with technical proficiency.

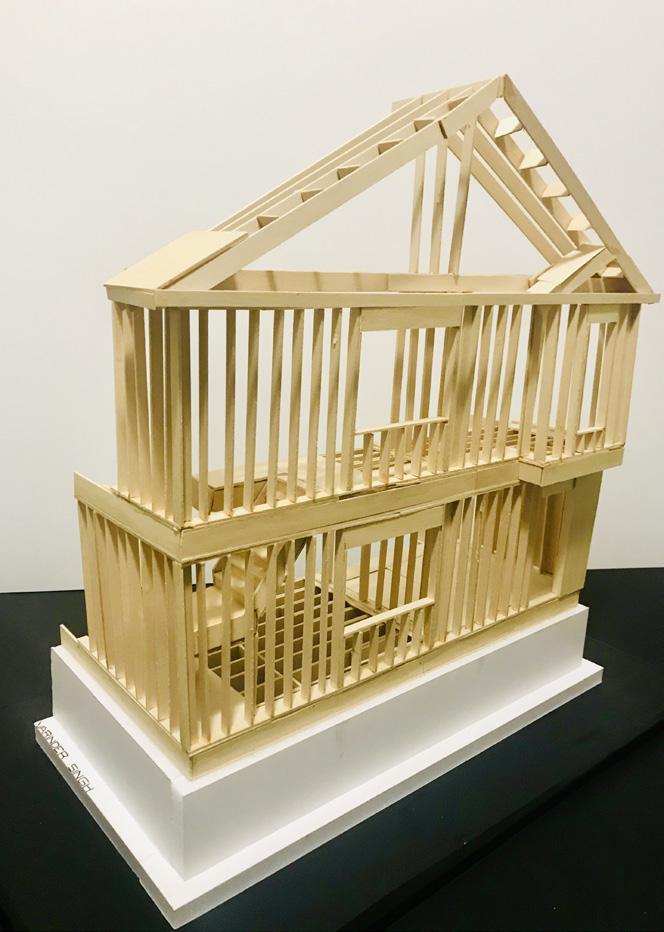

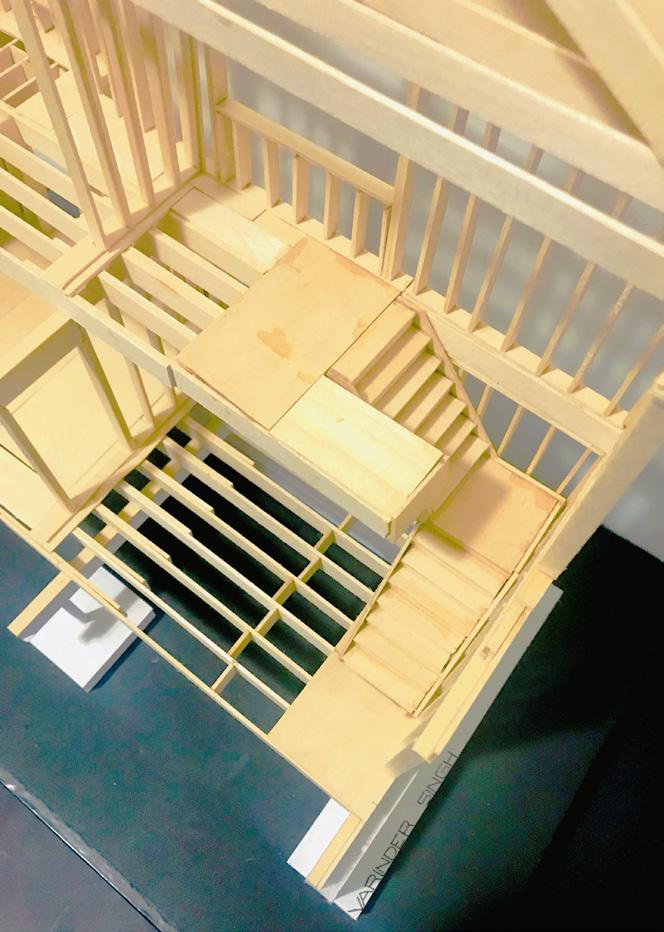

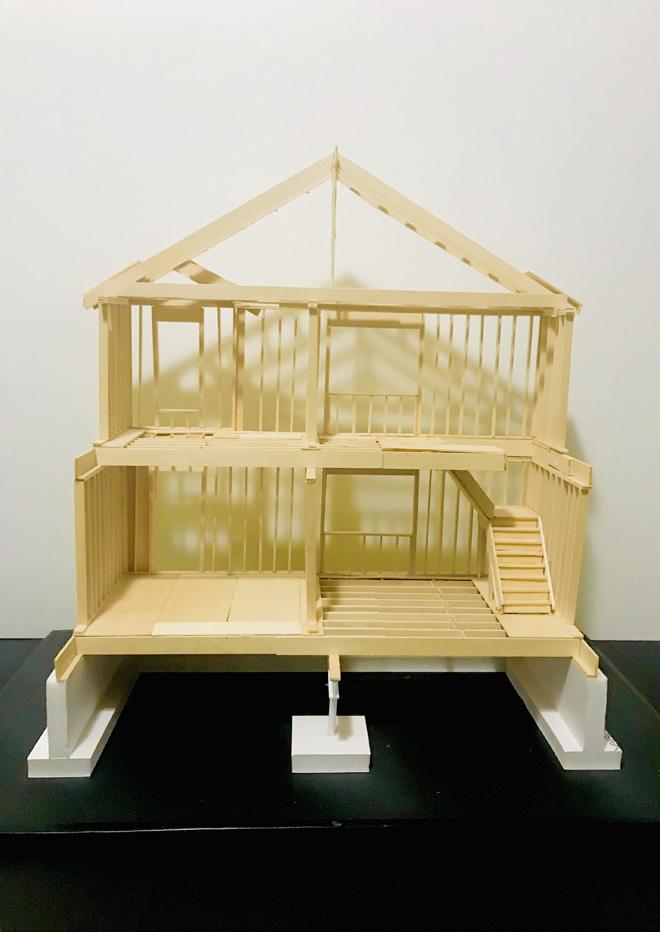

Wood Framing House Model

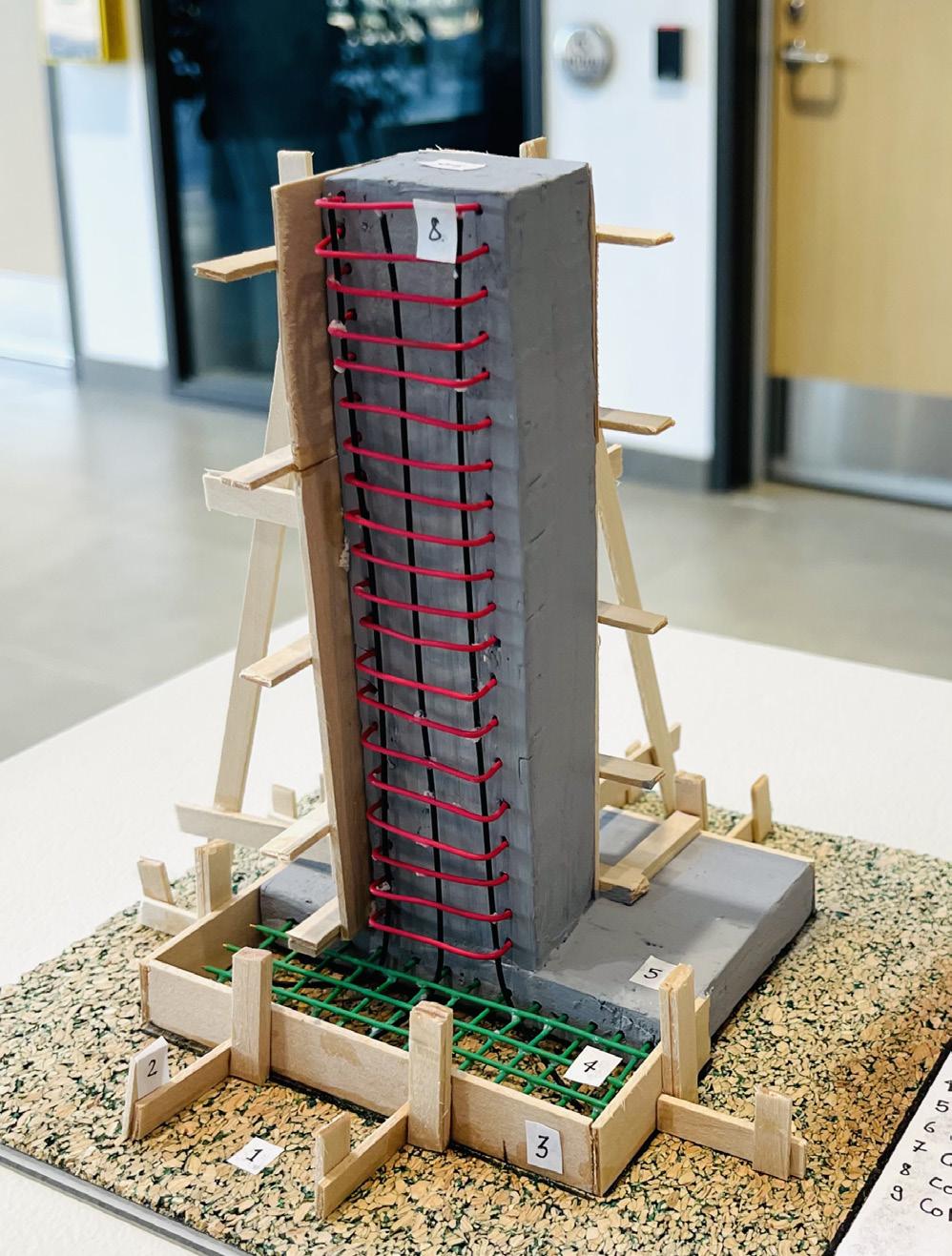

Concrete Column at Pad Footing Rebar Model

50

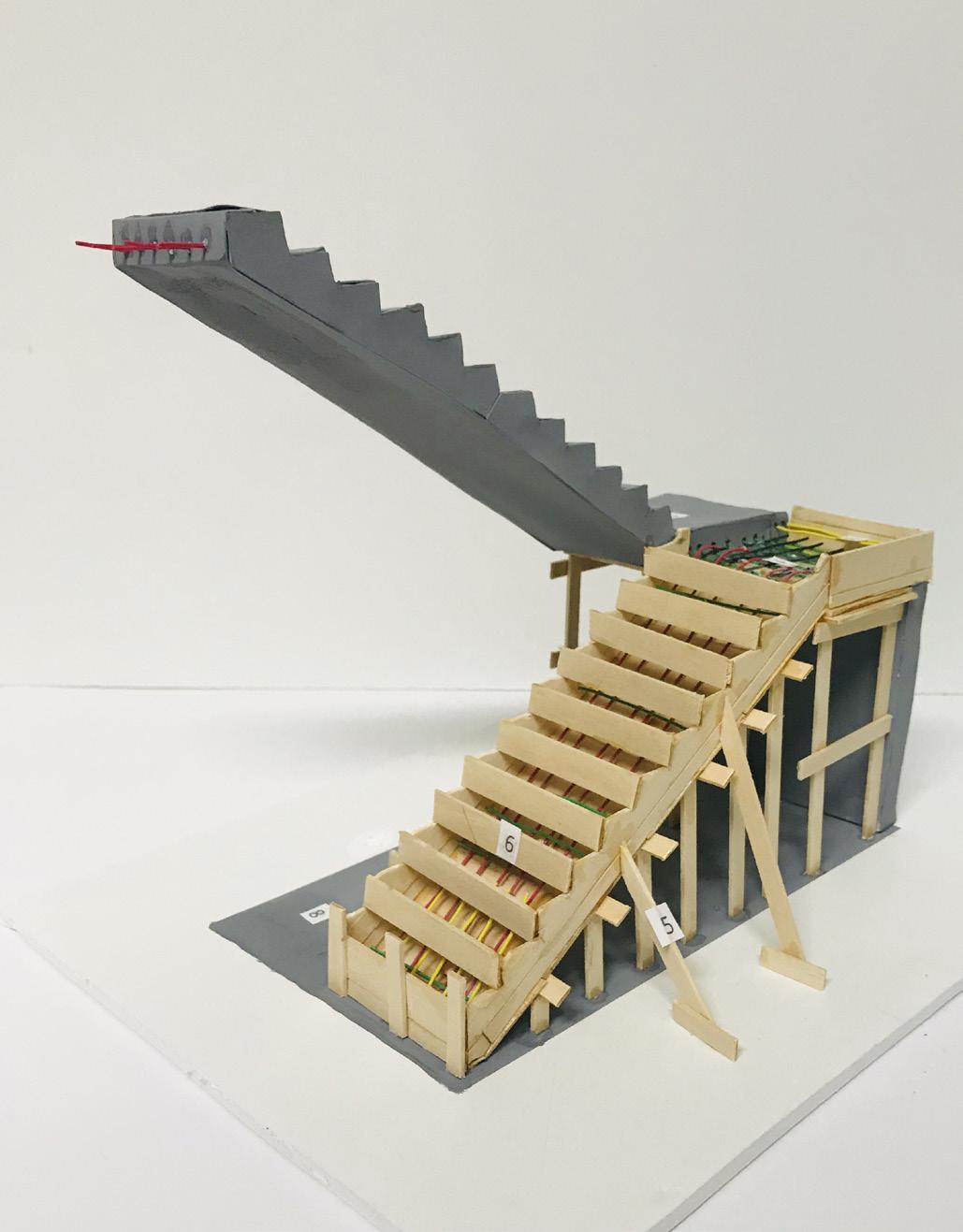

Concrete Stair Reinforcement Model

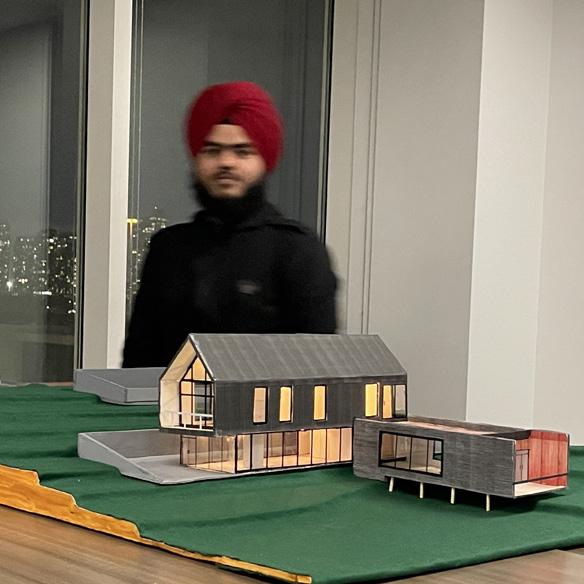

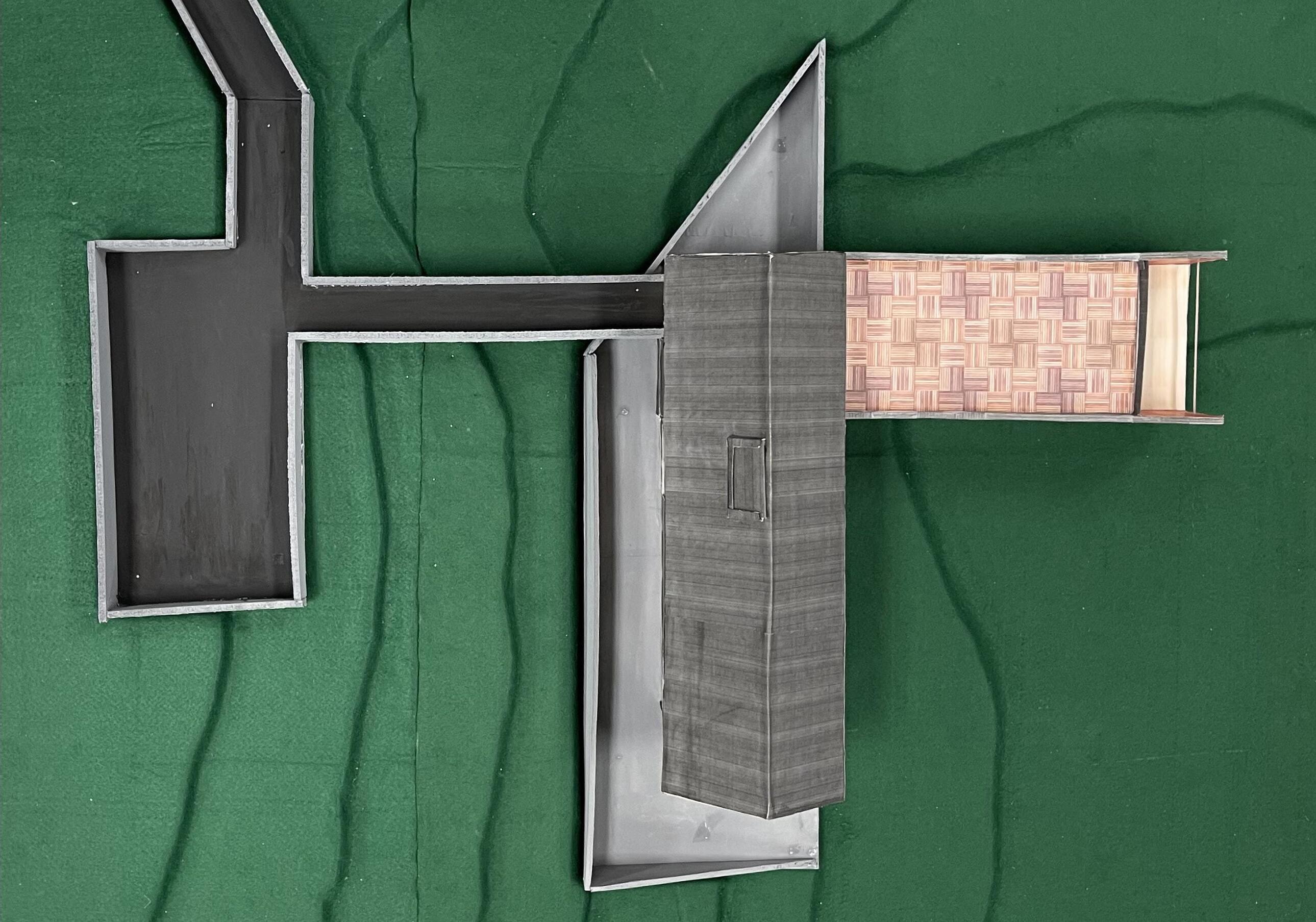

Presentation Model Built at Scale 1:75

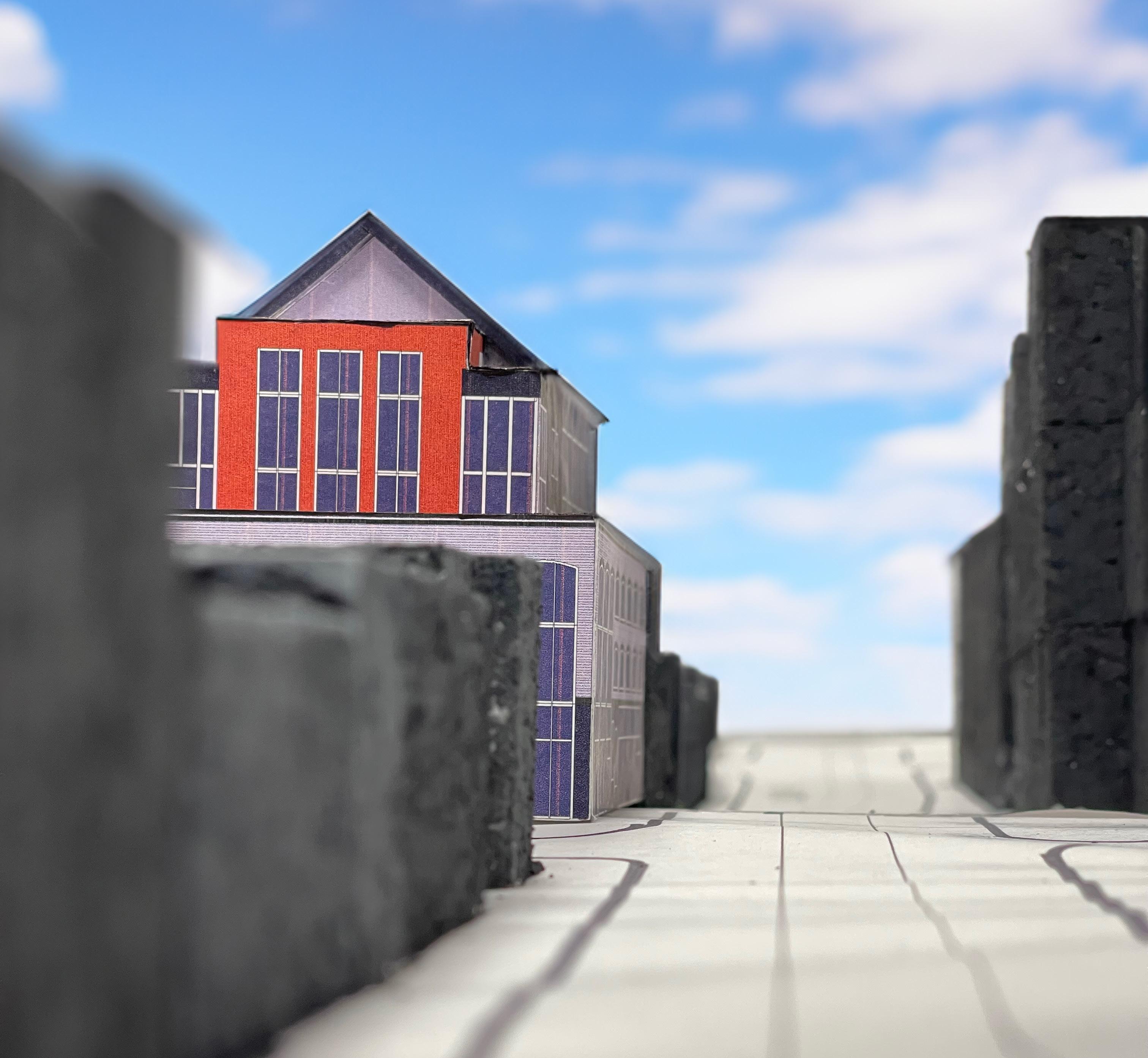

Site Model Built at Scale 1:75

51

THANK YOU
