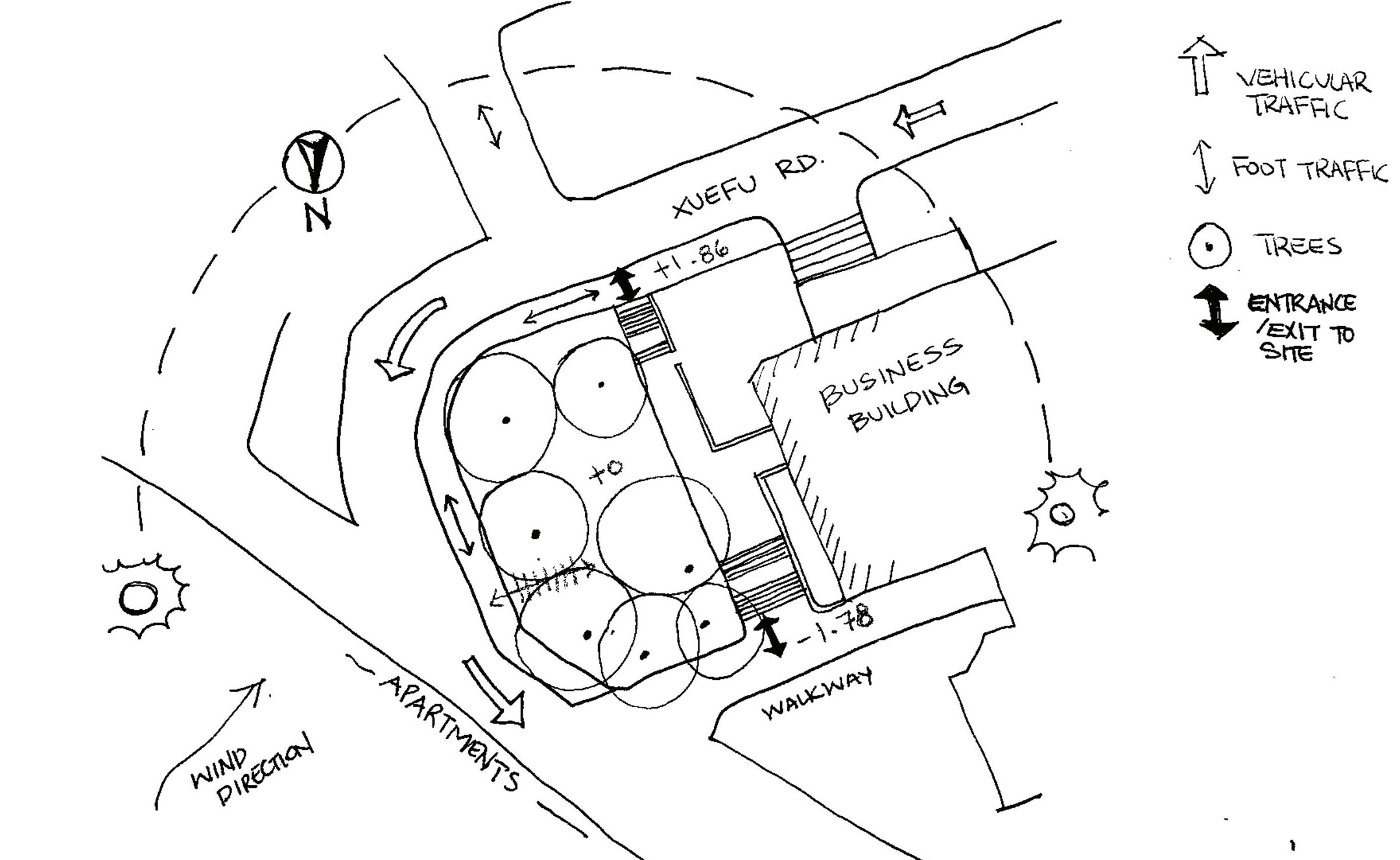

ANALYSIS NOTES:
- THREE OF THE SEVEN TREES ARE USED TO DEFINE THE SPACE, WHILE THE OTHER FOUR ARE USED AS PART OF GARDEN VIEW.
- FRONT OF COFFEE SHOP IS PLACED ON NORTH-EASTERN SIDE- CAPTURES BETTER VIEW AND MORNING SUN.
- THE SITE ALLOWS FOR ENTRANCES ON BOTH SIDES.
- SOLID WALLS WOULD BE USED TO MASK THE VIEW OF THE BUSINESS HALL WALL ON THE NORTH-WESTERN SIDE.
分析說明： - 七 樹中的三 用於定義空間，而其他四 則用作花園景觀的一部分。 - 咖 店的前面位於東北側，可捕捉更佳的視野和早晨的陽光。 -該站點的兩側都有入口。 -實心牆將用於掩蓋西北側商務大廳牆壁的景色。

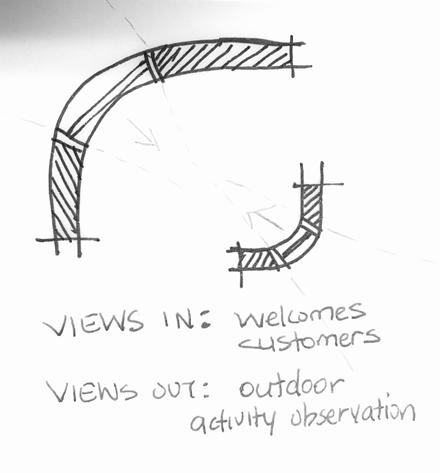

VIEW
THREE TREES ARE IDENTIFIED TO SHAPE AND INTERACT WITH THE BUILDING
SOLID LINE ON THE RIGHT SIDE CLOSES OFF THE VIEW OF THE BUSINESS HALL. THIN LINE REPRESENTS VISIBILITY.
TREATMENT FOR 2F BALCONY IN RELATION TO TREES.
草圖
THIS FIGURE SHOWS HOW THE SUN PATH AFFECTS THE BUILDING.

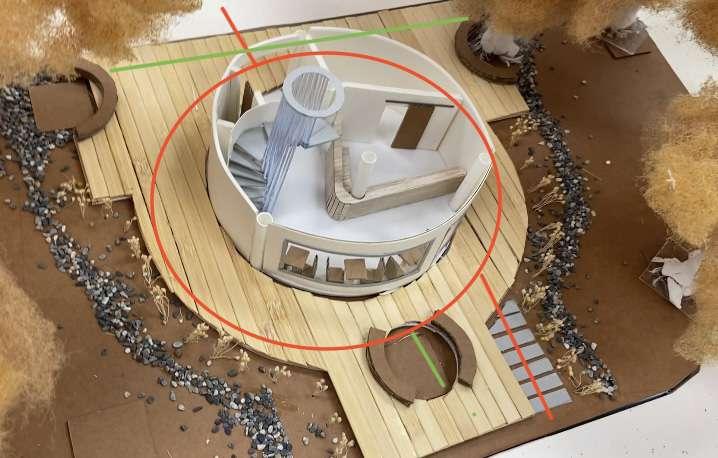

DEVELOPMENTAL SKETCHES & MODELS 正草模 1:50
草模

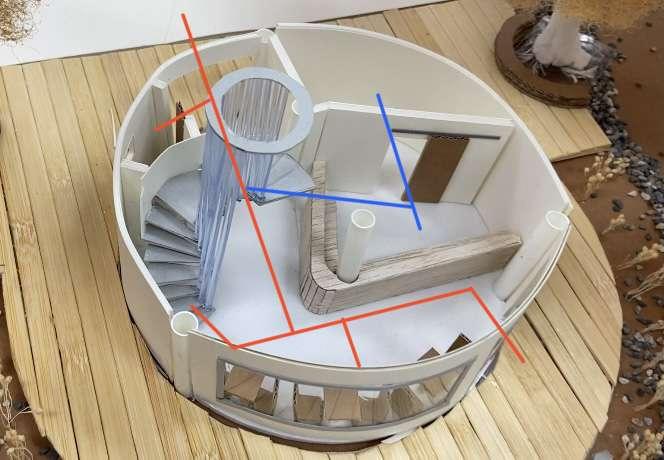

概念：這個設計的功能就像一 樹 -1F 是中心和較小的部分。 CONCEPT: THIS DESIGN FUNCTIONS LIKE A TREE -1F IS THE CENTRAL AND SMALLER PORTION. 1F 概念元素 = 樹幹 1F CONCEPT ELEMENT = TRUNK OF TREE --1F IS THE FUNCTIONAL PART: WORK AREA, SERVICE AREA, STORAGE, BATHROOM & STRUCTURAL SUPPORT CUSTOMER MOVING LINE 客戶動線 WORKER MOVING LINE 工人動線

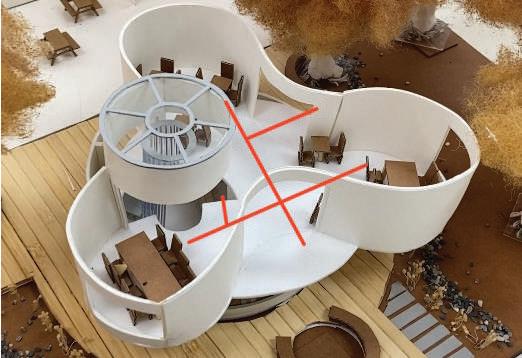

2F 概念元素 =樹冠 2F CONCEPT ELEMENT =CANOPY OF TREE -MOST OF THE DINING IS ON 2F -FEELING: SITTING UP IN THE TREES. -TREES CAN BE SEEN SURROUNDING THE BUILDING FROM EVERY SEAT. 客戶動線 概念：這個設計的功能就像一 樹 -2F 在樹木之間有三個分支。 CONCEPT: THIS DESIGN FUNCTIONS LIKE A TREE -2F HAS THREE BRANCHES BETWEEN THE TREES. CUSTOMER MOVING LINE

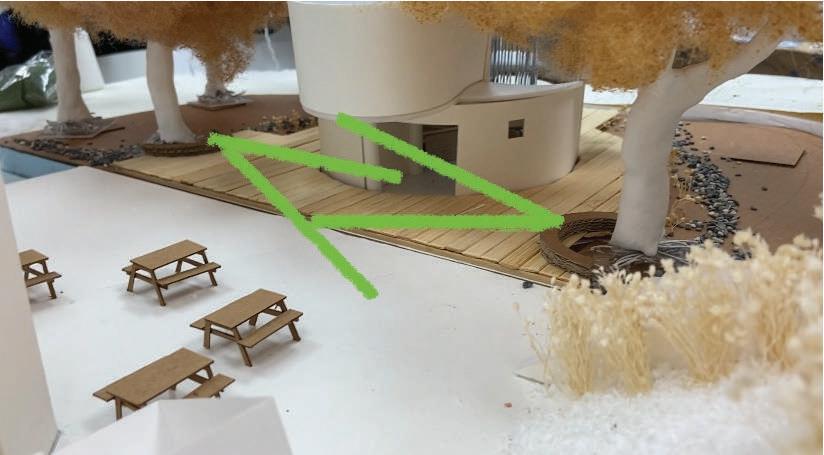

甲板循環 DECK CIRCULATION ENTRY ON BOTH SIDES LANDSCAPE FEATURES THREE SEATING AREAS WRAPPED AROUND THE THREE TREES IDENTIFIED BEFORE. 主循環 MAIN CIRCULATION 通往休息區的路徑 TO SEATING AREAS

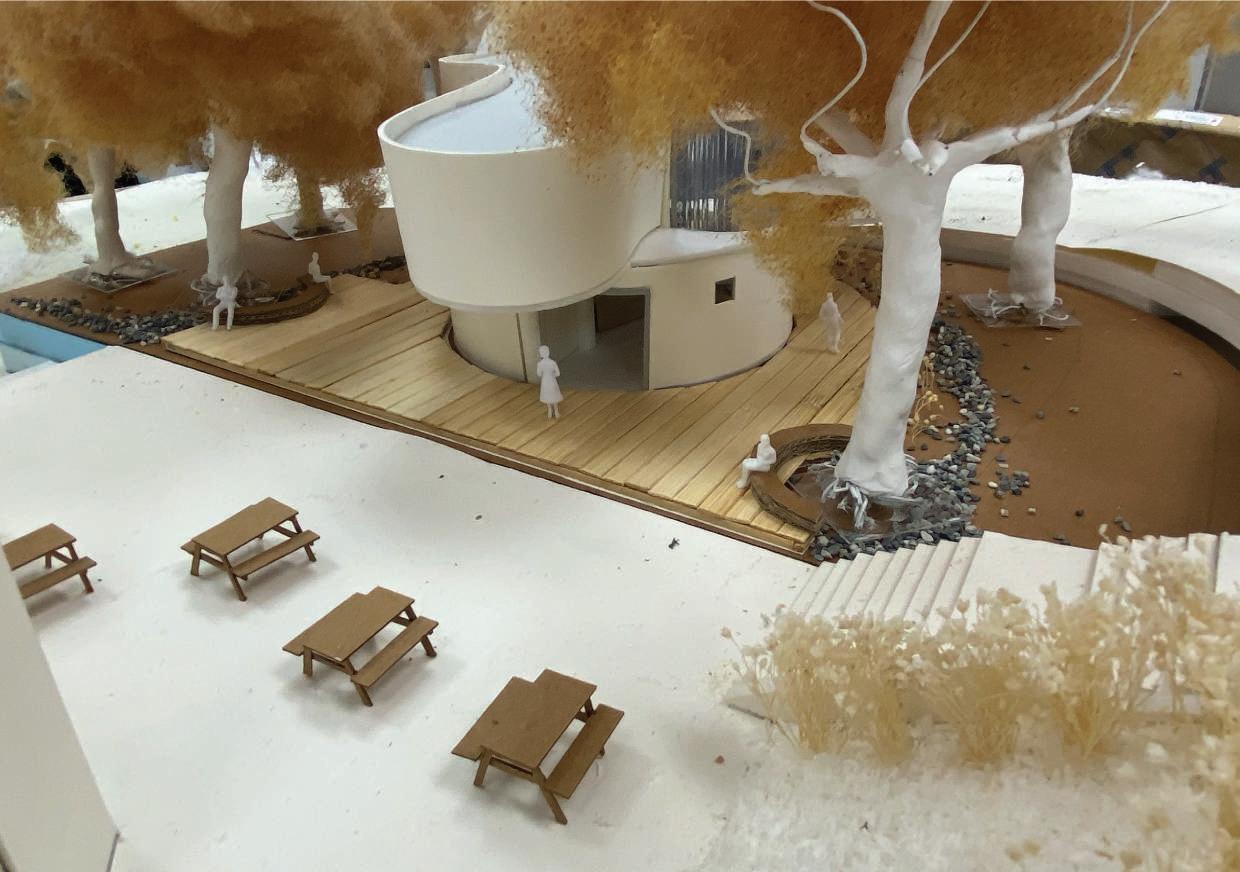

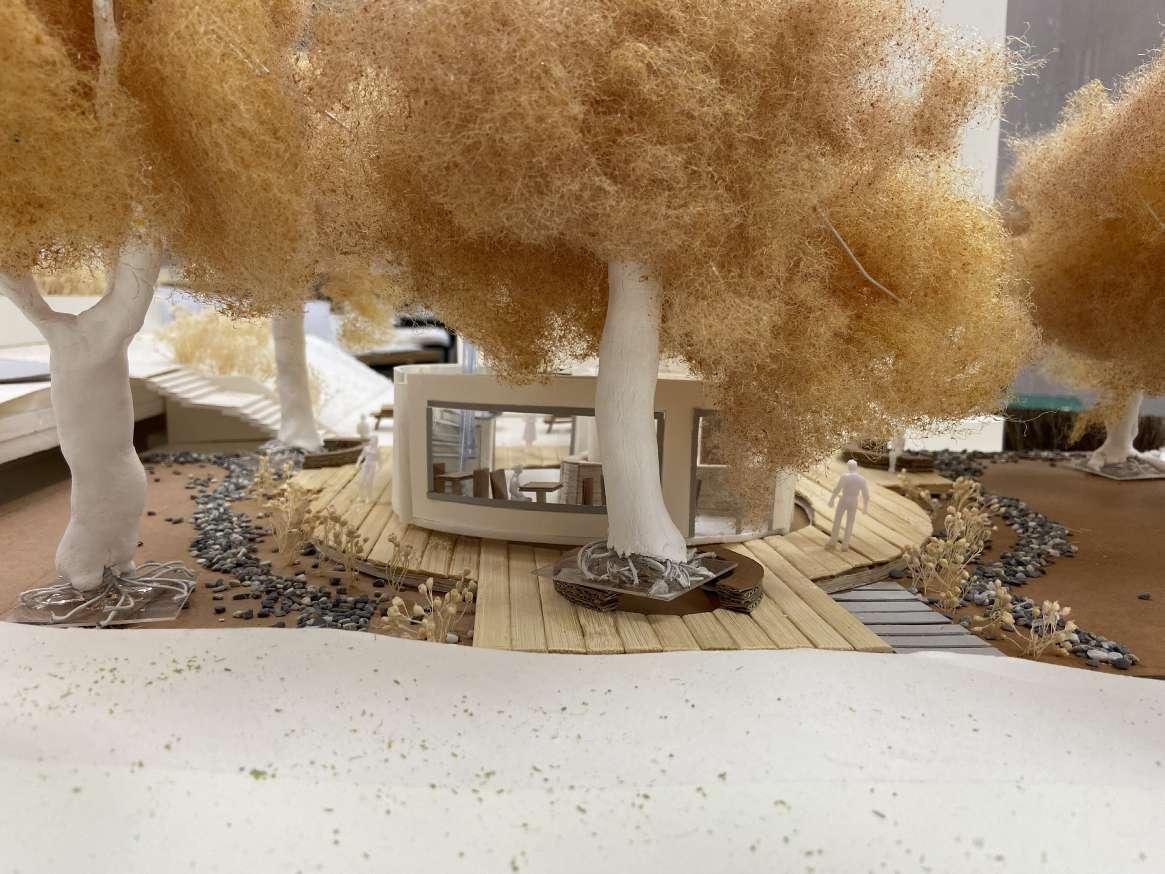

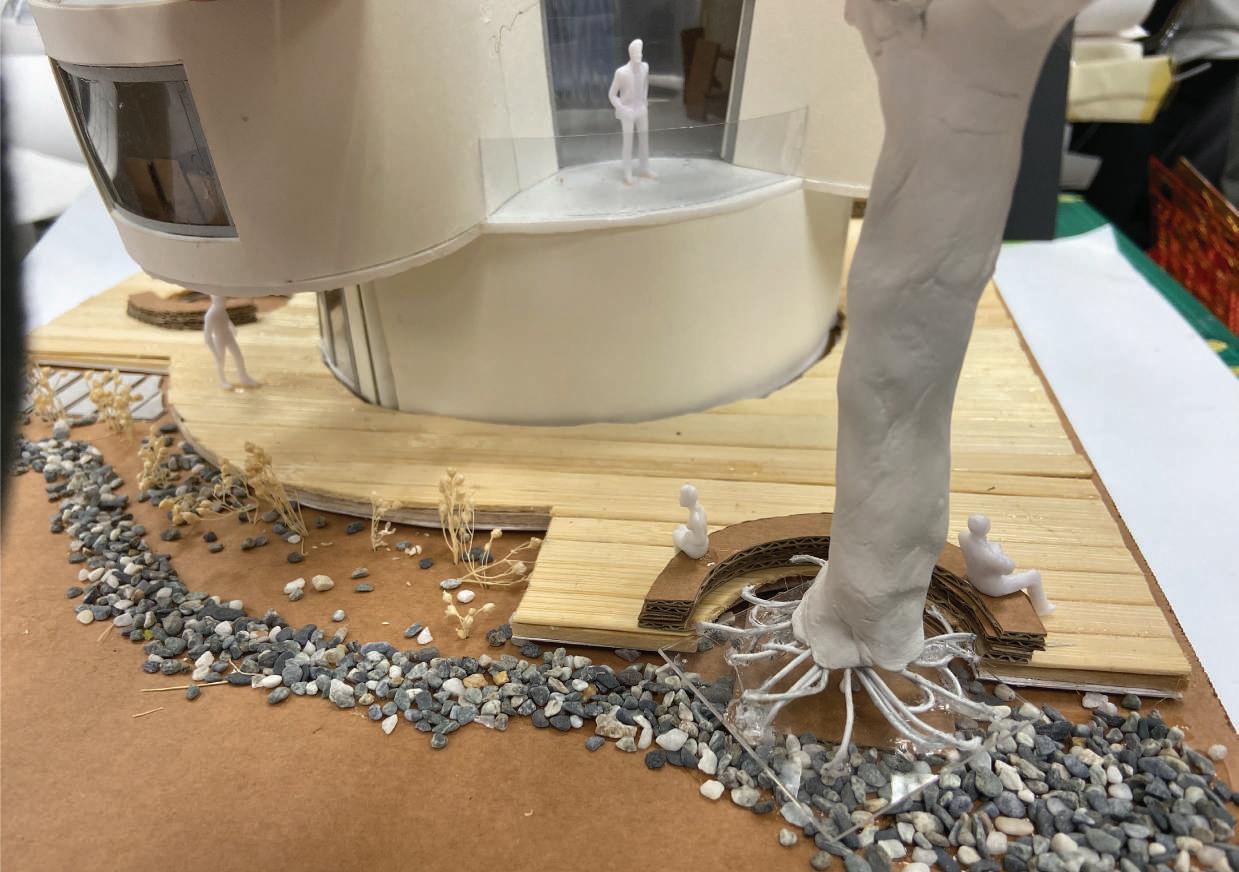

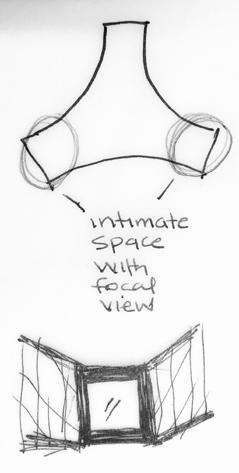

OUTDOOR SEATING AREAS
VIEWS OF GARDEN
休息區的花園景觀
VIEWS FROM SEATING AREA
室外座位

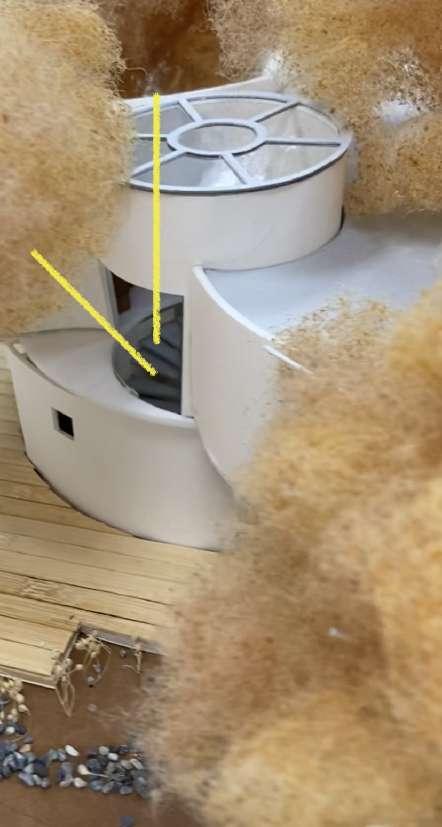

2F 陽台 2F BALCONY THERE ARE TWO BALCONIES ON 2F FOR INTERACTION WITH NATURE 從陽台與大自然互動 BALCONY TO NATURE INTERACTION
樓梯間 STAIRWELL

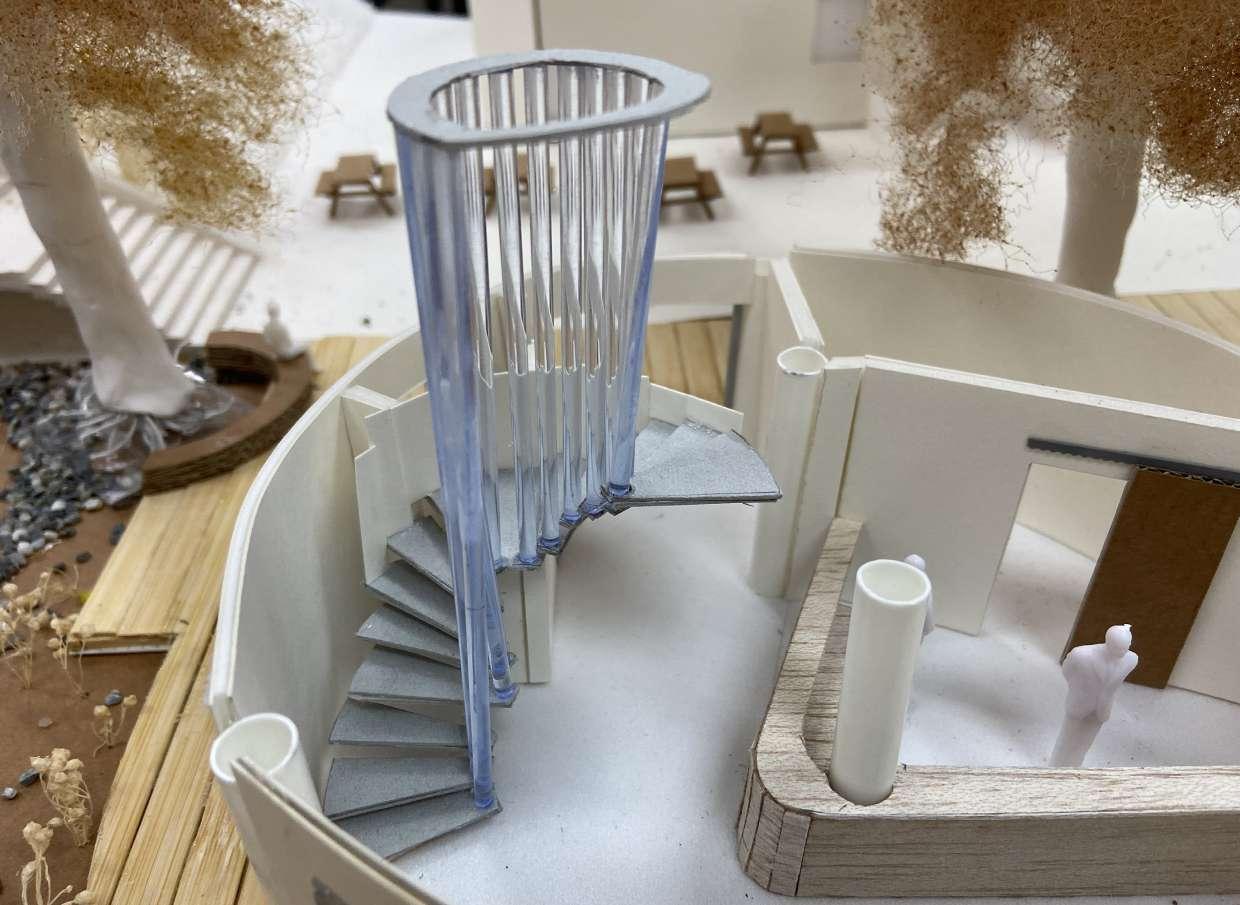

AS YOU CLIMB THE STAIRS, YOU FEEL LIKE YOU ARE CLIMBING A TREE WITH VIEWS OF ITS LEAVES ABOVE AND BESIDE.
頂部和側面的光線和視野
LIGHT FROM ABOVE AND SIDE

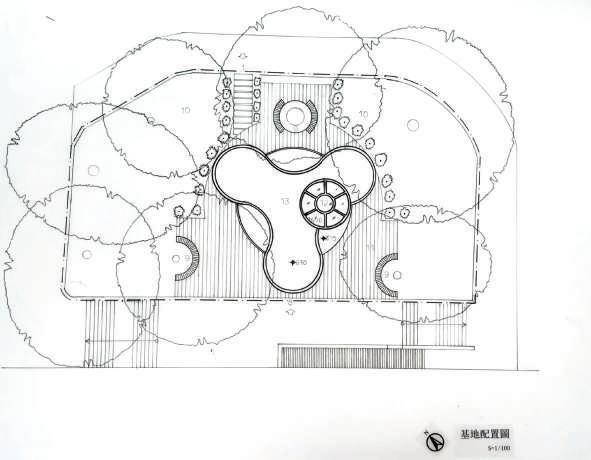

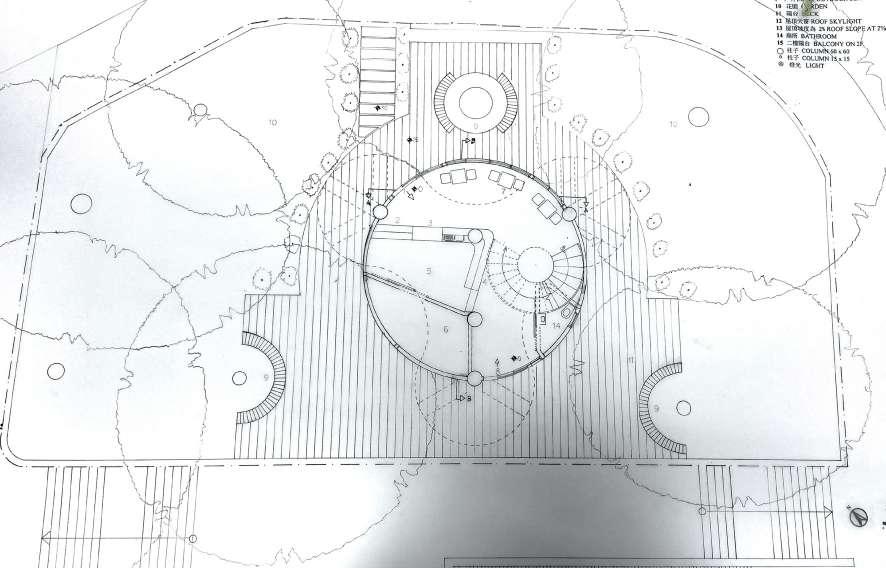

SITE PLAN

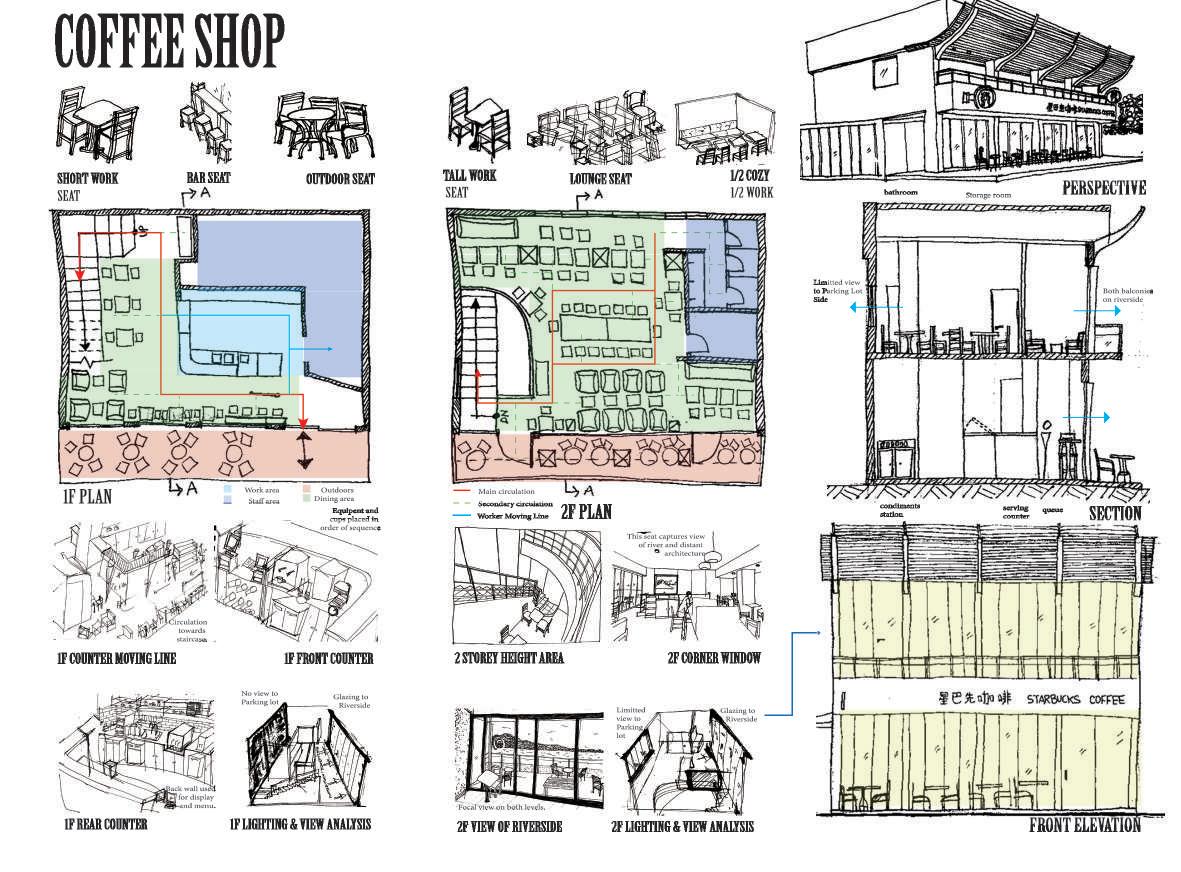

1F FLOOR PLAN SCALE 1/50

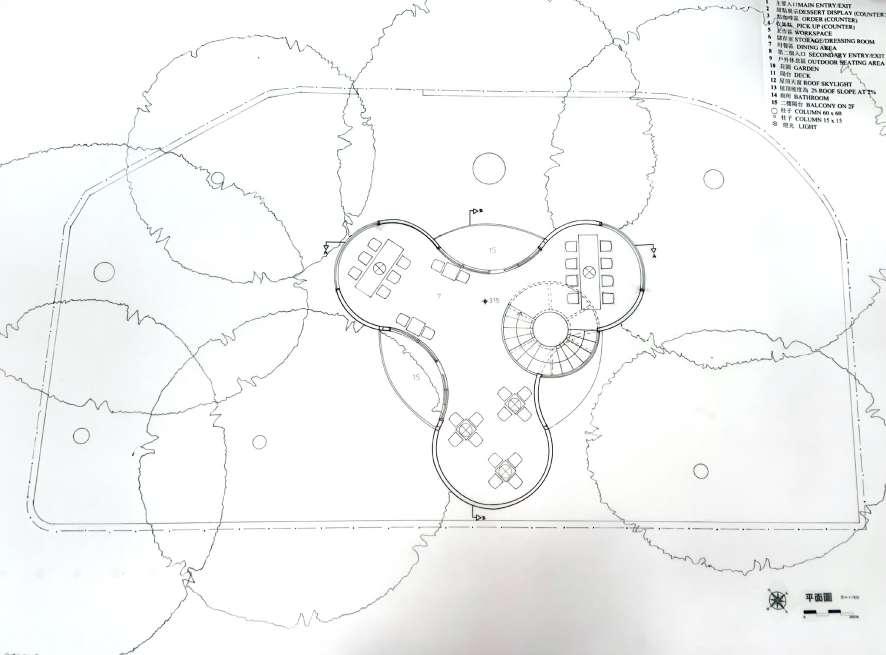

2F FLOOR PLAN SCALE 1/50

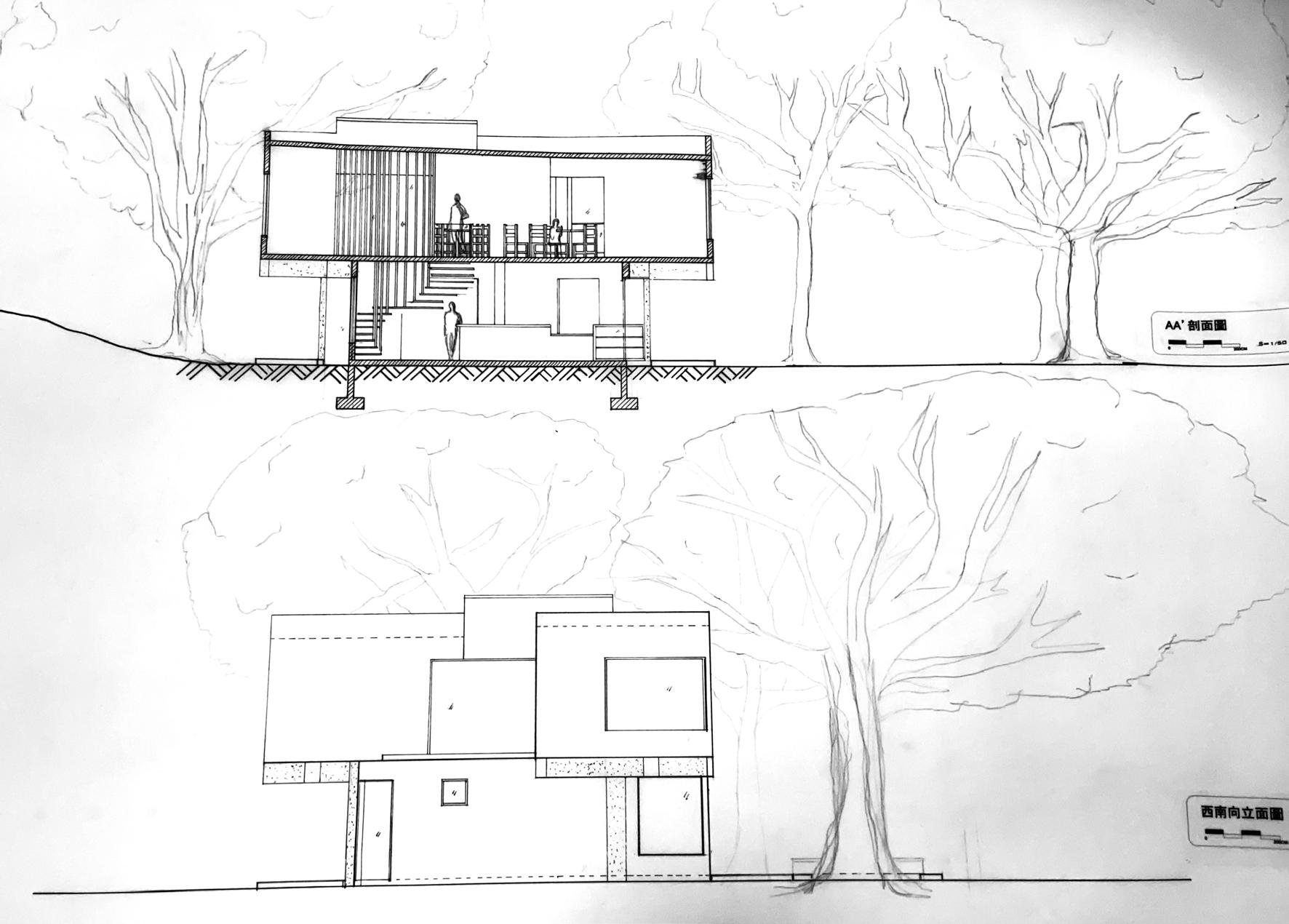

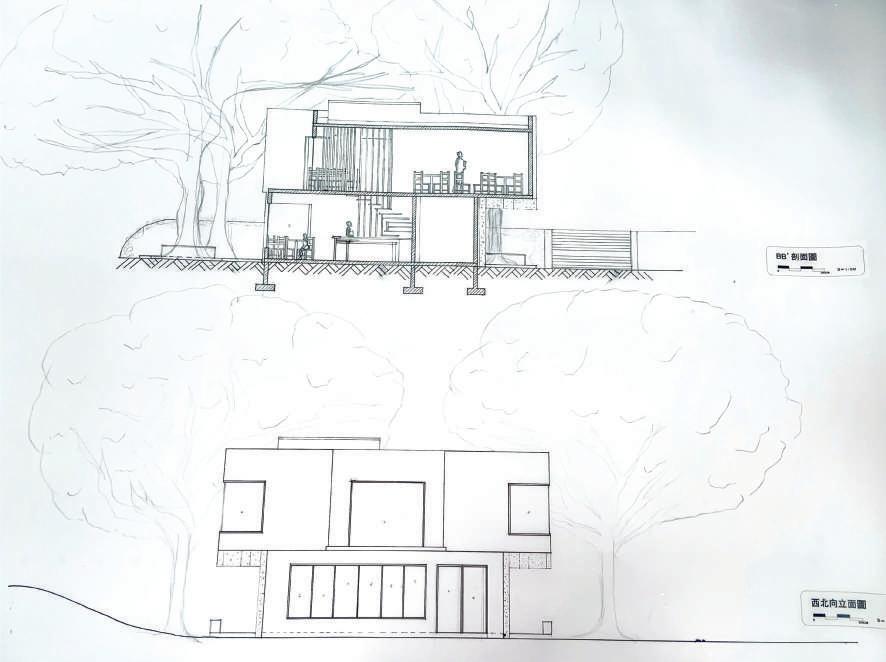

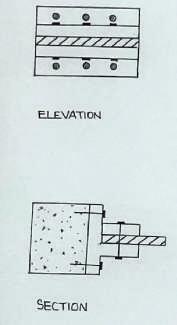

ELEVATIONS SCALE 1/50
SECTIONS SCALE 1/50

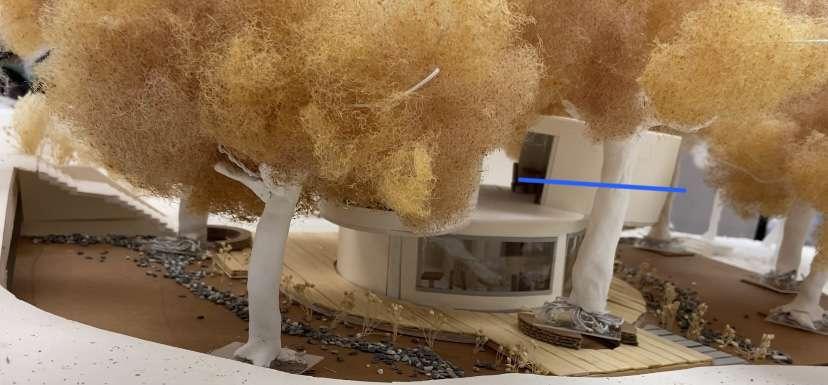

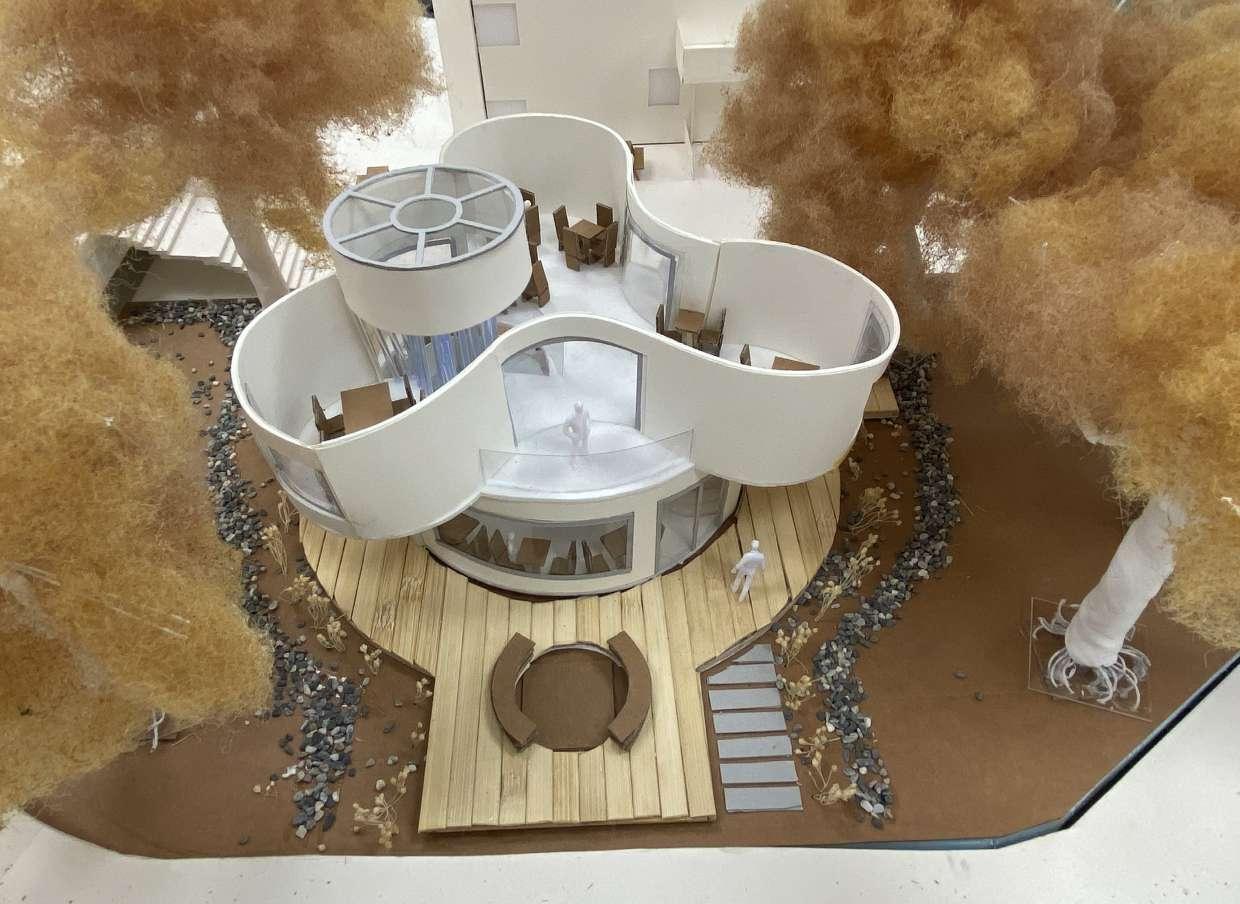

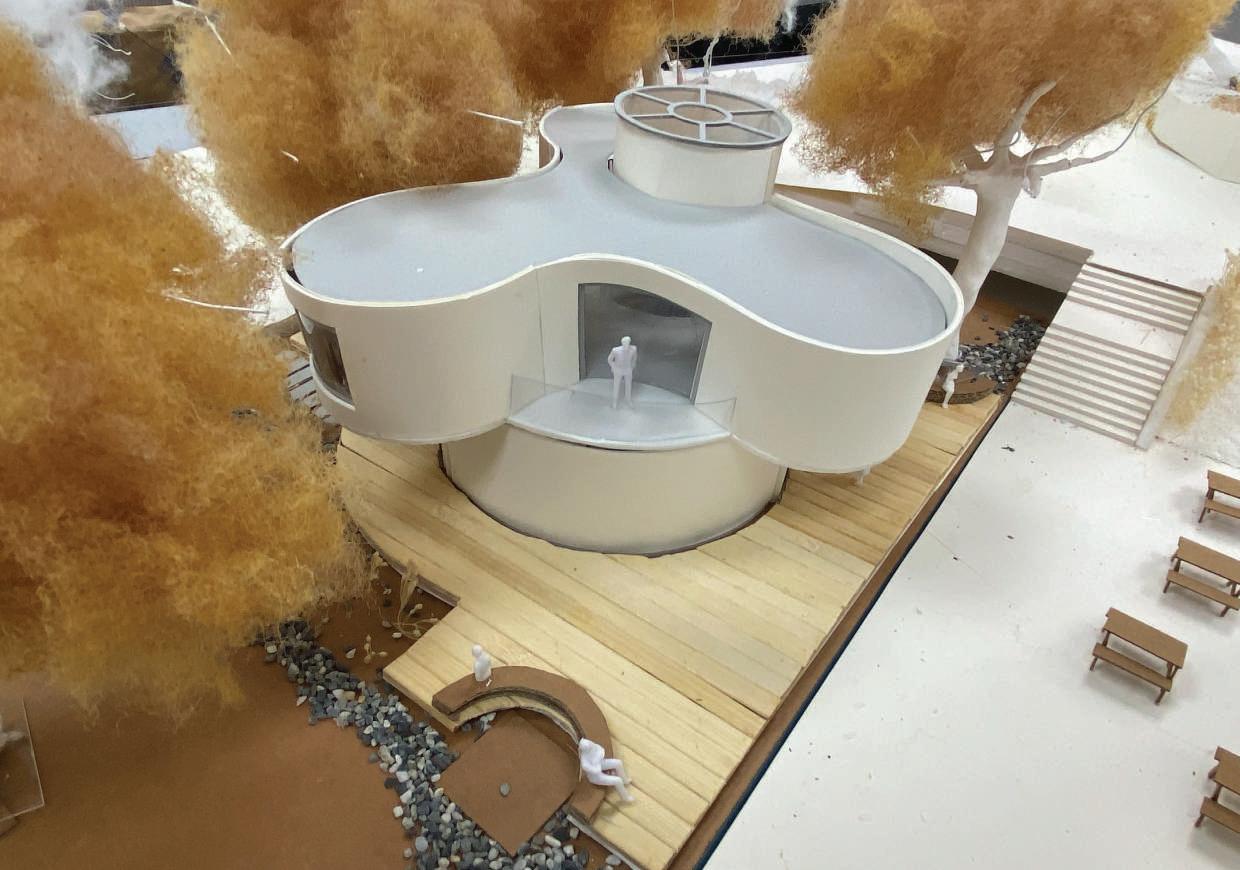

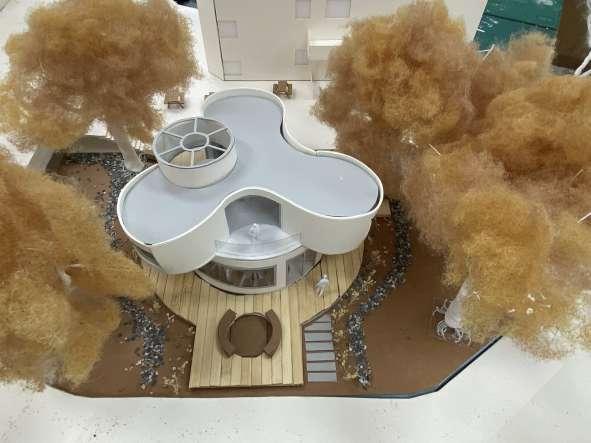

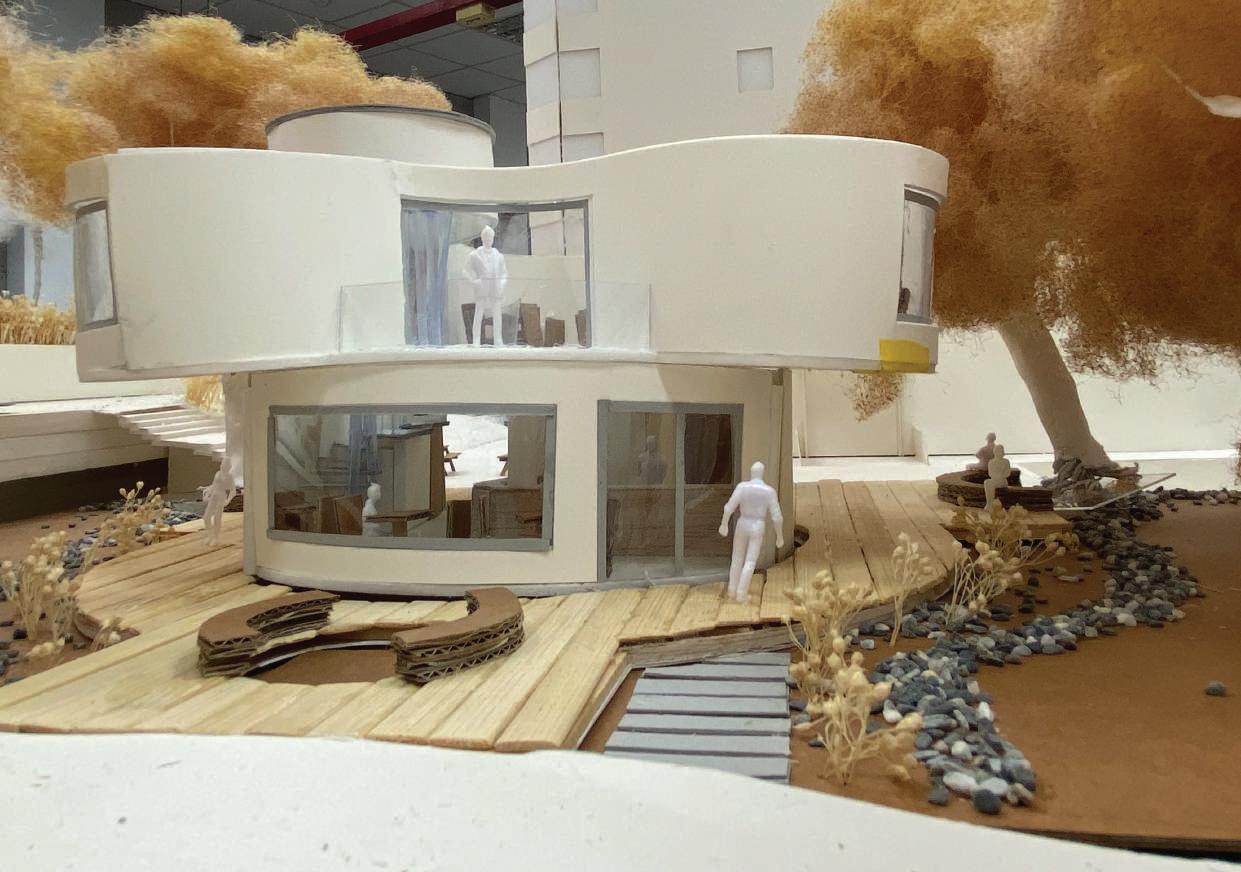

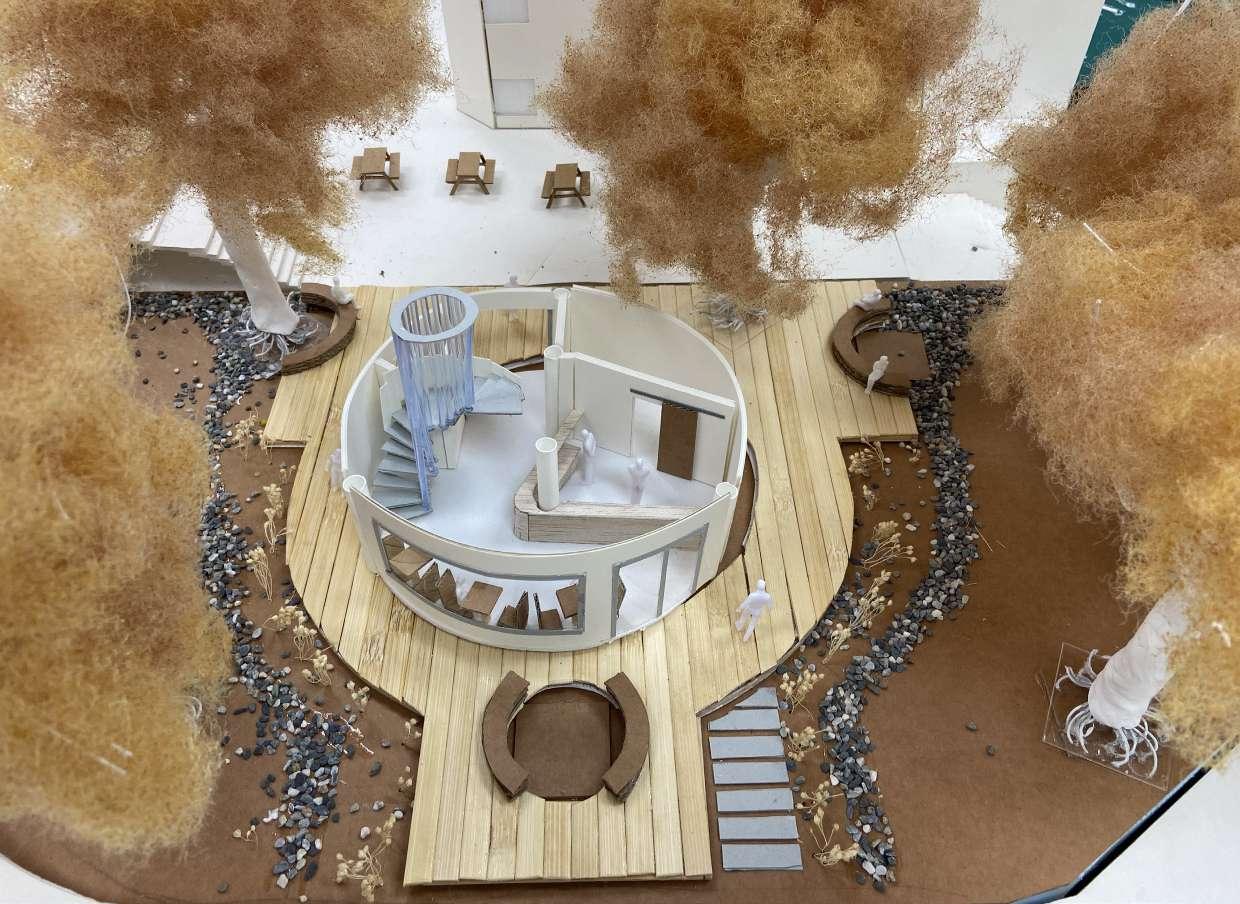

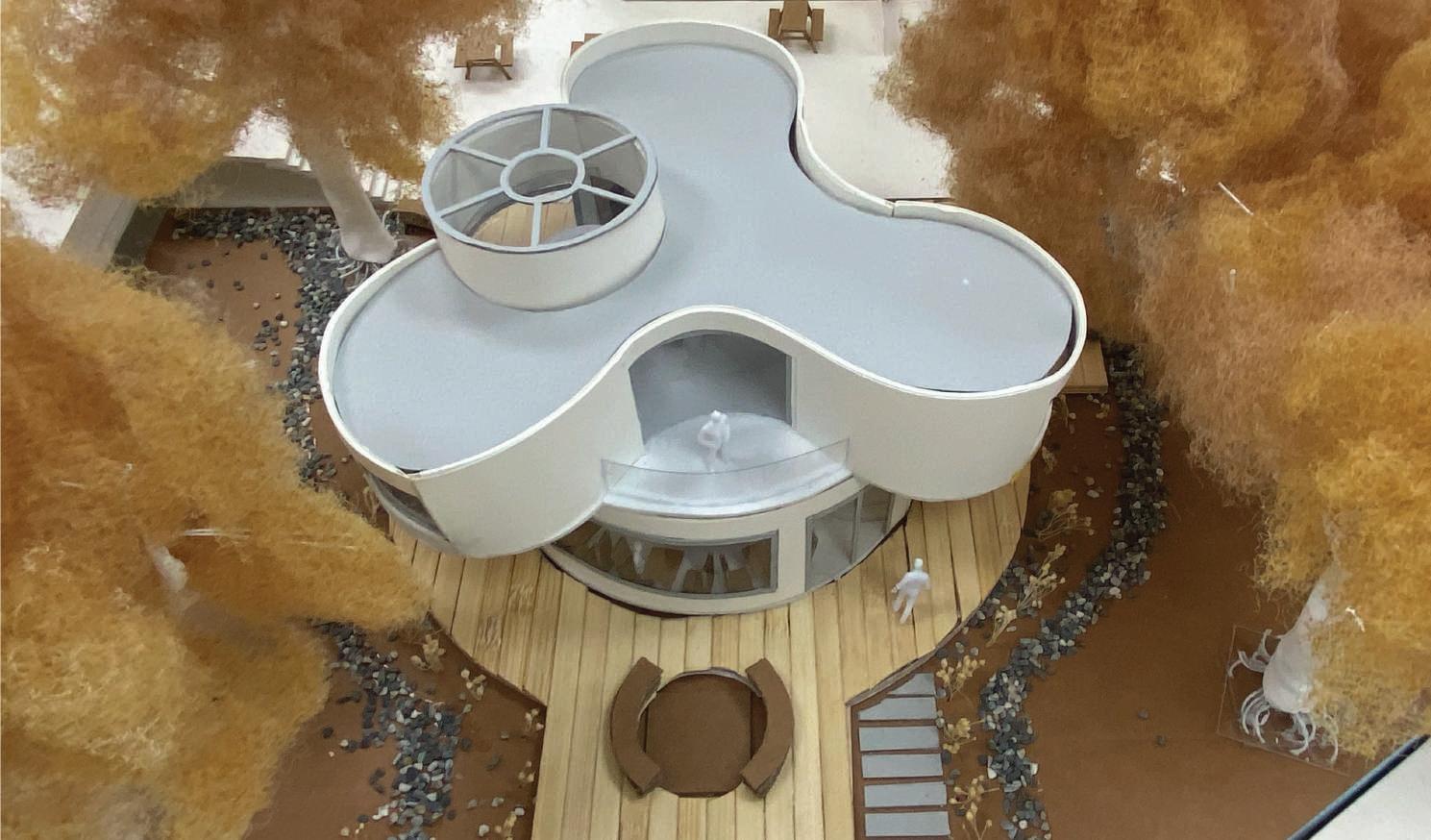

FINAL MODEL 正模型照片 1/50

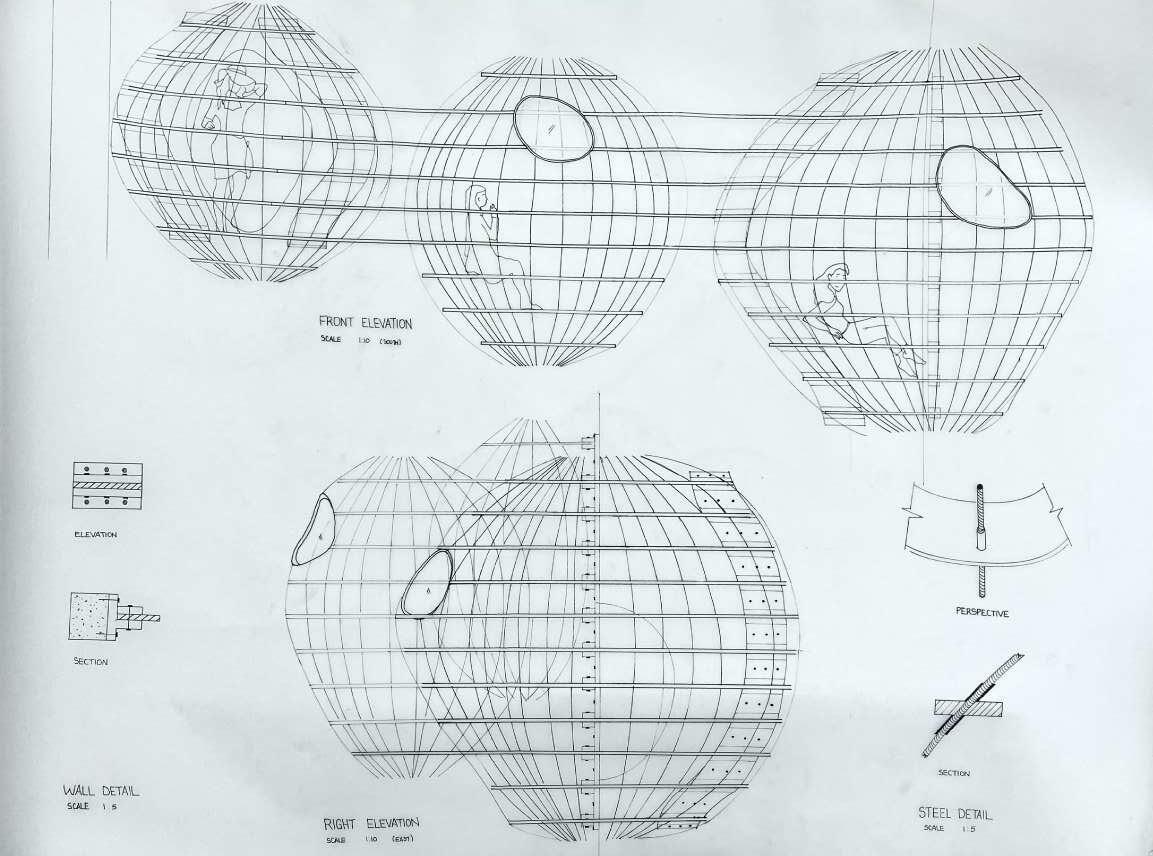

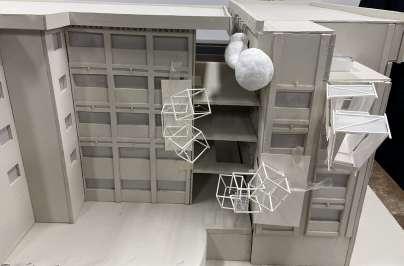

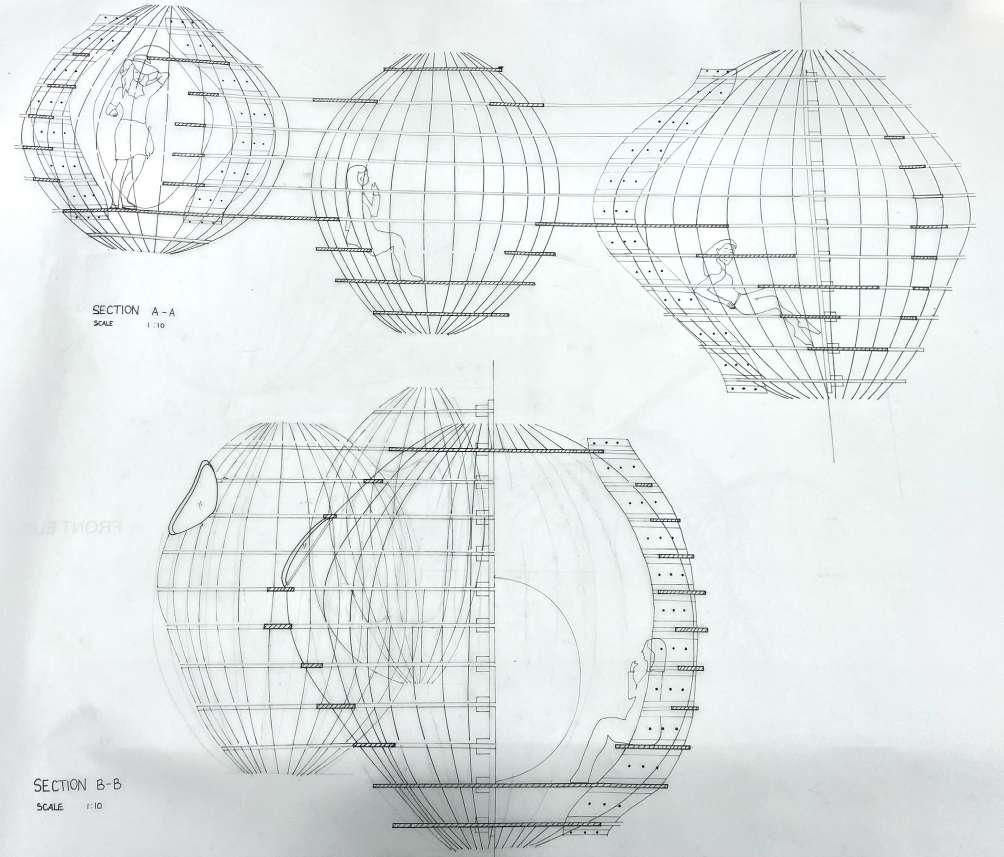

寄生於系館 Parasitic
02

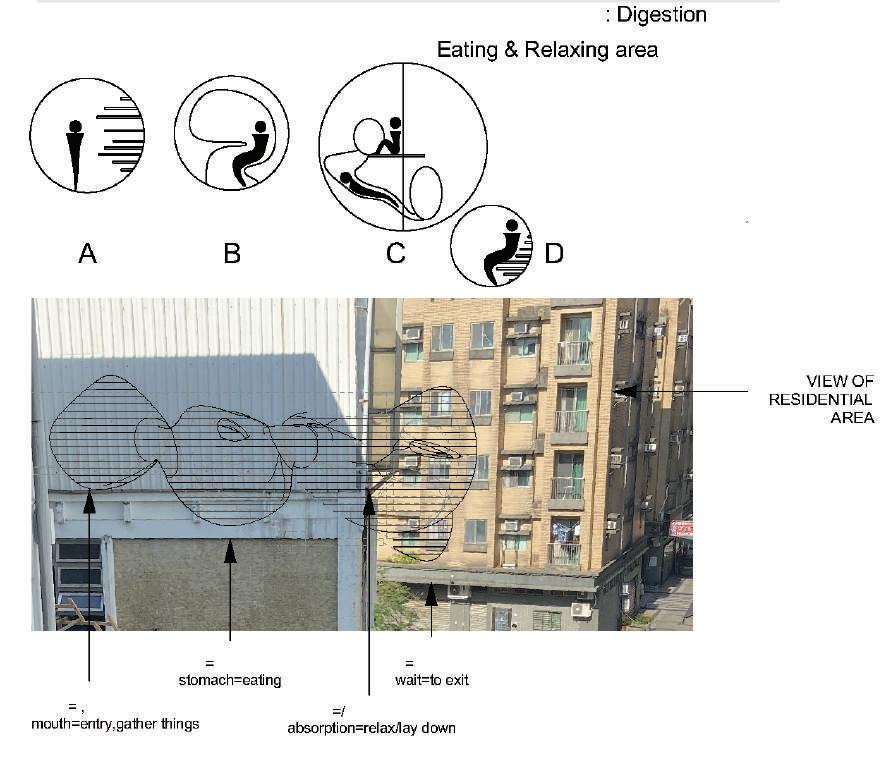

消化過程 概念 住宅區景觀 飲食和放鬆空間 等候區 退出 吸收 放鬆/ 下 胃 吃 口 進入，收集東西 THE ORGANIC FORM MIMICS THE FREEFORM NATURE OF THE DIGESTIVE SYSTEM DESIGN DESCRIPTION AND CONCEPT
DESIGN DESCRIPTION AND CONCEPT

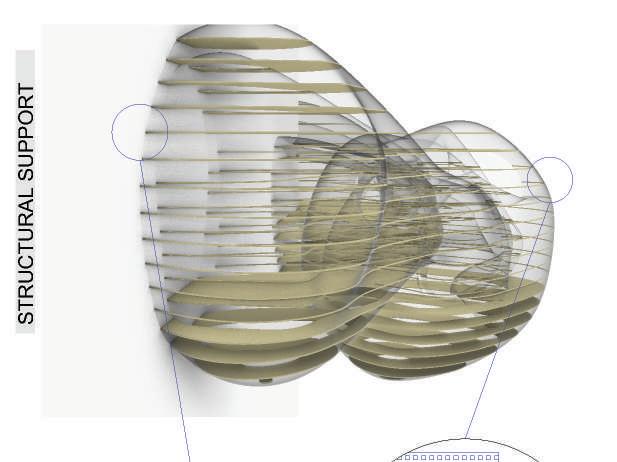

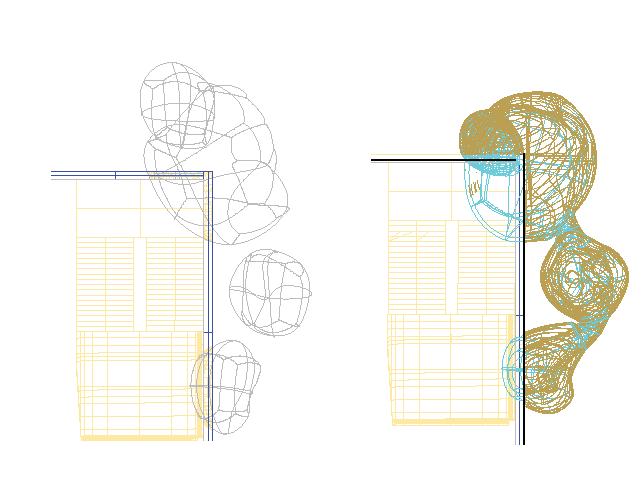

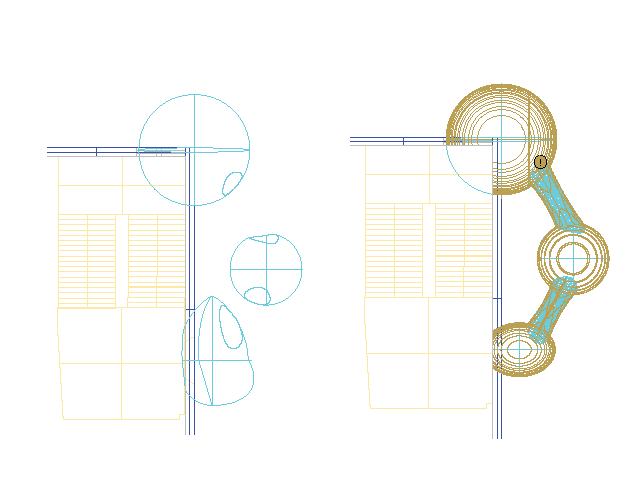

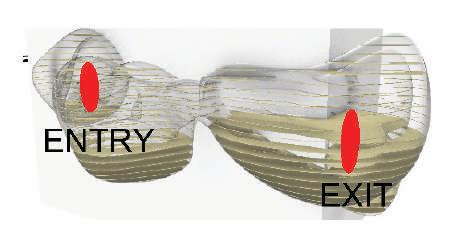

FORM -RHINO
DEVELOPMENT PROCESS OF

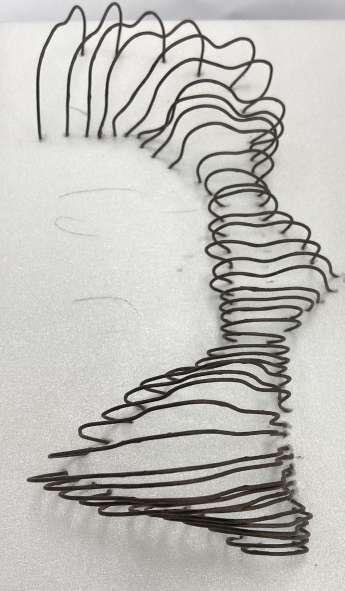

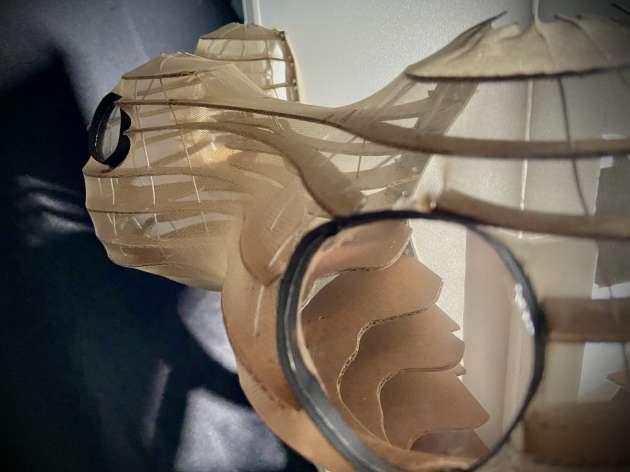

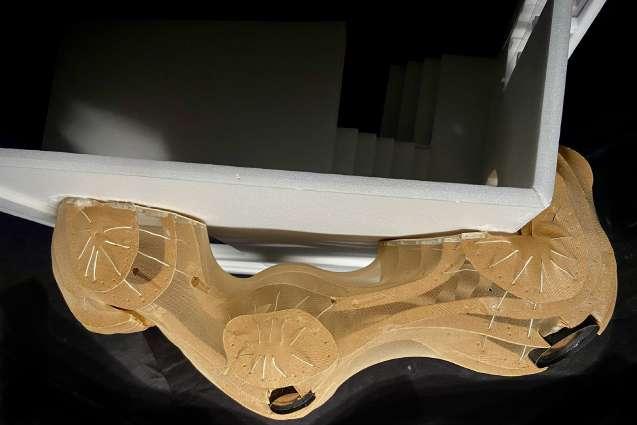

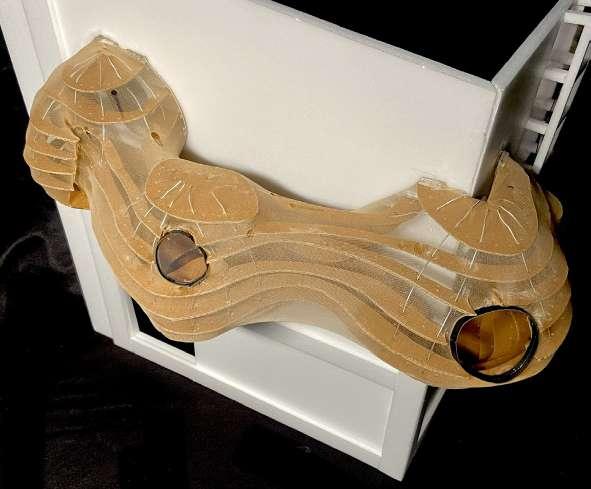

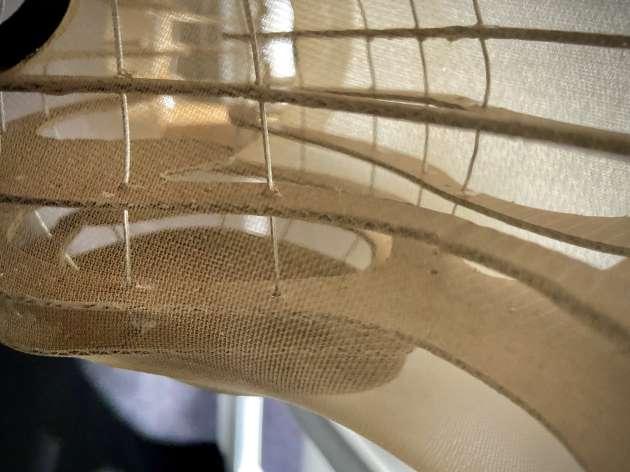

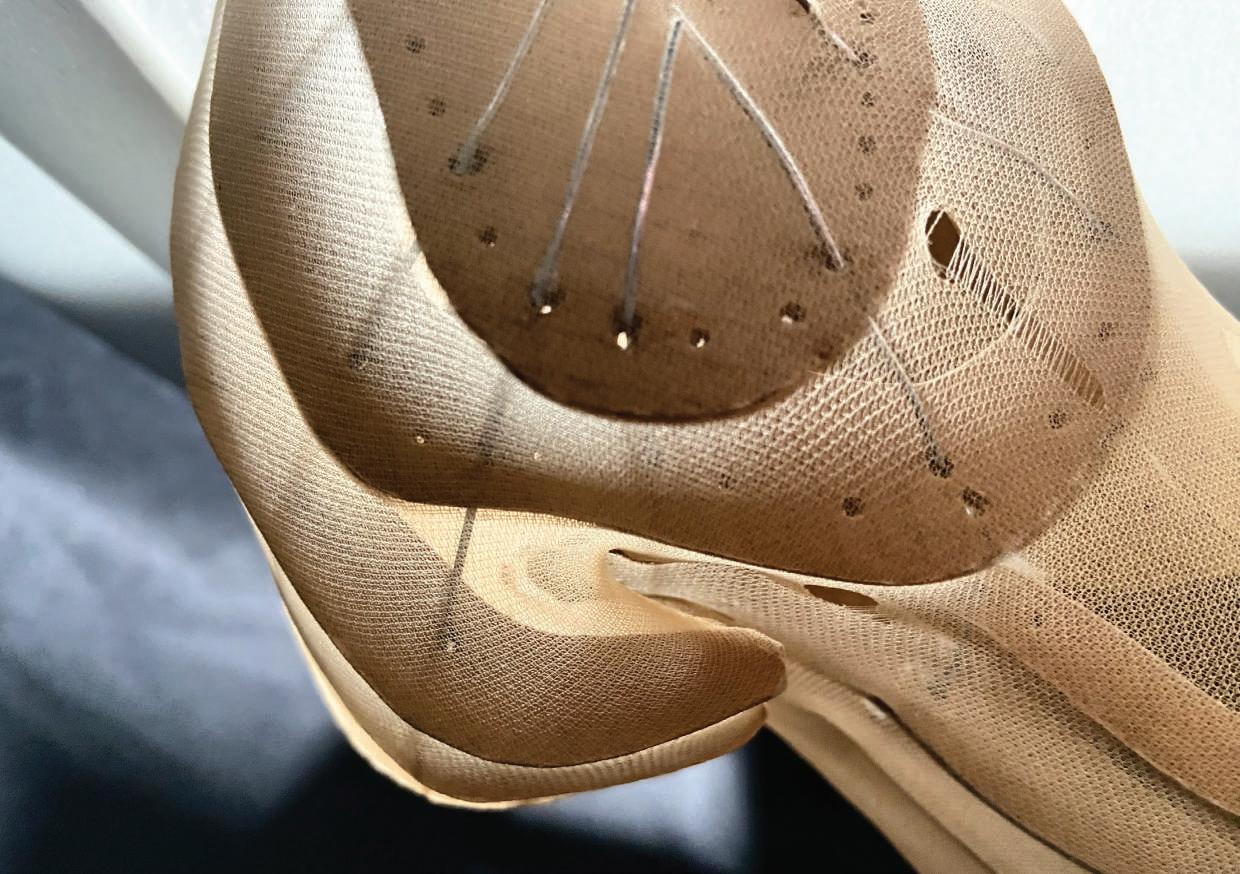

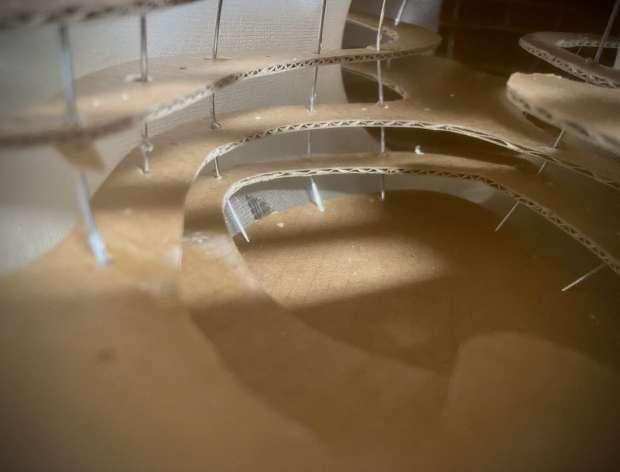

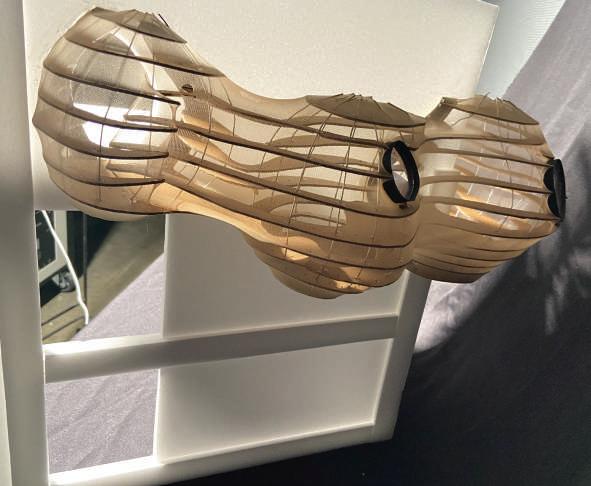

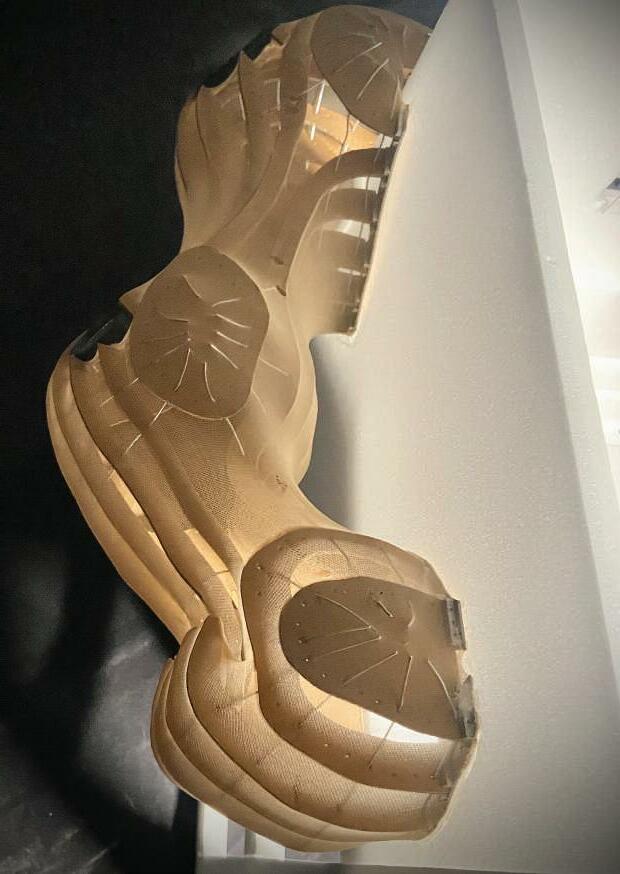

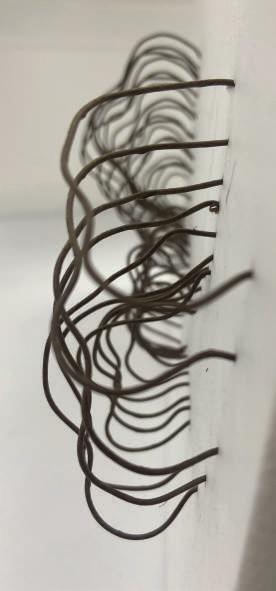

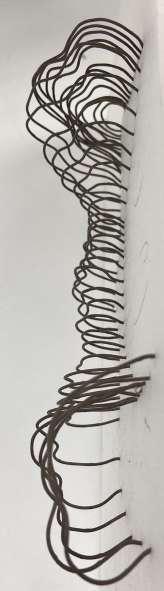

DEVELOPMENTAL MODELS
THE FIRST DEVELOPMENTAL MODEL WAS VERTICALLY ORIENTED LIKE THE DIGESTIVE SYSTEM.

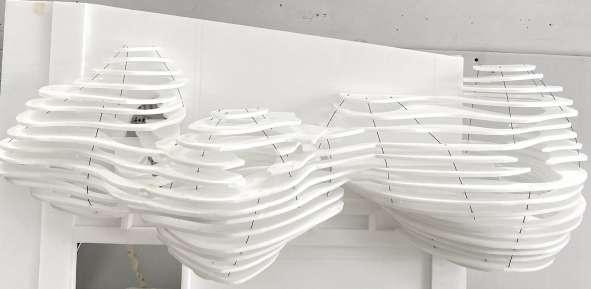

THEN...SHIFTED TO A HORIZONTAL ORIENTATION TO AVOID TOO MANY STAIRS, BUT STILL GOING IN A DOWNWARDS DIRECTION.
SITE MODEL
基地模 1/50

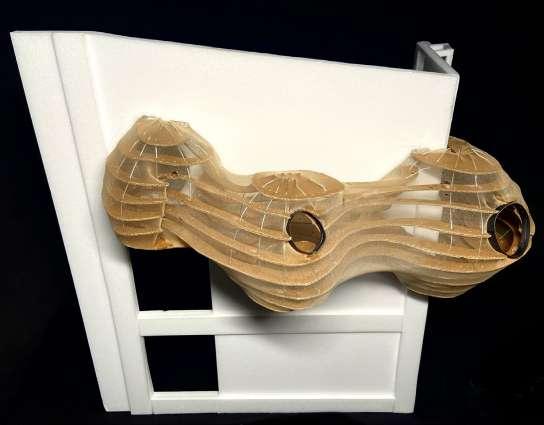

草模

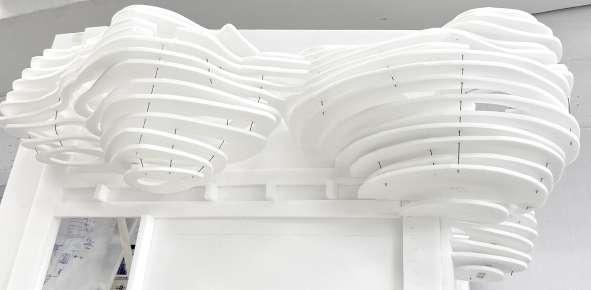

正草模 1:10

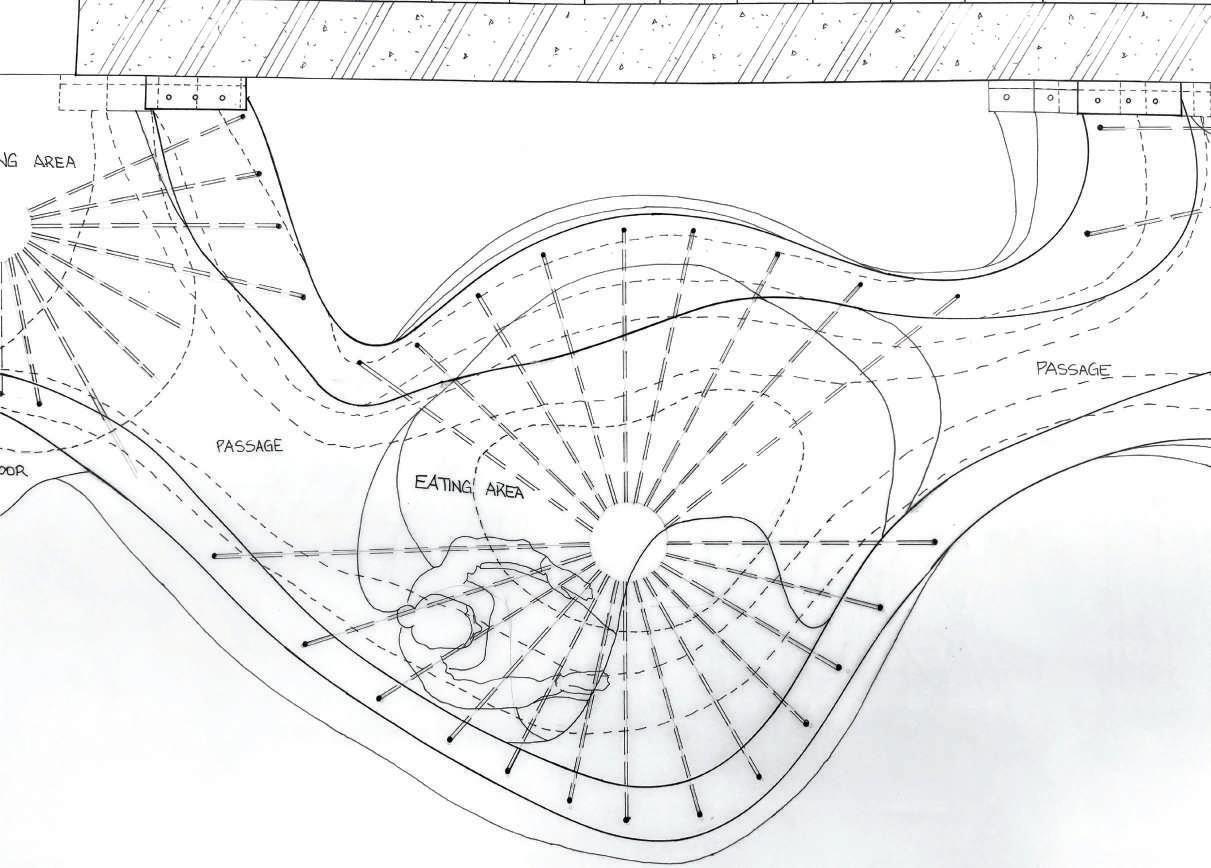

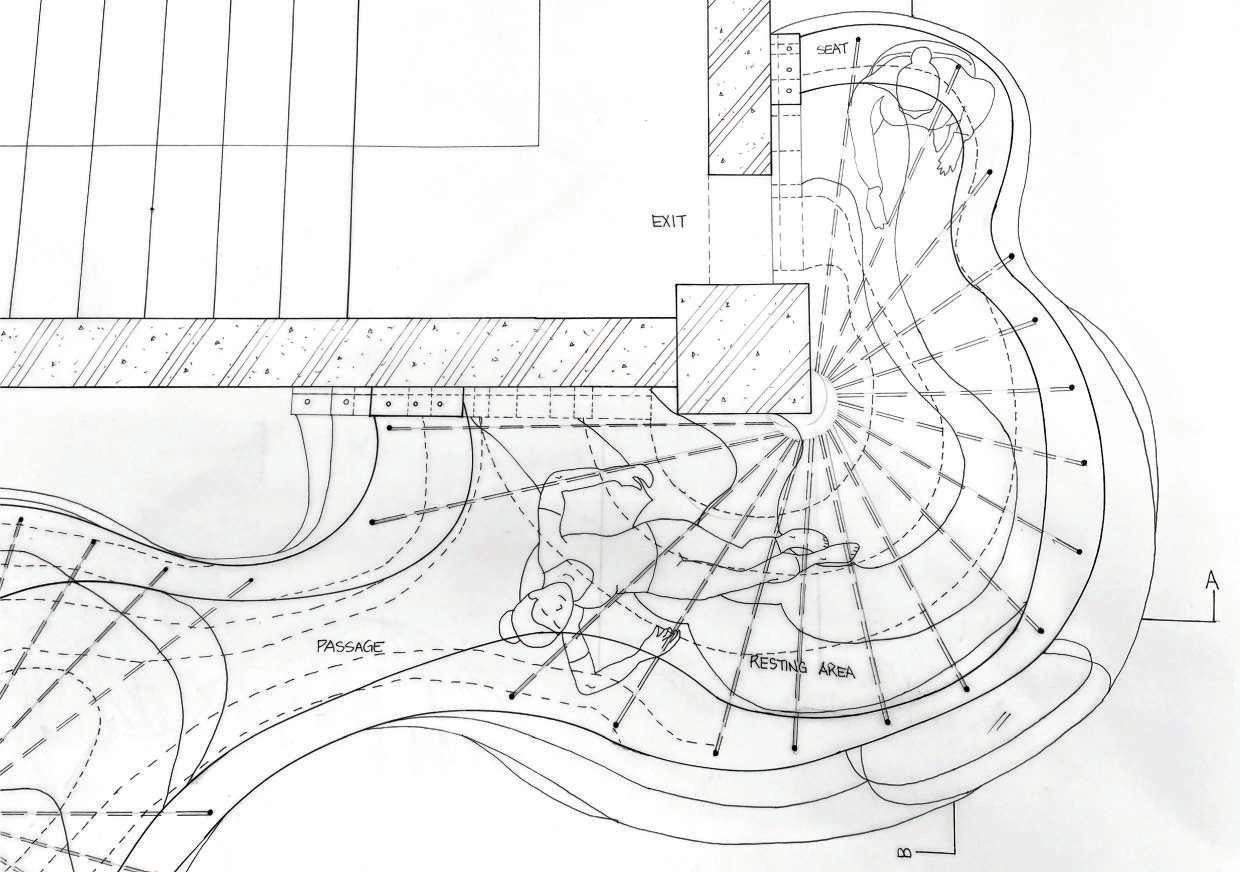

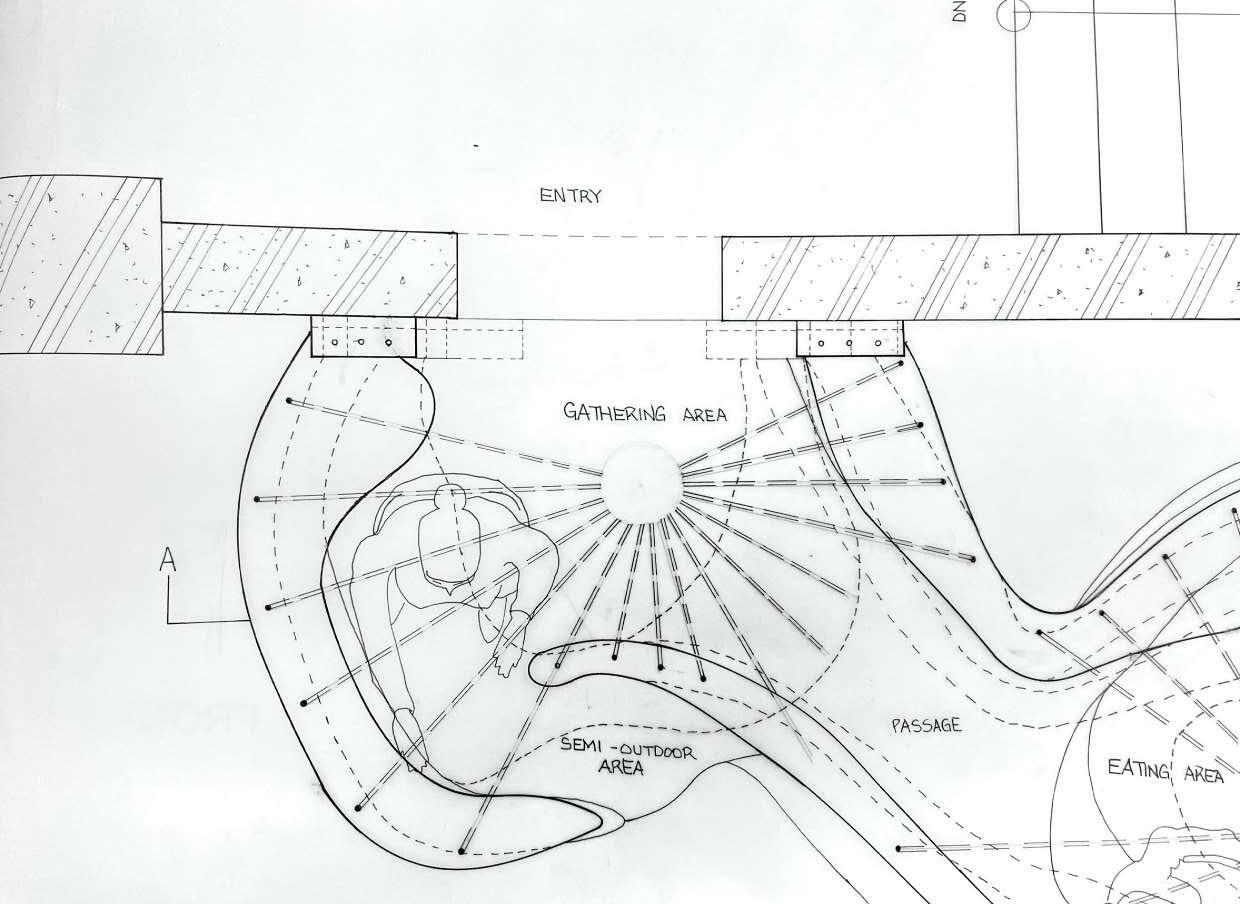

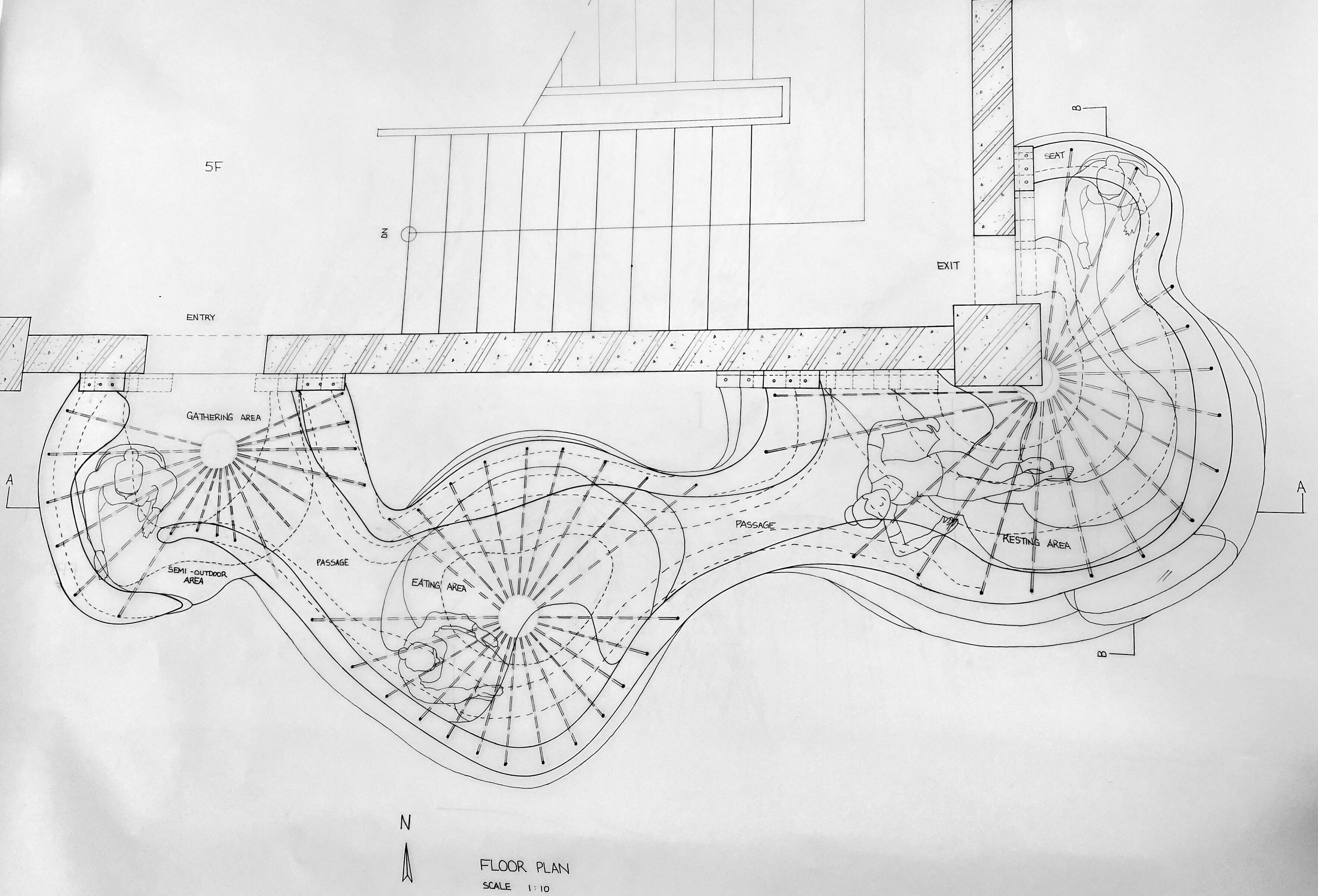

FLOOR PAN

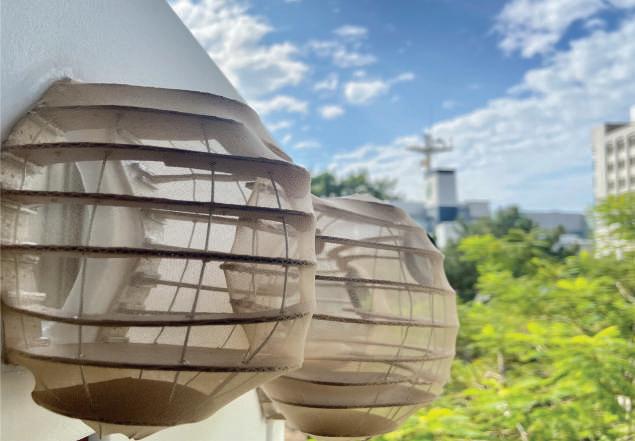

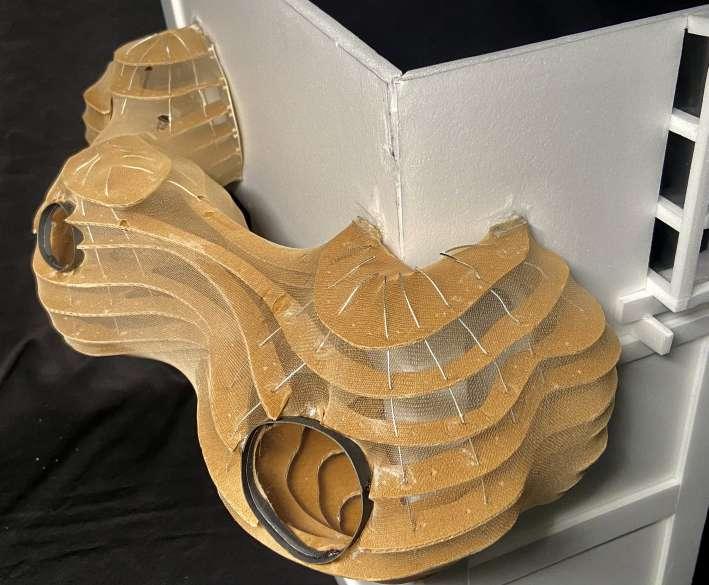

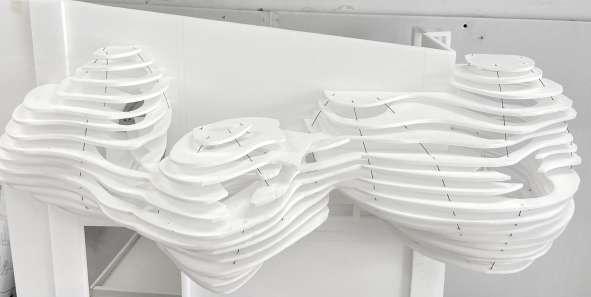

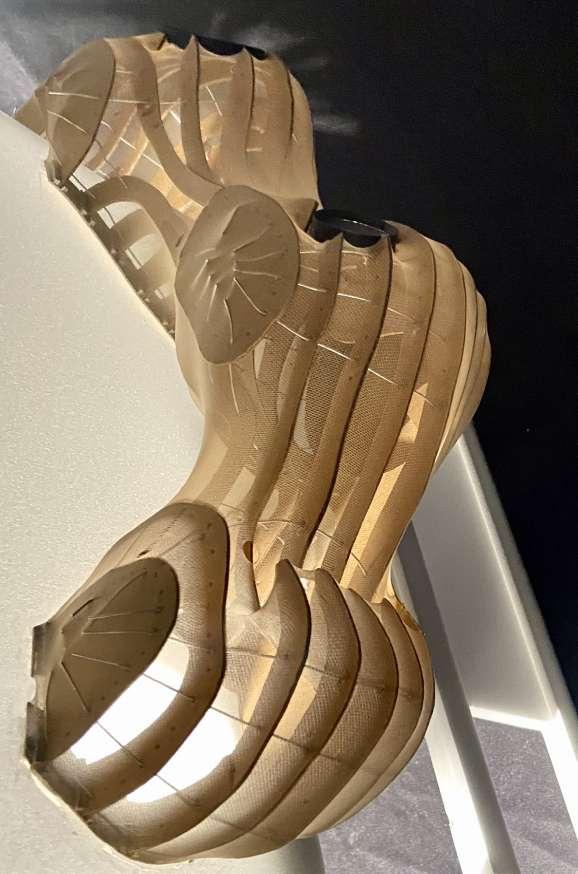

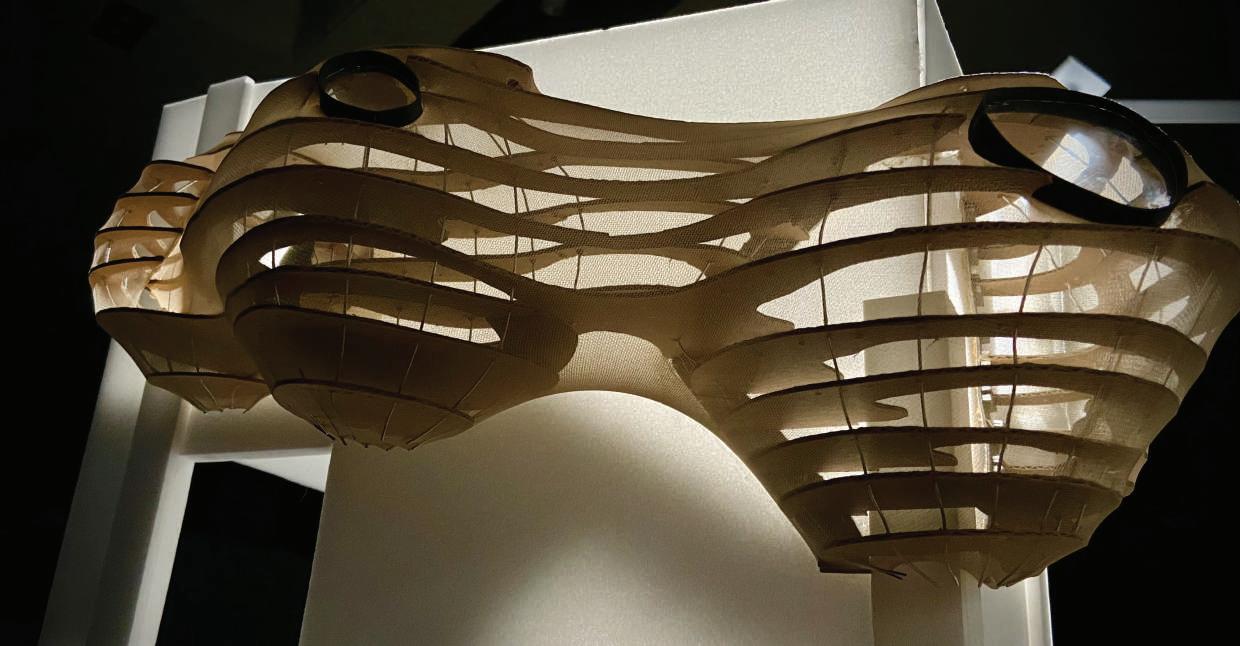

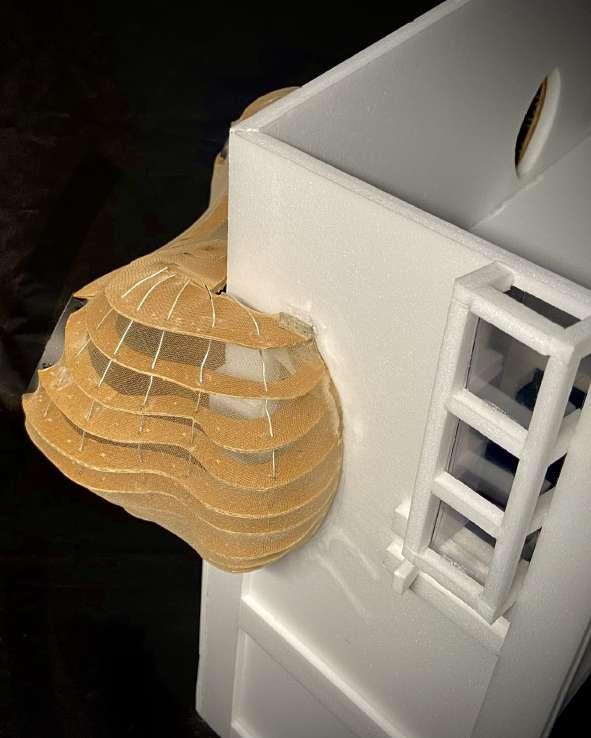

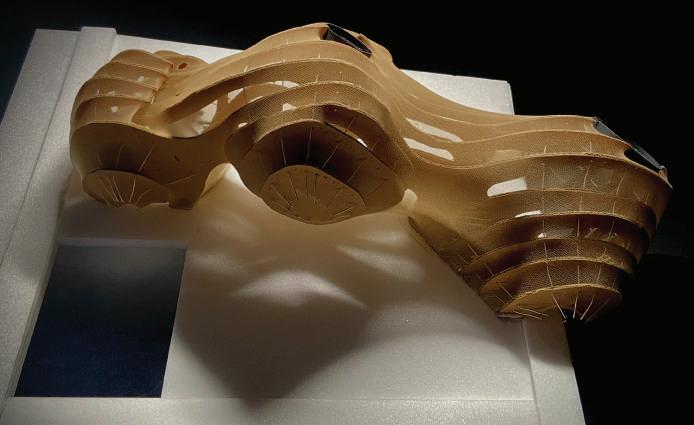

正模型照片 1/20

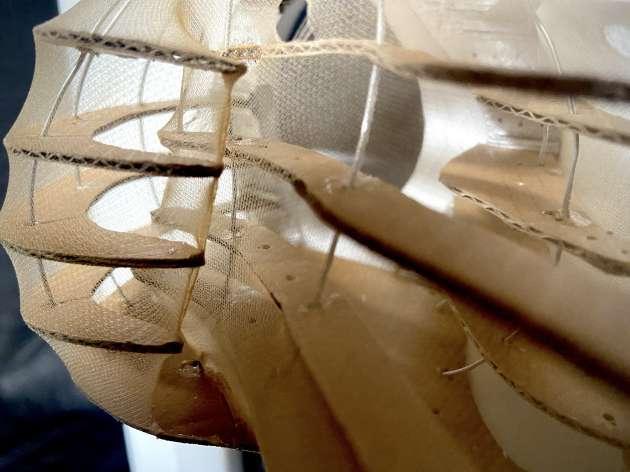

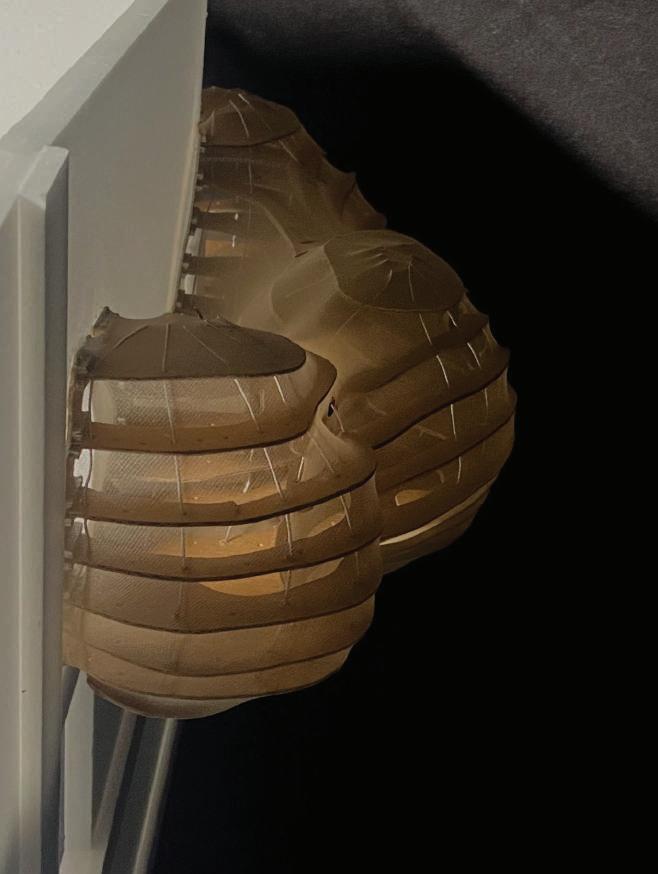

NIGHT MODE 夜間 模式

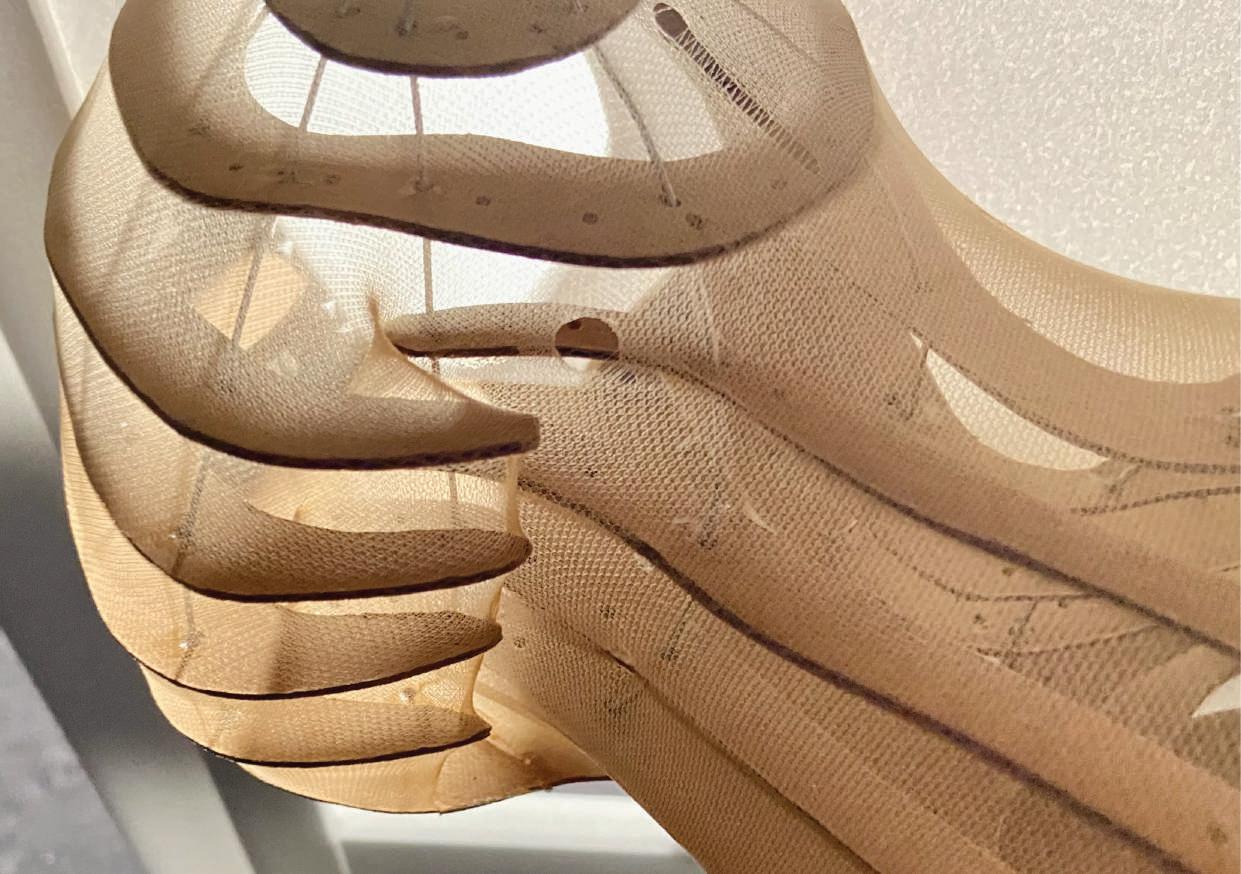

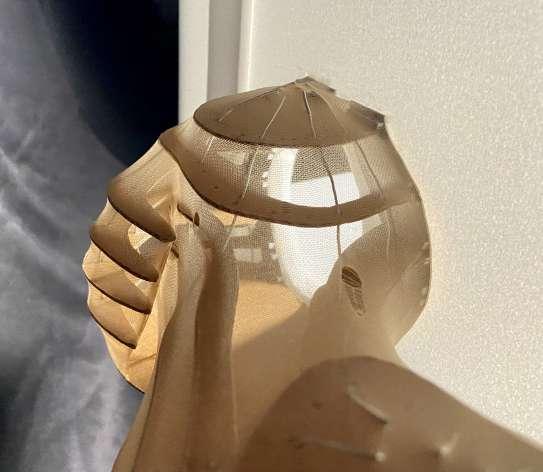

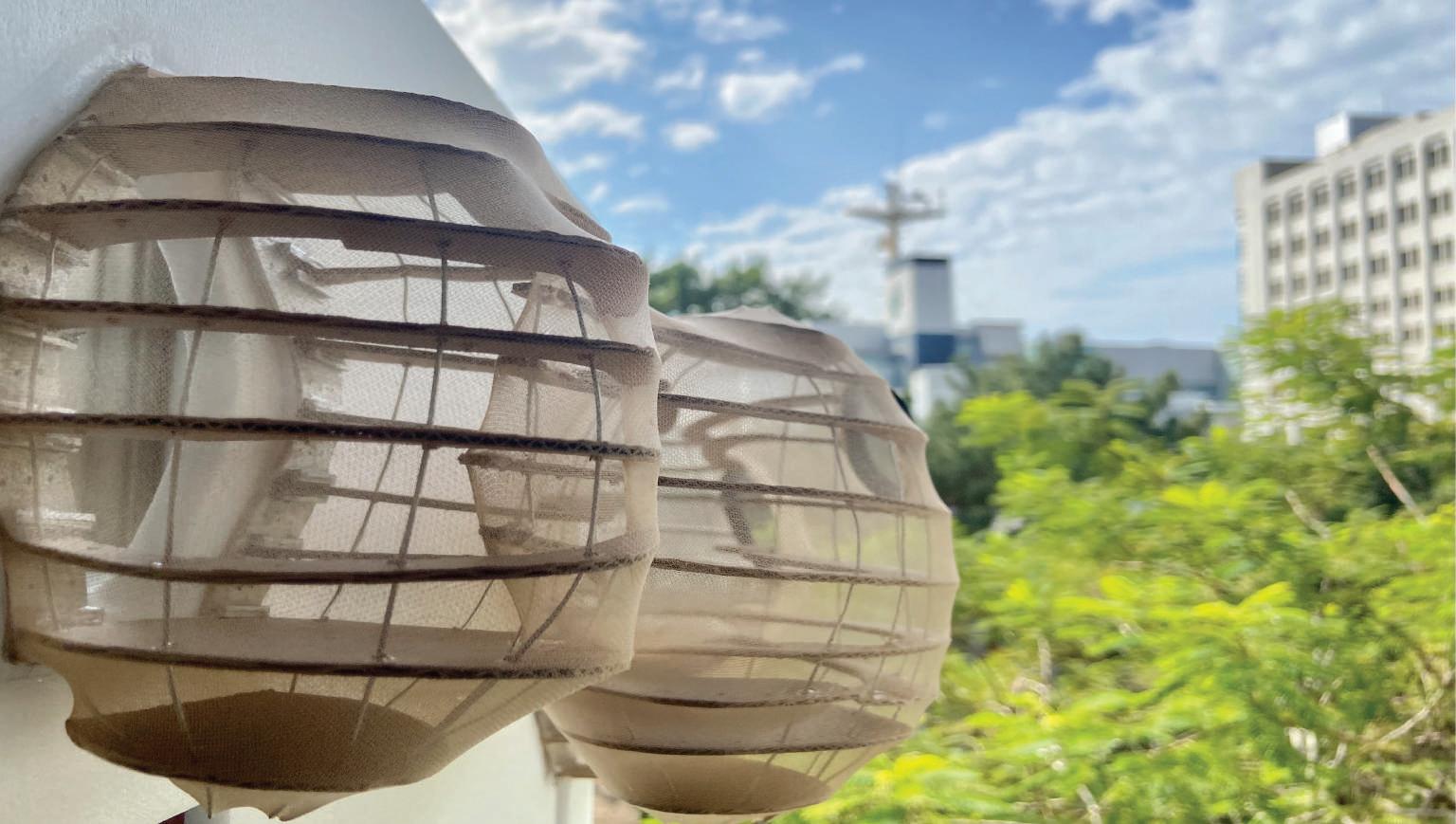

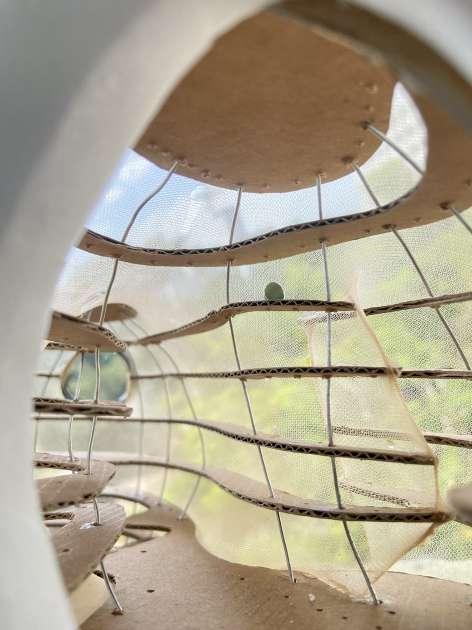

DAYLIGHT MODE 從入口到半戶外空間的景觀對應口腔內的感覺既不常開也不常閉
日光 模式
VIEW FROM ENTRANCE TO SEMI-OUDOOR SPACE CORRESPONDING TO THE FEELING INSIDE THE MOUTH WHICH IS NEITHER ALWAYS OPEN NOR CLOSED

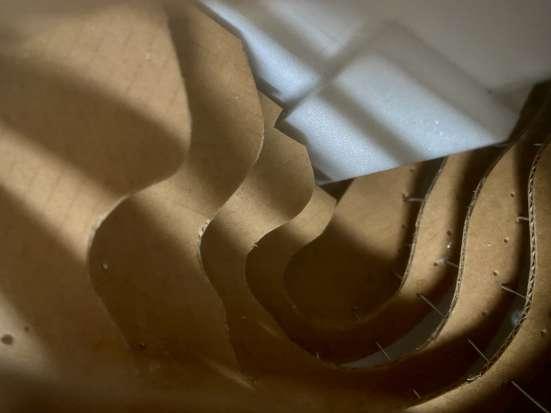

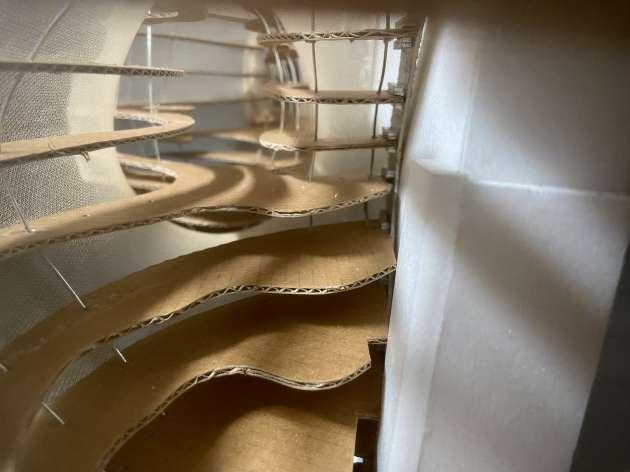

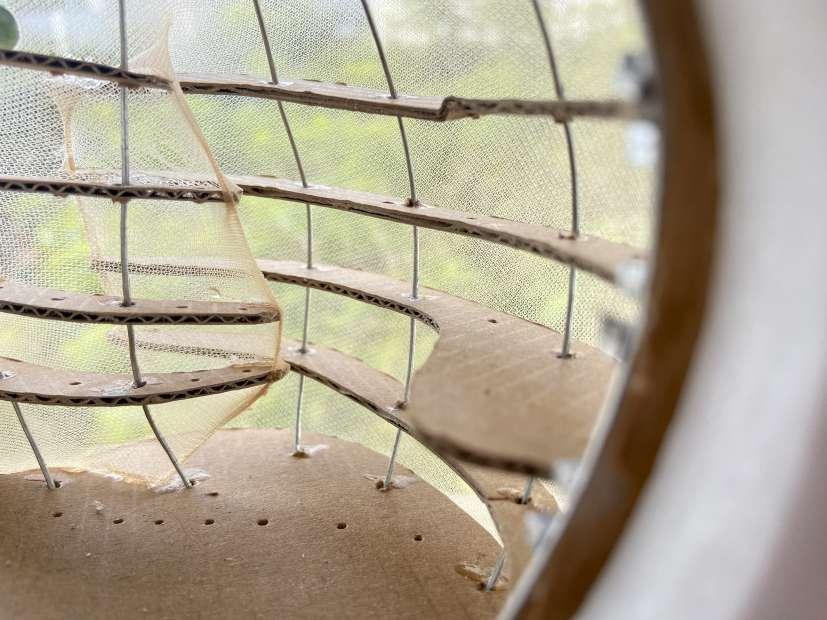

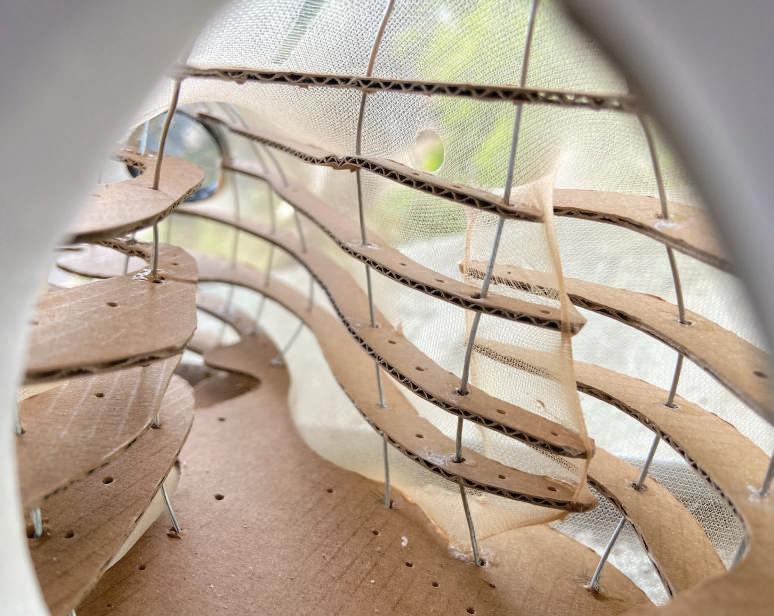

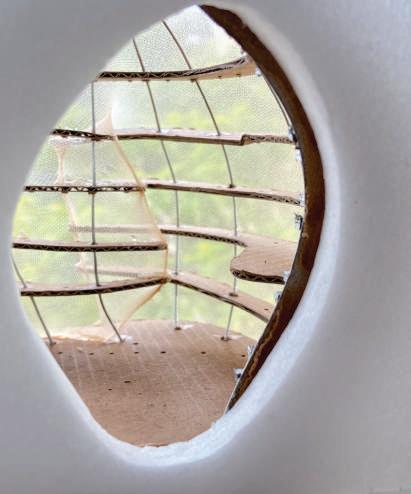

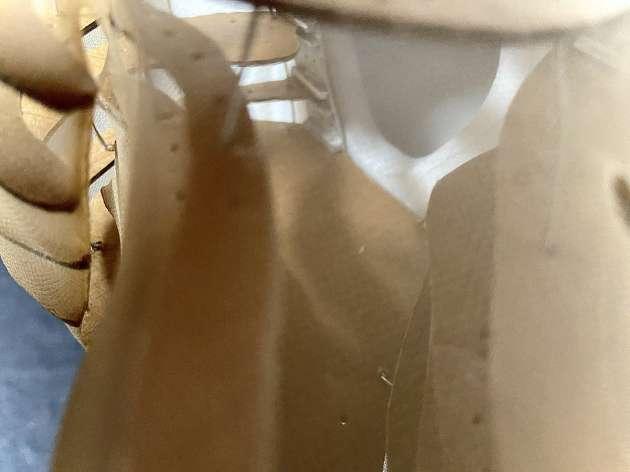

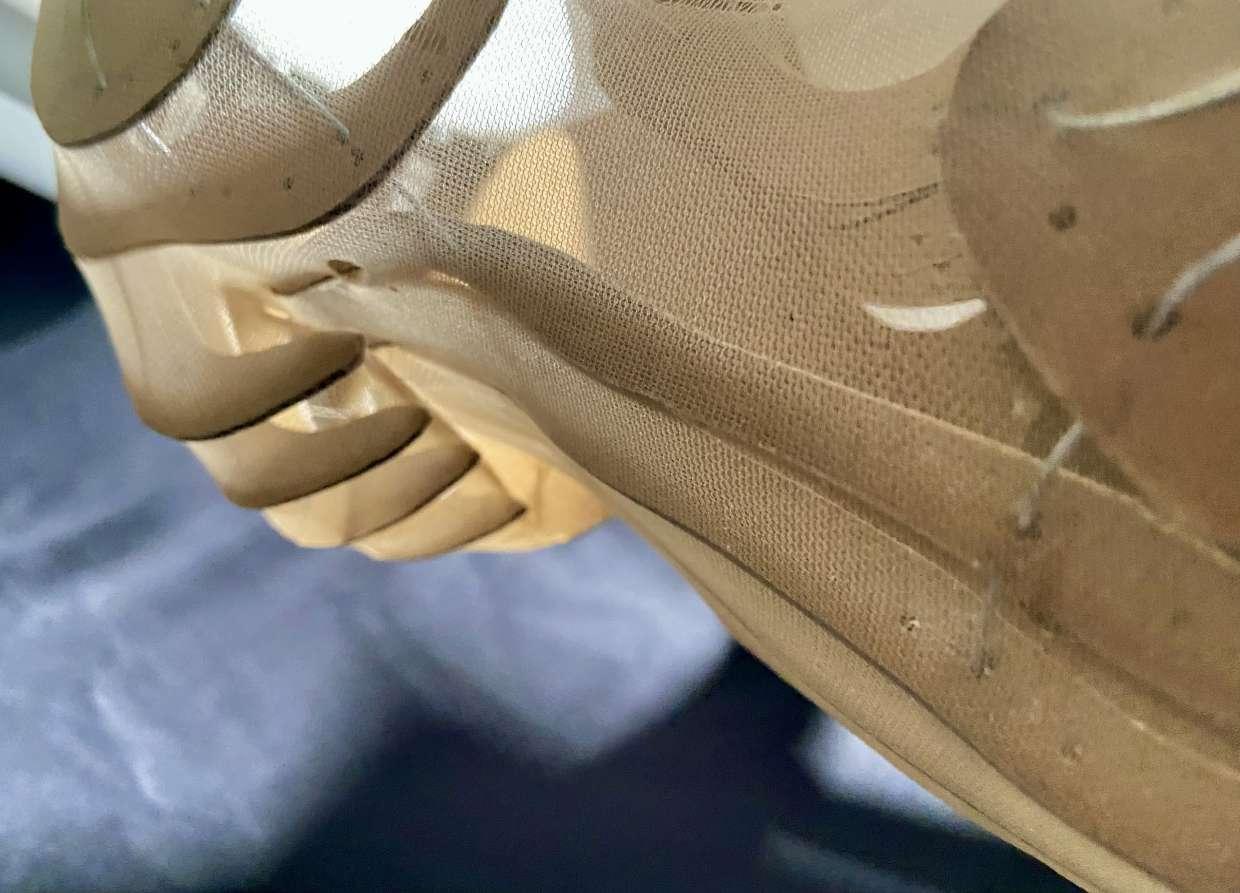

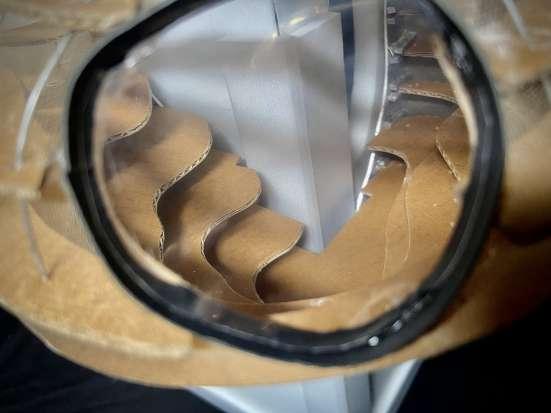

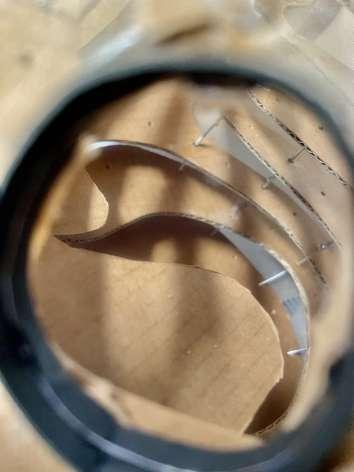

通過通道�看，狹窄的曲線感覺食物通過管道從一個器官傳到另一個器官 VIEW THROUGH PASSAGE, NARROW CURVY FEELING LIKE FOOD WHEN IT PASSES THROUGH TRACT FROM ORGAN TO ORGAN
