Start Screen

Start Screen

The Start Screen displays automatically upon startup of the Hydraulic User Interface Program. It provides basic information about the system such as the truck’s serial number (SN), the name of the application, the version (Ver) number of the interface program, and the corresponding part number (PN). See Figure 4.

The truck’s serial number is programmed into the hydraulic controller from the Read-Only Parameter (ROP) File. The serial number entered in the hydraulic controller can be changed by downloading another ROP file. When the truck serial number programmed in the ROP file does not match the truck’s initial truck serial number, the optional features are disabled and exclamation marks will display in place of the truck serial number in the box at the top of the screen.

Users can select the desired language before clicking on the Continue button to advance to the next screen.

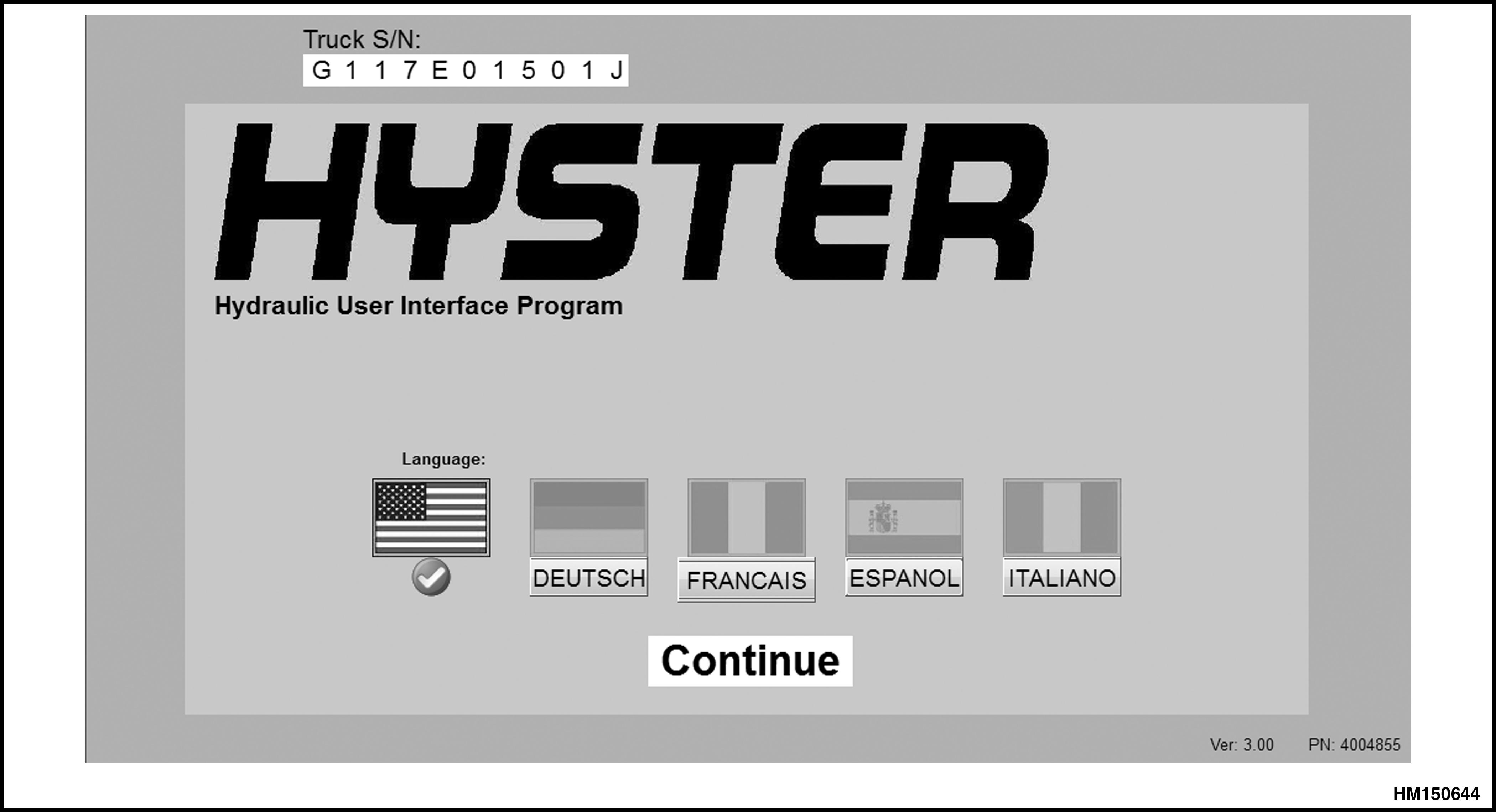

Figure 4. Start Screen
