Installed Features Screen

Installed Features Screen

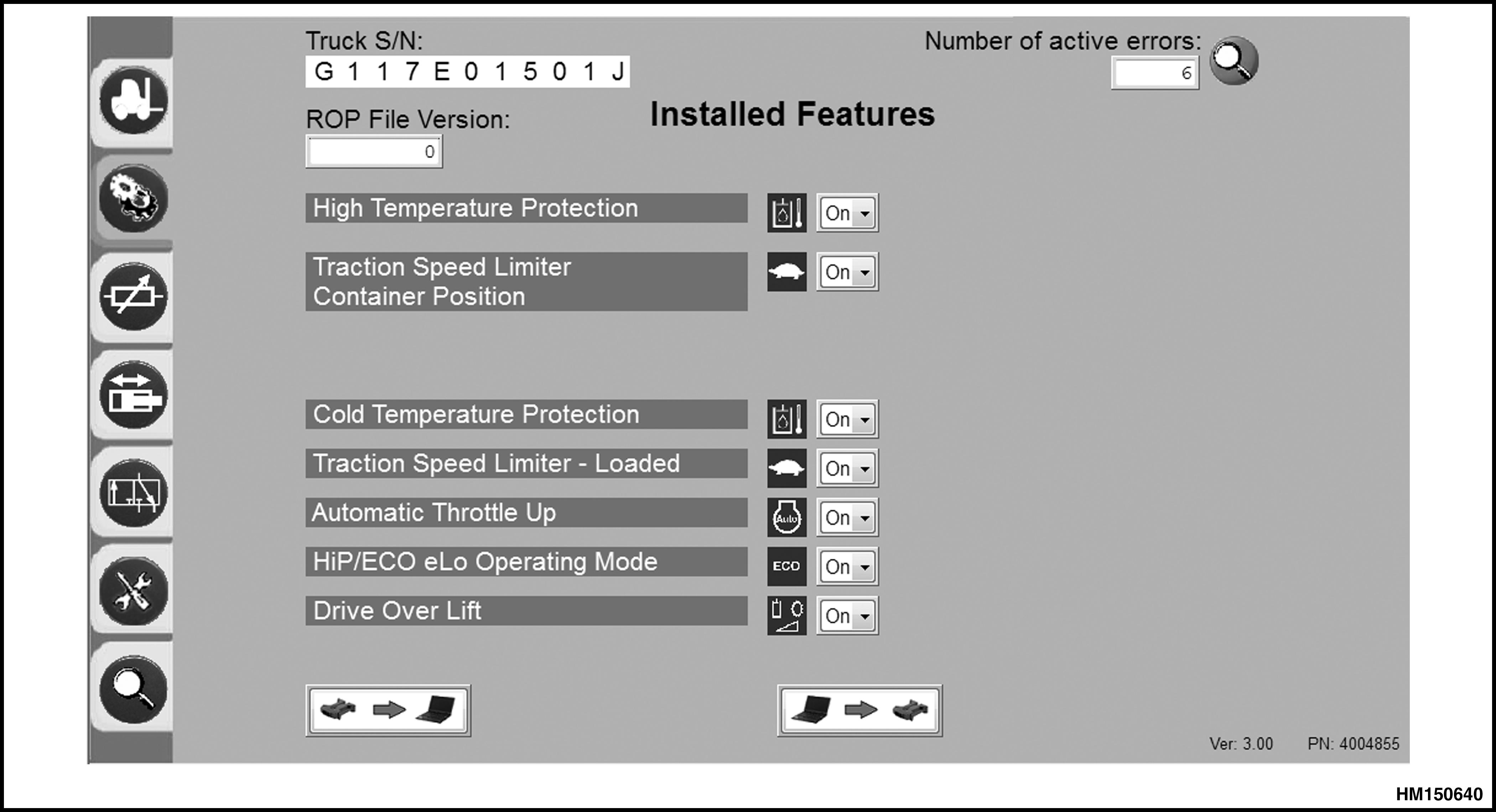

Figure 10. Installed Features Screen

NOTE: Users can only enable features that have been purchased. Features that are not part of the original truck configuration may be purchased via the service department.

The available features for the hydraulic controller software are enabled by a separately downloadable read-only parameter file that is specific to the truck serial number. The version number of the current read-only parameter file is displayed below the truck serial number. See Figure 10.

See the chapter Download Controller Software for more information.

The following optional features are listed at the top of the Installed Features screen. They can be adjusted at dealer level only: • High Temperature Protection • Traction Speed Limiter - Container Position (for G117 only) • Adjustable Loaded Vehicle Speed Reduction (for B917 only)

The standard features are listed below the optional features. Dealers can see what standard features are active/inactive but they need to ask the service department to change the settings. The standard installed features whose settings require a change from the service department are:

• Cold Temperature Protection • Automatic Throttle Up • Hip/Eco eLo Operating Mode • Drive Over Lift

Dealers must send a P1T-file to the service department in order to have settings changed. The service technician will then change the settings and send the adjusted P1T-file back to the dealer.

The following standard feature is adjustable at dealer/customer level:

• Traction Speed Limiter - Loaded

By clicking on the icon for a standard/optional feature, an accompanying subscreen is displayed. If a feature screen is accessed at the dealer/service department level, the values displayed will be readonly.
