Basic Screen Layout of the Hydraulic User Interface Program

Basic Screen Layout of the Hydraulic User Interface Program

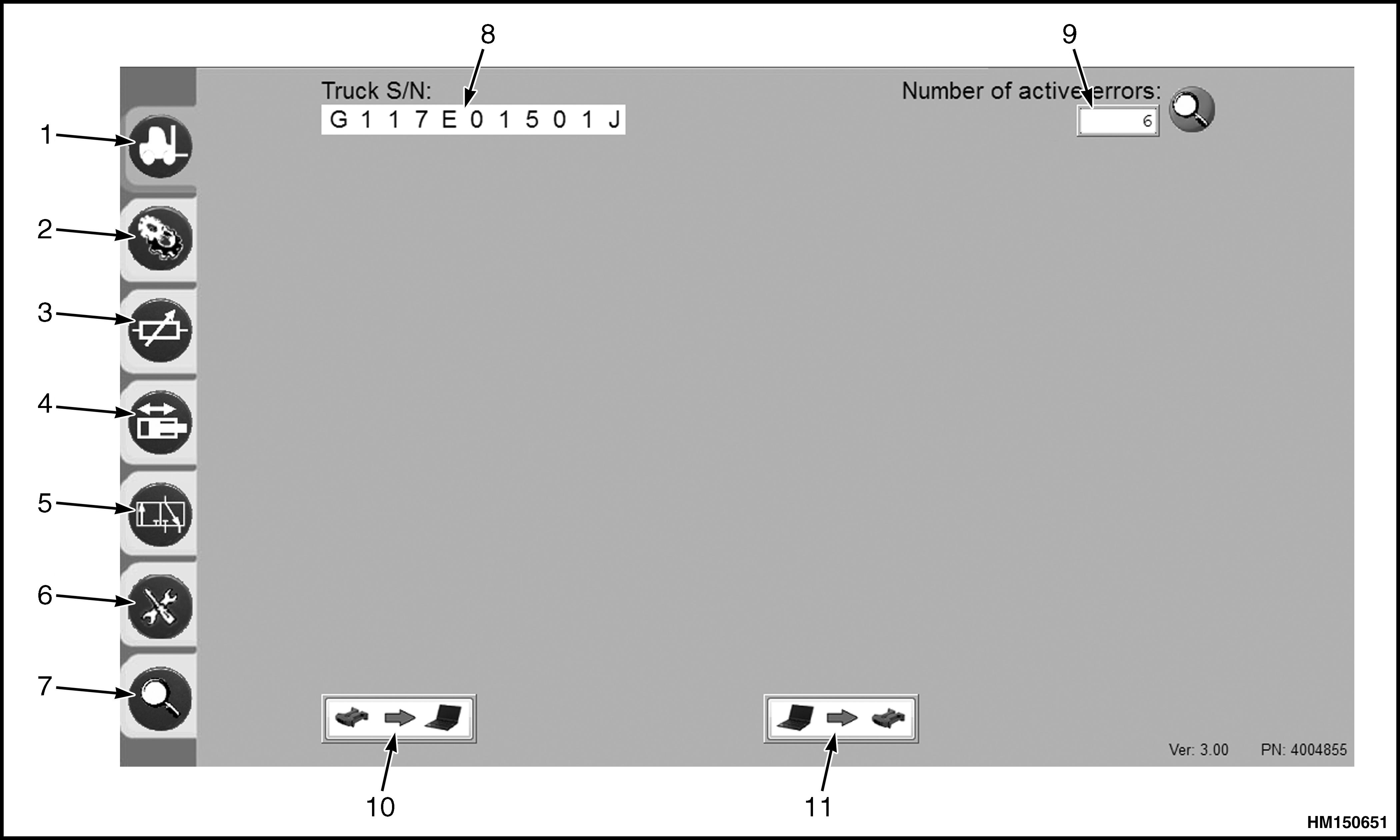

A list of screen icons appear along the left margin of each screen and when clicked on serve as shortcuts to other screens within the program. See Figure 6.

Following is a brief description of each of these screens:

1. Truck Configuration Screen

Contains all basic truck configuration settings and provides access to the All Parameters screen.

2. Installed Features Screen

Enables/disables available software-enabled options or standard features.

3. Calibration Screen

Calibrates the joystick/levers following replacement or failure, or after replacing a hydraulic controller. See also Calibration.

4. Flow Settings Screen

Adjusts flow demands for lifting/tilting and all auxiliary functions.

5. Valve Settings Screen

Displays the settings for the electric/hydraulic valves.

6. Diagnostic Screen

Displays the most common hydraulic controller signals and allows users to quickly identify problems or issues.

7. Active Errors Screen

Provides an overview of actual active errors and provides access to the error history screen.

8. Active Errors Indicator

Takes users to the Active Errors Screen. The box to the left of the icon displays the number of active errors.

9. Truck Serial Number

Displays the truck serial number that is programmed in the hydraulic controller.

10. Upload Parameters Button

Refreshes the parameters displayed on the active screen.

11. Download Parameters Button

Saves the parameters displayed on the active screen.

1. TRUCK CONFIGURATION SCREEN ICON 2. INSTALLED FEATURES SCREEN ICON 3. CALIBRATION SCREEN ICON 4. FLOW SETTINGS SCREEN ICON 5. VALVE SETTINGS SCREEN ICON 6. DIAGNOSTIC SCREEN ICON 7. ACTIVE ERROR SCREEN ICON 8. TRUCK SERIAL NUMBER 9. ACTIVE ERRORS INDICATOR 10. UPLOAD PARAMETERS BUTTON (REFRESH) 11. DOWNLOAD PARAMETERS BUTTON

Figure 6. Screen Layout
