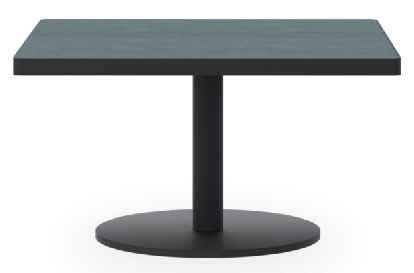

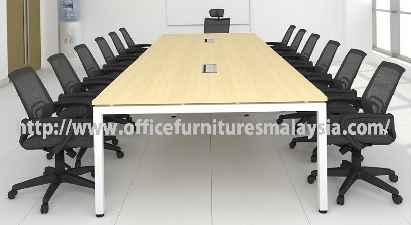

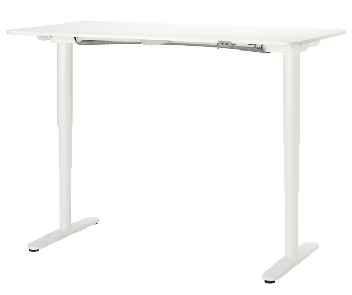

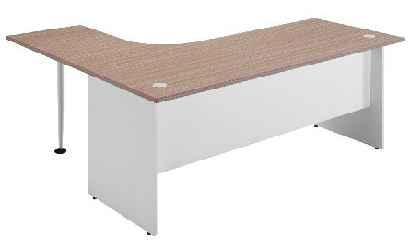

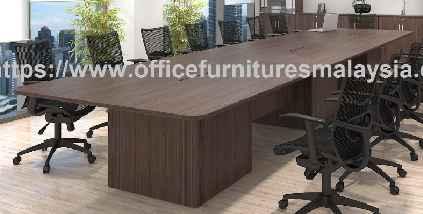

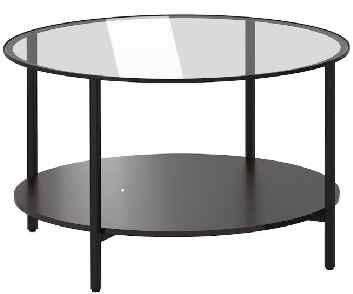

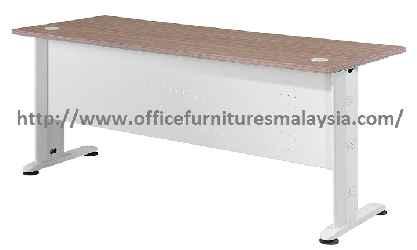

SCHEDULE OF FURNITURE

NOTE: THISDRAWINGISCOPYRIGHTDRAWING.THE AUTHORIZEDUSERISTOCHECKALLDIMENSIONSON SITE.ONLYFIGUREDDIMENSIONSARETOBEWORKED ON.DISCREPANCIESMUSTBEREPORTEDIMMEDIATELY TOPARTNERSHIPBEFOREPROCEEDING

184.FLOOR HEIGHT Applied UBBL requirement.

Floor height here are 2970mm

(1)In building other than those specified in the preceding provisions of by-laws 44 and 45 the height of rooms on the ground floor shall not be less than 3 metres and on any floor above the ground floor shall not be less than 2.75 metres.

184.SEATING Applied UBBL requirement.

Seating in AGORA Business Incubator has complied with the requirements. The spacing of rows of seats from back were 900 mm in the space and was able to meet the terms as stated due to its voluminous space of 989m^2.

MEASUREMENT OF TRAVEL DISTANCE TO EXITS. Applied UBBL requirement.

UBBL By Laws - section 165

(1)Initial travel distance before a point where an alternative path becomes available .

(2)2)Stipulates that travel distance must be measured along the path of trav

(3)Where an actual path of travel cannot be determined, the direct distance can be measured as a straight line direct to the exit. Permitted travel distance is then reduced to 2/3.

ARCHITECT: INTERIORDESIGN CONSULTANT: QUANTITYSURVEYOR: PROJECTNAME: PROPOSEDINTERIOR RENOVATIONWORK OFOFFICEFORVR SDN.BHD.

DRAWING TITLE:

DRAWNBY:CHEAHYUENTZE sch exits shall be marked readily visible signs and shall not be obscured by decorations, furnishings or other equipment.

(1)Fire alarms shall be provided in accordance with the Tenth Schedule to these By- Laws.

(2)All premises and buildings with gross floor area excluding car park and storage areas exceeding 9290 sq metres or exceeding 30.5 metres in height shall be provided with a two-stage alarm system with evacuation ( continuous signal) to be given immediately in the affected section of the premises while an alert ( intermittent signal ) be given in adjoining section.

(2) A sign reading "KELUAR" with an arrow indicating direction shall be placed in every location where direction of travel to reach the nearest exit immediately apparent.
