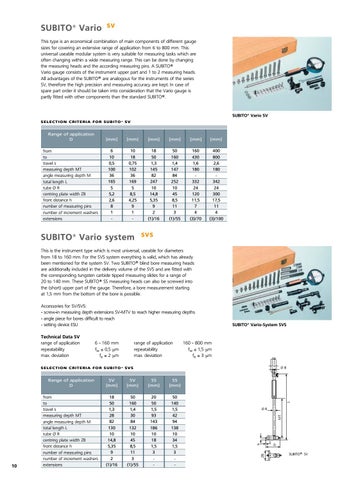

SUBITO ® Vario
SV
This type is an economical combination of main components of different gauge sizes for covering an extensive range of application from 6 to 800 mm. This universal useable modular system is very suitable for measuring tasks which are often changing within a wide measuring range. This can be done by changing the measuring heads and the according measuring pins. A SUBITO® Vario gauge consists of the instrument upper part and 1 to 2 measuring heads. All advantages of the SUBITO® are analogous for the instruments of the series SV, therefore the high precision and measuring accuracy are kept. In case of spare part order it should be taken into consideration that the Vario gauge is partly fitted with other components than the standard SUBITO®.
SUBITO® Vario SV SELECTION CRITERIA FOR SUBITO
®
SV
Range of application D
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
from to travel s measuring depth MT angle measuring depth M total length L tube Ø R centring plate width ZB front distance h number of measuring pins number of increment washers extensions
6 10 0,5 100 36 165 5 5,2 2,6 8 1 -
10 18 0,75 102 36 169 5 8,5 4,25 9 1 -
18 50 1,3 145 82 247 10 14,8 5,35 9 2 (1)/16
50 160 1,4 147 84 252 10 45 8,5 11 3 (1)/55
160 430 1,6 180 332 24 120 11,5 7 4 (3)/70
400 800 2,6 180 342 24 300 17,5 11 4 (3)/100
SUBITO ® Vario system
SVS
This is the instrument type which is most universal, useable for diameters from 18 to 160 mm. For the SVS system everything is valid, which has already been mentioned for the system SV. Two SUBITO® blind bore measuring heads are additionally included in the delivery volume of the SVS and are fitted with the corresponding tungsten carbide tipped measuring slides for a range of 20 to 140 mm. These SUBITO® SS measuring heads can also be screwed into the (short) upper part of the gauge. Therefore, a bore measurement starting at 1,5 mm from the bottom of the bore is possible. Accessories for SV/SVS: - screw-in measuring depth extensions SV-MTV to reach higher measuring depths - angle piece for bores difficult to reach - setting device ESU Technical Data SV range of application 6 - 160 mm repeatability fw ≤ 0,5 μm max. deviation fe ≤ 2 μm
SUBITO® Vario-System SVS
range of application 160 - 800 mm repeatability fw ≤ 1,5 μm max. deviation fe ≤ 3 μm Ø8
10
SS [mm]
SS [mm]
from to travel s measuring depth MT angle measuring depth M total length L tube Ø R centring plate width ZB front distance h number of measuring pins number of increment washers extensions
18 50 1,3 28 82 130 10 14,8 5,35 9 2 (1)/16
50 160 1,4 30 84 132 10 45 8,5 11 3 (1)/55
20 50 1,5 93 143 186 10 18 1,5 3 -
50 140 1,5 42 94 138 10 34 1,5 3 -
ØR MT
SV [mm]
s
h
SV [mm]
ZB
Range of application D
L
SELECTION CRITERIA FOR SUBITO® SVS
D SUBITO® SV
