IIC-90

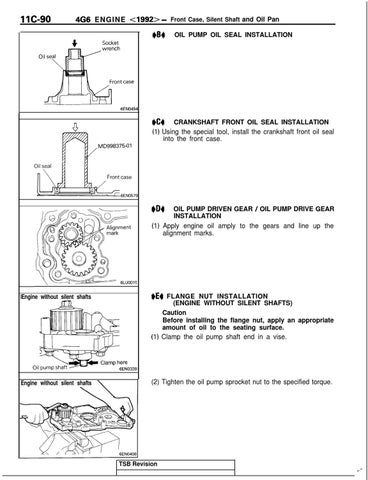

4G6 ENGINE <1992> - Front Case, Silent Shaft and Oil Pan I)64
OIL PUMP OIL SEAL INSTALLATION
6EN0494I 6EN0494
CRANKSHAFT FRONT OIL SEAL INSTALLATION I)c4 (1) Using the special tool, install the crankshaft front oil seal into the front case.
I)D4
OIL PUMP DRIVEN GEAR / OIL PUMP DRIVE GEAR INSTALLATION
(I) Apply engine oil amply to the gears and line up the alignment marks.
+E4
FLANGE NUT INSTALLATION (ENGINE WITHOUT SILENT SHAFTS) Caution Before installing the flange nut, apply an appropriate amount of oil to the seating surface. (I) Clamp the oil pump shaft end in a vise.
IEngine without silent shafts ml
6EN033Y
Engine without silent shafts \ \
(2) Tighten the oil pump sprocket nut to the specified torque.
TSB Revision
