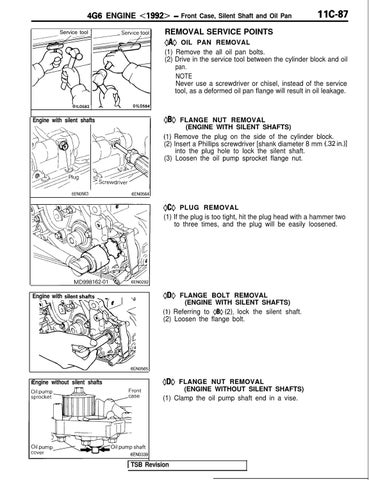

4G6 ENGINE <1992> - Front Case, Silent Shaft and Oil Pan
1 IC-87
REMOVAL SERVICE POINTS aA OIL PAN REMOVAL
Service tool :
(1) Remove the all oil pan bolts. (2) Drive in the service tool between the cylinder block and oil pan. NOTE Never use a screwdriver or chisel, instead of the service tool, as a deformed oil pan flange will result in oil leakage. OlLO583
OlLO584
(IBI) FLANGE NUT REMOVAL
Engine with silent shafts
(ENGINE WITH SILENT SHAFTS) (1) Remove the plug on the side of the cylinder block. (2) Insert a Phillips screwdriver [shank diameter 8 mm (.32 in.)] into the plug hole to lock the silent shaft. (3) Loosen the oil pump sprocket flange nut.
6EN0563 1
6EN05641
@) PLUG REMOVAL (1) If the plug is too tight, hit the plug head with a hammer two to three times, and the plug will be easily loosened.
~DI) FLANGE BOLT REMOVAL
Engine with sile
(ENGINE WITH SILENT SHAFTS) (1) Referring to ~BIJ (2). lock the silent shaft. (2) Loosen the flange bolt.
Engine without silent shafts
I
ODo FLANGE NUT REMOVAL (ENGINE WITHOUT SILENT SHAFTS) (1) Clamp the oil pump shaft end in a vise.
6EN0339
