IIC-8

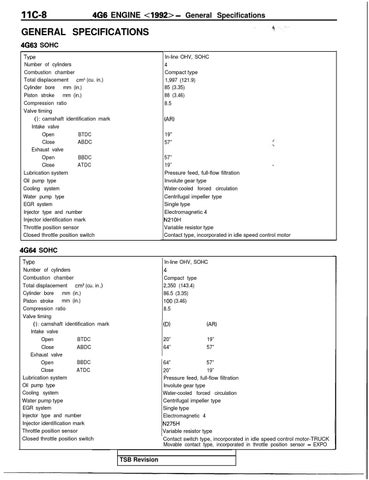

-4G6 ENGINE <1992> - General Specifications
GENERAL SPECIFICATIONS 4G63 SOHC Type
In-line OHV, SOHC 4 Compact type 1,997 (121.9) 85 (3.35) 88 (3.46) 8.5
Number of cylinders Combustion chamber Total displacement cm3 (cu. in.) Cylinder bore mm (in.) Piston stroke mm (in.) Compression ratio Valve timing ( ): camshaft identification mark Intake valve Open BTDC ABDC Close Exhaust valve Open BBDC Close ATDC Lubrication system Oil pump type Cooling system Water pump type EGR system Injector type and number Injector identification mark Throttle position sensor Closed throttle position switch
(AR) 19" 57” 57” 1 19” Pressure feed, full-flow filtration Involute gear type Water-cooled forced circulation Centrifugal impeller type Single type Electromagnetic 4 N210H Variable resistor type Contact type, incorporated in idle speed control motor
4664 SOHC 1 In-line OHV, SOHC
Type
14
Number of cylinders Combustion chamber Total displacement cm3 (cu. in .I mm (in.) Cylinder bore mm (in.) Piston stroke Compression ratio Valve timing ( ): camshaft identification mark Intake valve Open BTDC Close ABDC Exhaust valve BBDC Open ATDC Close Lubrication system Oil pump type Cooling system Water pump type EGR system Injector type and number Injector identification mark Throttle position sensor Closed throttle position switch
Compact type 2,350 (143.4) 86.5 (3.35) 100 (3.46) 8.5
0)
(AR)
20” 64”
19” 57”
64” 57” 19” 20” Pressure feed, full-flow filtration Involute gear type Water-cooled forced circulation Centrifugal impeller type Single type Electromagnetic 4 N275H Variable resistor type Contact switch type, incorporated in idle speed control motor-TRUCK Movable contact type, incorporated in throttle position sensor - EXPO
TSB Revision
