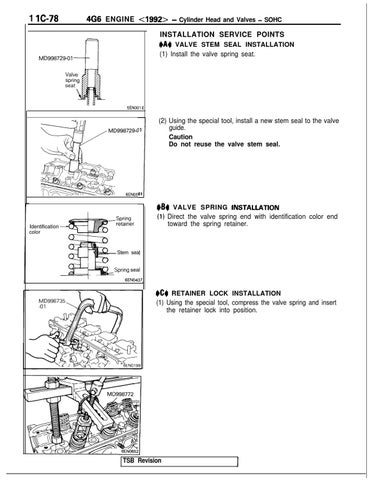

466 ENGINE <1992> - Cylinder Head and Valves - SOHC INSTALLATION SERVICE POINTS I)A4 VALVE STEM SEAL INSTALLATION
MD998729-01
(1) Install the valve spring seat. 4-l
5ENOOl E
1
(2) Using the special tool, install a new stem seal to the valve guide. Caution Do not reuse the valve stem seal.
61 ;
I)& VALVE SPRING INSTALlATlON (I) Direct the valve spring end with identification color end toward the spring retainer.
Identification color
Stem seal ) LSpring seal I
6EN043i I A
I)c4 RETAINER LOCK INSTALLATION (1) Using the special tool, compress the valve spring and insert the retainer lock into position.
