11 c-50
4G6 ENGINE <1992> - Throttle Body

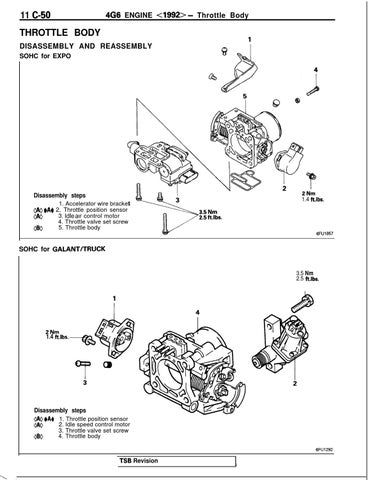

THROTTLE BODY DISASSEMBLY AND REASSEMBLY SOHC for EXPO
Disassembly steps 1. Accelerator wire bracket @8 *A4 2. Throttle position sensor 3. Idle air control motor 4. Throttle valve set screw 5. Throttle body OBO
1.4 ft.lbs.
6FU1657
SOHC for GALANT/TRUCK
3.5 Nm 2.5 ft.lbs.
2Nm 1.4 ft.lbs.
Disassembly steps $@ *A4 1. Throttle position sensor 2. Idle speed control motor 3. Throttle valve set screw 4. Throttle body (30 6FU1292
TSB Revision
