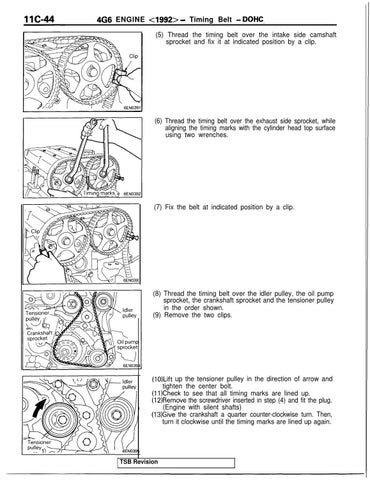

4G6 ENGINE <1992> - Timing Belt - DOHC. (5) Thread the timing belt over the intake side camshaft sprocket and fix it at indicated position by a clip.
(6) Thread the timing belt over the exhaust side sprocket, while aligning the timing marks with the cylinder head top surface using two wrenches.
(7) Fix the belt at indicated position by a clip.
(8) Thread the timing belt over the idler pulley, the oil pump sprocket, the crankshaft sprocket and the tensioner pulley in the order shown. (9) Remove the two clips.
(1O)Lift up the tensioner pulley in the direction of arrow and tighten the center bolt. (IlKheck to see that all timing marks are lined up. (12)Remove the screwdriver inserted in step (4) and fit the plug. (Engine with silent shafts) (13)Give the crankshaft a quarter counter-clockwise turn. Then, turn it clockwise until the timing marks are lined up again.
