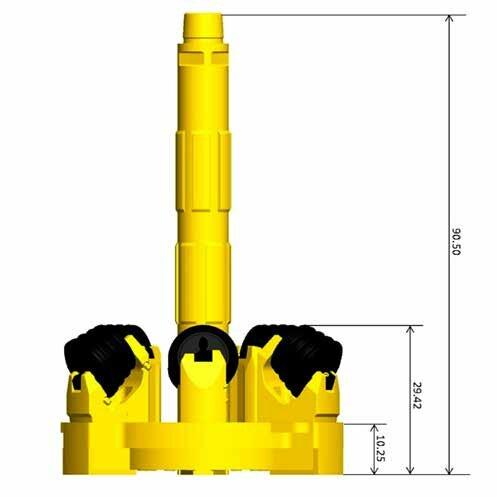

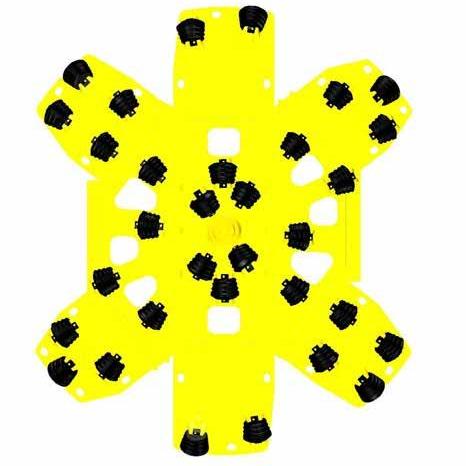

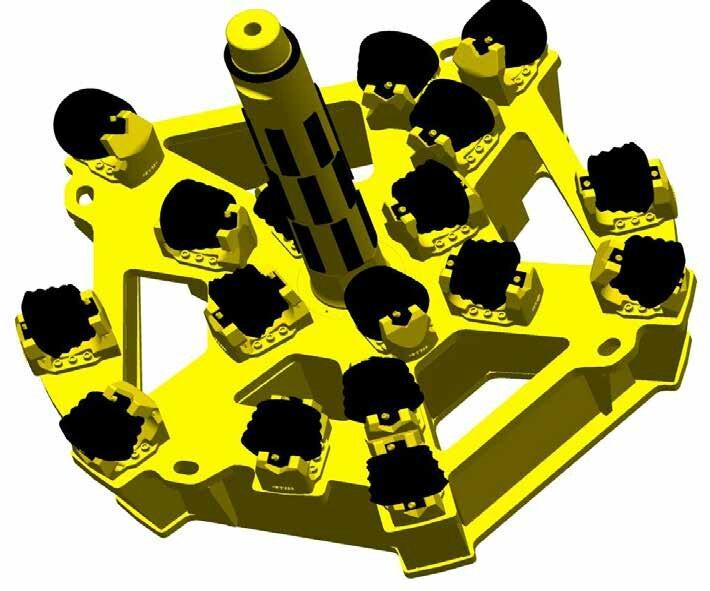

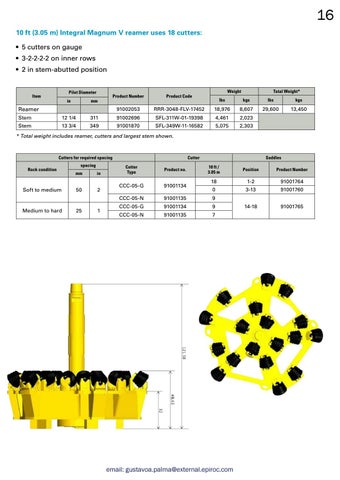

16 10 ft (3.05 m) Integral Magnum V reamer uses 18 cutters:
• 5 cutters on gauge
• 3-2-2-2-2 on inner rows
• 2 in stem-abutted position Pilot Diameter
Item
in
mm
Reamer
Product Number
Product Code
91002053
Weight
Total Weight*
lbs
kgs
lbs
kgs
RRR-3048-FLV-17452
18,976
8,607
29,600
13,450
Stem
12 1/4
311
91002696
SFL-311W-01-19398
4,461
2,023
Stem
13 3/4
349
91001870
SFL-349W-11-16582
5,075
2,303
* Total weight includes reamer, cutters and largest stem shown.
Cutters for required spacing Rock condition
Soft to medium
Medium to hard
spacing mm
50
25
in
2
1
Cutter
Saddles
Cutter Type
Product no.
CCC-05-G
91001134
CCC-05-N
91001135
9
CCC-05-G
91001134
9
CCC-05-N
91001135
7
10 ft / 3.05 m
Position
Product Number
18
1-2
91001764
0
3-13
91001760
14-18
91001765
