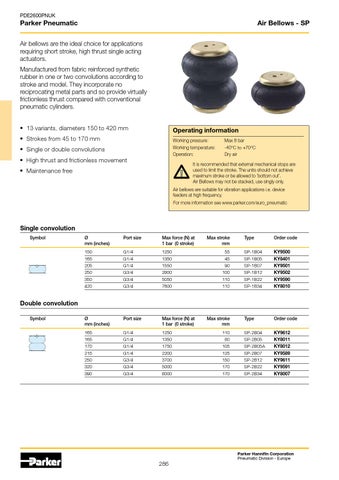

PDE2600PNUK
Air Bellows - SP
Parker Pneumatic Air bellows are the ideal choice for applications requiring short stroke, high thrust single acting actuators. Manufactured from fabric reinforced synthetic rubber in one or two convolutions according to stroke and model. They incorporate no reciprocating metal parts and so provide virtually frictionless thrust compared with conventional pneumatic cylinders. • 13 variants, diameters 150 to 420 mm
Operating information
• Strokes from 45 to 170 mm • Single or double convolutions • High thrust and frictionless movement
Working pressure: Working temperature:
Max 8 bar -40OC to +70OC
Operation:
Dry air
It is recommended that external mechanical stops are used to limit the stroke. The units should not achieve maximum stroke or be allowed to ’bottom out’. Air Bellows may not be stacked, use singly only.
• Maintenance free
Air bellows are suitable for vibration applications i.e. device feeders at high frequency. For more information see www.parker.com/euro_pneumatic
Single convolution Symbol
Ø Port size mm (inches)
Max force (N) at 1 bar (0 stroke)
150 165 205 250
G1/4 G1/4 G1/4 G3/4
1250 1350 1550 2800
350 420
G3/4 G3/4
5050 7600
Max stroke mm
Type
Order code
55 45 90 100
SP-1B04 SP-1B05 SP-1B07 SP-1B12
KY9500 KY8401 KY9501 KY9502
110 110
SP-1B22 SP-1B34
KY9590 KY8010
Type
Order code
Double convolution Symbol
Ø Port size mm (inches)
Max force (N) at 1 bar (0 stroke)
165 165
G1/4 G1/4
1250 1350
110 80
SP-2B04 SP-2B05
KY9612 KY8011
170 215 250 320
G1/4 G1/4 G3/4 G3/4
1750 2200 3700 5000
105 125 150 170
SP-2B05A SP-2B07 SP-2B12 SP-2B22
KY8012 KY9589 KY9611 KY9591
390
G3/4
8000
170
SP-2B34
KY8007
286
Max stroke mm
Parker Hannifin Corporation Pneumatic Division - Europe
