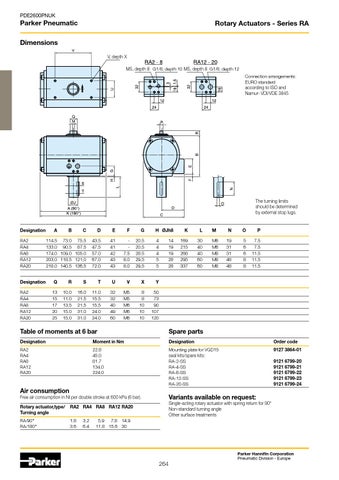

PDE2600PNUK
Parker Pneumatic
Rotary Actuators - Series RA
Dimensions V, depth X M5, depth 8 G1/8, depth 10 M5, depth 8 G1/8, depth 12 Connection arrangements: EURO standard according to ISO and Namur- VDI/VDE 3845
The turning limits should be determined by external stop lugs.
Designation RA2 RA4 RA8 RA12 RA20
A
B
C
D
E
F
G
114,5 133,0 174,0 203,0 218,0
73,0 90,5 109,0 118,5 140,5
75,5 87,5 105,0 121,0 136,5
43,5 47,5 57,0 67,0 72,0
41 41 42 43 43
- - 7,5 8,0 8,0
20,5 20,5 28,5 29,5 29,5
Designation RA2 RA4 RA8 RA12 RA20
H ØJh8 4 4 4 5 5
Q
R
S
T
U
V
X
Y
13 15 17 20 25
10,0 11,0 13,5 15,0 15,0
16,0 21,5 21,5 31,0 31,0
11,0 15,5 15,5 24,0 24,0
32 32 40 49 60
M5 M5 M6 M6 M6
8 8 10 10 10
50 73 90 107 120
14 19 19 28 28
K
L
M
N
169 215 268 295 337
30 40 40 60 60
M6 M6 M8 M8 M8
19 31 31 48 48
O
P
5 7,5 6 7,5 6 11,5 8 11,5 8 11,5
Table of moments at 6 bar
Spare parts
Designation
Moment in Nm
Designation
Order code
RA2 RA4 RA8 RA12 RA20
22,8 45,0 81,7 134,0 224,0
Mounting plate for VGD15 seal kits/spare kits: RA-2-SS RA-4-SS RA-8-SS RA-12-SS RA-20-SS
9127 3864-01
9121 6799-20 9121 6799-21 9121 6799-22 9121 6799-23 9121 6799-24
Air consumption
Variants available on request:
Free air consumption in Nl per double stroke at 600 kPa (6 bar).
Single-acting rotary actuator with spring return for 90° Non-standard turning angle Other surface treatments
Rotary actuator,type/ RA2 RA4 RA8 RA12 RA20 Turning angle RA/90° RA/180°
1,8 3,6
3,2 6,4
5,9 7,8 14,9 11,8 15,6 30
264
