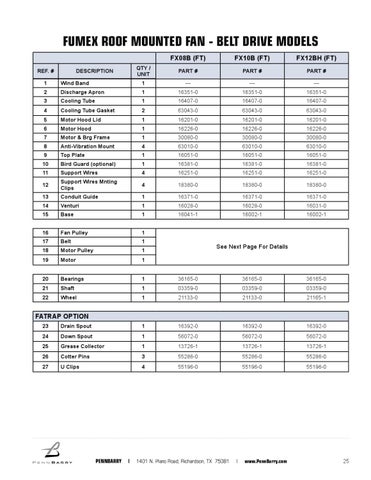

FUMEX ROOF MOUNTED FAN - BELT DRIVE MODELS REF. #
QTY / UNIT
DESCRIPTION
FX08B (FT)
FX10B (FT)
FX12BH (FT)
PART #
PART #
PART #
1
Wind Band
1
—
—
—
2
Discharge Apron
1
16351-0
16351-0
16351-0
3
Cooling Tube
1
16407-0
16407-0
16407-0
4
Cooling Tube Gasket
2
63043-0
63043-0
63043-0
5
Motor Hood Lid
1
16201-0
16201-0
16201-0
6
Motor Hood
1
16226-0
16226-0
16226-0
7
Motor & Brg Frame
1
30080-0
30080-0
30080-0
8
Anti-Vibration Mount
4
63010-0
63010-0
63010-0
9
Top Plate
1
16051-0
16051-0
16051-0
10
Bird Guard (optional)
1
16381-0
16381-0
16381-0
11
Support Wires
4
16251-0
16251-0
16251-0
12
Support Wires Mnting Clips
4
18380-0
18380-0
18380-0
13
Conduit Guide
1
16371-0
16371-0
16371-0
14
Venturi
1
16028-0
16028-0
16031-0
15
Base
1
16041-1
16002-1
16002-1
16
Fan Pulley
1
17
Belt
1
18
Motor Pulley
1
19
Motor
1
20
Bearings
1
36165-0
36165-0
36165-0
21
Shaft
1
03359-0
03359-0
03359-0
22
Wheel
1
21133-0
21133-0
21165-1
See Next Page For Details
FATRAP OPTION 23
Drain Spout
1
16392-0
16392-0
16392-0
24
Down Spout
1
56072-0
56072-0
56072-0
25
Grease Collector
1
13726-1
13726-1
13726-1
26
Cotter Pins
3
55286-0
55286-0
55286-0
27
U Clips
4
55196-0
55196-0
55196-0
PENNBARRY
|
1401 N. Plano Road; Richardson, TX 75081
|
www.PennBarry.com
25
