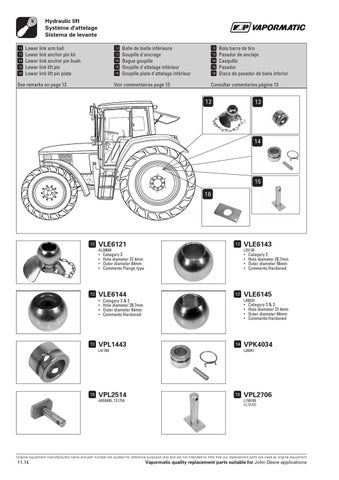

Hydraulic lift Système d'attelage Sistema de levante
link arm ball L Lower Lower anchor pin kit M Lower link anchor pin bush N Lower link lift pin O Lower link P link lift pin plate
de bielle inférieure L Balle Goupille d'ancrage M Bague goupille N Goupille d'attelage inférieur O Goupille plate d'attelage inférieur P
barra de tiro L Bola Pasador M Casquillode anclaje N Pasador O Disco de pasador de biela inferior P
See remarks on page 13
Voir commentaires page 13
Consultar comentarios página 13
L VLE6121
L VLE6143
L VLE6144
L VLE6145
M VPL1443
N VPK4034
O VPL2514
O VPL2706
AL38668
• • • •
• • • •
Category 3 Hole diameter 37.4mm Outer diameter 64mm Comments Flange type
Category 3 & 2 Hole diameter 28.7mm Outer diameter 64mm Comments Hardened
L41788
AR55695, T21759
L35138
• • • •
Category 2 Hole diameter 28.7mm Outer diameter 56mm Comments Hardened
L40829
• • • •
Category 3 & 3 Hole diameter 37.4mm Outer diameter 64mm Comments Hardened
L26941
L158185 AL78785
Original equipment manufacturers name and part number are quoted for reference purposes only and are not intended to infer that our replacement parts are used as original equipment
11.14
Vapormatic quality replacement parts suitable for John Deere applications
