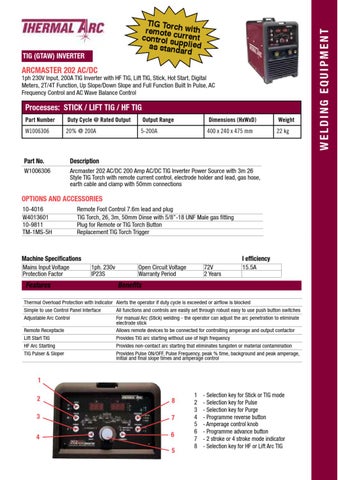

TIG (GTAW) INVERTER
ARCMASTER 202 AC/DC
1ph 230V Input, 200A TIG Inverter with HF TIG, Lift TIG, Stick, Hot Start, Digital Meters, 2T/4T Function, Up Slope/Down Slope and Full Function Built In Pulse, AC Frequency Control and AC Wave Balance Control
Processes: STICK / LIFT TIG / HF TIG Part Number
Duty Cycle @ Rated Output
Output Range
Dimensions (HxWxD)
Weight
W1006306
20% @ 200A
5-200A
400 x 240 x 475 mm
22 kg
Part No.
Description
W1006306
Arcmaster 202 AC/DC 200 Amp AC/DC TIG Inverter Power Source with 3m 26 Style TIG Torch with remote current control, electrode holder and lead, gas hose, earth cable and clamp with 50mm connections
List Price ÂŁ 1,575.00
OPTIONS AND ACCESSORIES 10-4016 W4013601 10-9811 TM-1MS-5H
Remote Foot Control 7.6m lead and plug TIG Torch, 26, 3m, 50mm Dinse with 5/8�-18 UNF Male gas fitting Plug for Remote or TIG Torch Button Replacement TIG Torch Trigger
Machine Specifications Mains Input Voltage Protection Factor
Features
1ph. 230v IP23S
Open Circuit Voltage Warranty Period
72V 2 Years
312.90 150.20 26.78 13.25
I efficiency 15.5A
Benefits
Thermal Overload Protection with Indicator Alerts the operator if duty cycle is exceeded or airflow is blocked Simple to use Control Panel Interface All functions and controls are easily set through robust easy to use push button switches Adjustable Arc Control For manual Arc (Stick) welding - the operator can adjust the arc penetration to eliminate electrode stick Remote Receptacle Allows remote devices to be connected for controlling amperage and output contactor Lift Start TIG Provides TIG arc starting without use of high frequency HF Arc Starting Provides non-contact arc starting that eliminates tungsten or material contamination TIG Pulser & Sloper Provides Pulse ON/OFF, Pulse Frequency, peak % time, background and peak amperage, initial and final slope times and amperage control
1 2
8
3
7
4
6 5
1 2 3 4 5 6 7 8
- Selection key for Stick or TIG mode - Selection key for Pulse - Selection key for Purge - Programme reverse button - Amperage control knob - Programme advance button - 2 stroke or 4 stroke mode indicator - Selection key for HF or Lift Arc TIG
WELDING EQUIPMENT
TIG To remotercch with control s urrent as stanudpplied ard
