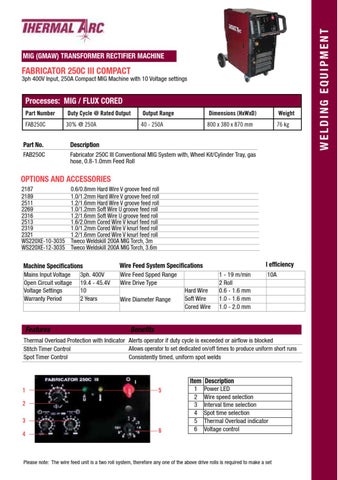

FABRICATOR 250C III COMPACT
3ph 400V Input, 250A Compact MIG Machine with 10 Voltage settings
Processes: MIG / FLUX CORED Part Number
Duty Cycle @ Rated Output
Output Range
Dimensions (HxWxD)
Weight
FAB250C
30% @ 250A
40 - 250A
800 x 380 x 870 mm
76 kg
Part No.
Description
FAB250C
Fabricator 250C III Conventional MIG System with, Wheel Kit/Cylinder Tray, gas hose, 0.8-1.0mm Feed Roll
List Price ÂŁ 1,470.00
OPTIONS AND ACCESSORIES 2187 2189 2511 2269 2316 2513 2319 2321 WS220XE-10-3035 WS220XE-12-3035
0.6/0.8mm Hard Wire V groove feed roll 1.0/1.2mm Hard Wire V groove feed roll 1.2/1.6mm Hard Wire V groove feed roll 1.0/1.2mm Soft Wire U groove feed roll 1.2/1.6mm Soft Wire U groove feed roll 1.6/2.0mm Cored Wire V knurl feed roll 1.0/1.2mm Cored Wire V knurl feed roll 1.2/1.6mm Cored Wire V knurl feed roll Tweco Weldskill 200A MIG Torch, 3m Tweco Weldskill 200A MIG Torch, 3.6m
Machine Specifications Mains Input Voltage 3ph. 400V Open Circuit voltage 19.4 - 45.4V Voltage Settings 10 Warranty Period 2 Years
Features
38.38 38.38 38.38 38.38 38.38 38.38 38.38 38.38 99.06 105.74
Wire Feed System Specifications Wire Feed Spped Range Wire Drive Type Hard Wire Soft Wire Wire Diameter Range Cored Wire
I efficiency 1 - 19 m/min 2 Roll 0.6 - 1.6 mm 1.0 - 1.6 mm 1.0 - 2.0 mm
10A
Benefits
Thermal Overload Protection with Indicator Alerts operator if duty cycle is exceeded or airflow is blocked Allows operator to set dedicated on/off times to produce uniform short runs Stitch Timer Control Spot Timer Control Consistently timed, uniform spot welds
1
5
2 3 4
6
Item 1 2 3 4 5 6
Description Power LED Wire speed selection Interval time selection Spot time selection Thermal Overload indicator Voltage control
Please note: The wire feed unit is a two roll system, therefore any one of the above drive rolls is required to make a set
WELDING EQUIPMENT
MIG (GMAW) TRANSFORMER RECTIFIER MACHINE
