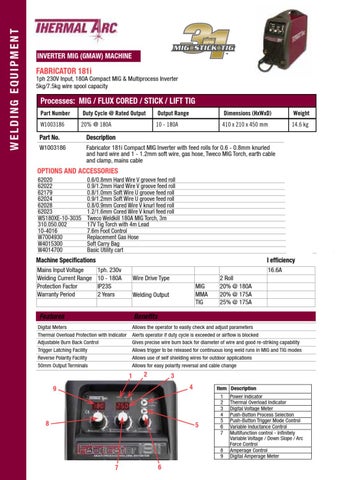

WELDING EQUIPMENT
INVERTER MIG (GMAW) MACHINE
FABRICATOR 181i
1ph 230V Input, 180A Compact MIG & Multiprocess Inverter 5kg/7.5kg wire spool capacity
Processes: MIG / FLUX CORED / STICK / LIFT TIG Part Number
Duty Cycle @ Rated Output
Output Range
Dimensions (HxWxD)
Weight
W1003186
20% @ 180A
10 - 180A
410 x 210 x 450 mm
14.6 kg
Part No.
Description
W1003186
Fabricator 181i Compact MIG Inverter with feed rolls for 0.6 - 0.8mm knurled and hard wire and 1 - 1.2mm soft wire, gas hose, Tweco MIG Torch, earth cable and clamp, mains cable
List Price ÂŁ 977.00
OPTIONS AND ACCESSORIES 62020 62022 62179 62024 62028 62023 WS180XE-10-3035 310.050.002 10-4016 W7004930 W4015300 W4014700
0.6/0.8mm Hard Wire V groove feed roll 0.9/1.2mm Hard Wire V groove feed roll 0.8/1.0mm Soft Wire U groove feed roll 0.9/1.2mm Soft Wire U groove feed roll 0.8/0.9mm Cored Wire V knurl feed roll 1.2/1.6mm Cored Wire V knurl feed roll Tweco Weldkill 180A MIG Torch, 3m 17V Tig Torch with 4m Lead 7.6m Foot Control Replacement Gas Hose Soft Carry Bag Basic Utility cart
29.88 29.88 29.88 29.88 29.88 29.88 90.15 121.09 312.90 20.88 50.40 326.00
I efficiency
Machine Specifications Mains Input Voltage 1ph. 230v Welding Current Range 10 - 180A Protection Factor IP23S Warranty Period 2 Years
16.6A Wire Drive Type MIG MMA TIG
Welding Output
2 Roll 20% @ 180A 20% @ 175A 25% @ 175A
Features
Benefits
Digital Meters Thermal Overload Protection with Indicator Adjustable Burn Back Control Trigger Latching Facility Reverse Polarity Facility 50mm Output Terminals
Allows the operator to easily check and adjust parameters Alerts operator if duty cycle is exceeded or airflow is blocked Gives precise wire burn back for diameter of wire and good re-striking capability Allows trigger to be released for continuous long weld runs in MIG and TIG modes Allows use of self shielding wires for outdoor applications Allows for easy polarity reversal and cable change
1
2
3 4
9
8
5
Item 1 2 3 4 5 6 7 8 9
7
6
Description Power Indicator Thermal Overload Indicator Digital Voltage Meter Push-Button Process Selection Push-Button Trigger Mode Control Variable Inductance Control Multifunction control - Infinitely Variable Voltage / Down Slope / Arc Force Control Amperage Control Digital Amperage Meter
