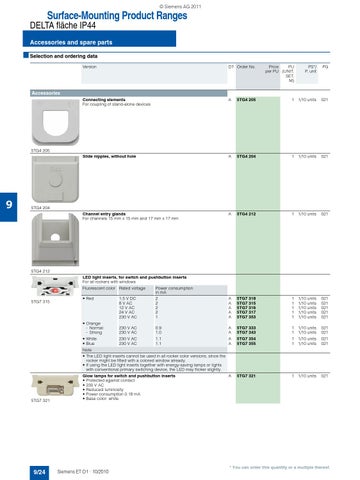

Surface-Mounting Product Ranges DELTA fläche IP44 Accessories and spare parts
■ Selection and ordering data Version
DT Order No.
Connecting elements For coupling of stand-alone devices
A
Slide nipples, without hole
Channel entry glands For channels 15 mm x 15 mm and 17 mm x 17 mm
Price PU per PU (UNIT, SET, M)
PS*/ P. unit
PG
5TG4 205
1 1/10 units
021
A
5TG4 204
1 1/10 units
021
A
5TG4 212
1 1/10 units
021
1.5 V DC 8 V AC 12 V AC 24 V AC 230 V AC
Power consumption in mA 2 2 2 2 1
A A A A A
5TG7 318 5TG7 315 5TG7 316 5TG7 317 5TG7 353
1 1 1 1 1
1/10 units 1/10 units 1/10 units 1/10 units 1/10 units
021 021 021 021 021
• Orange - Normal - Strong
230 V AC 230 V AC
0.9 1.0
A A
5TG7 333 5TG7 343
1 1/10 units 1 1/10 units
021 021
• White • Blue
230 V AC 230 V AC
1.1 1.1
A A
5TG7 354 5TG7 355
1 1/10 units 1 1/10 units
021 021
A
5TG7 321
1 1/10 units
021
Accessories
5TG4 205
9
5TG4 204
5TG4 212 LED light inserts, for switch and pushbutton inserts For all rockers with windows Fluorescent color Rated voltage 5TG7 315
• Red
Note • The LED light inserts cannot be used in all rocker color versions, since the rocker might be fitted with a colored window already. • If using the LED light inserts together with energy-saving lamps or lights with conventional primary switching device, the LED may flicker slightly.
5TG7 321
Glow lamps for switch and pushbutton inserts • Protected against contact • 230 V AC • Reduced luminosity • Power consumption 0.18 mA • Base color: white
* You can order this quantity or a multiple thereof.
9/24
